OWNER’S MANUAL

LeMond® RevMaster Pro™

Visit our website at

www.HOISTFitness.com

HOIST Fitness Systems, Inc.

11900 Community Road

Poway, CA 92064

Telephone (+1) 858.578.7676

Fax: (+1) 858.578.9558

CONGRATULATIONS!

CONGRATULATIONS

You have just become a valued HOIST Fitness customer. Our team is committed to making your cycling experience fun and rewarding — oering you detailed product information, expert tness advice, and direct customer support you can depend on. I want to thank-you for purchasing an exciting LeMond

RevMaster indoor group cycle.

This RevMaster Owner’s Manual will help you get the most enjoyment from your new indoor group cycle. It not only explains all the important features and safety considerations of the RevMaster, it also includes great workout tips and exercise principles. If at any time you have questions about this information, please call us at (858) 578-7676 and we will be happy to help you. To help us answer your questions quickly, we recommend that you have the serial number of your bike ready when you call us. The serial number of your bike is located on the back side of the belt cover.

The RevMaster has been tested by some of America’s most famous cyclists. Greg LeMond is the force behind the inspiration and design of this remarkable indoor bike. Greg’s story is one of courage and heroic accomplishment. In 1986, Greg became the rst American to win the longest and most physically demanding event in the world — the Tour de France. Only nine months later in April of 1987, he narrowly escaped death when he was accidentally shot in a hunting accident. During a long and painful rehabilitation, he set a goal that many considered inconceivable: to once again win the Tour de France. In 1989, he achieved that goal, and then proved it was no mere stroke of luck by winning the Tour a third time in 1990.

A legendary athlete, Greg introduced many cycling innovations during his racing career. Just as aero bars are now commonplace, the RevMaster is the new standard in indoor group cycles. The

RevMaster combines Greg’s passion for cycling with exceptional product innovation. Built to deliver

an incredible workout, every component of the RevMaster has been designed to be more innovative, more user friendly and more comfortable than any other indoor group cycle you have ridden. Whether you are a beginning tness enthusiast or a highly conditioned athlete, you will immediately feel the difference.

Greater Comfort

4-way handlebar & seat adjustability allows you to properly t your bike ranging from the upright • position to a low, stretched out setup ideal for triathletes.

Narrower crank design replicates the geometry of a road bike for greater comfort.•

Interchangeable seat options allow you to tailor the seat to your personal preference. •

Finally, its attractiveness and small footprint allows you to position the home for maximum enjoyment; and you’ll also enjoy how quiet a RevMaster workout is. All together, you will quickly discover that the RevMaster gives you a better cycling experience than any other indoor group cycle.

RevMaster anywhere in your

FEATURES

Next generation X frame design — Excellent stability, and 350 lb. user load•

New bottom bracket cartridge — Fast, simple assembly and service•

New fender with integrated brake assembly — Keeps sweat o the ywheel and is easy to •

remove for service

Increased adjustment range — Better t for improved comfort•

Improved corrosion resistance — New electroless nickel plating is stronger and more durable •

than other nishes

New post clamps — Quicker and easier vertical adjustment of the seat and handlebar•

Standard pedal thread — Accepts most standard cycling pedals•

Faster assembly — Most components are pre-assembled•

No calibration required — Just hop on & ride•

Exclusive Features

4-way micro adjustability for both seat & handlebars put you in the “sweet zone” for muscular •

participation; allowing you to involve more muscles for better workouts.

The •

RevMaster is so smooth and comfortable you can work out much longer than you ever

imagined.

FEATURES

Please review the rest of this Owner’s Manual carefully before you start using your new The information enclosed here will help you get the most enjoyment out of your workout and includes valuable operating, service, safety, and trouble-shooting information, as well as guidelines for an eective exercise program.

We are condent that you will love your new RevMaster. From Greg and the whole HOIST Fitness team, we wish you a lifetime of good rides and great workouts.

RevMaster.

TABLE OF CONTENTS

WARRANTY .................................................................. 6

SAFETY GUIDELINES

ASSEMBLY AND INSTALLATION INSTRUCTIONS

GUIDELINES FOR SAFE OPERATION

OPERATING INSTRUCTIONS

GENERAL EXERCISE GUIDELINES

MAINTENANCE INSTRUCTIONS

TROUBLESHOOTING

SPECIFICATIONS

......................................................... 7

......................................... 13

................................................. 14

............................................. 17

............................................. 19

....................................................... 21

........................................................... 23

.............................. 9

EXERCISE LOGS ........................................................... 25

WARRANTY

This is to certify that the LeMond® RevMaster™ exercise bike is warranted by HOIST Fitness Systems Inc. to be free of all defects in materials and workmanship. This warranty does not apply to any defect caused by negligence, misuse, accident, alteration, improper maintenance, or an “act of God.”

The LeMond RevMaster Product Warranty assumes that the recommended service guidelines have been followed by the customer, and covers the following:

Parts:

Frame - 5 years•

Cranks, ywheel, handlebar, handlebar post, seat post - 3 years•

Bottom bracket cartridge assembly, pillow block bearings, tension assembly -2 years•

Pedals - 1 year•

Seat, grip, handles, pedal straps, and brake pad - 90 days•

Labor: - 90 days following customer installation

Contact our Customer Service Department to report any problems. When calling, please be prepared to provide the customer service representative with the following information:

Your name, customer number, shipping address, and telephone number•

The serial number(s) of the inoperable bike(s)•

The date(s) of purchase for the inoperable bike(s)•

Your billing address•

This information will ensure that you are the only one ordering parts under your warranty protection. If warranty replacement parts are shipped to you, you may be required to return the inoperable part. To facilitate this process, the following policy has been established:

Please call our Customer Service Department (858-578-7676) to receive a return goods authori-

•

zation prior to shipment.

HOIST Fitness will incur all ground freight charges for warranty parts ordered for a machine

•

that is less than 90 days old.

You are responsible for freight charges on warranty parts for machines that are more than 90

•

days old. (You will not be responsible for the freight charges for any returned inoperable parts.)

If an inoperable warranty parts must be returned to our Customer Service Department, we will

•

pay the shipping cost and provide detailed return shipping instructions. These instructions will be sent along with your warranty replacement part.

HOIST Fitness Systems Inc. neither makes, assumes nor authorizes any representative or other person to make or assume for us, any other warranty whatsoever, whether expressed or implied, in connection with the sale, service, or shipment of our products. We reserve the right to make changes and improve- ments in our products without incurring any obligation to similarly alter products previously pur- chased. In order to maintain your product warranty and to ensure the safe and ecient operation of your machine, only authorized replacement parts can be used. This warranty is void if parts other than those provided by HOIST Fitness are used.

SAFETY GUIDELINES

IMPORTANT SAFETY INSTRUCTIONS

This symbol appearing throughout this manual means:

Attention! Be Alert! Your safety is involved.

The following denition applies to the word “WARNING” found throughout this manual:

WARNING

Used to call attention to POTENTIAL hazards that could result in personal injury or loss of life.

READ ALL INSTRUCTIONS BEFORE USING THIS EXERCISE EQUIPMENT.

The RevMaster indoor group cycle is intended for cardiovascular tness training and may be used 1.

in group or individual settings. Use this equipment only for its intended use as described in this manual. Do not attempt to ride this bike at high pedal speeds or in a standing position until you have practiced and are comfortable riding at slower pedal speeds.

This unit is NOT equipped with a freewheel system. If the ywheel is in motion, the pedals will be in

2. motion. Do not attempt to stop the unit by applying reverse pressure to the pedals as knee injury may occur. Do not attempt to remove your feet from the pedals while they are in motion as serious injury may occur from the spinning pedals.

Wait for the ywheel to coast to a stop. If you want to quickly stop the ywheel, apply rm down-

3. ward pressure to the brake knob. Do not attempt to dismount the RevMaster unless the pedals and the ywheel are at a complete stop.

Injury or death may occur from improper use or over-training. Consult a medical doctor or qualied

4. tness instructor to determine an exercise program appropriate to your level of tness.

Never attempt to turn the pedal crank arms by hand. Do not expose ANY part of your body or cloth-

5. ing to the drive mechanism as possible injury could occur..

In commercial settings, the RevMaster should always be used in a supervised environment with

6. qualied instructors.

In a home setting, keep unsupervised children away from the unit when not in use. Keep children

7. and pets away from the unit while in use.

Do not perform push-up type movements on the handlebars.

Never drop or insert any object into any opening on the exercise equipment.9.

Only use the unit on a stable, level oor.10.

SAFETY GUIDELINES

Follow the instructions for safe use of the equipment including proper seat position, handlebar 11. position, and use of the foot positioning system of the pedals. Never adjust the handlebars past the minimum safe insertion depth marked with the word “STOP”.

For safe operation, allow for at least 1foot (30cm) of free space to either side of the unit and 2 feet

12. (60cm) of free space to the rear of the unit.

DO NOT attempt to make fore or aft handlebar or seat adjustments while sitting or standing on the

13. bike.

Users, agents, and anyone

14. directing the use of this equipment shall be responsible for determining the suitability of the product for its intended use as outlined in this manual, including regular maintenance tasks. Said parties are put on notice that they assume all risk and liability in connection herewith.

Rider capacity of the RevMaster is 350lb (159.1 kg).

15.

The safety level of this equipment can only be maintained by following the guidelines in this manual and examining the equipment regularly for damage and wear. Damaged or inoperable components should be replaced immediately and the equipment should not be used until it is repaired.

Failure to follow all guidelines above may compromise your exercise experience, expose you and others to injury, and reduce the longevity of the equipment.

SAVE THESE INSTRUCTIONS

Your Serial Number:

____________________________________________________________________________________

Your HOIST Fitness:

Dealer: _____________________________________________________________________________

Phone: _____________________________________________________________________________

Your comments and suggestions are welcome.

Congratulations, and thank you for buying the RevMaster.

Seat

Assembly

Adjustment

Lever

Seat Post

Crank

Pedal

Brake Knob /

Resistance Adjustment

Cam Clamp

Handlebar Post

Stretch Pad

Flywheel

Fender

Drive Belt

(under cover)

Front Stabilizer

Transport Wheels

Handlebars

Cam Clamp

Rear

Stabilizer

Bottle Holder

ASSEMBLY INSTRUCTIONS

ASSEMBLY AND INSTALLATION

LeMond RevMaster

Before leaving the manufacturing facility, your LeMond® RevMaster® exercise bike was thoroughly inspected and tested for proper operation. To minimize shipping damage, careful attention was given to making your bike ready for shipment.

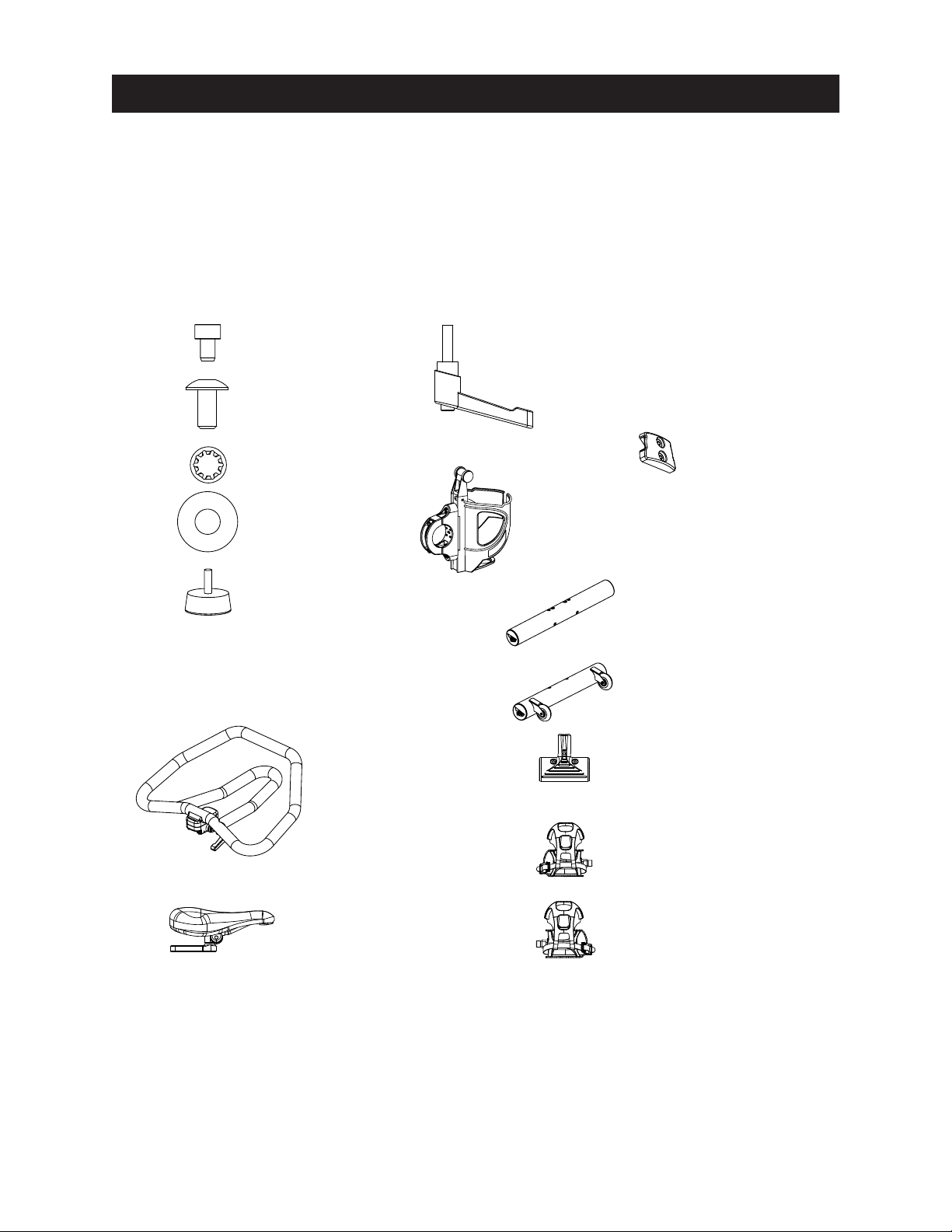

Seat Assy (1)

Stretch Pad (1)

Pedal, left (1)

Pedal, right (1)

[not to scale]

Adjustment Lever (1)

Track Cap (1)

Front Stabilizer (1)

Rear Stabilizer (1)

Water Bottle Holder (1)

Handlebar Assy (1)

Star Washer (8)

M8 x 20 (10)

Brass Washer (1)

M4 x 6 (2)

Leveler (4)

ASSEMBLY INSTRUCTIONS

DELIVERY

Your LeMond RevMaster will arrive packed in 1 carton. Upon arrival fully inspect the carton for damage. Point out any damage to the delivery person and have the delivery person record the damage on the delivery paperwork. Contact the Customer Service Department at 858-578-7676 to report any damage.

Please follow these detailed instructions and you will nd that your bike can be unpacked and assembled with ease.

Assembly Parts

ASSEMBLY INSTRUCTIONS

M8 + star washer

M8 x 20

REMOVE THE BIKE AND COMPONENTS FROM THE SHIPPING CARTON

Move the box to the desired location. Ensure that the carton is standing upright and remove the 1. strapping material.

Pull the cardboard edge out along the bottom of the box to remove the staples. Lift the top of the

2. box up and set aside.

Remove the two smaller boxes from the main frame of the bike.

Open both boxes and verify that you have all of the hardware and parts necessary to assemble your 4. bike; you should have this owner’s manual, all the illustrated assembly parts, and all the necessary tools.

ASSEMBLY

Note: It is not necessary to remove the bike from the foam shipping cradle before assembly.

Align the front stabilizer (the one with the 1. transport wheels) with the holes in the main frame, below the ywheel.

Attach the stabilizer with four (4) M8 x 20

2. mm screws and four (4) star washers. Tighten them with a hex key

Align the rear stabilizer with the holes in the 3. main frame below the seat post

Attach the rear stabilizer four (4) M8 x 20 mm screws and four (4) star washers. Tighten them with a hex key.

Place the stretch pad on the rear stabilizer 5. and back post of the frame. Attach with two (2) M8 X 20 mm bolts and tighten them with a hex key.

Brass

Washer

Pull Out and Rotate

Adjustment

Lever

Pressure Pad

Track Cap

Adjustment

Lever

M4 X 6 (2)

ASSEMBLY INSTRUCTIONS

Position the seat assembly atop the seat track on the seat post. Lightly grease the end of the 6. threads on an adjustment lever. Loosely thread the adjustment lever through the brass washer, through the hole in the seat track, and into the seat assembly. Slide the seat to the desired position and tighten the adjustment lever.

Note: The handle on the adjustment lever has a

ratchet function. Once you have tightened a lever, pull out on the handle and rotate it so it does not stick out. Release the handle to lock it into place.

Loosen the adjustment lever on the handlebar assembly. Slide the assembly onto the track on the handlebar post and tighten the adjustment lever. (Use the adjustment lever’s ratchet function as necessary.)

Note: There is a pressure pad at the end of the adjustment lever that is held in place by shipping foam. The

foam is pushed out of the way when you slide the assembly onto the track. If the pad should come loose, replace it before sliding the assembly onto the track.

Install the handlebar track cap onto the end of the track with two (2) M4 X 6 mm screws.

The pedals are marked as if you are seated on the bike, “R” for right, and “L” for left. Carefully thread 9. the right pedal into the crank arm with your ngers - do not cross thread the pedal in the crank arm! Use the 15 mm wrench tool to tighten the pedal. Repeat this step for the left pedal.

The left pedal is reverse-threaded.

Note:

To install the bottle holder, loosen the attached clamp fasteners and separate the clamp so it will t 10. around the handlebar tube. Tighten the clamp fasteners with a hex key to secure the clamp to the handlebar.

GUIDELINES FOR SAFE OPERATION

WARNING

THESE GUIDELINES ARE DIRECTED TO YOU, AS THE OWNER OF THIS EXERCISE EQUIPMENT. YOU SHOULD INSIST THAT ALL USERS FOLLOW THE SAME GUIDELINES. YOU SHOULD MAKE THIS MANUAL AVAILABLE TO ALL USERS.

Obtain a complete physical examination from your medical doctor and enlist a health/tness pro-1. fessional’s aid in developing an exercise program suitable for your current health status.

When working out for the rst time, start out slowly for a minimum of ve minutes. After your

2. muscles are warmed up, gradually increase the pedaling rate and/or resistance to a speed that allows you to attain your target heart rate zone.

The speed and duration of your exercise program should always be subject to how you feel. Never

3. permit peer pressure to exceed your personal judgment while exercising.

Overweight or severely unconditioned individuals should be particularly cautious when using the

4. equipment for the rst time. Even though such individuals may not have histories of serious physical problems, they may perceive the exercise to be far less intense than it really is, resulting in the possibility of overexertion or injury.

Although all equipment manufactured by HOIST Fitness Systems, Inc. has been thoroughly inspected 5. by the manufacturing facility prior to shipment, proper installation and regular maintenance are required to ensure safety. Maintenance is the sole responsibility of the owner.

OPERATING INSTRUCTIONS

ADJUSTING THE FIT

Take a moment to learn how to properly t your RevMaster to your body; it will make your workouts a more pleasant and safer experience. The RevMaster provides more seat and handlebar adjustability than any other indoor group cycle, and each adjustment is numbered so you can quickly return the adjustments to your specic settings. Making full use of these features will give you the most comfortable ride possible and allow you to exercise eciently. Using the bike when it is incorrectly adjusted can result in unnecessary discomfort and increase your risk of injury.

WARNING: DO NOT ATTEMPT TO MAKE ANY ADJUSTMENTS TO THIS EQUIPMENT WHILE SITTING OR STANDING ON THE BIKE. DISMOUNT THE BIKE PRIOR TO MAKING ALL ADJUSTMENTS.

Seat Adjustment:

Adjusting the Seat’s Height

Stand next to the seat post and adjust the seat to hip height.1.

Rotate the crank so that the pedals are in the vertical, 12 and 6 o’clock, 2. position.

Place your foot in the toe cage of the pedal closest to the oor and

3. mount the bike. Ensure that the ball of your foot is over the center of the pedal. Your leg should be slightly bent at the knee (155 ° extension), as shown in the picture to the right.

If your leg is too straight or your foot cannot touch the pedal you will

4. need to lower the seat. If your leg is bent too much you will need to raise the seat.

Dismount

5. the bike and pull up on the seat post cam clamp lever. Once loosened, slide the seat post

up or down as necessary.

When the seat is in the desired position, push the cam clamp lever down to the locked position to

6. secure the seat post.

Note the nal position mark on the seat post for future reference.

OPERATING INSTRUCTIONS

Adjusting the Seat’s Forward/Aft Position

Sit on your bike with the cranks in the 3 and 9 o’clock positions. A 1. proper forward/aft position of the seat is achieved when the small bump at the top of the shin of your forward leg, directly below the knee cap (tibial tuberosity), is above the pedal axle.

Dismount

2. to adjust the seat forward or aft for a better t. Loosen

the seat adjustment lever and slide the seat forward or backward as desired; then tighten.

Note the nal position mark under the seat for future reference. (Repeat

3. steps for seat height if necessary.)

Note:

There are two threaded holes on the seat assembly slider, to allow a greater range of forward/aft ad-

justment. The seat adjustment lever can be attached to either. Taller users may want to use the front hole; shorter users may want to use the back hole.

Handlebar Adjustment:

Adjusting the Handlebar Height

Handlebar height is a matter of preference. Start with the handle bars 1. at the same height as the seat. Adjusting the handlebars higher will give the rider a more upright position; lowering them will result in a more prone position.

Dismount

2. the bike to adjust the handlebars. Raise or lower the handle-

bars by pulling up on the handlebar post cam clamp lever and sliding the handlebar post up or down as desired. Push the cam clamp lever down to the locked position to secure the handlebar post. Note the nal position mark on the handlebar post for future reference.

Adjusting the Handlebar’s Forward/Aft Position

Dismount1. the bike and loosen the handlebar forward/aft adjustment lever and slide the handlebars either forward of backward as desired. The forward/aft position should be set to allow the rider to comfortably grasp the handles with a slight bend at the elbow.

Tighten the adjustment lever clockwise to secure the handlebar assembly. (Remember to use the

2. ratchet feature of the adjustment lever as necessary.) Note the nal position mark for future reference.

OPERATING INSTRUCTIONS

Pedal strap adjustment:

Place the ball of each foot on the pedal and in the toe cage such that the ball of the foot is centered 1. over the pedal spindle and under the strap.

Rotate the cranks until one foot is in a position closest to you.

To tighten the strap, pull up on the end of the strap until it ts snugly over your shoe. Make sure 3. that the strap is secure, but not overly tight or pressing uncomfortably on your foot.

Repeat for the other foot.

To loosen he pedal strap, press down on the clip that holds the strap secure, and pull slightly 5. outward.

Release the clip to lock the strap into place.

BASIC OPERATION

Now that you have established a riding position, take a few minutes to ride the bike and determine that your position is comfortable. Start pedaling at a slow pace with your toes and knees pointed directly forward. Hold the grips lightly and in a position that allows your shoulders and upper body to relax. Pedal easily, at a low resistance, until you feel condent that you could ride in that position for the duration of your workout.

WARNING

IF AT ANY TIME DURING YOUR WORKOUT, YOU FEEL CHEST PAIN, EXPERIENCE SEVER MUSCULAR DISCOMFORT, FEEL FAINT, OR ARE SHORT OF BREATH, STOP EXERCISING IMMEDIATELY. IF THE CONDITION PERSISTS, YOU SHOULD CONSULT YOUR MEDICAL DOCTOR IMMEDIATELY.

Pedaling resistance is controlled by the tension knob located beneath the handlebar, on the main 1. “X” part of the frame. Resistance may be changed at any time by turning the tension knob; clockwise for more resistance, or counterclockwise for less resistance.

To apply the brake, press down on the tension knob.

Before dismounting, apply the break to stop the ywheel, or increase the resistance and let the 3. ywheel come to a stop.

To dismount the bike, rst loosen each toe cage strap and remove your feet from the pedals, then

4. step o the bike.

GENERAL EXERCISE GUIDELINES

SETTING A GOAL

The rst step to a successful exercise program is to set realistic goals and objectives. Do you want an exercise program that is geared to build muscle, maintain muscle tone, increase aerobic capacity, or lose weight? In order to ensure that you fully receive all the benets of a sound exercise program, you need to rst identify the existence (if any) of risk factors that may inuence the design of your exercise program. Based upon a comprehensive analysis of your personal exercise needs and interests, you should then develop (or have developed for you by a competent or trained professional) an individualized program of exercise that is enjoyable, easy, and yet challenging. Your greatest health benet will come from a lifestyle change that encourages a lifetime of physical activity.

One way to guarantee success in reaching your goal is to eat correctly. A well-rounded diet provides the proteins, carbohydrates, fats, vitamins, minerals, and water necessary for good health. If you are unsure of your dietary needs, seek the advise of your physician, an exercise professional, or visit your local bookstore for more information on nutrition.

FLEXIBILITY TRAINING*

Achieving and maintaining an adequate range of motion should always be objectives of a comprehensive exercise program. The warm-up phase of your exercise session should include some type of light warm-up activity to increase both your heart rate and your body temperature, which is then followed by exibility exercises that are specically designed to stretch the musculature around your body’s major skeletal joints. Attempting to stretch a cold muscle can be dangerous to the soft tissues surrounding the muscle. No matter how controlled the movement, forcing a muscle through a full range of motion (and beyond) without appropriately warming up is both unsafe and counterproductive.

A general exercise program for achieving and maintaining exibility should adhere to the following guidelines:

Frequency Daily•

Intensity To a position of mild discomfort •

Duration 10-30 seconds for each stretch•

Repetitions 2-6 for each stretch•

Type Static, with a major emphasis on the low back and hamstrings area •

because of the high prevalence of low-back pain syndrome in our society.

GENERAL EXERCISE GUIDELINES

EXERCISE PRINCIPLES *

The American College of Sports Medicine has developed a position paper concerning exercise programs for healthy adults and the need for guidelines. The following recommendations concern the quantity and quality of (exercise) training for developing and maintaining cardiovascular tness in a healthy adult:

Frequency 3 to 5 days per week•

Intensity 50% - 85% of maximum oxygen uptake (VO2 max)•

Duration 20 to 60 minutes of continuous aerobic activity•

Mode of Activity Any activity that uses the large muscle groups, that can be maintained •

continuously, and is rhythmical and aerobic in nature.

Rate of Progression Initial Conditioning: - 4 to 6 weeks; low end intensity (40% - 60% VO2 •

max); low end duration (15 to 20 minutes). Improvement Stage: - 6 weeks to 6 months; moderate intensity; moderate duration. Maintenance Stage: - 6 months plus; moderate to high intensity; moderate to high duration.

*Note: Some of the material contained in this section is adapted from The StairMaster® Fitness

Handbook 2nd Ed., James A Peterson, and Cedric X. Bryant (editors), Sagamore Publishing, 1995.

MAINTENANCE

MAINTENANCE INSTRUCTIONS

HELPFUL HINTS

The safety level given by the design of this equipment can only be maintained when the equipment is regularly examined for damage and wear. Inoperable components should be replaced immediately or the equipment should be put out of use until it is repaired. Read all maintenance instructions thoroughly before beginning work.

All references to the right or left side and to the front or back are made as if you were on the exercise equipment ready to exercise. For example, the belt is on the right side of the bike.

TOOL LIST

The following tools are needed to perform service and maintenance:

15mm Pedal Wrench or Open End Wrench•

Metric Hex Key Set (up to 8mm)•

#2 Phillips Screwdriver•

Bottom Bracket Tool (Park BBT-2 or comparable 20-Tooth Tool)•

Crank Puller (Park CCP-2 or comparable Puller for Square, Tapered Spindles)•

Loctite 242 Medium Strength threadlocker•

Brake Pad Oil or 3-In-One Oil •

INITIAL SERVICE

Upon receiving your equipment, use a soft clean cloth to wipe o the dust that may have accumulated during shipping. Your equipment will need minor assembly. Refer to the “Assembly Instructions” section of this manual for details.

MAINTENANCE

MAINTENANCE SCHEDULE

PART RECOMMENDED ACTION FREQUENCY CLEANER LUBRICANT

Pedals

Frame Wipe down Daily Soap & water; or, di-

Flywheel Wipe down Weekly WD-40® spray.

Crank Bolts Inspect for looseness Weekly N/A If loose, remove bolt,

Brake Pad Inspect for excessive wear or a

Belt Inspect for correct tension;

Ensure that the pedals are tight in crank arms and not crossthreaded, all screws on pedals are tight, and pedal straps are not frayed

Before each use N/A N/A

WARNING: WHEN USED IN A CLUB SETTING IT IS CRITICAL THAT THE PEDALS BE CHECKED AFTER EACH CLASS TO ENSURE PROPER INSTALLATION. FAILURE TO DO SO MAY RESULT IN PROPERTY DAMAGE AND/OR RIDER INJURY.

N/A luted non-abrasive cleaning solution

N/A Spray on rag & apply light coat to sides of ywheel.

apply Loctite® 242

on bolt threads and

reinstall. Tighten to 48

ft-lbs or 575 in-lbs

Weekly N/A Use 3-IN-One® oil or

dry leather brake pad

Monthly N/A N/A replace cracked, frayed, or otherwise non-uniform belt

10W oil *Do not use silicone-based lubri-

cants

1 HOIST Fitness does not recommend attempting to service the internal parts of the pedals. If pedals are internally worn it is recommended that they be replaced.

2 Use of lubricants or cleaning solutions other than those so specied will result in diminished performance and a shorter life span for that part.

TROUBLESHOOTING

SYMPTOM: Seat or handlebar post move after locked into position.

Locate smaller 3mm hex bolt at pivot point of cam handle and loosen 1 turn.1.

Disengage 6mm hex bolt on other side from indicator plate and rotate one notch towards (+) sign. 2.

Tighten smaller 3mm hex bolt.3.

Test post and repeat process if needed until post no longer moves.4.

SYMPTOM: Clicking noise with each pedal revolution.

Check shoelaces to make sure the aglet is not tapping the bike as the pedals turn.1.

Assure pedal straps are tight and that no excess strap on inner part of pedal is catching on the crank 2. arm as it turns.

Assure that pedals are tight on crank arms.

SYMPTOM: Clicking noise when ywheel rotates.

Check edge of ywheel that brake pad rubs against for small burrs. 1.

If burr is present gently remove while being careful not to damage ywheel surface.2.

If symptom persists check for noisy ywheel bearings.3.

If ywheel bearings are noisy or rough have authorized service technician replace ywheel hub as-4. sembly.

TROUBLESHOOTING

SYMPTOM: Drive belt is slipping.

Remove belt cover. 1.

Note: Use caution around belt when cover is removed.

Loosen idler with 8mm hex and tighten tensioner bolt 2-3 turns with 5mm hex wrench.

Tighten idler and test belt.3.

If belt still slips repeat process until belt no longer slips. 4.

Reinstall belt cover.5.

SYMPTOM: Knocking noise or play felt in pedals/cranks.

Make sure pedals are tight on crank arms. 1.

Note: Left pedal is reverse threaded.

Make sure crank bolts are tight. If loose, apply blue Loctite 242 to threads and tighten crank bolts

2. with 8mm hex wrench.

If problem persists check the bottom bracket bearing cups for looseness. Tighten if necessary with

3. a bottom bracket tool and use blue Loctite 242 on threads.

If knocking noise still persists contact authorized service technician for replacement of bottom

4. bracket bearings.

TROUBLESHOOTING

SYMPTOM: Inconsistent resistance or noisy brake pad.

Remove fender assembly and make sure brake pad is clean.1.

Apply brake pad oil (or 3-In-One oil) to surface of brake pad.2.

Let oil soak into pad and reapply if needed until brake pad is thoroughly saturated.3.

Reinstall fender assembly.4.

SYMPTOM: Rocking or movement from RevMaster while in use.

Using a 5mm hex wrench, check the attachment bolts on the front and rear stabilizers and make 1. sure they are tight (4 bolts on each stabilizer).

Note: You will have to remove the stretch pad to check the rear stabilizer mounting bolts.

Assure the bike is level by checking the leveling feet on the bottom of the front and rear stabilizers.

SPECIFICATIONS

46.0 in. (min)

23.0 in.

42.0 in.

PHYSICAL DIMENSIONS:

Length: 42 in (106.7 cm)•

Height: 46 in (116.8 cm)•

Width: 23 in (58.4 cm)•

Weight:•

143 lbs (65 kg)

Shipping Carton Dimensions:

Length: 39.5 in (100.3 cm)•

Height: 37 in (94.0 cm)•

Width: 8 in (20.3 cm)•

Weight: •

161 lbs (73 kg)

SPECIFICATIONS

FRAME:

Welded X Style frame with 4-way bolted • stabilizers

ED and powder coated nish•

22 inch wide base with large diameter ad-• justable levelers

FLYWHEEL:

47-pound precision-machined ywheel•

Forged steel axel with Electroless-Nickel • nish

BRAKING AND RESISTANCE MECHANISM:

Turn-knob design for tension; push down • for braking

Leather resistance pad on top of ywheel • for consistent resistance

CRANK SET:

Forged cranks with Electroless-Nickel nish • (170 mm)

Oversized and hardened Cr-Moly bracket • spindle (23.0 mm x 124.5 mm)

Two piece cartridge style ball bearing assy. • with 2 bearing per side.

STRETCH PAD:

Foot-pad at base of rear stabilizer for • stretching

SEAT:

Dual position seat slider for extended fore/• aft adjustment

Unique cam post clamp for easy adjust-• ment & enhanced stability

Adjustment marks for up/down and fore/• aft

TRANSPORT WHEELS

Extra large in-line skate wheels•

DRIVE TRAIN

Reinforced Poly-V drive belt•

Precision drive pulleys•

No adjustment required for belt tensioner•

HANDLEBARS:

Biomechanically correct with anatomical • bend

Adjustable up/down and fore/aft•

Over molded rubber grip for greater • comfort

Unique cam post clamp design for quick • and easy adjustments

Adjustment marks for up/down and fore/aft • adjustments

Steel tube with Electroless-Nickel nish•

Easy to access horizontal adjustment•
