LeMond RevMaster Classic User Manual

Owner's Manual
LeMond Fitness Inc.
17820 Woodinville-Redmond Rd.
Building B, Suite 888
Tel.: (425) 482-6773 Fax: (425) 482-6724
www.LeMondfitness.com
P/N 300202
© 2002 LeMond Fitness Inc. LeMond and RevMaster
are registered trademarks.
Page iii
WARRANTY
®
This is to certify that the LeMond LeMond Fitness Inc. to be free of all defects in materials and workmanship. This warranty does not apply to any defect caused by negligence, misuse, accident, alteration, improper maintenance, or an “act of God.”
The LeMond RevMaster carries a five-year frame warranty, a one-year warranty on bottom bracket bearings, pillow block bearings, tension knob assembly, a three-year warranty on cranks, bottom bracket spindle, flywheel, handlebar, seat post, handlebar post, and a 90 day warranty on wearables such as seat, grip, handles, and brake pad. Contact our Customer Service Department to report any problems. When calling, please be prepared to provide the customer service representative with the following information:
Your name, customer number, shipping address, and telephone number
The serial number of the inoperable bike
The date(s) of purchase for the inoperable bike(s)
Your billing address
This information will ensure that you are the only one ordering parts under your warranty protection. If warranty replacement parts are shipped to you, you may be required to return the inoperable part. To facilitate this process, the following policy has been established:
Please call our Customer Service Department to receive a return goods authorization prior to shipment.
LeMond Fitness will incur all ground freight charges for warranty parts ordered for a machine that is less than 45 days old.
You are responsible for freight charges on warranty parts for machines that are more than 45 days old. You will not be responsible for the return shipment of the inoperable parts.
Some inoperable warranty parts must be promptly returned to our Customer Service Department. We will pay the shipping cost for the inoperable warranty parts. Detailed instructions are included with each warranty replacement part.
RevMaster
exercise bike is warranted by
LeMond Fitness Inc. neither makes, assumes nor authorizes any representative or other person to make or assume for us, any other warranty whatsoever, whether expressed or implied, in connection with the sale, service, or shipment of our products. We reserve the right to make changes and improve­ments in our products without incurring any obligation to similarly alter products previously purchased. In order to maintain your product warranty and to ensure the safe and efficient operation of your machine, only authorized replacement parts can be used. This warranty is void if parts other than those provided by LeMond Fitness are used.
Page iv
PREFACE
The LeMond® RevMaster™ bike is a safe, functional, and effective exercise modality for developing aerobic fitness and increasing the strength of the major muscle groups of the lower body. It is designed for use by individuals of all ages and fitness levels. Your purchase of this bike is a positive affirmation of your commitment to use the best available methods for enhancing your functional fitness capabilities. In order to derive optimal benefits from your equipment, you should read this manual thoroughly and adhere closely to the instructions.
WHAT IS IN THIS MANUAL?
Following the information on safety guidelines and an explanation of installation procedures, this manual will provide general exercise guide­lines and explain how the LeMond RevMaster exercise bike works. Detailed instructions of parts removal and replacement are then followed by exploded diagrams of the bike components.
WHAT IS THE LEMOND REVMASTER BIKE?
The LeMond RevMaster is a revolutionary new group exercise stationary cycle from LeMond Fitness Inc. that delivers an extraordinary workout. It has been designed to be stronger, more stable, feel more comfortable, be easier to adjust, and have a more durable crank system then conven­tional group exercise bikes.
The LeMond RevMaster bike was designed by Paul Swift under the direction of Greg LeMond. LeMond is the first American to win the Tour de France. A cyclist who has won the world's most challenging races, Greg LeMond has also revolutionized the sport by introducing cutting edge technology that is commonplace today. Paul Swift is a 15-year member of the USA cycling team, eight-time national champion and 1998 Goodwill Games Gold Medalist.
Page v
CONTENTS
SAFETY GUIDELINES .......................................................... 1
INSTALLATION INSTRUCTIONS..................................... 3
Delivery ........................................................................... 3
GUIDELINES FOR SAFE OPERATION ........................... 7
BASIC OPERATING INSTRUCTIONS ............................. 8
Your first workout on the LeMond® RevMaster
Exercise Bike ................................................................. 8
Seat Adjustment ............................................................. 8
Handlebar Adjustment ................................................... 8
Pedal Strap Adjustment ................................................. 9
GENERAL EXERCISE GUIDELINES ................................ 10
Setting a goal ................................................................. 10
Flexibility Training .......................................................... 10
Exercise Principles ........................................................ 11
MAINTENANCE INSTRUCTIONS .................................... 12
Helpful Hints .................................................................. 12
Tool List ......................................................................... 12
Preventive Maintenance ................................................ 12
Daily ........................................................................ 13
Weekly .................................................................... 13
Monthly ................................................................... 13
TROUBLESHOOTING ......................................................... 1 4
Symptom: Adjustment Handles do not engage .............. 14
Symptom: Handlebar/Seat post will not slide up or down
................................................................................ 14
Symptom: Pedals are slipping ........................................ 14
Symptom: Pedals do not rotate ...................................... 14
®
PARTS REMOVAL AND REPLACEMENT ...................... 1 5
Adjustment Handles....................................................... 15
Belt ................................................................................ 16
Bottom Bracket Bearings .............................................. 16
Brake Pad Assembly ..................................................... 18
Page vi
CONTENTS
Covers ............................................................................ 19
Flywheel/Pillow Block Bearings .................................... 19
Handlebar ...................................................................... 20
Handlebar Post .............................................................. 20
Pedals ............................................................................ 21
Pedal Crank Arms ......................................................... 21
Seat ................................................................................ 22
Seat Slider ...................................................................... 22
Seat Post ........................................................................ 23
Tension Knob Assembly ................................................ 23
FIGURES ................................................................................ 2 4
Figure 1: Final Assembly ................................................ 24

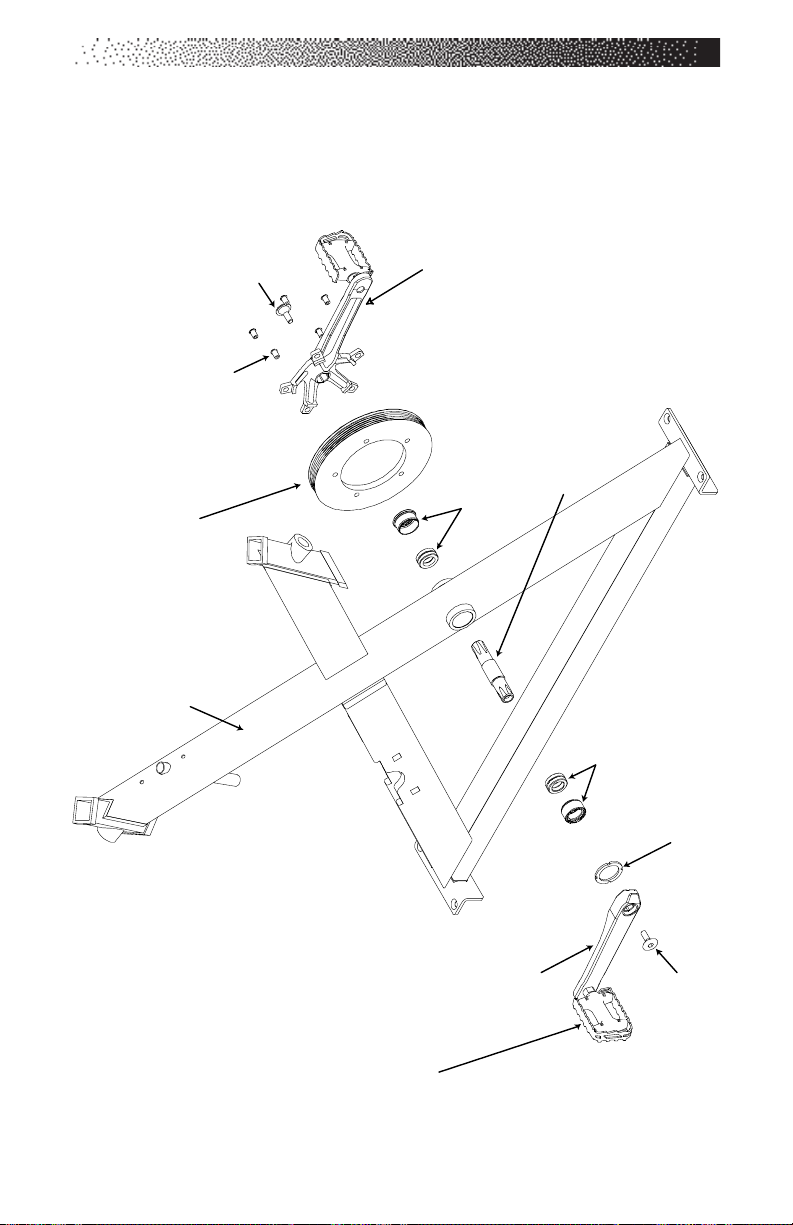

Figure 2: Crank Assembly.............................................. 25
Figure 3: Flywheel Assembly ......................................... 26
Figure 4: Belt Tension .................................................... 27
Figure 5: Front Base Assembly...................................... 28
Figure 6: Rear base Assembly ....................................... 29
Figure 7: Brake Tension Knob Assembly ...................... 30
Figure 8: Brake Pad Assembly ...................................... 31
Figure 9: V-Plunger & Plug ........................................... 32
SPECIFICATIONS ................................................................. 33
LIST OF TABLES
Table 1. Dimensions and Specifications for the
LeMond® RevMaster® Exercise Bike............................ 3
Page vii
SAFETY GUIDELINES
IMPORTANT SAFETY INSTRUCTIONS
This symbol appearing throughout this manual means
!
Attention! Be Alert! Your safety is involved.
The following definition applies to the word “WARNING” found throughout this manual:
WARNING - Used to call attention to POTENTIAL hazards that
could result in personal injury or loss of life.
READ ALL INSTRUCTIONS BEFORE USING THIS EXERCISE EQUIPMENT.
1. Close supervision is necessary whenever the equipment is used by, or near children, invalids, or disabled persons. A serious injury could result from a child's fascination with the moving components of the exercise system.
2. Keep your hands away from all moving parts and keep your feet on the pedals while exercising. Do not remove your feet from the RevMaster® bike pedals while they are in motion.
3. Use this equipment only for its intended use as described in this Manual. Do not attempt to ride this bike at high pedal speeds or in a standing position until you practiced and are comfortable riding at slower pedal speeds.
4. Rotate the tension knob clockwise to apply resistance to the flywheel prior to standing on the pedals.
5. Do not dismount the RevMaster bike until both of the pedals and the flywheel are at a complete stop.
6. Never turn the pedal crank arms by hand. Do not expose your hands or your arms to the drive mechanism as possible injury could occur.
Page 1
SAFETY GUIDELINES
7. Do not perform push-up type movements on the handlebars.
8. After exercising, turn the tension knob clockwise or push down on the tension knob to slow the flywheel down so that the pedals do not rotate freely and possibly hurt somebody.
9. Never drop or insert any object into any opening on the exercise equipment.
The safety level given by the design of this equipment can only be maintained when the equipment is regularly examined for damage and wear. Inoperable components should be replaced immediately or the equipment should be put out of use until it is repaired.
Failure to follow all guidelines may compromise the effectiveness of the
exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment.
SAVE THESE INSTRUCTIONS
Your comments and suggestions are welcome. Congratulations, and thank you for buying the RevMaster!
Your serial number(s):___________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ____________________________________________________________ ___________________________________________________________
Your LeMond Fitness Dealer:______________________________________ Phone:______________________________________________________
Page 2
INSTALLATION INSTRUCTIONS
Before leaving the manufacturing facility, your LeMond® RevMaster exercise bike was thoroughly inspected and tested for proper operation. To minimize shipping damage, careful attention was given to making your bike ready for shipment. The dimensions of the machine are listed in Table 1.
Table 1. Dimensions for the LeMond® RevMaster™ Bike
Physical Dimensions:
Length 41.50 inches (105 cm) Width 22.25 inches (57 cm) Height 38.00 inches (97 cm) Weight 116 pounds (53 kg)
DELIVERY
Your LeMond RevMaster will arrive packed in 1 carton. Upon arrival fully inspect the carton for damage. Point out any damage to the delivery person and have the delivery person record the damage on the delivery paperwork. Contact the Customer Service Department at (425) 482-6773 to report any damage.
®
Please follow these detailed instructions and you will find that your
bike can be unpacked and assembled with ease.
A. Remove the bike and components from the shipping carton
1. Move the box to the desired location. Ensure that the carton is
standing upright and remove the strapping material.
2. Pull the cardboard edge out along the bottom of the box to
remove the staples. Lift the top of the box up and set aside.
3. Remove the two smaller boxes from the main frame of the bike.
4. Open both boxes and verify that you have all of the hardware
and parts necessary to assemble your bike. You should have an owner's manual and the following parts:
Page 3
INSTALLATION INSTRUCTIONS
Seat
Pedals
Water Bottle Cage
4x Handles
Rear Base
Seat Post
Handlebar Assembly
Front Base
Handlebar Post
4x Mounting Bolts
3x Hex Keys
Wrench Tool
B. Assemble the Bike
5. With the help of an assistant, lift the bike up and off the pallet.
6. The base that has wheels is the
front base and connects to the main frame below the flywheel. Ensure that the wheels are facing out, and align the 2 holes in the front base with the 2 holes in the frame. Insert a mounting bolt into the top of the hole and push the bolt through the base and the main frame. Use the 8-mm hex key and wrench tool to secure the mounting bolt nut. Repeat this procedure for the rear base.
Note: If you are having difficulty threading the nut on the bolt, prop up the main frame using the inclosed wooden blocks to allow accessibility to the nut.
Page 4
INSTALLATION INSTRUCTIONS
7. The handlebar post is the post that has a smooth finish, and no
groove on top. Insert the handlebar post into the handlebar tube. Loosely thread a handle without a washer into the main frame. Raise the handlebar post to the desired height and tighten the handle to secure the handlebar post.
Handlebar Post
Seat Post
Note: The black handles are spring loaded. Once tightened, ensure that the handle does not stick out to the side from the main frame. Pull down on the handle and rotate it such that it does not stick out. Release the handle and lock it into place.
8. Position the handlebar over the handlebar post. Loosely thread a
handle with a washer through the handlebar post into the handle­bar. Slide the handlebar to the desired position and tighten the handle.
9. The 4-mm screw that mounts the
water bottle cage is located in the water bottle clamp on the handlebar assembly. Remove the screw from the clamp and position the water bottle cage over the clamp. Reinstall the screw and tighten the water bottle cage to the clamp.
10. The seat post is the post that has a rough finish, and a groove on
top. Insert the seat post into the seat post tube. Loosely thread a handle without a washer into the main frame. Raise the seat post to the desired height and tighten the handle to secure the seat post.
Page 5
INSTALLATION INSTRUCTIONS
11. Position the seat with seat slider over
the seat post. Loosely thread a handle with a washer through the seat post into the seat slider. Slide the seat to the desired position and tighten the handle.
12. The pedals are marked as if you are seated on the bike, "R" for
right, and "L" for left. Carefully thread the right pedal into the crank arm with your fingers - do not cross thread the pedal in the crank arm! Use the wrench tool to tighten the pedal. Repeat this step for the left pedal.
Note: The left pedal is reverse-threaded.
Seat Adjustment Handle
Seat Post Adjustment Handle
Back Cross Arm
Seat
Seat Post
Handlebar
Handlebar Post Adjustment Handle
Front Cross Arm
Page 6
