Leica DISTOTM X310
The original laser distance meter
Page 2
ENTable of Contents
Instrument Set-up - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Insert batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Operations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Switching ON/OFF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Clear - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Message Codes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Adjusting measuring reference / tripod - - - - - - - - - - - - - - - - - 4
Multifunctional endpiece - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Distance unit setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Tilt unit setting- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Timer (automatic release) - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Beep ON/OFF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Illumination ON/OFF- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Keypad lock ON - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Keypad lock OFF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Measuring Functions - - - - - - - - - - - - - - - - - - - - - - - - 7
Measuring single distance - - - - - - - - - - - - - - - - - - - - - - - - - - 7
Permament / Minimum-Maximum measuring- - - - - - - - - - - - - 7
Add / Subtract - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
Area - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Volume - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Triangular area - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
Pythagoras (3-point)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Pythagoras (partial height) - - - - - - - - - - - - - - - - - - - - - - - - - 12
Stake out - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
Smart Horizontal Mode - - - - - - - - - - - - - - - - - - - - - - - - - - 14
Height tracking - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14
Memory (20 last displays) - - - - - - - - - - - - - - - - - - - - - - - - - 15
Delete Memory - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
Calibration- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
Calibration of tilt sensor (Tilt Calibration) - - - - - - - - - - - - - - - 16
Technical Data - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Message Codes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
Care- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - 18
Areas of responsibility - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
Permitted use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Prohibited use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Hazards in use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Limits of use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Disposal- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Electromagnetic Compatibility (EMC) - - - - - - - - - - - - - - - - - 20
Laser classification- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
Labelling - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
Leica DISTOTM X310 788479d
1
Page 3
ENInstrument Set-up
Display
On/Measure
Add
Area /
Volume /
Triangle area/
Pythagoras/
Stake out
Clear / Off
Subtract
Smart Horizontal Mode
Measuring
reference
Memory /
Unit
Timer
Introduction
The safety instructions and the user manual should be read
through carefully before the product is used for the first time.
The person responsible for the product must ensure that all
users understand these directions and adhere to them.
The symbols used have the following meanings:
WARNING
Indicates a potentially hazardous situation or an unintended use
which, if not avoided, will result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation or an unintended use
which, if not avoided, may result in minor injury and/or appreciable
material, financial and environmental damage.
Important paragraphs which must be adhered to in practice as
i
they enable the product to be used in a technically correct and
efficient manner.
Overview
Leica DISTOTM X310 788479d
2
Page 4
ENInstrument Set-up
Horizontal
measurement
Units
Stake out
Ceiling area
Wall area
Circumference
Measuring
reference
2nd result
Area / Volume
Tilt angle
Info
Slope distance
Addition /
Subtraction
Illumination
Memory
Timer
Triangle area
Battery
Min/Max
Measuring
Indirect height
Pythagoras
Main line
i
To ensure a reliable use, do not
use zinc-carbon
batteries.
Change batteries
when battery
symbol is flashing.
Display
Insert batteries
Leica DISTOTM X310 788479d
3
Page 5
Switching ON/OFF Clear Message Codes
ON
OFF
2 sec
Device is turned
OFF.
i
Press ON button 2 sec to start
continuous laser
mode.
1x
Undo last action.
2x
Leave actual function, go to default
operation mode.
If the message "InFo" appears with
a number, observe the instructions
in section "Message Codes".
Example:
Distance is measured from the
front of the device.
1
i
Press button
2sec and reference from
front is set
permanently.
Distance is measured
from the tripod thread
permanently.
2
Distance is measured from the rear
of the device (standard setting).
3
Adjusting measuring reference / tripod
ENOperations
Leica DISTOTM X310 788479d
4
Page 6
Multifunctional endpiece
i
The orientation
of the endpiece
is automatically
detected and
the zero point is
accordingly adjusted.
Switch between the
following units:
0.000 m
0.0000 m
0.00 m
0.00 ft
0‘00‘‘ 1/32
0.00 in
0 in 1/32
2 sec
Switch between the
following units:
0.0 °
0.0 %
2 sec
simultaneously
s
1
Adjust delay of automatic release (max.
60 sec, standard setting 5 sec)
2
i
Once the key is released with the laser activated, the remaining seconds
until the measurement is displayed in
a countdown. The delayed release is
recommended for precise aiming
e.g. at long distances. It avoids shaking of the device when pressing the
measurement key.
Distance unit setting Tilt unit setting
Timer (automatic release)
ENOperations
Leica DISTOTM X310 788479d
5
Page 7
Beep ON/OFF Illumination ON/OFF
2 sec
simultane-
ously
2 sec
simultane-
ously
2 sec
simultane-
ously
PRESS
MINUS
1
within
2 sec
2
Keypad lock ON Keypad lock OFF
ENOperations
Leica DISTOTM X310 788479d
6
Page 8

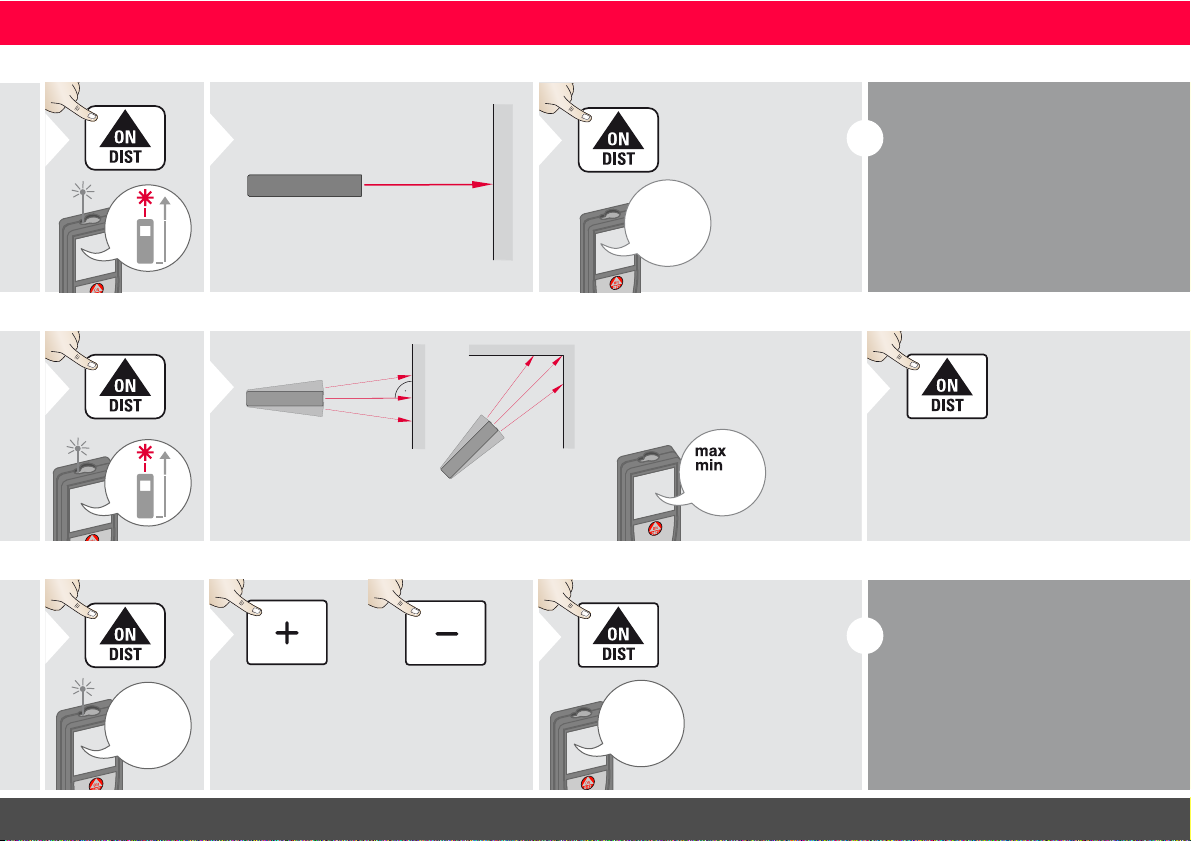

Measuring single distance
1
Aim active laser at target.
2
8.532 m
3
i
Target surfaces: Measuring errors
can occur when measuring to colourless liquids, glass, styrofoam or
semi-permeable surfaces or when
aiming at high gloss surfaces.
Against dark surfaces the measuring time increases.
1
2 sec
8.532 m
Used to measure room diagonals (maximum values) or horizontal distance (minimum values)
The minimum and maximum distance measured is displayed (min,
max.). The last value measured is
displayed in the main line.
min. max.
2
Stops permanent / minimummaximum measuring.
3
7.332 m
1
The next measurement is added
to the previous
one.
2
The next measurement is subtracted from the
previous one.
7.332 m
12.847 m
3
i
The result is shown in the main
line and the measured value
above. This process can be repeated as required. The same
process can be used for adding or
subtracting areas or volumes.
Permament / Minimum-Maximum measuring
Add / Subtract
ENMeasuring Functions
Leica DISTOTM X310 788479d
7
Page 9

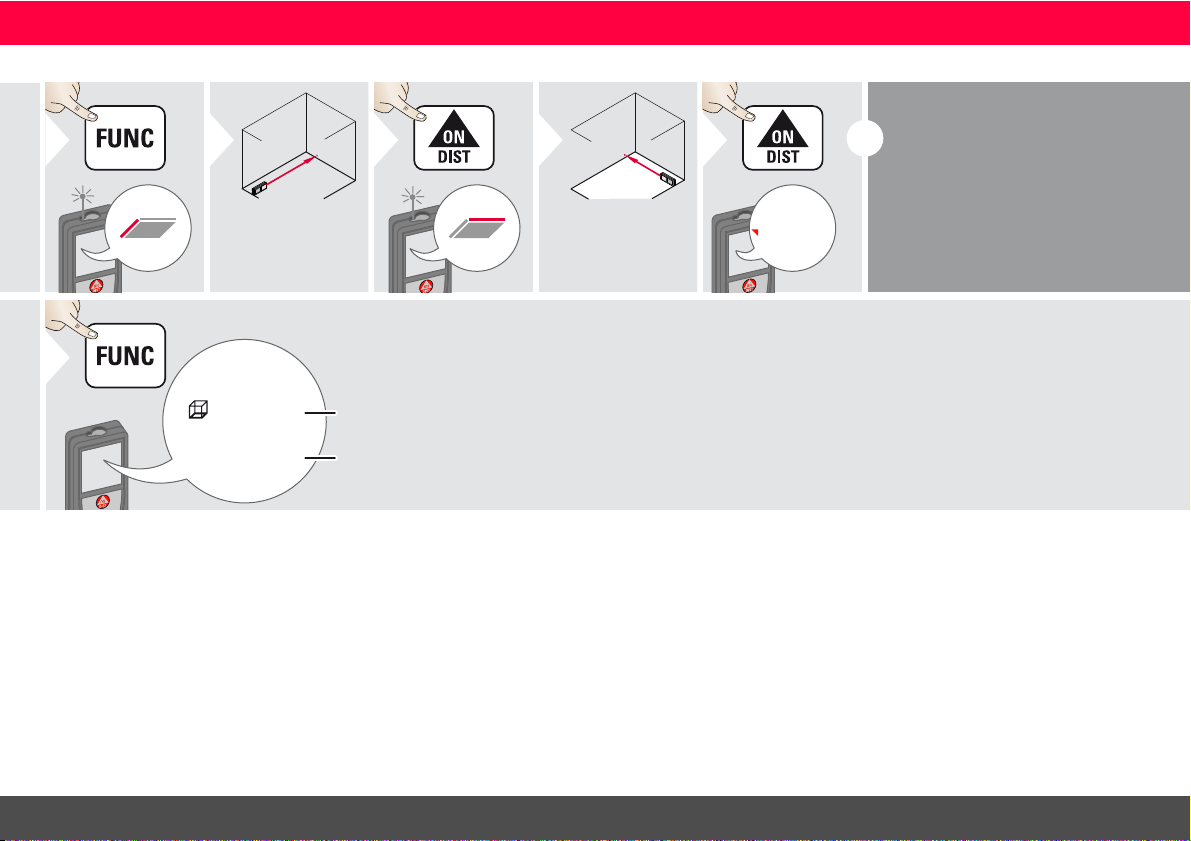

Area
11x2
Aim laser at first
target point.
3
4
Aim laser at second target point.
24.352 m
2
5
i
The result is shown in the main line
and the measured value above.
Partial Measurements:
Press + or - after starting the first
measurement. Measure and add
or subtract distances. Finish with
DIST. Measure 2nd length.
19.823 m
24.352 m
2
2 sec
Circumference
Area
6
ENMeasuring Functions
Leica DISTOTM X310 788479d
8
Page 10

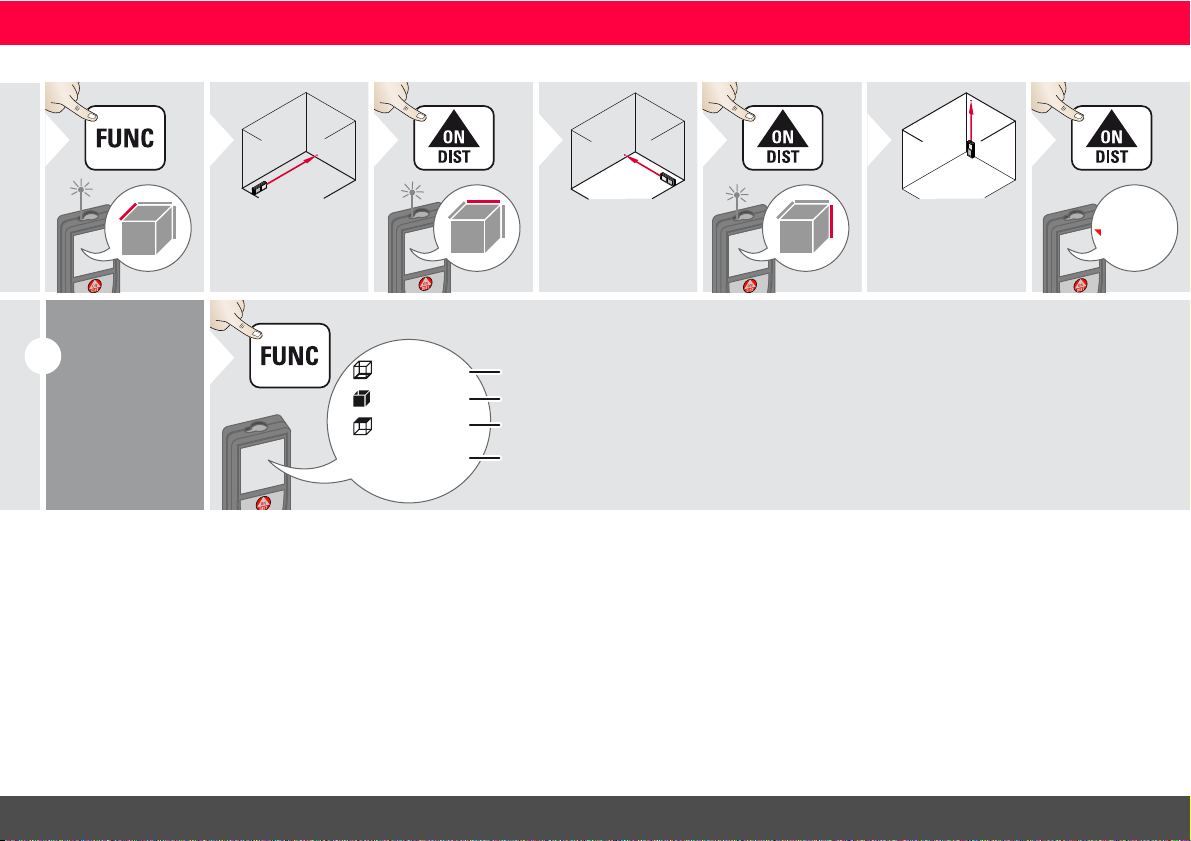

Volume
12x2
Aim laser at first
target point.
3
4
Aim laser at second target point.
5
6
Aim laser at third
target point.
78.694 m
3
7
i
The result is
shown in the
main line and
the measured
value above.
24.224 m
2
208.703 m
2
80.208 m
78.694 m
3
2 sec
Circumference
Wall areas
Ceiling/floor area
Volume
8
ENMeasuring Functions
Leica DISTOTM X310 788479d
9
Page 11

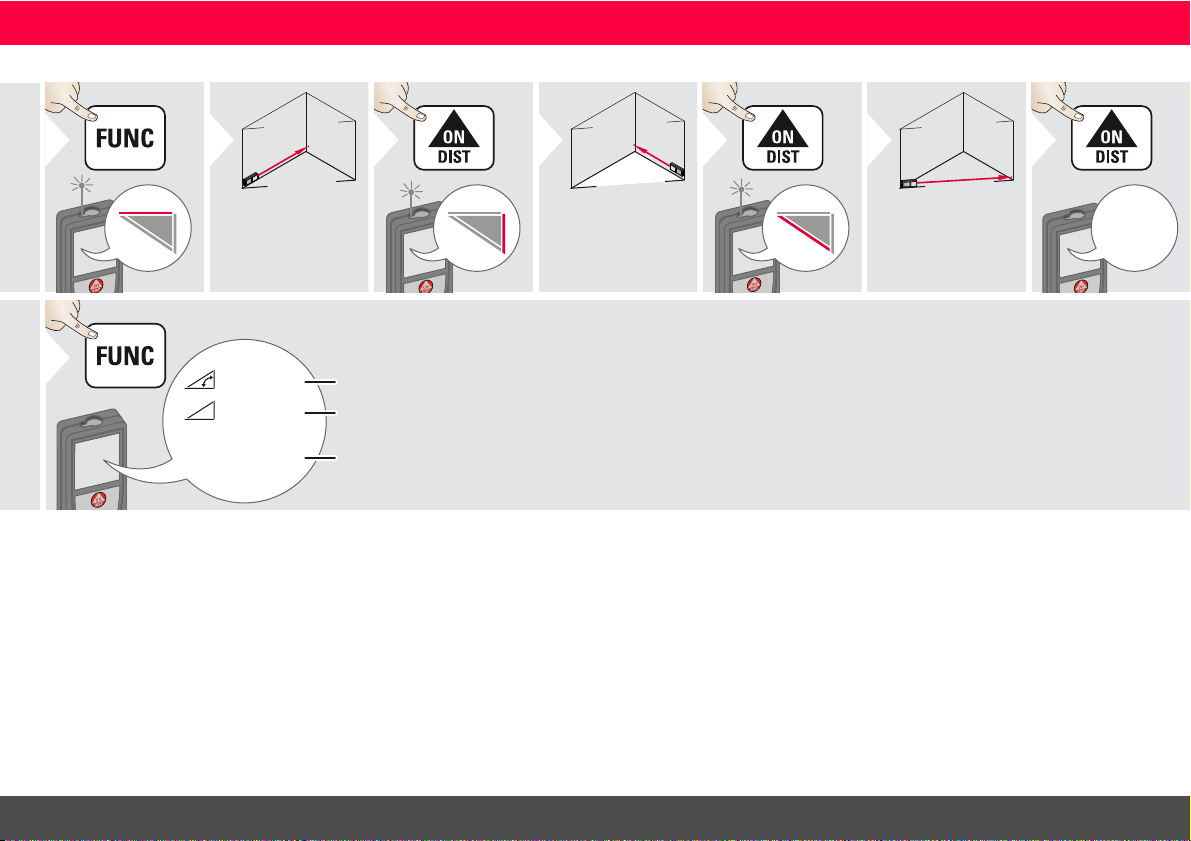

Triangular area
13x2
Aim laser at first
target point.
3
4
Aim laser at second target point.
5
6
Aim laser at third
target point.
24.352 m
2
7
33.852 m
24.352 m
2
40.8 °
2 sec
Angle included by the first
two measurements
Circumference
Triangular area
8
ENMeasuring Functions
Leica DISTOTM X310 788479d
10
Page 12

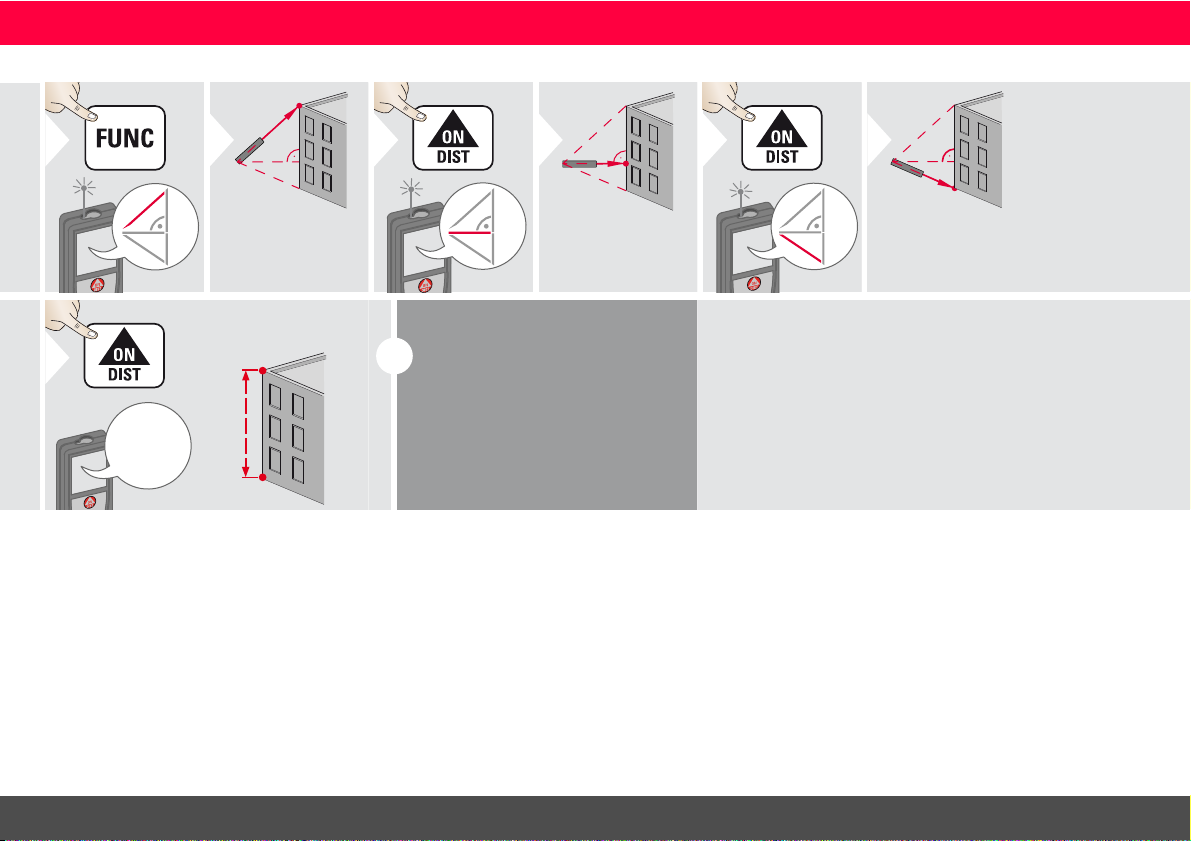

Pythagoras (3-point)
14x2
Aim laser at upper
point.
3
4
Aim laser at rectangular point.
5
6
Aim laser at lower point.
8.294 m
7
i
The result is shown in the main
line and the measured distance
above.
Pressing the measuring key for 2
sec in the function activates automatically Minimum or Maximum
measurement.
ENMeasuring Functions
Leica DISTOTM X310 788479d
11
Page 13

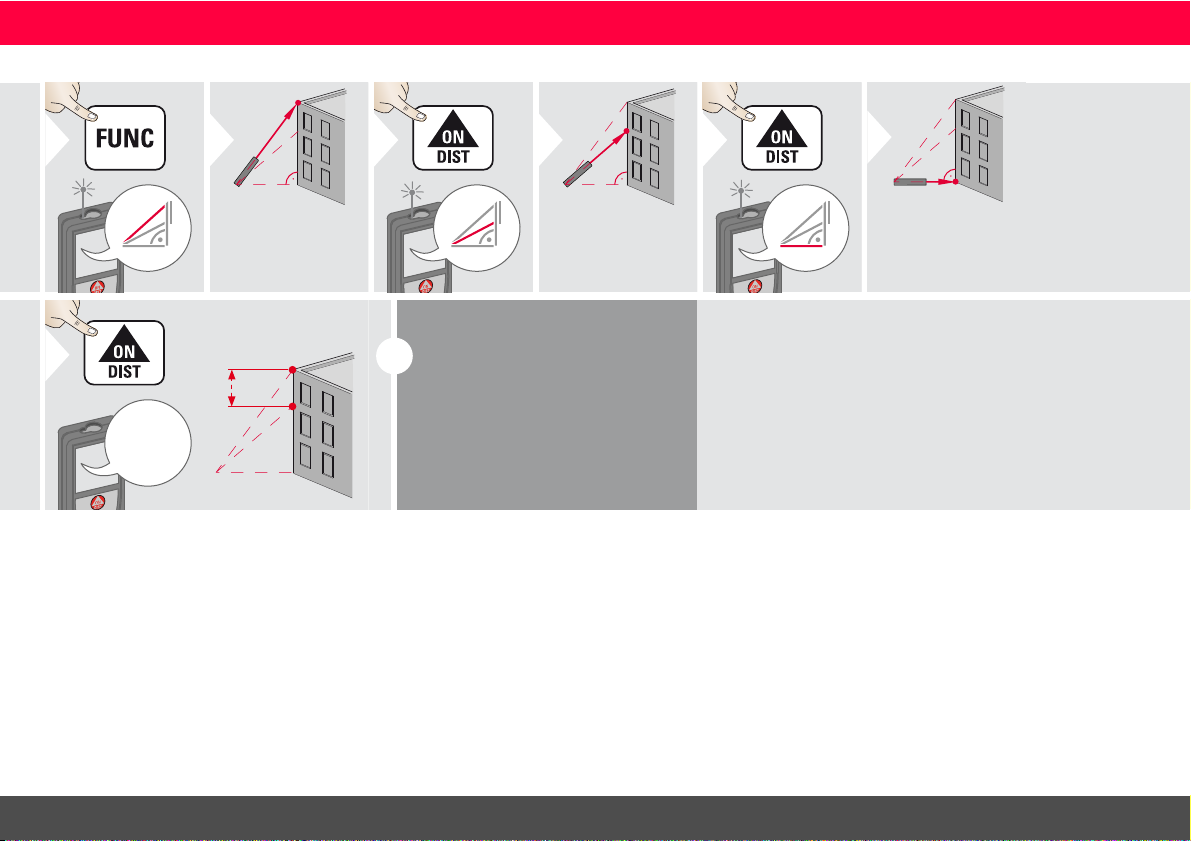

Pythagoras (partial height)
15x2
Aim laser at upper
point.
3
4
Aim laser at 2nd
point.
5
6
Aim laser at rectangular point.
2.602 m
7
i
The result is shown in the main
line and the measured distance
above.
Pressing the measuring key for 2
sec in the function activates automatically Minimum or Maximum measurement.
ENMeasuring Functions
Leica DISTOTM X310 788479d
12
Page 14

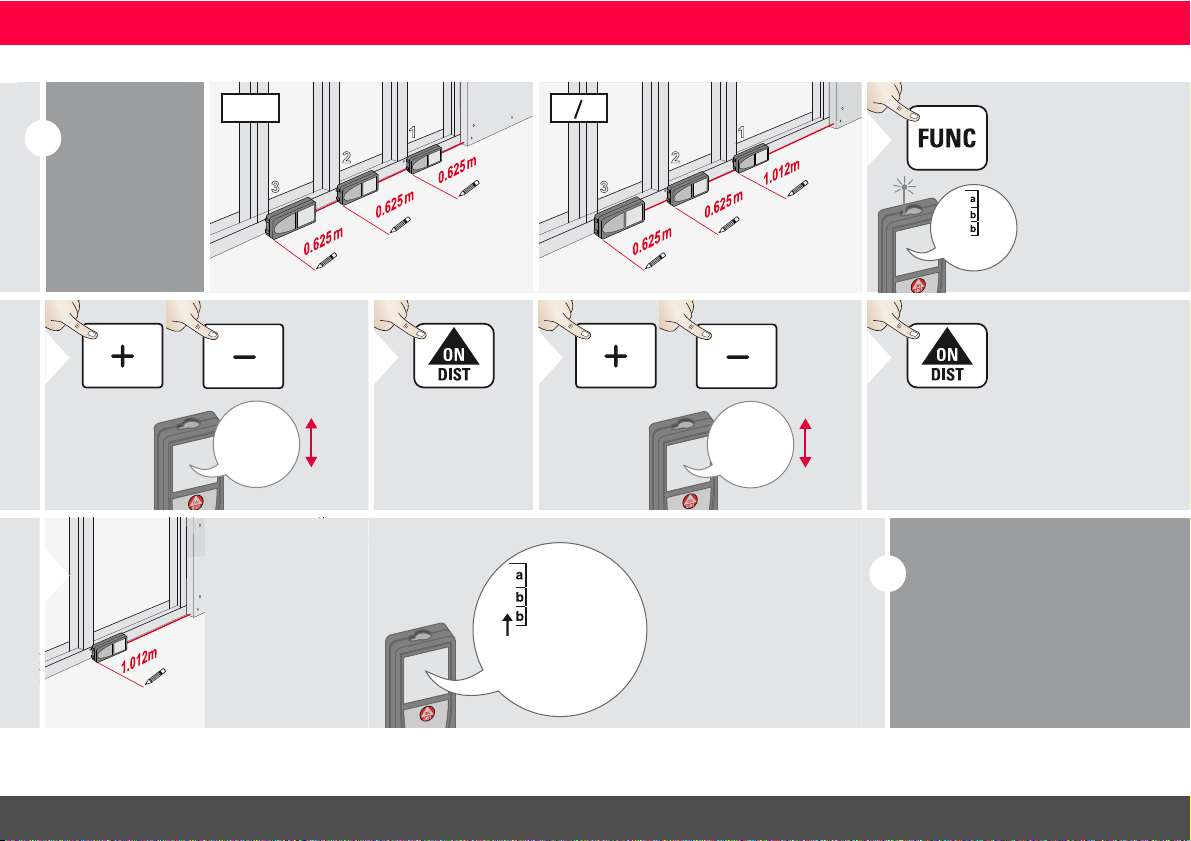

Stake out
i
Two different
distances (a
and b) can be
entered to
mark off defined measured
lengths.
1
2
3
a
b
b
a = b
1
2
3
a
b
b
a = b
1.000 m
1
6x
1.012 m
2
Adjust
value "a".
3
Approve
value "a".
0.625 m
4
Adjust
value "b".
5
Approve value "b" and
start measurement.
6
Move device
slowly along the
stake-out line.
The distance to
the next stake out
point is displayed.
0.625 m
0.240 m
0.240 m is missing up to
next 0.625 m distance.
i
When approaching a stake
out point to less than 0.1 m
the instrument starts to beep.
The function can be stopped
by pressing the CLEAR/OFF
button.
ENMeasuring Functions
Leica DISTOTM X310 788479d
13
Page 15

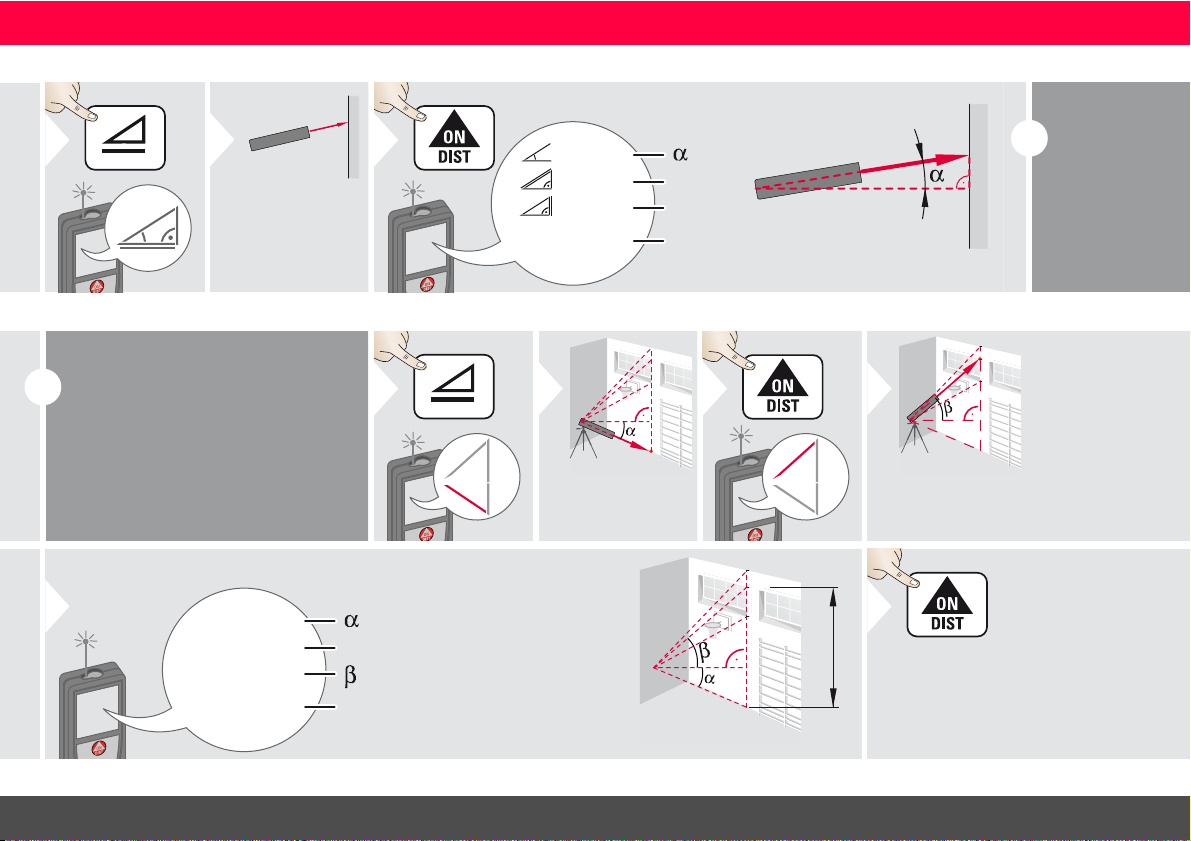

Smart Horizontal Mode
1
Aim laser at target.
2
0.032 m
5.204 m
40.8 °
4.827 m
x
z
x
y
z
y
3
(up to 360° and a transverse
tilt of ±10°)
i
Press key
again to
switch off
horizontal
measurement.
i
This function displays continously the
tracking height if the device is turned
on a tripod. No 2nd distance measuring is needed as only the angle is
automatically measured.
1
2x
x
Aim laser at lower point.
2
3
h1
h2
h3
Aim laser at upper points and angle/
height tracking starts automatically.
4
30.2 °
6.932 m
40.8 °
9.827 m
x
y
h1
h2
h3
x
y
5
= Tracking height if device is
turned on tripod
= Tracking angle
6
Stops Height tracking and displays
last measurement.
Height tracking
ENMeasuring Functions
Leica DISTOTM X310 788479d
14
Page 16

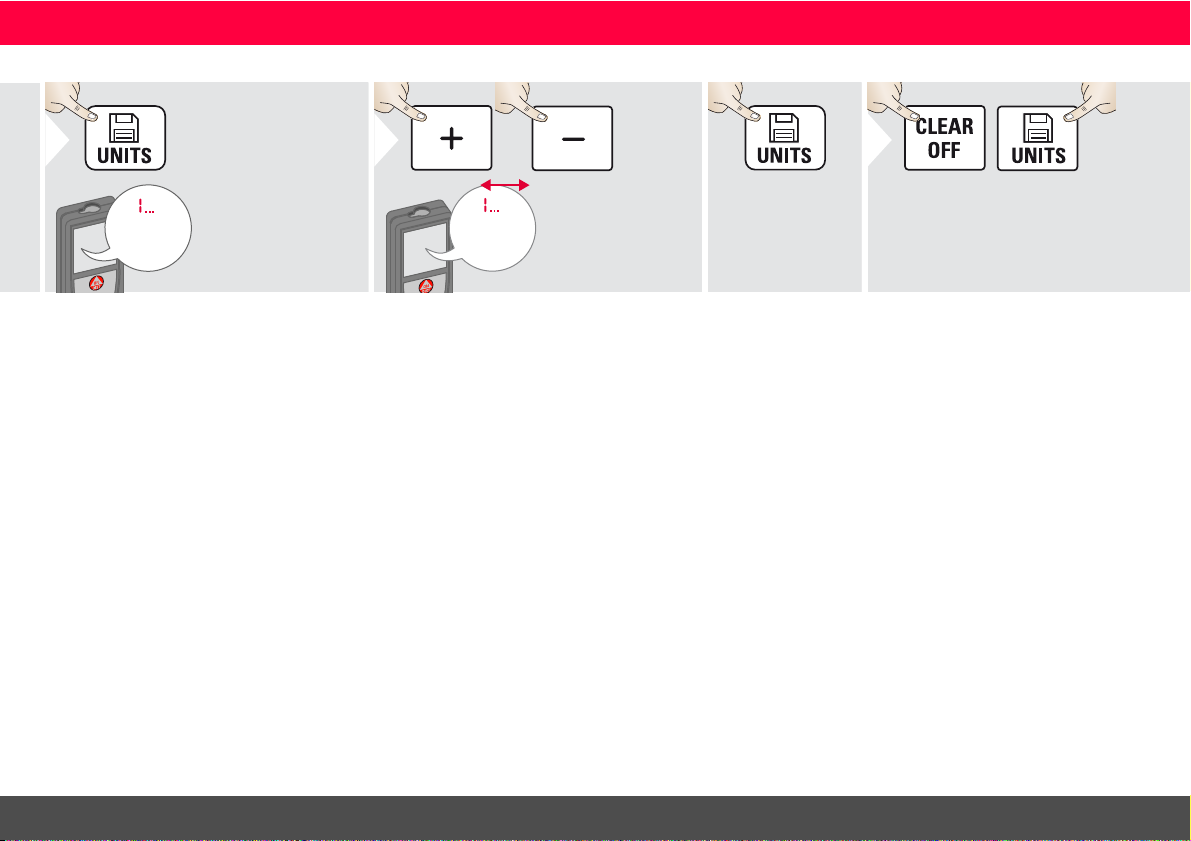

Memory (20 last displays) Delete Memory
8.294 m
20
20 last displays
are displayed.
1
8.294 m
20
Navigates trough
20 last displays.
2
The value from
the main line can
be used for further calculations.
2 sec
3
2 sec
simultaneously
Memory is completely deleted.
ENMeasuring Functions
Leica DISTOTM X310 788479d
15
Page 17

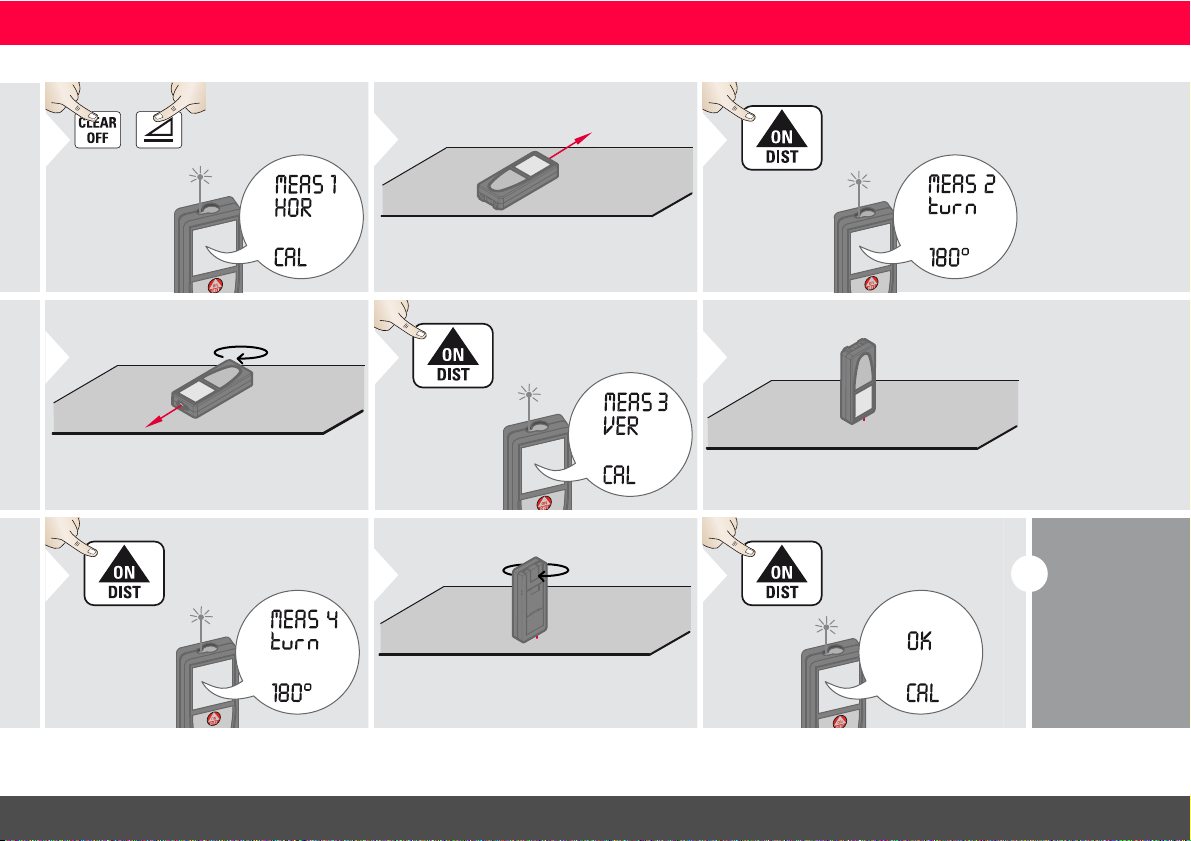

Calibration of tilt sensor (Tilt Calibration)
1
2 sec
simultane-
ously
2
Place device on absolutely flat surface.
3
180°
4
Turn the device horizontally by 180°
and place it again on absolutely flat
surface.
5
6
Place device on absolutely flat surface.
7
180°
8
Turn the device horizontally by 180°
and place it again on absolutely flat
surface.
9
i
After 2 sec
the device
goes back to
the normal
mode.
ENCalibration
Leica DISTOTM X310 788479d
16
Page 18
Distance measurement
Typical Measuring Tolerance* ± 1.0 mm / ~1/16" ***
Maximum Measuring
Tolerance**
Range at Leica target plate
GZM26
Typical Range* 120 m / 390 ft
Range at unfavourable
condition ****
Smallest unit displayed 0.1 mm / 1/32 in
Power Range Technology™yes
Ø laser point
at distances
± 2.0 mm / 0.08 in ***
150 m / 490 ft
80 m / 260 ft
6 /30 / 60 mm
(10 / 50 / 100 m)
Tilt measurement
Measuring tolerance to laser
beam*****
Measuring tolerance to
housing*****
Range 360°
± 0.2°
± 0.2°
General
Laser class 2
Laser type 635 nm, < 1 mW
Protection class IP65 (dust tight and jet
Autom. laser switch off after 90 s
Autom. power switch-off after 180 s
Battery durability (2 x AAA) up to 5000 measure-
Dimension (H x D x W) 122 x 55 x 31 mm
Weight (with batteries) 155 g / 4.98 oz
Temperature range:
-Storage
-Operation
water protected)
ments
4.80 x 2.17 x 1.22 in
-25 to 70 °C
-13 to 158 °F
-10 to 50 °C
14 to 122 °F
* applies for 100 % target reflectivity (white painted wall),
low background illumination, 25 ºC
** applies for 10 to 500 % target reflectivity, high background
illumination, - 10 ºC to + 50 ºC
*** Tolerances apply from 0.05 m to 10 m with a confidence
level of 95%. The maximum tolerance may deteriorate to
0.1 mm/m between 10 m to 30 m and to 0.20 mm/m for
distances above 30 m
**** applies for 100 % target reflectivity, background illumination of approximately 30'000 lux
***** after user calibration. Additional angle related deviation of +/- 0.01° per degree up to +/-45° in each quadrant.
Applies at room temperature. For the whole operating
temperature range the maximum deviation increases by
+/-0.1°.
For accurate indirect results, the use of
i
a tripod is recommended. For accurate
tilt measurements a transverse tilt should be
avoided.
ENTechnical Data
Functions
Distance measuring yes
Min/Max measuring yes
Permanent measuring yes
Stake-out yes
Addition/Subtraction yes
Area yes
Triangle area yes
Volume yes
Painter function (area with
partial measurem.)
Pythagoras 3-point, partial height
Smart Horizontal Mode /
Indirect height
Height tracking yes
Memory 20 displays
Beep yes
Illuminated display yes
Multifunctional endpiece yes
yes
yes
Leica DISTOTM X310 788479d
17
Page 19
If the message Error does not disappear
after switching on the device repeatedly,
contact the dealer.
If the message InFo appears with a number,
press the Clear button and observe the
following instructions:
No. Cause Correction
156 Transverse tilt greater
than 10°
162 Calibration mistake Make sure, the device is
204 Calculation error Perform measurement
252 Temperature too high Let device cool down.
253 Temperature too low Warm device up.
255 Received signal too
weak, measuring time
too long
256 Received signal too
high
257 Too much back-
ground light
258 Measurement outside
of measuring range
260 Laser beam inter-
rupted
Hold the instrument
without any transverse tilt.
placed on a absolutely
horizontal and flat surface.
Repeat the calibration
procedure. If the mistake
still occurs, contact your
dealer.
again.
Change target surface
(e.g. white paper).
Change target surface
(e.g. white paper).
Shadow target area.
Correct range.
Repeat measurement.
Care
• Clean the device with a damp, soft cloth.
• Never immerse the device in water.
• Never use aggressive cleaning agents or
solvents.
Warranty
Lifetime Manufacturer's Warranty
Warranty coverage for the entire usage time
of the product according to Leica Geosystems International Limited Warranty. Free of
charge repair or replacement for all products
that suffer defects as a result of faults in materials or manufacturing, for the entire life of
the product.
3 Years no Cost
Guaranteed service should the product
become defective and require servicing
under normal conditions of use, as described
in the user manual, at no additional charge.
To receive the "3 years no cost" period, the
product must be registered at www.leicageosystems.com/registration within 8 weeks
of the purchase date. If the product is not
registered, a "2 years no cost" period applies.
Safety Instructions
ENMessage Codes
The person responsible for the instrument
must ensure that all users understand these
directions and adhere to them.
Areas of responsibility
Responsibilities of the manufacturer
of the original equipment:
Leica Geosystems AG
Heinrich-Wild-Strasse
CH-9435 Heerbrugg
Internet: www.disto.com
The company above is responsible for
supplying the product, including the User
Manual in a completely safe condition.
The company above is not responsible for
third party accessories.
Responsibilities of the person in
charge of the instrument:
• To understand the safety instructions on
the product and the instructions in the
User Manual.
• To be familiar with local safety regulations
relating to accident prevention.
• Always prevent access to the product by
unauthorised personnel.
Leica DISTOTM X310 788479d
18
Page 20
ENSafety Instructions
Permitted use
• Measuring distances
• Tilt measurement
Prohibited use
• Using the product without instruction
• Using outside the stated limits
• Deactivation of safety systems and
removal of explanatory and hazard labels
• Opening of the equipment by using tools
(screwdrivers, etc.)
• Carrying out modification or conversion of
the product
• Use of accessories from other manufacturers without express approval
• Deliberate dazzling of third parties; also in
the dark
• Inadequate safeguards at the surveying site
(e.g. when measuring on roads, construction sites, etc.)
• Deliberate or irresponsible behaviour on
scaffolding, when using ladders, when
measuring near machines which are
running or near parts of machines or installations which are unprotected
• Aiming directly in the sun
Hazards in use
WARNING
Watch out for erroneous measurements if
the instrument is defective or if it has been
dropped or has been misused or modified.
Carry out periodic test measurements.
Particularly after the instrument has been
subject to abnormal use, and before, during
and after important measurements.
CAUTION
Never attempt to repair the product yourself. In case of damage, contact a local dealer.
WARNING
Changes or modifications not expressly
approved could void the user’s authority to
operate the equipment.
Limits of use
Refer to section "Technical data".
i
The device is designed for use in areas
permanently habitable by humans. Do not
use the product in explosion hazardous areas
or in aggressive environments.
Disposal
CAUTION
Flat batteries must not be disposed of with
household waste. Care for the environment
and take them to the collection points
provided in accordance with national or local
regulations.
The product must not be disposed with
household waste.
Dispose of the product appropriately
in accordance with the national regulations in force in your country.
Adhere to the national and country specific
regulations.
Product specific treatment and waste
management can be downloaded from our
homepage.
Leica DISTOTM X310 788479d
19
Page 21
ENSafety Instructions
Laser Radiation
Do not stare into the beam
Laser class 2
acc. IEC 60825-1:2007
Maximum radiant power: <1mW
Emitted wavelength: 620-690nm
Beam divergence: 0.16 x 0.6 mrad
Impulse duration: 0.2 x 10
-9
s - 0.8 x 10-9s
Electromagnetic Compatibility (EMC)
WARNING
The device conforms to the most stringent
requirements of the relevant standards and
regulations.
Yet, the possibility of causing interference in
other devices cannot be totally excluded.
Laser classification
The device produces visible laser beams,
which are emitted from the instrument:
It is a Class 2 laser product in accordance
with:
• IEC60825-1 : 2007 „Radiation safety of
laser products“
Laser Class 2 products:
Do not stare into the laser beam or direct it
towards other people unnecessarily. Eye
protection is normally afforded by aversion
responses including the blink reflex.
WARNING
Looking directly into the beam with optical
aids (e.g. binoculars, telescopes) can be
hazardous.
CAUTION
Looking into the laser beam may be
hazardous to the eyes.

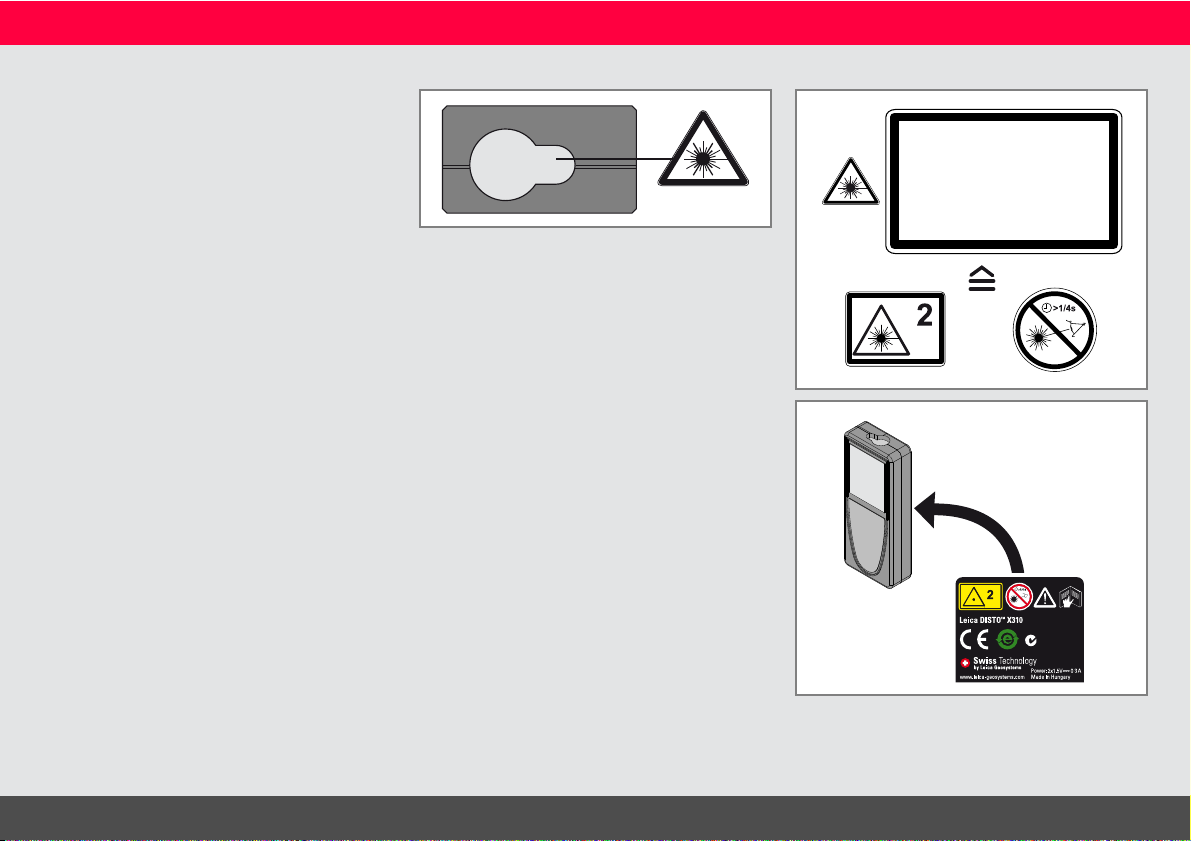

Labelling
Subject to change (drawings, descriptions
and technical data) without prior notice.
Leica DISTOTM X310 788479d
20
Page 22
Leica Geosystems AG
CH-9435 Heerbrugg
(Switzerland)
www.disto.com
Leica Geosystems AG, Heerbrugg, Switzerland has been certified as being
equipped with a quality system which meets the International Standards of
Quality Management and Quality Systems (ISO standard 9001) and Environmental Management Systems (ISO standard 14001).
Total Quality Management - Our commitment to total customer satisfaction.
Ask your local Leica Geosystems agent for more information about our TQM
program.
Copyright Leica Geosystems AG, Heerbrugg,
Switzerland 2012
Original text (788479d EN)
Pat. No.: WO 9427164, WO 9818019, WO 0244754, WO 0216964,
US 5949531, EP 1195617, US 7030969, WO 03104748,
Patents pending
Loading...
