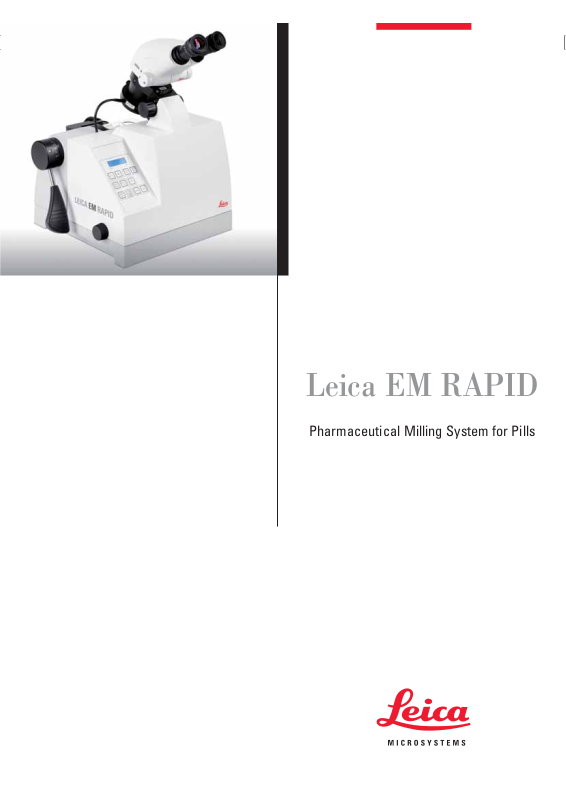

Leica EM RAPID
Pharmaceutical Milling System for Pills
2
Leica EM RAPID for Pharmaceutic
The Leica EM RAPID milling system has been designed for prepa­ration of pills and tablets prior to investigation with NIR spectro­photometry for Research on Active Pharmaceutical Ingredient Dispersal. With a tungsten carbide or diamond milling tool, pills can be decapsulated and milled without any smearing effect caused by the pills’ coating.
The operating concept of the Leica EM RAPID offers versatile fea­tures which are directly converted into user benefits to achieve maximum ease of use and optimal results.
Perpendicular view showing
graticule for distance definition –
optional
Processing observation
Front face observation
12345678910
A
B
C
D
E
F
G
H
I
Leica Design by W. Hölbl
3
al Surface Preparation
Decapsulation of pills without smearing effect
Adjustable cutting speed between 300–20.000 rpm
Defined layer removal in steps of 0.5, 1, 10 or 100 μm
Brilliant ring LED top light and optimised back light
illumination
Low noise extraction and filtration unit with Hepa-filter
Image b
Image c
Image a
Visible (a), derived single component IR image (b) from tablet surface and (c) composite image from 3 major components Courtesy of Perkin Elmer
170.0 150
100
50
0
-50
-100
-150
-170.0
Micrometers
Micrometers
-200.0 -100 0 100 200.0
170.0
150
100
50
0
-50
-100
-150
-170.0
Micrometers
Micrometers
-200.0 -100 0 100 200.0
200.0
150
100
50
0
-50
-100
-150
-200.0
Micrometers
Micrometers
-200.0 -100 0 100 200.0
