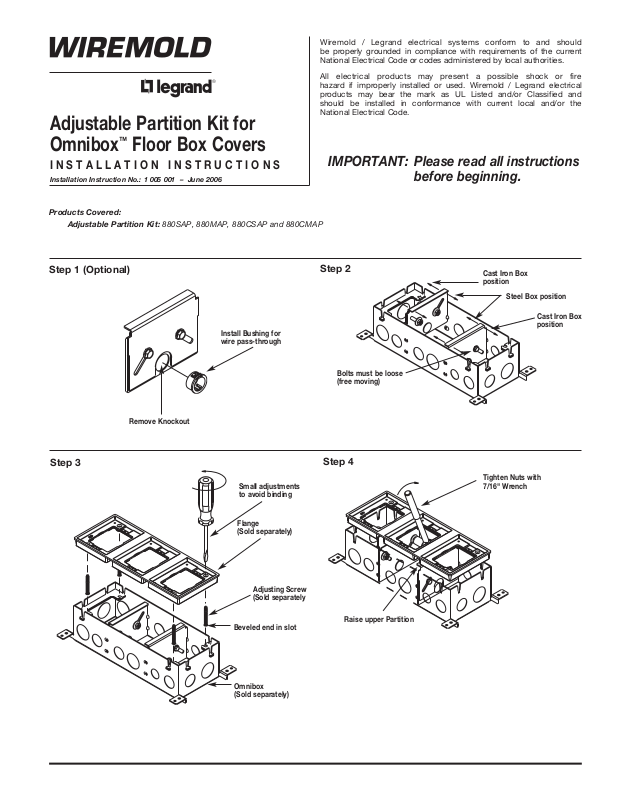

Adjustable Partition Kit for Omnibox™Floor Box Covers

INSTALLATION INSTRUCTIONS

Installation Instruction No.: 1 005 001 – June 2006

Wiremold / Legrand electrical systems conform to and should be properly grounded in compliance with requirements of the current National Electrical Code or codes administered by local authorities.

All electrical products may present a possible shock or fire hazard if improperly installed or used. Wiremold / Legrand electrical products may bear the mark as UL Listed and/or Classified and should be installed in conformance with current local and/or the National Electrical Code.

IMPORTANT: Please read all instructions

before beginning.

Products Covered:

Adjustable Partition Kit: 880SAP, 880MAP, 880CSAP and 880CMAP

Step 1 (Optional)

Step 3

Step 2

Small adjustments to avoid binding

Step 4

Tighten Nuts with 7/16" Wrench

Raise upper Partition

Flange (Sold separately)

Adjusting Screw (Sold separately

Beveled end in slot

Omnibox (Sold separately)

Remove Knockout

Install Bushing for wire pass-through

Cast Iron Box position

Bolts must be loose (free moving)

Steel Box position

Wiremold / Legrand

U.S. and International: 60 Woodlawn Street • West Hartford, CT 06110 1-800-621-0049 • FAX 860-232-2062 • Outside U.S.: 860-233-6251 Canada: 570 Applewood Crescent • Vaughan, Ontario L4K 4B4 1-800-723-5175 • FAX 905-738-9721

1 005 001 0606

1/2" [12.7mm]

Maximum

Flush with finished floor

Upper Partition must be against underneath side of Flange for maximum support

LOWEST POSITION

HIGHEST POSITION

Consult factory for upward adjustment greater than 1/2" [12.7mm].
