LEGRAND 802.11a, 802.11g, 802.11b, 802.11n User Manual

Dual band Access Point

802.11a/b/g/n

www.legrand.fr

USER

GUIDE

Contents

1.1 / HOW TO ACCESS THE WEB-BASED INTERFACE p. 4

1.2 / ENTERING THE CONFIGURATION PASSWORD p. 5

1.3 / CONFIGURATION WIZARD p. 6

1.4 / ACCESS POINT OVERVIEW p. 7

1.5 / IP ADDRESS p. 8

1.6 / ADMINISTRATION PASSWORD p. 9

1.7 / FIRMWARE MANAGEMENT p. 10

1.8 / CONFIGURATION MANAGEMENT p. 11

1.9 / REBOOT/FULL RESET p. 12

1.10 / MANAGEMENT INTERFACE p. 13

1.11 / SNMP, UPnP & SYSLOG p. 14

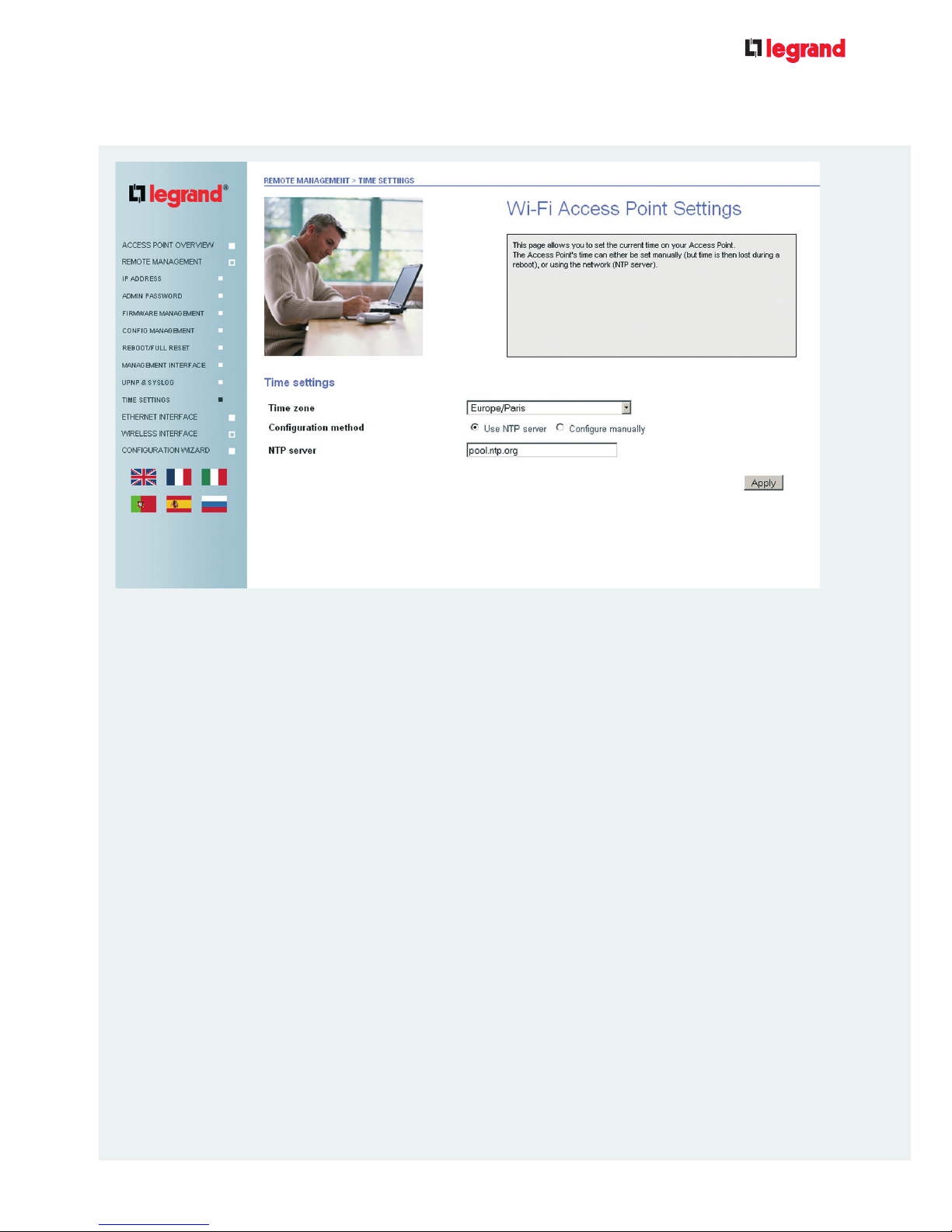

1.12 / TIME SETTINGS p. 16

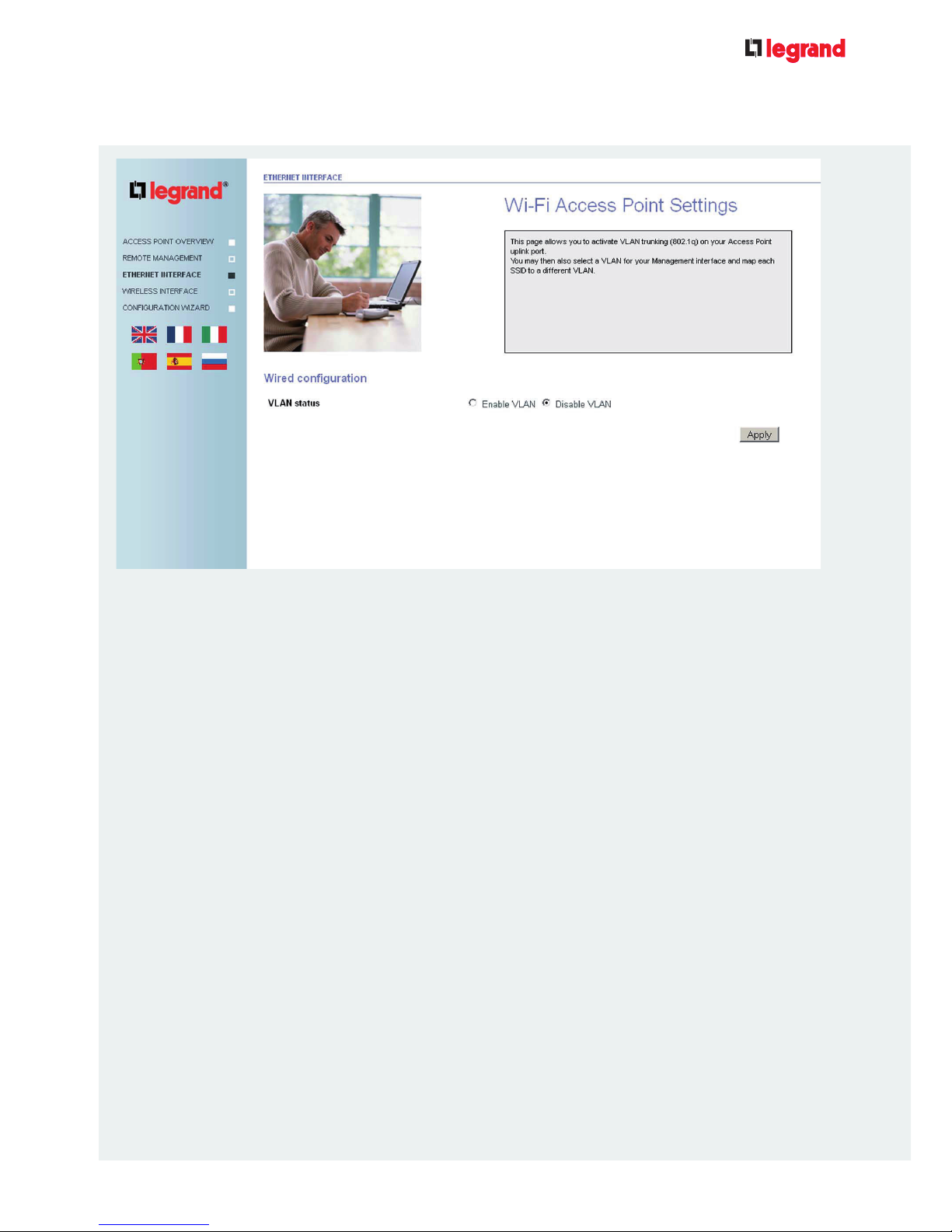

1.13 / ETHERNET INTERFACE p. 18

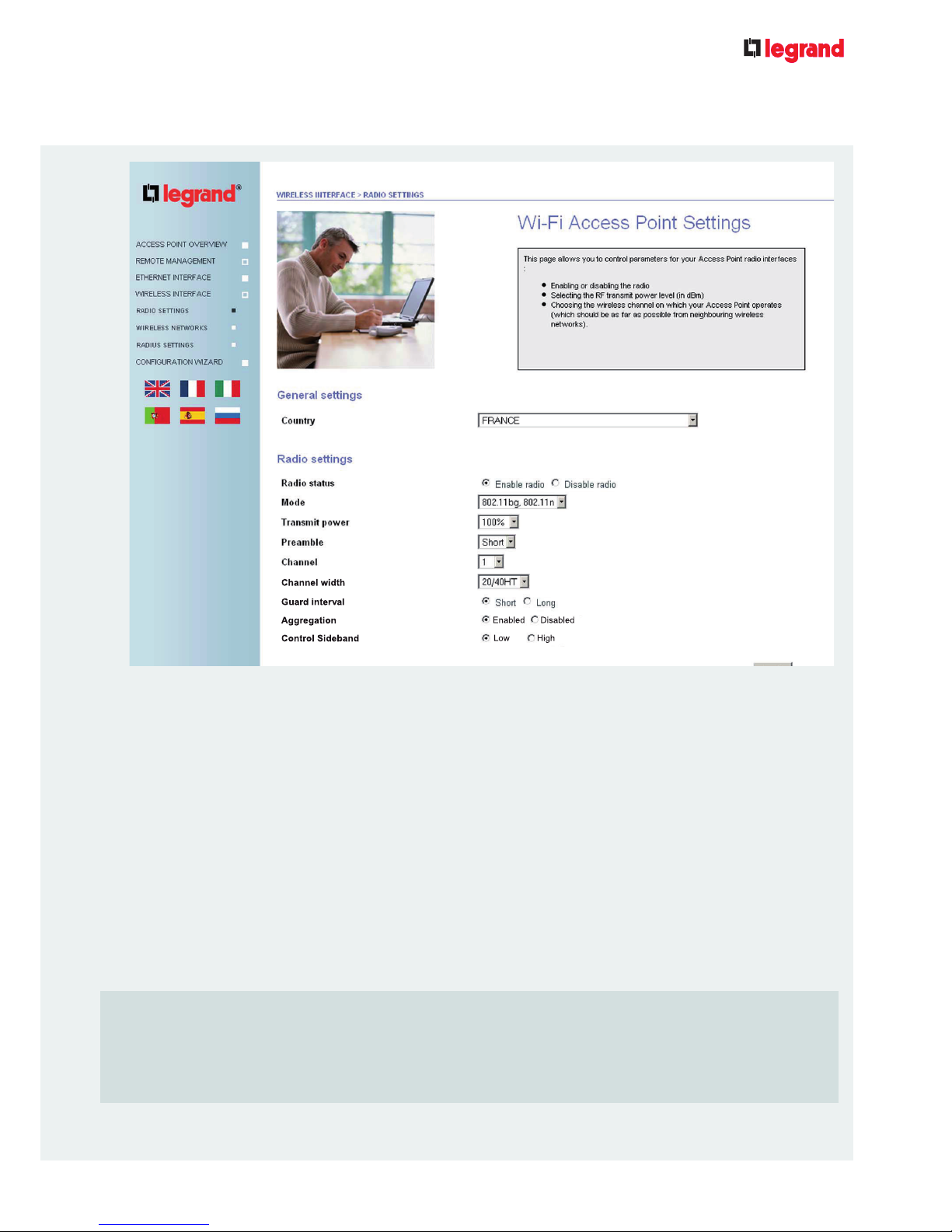

1.14 / RADIO SETTINGS p. 19

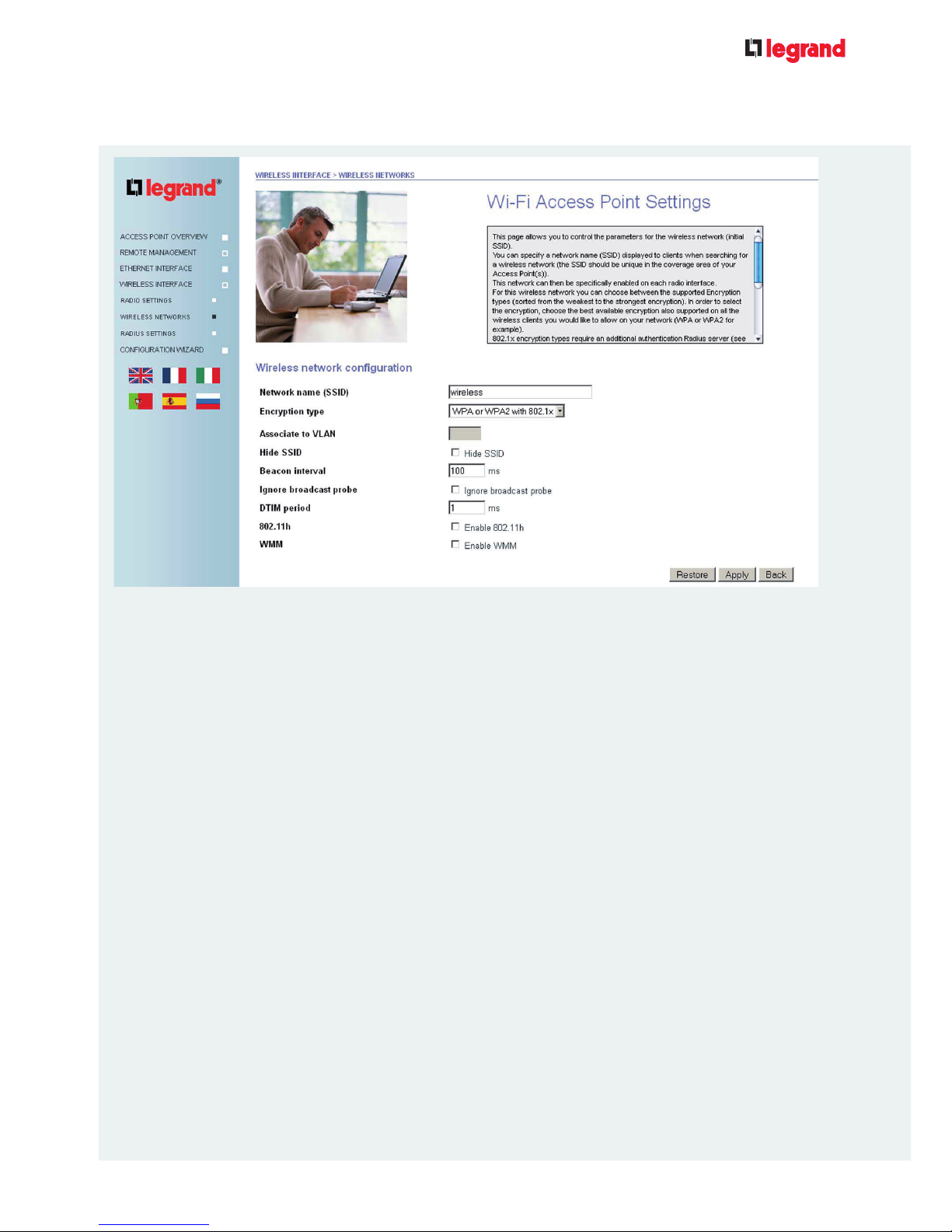

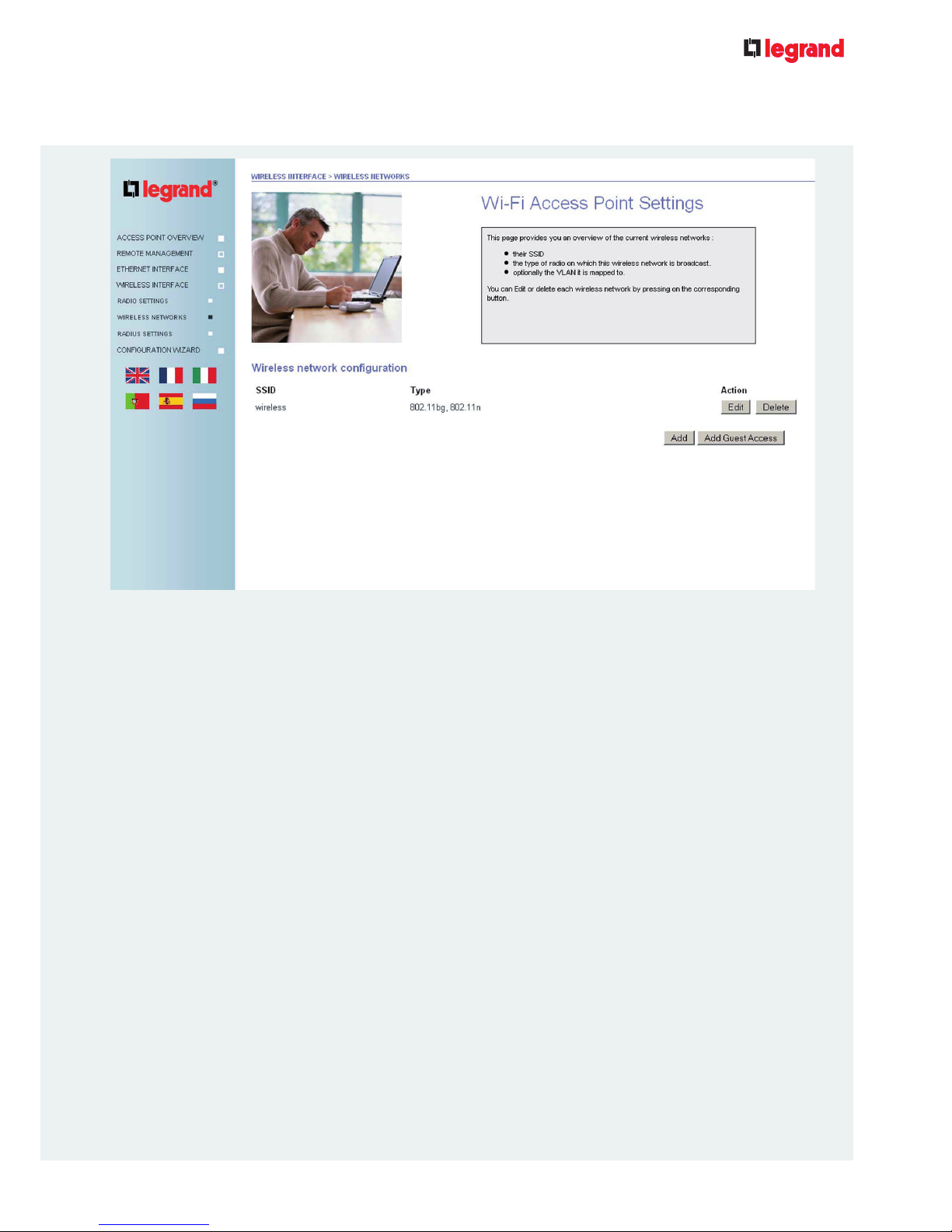

1.15 / WIRELESS NETWORKS p. 21

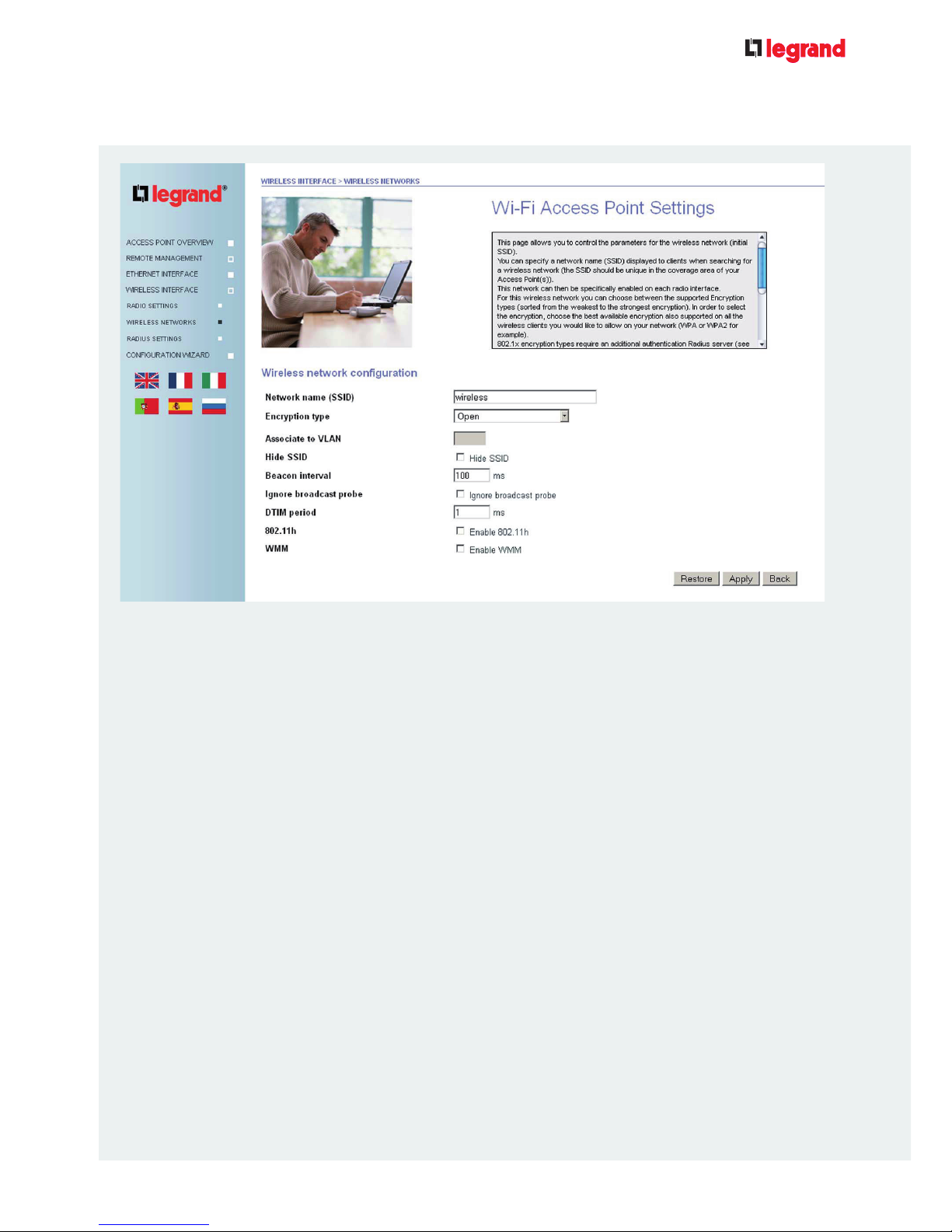

1.15.1 / WIRELESS NETWORK/SECURITY/Open p. 24

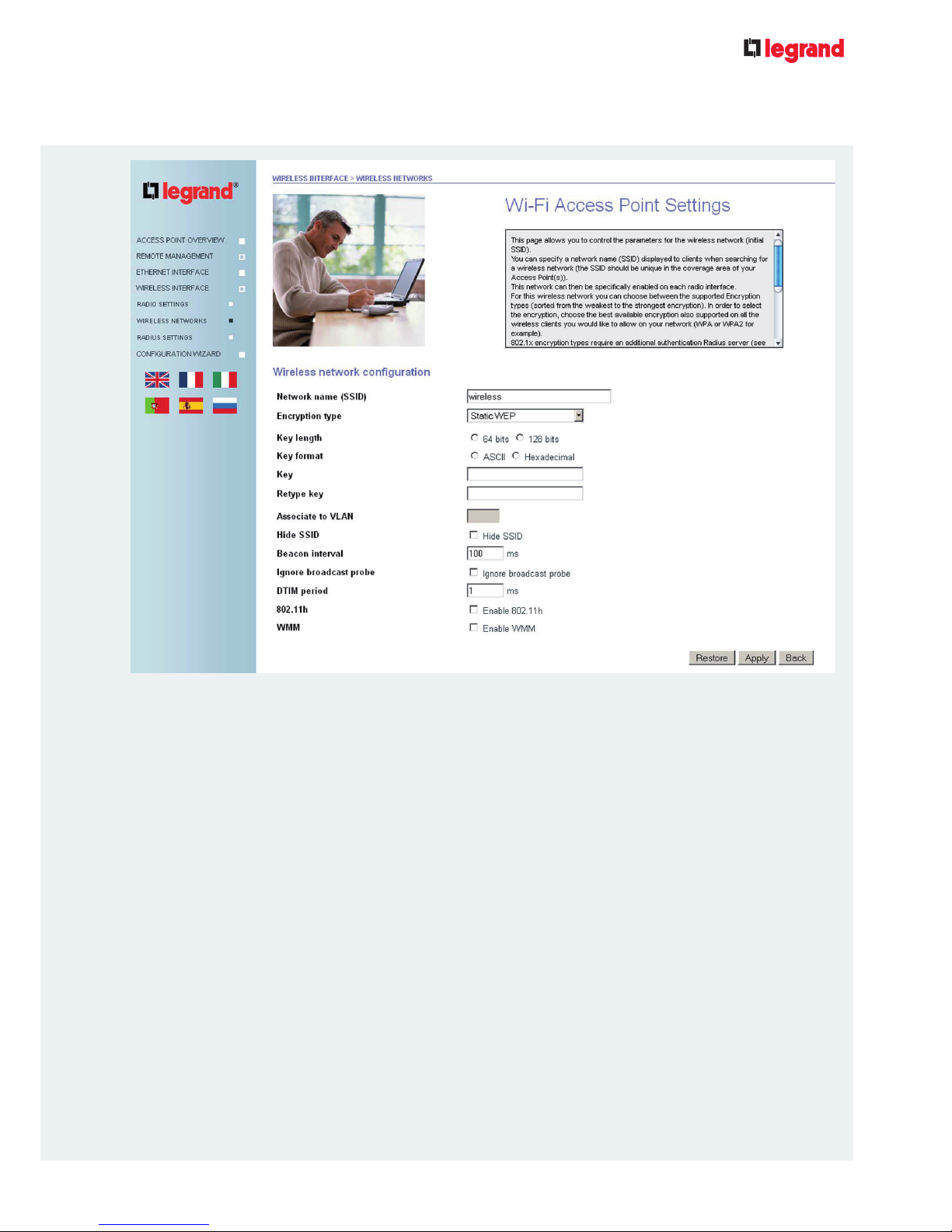

1.15.2 / WIRELESS NETWORK/SECURITY/Static WEP p. 25

1.15.3 / WIRELESS NETWORK/SECURITY/WEP with 802.1x p. 26

1.15.4 / WIRELESS NETWORK/SECURITY/Static WPA p. 27

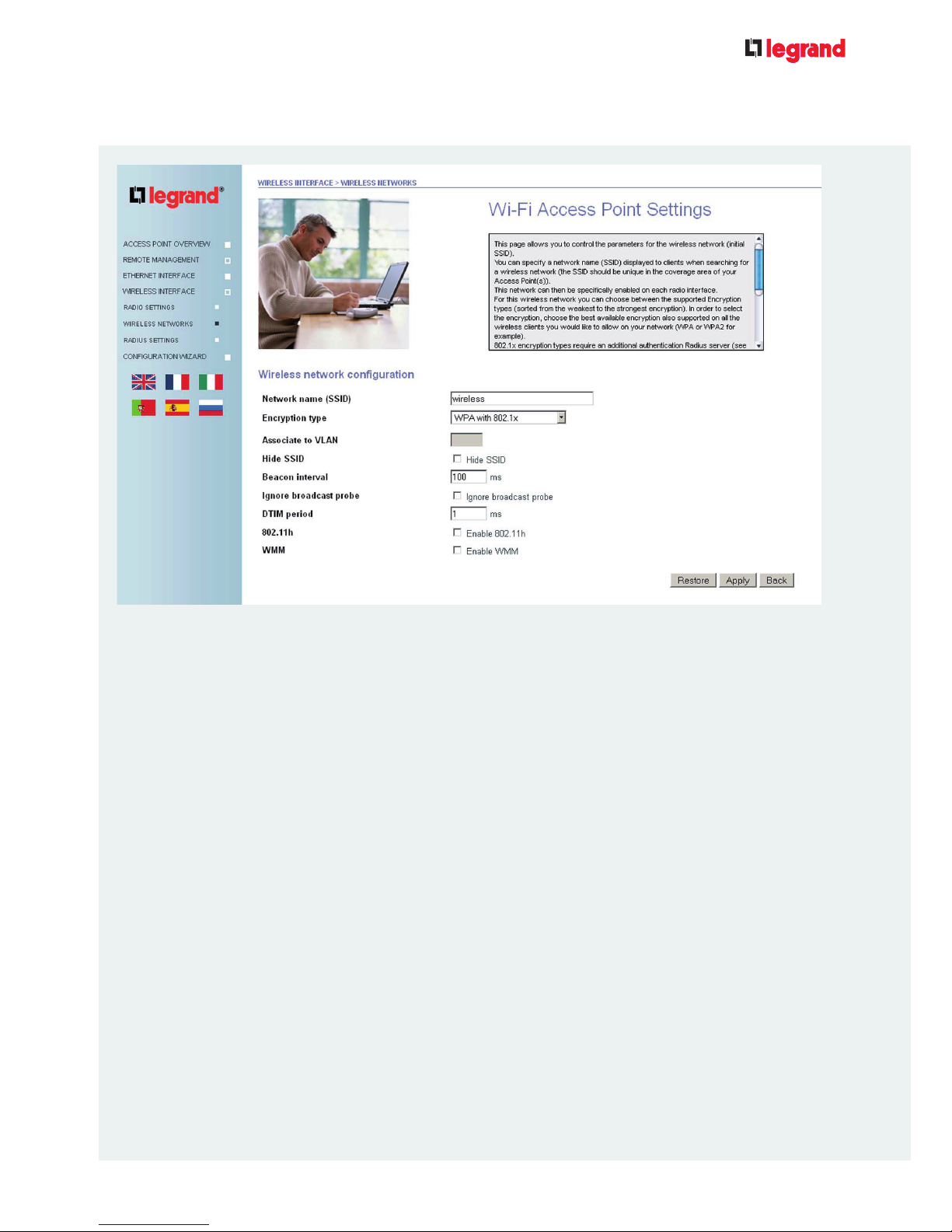

1.15.5 / WIRELESS NETWORK/SECURITY/Static WPA with 802.1x p. 28

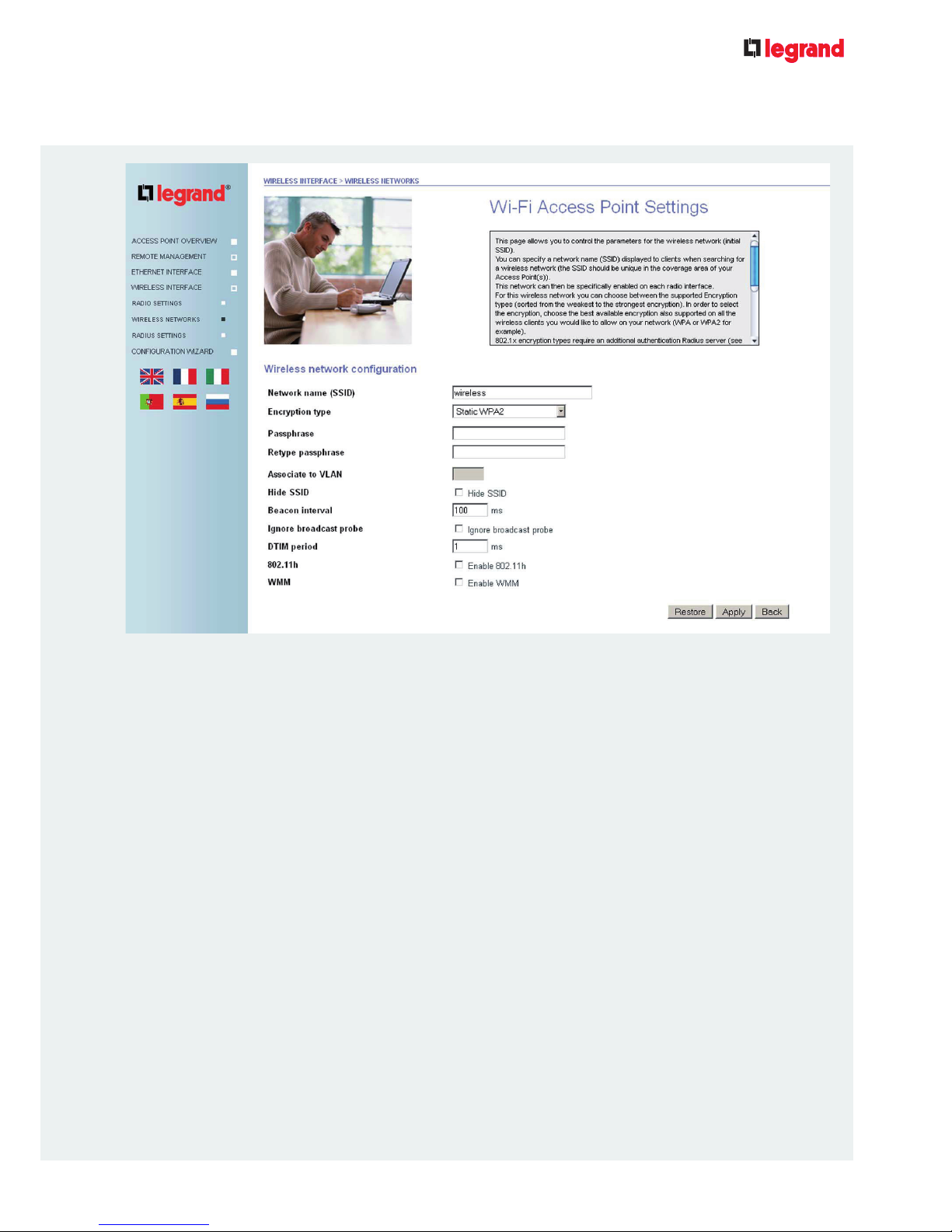

1.15.6 / WIRELESS NETWORK/SECURITY/Static WPA2 p. 29

1.15.7 / WIRELESS NETWORK/SECURITY/WPA2 with 802.1x p. 30

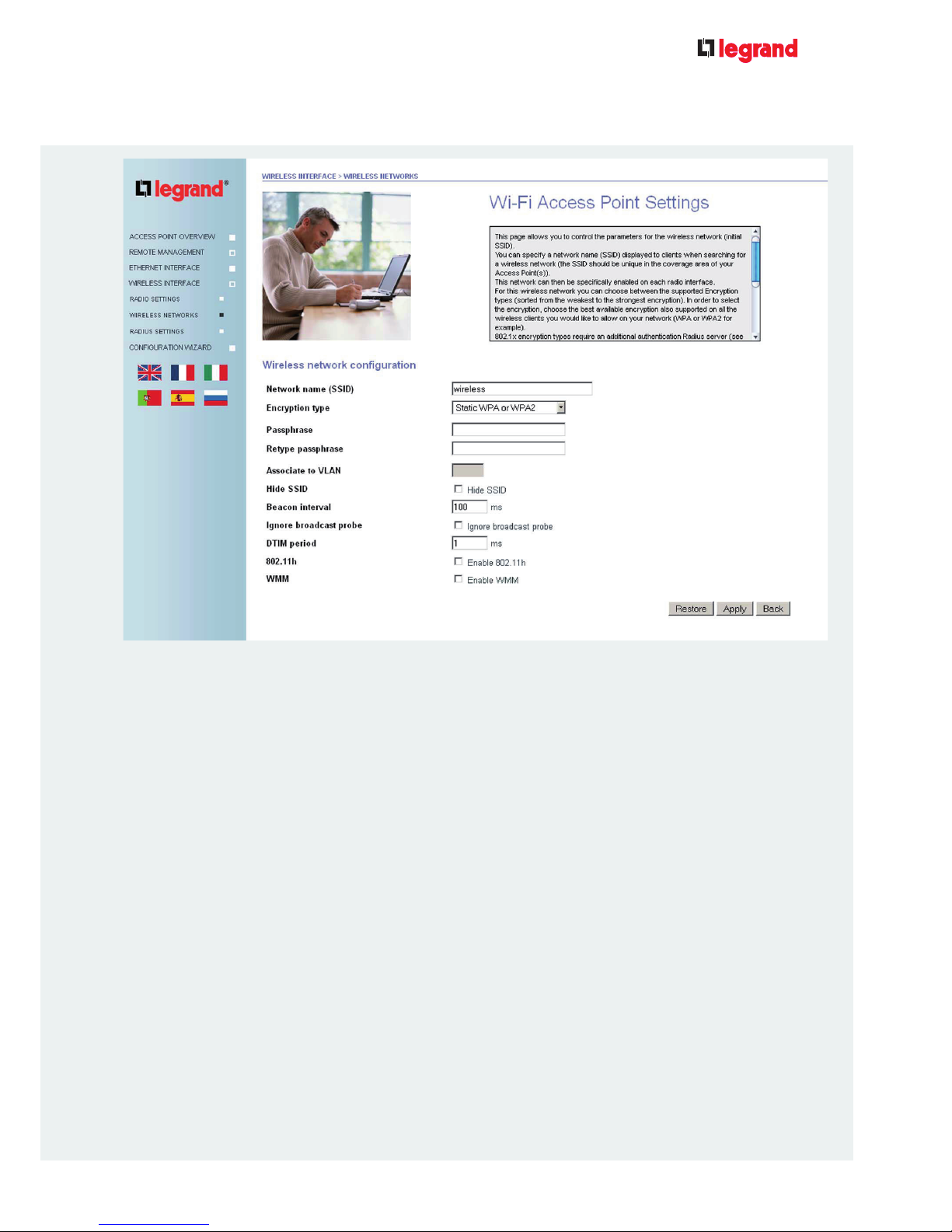

1.15.8 / WIRELESS NETWORK/SECURITY/Static WPA or WPA2 p. 31

1.15.9 / WIRELESS NETWORK/SECURITY/WPA or WPA2 with 802.1x p. 32

1.16 / WIRELESS NETWORK/GUEST ACCESS p. 33

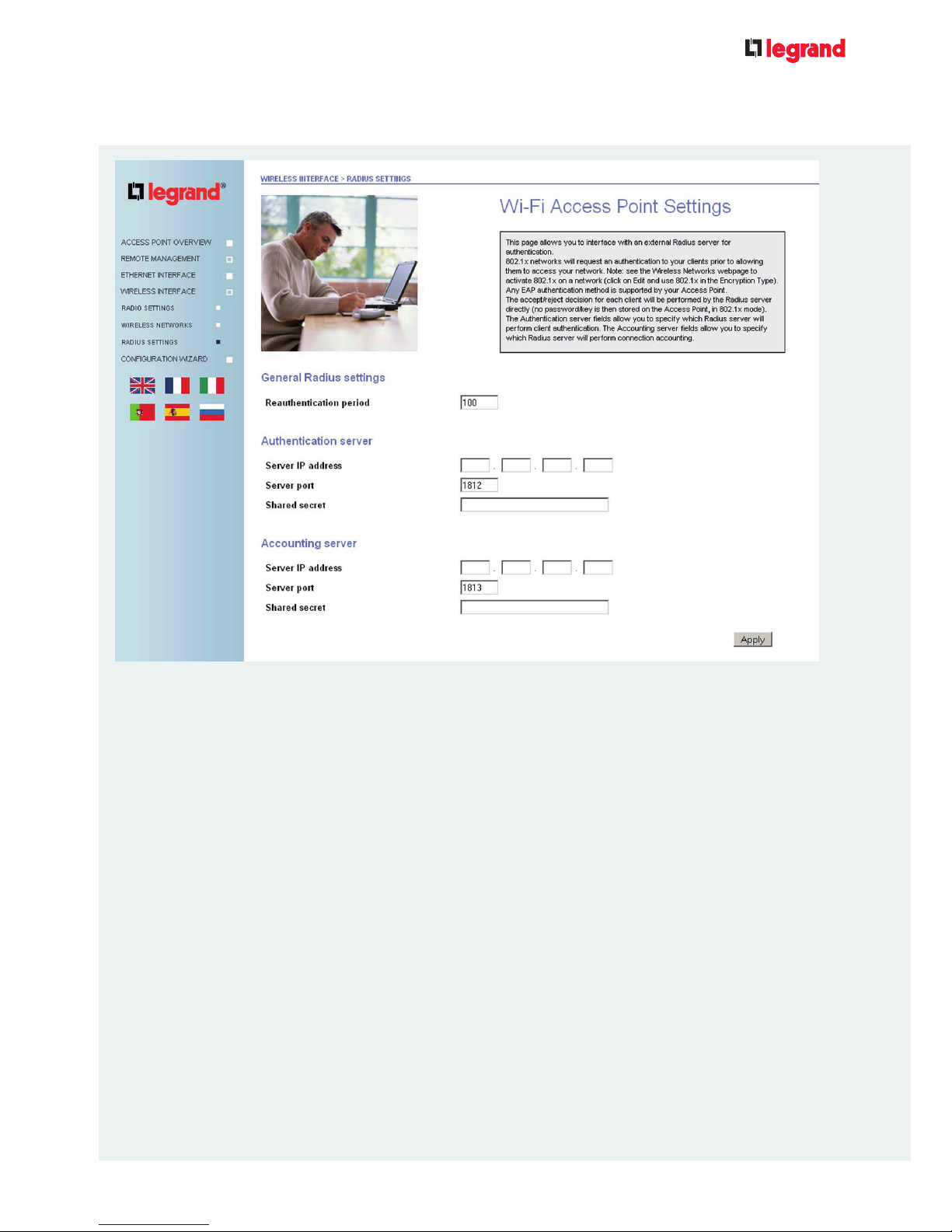

1.17 / RADIUS SETTINGS p. 34

GLOSSARY p. 36

Introduction

Rear Panel of the Access Point (AP)

The port to which an uplink network cable
is connected is located on the rear panel
of the Access Point. The power is supplied
via twisted pair cable (Power over Ethernet
standard IEEE 802.3af).

Front panel of the Access Point

LED (PWR): The power LED lights when the

Access Point is powered on.

LED (WLAN): The LED blinks when the

radio is activated.

Reset button: This button has two uses:

• A short press reboots the AP

• A long press (more than 5 seconds) resets

the AP (to factory defaults)

4

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.1 / HOW TO ACCESS THE WEB-BASED INTERFACE

The list shows all the Legrand Access Points in your installation.

Select an Access Point and click on "Connect" to access the web configuration interface.

1. If your computer is operating with Windows

Check that the UPnP protocol is activated on
your computer. If it is not, follow this procedure:

- Click on the Start Menu> Settings> Control
Panel

- Click on Add or Remove Programs in the
Control Panel.

- Click on Add/Remove Windows Components.

- In the Components list, select Networking
Services, then click on Details.

- Make sure the Universal Plug-and-Play check
box Is selected. Click on OK, then Next until the
installation is complete.

UPnP is now activated on your computer. When
you click on the Network Neighbourhood icon
on your desktop.

- Click on Start

- Click on Computer

- Click on Network
A window opens displaying the Legrand AP
detected using UPnP.

Double-click on one of the Access Points to access the web configuration interface.

2. If your computer is operating with another version of Windows or with

MAC, Linux, Unix or another operating system

Use the CD-ROM to launch the Legrand Control
Point discovery utility.

Insert the CD-ROM SUPPLIED WITH THE
ACCESS POINT (AP). This CD provides the tools

you need to configure your wireless network.

The main menu will be displayed automatically on
the screen. If the main menu does not open auto­matically, browse the contents of the CD-ROM
using the Windows Explorer, then double-click on
the setup.exe file.

- XP

- Vista/7

5

The first time you connect to the management web interfaces, or following a full reset, you will
not be asked to enter a password to configure the Access Point. It is strongly recommended
that you password protect your Legrand Access Point, as this will make access to the man­agement web interfaces subject to prior authentication. The Login will then be "admin", and
the password will have to match with the one previously configured.

1.2 / ENTERING THE CONFIGURATION PASSWORD

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Caution

Depending on the web browser you use,
a Remember my password dialogue box
may appear if the management web inter­faces are password-protected. Enabling this
option means your browser will fill in the
password automatically for you each time
you subsequently connect to the manage­ment web interfaces.
Do not check this option if other people
have access to your PC, as they could
modify the Access Point configuration
without having to provide the configuration
password.

6

This page provides quick access to the main security features of your Access Point.

When your configuration is complete, the
connection between your computer and the
Access Point will be interrupted. In order to
restore your computerís wireless connectiv­ity, you will need to apply the same encryp­tion and key to your PCís wireless connec­tion settings.

Your AP is now secure and ready to use.
If you need to modify the advanced set­tings use the web interface menu.

1.3 / CONFIGURATION WIZARD

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

First enter your chosen network name
(Choose a network name (SSID)).
In the Choose your WPA key field, select a
wireless key (at least 8 characters long). This
will have to be entered on all wireless devices
to be connected to the wireless network.
In the Choose a new admin password field,
enter your chosen password.
This password will be required to modify the
configuration of your Access Point.
Click on Apply & Save to update and save
this configuration.

With this quick installation page, your Access
Point is configured using the Static WPA or
WPA2 encryption method (using the key pro­vided).

AP name

This name will help you to identify your
Access Point.

When you select Add a guest access limi-
ted to an Internet access, you can define
an open (hotspot) wireless network which will
only provide access to the Internet. Enter the
name of this limited-access network in the

Choose the guest access network name
(SSID)) field.

76

1.4 / ACCESS POINT OVERVIEW

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

The screen gives an overview of the main information on the Legrand AP.

AP name

This name will identify your Access Point (it is shown in the

discovery utility).

Uptime

Shows how long the Legrand AP has been running since its

last reboot/power on

VLAN Status of VLAN trunking (Enabled/Disabled)

Radio Status of the radio (Enabled/Disabled)

Connected users Number of wireless clients currently connected

The detailed list of client PCs connected to the radio can be displayed by
clicking on the number of connected users.

8

1.5 / IP ADDRESS

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

AP name

This name will help you to identify your
Access Point.

Allow management access on VLAN

All management/configuration access to the
AP can be restricted to a specific VLAN on the
uplink port.
By default VLANs are disabled, and access to
the management interface is allowed from any
interface.
If necessary, one VLAN on the uplink port can
be selected as the only way to access the
management interface (for this, the VLANs
must first be enabled, see the Ethernet
Interface section).

Note: If VLANs are enabled you can restrict
management/configuration access to a spe­cific VLAN ID or to the native VLAN.

Dynamically retrieve an IP address (DHCP)

You can use either Dynamic (DHCP) or Static
(use the next IP address) IP addressing to
manage the AP.
By default or after a full reset, the Access
Point is set to use DHCP.

Toggle AUTO-IP in the absence of DHCP

If Toggle AUTO-IP in the absence of DHCP
is selected, the AP returns to automatic IP
addressing mode (169.254.0.0/16) if no
DHCP server can be found on the network.

Use the following IP address

(An IP address must be unique in your net­work. The Netmask, Default gateway and
DNS Server values can be safely copied
from a computer already configured with stat­ic IP addressing in your network).
IP address: Enter the static IP address for
your Access Point.
Netmask: Enter the IP Netmask for your net­work.
Default gateway: Enter the default gateway
IP address (used for any traffic beyond the
local network)
DNS server: Enter your DNS IP address
(optional).

After you have changed the settings on this
page, click on Apply to confirm your chang­es.

98

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.6 / ADMINISTRATION PASSWORD

This page enables you to change the Access Pointís configuration password. Enter the new
password in both fields, and click on Apply to confirm the changes.

Important:

If you restore the Access Pointís factory
defaults your password settings will be
erased. No password will be required for the
web interface after a factory default reset.

10

1.7 / FIRMWARE MANAGEMENT

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

The Current firmware version field shows the firmware version installed on your Legrand
AP.

The firmware upgrade web page shows the
current firmware version on the Access Point.
Before upgrading the firmware on the Access
Point, download the latest version from http://
www.wifi.legrandelectric.com.

Press Browse to select a firmware file on
your computer.
Then click on Upgrade to upgrade the
firmware.
This takes a few minutes.

Note: When upgrading the firmware, do not interrupt the Web browser and do not power

down your Access Point.

11

1.8 / CONFIGURATION MANAGEMENT

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Backing up and restoring the configuration

The settings of the Access Point are saved in
the AP.
This configuration can be backed up on the
administrator’s computer as a text file, using
the Backup button.

This file can then be restored to the AP from
the user’s computer at a later stage: click
on Browse to locate the file, then on the
Restore button.

1.9 / REBOOT/FULL RESET

Important:

If you restore the Access Points factory
defaults, all of your settings will be erased
(password, security encryption, wireless and
LAN settings, etc.) and replaced by the fac­tory defaults (see Administration password
section).

Default Config

To restore the Access Points factory default
settings, click on Restore default settings
(this is equivalent to a long press on the reset
button).

Reboot Device

Click on Reboot to reboot the AP.
This is equivalent to a short press on the
reset button.

12

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.10 / MANAGEMENT INTERFACE

13

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

This page enables you to control the enabling/disabling of various methods of configuring the
AP:
HTTPS only: enables management via a secure web management interface only (SSL
encrypted HTTP transmission)
HTTP or HTTPS: enables management via HTTP or HTTPS

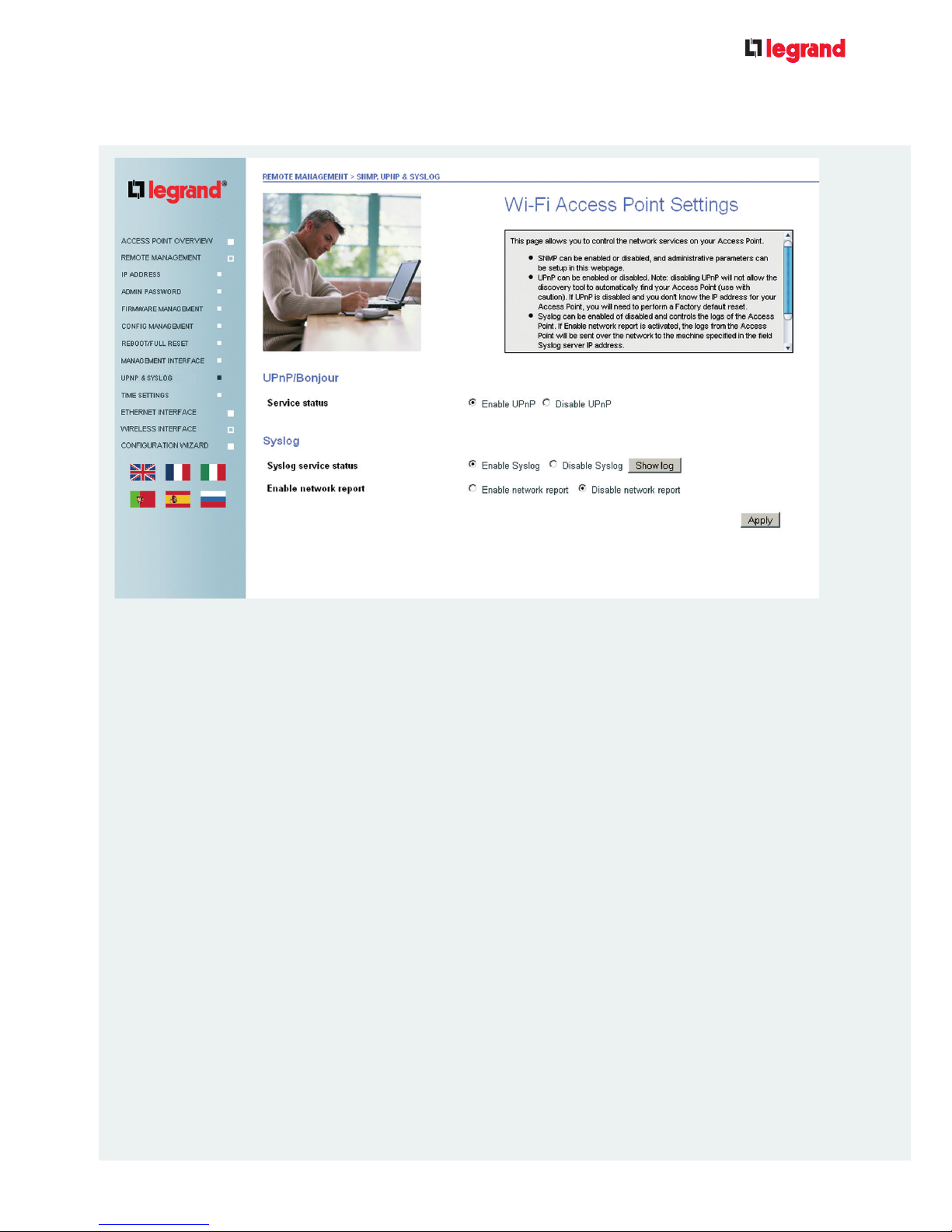

1.11 / UPnP & SYSLOG

UPnP

Select Enable UPnP to enable the AP
to announce itself on the network using
UPnP/Bonjour. By default, the protocols
are enabled so that the Legrand Access

Point Discovery utility can be used.

Syslog

To enable system logging, select Enable
Syslog (enabled by default).

If you have chosen to manage the Access
Points system logging remotely, select
Enable network report and then select
the IP address and UDP port of the device
management machine in the Syslog server
IP address and Syslog server port fields
respectively.
After you have changed the settings on this
page, click on Apply to confirm your chang­es.

14

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

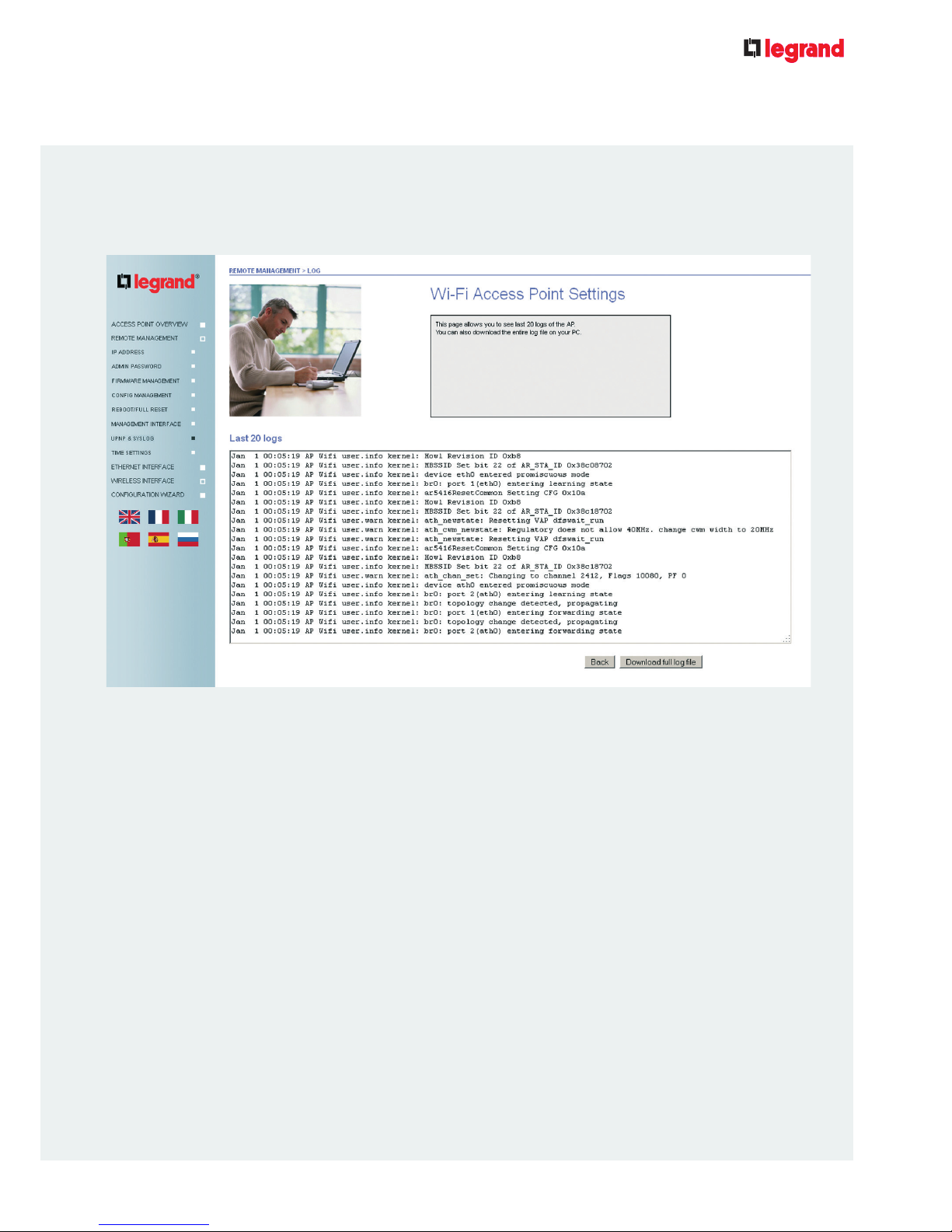

Show Log

Click on the Show Log button to see the last 20 events or click on Download full log file
(see below) to retrieve all event logs since the last reboot.

15

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.12 / TIME SETTINGS

Time Zone

In the menu select the time zone in which your AP is located.
If your zone does not appear in this list, select a location that is in the same time zone.
The default zone is GMT.

16

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Configuration method

You can choose between two methods of
adjusting the time on your AP: Use NTP
server or Configure manually.

- If you select Use NTP server, the Legrand
AP will automatically sync to UTC/GMT time
from the NTP server you have selected in the
NTP server field.

The clock on a device has a tendency to drift
over time.
The Network Time Protocol (NTP) is a way of
ensuring your clock stays accurate.

- If you select Manually, you must adjust the
current date and time manually (see figure on
next page).
However, in this case the time will be lost
after a reboot.

After you have changed the settings on this page, click on Apply to confirm your changes.

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.13 / ETHERNET INTERFACE

Selecting Enable VLAN activates VLAN

802.1q trunking on the uplink Ethernet inter­face. The default is Disable VLAN, which
means that no VLAN tagging will be used.
In order to achieve an adequate security
level, VLANs should be used to isolate traf­fic when several network names (SSIDs) are
activated on the radio.

After you have changed the settings on this
page, click on Apply to confirm your chang­es.

18

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

19

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.14 / RADIO SETTINGS

Country: Select in this field the country in which the Access Point is installed in order to

comply with the local radio regulations.

Note: The available radio channels depend on the value of the "Country" field.

The Legrand AP integrates a wireless radio
that can operate at 2.4 GHz or 5 GHz.
The radio can be enabled/disabled (in the
Radio status field).
The following settings are available:

- Mode is used to select the frequency band
on which the radio is to operate: 802.11bg,

802.11n on 2.4 GHz and 802.11a, 802.11n
on 5 GHz (in the Mode field).

- The radio transmission power can be
adjusted on the radio (Transmit power field).

- The preamble type can be adjusted in the
Preamble field (recommended value: Auto).

- The channel width can be adjusted in the
Channel width field (recommended value:
20/40HT).

- The guard interval can be adjusted in the

Guard interval field (recommended value:
Short).

- The link aggregation can be adjusted in
the Aggregation field (recommended value:
Enabled).

- The control frequency band can be adjusted
in the Control band field.

20

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

5 GHz wireless radio frequency channels

In a wireless network, it is the AP that selects
the channel on which all radio transmissions
will be performed.

After you have changed the settings on this
page, click on Apply to confirm your chang­es.

2.4 GHz radio frequency channels

Channel Frequency

36 5.180 GHz

38 5.190 GHz

40 5.200 GHz

42 5.210 GHz

44 5.220 GHz

46 5.230 GHz

48 5.240 GHz

52 5.260 GHz

56 5.280 GHz

60 5.300 GHz

64 5.320 GHz

100 5.500 GHz

104 5.520 GHz

108 5.540 GHz

112 5.560 GHz

116 5.580 GHz

120 5.600 GHz

124 5.620 GHz

128 5.640 GHz

132 5.660 GHz

136 5.680 GHz

140 5.700 GHz

149 5.745 GHz

153 5.765 GHz

157 5.785 GHz

161 5.805 GHz

165 5.825 GHz

Channel Frequency

1 2.412 GHz

2 2.417 GHz

3 2.422 GHz

4 2.427 GHz

5 2.432 GHz

6 2.437 GHz

7 2.442 GHz

8 2.447 GHz

9 2.452 GHz

10 2.457 GHz

11 2.462 GHz

12 2.467 GHz

13 2.472 GHz

14 2.484 GHz

1.15 / WIRELESS NETWORKS

This page gives you a list of the wireless networks (SSIDs) that are already configured.

Use the Edit button to modify the configurations of the corresponding SSIDs.
Use the Delete button to erase the corresponding SSID.
Use the Add button to add a new SSID (see next page).
Use the Add Guest Access button to add a network for your guests who will only have
access to the Internet. Only one guest-access wireless network can be created (see page 33).

21

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

22

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Network name (SSID))

The SSID is also the name of the wireless
network.
The characters in this field are case sensitive.

Encryption type

Choose an authentication method from the
following (from the lowest to the highest secu­rity level):

1. OPEN

2. STATIC WEP

3. WEP with 802.1x

4. STATIC WPA

5. STATIC WPA with 802.1x

6. STATIC WPA2

7. WPA2 with 802.1x

8. STATIC WPA or WPA2

9. WPA or WPA2 with 802.1x

23

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Associate to VLAN

If VLANs are enabled, you can restrict the
traffic from/to this SSID to a specific VLAN
ID.

Hide SSID

Select this box to prevent the AP from broad­casting the SSID for this network.

Note: This will force users to enter the SSID
for this wireless network manually on their
computers, and may even prevent some
wireless clients from connecting.
By default this field is not selected.

Beacon interval

Specifies how much time elapses between
two beacon frames sent from the AP.
The default value should be suitable for most
installations.

Ignore broadcast probe

Enable this option to prevent the AP from
responding to broadcast scanning from wire­less devices (this makes the wireless network
less visible to scanning tools).

DTIM period (Delivery Traffic Indication

Message)
Specifies at what beacon frequency a DTIM
indication will be included (enables devices in
power save mode to wake up).
The default value of 1 should be suitable for
most installations.

802.11h

Select this option to make the AP comply with
the IEEE 802.11h standard (European stand­ard on radar avoidance and power saving).
The remaining wireless network fields depend
on the type of encryption selected and are
detailed by encryption type in the following
sections.

WMM

Select this option to activate Quality of
service, which is developed by the Wi-Fi
alliance as a subset of the 802.11e standard
called the Wi-Fi Multimedia (WMM)
specification.

1.15.1 / WIRELESS NETWORK/SECURITY/Open

Encryption type

Select Open.

In this mode, any device is allowed to connect to your wireless network.
Your network will not be protected by any security or encryption.

24

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.15.2 / WIRELESS NETWORK/SECURITY/Static WEP

You will need to enter this WEP key on each device that will connect to your wireless
network.

25

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Encryption type

Select Static WEP.

Key

Enter the WEP key to encrypt the data on
your wireless network.
WEP keys can be 64 or 128 bits long and can
be entered in ASCII or hexadecimal format.
The length of the keys will thus be:

- 10 hexadecimal digits for 64-bit keys

- 5 ASCII characters for 64-bit keys

- 26 hexadecimal digits for 128-bit keys

- 13 ASCII characters for 128-bit keys

1.15.3 / WIRELESS NETWORK/SECURITY/WEP with 802.1x

26

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Encryption type

Select WEP with 802.1x.

Use WEP as the encryption mode and 802.1x
(RADIUS authentication) as the station
authentication protocol.
No key is required in this encryption mode,
as the key will be dynamically provided by
an external RADIUS server (see RADIUS
section).

1.15.4 / WIRELESS NETWORK/SECURITY/Static WPA

You will need to enter this WPA passphrase on each device that will connect to your wireless
network.

27

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Encryption type

Select Static WPA.

This encryption, which is stronger than
WEP and WPA, is also called WPA-PSK or

802.11i-PSK (based on AES and CCMP).
The key is provided as a passphrase of at
least 8 characters.

1.15.5 / WIRELESS NETWORK/SECURITY/Static WPA with 802.1x

28

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Encryption type

Select WPA with 802.1x.

Use WPA as the encryption mode and 802.1x
(RADIUS authentication) as the station
authentication protocol.
No key is required in this encryption mode,
as the key will be dynamically provided by an
external RADIUS server (see RADIUS sec­tion).

1.15.6 / WIRELESS NETWORK/SECURITY/Static WPA2

29

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

You will need to enter this WPA2 passphrase on each device that will connect to your
wireless network.

Encryption type

Select Static WPA2.

This encryption, which is stronger than WEP
and WPA, is also called WPA2-PSK or

802.11i-PSK (based on AES and CCMP).
The key is provided as a passphrase of at
least 8 characters.

1.15.7 / WIRELESS NETWORK/SECURITY/WPA2 with 802.1x

30

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Encryption type

Select WPA2 with 802.1x.

Use WPA2 as the encryption mode and

802.1x (RADIUS authentication) as the sta­tion authentication protocol.
No key is required in this encryption mode,
as the key will be dynamically provided by an
external RADIUS server (see RADIUS sec­tion).

1.15.8 / WIRELESS NETWORK/SECURITY/Static WPA or WPA2

31

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Encryption type

Select Static WPA or WPA2.

Using this mode, mixed WPA and WPA2
(802.11i) clients can connect to the wireless
network.

1.15.9 / WIRELESS NETWORK/SECURITY/WPA or WPA2 with 802.1x

32

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Encryption type

Select WPA or WPA2 with 802.1x.

Use WPA or WPA2 as the encryption
mode and 802.1x (RADIUS authentication)
as the station authentication protocol.
No key is required in this encryption mode,
as the key will be dynamically provided by
an external RADIUS server (see Radius
section).

Using this mode, mixed WPA and WPA2
(802.11i) clients can connect to the wireless
network

.

1.16 / WIRELESS NETWORK/GUEST ACCESS

On this page, in addition to the conventional wireless network settings described above, you
can configure the IP address to which this SSID will not be permitted to access.
By default, the private networks described in RFC 1918 are filtered automatically.
You can then filter up to four more networks (IP address ranges).
The subnetwork on which the access point is located is automatically detected and automati­cally filled-in .

33

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.17 / RADIUS SETTINGS

Reauthentication period

In this field, you can specify how often (in
seconds) a wireless client will have to reau­thenticate.

Authentication server IP address

This is the IP address of the RADIUS server
used for 802.1x client authentication.

Authentication server port

Using this field, you can specify the port on
the RADIUS server.

Shared secret

This field contains the shared secret between
the wireless Access Point and the RADIUS
server to secure RADIUS communications.

Accounting server IP address

This is the IP address of the server managing
wireless clients' accounts.

Accounting server port

Using this field, you can specify the account­ing port on the accounting server.

Shared secret

This field contains the shared secret between
the wireless Access Point and the accounting
server.

After you have changed the settings on this
page, click on Apply to confirm your chang­es.

34

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

The RADIUS webpage allows your AP to delegate authentication to a remote RADIUS server
(using 802.1x port-based authentication).

Password

None

Access Point Name

AP Wifi

IP Address

DHCP then
auto-IP

VLANs

Disabled

Network name (SSID)

wireless

Broadcast Network Name
(SSID)

Enabled

2.4 GHz Radio Frequency
Channel

1

Security mode

Open
NTP

Disabled
Syslog

Disabled
Radius settings

None

UPnP

Enabled

Using the Reset button

If an issue with your Access Pointís configu­ration prevents you from reconnecting to its
management interface, a factory default reset
will be needed.
To restore the factory configuration settings,
use the Default Reset button on the front of
the wireless Access Point.
This reset button has two functions:

• Reboot. After a short press on the button,
the wireless AP will reboot (restart).
This has the same effect as power cycling
the AP or pressing the Reboot button in the
Reboot/Full reset menu.

• Reset to factory defaults. If the reset
button is pressed and held down for more
than 5 seconds, the AP will reboot in its
factory configuration.

RESTORING THE FACTORY DEFAULT CONFIGURATION

Default factory settings

When you start the initial configuration of
your Legrand Access Point, the factory set­tings are as follows:

Standards

IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, IEEE 802.11n, IEEE

802.3af

Internet Ports

One 10/100 RJ-45 port for connection to the backbone network

(uplink port)
Reset button One reboot/full reset button
Wiring

CAT5 UTP Ethernet cable or better

LED Power, WLAN
Power supply Power over Ethernet (802.3af) POE

Certifications

CE

Operating temperature 5°C to 40°C (41°F to 104°F)

Storage temperature -20°C to 70°C(-4°F to 158°F)
Operating humidity 10% to 85% non-condensing
Storage humidity 5% to 90% non-condensing

SPECIFICATIONS

35

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

36

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

GLOSSARY

100BASE-T

IEEE 802.3
specification for
100 Mbps
Ethernet over
twisted pair.

802.1x

802.1x defines
the port-based
network access
control used to
provide authen­ticated network
access and auto­mated manage­ment of the data
encryption key.
The IEEE 802.1x
draft standard
offers an effec­tive framework
for authenticat­ing and control­ling user traffic
to a protected
network, as
well as dynami­cally varying
encryption keys.

802.1x uses a
protocol called
EAP (Extensible
Authentication
Protocol).

802.11a

IEEE specifi­cation for 54
Mbps wireless
networks using
orthogonal
frequency divi­sion multiplex­ing (OFDM)
technology and
operating in the
5 GHz radio
spectrum.

802.11b

IEEE specifi­cation for 11
Mbps wireless
networks using
direct-sequence
spread-spec­trum (DSSS)
technology and
operating in the

2.4 GHz radio
spectrum.

802.11g

IEEE specifi­cation for 54
Mbps wireless
networks using
orthogonal
frequency divi­sion multiplex­ing (OFDM)
technology and
operating in
the 2.4 GHz
radio spec­trum. 802.11g
is backward
compatible with

802.11b.

802.11i

The IEEE

802.11i stand­ard, also known
as WPA2, is
an amended
version of the

802.11 stand­ard specifying
security mecha­nisms for wire­less networks.

802.11n

The IEEE

802.11n stand­ard must ena­ble a theoretical
data rate of up
to 270 Mbps or
300 Mbps to be
reached in the

2.4 GHz or 5
GHz frequency
bands respec­tively.

37

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

AP

Access Point

a

c

Channel

Subdivision of
the Wi-Fi band

Centrino

Chipset devel­oped by Intel for
mobile comput­ing, in particular
laptops, incorpo­rating wireless
adaptors.

d

DHCP

(Dynamic Host
Configuration
Protocol)

An Ethernet pro­tocol specifying
how a central­ised DHCP serv­er can assign
the network
configuration to
multiple clients.
The informa­tion assigned
includes IP
addresses, DNS
addresses, and
gateway (router)
addresses.

Configuration
password

Password need­ed to change
the Legrand
Access Point
configuration
(channel, SSID,
encryption).
The configura­tion password is
requested when
you connect to
the manage­ment interface.

Ethernet

The 802.3 IEEE
standard net­work protocol
that specifies
communication
over twisted
pairs.

Encryption

Encoding of
information
exchanged
between two
wireless devic­es to make
them unintelligi­ble to any other
device that
does not have
the encryp­tion key/pass­phrase.

ESSID (also

called SSID)

The Extended
Service Set
Identification
(ESSID) is a
32-character
(maximum)
alphanumeric
key which iden­tifies the wire­less LAN.

e

38

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Firmware

Software that is
present in the
flash memory
of the Access
Point. It is
retained even
when the device
is turned off.

f

Gateway

(passerelle
applicative)

A local device,
usually a router,
which connects
hosts on a local
network to other
networks.

g h i

MAC address

The MAC
address is a
unique 48-bit
hardware identi­fication address
assigned to
each network
interface card
in the format
xx:xx:xx:xx:xx:x
x (x being
a character
between 0 and
9 or between A

and F).

Mbps

Megabits per
second.

m

Hexadecimal
key

Representation
in hexadecimal
(computing) for­mat of the net­work key; only
used with WEP.
Some Wi-Fi
adaptors only
allow the input
of a network key
in its hexadeci­mal format.
In 64-bit WEP
encryption, the
hexadecimal key
is made up of
10 characters
between 0 and
9 or between A
and F.
In 128-bit WEP
encryption, the
hexadecimal key
is made up of
26 characters
between 0 and
9 or between A
and F.

Internet
Protocol (IP)

The Internet
Protocol (IP) is
the main inter­networking pro­tocol used by the
Internet.

IP Address

A four-byte
number uniquely
defining each
host on a net­work, usually
written in dotted
decimal notation
with full stops
separating the
bytes
(for example,

134.177.244.57).

Netmask

Combined with
the IP address,
the IP Subnet
Mask enables a
device to know
which other
addresses are
local to it, and
which must be
reached via a
gateway or a
router.
A number that
explains which
part of an IP
address com­prises the net­work address
and which part
is the host
address on that
network.
It can be
expressed in
dotted decimal
notation or
as a number
appended to the
IP address.

Network key

Code enabling
the encryption
and decryption
of the informa­tion exchanged
between devic­es.

n

o

39

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Securing a
Wi-Fi network

Adding encryp­tion to Wi-Fi
communications

Shared Key
Shared key
= Pre-shared
Key (PSK) =
network key

SSID

See ESSID

s u

RADIUS

RADIUS
(Remote
Authentication
Dial-In User
Service) is an
authentication
system.
When using
RADIUS, you
must enter your
user name and
password or cer­tificates before
gaining access
to a network.
This information
is passed to a
RADIUS server,
which checks
that it is correct
and then author­izes access.

r

Open system

Wireless com­munication
mode without
encryption.

Upgrade

Replacement
of existing
software or
firmware with a
newer version.

WEP

WEP (Wired
Equivalent
Privacy) is a
data encryp­tion protocol for

802.11 wireless
networks.
All wireless
nodes and
access points
on the network
are configured
with a 64-bit or
128-bit shared
key for data
encryption.

Wi-Fi

A commercial
brand certifying
interoperability
for 802.11a/b/g
wireless devic­es.

w

LEGRAND SNC
Siège social
128, av. du Maréchal-de-Lattre-de­Tassigny
87045 Limoges Cedex - France
tél. : [phone] +
télex : 580048 F
fax : [phone]

Support technique :

0810484848

LE03419AA_EN
