Leapers MNT-HK02 User Manual
UTG
STANAG CLAW MOUNT
COMPLETE WITH PICATINNY RAIL
Item No.: MNT-HK02
Designed for H&K Firearms & Other Compatible Variants
with Standard Receiver Dimensions
Robust Steel Construction with Precision Machining and
Matte Black Finish
Smooth and Rock Solid Quick Lock/Release Installation
High-profile with See-through Feature Allowing Use of
Iron Sights
Two Piece Design Including a Detachable Steel Picatinny
Rail to Work with Stanag Dimension Devices as Well as
MUM039011311
Picatinny Applications
Great Zero Retention Capability for All Accessories
Installed on the Rail

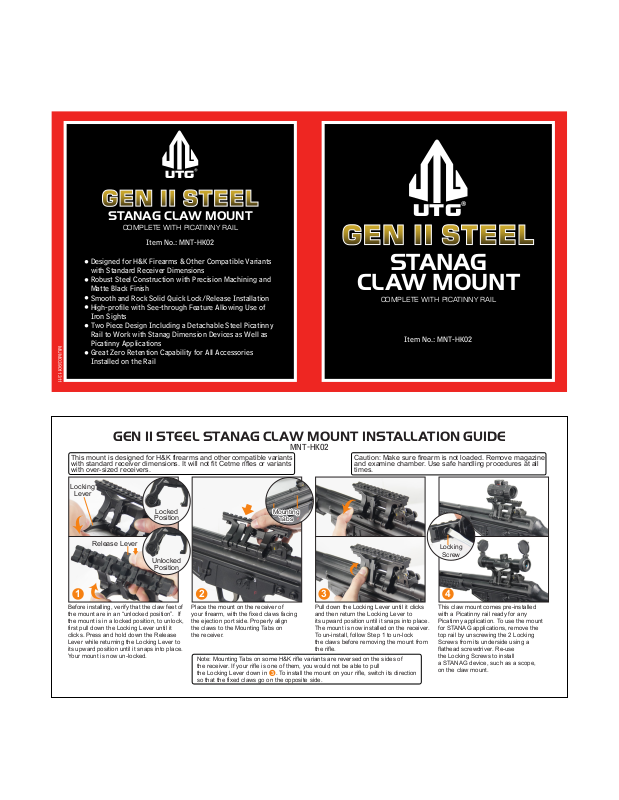

GEN II STEEL STANAG CLAW MOUNT INSTALLATION GUIDE
This mount is designed for H&K firearms and other compatible variants
with standard receiver dimensions. It will not fit Cetme rifles or variants
with over-sized receivers.
Locking
Lever
MNT-HK02
UTG
STAN AG
CLAW MOUNT
COMPLETE WITH PICATINNY RAIL
Item No.: MNT-HK02
Caution: Make sure firearm is not loaded. Remove magazine
and examine chamber. Use safe handling procedures at all
times.
Locked
Position
Release Lever
Unlocked
Position
Before installing, verify that the claw feet of
the mount are in an “unlocked position”. If
the mount is in a locked position, to unlock,
first pull down the Locking Lever until it
clicks. Press and hold down the Release
Lever while returning the Locking Lever to
its upward position until it snaps into place.
Your mount is now un-locked.
Mounting
Mounting
Tabs
Tabs
3 421
Place the mount on the receiver of
your firearm, with the fixed claws facing
the ejection port side. Properly align
the claws to the Mounting Tabs on
the receiver.
Note: Mounting Tabs on some H&K rifle variants are reversed on the sides of
the receiver. If your rifle is one of them, you would not be able to pull
the Locking Lever down in . To install the mount on your rifle, switch its direction
so that the fixed claws go on the opposite side.
3
Pull down the Locking Lever until it clicks
and then return the Locking Lever to
its upward position until it snaps into place.
The mount is now installed on the receiver.
To un-install, follow Step 1 to un-lock
the claws before removing the mount from
the rifle.
Locking
Screw
This claw mount comes pre-installed
with a Picatinny rail ready for any
Picatinny application. To use the mount
for STANAG applications, remove the
top rail by unscrewing the 2 Locking
Screws from its underside using a
flathead screwdriver. Re-use
the Locking Screws to install
a STANAG device, such as a scope,
on the claw mount.
