PREVENTIVE MEASURES
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and
secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always
installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Keep a minimum distance of 20 cm around and above the device.
12. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the
special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases. Avoid direct sunlight!
13. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or
drinking vessels, on the equipment.
14. Make certain that objects cannot fall into the device.
15. Use this equipment only with the accessories recommended and intended by the manufacturer.
16. Do not open or modify this equipment.
17. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
18. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
19. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot
her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by
authorized, qualified personnel.
20. Clean the equipment using a dry cloth.
21. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
22. Plastic bags must be kept out of reach of children.
23. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user´s authority
to operate the equipment.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS
24. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective
ground. Never deactivate the protective ground of a power cord.
25. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately.
Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
26. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the
equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the
mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
27. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power
adapter and the equipment connector.
28. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the
equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and
power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter
with wet hands.
29. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of
the equipment.
30. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an
authorised service centre.
31. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
32. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed.
However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or
other damage. For this reason, always be careful when laying cables.
33. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
3
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts
inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.
ENGLISH
DEUTSCHFRANCAIS
CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!
This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident
prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.
Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL)
that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to
volumes in excess of 90 dB.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
ESPAÑOL
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an
electrical shock.
The warning triangle with exclamation mark indicates important operating and maintenance instructions.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a
cool-down period of at least 10 minutes before handling or transporting the device.
Warning! This device is designed for use below 2000 metres in altitude.
Warning! This product is not intended for use in tropical climates.
INTRODUCTION
Stinger® G3 Series - Workhorse Loudspeakers For Pros
Exceptional sound, reliable performance and unparalleled value across the board - that’s LD Systems’ Stinger
Real workhorses for demanding applications, these loudspeakers have been engineered to provide truly professional
sound reinforcement solutions. The Stinger® G3 line includes active and passive models that are simply outstanding in
their class. Custom designed drivers with high power handling and BEM modelled waveguides deliver immaculate audio
ITALIANOPOLSKI
quality, extended low frequency response and coherent coverage.
®
Sporting lightweight Class D power stages, active Stinger
G3 models are capable of huge sound pressure levels. The multi-purpose
tops feature up to a massive 500 watts RMS output and carefully tailored presets for flat response, fullrange, satellite or floor monitor
applications. LD Systems’ proprietary DynX® DSP technology ensures perfect time alignment and distortion-free performance even
at maximum levels. Producing tremendous low end punch and definition with up to 800 watts RMS output power, Stinger® G3
subwoofers include user-friendly presets for rapid system integration and cardioid array configurations.
4
®
G3 Series.
All Stinger® G3 enclosures are made of rigid, low-resonance birch ply. They are coated with non-abrasive, impact resistant
polyurea for superior strength and unrivaled durability. Integrating LD Systems’ Dual-Tilt pole mount, multiple suspension
points, stacking recesses and ergonomic handles the Stinger® G3 Series has been designed for touring musicians, rental
companies and installation applications. The large selection of Stinger® accessories includes smart wall and truss mounting
hardware plus a stackable dolly board to facilitate transport. Isn’t it time you saddled up?
CONNECTORS
1
2
INPUT
1
Input with Speakon-compatible speaker socket (assignment 1+, 1-). The INPUT and OUTPUT sockets are wired in parallel (2+ 2- are not
used). The speaker has an impedance of 8 ohms.
FRANCAISDEUTSCHENGLISH
2
OUTPUT
Output with Speakon-compatible speaker socket (assignment 1+, 1-). When routing the signal, please be aware of the total impedance of
the system to prevent any damage to the amplifier.
STAND FLANGE
The speakers have a stand flange with a 0° angle socket (rear position) and a socket with a 5° tilt angle (front position). Examples of use:
Use the socket with the 0° angle for standing audiences and the socket with the 5° tilt angle for seated audiences.
ITALIANOPOLSKIESPAÑOL
5
USE AS A STAGE MONITOR
ENGLISH
DEUTSCHFRANCAIS

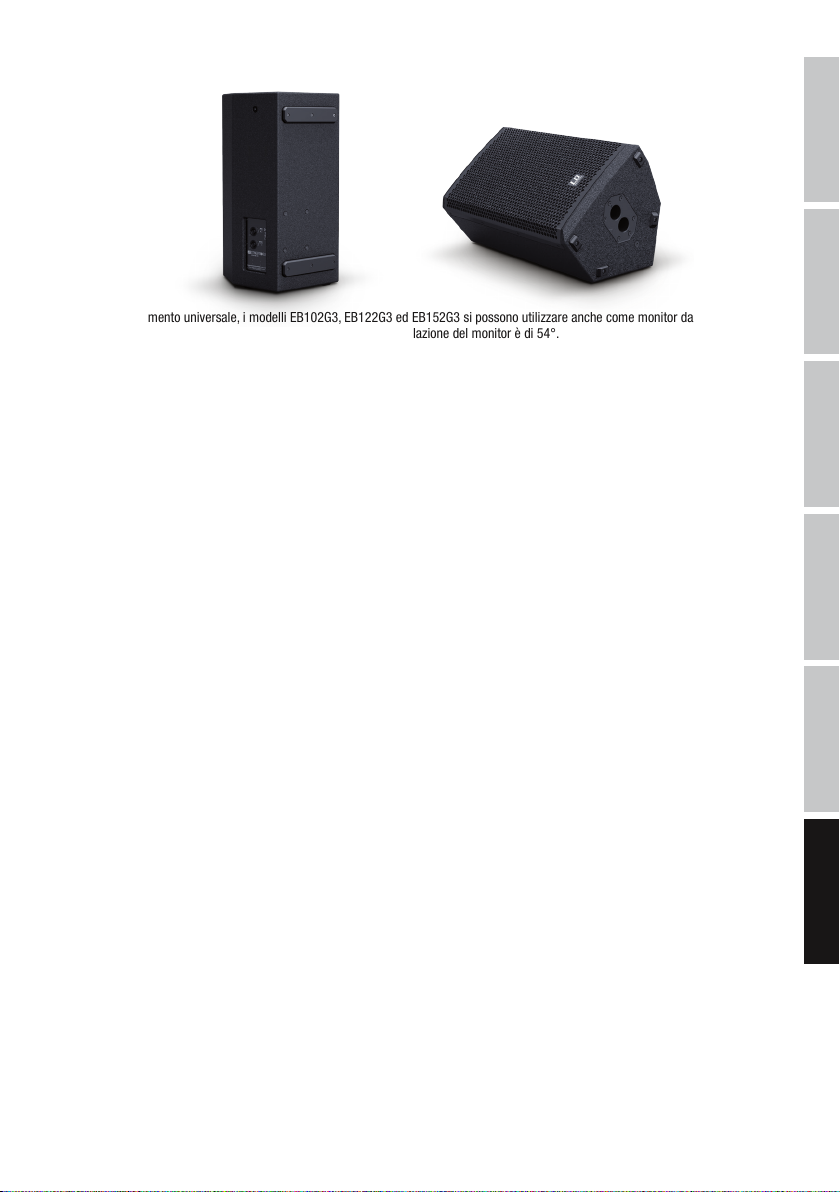

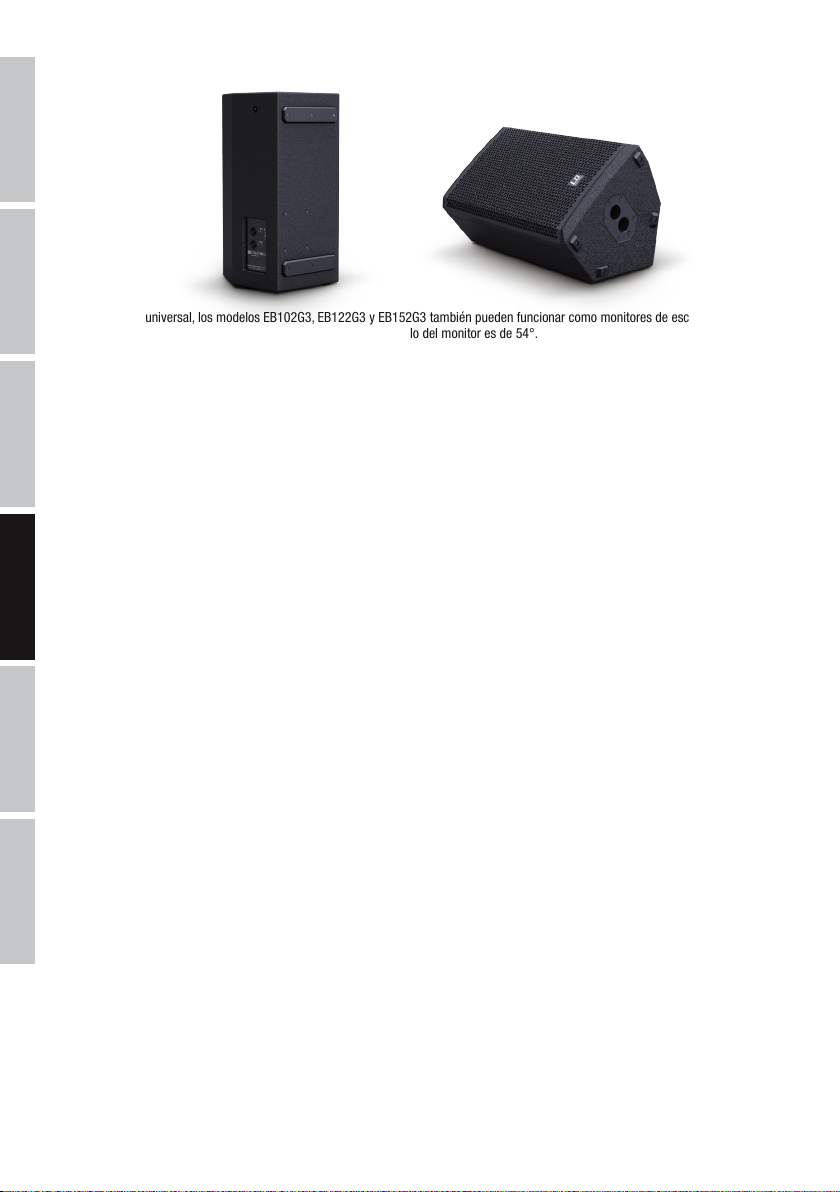

Thanks to their universal housing, the EB102AG3, EB122AG3 and EB152AG3 models can also be used as fully-fledged stage monitors. Nonslip rubber rails provide stability; the monitor tilt angle is 54°.
OPTIONAL ACCESSORIES
The speakers in the Stinger G3 Series feature several flying and mounting points. Wall and ceiling mounts, clamps and U-brackets are
available as optional accessories, as well as durable protective covers for all models.
LDEB82G3: Protective Cover Item No.: LDEB82G3PC
Swivel wall mount Item No.: LDEB82G3WMB
Tilt and swivel wall mount Item No.: LDEB82G3WMB1
Truss Super Clamp Item No.: LDEBG3SCP
LDEB102G3: Protective Cover Item No.: LDEB102G3PC
Swivel wall mount Item No.: LDEB102G3WMB
Tilt and swivel wall mount Item No.: LDEB102G3WMB1
ESPAÑOL
Truss Super Clamp Item No.: LDEBG3SCP
LDEB122G3: Protective Cover Item No.: LDEB122G3PC
Swivel wall mount Item No.: LDEBG3WMB
Tilt and swivel wall mount Item No.: LDEBG3WMB1
EasyMount
LDEB152G3: Protective Cover Item No.: LDEB152G3PC
Swivel wall mount Item No.: LDEBG3WMB
Tilt and swivel wall mount Item No.: LDEBG3WMB1
EasyMount
MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY
You can find our current warranty conditions and limitations of liability at: http://www.adamhall.com/media/shop/downloads/documents/
manufacturersdeclarations.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu
Anspach / Email: Info@adamhall.com / +49 (0)6081 / 9419-0.
CORRECT DISPOSAL OF THIS PRODUCT
(valid in the European Union and other European countries with a differentiated waste collection system)
This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid
environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste
and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased
this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed
with other commercial waste for disposal.
FCC STATEMENT
ESPAÑOL
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation
CE Compliance
Adam Hall GmbH states that this product meets the following guidelines (where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017
Low voltage directive (2014/35/EU)
EMV directive (2014/30/EU)
RoHS (2011/65/EU)
The complete declaration of conformity can be found at www.adamhall.com.
Furthermore, you may also direct your enquiry to info@adamhall.com.
ITALIANOPOLSKI
8
DEUTSCH
SIE HABEN DIE RICHTIGE WAHL GETROFFEN!
Dieses Gerät wurde unter hohen Qualitätsanforderungen entwickelt und gefertigt, um viele Jahre einen reibungslosen Betrieb zu gewährleisten.
Dafür steht LD Systems mit seinem Namen und der langjährigen Erfahrung als Hersteller hochwertiger Audioprodukte. Bitte lesen Sie diese
Bedienungsanleitung sorgfältig, damit Sie Ihr neues Produkt von LD Systems schnell optimal einsetzen können.
Mehr Informationen zu LD SYSTEMS finden Sie auf unserer Internetseite WWW.LD-SYSTEMS.COM
SICHERHEITSHINWEISE
1. Lesen Sie diese Anleitung bitte sorgfältig durch.
2. Bewahren Sie alle Informationen und Anleitungen an einem sicheren Ort auf.
3. Befolgen Sie die Anweisungen.
4. Beachten Sie alle Warnhinweise. Entfernen Sie keine Sicherheitshinweise oder andere Informationen vom Gerät.
5. Verwenden Sie das Gerät nur in der vorgesehenen Art und Weise.
6. Verwenden Sie ausschließlich stabile und passende Stative bzw. Befestigungen (bei Festinstallationen). Stellen Sie sicher, dass Wandhalterungen
ordnungsgemäß installiert und gesichert sind. Stellen Sie sicher, dass das Gerät sicher installiert ist und nicht herunterfallen kann.
7. Beachten Sie bei der Installation die für Ihr Land geltenden Sicherheitsvorschriften.
8. Installieren und betreiben Sie das Gerät nicht in der Nähe von Heizkörpern, Wärmespeichern, Öfen oder sonstigen Wärmequellen. Sorgen
Sie dafür, dass das Gerät immer so installiert ist, dass es ausreichend gekühlt wird und nicht überhitzen kann.
9. Platzieren Sie keine Zündquellen wie z.B. brennende Kerzen auf dem Gerät.
10. Lüftungsschlitze dürfen nicht blockiert werden.
11. Halten Sie einen Mindestabstand von 20 cm seitlich und oberhalb des Geräts ein.
12. Betreiben Sie das Gerät nicht in unmittelbarer Nähe von Wasser. Bringen Sie das Gerät nicht mit brennbaren Materialien, Flüssigkeiten
oder Gasen in Berührung. Direkte Sonneneinstrahlung vermeiden!
13. Sorgen Sie dafür, dass kein Tropf- oder Spritzwasser in das Gerät eindringen kann. Stellen Sie keine mit Flüssigkeit gefüllten Behältnisse
wie Vasen oder Trinkgefäße auf das Gerät.
14. Sorgen Sie dafür, dass keine Gegenstände in das Gerät fallen können.
15. Betreiben Sie das Gerät nur mit dem vom Hersteller empfohlenen und vorgesehenen Zubehör.
16. Öffnen Sie das Gerät nicht und verändern Sie es nicht.
17. Überprüfen Sie nach dem Anschluss des Geräts alle Kabelwege, um Schäden oder Unfälle, z. B. durch Stolperfallen zu vermeiden.
18. Achten Sie beim Transport darauf, dass das Gerät nicht herunterfallen und dabei möglicherweise Sach- und Personenschäden verursachen kann.
19. Wenn Ihr Gerät nicht mehr ordnungsgemäß funktioniert, Flüssigkeiten oder Gegenstände in das Geräteinnere gelangt sind, oder das
Gerät anderweitig beschädigt wurde, schalten Sie es sofort aus und trennen es von der Netzsteckdose (sofern es sich um ein aktives Gerät
handelt). Dieses Gerät darf nur von autorisiertem Fachpersonal repariert werden.
20. Verwenden Sie zur Reinigung des Geräts ein trockenes Tuch.
21. Beachten Sie alle in Ihrem Land geltenden Entsorgungsgesetze. Trennen Sie bei der Entsorgung der Verpackung bitte Kunststoff und
Papier bzw. Kartonagen voneinander.
22. Kunststoffbeutel müssen außer Reichweite von Kindern aufbewahrt werden.
23. Sämtliche vom Benutzer vorgenommenen Änderungen und Modifikationen, denen die für die Einhaltung der Richtlinien verantwortliche
Partei nicht ausdrücklich zugestimmt hat, können zum Entzug der Betriebserlaubnis für das Gerät führen.
BEI GERÄTEN MIT NETZANSCHLUSS
24. ACHTUNG: Wenn das Netzkabel des Geräts mit einem Schutzkontakt ausgestattet ist, muss es an einer Steckdose mit Schutzleiter
angeschlossen werden. Deaktivieren Sie niemals den Schutzleiter eines Netzkabels.
25. Schalten Sie das Gerät nicht sofort ein, wenn es starken Temperaturschwankungen ausgesetzt war (beispielsweise nach dem Transport).
Feuchtigkeit und Kondensat könnten das Gerät beschädigen. Schalten Sie das Gerät erst ein, wenn es Zimmertemperatur erreicht hat.
26. Bevor Sie das Gerät an die Steckdose anschließen, prüfen Sie zuerst, ob die Spannung und die Frequenz des Stromnetzes mit den auf
dem Gerät angegebenen Werten übereinstimmen. Verfügt das Gerät über einen Spannungswahlschalter, schließen Sie das Gerät nur an die
Steckdose an, wenn die Gerätewerte mit den Werten des Stromnetzes übereinstimmen. Wenn das mitgelieferte Netzkabel bzw. der mitgelieferte Netzadapter nicht in Ihre Netzsteckdose passt, wenden Sie sich an Ihren Elektriker.
27. Treten Sie nicht auf das Netzkabel. Sorgen Sie dafür, dass spannungsführende Kabel speziell an der Netzbuchse bzw. am Netzadapter
und der Gerätebuchse nicht geknickt werden.
28. Achten Sie bei der Verkabelung des Geräts immer darauf, dass das Netzkabel bzw. der Netzadapter stets frei zugänglich ist. Trennen Sie
das Gerät stets von der Stromzuführung, wenn das Gerät nicht benutzt wird, oder Sie das Gerät reinigen möchten. Ziehen Sie Netzkabel und
Netzadapter immer am Stecker bzw. am Adapter und nicht am Kabel aus der Steckdose. Berühren Sie Netzkabel und Netzadapter niemals mit
nassen Händen.
29. Schalten Sie das Gerät möglichst nicht schnell hintereinander ein und aus, da sonst die Lebensdauer des Geräts beeinträchtigt werden könnte.
30. WICHTIGER HINWEIS: Ersetzen Sie Sicherungen ausschließlich durch Sicherungen des gleichen Typs und Wertes. Sollte eine Sicherung
wiederholt auslösen, wenden Sie sich bitte an ein autorisiertes Servicezentrum.
31. Um das Gerät vollständig vom Stromnetz zu trennen, entfernen Sie das Netzkabel bzw. den Netzadapter aus der Steckdose.
32. Wenn Ihr Gerät mit einem verriegelbaren Netzanschluss bestückt ist, muss der passende Gerätestecker entsperrt werden, bevor er entfernt
werden kann. Das bedeutet aber auch, dass das Gerät durch ein Ziehen am Netzkabel verrutschen und herunterfallen kann, wodurch Personen
verletzt werden und/oder andere Schäden auftreten können. Verlegen Sie Ihre Kabel daher immer sorgfältig.
33. Entfernen Sie Netzkabel und Netzadapter aus der Steckdose bei Gefahr eines Blitzschlags oder wenn Sie das Gerät länger nicht verwenden.
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
9
ENGLISH
ACHTUNG
Entfernen Sie niemals die Abdeckung, da sonst das Risiko eines elektrischen Schlages besteht. Im
Inneren des Geräts befinden sich keine Teile, die vom Bediener repariert oder gewartet werden können.
Lassen Sie Wartung und Reparaturen ausschließlich von qualifiziertem Servicepersonal durchführen.
Das gleichseitige Dreieck mit Blitzsymbol warnt vor nichtisolierten, gefährlichen Spannungen im Geräteinneren, die einen elektrischen
Schlag verursachen können.
Das gleichseitige Dreieck mit Ausrufungszeichen kennzeichnet wichtige Bedienungs- und Wartungshinweise.
Warnung! Dieses Symbol kennzeichnet heiße Oberflächen. Während des Betriebs können bestimmte Teile des Gehäuses heiß werden.
Berühren oder transportieren Sie das Gerät nach einem Einsatz erst nach einer Abkühlzeit von mindestens 10 Minuten.
DEUTSCHFRANCAIS
Warnung! Dieses Gerät ist für eine Nutzung bis zu einer Höhe von maximal 2000 Metern über dem Meeresspiegel bestimmt.
Warnung! Dieses Gerät ist nicht für den Einsatz in tropischen Klimazonen bestimmt.
ACHTUNG HOHE LAUTSTÄRKEN BEI AUDIOPRODUKTEN!
Dieses Gerät ist für den professionellen Einsatz vorgesehen. Der kommerzielle Betrieb dieses Geräts unterliegt den jeweils gültigen nationalen
Vorschriften und Richtlinien zur Unfallverhütung. Als Hersteller ist Adam Hall gesetzlich verpflichtet, Sie ausdrücklich auf mögliche Gesundheitsrisiken hinzuweisen. Gehörschäden durch hohe Lautstärken und Dauerbelastung: Bei der Verwendung dieses Produkts können hohe Schalldruckpegel
(SPL) erzeugt werden, die bei Künstlern, Mitarbeitern und Zuschauern zu irreparablen Gehörschäden führen können. Vermeiden Sie länger
anhaltende Belastung durch hohe Lautstärken über 90 dB.
EINFÜHRUNG
Die Stinger® G3 Serie: zuverlässige und robuste Lautsprecher für Profis
ESPAÑOL
Hervorragender Sound, zuverlässige Leistung und ein auf ganzer Linie einmaliges Preis-Leistungs-Verhältnis, das bietet die Stinger
von LD Systems. Diese Lautsprecher wurden speziell für professionelle Beschallungsanlagen konzipiert und sind somit die perfekte Wahl für
anspruchsvolle Anwendungen. Zur Stinger
Die maßgeschneiderten Treiber mit hoher Belastbarkeit und BEM-modellierten Waveguides sorgen für makellose Soundqualität, erweiterte
Basswiedergabe und kohärente Beschallung.
Dank der leichten Klasse-D-Verstärker können die aktiven Stinger
oberen Mehrzweck-Lautsprecher liefern eine massive RMS-Leistung mit 500 Watt und verfügen über sorgfältig angepasste Voreinstellungen
für Anwendungen mit flachem Frequenzgang, mit Breitband, mit Satelliten oder mit Bodenmonitor. Die von LD Systems patentierte DynX
DSP-Technologie stellt zudem eine perfekte Laufzeitkorrektur und verzerrungsfreien Sound auch bei höchster Lautstärke sicher. Die Stinger
Subwoofer generieren mit einer RMS-Ausgangsleistung von bis zu 800 Watt einen hervorragenden Bass-Schalldruck und definierten Sound. Mit
den anwenderfreundlichen Voreinstellungen werden die Systemintegration sowie Cardioid-Subwoofer-Array-Anordnungen zum Kinderspiel.
®
Alle Stinger
unerreichte Langlebigkeit sind sie zudem mit einem abrieb- und stoßfesten Polyharnstoff beschichtet. Ausgestattet mit der Dual-Tilt-Distanzstange
von LD Systems, mehreren Aufhängepunkten, Stapelfräsungen und ergonomischen Griffen ist die Stinger
Verleihfirmen und Installationen geeignet. Zur großen Auswahl an Stinger
sowie ein stapelbares Dolly-Board für einen einfachen Transport. Verlieren Sie also keine Zeit und kommen Sie an Bord!
ITALIANOPOLSKI
G3 Gehäuse sind aus robusten Birkensperrholzplatten mit geringer Eigenresonanz gefertigt. Für eine herausragende Festigkeit und
®
G3 Linie gehören aktive und passive Modelle, die gleichermaßen aus ihrer Klasse hervorstechen.
®
G3 Modelle auch mit sehr hohen Schalldruckpegeln umgehen. Die
®
®
Zubehörteilen gehören Halterungen für die Wand- und Traversenmontage
G3 Serie speziell für tourende Musiker,
®
G3 Serie
®
®
G3
10
ANSCHLÜSSE
1
2
1
INPUT
Eingang mit Speakon-kompatibler Lautsprecherbuchse (Belegung 1+, 1-). Die Anschlussbuchsen INPUT und OUTPUT sind parallel verdrahtet
(2+, 2- sind nicht belegt). Der Lautsprecher hat eine Impedanz von 8 Ohm.
2
OUTPUT
Ausgang mit Speakon-kompatibler Lautsprecherbuchse (Belegung 1+, 1-). Achten Sie beim Weiterleiten des Signals auf die Gesamtimpedanz
des Systems, um Schäden am angeschlossenen Verstärker zu vermeiden.
STATIVFLANSCH
FRANCAISDEUTSCHENGLISH
Die Lautsprecher verfügen über einen Stativflansch mit einer Stativaufnahme mit 0° Winkelung (Position hinten) und einer Stativaufnahme
mit 5° Neigungswinkel (Position vorne). Anwendungsbeispiele: Verwenden Sie die Stativaufnahme mit 0° Winkelung für die Beschallung von
stehendem Publikum und die Stativaufnahme mit 5° Neigungswinkel für die Beschallung von sitzendem Publikum.
ITALIANOPOLSKIESPAÑOL
11
VERWENDUNG ALS BÜHNENMONITOR
ENGLISH
DEUTSCHFRANCAIS
Dank ihrer Universalgehäuse können die Modelle EB102G3, EB122G3 und EB152G3 auch als vollwertige Bühnenmonitore eingesetzt
werden. Rutschfeste Gummischienen sorgen für sicheren Stand, der Monitorwinkel beträgt 54°.
OPTIONALES ZUBEHÖR
Die Lautsprecher der Stinger G3 Serie verfügen über diverse Flug- und Montagepunkte. Wand- und Deckenhalterungen, Klemmen und
U-Bügel sind als optionales Zubehör erhältlich, ebenso widerstandsfähige Schutzhüllen für alle Modelle.
Superclamp-Traversenklemme, ergonomischer Griff (versenkt),
Aluminium-Stativflansch
mit zwei Neigungswinkeln (0°/5°), vorbereitet
für U-Bügel- und
multifunktionale Gravity-Wandhalterung
M10-Gewinde für
Superclamp-Traversenklemme, ergonomischer Griff (versenkt),
Aluminium-Stativflansch
mit zwei Neigungswinkeln (0°/5°), vorbereitet
für U-Bügel- und
multifunktionale
Gravity-Wandhalterung,
Monitor-Gummischienen
2 ergonomische
Griffe (versenkt), Aluminium-Stativflansch mit
zwei Neigungswinkeln
(0°/5°), multifunktionales Gehäusekonzept,
robustes Stahl-Schutzgitter, Flugpunkte,
Polyurea-Beschichtung,
Quick-Mount-Flugrahmen-Adapter,
vorbereitet für U-Bügelund multifunktionale
Gravity-Wandhalterung,
Monitor-Gummischienen
2 ergonomische
Griffe (versenkt), Aluminium-Stativflansch mit
zwei Neigungswinkeln
(0°/5°),
multifunktionales
Gehäusekonzept,
robustes Stahl-Schutzgitter, Flugpunkte,
Polyurea-Beschichtung,
Quick-Mount-Flugrahmen-Adapter,
vorbereitet für U-Bügelund multifunktionale
Gravity-Wandhalterung,
Monitor-Gummischienen
HERSTELLERERKLÄRUNGEN
HERSTELLERGARANTIE & HAFTUNGSBESCHRÄNKUNG
Unsere aktuellen Garantiebedingungen und Haftungsbeschränkung finden Sie unter: http://www.adamhall.com/media/shop/downloads/
documents/manufacturersdeclarations.pdf. Im Service Fall wenden Sie sich bitte an Adam Hall GmbH, Daimlerstraße 9, 61267 Neu Anspach
/ E-Mail Info@adamhall.com / +49 (0)6081 / 9419-0.
KORREKTE ENTSORGUNG DIESES PRODUKTS
ESPAÑOL
(Gültig in der Europäischen Union und anderen europäischen Ländern mit Mülltrennung) Dieses Symbol auf dem Produkt oder dazu-
gehörigen Dokumenten weist darauf hin, dass das Gerät am Ende der Produktlebenszeit nicht zusammen mit dem normalen Hausmüll
entsorgt werden darf, um Umwelt- oder Personenschäden durch unkontrollierte Abfallentsorgung zu vermeiden. Bitte entsorgen Sie dieses
Produkt getrennt von anderen Abfällen und führen es zur Förderung nachhaltiger Wirtschaftskreisläufe dem Recycling zu. Als Privatkunde
erhalten Sie Informationen zu umweltfreundlichen Entsorgungsmöglichkeiten über den Händler, bei dem das Produkt erwor¬ben wurde, oder
über die entsprechenden regionalen Behörden. Als gewerblicher Nutzer kontaktieren Sie bitte Ihren Lieferanten und prüfen die ggf. vertraglich
vereinbarten Konditionen zur Entsorgung der Geräte. Dieses Produkt darf nicht zusammen mit anderen gewerblichen Abfällen entsorgt werden.
CE-Konformität
Hiermit erklärt die Adam Hall GmbH, dass dieses Produkt folgenden Richtlinien entspricht (soweit zutreffend):
R&TTE (1999/5/EG) bzw. RED (2014/53/EU) ab Juni 2017
Niederspannungsrichtlinie (2014/35/EU)
EMV-Richtlinie (2014/30/EU)
RoHS (2011/65/EU)
Die vollständige Konformitätserklärung finden Sie unter www.adamhall.com.
Des Weiteren können Sie diese auch unter info@adamhall.com anfragen.
ITALIANOPOLSKI
14
FRANCAIS
VOUS AVEZ FAIT LE BON CHOIX!
Cet appareil a été développé et fabriqué en appliquant des exigences de qualité très élevées : il garantit des années de fonctionnement sans
problème. Grâce à de nombreuses années d‘expérience, LD Systems est un nom connu dans le domaine des produits audio haut de gamme. Veuillez lire attentivement ce Manuel Utilisateur : vous apprendrez rapidement à utiliser votre appareil LD Systems de façon optimale.
Pour plus d‘informations sur LD Systems, visitez notre site Web, WWW.LD-SYSTEMS.COM
MESURES PRÉVENTIVES
1. Veuillez lire attentivement ce manuel.
2. Rangez tous les documents d‘information et d‘instructions en lieu sûr.
3. Veuillez suivre toutes les instructions
4. Observez tous les messages d‘avertissement N‘enlevez pas de l‘appareil les étiquettes de sécurité ou autres informations.
5. N‘utilisez l‘appareil que pour des applications et de la façon appropriées.
6. Utilisez exclusivement des pieds et des dispositifs de fixation stables et adaptés lorsque l‘appareil est utilisé en installation fixe.
Assurez-vous que les fixations murales ont été montées correctement, et qu‘elles sont sécurisées. Vérifiez que l‘appareil est installé en toute
sécurité, et qu‘il ne peut pas tomber.
7. Lors de l‘installation, observez les règlementations de sécurité en vigueur dans votre pays.
8. N‘installez et n‘utilisez pas l‘appareil à proximité de radiateurs, d‘accumulateurs de chaleur, de fours ou de toute autre source de chaleur. Vérifiez
que l‘appareil est installé de façon à bénéficier en permanence d‘un refroidissement efficace et qu‘il ne peut pas chauffer de façon excessive.
9. Ne placez aucune source de flamme sur l‘appareil – par exemple, une bougie allumée.
10. Ne bloquez pas les ouïes d‘aération. Éviter toute exposition directe aux rayons du soleil !
11. Gardez une distance minimale de 20 cm autour et au-dessus de l‘appareil.
12. N‘utilisez pas l‘appareil à proximité immédiate d‘eau (à moins qu‘il ne s‘agisse d‘un appareil conçu pour une utilisation en extérieur –
dans ce cas, respectez les instructions correspondantes ci après) Ne mettez pas l‘appareil en contact avec des matériaux, des liquides ou
des gaz inflammables.
13. Vérifiez qu‘aucune projection ou liquide ne puisse s‘introduire dans l‘appareil. Ne posez sur l‘appareil aucun objet renfermant du liquide
: vase, verre d‘eau...
14. Vérifiez qu‘aucun petit objet ne puisse tomber à l‘intérieur de l‘appareil.
15. N‘utilisez avec cet appareil que des accessoires recommandés et approuvés par le fabricant.
16. N‘ouvrez pas l‘appareil, et n‘essayez pas de le modifier.
17. Lors du branchement de l‘appareil, sécurisez le passage du câble secteur, afin d‘éviter tout dommage ou accident, par exemple quelqu‘un qui trébuche sur le câble.
18. Lors du transport, vérifiez que l‘appareil ne peut tomber, ce qui pourrait provoquer des dommages matériels et/ou corporels.
19. Si votre appareil ne fonctionne plus correctement, que de l‘eau ou des objets ont pénétré à l‘intérieur, ou qu‘il a été endommagé de
quelque façon que ce soit, éteignez-le immédiatement et débranchez sa prise secteur (s‘il s‘agit d‘un appareil alimenté). Cet appareil ne
doit être réparé que par un personnel autorisé.
20. Pour le nettoyage de l‘appareil, utilisez un chiffon sec/
21. Observez toutes les réglementations en vigueur dans votre pays pour mettre l‘appareil au rebut. Lorsque vous jetez l‘emballage de
l‘appareil, veuillez séparer plastique, papier et carton.
22. Les films plastique doivent être mis hors de portée des enfants.
23. Veuillez noter que les changements ou modifications n‘ayant pas été expressément approuvés par la partie responsable de la conformité
pourraient annuler le droit accordé à l‘utilisateur de faire fonctionner l‘équipement.
APPAREILS RELIÉS AU SECTEUR
24. ATTENTION : Si le câble de l‘appareil est muni d‘un fil de terre, il doit être relié à une prise murale avec terre. Ne désactivez jamais la
mise à la terre d‘un appareil.
25. N‘allumez pas l‘appareil immédiatement s‘il a subi une grande différence de température ambiante (par exemple, lors du transport). L‘humidité
et la condensation pourraient l‘endommager. Ne mettez l‘appareil sous tension que lorsqu‘il est parvenu à la température de la pièce.
26. Avant de relier l‘appareil à la prise murale, vérifiez que la valeur et la fréquence de tension secteur sur laquelle il est réglé correspondent bien à la valeur et à la fréquence de la tension secteur locale. Si l‘appareil possède un sélecteur de tension, ne le branchez sur la prise
murale qu‘après avoir vérifié que la valeur réglée correspond à la valeur effective de la tension secteur. Si la fiche du cordon secteur ou du
bloc adaptateur livré avec votre appareil ne correspond pas au format de votre prise murale, veuillez consulter un électricien.
27. Ne piétinez pas le câble secteur. Assurez-vous que le câble secteur n‘est pas trop pincé, notamment au niveau de l‘arrière de l‘appareil
(ou de son adaptateur secteur) et de la prise murale.
28. Lors du branchement de l‘appareil, vérifiez que l‘accès au câble secteur ou au bloc adaptateur reste facile. Sortez la fiche secteur de la
prise murale dès que vous n‘utilisez pas l‘appareil pendant un certain temps, ou si vous désirez nettoyer l‘appareil. Pour ce faire, tirez toujours
sur la fiche elle-même, ou sur le bloc secteur lui-même ; ne tirez jamais sur le câble. Ne manipulez jamais le câble secteur ou l‘adaptateur
secteur avec des mains mouillées.
29. N‘éteignez/rallumez pas l‘appareil rapidement plusieurs fois de suite : vosu risquez de réduire la longévité de ses composants internes.
30. CONSEIL IMPORTANT : Ne remplacez le fusible que par un fusible de même type et du même calibre. Si le fusible fond de façon répétée,
veuillez consulter un centre de réparations agréé.
31. Pour séparer complètement l‘appareil du secteur, débranchez le cordon secteur ou l‘adaptateur de la prise murale.
32. Si votre appareil est muni d‘un connecteur secteur verrouillable (Volex), il faut d‘abord déverrouiller le mécanisme avant d‘enlever le
cordon secteur. Attention, lorsque vous retirez le câble secteur, à ne pas faire bouger l‘appareil, ce qui pourrait se traduire par un risque de
chute, de blesser quelqu‘un, ou tout autre dommage. Manipulez toujours le cordon secteur avec soin.
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
15
33. Débranchez la fiche secteur ou l‘adaptateur de la prise murale en cas d‘orage, ou si vous n‘utilisez pas l‘appareil pendant une longue période.
ATTENTION :
Ne démontez jamais le couvercle de l‘appareil, vous risquez de recevoir un choc électrique.
L‘appareil ne renferme aucune pièce ni composant réparable ou remplaçable par l‘utilisateur. Ne
ENGLISH
confiez l‘entretien et la réparation qu‘à un personnel qualifié.
Le pictogramme en forme de triangle équilatéral contenant un éclair terminé d‘une flèche avertit l‘utilisateur de la présence
d‘une tension dangereuse à l‘intérieur de l‘appareil, tension susceptible de provoquer un choc électrique.
Le pictogramme en forme de triangle équilatéral renfermant un point d‘exclamation signale à l‘utilisateur la présence
d‘instructions importantes concernant l‘utilisation ou l‘entretien de l‘appareil.
ATTENTION ! Ce symbole correspond à des surfaces chaudes. En cours de fonctionnement, certaines parties de l’appareil
DEUTSCHFRANCAIS
peuvent devenir chaudes. Après utilisation, ne manipulez ou ne transportez l’appareil qu’au bout de 10 minutes de
refroidissement.
Attention ! Cet appareil est conçu pour une utilisation à une altitude maximale de 2000 m au-dessus du niveau de la mer.
Attention ! Ce produit ne convient pas à une utilisation dans les climats tropicaux.
ATTENTION ! NIVEAUX SONORES ÉLEVÉS SUR LES PRODUITS AUDIO
Cet appareil a été conçu en vue d‘une utilisation professionnelle. L‘utilisation commerciale de cet appareil est soumise aux réglementations
et directives en vigueur dans votre pays en matière de prévention d‘accident. En tant que fabricant, Adam Hall est tenu de vous avertir
formellement des risques relatifs à la santé. Risques provoqués par une exposition prolongée à des niveaux sonores élevés : Lors de
l‘utilisation de ce produit, il est possible d‘atteindre des niveaux de pression sonore (exprimés en dB SPL) élevés, susceptibles de provoquer
des dommages auditifs irréparables chez les artistes, les techniciens et le public. Évitez toute exposition prolongée à des niveaux de
pression sonore élevés (supérieurs à 90 dB SPL).
ESPAÑOL
INTRODUCTION
Série Stinger® G3 - Haut-parleurs performants pour les pros
®
Son exceptionnel, performance fiable et qualité d’ensemble inégalée : voici la série Stinger
destinées aux applications exigeantes, ces haut-parleurs ont été mis au point pour fournir des solutions d’amplification de son vraiment
professionnelles. La gamme Stinger
sur mesure avec traitement haute puissance et guides d’ondes reposant sur la méthode des éléments finis de frontière (BEM) fournissent
®
G3 inclut des modèles actifs et passifs tout simplement exceptionnels dans leur catégorie. Les pilotes
une qualité audio d’une pureté parfaite, une réponse en basse fréquence étendue et une couverture cohérente.
®
Dotés d’étages de puissance Classe D ultralégers, les modèles actifs Stinger
acoustique très élevés. Les parties supérieures multifonctions fournissent jusqu’à de 500 watts de puissance de sortie RMS et offrent des
préréglages sur mesure soigneusement étudiés pour une réponse plate, des applications de gamme complète, satellitaires ou de retour de
scène. La technologie propriétaire DSP DynX
même aux niveaux maximaux. Produisant une puissance et une définition en basse fréquence formidables avec jusqu’à 800 watts de
puissance de sortie RMS, les caissons de basse Stinger
système et des configurations d’enceintes cardioïdes.
ITALIANOPOLSKI
Toutes les enceintes Stinger
et résistante aux impacts pour une robustesse extrême et une durée de vie sans égale. Intégrant le montage sur mât Dual-Tilt de LD Systems,
des points de suspension multiples, des dispositifs de calage pour éléments empilés et des poignées ergonomiques, la série Stinger
créée pour les musiciens en tournée, les entreprises de location et les applications d’installation. Le large choix d’accessoires Stinger
®
G3 sont en contre-plaqué de bouleau rigide à faible résonance. Elles sont recouvertes de polyurée non abrasive
®
de LD Systems assure un alignement de temps parfait et une performance sans distorsion
®
G3 incluent des systèmes de préréglage conviviaux pour une intégration rapide du
G3 sont capables d’atteindre des niveaux de pression
dispositif astucieux de montage mural et sur poutre ainsi qu’un socle d’empilement pour faciliter leur transport. N’est-il pas temps de s‘équiper
comme il faut ?
G3 de LD Systems. Véritables bêtes de somme
®
G3 a été
®
inclut un
16
CONNECTEURS
1
2
INPUT
1
Entrée sur embase compatible Speakon (câblage : 1+, 1-). Les embases INPUT et OUTPUT sont câblées en parallèle (les points 2+ et 2- ne
sont pas connectés). L’enceinte possède une impédance nominale de 8 ohms.
2
OUTPUT
Sortie sur embase compatible Speakon (câblage : 1+, 1-). Si vous renvoyez le signal d'une enceinte à une autre, vérifiez que l’impédance
résultante n’est pas trop faible, afin d’éviter d’endommager l’amplificateur les alimentant.
PUITS POUR PIED
FRANCAISDEUTSCHENGLISH
Les enceintes possèdent un puits pour pied, assurant une inclinaison de 0° (position vers l’arrière) ou de 5° (position vers l’avant). Exemples
d’utilisation : L’angle 0° s’utilise pour sonoriser un public debout ; l’angle 5°, pour sonoriser un public assis.
ITALIANOPOLSKIESPAÑOL
17
UTILISATION COMME RETOUR DE SCÈNE
ENGLISH
DEUTSCHFRANCAIS
Grâce à leur coffret polyvalent, les modèles EB102G3, EB122G3 et EB152G3 peuvent aussi s'utiliser en tant que retours de scène. Les
patins/rails en caoutchouc antidérapant assurent une bonne tenue en place sur la scène, et l’angle de la face avant est de 54°.
ACCESSOIRES OPTIONNELS
Les enceintes de la série Stinger G3 proposent divers points d’accroche et de montage.. Des fixations murales et au plafond, des pinces et
des lyres sont également disponibles sous forme d’accessoires optionnels, ainsi que des housses de protection pour tous les modèles.
LDEB82G3 : Housse de protection Référence : LDEB82G3PC
Fixation murale pivotante Référence : LDEB82G3WMB
Fixation murale pivotante et inclinable Référence : LDEB82G3WMB1
Bride de serrage sur poutre Référence : LDEBG3SCP
Type de coffret :Avec ÉventAvec ÉventAvec ÉventAvec Évent
Angle pour utilisation
en retour :
Largeur :270 mm325 mm390 mm480 mm
ENGLISH
Hauteur :457 mm527 mm627 mm737 mm
Profondeur :290 mm308 mm377 mm455 mm
Masse :10,1 kg11,5 kg19,4 kg26,4 kg
Descriptif :Filetage M10 pour pince
DEUTSCHFRANCAIS
N/A54°54°54°
‘SuperClamp’, poignée
ergonomique encastrée,
double puits pour
enceinte en aluminium
(angles 0 et 5°), compatible lyre pour montage
mural, compatible pour
fixation murale universelle Gravity
Filetage M10 pour
pince ‘SuperClamp’,
poignée ergonomique
encastrée, double
puits pour enceinte en
aluminium (angles 0
et 5°), compatible lyre
pour montage mural,
compatible pour fixation
murale universelle
Gravity, rails caoutchouc
pour utilisation comme
retour de scène
2 poignées ergonomiques encastrées,
double puits pour
enceinte en aluminium
(angles 0 et 5°),
coffret polyvalent, grille
de protection en acier
robuste, finition polyuréa,
adaptateur pour support
de montage Quick
Mount, compatible lyre
pour montage mural,
compatible pour fixation
murale universelle
Gravity, rails caoutchouc
pour utilisation comme
retour de scène
2 poignées ergonomiques encastrées,
double puits pour
enceinte en aluminium
(angles 0 et 5°),
coffret polyvalent, grille
de protection en acier
robuste, finition polyuréa,
adaptateur pour support
de montage Quick
Mount, compatible lyre
pour montage mural,
compatible pour fixation
murale universelle
Gravity, rails caoutchouc
pour utilisation comme
retour de scène
DECLARATIONS
ESPAÑOL
GARANTIE FABRICANT & LIMITATION DE RESPONSABILITÉ
Nos conditions actuelles de garantie et de limitation de responsabilité sont disponibles à l‘adresse suivante : http://www.adamhall.com/media/
shop/downloads/documents/manufacturersdeclarations.pdf. Pour les réparations, veuillez contacter Adam Hall GmbH, Daimlerstraße 9,
61267 Neu Anspach / E-Mail Info@adamhall.com / +49 (0)6081 / 9419-0.
TRI ET MISE AUX DÉCHETS CORRECTE DE CE PRODUIT
(Valid in the European Union and other European countries with waste separation)
(Applicable dans l‘Union Européenne et les autres pays européens pratiquant le tri des déchets) La présence de ce symbole sur le
produit ou sur la documentation correspondante indique qu‘en fin de vie, le produit ne doit pas être jeté avec les déchets normaux, afin
d‘éviter tout dommage à l‘environnement ou aux personnes consécutive à une élimination non contrôlée des déchets. Séparez-le des autres types de déchets et recyclez-le, afin de promouvoir la réutilisation durable des ressources naturelles. Nous conseillons aux utilisateurs
non professionnels de contacter le revendeur chez qui ils ont acheté le produit, ou un représentant gouvernemental local, pour plus de
détails sur le lieu de collecte et la façon de recycler cet appareil dans le meilleur respect de l‘environnement possible.. Nous invitons les
utilisateurs professionnels à contacter leur fournisseur et à vérifier les termes et conditions de leur contrat d‘achat. Ce produit ne doit pas
être mélangé à d‘autres déchets commerciaux lors de la collecte.
Conformité CE
La société Adam Hall GmbH déclare par la présente que ce produit est compatible avec les régulations suivantes (le cas échéant) :
R&TTE (1999/5/EG) et RED (2014/53/EU) à partir de juin 2017
Directive basse tension (2014/35/EU)
ITALIANOPOLSKI
Directive CEM (2014/30/EU)
RoHS (2011/65/EU)
La Déclaration de Conformité complète est disponible sur le site Web www.adamhall.com.
Pour toute information complémentaire, contactez-nous : info@adamhall.com.
20
ESPAÑOL
¡GRACIAS POR ELEGIR LD-SYSTEMS!
Este equipo está diseñado y fabricado con los estándares de calidad más exigentes, para garantizar un correcto funcionamiento durante
muchos años. Los productos de LD-Systems se caracterizan por su gran calidad, avalada por el prestigio de la marca y una dilatada experiencia como fabricante. Lea atentamente este manual de usuario para poder aprovechar rápidamente toda la funcionalidad de su nuevo
producto de LD Systems.
Si desea obtener información sobre LD-SYSTEMS, visite nuestro sitio web WWW.LD-SYSTEMS.COM
MEDIDAS DE SEGURIDAD
1. Lea atentamente las instrucciones de este manual.
2. Guarde toda la información en un lugar seguro para futuras consultas.
3. Siga las instrucciones indicadas.
4. Siga todas las advertencias. No quite las instrucciones de seguridad ni cualquier otra información indicada en el equipo.
5. Utilice el equipo únicamente según la finalidad prevista.
6. Utilice solo soportes y fijaciones que sean robustos y adecuados cuando instale el equipo en instalaciones fijas. Asegúrese de que los soportes de
pared están correctamente instalados y firmemente fijados. Asegúrese de que el equipo está sólidamente instalado y no se puede caer.
7. Al instalar el equipo, respete las normas de seguridad aplicables en su país.
8. Evite instalar el equipo cerca de radiadores, acumuladores de calor, estufas o cualquier otra fuente de calor. Asegúrese de que el equipo esté
instalado en un lugar con ventilación suficiente para evitar cualquier sobrecalentamiento.
9. No coloque sobre el equipo fuentes de llamas sin protección, por ejemplo, velas encendidas.
10. Evite bloquear las rejillas de ventilación. ¡Evite la luz solar directa!
11. Mantenga una distancia mínima de 20 cm alrededor y encima del equipo.
12. No utilice este equipo cerca del agua (excepto los equipos específicamente diseñados para uso en exterior, en cuyo caso tenga en cuenta las
indicaciones mencionadas a continuación). No exponga este equipo a materiales, líquidos o gases inflamables.
13. Evite exponer el equipo a gotas o salpicaduras que puedan caer dentro del mismo. No coloque recipientes llenos de líquido, como floreros o
vasos, sobre el equipo.
14. Asegúrese de no dejar caer ningún objeto dentro del equipo.
15. Emplee el equipo únicamente con los accesorios recomendados por el fabricante.
16. No abra el equipo ni intente modificarlo.
17. Una vez conectado el equipo, compruebe que en toda la longitud del cableado no hay peligro de que provoque una caída, por ejemplo.
18. Durante el transporte, asegúrese de que el equipo no se caiga y pueda causar daños personales o materiales.
19. Si el equipo no funciona correctamente, o si se ha vertido líquido sobre él, o si un objeto ha caído en su interior o si ha sufrido algún
desperfecto, apague inmediatamente el equipo y desenchufe el cable eléctrico (si se trata de un equipo activo). Únicamente un técnico
especialista debe reparar el equipo.
20. Para limpiar el equipo utilice un paño seco.
21. Procure seguir las normas vigentes en su país sobre reciclaje de desechos. Separe los componentes de plástico, papel y cartón del paquete
para reciclarlos en sus contenedores respectivos.
22. No deje las bolsas de plástico al alcance de los niños.
23. Tenga en cuenta que la realización de cambios o modificaciones que no estén expresamente autorizados por el responsable de cumplimiento
normativo podría anular la autoridad del usuario para utilizar el equipo.
PARA LOS EQUIPOS CON TOMA ELÉCTRICA
24. ADVERTENCIA: Si el cable eléctrico está provisto de un contacto de protección, debe conectarse a una toma eléctrica con conexión a tierra. No
desactivar nunca esta conexión de protección a tierra del cable eléctrico.
25. Si el equipo ha estado expuesto a un cambio brusco de temperatura (por ejemplo, después del transporte), no lo encienda inmediatamente. La
condensación o la humedad podrían dañar el equipo. Deje que el equipo alcance la temperatura ambiente antes de encenderlo.
26. Antes de conectar el cable eléctrico a la toma de corriente, compruebe si la tensión y la frecuencia del suministro eléctrico coinciden
con las especificaciones de este equipo. Si el equipo dispone de un selector de tensión, antes de enchufarlo a la red eléctrica, asegúrese de
que el valor seleccionado coincide con la tensión de suministro. Si el enchufe o el adaptador de corriente no encajan en la toma eléctrica,
consulte a un electricista.
27. Asegúrese de que el cable eléctrico no está pinzado. Evite que el cable resulte pellizcado, sobre todo en los extremos de conexión al equipo y en
la toma eléctrica.
28. Al conectar el equipo, asegúrese de que el cable eléctrico o el adaptador de corriente estén siempre accesibles. Desconecte el equipo de la
toma de corriente cuando no esté en uso o antes de limpiarlo. Para ello, desconecte el cable eléctrico y el adaptador de corriente del conector del
equipo en vez de desenchufar el cable de la toma eléctrica. No tocar el cable eléctrico ni el adaptador de corriente con las manos húmedas.
29. No encienda y apague el equipo en cortos intervalos de tiempo, ya que se reduce así la vida útil del sistema.
30. NOTA IMPORTANTE: Sustituya los fusibles únicamente por otros del mismo tipo y de las mismas características. Si el fusible se funde continuamente, póngase en contacto con un servicio técnico autorizado.
31. Para desconectar completamente el equipo de la tensión eléctrica, desenchufe el cable eléctrico o el adaptador de corriente de la toma eléctrica.
32. Si el equipo dispone de un enchufe eléctrico Volex, deberá desbloquearse el Volex del equipo para desenchufarlo. Esto implica que un tirón en el
cable eléctrico puede desplazar el equipo y provocar daños personales o materiales. Por tanto, asegúrese de instalar los cables con sumo cuidado.
33. Si es probable que caiga un rayo por una tormenta eléctrica o si no va a emplear el equipo durante mucho tiempo, desenchufe el cable eléctrico
y el adaptador de corriente.
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
21
ATENCIÓN:
Para evitar el riesgo de descarga eléctrica, no retire la tapa. El equipo no contiene elementos que
el usuario pueda reparar o sustituir. Para cualquier tarea de mantenimiento o reparación, acuda a
un técnico cualificado.
ENGLISH
El símbolo de rayo dentro de un triángulo equilátero advierte al usuario de la presencia de tensiones peligrosas sin aislamiento
dentro del equipo que pueden causar una descarga eléctrica.
El símbolo de exclamación dentro de un triángulo equilátero advierte al usuario de la existencia de importantes instrucciones
de uso y mantenimiento.
¡Advertencia! Este símbolo indica la presencia de superficies calientes. Durante el funcionamiento, algunas partes de la
carcasa pueden llegar a calentarse bastante. Por ello, una vez apagado el equipo, espere al menos 10 minutos antes de
DEUTSCHFRANCAIS
manipularlo o transportarlo.
¡Advertencia! Este equipo está diseñado para ser utilizado a una altura que no supere los 2000metros sobre el nivel del mar.
¡Advertencia! Este equipo no está diseñado para funcionar en climas tropicales.
¡ADVERTENCIA: ALTO VOLUMEN!
Este equipo se destina a un uso profesional. Por consiguiente, si se aplica a un uso comercial, estará sujeto a las normas y reglamentos
de la Asociación para la prevención de accidentes de su sector profesional. Como fabricante, Adam Hall tiene la obligación de informar
formalmente a los usuarios de la existencia de posibles riesgos para la salud. Daños auditivos por exposición prolongada a un nivel SPL
alto: este equipo puede generar fácilmente un nivel de presión sonora (SPL) lo suficientemente elevado como para causar daños auditivos
permanentes a los artistas, el personal de producción y el público. Deben tomarse precauciones para evitar la exposición prolongada a un
SPL de más de 90dB.
INTRODUCCIÓN
ESPAÑOL
Stinger® G3 Series - Altavoces todoterreno para profesionales
Sonido excepcional, funcionamiento fiable y relación calidad-precio inmejorable en todos los aspectos: así es la gama Stinger
LD Systems. Como auténticas máquinas incansables para aplicaciones exigentes, estos altavoces se han diseñado para aportar soluciones
de refuerzo sonoro verdaderamente profesionales. La gama Stinger
entes en su clase. Los drivers diseñados a medida, que pueden manejar potencias altas y disponen de guías de ondas con modelado BEM,
®
G3 incluye modelos activos y pasivos que son simplemente sobresali-
ofrecen una calidad de audio impecable, mayor respuesta en las frecuencias bajas y cobertura uniforme.
®
Con sus etapas de potencia ligeras de Clase D, los modelos Stinger
versátiles tops ofrecen una potencia de salida brutal de hasta 500 vatios RMS, e incluyen preajustes cuidadosamente creados para aplicaciones de respuesta plana, rango completo, satélites o monitores de suelo. La tecnología patentada DynX
una sincronización perfecta y un resultado sin distorsiones incluso a niveles máximos. Con su tremenda pegada y definición en los bajos,
y hasta 800 W RMS de potencia de salida, los subwoofers Stinger
sistemas y configuraciones de array cardioide.
®
Todas las cajas Stinger
y resistente a los golpes para una mayor solidez y una durabilidad incomparable. La gama Stinger
poste Dual-Tilt de LD Systems, varios puntos de suspensión, huecos apilables y asas ergonómicas, se ha diseñado para giras musicales,
ITALIANOPOLSKI
empresas de alquiler e instalaciones. La amplia selección de accesorios Stinger
y bastidores, y un carrito apilable para facilitar el transporte. Es hora de equiparse bien.
G3 están fabricadas en chapa rígida de abedul, de baja resonancia, y están revestidas con poliurea no abrasiva
G3 activos pueden generar niveles enormes de presión sonora. Los
®
DSP de LD Systems garantiza
®
G3 incluyen preajustes fáciles de usar para la integración rápida de
®
G3 Series, que incluye la montura en
®
incluye dispositivos inteligentes para montaje en paredes
®
G3 Series de
22
CONEXIONES
1
2
INPUT
1
Entrada de altavoz compatible Speakon (pines1+ y 1−). Los conectores INPUT y OUTPUT están cableados en paralelo (pines2+ y 2− sin
conectar). El altavoz tiene una impedancia de 8ohmios.
2
OUTPUT
Salida de altavoz compatible Speakon (pines 1+ y 1−). Al enviar la señal de altavoz, preste atención a la impedancia total del sistema para
evitar daños en el amplificador conectado.
ADAPTADOR DE SOPORTE
FRANCAISDEUTSCHENGLISH
Los altavoces disponen de un vaso de montaje en soporte con un ángulo a 0° (posición posterior) y otro a 5° (posición anterior). Ejemplo de
aplicación: Utilice el adaptador de soporte a 0° para el refuerzo sonoro de eventos con público de pie, y el adaptador de soporte a un ángulo
de 5° si el público está sentado.
ITALIANOPOLSKIESPAÑOL
23
USO COMO MONITOR DE ESCENARIO
ENGLISH
DEUTSCHFRANCAIS
Gracias a la caja universal, los modelos EB102G3, EB122G3 y EB152G3 también pueden funcionar como monitores de escenario. Los pies
de goma antideslizantes garantizan una buena estabilidad, y el ángulo del monitor es de 54°.
ACCESORIOS OPCIONALES
Los altavoces de la serie Stinger G3 disponen de varios puntos de volado y de montaje. Como accesorios opcionales, hay disponibles
soportes de pared y techo, abrazaderas, soportes en U y fundas protectoras para todos los modelos.
LDEB82G3: Funda protectora N.º de artículo: LDEB82G3PC
Montura de pared orientable N.º de artículo: LDEB82G3WMB
Montura de pared orientable e inclinable N.º de artículo: LDEB82G3WMB1
Sargento Super Clamp para vigas N.º de artículo: LDEBG3SCP
LDEB102G3: Funda protectora N.º de artículo: LDEB102G3PC
Montura de pared orientable N.º de artículo: LDEB102G3WMB
Montura de pared orientable e inclinable N.º de artículo: LDEB102G3WMB1
ESPAÑOL
Sargento Super Clamp para vigas N.º de artículo: LDEBG3SCP
LDEB122G3: Funda protectora N.º de artículo: LDEB122G3PC
Montura de pared orientable N.º de artículo: LDEBG3WMB
Montura de pared orientable e inclinable N.º de artículo: LDEBG3WMB1
Soporte para suspensión EasyMount
LDEB152G3: Funda protectora N.º de artículo: LDEB152G3PC
Montura de pared orientable N.º de artículo: LDEBG3WMB
Montura de pared orientable e inclinable N.º de artículo: LDEBG3WMB1
Soporte para suspensión EasyMount
®
N.º de artículo: LDEBG3TMB
®
N.º de artículo: LDEBG3TMB
ITALIANOPOLSKI
24
CARACTERÍSTICAS TÉCNICAS
Modelo:LDEB82G3LDEB102G3LDEB122G3LDEB152G3
Tipo de producto:Altavoz de PAAltavoz de PAAltavoz de PAAltavoz de PA
Tipo:PasivoPasivoPasivoPasivo
Tamaño del altavoz de
bajos/medios:
Tamaño del altavoz
de bajos/medios (mm):
Imán del woofer:FerritaFerritaFerritaFerrita
Marca del woofer:Custom MadeCustom MadeCustom MadeCustom Made
Bobina del woofer:2"2"2,5"3"
Bobina del woofer
(mm):
Bocina:CD optimizada BEMCD optimizada BEMCD optimizada BEMCD optimizada BEM
Tamaño del motor de
agudos:
Tamaño del motor de
agudos (mm):
Imán de motor agudos: FerritaFerritaFerritaFerrita
Marca de motor
agudos:
Bobina de motor
agudos:
Bobina del motor de
agudos (mm):
Dispersión (H x V):90×50°90×50°90×50°90×50°
Potencia (RMS)250 W300 W400 W500 W
Potencia de pico:500 W600 W800 W1.000 W
Respuesta en
frecuencia:
SPL (1 W a 1 m):95 dB96 dB99 dB100 dB
SPL máx.:119 dB121 dB125 dB127 dB
Impedancia:8 ohmios8 ohmios8 ohmios8 ohmios
Circuitos de protección:
Entradas de altavoz:1111
Conectores de la
entrada de altavoz:
Salidas de altavoz:1111
Conectores de la salida
de altavoz:
Material de la caja:Contrachapado de 12 mmContrachapado de 12 mmContrachapado de 15 mmContrachapado de 15
Acabado de la caja:PoliureaPoliureaPoliureaPoliurea
Clamp, asa ergonómica
embutida, vaso de aluminio de doble inclinación
(0°/5°), preparado para
montaje en pared con
soporte en U, preparado
para montaje en pared
universal Gravity
Rosca M10 para SuperClamp, asa ergonómica
embutida, vaso de aluminio de doble inclinación
(0°/5°), preparado para
montaje en pared con
soporte en U, preparado
para montaje en pared
universal Gravity, pies
alargados de goma
2 asas ergonómicas embutidas, vaso de aluminio
de doble inclinación
(0°/5°), diseño de caja
multifuncional, rejilla
robusta de acero, puntos
de volado, recubrimiento
de poliurea, adaptador
de estructura de volado
de montaje rápido,
preparado para montaje
en pared con soporte en
U, preparado para montaje en pared universal
Gravity, pies alargados
de goma
2 asas ergonómicas embutidas, vaso de aluminio
de doble inclinación
(0°/5°),
diseño de caja multifuncional, rejilla robusta
de acero, puntos de
volado, recubrimiento
de poliurea, adaptador
de estructura de volado
de montaje rápido,
preparado para montaje
en pared con soporte en
U, preparado para montaje en pared universal
Gravity, pies alargados
de goma
DECLARACIÓN DEL FABRICANTE
GARANTÍA DEL FABRICANTE Y LIMITACIÓN DE RESPONSABILIDAD
Consulte nuestras condiciones de garantía y limitaciones de responsabilidad en: http://www.adamhall.com/media/shop/downloads/documents/manufacturersdeclarations.pdf. En caso de necesitar servicio técnico, póngase en contacto con Adam Hall GmbH, Daimlerstraße 9,
61267 Neu Anspach (Alemania); correo electrónico Info@adamhall.com; +49 (0)6081 / 9419-0.
ESPAÑOL
ELIMINACIÓN CORRECTA DE ESTE PRODUCTO
(Aplicable en la Unión Europea y en los países europeos que dispongan de un sistema de recogida selectiva) El símbolo que aparece
sobre el producto o en la documentación adjunta indica que al final de la vida útil del equipo, no deberá desecharlo con los demás
residuos domésticos, con el fin de evitar posibles efectos negativos en el medio ambiente y en la salud humana debidos al vertido
incontrolado de desechos. La recogida selectiva ayuda a su posterior reciclaje y fomenta la reutilización sostenible de los componentes de
este equipo. Si es un particular, póngase en contacto con el distribuidor donde adquirió este producto, o con el ayuntamiento, para
informarse sobre el reciclaje adecuado de este equipo. Si es una empresa, póngase en contacto con su proveedor para informarse sobre los
términos y condiciones de su contrato de compra-venta. Este producto no debe mezclarse con otros residuos industriales.
Conformidad CE
Adam Hall GmbH declara por la presente que este producto es conforme con las siguientes directivas (según sea aplicable):
R&TTE (1999/5/CE) o RED (2014/53/UE) a partir de junio de 2017
Directiva de baja tensión (2014/35/UE)
Directiva EMC (2014/30/UE)
RoHS (2011/65/UE)
Puede consultar la declaración de conformidad completa en www.adamhall.com.
También puede solicitarla a info@adamhall.com.
ITALIANOPOLSKI
26
POLSKI
GRATULUJEMY WYBORU!
To urządzenie zostało zaprojektowane i wyprodukowane przy zastosowaniu najwyższych kryteriów jakościowych w celu zapewnienia wieloletniej bezawaryjnej eksploatacji. Firma LD Systems gwarantuje to swoją marką i wieloletnim doświadczeniem w wytwarzaniu wysokiej
jakości produktów audio. Proszę starannie przeczytać niniejszą instrukcję obsługi, aby móc jak najszybciej zacząć użytkować ten produkt
marki LD Systems.
Dalsze informacje na temat firmy LD SYSTEMS dostępne są na naszej stronie internetowej WWW.LD-SYSTEMS.COM
ŚRODKI OSTROŻNOŚCI
1. Należy dokładnie przeczytać niniejszą instrukcję.
2. Wszystkie informacje i instrukcje przechowywać w bezpiecznym miejscu.
3. Należy przestrzegać zaleceń.
4. Należy przestrzegać wszystkich wskazówek ostrzegawczych. Nie wolno usuwać wskazówek bezpieczeństwa ani innych informacji
znajdujących się na urządzeniu.
5. Używać urządzenia wyłącznie w sposób zgodny z jego przeznaczeniem.
6. Stosować wyłącznie stabilne i pasujące statywy, ew. elementy mocujące (w przypadku instalacji stałych). Należy zadbać o prawidłową instalację
uchwytów ściennych i ich odpowiednie zabezpieczenie. Zapewnić bezpieczną instalację urządzenia i upewnić się, że urządzenie nie spadnie.
7. Podczas instalacji przestrzegać obowiązujących w danym kraju przepisów bezpieczeństwa.
8. Urządzenie instalować i eksploatować z dala od grzejników, zasobników ciepła, pieców i innych źródeł ciepła. Zadbać o zainstalowanie urządzenia w
taki sposób, aby zawsze było ono wystarczająco chłodzone i nie mogło ulec przegrzaniu.
9. Nie umieszczać na urządzeniu źródeł zapłonu, takich jak np. palące się świece.
10. Nie wolno blokować szczelin wentylacyjnych. Unikać bezpośredniego działania promieni słonecznych!
11. Zachowaj odległość co najmniej 20 cm wokół i nad urządzeniem.
12. Nie używać urządzenia w bezpośrednim sąsiedztwie wody (nie dotyczy specjalnych urządzeń do stosowania na zewnątrz – w takim
przypadku należy przestrzegać podanych poniżej wskazówek specjalnych). Urządzenie nie może mieć kontaktu z palnymi materiałami,
płynami ani gazami.
13. Zabezpieczyć urządzenie przed wniknięciem kapiącej lub pryskającej wody. Nie wolno stawiać na urządzeniu pojemników napełnionych
płynami, takich jak wazony czy naczynia z piciem.
14. Należy zadbać o to, aby do urządzenia nie wpadały żadne przedmioty.
15. Urządzenie można eksploatować tylko przy użyciu akcesoriów zalecanych i przewidzianych przez producenta.
16. Nie otwierać urządzenia ani nie dokonywać w nim zmian.
17. Po podłączeniu urządzenia sprawdzić wszystkie ciągi kablowe, aby zapobiec szkodom lub wypadkom np. w wyniku potknięcia.
18. Podczas transportu zadbać o to, aby urządzenie nie upadło, gdyż może to spowodować uszkodzenie mienia i obrażenia ciała.
19. Jeśli urządzenie nie działa prawidłowo, do jego wnętrza dostały się płyny lub przedmioty lub jeśli urządzenie zostało uszkodzone w inny
sposób, należy je natychmiast wyłączyć i odłączyć od gniazda sieciowego (jeśli urządzenie jest aktywne). Naprawę takiego urządzenia może
wykonać tylko autoryzowany personel specjalistyczny.
20. Do czyszczenia urządzenia stosować suchą ściereczkę.
21. Przestrzegać obowiązujących w danym kraju przepisów dotyczących usuwania odpadów. Podczas utylizacji opakowania oddzielić
tworzywo sztuczne od papieru i tektury.
22. Worki z tworzywa sztucznego należy przechowywać w miejscu niedostępnym dla dzieci.
23. Wszelkie zmiany czy modyfikacje urządzeń, które nie zostały wyraźnie zatwierdzone przez stronę odpowiedzialną za zgodność, mogą
spowodować utratę przez użytkownika prawa do posługiwania się tym sprzętem.
DOTYCZY URZĄDZEŃ Z ZASILANIEM SIECIOWYM
24. UWAGA: jeśli kabel sieciowy urządzenia jest wyposażony w zestyk ochronny, należy go podłączyć do gniazda z przewodem uziemiającym. Nigdy nie wolno dezaktywować przewodu uziemiającego kabla sieciowego.
25. Nie włączać urządzenia bezpośrednio po narażeniu go na silne wahania temperatury (np. po transporcie). Wilgoć i skropliny mogą uszkodzić
urządzenie. Włączyć urządzenie dopiero wtedy, gdy osiągnie temperaturę pokojową.
26. Przed podłączeniem urządzenia do gniazda elektrycznego należy sprawdzić, czy napięcie i częstotliwość sieci elektrycznej odpowiada wartościom podanym na urządzeniu. Jeśli urządzenie jest wyposażone w przełącznik napięcia, należy podłączyć je do gniazda tylko
wówczas, gdy wartości urządzenia odpowiadają wartościom sieci elektrycznej. Jeśli dołączony kabel sieciowy lub dołączony adapter
sieciowy nie pasuje do gniazda elektrycznego, należy skontaktować się z elektrykiem.
27. Nie stawać na kablu sieciowym. Należy zadbać o to, aby kable przewodzące napięcie nie były zagięte przy gnieździe sieciowym, przy
adapterze sieciowym ani przy gnieździe urządzenia.
28. Przy podłączaniu urządzenia zawsze należy zadbać o to, aby kabel sieciowy lub adapter sieciowy był zawsze łatwo dostępny. Odłączyć
urządzenie od źródła zasilania, gdy nie jest ono używane lub gdy ma zostać poddane czyszczeniu. Zawsze należy wyjmować kabel sieciowy
i adapter sieciowy z gniazda, chwytając za wtyczkę lub adapter, a nie za kabel. Nigdy nie dotykać kabla sieciowego i adaptera sieciowego
mokrymi dłońmi.
29. W miarę możliwości nie włączać i wyłączać urządzenia w krótkich odstępach czasu, gdyż może to mieć negatywny wpływ na jego żywotność.
30. WAŻNA INFORMACJA: bezpieczniki należy wymieniać wyłącznie na bezpieczniki tego samego typu i o takich samych wartościach. Jeśli bezpiecznik
stale się przepala, należy skontaktować się z autoryzowanym centrum serwisowym.
31. Aby całkowicie odłączyć urządzenie od sieci, należy wyjąć kabel sieciowy lub adapter sieciowy z gniazda.
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
27
32. Jeśli urządzenie jest wyposażone w przyłącze sieciowe Volex, konieczne jest odblokowanie odpowiedniej wtyczki urządzenia Volex, zanim
będzie możliwe jej odłączenie. Oznacza to także, iż w wyniku pociągnięcia za kabel urządzenie może się przesunąć i spaść, co może spowodować
obrażenia ciała i/lub inne szkody, dlatego ważne jest, aby przewody były odpowiednio poprowadzone.
33. W przypadku zagrożenia uderzeniem pioruna lub jeśli urządzenie przez dłuższy czas nie jest używane, należy wyjąć kabel sieciowy i
adapter sieciowy z gniazda.
ENGLISH
UWAGA:
Nigdy nie zdejmować pokrywy, gdyż grozi to porażeniem prądem. We wnętrzu urządzenia nie ma
żadnych części, które mogłyby zostać naprawione bądź poddane czynnościom konserwacyjnym przez
użytkownika. Czynności konserwacyjne i naprawy może przeprowadzać wyłącznie wykwalifikowany
personel serwisowy.
Trójkąt równoboczny z symbolem błyskawicy sygnalizuje nieizolowane, niebezpieczne napięcie we wnętrzu urządzenia, które
może spowodować porażenie prądem.
DEUTSCHFRANCAIS
Trójkąt równoboczny z wykrzyknikiem oznacza ważne wskazówki dotyczące obsługi i konserwacji.
Ostrzeżenie! Ten symbol ostrzega przed gorącymi powierzchniami. Podczas użytkowania niektóre elementy mogą się nagrzać.
Urządzenie można dotykać lub transportować dopiero po jego ostygnięciu (po odczekaniu co najmniej 10 minut).
Ostrzeżenie! To urządzenie przeznaczone jest do użytku do maksymalnej wysokości 2000 m n.p.m.
Ostrzeżenie! To urządzenie nie jest przewidziane do użytku w tropikalnych strefach klimatycznych.
UWAGA! WYSOKI POZIOM GŁOŚNOŚCI PRODUKTÓW AUDIO!
To urządzenie przewidziane jest do zastosowań profesjonalnych. Komercyjne stosowanie tego urządzenia podlega obowiązującym w danym
kraju przepisom i wytycznym dotyczącym zapobiegania wypadkom. Firma Adam Hall jest jako producent zobowiązana do wyraźnego
informowania o potencjalnym zagrożeniu dla zdrowia. Utrata słuchu w wyniku wysokiego poziomu głośności i długotrwałego narażenia: po-
ESPAÑOL
dczas stosowania tego produktu może powstać wysoki poziom ciśnienia akustycznego (SPL), który może doprowadzić do nieodwracalnego
uszkodzenia słuchu u artystów, pracowników i widzów. Należy unikać długotrwałego narażenia na wysoki poziom głośności powyżej 90 dB.
WPROWADZENIE
Stinger® G3 Series – głośniki nie do zdarcia dla profesjonalistów
®
Wyjątkowy dźwięk, niezawodne działanie i niezrównana wartość dodana w każdym aspekcie – oto głośniki Stinger
Systems. Te unikalne narzędzia są nie do zdarcia, zostały przeznaczone do wymagających zastosowań i opracowane tak, aby zapewnić
prawdziwie profesjonalne rozwiązania w zakresie wzmacniania dźwięku. Linia Stinger
parametry są po prostu wybitne w swojej klasie. Starannie dobrane głośniki składowe z przenoszeniem dużych mocy oraz falowody
®
G3 obejmuje modele aktywne i pasywne, których
akustyczne modelowane metodą BEM zapewniają nieskazitelną jakość dźwięku, rozszerzoną responsywność w paśmie niskich
częstotliwości i równomierne pokrycie dźwiękiem.
®
Głośniki aktywne z serii Stinger
Wielofunkcyjne głośniki oferują imponującą moc wyjściową do 500 watów RMS i starannie spersonalizowane ustawienia wstępne, aby
zagwarantować równomierną odpowiedź, pełny zakres przenoszenia oraz możliwości stosowania w formie satelitów lub monitorów
podłogowych. Opatentowana technologia DynX
ITALIANOPOLSKI
zniekształceń brzmienie nawet przy maksymalnych poziomach mocy wyjściowej. Subwoofery Stinger
G3 z lekkimi wzmacniaczami mocy klasy D mogą wytwarzać naprawdę duże ciśnienie akustyczne.
®
DSP firmy LD Systems oznacza doskonałe wyrównywanie czasowe i wolne od
®
G3, wytwarzające znakomicie
podkręcone basy i bardzo dobrą jakość dźwięku do mocy wyjściowej 800 watów RMS, są dostarczane z przyjazną dla użytkownika
konfiguracją wstępną, umożliwiającą szybką integrację systemu i wykonanie ostatecznych ustawień w układzie kardioidalnym.
®
Wszystkie obudowy głośników Stinger
wytrzymałą na uderzenia powłoką polimocznikową, zapewniającą optymalną wytrzymałość i niezrównaną trwałość. Głośniki Stinger
Series – obejmujące takie rozwiązania marki LD Systems jak montaż na stojaku Dual-Tilt, wielokrotne punkty zawieszenia, zagłębienia
ułatwiające pionowe zestawianie i ergonomiczne uchwyty – zostały zaprojektowane z myślą o koncertujących muzykach i wypożyczalniach
sprzętu przy uwzględnieniu różnych sposobów montażu. Duży wybór akcesoriów Stinger
smart wall i kratownicy oraz platformę transportową do ułatwienia przemieszczania. Czy nie czas już wyruszać w trasę?
G3 są wykonane ze sztywnej sklejki brzozowej o niskim poziomie rezonacji. Są pokryte nieścieralną,
®
obejmuje osprzęt do montażu na uchwytach
serii G3 marki LD
®
G3
28
ZŁĄCZA
1
2
INPUT
1
Wejście z gniazdem głośnikowym kompatybilnym ze złączem Speakon (przyporządkowanie styków: 1+, 1-). Gniazda złączy INPUT i OUTPUT
są połączone równolegle (2+, 2- nie są używane). Impedancja głośnika wynosi 8 Ω.
2
OUTPUT
Wyjście z gniazdem głośnikowym kompatybilnym ze złączem Speakon (przyporządkowanie styków: 1+, 1-). Przy podłączaniu należy zwrócić uwagę na impedancję całkowitą systemu, aby uniknąć uszkodzenia podłączonego wzmacniacza.
KOŁNIERZ STATYWU
FRANCAISDEUTSCHENGLISH
Głośniki wykorzystują kołnierz statywu z mocowaniem statywu o kącie 0° (umiejscowienie z tyłu) i mocowanie statywu o kącie nachylenia
5° (umiejscowienie z przodu). Przykłady zastosowań: Mocowanie statywu o kącie 0° należy stosować do nagłośnienia w przypadku stojącej
publiczności, natomiast mocowanie statywu o kącie nachylenia 5° – w przypadku siedzącej publiczności.
ITALIANOPOLSKIESPAÑOL
29
ZASTOSOWANIE JAKO MONITOR SCENICZNY
ENGLISH
DEUTSCHFRANCAIS
Dzięki uniwersalnej obudowie modele EB102G3, EB122G3 i EB152G3 mogą również pełnić funkcję pełnowartościowych monitorów scenicznych. Antypoślizgowe, gumowe szyny zapewniają stabilność, a kąt monitora wynosi 54°.
OPCJONALNE AKCESORIA
Głośniki serii Stinger G3 posiadają różne punkty mocowania zawieszenia i montażowe. Jako opcjonalne akcesoria dostępne są uchwyty do
montażu ściennego/sufitowego, zaciski i uchwyty U, a także wytrzymałe pokrowce ochronne dla wszystkich modeli.
LDEB82G3: Pokrywa ochronna Nr art.: LDEB82G3PC
Obrotowy wspornik ścienny Nr art.: LDEB82G3WMB
Obrotowo-uchylny wspornik ścienny Nr art.: LDEB82G3WMB1
Zacisk Super do kratownicy Nr art.: LDEBG3SCP
LDEB102G3: Pokrywa ochronna Nr art.: LDEB102G3PC
Obrotowy wspornik ścienny Nr art.: LDEB102G3WMB
Obrotowo-uchylny wspornik ścienny Nr art.: LDEB102G3WMB1
ESPAÑOL
Zacisk Super do kratownicy Nr art.: LDEBG3SCP
LDEB122G3: Pokrywa ochronna Nr art.: LDEB122G3PC
Obrotowy wspornik ścienny Nr art.: LDEBG3WMB
Obrotowo-uchylny wspornik ścienny Nr art.: LDEBG3WMB1
Uchwyt-wieszak EasyMount
LDEB152G3: Pokrywa ochronna Nr art.: LDEB152G3PC
Obrotowy wspornik ścienny Nr art.: LDEBG3WMB
Obrotowo-uchylny wspornik ścienny Nr art.: LDEBG3WMB1
Uchwyt-wieszak EasyMount
®
Nr art.: LDEBG3TMB
®
Nr art.: LDEBG3TMB
ITALIANOPOLSKI
30
DANE TECHNICZNE
Numer modelu:LDEB82G3LDEB102G3LDEB122G3LDEB152G3
Typ produktugłośnik PAgłośnik PAgłośnik PAgłośnik PA
Typ:pasywnypasywnypasywnypasywny
Wielkość przetwornika
nisko-średniotonowego:
Wielkość przetwornika
nisko-średniotonowego (mm):
Magnes użyty w głośniku niskotonowym:
Marka głośnika niskotonowego:
Wielkość cewki
drgającej głośnika
niskotonowego:
Wielkość cewki
drgającej głośnika
niskotonowego (mm):
Tuba głośnikowa:tuba głośnikowa
Wielkość przetwornika
wysokotonowego:
Wielkość przetwornika
wysokotonowego
(mm):
Magnes przetwornika
wysokotonowego:
Marka przetwornika
wysokotonowego:
Wielkość cewki
drgającej przetwornika
wysokotonowego:
Wielkość cewki
drgającej przetwornika
wysokotonowego
(mm):
Dyspersja (poziom
x pion):
Moc RMS:250 W300 W400 W500 W
Moc szczytowa:500 W600 W400 W1000 W
Charakterystyka
częstotliwościowa:
Poziom ciśnienia akustycznego (1 W/1 m)
8”10”12”15”
203,2 mm254 mm304,8 mm381 mm
ferrytowyferrytowyferrytowyferrytowy
wykonany specjalnie do
systemu
2”2”2,5”3”
50,8 mm50,8 mm63,5 mm76,2 mm
stałej kierunkowości (CD)
zoptymalizowana zgodnie z metodą elementów
brzegowych (BEM)
1”1”1”1”
25,4 mm25,4 mm25,4 mm25,4 mm
ferrytowyferrytowyferrytowyferrytowy
BMSBMSBMSBMS
1”1”1”1”
25,4 mm25,4 mm25,4 mm25,4 mm
90 x 50°90 x 50°90 x 50°90 x 50°
70–20 000 Hz65–20 000 Hz58–20 000 Hz50–20 000 Hz
95 dB96 dB99 dB100 dB
wykonany specjalnie do
systemu
tuba głośnikowa
stałej kierunkowości (CD)
zoptymalizowana zgodnie z metodą elementów
brzegowych (BEM)
wykonany specjalnie do
systemu
tuba głośnikowa
stałej kierunkowości (CD)
zoptymalizowana zgodnie z metodą elementów
brzegowych (BEM)
wykonany specjalnie do
systemu
tuba głośnikowa
stałej kierunkowości (CD)
zoptymalizowana zgodnie z metodą elementów
brzegowych (BEM)
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
31
Maksymalny poziom
ciśnienia akustycznego
(SPL):
Impedancja:8 Ω8 Ω8 Ω8 Ω
Zabezpieczenia:przetwornik wysoko-
ENGLISH
Wejścia głośnikowe:1111
Wejściowe złącza
głośnikowe:
Wyjścia głośnikowe:1111
Wyjściowe złącza
głośnikowe:
DEUTSCHFRANCAIS
Materiał obudowy:sklejka 12 mmsklejka 12 mmsklejka 15 mmsklejka 15 mm
Super Clamp, ergonomicznie ukształtowany
uchwyt, aluminiowy
kołnierz o dwóch kątach
nachylenia (0°/ 5°), przygotowanie do montażu
ściennego z użyciem
uchwytu U, przygotowanie do wielofunkcyjnego
uchwytu ściennego
Gravity
przetwornik wysokotonowy
zgodne ze złączem
Speakon
zgodne ze złączem
Speakon
Gwint M10 do zacisku
Super Clamp, ergonomicznie ukształtowany
uchwyt, aluminiowy
kołnierz o dwóch kątach
nachylenia (0°/ 5°), przygotowanie do montażu
ściennego z użyciem
uchwytu U, przygotowanie do wielofunkcyjnego
uchwytu ściennego
Gravity, szynowe nóżki
monitora wykonane z
gumy
przetwornik wysokotonowy
zgodne ze złączem
Speakon
zgodne ze złączem
Speakon
2 ergonomicznie
ukształtowane uchwyty,
aluminiowy kołnierz o
dwóch kątach nachylenia
(0°/ 5°), wielofunkcyjna
konstrukcja obudowy,
solidna maskownica stalowa, punkty mocowania
zawieszania, powłoka z
polimocznika, adapter
ramy montażowej Quick-Mount, przygotowanie
do montażu ściennego
z użyciem uchwytu
U, przygotowanie do
wielofunkcyjnego uchwytu ściennego Gravity,
szynowe nóżki monitora
wykonane z gumy
przetwornik wysokotonowy
zgodne ze złączem
Speakon
zgodne ze złączem
Speakon
2 ergonomicznie
ukształtowane uchwyty,
aluminiowy kołnierz o
dwóch kątach nachylenia
(0°/ 5°),
wielofunkcyjna konstrukcja obudowy, solidna
maskownica stalowa,
punkty mocowania
zawieszania, powłoka z
polimocznika, adapter
ramy montażowej Quick-Mount, przygotowanie
do montażu ściennego
z użyciem uchwytu
U, przygotowanie do
wielofunkcyjnego uchwytu ściennego Gravity,
szynowe nóżki monitora
wykonane z gumy
ITALIANOPOLSKI
32
DEKLARACJE PRODUCENTA
GWARANCJA PRODUCENTA I OGRANICZENIE ODPOWIEDZIALNOŚCI
Nasze aktualne warunki gwarancji i informacje dotyczące ograniczenia odpowiedzialności znajdą Państwo na stronie: http://www.adamhall.
com/media/shop/downloads/documents/manufacturersdeclarations.pdf. W razie konieczności skorzystania z serwisu proszę skontaktować
się z firmą Adam Hall GmbH, Daimlerstraße 9, 61267 Neu Anspach / e-mail Info@adamhall.com / +49 (0)6081 / 9419-0.
PRAWIDŁOWA UTYLIZACJA NINIEJSZEGO PRODUKTU
(Obowiązuje w Unii Europejskiej i innych krajach europejskich stosujących system sortowania odpadów) Niniejszy symbol na produk-
cie lub związanych z nim dokumentach wskazuje, iż urządzenie po zakończeniu okresu użytkowania nie może być utylizowane razem
ze standardowymi odpadami domowymi, aby uniknąć szkód w środowisku lub szkód na osobie powstałych w wyniku niekontrolowanego
usuwania odpadów. Niniejszy produkt należy utylizować oddzielnie od innych odpadów i przekazać do punktu recyklingu w celu ponownego
wykorzystania użytych w nim materiałów w ramach idei zrównoważonego rozwoju. Klienci prywatni otrzymują informacje w zakresie przyjaznych dla środowiska możliwości usuwania odpadów od sprzedawcy, u którego produkt został zakupiony, lub w odpowiednich placówkach
regionalnych. Użytkownicy będący przedsiębiorcami proszeni są o kontakt ze swoimi dostawcami i ewentualne sprawdzenie uzgodnionych
umownie warunków utylizacji urządzeń. Niniejszy produkt nie może być utylizowany razem z innymi odpadami przemysłowymi.
Deklaracja zgodności CE
Firma Adam Hall GmbH niniejszym oświadcza, że produkt ten jest zgodny z następującymi dyrektywami (o ile mają zastosowanie):
dyrektywa w sprawie urządzeń radiowych i końcowych urządzeń telekomunikacyjnych (1999/5/WE) lub dyrektywa w sprawie urządzeń
radiowych (2014/53/UE) od czerwca 2017 r.
dyrektywa niskonapięciowa (2014/35/UE)
dyrektywa w sprawie kompatybilności elektromagnetycznej (2014/30/UE)
dyrektywa w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym (2011/65/UE)
Pełna wersja deklaracji zgodności znajduje się na stronie internetowej www.adamhall.com.
Ponadto zapytania w tej sprawie można przesyłać na adres e-mail info@adamhall.com.
FRANCAISDEUTSCHENGLISH
33
ITALIANOPOLSKIESPAÑOL
ITALIANO
AVETE FATTO LA SCELTA GIUSTA!
Quest‘apparecchio è stato sviluppato e prodotto secondo elevati standard qualitativi che garantiscono un funzionamento regolare per molti anni.
Per questo motivo LD Systems, con il suo nome e la pluriennale esperienza, rappresenta un‘azienda produttrice di prodotti audio di qualità. Leggete
attentamente questo manuale d‘uso per utilizzare al meglio il vostro nuovo prodotto LD Systems.
ENGLISH
Per maggiori informazioni su LD SYSTEMS, consultate la nostra pagina web WWW.LD-SYSTEMS.COM
MISURE PRECAUZIONALI
1. Leggere attentamente il presente manuale di istruzioni.
2. Conservare tutte le indicazioni e le istruzioni in un luogo sicuro.
3. Seguire le istruzioni.
4. Rispettare tutte le avvertenze. Non rimuovere dal dispositivo le indicazioni sulla sicurezza o altre informazioni.
5. Utilizzare il dispositivo solo nei modi previsti dal manuale.
6. Utilizzare esclusivamente stativi e fissaggi stabili e adatti (per installazioni fisse). Verificare che i supporti a parete siano installati e fissati a
regola d‘arte. Verificare che il dispositivo sia installato in modo stabile e non possa cadere.
DEUTSCHFRANCAIS
7. Durante l‘installazione, osservare le normative sulla sicurezza in vigore nel proprio Paese.
8. Non installare né azionare il dispositivo in prossimità di radiatori, accumulatori termici, stufe o altre fonti di calore. Accertarsi che il dispositivo
sia sempre installato in modo che venga raffreddato a sufficienza e non possa surriscaldarsi.
9. Non appoggiare sul dispositivo fonti di combustione, quali candele accese.
10. Le fessure di areazione non devono essere bloccate. Evitare l‘esposizione diretta ai raggi solari.
11. Mantenere una distanza minima di 20 cm intorno e sopra al dispositivo.
12. Non attivare il dispositivo nelle immediate vicinanze di acqua (questo punto non interessa i dispositivi specifici per l‘esterno, per i quali
valgono le speciali indicazioni riportate di seguito). Non portare mai il dispositivo a contatto con materiali, liquidi o gas infiammabili.
13. Accertarsi che all‘interno del dispositivo non possa penetrare acqua per gocciolamento o spruzzo. Non collocare sul dispositivo oggetti
contenenti liquidi, quali vasi, tazze o bicchieri.
14. Assicurarsi che non sia possibile la caduta di oggetti nel dispositivo.
15. Azionare il dispositivo esclusivamente con gli accessori appositamente consigliati e previsti dal produttore.
16. Non aprire né modificare il dispositivo.
17. Una volta collegato il dispositivo, verificare tutti i cavi per evitare danni o incidenti, ad esempio per inciampo.
18. Durante il trasporto, assicurarsi che il dispositivo non possa cadere e causare possibili danni a cose e/o persone.
19. Se il dispositivo non funzionasse più correttamente, vi fosse caduto sopra del liquido o un oggetto o fosse stato danneggiato in altro
modo, spegnerlo immediatamente e staccare la spina (se si tratta di un dispositivo attivo). La riparazione del dispositivo deve essere affidata
esclusivamente a personale qualificato autorizzato.
20. Per la pulizia del dispositivo utilizzare un panno pulito.
ESPAÑOL
21. Rispettare le leggi sullo smaltimento in vigore nel Paese di installazione. Al momento di smaltire l‘imballo, separare la plastica dalla
carta e dal cartone.
22. I sacchetti di plastica devono essere tenuti lontani dalla portata dei bambini.
23. Notare che eventuali modifiche o alterazioni non espressamente approvate dal responsabile della conformità possono annullare la
facoltà dell‘utente di utilizzare l‘apparecchiatura
DISPOSITIVI CON ALLACCIAMENTO DI RETE
24. ATTENZIONE: se il cavo di rete è dotato di contatto di protezione, deve essere collegato a una presa di rete con messa a terra. Non
disattivare mai la connessione di messa a terra di un cavo di rete.
25. Non accendere il dispositivo subito dopo essere stato sottoposto a forti variazioni di temperatura (ad esempio dopo il trasporto). Umidità
e condensa potrebbero danneggiare il dispositivo. Accendere il dispositivo solo dopo che ha raggiunto la temperatura ambiente.
26. Prima di collegare il dispositivo alla presa, controllare innanzitutto se la tensione e la frequenza della rete elettrica coincidono con i
valori indicati sul dispositivo stesso. Nel caso di dispositivo munito di selettore di tensione, collegarlo alla presa unicamente se i valori del
dispositivo coincidono con quelli della rete elettrica. Se il cavo di rete o l‘adattatore di rete forniti in dotazione non sono compatibili con la
presa, rivolgersi a un elettricista.
27. Non calpestare il cavo di rete. Accertarsi che i cavi sotto tensione, in particolare della presa di rete o dell‘adattatore di rete,
non vengano pizzicati.
28. Durante il cablaggio del dispositivo, verificare sempre che il cavo di rete e l‘adattatore di rete siano costantemente accessibili. Staccare
sempre il dispositivo dall‘alimentazione di rete quando non è utilizzato o durante la pulizia. Per staccare dalla presa il cavo di rete e l‘adattatore
ITALIANOPOLSKI
di rete, tirare sempre dalla spina o dall‘adattatore e non dal cavo. Non toccare mai il cavo di alimentazione e l’alimentatore con le mani umide.
29. Evitare per quanto possibile di accendere e spegnere velocemente il dispositivo per non pregiudicarne la durata.
30. NOTA IMPORTANTE: Sostituire i fusibili esclusivamente con fusibili dello stesso tipo e valore. Se un fusibile continua a saltare, rivolgersi a
un centro di assistenza autorizzato.
31. Per staccare completamente il dispositivo dalla rete elettrica, rimuovere il cavo di rete o l‘adattatore di rete dalla presa.
32. Per staccare un dispositivo provvisto di presa Volex, è prima necessario sbloccare la relativa spina Volex del dispositivo stesso. Tirando il
cavo di rete, però, il dispositivo potrebbe spostarsi e cadere, provocando danni alle persone o di altro genere. Prestare quindi la più scrupolosa attenzione durante la posa dei cavi.
33. In caso di pericolo di caduta di fulmine, o se il dispositivo rimane inutilizzato a lungo, staccare sempre il cavo di rete e l‘adattatore di
rete dalla presa.
34
ATTENZIONE:
non togliere mai il coperchio di protezione perché sussiste il pericolo di scosse elettriche.
L‘interno del dispositivo non contiene parti che possono essere riparate o sottoposte a
manutenzione da parte dell‘utente. Per gli interventi di manutenzione e di riparazione rivolgersi
esclusivamente a personale qualificato.
Il triangolo equilatero con il simbolo del lampo segnala la presenza di tensioni pericolose non isolate all‘interno
dell‘apparecchio che possono causare scosse elettriche.
Il triangolo equilatero con punto esclamativo segnala la presenza di importanti informazioni relative all’uso e alla manutenzione.
Avvertimento! Questo simbolo indica superfici calde. Alcune parti della cassa potrebbero scaldarsi durante l‘impiego. Dopo aver
usato l‘apparecchiatura, lasciarla raffreddare per almeno 10 minuti prima di toccarla o trasportarla.
Avvertimento! Questo dispositivo è destinato per l’utilizzo a un’altitudine non superiore ai 2.000metri sul livello del mare.
Avvertimento! Questo dispositivo non è destinato all’uso nei climi tropicali.
ATTENZIONE! PRODOTTI AUDIO con LIVELLI SONORI ELEVATI!
Questo dispositivo è destinato a uso professionale. Il suo utilizzo in ambito commerciale è soggetto alle normative e alle direttive nazionali
vigenti in materia di prevenzione di infortuni. In qualità di produttore, Adam Hall è tenuto per legge a informare espressamente gli utenti
degli eventuali rischi per la salute. Danni all‘udito provocati da un’esposizione prolungata a un livello sonoro elevato: l‘utilizzo di questo
prodotto può generare elevati livelli di pressione sonora (SPL) che possono provocare danni irreparabili all‘udito di artisti, collaboratori e
spettatori. Evitare l‘esposizione prolungata a livelli sonori elevati, superiori a 90dB.
INTRODUZIONE
Serie Stinger® G3 - Altoparlanti potenti e affidabili per i professionisti
®
La serie Stinger
linea. Altoparlanti progettati per offrire soluzioni professionali di potenziamento del suono, vale a dire veri e propri “cavalli di battaglia”
per le applicazioni più esigenti. La linea Stinger
personalizzati con un’elevata potenza e guide d’onda modellate al metodo BEM offrono una qualità audio impeccabile, una risposta estesa
alle basse frequenze e una copertura coerente.
Esibendo stadi di potenza in classe D leggeri, i modelli Stinger
vantano una consistente potenza d’uscita RMS fino a 500 watt e accurate impostazioni predefinite personalizzate per applicazioni a risposta
piatta, gamma intera, satellitari o di monitoraggio a pavimento. La tecnologia DSP DynX
temporale e prestazioni senza distorsioni anche ai massimi livelli. Con l’imponente effetto “low-end punch (pugno nello stomaco alle basse
frequenze) e la definizione di una potenza d’uscita RMS fino a 800 watt, i subwoofer Stinger
rapida integrazione del sistema e configurazioni cardioidi di array.
Tutte le casse degli Stinger
abrasiva per garantire la massima robustezza e una durata senza pari. Integrando uno stativo a doppia inclinazione LD Systems, molteplici
punti di sospensione, incassi per impilabilità e manici ergonomici, la serie Stinger
noleggio e le applicazioni per installazioni. L’ampia gamma di accessori Stinger
su travi oltre a un carrello porta amplificatori impilabile per facilitarne il trasporto. Siete pronti a salire in sella?
G3 di LD Systems è caratterizzata da un suono eccezionale, prestazioni affidabili e un valore ineguagliabile su tutta la
®
G3 comprende modelli attivi e passivi, semplicemente eccellenti nella loro classe. Driver
®
G3 attivi offrono livelli elevati di pressione sonora. I coperchi polivalenti
®
di LD Systems assicura un perfetto allineamento
®
G3 sono facilmente preimpostabili per una
®
G3 sono realizzate in multistrato di betulla rigido a bassa risonanza e sono rivestite con poliurea antiurto, non
®
G3 è stata progettata per i musicisti in tournée, le aziende di
®
comprende componenti intelligenti per il montaggio a parete e
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
35
CONNESSIONI
ENGLISH
1
DEUTSCHFRANCAIS
2
INPUT
1
Ingresso con presa per altoparlante speakON compatibile (assegnazione pin1+, 1−). Le prese di collegamento INPUT e OUTPUT sono
cablate in parallelo (i pin2+ e 2− non sono collegati). L’altoparlante ha un’impedenza di 8ohm.
2
OUTPUT
Uscita con presa per altoparlante speakON compatibile (assegnazione pin1+, 1−). Durante l’inoltro del segnale, prestare attenzione all’impedenza
complessiva del sistema per evitare danni al finale di potenza collegato.
ESPAÑOL
FLANGIA PER STATIVO
ITALIANOPOLSKI
Gli altoparlanti dispongono di una flangia con un attacco per lo stativo con angolazione 0° (dietro) e con un attacco per lo stativo con angolo
di inclinazione di 5° (davanti). Esempi di applicazione: utilizzare l’attacco per lo stativo con angolazione 0° per la diffusione acustica in
eventi con pubblico in piedi e l’attacco per lo stativo con angolo di inclinazione 5° per la diffusione acustica in eventi con pubblico seduto.
36
UTILIZZO COME MONITOR DA PALCOSCENICO
Grazie all’alloggiamento universale, i modelli EB102G3, EB122G3 ed EB152G3 si possono utilizzare anche come monitor da palcoscenico.
Gli appoggi in gomma paralleli assicurano una buona stabilità; l’angolazione del monitor è di 54°.
ACCESSORI OPZIONALI
Gli altoparlanti della serie Stinger G3 hanno diversi punti di sospensione e di montaggio. Per tutti i modelli sono disponibili come accessori
opzionali supporti da parete e da soffitto, morsetti e staffe a U e custodie resistenti.
LDEB82G3: Custodia protettiva Codice art.: LDEB82G3PC
Montaggio a parete orientabile Codice art.: LDEB82G3WMB
Montaggio a parete orientabile e basculante Codice art.: LDEB82G3WMB1
Morsetto Super Clamp per tralicci Codice art.: LDEBG3SCP
LDEB102G3: Custodia protettiva Codice art.: LDEB102G3PC
Montaggio a parete orientabile Codice art.: LDEB102G3WMB
Montaggio a parete orientabile e basculante Codice art.: LDEB102G3WMB1
Morsetto Super Clamp per tralicci Codice art.: LDEBG3SCP
LDEB122G3: Custodia protettiva Codice art.: LDEB122G3PC
Montaggio a parete orientabile Codice art.: LDEBG3WMB
Montaggio a parete orientabile e basculante Codice art.: LDEBG3WMB1
Staffa aerea EasyMount
LDEB152G3: Custodia protettiva Codice art.: LDEB152G3PC
Montaggio a parete orientabile Codice art.: LDEBG3WMB
Montaggio a parete orientabile e basculante Codice art.: LDEBG3WMB1
Staffa aerea EasyMount
®
Codice art.: LDEBG3TMB
®
Codice art.: LDEBG3TMB
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
37
DATI TECNICI
Numero del modello: LDEB82G3LDEB102G3LDEB122G3LDEB152G3
Tipo di prodotto:Altoparlante PAAltoparlante PAAltoparlante PAAltoparlante PA
Tipo:PassivoPassivoPassivoPassivo
ENGLISH
Dimensioni driver
bassi/medi:
Dimensioni driver
bassi/medi (mm):
Magnete del woofer:FerriteFerriteFerriteFerrite
Marca del woofer:Custom MadeCustom MadeCustom MadeCustom Made
DEUTSCHFRANCAIS
Bobina del woofer:2"2"2,5"3"
Bobina del woofer
(mm):
Tromba:Tromba CD ottimizzata
Dimensioni driver alte
frequenze:
Dimensioni driver alte
frequenze (mm):
Magnete driver alte
frequenze:
Marca driver alte
frequenze:
Bobina voce driver alte
frequenze:
ESPAÑOL
Bobina voce driver alte
frequenze (mm):
Dispersione (H x V):90 x 50°90 x 50°90 x 50°90 x 50°
SuperClamp, maniglia
a incasso ergonomica,
flangia in alluminio a
doppia inclinazione
(0°/5°), predisposizione
per montaggio a muro
con sostegno a U,
predisposizione per montaggio a muro universale
Gravity
Filettatura M10 per
SuperClamp, maniglia
a incasso ergonomica,
flangia in alluminio a
doppia inclinazione
(0°/5°), predisposizione per montaggio a
muro con sostegno a
U, predisposizione per
montaggio a muro universale Gravity, appoggi
in gomma del monitor
paralleli
2maniglie a incasso
ergonomiche, flangia
in alluminio a doppia
inclinazione (0°/5°),
cassa di design multifunzionale, griglia in
acciaio rinforzata, punti
aggettanti, rivestimento
in poliurea, adattatore
per telaio aggettante
a montaggio rapido,
predisposizione per
montaggio a muro con
sostegno a U, predisposizione per montaggio a
muro universale Gravity,
appoggi in gomma del
monitor paralleli
2maniglie a incasso
ergonomiche, flangia
in alluminio a doppia
inclinazione (0°/5°),
cassa di design multifunzionale, griglia in
acciaio rinforzata, punti
aggettanti, rivestimento
in poliurea, adattatore
per telaio aggettante
a montaggio rapido,
predisposizione per
montaggio a muro con
sostegno a U, predisposizione per montaggio a
muro universale Gravity,
appoggi in gomma del
monitor paralleli
DICHIARAZIONI DEL PRODUTTORE
MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY
Le nostre attuali condizioni di garanzia e la limitazione di responsabilità sono consultabili alla pagina: http://www.adamhall.com/media/
shop/downloads/documents/manufacturersdeclarations.pdf. In caso di assistenza, rivolgersi a Adam Hall GmbH, Daimlerstraße 9,
61267 Neu Anspach / E-mail Info@adamhall.com / +49 (0)6081 / 9419-0.
CORRETTO SMALTIMENTO DEL PRODOTTO
(In vigore nell‘Unione Europea e in altri Paesi europei in cui si attui la raccolta differenziata) Questo simbolo apposto sul prodotto o
sui relativi documenti indica che, per evitare danni all‘ambiente e alle persone causati da uno smaltimento incontrollato dei rifiuti,
alla fine del suo ciclo di vita l‘apparecchio non deve essere smaltito insieme ai normali rifiuti domestici. Il prodotto deve quindi essere
smaltito separatamente da altri rifiuti e riciclato nell‘ottica dell‘incentivazione di cicli economici sostenibili. I clienti privati possono richiedere
informazioni sulle possibilità di smaltimento ecosostenibile al rivenditore presso il quale è stato acquistato il prodotto o presso le autorità
regionali competenti. I clienti aziendali devono invece contattare il proprio fornitore e controllare le eventuali condizioni contrattuali inerenti
allo smaltimento degli apparecchi. Questo prodotto non deve essere smaltito assieme ad altri rifiuti industriali.
Conformità CE
Con la presente Adam Hall GmbH dichiara che questo prodotto soddisfa le seguenti direttive (ove pertinente):
Direttiva R&TTE (1999/5/CE) e RED (2014/53/UE) da giugno 2017
Direttiva bassa tensione (2014/35/CE)
Direttiva CEM (2014/30/UE)
RoHS (2011/65/UE)
La dichiarazione di conformità completa è reperibile al sito www.adamhall.com.
Per ulteriori informazioni è inoltre possibile scrivere a info@adamhall.com.
FRANCAISDEUTSCHENGLISH
ITALIANOPOLSKIESPAÑOL
39
WWW.LD-SYSTEMS.COM
Adam Hall GmbH | Daimlerstrasse 9 | 61267 Neu-Anspach | Germany
