CURV 500® SERIES

INSTALL SOLUTIONS

CONFIGURATION GUIDE

CURV 500 iAMP
CURV 500 SPEAKERS

BISTRO

Bistros, cafés, clubs or
restaurants often require
audio systems with a mul­tizone layout. The modular
design of the CURV 500
installation system enables
individual configurations
for each zone ranging from
subtle background music
to dancefloor levels while
keeping the same excellent
sonic signature throughout
the installation.

CURV 500® INSTALL

BISTRO MEDIUM BUNDLE / 12 SATELLITES AND 2 SUBWOOFERS

ZONE 1

CH A PRESET: 2xC500-SAT

CH B PRESET: 1xC500ISUB

+ - + -

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the

+ - + -

internal routing matrix.

ZONE 2

CH C PRESET: 2xC500-SAT

CH D PRESET: 1xC500ISUB

CURV 500® INSTALL

BISTRO MAX BUNDLE / 12 SATELLITES AND 2 SUBWOOFERS

ZONE 1

CH A PRESET: 1xC500-SAT CH B PRESET: 1xC500ISUB

+ - + -

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the

+ - + -

internal routing matrix.

ZONE 2

CH C PRESET: 1xC500-SAT

CH D PRESET: 1xC500ISUB

CONFERENCE

In addition to excellent speech in­telligibility, conference and meeting
room audio systems must deliver
superb sound reproduction for
multimedia applications.
With its modular design and ele­gant appearance, the CURV 500 is
the perfect choice for all installati­on sizes from small meeting rooms
to large multipurpose spaces.

CURV 500® INSTALL

CONFERENCE MEDIUM BUNDLE / 8 SATELLITES AND 1 SUBWOOFER

FRONT

CH A PRESET: 2xC500-SAT CH B PRESET: 2xC500-SAT

+ - + -

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the

+ - + -

internal routing matrix.

REAR

CH C PRESET: 2xC500-SAT CH D PRESET: 1xC500ISUB

CURV 500® INSTALL

CONFERENCE MAX BUNDLE / 12 SATELLITES AND 2 SUBWOOFERS

ZONE 1 / FRONT

CH B PRESET: 1xC500ISUB

CH A PRESET: 3xC500-SAT

+ - + -

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the

+ - + -

internal routing matrix.

ZONE 2 / REAR

CH C PRESET: 3xC500-SAT

CH D PRESET: 1xC500ISUB

VOICE

Audio installations for
speech reproduction only such
as those in lecture rooms
typically do not require sub
frequency reinforcement.
The CURV 500 system’s iAMP
provides delay compensation
per channel to ensure ma­ximum speech intelligibility,
imaging and sound quality
throughout the installation.

CURV 500® INSTALL

VOICE BUNDLE / 24 SATELLITES

ZONE 1

CH A PRESET: 3xC500-SAT CH B PRESET: 3xC500-SAT

+ - + -

+ - + -

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

ZONE 3

CH C PRESET: 3xC500-SAT CH D PRESET: 3xC500-SAT

CURV 500® INSTALL

VOICE MAX BUNDLE - 24 SATELLITES

CH A PRESET: 1xC500-SAT

CH C PRESET: 1xC500-SAT

+ - + -

CH B PRESET: 1xC500-SAT

+ - + -

CH D PRESET: 1xC500-SAT

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

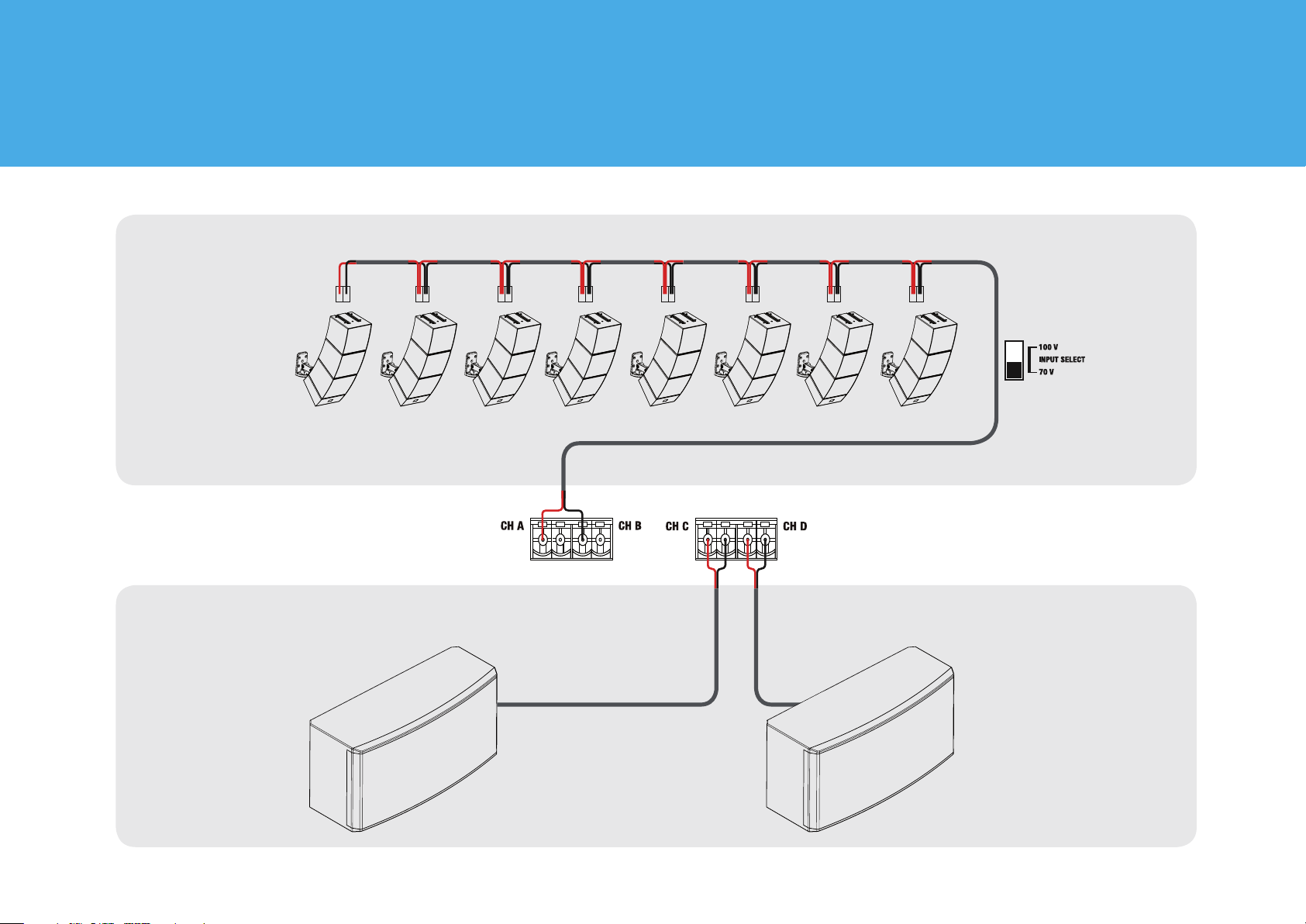

70V

The CURV 500’s iAMP includes
70V output to deliver audio to a
large number of speakers.
This permits setting up a distri­buted system by daisy-chaining
a maximum of 24 satellites to
bridged channel A and B out­puts, or bridged channel C and
D outputs. The satellites can be
wired individually or in groups
of 2, 3 or 4 units.

CURV 500® INSTALL

70V EXAMPLE - 1 SATELLITE SET / MAX. 24 SATELLITES PER BRIDGED OUTPUT

ZONE 1 - SATELLITES

CH A PRESET: 1xC500-70V

SLAT
SETTINGS

ZONE 1 - SUBWOOFERS

-

++--++-

CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

CURV 500® INSTALL

70V EXAMPLE - 2 SATELLITE SETS / MAX. 24 SATELLITES PER BRIDGED OUTPUT

ZONE 1 - SATELLITES

CH A PRESET: 2xC500-70V

SLAT
SETTINGS

ZONE 1 - SUBWOOFERS

+ - + -

+ - + -

CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

CURV 500® INSTALL

70V EXAMPLE - 3 SATELLITE SETS / MAX. 24 SATELLITES PER BRIDGED OUTPUT

ZONE 1 - SATELLITES

SLAT
SETTINGS

CH A PRESET: 3xC500-70V

ZONE 1 - SUBWOOFERS

+ - + -

+ - + -

CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

CURV 500® INSTALL

70V EXAMPLE - 4 SATELLITE SETS / MAX. 24 SATELLITES PER BRIDGED OUTPUT

ZONE 1 - SATELLITES

SLAT
SETTINGS

CH A PRESET: 4xC500-70V

ZONE 1 - SUBWOOFERS

+ - + -

+ - + -

CH C PRESET: 1xC500ISUB CH D PRESET: 1xC500ISUB

CURV 500 iAMP OUTPUT

4 balanced mono line inputs, assignable to
any output, in any combination, thanks to the
internal routing matrix.

SHOPPING LIST CURV 500® INSTALL SOLUTIONS

BISTRO MEDIUM

Devices

QTY Model Article Nr. Comments

1 CURV 500 IAMP LDCURV500IAMP

2 CURV 500 ISUB LDCURV500ISUB Black and white colours available

6 CURV 500 SLA LDCURV500SLA Black and white colours available

6 CURV 500 S2 LDCURV500S2 Black and white colours available

This bundle requires six mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.

BISTRO MAX

Devices

QTY Model Article Nr. Comments

1 CURV 500 IAMP LDCURV500IAMP

2 CURV 500 ISUB LDCURV500ISUB Black and white colours available

12 CURV 500 SLA LDCURV500SLA Black and white colours available

6 CURV 500 S2 LDCURV500S2 Black and white colours available

This bundle requires 12 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.

CONFERENCE MEDIUM

Devices

QTY Model Article Nr. Comments

1 CURV 500 IAMP LDCURV500IAMP

1 CURV 500 ISUB LDCURV500ISUB Black and white colours available

4 CURV 500 SLA LDCURV500SLA Black and white colours available

4 CURV 500 S2 LDCURV500S2 Black and white colours available

This bundle requires 4 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.

CONFERENCE MAX

Devices

QTY Model Article Nr. Comments

1 CURV 500 IAMP LDCURV500IAMP

2 CURV 500 ISUB LDCURV500ISUB Black and white colours available

4 CURV 500 SLA LDCURV500SLA Black and white colours available

6 CURV 500 S2 LDCURV500S2 Black and white colours available

This bundle requires 4 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.

VOICE

Devices

QTY Model Article Nr. Comments

1 CURV 500 IAMP LDCURV500IAMP

8 CURV 500 SLA LDCURV500SLA Black and white colours available

12 CURV 500 S2 LDCURV500S2 Black and white colours available

This bundle requires 8 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.

VOICE MAX

Devices

QTY Model Article Nr. Comments

1 CURV 500 IAMP LDCURV500IAMP

24 CURV 500 SLA LDCURV500SLA Black and white colours available

12 CURV 500 S2 LDCURV500S2 Black and white colours available

This bundle requires 24 mounting accessories. Please check pages 19 and 20 for information about our wall, ceiling and truss
mounting accessories.

CURV 500® INSTALL PRODUCTS

CURV 500® iAMP

4-CHANNEL CLASS D INSTALLATION AMPLIFIER

• 4-Channels with DSP control

• Purpose-designed for CURV 500 installations

• Low-profile 1U 19“ rackmount construction

• Drives up to 24 CURV500 satellites per bridged output in 70V mode

• Single push encoder operation

• High-contrast OLED display

• Temperature controlled low-noise fan

• High-efficiency switch mode power supply

• Only 6.8 kg

CURV 500® iSUB (W)

10“ INSTALLATION SUBWOOFER 200 W IN BLACK OR WHITE

• 10“ bass reflex construction

• Purpose-designed for CURV 500 installations

• Shallow-depth enclosure

• 200 watts RMS power handling

• 47 – 150 Hz frequency response

• Available in black or white textured paint finish

• Includes low-profile wall and ceiling mounting bracket

CURV 500® INSTALL PRODUCTS

CURV 500® S2 (W)

TWO ARRAY SATELLITES FOR THE CURV 500 ARRAY SYSTEM IN BLACK OR WHITE

• Bundle consisting of two array satellites

• Compact cabinet made of black die-cast aluminium, rugged and resilient

• A single 4-inch midrange driver and three 1-inch high-frequency drivers

with patented WaveAhead® technology delivers excellent sound

• SmartLink® system allows for cable-free assembly of up to four array satellites

• 16 ohm impedance per satellite

CURV 500® SLA (W)

SMARTLINK® ADAPTER
IN BLACK OR WHITE

• For up to six CURV 500 satellites

• Base for CURV 500® system

• 2 x 16 mm flange for an optimised dispersion angle

• 4 x M6 threads for wall mounting

• 4 x M3 threads for ceiling mounting

• 4 rubber feet for desktop applications

• Speakon-compatible connection for usual speaker cables

• Rotating logo for ceiling mounting

• 2 pole - Euro Style terminal block connector (2 x 1.5 mm2 speaker cable recommended)

CURV 500® INSTALL PRODUCTS

POWER SETTINGS IN TAP SELECTOR

No. of CURV 500 satellites 12,50% 25% 50% 100%

1 2W 5W 10W 20W

2 5W 10W 20W 40W

3 8W 15W 30W 60W

4 10W 20W 40W 80W

CURV 500® SLA(W)T

70 / 100 VOLT SMARTLINK® ADAPTER IN BLACK OR WHITE

• 70 / 100 V SmartLink® adapter for up to four LD CURV 500® satellites

• Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms

• Switchable for 70 or 100 V operation

• 2 x M6 threads for wall mounting

• 4 x M3 threads for ceiling mounting

• 4 rubber feet for desktop applications

• 2 pole - Euro Style terminal block connector (2 x 1.5mm2 speaker cable recommended)

• Rotating logo for ceiling mounting

• Output power selector with four settings available

• If used in combination with an IAMP amplifier, INPUT SELECT should be set to 70V.

CURV 500® TMB

TRUSS CLAMP FOR CURV 500 SATELLITES

• Clamps to trusses and crossbars

• Tough black powder coating finish

• Includes Eyebolt M6 x 12 mm and washer

• Maximum load: 20 kg. It can hold up to six CURV 500 satellites plus one

CURV 500 SLA adapter.

CURV 500® INSTALL PRODUCTS

CURV 500® WMB (W)

WALL MOUNTING BRACKET FOR CURV 500 SATELLITES IN BLACK OR WHITE

• Fully adjustable on all axes

• Tough black powder coat finish

• Comes with safety rope

• Maximum load: 10 kg. It can hold up to five CURV 500 satellites

plus one CURV 500 SLA adapter.

CURV 500® CMB (W)

CEILING MOUNTING BRACKET FOR CURV 500 SATELLITES BLACK

• 360° rotatable

• Tough black or white powder coat finish

• Includes 20 cm steel safety rope

• Maximum load: 10 kg. It can hold up to five CURV 500 satellites

plus one CURV 500 SLA adapter.

CURV 500 ISUB

CURV 500 IAMP

CURV 500 S2

CURV 500 SLA

®

TECHNOLOGY

®

ADAPTER

CURV 500® SERIES

INSTALL SOLUTIONS

WAVEAHEAD

Great sound can also be installed – combining unique design and modularity,

ease of integration and professional audio performance, the CURV 500® series now features

dedicated products for the professional install market. Now you can create fully integrated

distributed systems with up to 24 CURV 500® speakers. Set yourself apart from the competition, give your

customers more than what they want – inspire them!

EASY SCALABILITY

FOR SEAMLESS ARRAY CONFIGURATION

FULL INSTALL FLEXIBILITY

WITH THE ‘SLIDE-AND-LOCK’ MECHANISM

1U 19” RACKMOUNT

THANKS TO THE SMARTLINK

4-CHANNEL DSP AMPLIFIER

UP TO 24 CURV 500 SPEAKERS

DESIGNED & ENGINEERED IN GERMANY

IN-DEPTH DSP SETTINGS

WITH ONE IAMP AMPLIFIER

AND PRESETS

PASSWORD PROTECTED

SYSTEM

WWW.LD-SYSTEMS.COM
