Congratulations!
Table of Contents
You are now the proud owner of a
state-of-the-art Power Recline motion
sofa or modular by La-Z-Boy
®
.
You have just selected one of the
finest quality upholstered products
produced in the furniture industry,
backed by over 75 years of quality
manufacturing experience.
La-Z-Boy
®
is proud of our designs
and craftsmanship and know you
Important Safety Instructions ...................................... 4-5
®
La-Z-Time
La-Z-Time
Power Motion Sofa Assembly Instructions..... 6-9
®
Power Motion-Modulars
Assembly Instructions...............................................................10 -15
Battery Backup Assembly Instructions..................................16
La-Z-Time
®
Power Motion Sofas & Power Motion-Modulars
Operating Instructions..............................................................17
La-Z-Time
®
Power Motion Sofas & Power Motion-Modulars
Troubleshooting..........................................................................18
Furniture Placement Guide......................................................19
will feel the same as you enjoy your
new furniture’s comfort and style.
IMPORTANT
Read the safety and other instructions before using
your Power Recline motion sofa or modular. Keep this
2
manual for future reference.
3
Important Safety Instructions:
Important: Read these instructions thoroughly before using.
Important Safety Instructions:
Important: Read these instructions thoroughly before using.
DANGER
• Disconnect the electrical plug from the wall outlet before cleaning, moving, servicing or when not in use for an extended period of time.
• Do not use this product if it is wet, in water, around water or any liquid.
• To prevent suffocation, keep plastic bags away from children.
• Plug directly into a wall outlet. Do not use an extension cord, adapter, or surge protector.
WARNING
• Always keep open flame and lit cigarettes away from upholstered furniture. Upholstered furniture may burn rapidly with toxic gas and thick smoke.
• Closely supervise children and disabled persons using this product.
• Sit down in the unit slowly. To avoid tip over, do not throw your weight against the back of the unit. Move the unit into or out of the reclining position slowly, making sure that no children or pets are in close proximity.
• This product has many moving parts; serious injury can occur if not used properly. Keep hands, fingers and body parts away from mechanism. To reduce the risk of head entrapment and other injuries, keep children and pets away from openings and moving parts in and around furniture.
• Only the occupant should operate the unit. Never attempt to open the legrest by pulling on it.
• Do not stand, sit or place extra weight on the arms, back or open legrest.
• To safely exit the unit and prevent a tripping hazard, bring the back upright and close the legrest.
• Do not use this product if it is damaged. Do not use attachments or substitute parts.
• This product is intended for indoor residential use only.
• Provide a clear path for operation of the back and legrest. Place tables and area rugs at a distance to allow the legrest to fully extend without rubbing or interference.
• Check the condition of the power transformers, electrical cords, plugs and connectors monthly. Keep the power transformer and electrical cords away from heat sources. Never operate the unit with a damaged power transformer, electrical cord, plug or connector. Contact your La-Z-Boy
• Do not use unit if power control is damaged or wet. Contact your La-Z-Boy
• This product is not intended for use as a health care device.
– To reduce the risk of electric shock, serious injury or death:
– To reduce the risk of burns, fire, electric shock,
serious injury or death:
®
dealer for service.
®
dealer for service.
• Users of medical devices should contact their health care provider before using this product. Do not use this product if you have poor circulation, are immobile or cannot sense heat, except as directed by your health care provider.
• Do not use this product where aerosol (spray) products are being used or where oxygen is being administered.
• Do not operate the unit until the back is installed and locked.
• Before moving the product, disconnect the electrical plug from the wall outlet and secure the mechanism to prevent unexpected opening or movement. Never move the product by the mechanism, legrest, handle, reclining back or swivel base. Disconnect modular units.
• Do not attempt to disassemble or service the pump or motor; no serviceable parts are inside. Contact your La-Z-Boy
• Keep hands, arms and body parts away from the open area between a reclined back and an upright back on a motion sofa or modular. This area must remain clear at all times to provide unobstructed movement and prevent injury that could occur when a reclined back is returning toward the upright position.
• The La-Z-Time Power Motion Sofas and Power Motion-Modulars are intended for a single occupant, not exceeding 300 pounds per seat. Do not operate individual seats or units with more than one occupant in or on any part of the individual seat or unit.
• Do not allow electrical cord to be pinched between moving parts or between the frame and the floor. Do not place cord under carpet or in a location where it could become worn.
• Unplug the power cord immediately if you detect strange odors or fumes coming from the chair.
• To reduce the risk of electric shock, this product has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
®
dealer for service information.
NOTICE: To reduce the risk of product damage –
• To prevent damage to the power transformer, do not plug in until instructed.
Save These Instructions Save These Instructions
4
5
La-Z-Time®Power Motion Sofa
Assembly Instructions
La-Z-Time®Power Motion Sofa
Assembly Instructions
NOTICE: Do not plug in until instructed.
1. Gently roll the power motion sofa forward to rest on the seat and top arms; if the backs are attached, roll forward to rest on the top backs. Cut the plastic ties and remove the protective packaging under each power motor.
2. Remove the twist ties from the motor connector cords. Route the motor connector cords between the motor cover and the base rail (F
3. The power transformer box and the electrical components bag are attached to the back springs on one of the motion sofa backs. For units with detached backs, lay the motion sofa backs, front side down, on the seats and lift the outside back upholstery covers to locate the parts (FIGURE 2). If the backs are attached, pull the lower outside back upholstery cover to release the fastening tape from the bottom rear rail, and lift the cover to locate the parts. Cut the plastic tie and remove the power transformer box and the electrical components bag from the back springs.
Remove the power transformer from the box and set aside (FIG URE 3).
Remove the cords from the bag and set aside. The electrical components bag for the power
motion sofa contains three electrical cords: the 120 volt power cord, the motor power cord and the dual motor junction cable (F
WARNING
• Do not operate the unit until the back is installed and locked.
4. Install the backs.
Lay the back on the seat, and locate the back and body brackets (FIGUR E 2). Lift the back at
a slight angle and align the brackets on the back with the brackets on the body.
Lower the back onto the body, making sure the back and body brackets are completely engaged.
- Lift the back upholstery cover to visually confirm that both sets of back and body brackets are engaged (F repeat the steps above.
- If you are unable to install the back properly, contact your La-Z-Boy
Lock the brackets by using a screwdriver to push down the locking levers (FIGURE 5).
5. Locate the fastening tape on the outside back upholstery cover and the fastening tape on the bottom of the rear rail (F
Pull the outside back upholstery cover down tight, and firmly press the fastening tape
on the outside back upholstery cover to the fastening tape on the bottom of the rear rail.
6. Choose a location for the power motion sofa that is close to an electrical outlet.
– To reduce the risk of injury:
IGURE 4). If one or both brackets are not engaged, remove the back and
IGURE 1). Gently roll the sofa back to the upright position.
IGU RE 3).
®
dealer for assistance.
IGU RE 6).
FIGURE 1
Motor
Base
Cover
Rail
IGURE 3FIGURE 4
F
Power Transformer
F
IGURE 5FIGURE 6
120 Volt Power Cord
Back
Bracket
Motor Connector Cord
Motor Power Cord
Dual Motor Junction Cable
Locking Lever
FIGURE 2
Back Bracket
Back and Body Brackets Engaged
(Motion-Modular unit shown)
Body Bracket
Power Transformer Box and Electrical Components Bag
(Motion-Modular unit shown)
Locking
(Power Motion Sofa Assembly Instructions Continued)
6
Position
Fastening Tape
7
La-Z-Time®Power Motion Sofa
Assembly Instructions
La-Z-Time®Power Motion Sofa
Assembly Instructions
WARNING
• Provide a clear path for operation of the back and legrest. Place tables and area rugs
at a distance to allow the legrest to fully extend without rubbing or interference.
7. Adjustable glides are standard on motion sofas with metal base rails. Adjust the glides to a height that provides an unobstructed path for operation of the legrest (see Furniture Placement Guide).
Each glide is attached to the base rail by one jam nut and one lock washer on top of the base rail,
and one jam nut on the bottom of the base rail (F the base rail.
Holding the top jam nut, turn the glide clockwise to lower the unit or counterclockwise
to raise the unit.
Tighten the bottom jam nut to the base rail, and then tighten the top jam nut to the base rail.
Repeat this step for each adjustable glide, as necessary.
8. Identify the electrical components to be used in the following assembly steps (F
9. Each end of the power motion sofa has its own motor. Locate the motor connectors behind the end units.
10. Select the end of the power motion sofa closest to an electrical outlet. On the end closest to an outlet, connect the dual motor junction cable to the motor connector (F
11. Connect the motor power cord to the dual motor junction cable (F the motor power cord to the motor connector behind the opposite end of the motion sofa (not shown).
12. Connect the power transformer to the dual motor junction cable (F
13. Connect the 120 volt power cord to the power transformer (F instructed in the operating instructions.
14. Proceed to the Battery Backup Assembly Instructions.
15. To remove the backs, unplug the 120 volt power cord from the electrical outlet and disconnect the motor power cord from the motor connectors behind each end of the power motion sofa. Reverse the Assembly Instructions steps.
– To reduce the risk of serious injury:
IGURE 7). Loosen the jam nut located on top of
IGURE 8).
IGURE 9).
IGURE 10). Connect the other end of
IGURE 11).
IGURE 12). Do not plug in until

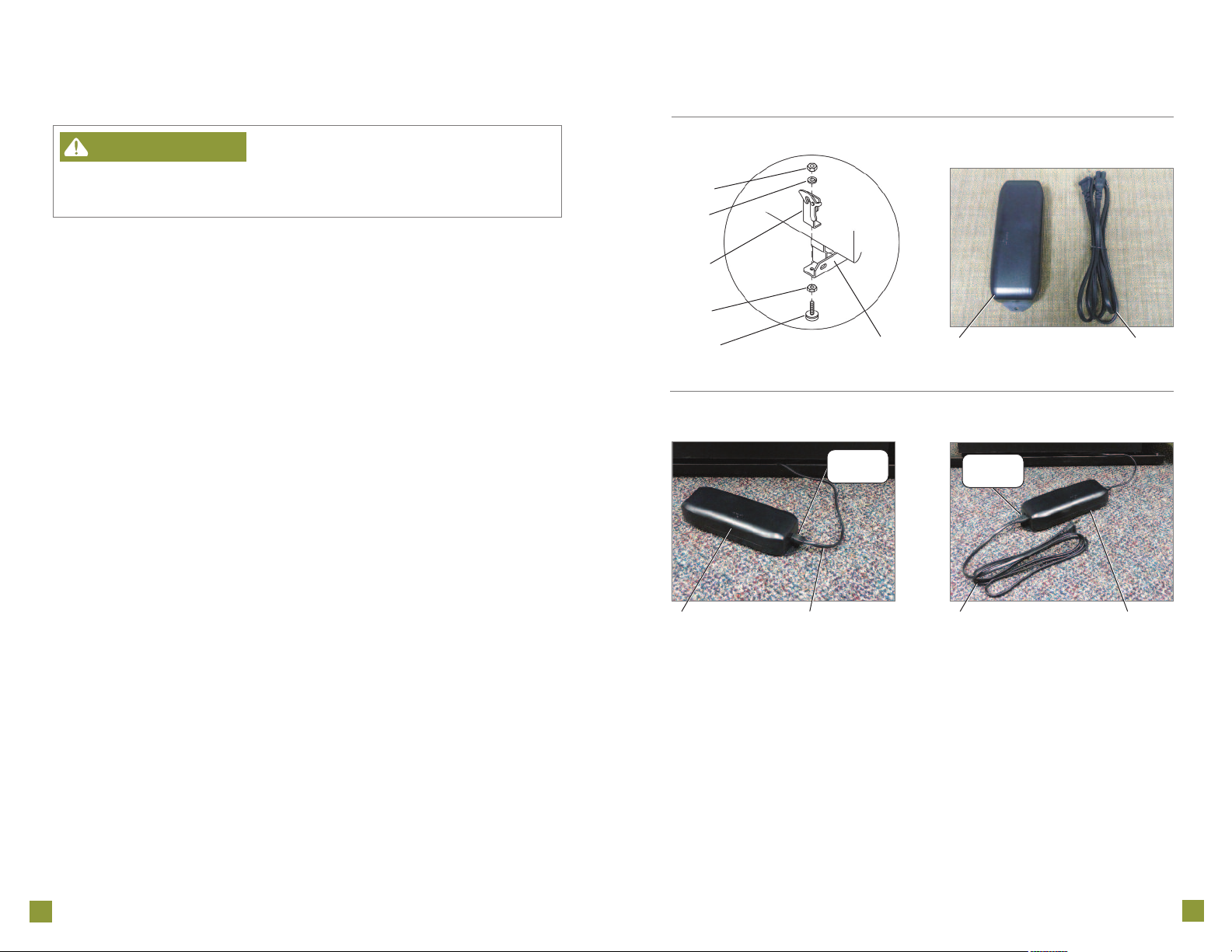

FIGURE 7FIGURE 8
Jam Nut
Lock Washer
Jam Nut
Adjustable Glide
Base Rail
IGURE 9FIGURE 10
F
Make this
connection
Motor Connector
Dual Motor Junction Cable
Power Transformer
Motor Power Cord
120 Volt Power Cord
Motor Power Cord
Make this
connection
Dual Motor Junction Cable
Dual Motor Junction Cable
F
IGURE 11 FIGURE 12
Make this
Make this
connection
Dual Motor
8
Junction Cable
Power Transformer
Power Transformer
connection
120 Volt Power Cord
9
La-Z-Time®Power Motion-Modulars
Assembly Instructions
La-Z-Time®Power Motion-Modulars
Assembly Instructions
NOTICE: Do not plug in until instructed.
1. Gently roll the power motion-modular unit forward to rest on the seat and top arm. Cut the plastic ties and remove the protective packaging under the power motor.
2. Remove the twist tie from the motor connector cord. Route the motor connector cord between the motor cover and the base rail (F
3. The power transformer box and the electrical component bag are attached to the back springs on the power motion-modular units back. Lay the power motion-modular units back, front side down, on the seat and lift the outside back upholstery cover to locate the parts (FIGURE 2). Cut the plastic tie and remove the power transformer box and the electrical component bag from the back springs.
Remove the power transformer from the box and set aside (FIG URE 3).
Remove the cord from the bag and set aside. The electrical component bag for the power
motion-modular units contains the 120 volt power cord (F
WARNING
• Do not operate the unit until the back is installed and locked.
4. Install the backs.
Lay the back on the seat, and locate the back and body brackets (FIGUR E 2). Lift the back at
a slight angle and align the brackets on the back with the brackets on the body.
Lower the back onto the body, making sure the back and body brackets are completely engaged.
- Lift the back upholstery cover to visually confirm that both sets of back and body brackets are engaged (F repeat the steps above.
- If you are unable to install the back properly, contact your La-Z-Boy
Lock the brackets by using a screwdriver to push down the locking levers (FIGURE 5).
5. Locate the fastening tape on the outside back upholstery cover and the fastening tape on the bottom of the rear rail (F
Pull the outside back upholstery cover down tight, and firmly press the fastening tape
on the outside back upholstery cover to the fastening tape on the bottom of the rear rail.
6. Choose a location for the power motion-modular unit that is close to an electrical outlet.
– To reduce the risk of injury:
IGURE 4). If one or both brackets are not engaged, remove the back and
IGU RE 1). Gently roll the unit back to the upright position.
IGU RE 3).
®
dealer for assistance.
IGU RE 6).
FIGURE 1FIGURE 2
Base
Motor
Rail
Cover
IGURE 3FIGURE 4
F
Power Transformer
F
IGURE 5FIGURE 6
Motor Connector Cord
120 Volt Power Cord
Back Bracket
Body Bracket
Back and Body Brackets Engaged
Power Transformer Box and Electrical Components Bag
Back
Bracket
(Power Motion-Modulars Assembly Instructions Continued)
10
Locking Lever
Locking Position
Fastening Tape
11
La-Z-Time®Power Motion-Modulars
Assembly Instructions
La-Z-Time®Power Motion-Modulars
Assembly Instructions
WARNING
• Provide a clear path for operation of the back and legrest. Place tables and area rugs
at a distance to allow the legrest to fully extend without rubbing or interference.
7. Adjustable glides are standard on modular units with metal base rails. Adjust the glides to a height that provides an unobstructed path for operation of the legrest (see Furniture Placement Guide).
Each glide is attached to the base rail by one jam nut and one lock washer on top of the latch
bracket, and one jam nut on the bottom of the base rail (F on top of the latch bracket.
Holding the top jam nut, turn the glide clockwise to lower the unit or counterclockwise
to raise the unit.
Tighten the bottom jam nut to the base rail, and then tighten the top jam nut to the latch bracket.
Repeat this step for each adjustable glide, as necessary.
8. Identify the electrical components to be used in the following assembly steps (F
9. Locate the motor connector behind the power motion-modular unit.
10. Connect the power transformer to the motor connector (F
11. Connect the 120 volt power cord to the power transformer (F instructed in the operating instructions.
12. To remove the backs, unplug the 120 volt power cord from the electrical outlet and disconnect the power transformer from the motor connectors behind the power motion-modular unit. Reverse the Assembly Instructions steps.
– To reduce the risk of serious injury:
IGURE 7). Loosen the jam nut located
IGURE 8).
IGURE 9).
IGURE 10). Do not plug in until
FIGURE 7FIGURE 8
Jam Nut
Lock Washer
Latch Bracket
Jam Nut
Adjustable Glide
IGURE 9FIGURE 10
F
Base Rail
Make this
connection
Power Transformer
Make this
connection
120 Volt Power Cord
Power Transformer
(Power Motion-Modulars Assembly Instructions Continued)
12
Motor Connector
120 Volt Power Cord
Power Transformer
13
La-Z-Time®Power Motion-Modulars
Assembly Instructions
Motion-Modular units with metal base rails have one locking latch bracket and one latch bracket on the right side (sitting) of modular units without right side arms, and two stud mounts with threaded studs on the left side (sitting) of modular units without left side arms (F
Motion-Modular units with wood legs have one side mount locking latch bracket and one side mount latch bracket on the right side (sitting) of modular units without right side arms, and two threaded studs on the left side (sitting) of modular units without left side arms (FIGURE 12).
13. Use a T-30 torx driver to loosen the threaded studs to approximately 1", this measurement may vary depending on the fabric and style (F side (sitting) of modular units without left side arms.
14. Align the units to be joined next to each other. Move the unit with the latch brackets approximately 4" forward of the unit with the threaded studs. The latch brackets are located on the right side (sitting) of modular units without right side arms.
15. Slide the unit with the latch brackets back until the threaded studs are securely engaged in both the front and rear latch brackets. The rear bracket is not a locking bracket.
Note: Due to variations in upholstery and style, the threaded stud length may need to be adjusted to fit into the latch brackets. Loosen or tighten the threaded studs to provide adequate clearance.
16. Continue connecting the modular units until all have been securely joined.
17. Proceed to the Battery Backup Assembly Instructions.
IGU RE 13). The threaded studs are located on the left
GUR E
I
11).
NOTICE: To reduce the risk of product damage –
FIGURE 11
Latch Bracket
IGURE 12
F
La-Z-Time®Power Motion-Modulars
Assembly Instructions
Threaded Stud
Stud Mount
Locking Latch Bracket
• Do not move the units while latched together. The purpose of the latch bracket system
is to connect the units and prevent them from being separated. The latch bracket system does not provide adequate structural support for the movement of connected units.
18. All modular units must be disconnected to safely move the modular group. To disconnect the units, apply pressure to the swing arm of the locking latch bracket (F forward. Repeat this step to disconnect the remaining units.
14
IGURE 14) and slide the unit
Side Mount Latch Bracket
Side Mount Locking Latch Bracket
F
IGURE 13 FIGURE 14
Threaded Stud
Stud Mount
Base Units
Leg Units
Base Units
Threaded Stud
Locking Latch Bracket
Side Mount Locking Latch Bracket
Leg Units
15
Battery Backup Assembly Instructions
La-Z-Time®Power Motion Sofas &
Power Motion-Modulars Operating Instructions
NOTICE:
The battery backup is located in the power transformer and uses two 9-volt alkaline batteries (not included).
1. Unplug the 120 volt power cord from the electrical outlet, and:
For a power motion sofa, disconnect the motor power cord from the motor connectors behind
each end of the sofa.
For a modular unit, disconnect the power transformer from the motor connector behind the unit.
2. The battery compartment is located in the bottom of the power transformer. Slide the battery cover over to access the battery compartment.
3. Place the connection caps over the battery terminals on each battery. Place the batteries in the power transformer.
4. Slide the battery cover over the batteries.
5. Proceed to the Operating Instructions.
Replace the power transformer batteries every six months and after each power failure use.
Battery Cover
DANGER
• Plug directly into a wall outlet. Do not use an extension cord, adapter, or surge protector.
WARNING
• Sit down in the unit slowly. To avoid tip over, do not throw your weight against the back of the unit. Move the unit into or out of the reclining position slowly, making sure that no children or pets are in close proximity.
• To safely exit the unit and prevent a tripping hazard, bring the back upright and close the legrest.
• Do not use if power control is damaged or wet. Contact your La-Z-Boy
• The La-Z-Time Power Motion Sofas and Power Motion-Modulars are intended for a single occupant, not exceeding 300 pounds per seat. Do not operate individual seats or units with more than one occupant in or on any part of the individual seat or unit.
Plug the 120 volt power cord directly into a wall outlet. The power feature is operated by a power switch,
located on the outside arm.
To raise the legrest and recline the back, press
the bottom of the power switch and hold. Release the power switch when the legrest and back reach the desired position.
To raise the back and lower the legrest, press the top
of the power switch and hold. Release the power switch when the back and legrest reach the desired position, or completely closed.
– To reduce the risk of serious injury or death:
– To reduce the risk of serious injury:
®
dealer for service.
Power Switch
The power units include a breakaway legrest safety feature. If the legrest encounters most
Power Transformer
(2) 9-Volt Alkaline Batteries
Power Recliner Transformer Specifications:
Input: AC100-240V 50/60Hz 2.0A
ordinary obstructions while closing, the legrest will disengage, or breakaway, from the mechanism. You will hear a “pop” when the legrest is disengaged and the legrest will stop moving.
If the legrest becomes disengaged from the mechanism, remove the obstruction from
the legrest path. Then firmly push the legrest closed with your legs. You will hear a “pop” when the legrest is reconnected to the mechanism.
Because of the sensitivity of the breakaway feature, the legrest may disengage if you place your
full body weight toward the front of the chair while lowering the legrest. If this happens, firmly push the legrest closed with your legs.
Output: DC 29V 2A
16
17
Loading...
+ 19 hidden pages
