Lathem ATX-GPS User Manual

ATX-GPS Satellite Synchronizer

Installation & Setup Guide

Welcome

Lathem’s ATX-GPS is a Global Positioning Satellite receiver that accesses the
accurate date and time signal transmitted each second by 24 satellites in
geosynchronous orbit around the globe.
The package includes an amplified GPS Antenna, which must be mounted
out-doors or beneath a roof sky-light, facing skyward. An integrated cable links
the Antenna to the ATX6.
The ATX-GPS receives its power from the ATX6 so there is no need for a Power
Adapter.

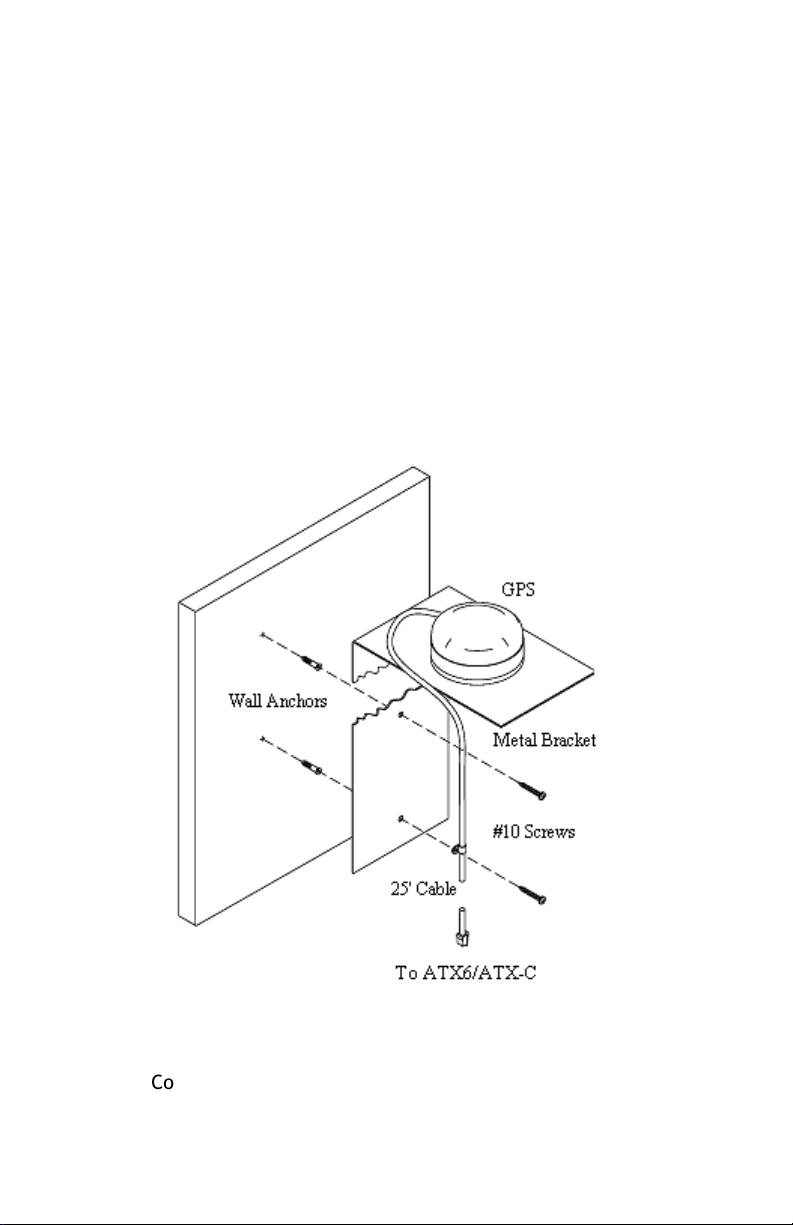

The ATX-GPS package includes the following:

• ATX-GPS Satellite Synchronizer

• Magnetic Base (Attached)

• 25’ Cable (Attached)

• Antenna Mounting Bracket

• 2 #10 X 1 ½ Screws

• 2 #10 Wall Anchors

• P-Clip Cable fastener

• Installation and Setup Guide

Optional ATX-GPS Accessories:

• GPS50X 50’ Extension Cable with In-Line Coupler

• GPS100X 100’ Extension Cable with In-Line Coupler

ATX-GPS Specifications:

• Size / Weight 3.39” Diameter / 11.7 oz.

• Power 6 to 40 Vdc unregulated, 100mA @ 6Vdc, 65mA @

12Vdc,28mA @ 40 Vdc

Installing the ATX-GPS

Locate the antenna at the highest elevation possible, with a wide view of
unobstructed, open sky. If possible, avoid mounting the antenna on the North
side of a building, which might block exposure to satellites.

Proper locations for antenna mounting:

Improper

Avoiding mounting the ATX-GPS in windows, between buildings, at “inside”

corners or under awnings.

locations for antenna mounting:
