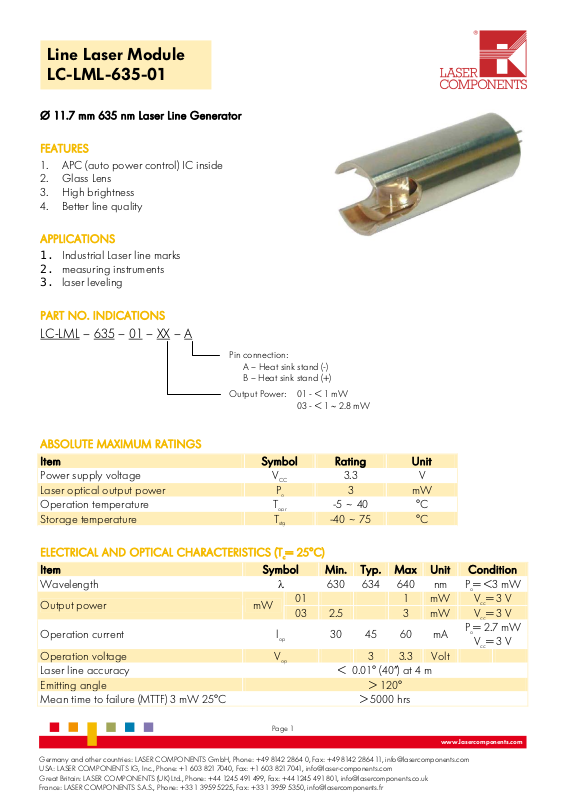

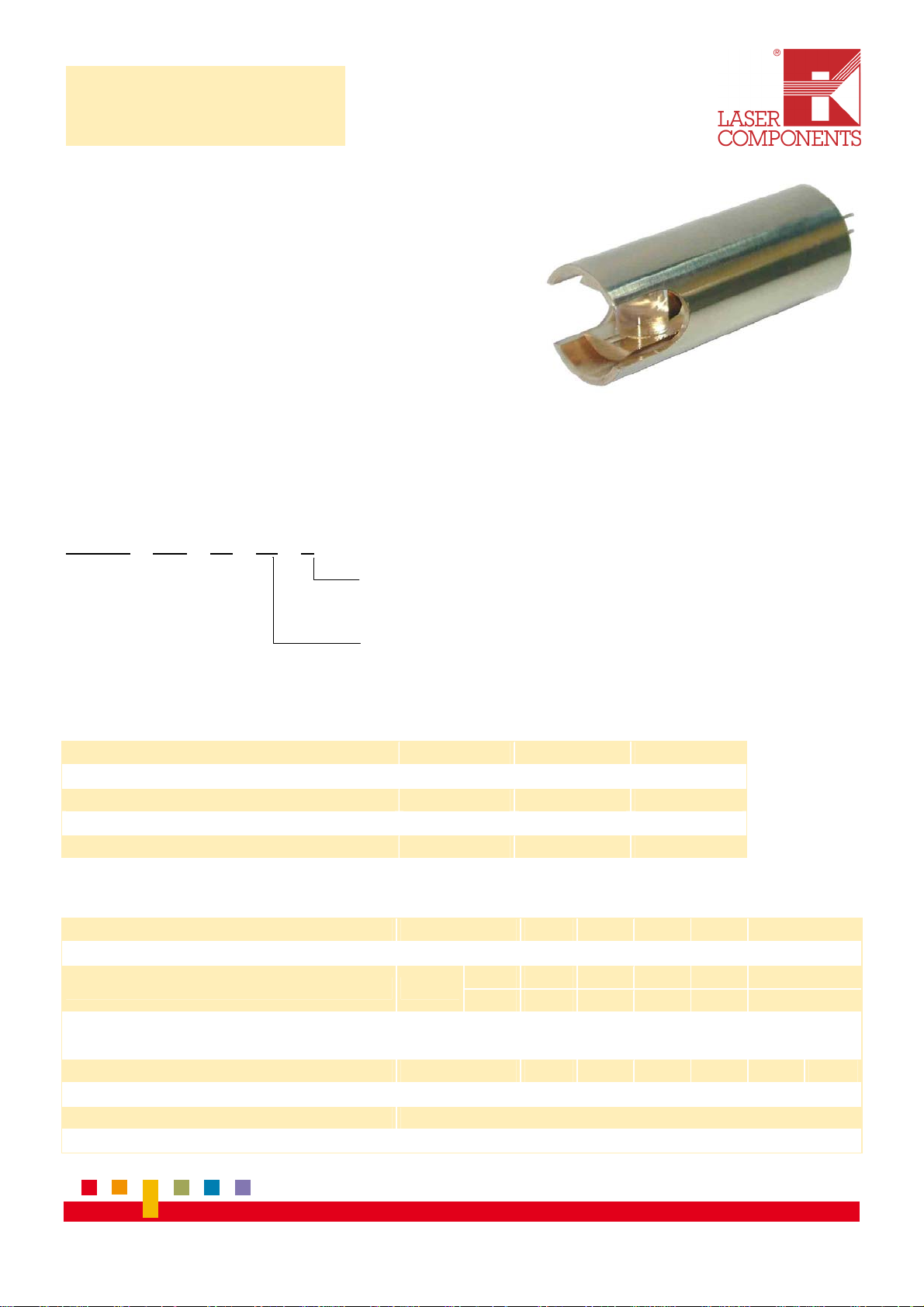

LASER COMPONENTS LACO LC-LML-635 Datasheet

Line Laser Module
LC-LML-635-01

Ø 11.7 mm 635 nm Laser Line Generator

FEATURES

1. APC (auto power control) IC inside

2. Glass Lens

3. High brightness

4. Better line quality

APPLICATIONS

1. Industrial Laser line marks

2. measuring instruments

3. laser leveling

PART NO. INDICATIONS

LC-LML – 635 – 01 – XX

– A

Pin connection:
A – Heat sink stand (-)
B – Heat sink stand (+)

Output Power: 01 - < 1 mW
03 - < 1  2.8

mW

ABSOLUTE MAXIMUM RATINGS

Item Symbol Rating Unit
Power supply voltage VCC 3.3 V
Laser optical output power Po 3 mW
Operation temperature T
Storage temperature T

-5 ~ 40 °C

opr

-40 ~ 75 °C

stg

ELECTRICAL AND OPTICAL CHARACTERISTICS (Tc= 25°C)

Item Symbol Min. Typ. Max Unit Condition
Wavelength

Output power mW



01 1 mW Vcc= 3 V
03 2.5 3 mW Vcc= 3 V

Operation current lop 30 45 60 mA

630 634 640 nm Po= <3 mW

Po= 2.7 mW

Vcc= 3 V
Operation voltage Vop 3 3.3 Volt
Laser line accuracy < 0.01° (40”) at 4 m
Emitting angle > 120°
Mean time to failure (MTTF) 3 mW 25°C > 5000 hrs

Page 1

www.lasercomponents.com

Germany and other countries: LASER COMPONENTS GmbH, Phone: [phone], Fax: [phone], [email protected]
USA: LASER COMPONENTS IG, Inc., Phone: [phone], Fax: [phone], [email protected]
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: [phone], Fax: [phone], [email protected]
France: LASER COMPONENTS S.A.S., Phone: [phone], Fax: [phone], [email protected]

Line Laser Module LC-LML-635-01

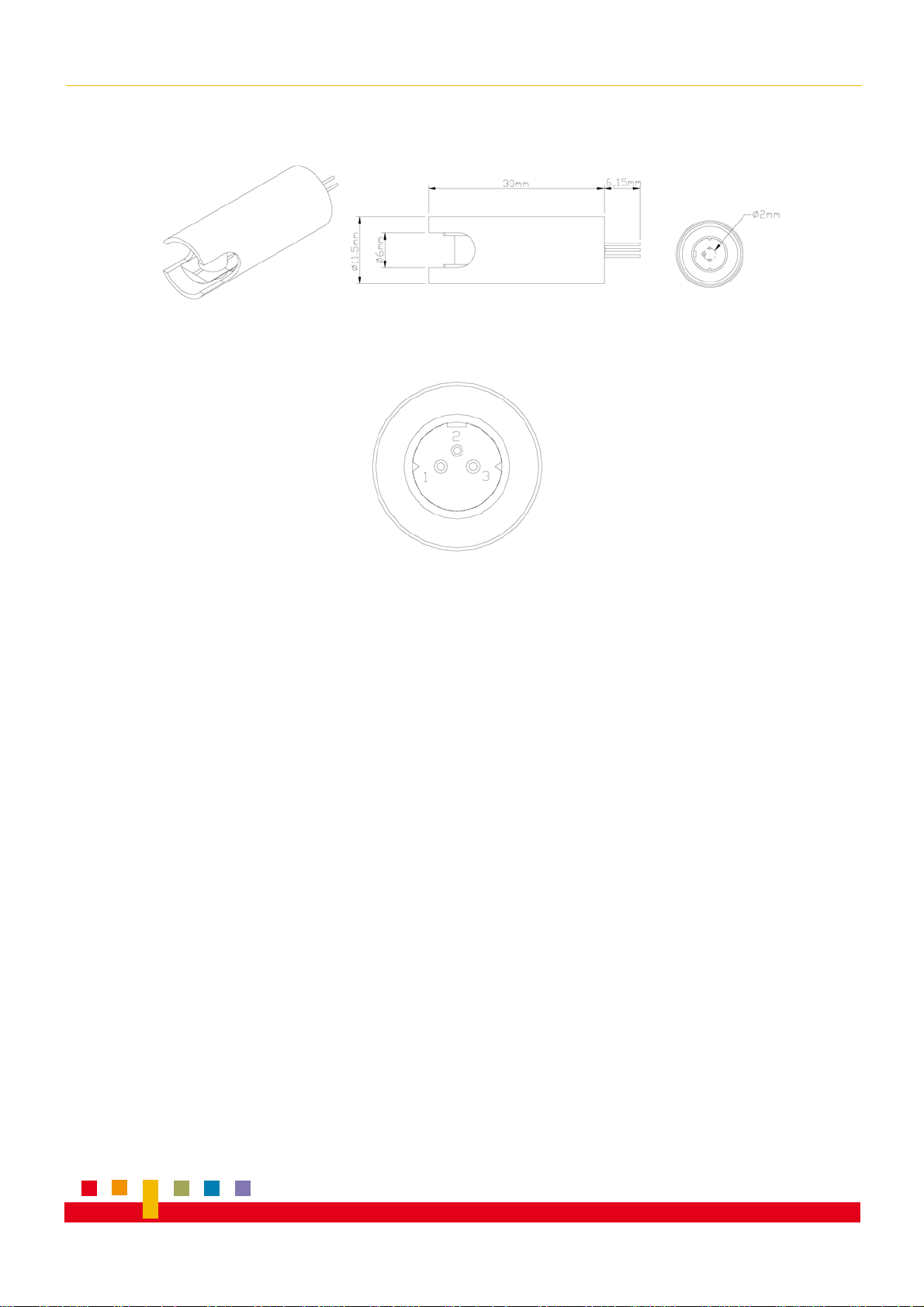

OUTLINE DIMENSIONS (UNITS: mm)

PIN ASSIGNMENT:

Pin 1: Vcc
Pin 2: GND
Pin 3: NC

07/09 / V2 / HW / divers-opto/module/ lc-lml-635-01.doc

A type: Heat sink stand (-)
