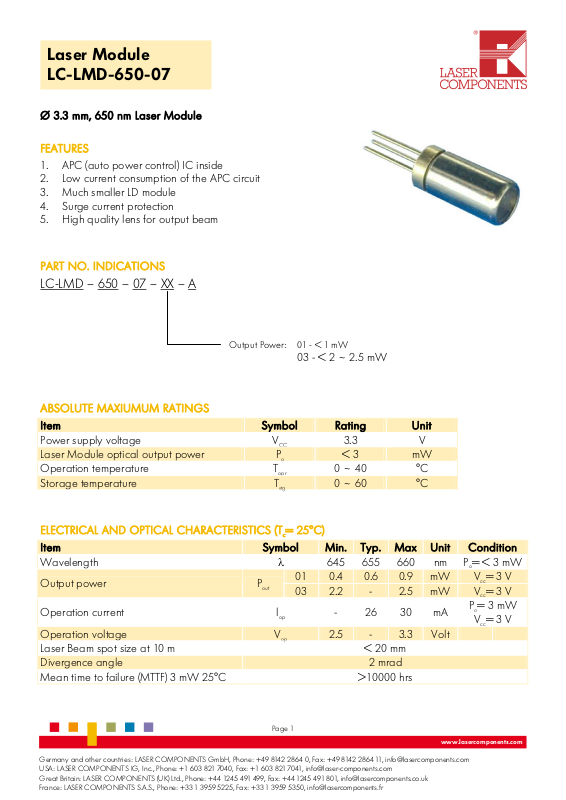

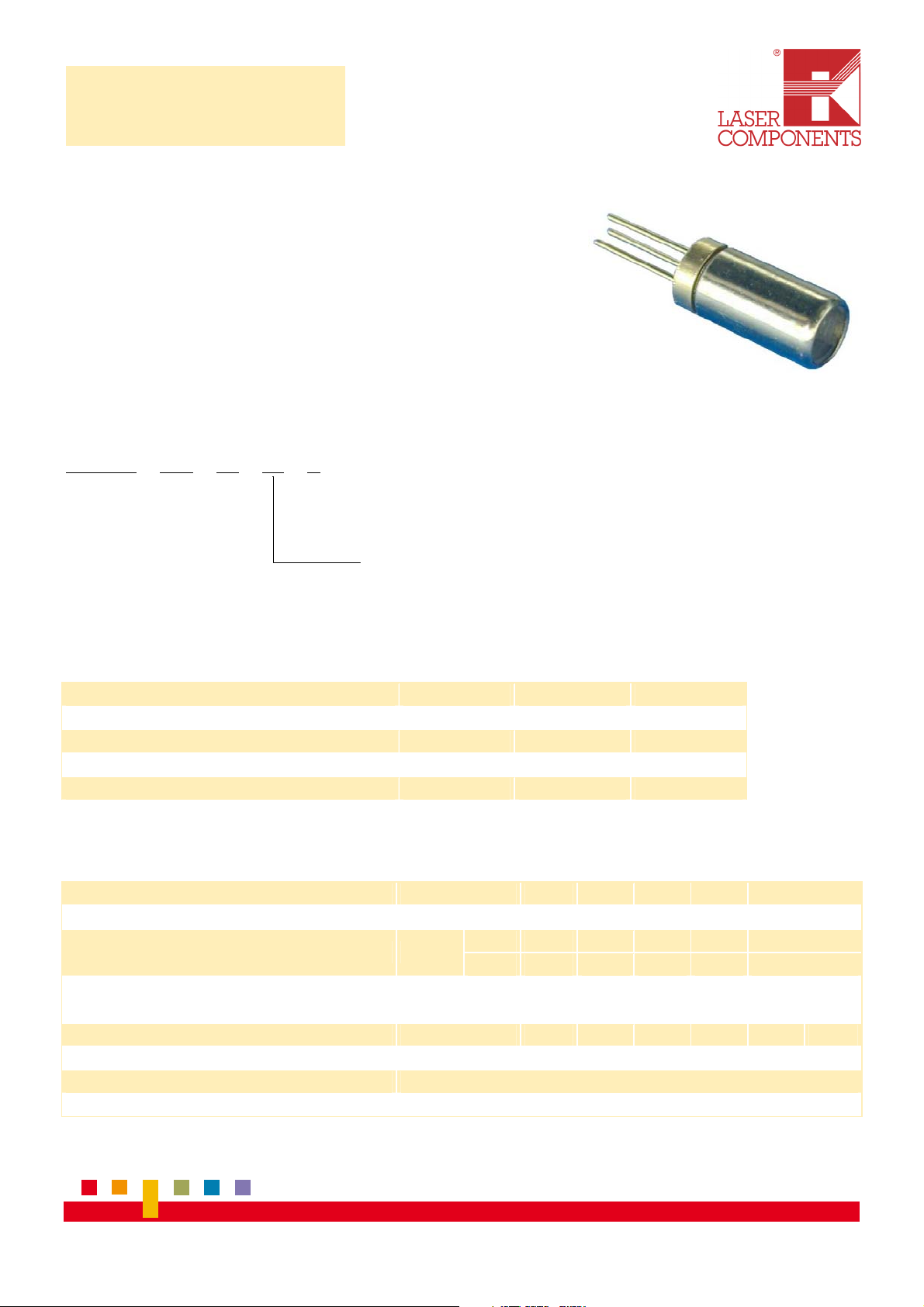

Laser Module
LC-LMD-650-07

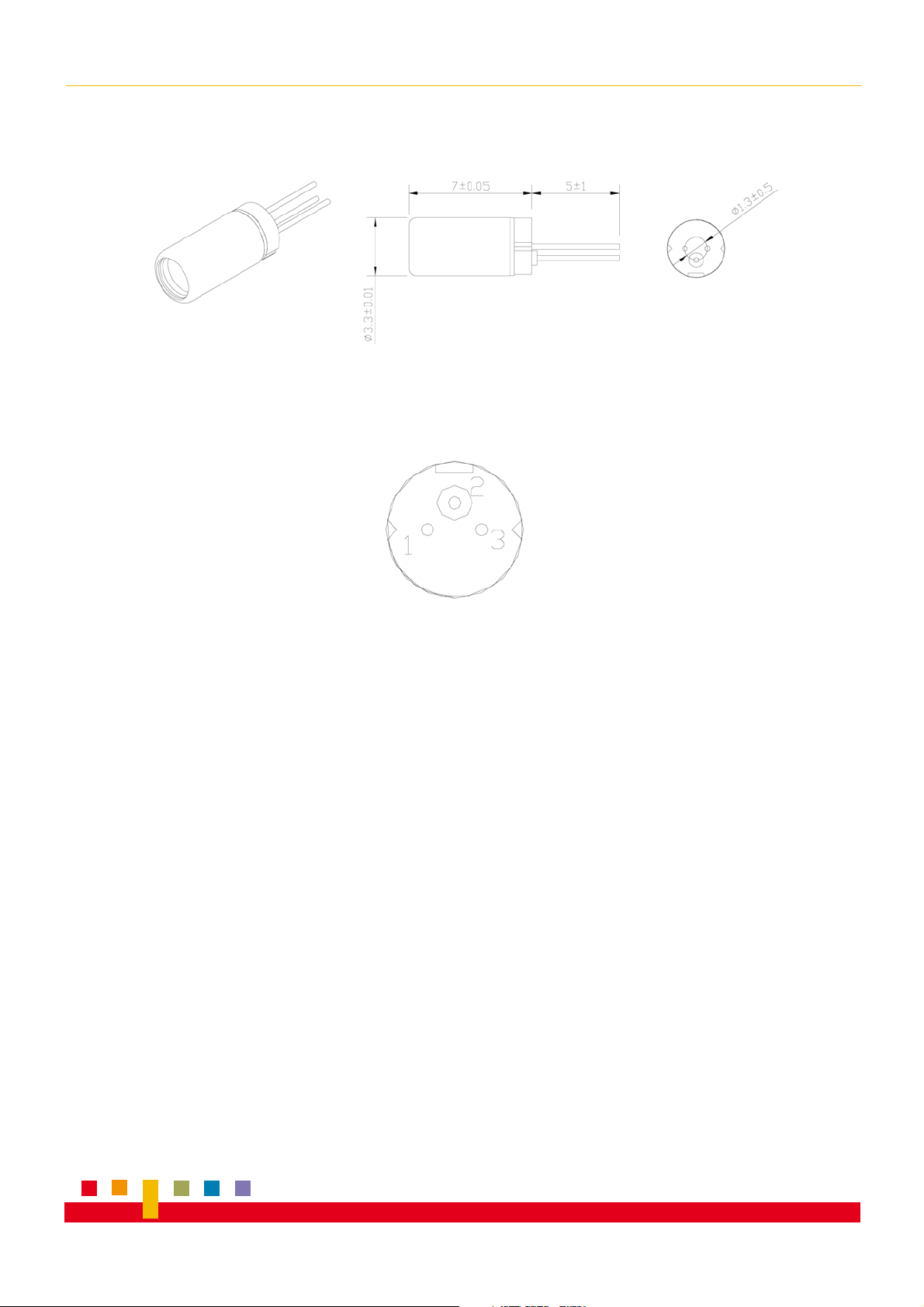

Ø 3.3 mm, 650 nm Laser Module
FEATURES
1. APC (auto power control) IC inside
2. Low current consumption of the APC circuit
3. Much smaller LD module
4. Surge current protection
5. High quality lens for output beam
PART NO. INDICATIONS
LC-LMD – 650 – 07 – XX – A
Output Power: 01 - < 1 mW
03 - < 2 ~ 2.5 mW
ABSOLUTE MAXIUMUM RATINGS
Item Symbol Rating Unit
Power supply voltage VCC 3.3 V
Laser Module optical output power Po < 3 mW
Operation temperature T
Storage temperature T
0 ~ 40 °C
opr
0 ~ 60 °C
stg
ELECTRICAL AND OPTICAL CHARACTERISTICS (Tc= 25°C)
Item Symbol Min. Typ. Max Unit Condition
Wavelength
Output power P
01 0.4 0.6 0.9 mW Vcc= 3 V
out
03 2.2 - 2.5 mW Vcc= 3 V
Operation current lop - 26 30 mA
645 655 660 nm Po= < 3 mW
Po= 3 mW
Vcc= 3 V
Operation voltage Vop 2.5 - 3.3 Volt
Laser Beam spot size at 10 m < 20 mm
Divergence angle 2 mrad
Mean time to failure (MTTF) 3 mW 25°C >10000 hrs
