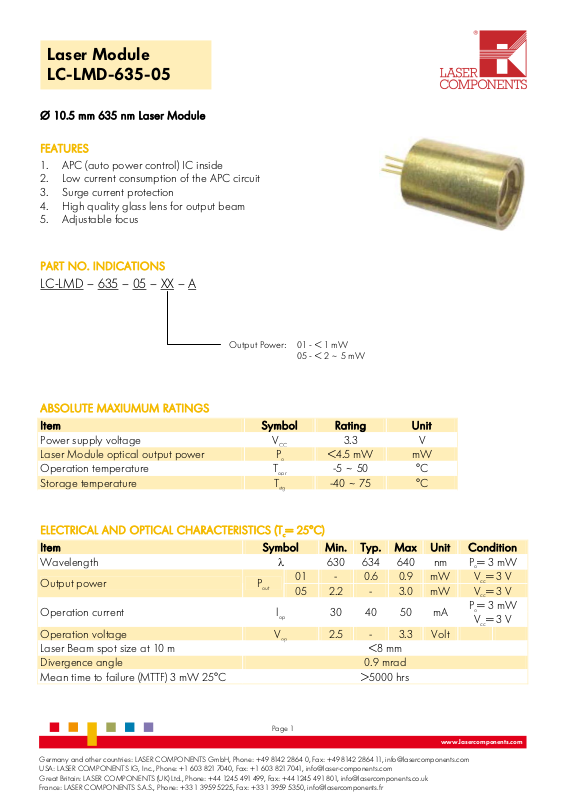

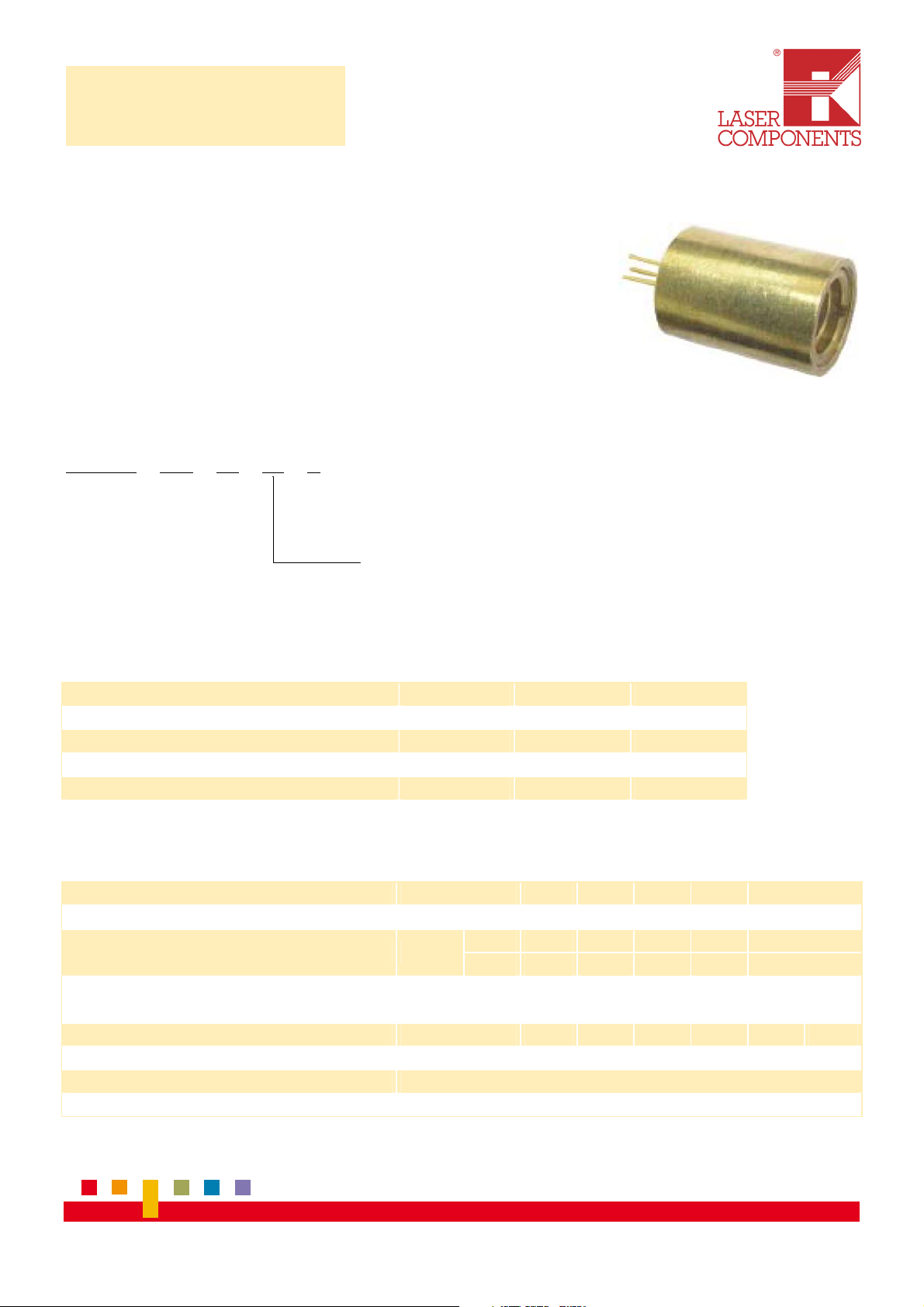

Laser Module
LC-LMD-635-05
Ø 10.5 mm 635 nm Laser Module
FEATURES
1. APC (auto power control) IC inside
2. Low current consumption of the APC circuit
3. Surge current protection
4. High quality glass lens for output beam
5. Adjustable focus
PART NO. INDICATIONS
LC-LMD – 635 – 05 – XX – A
Output Power: 01 - < 1 mW
05 - < 2 ~ 5 mW
ABSOLUTE MAXIUMUM RATINGS
Item Symbol Rating Unit
Power supply voltage VCC 3.3 V
Laser Module optical output power Po <4.5 mW mW
Operation temperature T
Storage temperature T
-5 ~ 50 °C
opr
-40 ~ 75 °C
stg
ELECTRICAL AND OPTICAL CHARACTERISTICS (Tc= 25°C)
Item Symbol Min. Typ. Max Unit Condition
Wavelength
Output power P
01 - 0.6 0.9 mW Vcc= 3 V
out
05 2.2 - 3.0 mW Vcc= 3 V
Operation current lop 30 40 50 mA
630 634 640 nm Po= 3 mW
Po= 3 mW
Vcc= 3 V
Operation voltage Vop 2.5 - 3.3 Volt
Laser Beam spot size at 10 m <8 mm
Divergence angle 0.9 mrad
Mean time to failure (MTTF) 3 mW 25°C >5000 hrs
Page 1
www.lasercomponents.com
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, [email protected]
USA: LASER COMPONENTS IG, Inc., Phone: +1 603 821 7040, Fax: +1 603 821 7041, [email protected]
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, [email protected]
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, [email protected]
Page 2
Laser Module LC-LMD-635-05

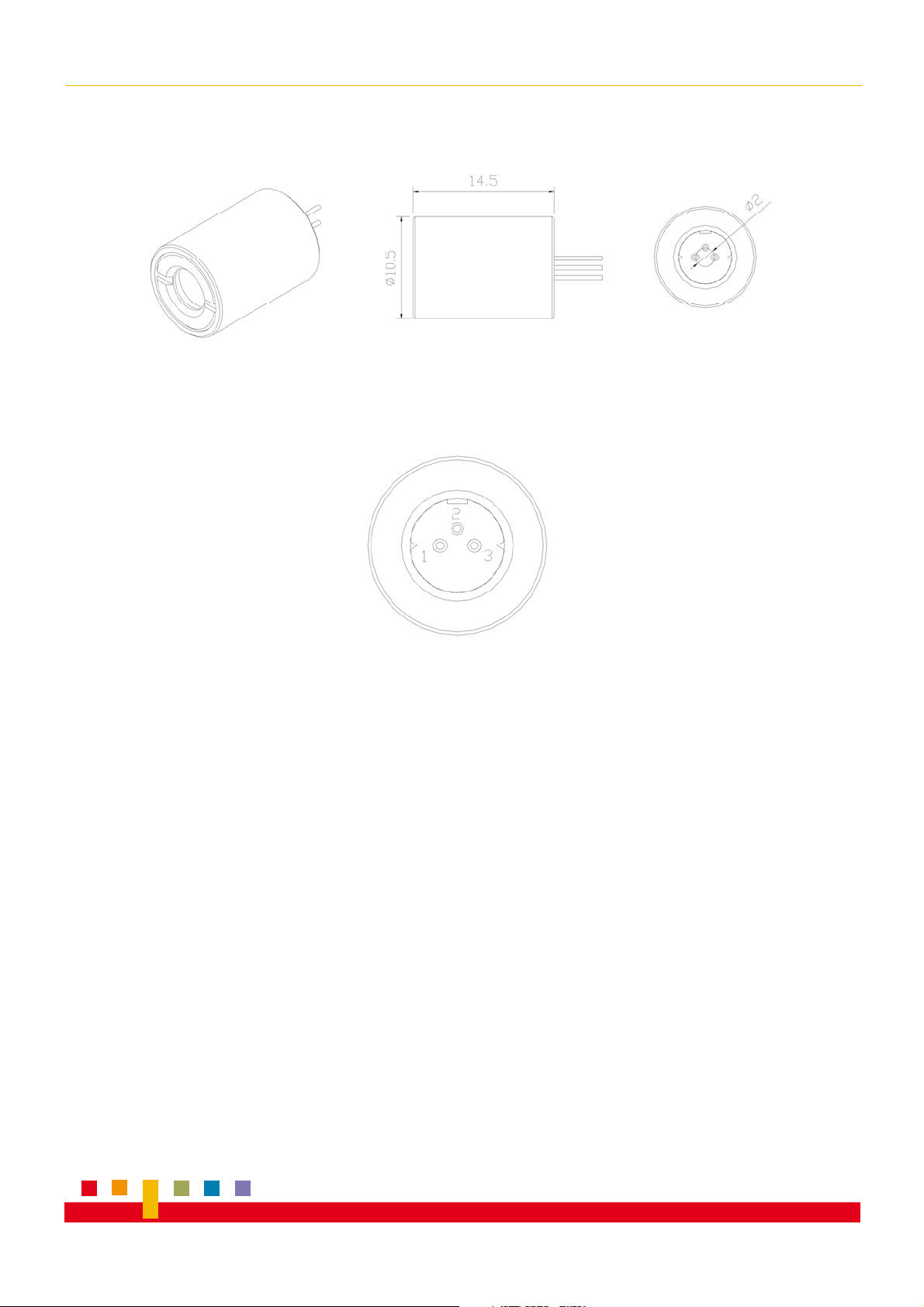

OUTLINE DIMENSIONS (UNITS: mm)
PIN ASSIGNMENT:
Pin 1: Vcc
Pin 2: GND
Pin 3: NC
07/09 / V4 / HW / divers-opto/module/ lc-lmd-635-05.doc
A type: Heat sink stand (-)
