Industrial
Communications
Hardware Platforms for Industrial Computing
LEC-6020
V1.0
>>
User's Manual
Publication date: 2014-07-04
About
About
Overview
Icon Descriptions
The icons are used in the manual to serve as an indication
of interest topics or important messages. Below is a
description of these icons:
NOTE: This check mark indicates that
there is a note of interest and is something
that you should pay special attention to
while using the product.
Online Resources
The listed websites are links to the on-line product
information and technical support.
Resource Website
Lanner http://www.lannerinc.com
Product Resources
RMA http://eRMA.lannerinc.com
WARNING: This exclamation point
indicates that there is a caution or
warning and it is something that could
damage your property or product.
http://www.lannerinc.com/
support/download-center
Acknowledgement
Intel, Pentium and Celeron are registered trademarks of
Intel Corp.
Microsoft Windows and MS-DOS are registered trademarks
of Microsoft Corp.
All other product names or trademarks are properties of
their respective owners.
Compliances and Certification
CE Certication
This product has passed the CE test for environmental
specifications. Test conditions for passing included the
equipment being operated within an industrial enclosure.
In order to protect the product from being damaged by
ESD (Electrostatic Discharge) and EMI leakage, we strongly
recommend the use of CE-compliant industrial enclosure
products.
FCC Class A Certication
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required
to correct the interference at his own expense.
Copyright and Trademarks
This document is copyrighted, © 2014. All rights are
reserved. The original manufacturer reserves the right to
make improvements to the products described in this
manual at any time without notice.
No part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means
without the prior written permission of the original
manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties that
may result from such use.
Embedded and Industrial Computing
2
TTaTTable of Contentsbeable of Contents
Chapter 1: Introduction 4
System Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2: System Components 6
System Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

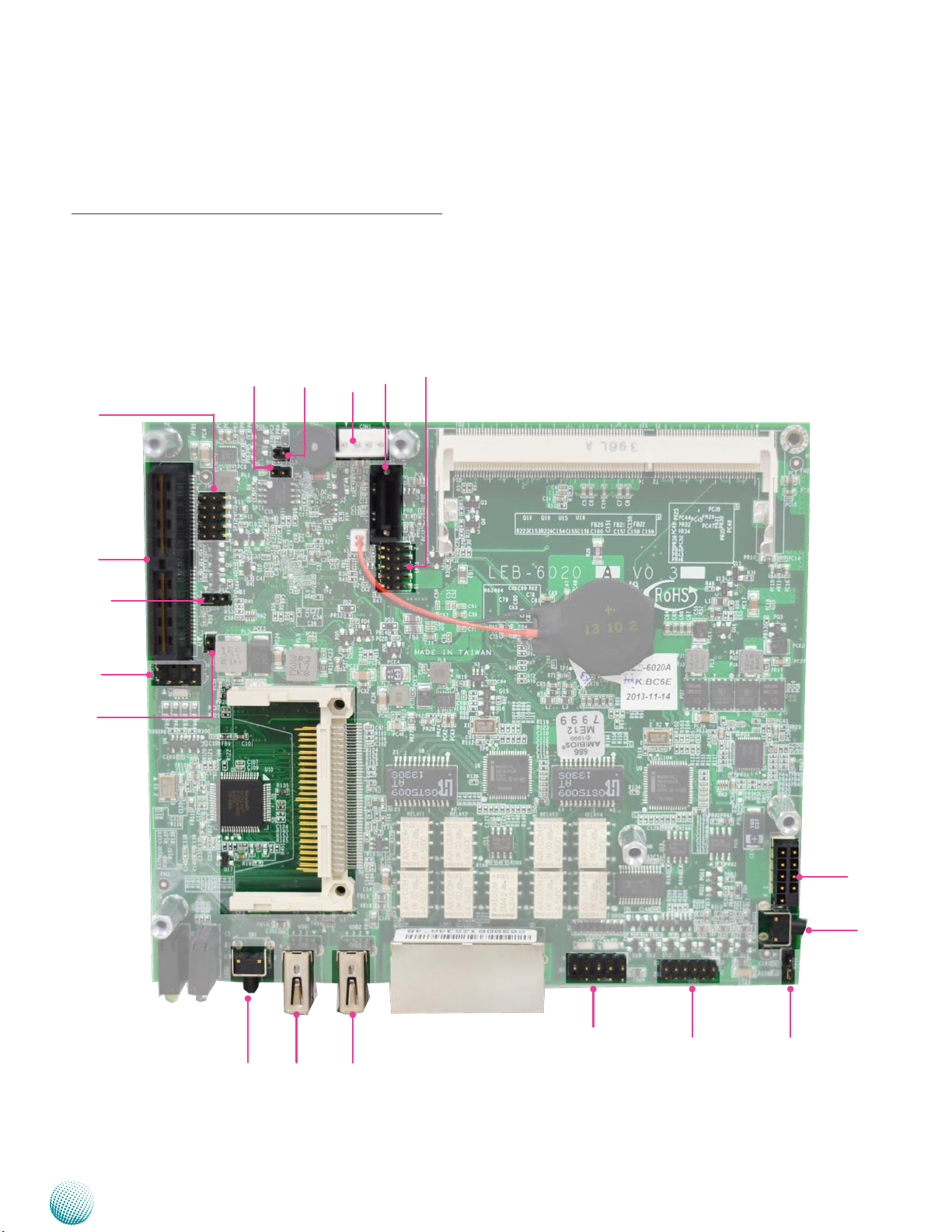

Chapter 3: Board Layout 11
External Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

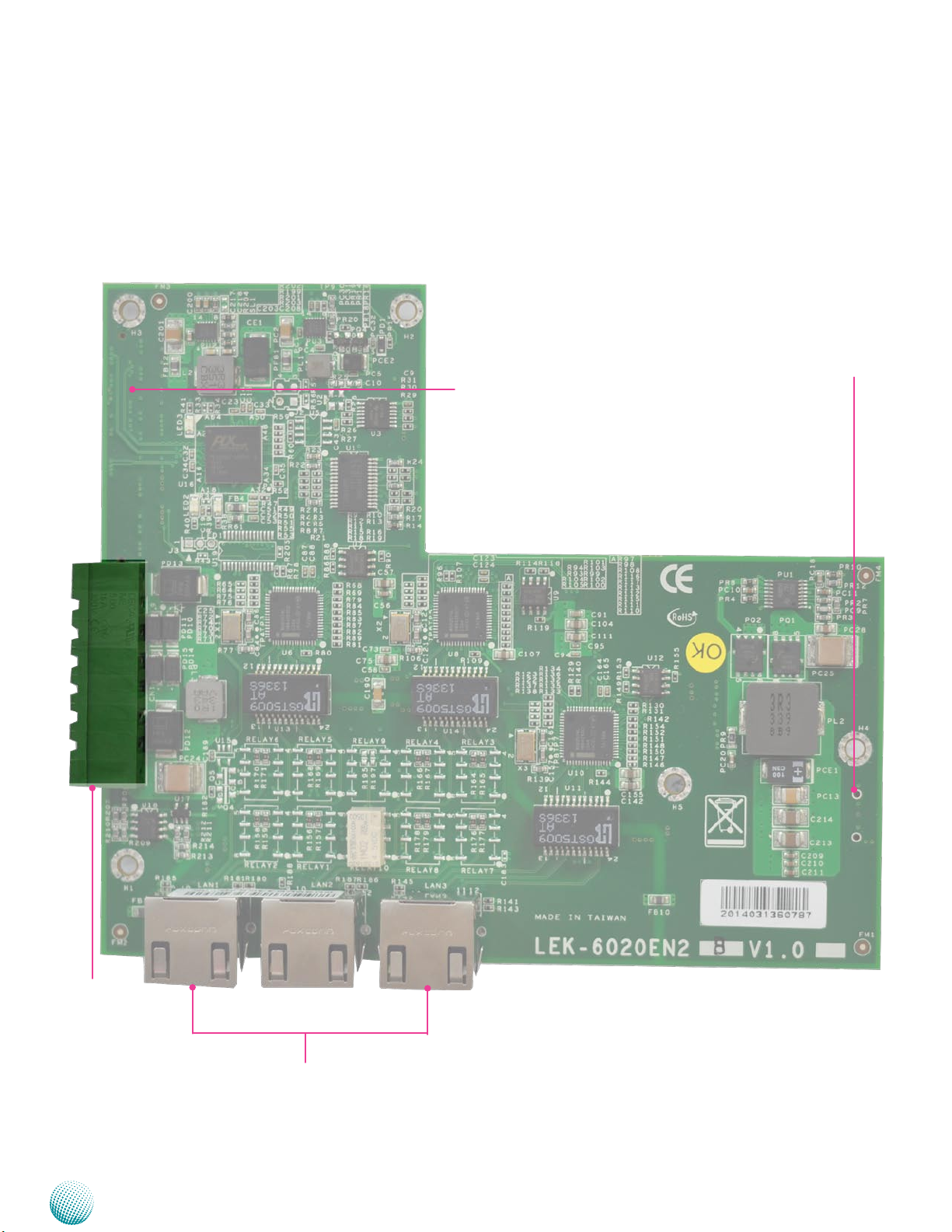

Connectors and Jumpers (daughter board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Connectors and Jumpers (daughter board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Connectors and Jumpers (daughter board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Connectors and Jumpers (daughter board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Connectors and Jumpers List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Chapter 4: Hardware Setup 23
Preparing the Hardware Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Installing the System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Installing a CompactFlash Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Connecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Appendix A: Programming Watchdog Timer 25
3
Chapter 1
Chapter 1:
Introduction
Introduction
Thank you for choosing the LEC-6020. The LEC-6020
series is an industrial cyber security appliance featuring a
different number of serial communication ports as well
as Ethernet ports in a compact frame design (65mm(W)
x146mm(H) x127mm(D)).
The LEC-6020 has an innovative industrial and mechanical
design. It can be placed on desk or mounted on dinrails. This reduces maintenance effort when the device
is installed in an industrial setting where access is not
convenient.
The LEC-6020 also features a solid and sealed aluminum
extrusion framing.
Here is the summary of the key capabilities of LEC6020:
Onboard Intel Atom N2600 with Intel NM10 chipset •
4 serial ports (on model A only) and one serial port •
(on model C, D)
Two, five or seven gigabit Ethernet RJ-45 or optical •
fiber ports (all ports have magnetic isolation protection
of 1.5 KV). Moreover, these ports are capable of LAN
bypass, supporting dynamic disconnection/bypass
on a host system failure, power off or upon software
request.
Two or four USB ports depending on the model •
number
Power input via Phoenix contact with power failure •
relay (B, C, D only)
Please refer to the following chart for a detailed description
of the system's specifications.
System Specification
Processor Options Intel® Atom™ N2600 1.6 GHz
Chipset Intel NM10
BIOS AMI 8Mbit SPI Flash ROM
System
Memory
USB
Expansion Bus Mini-PCIe (LEC-6020A only)
OS Support
Storage
Networking
Serial Interface
Serial Signals
Display
LEDs
Sockets 1 x 204-pin DDR3 SODIMM socket
Technology
Max. Capacity 2 GB
NAND Flash None
HDD Support
Expansion CompactFlash socket Type I/II x1
LAN
Controller
Magnetic Isolation
Protection
Serial Standard
ESD Protection 15 KV for all signals
RS-232 RTS, Rx, Tx, CTS, GND
RS-422 TxD+, TxD-, RxD-, RxD+, GND
RS-485 Data+, Data-, GND
Baudrate Supports 50 bps to 115.2 kbps
Graphics Controller Intel® GMA 3600
Display Interface internal pin header
Dual-Channel DDR3 1066/1333MHz,
unbuffered, Non-ECC
LEC-6020A: USB 2.0 compliant hosts x
4, Type A connector
LEC-6020B/C/D: USB 2.0 compliant
hosts x 2, Type A connector
LEC-6020A/B/D: Linux 2.6, Windows
XP Embedded, Window XP, Window 7
Embdded
LEC-6020C: Linux 2.6, Windows 7
Embedded
SATA connector for SSD/HDD expansion, HDD mounting kits (by request)
LEC-6020A: 3 x 10/100/1000 Mbps
ports, Autosensing, RJ45, with one pair
of LAN bypass.
LEC-6020B: 5 x 10/100/1000 Mbps
ports, Autosensing, RJ45, with two pairs
of LAN bypass
LEC-6020C: 5x10/100/1000Mbps
ports, Autosensing, RJ45, with one pair
bypass. 2x Gigabit SFP
LEC-6020D: 5x10/100/1000Mbps
ports, Autosensing, RJ45, with one pair
bypass.
LEC-6020A: Intel 82574L x 3,
LEC-6020B/D: Intel 82574L x 5,
LEC-6020C: Intel 82574L x 2, Intel
I210x5
1.5 KV built-in
LEC-6020A: 2 x 10 pin terminal block
for 4 x RS-232/422/485, 1 x internal
header (RS232 only)
LEC-6020B: 1 x internal header for
RS-232
LEC-6020C/D: 1 x DB9 for RS-232
LEC-6020A: Power, Storage, Run (user
dened), 3 x User dened, 4 x Rx, 4
x Tx.
LEC-6020B/D: Power, Storage, Run
(user dened), 3 x User dened
LEC-6020C: Power, Storage, Run(User
dened), 3x User deined, 2x SFP.
Embedded and Industrial Computing
4
Chapter 1
Introduction
Housing Steel Aluminium
Weight 1 kg
Physical
Characteristics
Environment
Power
Standard and
Regulation
Reliability
LEC-6020A Intel Atom N2600 1.6 GHz CPU, 3 x Intel GbE w/ one bypass,
LEC-6020B Intel Atom N2600 1.6 GHz CPU, 5 x Intel GbE w/ two bypass,
LEC-6020C Intel Atom N2600 1.6GHz CPU, 5 x Intel GbE w/ one bypass,
LEC-6020D Intel Atom N2600 1.6GHz CPU, 5 x Intel GbE w/ one bypass,
Dimensions(WxHxD) 65 x 146 x 127 mm
Mounting Options DIN rail and wall mount
Operating Temperature
Storage Temperature -40~85°C
Ambient Relative
Humidity
Input Voltage +12~36 V DC
Power Consumption TBD
Connector
EMC CE, FCC
Green product RoHS
Alter tool
Automatic Reboot
Trigger
Warranty 2 years
MTBF TBD
4 x RS-232/422/485 w/ ESD, Surge protection, 4 x USB, 1 x
Mini-PCIe, +12~36 V DC w/ 2-Pin, DIN-Rail
Dual +12~36 V DC w/ 6-Pin w/ power failure relay, DIN-Rail
2 x Gigabit SFP, 1 x COM port, Dual +12~36 Vdc w/ 6-pin w/
power failure relay, DIN-Rail
1 x COM port, Dual +12~36 Vdc w/ 6-pin w/ power failure
relay, DIN-Rail
-40~70°C
5 to 95% (non-condensing)
LEC-6020A: 2-pin terminal block,
LEC-6020B/C/D: 6-pin terminal block
Built-in buzzer and RTC (real-time
clock) with lithium battery backup
Watchdog Timer 1~255 level time
interval system reset, software programmable
Package Contents
Your package contains the following items:
LEC-6020 Fanless Embedded System •
Drivers and User’s Manual CD •
Embedded and Industrial Computing
5
Chapter 2
9 10 11 12
13 14 15 16
65
146
127
Chapter 2:
System Components
System Drawing
Mechanical dimensions of the LEC-6020 Unit: mm
System Components
127
146
65
Embedded and Industrial Computing
6
Chapter 2
DDRIII 1066/1333 MHz
1x SO-DIMM
GbE Controller
Intel 82574L
Processor
Cedarview CPU
N2600
Intel
NM10
PCIe
X4 DMI
VGA
SATA Connector
Keyboard/Mouse
Pin Header
USB 2.0
2x Type A
SATA 2.0
LPC I/O
(627HF)
USB2.0
LAN 1
LAN 2
GbE Controller
Intel 82574L
PCIe
CompactFlash II
Socket
Console
Pin Header
Extension Bus
Block Diagram
The block diagram depicts the relationships among the
interfaces and modules on the motherboard.
System Components
Embedded and Industrial Computing
7
Chapter 2
Front Components
F3
F4
F6
System Components
F5
F2
F1
Model: 6020A
Model: 6020C
Model: 6020B
F8
F7
F7
Model: 6020D
Component Description Pin Definition Reference
F1 Serial Ports COM2~COM5
(model A)
Embedded and Industrial Computing
Serial ports through terminal block;
COM2~COM5 on the daughter board LEK6020COM4 support RS-232/422/485 with
BIOS selection among RS-232/422/485. There
is also another console port (COM1) via pin
headers on the main board.
COM1 (of LEK-6020COM4) on
page 19
8
Chapter 2
F2 Serial Port LED These two rows are LED indicators of Tx (Data
F3 HDD/RUN/PWR LED
System Components
Component Description Pin Definition Reference
transmitting in yellow) and RX (Data receiving
in yellow) for serial port status.
RX-COM 2 TX-COM 2 RX-COM 3 TX-COM 3
RX-COM 4 TX-COM 4 RX-COM 5 TX-COM 5
Power Green indicates Power-on, where
as Off indicates Power-off status.
Run A programmable dual green/
orange LEDs which can be used
for indicating system status. For
sample code, please look into
your Driver and User Manual CD.
HDD Blinking indicates hard disk
activities, whereas Off indicates
there is no hard disk present or
data access activities.
F4 Programmable LEDs These three LEDs are programmable and can
F5 Four or Two USB 2.0 Ports
(Two ports on model B, C, D)
F6 Three10/100/1000Mbps
LAN ports (5 on model B, D,
7 on model C)
F7 COM Port (on model C,D) COM Port
F8 FX1, FX2 LEDs ( LEDs for the Fiber ports status.
Embedded and Industrial Computing
be controlled by SW1.
An USB type A connector. Model 6020A provides two extra ports from the daughter
board.
LEC-6020A: Three RJ-45 (network) connectors
LAN1~LAN3 ports are provided by Intel
82574L; LAN1 and LAN2 are capable of
bypass. LAN3 supports WOL/PXE functions.
(The default setting for PXE is disable; enable
it in the BIOS menu.) .
LEC-6020B: It supports two pairs of
LAN bypass (LAN1-LAN2, LAN3-LAN4).
LAN1~LAN5 ports are provided by Intel
82574L. And LAN5 supports WOL/PXE. (The
default setting for PXE is disable; enable it in
the BIOS menu.)
LEC-6020C: Five RJ-45 and two optical fiber
connectors. LAN1/LAN2 ports are provided
by Intel 82574L while LAN3~LAN5 as well
as the two fiber ports are provided by Intel
I210. LAN1 and LAN2 are capable of bypass.
LAN3~LAN5 support WOL. (The default
setting for WOL is enable.)
LEC-6020D: Five RJ-45 connectors.
LAN1~LAN5 ports are provided by Intel
82574L; LAN1 and LAN2 are capable of
bypass. LAN3~LAN5 support WOL/PXE (The
default setting for PXE is disable; enable it in
the BIOS menu.)
The default terminal configurations:
115200 baud rate, 8 data bits, no parity, 1
stop bit , no flow control.
Blinking: port is active
Yellow: port is linked
SW1 on page 17
USB1/USB2 on page 17; USB2/
USB3 on page 19
LAN1~LAN3 (of LEK-6020EN2/
EN2B) on page 21;
LANB1~LANB3 and SFP1~SFP2
(of LEK-6020F1)on page 22
COM1 (of LEB-6020) on page 18
9
Chapter 2
Side Components
System Components
S2
S1
S2
Model: 6020A
Component Description Pin Definition Reference
S1 DC-In (power) 1x2 Pin
Phoenix Contact Connector
(model A)
DC-In (power) 1x6 Pin Phoenix
Contact Connector with power
failure relay (model B, C, D)
S2 CF Card Slot A CF card slot with protection lid CF1 on page 17
Power-in Connector. The LEC-6020
supports power range between
+12~+36V DC-in with or without
power relay.
Model: 6020B, C, D
CN1 on page 19; CN1 on page 21
S1
S2
S3
Component Description Pin Definition Reference
S3 A reset button RST1 on page 17
Embedded and Industrial Computing
10
Chapter 3
Chapter 3:
Board Layout
External Connectors
The following picture highlights the location of system
jumper settings and connectors of the LEC-6020 main
board. Refer to the table 3.1 Connector List for more
details.
Board Layout
SPI2
J3
SMB1
KBMS1
PWR1
CLR1
CON1BWP1
LPC1SATA1
USB1 USB2SW1
Embedded and Industrial Computing
COM1
JP1
RST1
VGA1 RST2
11
Chapter 3
Connectors and Jumpers (daughter board)
The following picture highlights the location of jumpers
and connectors of the LEK-6020COM4. Refer to the table
3.2 Connector List for more details.
J2
Board Layout
MPCIE1
CN1
Embedded and Industrial Computing
USB2
USB3
COM1
LEK-6020COM4
12
Chapter 3
Connectors and Jumpers (daughter board)
The following picture highlights the location of internal
connectors and jumpers on the daughter board LEK6020EN2. Refer to the table 3.3 Connector List for more
details.
Board Layout
J1 (on the
back)
P12V1 (on
the back)
CN1
Embedded and Industrial Computing
LEK-6020EN2
13
Chapter 3
Connectors and Jumpers (daughter board)
The following picture highlights the location of internal
connectors and jumpers on the daughter board LEK6020EN2B. Refer to the table 3.3 Connector List for more
details.
Board Layout
P12V1 (on
the back)
J1 (on the
back)
CN1
Embedded and Industrial Computing
LAN1/LAN2/LAN3
LEK-6020EN2B
14
Chapter 3
Connectors and Jumpers (daughter board)
The following picture highlights the location of internal
connectors and jumpers on the daughter board LEK6020F1. Refer to the table 3.4 Connector List for more
details.
Board Layout
CN1
Embedded and Industrial Computing
SFP1/SFP2
LANB1/LANB2/LANB3
LEK-6020F1
15
Chapter 3
Connectors and Jumpers List
The tables below list the function of each of the board
jumpers and connectors by labels shown in the above
section. The next section in this chapter gives pin
definitions and instructions on setting jumpers.
Table 3.1 Connector List for LEB-6020
Labels Function Pin Denition Reference
Page
BWP1 SPI ROM Write Portect Reserved for Factory Use
CF1 CF Connector P17
CLR1 Clear CMOS P18
COM1 Serial Port 1 Connector P18
CON1 SATA Power Connector P17
J3 Board to Board Connectorr P18
JP1 Board to Board Power Connector P18
KBMS1 Keyboard and Mouse Connector P18
LPC1 Low-pin Count Connector Reserved for Factory Use
PWR1 Power Button Connector P18
RST1 Reset Button P17
RST2 HW/SW Reset Select P17
SATA1 SATA Connector P17
SMB1 SMBus Connector Reserved for Factory Use
SPI2 SPI ROM Connector Reserved for Factory Use
SW1 LED2 Control Button P17
USB1 USB 2.0 Connector P17
USB2 USB 2.0 Connector P17
VGA1 VGA Connector P17
Board Layout
Table 3.2 Connector List for LEK-6020COM4
Labels Function Pin Denition Reference
Page
COM1 COM Port 2~5 P19
CN1 Power Connector P19
J2 Board to Board Connector P20
USB2 USB 2.0 Connector P19
USB3 USB 2.0 Connector P19
P12V1 Board to Board Power Connector P19
MPCIE1 Mini-PCIe Connector P20
Table 3.3 Connector List for LEK-6020EN2/LEK-6020EN2B
Labels Function Pin Denition Reference
Page
CN1 DC-in Power Connector P21
J1 Board to Board Connector P21
LAN1~LAN3 RoHS RJ45 Jack P21
P12V1 Board to Board Power Connector P21
Table 3.4 Connector List for LEK-6020F1
Labels Function Pin Denition Reference
Page
CN1 Power Connector P22
J1 Board to Board Connector P22
LANB1, LANB2, LANB3 RoHS RJ45 Jack P22
P12V1 Board to Board Power Connector P22
SFP1, SFP2 RoHS SFP Connector P22
Embedded and Industrial Computing
16
Chapter 3
Board Layout

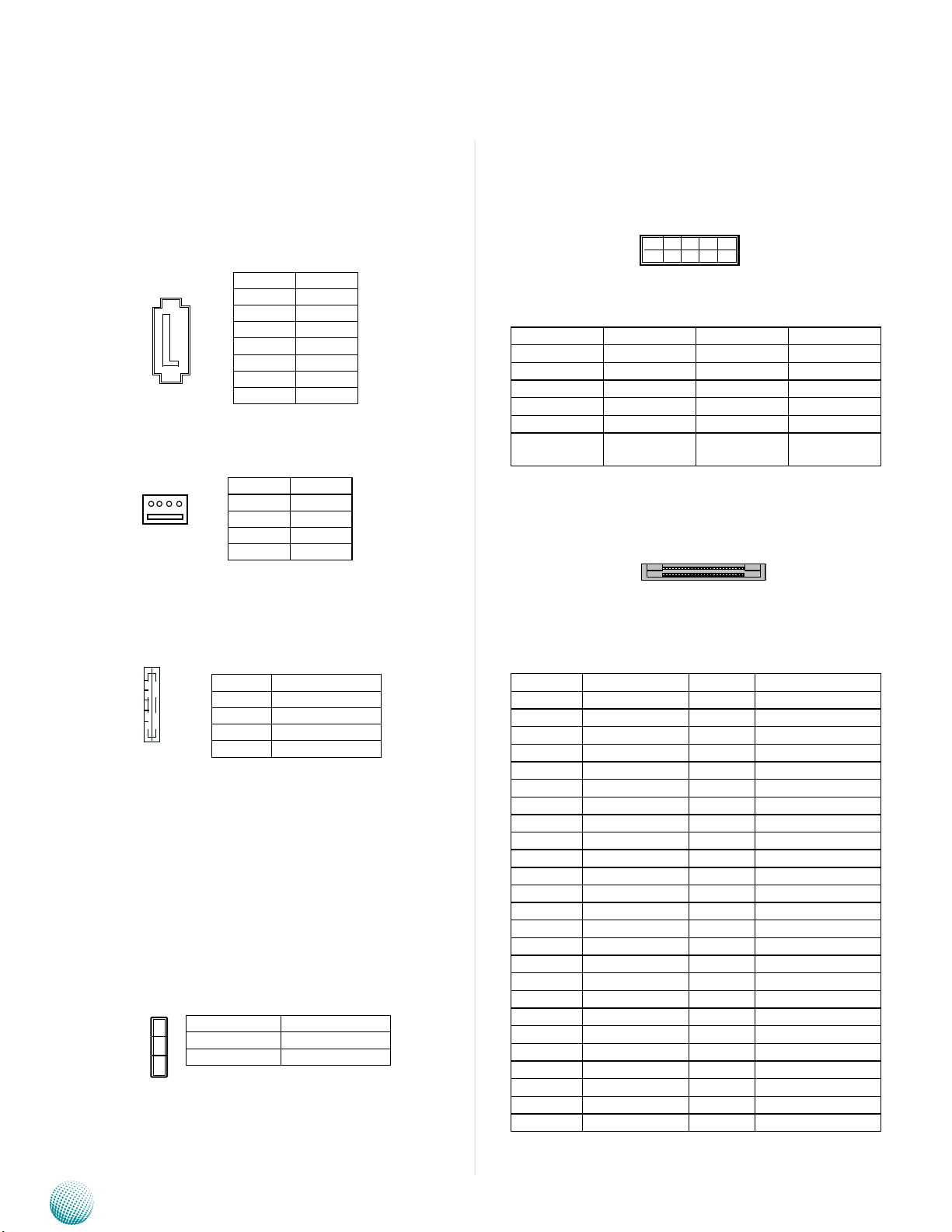

Jumper Settings
LEB-6020
Serial-ATA Connector (SATA1): It is for connecting a
2.5’’ harddisk to be served as your system’s storage. It can
support SATA II which features Data transfer rates up to 3.0
Gb/s (300 MB/s).
Pin No. Function
1
2
3
4
5
6
7
4-pin Serial-ATA Power Connector (CON1): It is for
connecting the SATA power cord.
1 2 3 4
1 GND
2 TX+
3 TX4 GND
5 RX6 RX+
7 GND
Pin No. Function
1 12V
2 Ground
3 Ground
4 5V
VGA Port (VGA1)
11
12
Pin No. Description Pin No. Description
1 CON_RED 2 CRT_ON
3 CON_GREEN 4 GND_VGA
5 CON_BLUE 6 GND_VGA
7 CON_HSYNC 8 GND_VGA
9 CON_VSYNC 10 GND_VGA
11 CON_DDC_
DAT
Compact Flash Connector (CF1)
1
2
12 CON_DDC_
CLK
USB Port (USB1, USB2):
4
3
2
1
Reset Button (RST1)
LED2 Control Button (SW1): This control button is a
programmable button to control the behavior of the three
LEDs of LED2.
HW/SW Reset (RST2)
1
2
3
Pin No. Pin Name
1 VCCUSB01
2 USB0N_REAR_L
3 USB0P_REAR_L
4 GND
Pin No. Pin Name
1-2 Software Reset
2-3 (Default) Hardware Reset
PIN Description PIN Description
1 GND 26 DET1
2 CF_DD3 27 CF_DD11
3 CF_DD4 28 CF_DD12
4 CF_DD5 29 CF_DD13
5 CF_DD6 30 CF_DD14
6 CF_DD7 31 CF_DD15
7 -CF_DCS0 32 -CF_DCS1
8 GND 33 CF_VS1
9 GND 34 CF_DIOR_N
10 GND 35 CF_DIOW_N
11 GND 36 P3V3S
12 GND 37 CF_IDEIRQ
13 CF_PW 38 CF_PW
14 GND 39 MST_SLV
15 GND 40 CF_VS2
16 GND 41 CF_IDERST_N
17 GND 42 CF_IORDY
18 CF_DA2 43 CF_DMARQ
19 CF_DA1 44 CF_DDACK_N
20 CF_DA0 45 CFACT_N
21 CF_DD0 46 CF_PDIAG
22 CF_DD1 47 CF_DD8
23 CF_DD2 48 CF_DD9
24 NC 49 CF_DD10
25 CF_DIS_N 50 GND
Embedded and Industrial Computing
17
Chapter 3
Board Layout
Board to Board Connector (J3)
2
80
1
79
PIN Description PIN Description
1 GND 2 GND
3 USB_P2_DN 4 PCIE_RX2_DN
5 USB_P2_DP 6 PCIE_RX2_DP
7 GND 8 GND
9 USB_P3_DN 10 PCIE_TX2_C_DN
11 USB_P3_DP 12 PCIE_TX2_C_DP
13 GND 14 GND
15 USB_P6_DN 16 PCIE_RX3_DN
17 USB_P6_DP 18 PCIE_RX3_DP
19 GND 20 GND
21 SM B _CL K_R E SU
22 PCIE_TX3_C_DN
ME_IO
23 SMB _ D ATA_ R ES
24 PCIE_TX3_C_DP
UME_IO
25 GND 26 GND
27 USB_OC_N23 28 CLK_MULTI_IO_ DN
29 PM_CLKRUN_N 30 CLK_MULTI_IO_ DP
31 GND 32 GND
33 CLK_33M_TPM 34 CLK_MINIPCIE_ DN
35 L_AD3 36 CLK_MINIPCIE_ DP
37 L_AD2 38 GND
39 L_AD1 40 GND
41 L_AD0 42 PLTRST_BUF2_N
43 L_FRAME_N 44 WAKE_N
45 SER_IRQ 46 SIO_GP00
47 P5VS 48 SIO_GP01
49 P5VS 50 COM2_RTS#
51 P5VS 52 COM2_TXD#
53 P5VS 54 COM2_CTS#
55 P5VS 56 COM2_RXD#
57 WDTO_OUT# 58 COM3_RTS#
59 P3V3S 60 COM3_TXD#
61 P3V3S 62 COM3_CTS#
63 P3V3S 64 COM3_RXD#
65 P3V3S 66 COM4_RTS#
67 P3V3S 68 COM4_TXD#
69 P3V3S 70 COM4_CTS#
71 SIO_GP54 72 COM4_RXD#
73 P1V5 74 COM5_RTS#
75 P1V5 76 COM5_TXD#
77 P1V5 78 COM5_CTS#
79 P1V5 80 COM5_RXD#
Clear CMOS jumper (CLR1): It is for clearing the CMOS
memory.
Pin No. Pin Name
1 2
1-2 Clear CMOS
NC (Default) Normal
Board to Board Power Connector (JP1)
10
2
Pin No. Pin Name Pin No. Pin Name
1 NC 2 P12V
3 GND 4 P12V
5 GND 6 P12V
7 GND 8 P12V
9 GND 10 P12V
9
1
Serial Port Connector (COM1)
9
10
Pin No. Pin Name Pin No. Pin Name
1 SP1_DCD# 2 SP1_DSR#
3 SP1_RXD 4 SP1_RTS#
5 SP1_TXD 6 SP1_CTS#
7 SP1_DTR# 8 SP1_RI#
9 CAGND
1
2
Keyboard and Mouse Connector (KBMS1)
2
1
Pin No. Pin Name Pin No. Pin Name
1 P5VS 2 MSCLK
3 MSDAT 4
5 KBDAT 6
7 GND 8 KBCLK
8
7
Power Button (PWR1)
1
2
Pin No. Pin Name
1-2 Power On/Off
NC (Default) Normal
Embedded and Industrial Computing
18
Chapter 3
Board Layout
LEK-6020COM4
Connectors on LEK-6020COM4
DC-in Connector (CN1)
1 2
USB Port (USB2, USB3)
4
3
2
1
RS-232/422/485 Serial Port (COM2~COM5, COM1)
Pin No. Pin Name
P i n
1 VCCUSB23
2 USB3N_REAR_L
3 USB3P_REAR_L
4 GND
Pin Name
No.
1 GND
2 10.8V~36V
Board to Board Power Connector (P12V1)
10
9
1
Pin No. Pin Name Pin No. Pin Name
1 NC 2 P9V
3 GND 4 P9V
5 GND 6 P9V
7 GND 8 P9V
9 GND 10 P9V
2
COM3 COM5
PIN
NO.
RS-232 COM3_
RS-422 COM3_
RS-485 COM3_
PIN
NO.
RS-232 COM2_
RS-422 COM2_
RS-485 COM2_
1 2 3 4 5 6 7 8 9 10
COM2 COM4
11 12 13 14 15 16 17 18 19 20
1 2 3 4 5 6 7 8 9 10
RXD
COM3_
TX+
DATA+
11 12 13 14 15 16 17 18 19 20
TX+
DATA+
TX-
COM3_
DATA-
Com2_
TX-
COM2_
DATA-
COM3_
RX-
RXD
COM2_
RX-
COM3_
TXD
COM3_
RX+
COM2_
TXD
COM2_
RX+
COM3_
GND
COM3_
GND
COM3_
GND
COM2_
GND
COM2_
GND
COM2_
GND
COM5_
TX+
COM5_
DATA+
COM4_
TX+
COM4_
DATA+
COM5_
TX-
COM5_
DATA-
COM4_
TX-
COM4_
DATA-
COM5_
RXD
COM5_
RX-
COM4_
RXD
COM4_
RX-
COM5_
TXD
COM5_
RX+
COM4_
TXD
COM4_
RX+
COM5_
GND
COM5_
GND
COM5_
GND
COM4_
GND
GND
COM4_
GND
Note: The default protocol is in RS-485. To select
among RS-232, 422 and 485, use the BIOS menu
Embedded and Industrial Computing
19
Chapter 3
Board Layout
Mini-PCIe Connector (MPCIE1)
PIN Description PIN Description
1 WAKE_N 2 VCC3P3_MINI1
3 NC 4 GND
5 NC 6 P1V5
7 MINI_CLKREQ_ N1 8 NC
9 GND 10 NC
11 CL K_ MI NI PC IE _
DN
13 CLK_MINIPCIE_
DP
15 GND 16 NC
17 NC 18 GND
19 NC 20 RF_KILL_N1_R
21 GND 22 PLTRST_PCIE_N
23 PCIE_RX2_DN 24 VCC3P3_MINI1
25 PCIE_RX2_DP 26 GND
27 GND 28 P1V5
29 GND 30 S M B _ CL K _ R ES U
31 PCIE_TX2_C_DN 32 S M B _ DA T A _ R ES
33 PCIE_TX2_C_DP 34 GND
35 GND 36 USB_P6_DN_L
37 GND 38 USB_P6_DP_L
39 VCC3P3_MINI1 40 GND
41 VCC3P3_MINI1 42 3G _ LE D 1_ W WA N
43 GND 44 NC
45 NC 46 NC
47 NC 48 P1V5
49 NC 50 GND
51 NC 52 VCC3P3_MINI1
12 NC
14 NC
ME_IO
UME_IO
_N
Board to Board Connector (J2)
PIN Description PIN Description
1 GND 2 GND
3 USB_P2_DN 4 PCIE_RX2_DN
5 USB_P2_DP 6 PCIE_RX2_DP
7 GND 8 GND
9 USB_P3_DN 10 PCIE_TX2_C_DN
11 USB_P3_DP 12 PCIE_TX2_C_DP
13 GND 14 GND
15 USB_P6_DN 16 PCIE_RX3_DN
17 USB_P6_DP 18 PCIE_RX3_DP
19 GND 20 GND
21 SM B _CL K_R E SU
ME_IO
23 SMB _ D ATA_ R ES
UME_IO
25 GND 26 GND
27 USB_OC_N23 28 CLK_MULTI_IO_ DN
29 PM_CLKRUN_N 30 CLK_MULTI_IO_ DP
31 GND 32 GND
33 CLK_33M_TPM 34 CLK_MINIPCIE_ DN
35 L_AD3 36 CLK_MINIPCIE_ DP
37 L_AD2 38 GND
39 L_AD1 40 GND
41 L_AD0 42 PLTRST_BUF2_N
43 L_FRAME_N 44 WAKE_N
45 SER_IRQ 46 SIO_GP00
47 P5VS 48 SIO_GP01
49 P5VS 50 COM2_RTS#
51 P5VS 52 COM2_TXD#
53 P5VS 54 COM2_CTS#
55 P5VS 56 COM2_RXD#
57 WDTO_OUT# 58 COM3_RTS#
59 P3V3S 60 COM3_TXD#
61 P3V3S 62 COM3_CTS#
63 P3V3S 64 COM3_RXD#
65 P3V3S 66 COM4_RTS#
67 P3V3S 68 COM4_TXD#
69 P3V3S 70 COM4_CTS#
71 SIO_GP54 72 COM4_RXD#
73 P1V5 74 COM5_RTS#
75 P1V5 76 COM5_TXD#
77 P1V5 78 COM5_CTS#
79 P1V5 80 COM5_RXD#
22 PCIE_TX3_C_DN
24 PCIE_TX3_C_DP
Embedded and Industrial Computing
20
Chapter 3
Board Layout
LEK-6020EN2/LEK-6020EN2B
Connectors on LEK-6020EN2/LEK-6020EN2B
DC-in Connector (CN1)
P i n
6 5 4 3 2 1
Board to Board Connector (J1)
PIN Description PIN Description
1 GND 2 GND
3 USB_P2_DN 4 PCIE_RX2_DN
5 USB_P2_DP 6 PCIE_RX2_DP
7 GND 8 GND
9 USB_P3_DN 10 PCIE_TX2_C_DN
11 USB_P3_DP 12 PCIE_TX2_C_DP
13 GND 14 GND
15 USB_P6_DN 16 PCIE_RX3_DN
17 USB_P6_DP 18 PCIE_RX3_DP
19 GND 20 GND
21 SM B _CL K_R E SU
ME_IO
23 SMB _ D ATA_ R ES
UME_IO
25 GND 26 GND
27 USB_OC_N23 28 CLK_MULTI_IO_ DN
29 PM_CLKRUN_N 30 CLK_MULTI_IO_ DP
31 GND 32 GND
33 CLK_33M_TPM 34 CLK_MINIPCIE_ DN
35 L_AD3 36 CLK_MINIPCIE_ DP
37 L_AD2 38 GND
39 L_AD1 40 GND
41 L_AD0 42 PLTRST_BUF2_N
43 L_FRAME_N 44 WAKE_N
45 SER_IRQ 46 SIO_GP00
47 P5VS 48 SIO_GP01
49 P5VS 50 COM2_RTS#
51 P5VS 52 COM2_TXD#
53 P5VS 54 COM2_CTS#
55 P5VS 56 COM2_RXD#
57 WDTO_OUT# 58 COM3_RTS#
59 P3V3S 60 COM3_TXD#
61 P3V3S 62 COM3_CTS#
63 P3V3S 64 COM3_RXD#
65 P3V3S 66 COM4_RTS#
67 P3V3S 68 COM4_TXD#
69 P3V3S 70 COM4_CTS#
71 SIO_GP54 72 COM4_RXD#
73 P1V5 74 COM5_RTS#
Pin Name
No.
1 DC_PWR2
2 GND
3 ALARM2
4 ALARM1
5 DC_PWR1
6 GND
22 PCIE_TX3_C_DN
24 PCIE_TX3_C_DP
PIN Description PIN Description
75 P1V5 76 COM5_TXD#
77 P1V5 78 COM5_CTS#
79 P1V5 80 COM5_RXD#
Board to Board Power Connector (P12V1)
10
9
1
Pin No. Pin Name Pin No. Pin Name
1 NC 2 P9V
3 GND 4 P9V
5 GND 6 P9V
7 GND 8 P9V
9 GND 10 P9V
LAN Connectors (LAN1~LAN3)
Pin No. Pin Name Pin No. Pin Name
1 P1_MDXP0 7 P1_MDXP3
2 P1_MDXN0 8 P1_MDXN3
3 P1_MDXP1 9 P3V3S
4 P1_MDXP2 10 P1_LED_LINK_N
5 P1_MDXN2 11 P1_LINK1000
6 P1_MDXN1 12 P1_LINK100
2
Embedded and Industrial Computing
21
Chapter 3
Board Layout
LEK-6020F1
Connectors on LEK-6020F1
DC-in Connector (CN1)
P i n
6 5 4 3 2 1
Board to Board Connector (J1)
PIN Description PIN Description
1 GND 2 GND
3 NC 4 ICH_C_PCIE_RX_N1
5 NC 6 ICH_C_PCIE_RX_P1
7 GND 8 GND
9 NC 10 ICH_C_PCIE_TX_N1
11 NC 12 ICH_C_PCIE_TX_P1
13 GND 14 GND
15 NC 16 ICH_C_PCIE_RX_N2
17 NC 18 ICH_C_PCIE_RX_P2
19 GND 20 GND
21 SMB_CLK_RES
UME_IO
23 SMB_DATA_RE
SUME_IO
25 GND 26 GND
27 NC 28 PEX_REFCLKN_1
29 NC 30 PEX_REFCLKP_1
31 GND 32 GND
33 NC 34 PEX_REFCLKN_2
35 NC 36 PEX_REFCLKP_2
37 NC 38 GND
39 NC 40 GND
41 NC 42 PLTRST_BUF1_N
43 NC 44 PCIE_WAKE_N
45 NC 46 NC
47 P5VS 48 NC
49 P5VS 50 NC
51 P5VS 52 NC
53 P5VS 54 NC
55 P5VS 56 NC
57 NC 58 NC
59 P3V3S 60 NC
61 P3V3S 62 NC
63 P3V3S 64 NC
65 P3V3S 66 NC
67 P3V3S 68 NC
69 P3V3S 70 NC
71 NC 72 NC
73 P1V5 74 NC
Pin Name
No.
1 DC_PWR2
2 GND
3 ALARM2
4 ALARM1
5 DC_PWR1
6 GND
22 ICH_C_PCIE_TX_N2
24 ICH_C_PCIE_TX_P2
PIN Description PIN Description
75 P1V5 76 NC
77 P1V5 78 NC
79 P1V5 80 NC
81 GND 82 GND
83 GND 84 GND
85 GND 86 GND
87 GND 88 GND
Board to Board Power Connector (P12V1)
10
9
1
Pin No. Pin Name Pin No. Pin Name
1
3
5
7
9 GND 10 P9V
RJ45 LAN Connectors (LANB1~LANB3)
Pin No. Pin Name Pin No. Pin Name
1 P1_MDXP0 8 P1_MDXN2
2 P1_MDXN0 9 P1_MDXP3
3 P1_MDXP1 10 P1_MDXN3
4 P1_MDXN1 11 P1_LINK100_R
5 LAN1_1.5 12 P1_LINK1000_R
6 LAN1_1.5 13 P3V3S
7 P1_MDXP2 14 P1_LED_ACT_R
SFP Fiber Connectors (SFP1~SFP2)
Pin No. Pin Name Pin No. Pin Name
1 GND 11 GND
2 SFP0_TX_
3 SFP0_TX_DIS 13 SFP0_RD_P
4 SFP0_I2C_SDA 14 GND
5 SFP0_I2C_SCL 15 P3V3_SFP0_R
6 SFP0_MOD_
7 SFP0_RS0 17 GND
8 SFP0_RX_LOS 18 SFP0_TD_P
9 SFP0_RS1 19 SFP0_TD_N
10 GND 20 GND
NC 2 P9V
GND 4 P9V
GND 6 P9V
GND 8 P9V
FAULT
ABS
2
12 SFP0_RD_N
16 P3V3_SFP0_T
Embedded and Industrial Computing
22
Chapter 4
Introduction
Chapter 4:
Hardware Setup
Preparing the Hardware Installation
To access some components and perform certain service
procedures, you must perform the following procedures
first.
WARNING: To reduce the risk of personal injury,
electric shock, or damage to the equipment,
remove the power cord to remove power from
the server. Portions of the power supply and some
internal circuitry remain active until power is
removed.
Unpower the LEC-6020 and remove the power cord.1.
The top cover has an L shape. Unscrew the threaded 2.
screw one the back near the din-rail and the screws on
the two sides as show in the picture.
Slide the cover backwards to open the cover.3.
Installing the System Memory
The motherboard supports DDR3 memory that features
data transfer rates of 1066/1333 MHz to meet the higher
bandwidth requirements of the latest operating system
and Internet applications. It comes with one Double Data
Rate 3 (DDR3) Small Outline Dual In-line Memory Module
(SO-DIMM) socket.
Align the memory module’s key with the SO-DIMM 1.
socket’s key.
Install the SO-DIMM.2.
Note:
SO-DIMMs installed should meet the required 1.
speed which is 1066/1333 MHz. Do not install SODIMM supporting different speeds.
The motherboards can support up to 2 GB 2.
memory capacity in maximum.
Embedded and Industrial Computing
23
Chapter 4
Introduction
Installing a CompactFlash Card
LEC-6020 provides one CompactFlash slot. Follow the
procedures bellow to install a CompactFlash card.
Unscrew the screws on the side to take out the cover.1.
Align CompactFlash and the card slot with the arrow 2.
on the CompactFlash pointing toward the connector.
Insert the CompactFlash into the connector.3.
Close the cover and fasten it with the screws to the 4.
slot.
1
Connecting Power
Connect the LEC-6020 to a 12~36 VDC power source. The
power source comes from the AC/DC Adapter through a
Phoenix contact. This power socket is specially designed
to guard against fault in power contact, i.e., the reverse of
the electrical polarity will not damage the system.
-DC in +
- +
- +P-fail
2
Note: The device has an error proof design so that
the card will not be inserted if it is in the wrong
orientation. You should insert the CF card with the
arrow on the CompactFlash facing up and pointing
toward the connector.
Embedded and Industrial Computing
24
Appendix A
Appendix A:
Programming Watchdog
Timer
A watchdog timer is a piece of hardware that can be
used to automatically detect system anomalies and reset
the processor in case there are any problems. Generally
speaking, a watchdog timer is based on a counter that
counts down from an initial value to zero. The software
selects the counter’s initial value and periodically restarts
it. Should the counter reach zero before the software
restarts it, the software is presumed to be malfunctioning
and the processor’s reset signal is asserted. Thus, the
processor will be restarted as if a human operator had
cycled the power.
For sample watchdog code, see WD folder under Driver
and Utility on the Driver and Manual CD
Programming Watchdog Timer
Embedded and Industrial Computing
25
Loading...
