Page 1
Table of Contents
Rotary Cutters
RCR1884 Series
312-880M
Operator’s Manual
Read the Operator’s manual entirely.
When you see this symbol, the
subsequent instructions and
!
warnings are serious - follow without
exception. Your life and the lives of
others depend on it!
© Copyright 2008 Printed
Cover photo may show optional
equipment not supplied with
standard unit.
24584
9/24/08
Page 2
Table of Contents
Table of Contents
Land Pride
Important Safety Information . . . . . . . . . . .1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . .1
Look For The Safety Alert Symbol . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Introduction . . . . . . . . . . . . . . . . . . . . . . . .8
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 8
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . .8
Section 1: Assembly and Set-Up . . . . . . . .9
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . 9
Vent Plug Installation . . . . . . . . . . . . . . . . . . . . . . . 9
Category l Adapter Bushings . . . . . . . . . . . . . . . . .9
3-Point Hitch Assembly . . . . . . . . . . . . . . . . . . . . 10

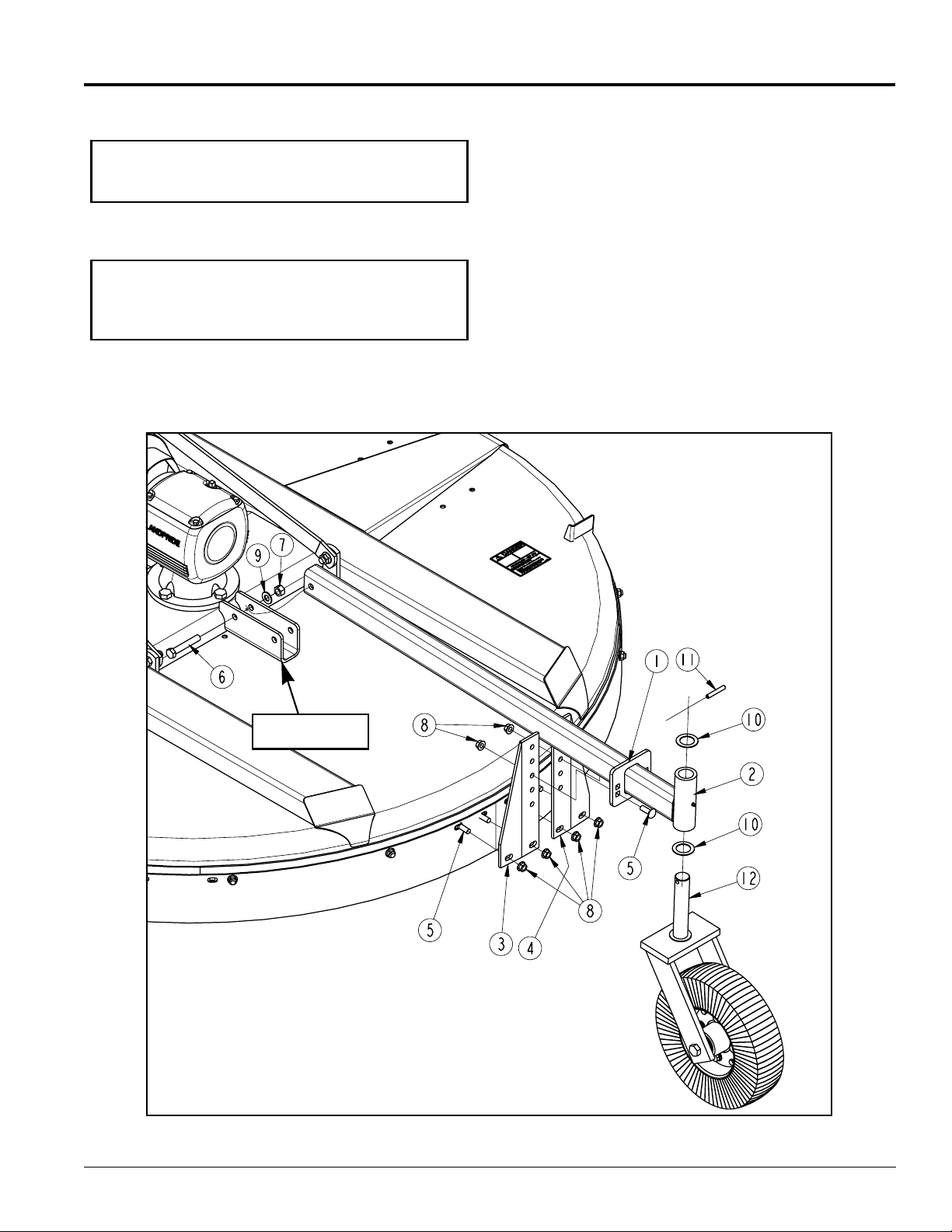

Single Tailwheel Assembly . . . . . . . . . . . . . . . . .11
Dual Tailwheel Assembly . . . . . . . . . . . . . . . . 12

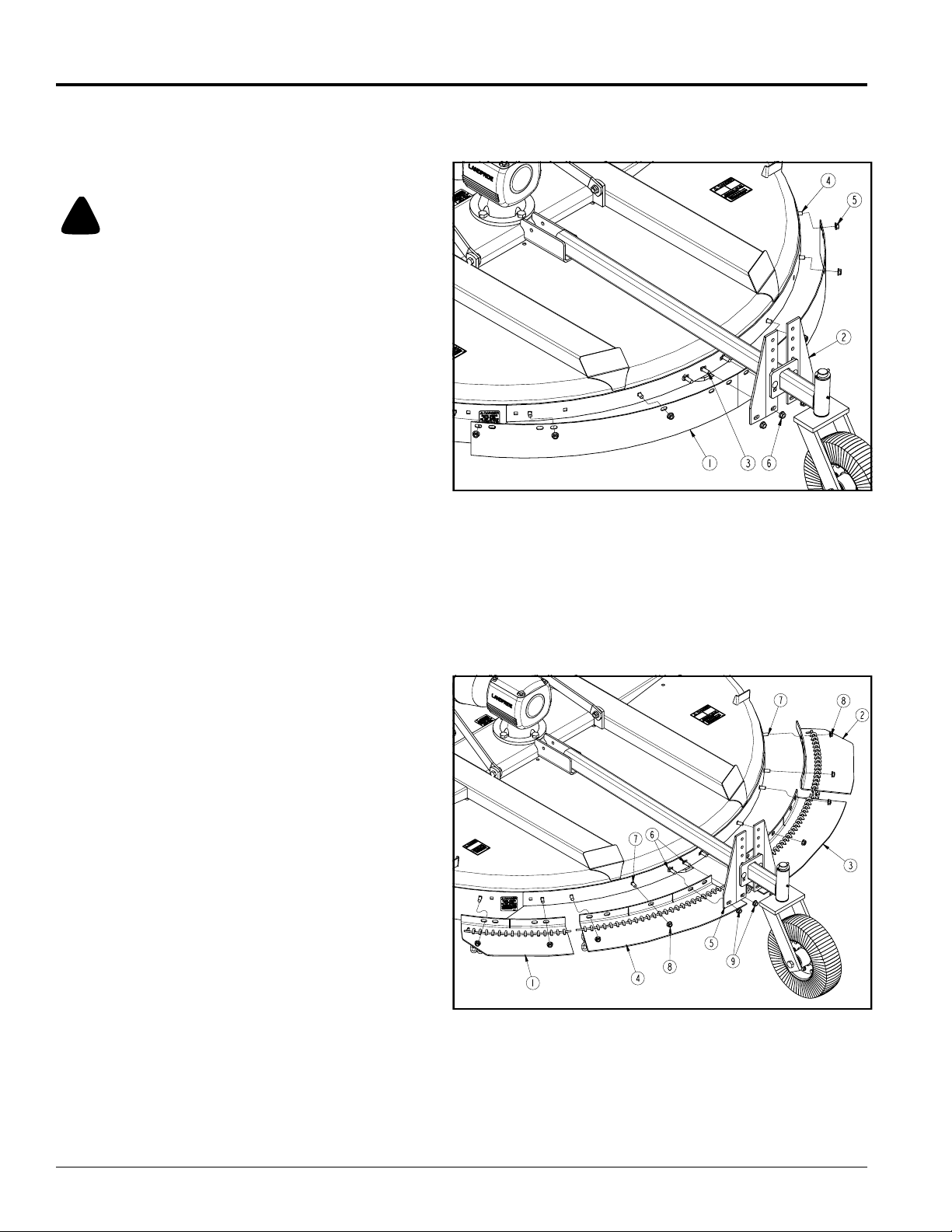

Front Guard Assembly . . . . . . . . . . . . . . . . . . . . . 13
Front Rubber Guard Installation . . . . . . . . . . . 13
Front Chain Guard Installation (Optional) . . . . 13
Rear Metal Deflector Assembly . . . . . . . . . . . . . . 14
Rear Chain Guard Installation (Optional) . . . . 14

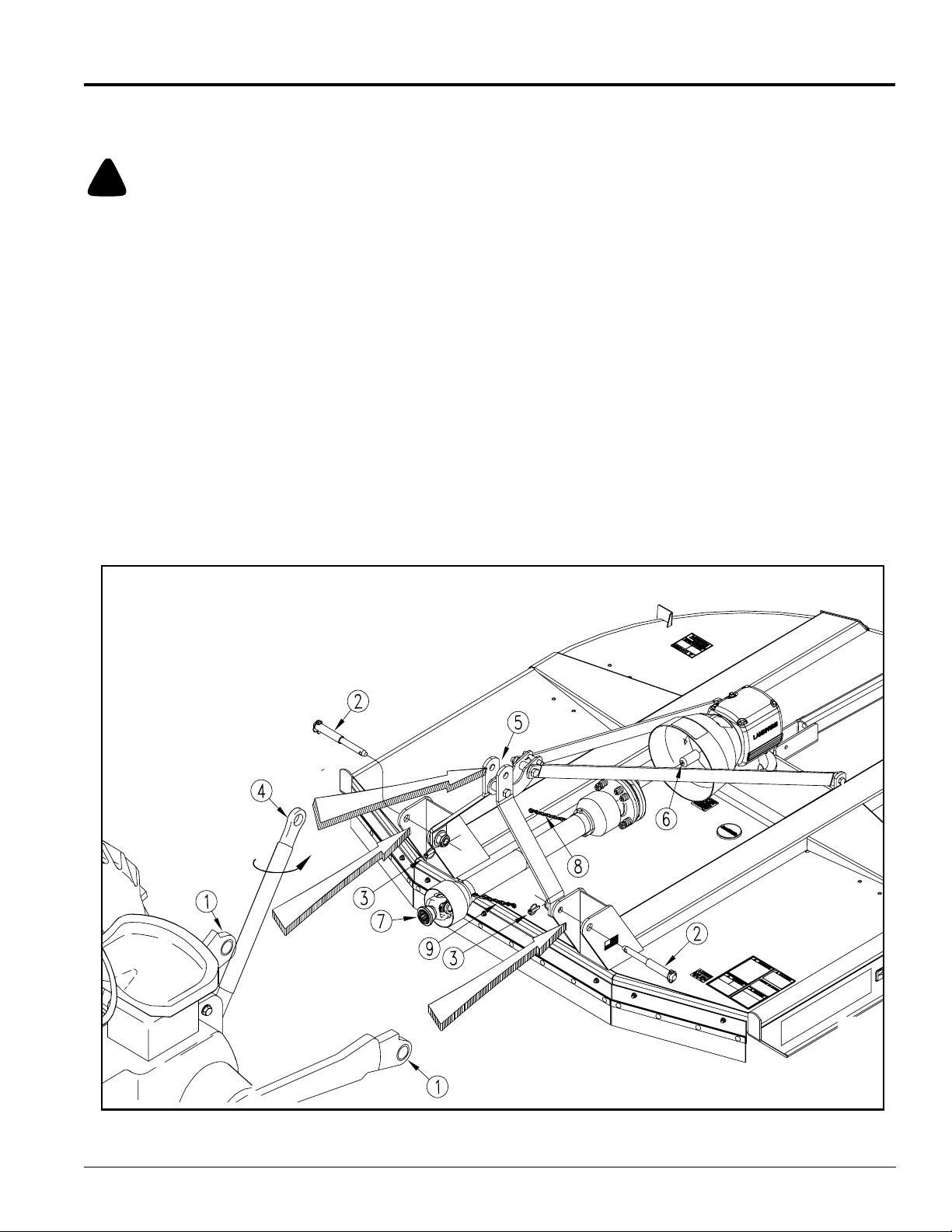

3-Point Tractor Hook-Up . . . . . . . . . . . . . . . . . . . 15
Driveline Installation . . . . . . . . . . . . . . . . . . . . . . .16
Checking Driveline Minimum Length . . . . . . . . 16
Section 2: Adjustments . . . . . . . . . . . . . . 18
Leveling Procedure . . . . . . . . . . . . . . . . . . . . . . . 18
Deck Leveling From Left to Right . . . . . . . . . . 18
Deck Leveling From Front to Rear . . . . . . . . . 18
Top Center Link Length Adjustment . . . . . . . . 18

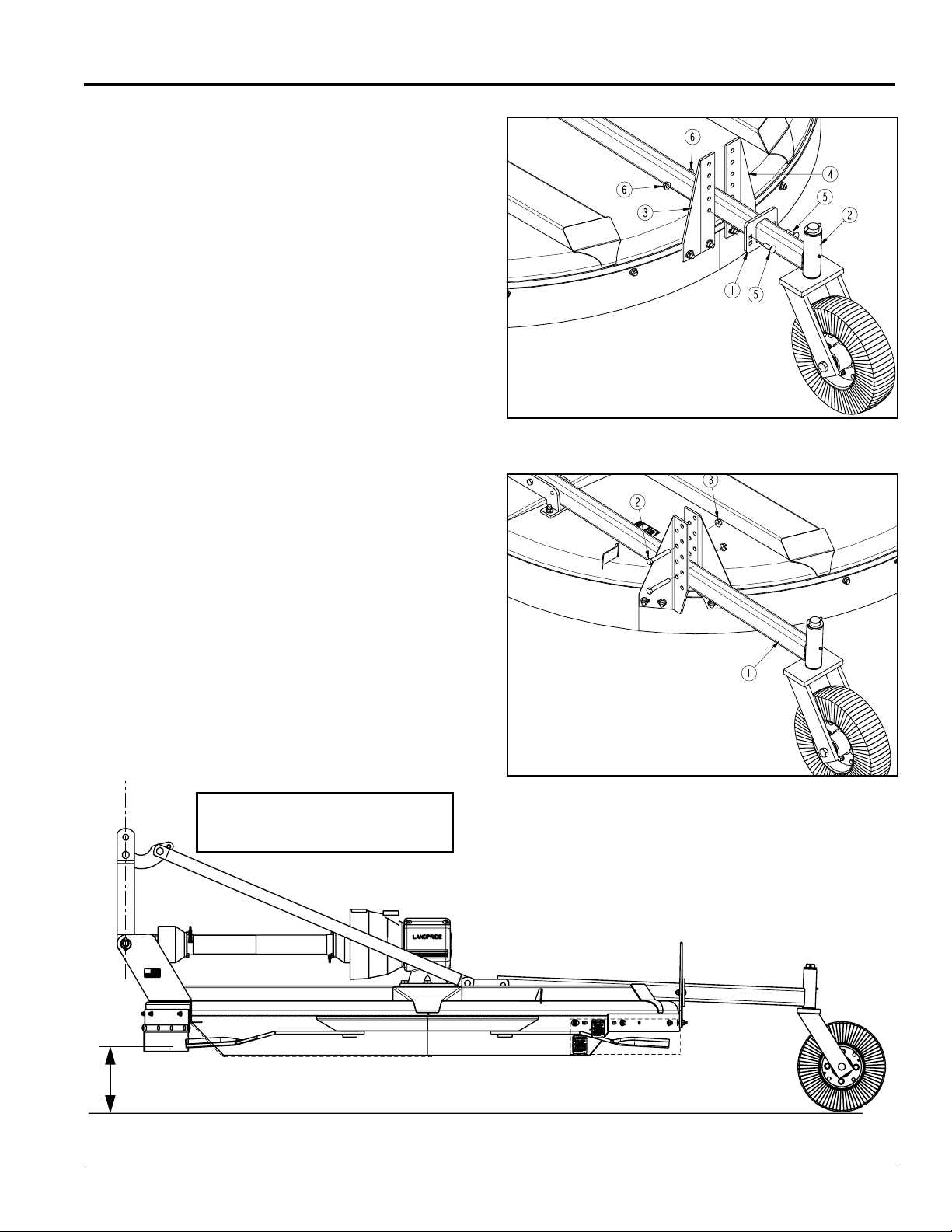

Single Tail Wheel Height Adjustment . . . . . . . . . . 19
Dual Tail Wheel Height Adjustment . . . . . . . . . . . 19
Section 3: Operating Instructions . . . . . .20
Operating Check List . . . . . . . . . . . . . . . . . . . . . . 20
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Un-hooking the Rotary Cutter . . . . . . . . . . . . . . . 20
Cutting Instructions . . . . . . . . . . . . . . . . . . . . . . . 21
General Operating Instructions . . . . . . . . . . . . . . 21
Section 4: Options . . . . . . . . . . . . . . . . . .23
Front and Rear Safety Guard Options . . . . . . . . .23
Front Rubber Guard . . . . . . . . . . . . . . . . . . . .23
Front Chain Guard . . . . . . . . . . . . . . . . . . . . . .23
Rear Chain Guard . . . . . . . . . . . . . . . . . . . . . .23
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Category l Center 3-Point Adapter Bushing . . .23
Section 5: Maintenance and Lubrication 24
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Cutter Blade Maintenance . . . . . . . . . . . . . . . . . .24
Driveline Protection . . . . . . . . . . . . . . . . . . . . . . .25
Clutch Run-In . . . . . . . . . . . . . . . . . . . . . . . . .25
Clutch Disassembly . . . . . . . . . . . . . . . . . . . . .26
Clutch Inspection . . . . . . . . . . . . . . . . . . . . . . .26
Clutch Assembly . . . . . . . . . . . . . . . . . . . . . . .26
Cutter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Gauge Wheel Spindle Tube . . . . . . . . . . . . . . . 27
Gauge Wheel Hub . . . . . . . . . . . . . . . . . . . . . .27
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Driveline U-Joints . . . . . . . . . . . . . . . . . . . . . .28
Driveline Shield Bearings . . . . . . . . . . . . . . . .28
Driveline Profiles . . . . . . . . . . . . . . . . . . . . . . .28
Section 5: Specifications & Capacities . .29
Section 6: Features & Benefits . . . . . . . .30
Section 7: Troubleshooting . . . . . . . . . . .31
Section 8: Appendix . . . . . . . . . . . . . . . . .33
Torque Values Chart for Common Bolt Sizes . . . .33
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
© Copyright2008All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land
Pride assumes no responsibility for errors oromissions.Neither is any liability assumed for damages resultingfrom the use of the informationcontained herein. Land Pride reserves
the right to revise and improveits productsas it sees fit. This publication describes the state ofthis product at the timeof its publication, and may not reflectthe product in the future.
Land Pride is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
RCR1884 Series Rotary Cutters 312-880M
9/24/08
Page 3
Land Pride
▲
Table of Contents
Important Safety Information
Important Safety Information
These arecommon practicesthat may or may not be applicable to the productsdescribed in
this manual.
Safety at All Times
Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.
Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.
▲ Operator should be familiar with
all functions of the unit.
▲ Operate implement from the
driver’s seat only.
▲ Make sure all guards and shields
are in place and secured before
operating implement.
▲ Do not leave tractor or implement
unattended with engine running.
▲ Dismounting from a moving
tractor could cause serious injury
or death.
▲ Do not allow anyone to stand
between the tractor and
implement while backing up to the
implement.
▲ Keep hands, feet, and clothing
away from power-driven parts.
▲ Wear snug fitting clothing to avoid
entanglement with moving parts.
▲ Watch out for wires, trees, etc.,
when raising implement. Make
sure all persons are clear of
working area.
▲ Turning tractor too tight may
cause implement to ride up on
wheels. This could result in injury
or equipment damage.
▲ Do not carry passengers on
implement at any time.
Look For The Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
!
Be Aware of
Signal Words
A Signal word designates a degree or
level of hazard seriousness. The
signal words are:
!
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.
For Your Protection
▲ Thoroughly read and understand
the “Safety Label” section, read all
instructions noted on them.
equipment, hazard control and accident prevention
are dependent upon the awareness, concern,
prudence and proper training of personnel involvedin
the operation, transport, maintenance and storage of
equipment.
!
WARNING
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may also
be used to alert against unsafe
practices.
!
CAUTION
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.
Shutdown and Storage
▲ Lower machine to ground, put
tractor in park, turn off engine, and
remove the key.
▲ Detach and store implements in a
area where children normally do
not play. Secure implement by
using blocks and supports.
9/24/08
OFF
REMO
VE
RCR1884 Series Rotary Cutters 312-880M
1
Page 4
Table of Contents
Land Pride
Important Safety Information
These arecommon practicesthat may or may not be applicable to the productsdescribed in
this manual.
Use Safety
Lights and Devices
▲ Slow moving tractors, self-
propelled equipment, and towed
implements can create a hazard
whendriven on public roads.They
are difficult to see, especially at
night.
▲ Flashing warning lights and turn
signals are recommended
wheneverdriving onpublic roads.
Use lights and devices provided
with implement.
Transport
Machinery Safely
▲ Comply with state and local laws.
▲ Maximum transport speed for
implement is 20 mph. DO NOT
EXCEED. Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.
▲ Sudden braking can cause a
towed load to swerve and upset.
Reduce speed if towed load is not
equipped with brakes.
▲ Use the following maximum speed
- tow load weight ratios as a
guideline:
20 mph when weight is less
than or equal to the weight of
tractor.
10 mph when weight is double
the weight of tractor.
IMPORTANT: Do not tow a load that
is more than double the weight of
tractor.
Use A Safety Chain
▲ A safety chain will help control
drawn machinery should it
separate from the tractor
drawbar.
▲ Use a chain with the strength
rating equal to or greater than
the gross weight of the towed
machinery.
▲ Attach the chain to the tractor
drawbar support or other
specified anchor location. Allow
only enough slack in the chain
to permit turning.
▲ Do not use safety chain for
towing.
Practice Safe Maintenance
▲ Understand procedure before
doing work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.
▲ Work in a clean dry area.
▲ Lower the implement to the
ground, put tractor in park, turn off
engine, and remove key before
performing maintenance.
▲ Allow implement to cool
completely.
▲ Do not grease or oil implement
while it is in operation.
▲ Inspect all parts. Make sure parts
are in good condition & installed
properly.
▲ Remove buildup of grease, oil or
debris.
▲ Remove all tools and unused
parts from implement before
operation.
RCR1884 Series Rotary Cutters 312-880M
2
9/24/08
Page 5
Land Pride
Table of Contents
Important Safety Information
These arecommon practicesthat may or may not be applicable to the productsdescribed in
this manual.
Prepare for Emergencies
▲ Be prepared if a fire starts.
▲ Keep a first aid kit and fire
extinguisher handy.
▲ Keep emergency numbers for
doctor, ambulance, hospital and
fire department near phone.
911
Wear
Protective Equipment
▲ Protectiveclothing and equipment
should be worn.
▲ Wear clothing and equipment
appropriate for the job. Avoid
loose fitting clothing.
▲ Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
▲ Operating equipment safely
requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.
Avoid High
Pressure Fluids Hazard
▲ Escaping fluid under pressurecan
penetratethe skincausing serious
injury.
▲ Avoid the hazard by relieving
pressure before disconnecting
hydraulic lines orperforming work
on the system.
▲ Make sure all hydraulic fluid
connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
▲ Use a piece of paper or
cardboard, NOTBODYPARTS, to
check for suspected leaks.
▲ Wear protectivegloves and safety
glasses or goggles when working
with hydraulic systems.
▲ If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
treated within a few hours or
gangrene may result.
Keep Riders
Off Machinery
▲ Riders obstruct the operator’s
view they could be struck by
foreign objects or thrown from the
machine.
▲ Never allow children to operate
equipment.
9/24/08
RCR1884 Series Rotary Cutters 312-880M
3
Page 6
Important Safety Information
Table of Contents
Land Pride
Safety Labels
Your Rotary Cutter comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Replace all damaged or missing labels. To order new
labels go to your nearest Land Pride dealer or visit our
dealer locator at landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the labelis to beplaced.
b. Spray soapy water on the surface where the label is to
be placed.
c. Peel backing from label. Press firmly onto the surface.
d. Squeeze out air bubbles with the edge of acredit card.
24651
24584
818-543C
Danger PTO Shield
RCR1884 Series Rotary Cutters 312-880M
4
9/24/08
Page 7
Land Pride
Important Safety Information
Table of Contents
ROTATING DRIVELINE
24597
KEEP AWAY!
818-552C
Danger PTO Driveline
24597
24584
818-540C
Danger Guard Missing
818-142C
Danger Driveline
9/24/08
RCR1884 Series Rotary Cutters 312-880M
5
Page 8
Important Safety Information
Table of Contents
24584
Land Pride
818-556C
Danger Thrown Object
24652
RCR1884 Series Rotary Cutters 312-880M
6
24584
818-564C
Danger Rotating Blades
818-230C
Red Reflector
9/24/08
Page 9
Land Pride
Important Safety Information
Table of Contents
24584
24584
818-830C
Safety Combo
818-130C
Caution 540 RPM
9/24/08
RCR1884 Series Rotary Cutters 312-880M
7
Page 10
Table of Contents
Introduction
Introduction
Land Pride welcomes you to the growing family of new
product owners.
ThisRotary Cutter has been designedwithcare and built
by skilled workers using quality materials. Proper
assembly, maintenance, and safe operating practices
willhelp you getyears of satisfactoryuse from theRotary
Cutter.
Application
Land Pride’s RCR1884Series Rotary Cutteris built and
designed by Land Pride for cutting on gentle slopes or
slightly contoured right-of-ways, pastures, around the
farm or around town. The 84” cuttingwidth is compatible
with maneuverable 45 to 90 horsepower tractors with
540 rpm PTO speed. The cutter has a Category I and
Category II three-point hitch and is QuickHitch
compatible. It is offered with a standard ASAE Category
4 driveline with slip-clutch protectionandasingle or dual
rear laminated tailwheel.
TheRCR1884 cutter cuts throughgrass, weeds andlight
brush up to 1 1/2” in diameter witha cutting height range
of 2” to 11”. Cutting blade tip speed is 17,113 fpm. It
includesa 10ga. (.135” thick)oval panstump jumperand
welded on full length skid shoes. A rear metal band
shield is standard equipment. Optional shields are front
rubber guard, front chain guard and rear chain guard.
See“Section 5: Specifications & Capacities” on page
29 and “Section 6: Features & Benefits” on page 30
for additional information.
Land Pride
Owner Assistance
The Warranty Registration card should be filled out by
the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.
If customer service or repair parts are requiredcontact a
LandPride dealer. Adealer has trainedpersonnel, repair
parts and equipment needed to service thecutter.
The parts on your Rotary Cutter have been specially
designedand should onlybe replacedwithgenuine Land
Pride parts. Therefore, should your cutter require
replacement parts go to your Land Pride Dealer.
Serial Number Plate
For prompt service always use the serial number and
modelnumber when ordering parts from yourLand Pride
dealer.Be sureto include yourserial andmodelnumbers
incorrespondence also. Refer toFigure 1 forthe location
of your serial number plate.
Using This Manual
This Operator’s Manual isdesigned tohelp familiarize
•
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
• The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
• To order a new Operator’s or Parts Manual contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com.
Terminology
“Right” or “Left” as used inthis manual isdetermined by
facing the direction the machine will operate while in use
unless otherwise stated.
Definitions:
IMPORTANT: A special point of information related
to its preceding topic. Land Pride’s intention is that
this information should be read and noted before
continuing.
NOTE:A specialpointof information that theoperator
must be aware of before continuing.
24653
Serial Number Plate Location
Figure 1
Further Assistance
Your dealer wants you to be satisfied with your new
Rotary Cutter. If for any reason you do not understand
any part of this manual or are not satisfied with the
service received, the following actions are suggested:
1. Discuss the matter with your dealership service
manager making sure he is aware of any problems
youmay have and that he has had the opportunity to
assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.
3. For further assistance write to:
Land Pride
Service Department
P.O. Box 5060
Salina, KS 67402-5060
E-mail address
lpservicedept@landpride.com
RCR1884 Series Rotary Cutters 312-880M
8
9/24/08
Page 11
Land Pride
Table of Contents
Section 1: Assembly and Set-Up
Section 1: Assembly and Set-Up
Tractor Requirements
The RCR18 Series Rotary Cutters are designed for use
with tractors that are equipped with:
• 45 to 90 horsepower
• Category I or II Quick Hitch
• 540 RPM 1 3/8”-6 spline rear power take-off (PTO)
Category l Adapter Bushings
Refer to Figure 1-2:
Two adapter bushings (#1)(not includedwith thecutter)
are required if attaching this cutter toa tractor with a
Cat. l 3-point hitch. You can order the bushings from you
nearest Land Pride dealer. Two are required when
ordering.
NOTE: Ballast weights may be required to maintain
steering control. Referto your tractor’soperator’s
manual to determine proper ballast requirements.
Vent Plug Installation
Refer to Figure 1-1:
Vent Plug
Oil Level Plug
DO NOT OVER
FILL
20822
Vent Plug Location
Figure 1-1
Land Pride Cat. l Adapter Bushings
Part No. Part Description
827-071C BUSHING STEP 1.25OD x .765ID x .70 lg.
Cat. l Upper 3-Point
Adapter Bushings
Stop Pin Must Be
Located Above The
Rear Hitch Braces
Cat. ll Upper 3-Point
Hitch Pin Holes
Quick Hitch
Hitch Pin
IMPORTANT: A vent plug for the gearbox is
included in a bag with themanual. See your nearest
Land Pride Dealer if vent plug is missing.
Model RCR1884 Rotary Cutters are shipped with a
black plug inthegearbox to prevent loss of oil during
shipping and handling. This plug must bereplaced
with the vent plug before operating the cutter.
9/24/08
Cat. l Lower 3-Point
Hitch Location
Cat. ll Lower 3-Point
Hitch Location
Category l Adapter Bushings
Figure 1-2
RCR1884 Series Rotary Cutters 312-880M
9
Page 12
Section 1: Assembly and Set-Up
Table of Contents
Land Pride
3-Point Hitch Assembly
IMPORTANT: Tighten allflange lock nuts snug. DO
NOT torque nuts tight. All connections must be
allowed to pivot.
Refer to Figure 1-3:
1. Remove inside linch pins (#17) and assembly hitch
straps (#2A & #2B) over threaded bushings (#16) as
shown. Install 1 1/4” flat washers (#15) and secure
with 1 1/4” lock nuts (#14). Tighten lock nuts to the
correct torque. Reference Torque Chart on page 33.
2. Reinstall linch pins (#17).
3. Assemble rear hitch braces (#3)to theinside ofrear
strap lugs (#13)with 5/8"-11 x 1 1/2" GR5 bolts (#6)
and 5/8" hexflange locknuts (#9). Draw locknuts up
snug.
4. Rotate hitch straps (#2A & #2B) up as shown and
Insert 3/4”-10 x 4 1/2” GR5 hex head bolt (#7A)
through hitch strap (#2A), machine washer (#11),
hinge bar (#4), spacer (#5A), hinge bar (#4),
machine washer (#11) and hitch strap (#2B) as
shown. Secure with hex flange lock nut(#8A). Draw
lock nut up snug and then back off 1/4 turn.
5. Insert 3/4”-10 x 4 1/2” GR5 hex head bolt (#7B)
through rear hitch brace (#3), flat washer (#10),
hinge bar (#4), spacer (#5B), hinge bar (#4), flat
washer (#10) and rear hitch brace (#3) as shown.
Securewith hexflange locknut (#8B).Draw locknut
up snug and then back off 1/4 turn.
6. Pivot hinge bars (#4) up and insert stop pin (#1) in
the hinge bars (#4) as shown. Stop pin must be
positioned above the rear hitch braces (#3) when
completed. See “Figure 1-2” on page 9.
7. Insert 2 cotter pins (#12) in the stop pin as shown.
Secure cotter pins by bending one legof each cotter
pin 45 degrees or more.
Draw Lock nuts 8A & 8B up snug
and then back off 1/4 turn.
24654
RCR1884 Series Rotary Cutters 312-880M
10
3-Point Hitch Assembly
Figure 1-3
9/24/08
Page 13
Land Pride
Section 1: Assembly and Set-Up
Table of Contents
Single Tailwheel Assembly
NOTE: Do not tighten hardware until assembly
is complete. See “Torque Values Chart” on page
33 for correct torques.
Refer to Figure 1-4:
1. Slide adjustment plate (#1) onto tailwheel arm (#2).
IMPORTANT: If chain guards are not used, install
tailwheelarm (#2)infront hole of tailwheel mounting
bracketas shown. Ifchainguards are used, install in
rear hole.
2. Attach front end of tailwheel arm (#2) to tailwheel
mountingbracket with5/8”-11x 3 1/4” GR5hexhead
bolt (#6), 5/8” flat washer (#9)and 5/8” locknut (#7).
3. Assemble tailwheel adjusting brackets (#3 & #4) to
deck rear with four 1/2”-13 x 1 1/2” GR5 carriage
bolts (#5) and 1/2” flange locknuts (#8).
4. Install shim washer (#10) onto yoke spindle (#12)
and insert spindle into tailwheel arm (#2). Install 2nd
shimwasher (#10)onto yokespindleandsecure with
roll pin (#11).
5. Assemble tailwheel adjusting plate (#1) to adjusting
brackets(#3 & #4) with two1/2”-13 x 1 1/2” GR5 hex
head bolts (#5) and 1/2” flange locknuts (#8).
6. Refer to “Single Tail Wheel Height Adjustment”
on page 19 for adjusting instructions.
7. Tighten all locknuts to correct torque.
24655
Tailwheel
Mounting Bracket
Single Tailwheel Assembly
Figure 1-4
9/24/08
RCR1884 Series Rotary Cutters 312-880M
11
Page 14
Table of Contents
Section 1: Assembly and Set-Up
Dual Tailwheel Assembly
NOTE: Do not tighten hardware until assembly
is complete. See “Torque Values Chart” on page
33 for correct torques.
Refer to Figure 1-5:
1. Attach tailwheel bracket (#2) to left side of cutter
deck with four 1/2” -13 x 1 1/2” GR5 hex head
bolts (#6), 1/2” flat washers (#11) and 1/2” flange
lock nuts (#9).
IMPORTANT: If rear chain guard is used, install
tailwheel arm (#1) in rear hole of bracket (#2) as
shown. If rear metal deflector is used, install
tailwheel arm (#1) in front hole of bracket (#2).
2. Attach tailwheel arm (#1) to tailwheel bracket (#2)
with 5/8”-11 x 3 1/4” GR5 hexhead bolt (#8), 5/8” flat
washer (#12) and 5/8” lock nut (#9).
Land Pride
3. Assemble tailwheel adjusting brackets (#3 & #4) to
left side of deck using four 1/2”-13 x 1 1/2” GR5
carriage bolts (#7) and 1/2” flange lock nuts (#10).
4. Install shim washer (#13) onto yoke spindle (#15)
and insert spindleinto tailwheel arm (#1). Slide 2nd
shimwasher (#13)onto yokespindleandsecure with
roll pin (#14).
5. Install two 1/2”-13 x 3 1/2” GR5 hex head bolts (#5)
and hex flange lock nuts (#10) in adjusting brackets
(#3 & #4) as shown.
6. Tighten all nuts to correct torque.
7. Repeat steps 1 through 6 for right side of cutter.
8. Refer to “Dual Tail Wheel Height Adjustment” on
page 19 for adjusting instr uctions.
24665
RCR1884 Series Rotary Cutters 312-880M
12
Dual Tailwheel Assembly
Figure 1-5
9/24/08
Page 15
Land Pride
Table of Contents
Section 1: Assembly and Set-Up
Front Guard Assembly
Front Rubber Guard Installation
Refer to Figure 1-6:
1. Install center rubber guard (#5) with 3/8” x 1” long
carriage bolts(#4). Secure with 3/8”flange nuts (#3).
2. Install left and right side r ubber guards (#2)with 3/8”
x 1” long carriage bolts (#4). Secure with3/8” flange
nuts (#3).
3. Tighten all 3/8” flange nuts (#2) to 31 ft-lbs as
indicated in the “Torque Values Chart” onpage 33.
24656
Front Rubber Guard
Figure 1-6
Front Chain Guard Installation (Optional)
Refer to Figure 1-7:
1. Install center chain guard (#1) with 3/8”x 1” long
carriage bolts(#4). Secure with 3/8”flange nuts (#3).
2. Install left and right chain guards (#2) with 3/8” x 1”
long carriage bolts (#4). Secure with 3/8” flange nuts
(#3).
3. Tighten all 3/8” flange nuts (#2) to 31 ft-lbs as
indicated in the “Torque Values Chart” onpage 33.
24657
Front Chain Guard
Figure 1-7
9/24/08
RCR1884 Series Rotary Cutters 312-880M
13
Page 16
Table of Contents
Section 1: Assembly and Set-Up
Rear Metal Deflector Assembly
Therearmetal deflector is factory supplied and must
be removed before the rear chain guard option can
be installed.
!
DANGER
Do not operator cutter without rear protection. Do not
remove rear deflector (#4) unless it is replaced by a Land
Pride chain guard. Serious body injury or loss of life can
result without a rear deflector or rear chain guard.
Refer to Figure 1-8:
1. Unscrew 1/2” whiz nuts (#5) and1/2” hex flange
lock nuts (#6). Remove rear metal deflector(#1)
from deck rear.
2. Attach carr iage bolts (#4) with whiz nuts (#6) to
reardeflector for safekeeping.Keep1/2”x1 1/2”
carriage bolts (#3) for reattaching tailwheel
vertical support (#2) to deck during chain guard
installation.
3. Store rear deflector for reuse if chain guard
damaged or removed.
Land Pride
24658
Rear Metal Deflector
Figure 1-8
Rear Chain Guard Installation (Optional)
Refer to Figure 1-9:
4. Install center chain guards (#3 & #4) with four
new 1/2”-13 x 1” GR5(#7) carriage bolts (#7) as
shown. Secure with 1/2” whiz nuts (#8). Do not
tighten nuts.
5. Reattachtailwheelver tical support (#5) withfour
existing1/2”-13 x 1 1/2” GR5carriage bolts (#6).
Securewith 1/2” hex flangelocknuts (#9). Donot
tighten nuts.
6. Install far left and r ight chain guards (#1 & #2)
with four1/2”-13x 11/2” GR5 carriage bolts(#7)
and 1/2” whiz nuts (#8) as shown.
7. Tighten all 1/2” nuts (#8 & #9) to 76 ft-lbs as
indicated in the “Torque Values Chart” on
page 33.
24659
Rear Chain Guard
Figure 1-9
RCR1884 Series Rotary Cutters 312-880M
14
9/24/08
Page 17
Land Pride
Section 1: Assembly and Set-Up
Table of Contents
3-Point Tractor Hook-Up
Refer to Figure 1-10:
!
DANGER
Tractor hook-up to equipment is dangerous and can result in
serious injury or death. Do not allow anyone to stand between
the cutter and tractor during hook-up operations. Do not
operate the hydraulic 3-point lift controls while someone is
directly behind the tractor or near the cutter.
You will need to purchase two adapter bushings if
attaching this cutter to a 3-Point Category I hitch. See
“Category l Adapter Bushings” on page 9 for additional
information and bushing part number.
The tractor’s lower 3-Point arms must bestabilized to
preventside-to-side movement.Mosttractors havesway
blocks or adjustable chains for this purpose.
1. Locate on a flat and level concrete surface.
2. Slowlybacktractorup tothe Rotary Cutterwhile using
the tractor’s 3-point hydraulic control to position the
tractor’slower hitch link holes (#1) in the clevis and
aligned with thehitch pins (#2).
3. Engage tractor park brake, shut tractor engine off
and remove key before dismounting from tractor.
4. Attach lower hitch linkholes (#1) to the clevises with
hitch pins (#2). Secure with linch pins (#3).
5. Connect top center link (#4) to the upper hitch (#5)
with customer supplied clevis pin and linch pin. If
required, start tractor and slowly raise 3-point hitch
to align center link with hitch pin hole.
6. Ensure that lower hitch arms areblocked to prevent
excessive side movement.
7. Return to tractorand slowly operate controls upand
downto checkforclearance betweencutter deckand
tractor tires and drawbar.Move or remove drawbarif
it interferes.
8. Manually adjust a lower lift arm (#1) up or down to
level the Rotary Cutter from left to right.
9. Manually adjust the center link (#4) length to level
cutter from front to rear.
10. Final deck leveling adjustments will be made later.
11. The liftlink rodsonyour tractor’s3- point hitchshould
be adjusted to allow for lateral float. Please consult
you tractor’s manual for adjusting instructions.
9/24/08
3-Point Tractor Hook-Up
Figure 1-10
RCR1884 Series Rotary Cutters 312-880M
24660
15
Page 18
Section 1: Assembly and Set-Up
Table of Contents
Land Pride
Driveline Installation
An additional driveline may be required if the Rotary
Cutter is used on more than one tractor especially if a
quick hitch is used.
!
CAUTION
Do not use a PTO adaptor.A PTOadapter will increasestrain
on the tractor’s PTO shaft resulting in possible damage the
shaft and driveline.
!
CAUTION
Tractor PTO shield and all Rotary Cutter guards must be in
place at all times during operation!
!
CAUTION
Always engage parking brake, shut off tractor and remove key
before dismounting from tractor.
!
WARNING
Damaged drivelines can cause serious injury or death.
IMPORTANT: Some tractors are equipped with
multispeed PTO ranges. Be certain your tractor ‘s
PTO is set for 540 rpm.
IMPORTANT: Avoid premature driveline
breakdown. A driveline that is operating must not
exceed an angle of 25 degrees up or down while
operating the 3-point lift. See Figure 1-11 below.
24872
Maximum PTO Driveline Movement During Operation
Figure 1-11
Driveline Minimum Length
IMPORTANT: Always check driveline minimum
length during initial setup, when connecting to a
differenttractor and when alternating between using
aquick hitch and astandard 3-point hitch. More than
one driveline may be required to fit all applications.
IMPORTANT: It is necessary to align and level the
tractor’s PTO shaft with the gearbox shaft when
checking driveline minimum length. Too long a
driveline can damagetractor, gearbox and driveline.
Refer to Figure 1-10 on page 15:
1. Remove covering (#6) over gearbox shaft.
2. Obtain the shortest distance possible between
tractor PTO shaft and gearbox shaft by starting the
tractor and slowly engaging 3-point lift to move the
lower arms up or down until the gearbox shaft is
aligned and level with the tractor's PTO shaft.
Securely block cutter deck in this position.
3. Place tractor gear selector in park, shut tractor
engine off, set park brake and remove switch key.
4. Attach dr iveline to cutter and tractor as follows:
a. Slide inner yoke of driveline over the gearbox
shaft and secure with locking collar.
b. Slideouter yokeofdriveline overthetractor's PTO
shaft and secure with locking collar.
c. Skip tostep 6on page17 ifdriveline fits between
tractor and Rotary Cutter.
5. The driveline will require shortening ifit is toolong to
fit between the tractor and Rotary Cutter. Shorten
driveline as follows:
a. Checkto make sure cutter and tractorPTO shafts
are level with each other and the deck issecurely
supported at this height with support blocks.
Refer to Figure 1-12 on page 17:
b. Pull driveline profiles apart into two sections.
c. Attach outer driveline universal joint to tractor
PTO shaft and inner driveline universal joint to
gearboxshaft. Pull oneach driveline section tobe
sure universal joints are secured.
d. Hold driveline sections parallel to each other to
determine ifthey aretoo long.The inner andouter
shieldson eachsection shouldend approximately
1" short of reaching the universal joint shield on
the adjacent section(see “B” dimension). If they
are too long, measure 1" (“B” dimension) back
fromtheuniversal joint shield and makea mark at
this location on the inner and outer driveline
shields.
e. Cut off inner shield at the mar k (“X” dimension).
Cut the same amount off the inner shaft (“X1”
dimension). Repeat cutoff procedure (“Y”&“Y1”
dimensions) to the outer driveline half.
f. Remove all burrs and cuttings.
RCR1884 Series Rotary Cutters 312-880M
16
9/24/08
Page 19
Land Pride
Table of Contents
Section 1: Assembly and Set-Up
22311
Driveline Shortening
Figure 1-12
Refer to Figure 1-12:
6. With dr iveline profiles pulled apart, apply multipurpose grease tothe inside of theouter profile and
reassemble the two profiles.
7. Attach inner driveline yoke to the gearbox shaft and
outer dr iveline yoke to the tractor's PTO shaft.
8. The driveline shouldnow bemoved back and forth to
insure that bothends are secured. Reattach any end
that is loose.
Refer to Figure 1-10 on page 15:
IMPORTANT: Two small chains are supplied with
the driveline. These chains must be attached to
outer and inner driveline yoke shields and to the
cutter deck and tractor to restrict driveline shields
from rotating.
9. Hook a safetychain in the hole on the outer driveline
yoke shield and its opposite end to the tractor.
10. Hook the other safety chain in the hole on the inner
driveline yoke shield and its opposite end to the
cutter.
11. Star t tractor and raise Rotary Cutter just enough to
remove support blocks fro under the cutter deck.
12. Slowly engage tractor’s 3-point controls to lower the
cutter. Check for sufficient drawbar clearance. Move
drawbar ahead, aside or remove if required.
9/24/08
RCR1884 Series Rotary Cutters 312-880M
17
Page 20
Table of Contents
Section 2: Adjustments
Section 2: Adjustments
Leveling Procedure
There are 4 primary adjustments that should be made
prior to actual field operations:
Deck leveling from left to right
•
Tractor top link length
•
Tractor lower link height
•
Tailwheel height
•
Proper adjustment of each of these itemswill provide for
higher efficiency, improved cutting performance and
longer blade life. The following tools willbe needed:
Pliable tape measure
•
Carpenters level
•
3/4” Open end or hex end wrench or socket set
•
Protective gloves
•
Deck Leveling From Left to Right
Refer to Figure 2-1:
1. Locate tractor and Rotary Cutter on a flat, level
surface.
2. Use tractor’shydraulic 3-point control tolower cutter
until tailwheel contacts ground surface.
!
DANGER
Engage parking brake, disengage PTO, shut off tractor and
remove key before proceeding. Ensure that all moving parts
have come to a complete stop before dismounting from tractor.
3. Place aCarpenters level or other suitableleveling
deviceonthe frontof thecutter deck.Adjust eitherone
or both of the tractors 3-point lower link height
adjustments to levelthe deck from left to right. Some
tractors have only a single adjusting crank.
Land Pride
!
DANGER
Engage parking brake, disengage PTO, shut off tractor and
remove key before proceeding. Ensure that all moving parts
have come to a complete stop before dismounting from tractor.
IMPORTANT: Blade positioning is ver y important.
The bladesshould be positioned to cut mater ial only
at the front of the cutter as shown in
page 19
the front, then the blades are subject to continuous
material flow resulting in additional blade wear,
horsepower loss and frequent blade sharpening.
Refer to
1.
2.
Refer to
3.
4.
5.
6.
7.
. Ifdeck is levelor rear of cutter is lowerthan
Figure 2-1:
Place a Carpenters level on one of the main deck
channels. Using the tractor’s 3-point hydraulic
control lever, raise or lower the 3-point ar ms untilthe
deck is slightly lower at the front (approximately 1”
lower) than at the back.
Thetop center linkshould be loosewhen deck rearis
supported by the tail wheel. If not, lengthen center
link until loose. Final adjustment will be made later.
Figure 2-5 on page 19:
With gloves on, carefully rotate each blade to the
position shown in Figure 2-5 on page 19.
At the frontof the
blade cutting tip to ground surface. This distance is
known as the “Nominal Cutting Height”.
The tail wheel will need adjusting if nominal cutting
height is not at the preferred cutting height. Adjust
tailwheel per instructions on page 19.
Repeat steps 1 to 5 until preferred cutting height is
achieved.
Set stop on tractor lift quadrant so
returned to the same height.
, measure thedistance from
cutter
Figure 2-5 on
can be
cutter
Top Center Link Length Adjustment
Refer to
1.
2.
3.
Figure 2-2:
Lower
Adjust length of tractor’s 3-pointtop center link such
that the top and bottom hitch pins are aligned
vertically with each other.
Lock center link in this position.
deck to the nominal cutting height.
cutter
13831
Deck Leveling
Figure 2-1
Deck Leveling From Front to Rear
!
CAUTION
Wear a pair ofgloves when checkingcuttingheight. Avoiddirect
contact with the cutting edge of the blade.
RCR1884 Series Rotary Cutters 312-880M
18
Vertical
Alignment of
Hitch Pins
24661
Top Link Adjustment
Figure 2-2
9/24/08
Page 21
Land Pride
Table of Contents
Section 2: Adjustments
Single Tail Wheel Height Adjustment
Refer to Figure 2-3:
The single tailwheel must be adjusted if cutting height is
too high or too low.
1. Use tractor’s 3-point hydrauliccontrol to lift the
tailwheel off the ground.
2. Remove1/2”-13 x1 1/2"GR5 carriage headbolt (#5)
and 1/2” hex flange locknut (#6).
3. Adjust tailwheel (#2) up or down to desired cutting
height by repositioning adjusting plate (#1) and
replace attaching hardware.
24662
Single Tailwheel Height Adjustment
Figure 2-3
Dual Tail Wheel Height Adjustment
Refer to Figure 2-3:
The dual tailwheels must be adjusted if cutting height is
too high or too low.
1. Use tractor’s 3-point hydrauliccontrol to lift the
tailwheels off the ground.
2. Remove 1/2” -13 x 3 1/2" GR5 bolts (#2).
3. Adjust tailwheel (#1) up or down to desired cutting
height and reinsert 1/2” -13 x 3 1/2" GR5 bolts (#2).
4. Secure 1/2” bolts with 1/2” flange lock nuts (#3).
Tighten lock nuts to correct torque.
For best cutting efficiency, adjust the
lower 3-point arm height such that the
front cutter blade is approximately 1"
lower than the rear cutter blade.
24689
Dual Tailwheel Height Adjustment
Figure 2-4
9/24/08
Nominal Cutting Height
Figure 2-5
RCR1884 Series Rotary Cutters 312-880M
24661
19
Page 22
Table of Contents
Section 3: Operating Instructions
Section 3: Operating Instructions
Operating Check List
Hazard control and accident prevention are dependent
upon the awareness, concern, prudence and proper
training involved in the operation, transport,
maintenance and storage of the Rotary Cutter.
Therefore, it is absolutely essential that no oneoperates
the Rotary Cutter without first having read,fully
understood and become totally familiar with the
Operator’s Manual. Make sure the operator has paid
particular attention to:
• Important Safety Information, pages 1 to 7
• Section 1: Assembly and Set-Up, page 9
• Section 2: Adjustments, page 18
• Section 3: Operating Instructions, page 20
• Section 5: Maintenance and Lubrication, page 24
Operating Checklist
Check Reference
Read “Important Safety Information”
Read “Assembly & Set-up” Instructions.
Read “Operating Instructions”
Check oil level in gearboxes. Make sure
all plugs have been replaced properly.
Check cutter initially and periodically for
loose bolts & pins, See Torque Values
Chart.
Make sure all guards and shields are in
place.
Lubricate cutter as needed. Refer to
“Maintenance and Lubrication”.
With cutter attached to a tractor and PTO disengaged
and completely stopped, make the following inspections:
1. Inspect tractor safety equipment to make sure itis in
good working condition.
2. Carefully raise and lower implement to ensure that
thedrawbar,tires,and otherequipment onthe tractor
do not contact the cutter frame or PTO driveline.
3. Check PTO guards to make certain they arein good
working condition and in place.
4. With PTO disengaged and completely stopped,
check cutting blades for sharpness.
5. Adjust tractor lower3-point arms such that the deck
is set to cutting height.
IMPORTANT: Stop PTO immediately if vibration
continues after a fewrevolutionsduring start-up and
anytimeit occurs thereafter. Waitfor PTOto come to
a complete stop before dismounting from tractor to
check for probable causes. Make necessary repairs
and adjustments before continuing on.
Page 1
Page 9
Page 20
Page 27
Section 1
Page 1
Page 27
Land Pride
6. Start tractor, set throttle to idle or slightly above idle
and slowly engage the PTO. Initial start-up vibration
is normal and should stop after a few revolutions.
StopPTO rotationimmediately if vibrationcontinues.
IMPORTANT: Do not exceed rated PTO speed of
the cutter. Excessive engine speed will cause
damage to the power train components.
7. Once the cutter is running smoothly,increase tractor
PTO speed to540 RPM. Stop PTO rotation
immediately if vibration occurs.
Transporting
!
CAUTION
When traveling on public roadsat night or during the day, use
accessory lights and devices for adequate warning to
operators of other vehicles. Comply with all federal, state and
local laws.
IMPORTANT: Always disengage the tractor’s PTO
before raising the cutter to transport position.
1. Makesure driveline does notcontact tractor or cutter
when raising cutter to the transport position.
2. Reduce tractor ground speed when turning and
leave enough clearance so cutter does not contact
obstacles such as buildings, trees or fences.
3. Limit transport speedto 20 mph.Transport onlywith
a farm tractor of sufficient size and horse power.
4. Whentraveling onroadways, transport in sucha way
that faster movingvehicles may pass you safely.
5. Shift tractor to a lower gear when traveling over
rough or hilly terrain.
Un-hooking the Rotary Cutter
Un-hook Rotary Cutter from the tractor asfollows:
1. Park on a level solid surface.
2. Lowerdeck to levelground orontoblocks supporting
the deck just above ground level.
3. Engage tractor parkbrake,shut tractor engine off and
remove key before dismounting from tractor.
4. Disconnect driveline from tractor PTO shaft.
5. Un-hook 3-point hitch from tractor. Reinstall hitch
pins, linch pins andhair pincotters incutter hitch for
storage.
6. See “Cutter Storage” on page 26 if cutter is to be
stored for a long time.
RCR1884 Series Rotary Cutters 312-880M
20
9/24/08
Page 23
Land Pride
Section 3: Operating Instructions
Table of Contents
Cutting Instructions
!
CAUTION
Do not over speed PTO or machine damage may result. This
cutter is designed tobe used only with a tractor having a 540
RPM rear PTO.
!
WARNING
The RCR186 series cutter is designed to cut grass and brush
up to 1 1/2” in diameter. Using this cutter for another type of
work can damage the drive components, deck and support
frame.
!
DANGER
Gearbox and driveline shields must be secured in place when
operating to avoid injury or death from entanglement in
rotating drivelines.
!
DANGER
Rotary Cutters have the ability to discharge objects at high
speeds. Therefore, the use of front & rear deck safety shields
is strongly recommended when cutting along highways or in
an area where people may be present!
!
DANGER
Never operate the cutter in theraised position. The cutter can
discharge object at high speeds resulting in serious injury or
death.
!
DANGER
Do not cut on steep inclines. The tractor and cutter could flip
over causing damage to the equipment, serious bodily injury
or death.
!
DANGER
Do not use cutter to lift or carry objects. Lifting and/or
carrying objects can result in damage to the cutter, serious
bodily injury or death.
!
DANGER
Never carry a person on the cutter. A person can fall and be
ran over by the cutter or tractor causing serious injury or
death.
!
DANGER
Do not use deck as a working platform. The deck is not
properly designed or guarded for this use. Using deck as a
working platform can cause serious injury or death.
!
DANGER
Do not use deck as a fan. Cutting blades are not properly
designed or guarded for this use. Using the deck as a fan can
result in injury and/or death.
NOTE: Your Rotary Cutter is equipped with free
swinging cuttingblades to reduce shock loads to the
cutter if striking obstacles.
IMPORTANT: It isimportant tomaintain correct RPM
PTO speed. Loss ofPTO speed will allow the blades
to hinge back and result in ragged, uneven cutting.
This cutter was designed tocutgrassand medium brush
in right-of-ways, pastures and for shredding row crop
residues.
1. Thoroughly Inspect the area to be cut for debris and
unforeseen objects. Mark any potential hazards.
2. Start the machine slowly; do not use full throttle.
Allow 10 seconds for cutter blades to become
aligned proper ly before going to 540 RPM.
3. Neverrun fastenough tooverload thetractor orcutter.
Ground speed depends on two things:
• The density of material being cut.
• The size of tractoroperating the cutter.
4. After the first 50 feet, stop and check to seethat the
cutter is adjusted properly.
5. Do not engage PTO with machine in the fully raised
or lowered position.
6. Periodically disengage PTO, turn off tractor, remove
ignition key and check for foreign objects wrapped
around the rotor shaft. Block cutter deck up before
removing objects.
General Operating Instructions
It is important that you familiarized yourself with the
Operator’s Manual, completed Operators Checklist,
properly attached cutter to your tractor, made leveling
adjustments, and preset your cutting height before
beginning a running operational safety check on your
Land Pride 84" Rotary Cutter.
The running operational safety check maynow be done.
It is important that at any time during this safety check
youdetect a malfunctionin either thecutter or tractorthat
you immediately shut the tractor off, remove its’ key, and
make necessary repairs and/or adjustments before
continuing on.
Make sure before startingthe tractorthat the park brake
is engaged, the PTO is disengaged, and the cutter is
restingon theground.Start thetractor and setthe engine
throttle speed at a low idle. Raise the cutter with the
tractor’s rear hydraulic lift control lever to transport
9/24/08
RCR1884 Series Rotary Cutters 312-880M
21
Page 24
Section 3: Operating Instructions
Table of Contents
Land Pride
position making sure that the PTO shaft does not bind
anddoes notcontactthe cutterframe. Lower thecutter to
the ground and at a low engine speed engage the PTO.
If everything is running smoothly at a low idle, slowly
raise the cutter to transport height checking for bind or
chatter in the driveline. Lower the cutter to the ground
and increase the tractor’s engine rpm until itreaches the
cutter full PTO operating speed of 540rpm. If everything
is still running smoothly, once more raise the cutter to
transport height to check for driveline bindor chatter.
Lower the cuttertotheground, return the engine to a low
idle, and disengage the PTO. Position theadjustable
stops on the tractor’s hydraulic lift lever so the cuttercan
be consistently returned to the same cutting and
transport height.
You should now be ready to transport to your cutting site
at a safe ground speed. On roadways transport insuch
a manner that faster movingvehicles can easilysee you
and passyousafely.Reduce your speed when travelling
overrough and hillyterrain. Avoidquickor sharpsteering
corrections. Take extra care to insure thatthe mower
doesn’t come into contact with obstacles such as trees,
buildings or fences. Use accessory lights and
appropriate reflective devices to provide adequate
warningto pedestrians andother vehicle operatorswhen
travelingonpublic roads and in thedark of night. Comply
with all local, state and federal laws.
It isimportantthatyou inspect the area where you will be
cutting and clear itof safetyhazards andforeign objects
either before or afteryou arriveat thecutting site. Never
assume the area is clear. Cut only in areas you are
familiar with and are free of debris and unseen objects.
Extremely tall grass should be cut twice to detect
potential hazards. In the event you do strike an object
stop the cutter and tractor immediately toinspect and
make necessary repairs to the cutter before resuming
operation. It really pays to inspect a new area and to
develop a safe plan before cutting.
You will need to maintain 540 rpm PTOspeed and 2 to 5
mphground speed toproduce a cleancut. Make atractor
gear and range selection that will enable you to maintain
these speedcombinations. Generally the quality of cut is
better at lower ground speeds. Dense ground cover will
create the need to slow down even more. In certain
conditions tractor tires will roll grass down resulting in an
uneven cut when the grass fails to rebound. Should this
happensyou may try reversingthe direction ofcutand/or
double cut to achieve the desired finish. Avoid very low
cutting heights especially on extremely uneven terrain.
Always cut downward on slopes and avoid crossing the
face of steep slopes. Avoid sharp drops and cross
diagonally throughdipsto prevent hanging up the tractor
and cutter. Slow down in turns. Remember to look back
often.
Nowthat you’re preparedand well briefedyou may begin
cutting. Begin mowing by doing the following:
• Reducing the tractor’s engine rpm
• Make sure the cutter ison the ground incuttingposition
• Engage the PTO
• Raise the engine rpm to the appropriate PTO speed
• Begin mowing.
Make wide turns when possible. Three-point hitch and
optional Quick-Hitch models can be lifted into transport
position to make tight turns and to reverse direction. Try
increasing or decreasing ground speed todetermine the
effect on quality of cut. With a little practice you will be
pleasedwith whatyouand yourLand Pride RotaryCutter
can do.
Whether you aredone mowing, need to take a break, or
just need to make a few adjustments to the cutter,
remember to always do the following:
• Reduce the tractor’s engine rpm
• Disengage the PTO
• Stop on level ground
• Set the park brake
• Turn off the engine and remove the key
• Stay on the tractor until the cutter blades have come to
a complete dead stop.
RCR1884 Series Rotary Cutters 312-880M
22
9/24/08
Page 25
Land Pride
Table of Contents
Section 4: Options
Section 4: Options
Front and Rear Safety Guard Options
!
DANGER
Rotary Cutters have the ability to discharge objects at high
speeds; therefore, use of front and rear safety shields is
strongly recommended when cutting along highways and in
areas where people may be present.
IMPORTANT: Not all objects will be stopped by
safety shields. Therefore, Land Pride recommends
using extreme cautionwhen cutting in public areas.
It is best to operate the Rotary Cutter when no one
is within 300 feet of the cutter.
Land Pride offers two types of front guards to best suit
your application. They are the rubber skirt guard and
chain skirt guard. The rubber skirt guardis more
economical and designed for light duty applications. The
chain guard is designed to handle heavier applications
where cutter blades make contact with solid dense
objects that are capable of tearingthrough rubber skirts.
Front Rubber Guard
Refer to Figure 4-1:
Part Number & Description
312-866A Front Rubber Guard Assembly
See “Front Rubber Guard Installation” on page 13 for
proper installation.
Front Chain Guard
Refer to Figure 4-2:
Part Number & Description
312-869A Front Chain Guard Assembly
See “Section 1: Assembly and Set-Up” onpage 13 for
installation.
Land Pride offers a rear chain safety guard designed to
handle heavy applications where cutter blades make
contact with solid dense objects.
24663
Front Rubber Guard
Figure 4-1
24663
Front Chain Guard
Figure 4-2
Rear Chain Guard
Refer to Figure 4-3:
The rear chain safety guard is designed for heavy
applications and open the rear to allow material to
discharge better. See “Section 1: Assembly and Set-Up”
on page 14 for installation.
Part Number & Description
312-872A Rear Chain Guard Assembly
Accessories
Category l Center 3-Point Adapter Bushing
The RCR1884 Rotary Cutter will require twoAdapter
Bushings if attaching the cutter to atractor with a Cat.l
3-point hitch. See “Category l Adapter Bushings” on
page 9 for additional information and bushing part
number.
9/24/08
24663
Rear Chain Guard
Figure 4-3
RCR1884 Series Rotary Cutters 312-880M
23
Page 26
Table of Contents
Section 5: Maintenance and Lubrication
Section 5: Maintenance and Lubrication
Maintenance
Properservicing and adjustmentis the keyto the longlife
of any implement. With careful and systematic
inspection, you can avoid costly maintenance, time and
repair.
After using your Rotary Cutter for several hours, check
all bolts to be sure they are tight.
Replace any worn, damaged or illegible safety labels by
obtaining new labels from your Land Pride Dealer.
Cutter Blade Maintenance
!
DANGER
Always disconnect main driveline from tractor PTO before
servicing the underside of the cutter deck. Cutter can be
engaged if tractor is started resulting in damage to the cutter,
bodily injury and/or death.
!
WARNING
Always secure cutter deck in the up position with solid supports
before servicing the underside of the cutter. Never work under
equipment supported by hydraulics. Hydraulics can drop
equipment if controls are actuated or if hydraulic lines burst.
Either situation can drop the cutter instantly even when power
to the hydraulics is shut off.
Land Pride
5. Both blades should be sharpened at the same angle
as the original cutting edge and must be replaced or
re-ground at the same time to maintain proper
balance. The following precautions should be taken
when sharpening blades:
a. Do not remove more material than necessary.
b. Do not heat and pound out a cutting edge.
c. Do notgrind blades to a razor edge. Leave a blunt
cutting edge approximately 1/16” thick.
d. Alwaysgrind cutting edge so end of blade remains
square to cutting edge and not rounded.
e. Do not sharpen back side of blade.
f. Both blades should weigh the sameafter
sharpening with not more than 1 1/2 oz. difference.
Refer to Figure 5-1:
6. Carefully check cutting edges of blades in relation to
blade carrier rotation to ensure correct blade
placement. Blade rotation is counterclockwise with
cutting edge leading. Airfoil (lift) must be oriented
towards the top of the deck.
IMPORTANT: Replace cutting blades with genuine
Land Pride blades only. Blades must be replaced in
mating pairs. Not replacingboth bladeswill resultin
an out-of-balance condition that will contribute to
premature bearing break down on the spindle hub
and create structural cracks in cutter housing.
Always inspect cutting blades before each use. Make
certainthey are properly installedandare in good working
condition.Replace anyblade that isdamaged, worn,bent,
or excessively nicked. Small nicks can be ground out
when sharpening.
1. Place tractorgearselector in park and/or set brakes,
shut engine off and remove ignition key.
2. Disconnect main driveline from tractor PTO and
secure cutter deck in theup position with solid
supports beforeservicing underside of cutter.
3. Inspect cuttingblades. Make certain theyareproperly
installed and are in good working condition. Replace
anyblade that is damaged, worn,bent, or excessively
nicked. Small nicks can be ground out when
sharpened.
4. To remove blades from the cutter, align blade bolts
with blade bolt access holelocated in the deck as
shown in Figure 5-1.
Blade Bolt
Access Hole
24584
Counterclockwise Blade Rotation
Figure 5-1
Refer to Figure 5-2 on page 25:
IMPORTANT: Examine blade bolts (#1) and
washers(#5) forexcessive wearandreplace if worn.
IMPORTANT: Locknuts can loose their ability to
lock properly once removed. Therefore, always use
a used blade nut or plain nut in steps 7 & 8 below
and then replace used nut with new locknut in
step 9.
7. Start by assembling blades without shim(#2). Insert
blade bolt (#1) through blade (#3), dish pan (#4) and
flatwasher (#5).Temporary secureblade witha used
1 1/8"-12 nut. Draw nut up snug. Do not tighten.
RCR1884 Series Rotary Cutters 312-880M
24
9/24/08
Page 27
Land Pride
Table of Contents
Section 5: Maintenance and Lubrication
8. Check blade deflection. If deflection is greater than
3/4", remove blade bolt and reassemble as before
except include shim (#2) in the assembly. Select
shim thickness based ondeflection. The greater the
deflection, the thicker the shim.
9. Once blade deflection is correct, replace used nut
with new locknut (#6) and torque to 450 ft-lbs.
10. If replacingdishpan (#4),nut on gearboxoutput shaft
should be torqued to 450 ft-lbs. minimum and cotter
pin installed in nut withlegs securelybent around nut.
3/4" maximum
blade deflection
when blade
bolts are tight
!
CAUTION
Engage parking brake, disengage PTO, shut off tractor, and
remove key before making any of the following adjustments.
Refer to Refer to Figure 5-3:
1. Using apencil orother marker, scribea lineacross the
exposed edges of the clutchplates andfriction discs.
Cutter Blade Assembly
Figure 5-2
Land Pride Cutter Blade Parts
Item Part No. Part Description
318-586A BLADE BOLT KIT
(Includes items 1, 2, 5, & 6 below)
1 802-277C BLADE BOLT 1 1/8-12 x 3 7/16 WITH KEY
2 312-075D BLADE SPACER 16 GA. (.060")
2 312-082D BLADE SPACER 18 GA. (.048")
2 312-089D BLADE SPACER 20 GA. (.036")
2 312-808D BLADE SPACER 24 GA. (.024")
3 820-138C CUTTER BLADE 1/2 x 4 x 31 CCW
4 312-881H 27 x 10G OVAL DISHPAN WELDMENT
5 804-147C WASHER FLAT 1 HARD ASTMF436
6 803-170C NUT HEX TOP LOCK 1 1/8-12 PLATE
Driveline Protection
Cutter drive components are protected from shock loads
by a friction slip-clutch. The clutch must be capable of
slippage dur ing operation to protect the gearbox,
driveline and other drive train parts.
Clutch Run-In
Friction clutches should be “r un-in” prior to initial
operation and after long periods of inactivity to remove
any oxidation that may have accumulated on friction
surfaces. To prevent driveline and gear box damage,
repeat “run-in” instructions at beginning of each season
and when moisture and/or condensation seizes inner
friction plates.
13693
Clutch
Figure 5-3
2. Carefullyloosen each of the8 spring retainer nutson
the clutch housing atotal of EXACTLY 2 revolutions.
Itwill be necessary tohold the hexend ofthe retainer
bolt inorderto count the exact numberofrevolutions.
3. Start tractor and engagedriveline for 2-3 seconds to
permit slippage of the clutch surfaces. Disengage
the PTO, then re-engage a second time for 2-3
seconds. Disengage the PTO, shut off tractor and
remove key. Wait for all components to stop before
dismounting from tractor.
4. Inspect clutch and ensure that scribed markings
made on the clutch plates have changed position.
Slippage has not occurred if anytwo marks on the
friction disc and plate are still aligned.
IMPORTANT: The clutch must be disassemb ledinto
separate friction discs if one or more friction disc did
not slip during clutch run-in operation. See Clutch
Disassembly on page 26.
5. Tighten eachspringretainer nut onthe clutch housing
exactly 2 revolutions to restore clutch to original
settingpressure. SeeClutch Assemblyon page 26for
exact spring length.
6. The clutch should be checkedduring the first hour of
cutting andperiodically each week.An additional set
of scribe marks can be added to checkfor slippage.
9/24/08
RCR1884 Series Rotary Cutters 312-880M
25
Page 28
Table of Contents
Section 5: Maintenance and Lubrication
Land Pride
Clutch Disassembly
Refer to Figure 5-4 on page 26:
Disassembly of the clutch is simply amatter of removing
the spring retainer nuts (#1), springs (#2) and bolts (#3)
from the assembly. Each friction disc (#4) must then be
separated from the metal surface adjacent to it.
Clutch Inspection
Inspect all parts for excessivewear and condition. Clean
all parts that do not require replacement.The original
friction disc thickness is 1/8" (3.2 mm) and should be
replaced if thickness falls below 3/64" (1.1 mm). If
clutches havebeen slipped to the point of“smoking”, the
friction discs may be damaged and should be replaced.
Heat build-up may also affect yoke joints.
Clutch Assembly
Refer to Figure 5-4:
Reassemble each friction disc (#4) next to the metal
plate it was separated from. Install bolts (#3) through the
end plates and intermediate plates as shown. Place
springs (#2) over the bolts and secure with nuts (#1).
Refer to Figure 5-5:
Install new frictiondiscs ifneeded and reassemble all
components in properorder. Progressivelytighten each
spring retainer nutuntil spring length is 1.283” (1 9/32”).
24664
Clutch Adjustment
Figure 5-5
Cutter Storage
It is good practice to clean off any dirt or grease that may
haveaccumulatedon the cutter and onanymoving parts
at the end ofaworkingseasonor when the cutter will not
be used for a long period.
!
DANGER
Always disconnect main driveline from tractor PTO and secure
cutter deck in the up position with solid supports before
servicing the underside of the cutter.
Clutch Disassembly
Figure 5-4
19783
1. Clean cutter of all debris.
2. Check bladesforwear and replaceif necessary, see
“Cutter Blade Maintenance” on page 24.
3. Inspect cutter for loose,damaged or worn parts and
adjust or replace as needed.
4. Lubricate as noted under “Lubrication” on page 27.
5. Store cutter inside when possible to prolong its life.
6. Repaint parts wherepaint is worn or scratched to
preventrust. Ask yourdealer forAerosol Land Pride
touch-up paint.
Land Pride Touch-up Paint
Part No. Part Description
821-011C PAINT LP BEIGE SPRAY CAN
821-032C PAINT LP GLOSS BLACK SPRAY CAN
RCR1884 Series Rotary Cutters 312-880M
26
9/24/08
Page 29
Land Pride
Table of Contents
Section 5: Maintenance and Lubrication
Lubrication
Lubrication
Legend
24652
24652
Multi-purpose
spray lube
Multi-purpose
grease lube
Multi-purpose
oil lube
50
Intervals in hours at which
lubrication is required
hrs
Hours
Gauge Wheel Spindle Tube
Type of Lubrication: Multi-purpose Grease
Quantity = 6 pumps
Hours
Gauge Wheel Hub
The gauge wheel hub is equipped with a relief hole
located directly opposite the grease fitting. The relief
hole releases pressure from inside the hubcasting
when it is greased. The hub should be greased until
grease purges from the relief hole.
Type of Lubrication: Multi-purpose Grease
Quantity = Until grease purges from the relief hole
24
8
IMPORTANT: Your cutter is shipped with the
gearbox vent plug with dipstick packaged in the
Operator’s Manual bag and should have been
installed in the gearboxby your Land Pride dealer.
Please see your Land Pride dealerif the vent plug
with dipstick was not included.
9/24/08
24584
8
Hours
Gearbox
IMPORTANT: Do not overfill! Level cutter and wait
for gearbox oil to cool before checking. An unlevel
cutter or a gearbox with hot oil will not show correct
oil level on the dipstick.
Unscrew top vent plug in gearbox to remove dipstick. Wipe
oil from dipstick and screw it back in without tightening.
Unscrew dipstick and check oil level mark. If low, fill
throughtop plug holein gearbox with80-90W EPoiluntil oil
reaches full mark on the dipstick. Reinstall vent plug with
dipstick and tighten.
Take your gearbox to a Land Pride dealer if it requires
service.
Type of Lubrication: 80-90W EP Gear Lube
Quantity = Fill until oil reaches full mark on dipstick.
RCR1884 Series Rotary Cutters 312-880M
27
Page 30
Table of Contents
Section 5: Maintenance and Lubrication
13755
Land Pride
8
Hours
Driveline U-Joints
Type of Lubrication: Multi-purpose Grease
Quantity = 6 pumps
8
Hours
13755
14618
Driveline Shield Bearings
Type of Lubrication: Multi-purpose Grease
Quantity = 6 pumps
20
Hours
Driveline Profiles
Type of Lubrication: Multi-purpose Grease
Quantity = Clean & coat the inner tube of the driveline
with a light film of grease and then reassemble.
RCR1884 Series Rotary Cutters 312-880M
28
9/24/08
Page 31
Land Pride
Table of Contents
Section 5: Specifications & Capacities
Section 5: Specifications & Capacities
RCR1884 Model
RCR1884
Cutting Width 84”
Overall Width 89"
Overall Length with Tail Wheel 133”
Blade Tip Speed 17,113 fpm
Machine Weight (with Front Rubber
Guard and Rear Metal Band)
Driveline ASAE Category 4
Driveline Protection Slip Clutch
Recommended Tractor PTO HP 45 - 90 HP
PTO Speed 540 rpm
Gearbox HP Rating 90 HP
Gearbox 1:1.44 Speed-Up Beveled Gears with Cast Iron Housing
Gearbox Oil Type 80-90W EP Gear Lube
Cutting Height 2” - 11”
Deck Material Thickness 10 Ga.
Deck Height
(Bottom of Deck to Bottom of Skid Shoe)
Skid Construction Standard 1/4” x 2 1/2” welded on
Tailwheel Mount Assembly Welded arm and Caster Fork
Tailwheel 4” x 8” x 15” Laminated Tire
Hitch Category l or Category II Quick Hitch
Stump Jumper Oval 10 ga. Pan
Blades 1/2” x 4" Heat Treated Alloy Steel
Blade Bolt Keyed with harden flat washer and lock nut
Blade Cutting Capacity 1 1/2” Diameter
Front Guard Standard: Rubber Guard
Rear Guard Standard: Metal Banding
851 lbs. without driveline
9 1/8”
Free-Swinging High Lift - Low Friction
Optional: Chain Guard
Optional: Chain Guard
9/24/08
RCR1884 Series Rotary Cutters 312-880M
29
Page 32
Table of Contents
Land Pride
Section 6: Features & Benefits
Section 6: Features & Benefits
RCR1884 Model
Features Benefits
Surpassed rugged
industry standards
Tractor HP range 45 - 90 HP
5 Year gearbox warranty Shows our confidence in the gearbox integrity.
Cat. 4 driveline with
2-plate slip-clutch
Cat I or Cat II Hitch
Quick Hitch Capability
Lower clevis type
3-point hitch
84” Cutting width Wide cutting width, Reduces cutting time in the field.
Heavy 10 gauge
deck construction
Box tubing deck supports Makes for a stronger rigid deck.
Fully welded deck Adds additional strength.
Extended cutter front For increased material flow and added protection.
Round back design Helps discharge grass better than enclosed or partially enclosed cutter.
9 1 1/2” Deck Height Allows cutter to handle heavy cutting conditions.
2” to 11” Cutting height Provides for a wide range of cutting conditions.
Standard rear guard: Metal band Aids against flying debris.
Optional rear guard: Chain guard Provides better material discharge relief than metal band guard.
Optional front guard: Rubber guard
Chain guard
1/4” x 2 1/2” Full length
skid shoes
Splined blade bar hub Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.
10 Gauge stump jumper Standard oval stump jumper slides over stumps, rocks and debris.
High blade tip speed Ensures clean cut. (17,113 FPM)
15” Laminated tailwheel Laminated material is long lasting in rough conditions.
Heavy-duty spindle
on tailwheel
1 1/2” Cutting capacity Can aid in cleaning brush
90 Hp gearbox A rugged heavy built gearbox capable of handling heavy cutting applications.
All Land Pride Rotary Cutters have been designed and tested and meet rigorous
voluntary testing procedures specified by ANSI.
Slip-clutch driveline offers convenience for continual work.
Permits deck to follow the terrain for an even cut.
Quick Hitch provides for fast hook-up.
Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even
pull from the tractor’s lower arms, vs. pulling on a single pin design.
Can withstand more abuse than lighter gauge decks.
Aids against flying debris.
Provides better protection than the rubber guard.
Provides sidewall reinforcement and full protection to bottom of sidewall.
Tailwheels take a beating, 1 1/4” spindle gives the strength to protect tailwheel
assembly.
RCR1884 Series Rotary Cutters 312-880M
30
9/24/08
Page 33
Land Pride
Table of Contents
Section 7: Troubleshooting
Section 7: T roubleshooting
Problem Cause Solution
Oil seal leaking
Driveline yoke or cross failing
Driveline
clutch slipping
Bent Driveline (NOTE:driveline should
be repaired or replaced if bent)
Driveline
telescoping tube failing
Gearbox overfilled Drain to side plug hole
Seals damaged Replace seals
Grass or wire wrapped on
shaft in seal area
Shock load Avoid hitting solid objects
Needs lubrication Lubricate every 8 hours
Scalping the ground Raise cutting height
Cutting too fast Reduce travel speed
PTO being engaged too
fast at high engine rpm
Cutting over solid objects Avoid solid objects
Contacting frame Reduce lift height in transport position
Contacting drawbar Reposition drawbar
Bottoming out Shorten driveline
Binding up Not lubricating enough
Shock load Avoid hitting solid objects
Check seal areas daily
Slowly engage PTO at low engine rpm
Driveline
telescoping tube wearing
Blades wearing excessively
Blades breaking
Blades coming loose
Blade carrier becomes loose
Blade bolt holes worn
Blade carrier bent
Excessive side skid wear
T ail wheel support failing
Needs lubrication Lubricate every 20 hours
Cutting on
sandy ground
Contacting
ground frequently
Hitting solid objects Avoid hitting solid objects
Blades not
tightened properly
Improper deck attitude Lower front of deck, see page 14
Running loose in the past Replace gearbox output shaft and blade carrier
Blade carrier hardware not
tight enough
Blade hardware running loose Replace blades and blade bolts if worn
Hitting solid objects Avoid hitting solid objects and replace blade carrier
Cutting height not level Adjust cutter height
Soil abrasive Adjust cutter height
Cutting too low Adjust cutter height
Lowering too fast Adjust rate of drop
Hitting objects when turning Reduce speed on turns
Raise cutting height
Raise cutting height
Tighten blade hardware (refer to
“Cutter Blade Maintenance” on page 24
Tighten to specified torque
9/24/08
RCR1884 Series Rotary Cutters 312-880M
31
Page 34
Table of Contents
Section 7: Troubleshooting
Problem Cause Solution
Land Pride
Excessive vibration
Driveline bent Replace driveline
Blades loose Tighten blade bolts
Blade carrier bent Replace blade carrier
Blade broken Replace blade
Blade will not swing Remove and inspect blade
Blades have unequal weight Replace both blades
RCR1884 Series Rotary Cutters 312-880M
32
9/24/08
Page 35
Land Pride
Section 8: Appendix
Section 8: Appendix
Table of Contents
Torque Values Chart for Common Bolt Sizes
Bolt Head Identification
Bolt Size
(Inches)
1
in-tpi
1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 436597
1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11
5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 2010
1 3/8" - 6 890 655 1990 1470 3230 2380
1 3/8" - 12 1010 745 2270 1670 3680 2710
1 1/2" - 6 1180 870 2640 1950 4290 3160
1 1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
Grade 2 Grade 5
Grade 8
N·m2ft-lb3N·m ft-lb N·m ft-lb mm x pitch N·m ft-lb N·m ft-lb N·m ft-lb
Bolt Size
(Metric)
1
in-tpi = nominal thread diameter in inches-threads per inch
2
N· m = newton-meters
3
ft-lb= foot pounds
4
mm x pitch = nominal thread diameter in millimeters x thread
pitch
Bolt Head Identification
5.8 8.8 10.9
Class 5.8 Class 8.8 Class 10.9
Additional Torque Values
Blade Bolt Lock Nut 450 ft-lbs
Blade Carrier Hub Nut 450 ft-lbs minimum
9/24/08
RCR1884 Series Rotary Cutters 312-880M
33
Page 36
Section 8: Appendix
Notes
Table of Contents
Land Pride
RCR1884 Series Rotary Cutters 312-880M
34
9/24/08
Page 37
Land Pride
Section 8: Appendix
be free from defects in material and workmanship beginning on the date of
purchase by the end user according to the following schedule when used as
intended and under normal service and conditions for personal use.
and the installation by the dealerof any such replacement part, and does not cover
common wearitems such as blades, belts, tines, etc. Land Pride reserves theright
to inspect any equipment or parts which are claimed to have been defective in
material or workmanship.
judgment shall have been misused or damaged by accident or lack of normal
maintenance or care, or which has been repaired or altered in a way which
adversely affects its performance or reliability, or which has been used for a
purpose for which the product is not designed. Misuse also specifically includes
failure to properly maintain oil levels, grease points, and driveline shafts.
the product and all warranty adjustmentsmust be made throughsuch dealer. Land
Pride reserves the right to make changes in materials or design of the product at
any time without notice.
of any kind, direct, consequential, or contingent to property. Furthermore, Land
Pride shall not be liable for damages resulting from any cause beyond its
reasonable control. This Warranty does not extend to loss of crops, any expense
or loss for labor, supplies, rental machinery or for any other reason.
with respect to this sale; and all implied warranties of merchantability and
fitness for a particular purpose which exceed the obligations set forth in this
written warranty are hereby disclaimed and excluded from this sale.
the date of purchase by the end user.
Table of Contents
Warranty
Land Pride warrants to the original purchaser that this Land Pride product will
Overall Unit and Driveline: One year Parts and Labor
Gearbox: 5 years Parts and Labor
Blades, tires and driveline friction discs: Considered wear items
This Warranty is limitedto the replacement of any defective part byLand Pride
This Warranty does not apply to any part or product which in Land Pride’s
Claims under this Warranty must be made to the dealer which originally sold
This Warranty shall not be interpreted to render Land Pride liable for damages
No other warranty of any kind whatsoever, express or implied, is made
This Warranty is not valid unless registered with Land Pride within 30 days from
9/24/08
RCR1884 Series Rotary Cutters 312-880M
35
Page 38
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
