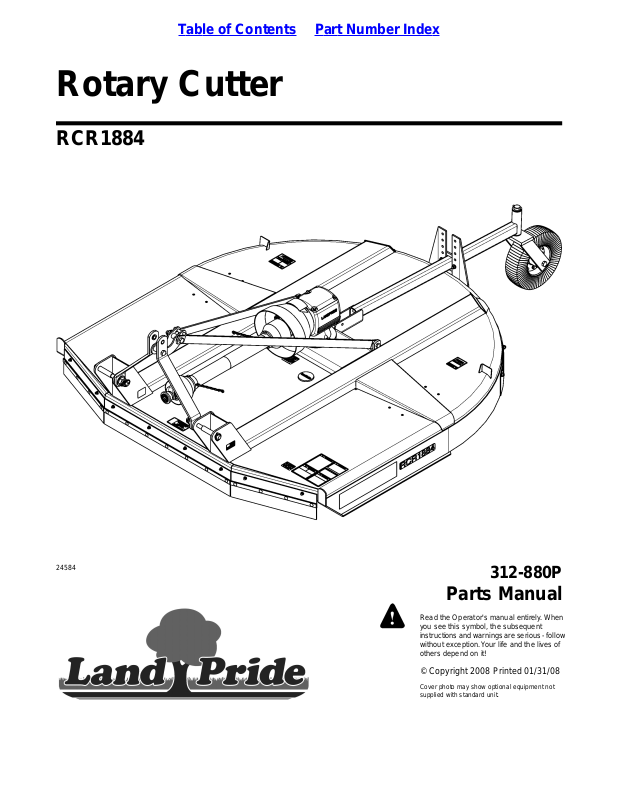

Rotary Cutter

RCR1884

24584

312-880P

Parts Manual

Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!

© Copyright 2008 Printed 01/31/08

Cover photo may show optional equipment not
supplied with standard unit.

Table of Contents Part Number Index

Table of Contents

Section 1: Introduction.................................................4

Using This Manual...............................................................4

Manual Replacement Information.......................................4

Manual Revisions................................................................4

Touch-up Paint....................................................................4

Hardware Legend................................................................5

Replacement Hardware......................................................5

Serial Numbers...................................................................5

Part Number Service Coding..............................................5

Section 2: Deck..............................................................6

Deck and Rear Deflector.....................................................6

Hitch Components...............................................................8

Section 3: Blade Drive.................................................10

Blade Drive........................................................................10

Driveline w/ Slip Clutch (826-510C)..................................12

Gearbox (826-376C).........................................................14

Section 4: Options.......................................................16

Gauge Wheel Dual............................................................16

Gauge Wheel Single.........................................................18

Guard Chain Front.............................................................20

Guard Chain Rear.............................................................22

Guard Rubber Front..........................................................24

Skid Shoe Kit.....................................................................26

Section 5 Labels..........................................................28

Label Placement...............................................................28

Part Number Index.......................................................30

© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,

Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.

All other brands and product names are trademarks or registered trademarks of their respective holders.

Land Pride is registered trademark.

Printed in the United States of America.

2 RCR1884 Rotary Cutter 312-880P 01/31/08

Table of Contents Part Number Index

B

Blade Drive...................................................................10

D

Deck and Rear Deflector................................................6

Driveline w/ Slip Clutch (826-510C).............................12

G

Gauge Wheel Dual.......................................................16

Gauge Wheel Single....................................................18

Gearbox (826-376C)....................................................14

Guard Chain Front........................................................20

Guard Chain Rear........................................................22

Guard Rubber Front.....................................................24

H

Hitch Components..........................................................8

L

Label Placement..........................................................28

Alphabetized Table of Contents

S

Skid Shoe Kit................................................................26

01/31/08 RCR1884 Rotary Cutter 312-880P 3

Table of Contents Part Number Index

4 RCR1884 Rotary Cutter 312-880P 01/31/08

Table of Contents Part Number Index

01/31/08 RCR1884 Rotary Cutter 312-880P 5

Land Pride Section 2: Deck

Table of Contents Part Number Index

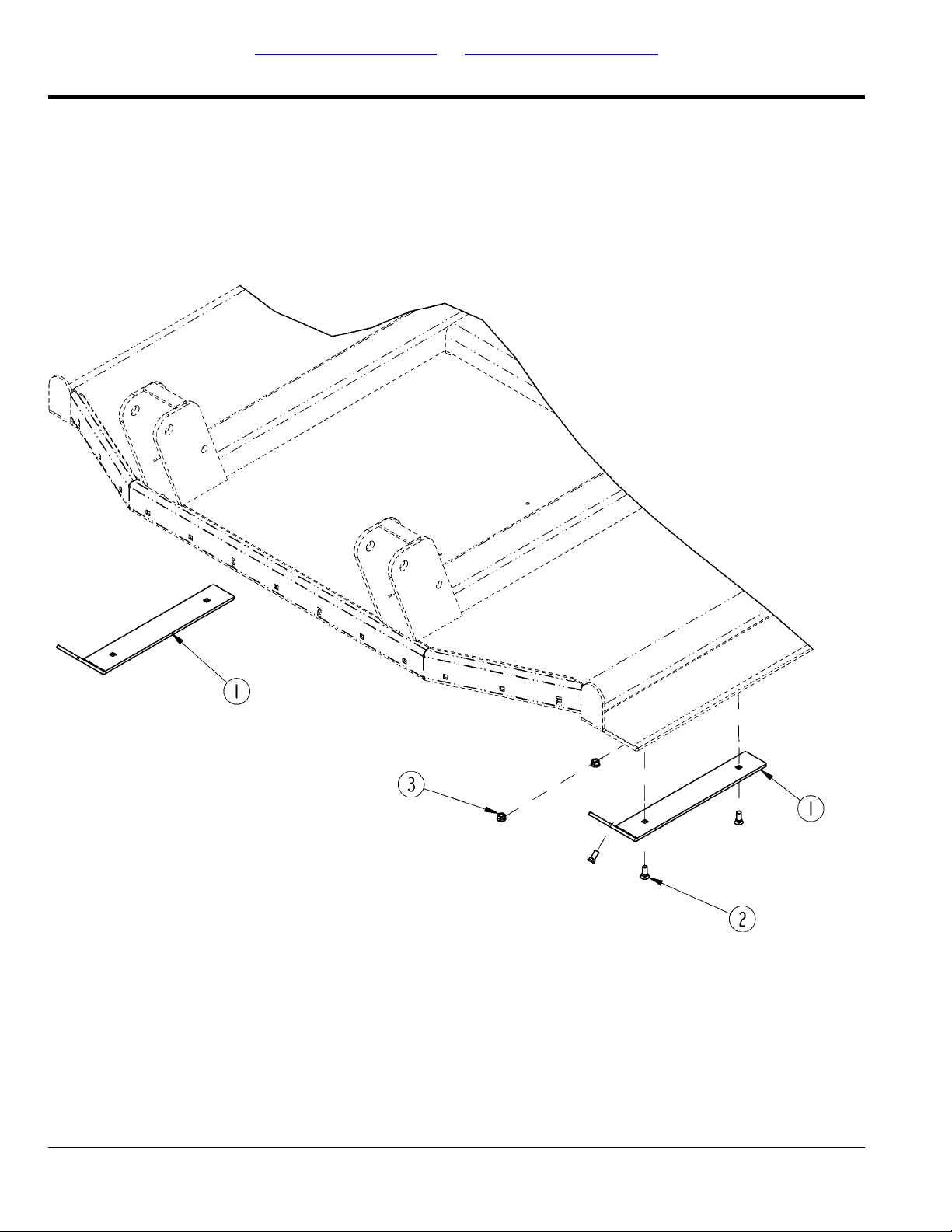

Deck and Rear Deflector

Applies to RCR1884

24761

6 RCR1884 Rotary Cutter 312-880P 01/31/08

Section 2: Deck Land Pride

Table of Contents Part Number Index

Deck and Rear Deflector

Applies to RCR1884

RevisionCommentsPart DescriptionPart No.Ref.

Drawing Image Numberdwg24761
1884 DECK WELDMENT326-019H1.
1884 DECK WELDMENT GREEN326-019H811.
1884 DECK WELDMENT ORANGE326-019H821.
1884 DECK WELDMENT RED326-019H831.
REAR BAND DEFLECTOR326-327D2.
RHSNB 1/2-13X1 GR5802-183C3.
NUT HEX WHIZ 1/2-13 PLT803-037C4.

01/31/08 RCR1884 Rotary Cutter 312-880P 7

Land Pride Section 2: Deck

Table of Contents Part Number Index

Hitch Components

Applies to RCR1884

24762

8 RCR1884 Rotary Cutter 312-880P 01/31/08

Section 2: Deck Land Pride

Table of Contents Part Number Index

Hitch Components

Applies to RCR1884

RevisionCommentsPart DescriptionPart No.Ref.

Drawing Image Numberdwg24762
PIN, STOP326-188D1.
HITCH STRAP326-317D2.
REAR BRACE326-319D3.
REAR BRACE HINGE326-320D4.
SPACER 1 1/4 ODX25/32 IDX1 3/4326-329D5.
HHCS 5/8-11X1 3/4 GR5802-053C6.
HHCS 3/4-10X4 1/2 GR5802-192C7.
NUT HEX 1 1/4-12 PLT TOP LOCK803-180C8.
NUT HEX FLANGE LOCK 3/4-10 PLT803-181C9.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C10.
WASHER FLAT 3/4 USS PLT804-024C11.
WASHER FLAT 1 1/4 SAE PLT804-039C12.
WASHER MACH 1 1/4X3/4X14GA804-156C13.
PIN LINCH 7/16 X 1 3/4805-103C14.
PIN COTTER 1/8 X 1 1/4 PLT805-109C15.
PIN HITCH CAT. I-II805-388C16.

Optional Does Not Come W/ UnitBUSHING STEP 1.25ODX.765IDX.70 EA827-071C17.

01/31/08 RCR1884 Rotary Cutter 312-880P 9

Land Pride Section 3: Blade Drive

Table of Contents Part Number Index

Blade Drive

Applies to RCR1884

24763
