Page 1
Table of Contents Part Number Index
Rotary Cutter
RCR1248, RCR1260 & RCR1272
30287
326-047P
Parts Manual
Read the Operator's Manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2015 Printed 09/28/15
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Deck..............................................................6
Deck and Rear Deflector.....................................................6
Hitch and Gauge Wheel Mount S/N ______+.....................8
Hitch and Gauge Wheel Mount S/N ______-....................12
Rubber Guarding-Front.....................................................16
Section 3: Blade Drive.................................................18
Blade Carrier.....................................................................18
Blade Drive........................................................................20

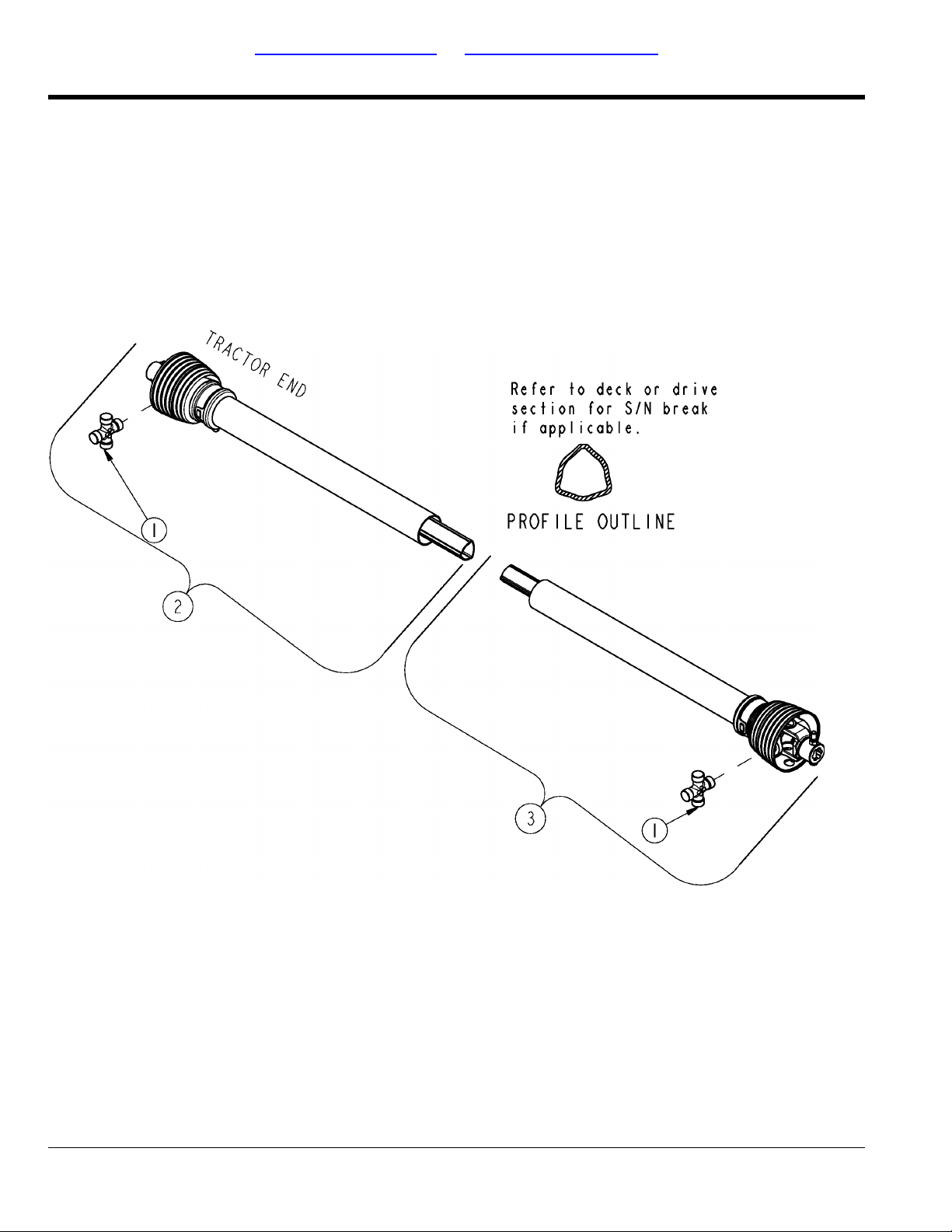

Driveline W/Shear Bolt (326-369A)...................................22
Driveline W/Shear Bolt (326-370A)...................................24
Driveline W/Shear Bolt (326-378A)...................................26

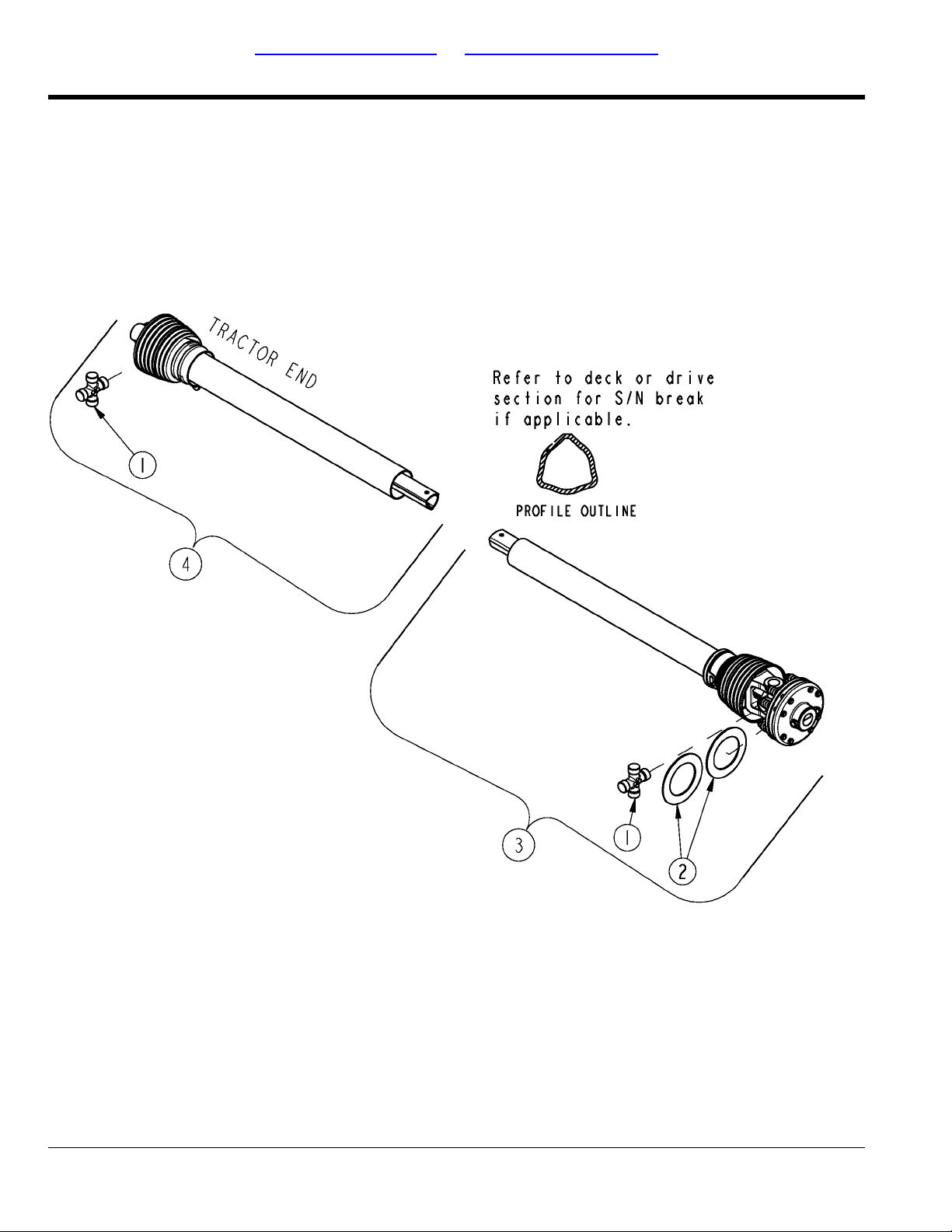

Driveline W/Slip Clutch (326-065A)...................................28
Driveline W/Slip Clutch (326-067A)...................................30
Driveline W/Slip Clutch (326-383A)...................................32

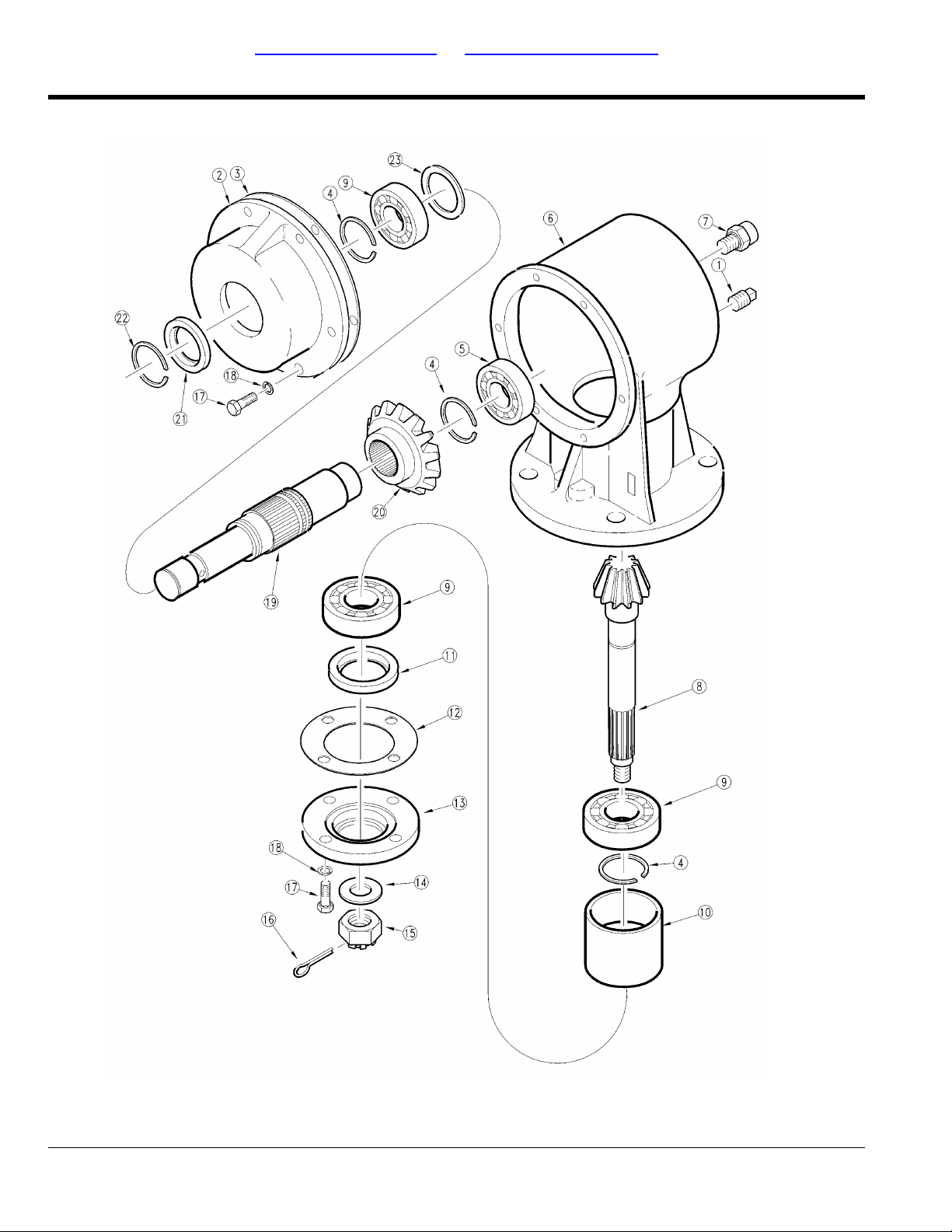

Gearbox (826-670C).........................................................34
Gearbox (826-671C).........................................................36
Section 4: Options & Accessories.............................38
Skid Shoe Components....................................................38

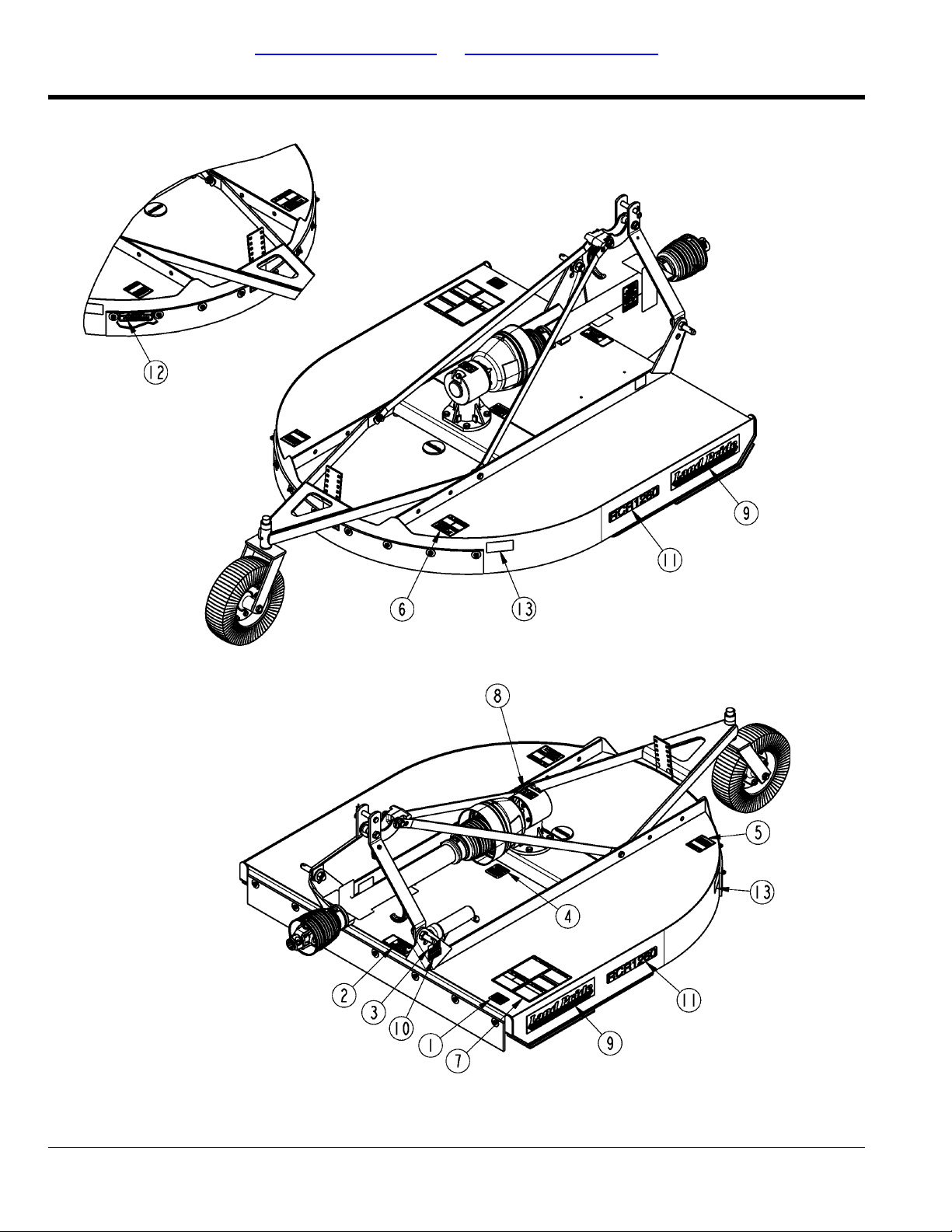

Section 5: Label Placement........................................40
Label Placement...............................................................40
Part Number Index.......................................................42
© Copyright 2015. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Land Pride is registered trademark.
Printed in the United States of America.
2 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 3
Table of Contents Part Number Index
B
Blade Carrier................................................................18
Blade Drive...................................................................20
D
Deck and Rear Deflector................................................6
Driveline W/Shear Bolt (326-369A)..............................22
Driveline W/Shear Bolt (326-370A)..............................24
Driveline W/Shear Bolt (326-378A)..............................26
Driveline W/Slip Clutch (326-065A)..............................28
Driveline W/Slip Clutch (326-067A)..............................30
Driveline W/Slip Clutch (326-383A)..............................32
G
Gearbox (826-670C)....................................................34
Gearbox (826-671C)....................................................36
H
Hitch and Gauge Wheel Mount S/N ______+................8
Hitch and Gauge Wheel Mount S/N ______-...............12
Alphabetized Table of Contents
L
Label Placement..........................................................40
R
Rubber Guarding-Front................................................16
S
Skid Shoe Components...............................................38
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 3
Page 4
Table of Contents Part Number Index
4 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 5
Table of Contents Part Number Index
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 5
Page 6
Land Pride Section 2: Deck
Table of Contents Part Number Index
Deck and Rear Deflector
Applies to RCR1248, RCR1260, RCR1272
30306
6 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 7
Section 2: Deck Land Pride
Table of Contents Part Number Index
Deck and Rear Deflector
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30306
BEIGE UNITRCR1248 CUTTER DECK326-267H1.
GREEN UNITRCR1248 CUTTER DECK GREEN326-267H811.
ORANGE UNITRCR1248 CUTTER DECK ORANGE326-267H821.
RED UNITRCR1248 CUTTER DECK RED326-267H831.
BLUE UNITRCR1248 CUTTER DECK BLUE326-267H841.
BEIGE UNITRCR1260 CUTTER DECK WELDMENT326-041H1.
GREEN UNITRCR1260 CUTTER DECK GREEN326-041H811.
ORANGE UNITRCR1260 CUTTER DECK ORANGE326-041H821.
RED UNITRCR1260 CUTTER DECK RED326-041H831.
BLUE UNITRCR1260 CUTTER DECK BLUE326-041H841.
BEIGE UNITRCR1272 CUTTER DECK WELDMENT326-070H1.
GREEN UNITRCR1272 CUTTER DECK GREEN326-070H811.
ORANGE UNITRCR1272 CUTTER DECK ORANGE326-070H821.
RED UNITRCR1272 CUTTER DECK RED326-070H831.
BLUE UNITRCR1272 CUTTER DECK BLUE326-070H841.
REAR RUBBER GUARD 1248326-213A2.
REAR RUBBER GUARD 1260326-407S2.
REAR RUBBER GUARD 1272326-409S2.
RHSNB 3/8-16X1 GR5802-015C3.
NUT HEX WHIZ 3/8-16 PLT803-198C4.
RCR12/1548 REAR RUBBER DEF.816-321C5.
RUBBER DEFLECTOR REAR RCR1260816-563C5.
RUBBER DEFLECTOR REAR RCR1272816-576C5.
WASHER FENDER 1.5OD X.4IDX.06T840-108C6.
S/N 644000- RCR1260 OnlyRCR1260 PRE-PROD UPDATE KIT326-413A7.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 7
Page 8
Land Pride Section 2: Deck
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______+
Applies to RCR1248, RCR1260, RCR1272
37559
8 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 9
Section 2: Deck Land Pride
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______+
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Image No.Dwg 37559
ZERK, M8X1 GREASE09-0141.
G.W. SPACER 1310-251D2.
GAUGE WHEEL ADJ. FLAT312-850D3.
GAUGE WHEEL SUPPORT FLAT312-851D4.
TAILWHEEL YOKE, RCR12 SERIES326-214H5.
TAILWHEEL HUB AND WEEL ASY326-227S6.
MANUAL CONTAINER KIT, 1"326-282S7.
LAM TIRE/WHEEL & YOKE ASY326-368A8.
326-400V9.
SPACER
DRIVELINE HOLDER W/HARDWARE327-143S12.
BUSHING 1.25ODX.89X.56LG327-437D13.
A FRAME 48 & 60327-461D15.
A FRAME 48 & 60 GREEN327-461D8115.
A FRAME 48 & 60 ORANGE327-461D8215.
A FRAME 48 & 60 RED327-461D8315.
A FRAME 48 & 60 BLUE327-461D8415.
A FRAME 48 & 60 BLACK327-461D8515.
GREASE ZERK 1/4-28 THD FORMING800-080C16.
HHCS 1/4-20X1 GR5802-005C17.
HHCS 5/16-18X1 1/4 GR5802-010C18.
HHCS 1/2-13X1 1/4 GR5802-034C19.
HHCS 5/8-11X1 3/4 GR5802-053C20.
HHCS 3/4-10X4 GR5802-068C21.
Replaces origional tailwheel hubTAILWHEEL HUB, ZERK, AND WHEEL
Fits replacement hub #312-020D onlyWHL SPACER 1"ODX.109WLX5.37LG326-688D10.
RCR1248TAILWHEEL A-ARM WLDMT326-268H11.
RCR1260 & RCR1272 S/N ______+GUAGE WHEEL MAINFRAME WLDMT.327-142H11.
RCR1248 S/N______+ BEIGEREAR BRACE 12 & 1548327-458D14.
RCR1248 S/N______+ GREENREAR BRACE 12 & 1548 GREEN327-458D8114.
RCR1248 S/N______+ ORANGEREAR BRACE 12 & 1548 ORANGE327-458D8214.
RCR1248 S/N______+ REDREAR BRACE 12 & 1548 RED327-458D8314.
RCR1248 S/N______+ BLUEREAR BRACE 12 & 1548 BLUE327-458D8414.
RCR1248 S/N______+ BLACKREAR BRACE 12 & 1548 BLACK327-458D8514.
RCR1260 S/N______+ BEIGEREAR BRACE 60327-449D14.
RCR1260 S/N______+ GREENREAR BRACE 60 GREEN327-449D8114.
RCR1260 S/N______+ ORANGEREAR BRACE 60 ORANGE327-449D8214.
RCR1260 S/N______+ REDREAR BRACE 60 RED327-449D8314.
RCR1260 S/N______+ BLUEREAR BRACE 60 BLUE327-449D8414.
RCR1260 S/N______+ BLACKREAR BRACE 60 BLACK327-449D8514.
RCR1272 S/N______+ BEIGEREAR BRACE 72327-435D14.
RCR1272 S/N______+ GREENREAR BRACE 72 GREEN327-435D8114.
RCR1272 S/N______+ ORANGEREAR BRACE 72 ORANGE327-435D8214.
RCR1272 S/N______+ REDREAR BRACE 72 RED327-435D8314.
RCR1272 S/N______+ BLUEREAR BRACE 72 BLUE327-435D8414.
RCR1272 S/N______+ BLACKREAR BRACE 72 BLACK327-435D8514.
RCR1248 & RCR1260 S/N______+
BEIGE
RCR1248 & RCR1260 S/N______+
GREEN
RCR1248 & RCR1260 S/N______+
ORANGE
RCR1248 & RCR1260 S/N______+
RED
RCR1248 & RCR1260 S/N______+
BLUE
RCR1248 & RCR1260 S/N______+
BLACK
RCR1272 S/N______+ BEIGEA-FRAME 72312-946D15.
RCR1272 S/N______+ GREENA-FRAME 72 GREEN312-946D8115.
RCR1272 S/N______+ ORANGEA-FRAME 72 ORANGE312-946D8215.
RCR1272 S/N______+ REDA-FRAME 72 RED312-946D8315.
RCR1272 S/N______+ BLUEA-FRAME 72 BLUE312-946D8415.
RCR1272 S/N______+ BLACKA-FRAME 72 BLACK312-946D8515.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 9
Page 10
Land Pride Section 2: Deck
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______+ (continued)
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
HHCS 3/4-10X7 GR5802-095C22.
HHCS 5/16-18X2 1/4 GR5802-138C23.
RHSNB 3/8-16X1 1/4 GR5802-155C24.
NUT HEX 1/2-13 PLT803-020C25.
NUT HEX JAM NYLOCK 3/4-10 PLT803-126C26.
NUT HEX FLG TP LK 5/16-18ZNYCR803-177C27.
NUT HEX FLANGE LOCK 3/4-10 PLT803-181C28.
NUT HEX WHIZ 3/8-16 PLT803-198C29.
NUT HEX NYLOCK 1/4-20803-255C30.
WASHER FLAT 1/4 SAE PLT804-007C31.
WASHER LOCK SPRING 1/2 PLT804-015C32.
WASHER FLAT 5/16 SAE PLT804-036C33.
WASHER MACH 1.88 X 1.25 X 10GA804-062C34.
WASHER FLAT 7/8 USS PLT804-134C35.
PIN HTCH C1 7/8-14 THD W/N805-111C36.
PIN HAIR COTTER .120 PLT805-143C37.
PIN CLVS .75X3.94 USBL805-228C38.
PIN ROLL 10MM X 50MM PLT805-434C39.
SPRING TORSION DRVLN HLDER807-350C40.
N/A41.
ORGIONAL TAILWHEEL HUB, REPLACED BY
PART #326-400V
FLOAT TOP HITCH CAST DUCTILE812-500C42.
TIRE & WHEEL LAMINATED 4.0 X 8814-058C43.
MANUAL STORAGE CONTAINER816-504C44.
DRIVELINE HOOK837-062C45.
MOUNT DRIVELINE HOOK837-063C46.
Does not use wheel spacer
#326-688D
Requires wheel spacer #326-688DTAILWHEEL HUB W/ GREASE ZERK312-020D41.
10 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 11
Section 2: Deck Land Pride
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______+ (continued)
Applies to RCR1248, RCR1260, RCR1272
This Page Intentionally Left Blank
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 11
Page 12
Land Pride Section 2: Deck
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______-
Applies to RCR1248, RCR1260, RCR1272
30307
12 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 13
Section 2: Deck Land Pride
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______-
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30307
G.W. SPACER 1310-251D1.
N/A2.
326-400V13.
ORGIONAL TAILWHEEL HUB, REPLACED BY
PART #326-400V
PIVOTING UPPER HITCH312-609D4.
SPACER TUBE 1 1/8 OD X 3 1/8312-610D5.
GAUGE WHEEL ADJ. FLAT312-850D7.
GAUGE WHEEL SUPPORT FLAT312-851D8.
REAR BRACE GREEN326-893D819.
REAR BRACE ORANGE326-893D829.
REAR BRACE RED326-893D839.
REAR BRACE BLUE326-893D849.
REAR BRACE312-849D9.
REAR BRACE BEIGE326-062D9.
REAR BRACE GREEN326-062D819.
REAR BRACE ORANGE326-062D829.
REAR BRACE RED326-062D839.
REAR BRACE BLUE326-062D849.
REAR BRACE BEIGE326-075D9.
REAR BRACE GREEN326-075D819.
REAR BRACE ORANGE326-075D829.
REAR BRACE RED326-075D839.
REAR BRACE BLUE326-075D849.
TAILWHEEL YOKE, RCR12 SERIES326-214H10.
TAILWHEEL HUB AND WEEL ASY326-227S11.
LAM TIRE/WHEEL & YOKE ASY326-368A12.
SPACER
GREASE ZERK 1/4-28 THD FORMING800-080C15.
RHSNB 3/8-16X1 GR5802-015C16.
Does not use wheel spacer
#326-688D
Requires wheel spacer #326-688DTAILWHEEL HUB W/ GREASE ZERK312-020D2.
RCR1248TAILWHEEL A-ARM WLDMT326-268H3.
S/N ______- RCR1260 & RCR1272GAUGE WHEEL MAINFRAME WLDMT.312-559H3.
S/N 927108 to S/N ______+A-FRAME BEIGE312-848D6.
S/N 927108 to S/N ______+A-FRAME GREEN312-848D816.
S/N 927108 to S/N ______+A-FRAME ORANGE312-848D826.
S/N 927108 to S/N ______+A-FRAME RED312-848D836.
S/N 927108 to S/N ______+A-FRAME BLUE312-848D846.
S/N 927107-A-FRAME BLACK312-848D856.
RCR1248 S/N 689802 toS/N______+REAR BRACE326-893D9.
RCR1248 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1248 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1248 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1248 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1248 S/N 927107-REAR BRACE BLACK326-893D859.
RCR1248 S/N 689801- Or Replace
W/ 2 Ea. 326-893D
RCR1260 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1260 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1260 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1260 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1260 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1260 S/N 927107-REAR BRACE BLACK326-062D859.
RCR1272 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1272 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1272 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1272 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1272 S/N 689802 to S/N
______+ S/N 927108 to S/N ______+
RCR1272 S/N 927107-REAR BRACE BLACK326-075D859.
Replaces origional tailwheel hubTAILWHEEL HUB, ZERK, AND WHEEL
Fits replacement hub #312-020D onlyWHEEL SPACER 1"ODX.109WLX5.37LG326-688D14.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 13
Page 14
Land Pride Section 2: Deck
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______- (continued)
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
HHCS 1/2-13X1 1/4 GR5802-034C17.
HHCS 5/8-11X2 GR5802-055C18.
HHCS 5/8-11X5 GR5802-062C19.
HHCS 3/4-10X7 GR5802-095C20.
RHSNB 3/8-16X1 1/4 GR5802-155C21.
NUT HEX 1/2-13 PLT803-020C22.
NUT HEX JAM NYLOCK 3/4-10 PLT803-126C23.
NUT HEX WHIZ 3/8-16 PLT803-198C24.
NUT HEX FLANGE LOCK 5/8-11 PLT803-263C25.
NUT HEX TOP LOCK 5/8-11 PLT803-271C26.
WASHER LOCK SPRING 1/2 PLT804-015C27.
WASHER MACH 1.88 X 1.25 X 10GA804-062C28.
PIN DRAW 7/8 X 5805-111C29.
PIN CLEVIS 3/4 X 3 1/2 PLT805-288C30.
PIN HAIR COTTER .120 PLT805-143C31.
PIN ROLL 10MM X 50MM PLT805-434C32.
TIRE & WHEEL LAMINATED 4.0 X 8814-058C33.
S/N 674390+ZERK, M8X1 GREASE09-01434.
S/N 674389-GREASE ZERK 1/4-28 THD FORMING800-080C34.
14 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 15
Section 2: Deck Land Pride
Table of Contents Part Number Index
Hitch and Gauge Wheel Mount S/N ______- (continued)
Applies to RCR1248, RCR1260, RCR1272
This Page Intentionally Left Blank
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 15
Page 16
Land Pride Section 2: Deck
Table of Contents Part Number Index
Rubber Guarding-Front
Applies to RCR1248, RCR1260, RCR1272
30310
16 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 17
Section 2: Deck Land Pride
Table of Contents Part Number Index
Rubber Guarding-Front
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30310
FRONT RUBBER GUARD 1248326-212A1.
FRONT RUBBER GUARD 1260326-406S1.
FRONT RUBBER GUARD 1272326-408S1.
RHSNB 3/8-16X1 GR5802-015C2.
NUT HEX WHIZ 3/8-16 PLT803-198C3.
RCR1548 FRONT RUBBER DEF.816-322C4.
RUBBER DEFLECTOR FRONT RCR1260816-561C4.
RUBBER DEFLECTOR FRONT RCR1272816-575C4.
WASHER FENDER 1.5OD X.4IDX.06T840-108C5.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 17
Page 18
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Blade Carrier
Applies to RCR1248, RCR1260, RCR1272
30309
18 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 19
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Blade Carrier
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30309
As Required S/N 776426-BLADE SPACER 16 GA .06 THICK312-075D1.
As Required S/N 776426-BLADE SPACER 18 GA .05 THICK312-082D1.
As Required S/N 776426-BLADE SPACER 20 GA. .04 THICK312-089D1.
As Required S/N 776426-BLADE SPACER 24GA .03 THICK312-808D1.
As Required S/N 776426-BLADE SPACER 28 GA. .015 Thick326-847D1.
S/N 806672+15 DSHPN WMT SM.HUB(COMR) 3/16326-386H2.
S/N 806671-RPBY 326-386H326-367H2.
BLADE CARRIER ASYN/A3.
BLD BOLT 1 1/8-12X3.5 W/.18KEY802-920C4.
NUT HEX TOP LOCK 1 1/8-12 PLT.803-170C5.
S/N 772094+WASHER FLAT 1 HARD ASTMF436 PN804-147C6.
S/N 772093-WASHER FLAT 2ODX1.16IDX.31 THK804-212C6.
RCR1248CUTTER BLADE 1/2 X3X18 3/4 CCW820-065C7.
RCR1260CUTTER BLADE 1/2 X3X25 CCW820-198C7.
RCR1272CUTTER BLADE 1/2 X3X31 CCW820-199C7.
Service Kit With ManualBLADE BOLT KIT 3/16"KEY326-185A8.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 19
Page 20
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Blade Drive
Applies to RCR1248, RCR1260, RCR1272
30308
20 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 21
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Blade Drive
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30308
RCR1248 Slip ClutchDRIVELINE SLIP CLUTCH RCR1248326-383A1.
RCR1260 Slip ClutchDRVLN SLIP CLTCH RCR1260326-065A1.
RCR1272 Slip ClutchDRVLN SLIP CLTCH RCR1272326-067A1.
SEE BLADE CARRIER FOR COMPONENTSN/A2.
SNAP RING EXT 1 3/8 5100-137800-079C3.
HHCS 5/16-18X1/2 GR5802-630C4.
HHCS 5/8-11X2 GR5802-055C5.
Slip Clutch DrivelineHHCS 1/2-13X3 1/2 GR8802-265C6.
NUT HEX NYLOCK 1/2-13803-147C7.
NUT HEX SLOTTED 1-14803-095C8.
NUT HEX NYLOCK 5/8-11 PLT803-148C9.
WASHER LOCK SPRING 5/16 PLT804-009C10.
WASHER FLAT 5/16 USS PLT804-010C11.
FLAT WASHER 1 SPECIAL804-070C12.
PIN COTTER 3/16 X 1 3/4 PLT805-017C13.
SMALL SHAFT CONE W ACCESS DOOR826-240C14.
RCR1248 & RCR1260GBOX 1:1.93 SPEEDUP826-670C15.
RCR1272GBOX-40HP 1:1.47 SPEEDUP826-671C15.
PLUG LP 3" ID RUBBER840-273C16.
RCR1248 Shear BoltDRIVELINE SHEAR BLT RCR1248326-378A17.
RCR1260 Shear BoltDRVLN SHEAR BLT RCR1260326-369A17.
RCR1272 Shear BoltDRVLN SHEAR BLT RCR1272326-370A17.
Shear Bolt DrivelineHHCS 1/2-13X3 1/2 GR2802-264C18.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 21
Page 22
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Driveline W/Shear Bolt (326-369A)
Applies to RCR1260
30317
22 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 23
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Driveline W/Shear Bolt (326-369A)
Applies to RCR1260
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30317
DRVLN SHEAR BLT RCR1248/60326-369A
*
EC CROSS ASSEMBLY ( U JOINT)10040201.
FRONT HALF, 326-369A DRVLN326-454A2.
REAR HALF, 326-369A DRVLN326-455A3.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 23
Page 24
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Driveline W/Shear Bolt (326-370A)
Applies to RCR1272
30319
24 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 25
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Driveline W/Shear Bolt (326-370A)
Applies to RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30319
DRVLN SHEAR BLT RCR1272326-370A
*
EC CROSS ASSEMBLY ( U JOINT)10040201.
FRONT HALF, 326-370A DRVLN326-456A2.
REAR HALF, 326-370A DRVLN326-457A3.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 25
Page 26
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Driveline W/Shear Bolt (326-378A)
Applies to RCR1248
30943
26 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 27
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Driveline W/Shear Bolt (326-378A)
Applies to RCR1248
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30317
DRIVELINE SHEAR BLT RCR1248326-378A
*
EC CROSS ASSEMBLY ( U JOINT)10040201.
FRONT HALF, 326-378A326-479A2.
REAR HALF, 326-378A326-480A3.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 27
Page 28
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Driveline W/Slip Clutch (326-065A)
Applies to RCR1260
30549
28 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 29
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Driveline W/Slip Clutch (326-065A)
Applies to RCR1260
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30549
DRVLN SLIP CLTCH RCR1260326-065A
*
EC CROSS ASSEMBLY ( U JOINT)10040201.
VULCAN FRICTION DISCGRI-4SC0032.
REAR HALF, 326-065A DRVLN326-451A3.
FRONT HALF, 326-065A DRVLN326-450A4.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 29
Page 30
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Driveline W/Slip Clutch (326-067A)
Applies to RCR1272
30318
30 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 31
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Driveline W/Slip Clutch (326-067A)
Applies to RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30318
DRVLN SLIP CLTCH RCR1272326-067A
*
EC CROSS ASSEMBLY ( U JOINT)10040201.
VULCAN FRICTION DISCGRI-4SC0032.
REAR HALF, 326-067A DRVLN326-453A3.
FRONT HALF, 326-067A DRVLN326-452A4.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 31
Page 32
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Driveline W/Slip Clutch (326-383A)
Applies to RCR1248
30942
32 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 33
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Driveline W/Slip Clutch (326-383A)
Applies to RCR1248
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30942
DRIVELINE SLIP CLUTCH RCR1248326-383A
*
EC CROSS ASSEMBLY ( U JOINT)10040201.
VULCAN FRICTION DISCGRI-4SC0032.
REAR HALF, 326-383A326-482A3.
FRONT HALF, 326-383A326-481A4.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 33
Page 34
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Gearbox (826-670C)
Applies to RCR1248, RCR1260
14152
34 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 35
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Gearbox (826-670C)
Applies to RCR1248, RCR1260
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14152
GBOX 1:1.93 SPEEDUP826-670C
OMNI PLUG PIPE SQ HEAD 1/8"1400171.
OMNI CAP INPUT W/MTG. HOLES0201612.
Number of gaskets needed variesOMNI GASKET, INPUT CAP .10mm0701333.
Number of gaskets needed variesOMNI GASKET, INPUT CAP .15mm0701323.
Number of gaskets needed variesOMNI GASKET, INPUT CAP .40mm0701313.
OMNI RETAINING RING2000004.
BEARING BALL 6207822-166C5.
OMNI HOUSING0100016.
OMNI PLUG VENT 1/2-14 NPTF1400337.
OMNI OUTPUT PIN 4' RC 15T0300378.
BALL BEARING 6208822-188C9.
OMNI SPACER09000010.
OMNI OUTPUT SEAL TRIPLE LIP06006111.
Number of gaskets needed variesOMNI GASKET, OUTPUT CAP .10mm07013612.
Number of gaskets needed variesOMNI GASKET, OUTPUT CAP .15mm07013512.
Number of gaskets needed variesOMNI GASKET, OUTPUT CAP .40mm07013412.
OMNI OUTPUT CAP02000313.
FLAT WASHER 1" SPECIAL804-070C14.
NUT HEX SLOTTED 1-14803-095C15.
PIN COTTER 3/16 X 1 3/4 PLT805-017C16.
HHCS 3/8-16X1 GR5802-017C17.
WASHER LOCK SPRING 3/8 PLT804-013C18.
OMNI INPUT SHAFT 4' RC04004019.
OMNI INPUT GEAR 4' RC 29T03003620.
OMNI INPUT SEAL TRIPLE LIP06006021.
OMNI RETAINING RING20000122.
OMNI RETAINING RING20004023.
*
Notes: Oil Type 80-90W Capacity 1.1 Pints
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 35
Page 36
Land Pride Section 3: Blade Drive
Table of Contents Part Number Index
Gearbox (826-671C)
Applies to RCR1272
14152
36 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 37
Section 3: Blade Drive Land Pride
Table of Contents Part Number Index
Gearbox (826-671C)
Applies to RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg14152
GBOX 1:1.47 SPEEDUP826-671C
OMNI PLUG PIPE SQ HEAD 1/8"1400171.
OMNI CAP INPUT W/MTG. HOLES0201612.
Number of gaskets needed variesOMNI GASKET, INPUT CAP .10mm0701333.
Number of gaskets needed variesOMNI GASKET, INPUT CAP .15mm0701323.
Number of gaskets needed variesOMNI GASKET, INPUT CAP .40mm0701313.
OMNI RETAINING RING2000004.
BEARING BALL 6207822-166C5.
OMNI HOUSING0100016.
OMNI PLUG VENT 1/2-14 NPTF1400337.
OMNI OUTPUT PIN 5&6' RC 15T0300028.
BALL BEARING 6208822-188C9.
OMNI SPACER09000010.
OMNI OUTPUT SEAL TRIPLE LIP06006111.
Number of gaskets needed variesOMNI GASKET, OUTPUT CAP .10mm07013612.
Number of gaskets needed variesOMNI GASKET, OUTPUT CAP .15mm07013512.
Number of gaskets needed variesOMNI GASKET, OUTPUT CAP .40mm07013412.
OMNI OUTPUT CAP02000313.
FLAT WASHER 1" SPECIAL804-070C14.
NUT HEX SLOTTED 1-14803-095C15.
PIN COTTER 3/16 X 1 3/4 PLT805-017C16.
HHCS 3/8-16X1 GR5802-017C17.
WASHER LOCK SPRING 3/8 PLT804-013C18.
OMNI INPUT SHAFT 4' RC04004019.
OMNI INPUT GEAR 5&6' RC 22T03000320.
OMNI INPUT SEAL TRIPLE LIP06006021.
OMNI RETAINING RING20004022.
OMNI RETAINING RING20000123.
*
Notes: Oil Type 80-90W Capacity 1.1 Pints
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 37
Page 38
Land Pride Section 4: Options & Accessories
Table of Contents Part Number Index
Skid Shoe Components
Applies to RCR1248, RCR1260, RCR1272
30316
38 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 39
Section 4: Options & Accessories Land Pride
Table of Contents Part Number Index
Skid Shoe Components
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30316
SKID SHOE KIT326-120A
*
SKID SHOE326-221D1.
PLOW 3/8-16X1 GR5802-603C2.
NUT HEX WHIZ 3/8-16 PLT803-198C3.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 39
Page 40
Land Pride Section 5: Label Placement
Table of Contents Part Number Index
Label Placement
Applies to RCR1248, RCR1260, RCR1272
30311
40 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 41
Section 5: Label Placement Land Pride
Table of Contents Part Number Index
Label Placement
Applies to RCR1248, RCR1260, RCR1272
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30311
DECAL CAUTION 540 RPM818-130C1.
DECAL DANGER PTO DRIVELINE EN818-142C2.
DECAL FLAG818-190C3.
DECAL DANGER PD GUARD MISS SML818-543C4.
DECAL DANGER THROWN OBJ CUTTER818-556C5.
DECAL DANGER ROTATING BLADES818-564C6.
DECAL SAFETY COMBO SUNWEST818-830C7.
DECAL 3 YEAR GEARBOX WARRANTY838-862C8.
Beige UnitDECAL LANDPRIDE 16" - BROWN818-901C9.
Green, Orange, Red & Blue UnitDECAL LANDPRIDE 16" BROWN/GOLD838-965C9.
DECAL QUICK HITCH SYSTEM838-517C10.
Beige UnitDECAL RCR1248 BROWN848-628C11.
Green, Orange, Red & Blue UnitDECAL RCR1248 GOLD848-629C11.
Beige UnitDECAL RCR1260 BROWN848-078C11.
Green, Orange, Red & Blue UnitDECAL RCR1260 GOLD848-080C11.
Beige UnitDECAL RCR1272 BROWN848-079C11.
Green, Orange, Red & Blue UnitDECAL RCR1272 GOLD848-081C11.
DECAL DANGER GUARD MISSING848-088C12.
S/N 819231+DECAL REFLECTOR RED 2X4.5858-095C13.
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 41
Page 42
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
1004020 ....................
35, 37010001 ......................
35, 37020003 ......................
35, 37020161 ......................
37030002 ......................
37030003 ......................
35030036 ......................
35030037 ......................
35, 37040040 ......................
35, 37060060 ......................
35, 37060061 ......................
35, 37070131 ......................
35, 37070132 ......................
35, 37070133 ......................
35, 37070134 ......................
35, 37070135 ......................
35, 37070136 ......................
9, 1409-014 .......................
35, 37090000 ......................
23, 25, 27, 29,
31, 33
35, 37140017 ......................
35, 37140033 ......................
35, 37200000 ......................
35, 37200001 ......................
35, 37200040 ......................
9, 13310-251D ...................
10, 13312-020D ...................
19312-075D ...................
19312-082D ...................
19312-089D ...................
13312-559H ...................
13312-609D ...................
13312-610D ...................
19312-808D ...................
13312-848D ...................
13312-848D81 ...............
13312-848D82 ...............
13312-848D83 ...............
13312-848D84 ...............
13312-848D85 ...............
13312-849D ...................
9, 13312-850D ...................
9, 13312-851D ...................
9312-946D ...................
9312-946D81 ...............
9312-946D82 ...............
9312-946D83 ...............
9312-946D84 ...............
9312-946D85 ...............
7326-041H ...................
7326-041H81 ...............
7326-041H82 ...............
7326-041H83 ...............
7326-041H84 ...............
13326-062D ...................
13326-062D81 ...............
13326-062D82 ...............
13326-062D83 ...............
13326-062D84 ...............
13326-062D85 ...............
21, 29326-065A ...................
21, 31326-067A ...................
7326-070H ...................
7326-070H81 ...............
7326-070H82 ...............
7326-070H83 ...............
7326-070H84 ...............
13326-075D ...................
13326-075D81 ...............
13326-075D82 ...............
13326-075D83 ...............
13326-075D84 ...............
13326-075D85 ...............
39326-120A ...................
19326-185A ...................
17326-212A ...................
7326-213A ...................
9, 13326-214H ...................
39326-221D ...................
9, 13326-227S ...................
7326-267H ...................
7326-267H81 ...............
7326-267H82 ...............
7326-267H83 ...............
7326-267H84 ...............
9, 13326-268H ...................
9326-282S ...................
19326-367H ...................
9, 13326-368A ...................
21, 23326-369A ...................
21, 25326-370A ...................
21, 27326-378A ...................
21, 33326-383A ...................
19326-386H ...................
9, 13326-400V ...................
17326-406S ...................
7326-407S ...................
17326-408S ...................
7326-409S ...................
7326-413A ...................
29326-450A ...................
29326-451A ...................
31326-452A ...................
31326-453A ...................
23326-454A ...................
23326-455A ...................
25326-456A ...................
25326-457A ...................
27326-479A ...................
27326-480A ...................
33326-481A ...................
33326-482A ...................
9, 13326-688D ...................
19326-847D ...................
13326-893D ...................
13326-893D81 ...............
13326-893D82 ...............
13326-893D83 ...............
13326-893D84 ...............
13326-893D85 ...............
9327-142H ...................
9327-143S ...................
9327-435D ...................
9327-435D81 ...............
9327-435D82 ...............
9327-435D83 ...............
9327-435D84 ...............
9327-435D85 ...............
9327-437D ...................
9327-449D ...................
9327-449D81 ...............
9327-449D82 ...............
9327-449D83 ...............
9327-449D84 ...............
9327-449D85 ...............
9327-458D ...................
9327-458D81 ...............
9327-458D82 ...............
9327-458D83 ...............
9327-458D84 ...............
9327-458D85 ...............
9327-461D ...................
9327-461D81 ...............
9327-461D82 ...............
9327-461D83 ...............
9327-461D84 ...............
9327-461D85 ...............
21800-079C ...................
9, 13, 14800-080C ...................
9802-005C ...................
9802-010C ...................
7, 13, 17802-015C ...................
35, 37802-017C ...................
9, 14802-034C ...................
9802-053C ...................
14, 21802-055C ...................
14802-062C ...................
9802-068C ...................
10, 14802-095C ...................
10802-138C ...................
10, 14802-155C ...................
21802-264C ...................
21802-265C ...................
39802-603C ...................
21802-630C ...................
19802-920C ...................
10, 14803-020C ...................
21, 35, 37803-095C ...................
10, 14803-126C ...................
21803-147C ...................
21803-148C ...................
19803-170C ...................
10803-177C ...................
10803-181C ...................
7, 10, 14, 17, 39803-198C ...................
10803-255C ...................
14803-263C ...................
14803-271C ...................
10804-007C ...................
21804-009C ...................
21804-010C ...................
35, 37804-013C ...................
10, 14804-015C ...................
10804-036C ...................
10, 14804-062C ...................
21, 35, 37804-070C ...................
10804-134C ...................
19804-147C ...................
19804-212C ...................
21, 35, 37805-017C ...................
10, 14805-111C ...................
10, 14805-143C ...................
10805-228C ...................
14805-288C ...................
10, 14805-434C ...................
10807-350C ...................
10812-500C ...................
10, 14814-058C ...................
7816-321C ...................
17816-322C ...................
10816-504C ...................
17816-561C ...................
7816-563C ...................
17816-575C ...................
7816-576C ...................
41818-130C ...................
41818-142C ...................
41818-190C ...................
41818-543C ...................
41818-556C ...................
41818-564C ...................
41818-830C ...................
41818-901C ...................
19820-065C ...................
19820-198C ...................
19820-199C ...................
35, 37822-166C ...................
35, 37822-188C ...................
21826-240C ...................
21, 35826-670C ...................
21, 37826-671C ...................
10837-062C ...................
10837-063C ...................
41838-517C ...................
41838-862C ...................
41838-965C ...................
7, 17840-108C ...................
21840-273C ...................
41848-078C ...................
41848-079C ...................
41848-080C ...................
41848-081C ...................
41848-088C ...................
41848-628C ...................
41848-629C ...................
41858-095C ...................
9Dwg 37559 ................
35, 37dwg14152 ..................
7dwg30306 ..................
13dwg30307 ..................
21dwg30308 ..................
19dwg30309 ..................
17dwg30310 ..................
41dwg30311 ..................
39dwg30316 ..................
23, 27dwg30317 ..................
31dwg30318 ..................
25dwg30319 ..................
29dwg30549 ..................
33dwg30942 ..................
29, 31, 33GRI-4SC003 ..............
10, 13, 19, 21N/A ............................
42 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 09/28/15
Page 43
Table of Contents Part Number Index
This Page Intentionally Left Blank
09/28/15 RCR1248, RCR1260 & RCR1272 Rotary Cutter 326-047P 43
Page 44
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
