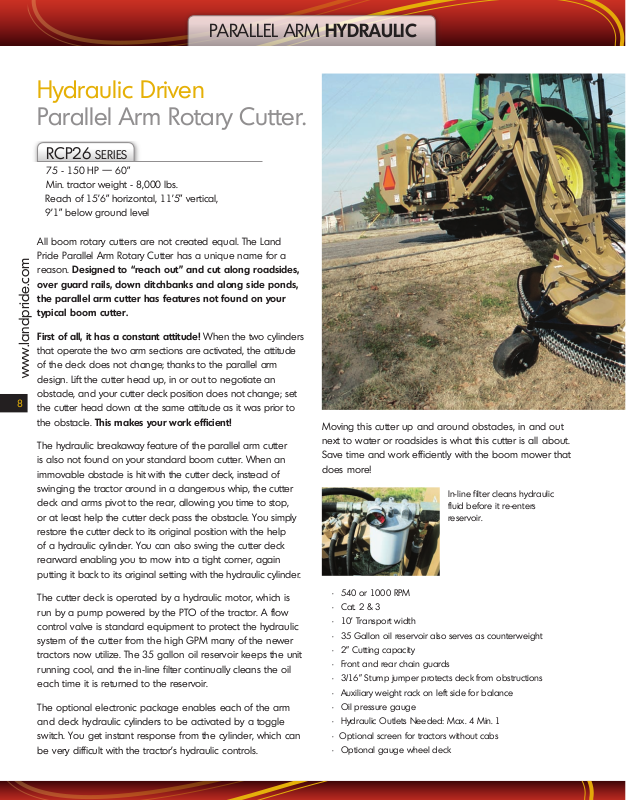

PARALLEL ARM HYDRAULIC

Hydraulic Driven

Parallel Arm Rotary Cutter.

RCP26 SERIES

75 - 150 HP — 60”

Min. tractor weight - 8,000 lbs.
Reach of 15’6” horizontal, 11’5” vertical,
9’1” below ground level

All boom rotary cutters are not created equal. The Land
Pride Parallel Arm Rotary Cutter has a unique name for a
reason. Designed to “reach out” and cut along roadsides,

over guard rails, down ditchbanks and along side ponds,
the parallel arm cutter has features not found on your
typical boom cutter.

First of all, it has a constant attitude! When the two cylinders

that operate the two arm sections are activated, the attitude
of the deck does not change; thanks to the parallel arm

www.landpride.com

design. Lift the cutter head up, in or out to negotiate an
obstacle, and your cutter deck position does not change; set

8

the cutter head down at the same attitude as it was prior to
the obstacle. This makes your work efficient!

The hydraulic breakaway feature of the parallel arm cutter
is also not found on your standard boom cutter. When an
immovable obstacle is hit with the cutter deck, instead of
swinging the tractor around in a dangerous whip, the cutter
deck and arms pivot to the rear, allowing you time to stop,
or at least help the cutter deck pass the obstacle. You simply
restore the cutter deck to its original position with the help
of a hydraulic cylinder. You can also swing the cutter deck
rearward enabling you to mow into a tight corner, again
putting it back to its original setting with the hydraulic cylinder.

The cutter deck is operated by a hydraulic motor, which is
run by a pump powered by the PTO of the tractor. A flow
control valve is standard equipment to protect the hydraulic
system of the cutter from the high GPM many of the newer
tractors now utilize. The 35 gallon oil reservoir keeps the unit
running cool, and the in-line filter continually cleans the oil
each time it is returned to the reservoir.

The optional electronic package enables each of the arm
and deck hydraulic cylinders to be activated by a toggle
switch. You get instant response from the cylinder, which can
be very difficult with the tractor’s hydraulic controls.

Moving this cutter up and around obstacles, in and out
next to water or roadsides is what this cutter is all about.
Save time and work efficiently with the boom mower that
does more!

In-line filter cleans hydraulic
fluid before it re-enters
reservoir.

• 540 or 1000 RPM

• Cat. 2 & 3

• 10’ Transport width

• 35 Gallon oil reservoir also

• 2” Cutting capacity

• Front and rear chain guards

• 3/16” Stump jumper protects deck from obstructions

• Auxiliary weight rack on left side for balance

• Oil pressure gauge

• Hydraulic Outlets Needed: Max. 4 Min. 1

• Optional screen for tractors without cabs

• Optional gauge wheel deck

serves as counterweight

Hydraulic breakaway feature pivots arm backward to avoid obstacles and protect
cutter arm. Hydraulically pivots back into place.

Optional gauge wheel deck allows
the cutter to float over undulations
without having to constantly monitor
terrain conditions.

3 Foot longer reach

than the RCP26 Series.

RCP30 SERIES

95 - 175 HP — 60”
Min. tractor weight - 12,000 lbs.

Flow control valve
compensates for various
hydraulic systems.

Grease zerks at all pivot points.

Shut-off valve permits
maintenance without oil loss.

Electronic cylinder controls provide instant
response for adjustments on the go.

Cylinder shear-bolt
breakaway for frame
protection.

9

Great for those roadsides that want a
manicured look further down the ditch, or
being able to stay a little further away from
the soggy banks of the pond.

• 540 or 1000 rpm

• Cat 2 & 3

• Horizontal cutting reach of 18’10”

• Hydraulic break away and reset

• Case drain deck motor
