Land Pride RCD1884 User Manual

Page 1

Table of Contents

Rotary Cutters

RCD1884

Operator’s Manual

Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.

Your life and the lives of others depend on it!

Cover photo may show optional equipment not supplied with standard unit.

30965

326-355M

12/15/15

Page 2

Table of Contents

Important Safety Information . . . . . . . . . . . . . 1

Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1

Look For The Safety Alert Symbol . . . . . . . . . . . . . . 1

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction: . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Terminology: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Definitions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Further Assistance . . . . . . . . . . . . . . . . . . . . . . . . 8

Section 1: Assembly & Set-up . . . . . . . . . . . . 9

Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . . 9

Torque Requirements . . . . . . . . . . . . . . . . . . . . . . . 9

Uncrating Instructions . . . . . . . . . . . . . . . . . . . . . . . 9

Vented Breather Plug Installation . . . . . . . . . . . . . . 9

3-Point Hitch Assembly . . . . . . . . . . . . . . . . . . . . . 10

Tractor Hook-Up . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Quick Hitch Hook-up . . . . . . . . . . . . . . . . . . . . . . . 10

Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . 11

Check Driveline Collapsible Length . . . . . . . . . . 12

Shorten Driveline . . . . . . . . . . . . . . . . . . . . . . . . 12

Check Driveline Maximum Length . . . . . . . . . . . 13

Check Driveline Interference . . . . . . . . . . . . . . . 13

Section 2: Options & Accessories . . . . . . . . 14

Skid Shoe Accessory . . . . . . . . . . . . . . . . . . . . . . 14

Front and Rear Guards . . . . . . . . . . . . . . . . . . . . . 14

Front Corner Deflectors (Standard) . . . . . . . . . . 14

Front Rubber Guard (Option) . . . . . . . . . . . . . . . 14

Front Single Chain Guard (Option) . . . . . . . . . . . 14

Rear Metal Band Guard (Standard) . . . . . . . . . . 16

RCD Rear Extended Metal Guard (Option) . . . . 16

Section 3: Adjustments . . . . . . . . . . . . . . . . . 18

Deck Leveling & Cutting Height . . . . . . . . . . . . . . . 18

Deck Leveling From Left to Right . . . . . . . . . . . . . 18

Deck Cutting Height . . . . . . . . . . . . . . . . . . . . . . . 18

Tailwheel Height Adjustment . . . . . . . . . . . . . . . . . 19

Center 3-Point Link Adjustment . . . . . . . . . . . . . . . 19

Section 4: Operating Instructions . . . . . . . . . 20

Operating Checklist . . . . . . . . . . . . . . . . . . . . . . . . 20

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 20

Inspection of Tractor & Cutter . . . . . . . . . . . . . . . . 21

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Blade Engagement & Disengagement . . . . . . . . . . 22

Blade Engagement . . . . . . . . . . . . . . . . . . . . . . . 22

Blade Disengagement . . . . . . . . . . . . . . . . . . . . 22

Field Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Unhook Rotary Cutter . . . . . . . . . . . . . . . . . . . . . . 23

General Operating Instructions . . . . . . . . . . . . . . . 23

Section 5: Maintenance & Lubrication . . . . . 24

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Cutter Blade Maintenance . . . . . . . . . . . . . . . . . . . 24

Flex Coupler & Blade Timing . . . . . . . . . . . . . . . . . 25

Driveline Protection . . . . . . . . . . . . . . . . . . . . . . . . 26

Clutch Run-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Clutch Assembly and Disassembly . . . . . . . . . . . . 26

Skid Shoe Maintenance (Accessory) . . . . . . . . . . . 27

Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . 27

Ordering Replacement Parts . . . . . . . . . . . . . . . . . 27

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Gauge Wheel Spindle Tube . . . . . . . . . . . . . . . . 28

Gauge Wheel Hub . . . . . . . . . . . . . . . . . . . . . . . 28

Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Flex Coupling Shaft . . . . . . . . . . . . . . . . . . . . . . 29

Driveline U-Joints . . . . . . . . . . . . . . . . . . . . . . . . 29

Driveline Shield Bearings . . . . . . . . . . . . . . . . . . 29

Driveline Profiles . . . . . . . . . . . . . . . . . . . . . . . . 29

Type of Lubrication: Multi-purpose Grease . . . . . 29

Section 6: Specifications & Capacities . . . . . 30

Section 7: Features & Benefits . . . . . . . . . . . 32

Section 8: Troubleshooting . . . . . . . . . . . . . . 33

Section 9: Torque values Chart . . . . . . . . . . . 34

Section 10: Warranty . . . . . . . . . . . . . . . . . . . 35

Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.

All other brands and product names are trademarks or registered trademarks of their respective holders.

RCD1884 Rotary Cutters 326-355M

Land Pride is a registered trademark.

Printed in the United States of America.

12/15/15

Page 3

▲

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in this manual.

Safety at All Times

Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them.

Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment.

▲ The operator must not use drugs

or alcohol as they can change the alertness or coordination of that person while operating equipment. The operator should, if taking overthe-counter drugs, seek medical advice on whether he/she can safely operate the equipment.

▲ Operator should be familiar with all

functions of the tractor and attachments, and be able to handle emergencies quickly.

▲ Make sure all guards and shields

are in place and secured before operating implement.

▲ Keep all bystanders away from

equipment and work area.

▲ Operator must start tractor and

operate controls from the driver’s seat only. Never from the ground.

▲ Do not leave tractor or implement

unattended with engine running.

▲ Dismounting from a moving tractor

can cause serious injury or death.

▲ Do not allow anyone to stand

between tractor and implement while backing up to implement.

▲ Keep hands, feet, and clothing

away from power-driven parts.

▲ Watch out for fences, trees, rocks,

wires, etc., while operating and transporting implement.

▲ Turning tractor too tight may cause

hitched machinery to ride up on wheels. This could result in injury or equipment damage.

Look For The Safety Alert Symbol

The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it. In addition to design and configuration of

Be Aware of Signal Words

A Signal word designates a degree or level of hazard seriousness. The signal words are:

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This signal word is limited to the most extreme situations, typically for machine components that, for functional purposes, cannot be guarded.

For Your Protection

▲ Thoroughly read and understand

the “Safety Label” section, read all instructions noted on them.

equipment, hazard control, and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of equipment.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed. It may also be used to alert against unsafe practices.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

Tractor Shutdown & Storage

▲ If engaged, disengage PTO. ▲ Lower attached implement to

ground, put tractor in park or set park brake, turn off engine, and remove switch key to prevent unauthorized starting.

▲ Wait for all components to come to

a complete stop before leaving the operator’s seat.

▲ Detach and store implement in an

area where children normally do not play. Secure implement using blocks and supports.

OFF

12/15/15

Parts Manual QR Locator

The QR (Quick Reference) code on the front cover and to the left will take you to the Parts Manual for this equipment. Download the appropriate App on your smart phone, open the App, point your phone on the QR code and take a picture.

Dealer QR Locator

The QR code on the left will link you to available dealers for Land Pride products. Refer to Parts Manual QR Locator on this page for detailed instructions.

RCD1884 Rotary Cutters 326-355M

Page 4

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in this manual.

Use Safety Lights and Devices

▲ Slow moving tractors,

self-propelled equipment, and towed implements can create a hazard when driven on public roads. They are difficult to see, especially at night.

▲ Flashing warning lights and turn

signals are recommended whenever driving on public roads.

Transport Machinery Safely

▲ Comply with state and local laws. ▲ Use towing vehicle and trailer of

adequate size and capacity.

▲ Secure equipment towed on a

trailer with tie downs and chains.

▲ Sudden braking can cause a trailer

to swerve and upset. Reduce speed if trailer is not equipped with brakes.

▲ Avoid contact with any over head

utility lines or electrically charged conductors.

▲ Engage park brake when stopped

on an incline.

▲ Maximum transport speed for an

attached implement is 20 mph. DO NOT EXCEED. Never travel at a speed which does not allow adequate control of steering and stopping. Some rough terrains require a slower speed.

▲ As a guideline, use the following

maximum speed weight ratios for an attached implement:

20 mph when weight of attached implement is less than or equal to the weight of machine towing the implement.

10 mph when weight of attached implement exceeds weight of machine towing implement but not more than double the weight.

▲ IMPORTANT: Do not tow a load

that is more than double the weight of the machine towing the load.

Use A Safety Chain

▲ A safety chain will help control

drawn machinery should it separate from the tractor drawbar.

▲ Use a chain with the strength

rating equal to or greater than the gross weight of the towed machinery.

▲ Attach the chain to the tractor

drawbar support or other specified anchor location. Allow only enough slack in the chain to permit turning.

▲ Do not use safety chain for

towing.

Practice Safe Maintenance

▲ Understand procedure before doing

work. Use proper tools and equipment, refer to Operator’s Manual for additional information.

▲ Work in a clean dry area. ▲ Lower attached implement to the

ground, put tractor in park, turn off engine, and remove key before performing maintenance.

▲ Allow implement to cool before

working on it.

▲ Disconnect battery ground cable (-)

before servicing or adjusting electrical systems or before welding on implement.

▲ Do not grease or oil implement

while it is in operation.

▲ Inspect all parts. Make certain

parts are in good condition & installed properly.

▲ Replace parts on this machine with

genuine Land Pride parts only. Do not alter this machine in a way which will adversely affect its performance.

▲ Remove buildup of grease, oil, or

debris.

▲ Remove all tools and unused parts

from implement before operation.

RCD1884 Rotary Cutters 326-355M

12/15/15

Page 5

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in this manual.

Prepare for Emergencies

▲ Be prepared if a fire starts. ▲ Keep a first aid kit and fire

extinguisher handy.

▲ Keep emergency numbers for

doctor, ambulance, hospital, and fire department near phone.

911

Wear Protective Equipment

▲ Wear protective clothing and

equipment appropriate for the job such as safety shoes, safety glasses, hard hat, and ear plugs.

▲ Clothing should fit snug without

fringes and pull strings to avoid entanglement with moving parts.

▲ Prolonged exposure to loud noise

can cause hearing impairment or hearing loss. Wear suitable hearing protection such as earmuffs or earplugs.

▲ Operating equipment safely

requires the operator’s full attention. Avoid wearing radio headphones while operating machinery.

Avoid High Pressure Fluids Hazard

▲ Escaping fluid under pressure can

penetrate the skin causing serious injury.

▲ Avoid the hazard by relieving

pressure before disconnecting hydraulic lines or performing work on the system.

▲ Make sure all hydraulic fluid

connections are tight and all hydraulic hoses and lines are in good condition before applying pressure to the system.

▲ Use a piece of paper or

cardboard, NOT BODY PARTS, to check for suspected leaks.

▲ Wear protective gloves and safety

glasses or goggles when working with hydraulic systems.

▲ DO NOT DELAY. If an accident

occurs, see a doctor familiar with this type of injury immediately. Any fluid injected into the skin or eyes must be treated within a few hours or gangrene may result.

Tire Safety

▲ Tire changing can be dangerous

and should be performed by trained personnel using the correct tools and equipment.

▲ When inflating tires, use a clip-on

chuck and extension hose long enough to allow you to stand to one side and NOT in front of or over the tire assembly. Use a safety cage if available.

▲ When removing and installing

wheels, use wheel handling equipment adequate for the weight involved.

Use Seat Belt and ROPS

▲ Operate only tractors equipped

with a Roll-Over Protective Structure (ROPS) and seat belt.

▲ Keep folding ROPS in the “locked

up” position at all times.

▲ Fasten seat belt snugly and

securely to help protect against serious injury or death from falling and machine overturn.

▲ Wear protective equipment such

as a hard hat, safety shoes, safety glasses, and ear plugs.

Keep Riders Off Machinery

▲ Never carry riders or use

machinery as a person lift.

▲ Riders obstruct operator’s view. ▲ Riders could be struck by foreign

objects or thrown from the machine.

▲ Never allow children to operate

equipment.

12/15/15

RCD1884 Rotary Cutters 326-355M

Page 6

Important Safety Information

30976

30980

30979

Table of Contents

Safety Labels

Your Rotary Cutter comes equipped with all safety labels in place. They were designed to help you safely operate your implement. Read and follow their directions.

1. Keep all safety labels clean and legible.

2. Refer to this section for proper label placement. Replace all damaged or missing labels. Order new labels from your nearest Land Pride dealer. To find your nearest dealer, visit our dealer locator at www.landpride.com.

3. Some new equipment installed during repair requires safety labels to be affixed to the replaced component as

specified by Land Pride. When ordering new components make sure the correct safety labels are included in the request.

4. Refer to this section for proper label placement. To install new labels:

a. Clean surface area where label is to be placed. b. Spray soapy water onto the cleaned area. c. Peel backing from label and press label firmly onto the

surface.

d. Squeeze out air bubbles with edge of a credit card or

with a similar type of straight edge.

RCD1884 Rotary Cutters 326-355M

818-543C

Danger: Guard Missing

3 - Places: Middle center, beneath gearbox input shaft,

and back left corner of deck.

12/15/15

Page 7

Important Safety Information

30965

30979

Table of Contents

818-556C

Danger: Thrown Object

1 - Place: Back middle of deck.

818-564C

Danger: Rotating Blades

2 - Places: Back middle and front right corner of deck.

838-614C

2" x 9" Red Reflector 2 - Places: Back rounding corners of deck.

12/15/15

RCD1884 Rotary Cutters 326-355M

Page 8

Important Safety Information

ROTATING DRIVELINE

KEEP AWAY!

30976

24597

30965

24597

Table of Contents

818-552C

Danger: Rotating Driveline

2 - Places: Top of intermediate driveline guard

and on main driveline shield.

818-142C

Danger: Rotating Driveline

1 - Place: Front middle of deck

RCD1884 Rotary Cutters 326-355M

818-540C

Danger: Guard Missing

1 - Place: On profile of main driveline.

12/15/15

Page 9

Important Safety Information

30965

Table of Contents

818-130C

Caution: 540 RPM

1 - Place: Front left corner of deck.

12/15/15

818-830C

Safety Combo

1 - Place: Front left corner of deck.

RCD1884 Rotary Cutters 326-355M

Page 10

Table of Contents

30976

IMPORTANT: A special point of information related to the following topic. Land Pride’s intention is this information must be read & noted before continuing.

NOTE: A special point of information that the operator should be aware of before continuing.

Introduction:

Land Pride welcomes you to the growing family of new product owners.

This Rotary Cutter has been designed with care and built by skilled workers using quality materials. Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from this machine.

Application

The Land Pride RCD1884 offset Rotary Cutter is designed and built to clear grass, weeds, and light brush up to 1 1/2 inches in diameter from areas under orchard and grove trees, beneath over-hanging hedge rows, or under fence lines and guard railings. The unit offsets 10" to the right with rear mounted 360 degree rotating tailwheels making it well suited for operation on gentle slopes and mildly contoured approaches immediately adjacent to ponds, lakes, streams, drainage ditches, and roadways. The seven foot cutting width and 2" to 12" cutting height makes it well suited for mowing pastures, set aside acres, and row crop fields.

The RCD1884 is compatible with 35 to 60 horsepower tractors with a category I three point hitch and is Quick Hitch adaptable. It operates at 540 rpm PTO speed and is protected with a category 3 driveline with a 2-plate slip clutch. Supplied with the cutter is a stump jumper, front rubber shield and rear metal band shield.

See “Specifications & Capacities” on page 30 and “Features & Benefits” on page 32 for additional information and performance enhancing options.

Owner Assistance

The Online Warranty Registration or Warranty Registration card should be completed by the dealer at the time of purchase. This information is necessary to provide you with quality customer service.

The parts on your Rotary Cutter have been specially designed by Land Pride and should only be replaced with genuine Land Pride parts. Contact a Land Pride dealer if customer service or repair parts are required. Your Land Pride dealer has trained personnel, repair parts, and equipment needed to service the implement.

Serial Number

Model No. _____________Serial No. _______________

For quick reference and prompt service, record model number and serial number in the spaces provided above and again on warranty page 35. Always provide model number and serial number when ordering parts and in all correspondences with your Land Pride dealer. Refer to Figure 1 for location of your serial number.

Using This Manual

This Operator’s Manual is designed to help familiarize

•

the operator with safety, assembly, operation, adjustments, troubleshooting, and maintenance. Read this manual and follow the recommendations to help ensure safe and efficient operation.

• The information contained within this manual was

current at the time of printing. Some parts may change slightly to assure you of the best performance.

• To order a new Operator’s or Parts Manual, contact

your authorized dealer. Manuals can also be downloaded, free-of-charge, from our website at www.landpride.com.

Terminology:

“Right” or “Left” as used in this manual is determined by facing the direction the machine will operate while in use unless otherwise stated.

Definitions:

Figure 1

Further Assistance

Your dealer wants you to be satisfied with your new Rotary Cutter. If for any reason you do not understand any part of this manual or are not satisfied with the service received, the following actions are suggested:

1. Discuss the matter with your dealership service manager making sure that person is aware of any problems you may have and has had the opportunity to assist you.

2. If you are still not satisfied, seek out the owner or general manager of the dealership, explain the problem, and request assistance.

3. For further assistance write to:

Land Pride Service Department

1525 East North Street

P.O. Box 5060

Salina, KS. 67402-5060

RCD1884 Rotary Cutters 326-355M

E-mail address

lpservicedept@landpride.com

12/15/15

Page 11

Table of Contents

IMPORTANT: Rotary Cutters are shipped with a

solid plug in the gearbox to prevent loss of oil during shipping and handling. The solid plug on top of the gearbox must be replaced with a vented dipstick. Do not operate cutter without vented dipstick installed.

33060

Remove

Solid Plug

Install Breather Plug During Assembly & Set-up

Factory Installed Breather Plug

WARNING

IMPORTANT: Do not attach hoist to gauge wheel

forks or gauge wheel arms near the spindles. The arms and/or forks can bend when lifting cutter.

Section 1: Assembly & Set-up

Tractor Requirements

Tractor horsepower and hitch category should be within the range noted below. Tractors outside the horsepower range must not be used.

Tractor Horsepower Rating. . . . . . . . . . . . 35 to 60 HP

Hitch Category . . . . . . . . . . . . . . . . . . . . . . . . . Cat I

PTO Speed . . . . . . . . . . . . . . . . . . . . . . . . . 540 RPM

PTO Shaft Type . . . . . . . . . . . . . . . . . .1 3/8"-6 Spline

Ballast weights may need to be added to your tractor to maintain steering control. Refer to your tractor operator’s manual to determine proper ballast requirements.

Torque Requirements

Refer to “Torque Values Chart for Common Bolt Sizes” on page 34 to determine correct torque values when tightening hardware. See “Additional Torque Values” at bottom of chart for exceptions to common torque values.

Vented Breather Plug Installation

Refer to Figure 1-1:

The right angle gearbox is shipped with vented breather plug factory installed. The other gearbox is shipped with vented breather plug packaged with the Operator’s Manual in the manual tube. Remove temporary solid plug from top of gearbox and replace with vented breather plug. See your nearest Land Pride dealer if breather plug is missing.

Uncrating Instructions

Always secure cutter with an overhead crane, fork lift, or other suitable lifting device before removing hardware bags, shipping components, bands, lag screws, and hitch pins. The cutter can suddenly fall causing serious injury or death.

1. Secure cutter with a hoist or other lifting device before removing shipping hardware.

2. Remove lag screws securing front face of cutter to the crate.

3. Using lifting device, remove tension on hitch pins securing clevis plates to shipping crate.

4. Remove hitch pins from clevis plates and lift cutter from shipping crate. Gently lower unit onto the floor.

Vented Breather Plug Installation

Figure 1-1

12/15/15

RCD1884 Rotary Cutters 326-355M

Page 12

Section 1: Assembly & Set-up

DANGER

NOTE: Land Pride’s Quick Hitch can be attached to

the tractor to provide quick and easy 3-point hookup and detachment. See your nearest Land Pride dealer to purchase a Quick-Hitch.

30998

Large Hole to the Front

Table of Contents

3-Point Hitch Assembly

Refer to Figure 1-2:

1. Attach left-hand hitch plate (#2) to upper mounting hole in clevis plate with 5/8"-11 x 1 3/4" GR5 cap screw (#6), two flat washers (#12), and hex nylock nut (#9). Draw nylock nut up snug, do not tighten.

2. Attach right-hand hitch plate (#3) to upper mounting hole in clevis plate with 5/8"-11 x 1 3/4" GR5 cap screw (#6), two flat washers (#12), and hex nylock nut (#9). Draw nylock nut up snug, do not tighten.

3. Rotate top of hitch plates (#2 & #3) back until bottom of hitch plates rest against the key stops.

Hitch Assembly

Figure 1-2

4. Attach 2 1/16" long bushing (#1) to left and right-hand hitch plates (#2 & #3) with 1"-8 x 4" GR5 hex head cap screw (#7) and hex top locknut (#10). Tighten top locknut (#10) to torque value listed under “Additional Torque Values” on page 34.

5. Attach one end of float chain (#4) between hitch plates (#2 & #3) with 9/16"-12 x 3 1/2" GR5 cap screw (#8), two flat washers (#13), and hex top locknut (#11). Draw locknut (#11) up snug, do not tighten.

6. Remove hand knobs (#14) and rotate flex coupler shield open.

7. Attach opposite end of float chain (#4) to deck lugs with 9/16"-12 x 3 1/2" GR5 cap screw (#8) and top locknut (#11). Draw locknut up snug, do not tighten.

RCD1884 Rotary Cutters 326-355M

8. Rotate outer coupler shield closed and replace existing hand knobs (#14). Hand tighten hand knobs.

Tractor Hook-Up

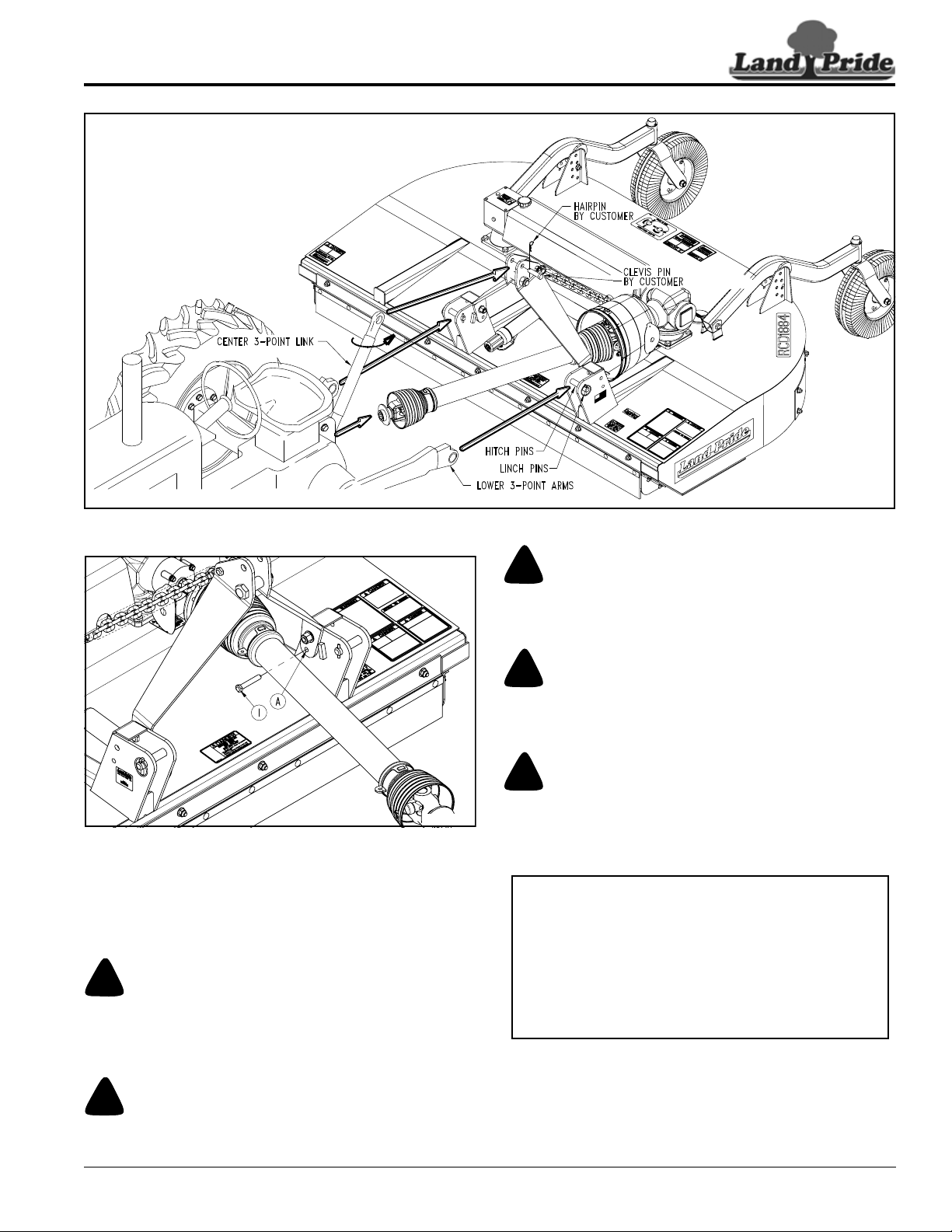

Refer to Figure 1-3 on page 11:

A Crushing Hazard exists when hooking-up equipment to a tractor. Do not allow anyone to stand between tractor and implement while backing-up to implement. Do not operate hydraulic 3-point lift controls while someone is directly behind tractor or near implement.

A 3-Point Category I or II hitch is required. The lower 3-Point arms of the 3-Point hitch must be stabilized to prevent side-to-side movement. Most tractors have sway blocks or adjustable chains for this purpose.

1. Locate cutter on a flat level surface.

2. Slowly back tractor up to Rotary Cutter while using tractor’s 3-Point hydraulic control to align lower 3-Point arm holes with clevis lug holes on the cutter.

3. Engage tractor park brake, shut tractor engine off, and remove key before dismounting from tractor.

4. Attach lower arms to clevis plates with hitch pins and secure with linch pins.

5. Connect top center 3-Point link to upper pivot hitch with clevis pin and hairpin cotter supplied by the customer.

6. Return to the tractor. Slowly raise and lower implement carefully to ensure that the drawbar, tires, and other equipment on the tractor do not contact cutter frame. Move or remove drawbar if it interferes with the cutter.

7. Manually adjust one of the two lower lift arms up or down to level the Rotary Cutter from left to right.

8. Manually adjust the length of the top-link to level the Rotary Cutter from front to rear. Final deck leveling adjustments will be made later.

9. The 3-Point lift cylinders on your tractor should be adjusted to allow for lateral float. Please consult you tractor’s manual for adjusting instructions.

Quick Hitch Hook-up

Refer to Figure 1-4 on page 11:

If 3-Point hitch plates won’t stay upright for Quick Hitch attachment, a hitch pin or bolt (#1) may be inserted into hole “A” to stabilize hitch plates. Be sure to remove hitch pin before connecting driveline to the tractor. Hitch pin or bolt is supplied by customer.

12/15/15

Page 13

Section 1: Assembly & Set-up

WARNING

IMPORTANT: An additional driveline may be

required if cutter is to be used on more than one tractor, especially if a Quick Hitch is used.

The driveline must be lubricated before putting it into

service. Refer to “Lubrication” on page 28.

The tractor’s PTO shaft and cutter gearbox shaft must be aligned and level with each other when hooking-up the driveline to the tractor.

DANGER

33022

33000

Table of Contents

Quick Hitch Hook-up

Figure 1-4

Driveline Installation

Tractor Hook-Up

Figure 1-3

Always disengage PTO, put tractor in park or set park brake, shut tractor engine off, remove ignition key, and wait for blades to come to a complete stop before dismounting tractor.

Do not over-speed PTO or machine breakage may result. Some tractors are equipped with multispeed PTO ranges. Be certain your tractor’s PTO does not exceed 540 RPM.

Do not use a PTO adapter. A PTO adapter will increase strain on the tractor’s PTO shaft resulting in possible damage to shaft and driveline. It will also defeat the purpose of the tractor’ s master shield and could cause bodily injury or death.

Do not engage tractor PTO while hooking-up and unhooking driveline or while someone is standing near the driveline. A person’s body and/or clothing can become entangled in the driveline resulting in serious injury or death.

All guards and shields must be installed and in good working condition at all times during cutter operation.

12/15/15

1. Park tractor on a level surface. Slowly engage tractor

3-Point lift lever to raise cutter until gearbox shaft is in line and level with the tractor PTO shaft.

2. Support cutter deck at this height with support jacks

or blocks to keep cutter from drifting down.

3. Place gear selector in park, set park brake, shut

RCD1884 Rotary Cutters 326-355M

Page 14

Section 1: Assembly & Set-up

IMPORTANT: A driveline that is too long can bottom out causing structural damage to tractor and cutter. Always check driveline collapsed length during initial setup, when connecting to a different tractor, and when alternating between using a quick hitch and a standard 3-point hitch. More than one driveline may be required to fit all applications.

33001

tractor off, and remove switch key.

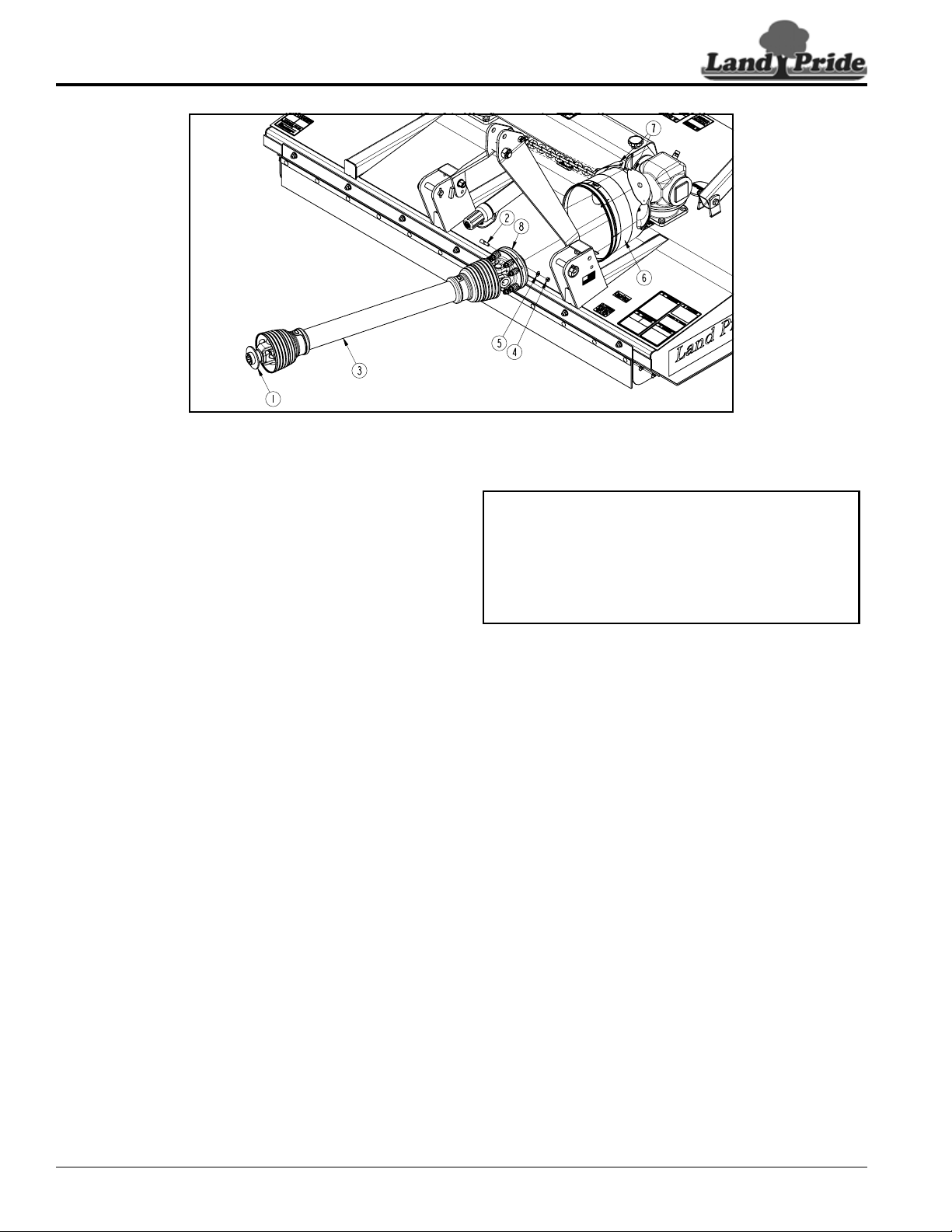

Refer to Figure 1-5:

4. Remove tapered pin (#2) from slip-clutch (#8).

5. Unsnap access doors (#7) from gearbox cone (#6) and rotate about the metal pin either up or down to gain access to the gearbox input spline shaft.

6. Slide slip-clutch end of driveline onto gearbox input shaft until holes in slip-clutch align with notch in gearbox shaft.

7. Insert tapered pin (#2) and secure with removed washer (#5) & hex nut (#4). Tighten hex nut to the correct torque.

8. Move slip-clutch back and forth several times to make sure it is locked onto gearbox shaft.

9. Replace access covers (#7).

10. Pull back on yoke collar (#1) and push driveline yoke onto the tractor PTO shaft. Release pull collar and continue to push driveline yoke forward until pull collar locks in place.

11. Move driveline yoke back and forth several times to make sure yoke is locked in place. If driveline yoke will not lock in place, skip to “Check Driveline Collapsible Length” on page 12.

12. Continue with “Check Driveline Collapsible Length”.

RCD1884 Rotary Cutters 326-355M

Table of Contents

Driveline Installation

Figure 1-5

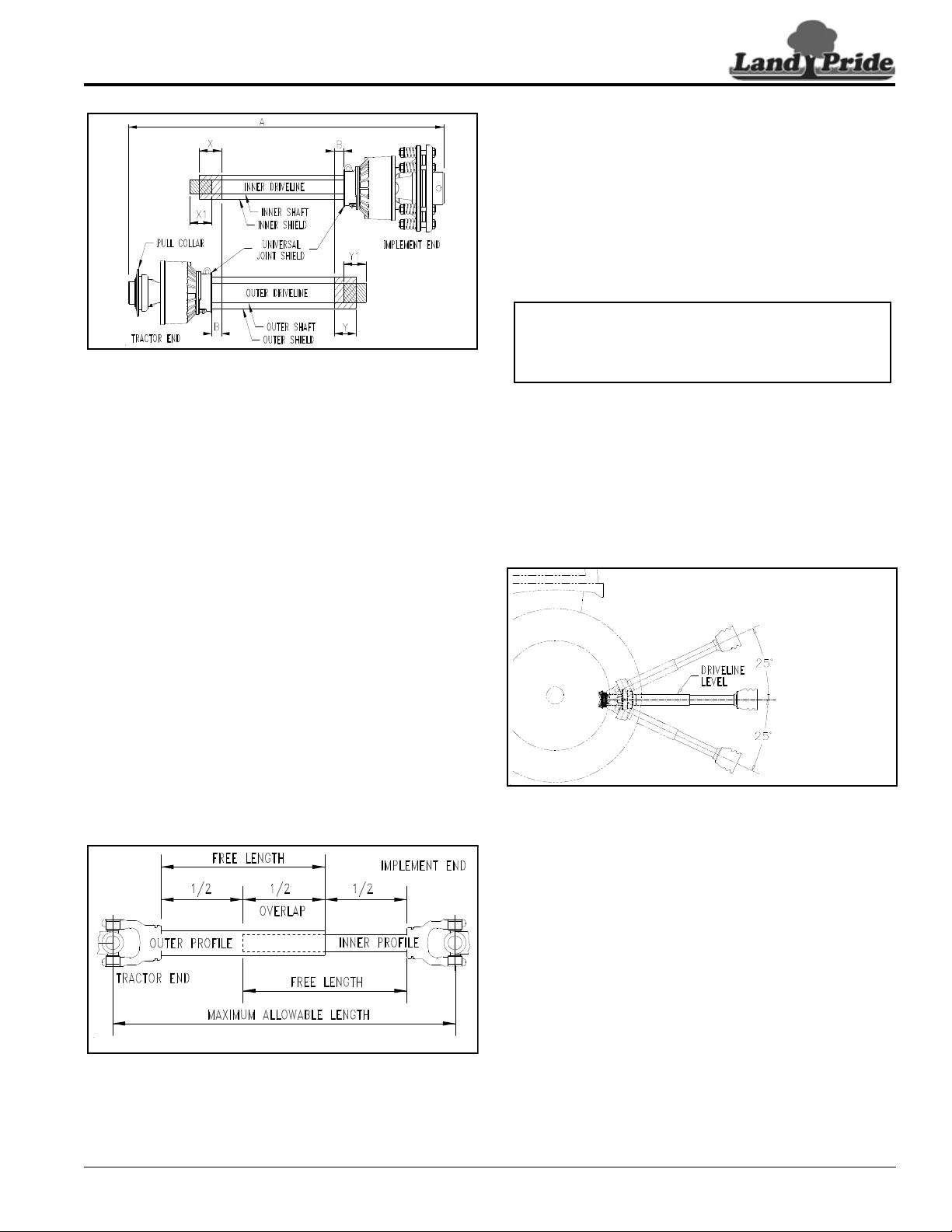

Check Driveline Collapsible Length

1. Make sure driveline is properly installed and level before checking driveline collapsible length. (Refer to “Driveline Installation” instructions on page 11.)

Refer to Figure 1-6 on page 13:

2. With driveline level, measure (“B” dimension) back from universal joint shield to end of outer driveline shield as shown in Figure 1-6. If measurement is less than 1", then shorten driveline using instructions provided below.

3. Skip to “Check Driveline Maximum Length” on page 13 if “B” dimension is 1" or more.

Shorten Driveline

Refer to Figure 1-6 on page 13:

Be sure to check driveline collapsed length first. If required, shorten driveline.

1. Unhook driveline from tractor PTO shaft. Pull outer and inner drivelines apart.

2. Reattach outer driveline to tractor PTO shaft. Pull on inner and outer driveline yokes to be sure universal joints are properly secured.

3. Hold inner and outer drivelines parallel to each other:

a. Measure 1" (“B” dimension) back from outer

driveline universal joint shield and make a mark at this location on the inner driveline shield.

b. Measure 1" (“B” dimension) back from the inner

driveline universal joint shield and make a mark at this location on the outer driveline shield.

12/15/15

Page 15

Table of Contents

22311

24804

Outer Shielding has been removed for clarity.

IMPORTANT: Avoid premature driveline breakdown.

A driveline that is operating must not exceed an angle of 25 degrees up or down while operating 3point lift.

24872

Section 1: Assembly & Set-up

Driveline Shortening

Figure 1-6

4. Remove driveline from tractor PTO shaft and gearbox shaft.

5. Measure from end of inner shield to scribed mark (“X” dimension). Cut off inner shield at the mark. Cut same amount off the inner shaft (“X1” dimension).

6. Measure from end of outer shield to scribed mark (“Y” dimension). Cut off outer shield at the mark. Cut same amount off the outer shaft (“Y1” dimension).

7. Remove all burrs and cuttings.

8. Continue with “Check Driveline Maximum Length”.

Check Driveline Maximum Length

Refer to Figure 1-7:

The driveline maximum allowable length must, when fully extended, have a minimum overlap of profile tubes by not less than 1/2 the free length with both inner and outer profile tubes being of equal length.

1. Separate inner and outer profiles apart and apply multi-purpose grease inside the outer shaft.

2. Reassemble inner and outer driveline profiles together with just 1/2 overlapping of the profile tubes as shown. Once assembled, measure and record maximum allowable length here. ________

Check Driveline Interference

1. Make certain driveline yokes are properly attached.

2. Start tractor and raise Rotary Cutter just enough to remove support blocks from under the cutter.

3. Slowly engage tractor hydraulic 3-Point control lever to lower cutter while checking for sufficient drawbar clearance. Move drawbar ahead, aside, or remove if required.

Refer to Figure 1-8:

4. With PTO off, raise implement fully up to make the following checks below. If driveline exceeds any of the limits listed, set tractor 3-Point lift limiter at a height that will keep the driveline within its lift limits and to avoid premature driveline breakdown.

• Driveline does not exceed 25

up.

• Driveline does not exceed maximum allowable

length recorded in step 2 under “Check Driveline Maximum Length”.

Maximum PTO Driveline Movement During Operation

Figure 1-8

Driveline Maximum Extended Length

Figure 1-7

12/15/15

RCD1884 Rotary Cutters 326-355M

Page 16

Table of Contents

Weld-on Skid Shoe

Replaceable Skid Shoe

33003

Section 2: Options & Accessories

Skid Shoe Accessory

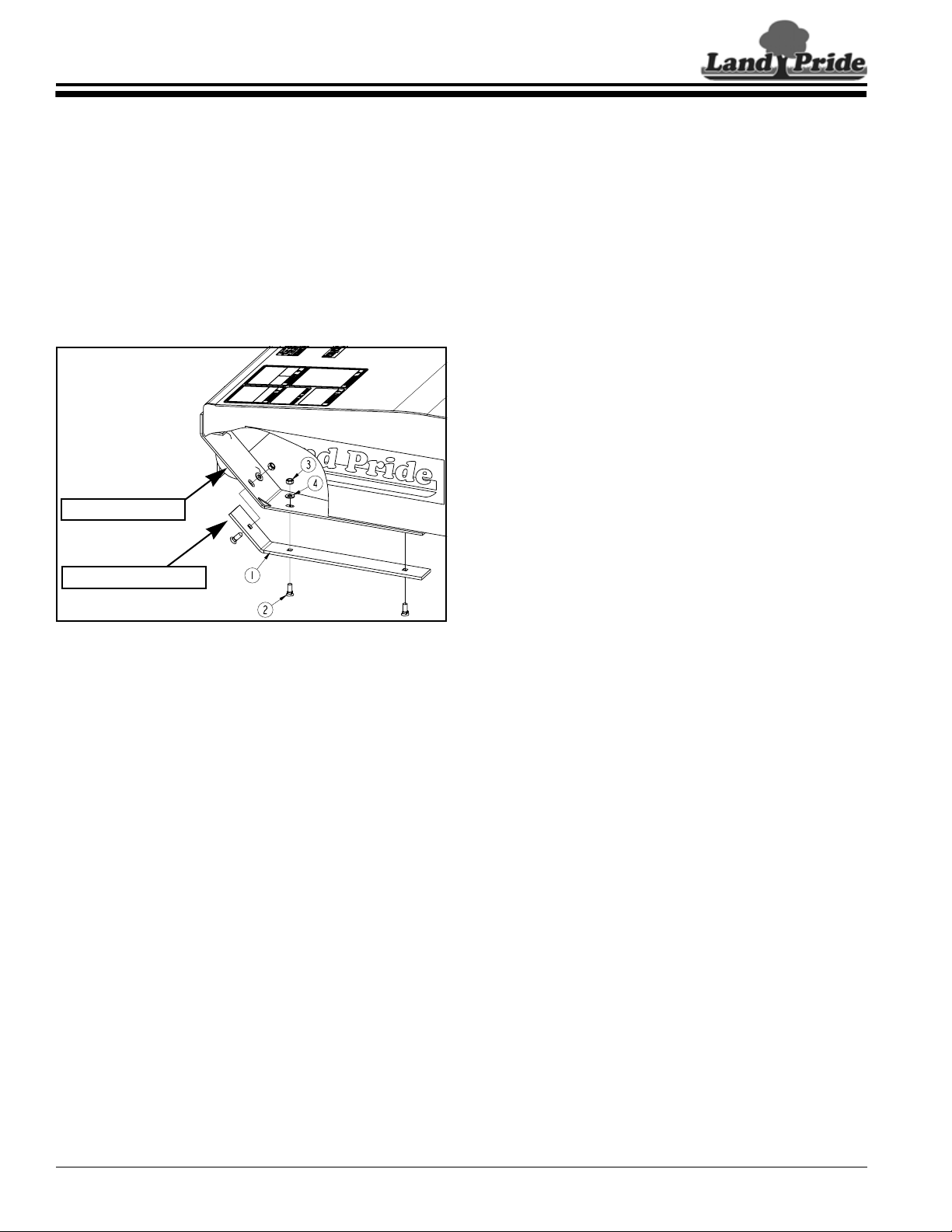

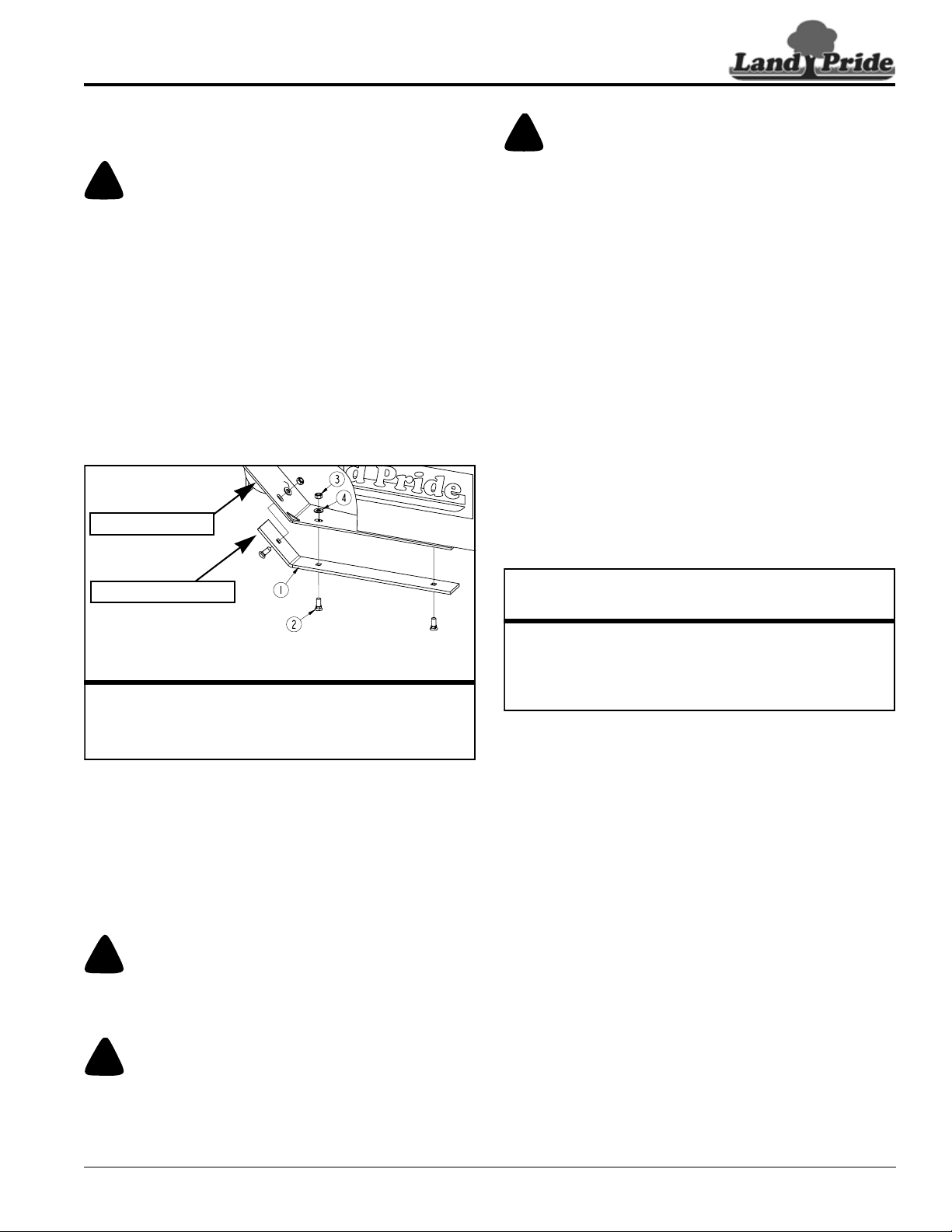

Refer to Figure 2-1:

326-341A RCD1884 SKID SHOES

The RCR1884 cutter is supplied with welded-on skid shoes. Replaceable skid shoes (Sold as an accessory) can be bolted to the weld-on skid shoes to increase protection against side panel wear.

1. Attach skid shoes (#1) to front left and right corners of the cutter with 3/8"-16 x 1" GR5 plow bolts (#2), flat washers (#4), and lock nuts (#3).

2. Tighten lock nuts to the correct torque.

Skid Shoe Accessory

Figure 2-1

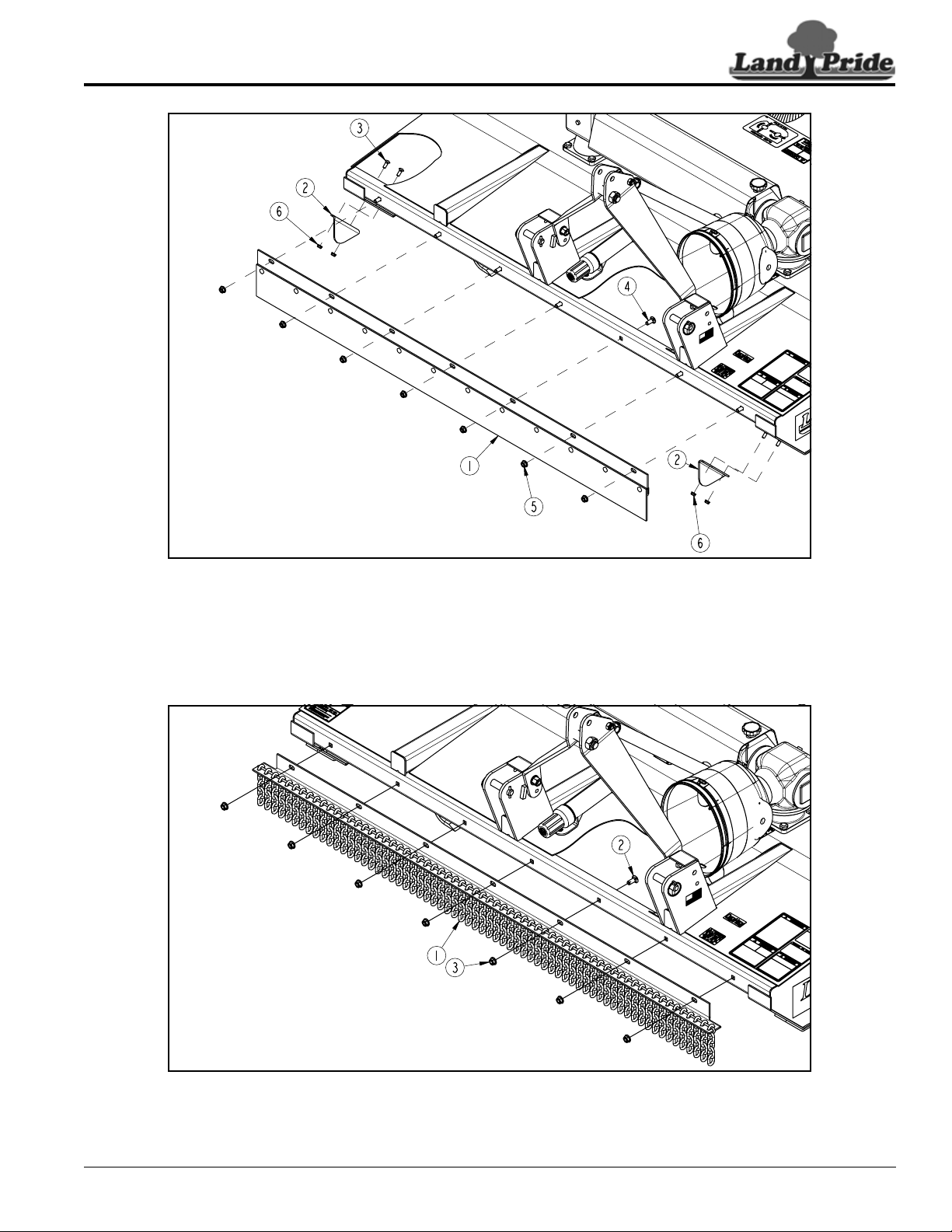

Front and Rear Guards

Land Pride strongly recommends front and rear safety guards be installed on this cutter to help stop objects from being thrown out from under the cutter at high speeds. When cutting along highways and in areas where people or animals may be present, always use front and rear guards on your cutter.

Front Corner Deflectors (Standard)

Refer to Figure 2- 2 on page 15:

326-490L FRONT CORNER DEFLECTORS

Front corner deflectors are included with the cutter and should be installed before installing the front guard.

1. Install corner deflectors (#2) with 3/8"-16 x 1" GR5 carriage bolts (#3) and hex whiz nuts (#6). Draw nuts up snug, do not tighten.

Front Rubber Guard (Option)

Refer to Figure 2- 2 on page 15:

326-342A RCR1884 FRONT RUBBER GUARD

1. Install front rubber guards (#1) with 1/2"-13 x 1 1/4" GR5 carriage bolts (#4) and hex whiz nuts (#5). Draw nuts up snug, do not tighten.

2. Adjust front guard (#1) and corner deflectors (#2) to fit evenly against each other.

3. Tighten all whiz nuts (#5 & #6) to the correct torque.

Front Single Chain Guard (Option)

Refer to Figure 2-3:

326-449A FRONT SINGLE CHAIN GUARD

The Single Chain Guard option provides a better flow of air under the cutter resulting in a more evenly discharge of cut material.

1. Attach front single chain guard (#1) to deck front with 1/2"-13 x 1 1/4" GR5 carriage bolts (#2) and hex whiz nuts (#3). Draw nuts up snug, do not tighten.

2. Adjust front chain guard (#1) and corner deflectors (#2 in Figure 2- 2) to fit evenly against each other.

3. Tighten all chain guard hex whiz nuts (#3) and corner deflector hex whiz nuts (#6 in Figure 2- 2)to the correct torque.

RCD1884 Rotary Cutters 326-355M

12/15/15

Page 17

Section 2: Options & Accessories

30966

33058

Table of Contents

Front Rubber Guard

Figure 2-2

12/15/15

Front Single Chain Guard

Figure 2-3

RCD1884 Rotary Cutters 326-355M

Page 18

Section 2: Options & Accessories

DANGER

CAUTION

Table of Contents

Rear Metal Band Guard (Standard)

Refer to Figure 2-4 on page 17:

326-464A RCR1884 REAR METAL BAND Guard

This Rear Metal Band Guard is provided with the cutter unless the optional RCD Rear Extended Metal Guard is chosen when ordering the RCD1884 cutter from factory. It will need to be removed as follows before installing the RCD Rear Extended Metal Guard.

Do not operator cutter without a rear guard. Do not remove rear guard unless it is replaced by an approved Land Pride guard. Serious body injury or loss of life can r esult without an attached rear guard.

The Rear Metal Band Guard is in spring tension and will want to snap straight as the hex whiz nuts are removed.

1. Be aware that the curved ends will want to pop up as each nut in the curved area is removed. Safely remove nuts 3A first, 3B second, 3C third, and 3D last.

2. Once all the nuts are safely removed, remove rear band guard (#1) and 1/2" carriage bolts (#2).

3. Store Rear Metal Band Guard and hardware for reuse later should the optional RCD Rear Guard becomes bent, cracked, or broken.

RCD1884 Rotary Cutters 326-355M

RCD Rear Extended Metal Guard (Option)

Refer to Figure 2-5 on page 17:

326-458A RCD REAR GUARD

This RCD Rear Extended Metal Guard is offset to provide a better flow of air under the cutter resulting in a more evenly discharge of cut material.

1. Attach rear deflector brackets (#2) to rear band deflector (#3) with 1/2"-13 x 1" GR5 cap screws (#5) and hex whiz nuts (#7). Draw nuts up snug.

2. Attach rear band deflector (#3) to deck rear with 1/2"-13 x 3 1/2" GR5 carriage bolts (#6), deflector spacer (#1), and hex whiz nuts (#7). Draw nuts up snug, do not tighten.

3. Attach rear deflector brackets (#2) to deck rear with 1/ 2"-13 x 1" GR5 carriage bolts (#4) and hex whiz nuts (#7). Draw nuts up snug, do not tighten.

4. Tighten all hex whiz nuts (#7) to the correct torque.

12/15/15

Page 19

Section 2: Options & Accessories

30977

33059

Table of Contents

Rear Metal Guard

Figure 2-4

12/15/15

RCD Rear Metal Extended Guard (Option)

Figure 2-5

RCD1884 Rotary Cutters 326-355M

Page 20

Table of Contents

WARNING

Set Front Blade Tip

At Cutting Height

Blade Tip

Set Rear Blade Tip Slightly Higher

Than Cutting Height (Max. 1" Higher

30967

CAUTION

IMPORTANT: The front blade tip should be lower

than rear blade tip by approximately 1". The cutter is subject to continuous material flow under the deck if the rear blade is at the same height or lower than the front blade causing horsepower loss, grass clumps, blade wear, and frequent blade sharpening.

Section 3: Adjustments

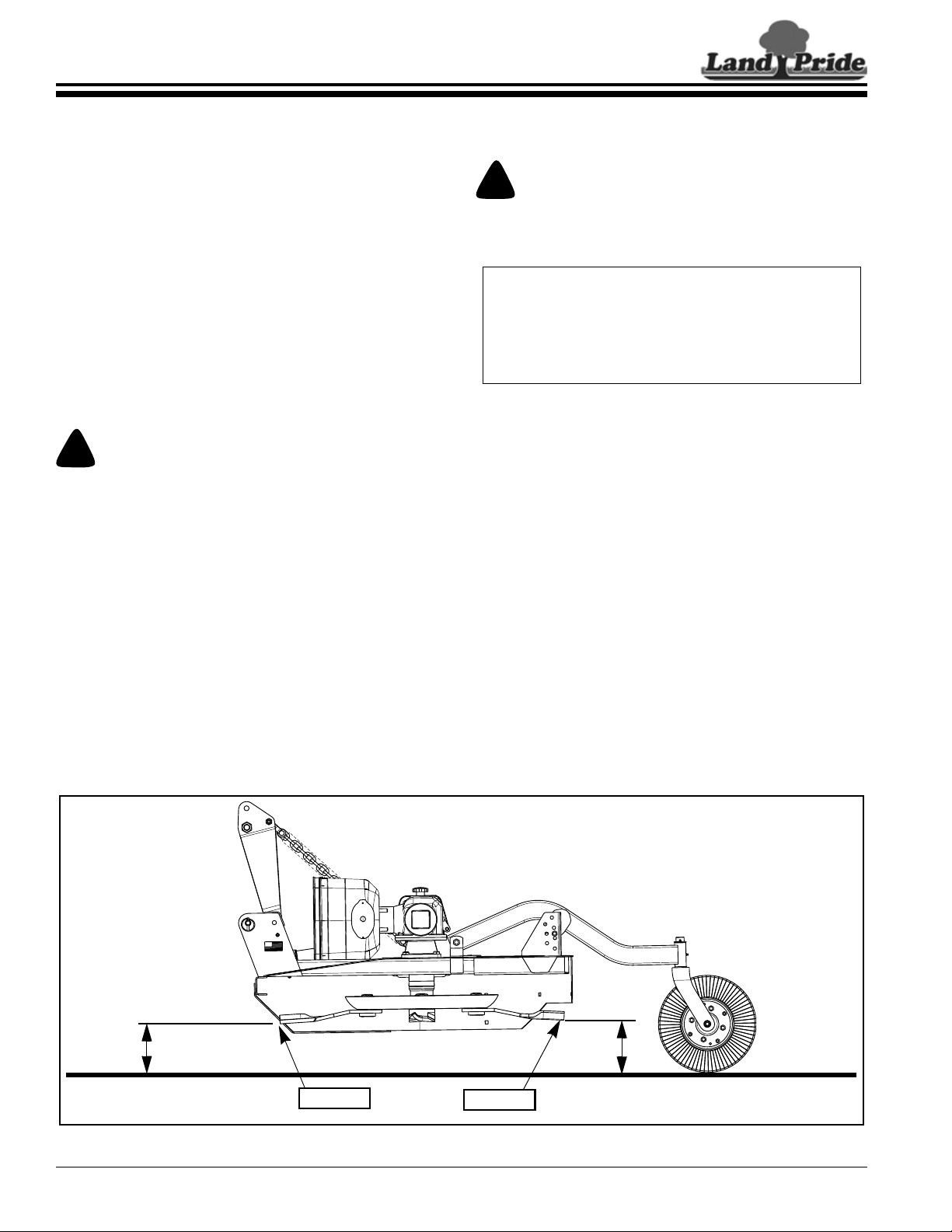

Deck Leveling & Cutting Height

There are 4 primary adjustments that should be made prior to actual field operation:

• Deck Leveling From Left to Right

• Deck Cutting Height

• Center 3-Point Link Adjustment

• Tailwheel Height Adjustment

Proper adjustment of each of these items will provide for higher efficiency, improved cutting performance, and longer blade life. The following tools will be needed:

• Pliable tape measure

• Spirit or carpenters level

• Set of wrenches and/or socket wrench set

• Protective gloves

Always disengage PTO, put tractor in park or set park brake, shut tractor engine off, remove ignition key, and wait for all moving parts to stop before dismounting from tractor.

Deck Leveling From Left to Right

Refer to Figure 3-2 on page 19:

1. Locate tractor with Rotary Cutter on a flat, level surface.

2. Use tractor’s hydraulic 3-Point control lever to lower cutter until tailwheel makes contact with ground surface.

3. Place a level on the cutter deck as shown. Manually adjust one or both lower 3-Point lift arms until deck is level from left to right. On some tractors, only one arm can be adjusted vertically.

Deck Cutting Height

Refer to Figure 3-1:

Avoid direct contact with cutter blades by wearing a pair of gloves. Cutter blades have sharp edges and burrs that can cause injuries.

1. With gloves on hands, carefully rotate each blade tip to the position shown in Figure 3-1.

2. Measure distance from cutting tip of front blade to ground surface. This distance is the cutting height.

3. Using tractor’s 3-Point hydraulic control, raise or lower the 3-Point arms until the front blade tip is at the desired cutting height.

The top center link should be loose when deck rear is

4. supported by the tailwheel. If not, lengthen center link until loose. Final adjustment will be made later.

5. Measure distance from cutting tip of rear blade to ground. This distance should be slightly higher than the front blade but not more than 1" higher.

6. If rear blade is lower than the front blade or is more than 1" higher than the front blade, then the tailwheel height must be adjusted. If needed, see “Tailwheel Height Adjustment” instructions below.

7. Repeat steps 1 through 6 until tailwheel and 3-Point arms are adjusted to the desired cutting height.

8. Set tractor’s 3-Point hydraulic control stop once the tailwheel and 3-Point arms are adjusted properly.

RCD1884 Rotary Cutters 326-355M

Cutting Height

Figure 3-1

12/15/15

Page 21

Section 3: Adjustments

NOTE: The lower bolted-on-bushing in the center hitch is used with a quick hitch attachment.

30968

Level

30969

30970

Adjust Center 3-Point

Link Until Upper Hitch

Pin is Vertically Above

Lower Hitch Pins.

Float Chain should hang loosely when parked on a flat level surface.

Table of Contents

Deck Leveling

Figure 3-2

Tailwheel Height Adjustment

Refer to Figure 3-3:

If the front blade tip is set at the desired cutting height and the back blade tip is at the same height or lower or is higher than the front blade tip by more than 1", then tailwheel (#1) must be adjusted up or down as follows:

1. Use tractor’s 3-Point hydraulic control to lift cutter until tailwheels clear the ground.

2. Remove hex whiz nut (#2) and cap screw (#1).

3. Adjust tailwheel as follows:

• To lower rear blade height, raise tailwheel up.

• To increase rear blade height, lower tailwheel

down.

4. With tailwheels adjusted to the correct height, replace 1/2"-13 x 4" GR5 cap screw (#1) and hex whiz nut (#2). Tighten whiz nut to the correct torque.

5. Readjust tractor’s lower 3-Point lift arms as needed. See “Deck Cutting Height” on page 18.

Center 3-Point Link Adjustment

Refer to Figure 3-4:

Tailwheel Height Adjustment

Figure 3-3

1. Lower cutter deck to preset cutting height.

2. Adjust length of center 3-Point link until the center hitch pin is vertically above the lower 3-Point hitch pins. The float chain should be hanging loosely when adjusted correctly. This arrangement allows for optimum ground contour following performance.

3. Lock center 3-Point link in this position.

12/15/15

Center 3-Point Link Adjustment

Figure 3-4

RCD1884 Rotary Cutters 326-355M

Page 22

Table of Contents

DANGER

WARNING

Section 4: Operating Instructions

Operating Checklist

Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training involved in the operation, transport, storage, and maintenance of the Rotary Cutter. Therefore, it is absolutely essential that no one operates the Rotary Cutter without first having read, fully understood, and become totally familiar with the Operator’s Manual. Make sure the operator has paid particular attention to:

• Important Safety Information, pages 1 to 7

• Section 1: Assembly & Set-up, page 9

• Section 2: Options & Accessories, page 14

• Section 3: Adjustments, page 18

• Section 4: Operating Instructions, page 20

• Section 5: Maintenance & Lubrication, page 24

The following inspection should be performed before using the cutter.

Operating Checklist

✔

Make sure all guards and shields are in place. Refer to "Impor tant Safety Information".

Follow hook-up & driveline instructions. Refer to "Tractor Hook-Up" & "Driveline Installation".

Make all required adjustments. Refer to "Section 3: Adjustments".

Preform all required maintenance. Refer to "Section 5: Maintenance & Lubrication".

Lubricate cutter and driveline as needed. Refer to "Lubrication".

Lubricate all gearboxes and replace oil plugs properly. Refer to "Gearbox" lubrication.

Check cutter initially and periodically for loose bolts and pins. Refer to “Torque Values Chart”.

Check Page

Page 1

Page 10

& Page 11

Page 18

Page 24

Page 28

Page 34

Safety Information

All guards and shields must be installed and in good working condition at all times during cutter operation.

Keep others away while cutter is operating. It can discharge objects at high speeds. Therefor, the use of front and rear safety guards is r equired when cutting along highways and in areas where people may be present. Stop blade rotation if a bystander is within several hundred feet.

Do not operate a broken or bent driveline. Such drivelines can break apart while rotating at high speeds causing serious injury or death. Always remove Rotary Cutter from service until damaged drivelines are repaired or replaced.

Tractor PTO shield, gearbox shaft shield, and driveline shields must be secured in place when operating cutter to avoid injury or death from entanglement in driveline.

Always disconnect driveline from tractor PTO shaft before servicing underside of cutter. If tractor is started with PTO engaged, the cutter can cause bodily injury or death.

Never place hands or feet under the deck or attempt to make adjustments to the cutter with PTO engaged. Cutter blades rotating at high speeds cannot be seen and are located close to the deck housing. Body extremities can be cut off instantly.

RCD1884 Rotary Cutters 326-355M

Do not operate and/or travel across steep inclines where a tractor can rollover resulting in serious injury or death. Consult your tractor’s manual for acceptable inclines the tractor is capable of traveling across.

Do not use cutter as a fan. Cutting blades are not properly designed or guarded for this use. Using cutter as a fan can result in injury or death.

12/15/15

Page 23

Section 4: Operating Instructions

WARNING

CAUTION

WARNING

IMPORTANT: Do not exceed rated cutter PTO

speed. Excessive engine speed will cause damage to power train components.

Table of Contents

Never allow riders including children on the tractor or cutter. They can fall and be ran over causing serious injury or death.

Do not operate cutter with loose hardware. Loose hardware can result in a breakdown causing bodily injury or death.

Always disengage PTO, put tractor in park or set park brake, shut tractor engine off, remove ignition key, and wait for all moving parts to stop before dismounting from tractor.

Always disengage PTO before lifting cutter up and never operate cutter in the raised position. The cutter can discharge objects at high speeds resulting in serious injury or death.

Always disengage PTO before lifting cutter too high and never engage PTO with cutter raised too high. Doing so can cause rotating u-joints to break into pieces that can be thrown at high speeds causing serious injury or death.

Keep blade bolt access hole covered at all times except when servicing cutter blades. Make sure driveline is disconnected from the tractor before servicing cutter blades.

Do not use deck as a working platform. The deck is not properly designed or guarded for this use. Using deck as a working platform could cause serious injury or death.

Do not use cutter to lift or carry objects, to pull fence posts, stumps or other objects, or to tow other equipment. Doing so can damage the cutter, cause serious bodily injury or death.

Improper oil level can cause bearing failure and be a fire hazard. Maintain proper gearbox oil level to avoid serious injury and property damage.

Do not over speed PTO or machine damage may result. This cutter is designed to operate at 540 RPM rear PTO.

Inspection of Tractor & Cutter

Make the following inspections with cutter attached to a tractor, PTO disengaged, and PTO completely stopped:

1. Park tractor and cutter on a level surface.

2. Disengage PTO, place gear selector in park, set park brake, shut tractor off, and remove switch key. Make sure cutter blades have come to a complete stop before dismounting from tractor.

3. Inspect tractor safety equipment to make sure it is installed and in good working condition.

4. Inspect cutter safety equipment to make sure it is installed and in good working condition.

5. Check driveline to make certain it is securely connected to the tractor PTO shaft and cutter gearbox shaft.

6. Check driveline guards to make certain they are in good condition and in place.

7. Carefully raise and lower implement to ensure that the drawbar, tires, and other equipment on the tractor do not contact cutter frame or driveline.

8. With cutter deck resting on solid supports, PTO disengaged, and blade rotation completely stopped:

• Check for and remove foreign objects wrapped

around blade spindles.

• Check for nicked, bent, broken, and worn cutting

blades. Replace or sharpen blades as required. Refer to “Cutter Blade Maintenance” on page 24.

9. Remove solid supports from under the deck.

10. Verify cutter is set at the correct cutting height. See “Deck Leveling & Cutting Height” on page 18.

The remaining inspections are made by engaging the PTO to check for vibrations.

Buildup of debris around moving parts and gearboxes is a fire hazard. Keep rotating parts and gearboxes fr ee fr om debris to avoid serious injury and property damage.

Do not exceed rated cutting capacity of your cutter. See specifications & capacities for specified cutting capacity. Exceeding ratted cutting capacities can damage drive components, cutter blades, and deck components.

12/15/15

Stop PTO immediately if vibration continues after a few revolutions during start-up and anytime thereafter. Wait for PTO to come to a complete stop before dismounting from tractor to check for probable causes. Make necess ary repairs and adjustments before continuing.

RCD1884 Rotary Cutters 326-355M

Page 24

Section 4: Operating Instructions

WARNING

IMPORTANT: Always disengage tractor PTO before

raising cutter to transport position.

WARNING

IMPORTANT: Maintain correct PTO speed. Loss of

PTO speed will allow blades to swing back resulting in ragged, uneven cutting. Excessive engine speed will cause damage to the power train components.

IMPORTANT: Your cutter is equipped with free swinging cutting blades to reduce shock loads when striking obstacles. However, it is best to avoid striking obstacles to extend cutter and blade life.

NOTE: Do not cut in wet conditions. Wet material will build up on the deck underside creating poor discharge, high wear, and additional horsepower.

Periodically disengage PTO, turn off tractor, remove key & check for objects wrapped around blade spindle. Block deck up before removing objects.

Frequently inspect cutter for loose bolts and nuts. Tighten all loose hardware as indicated in the

“Torque Values Chart” on page 34.

Table of Contents

11. Start tractor, set throttle to idle or slightly above idle, and slowly engage PTO. Initial start-up vibration is normal and should stop after a few revolutions. Stop PTO rotation immediately if vibration continues.

12. Once cutter is running smoothly, increase tractor PTO speed to 540 RPM. Stop PTO rotation immediately if vibration occurs.

13. Investigate cause of vibration and make repairs before putting cutter back into service.

Transporting

When traveling on public roads, use accessory lights, SMV sign, clean reflectors, and other adequate devices to warn operators in other vehicles of your presence. Always comply with all federal, state, and local laws.

1. Make sure driveline does not contact tractor or cutter when raising cutter to transport position.

2. Reduce tractor ground speed when turning and leave enough clearance so cutter does not contact obstacles such as buildings, trees, or fences.

3. Limit transport speed to 20 mph. Transport only with a farm tractor of sufficient size and horse power.

4. When traveling on roadways, transport in such a way that faster moving vehicles may pass you safely.

5. Shift tractor to a lower gear when traveling over rough or hilly terrain.

Blade Disengagement

1. Slowly decrease throttle speed until engine idle speed is reached and then disengage PTO.

2. Engage tractor park brake, shut tractor engine off and remove switch key. Stay on tractor until blades have come to a complete stop.

Field Operation

Clear area to be cut of debris and other unfor eseen re movable objects before cutting. Mark any potential hazards that cannot be removed such as tree stumps, post, rocks, holes, and dropoffs with a visible flag.

Blade Engagement & Disengagement

Cutter blades can lock-up against each other during start-up and shut-down especially if the tractor’s PTO engagement is “INSTANT ON” and “INSTANT OFF”. Following Blade Engagement and Blade Disengagement instructions below will help eliminate blade lock up.

Blade Engagement

1. Increase throttle to a speed just enough to get the cutter started without stalling tractor while slowly engaging PTO drivelines. Use tractor’s PTO soft start option if available.

2. Ensure that all power shafts are rotating and that the cutter is not vibrating excessively after ramping up to PTO speed for at least 3 seconds. If excessive vibration continues after 3 seconds at full PTO speed, disengage PTO immediately, shut down tractor, and remove switch key.

3. Check blades for a lock-up situation. Block cutter deck up before working under the unit. Unlock blades, remove support blocks, and repeat “Blade Engagement” instructions.

RCD1884 Rotary Cutters 326-355M

1. Thoroughly inspect area to be cut for debris and unforeseen objects. Mark any potential hazards.

2. Follow “Blade Engagement” instructions on right side of this page to start cutter blades turning.

3. Optimum ground speed depends on density of material being cut, horsepower rating of tractor, and terrain. Always operate tractor at cutter’s full rated PTO speed in a gear range that allows cutter to make a smooth cut without lugging tractor down, usually between 2 to 5 mph.

4. Follow “Blade Disengagement” instructions on right side of this page to stop cutter blades. After the first 50 feet, disengage PTO and check to see that the cutter is adjusted properly.

5. Do not engage PTO when cutter is in the fully raised or lowered positions.

6. Periodically disengage PTO, shut down tractor, remove key, and check for foreign objects wrapped around the blade spindle. Block cutter deck up before removing objects.

12/15/15

Page 25

Section 4: Operating Instructions

Table of Contents

7. Frequently inspect cutter for loose bolts and nuts. Tighten all loose bolts and nuts as indicated in the “Torque Values Chart for Common Bolt Sizes” on page 34.

8. For additional information, see “General Operating

Instructions” on page 23.

Unhook Rotary Cutter

1. Unhook Rotary Cutter from the tractor as follows:

2. See “Long Term Storage” on page 27 if cutter is to be stored for a long time.

3. Park on a level solid surface and lower deck to ground level or onto support blocks.

4. Engage tractor park brake, shut tractor engine off, and remove switch key. Stay on tractor until blades have come to a complete stop.

5. Disconnect driveline from tractor.

6. Unhook 3-Point hitch from tractor and drive tractor forward several feet.

7. Reinstall hitch pins, linch pins, and hair pin cotters in cutter hitch for safe keeping.

8. Collapse driveline by pushing tractor end of driveline towards cutter gearbox.

9. Support driveline off the ground with a support block to keep it up out of the dirt.

General Operating Instructions

It is important that you familiarize yourself with the Operator’s Manual, completed Operators Checklist, properly attached cutter to your tractor, made leveling adjustments, and preset your cutting height before beginning a running operational safety check on your Land Pride Rotary Cutter.

The running operational safety check may now be done. It is important that at any time during this safety check you detect a malfunction in either the cutter or tractor that you immediately shut the tractor off, remove its key, and make necessary repairs and/or adjustments before continuing on.

Make sure before starting the tractor that the park brake is engaged, PTO is disengaged, and cutter is resting on the ground. Start tractor and set engine throttle speed at a low idle. Raise cutter with tractor’s rear hydraulic lift control lever to transport position making sure that the driveline does not bind and does not contact the cutter frame. Lower the cutter to the ground and at a low engine speed engage the PTO. If everything is running smoothly at a low idle, slowly raise the cutter to transport height checking for bind or chatter in the driveline. Lower the cutter to the ground and increase the tractor’s engine rpm until it reaches the cutter full PTO operating speed of 540 rpm. If everything is still running smoothly, once more raise the cutter to transport height to check for driveline bind or chatter. Lower the cutter to the ground, return the engine to a low idle, and disengage the PTO. Position the adjustable stops on the tractor’s hydraulic lift lever so the

cutter can be consistently returned to the same cutting and transport height.

You should now be ready to transport to your cutting site at a safe ground speed. On roadways transport in such a manner that faster moving vehicles can easily see you and pass you safely. Reduce your speed when traveling over rough and hilly terrain. Avoid quick or sharp steering corrections. Take extra care to ensure that the mower doesn’t come into contact with obstacles such as trees, buildings, or fences. Use accessory lights and appropriate reflective devices to provide adequate warning to pedestrians and other vehicle operators when traveling on public roads and in the dark of night. Comply with all local, state, and federal laws.

It is important that you inspect the area where you will be cutting and clear it of safety hazards and foreign objects either before or after you arrive at the cutting site. Never assume the area is clear. Cut only in areas you are familiar with and are free of debris and unseen objects. Extremely tall grass should be cut twice to detect potential hazards. In the event you do strike an object stop the cutter and tractor immediately to inspect and make necessary repairs to the cutter before resuming operation. It really pays to inspect a new area and to develop a safe plan before cutting.

You will need to maintain 540 rpm PTO speed and 2 to 5 mph ground speed to produce a clean cut. Make a tractor gear and range selection that will enable you to maintain these speed combinations. Generally the quality of cut is better at lower ground speeds. Dense ground cover will create the need to slow down even more. In certain conditions tractor tires will roll grass down resulting in an uneven cut when the grass fails to rebound. Should this happen you may try reversing the direction of cut and/or double cut to achieve the desired finish. Avoid very low cutting heights especially on extremely uneven terrain. Always cut downward on slopes and avoid crossing the face of steep slopes. Avoid sharp drops and cross diagonally through dips to prevent hanging up tractor and cutter. Slow down in turns. Remember to look back often.

Now that you’re prepared and well briefed you may begin cutting. Reducing tractor engine speed, lower cutter to cutting position, engage PTO, raise engine RPM to the appropriate PTO speed and begin cutting.

Make wide turns when possible. Three-point hitch and optional Quick Hitch models can be lifted into transport position to make tight turns and to reverse direction. Try increasing or decreasing ground speed to determine the effect on quality of cut. With a little practice you will be pleased with what you and your Land Pride Rotary Cutter can do.

Whether you are done mowing, need to take a break, or just need to make a few adjustments to the cutter, remember to reduce tractor RPM, disengage PTO, stop on level ground, set tractor park brake, turn off engine, and remove switch key. Stay on the tractor until the cutter blades have come to a complete dead stop.

12/15/15

RCD1884 Rotary Cutters 326-355M

Page 26

Table of Contents

CAUTION

DANGER

WARNING

IMPORTANT: Replace cutting blades in pairs with

genuine Land Pride blades only. Replacing single blades can result in an out-of-balance condition that will contribute to premature bearing wear/breakage and/or structural cracks in gearbox and/or deck.

IMPORTANT: Locknuts can loose their ability to lock properly once removed. Always use a new locknut when installing blades.

Section 5: Maintenance & Lubrication

Maintenance

Proper servicing and adjustments are key to the long life of any implement. With careful inspection and routine maintenance, you can avoid costly downtime and repair.

Check all bolts and pins after using the unit for several hours and on a regular basis thereafter to ensure they are tight and secured.

Replace worn, damaged, or illegible safety labels by obtaining new labels from your Land Pride Dealer.

Do not attempt to straighten a bent blade or weld on a blade. Do not attempt to modify a blade such as hard surfacing, heat treating, cold treating, or by any other method. Always replace blades with a new Land Pride blade to assure safety.

Do not alter Land Pride equipment or replace parts with other brands. Doing so can cause equipment to perform improperly and may lead to breakage that can cause bodily injury. Replace parts only with genuine Land Pride parts.

Buildup of debris around moving parts and gearboxes is a fire hazard. Keep rotating parts and gearboxes fr ee fr om debris to avoid serious injury and property damage.

Improper oil level can cause bearing failure and be a fire hazard. Maintain proper gearbox oil level to avoid serious injury and property damage.

Cutter Blade Maintenance

Always disconnect driveline from tractor PTO shaft before servicing underside of cutter. If tractor is started with PTO engaged, the cutter can cause bodily injury or death.

Always secure cutter deck in the up position with solid supports before servicing underside of cutter. Never work under equipment supported by hydraulics. Hydraulics can drop equipment if controls are actuated or if hydraulic lines burst. Either situation can drop the cutter instantly even when power to the hydraulics is shut off.

Keep blade bolt access hole covered at all times except when servicing cutter blades. Make sure driveline is disconnected from the tractor before servicing cutter blades.

Do not operate cutter with blades that are out-of-balance, bent, excessively worn, excessively nicked, or with blade bolts that are excessively worn. Such blades can break loose from the cutter at high speeds causing serious injury or death.

RCD1884 Rotary Cutters 326-355M

Always inspect cutting blades before each use. Make certain they are properly installed and are in good working condition. Replace any blade that is damaged, worn, bent, or excessively nicked. Small nicks can be ground out when sharpening. Remove cutting blades and sharpen or replace:

1. Place tractor gear selector in park and set brakes, shut engine off and remove ignition key.

2. Disconnect main driveline from tractor PTO and secure cutter deck in the up position with solid supports before servicing underside of cutter.

Refer to Figure 5-1 on page 25:

3. Remove access cover (#5).

4. Rotate blade bolt (#1) until aligned with access hole (A).

5. Unscrew locknut (#3) to remove cutting blade (#6). Blade bolt (#1) is keyed and will not turn freely.

6. Both blades should be sharpened at the same angle as the original cutting edge and must be replaced or re-ground at the same time to maintain proper balance in the cutting unit. The following precautions should be taken when sharpening blades:

a. Do not remove more material than necessary.

b. Do not heat and pound out a cutting edge.

c. Do not grind blades to a razor edge. Leave a blunt

cutting edge approximately 1/16" thick.

d. Always grind cutting edge so end of blade remains

square to cutting edge and not rounded.

e. Do not sharpen back side of blade.

f. Both blades should weigh the same with not more

than 1 1/2 oz. difference. Unbalanced blades will cause excessive vibration which can damage gearbox bearings and create structural cracks.

7. Carefully check cutting edges of blades in relation to blade rotation to ensure correct blade placement. Blade rotation is counterclockwise with cutting edge leading. See Figure 5-2 on page 25. Airfoil (lift) must be oriented towards the top of the deck.

12/15/15

Page 27

Table of Contents

IMPORTANT: Examine blade bolts (#1) and flat

washers (#2) for excessive wear and replace if worn.

33002

Counterclockwise

Blade Rotation

Use 1-11/16"

Socket Wrench

On Blade Nut (#3)

Land Pride Cutter Blade Parts

Item Part No. Part Description

318-586A BLADE BOLT KIT (items 1, 2, & 3 below)

1 802-277C BLADE BOLT 1 1/8-12 x 3 7/16 WITH KEY 2 804-147C WASHER FLAT 1 HARD ASTMF436 3 803-170C NUT HEX TOP LOCK 1 1/8-12 PLATE 4 326-234H ROUND DISHPAN WELDMENT 5 840-273C PLUG LP 3" ID RUBBER 6 820-443C CUTTER BLADES 1/2" x 4" x 16" LG. CCW

IMPORTANT: See Figure 5-2. Cutter blades must be 90 deg. to each other to be in time or blades will contact each other when hitting solid objects such as tree stumps, rocks and earth. Blades hitting each other will become bent, broken, or twisted and require being replaced immediately.

IMPORTANT: Through use, rubber discs (#7) will become wrinkled from hitting solid objects causing blades to be out of time. Replace rubber disc when wrinkling causes blades to make a ticking sound from touching each other while cutting heavy brush.

33025

Section 5: Maintenance & Lubrication

8. Insert blade bolt (#1) through blade (#6), dish pan (#4), and flat washer (#2). Secure blade with a new locknut (#3) and torque to 450 ft-lbs.

9. Replace access cover (#5).

10. If replacing dishpan (#4), castle nut (#7) on gearbox output shaft should be torqued to 450 ft-lbs. minimum and secured with cotter pin (#8) with both legs bent opposite directions around the nut.

Flex Coupler & Blade Timing

Refer to Figure 5-3:

If rubber discs (#7) are wrinkled, the blades may be out of time and hit each other. Replace rubber disc if blades hit. Follow instructions below when replacing rubber discs and when adjusting blade timing.

Cutter Blade Assembly

Figure 5-1

12/15/15

Blade Rotation & Timing

Figure 5-2

Flex Coupler Assembly

Figure 5-3

1. Unbolt/remove rubber discs (#7) from flex coupler. Keep rubber discs that are in good shape and replace them if they are wrinkled excessively.

2. Loosen jam nut (#3) and set screw (#1). Slide spider (#5) off main gear box output shaft.

3. Rotate cutter blades until blades on the left dishpan

4. Hold blades 90

are 90

to blades on the right dishpan.

apart. Center spider lugs (#5) between spider tube lugs (#6) and push spider (#5) onto main gearbox output shaft.

5. Attach rubber discs (#7) to spider tube lugs (#6) with existing bolts (#2A), washers (#9), bushing (#8), and hex flange locknuts (#4) as shown. Do not tighten.

6. Attach rubber discs (#7) to spider lugs (#5) with existing bolts (#2B), washers (#9), bushing (#8), and hex flange locknuts (#4) as shown. Do not tighten.

7. Tighten nuts (#4) evenly until rubber disc (#7) touch each other at each bolt location. Bushings (#8) should be compressed halfway into the rubber discs.

RCD1884 Rotary Cutters 326-355M

Page 28

Table of Contents

WARNING

13693

IMPORTANT: Refer to Figure 5-6. Be Sure to measure and record length (“A”) of each clutch spring before disassembling clutch.

33024

24600

A = Measured length of each spring before disassembling slip clutch.

Use 1.27" for “A” dimension if measurements were not taken before disassembling slip clutch.

Section 5: Maintenance & Lubrication

Driveline Protection

The drive-train is protected from shock loads with a four plate slip-clutch. The slip-clutch must be capable of slippage during operation. Always do a “clutch run-in” operation at the beginning of each season and after long periods of inactivity to remove any oxidation that may have accumulated on the friction surfaces. Repeat “clutch run-in” instructions when moisture and/or condensation seizes the inner friction plates.

Always disengage PTO, engage parking brake, shut off tractor, remove ignition key, and wait for all moving parts to come to a complete stop before dismounting tractor to make adjustments.

Clutch Run-In

Refer to Refer to Figure 5-4:

1. Using a pencil or other marker, scribe a line across the exposed edges of the clutch plates and friction discs.

Clutch

Figure 5-4

Clutch Assembly and Disassembly

Disassembly

Refer to Figure 5-5:

See IMPORTANT NOTE above before disassembling clutch. After measuring and recording each spring length, remove spring retainer nuts (#1), springs (#2), and bolts (#3). Each friction disc (#4) must then be separated from the metal surface adjacent to it. Refer to the Parts Manual for a detailed parts breakdown.

Inspection

Inspect all parts for excessive wear and condition. Clean all parts that do not require replacement.The original friction disc thickness is 1/8" (3.2mm) and should be replaced if thickness falls below 3/64" (1.1mm). If clutches have been slipped to the point of “smoking”, the friction discs may be damaged and should be replaced. Heat build-up may also affect the yoke joints.

Assembly

Refer to Figure 5-5 & Figure 5-6:

Reassemble each friction disc (#4) next to the metal plate it was separated from. Install bolts (#3) through the end plates and intermediate plates as shown. Place springs (#2) over bolts (#3) and secure with nuts (#1). Progressively tighten each spring retainer bolt until correct spring height “A” dimension is obtained.

2. Carefully loosen each of the 8 spring retainer nuts by exactly 2 revolutions. It will be necessary to hold hex end of retainer bolt in order to count the exact number of revolutions.

3. Start tractor and engage PTO drive for 2-3 seconds to permit slippage of the clutch surfaces. Disengage PTO, then re-engage a second time for 2-3 seconds. Disengage PTO, shut off tractor, and remove key. Wait for all components to stop before dismounting from tractor.

4. Inspect clutch and ensure that the scribed markings made on the clutch plates have changed position. Slippage has not occurred if any two marks on the friction disc and plate are still aligned. A clutch that has not slipped must be disassembled to separate the friction disc plates. See “Clutch Assembly and Disassembly” on page 26.

5. Tighten each of the 8 spring retainer nuts on the clutch housing exactly 2 revolutions to restore the clutch to the original setting pressure.

6. The clutch should be checked during the first hour of cutting and periodically each week. An additional set of scribe marks can be added to check for slippage. See Figure 5-6 to adjust spring length.

RCD1884 Rotary Cutters 326-355M

Clutch Disassembly

Figure 5-5

Clutch Adjustment

Figure 5-6

12/15/15

Page 29

Table of Contents

WARNING

CAUTION

DANGER

Weld-on Skid Shoe

Replaceable Skid Shoe

Land Pride Skid Shoe Replacement Parts

Item Part No. Part Description

1 312-602D SKID SHOE 2 802-603C BOLT, PLOW 3/8" - 16 x 1" GR5 3 803-013C NUT, LOCK 3/8-16 PLT 4 804-012C WASHER, FLAT 3/8 SAE PLT

33003

DANGER

Land Pride Aerosol Touch-up Paint

Part No. Part Description

821-011C PAINT LP BEIGE AEROSOL SPRAY CAN 821-002C PAINT LP BLACK AEROSOL SPRAY CAN 821-054C PAINT MEDIUM RED AEROSOL SPRAY CAN 821-058C PAINT GREEN AEROSOL SPRAY CAN 821-066C PAINT ORANGE AEROSOL SPRAY CAN

81 . . . . . . Green

82 . . . . . . Orange

83 . . . . . . . Red

85 . . . . . . . Black

Section 5: Maintenance & Lubrication

Skid Shoe Maintenance (Accessory)

Refer to Figure 5-7:

Excessive wear on skid shoes can damage side panels, cause inadequate operation of cutter, and create a safety hazard. Always replace skid shoes at the first sign of wearing thin.

If the accessory skid shoes are mounted on the cutter side skirts, check them for wear and replace as needed. Order only genuine Land Pride parts from your local Land Pride dealer.

1. Remove 3/8" hex whiz nuts (#3), flat washers (#4),

3/8" plow bolts (#2), and skid shoes (#1) as shown.

2. Check plow bolts for wear and replaced if necessary.

3. Attach new skid shoes (#1) to cutter with existing

3/8" plow bolts (#2), flat washers (#4), and 3/8" hex whiz nuts (#3). Tighten nuts to the correct torque.

1. Clean off any dirt and grease that may have accumulated on the cutter and moving parts. Scrape off compacted dirt from the bottom of deck and then wash surface thoroughly with a garden hose. A coating of oil may also be applied to the lower deck area to minimize oxidation.

2. Check blades and blade mounting hardware for wear. Replace blades and hardware as needed. See

“Cutter Blade Maintenance”

3. Inspect for loose, damaged, or worn parts and adjust or replace as needed.

4. Repaint parts where paint is worn or scratched to prevent rust. Ask your dealer for Land Pride aerosol touch-up paint. They are also available in touch-up bottles with brush, quarts, and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.

on page 24.

Skid Shoe Accessory

Figure 5-7

Long Term Storage

Clean, inspect, service, and make necessary repairs to the cutter when parking it for long periods and when parking it at the end of a working season. This will help ensure the cutter is ready for field use the next time you hook-up to it.

Always store cutter with 3-point hitch pivoted back as far as possible. The floating 3-point hitch when not hooked to a tractor can fall backwards unexpectedly causing bodily injury.

Always disconnect driveline from tractor PTO shaft before servicing drive train components and cutter blades. The PTO can be engaged if tractor is started causing bodily injury or death.

12/15/15

5. Replace all damaged or missing decals.

6. Lubricate unit. See “Lubrication” on page 28.

7. Store cutter on a level surface in a clean, dry place. Inside storage will reduce maintenance and make for a longer cutter life.

8. Follow all unhooking instructions on page 23 when disconnecting tractor from cutter.

Ordering Replacement Parts

Land Pride offers equipment in factory standard beige with black highlights. Equipment may also be purchased in Green, Red or Orange. Special attention must be given to the part number to prevent ordering the wrong color. A suffix number corresponding to one of the colors below must be added at the end of the part number. Parts ordered without the suffix number will be supplied in factory standard colors.

For example, if you are ordering a replacement part with part number 555-555C and the existing part is red, then add the suffix 83 to the end of the number to make the part number read 555-555C83.

RCD1884 Rotary Cutters 326-355M

Page 30

Section 5: Maintenance & Lubrication

NOTE: Do not overfill! Cutter should be level when checking oil. Oil expands when hot, therefore, always check oil level when cold.

30971

30975

Oil Fill Holes

Do Not Overfill

33004 33005

Oil Level Holes

NOTE: Use a suction or siphon pump to drain

gearboxes of oil when there is not an oil drain plug.

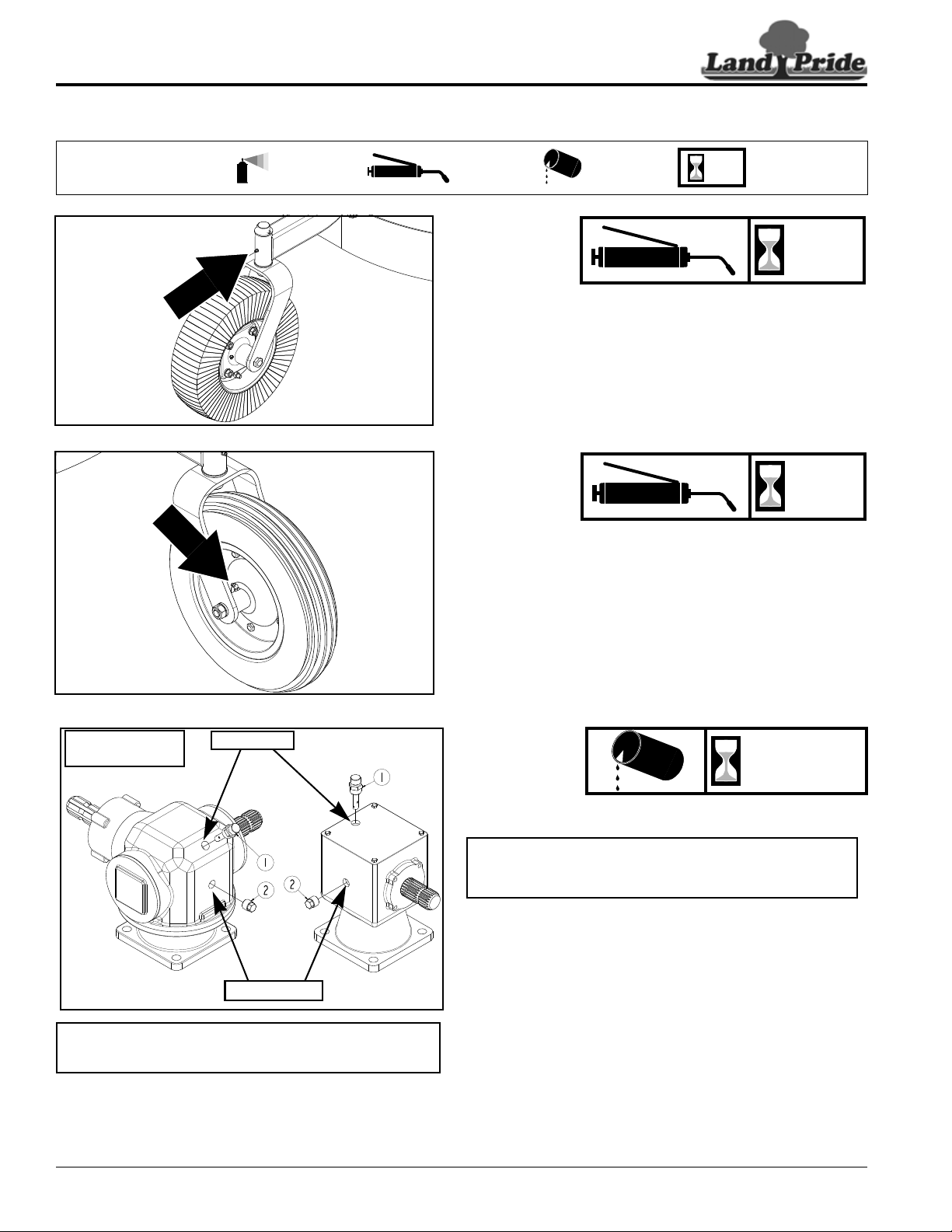

Lubrication

Table of Contents

Lubrication Legend

Multi-purpose spray lube

Multi-purpose grease lube

Multi-purpose oil lube

Hrs

Gauge Wheel Spindle Tube

Type of Lubrication: Grease

Quantity = 6 pumps

Gauge Wheel Hub

Type of Lubrication: Multi-purpose Grease

Quantity = 2 pumps

Intervals in hours at which lubrication is required

Hours

RCD1884 Rotary Cutters 326-355M

Hours

Gearbox

1. Remove side oil level plug (#2) to check oil level. Oil should be level with bottom of oil level hole.

2. If oil is below bottom of oil level hole, remove vented breather plug (#1) and add recommended gear lube through oil fill hole until oil flows out of oil level hole.

3. Reinstall and tighten oil level plug (#2) and vented breather plug (#1).

4. Repeat steps 1 to 3 above for the other gearbox.

Type of Lubrication: 80-90W EP Gear Lube

Quantity = Fill with oil until oil is level with bottom of oil level hole. (Oil should just start to flow out the oil level hole.)

12/15/15

Page 31

Table of Contents

30972

30949

14618

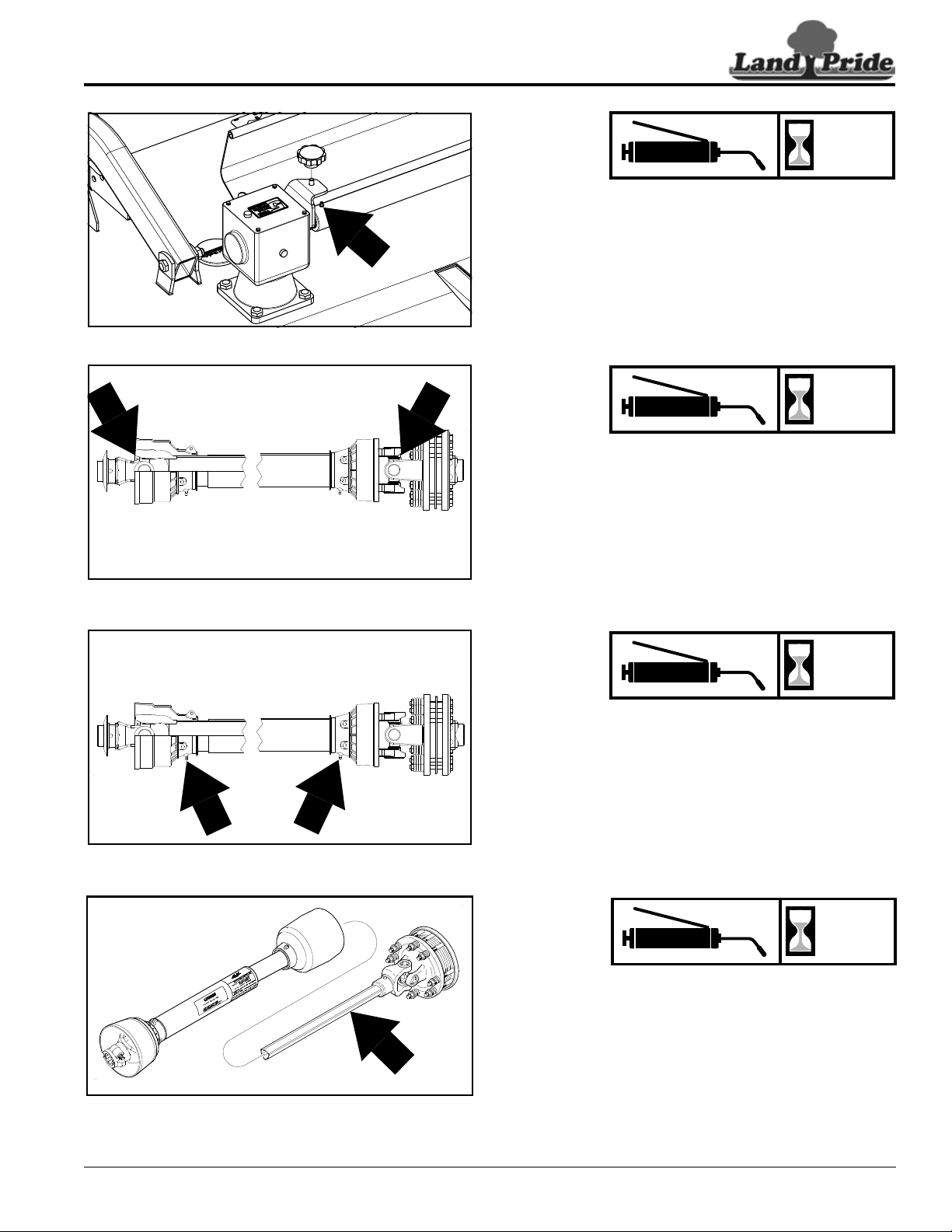

Section 5: Maintenance & Lubrication

Hours

Flex Coupling Shaft

Type of Lubrication: Multi-purpose Grease

Quantity = 6 pumps

Hours

Driveline U-Joints

Type of Lubrication: Multi-purpose Grease

Quantity = 6 pumps

Driveline Shield Bearings

Type of Lubrication: Multi-purpose Grease

Quantity = 6 pumps

Hours

12/15/15

Driveline Profiles

Type of Lubrication: Multi-purpose Grease

Quantity = Clean & coat inner tube of driveline with a light film of grease and then reassemble.

RCD1884 Rotary Cutters 326-355M

Page 32

Table of Contents

Section 6: Specifications & Capacities

RCD1884 Model

Specifications & Capacities

Machine Weight with

Dual Laminated Tailwheels

Dual Solid Tailwheels

Hitch Category l with clevis type lower links and floating top linkage

Cutting Width 84"

Overall Width 86 9/16"

Overall Length 80 9/16"

Offset Distance to the Right 10"

Deck Height at Rear 11 5/8"

Cutting Height 2" - 12"

Cutting Capacity 1 1/2" Diameter

Recommended Tractor PTO HP 35-60 HP

PTO Speed 540 rpm

Gearbox 60 Hp main gearbox & 45 HP side gearbox

Gearbox Lubricant EP 80-90W oil

Gearbox oil Capacity Main Gearbox

Side Gearbox

Deck Construction All welded deck

Deck Material Thickness 10 Gauge

Side Skirt Material Thickness 10 Gauge

Skid Shoe Construction 3/16" Weld-on with mounting holes for adding optional bolt-on replaceable shoes

Stump Jumper 10 Gauge x 24" Round dish pan with 1" x 4" x 19 1/2" blade bar

Blades (4) 1/2" x 4" x 16" Heat treated alloy steel free-swinging suction blades

Blade Overlap 5"

Blade Bolts Keyed with harden flat washers & lock nuts.

Blade Tip Speed 11,693 fpm

Main Driveline ASAE Category 3

Main Driveline Protection 2 plate slip clutch

Tailwheel Mount Caster fork with 360 degree swivel

Tailwheel Optional two 15" laminated tire or two 4" x 16" molded rubber tire.

Front Guard Optional 4" x 6" molded rubber or single chain guard

Rear Guard Standard metal band or optional metal extended guard

900 lbs. 905 lbs.

Quick Hitch adaptable

With speed-up beveled gears, cast iron housing, and 1.67" output shaft

4.7 pints

3.5 pints

RCD1884 Rotary Cutters 326-355M

12/15/15

Page 33

Table of Contents

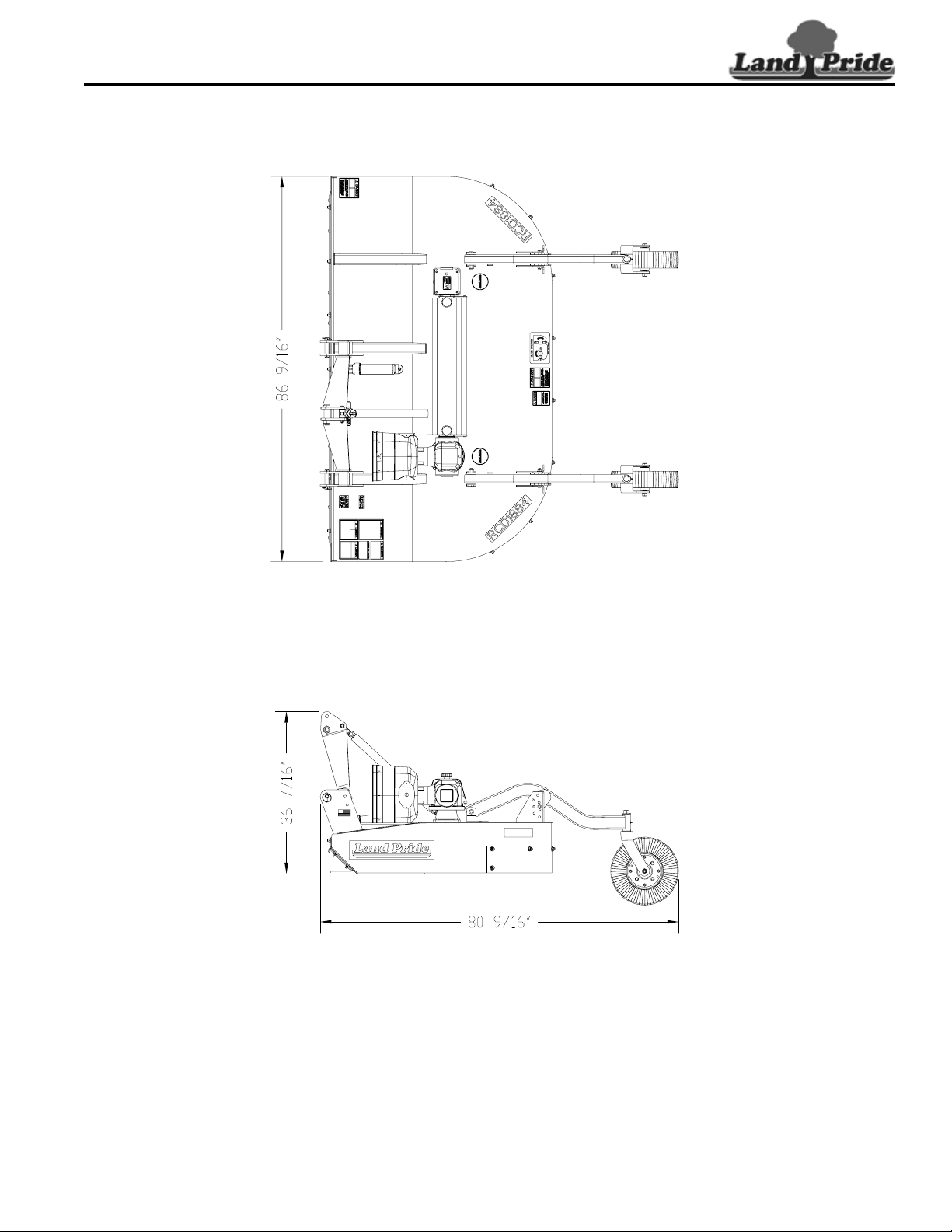

Section 6: Specifications & Capacities

12/15/15

30973

RCD1884 Rotary Cutters 326-355M

Page 34

Table of Contents

Section 7: Features & Benefits

RCD1884 Model

Features Benefits

Surpassed rugged industry standards

5 Year gearbox warranty Shows our confidence in the gearbox integrity.

Gearbox Seal Protection Gearbox bottom seal protection for longer bearing life.

Cat. 3 main driveline with 2-plate slip-clutch

Shock absorbing flex-coupler between main and side gearboxes

10" Deck offset to the right

Lower clevis type 3-Point hitch

Smooth deck top Reduces accumulation of debris and is easier and faster to clean.

Fully welded 10 gauge deck

Box tubing deck supports Makes for a stronger rigid deck.

Round back design Helps discharge grass better than enclosed or partially enclosed cutters.

11 5/8" Deck Height Allows cutter to handle heavy cutting conditions.

1 1/2" to 12" Cutting height Provides for a wide range of cutting conditions.

Skid shoes Provides sidewall reinforcement and protection to bottom of sidewall.

1/2" x 4" Heat-treated free swinging blades

1/2" x 4" Blade bar Heavy-duty blade bar adds support to stump jumper and gearbox output shaft.

Splined blade bar hub Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.

Stump jumper Standard round stump jumper slides over stumps, rocks, and debris.

Front and rear guarding Protect against flying debris.

Optional 15" Laminated tailwheel

4" x 16’ Molded rubber

All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI.

2-Plate slip-clutch protect driveline and gearboxes. slip-clutch is more convenient than shear bolt for continual work.

Protects intermediate drive shaft and side gearbox from hard objects in the blade path.

Allows the operator to cut closer to bodies of water, drainage ditches, roadways and objects such as fence lines, guard rails, buildings, and trees.

Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even pull from the tractor’s lower arms, vs. pulling on a single pin design.

Fully welded deck adds additional strength to the deck. 10 Gauge decks can withstand more abuse than decks with lighter gauge.

Free swinging protects from obstructions. Heat-treated offers longer life.

Optional front rubber or single chain guarding. Standard rear metal band or optional rear extended metal guarding.

Laminated material is long lasting in rough conditions and can’t go flat. Can’t go flat.

RCD1884 Rotary Cutters 326-355M

12/15/15

Page 35

Section 8: Troubleshooting

Problem Cause Solution

Oil seal leaking

Driveline yoke or cross failing

Table of Contents

Troubleshooting Chart

Gearbox overfilled Drain to side plug hole Seals damaged Replace seals Grass or wire wrapped on

shaft in seal area Shock load Avoid hitting solid objects Needs lubrication Lubricate every 8 hours

Scalping the ground

Check seal areas daily

Raise cutting height

Driveline clutch is slipping

Bent Driveline (NOTE: driveline should be repaired or replaced if bent)

Driveline telescoping tube failing

Driveline telescoping tube wearing

Blades Lock-up

Blades wearing excessively

Blades breaking

Blades coming loose

Blade carrier becomes loose

Blade bolt holes worn

Blade carrier bent

Excessive side skid wear

Tailwheel support failing

Excessive vibration

Cutting too fast Reduce travel speed PTO being engaged too

fast at high engine rpm Cutting over solid objects Avoid solid objects Contacting frame Reduce lift height in transport position Contacting drawbar Reposition drawbar Bottoming out Shorten driveline Binding up Not lubricating enough

Shock load Avoid hitting solid objects

Needs lubrication Lubricate every 20 hours

Tractor has instant on PTO

Tractor has Instant off PTO

Cutting on sandy ground

Contacting ground frequently

Hitting solid objects Avoid hitting solid objects Blades not

tightened properly Improper deck attitude Lower front of deck, see page 19 Running loose in the past Replace gearbox output shaft and blade carrier Blade carrier hardware not

tight enough

Blade hardware running loose Replace blades and blade bolts if worn

Hitting solid objects

Cutting height not level Adjust cutter height Soil abrasive Adjust cutter height Cutting too low Adjust cutter height Lowering too fast Adjust rate of drop Hitting objects when turning Reduce speed on turns Driveline bent Replace driveline Blades loose Tighten blade bolts Blade carrier bent Replace blade carrier Blade broken Replace blade Blade will not swing Remove and inspect blade Blades have unequal weight Replace both blades

Slowly engage PTO at low engine rpm

Engage PTO at low RPMs and then slowly increase engine speed to full PTO speed. See Blade Engagement on page 22.

Decrease engine speed slowly to an idle and then disengage PTO. See Blade Disengagement on page 22.

Raise cutting height

Tighten blade hardware (refer to “Cutter Blade Maintenance” on page 24

Tighten to specified torque

Avoid hitting solid objects and replace blade carrier

12/15/15

RCD1884 Rotary Cutters 326-355M

Page 36

Section 9: Torque values Chart

5.8

8.8

10.9

Section 9: Torque values Chart

Torque Values Chart for Common Bolt Sizes

Bolt Head Identification Bolt Head Identification

Table of Contents

Bolt Size

(inches) Grade 2 Grade 5 Grade 8

in-tpi

1/4" - 20 7.45.611 81612M 5 X 0.8 436597

1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11

5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27

5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29

3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53

3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62

7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93

7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97

1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105

1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150

9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160

9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230

5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245

5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300

3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355

3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450

7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665

7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780

1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845

1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 112 0 2100 1550

1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710

1-1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700

1-1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220

1-1/4" - 12 750 555 1680 1240 2730 20101 in-tpi = nominal thread diameter in inches-threads per inch

1-3/8" - 6 890 655 1990 1470 3230 23802 N· m = newton-meters

1-3/8" - 12 1010 74 5 2270 1670 3680 27103 ft-lb= foot pounds

1-1/2" - 6 1180 870 2640 1950 4290 31604 mm x pitch = nominal thread diameter in millimeters x thread

1-1/2" - 12 1330 980 2970 2190 4820 3560

Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.

N · m 2ft-lb 3N · m ft-lb N · m ft-lb mm x pitch 4N · m ft-lb N · m ft-lb N · m ft-lb

Bolt Size

(Metric) Class 5.8 Class 8.8 Class 10.9

pitch

Additional Torque Values

1" Quick Hitch Bolt & Top Lock Nut 400 to 450 ft-lbs

Blade Carrier Hub Nut 450 ft-lbs Minimum

Blade Bolt Lock Nut 450 ft-lbs

RCD1884 Rotary Cutters 326-355M

12/15/15

Page 37

Section 10: Warranty

be free from defects in material and workmanship beginning on the date of purchase by the end user according to the following schedule when used as intended and under normal service and conditions for personal use.

Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.

judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or which has been used for a purpose for which the product is not designed. Misuse also specifically includes failure to properly maintain oil levels, grease points, and driveline shafts.

the product and all warranty adjustments must be made through an authorized Land Pride dealer. Land Pride reserves the right to make changes in materials or design of the product at any time without notice.

of any kind, direct, consequential, or contingent to property. Furthermore, Land Pride shall not be liable for damages resulting from any cause beyond its reasonable control. This Warranty does not extend to loss of crops, any expense or loss for labor, supplies, rental machinery or for any other reason.

with respect to this sale; and all implied warranties of merchantability and fitness for a particular purpose which exceed the obligations set forth in this written warranty are hereby disclaimed and excluded from this sale.

the date of purchase by the end user.

Table of Contents

Warranty

Land Pride warrants to the original purchaser that this Land Pride product will

Overall Unit and Driveline: One year Parts and Labor

Gearbox: 5 years Parts and Labor

Blades, tires and driveline friction discs: Considered wear items

This Warranty is limited to the repair or replacement of any defective part by

This Warranty does not apply to any part or product which in Land Pride’s

Claims under this Warranty should be made to the dealer which originally sold

This Warranty shall not be interpreted to render Land Pride liable for damages

No other warranty of any kind whatsoever, express or implied, is made

This Warranty is not valid unless registered with Land Pride within 30 days from

IMPORTANT: The Online Warranty Registration should be completed by the dealer at the time of purchase. This information is necessary to provide you with quality customer service.

Model Number ____________________ Serial Number ____________________

12/15/15

RCD1884 Rotary Cutters 326-355M

Page 38

Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA

www.landpride.com

Land Pride RCD1884 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Important Safety Information

Safety at All Times

Look For The Safety Alert Symbol

Safety Labels

Introduction:

Application

Owner Assistance

Serial Number

Using This Manual

Terminology:

Definitions:

Further Assistance

Section 1: Assembly & Set-up

Tractor Requirements

Torque Requirements

Vented Breather Plug Installation

Uncrating Instructions

3-Point Hitch Assembly

Tractor Hook-Up

Quick Hitch Hook-up

Driveline Installation

Check Driveline Collapsible Length

Shorten Driveline

Check Driveline Maximum Length

Check Driveline Interference

Section 2: Options & Accessories

Skid Shoe Accessory

Front and Rear Guards

Front Corner Deflectors (Standard)

Front Rubber Guard (Option)

Front Single Chain Guard (Option)

Rear Metal Band Guard (Standard)

RCD Rear Extended Metal Guard (Option)

Section 3: Adjustments

Deck Leveling & Cutting Height

Deck Leveling From Left to Right

Deck Cutting Height

Tailwheel Height Adjustment

Center 3-Point Link Adjustment

Section 4: Operating Instructions

Operating Checklist

Safety Information

Inspection of Tractor & Cutter

Transporting

Blade Disengagement

Field Operation

Blade Engagement & Disengagement

Blade Engagement

Unhook Rotary Cutter

General Operating Instructions

Section 5: Maintenance & Lubrication

Maintenance

Cutter Blade Maintenance

Flex Coupler & Blade Timing

Driveline Protection

Clutch Run-In

Clutch Assembly and Disassembly

Skid Shoe Maintenance (Accessory)

Long Term Storage

Ordering Replacement Parts

Lubrication

Gauge Wheel Spindle Tube

Gauge Wheel Hub

Gearbox

Flex Coupling Shaft

Type of Lubrication: Multi-purpose Grease

Driveline U-Joints

Driveline Shield Bearings

Driveline Profiles

Section 6: Specifications & Capacities

Section 7: Features & Benefits

Section 8: Troubleshooting

Section 9: Torque values Chart

Section 10: Warranty
