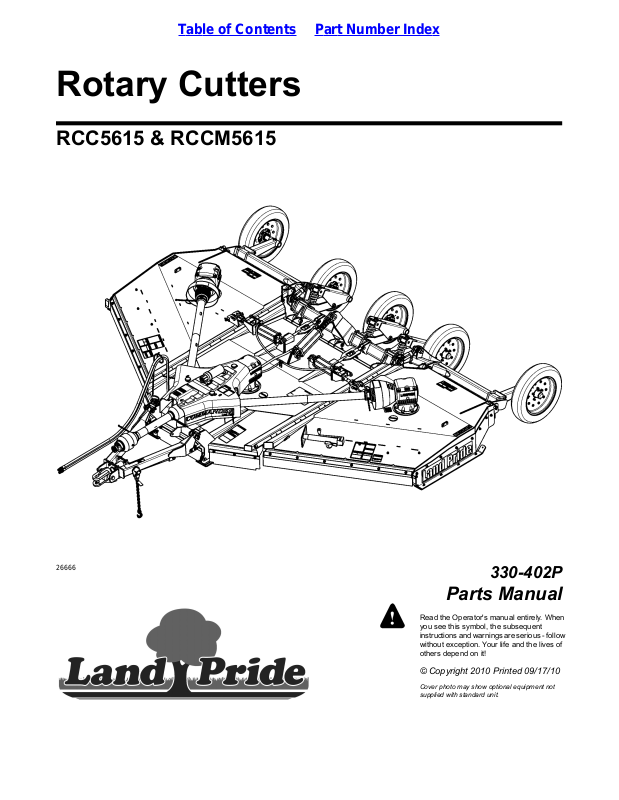

Land Pride RCC5615, RCCM5615 User Manual
Table of Contents Part Number Index
Rotary Cutters
RCC5615 & RCCM5615
26666
330-402P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2010 Printed 09/17/10
Cover photo may show optional equipment not
supplied with standard unit.
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Decks & Hitchs............................................6
Blade Carrier S/N 509781+.................................................6
Deck Center Section (RC56)...............................................8
Deck Wing Section (RC56)...............................................12
Hitch Ball Coupler.............................................................16
Hitch Bar Tite.....................................................................18
Hitch Main Frame..............................................................20
Hitch Pintel........................................................................22
Hitch Standard Pivoting Clevis..........................................24
Hitch Swivel.......................................................................26
Leveling Rod & Wing Turnbuckle.......................................28
Section 3: Axles...........................................................30
Axle Center Row Crop......................................................30
Axle Wing Row Crop.........................................................32
Section 4: Guards........................................................34
Guards Chain Double Row Front......................................34
Guards Chain Double Row Rear.......................................36
Guards Chain Single Row Front........................................38
Guards Chain Single Row Rear........................................40
Guards Chain W/ Cable Front...........................................42
Guards Chain W/ Cable Rear............................................44
Guards Rubber Front........................................................46
Guards Rubber Rear.........................................................48
Section 5: Drivelines (1000 RPM)...............................50
Driveline Center (826-478C) Comer.................................50
Driveline Center 1000 RPM (826-184C) Eurocardan........52
Driveline Conv. 1000 RPM (826-247C) Walterscheid........54
Driveline CV 1000 RPM (826-477C) 1 3/8-21 Comer.......56
Driveline CV 1000 RPM (826-499C) 1 3/4-20 Comer.......58
Driveline CV 1000 RPM (826-644C) (S/N ______+).........60
Driveline CV 1000 RPM (826-645C) (S/N ______+).........62
Driveline Slip Clutch (146.264.024.1) Comer....................64
Driveline Slip Clutch (146.284.020.1) Comer....................66
Driveline Slip Clutch (229829X0) Walterscheid.................68
Driveline Slip Clutch (395980) Walterscheid.....................70
Driveline Slip Clutch 1000 RPM (1406016) Eurocardan....72
Driveline Slip Clutch 540/1000 RPM (1446016) EC..........74
Driveline Wing (826-185C) EC New Shielding..................76
Driveline Wing (826-185C) Walterscheid..........................78
Driveline Wing (826-481C) Comer....................................80
Driveline Wing (826-481C) Walterscheid..........................82
Section 5: Drivelines (540 RPM).................................84
Driveline Center (826-478C) Comer.................................84
Driveline Center 540 RPM (826-183C) Eurocardan..........86
Driveline Conv. 540 RPM (826-112C) Walterscheid..........88
Driveline CV 540 RPM (826-476C) Comer.......................90
Driveline CV 540 RPM (826-643C) Weasler (S/N
______+)....................................................................92
Driveline Slip Clutch (146.264.024.1) Comer....................94
Driveline Slip Clutch (146.284.020.1) Comer....................96
Driveline Slip Clutch (229829X0) Walterscheid.................98
Driveline Slip Clutch (395980) Walterscheid...................100
Driveline Slip Clutch 540/1000 RPM (1446016) EC........102
Driveline Wing (826-185C) EC New Shielding................104
Driveline Wing (826-185C) Walterscheid........................106
Driveline Wing (826-481C) Comer..................................108
Driveline Wing (826-481C) Walterscheid........................110
Section 6: Gearboxes (1000 RPM)............................112
Gearbox 1000 RPM (826-317C).....................................112
Gearbox 1000 RPM (826-318C).....................................114
Gearbox 1000 RPM (826-319C).....................................116
Gearbox Divider 1000 RPM (826-521C) Comer.............118
Gearbox Divider 1000 RPM (826-521C) ITG..................120
Gearbox Divider 1000 RPM (826-521C) Omni...............122
Section 6: Gearboxes (540 RPM)..............................124
Gearbox 540 RPM (826-315C).......................................124
Gearbox 540 RPM (826-316C).......................................126
Gearbox Divider 540 RPM (826-520C) Comer...............128
Gearbox Divider 540 RPM (826-520C) ITG....................130
Gearbox Divider 540 RPM (826-520C) Omni.................132
Section 7: Hydraulics................................................134
Hydraulic Lift Components..............................................134
Hydraulic Cylinder (810-162C) Cross.............................136
Hydraulic Cylinder (810-162C) Midway...........................138
Hydraulic Cylinder (810-162C) Red Lion........................140
Hydraulic Cylinder (810-644C) Midway...........................142
Hydraulic Independent Wing Control Accessory.............144
Hydraulic Valve Selector Assessory................................146
Hydraulic Valve Spool Control Accessory.......................148
Section 8: Labels.......................................................150
Label Placement.............................................................150
Section 9: Options & Accessories...........................152
Shredder/Baffle Components Center Deck.....................152
Shredder/Baffle Components LH Deck...........................154
Shredder/Baffle Components RH Deck..........................156
Part Number Index.....................................................158
© Copyright 2010. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Land Pride is registered trademark.
Printed in the United States of America.
Table of Contents Part Number Index
Alphabetized Table of Contents
A
Axle Center Row Crop..................................................30
Axle Wing Row Crop....................................................32
B
Blade Carrier S/N 509781+............................................6
D
Deck Center Section (RC56)..........................................8
Deck Wing Section (RC56)..........................................12
Driveline Center (826-478C) Comer.............................50
Driveline Center (826-478C) Comer.............................84
Driveline Center 1000 RPM (826-184C) Eurocardan....52
Driveline Center 540 RPM (826-183C) Eurocardan.....86
Driveline Conv . 1000 RPM (826-247C) Walterscheid....54
Driveline Conv. 540 RPM (826-112C) Walterscheid.....88
Driveline CV 1000 RPM (826-477C) 1 3/8-21 Comer...56
Driveline CV 1000 RPM (826-499C) 1 3/4-20 Comer...58
Driveline CV 1000 RPM (826-644C) (S/N ______+).....60
Driveline CV 1000 RPM (826-645C) (S/N ______+).....62
Driveline CV 540 RPM (826-476C) Comer..................90
Driveline CV 540 RPM (826-643C) Weasler (S/N
______+)................................................................92
Driveline Slip Clutch (146.264.024.1) Comer...............64
Driveline Slip Clutch (146.264.024.1) Comer...............94
Driveline Slip Clutch (146.284.020.1) Comer...............66
Driveline Slip Clutch (146.284.020.1) Comer...............96
Driveline Slip Clutch (229829X0) Walterscheid............68
Driveline Slip Clutch (229829X0) Walterscheid............98
Driveline Slip Clutch (395980) Walterscheid................70
Driveline Slip Clutch (395980) Walterscheid..............100
Driveline Slip Clutch 1000 RPM (1406016)
Eurocardan............................................................72
Driveline Slip Clutch 540/1000 RPM (1446016) EC.....74
Driveline Slip Clutch 540/1000 RPM (1446016) EC....102
Driveline Wing (826-185C) EC New Shielding.............76
Driveline Wing (826-185C) EC New Shielding...........104
Driveline Wing (826-185C) Walterscheid......................78
Driveline Wing (826-185C) Walterscheid....................106
Driveline Wing (826-481C) Comer...............................80
Driveline Wing (826-481C) Comer.............................108
Driveline Wing (826-481C) Walterscheid......................82
Driveline Wing (826-481C) Walterscheid....................110
Guards Chain Double Row Rear..................................36
Guards Chain Single Row Front...................................38
Guards Chain Single Row Rear...................................40
Guards Chain W/ Cable Front......................................42
Guards Chain W/ Cable Rear.......................................44
Guards Rubber Front...................................................46
Guards Rubber Rear....................................................48
H
Hitch Ball Coupler........................................................16
Hitch Bar Tite................................................................18
Hitch Main Frame.........................................................20
Hitch Pintel...................................................................22
Hitch Standard Pivoting Clevis.....................................24
Hitch Swivel..................................................................26
Hydraulic Lift Components.........................................134
Hydraulic Cylinder (810-162C) Cross.........................136
Hydraulic Cylinder (810-162C) Midway......................138
Hydraulic Cylinder (810-162C) Red Lion....................140
Hydraulic Cylinder (810-644C) Midway......................142
Hydraulic Independent Wing Control Accessory........144
Hydraulic Valve Selector Assessory...........................146
Hydraulic Valve Spool Control Accessory..................148
L
Label Placement........................................................150
Leveling Rod & Wing Turnbuckle..................................28
S
Shredder/Baffle Components Center Deck................152
Shredder/Baffle Components LH Deck......................154
Shredder/Baffle Components RH Deck......................156
G
Gearbox 1000 RPM (826-317C)................................112
Gearbox 1000 RPM (826-318C)................................114
Gearbox 1000 RPM (826-319C)................................116
Gearbox 540 RPM (826-315C)..................................124
Gearbox 540 RPM (826-316C)..................................126
Gearbox Divider 1000 RPM (826-521C) Comer........118
Gearbox Divider 1000 RPM (826-521C) ITG.............120
Gearbox Divider 1000 RPM (826-521C) Omni...........122
Gearbox Divider 540 RPM (826-520C) Comer..........128
Gearbox Divider 540 RPM (826-520C) ITG...............130
Gearbox Divider 540 RPM (826-520C) Omni.............132
Guards Chain Double Row Front.................................34
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 3
Table of Contents Part Number Index
4 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Table of Contents Part Number Index
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 5
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Blade Carrier S/N 509781+
Applies to RCC5615, RCCM5615
24645
6 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Blade Carrier S/N 509781+
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg24645
As RequiredBLADE SPACER 16 GA .064 Thick312-075D1.
As RequiredBLADE SPACER 18 GA .052 Thick312-082D1.
As RequiredBLADE SPACER 20 GA. .04 Thick312-089D1.
As RequiredBLADE SPACER 24 GA. .03 Thick312-808D1.
WLDMT, 55 SERIES DISHPAN330-084H2.
Left Wing SectionASSY. CW BLADE CARRIER330-086S3.
Right Wing SectionASSY. CCW BLADE CARRIER330-085S3.
Center SectionASSY. CCW. BLADE CARRIER330-087S3.
BLADE BOL 1 1/8-12X3 7/16 W/KY802-277C4.
NUT HEX TOP LOCK 1 1/8-12 PLT.803-170C5.
WASHER FLAT 1 HARD ASTMF436 PN804-147C6.
Left Wing SectionCUTTER BLADE 1/2X4X23 CW820-170C7.
Center SectionCUTTER BLADE 1/2X4X29 CCW820-168C7.
Right Wing SectionCUTTER BLADE 1/2X4X23 CCW820-169C7.
With ManualBLADE BOLT KIT318-586A8.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 7
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Deck Center Section (RC56)
Applies to RCC5615, RCCM5615
26555
8 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Deck Center Section (RC56)
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26555
CO NUT, CASTLE M30 X 28.2.2.005551.
CO BLANK WASHER0.288.7101.002.
FORMED HINGE BRACKET318-322D3.
SHIELD BRACKET WELDMENT318-401H4.
SKID SHOE330-185H5.
No Deck RingsDECK, SMOOTH CENTER WO/DR330-186H6.
DECK, CENTER WO/DR GREEN330-186H816.
DECK, CENTER WO/DR ORANGE330-186H826.
DECK, CENTER WO/DR RED330-186H836.
DECK, SMOOTH CENTER W/DR330-189H6.
DECK, CENTER W/DR GREEN330-189H816.
DECK, CENTER W/DR ORANGE330-189H826.
DECK, CENTER W/DR RED330-189H836.
DIV BOX COVERCOMMANDER ORANGE330-285K827.
DIV BOX COVERCOMMANDER RED330-285K837.
HHCS 1/4-20X1 GR5802-005C8.
HHCS 3/4-10X2 1/4 GR5802-065C10.
NUT HEX NYLOCK 1/4-20803-255C12.
NUT HEX FLG TOP LK 3/4-10 PLT803-299C14.
WASHER FLAT 1/4 SAE PLT804-007C15.
WASHER LOCK SPRING 5/16 PLT804-009C16.
WASHER FLAT 5/16 USS PLT804-010C17.
WASHER FLAT 3/8 SAE PLT804-012C18.
PIN COTTER 5/32 X 1 1/4 LG805-045C19.
PIN COTTER 1/4 X 2 1/2 PLT805-105C20.
PIN CLEVIS 3/8 X 5 1/2 PLT805-309C21.
MANUAL STORAGE CONTAINER816-481C22.
KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C23.
GBOX RC50 1:1.46 CCW GREEN826-315C8124.
GBOX RC50 1:1.46 CCW ORANGE826-315C8224.
GBOX RC50 1:1.46 CCW RED826-315C8324.
GBOX RCM50 1.21:1 CCW GREEN826-318C8124.
GBOX RCM50 1.21:1 CCW ORANGE826-318C8224.
GBOX RCM50 1.21:1 CCW RED826-318C8324.
COMER U0.125.7003.00 OIL PLUG826-486C27.
COMER VENT #8.6.7.00269826-497C28.
DIV BOX 540RPM 1 3/4-20 GREEN826-520C8129.
With Deck Rings Not Available on
RCC(M)5615
Beige & Green Unit Includes DecalsDIV BOX COVERCOMMANDER330-285K7.
Comer BoxHHCS 5/8-11X2 1/2 GR5802-058C9.
Comer BoxHHCS M8X1.25X20 GR8.8802-314C11.
ITG & Omni BoxHHCS 5/16-18X3/4 GR5802-007C11.
Comer BoxNUT HEX FLANGE LOCK 5/8-11 PLT803-263C13.
RC5615 RCC5615GBOX RC50 1:1.46 CCW826-315C24.
RCM5615 RCCM5615GBOX RCM50 1.21:1 CCW826-318C24.
RC5615 RCC5615 S/N ______+PTO CV 540 NO CLUTCH826-643C25.
RC5615 RCC5615 S/N ______-RPBY 826-643C826-476C25.
RC5615 RCC5615PTO 2500 X 39.76 NO CLUTCH826-112C25.
RCM5615 RCCM5615S/N ______+PTO CV 1000 1-3/8 NO CLUTCH826-644C25.
RCM5615 RCCM5615 S/N ______-RPBY 826-644C826-477C25.
RCM5615 RCCM5615PTO 2500 CAT.5 1000 1 3/8-21826-247C25.
RCM5615 RCCM5615S/N ______+PTO CV 1000 1-3/4 NO CLUTCH826-645C25.
RCM5615 RCCM5615 S/N ______-RPBY 826-645C826-499C25.
540 RPM & 1000 RPM CAT 5PTO E60 X 21.7 1280NM CLUTCH826-478C26.
540 RPM CAT4PTO INT. CAT.4 540W/CLUTCH826-183C26.
1000 RPM CAT4PTO INT. CAT.4 1000W/CLUTCH826-184C26.
RC5615 RCC5615DIV BOX 540RPM 1 3/4-20826-520C29.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 9
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Deck Center Section (RC56) (continued)
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
DIV BOX 540RPM 1 3/4-20 ORANGE826-520C8229.
DIV BOX 540RPM 1 3/4-20 RED826-520C8329.
RCM5615 RCCM5615DIV BOX 1000RPM 1 3/4-20826-521C29.
DIV BOX 1000RPM 1 3/4-20 GREEN826-521C8129.
DIV BOX 1000RPM ORANGE826-521C8229.
DIV BOX 1000RPM 1 3/4-20 RED826-521C8329.
NUT HEX WHIZ 1/2-13 PLT803-037C30.
HHCS 1/2-13X1 1/2 GR5802-091C31.
WASHER FLAT 1/2 USS PLT804-017C32.
SPRING HOSE LOOP HEAVY807-073C33.
PLUG LP 3" ID RUBBER840-273C34.
PLATE, DIV. BOXSUPPORT318-746D35.
ITG BOXWASHER LOCK SPRING 5/8 PLT804-022C36.
OMNI BOXWASHER LOCK SPRING 3/4 PLT804-023C36.
ITG BOXHHCS 5/8-11X1 3/4 GR5802-053C37.
OMNI BOXHHCS 3/4-10X1 3/4 GR5802-392C37.
Service Kit S/N 659249-LIFT LUG STRUT KIT330-754K38.
Service Part S/N 659249-STRUT BAR330-267D39.
Service Part S/N 659249-SPACER330-268D40.
Service Part S/N 659249-SPACER SHORT330-269D41.
Service Part S/N 659249-HHCS 5/8-11X5 GR5802-062C42.
Service Part S/N 659249-WASHER FLAT 1 SAE804-029C43.
Service Part S/N 659249-PIN COTTER 3/16 X 1 1/2 PLT805-104C44.
Service Part S/N 659249-PIN CLEVIS 1 X 4 11/16 USABLE805-131C45.
10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Deck Center Section (RC56) (continued)
Applies to RCC5615, RCCM5615
This Page Intentionally Left Blank
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 11
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Deck Wing Section (RC56)
Applies to RCC5615, RCCM5615
26554
12 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Deck Wing Section (RC56)
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26554
CO NUT, CASTLE M30 X 28.2.2.005551.
CO BLANK WASHER0.288.7101.002.
SKID SHOE318-633D3.
WLDMT. HINGE ROD318-696H4.
WLDMT. HINGE ROD GREEN318-696H814.
WLDMT. HINGE ROD ORANGE318-696H824.
WLDMT. HINGE ROD RED318-696H834.
DEFLECTOR RH318-927D5.
DEFLECTOR LH318-928D5.
No Deck RingsDECK, RH WING WO/DR330-187H6.
DECK RH WING WO/DR GREEN330-187H816.
DECK RH WING WO/DR ORANGE330-187H826.
DECK RH WING WO/DR RED330-187H836.
No Deck RingsDECK, LH WING WO/DR330-188H6.
DECK LH WING WO/DR GREEN330-188H816.
DECK LH WING WO/DR ORANGE330-188H826.
DECK LH WING WO/DR RED330-188H836.
DECK, RH WING W/DR330-190H6.
DECK, RH WING W/DR GREEN330-190H816.
DECK, RH WING W/DR ORANGE330-190H826.
DECK, RH WING W/DR RED330-190H836.
DECK, LH WING W/DR330-191H6.
DECK, LH WING W/DR GREEN330-191H816.
DECK, LH WING W/DR ORANGE330-191H826.
DECK, LH WING W/DR RED330-191H836.
ASSY, SIDE SKIRT RH330-219S8.
ASSY, SIDE SKIRT RH GREEN330-219S818.
ASSY, SIDE SKIRT RH ORANGE330-219S828.
ASSY, SIDE SKIRT RH RED330-219S838.
ASSY, SIDE SKIRT LH330-220S8.
ASSY, SIDE SKIRT LH GREEN330-220S818.
ASSY, SIDE SKIRT LH ORANGE330-220S828.
ASSY, SIDE SKIRT LH RED330-220S838.
GREASE ZERK 1/4-28 THD FORMING800-080C9.
HHCS 3/8-16X1 1/2 GR5802-022C10.
HHCS 3/4-10X2 1/4 GR5802-065C11.
RHSNB 1/2-13X1 1/4 GR5802-214C12.
HHCS M8X1.25X20 GR8.8802-314C13.
PLOW 3/8-16X1 1/4 GR5802-466C14.
NUT HEX 3/8-16 PLT803-014C15.
NUT HEX WHIZ 1/2-13 PLT803-037C16.
NUT HEX WHIZ 3/8-16 PLT803-198C17.
NUT HEX FLG TOP LK 3/4-10 PLT803-299C18.
WASHER LOCK SPRING 5/16 PLT804-009C19.
WASHER FLAT 5/16 USS PLT804-010C20.
WASHER LOCK SPRING 3/8 PLT804-013C21.
PIN COTTER 1/4 X 2 1/2 PLT805-105C22.
PTO CAT.4 W/CLUTCH 1 3/4-20826-185C23.
PTO V80 X 59.3 1280NM CLUTCH826-481C23.
LARGE SHAFT CONE W ACCESS DOOR826-648C24.
With Deck Rings Not Available on
RCC(M)5615
With Deck Rings Not Available on
RCC(M)5615
Order 330-219S Per Color OptionPANEL, SIDE SKIRT RHN/A7.
Order 330-220S Per Color OptionPANEL, SIDE SKIRT LHN/A7.
RC5615, RCM5615, RCC5615 &
RCCM5615 Cat 4
RC5615, RCM5615, RCC5615 &
RCCM5615 Cat 5
RC5615 RCC5615 LHGBOX RC50 1:1.46 CCW826-315C25.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 13
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Deck Wing Section (RC56) (continued)
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
GBOX RC50 1:1.46 CCW GREEN826-315C8125.
GBOX RC50 1:1.46 CCW ORANGE826-315C8225.
GBOX RC50 1:1.46 CCW RED826-315C8325.
RCM5615 RCCM5615 LHGBOX RCM50 1.75-20 1:1.21 CCW826-317C25.
GB 1.75-20 1:1.21 CCW GREEN826-317C8125.
GBOX RCM50 1:1.21 CCW ORANGE826-317C8225.
GB RCM50 1.75-20 1:1.21CCW RED826-317C8325.
RC5615 RCC5615 RHGBOX RC50 1:1.46 CW826-316C26.
GB 1.75-20 1:1.46 CW GREEN826-316C8126.
GBOX RC50 1:1.46 CW ORANGE826-316C8226.
GB RC50 1.75-20 1:1.46 CW RED826-316C8326.
RCM5615 RCCM5615 RHGBOX RCM50 1.75-20 1:1.21 CW826-319C26.
GBOX RCM50 1.75-20 1:1.21 CW GREEN826-319C8126.
GBOX RCM50 1.75-20 1:1.21 CW ORANGE826-319C8226.
GBOX RCM50 1.75-20 1:1.21 CW RED826-319C8326.
COMER U0.125.7003.00 OIL PLUG826-486C27.
PLUG LP 3" ID RUBBER840-273C28.
14 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Deck Wing Section (RC56) (continued)
Applies to RCC5615, RCCM5615
This Page Intentionally Left Blank
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 15
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Hitch Ball Coupler
Applies to RCC5615, RCCM5615
26568
16 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Hitch Ball Coupler
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26568
BALL HITCH330-335A
*
BALL HITCH330-348H1.
S/N 615584+HHCS 5/8-11X1 3/4 GR5802-053C2.
S/N 615583-HHCS 1/2-13X1 3/4 GR5802-082C2.
S/N 615584+NUT HEX WHIZ 5/8-11 PLT803-304C3.
S/N 615583-NUT HEX WHIZ 1/2-13 PLT803-037C3.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 17
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Hitch Bar Tite
Applies to RCC5615, RCCM5615
26569
18 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Hitch Bar Tite
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26569
BAR TITE HITCH330-333A
*
SHAFT WELDMENT318-358H1.
HITCH TOP PLATE318-691D2.
FORMED HITCH SUPPORT318-693D3.
WELDMENT HITCH CLEVIS318-834H4.
WELDMENT HITCH BASE318-835H5.
SWIVEL RECEIVER330-271H6.
GREASE ZERK STRAIGHT 1/4-28800-001C7.
GREASE ZERK 1/4-28 THD FORMING800-080C8.
HHCS 1-8X6 1/2 GR5802-074C9.
S/N 615584+HHCS 5/8-11X1 3/4 GR5802-053C10.
S/N 615583-HHCS 1/2-13X1 3/4 GR5802-082C10.
HHCS 1-8X5 GR5802-235C11.
HHCS 3/4-10X5 1/2 GR5802-594C12.
S/N 615584+NUT HEX WHIZ 5/8-11 PLT803-304C13.
S/N 615583-NUT HEX WHIZ 1/2-13 PLT803-037C13.
NUT HEX TOP LOCK 1-8 PLT803-168C14.
NUT HEX FLANGE LOCK 3/4-10 PLT803-181C15.
NUT HEX FLG LOCK 1-8 GR B PLT803-258C16.
NUT HEX SLOTTED 1 1/2-6 PLT803-301C17.
WASHER FLAT 3/4 SAE PLT804-025C18.
WASHER FLAT 1 3/8HARD ASTMF436804-171C19.
PIN COTTER 1/4 X 2 1/2 PLT805-105C20.
BUSHING 1.50ODX1.00IDX1.25890-862C21.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 19
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Hitch Main Frame
Applies to RCC5615, RCCM5615
26556
20 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Hitch Main Frame
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26556
HITCH330-222H1.
GREASE ZERK 1/4-28 THD FORMING800-080C2.
HHCS 1-8X2 1/2 GR5802-096C3.
HHCS 3/8-16X2 GR5802-143C4.
NUT LOCK 3/8-16 PLT803-013C5.
NUT HEX SIDE LOCK 1-8 PLT803-316C6.
WASHER FLAT 1 USS PLT804-028C7.
PIN 1 X 5 1/2 HRD PLT805-292C8.
SAFETY CHAIN 10000 LB890-182C9.
SIDEWIND JACK 7000 LB890-786C10.
BUSHING 1.25ODX1.00IDX2.87890-970C11.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 21
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Hitch Pintel
Applies to RCC5615, RCCM5615
26570
22 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Hitch Pintel
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26570
PINTLE HITCH330-334A
*
WLDMT. CLEVIS LEVEL ROD318-006H1.
ASSY. LEVEL ROD CLEVIS318-053L2.
WLDMT. PINTLE HITCH CLEVIS318-556H3.
YOKE HITCH330-223H4.
S/N 615584+HHCS 5/8-11X1 3/4 GR5802-053C5.
S/N 615583-HHCS 1/2-13X1 3/4 GR5802-082C5.
HHCS 1-8X9 GR5802-110C6.
HFS 5/8-11X2 1/2 GR8 PLT802-729C7.
S/N 615584+NUT HEX WHIZ 5/8-11 PLT803-304C8.
S/N 615583-NUT HEX WHIZ 1/2-13 PLT803-037C8.
NUT HEX FLG LOCK 1-8 GR B PLT803-258C9.
NUT HEX WHIZ 5/8-11 PLT803-304C10.
WASHER FLAT 3/4 SAE PLT804-025C11.
PIN COTTER 5/32 X 1 1/4 LG805-045C12.
PIN CLEVIS 3/4 X 1 1/2805-083C13.
PINTLE HOOK SQ.BASE BDB1250-15890-806C14.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 23
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Hitch Standard Pivoting Clevis
Applies to RCC5615, RCCM5615
26557
24 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Hitch Standard Pivoting Clevis
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26557
STANDARDHITCH330-225A
*
WLDMT. TONGUE CLEVIS318-005H1.
WLDMT. CLEVIS LEVEL ROD318-006H2.
ASSY. LEVEL ROD CLEVIS318-053L3.
YOKE HITCH330-223H4.
S/N 615584+HHCS 5/8-11X1 3/4 GR5802-053C5.
S/N 615583-HHCS 1/2-13X1 3/4 GR5802-082C5.
HHCS 1-8X9 GR5802-110C6.
S/N 615584+NUT HEX WHIZ 5/8-11 PLT803-304C7.
S/N 615583-NUT HEX WHIZ 1/2-13 PLT803-037C7.
NUT HEX FLG LOCK 1-8 GR B PLT803-258C8.
WASHER FLAT 3/4 SAE PLT804-025C9.
PIN COTTER 5/32 X 1 1/4 LG805-045C10.
PIN CLEVIS 3/4 X 1 1/2805-083C11.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 25
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Hitch Swivel
Applies to RCC5615, RCCM5615
26571
26 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Hitch Swivel
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26571
SWIVEL HITCH330-332A
*
CLEVIS WELDMENT318-357H1.
SHAFT WELDMENT318-358H2.
SWIVEL RECEIVER330-271H3.
Replaced By 330-648SCLEVIS SWIVEL330-321H4.
GREASE ZERK 1/4-28 THD FORMING800-080C5.
S/N 615584+HHCS 5/8-11X1 3/4 GR5802-053C6.
S/N 615583-HHCS 1/2-13X1 3/4 GR5802-082C6.
HHCS 1-8X6 1/2 GR5802-074C7.
HHCS 1-8X5 1/2 GR5802-205C8.
NUT HEX JAM 1-8 PLT803-030C9.
NUT HEX FLG LOCK 1-8 GR B PLT803-258C10.
NUT HEX SLOTTED 1 1/2-6 PLT803-301C11.
S/N 615584+NUT HEX WHIZ 5/8-11 PLT803-304C12.
S/N 615583-NUT HEX WHIZ 1/2-13 PLT803-037C12.
NUT HEX 1-8 PLT803-031C13.
WASHER FLAT 1 USS PLT804-028C14.
WASHER FLAT 1 3/8HARD ASTMF436804-171C15.
PIN COTTER 1/4 X 2 1/2 PLT805-105C16.
BUSHING CYL 1 1/4 X 1 X 1890-005C17.
BUSHING 1 1/4X1X5/8890-850C18.
ASSY SWIVEL CLEVIS330-648S19.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 27
Land Pride Section 2: Decks & Hitchs
Table of Contents Part Number Index
Leveling Rod & Wing Turnbuckle
Applies to RCC5615, RCCM5615
26550
28 RCC5615 & RCCM5615 Rotary Cutters 330-402P 09/17/10
Section 2: Decks & Hitchs Land Pride
Table of Contents Part Number Index
Leveling Rod & Wing Turnbuckle
Applies to RCC5615, RCCM5615
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg26550
LEVELING ROD330-195H1.
ASY LEVELING ROD330-196L2.
TURNBUCKLE KIT330-224K3.
GREASE ZERK STRAIGHT 1/4-28800-001C4.
HSHCS 5/16-18X1 3/4802-538C5.
HHCS 3/4-10X3 GR8802-552C6.
EYE BOLT 1-8X6 1/2 LG PLT SP802-754C7.
HHCS 1-8X5 GR8 PLT SPTHD802-915C8.
NUT HEX 3/4-10 PLT NYLOCK803-025C9.
NUT HEX JAM 1-8 PLT803-030C10.
NUT HEX JAM 1 1/4-7 PLT803-032C11.
NUT HEX NYLOCK 5/16-18 PLT803-084C12.
NUT HEX SIDE LOCK 1-8 PLT803-316C13.
WASHER LOCK SPRING 1 PLT804-027C14.
WASHER FLAT 1 SAE804-029C15.
WASHER LOCK 1 1/4 SPRING PLT804-030C16.
PIN COTTER 3/16 X 1 1/2 PLT805-104C17.
PIN CLEVIS 1 X 2 1/16 USABLE805-374C18.
TRNBCKL, 1BORE W/SWIVEL 9.5890-974C19.
09/17/10 RCC5615 & RCCM5615 Rotary Cutters 330-402P 29
Land Pride Section 3: Axles
Table of Contents Part Number Index
Axle Center Row Crop
Applies to RCC5615, RCCM5615
26642
