RC35120 RCM35120
Operator’s Manual
Operator’s Manual
Rotary Cutter
Cover photo may show optional equipment not supplied with standard unit.
Read theOperator’smanual entirely.When you see this
symbol, the subsequent instructions and warnings are
!
serious - follow without exception. Your life and the lives
of others depend on it!
© Copyright 2000 Printed
11/16/00
10438
312-301M
Page 2
Table of Contents
Table of Contents
Land Pride
Important Safety Information . . . . . . . . . . . . . . . . . 1
Safety Notations. . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . 6
Terminology: . . . . . . . . . . . . . . . . . . . . . . . . . 6
Definitions:. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . 6
Section 1 Assembly and Setup. . . . . . . . . . . . . . . . 7
Tractor Requirements. . . . . . . . . . . . . . . . . . . . . . 7
Lift-Type Cutter. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Hitch & Axle Assembly . . . . . . . . . . . . . . . . . 7
Tailwheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pull-Type Cutter . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tongue. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rear Axle. . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Leveling Rod . . . . . . . . . . . . . . . . . . . . . . . . 10
Driveline Installation. . . . . . . . . . . . . . . . . . . . . . 11
Lift-Type Cutter . . . . . . . . . . . . . . . . . . . . . . 11
Pull-Type Cutter. . . . . . . . . . . . . . . . . . . . . . 11
Safety Guards . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Tractor Hook-Up. . . . . . . . . . . . . . . . . . . . . . . . . 11
Lift-Type Cutter . . . . . . . . . . . . . . . . . . . . . . 11
Pull-Type Cutter. . . . . . . . . . . . . . . . . . . . . . 13
Section 2 Operating Instructions . . . . . . . . . . . . . 14
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operating Check List . . . . . . . . . . . . . . . . . . . . . 14
Cutting Instructions . . . . . . . . . . . . . . . . . . . . . . 14
Section 3 Adjustments . . . . . . . . . . . . . . . . . . . . . .16
Lift-Type Cutting Height. . . . . . . . . . . . . . . . . . . .16
Pull-Type Cutting Height . . . . . . . . . . . . . . . . . . .16
Deck Attitude Adjustment . . . . . . . . . . . . . . . . . .16
Section 4 Troubleshooting . . . . . . . . . . . . . . . . . . .17
Section 5 Maintenance and Lubrication . . . . . . . .19
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Service Cutting Blades . . . . . . . . . . . . . . . . . . . .19
Skid Shoe Service & Replacement. . . . . . . . . . .19
Flex Couplers . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Clutch Run-In . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Pivoting Upper Hitch. . . . . . . . . . . . . . . . . . . . . .20
Lift-Type Tailwheel Spindle Hub . . . . . . . . . . . . .20
Lift-Type Tailwheel Hub. . . . . . . . . . . . . . . . . . . .21
Pull-Type Tailwheel Hub . . . . . . . . . . . . . . . . . . .21
Ratchet Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Driveline U-Joints . . . . . . . . . . . . . . . . . . . . . . . .21
Driveline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
T-Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
4-Plate Slip Clutch . . . . . . . . . . . . . . . . . . . . . . .23
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . .23
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Section 6 Specifications and Capacities. . . . . . . .24
Section 7 Appendix. . . . . . . . . . . . . . . . . . . . . . . . .25
Torque Values Chart for Common Bolt Sizes . . .25
© Copyright 2000 All rights Reserved
LandPride provides this publication “as is” without warranty of any kind, either expressed or implied. Whileeveryprecautionhasbeentakeninthepreparationofthis manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting fromthe use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publicationdescribes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for ordering parts only.
Land Pride is registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
RC35120 RCM35120 Rotary Cutter 312-301M
11/16/00
Page 3
Land Pride
Important Safety Information
Important Safety Information
For your safety and to develop a better understanding of
your equipment, thoroughly read the Operator’sSections
of this manual before operation.
Safety Notations
The SAFETY ALERT SYMBOL indicates that there is a
potential hazard to personal safety involvedand extra
safetyprecautions must be taken.When you seethissymbol,bealertand carefullyreadthe message thatfollows it.
In addition to design and configuration of equipment; hazard control and accident preventionare dependent upon
the awareness, concern, prudenceand proper training of
personnel involved in the operation, transport, maintenance and storage of equipment.
Watch for the following Safety Notations throughout
your Operator’s Manual:
!
DANGER!
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury. This signal word
is limited to the most extreme situations.
!
WARNING!
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
!
CAUTION!
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used
to alert against unsafe practices
!
!
Safety Rules
These rules and instructions
must be revie wed at least ann uall y
by all operators!
Most accidents are the result of negligence and carelessness,causedby failure of theoperatorto follow safetyprecautions. Even though your implement is designed with
manybuilt-in safetyfeatures,the followingprecautionsare
mandatory to prevent such accidents.
Make sure everyone that uses this machine has read the
Operator’sManual and understands how to operate it
safely.
This Operator’s Manual is considered a part of the implement and should remain so when loaned or sold.
Prior To Operation
1. Do not allow anyone to operate this machine who has not
been properly trained in its safe operation.
2. Wear proper eye protection to prevent injury from
flying objects.
3. To prevent personal injury caused by thrown objects,
the use of front safety shields is strongly recommended.
4. Do not let children operate the implement.
5. Never allow passengers.
6. Do not leave the tractor or the implement unattended with
the engine running.
7. Before cutting, clear the area of objects and debris that
could become entangled in the blades or thrown from the
cutter.
During Operation
1. Never operate the cutter near people and do not stand near
the cutter while blades are in motion.
2. After striking an object,disengage PTO, shutoff tractor and
inspect for damage before continuing.
3. Do not operate the cutter in reverse unless necessary. Debris may be thrown from the frontof the cutter;therefore, increasing the risk of injury to the operator.
4. Checkthe cutterperiodically for loosehardware andtighten
if necessary.
5. Never operate the cutter while in the raised transport position.
6. Disengage the PTO when raised for transport or backing up.
7. Travel slowly over rough terrain and be alert to holes and
gullies.
8. Use warning flags or approved warning lights at night and
during other periods of poor visibility. Do your best to prevent highway accidents.
9. Be alert to traffic when crossing or cutting near roadways.
Always maintain complete control of the machine. Know
your state and local laws concerning highway safety and
regulations. Comply with these laws when transporting machinery.
10.Keep PTO shielding in place and in good condition. Do not
operate cutter with shields missing.
11.Always use proper PTO speed or machine damage may result.
12.Inorder to maintain steering control,add ballast to tractor.
To determine the amount of ballast required refer to your
tractor operator’s manual.
During Maintenance
1. Before performing maintenance, disconnect PTO driveline
and securely block cutter on safe supporting stands. Do not
position stands under axle or wheel supports.
11/16/00
RC35120 RCM35120 Rotary Cutter 312-301M
1
Page 4
Important Safety Information
Land Pride
Safety Labels
Your implement comes equipped with all safety labels in place.
They were designed to help you safely operate your implement.
2. Read and follow label directions.
3. Keep all safety labels clean and legible.
4. Replace all damaged or missing labels.
5. Some new equipment installed during repair require safety
labels to be affixed to the replaced component as specified
ROTATING DRIVELINE
KEEP AWAY!
by the manufacturer. When ordering new components make
sure the correct safety labels are includedin the request.To
order new labels go to your Land Pride dealer.
6. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Peel backing from label. Press firmly on surface
being careful not to cause air bubbles under label.
ROTATING DRIVELINE
KEEP AWAY!
ROTATING DRIVELINE
KEEP AWAY!
14272
14275
818-130C
Caution 540 RPM
818-161C
Caution Rotary Cutter
General Safety
RC35120 RCM35120 Rotary Cutter 312-301M
2
14272
818-187C
Danger PTO Shield
11/16/00
Page 5
Land Pride
Important Safety Information
ROTATING DRIVELINE
KEEP AWAY!
14275
14274
818-187C
Danger PTO Shield
818-229C
Amber Reflector
14280
11/16/00
ROTATING DRIVELINE
KEEP AWAY!
14272
818-230C
Red Reflector
818-240C
Caution 1000 RPM
RC35120 RCM35120 Rotary Cutter 312-301M
3
Page 6
Important Safety Information
ROTATING DRIVELINE
KEEP AWAY!
Land Pride
ROTATING DRIVELINE
KEEP AWAY!
ROTATING DRIVELINE
KEEP AWAY!
ROTATING DRIVELINE
KEEP AWAY!
14272
14275
818-552C
Danger PTO Driveline
ROTATING DRIVELINE
KEEP AWAY!
818-552C
Danger PTO Driveline
ROTATING DRIVELINE
KEEP AWAY!
RC35120 RCM35120 Rotary Cutter 312-301M
4
14279
14273
818-552C
Danger PTO Driveline
818-554C
Warning General
Cutter Safety
11/16/00
Page 7
Land Pride
Important Safety Information
14273
14273
818-555C
Danger Rotating Blade
818-556C
Danger Thrown Object
11/16/00
14273
818-557C
Notice To Owner
RC35120 RCM35120 Rotary Cutter 312-301M
5
Page 8
Introduction
Introduction
Land Pride
Land Pride welcomes you to the growing family of new
product owners. This implement has been designed with
care and built by skilled workers using quality materials.
Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the
machine.
Using This Manual
ThisOperator’s Section isdesigned to help familiarizeyou
with safety, assembly, operation, adjustments, troubleshooting, and maintenance. Read this manual and follow
the recommendations to help ensure safe and efficient
operation.
The warranty sheet should be filled out by the owner and
dealer at the time of purchase. After completion give the
dealer the white copy and send the pink copy to Great
Plains. Keep your copy in the manual for use when corresponding with the dealer.
To order a new Operator or Parts Manual contact your authorized dealer or write to the address listed below in the
Owner Assistance
al numbers of your unit.
The information contained within this manual was current
at the time of printing. Some parts may change slightly to
assure you of the best performance.
Terminology:
"Right " or "Left" as used in this manual is determined by
facingthedirection the machine will travelwhile in use unless otherwise stated.
Definitions:
NOTE: A special point of information related to it’s
preceding topic. The author’s intention is that you
read and note this information before continuing.
IMPORTANT:Information, related to it’sproceedingtopic,
that the author feels would be of use.
paragraph.Include the model and seri-
only be replaced with genuine Land Prideparts.
Serial Number Plate
Referto the Figure 1 for the location of yourserialnumber
plate.
ROTATING DRIVELINE
KEEP AWAY!
Serial Number Plate Location
Figure 1
14272
Forpromptservicealwaysusetheserialnumberand model
number when ordering parts from your Land PrideDealer .
Be sure to include your serial and model numbers in correspondence also.
Your dealer wants you to be satisfied with your new machine. If for any reason you do not understand any part of
this manual or are not satisfied with the service received,
the following actions are suggested:
1. Discuss the matter with your dealership Service Manager make sure he is awareofanyproblems you may
have and that he has had the opportunity to assist
you.
2. If you are still not satisfied, seek out the Owner or
General Manager of the dealership, explain the problem and request assistance.
3. For further assistance write to:
Owner Assistance
If customer service or repair parts are required contact
yourlocal Land Pride dealer.He hastrained personnel, repair parts,and the equipment needed to service your implement.
These parts havebeen specially designed and should
RC35120 RCM35120 Rotary Cutter 312-301M
6
Product Support
Land Pride, Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
11/16/00
Page 9
Land Pride
Section 1 Assembly and Setup
Section 1
Assembly and Setup
Tractor Requirements
The lift-type cutter is designed with a category II hitch.
Both Lift and Pull-Type Cutters are designed for tractors
with a minimum PTO horsepower rating of 50 HP and
maximum of 120 HP. Adequate front end weight is required on tractors for use with lift-type cutter.
Lift-Type Cutter
Refer to Figure 1-1:
Hitch & Axle Assembly
NOTE: Do not tighten hardware until assembly is
complete.
1. Assemble hitch straps (#1) to inside of lower hitch angles welded to cutter deck with 1 1/8" hitch pin (#2)
lock washers (#3) and nuts (#4).
2. Installpivotingupperhitch (#5)to insideof hitchstraps
with hitch braces (#6) on the outside. Do not attach
otherendof hitch bracesatthis time. Install1"x 6 1/2"
long bolt (#7)andlocknut (#8). Do not tighten bolts at
this time.
3. Attach axle assembly (#9) to rear of cutter:
a. Position axle as shown.
b. Attach axle on the right hand side of cutter with
cylinder pivot lug (#10) and 1 1/2" x 1" x 1 7/8"
longspacer(#11) on outboard sideofpivot, and 1
1/2"x 1"x 11/8" longspacer (#12)and hitchbrace
(#6) on inboard side of pivot. Secure with a 1" x
9 1/2" long bolt (#13), flat washer (#14), and lock
nut (#8).
c. Attach axle on the left hand side of cutter with
11/2" x 1"x 11/8"long spacer(#12) on bothsides
of pivot attach hitch brace (#6) on inboard side of
pivot. Secure with a 1" x 9" long bolt (#15), flat
washer (#14), and lock nut (#8)
d. Install outboard axle mounts (#33)todeckmount-
ed support (#34) with pivot shaft pin (#35) and secure with 1/4” -20 x 1 1/2” long hex bolt (#36) and
lock nut (#37).
NOTE:1"bolts should be installed pointing outboard.
e. Fastenersfor hitch straps (#1) and pivoting upper
hitch (#5) cannowbe tightened. Do not over tighten 1" x 6 1/2" long upper hitch bolt (#7). Upper
hitch must be free to pivot.
4. If cutter is equipped with ratchet height adjustment:
f. Installratchet (#16)and securewithpins andclips
furnished with ratchet.
5. If cutter is equipped with hydraulic height adjustment:
g. Install 3 1/2" x 8" hydraulic cylinder (#17) and se-
cure with 1" pins and clips furnishedwith cylinder.
11/16/00
RC35120 RCM35120 Rotary Cutter 312-301M
7
Page 10
Section 1 Assembly and Setup
Land Pride

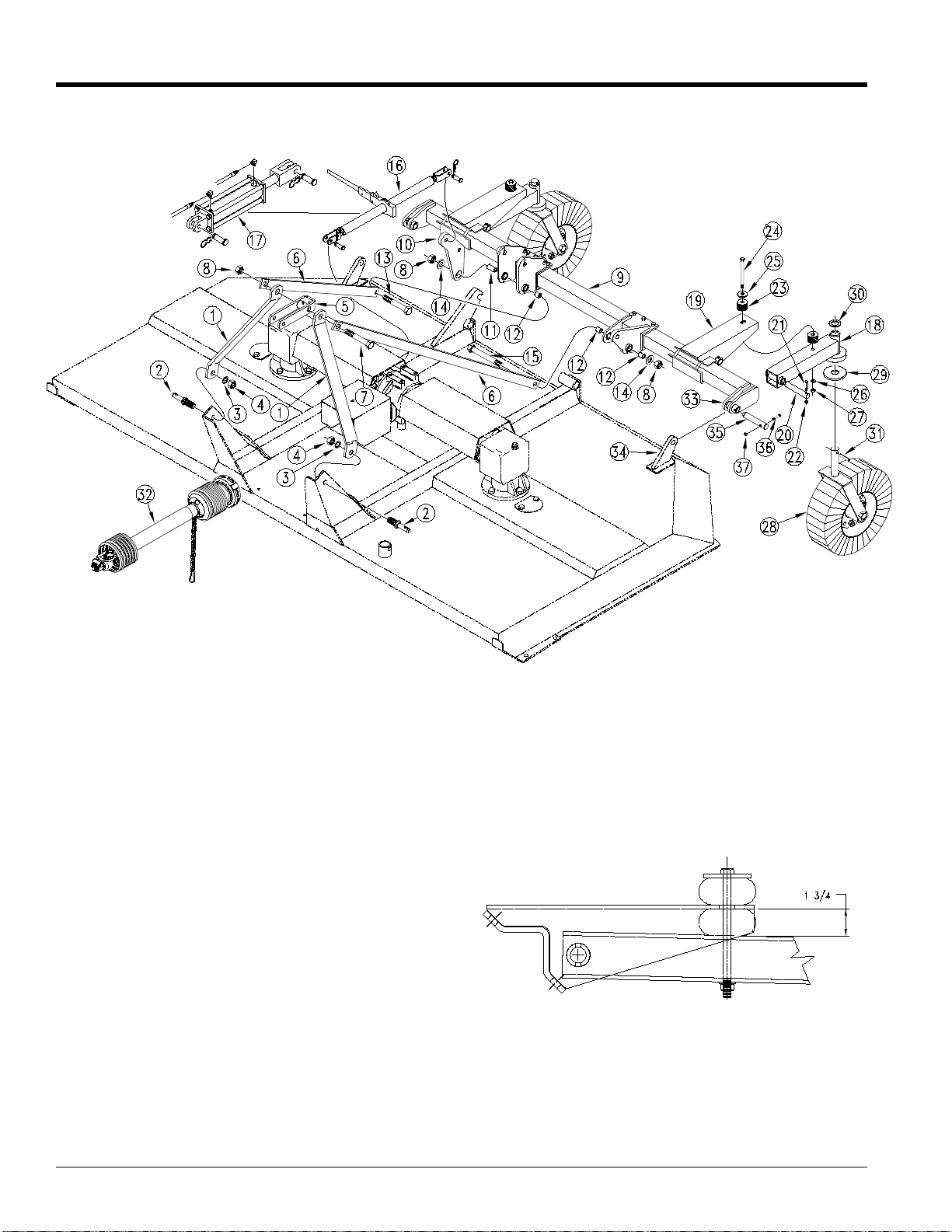

Hitch & Axle Assembly
Figure 1-1
Tailwheel
Refer back to Figure 1-1:
1. Attach caster arm weldment (#18) to axle arm(#19)
with 1” pin (#20) secure with 5/16” x 2” long bolt (#21)
and lock nut (#22).
2. Install rubber bumpers (#23) one on top side of axle
arm mount and one below as shown and secure with
1/2”x8” long bolt(#24),rubber stop washer(#25),flat
washer(#26), andlock nut(#27). Tightenlock nutuntil
rubber bumper compresses to 1 3/4” as shown in Figure 1-2.
3. Attach tailwheel yoke spindle (#28) to caster arm
weldment (#18) and secure with washer (#29) on bottom and washer (#30) on top and spiral roll pin (#31).
14256
10440
Rubber Bumper Tightening Dimensions
Figure 1-2
RC35120 RCM35120 Rotary Cutter 312-301M
8
11/16/00
Page 11
Land Pride
Section 1 Assembly and Setup
Pull-Type Cutter
Tongue
Refer to Figure 1-3:
1. Positiontongue (#1) in front of cutter as shown. Block
tongue in or near a horizontal position.
2. Assemble tongue to lower hitch plates welded to cut-
ter deckwith the 1 5/8” x 1 1/8” x 2” long spacers (#2),
1 1/8” x 4” long bolts (#3), and lock nuts (#17).
3. Attach safety chain (#4) to tongue (#1) using two 1”
USS flat washers (#5) and 1” nylon lock nut (#6).
4. Installthehydraulichoseloop (#7) onthedeck behind
therighthand lowerhitchplate using a3/8”x 3/4” long
bolt (#8), lock washer (#9), and flat washers (#10).
5. Install jack (#11) to tongue and secure with pin (#12).
11/16/00
14257
Tongue Assembly
Figure 1-3
RC35120 RCM35120 Rotary Cutter 312-301M
9
Page 12
Section 1 Assembly and Setup

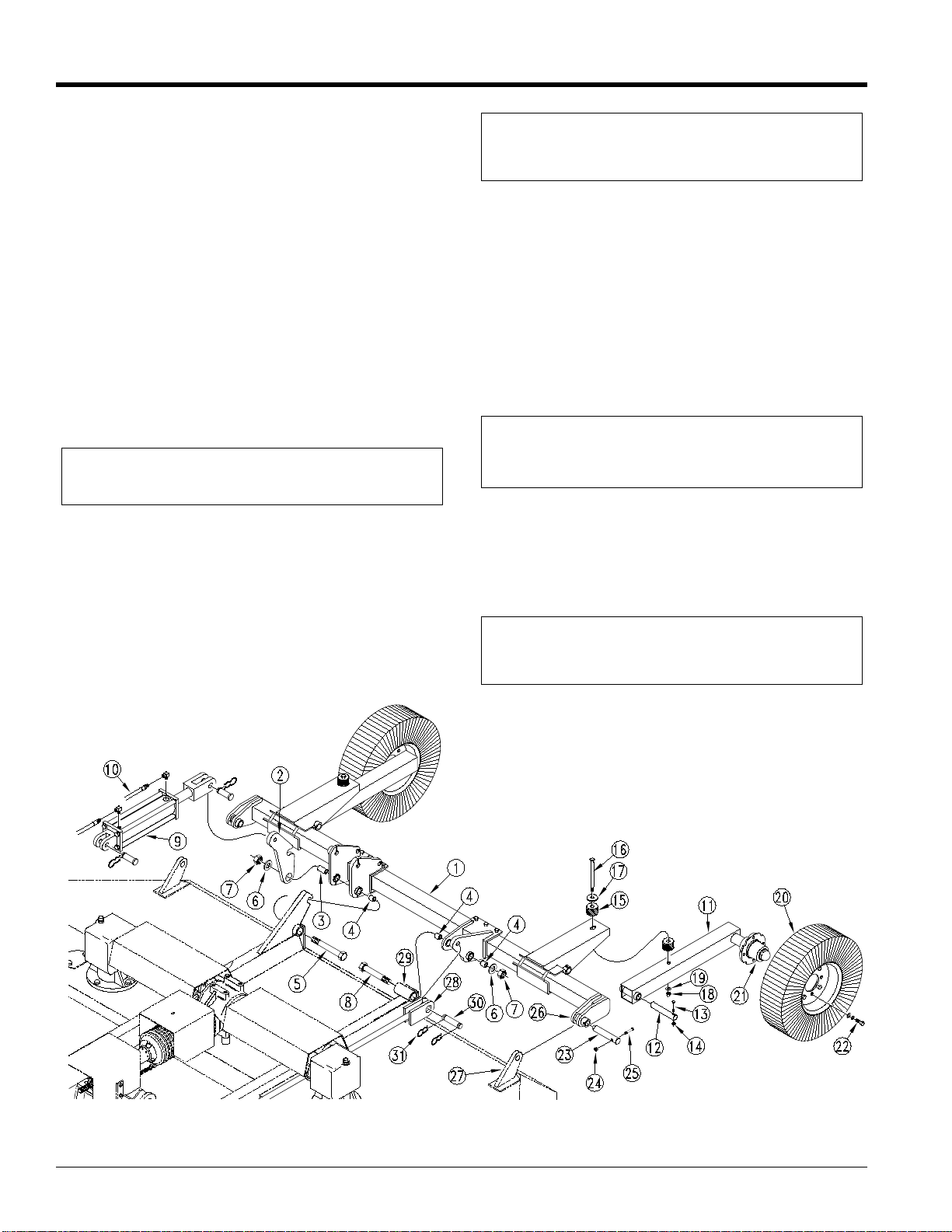

Rear Axle
Refer to Figure 1-4:
1. Attach axle assembly (#1) to rear of cutter:
h. Position axle as shown.
i. Attach axle on the right hand side of cutter with
cylinder pivot lug (#2) and 1 1/2” x 1 7/8” long
spacer(#3)on outboard side of pivot,and 1 1/2”x
1” x 1 1/8” long spacer (#4) on inboard side of pivot. Securewitha1” x 9” long bolt (#5), flat washer
(#6), and lock nut (#7).
j. Attach axle on left hand side of cutter with
11/2” x 1”x1 1/8”spacer(#4) onbothsides of pivot. Secure with a 1” x 8 1/2” long bolt (#8), flat
washer (#16), and lock nut (#7).
k. Install outboard axle mounts (#26) to deck mount-
ed supports (#27) with pivot shaft pin (#23) and
secure with 1/4” -20 x 1 1/2” long hex bolt (#25)
and lock nut (#24).
NOTE:1” bolts should be installed pointing outboard.
2. Install 3 1/2” x 8” hydraulic cylinder (#9) and secure
with 1” pins and clips furnished with cylinder.
3. Route hoses (#10) through hydraulic hose loop (#7)
Refer back to Figure 1-3.
Tailwheel
Refer to Figure 1-4:
1. Attach axle arm weldment (#11) to axle armmount
with 1” pin (#12) and secure with 5/16” x 2” long bolt
(#16) and lock nut (#14).
Land Pride
NOTE:Axle arms can be installed with wheels to the
inboard or outboard side.
2. Install rubber bumpers (#15) one on top side of axle
arm mount and one below and secure with 1/2” x 8”
long bolt (#16), rubber stop washer (#17), flat washer
(#19), andlocknut (#18). Tighten locknutuntil rubber
bumper compresses to 1 3/4”. Refer to
Figure 1-2.
3. Attach wheels with tires mounted (#20) or 15” rims
(not shown) to hubs (#21) with 1/2” -20 x 1 1/8” long
flange bolts (#22).
Leveling Rod
Refer back to Figure 1-3:
NOTE: The leveling rod is to be installed on the left
hand side of the cutter.
1. Insert levelingrod (#13) through trunnion (#14).
2. Screw leveling tube (#5) over levelingrod (#13) and
secure with 1” jam nut (#16).
3. Referto Figure 1-4, attach clevis end (#28) of leveling
rod to lug (#29) tailwheel axle with 1” x 2” clevis pin
(#30) and secure with hair pin clips (#31).
NOTE: The leveling rod should be adjusted to level
the cutter after attaching cutter to tractor.
RC35120 RCM35120 Rotary Cutter 312-301M
10
14258
Pull-Type Tailwheel & Rear Axle Assembly
Figure 1-4
11/16/00
Page 13
Land Pride
Section 1 Assembly and Setup
Safety Guards Assembly
Figure 1-5

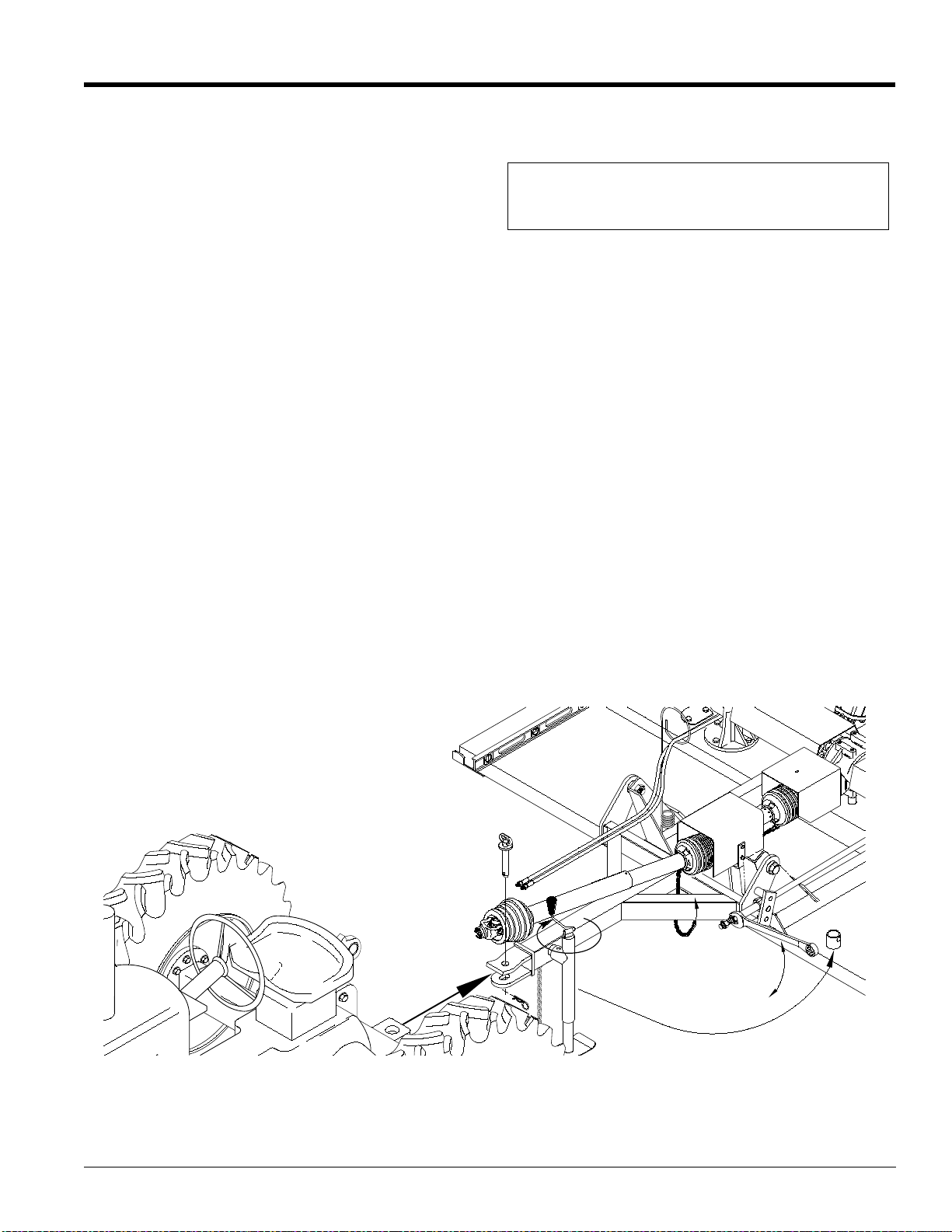

Driveline Installation
Lift-Type Cutter
Slide the driveline end with the slip clutch device over
splined shaft of the gearbox and secure with locking device of driveline, as shown in Figure 1-1.
Pull-Type Cutter
Attachconstant velocitydrivelinetostub shafton jackshaft
driveline and secure with locking device of PTO shaft, as
shown in Figure 1-3.
14259
!
DANGER!
Rotary cutters have the ability to discharge objects at high
speeds; therefore, the use of front safety shields is strongly recommended when cutting along highways or in an area where
people may be present.
Safety Guards
Refer to Figure 1-5:
1. Install chain guard (#1) to cutter front angle using 1/2” x
1 1/2” long hex bolts (#2), flat washers (#3), & nuts (#4).
2. Install side chain mounts (#5)toundersideoffrontangle using 1/2” 1 1/2” long hex bolts (#2) and nuts (#3).
Tractor Hook-Up
Refer to Figure 1-6:
Lift-Type Cutter
1. Becertainthattractor drawbar will notinterfere. Move
drawbar ahead, asideor removeif required. Drawbar
should also be checked for clearance when unit is being raised for the first time.
2. Align lower link armsof tractor to hitch pins on cutter.
Insert lowerhitch pinsintolowerballswivelson tractor
and secure with lynch pins (furnished by
the customer).
3. Adjust and attach tractor top link to pivoting upper
hitch on cutter with pin supplied. Secure with hair pin
cotter.
4. If the cutter is equipped with optional hydraulic height
adjustment, connect cylinder hoses to tractor remote
outlets.
5. Adjust tractor top link until upper hitch pin is aligned
vertically with lower hitch pins, refer to Figure 1-7.
Lift-Type Tractor Hook-Up
Figure 1-6
14261
11/16/00
RC35120 RCM35120 Rotary Cutter 312-301M
11
Page 14
Section 1 Assembly and Setup
NOTE: Chain should be attached to PTO at implement end of shaft.
Land Pride
Refer to Figure 1-8:
9. Should the PTO shaft require shortening:
a. Holdthehalf shaftsnextto eachother in theshort-
est working position and mark them.
b. Shorten inner and outer guard tubes equally.
c. Shorten inner and outer sliding profiles by the
same length as the guard tubes.
d. Proper overlap is a minimum of one-half the
lengthof eachtube,withbothtubesbeingofequal
length.
e. Round off all sharp edges and remove burrs.
Grease sliding profiles.
Top Link Alignment
11420
Figure 1-7
6. Slide PTO shaft over the tractor’s splined PTO shaft
and secure with locking device of PTO shaft.
7. Secure chain on PTO to hitch brace on cutter to restrict outer shield of PTO from rotating.
8. PTO shaft should now be moved back and forth to insure that it is secured to the shafts of the tractor and
cutter gearbox.
13588
Shortening PTO Shafts
Figure 1-8
Refer to Figure 1-9:
9. If check chain kit is purchased, assemble to cutter.
14260
RC35120 RCM35120 Rotary Cutter 312-301M
12
Check Chain Assembly
Figure 1-9
11/16/00
Page 15
Land Pride
Section 1 Assembly and Setup
Pull-Type Cutter
Refer to Figure 1-10:
1. Back off leveling rod jam nut, (#16) and leveling tube
nut (#15) on leveling rod.
2. Raise tongue off the ground manually and support
tongue with screw jack.
3. Backthe tractorup tothe tongueuntil holesin drawbar
and cutter hitch are aligned.
4. Attach cutterwith1 1/4” hitch pin and secure withlock
pin.Alwaysuseapin that contains asafetylockingdevice to preventit from falling out.
5. Place tongue jack in a horizontal position on the jack
mount located on the left front of cutter deck.
6. Tighten leveling tube nut until it bottoms out on trunnion. Turnnut additional 2 or 3 turns and tighten jam
nut.
7. Connect cylinder hoses to tractor remote outlets.
8. Attach safetychain on tongue hitch to tractor andlock
hooksecurely on chain.Adjust chainlengthto remove
all slackexceptwhat is necessaryto permit turningof
the cutter.
9. SlidePTOshaft overtractor’ssplinedshaft andsecure
with locking device of PTO shaft.
10. Secure chain on PTO around cutter tongue to restrict
outer shield of PTO from rotating. Leave adequate
length of chain loose for turning.
NOTE: Chain should be attached to PTO at implement end of shaft.
11. PTO should now be moved back and forth to insure
that it is secured on the shaft of the tractor and stub
shaft on the cutter.
12. Should the PTO shaft require shortening:
Refer back to Figure 1-8:
a. Hold the shafts next to each other in the shortest
working position and mark them.
b. Shorten inner and outer guard tubes equally.
c. Shorten inner and outer sliding profiles by the
same length as the guard tubes.
d. Proper overlap is a minimum of one-half the
lengthof eachtube,withbothtubesbeingofequal
length.
e. Round off all sharp edges and remove burrs.
Grease sliding profiles.
11/16/00
Pull-Type Tractor Hook-Up
Figure 1-10
RC35120 RCM35120 Rotary Cutter 312-301M
14262
13
Page 16
Section 2 Operating Instructions
Land Pride
Section 2
Operating Instructions
Transporting
!
CAUTION!
When traveling on public roads whether at night or during the
day, use accessory lights and devices for adequate warning to
operator’sof othervehicles. Comply with all Federal, State and
Local laws.
!
CAUTION!
Always disengage tractor PTO before transporting cutter to
avoid injury from thrown objects or blade contact.
1. Ona lift-typecutter,whenraising totransportposition.
be certain that PTO shaft does not contact tractor or
cutter.
2. Refer to Figure 2-1. The pull-type cutter is equipped
with a transport lock pin. Remove pin and hair pin cotter fromstorageposition and install in lockingposition
before transporting.
NOTE: Hydraulic cylinder may be removed if necessary when transport lock pin is in lock position.
!
CAUTION!
The cutter is 10’ 8” wide and care should be taken when encountering oncoming traffic and roadside obstructions.
Operating Check List
In addition to design and configuration of equipment; hazard control and accident preventionare dependent upon
the awareness, concern, prudenceand proper training involvedin their operation, transport, maintenance and storage of equipment. Before beginning to cut the following
inspection should be performed.
Check Reference
“Safety Rules” in this Manual. Page 1
Check oil level in gearboxes.
Check that all plugs in gearbox have
been replaced properly.
Be sure nuts and bolts are tight. Section 1
Be certain all guards and shields are in
place.
Lubricate the cutter as needed. Refer to
“Maintenance and Lubrication”.
Section 5
Page 22
Section 5
Page 22
Section 1
Page 11
Section 5
Page 19
Pull-Type Cutter Pin Position
Figure 2-1
3. Reduce tractor ground speed when turning; be sure
tractor wheel does not contact cutter when turning.
Leaveclearance so cutter does not contact obstacles
such as buildings, trees or fences.
4. The cutter should be transported no faster than 15
mph whenequippedwithlaminated tires, and 20 mph
when equipped with pneumatic tires.
5. When traveling on roadways, transport in such a way
that faster moving vehicles may pass you safely.
14766
!
CAUTION!
To prevent personal injury caused by thrownobjects, the use of
front & rear safety guards is strongly recommended! To avoid
injury or death from entanglement in rotating drivelines, the
drive gearbox shields must be in place and secure when operating.
!
DANGER!
Rotary cutters have the ability to discharge objects at high
speeds; therefore, the use of front & rear safety shields is
strongly recommended when cutting along highways or in an
area where people may be present.
Cutting Instructions
1. Your cutter is equipped with free swinging cutting
blades to reduce shock loads to the cutter if striking
obstacles.
2. Start the machineslowly; do notusefull throttle.Allow
10 seconds for cutter blades to become aligned properly before going to full power.
3. Thegroundspeed depends on twothings; the density
of the material to be cut, and the size of the tractor.
Neverrun fast enough to overload the tractor.
4. Itis important tomaintain540 RPMPTOor1000 RPM
speed. Loss of PTO speed will allow the blades to
hinge back and result in ragged, uneven cutting.
RC35120 RCM35120 Rotary Cutter 312-301M
14
11/16/00
Page 17
Land Pride
Section 2 Operating Instructions
5. This cutter was designed to cut grass and light brush
in right-of-ways, pastures and for shredding row crop
residues.
!
CAUTION!
Damagemay occurif exceedingthe cutting capacity of thecutter!
!
CAUTION!
Do not over speed PTO or machine damage may result. This
cutter(RC35120) designedto beused only witha tractorhaving
a 540 RPM rear PTO. The RCM35120 is designed to be used
with a tractor having a 1000 RPM PTO.
11/16/00
RC35120 RCM35120 Rotary Cutter 312-301M
15
Page 18
Section 3 Adjustments
Land Pride
Section 3
Adjustments

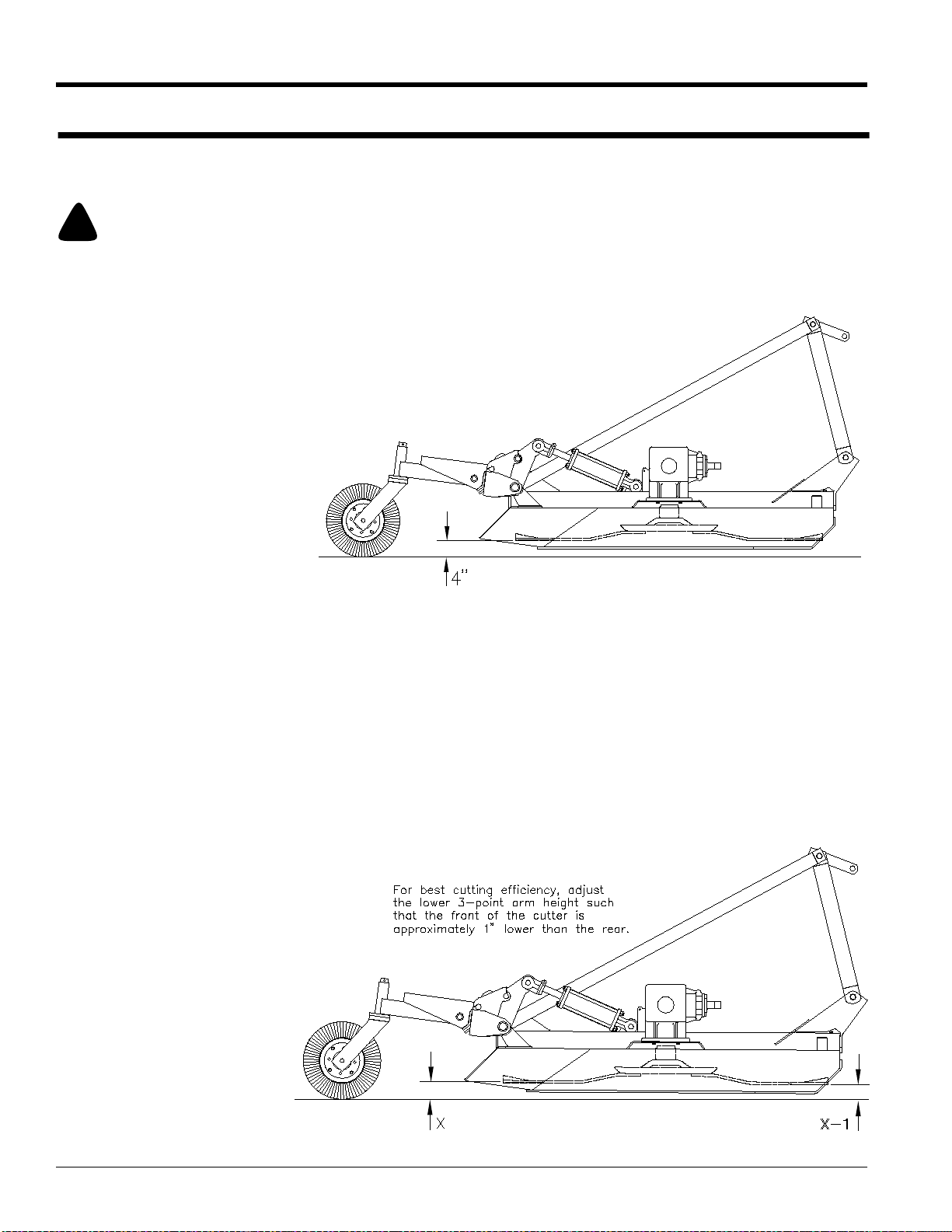

Lift-Type Cutting Height
Refer to Figure 3-1:
!
CAUTION!
Engage parking brake, shut off tractor, remove key and disengage PTO before making any height adjustments!
1. Lower cutter onto safely supported blocks to desired
cutting height. Be certaincutter is level.
2. If cutter is equipped with optional hydraulic height adjustment, connect cylinder hoses to tractor remote
outlets.
3. Adjust the cutting height using ratchet jack or hydraulically if equipped with hydraulic cylinder.
Lift-Type Cutting Height Adjustment
Figure 3-1
14263
4. Adjust the tractor’slower 3-point hitch arms to level
cutter left to right. Set tractor 3-point depth stop when
cutter is level to maintain a consistent mowing weight.
Pull-Type Cutting Height
1. The cutting height can be adjusted by extendingor retracting the hydraulic cylinder to the desired cutting
height.
2. Once the cutter has been leveled, it will remain level
regardless of change in cutting height unless tractor
drawbar height or tailwheel size is changed.
3. Should the cutter require additional leveling adjustment:
a. Turn nut on leveling tube counterclockwise to low-
erfront of cutterandclockwise toraise front ofcutter.
b. Secure with jam nut.
Deck Attitude Adjustment
Figure 3-2
Deck Attitude Adjustment
Refer to Figure 3-2:
This adjustment is very important. With the deck positioned at this attitude, the blades will be cutting material
onlyatthe front of thecutter. If the deckis level,or the rear
of the cutter is lower than the front, the blades are subject
to continuous material flow which results in additional
bladewearand horsepower loss as well as morefrequent
blade sharpening.
14264
RC35120 RCM35120 Rotary Cutter 312-301M
16
11/16/00
Page 19
Land Pride
Section 4 Troubleshooting
Section 4
Troubleshooting
Problem Cause Solution
Oil seal leaking
Driveline yoke or cross failing
Driveline
Gearbox overfilled Drain to side plug hole.
Seals damaged Replace seals
Grass or wire wrapped on
shaft in seal area
Shock load Avoid hitting solid objects
Needs lubrication Lubricate every 8 hours.
Scalping the ground Raise cutting height
check seal areas daily
clutch slipping
Cutting too fast Reduce travel speed
Bent Driveline (NOTE:driveline should
be repaired or replaced if bent)
Driveline
PTO being engaged too
fast at high engine rpm
Cutting over solid objects Avoid solid objects
Contacting frame Reduce lift height in transport position
Contacting drawbar Reposition drawbar
Bottoming out Shorten driveline
Shock load Avoid hitting solid objects
Slowly engage PTO at low engine rpm
telescoping tube failing
Driveline
telescoping tube wearing
Blades wearing excessively
Blades breaking
Blades coming loose
Blade carrier becomes loose
Blade bolt holes worn
Blade carrier bent
Excessive side skid wear
T ail wheel support failing
Needs lubrication Lubricate every 50 hours
Cutting on
sandy ground
Contacting
ground frequently
Hitting solid objects Avoid hitting solid objects
Blades hitting each other Blade carriers need to be timed
Blades not
tightened properly
Running loose in the past Replace gearbox output shaft and blade carrier
Blade carrier hardware not
tight enough
Blade hardware running loose Replace blades and blade bolts if worn
Hitting solid objects Avoid hitting solid objects and replace blade carrier
Cutting height not level Adjust cutter height
Soil abrasive Adjust cutter height
Cutting too low Adjust cutter height
Lowering too fast Adjust rate of drop
Hitting objects when turning Reduce speed on turns
Raise cutting height
Raise cutting height
Tighten blade hardware (refer to
"Servicing Cutter Blades" on page 16.
Tighten to specified torque
11/16/00
RC35120 RCM35120 Rotary Cutter 312-301M
17
Page 20
Section 4 Troubleshooting
Problem Cause Solution
Land Pride
Excessive vibration
Driveline bent Replace driveline
Blades loose Tighten blade bolts
Blade carrier bent Replace blade carrier
Blade broken Replace blade
Blade will not swing Remove and inspect blade
Blades have unequal weight Replace both blades
Blades locked together Unlock blades
RC35120 RCM35120 Rotary Cutter 312-301M
18
11/16/00
Page 21
Land Pride
Section 5 Maintenance and Lubrication
Section 5
Maintenance and Lubrication
Maintenance
Properservicingand adjustmentisthe keyto thelonglifeof
any farm implement. With careful and systematic inspection, you can avoidcostly maintenance, time and repair.
After using your Rotary Cutter for sever alhours, check all
bolts to be sure they are tight.
Replace any worn, damaged or illegible safety decals by
obtaining new decals from your Land PrideDealer.
Service Cutting Blades
1. Both blades on each dishpan should be sharpenedat
the same angle as the originalcutting edge and must
be replaced or reground at the same time to maintain
proper balance in the cutting unit.
NOTE: Replace blades with genuine Land Pride
parts only.
NOTE: Care should be taken in order not to remove
any more materialthan necessary when sharpening
blades.
2. Both blades on each dishpan should weigh the same
after sharpening.
3. When replacing orsharpening the cutterblades,exam-
ine bolts for excessive wear and replace if necessary.
To replace blades:
a. Order blade bolt Land Pride part # 802-277C,
clockwise blade part # 820-076C, and counterclockwise blade part # 820-075C.
b. Torque blade bolt lock nut to 450 ft. pounds. An ex-
tended cheater bar may be required to achieve
proper torque.
c. Carefully check the cutting edges of the blades in
relationtothebladecarrier rotation,belowto insure
correct blade placement.
4. Blade dishpan replacement:
Refer to Figure 5-1:
a. Blades must be indexed90˚ to one another to pre-
vent blade collision.
b. Dishpan nut on gearbox output shafts should be
torquedto450 ft. pounds and cotterpininstalled in
nut with legs bent around.
!
CAUTION!
Engage parking brake, disengage PTO, shut off tractor, and remove key before making any of the following adjustments.
Skid Shoe Service & Replacement
1. Check skid runnersand skid shoes for wear and replace if necessary.Order skid shoe Land Pride part#
312-175D or 312-079A (1 set with hardware).
!
WARNING!
Excessive wear on skids may cause inadequateoperation of cutter and create a safety hazard!
2. Plowbolts should be checkedfor wearandreplaced if
necessary. Order Land Pride part # 802-020C.
Refer to Figure 5-2:
3. To replace skid shoes:
a. Remove existing skid shoes.
b. Attach skid shoe to cutter,using four 3/8” plow
bolts, flat washers and lock nuts.
c. Repeat on opposite side of cutter.
14270
Skid Shoe Replacement
Figure 5-2
Flex Couplers
Refer to Figure 5-3:
1. Disks (#1) and beaded washers (#2) should be replaced if disassembling flex coupler shaft.
2. When replacing disks; bolts (#3) and nuts(#4)should
be tightened evenlywith nuts torqued 35 to 40 ft.
pounds. Beaded washers (#4) should be imbedded
11/16/00
Blade Rotation
Figure 5-1
RC35120 RCM35120 Rotary Cutter 312-301M
19
Page 22
Section 5 Maintenance and Lubrication
Land Pride
halfway into disks.
Clutch Run-In
Refer to Figure 5-4:
Flex Couplers
Figure 5-3
14560
The clutch should slip during operation to protect the cutter from excessiveloads.
Prior toinitialoperation and after long periods ofinactivity,
the Friction Clutch should be "run-in".
1. Tighten all 4 nuts uniformly until the spring load is low
enough that the clutch slips freely with the PTO engaged.
2. Turn nuts fully back. Clutch is ready for use.
Storage
Atthe endof theworking seasonorwhenthecutter willnot
be used for a long period, it is good practice to clean off
any dirt or grease that may have accumulated on the cutter and any of the moving parts.
1. Clean the Rotary Cutter as necessary.
2. Check the blades for wear and replace if necessary.
3. Inspect the cutter for loose, damaged or worn parts
and adjust or replace as needed.
4. Lubricate as noted in "Lubrication", below.
5. Store the Rotary Cutter inside if possible for longer
Rotary Cutter life.
6. Repaint parts where paint is wornor scratched to prevent rust. Ask your dealer for Aerosol Land Pride
Beige touch-up paint #821-011C.
Lubrication
Lubrication
Legend
14265
Clutch Run-In
Figure 5-4
Multipurpose
spray lube
10103
Multipurpose
grease lube
Multipurpose
oil lube
50
Pivoting Upper Hitch
Type of Lubrication: Multipurpose Grease
Quantity = 6 pumps
Lift-Type Tailwheel Spindle Hub
Intervals at which
lubrication is required
24
24
14268
RC35120 RCM35120 Rotary Cutter 312-301M
20
Type of Lubrication: Multipurpose Grease
Quantity = 6 pumps
11/16/00
Page 23
Land Pride
Section 5 Maintenance and Lubrication
14266
8
Lift-Type Tailwheel Hub
The tailwheel hub is equipped with a relief hole located directly opposite the grease fitting. The relief hole releases
pressurefrominside the hub castingwhenit is greased.The
hub should be greased until grease purges from the relief
hole.
Type of Lubrication: Multipurpose Grease
Quantity = Until grease purges from the relief hole
8
14267
14176
Pull-Type Tailwheel Hub
The tailwheel hubisequippedwith a relief hole located directly
opposite the grease fitting. The relief hole releases pressure
from insidethehub casting when it is greased.Thehub should
be greased until grease purges from the relief hole.
Type of Lubrication: Multipurpose Grease
Quantity = Until grease purges from the relief hole
As
Required
Ratchet Jack
Type of Lubrication: Multi-Purpose
Quantity = As required
14190
11/16/00
ROTATING DRIVELINE
KEEP AWAY!
Driveline U-Joints
Type of Lubrication: Multipurpose Grease
Quantity = 6 pumps
RC35120 RCM35120 Rotary Cutter 312-301M
8
21
Page 24
Section 5 Maintenance and Lubrication
ROTATING DRIVELINE
KEEP AWAY!
14191
Land Pride
20
Driveline
Disconnect driveline from the tractor and slide apart
Quantity = Clean & coat the inner tube of the driveline with a
light film of grease and then reassemble
8
Gearbox
Check oil level in the gearbox by removing the side plug in
thegearbox case.If the oillevelislow,removethe top plugin
the gearboxcase and fill with EP90 oiluntiloilflows from the
side port of gearbox case. Reinstall plugs and tighten.
14269
14271
NOTE: Do not overfill! Cutter should be level when
checking oil.
Type of Lubrication: EP90 Oil
Quantity = fill until oil flows from the side port of gearbox
case.
8
T-Bo x
Checkoil levelin the t-box by removing the side plug in the tbox case. If the oil levelis low,removethe top plug in the tboxcaseandfill withEP90 oiluntiloil flowsfrom theside port
of t-box case. Reinstall plugs and tighten.
NOTE: Do not overfill! Cutter should be level when
checking oil.
RC35120 RCM35120 Rotary Cutter 312-301M
22
Type of Lubrication: EP90 Oil
Quantity = fill until oil flows from the side port of t-box case.
11/16/00
Page 25
Land Pride
Section 5 Maintenance and Lubrication

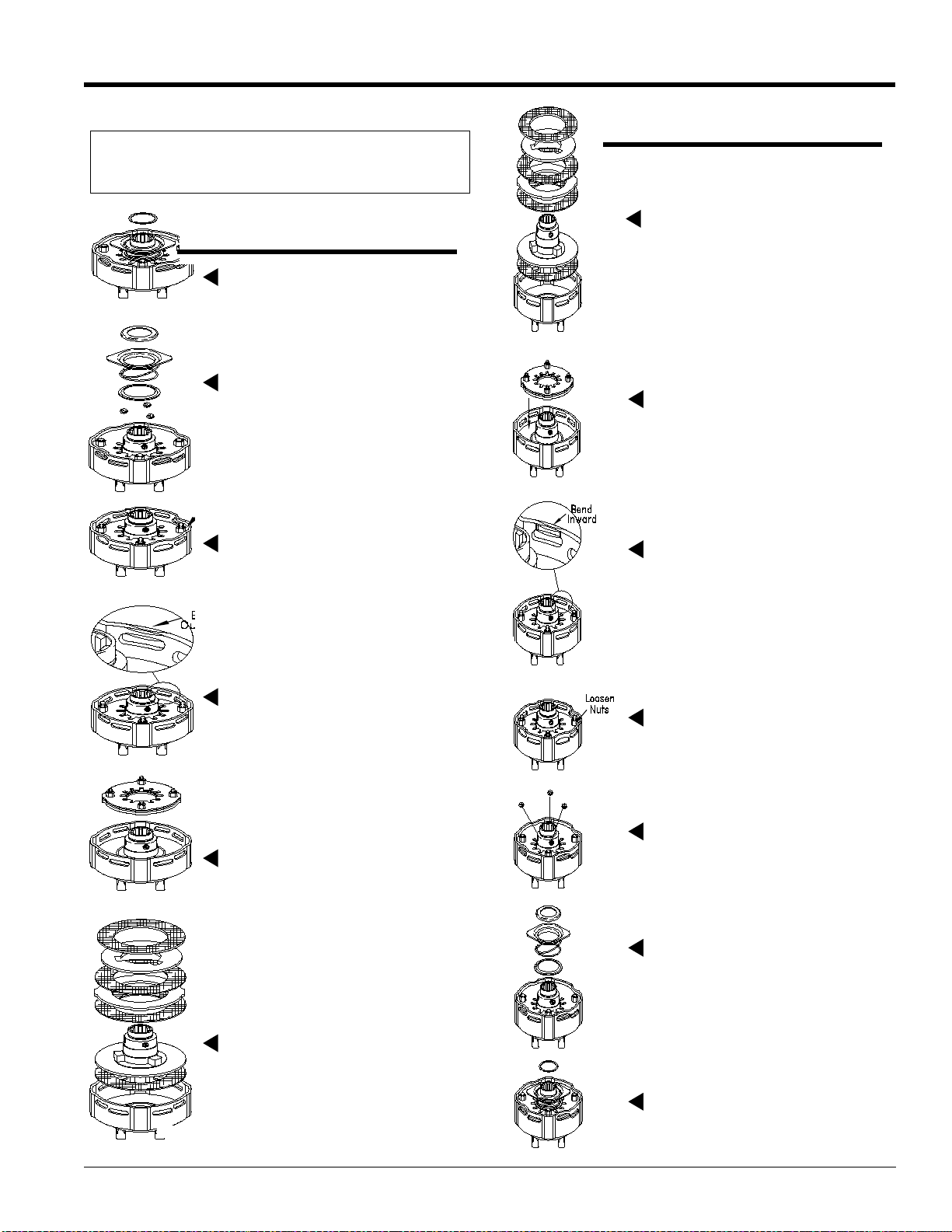

4-Plate Slip Clutch
NOTE:Before proceeding, securetheclutch firmlyin
a vise or other clamping device to prevent injury.
Assembly
Disassembly
Step 1
Remove snap ring.
Step 2
Remove backup ring, lock collar,
compression spring, bottom backup
ring, and balls.
Step 3
Tighten the four hex nuts uniformly
until the clutch pack and hub are
loose.
Step 1
Place the hub and friction disks into
the housing.
Step 2
Compress the Belleville Springs to
the pressure plate by tightening the
fourhex nuts and thenplacingtheassembly into the clutch housing.
Step 3
Bend the retaining lugs inward over
the Belleville Spring edges to secure
thespring beforebackingthe fourhex
nuts off.
14232
Step 4
Bendallfour retaininglugsout on the
edge of the clutch housing.
Step 5
Remove the thrust plate with the
Belleville Springs and lug rings to accessfrictiondisksand hub forinspection or service.
Step 6
Inspect friction disks and hub.
14233
Step 4
With the lugs bent in, loosen the four
hexnutscompletely to the end of the
threaded studs.
Step 5
Insert greased balls.
Step 6
Install bottom backup ring, compression spring, lock collar,and top backup ring.
Step 7
Install snap ring.
11/16/00
RC35120 RCM35120 Rotary Cutter 312-301M
23
Page 26
Section 6 Specifications and Capacities
Land Pride
Section 6
(Bottom of Deck to Bottom of Skid Shoe)
Gauge Wheel Shock Load Protection
Specifications and Capacities
Model
Cutting Width
Overall Width
Cutting Height
Overall Length (Including Tailwheel)
Weight
Blade Tip Speed
T-box
Wing Boxes
Recommended Tractor PTO HP
Hitch
Deck Material Thickness
Deck Height
Blades (4) (2 per carrier)
Blade Holders
Drive Shaft
Slip Protection
Tailwheel
RC35120 & RCM35120
120”
128”
2” - 14”
Lift-Type 106”
Pull-Type 165”
Lift-Type - 2116#
Pull-Type - 2300#
540 RPM PTO: 12,800 FPM / 788 RPM / 145 MPH
1,000 RPM PTO: 13,417 FPM / 826 RPM / 152 MPH
540 Or 1,000 RPM PTO Driven 1:1 Ratio
Beveled Gears
Cast Iron Housing
100 HP
540 RPM PTO Driven 1:1.46 Speed-Up
1,000 RPM PTO Driven 1.21:1 Reduction
Beveled Gears
Cast Iron Housing
80 HP
Lift-Type - 60 - 120
Pull-Type - 50 - 120
Lift-Type - Category II 3-Point
Pull-Type - Self Leveling
3/16”
8 1/2”
1/2" x 4" Heat Treated Alloy Steel
Free-Swinging Suction Blades
Round Pan 3/16" x 21 1/2"
ASAE Category 4
4 Plate Slip Clutch on T-Box
Rubber Flex Coupler to Wing Boxes
Lift-Type - 4.00 x 8 x 15 1/4 Laminated Tires
Pull-Type - 6.00 x 9 x 21 Laminated or 5 x 15 Rim
Four Shock Absorbing Rubber Bumpers
RC35120 RCM35120 Rotary Cutter 312-301M
24
11/16/00
Page 27
Land Pride
Section 7 Appendix
Section 7
Appendix
Torque Values Chart for Common Bolt Sizes
Bolt Head Identification
Bolt Size
(Inches)
1
in-tpi
1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 436597
1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11
5/16 - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 2010
1 3/8" - 6 890 655 1990 1470 3230 2380
1 3/8" - 12 1010 745 2270 1670 3680 2710
1 1/2" - 6 1180 870 2640 1950 4290 3160
1 1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
Grade 2 Grade 5
N · m2ft-lb3N · m ft-lb N · m ft-lb mm x pitch
Grade 8
Bolt Size
(Metric)
4
N · m ft-lb N · m ft-lb N · m ft-lb
1
in-tpi = nominal thread dia .in inches-threads per inch
2
N· m = newton-meters
3
ft-lb= foot pounds
4
mm x pitch = nominal thread dia. in millimeters x thread pitch
Bolt Head Identification
5.8 8.8 10.9
Class 5.8 Class 8.8 Class 10.9
11/16/00
RC35120 RCM35120 Rotary Cutter 312-301M
25
Page 28
Warranty
Land Pride warrants to the original purchaser that this Land Pride
product will be free from defects in material and workmanship for a period of one year, from the date of delivery to the end user, when used
as intended and under normal serviceand conditions for personal use;
and 6 months for municipalities, golf courses, sod farms and rental
purposes. All Multi-spindle Rotary Cutters carry a 3 year gearbox warranty, all Post Hole Digger gearboxes carry a 5 year warranty. This
Warranty is limited to the replacement of any defective part by Land
Pride and the installation by the dealer of any such replacement part
and does not cover common wear items such as blades, belts, tines,
etc. Land Pride reserves the right to inspect any equipment or parts
which are claimed to have been defective in material or workmanship.
This Warranty does not apply to any part or product which in Land
Pride’s judgement shall have been misused or damaged by accident
or lack of normal maintenance or care, or which has been repaired or
altered in a way which adversely affects its performance or reliability,
or which has been used for a purpose for which the product is not designed. Misuse also specifically includes failure to properly maintain
oil levels, grease points and driveline shafts.
Claims under this Warranty must be made to the dealer which originally sold the product and all warranty adjustments must be made
through such dealer. Land Pride reserves the right to make changes
in materials or design of the product at any time without notice.
This Warranty shall not beinterpreted to render Land Pride liable for
damages of any kind, direct, consequential, or contingent, to property.
Furthermore, Land Pride shall not be liable for damages resulting from
any cause beyond its reasonable control. This Warranty does not extend to loss of crops, losses caused by harvest delays or any expense
or loss for labor, supplies, rental machinery or for any other reason.
No other warranty of any kind whatsoever, express or implied,
is made with respect to this sale; and all implied warranties of
merchantability and fitness for a particular purpose which exceed the obligations set forth in this written warranty are hereby
disclaimed and excluded from this sale.
This Warranty is not valid unless registered with Land Pride within
10 days from the date of delivery to the end user.
Page 29
Great Plains Manufacturing, Inc.
Corporate Office: PO. Box 5060
Salina, Kansas 67402-5060 USA
Loading...
