Landice ElliptiMill, 82020 User Manual

PART NUMBER 82020

ElliptiMill® Cardio Trainer

Owner’s Manual

To start the elliptical:

Pressing START powers up the elliptical and lights up the displays. The starting effort level is
set to Level 1.

To pause the elliptical:

Pressing PAUSE will stop your workout clock, but all statistical information will be preserved. When
you are ready to continue, press START to resume your workout.

To turn off the elliptical:

Pressing OFF will shut down the elliptical. All current statistical information will be cleared.

To change effort level:

Hold EFFORT “+” key down to increase effort level.

Hold EFFORT “-” key down to decrease effort level.

To view your speed in different units:

Press the UNITS “+/-” to select MPH, Km/hr, and Revolutions per Minute.

To view different display screens during your workout:

Press NEXT at any time to choose the display screen that best suits your workout.

To enter your weight:

Press WEIGHT to enter your weight for more accurate calorie and “running” speed calculation.

To enter your age:

Press AGE to enter your age. This will automatically calculate a recommended target heart rate based
on your age (See Heart Rate Monitoring).

START

START

PAU S E

PAUSE

i

Important Safety Instructions

[1] If you are suffering from any illness, condition, or disability which affects your ability to run, walk or exercise, do not

use this product without consulting your doctor first.

[2] If you are suffering from any illness, condition, or disability which affects your ability to run, walk or exercise, do not

use this product without supervision present. Failure to do so can result in serious injury should you fall while the
machine is in motion.

[3] Failure to leave ample clearance around the elliptical could result in the user becoming trapped between the

mechanism and a wall, resulting in serious injury.

Allow a minimum clearance of 6 inches on each side of the elliptical.
Allow a minimum clearance of 1 foot at the rear of the elliptical.

[4] Be sure to familiarize yourself with this manual. Look it over carefully. Be sure you understand the control panel

operation before using the elliptical.

When using an electrical appliance, basic precautions should always be followed. Read all instructions before using.

DANGER: Always unplug the elliptical before cleaning or removing any shrouds. To reduce the risk of electric shock in
the event of an electrical storm, always unplug the elliptical from the electrical outlet immediately after using.

WARNING: Failure to observe the following operating instructions can result in serious injury!

SAVE THESE INSTRUCTIONS

ii

Important Safety Instructions

[1] An appliance should never be left unattended when plugged in. Unplug from outlet when not in use.

[2] Close supervision is necessary when this unit is used by or near children or disabled persons.

[3] Use this elliptical only for its intended use as described in this manual.

[4] Never operate this elliptical if it has a damaged cord or plug, if it is not working properly, or if it has been damaged.

Call your selling dealer immediately for examination and repair.

[5] Keep the power cord away from heated surfaces. Be sure the line cord has plenty of slack and does not get pinched

underneath the elliptical.

[6] Never drop or insert any object into any opening. Be sure no objects are near or underneath the elliptical.

[7] Do not use outdoors.

[8] Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

[9] Connect this appliance to a properly grounded dedicated outlet only.

[10] To disconnect, press the OFF button, and unplug the unit from the wall outlet.

GROUNDING INSTRUCTIONS

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for
electric current to reduce risk of electric shock. This product is equipped with a cord having an equipment grounding
conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in
accordance with all local codes and ordinances.

120 VOLT ELLIPTICALS

Ellipticals marked 120 VAC are intended for use in a nominal 120-volt circuit with a grounding plug. Make sure the product
is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.

200 - 250 VOLT ELLIPTICALS

Ellipticals marked 200-250 VAC are intended for use on a circuit having a nominal rating more than 120V and are factory­equipped with a specific cord and plug to permit connection to a proper electric circuit. Make sure the product is connected
to an outlet having the same configuration as the plug. No adapter should be used with this product. If the product must
be reconnected for use on a different type of electric circuit, qualified service personnel should make the reconnection.

DANGER: Improper connection of the equipment-grounding connector can result in a risk of electric shock. Check with
a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product. If it will not fit in the outlet, have a proper outlet installed by a qualified electrician.

WARNING: To reduce the risk of electric shock or injury to persons:

Table of Contents

Basics

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Basic Control Panel Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control Functions

Manual Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using the Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Built-In Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the Built-In Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

User Program Learn Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

User Program Edit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Specific Goal Programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Heart Rate Control Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Running a Heart Rate Control Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

User Heart Rate Control Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Fitness Tests Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Taking the Army 2 Mile Fitness Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Taking the Balke Fitness Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Taking the Firefighter Fitness Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Self-Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Heart Rate Monitoring

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Heart Monitors (Wireless and AccuTrack) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Getting the Most Out of Your Workouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2

Basic Control Panel Operations

1

Introduction

Congratulations! You’ve made a very smart investment! Your Cardio Trainer elliptical is a high-quality fitness tool that will
give you years and years of fitness benefits.

One of the great things about your new ElliptiMill is that it uniquely monitors your workout intensity in “treadmill terms”.
Meaning, if your speed readout displays 7 mph, you are exerting the same energy as running 7 mph.

Regardless of the application, unpleasant weather is not an obstacle. Cold, windy, wet days will never discourage you again,
nor will the heat and humidity of the summer months. If you’re the type of person that likes to do two things at once, now
you can watch your favorite program on TV or keep an eye on your kids and take care of your health at the same time.

Your ElliptiMill was a smart purchase, but you already knew that, so let’s move on and get started.

INSTRUCTION MANUAL

Be sure to familiarize yourself with this manual. Look it over carefully. Be sure you understand the control panel operation
before using the elliptical.

WARRANTY INFORMATION

Fill out your warranty registration card and mail it in today. Landice backs your elliptical with a strong warranty.
For the factory to respond to any problems you may have, we need your warranty information on file. Do it today.

Landice will send you a complimentary Landice T-shirt upon receipt of your warranty registration card.

SELECTING A LOCATION

Place the elliptical in a climate-controlled room.
Failure to do so may effect warranty.

Allow a minimum clearance of 6 inches on each side of the elliptical.
Allow a minimum clearance of 1 foot at the rear of the elliptical.

Failure to leave ample clearance around the elliptical could result in the user becoming trapped between the mechanism and
the wall should the user accidentally trip and fall while exercising.

Be sure the line cord has plenty of slack and does not get pinched underneath the elliptical. Make sure the elliptical is
plugged into a dedicated line.

BEFORE YOU BEGIN

Following are some things you should do before you start to exercise on your elliptical:

Press START to power up the elliptical and light up the displays. The starting effort level is set to
Level 1.

Press PAUSE to stop your workout clock, all statistical information will be preserved. When you are
ready to continue, press START to resume your workout.

Pressing OFF will shut down the elliptical. All current statistical information will be cleared.

To change effort level:
Hold EFFORT “+” key down to increase effort level.

Hold EFFORT “-” key down to decrease effort level.

Press NEXT at any time to choose the display screen that best suits your workout.

To use the built-in workout programs:

Press PROGRAMS at any time to display the programs selection screen. Scroll through built-in and
user-defined program previews with center “+/-” keys and select the program that best suits your
desired workout by pressing NEXT. You will now be asked to enter the program’s specific parameters
(Maximum Effort, Program Time, etc…). Use the numeric keypad and the center “+/-” keys to select
the desired values and press START to begin the program.

To use the heart rate controlled programs:

Press HRC at any time and choose either a built-in or user defined cardio program. The heart rate
control programs automatically adjust the effort level in order to maintain a constant heart rate.

To return to manually controlling the elliptical at any time:

Press MANUAL button at any time and the elliptical is at your command to adjust the effort level.

START

START

PAUSE

PAUSE

4

Features

3

Features

MANUAL CONTROL

The Cardio Trainer begins a user-defined workout via the Manual Mode. While in the Manual Mode
the elliptical is at your command. There are no time limits and no program parameters to enter.
Changes in effort level will only happen when you make them happen by pressing one of the buttons.
You can get back to the Manual Mode at any time by simply pressing the MANUAL button.

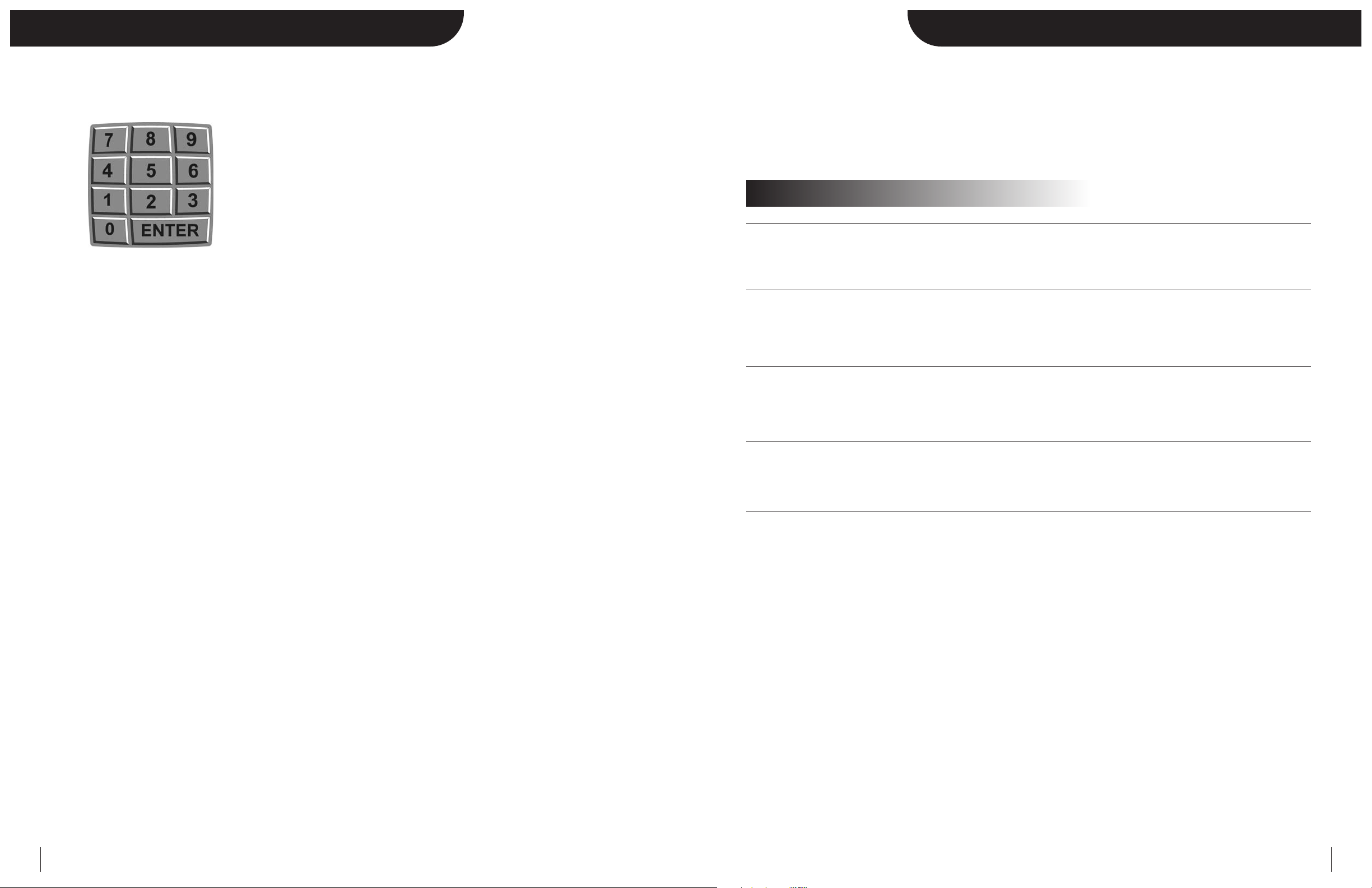

NUMERIC KEYPAD

The keypad is an excellent feature that allows you to spend less time pressing buttons and more time
enjoying your workout.

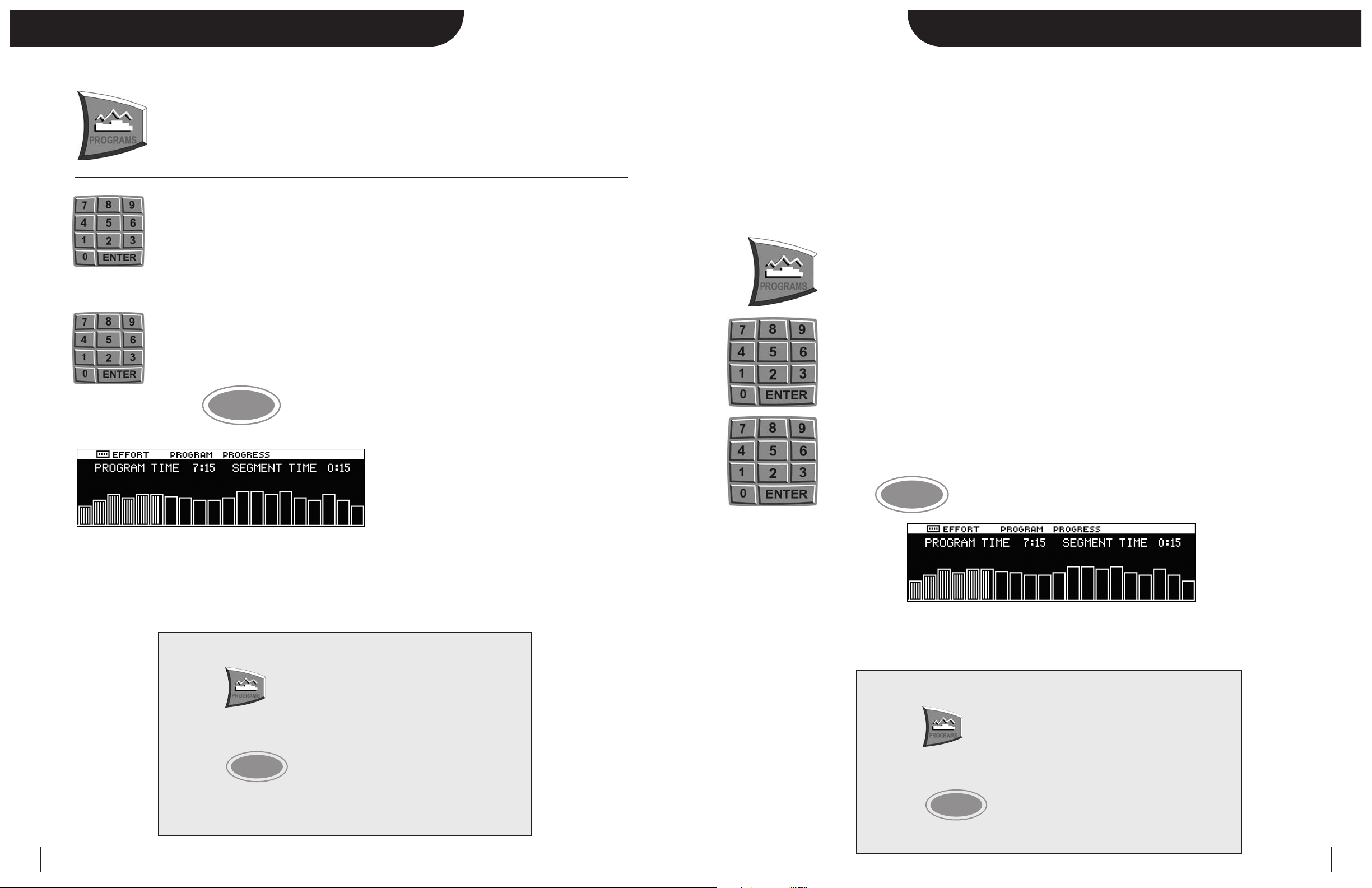

5 BUILT-IN PROGRAMS

The Cardio Trainer offers five built-in programs to help you attain your fitness goals. These programs
take you through a predetermined twenty-segment effort level profile but at the same time allow you
to override each segment to tailor the program to your specific needs.

5 USER-DEFINED PROGRAMS

The Cardio Trainer allows you to create your own custom programs as you go. Any manual changes
(effort level) you make during your user-program will be saved and stored. You can also create and
modify the user-program using the elliptical’s Edit Mode.

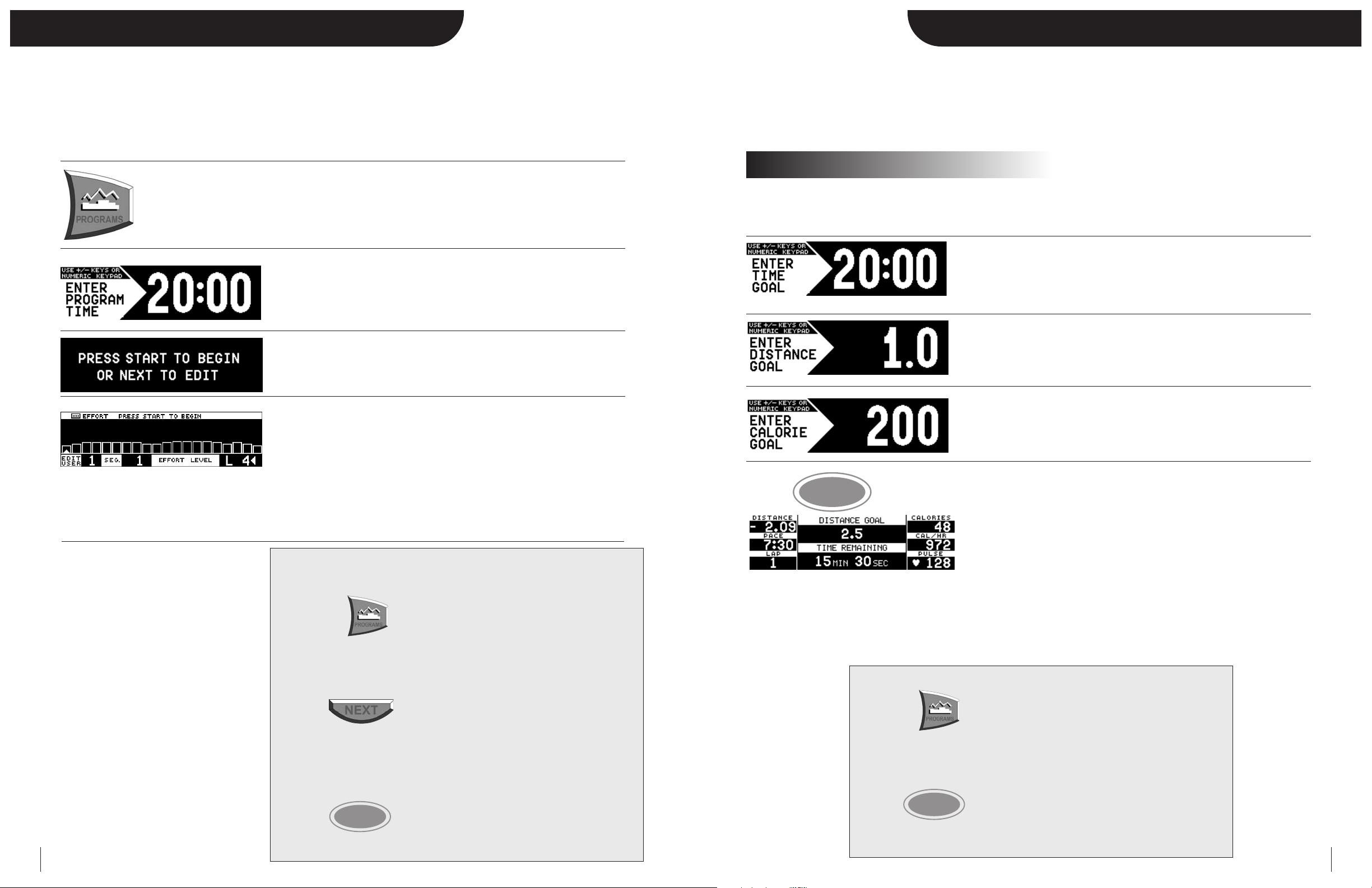

3 SPECIFIC GOAL PROGRAMS

Specific Goal Programs are designed to motivate your fitness goals in a variety of different ways.
Before your workout, select a Time, Distance, or Calorie goal. During your workout you will be
updated with real-time statistics reflecting your progress toward your specific goal.

The Cardio Trainer ElliptiMill combines a versatile liquid crystal display (LCD) with a variety of program options including
multiple heart rate control programs. These features and options combine to offer an exciting and fun workout so you can
reach your fitness goals.

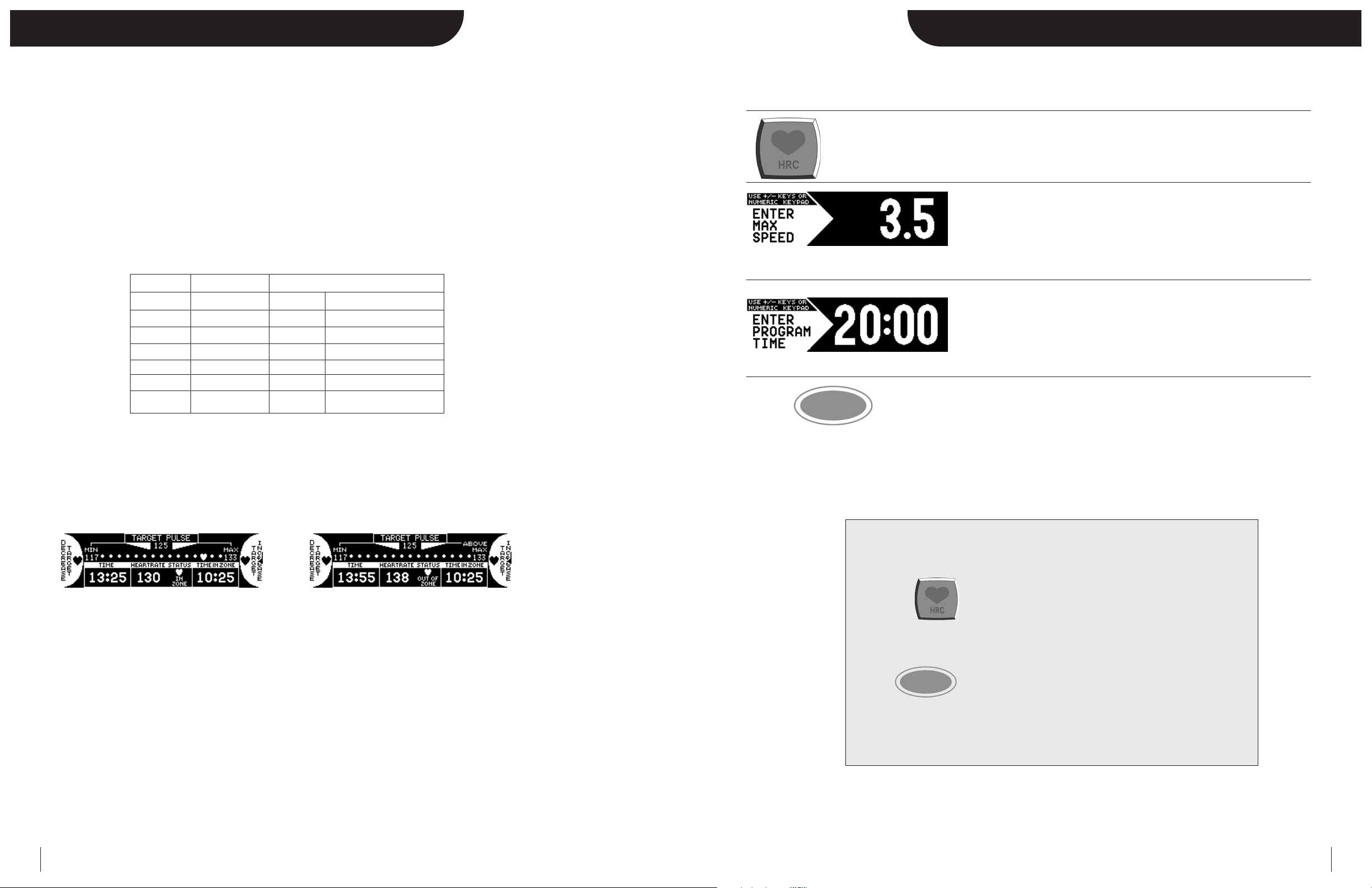

HEART RATE CONTROL

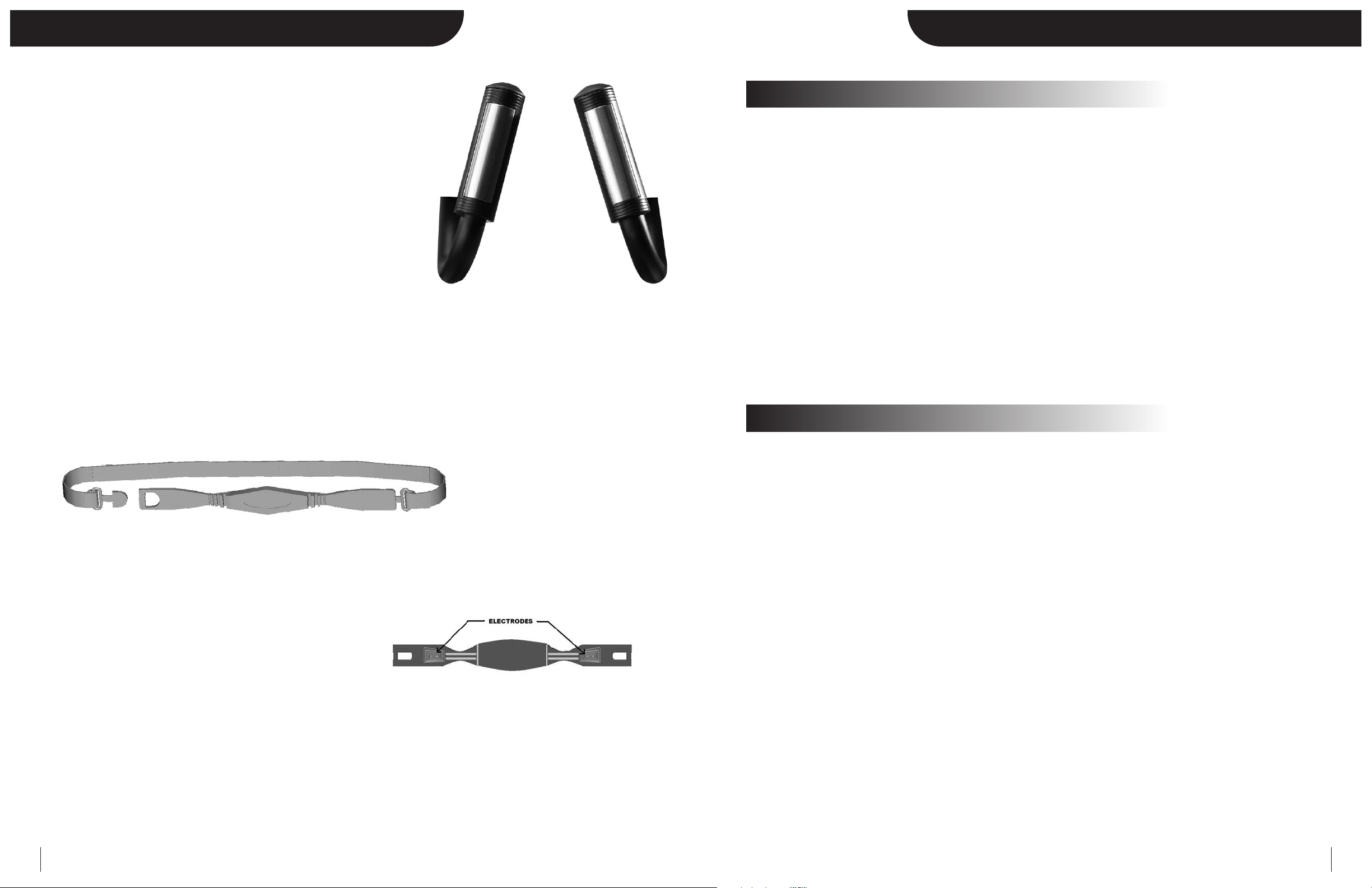

The Cardio Trainer comes standard with contact grips and transmitter strap, which are used in
conjunction with any of the 4 Heart Rate Control (HRC) programs provided. The first two
standard heart rate control programs maximize workout time by directing the elliptical to
automatically change effort level in order to maintain the targeted heart rate(s) for the duration of the
program. Furthermore, the two User HRC programs allow you to create separate custom HRC
programs. Each HRC program is broken down into 20 programmable segments for more variety
in your heart rate controlled workouts.

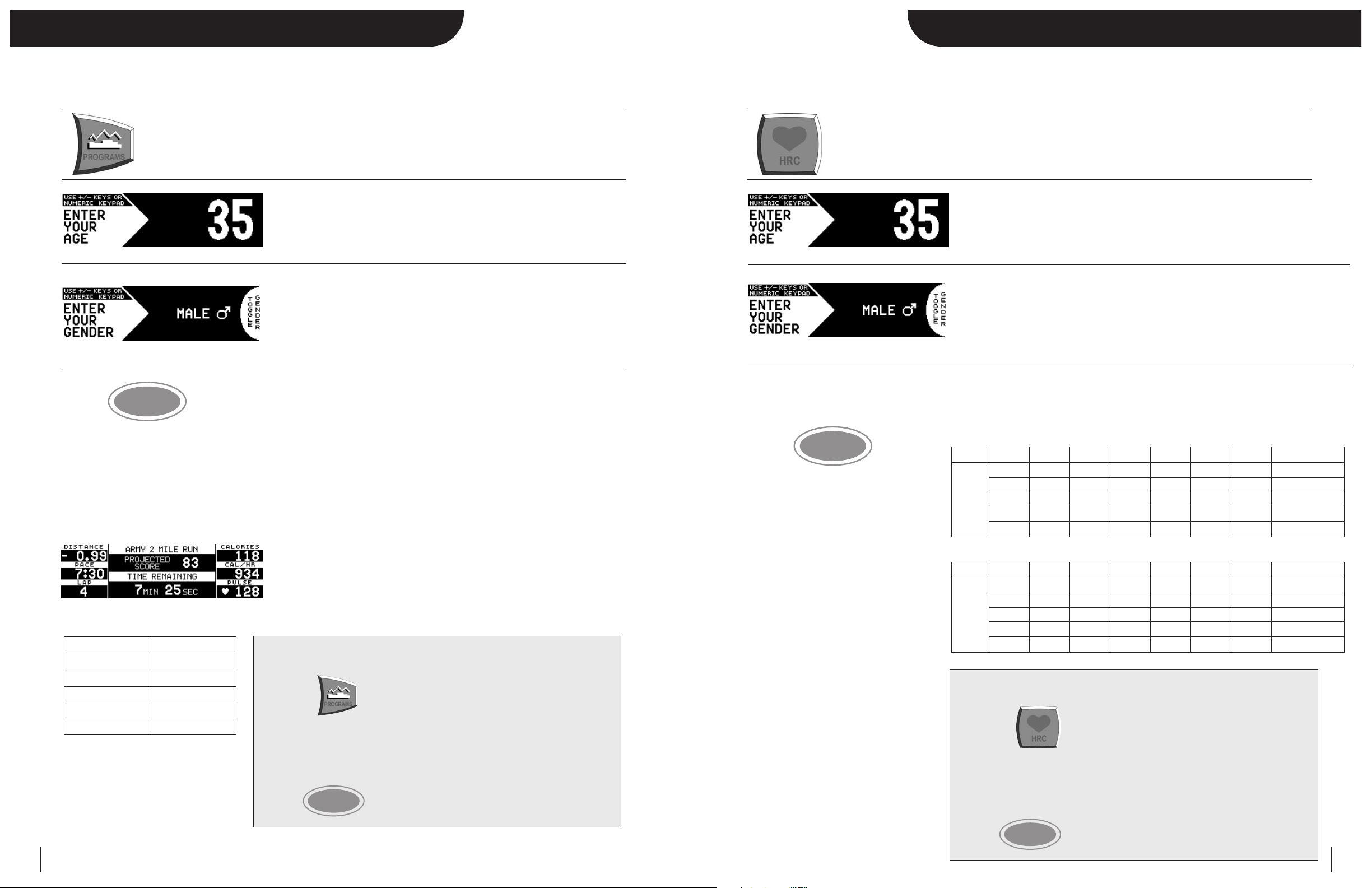

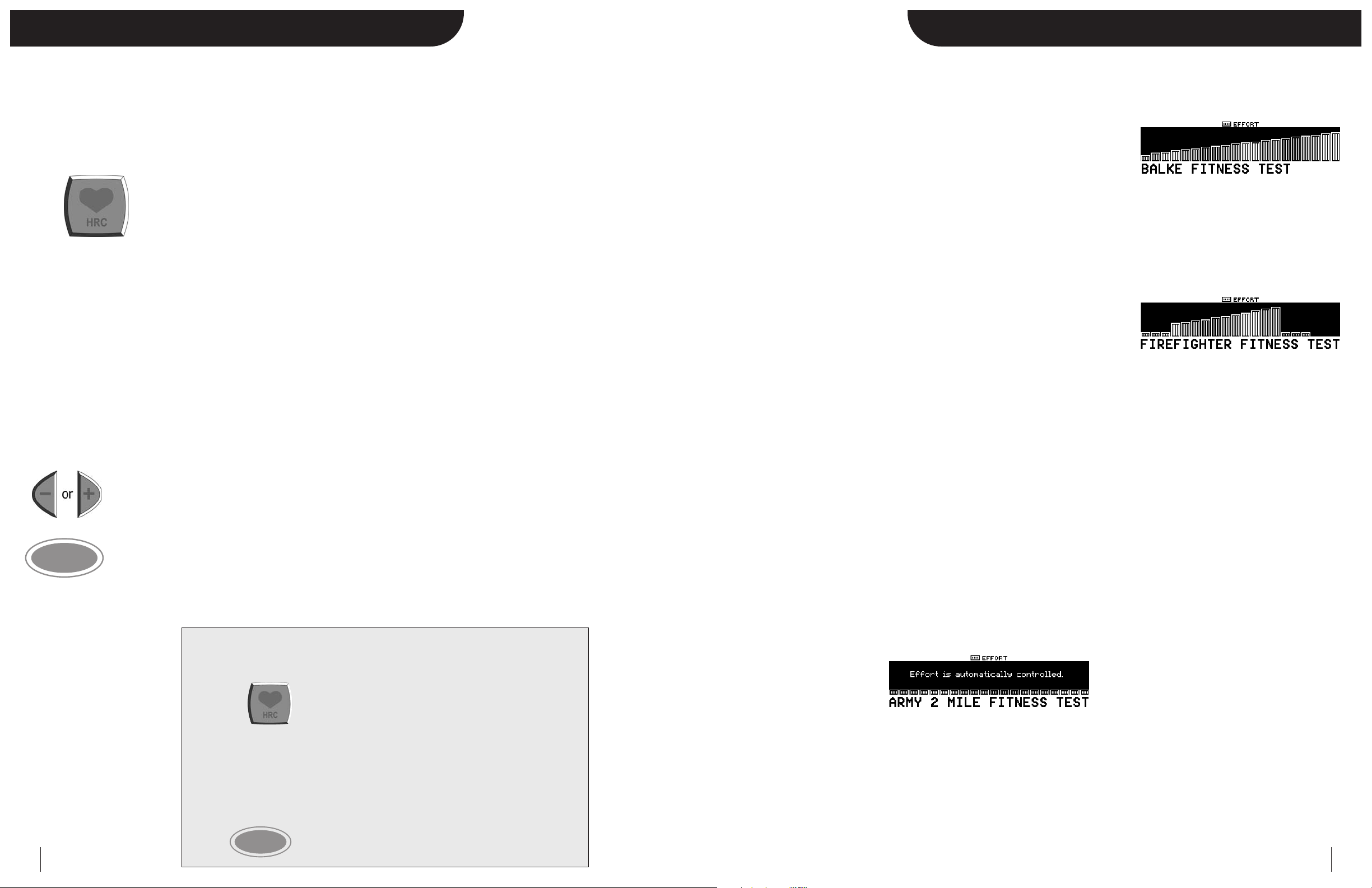

3 FITNESS TESTS

The Cardio Trainer also includes three different programs that accurately measure your fitness level.
The Balke and Fire Fighter Fitness Tests use HRC to monitor your heart and how it reacts to speed
and effort level changes through a specific protocol. Based on your age, gender, and cardiovascular
performance, you will receive a fitness rating upon completion. On the other hand, the Army 2 Mile
Fitness Test is a manually controlled 2 mile test. Based on your age, gender, and completion time, you
will receive a fitness score upon completion.

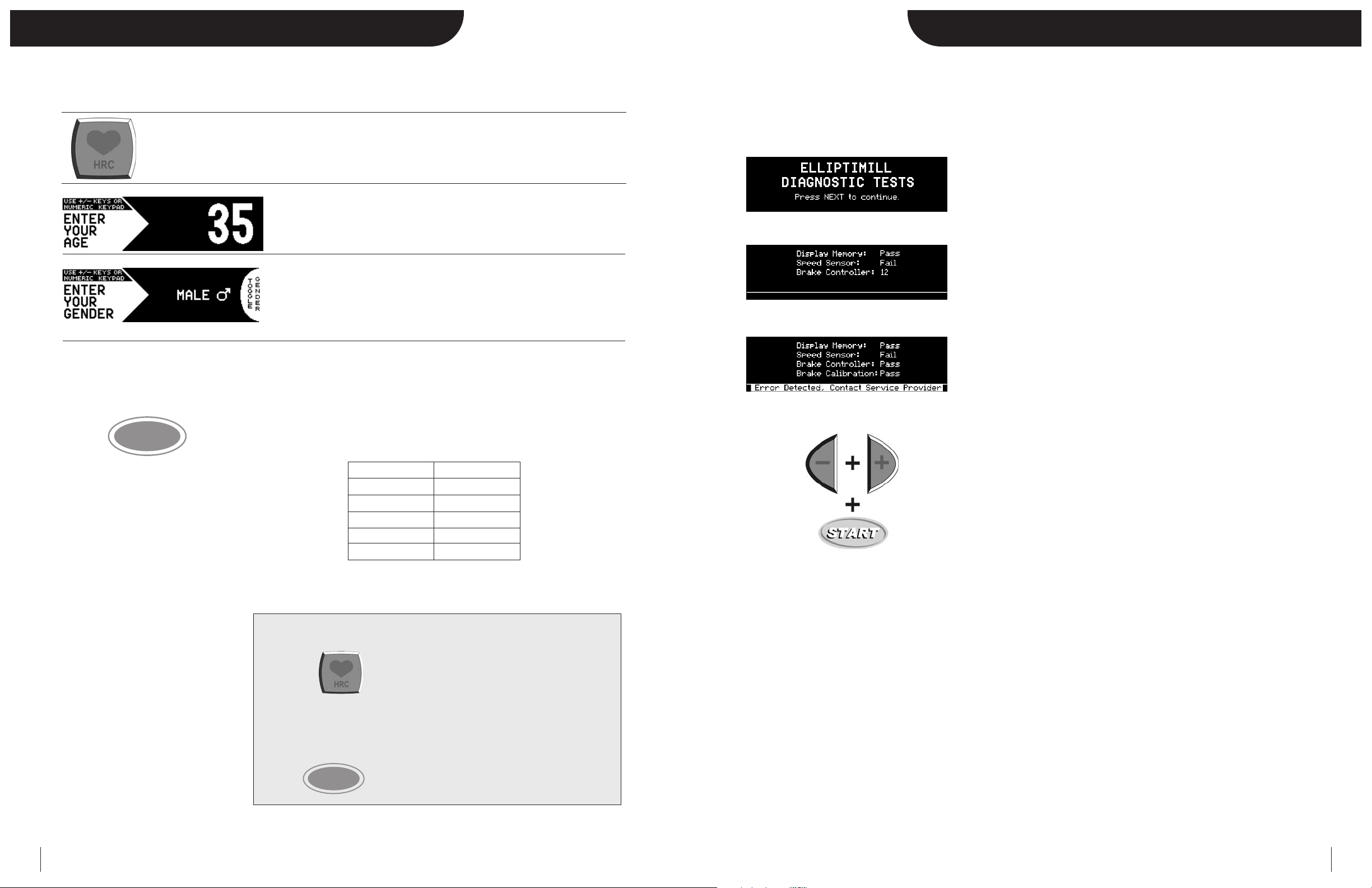

SELF-DIAGNOSTICS

If the Cardio Trainer ever malfunctions, it has the ability to seek out and self diagnose the problem,
clearly displaying it in detail in the center LCD. This feature aims at minimizing elliptical down time,
helping you maintain your fitness goals.

You will be prompted with self-diagnostics as soon as the elliptical detects any errors. However, you
can also manually launch self-diagnostics by pressing the center “+”, “-”, and START button at the
same time while the elliptical is off.

ENGLISH/METRIC MODE

The Cardio Trainer display comes standard in English units and can be changed to display metric
units by pressing MANUAL, PROGRAMS, and START simultaneously while the elliptical is off. Then
press OFF. Repeat the same steps to return back to English units.

It’s about options:

6

Manual Mode

5

Getting Started

Upon exiting the weight input the elliptical enters the Manual Mode. In this mode you control all elliptical functions.

In Manual Mode you can change the effort level at any time as well as select from one of the three multifunction display screens.

allows you to choose the screen that best suits your workout.

FEATURE Description

EFFORT 20 levels, select using EFFORT “+/-” keys
SPEED* Dispayed in MPH, Km/Hr or Revolutions per Minute, select using UNITS “+/-”
TIME Time logged on elliptical displayed as “Minutes: Seconds”
DISTANCE* Miles logged on elliptical (kilometers when in metric)
PACE* Time to complete 1 mile (1 kilometer when in metric)
CALORIES Total calories burned, based on user’s weight
CALS/HR Rate in calories/hour, based on user’s weight
METS** Current MET level, based on user weight / effort level / speed
LAP (PROGRESS)* 1/4-mile (400 meter in metric) track in manual mode
LAP (COUNTER)* Number of laps completed
PULSE Current heart rate
TIME IN ZONE Time spent in target zone (zone is 16 beats wide)
“IN ZONE” User is in the target zone (within 8 beats of the target pulse)
“OUT OF ZONE” User is outside the target zone (greater than 8 beats from target pulse)
“ABOVE MAX” User is above the Maximum allowable heart rate in zone
MAX Maximum allowable heart rate to remain in zone
TARGET PULSE The target pulse (user defined in Zone Screen)
MIN Minimum allowable heart rate to remain in zone
“BELOW MIN” User is below the Minimum allowable heart rate in zone
TOTAL TIME The total time of the user’s workout

You can return to the Manual Mode at any time by pressing the button.

* Speed and distance are calculated using an advanced metabolic running equivalent algorithm. Your pedal speed and effort level

will yield a “running” speed with the equivalent energy consuming intensity.

** One MET is defined as the energy consumed at rest by the average adult.

Selectable display

Display features

TRACK SCREEN

STAT SCREEN

HEART RATE STATUS SCREEN

START

START

Make sure you read and understand this owner’s manual. Now you are ready to begin.

SET YOUR STRIDE

Prior to your workout, check to see what stride setting the elliptical is currently set at.
The current stride setting is the number (17, 19, 21 or 23) that is located directly
behind the positional arrowhead.

To change it, loosen the black knob and red T-handle (1/4 turn will do). While pulling
the black knob, slide the positional arrowhead up or down grabbing the red T-handle.

Be sure to retighten both knobs and T-handles prior to commencing your workout.

Start by standing on the rear step and stepping onto each foot pedal.

Press the button. The displays will power up and the effort level will default to Level 1.

MANUAL MODE

Upon startup the elliptical enters Manual Mode. In this mode, you control all of the elliptical functions. Any changes in effort
level will be a direct result of you touching the control panel.

ENTER YOUR WEIGHT

Press and use the numeric keypad or the center “+/-” keys to dial in your weight.

Entering your weight is crucial for Calorie and “running” speed calculations.

ENTER YOUR AGE

Press and use the numeric keypad or the center “+/-” keys to dial in your age.

Entering your age will generate an age based weight loss target pulse (see Heart Rate Monitoring).

You can see your target pulse at any time by pressing until you bring up the Heart Rate Status Screen
(shown below).

Your target pulse is displayed at the top of the screen. You can adjust this number higher or lower by pressing the
center “+/-” keys.
