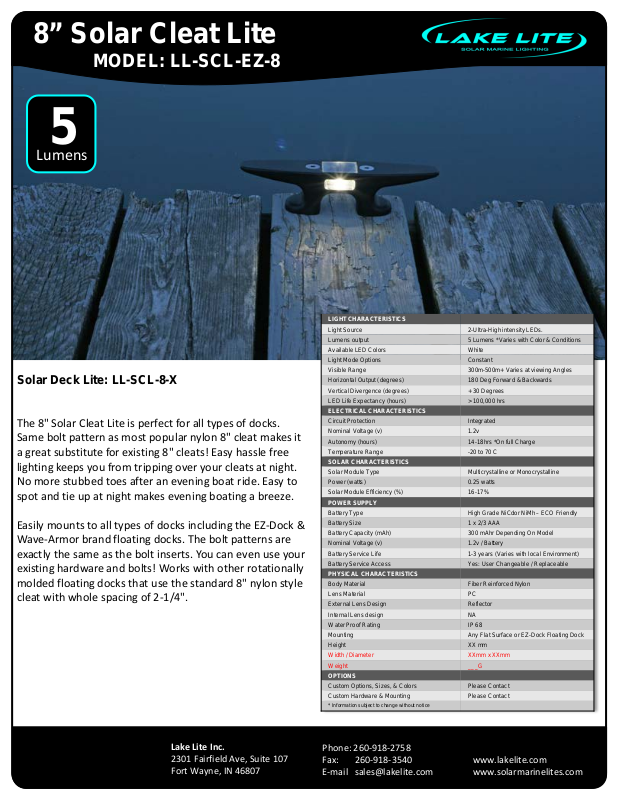

Lake Lite LL-SCL-EZ-8 User Manual

8” Solar Cleat Lite

Solar Underglow: Model: LL

Description

Solar Deck Lite: LL

The 8" Solar Cleat Lite is perfect for all types of docks.
Same bolt pattern as most popular nylon 8" cleat makes it
a great substitute for existing 8" cleats! Easy hassle free
lighting keeps you from tripping over your cleats at night.
No more stubbed toes after an evening boat ride. Easy to
spot and tie up at night makes evening boating a breeze.

Easily mounts to all types of docks including the EZ-Dock &
Wave
exactly the same as the bolt inserts. You can even use your
existing hardware and bolts! Works with other rotationally
molded floating docks that use the standard 8" nylon style
cleat with whole spacing of 2

MODEL: LL-SCL-EZ-8

5

Lumens

-Armor brand floating docks. The bolt patterns are

-SCL-8-X

-SDL-UG-X

-1/4".

LIGHT CHARACTERISTICS

Light Source 2-Ultra-High intensity LEDs.
Lumens output 5 Lumens *Varies with Color & Conditions
Available LED Colors White
Light Mode Options Constant
Visible Range 300m-500m+ Varies at viewing Angles
Horizontal Output (degrees) 180 Deg Forward & Backwards
Vertical Divergence (degrees) + 30 Degrees
LED Life Expectancy (hours) > 100,000 hrs

ELECTRICAL CHARACTERISTICS

Circuit Protection Integrated
Nominal Voltage (v) 1.2v
Autonomy (hours) 14-18hrs *On full Charge
Temperature Range -20 to 70 C

SOLAR CHARACTERISTICS

Solar Module Type Multicrystalline or Monocrystalline
Power (watts) 0.25 watts
Solar Module Efficiency (%) 16-17%

POWER SUPPLY

Battery Type High Grade NiCdor NiMh– ECO Friendly
Battery Size 1 x 2/3 AAA
Battery Capacity (mAh) 300 mAhr Depending On Model
Nominal Voltage (v) 1.2v / Battery
Battery Service Life 1-3 years (Varies with local Environment)
Battery Service Access Yes: User Changeable / Replaceable

PHYSICAL CHARACTERISTICS

Body Material Fiber Reinforced Nylon
Lens Material PC
External Lens Design Reflector
Internal Lens design NA
Water Proof Rating IP 68
Mounting Any Flat Surface or EZ-Dock Floating Dock
Height XX mm

Width / Diameter XXmm x XXmm
Weight ___G

OPTIONS

Custom Options, Sizes, & Colors Please Contact
Custom Hardware & Mounting Please Contact

* Information subject to change without notice
