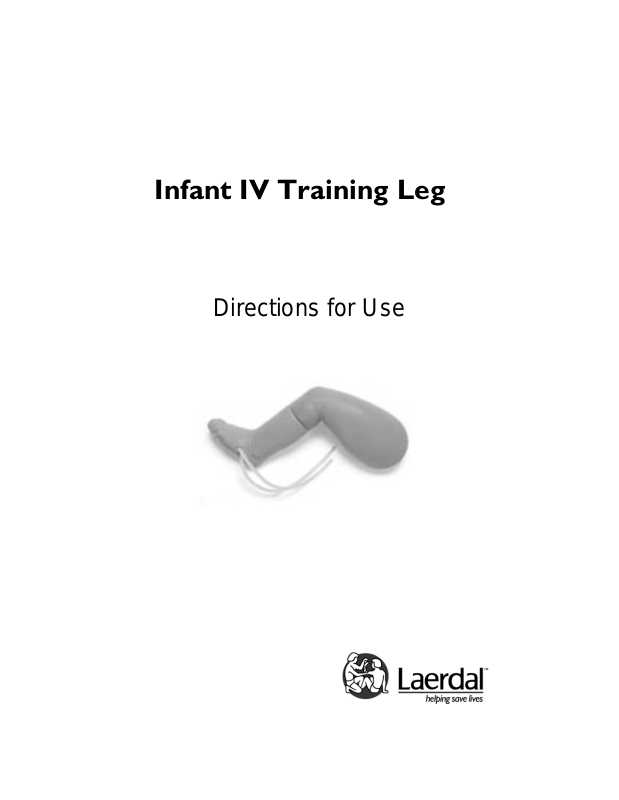

Infant IV Training Leg
Directions for Use
Page 2
Page 3
Table of Contents
Laerdal Recommends 3
Items Included 4
Skills Taught 4
Instructions for Use 4
Skin and Vein Replacement 4
Care and Maintenance 5
Replacement Parts 5
365-00101 Laerdal
2
Page 4
The Infant IV Training Leg (365-00101) is a full-size left
infant leg, which realistically simulates that of a patient.
It is specifically designed for training professionals in
the practice of venipuncture.
As a result of quality manufacturing and the ease of
replacing individual parts, this trainer should provide
many sessions of training when reasonable care and
maintenance is practiced.
Laerdal Recommends:
Venipuncture – Needle size 23 gauge
Instructor Notes:
365-00101 Laerdal
3
Page 5
Items Included:
(1) Infant IV Training Leg
(1) Laerdal Global Warranty Booklet
(1) Directions for Use
Skills Taught:
• Heel stick simulation
• Realistic flashback
• Fluid infusion
• Venipuncture in the medial and malleolus sites
Instructions for Use:
1. Fill a 12cc syringe with fluid. (Simulated blood
concentrate is available from Laerdal Medical).
2. Attach fluid filled syringe to one latex vein.
3. Slowly inject fluid, allowing it to flow through leg and
out other latex vein.
4. Using hemostats or a similar device, clamp latex
vein through which fluid is flowing.
The IV leg is now ready to practice venipuncture.
Skin and Vein Replacement:
1. Slide used skin off leg mandrel.
2. Insert tubing through holes in new skin.
3. Pull tubing through holes while sliding new leg skin
onto mandrel.
4. Screw foot using a clockwise motion onto upper leg
until desired position is achieved.
365-00101 Laerdal
4
Page 6
Care and Maintenance:
1. Clean with mild soap and water; do not submerse in
cleaning fluids or water.
2. Use only on clean surface. Avoid felt tipped
markers, ink pens, acetone, iodine or other staining
products and avoid placing the model on newsprint
or inked lines of any kind.
3. To ensure longevity, each module should be
cleaned after each training session and a general
inspection should be conducted regularly.
4. Modules and all other parts should be drained and
air-dried thoroughly before storage and disinfected
when needed. After use of injection pads (use water
only), accumulated water should be squeezed out.
Do not store wet foam pads in the skin. To
prevent mildew or mold, pads can be soaked in a
mild solution of disinfectant and water or bleach and
water.
5. Articulating parts will benefit from a light application
of talcum powder prior to training sessions.
6. Store properly between teaching sessions.
Cautions and Warnings
This product contains Natural Rubber latex which may
cause allergic reactions when in contact with humans.
REPLACEMENT PARTS:
The following replacement part numbers are for
trainers with Texas Tan skin tone. Please contact
Customer Service Representatives for replacement
part numbers for trainers with other skin tone.
Product Number: Description:
365-01050 Mandrel, ICD IV Leg
365-01150 Sleeve, ICD IV Leg
365-02850 Tubing, ICD IV Leg
365-00101 Laerdal
5
Page 7
Page 8
© Laerdal Medical, Gatesville TX. All rights reserved.
1005315 rev C
August 30, 2006
