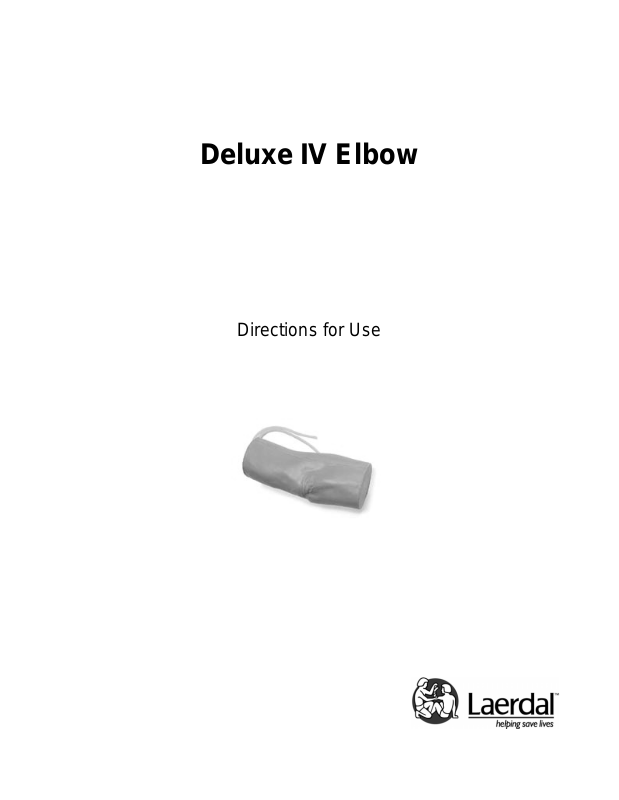

Deluxe IV Elbow
Directions for Use
The Deluxe IV Elbow (270-10101) is a full-size lifelike
elbow, which realistically simulates that of a patient. It
is specifically designed for training professionals in the
practice of venipuncture and injection in the antecubital
area.
As a result of the manufacturing quality this trainer
should provide many sessions of training when
reasonable care and maintenance is practiced*.
ITEMS INCLUDED:
(1) Deluxe IV Elbow
(1) Directions for Use
(1) Laerdal Global Warranty Booklet
INSTRUCTIONS FOR USE:
1. Attach IV tubing to either latex vein.
2. Allow fluid to flow through the elbow and out the
other latex vein.
3. Clamp off the flow of water.
4. The simulator is now ready for use.
NOTE: We recommend nothing larger than a 21-gauge
syringe. This will extend the life of the skin and veins.
When using a catheter, lubricate it with silicone spray
for easier insertion.
CARE AND MAINTENANCE:
1. The unit should be drained after each use. NOTE: If
water is inadvertently injected into “tissue” it should
be squeezed out (not twisted) and left in a ventilated
area to dry out. This helps preserve the material.
2. The veins are made from tough, industrial tubing;
however, they will leak when put under unusually
high pressure. Normal infusion from an IV bag setup should not produce undue pressure.
3. When you have finished your training, the elbow
should be put up and allowed to air dry. This will
prevent molding or mildew.
4. When kept in a closed bag or box, the plastic used
to manufacture this product emits fumes that may
be somewhat offensive to some people and may be
270-10101 2 Laerdal
particularly noticeable when the package is first
opened. These fumes rapidly dissipate and will not
be noticed. NOTE: Do not pull on excess rubber at
the seams. This will cause the seam to open,
destroying the elbow.
5. Use on clean surface only. Avoid felt tipped
markers, ink pens, acetone, iodine or other staining
medications, and placing the simulator on newsprint
or inked lines of any kind.
6. A general inspection should be conducted regularly.
7. Store properly between teaching sessions.
*NOTE: The manufacturing process of the
Deluxe IV Training Elbow model does not
permit its repair or refurbishment.
Cautions and Warnings
This product contains Natural Rubber latex which may
cause allergic reactions when in contact with humans.
270-10101 3 Laerdal
© Laerdal Medical, Gatesville TX. All rights reserved
1005322 rev B
August 30, 2006
