La Crosse Technology WS-1510-IT User Manual

PROFESSIONAL WEATHER CENTER
WS-1510-IT
Table of Contents
Topic Page
Manual Setting 10 Time alarm setting 13 Weather alarm operations 14 Hysteresis 16 Weather forecast and weather tendency 17 Wind direction and wind speed measurement 19 Rainfall measurement 19
Viewing history data 19 Viewing the min/ max weather data 20 Switch On/ Off buzzer 24 Outdoor transmission 915 MHz reception 25 Positioning 25 Care and Maintenance 27 Specification 28 Warranty Info 29 FAQ 30
Instruction Manual
PROFESSIONAL WEATHER CENTER
WS-1510-IT
Congratulations on purchasing this state-of-the-art Professional Weather Center as an example of excellent design and innovative technology. Featuring time, date, calendar, weather forecast, wind direction and speed, rainfall, indoor temperature, outdoor temperature and outdoor humidity, air pressure and various alarm settings for different weather conditions, this Weather Center will provide you with extensive weather information and forecast.
This product off er s:
FEATURES:
Weather Center
LCD
Function keys
Instruction Manual
INSTANT TRANSMISSION is the state-of-the-art new wireless transmission technol o g y, exclusively designe d a nd developed by LA CROSSE TECHNOLOGY.
INSTANT TRANSMISSION
you an immediate update (every 4.5 seconds!) (6.5 seconds for rain) of all your outdoor data measure d from the transmitters: foll ow your climatic variations in real-time!
Stand
offers
Hanging hole
Battery compartment
Time display (manual setting)
12/24 hour time display
Calendar display (weekday, date, month, year)
Time alarm function
Weather forecasting function with 3 weather icons and weather
tendency indicator
Dew point display in ºF/°C
Outdoor temperature display in ºF/°C
Outdoor Humidity display as RH%
Indoor temperature display in ºF/°C
Display MIN/MAX value of outdoor temperature, outdoor humidity,
dew point, wind chill and relative pressure with time and date of recording
Low/High outdoor temperature and humidity alarm
Relative air pressure displayed in inHg or hPa
Air pressure tendency indicator for the past 12 hours (bar graph
format)
LCD contrast selectable
Low battery indicator
Wind direction displayed in 16 steps
Wind speed and gust displayed in mph, km/h, or m/s, and
Beaufort scale
Wind chill displayed in °F of °C
High alarm function for wind speed
Manual reset of outdoor temperature, outdoor humidity, dew point,
wind chill, pressure, wind speed, gust, and 24h rainfall
24h rainfall display in inch or mm
Total rainfall display in inch or mm
Storm warning alarm
Buzzer on/off selectable
Storage of 140 sets of history weather data recorded in 3-hour
intervals
Wireless transmission at 915 MHz
Transmission range up to 330 feet (100 meters)
Thermo-hygro Sensor
Remote transmission of the outdoor temperature
and humidity to the Weather Center at 915 MHz
Weather-resistant casing
Wall mounting case (to be mounted in a
sheltered place. Avoid direct rain and sunshine)
1
Wind Sensor
Rain Sensor
SETTING UP:
Wireless transmission
at 915 MHz - thermo­hygro and rain sensor to the Weather Center
Rain sensor
Cable connection between the wind sensor and the thermo-hygro sensor
2
Connected to the thermo-hygro
sensor by cable
Can be installed onto a mast or a
horizontal panel
Remote transmission of the rainfall
data to the Weather Center at 915 MHz
To be mounted onto a horizontal
panel
Weather Center
Wind sensor
3
4
Note:
When putting the Weather Center into operation, it is important to perform in close proximity (e.g. on a table) a complete wiring and set-up of the system. This step is important to test all components for correct function before placing and mounting them at their final destinations (See Positioning below). Spin the wind vane and tip the rain gauge to test.
1. Unwind the cables of the Wind sensor. Connect the Wind sensor to the Thermo-hygro transmitter by plugging the connector head into the socket of the Thermo-hygro sensor. Cord should “click” into place.
2. First insert the batteries into the Thermo-hygro sensor and Rain sensor “How to install and replace the batteries into the
Thermo-hygro sensor“ and “How to install a nd replace the batteries into the Rain sensor” below).
3. Then insert the batteries into the Weather Center (see “How to install and replace the batteries into the Weather Cent er
below). Once the batteries are installed, all segments of the LCD will light up briefly and a short signal tone will be heard. It will then display the time as 12:00, the date as 1.1.05, the weather icons, and air pressure value. "- - -" will be shown for outdoor data.
4. Afterwards, the Weather Center will start receiving data from the transmitter. The transmission reception icon will be blinking to indicate that the station is trying to get the thermo-hygro transmitter data. The outdoor temperature, humidity, wind data should then be displayed on the Weather Center. If this does not happen after 135 seconds, the batteries will need to be removed from all units. You will have to start again from step 2.
5. The transmitter reception icon is now blinking again to indicate that the station is trying to get the rain sensor data. It will stop blinking once the rain sensor has been detected. If this does not happen after 135 seconds, you will need to start again from step 2.
6. You may need to check the cable for correct connection and all the components for correct function by manually turning the wind-
Sockets for wind sens or
gauge by moving the wind-vane; tilting the rain sensor to hear the impact of the internal moving seesaw, etc. (see Positioning below).
7. Time and date shall be manually set (See Manual Setting below).
8. After the Weather Center has been checked for correct function with regard to the above points and found fit, the initial set up of the weather station system is finished and the mounting of the system components can take place. It must be ensured however that all components work properly together at their chosen mounting or standing locations. If e.g. there appear to be problems with the 915 MHz radio transmission, they can be overcome by slightly changing the mounting locations or turning the base station.
Note:
The radio communication between the receiver and the transmitters in the open field reaches distances of max 330 feet, provided there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc.
9. Radio interferences created by PC screens, radios or TV sets can in some cases entirely cut off radio communication. Please consider this when choosing standing or mounting locations.
Note :
After batteries are installed in the transmitter, install the batteries
in the weather center to receive the signal from the transmitters as soon as possible. If the weather center is powered more than 5 hours after the transmitter is powered, the weather center will never receive signal successfully from the transmitters. In this case, user will need to reinstall the batteries from all the transmitters to redo set-up procedure.
After batteries are installed, there will be synchronization between
weather center and the transmitters. At this time, the signal reception icon will be blinking. When the signal is successfully received by the weather center, the icon will be switched on. (If it is not successful, the icon will not be shown in LCD) So the user can easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a reception is in progress.
Transmitter signal reception icon
If the signal reception is not successful on the first frequency
(915MHz) for 45 seconds, the frequency is changed to 920MHz and the learning is tried another 45 seconds. If still not successful, the reception is tried for 45 seconds on 910MHz. This will also be done for re-synchronization.
HOW TO INSTALL AND REPL AC E THE BATTERIES INTO THE THERMO-HYGRO SENSO R
Note:
In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a random security code is assigned by the thermo-hygro sensor at start-up and this code must be received and stored by the Weather Center in the first several minutes of power being supplied to it.
HOW TO INSTALL AND REPL AC E THE BATTERIES INTO THE RAIN SENSOR
Figure 1
The rain sensor works with 2 x AAA, IEC LR3, 1.5V batteries. To install and replace the batteries, please follow the steps below:
1. Press tabs back to unlock rain sensor cover. (Figure 1)
2. Lift rain sensor cover to access battery compartment. (Figure 2)
3. Insert the batteries, observing the correct polarity (see the marking in the battery compartment). (Figure 3)
4. Replace the battery cover and the rain cover onto the unit.
Note:
5
The outdoor Thermo-hygro sensor works with 2 x AA, IEC LR6 1.5V batteries. To install and replace the batteries, please follow the steps below:
1. Uninstall the rain cover of the transmitter.
2. Remove the battery compartment cover.
3. Insert the batteries, observing the correct polarity (see the marking in the battery compartment).
4. Replace the battery cover.
Figure 2
Figure 3
7
In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a random security code is assigned by the rain sensor at start-up and this code must be received and stored by the Weather Center in the first several minutes of power being supplied to it.
HOW TO INSTALL AND REPL AC E THE BATTERIES INTO THE WEATHER CENTER
The Weather Center works with 3 x AA, IEC LR6, 1.5V batteries. When the batteries need to be replaced, the low battery symbol will appear on the LCD. To install and replace the batteries, please follow the steps below:
BATTERY CHANGE:
It is recommended to replace the batteries in all units every 24 months to ensure optimum accuracy of these units.
Note:
The stored History record will not be kept after the battery change is done on the Weather Center.
FUNCTION KEYS:
Weather Center:
The Weather Center has 5 easy-to-use function keys.
SET key
Please participate in the preservation of the environment. Return used batteries to an authorized depot.
+ key
6
1. Remove the battery compartment cover.
2. Insert the batteries observing the correct polarity (see the marking in the battery compartment).
3. Replace the battery cover.
HISTORY key
ALARM key
8
MIN/MAX key
SET key
g
Press and hold to enter manual setting modes: LCD contrast,
Manual time setting, 12/24 hour time display, Calendar setting, ºF/ ºC temperature unit, Wind speed unit, Rainfall unit, Pressure unit, Relative pressure reference setting, Weather tendency threshold setting, Storm warning threshold setting and Storm Alarm On/ Off setting
Press to toggle between the display of Mode 1 or Mode 2:
Mode 1: "Wind speed + outdoor temp + rel. pressure" Mode 2: "Gust + Dew Point temp + rainfall"
(Mode 2 displayed will be shown for 30 seconds. Then it will
return to normal display automatically.)
In normal display mode, press and hold to switch on/ off the
Buzzer
In the weather alarm setting mode, press and hold to adjust
different alarm value and switch the alarm On/ Off
Press to activate the reset mode when max or min record is
shown
Stop the alarm during the time alarm or weather alarm ringing
+ key
In display Mode 1, press to toggle between the display of Preset
alarm time, date, weekday + date, Indoor temp, or second in the time display
In display mode 2, press to toggle between the display of Rel.
Pressure, 24 hour rainfall and Total rainfall
Press to adjust (increase) the level of different settings
Stop the alarm during the time alarm or weather alarm ringing
Press to confirm to reset the max/min record
HISTORY key
Press to display the weather data history records
Stop the alarm during the time alarm or weather alarm ringing
Press to exit manual setting mode and alarm setting mode
ALARM key
Press to enter the time alarm and weather alarm setting mode
Confirm particular alarm setting
Press to exit the manual setting mode
Stop the alarm during the time alarm or weather alarm ringing
Press to exit max/ min record display mode
MIN/MAX key
Press to display minimum and maximum records of various
weather data
Press to adjust (decrease) the level of different settings
Stop the alarm during the time alarm or weather alarm ringing
LCD SCREEN
The LCD screen is split into 5 sections displaying the following information:
1. Time and date/ indoor temp/ second
2. Wind data
3. Outdoor temperature, Dew point and humidity,
4. Air pressure, Rainfall data,
5. Air pressure history and Weather forecast icon.
Outdoor temperature
Outdoor temp.
Relative air pressure
display in inHg or
hPa, or total and 24h
rainfall display in inch
* When the signal from the transmitter/ or Rain sensor is successfully received by the Weather Station, this icon will be switched on. (If not successful, the icon will not be shown on the LCD). User can therefore easily see whether the last reception was successful (“ON” icon) or not (“OFF” icon). On the other hand, the short blinking of the icon shows that a reception is being done at that time.
Low battery Indicator (weather center)
Time display
Wind Chill
in °F or °
or dew point
in °F or ºC
alarm icon
Air pressure
histogram
Low battery Indicator (T hermo-hygro)
Time alarm icon
Low battery Indicator (r ain sensor)
Calendar display
Buzzer off indicator
Wind direction display and wind speed in Beaufort scale
Wind speed Hi alarm icon
Wind speed or
ust in mph, km/h
Outdoor relative humidity in %
Outdoor Humidity alarm icon
Transmitter signal reception icon
Weather tendency indicator
Weather forecast icon

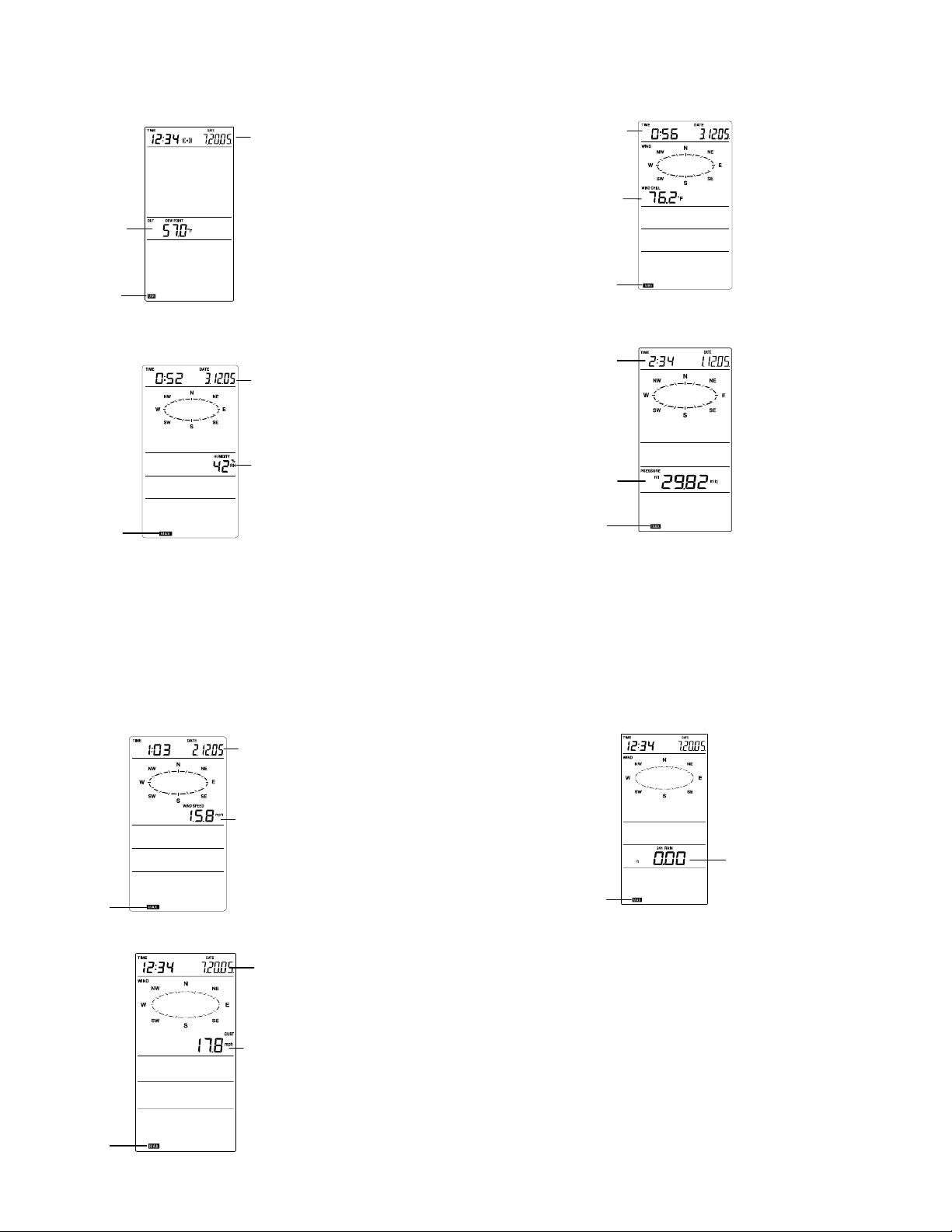

*In normal display user may press the SET key shortly to toggle between Mode 1 and Mode 2 display:
Mode 1 : Wind speed, outdoor temperature and relative pressure reading are shown.
Outdoor temp
icon
Rel Pressure
icon
Mode 2 : Wind Gust, Dew Point temperature and 24 Hour and Total Rainfall reading are shown.
Dew point icon
Rainfall icon
MANUAL SETTING:
The following manual settings can be changed once the SET key is pressed and hold for about 3 seconds:
LCD contrast setting
Manual time setting
12/24 hour time display
Calendar setting
°F/ °C temperature unit setting
Wind speed unit
Rainfall unit setting
Air pressure unit setting
Relative pressure reference value setting
Weather tendency threshold value
Storm warning threshold value
Alarm On/ Off setting
LCD CONTRAST SETTING
9
Wind speed icon
In Mode 1, this reception icon is showing the condition of the reception of the signal from Thermo-h y g r o transmitter
Wind gust icon
In Mode 2, this reception icon is showing the condition of the reception of the signal from Rain sensor
Flashing
The LCD contrast can be set within 8 levels, from "LCD 1" to "LCD 8" (default setting is LCD 5):
1. Press the SET key, the contrast level digit will start flashing.
2. Use the + or MIN/MAX key to adjust the level of contrast.
3. Confirm with the SET key and enter the MA NUAL TIME
SETTING.
MANUAL TIME S ETTING:
You then may manually set the time of the clock by following the steps below:
1. The hour digit will start flashing.
2. Use the + or MIN/MAX key to set the hour.
3. Press the SET key to switch to the minutes. The minute digit will
4. Use the + or MIN/MAX key to set the minute.
5. Confirm the time with the SET key and enter the 12/24 HO UR
12/24 HOUR TIME DISPLAY SETTING:
The time can be set to view as 12-hour or 24-hour format. The default time-display mode is 12-h. To set to 24-h time display:
1. Use the + or MIN/MAX key to toggle the value.
2. Confirm with the SET key and enter the CALENDAR SETTING.
CALENDAR SETTING:
The date default of the Weather Center is 1. 1. of year 2005. The date can be set manually by proceeding as follows.
1. The year digit starts flashing.
2. Use the + or MIN/MAX key to set the year. The range runs from
3. Press the SET key to confirm the year and enter the month setting.
Hour
flashing
start flashing.
TIME DISPLAY SETTING.
"Date. Month." (for 24h time display) "Month. Date." (for 12h time display)
"00" (2000) to "99" (2099).
The month digit will start flashing.
10
Minutes flashing
Digit flashing
Année
11
12
4. Use the + or MIN/MAX key to set the month.
5. Press the SET key to confirm the month and enter the date setting
mode. The date digit will start flashing.
6. Use the + or MIN/MAX key to set the date.
7. Confirm all calendar settings with the SET key and enter the °F/°C
TEMPERATURE UNIT SETTING.
°F/°C TEMPERATURE UNIT SETTING
The temperature display can be selected to show temperature data in °F or °C. (default °F)
1. The temperature unit is flashing
2. Use the + or MIN/MAX key to toggle between “°F” or “°C”.
3. Confirm with the SET key and enter the WIND SPEED UNIT
SETTING.
WIND SPEED UNIT SETTING
The wind speed unit can be set as mph (mile per hour), km/h (kilometer per hour), or m/s (meter per second). The default unit is mph.
1. Use the + or MIN/MAX key to toggle between the unit “mph”,
“km/h” or “m/s”
2. Confirm with the SET key and enter the RAINFALL UNIT
SETTING.
RAINFALL UNIT SETTING
The rainfall unit can be set as inch or mm. The default unit is inch.
1. Use the + or MIN/MAX key to toggle between the unit “inch” or
2. Confirm the unit with the SET key and enter the RELATIVE AIR
RELATIVE AIR PRESSURE UNIT SETTI NG
“mm”
PRESSURE UNIT SETTING
Flashing
Flashing
Flashing
Flashing
The relative air pressure can be set as inHg or hPa. The default unit is inHg.
1. Use the + or MIN/MAX key to toggle between the unit “inHg" or
“hPa”
2. Confirm the unit with the SET key and enter the RELATIVE
PRESSURE REFERENCE VALUE SETTING.
RELATIVE PRESSURE REFERENCE VALUE SETTING
Note:
The default reference pressure-value of the barometer is 29.91inHg when batteries are first inserted. For an exact measurement, it is
necessary to first adjust the barometer to your local rel ati ve air pressure (related to elevation above sea level). Ask for the current
atmospheric pressure of your home area (Local weather service, www, optician, calibrated instruments in public buildings, airport).
The relative air pressure can be manually set to another value within the range of 27.17 to 31.90 inHg (919 to 1080 hPa) for a better reference.
Flashing
1. The current relative pressure value will start flashing
2. Use the + or MIN/MAX key to increase or decrease the value.
Continually holding the key will allow the value to increase faster.
3. Confirm with the SET key and enter the WEATHER TENDENCY
SENSITIVITY VALUE SETTING.
Note:
This feature is useful for those who live at elevations above sea level, but want their air pressure display to be based on sea level elevation.
WEATHER TENDENCY SENSITIVITY LEVEL SETTING
You may select a definite switching sensitivity value, .06, .09, or .12 inHg for the change in the display of weather icons. This represents the "sensitivity" of the weather forecast (the smaller the value selected, the more sensitive the weather forecast). The default value is 0.09 inHg. Select lower numbers for high humidity areas, i.e. Oceanside. Select high numbers for arid areas, i.e. desert.
Flashing
Flashing
1. The sensitivity value will start flashing
2. Use the + or MIN/MAX key to select the value.
3. Confirm with the SET key and enter the STORM WARNING
SENSITIVITY SETTING.
STORM WARNING THRESHOLD VALUE SETTING
You may also define a switching sensitivity value for the Storm warning display at a decrease of air pressure from .09 inHg to .27 inHg over 6 hours (Default 0.15 inHg).
1. The sensitivity value will start flashing.
2. Use the + or MIN/MAX key to select the value.
3. Confirm with the SET key and enter the STORM ALARM ON/OFF
SETTING.
STORM ALARM ON/ OFF SETTING
You may also choose to switch On or Off the acoustic Storm warning alarm (Default OFF).
1. The digit "AOF" will start flashing.
2. Use the + key to switch On or Off the alarm. ("AOF" = OFF;
"AON" = On)
3. Confirm with the SET key and the normal display mode will be
shown.
Note:
In case a storm warning alarm is activated, the downward weather tendency arrow will be flashing. (Also see WEATHER TEN DE NCY
INDICATOR below)
TO EXIT THE MANUAL SETTING MODE
To exit the manual setting anytime during the manual setting modes, press the ALARM key (or HISTORY key) or wait for the automatic timeout. The mode will return to the normal time display.
TIME AL AR M S ETTING
The alarm time can be set by the use of the ALARM and SET key.
1. Press the ALARM key once. The “ALARM” icon and time digits
are shown at the top right of the LCD.
13
Flashing
Flashing
Flashing
2. Press and hold the SET key for about 2 seconds. The hour digit of the alarm time will start flashing. Press the + or MIN/MAX key to set the hour of the alarm time.
3. Press the SET key to confirm and advance to the minute setting. The minute digit will be flashing.
4. Press the + or MIN/MAX key to set the minute of the alarm time. Press the ALARM key to confirm. Wait for about 30 seconds and the display will return to normal display mode automatically.
5. In the normal display mode, press the ALARM once key to go to the time alarm-setting mode again. Then press shortly the SET key to switch on or off the time alarm. (The showing of the icon (((y))) means that the time alarm is switched on.)
6. Press the HISTORY key or wait for about 30 seconds and the display will return to normal display mode automatically.
Note:
The alarm ringing duration is 2 minutes. To stop the alarm, press any key during the alarm ringing.
WEATHER ALARM OPERATIONS
The Weather alarms can be set when certain weather conditions are met according to your requirements. For example, you can set the thresholds for the outdoor temperature to +104°F (high) and 14°F (low), while only enabling the high alarm and disabling the low alarm (i.e. temperatures <14°F won’t trigger alarm, but temperatures >+104°F will).
Outdoor temp
Alarm-On ic on
Alarm-On icon
14
Alarm tim e digit
High wind speed Alarm-On ic on
Outdoor humidity Alarm-On icon
15
16
Loading...
+ 9 hidden pages
