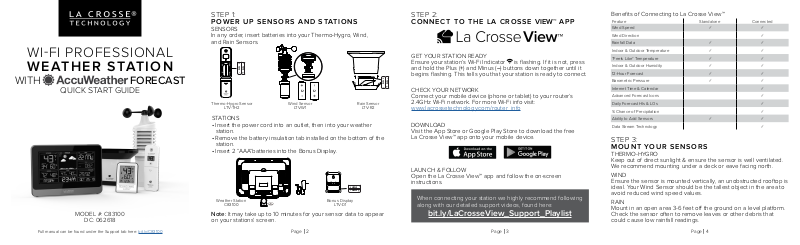

La Crosse C83100 User Manual

WIFI PROFESSIONAL

WEATHER STATION

WITH FORECAST

QUICK START GUIDE

MODEL #: C83100

DC: 062618

STEP 1:

POWER UP SENSORS AND STATIONS

SENSORS In any order, insert batteries into your Thermo-Hygro, Wind, and Rain Sensors.

Thermo-Hygro Sensor

LTV-TH2

STATIONS

• Insert the power cord into an outlet, then into your weather station.

• Remove the battery insulation tab installed on the bottom of the station.

• Insert 2 “AAA”batteries into the Bonus Display.

Weather Station

C83100

Note: It may take up to 10 minutes for your sensor data to appear on your stations’ screen.

Wind Sensor

LTV-W1

Bonus Display

LTV-D1

Rain Sensor

AAA

LTV-R2

STEP 2:

CONNECT TO THE LA CROSSE VIEW™ APP

GET YOUR STATION READY Ensure your station’s Wi-Fi Indicator is ﬂashing. If it is not, press and hold the Plus (+) and Minus (–) buttons down together until it

begins ﬂashing. This tells you that your station is ready to connect.

CHECK YOUR NETWORK Connect your mobile device (phone or tablet) to your router’s

2.4GHz Wi-Fi network. For more Wi-Fi info visit:

www.lacrossetechnology.com/router_info

DOWNLOAD

Benefits of Connecting to La Crosse View™

Feature Standalone Connected

Wind Speed ✓ ✓

Wind Direction ✓

Rainfall Data ✓ ✓

Indoor & Outdoor Temperature ✓ ✓

“Feels Like” Temperature ✓ ✓

Indoor & Outdoor Humidity ✓ ✓

12-Hour Forecast ✓ ✓

Barometric Pressure ✓ ✓

Internet Time & Calendar ✓

Advanced Forecast Icons ✓

Daily Forecast HIs & LOs ✓

% Chance of Precipitation ✓

Ability to Add Sensors ✓ ✓

Data Stream Technology ✓

Visit the App Store or Google Play Store to download the free LaCrosse View™ app onto your mobile device.

STEP 3:

MOUNT YOUR SENSORS

THERMO-HYGRO Keep out of direct sunlight & ensure the sensor is well ventilated.

LAUNCH & FOLLOW Open the LaCrosse View™ app and follow the on-screen instructions.

When connecting your station we highly recommend following along with our detailed support videos, found here:

bit.ly/LaCrosseView_Support_Playlist

We recommend mounting under a deck or eave facing north. WIND

Ensure the sensor is mounted vertically, an unobstructed rooftop is ideal. Your Wind Sensor should be the tallest object in the area to avoid reduced wind speed values.

RAIN Mount in an open area 3-6 feet off the ground on a level platform. Check the sensor often to remove leaves or other debris that could cause low rainfall readings.

Full manual can be found under the Support tab here: bit.ly/C83100

Page 3Page 2

Page 4

BUTTONS & FUNCTIONS

Buttons located on top of Color Weather Station

Buttons located on side of Color Weather Station

SET Hold for basic setting. Press to view Wi-Fi status.

TEMP, WIND, RAIN Press to view history.

LIGHT Press to adjust brightness. Hold to set Auto Dim.

+ or  Use + or – to adjust values in settings.

+ &  Hold both buttons to search for Wi-Fi.

SENSOR

DAILY, HOURLY Press to see forecast. Must be connected to Wi-Fi.

RAIN & LIGHT Hold both buttons to reset all sensor ID’s and Wi-Fi settings.

EXTRA SENSOR

Press to view sensor ID numbers, then hold PLUS (+) to search, or hold MINUS (–) to remove.

Press to toggle through “extra sensor” & Barometric Pressure. Hold to add Sensors.

ACCUWEATHER FORECASTS

Other benefits of connecting your station to the La CrosseView™ app include Daily and Hourly Forecasts from AccuWeather. These will display changes in your station’s Weather Icons, HI/LO Temps, Wind Direction, and Chance of Precipitation values.

DAILY FORECAST Press the DAILY button to view predictions for each of the next 7 days of weather data.

HOURLY FORECAST Press the HOURLY button to view predictions for each of the next 12 hours of forecast data.

Note: These buttons will not provide a function if your station is not connected to the La Crosse View app.

STATION ICONS

Wi-Fi Indicator: Will flash when your station is ready to connect to the Internet, and be solid on screen when connected.

Internet Indicators: Will display in areas to indicate data coming from the Internet.

Low Battery Indicators: Individual station/sensor indicators will let you know which batteries to replace.

Sensor Reception Indicators: Indicate the reception strength between your sensors and station.

WE’RE HERE TO HELP!

If you require additional support, call our friendly customer support representatives based out of our office in La Crosse, Wisconsin.

Phone: 1.844.200.8752 Our knowledgeable customer support team is available:

Monday-Friday, 8am-6pm CST.

JOIN THE CONVERSATION

Ask questions, watch detailed setup videos, and provide feedback on our social media outlets!

WARRANTY INFO

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning this product, please contact our friendly customer support team with questions or visit our online support site. Phone: 1.844.200.8752

For Full Warranty Details, Visit:

www.lacrossetechnology.com/support

STATION & SENSOR SPECS

Indoor Temperature Range 32°F to 99°F (0°C to 37°C) 32°F to 122°F (0°C to 50°C) Indoor Humidity Range 10% to 99%RH 10% to 99%RH

Relative Pressure Range

Power Requirements

THERMO-HYGRO (LTV-TH2)

• Outdoor Temperature Range: -40°F to 140°F (-40°C to 60°C)

• Outdoor Humidity Range: 10% to 99%RH

• Power Requirements: 2 “AA” Batteries (included)

WIND (LTV-W1)

• Wind Speed Range: 0 to 111 MPH (0 to 178 KMH)

• Power Requirements: 2 “C” Batteries (included)

RAIN (LTV-R2)

• Rainfall Range: 0-393.6 inches (0-9999 mm)

• Power Requirements: 2 “AA” Batteries (included) Sensor Transmission Range: 400 Feet (121.92 Meters) open air

WI-FI NETWORK REQUIREMENTS

• Broadcast Frequency: 2.4GHz (802.11 b/g/n)

• Network Name/Password: Must Not Exceed 45 Characters

• Network Speed: Must Be Greater than 1 Mbps Note: If you have a multiple band router, be sure your mobile device is connected to the

2.4 GHz frequency when connecting your station to the app.

MOBILE REQUIREMENTS

Apple phones require iOS 9.0 or higher with cellular or Wi-Fi service. Android phones require Android OS 5.0 or higher with cellular or Wi-Fi service

LA CROSSE TECHNOLOGY™ PATENTS

Visit www.lacrossetechnology.com/patents for patent information.

CARE + MAINTENANCE

• Do not mix old and new batteries.

• Do not mix Alkaline, Lithium, standard, or rechargeable batteries.

• Always purchase the correct size and grade of battery most suitable for intended use.

• Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries have with correct polarity (+ / -).

• Remove batteries from equipment that will not to be used for an extended period.

• Promptly remove expired batteries.

C83100 LTV-D1

23.62 to 32.48 InHg (800 to 1100 hPa)

5.0V AC Adapter (included) 1 CR2032 Battery (included)

n/a

2 “AAA” Batteries (included)

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Increase separation between equipment & receiver.

• Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other antenna or transmitter. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modifications to this equipment. Such changes or modifications could void the user authority to operate the equipment. All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic, mechanical or chemical process without the written permission of the publisher. This booklet may contain errors or misprints. The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized.

CANADA STATEMENT

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including

interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play and the Google Play logo are trademarks of Google Inc.

WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov
