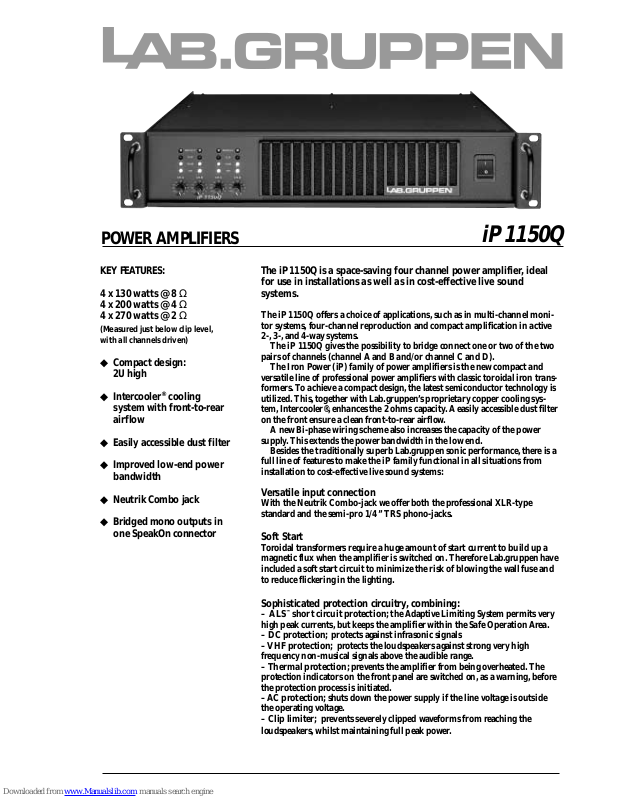

POWER AMPLIFIERS

iP 1150Q

KEY FEATURES:
4 x 130 watts

@

8

Ω

4 x 200 watts @ 4

Ω

4 x 270 watts @ 2

Ω

(Measured just below clip level,
with all channels driven)

◆

Compact design:

2U high

◆

Intercooler® cooling

system with front-to-rear
airflow

◆

Easily accessible dust filter

◆

Improved low-end power

bandwidth

◆

Neutrik Combo jack

◆

Bridged mono outputs in

one SpeakOn connector

The iP 1150Q is a space-saving four channel power amplifier, ideal
for use in installations as well as in cost-effective live sound
systems.

The iP 1150Q offers a choice of applications, such as in multi-channel moni­tor systems, four-channel reproduction and compact amplification in active
2-, 3-, and 4-way systems.

The iP 1150Q gives the possibility to bridge connect one or two of the two

pairs of channels (channel A and B and/or channel C and D).

The Iron Power (iP) family of power amplifiers is the new compact and
versatile line of professional power amplifiers with classic toroidal iron trans­formers. To achieve a compact design, the latest semiconductor technology is
utilized. This, together with Lab.gruppen’s proprietary copper cooling sys­tem, Intercooler®, enhances the 2 ohms capacity. A easily accessible dust filter
on the front ensure a clean front-to-rear airflow.

A new Bi-phase wiring scheme also increases the capacity of the power
supply. This extends the power bandwidth in the low end.

Besides the traditionally superb Lab.gruppen sonic performance, there is a
full line of features to make the iP family functional in all situations from
installation to cost-effective live sound systems:

Versatile input connection

With the Neutrik Combo-jack we offer both the professional XLR-type
standard and the semi-pro 1/4 ” TRS phono-jacks.

Soft Start

Toroidal transformers require a huge amount of start current to build up a
magnetic flux when the amplifier is switched on. Therefore Lab.gruppen have
included a soft start circuit to minimize the risk of blowing the wall fuse and

to reduce flickering in the lighting.

Sophisticated protection circuitry, combining:

– ALS™ short circuit protection; the Adaptive Limiting System permits very
high peak currents, but keeps the amplifier within the Safe Operation Area.

– DC protection; protects against infrasonic signals
– VHF protection; protects the loudspeakers against strong very high

frequency non-musical signals above the audible range.
– Thermal protection; prevents the amplifier from being overheated. The
protection indicators on the front panel are switched on, as a warning, before
the protection process is initiated.
– AC protection; shuts down the power supply if the line voltage is outside
the operating voltage.
– Clip limiter; prevents severely clipped waveforms from reaching the

loudspeakers, whilst maintaining full peak power.

SPECIFICATIONS iP 1150Q

Lab.gruppen AB, Gullregnsvägen 16, S-434 44 Kungsbacka, Sweden.

Tel. [phone]. Fax [phone]. e-mail: [e-mail] www.labgruppen.se

LAB. GRUPPEN reserve the right to alter functions or specifications without prior notice.

MAX OUTPUT POWER

1)

EIA at 1 kHz and 1% THD FTC 20-20kHz @0.1%THD

8 Ω four channels 130 W 120 W
4 Ω four channels 200 W 180 W
2 Ω four channels 270 W

2)

245 2) W

8 Ω bridged stereo 400 W 360 W
4 Ω bridged stereo 540 W

2)

490 2) W

Max output voltage

8 ohms load 32 Vrms
Peak voltage, no load 51 V

Distortion etc.

THD 20Hz-20kHz
and 1W to full power 0,05 %
THD @ 1kHZ and –1dB
under clip 0,01 %
DIM 30 at –3dB under clip 0,008 %

Hum and Noise

<-105 dB

Channel separation

@10kHz 70 dB

Output impedance

30 mΩ

Slew Rate 30 V/µs

Inputs

Gain 32 dB
Impedance 20 kohm
Common mode rejection 50 dB

Front Panel

Gain controls (4) channel A, B, C and D 31 positions detent
Protect indicator (4) yellow LEDs 80°C at heatsink or >12kHz at full power or shorted output
Clip Indicator (4) red LEDs Fast peak – slow release
Signal present indicator (4) green LEDs -40 dB below full output
On Indicator (4) green LEDs DC rail voltage for channel A, B, C and D

Rear Panel

Input connectors (4) Neutrik Combo XLR type, 3 pin & 1/4” jack
Output connectors (2) Neutrik 4-pole Speakon connectors

Switches

Clip limiter A and B On-Off (switchable)
Link-switches A+B / B+C / C+D

Power 230 V version 115 V version

Operation voltage 130 V-265 V AC 65 V – 135 V AC
Minimum start voltage 180 V 90 V AC
Full output power at 4ohms 230 V AC 115 V AC
Peak inrush current (Soft start limited) 10 A 5 A

Current Draw @ 4ohms&230V

Quiescent power (no load) 0.6 Arms 1.2 Arms
1/8 of full power (-9dB) 2.9 Arms 6 Arms
1/3 of full power (-5dB) 4.5 Arms 9 Arms
At full power (0 dB) @1 kHz 1% THD 7.9 Arms 16 Arms

Net Dimensions mm (inch)

483 (19”) W x 88 (3,5”) H x 325 (12.8”) D

Shipping Dimensions mm (inch)

560 (22”) W x 180 (7.1”) H x 500 (19.7”) D

Net Weight

13.2 kg (29 lbs)

Shipping Weight

14.8 kg (32.5 lbs)

Approvals

CE Emission EN 55 103-1, E3

Immunity EN 55 103-2, E3, with S/N below 1% at normal operation level

4)

Safety EN 60 065, class I

THX iP1150T

1) Specifications measured with 230 VAC 4) Normal operation level 1/8 of full power or –9dB below clip level.

2) Component tolerance dependent

3) Continuous power, one channel driven or peak power both channels driven
(Thermal protection may occur at high continuous power)

2002-03 V1
