ÑmOOMM=
pbosf`b=j^kr^i=
=
sЙклбзе=O
i~ДKЦкмййЙе=^_=
dмддкЙЦело®ЦЙе=NSI=pbJQPQ=QQ==hrkdp_^`h^I=ptbabk=
mЬзеЙW=HQS=PMM=RS=OU=MM=
c~сW=HQS=PMM=RS=OU=VV=
беСз]д~ДЦкмййЙеKЕзг
пппKд~ДЦкмййЙеKЕзг=
=
=
= pЙкобЕЙ=j~ем~д=СmOOMM= m~ÖÉ=N=ERF=
fP2200
Internal connections ..........................................................................................3
Component list..................................................................................................4
Variant specific components.............................................................................4
Description for variant dependent components.................................................4
Sparepart list for fP2200 ...................................................................................5
A04B / A08B
Schematics for A04B, A08B.............................................................................2
Board placement for A04B ...............................................................................3
Board placement for A08B ...............................................................................4
Component list for A04B, A08B - rev 04A ......................................................5
Variant specific components for A04B versions - rev 04A ..............................9
Variant specific components for A08B versions - rev 04A ..............................9
Description for variant dependent components...............................................10
IN2G
Schematics for IN2G.........................................................................................2

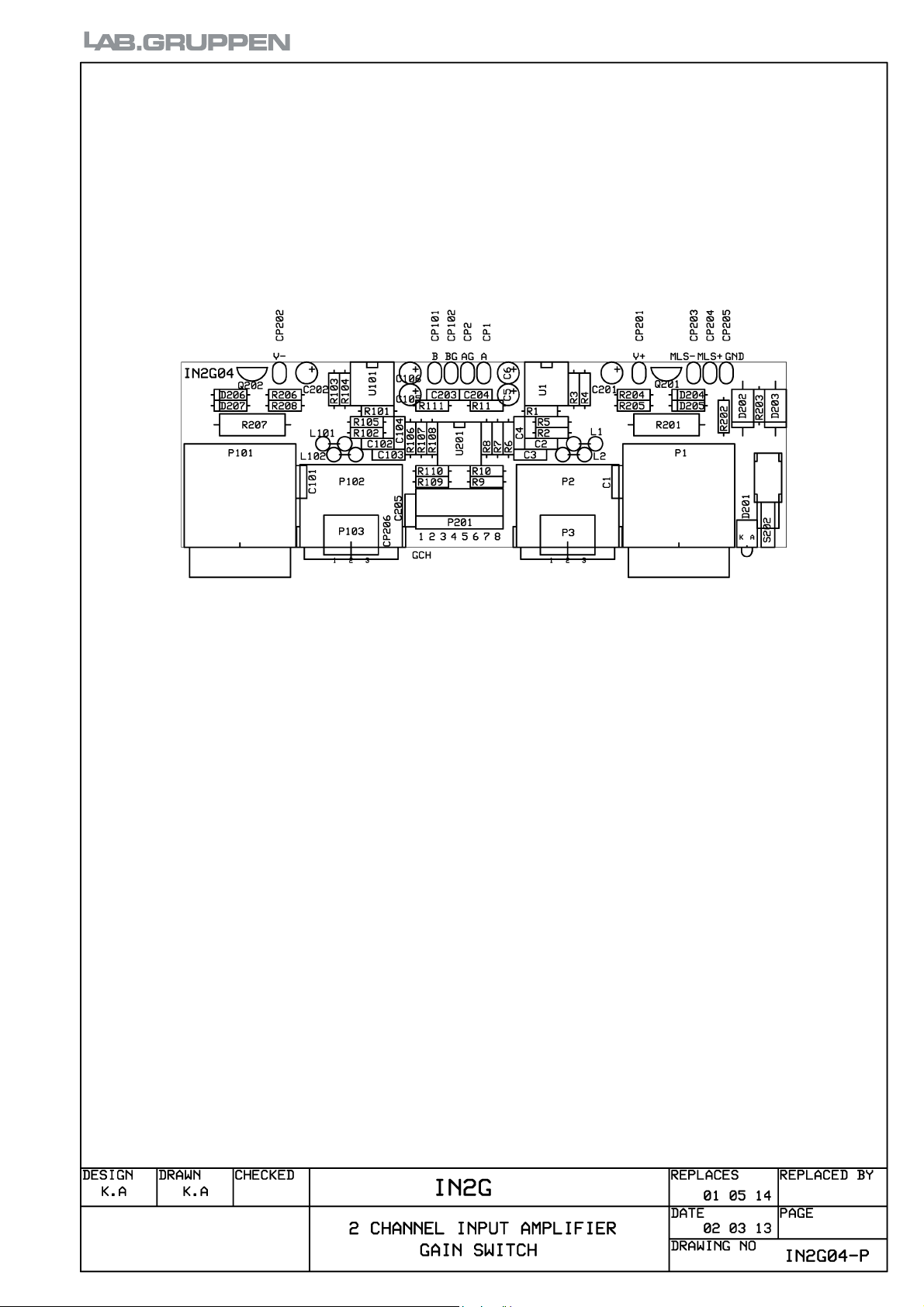

Board placement for IN2G................................................................................3
Component list for IN2G - rev 04.....................................................................4
Variant specific components.............................................................................5
Description for variant dependent components.................................................5
LD92

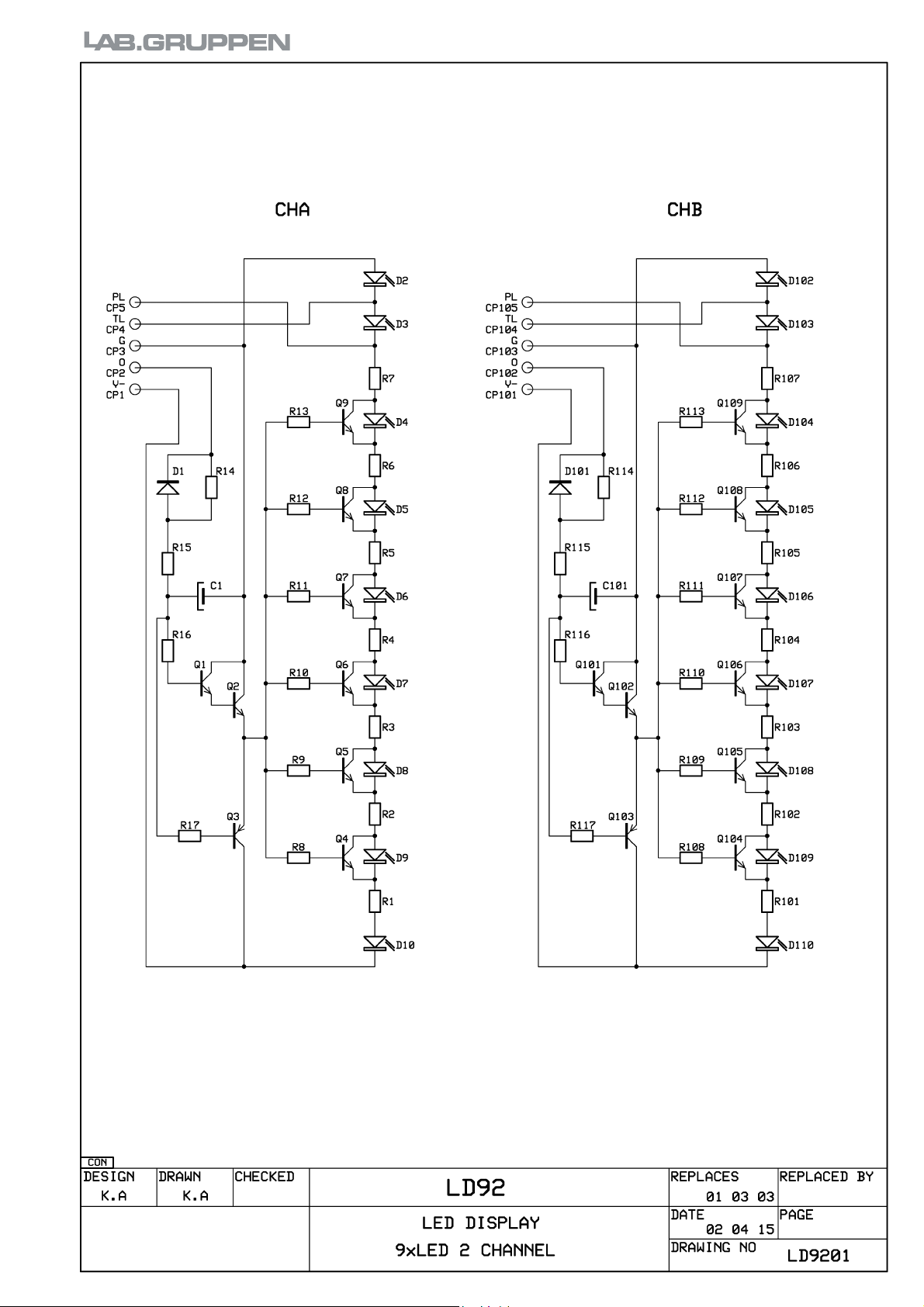

Schematics for LD92 ........................................................................................2

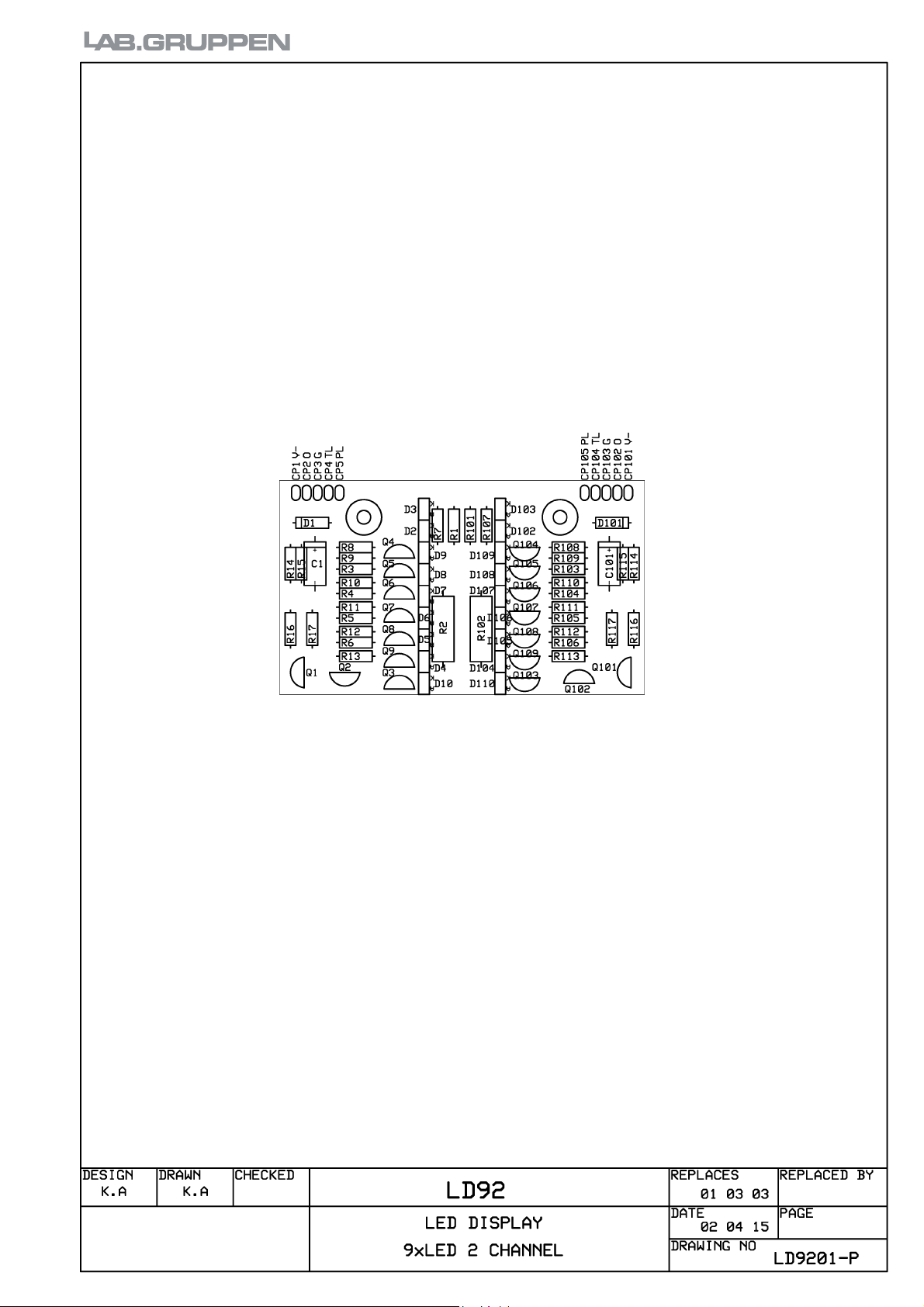

Board placement for LD92................................................................................3
Component list for LD92 - rev 01.....................................................................4
Variant specific components.............................................................................5
Description for variant dependent components.................................................6
OUT2
Schematics for OUT2........................................................................................2
Board placement for OUT2...............................................................................3
Component list for OUT2CHA, OUT2CHB - rev 01A ....................................4
Variant specific components.............................................................................4
Description for variant dependent components.................................................4
SP80FA / SP80FB

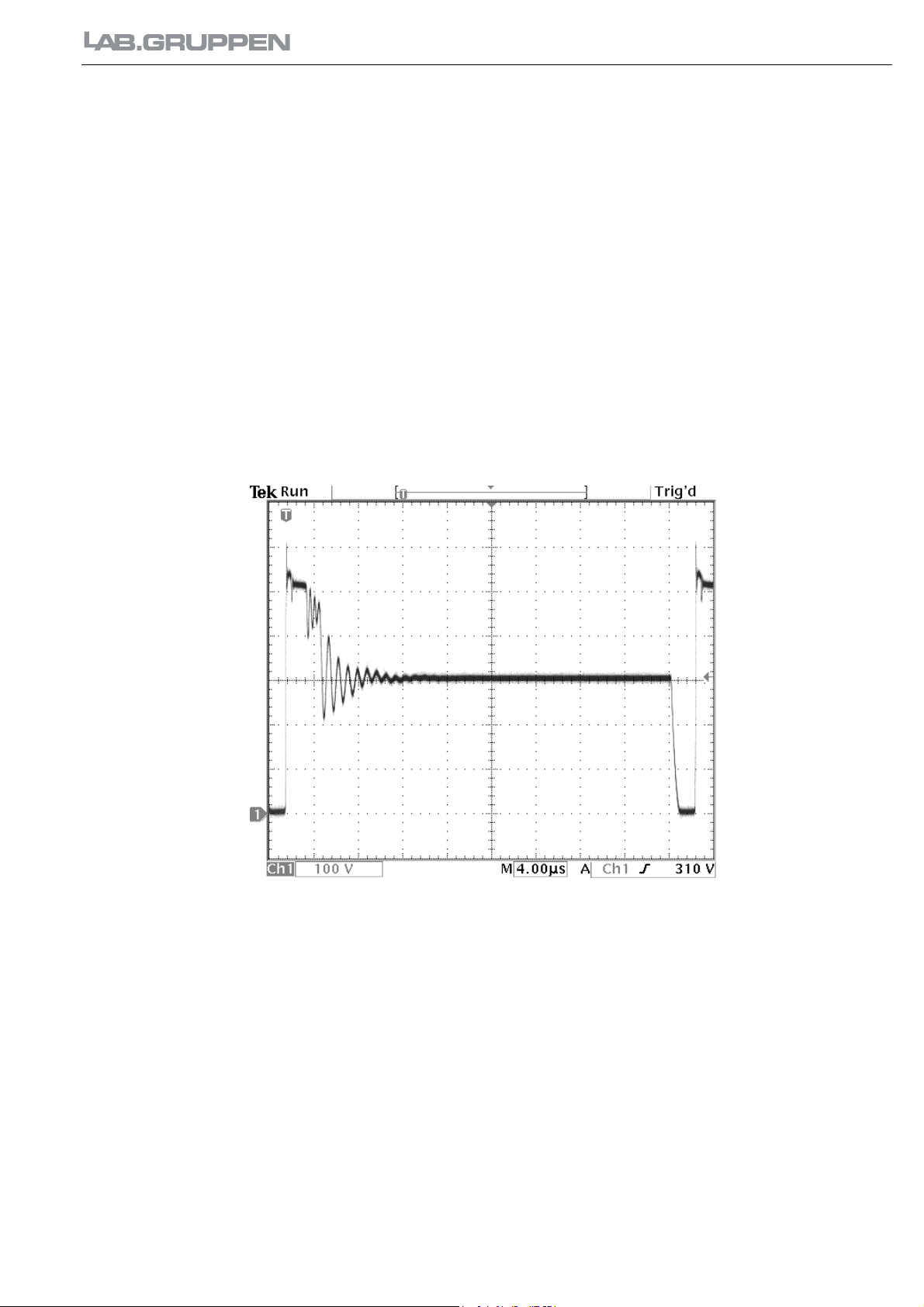

Functional description for switch mode powersupply SP80FA & SP80FB......2

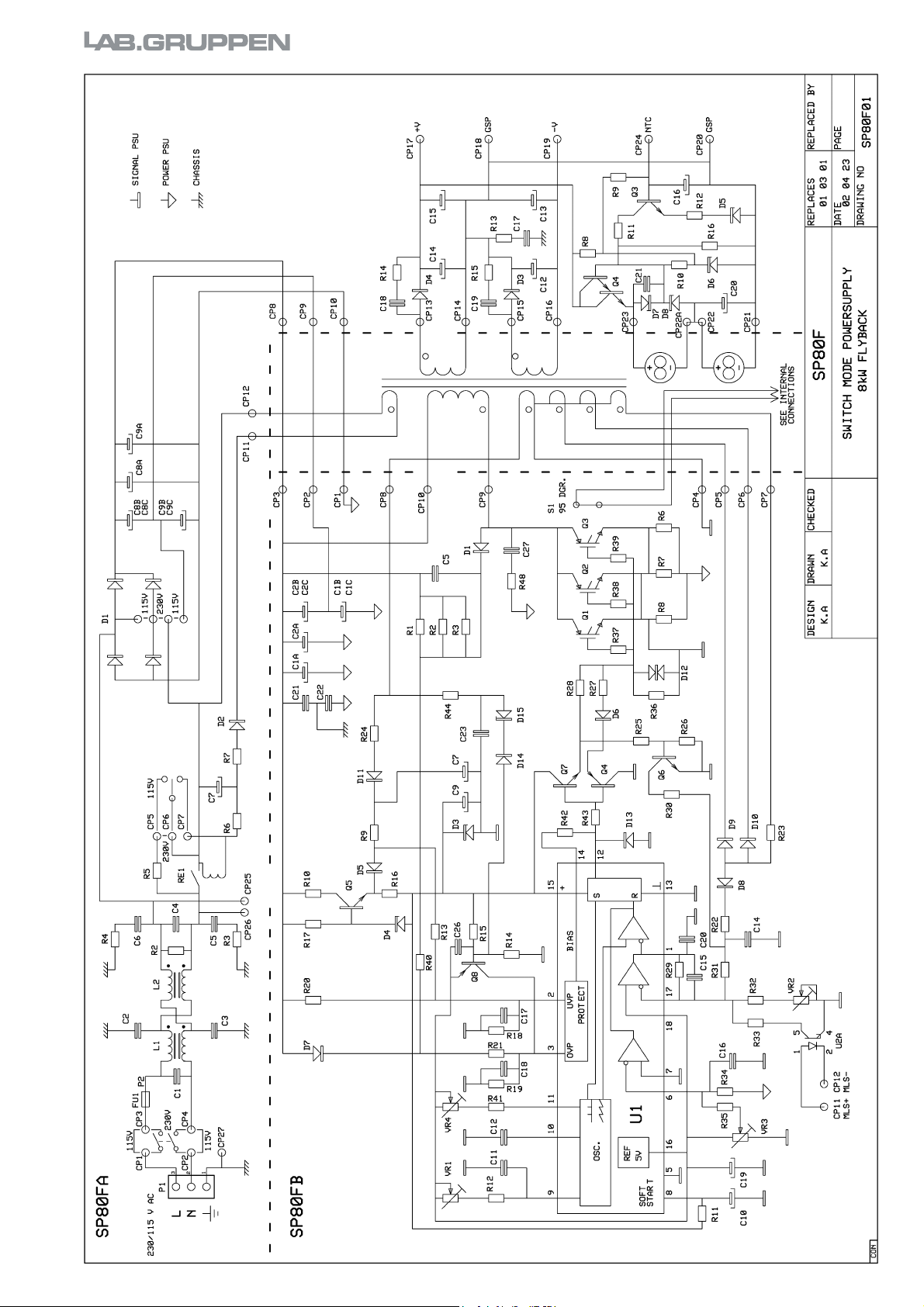

Schematics for SP80FA & SP80FB..................................................................4

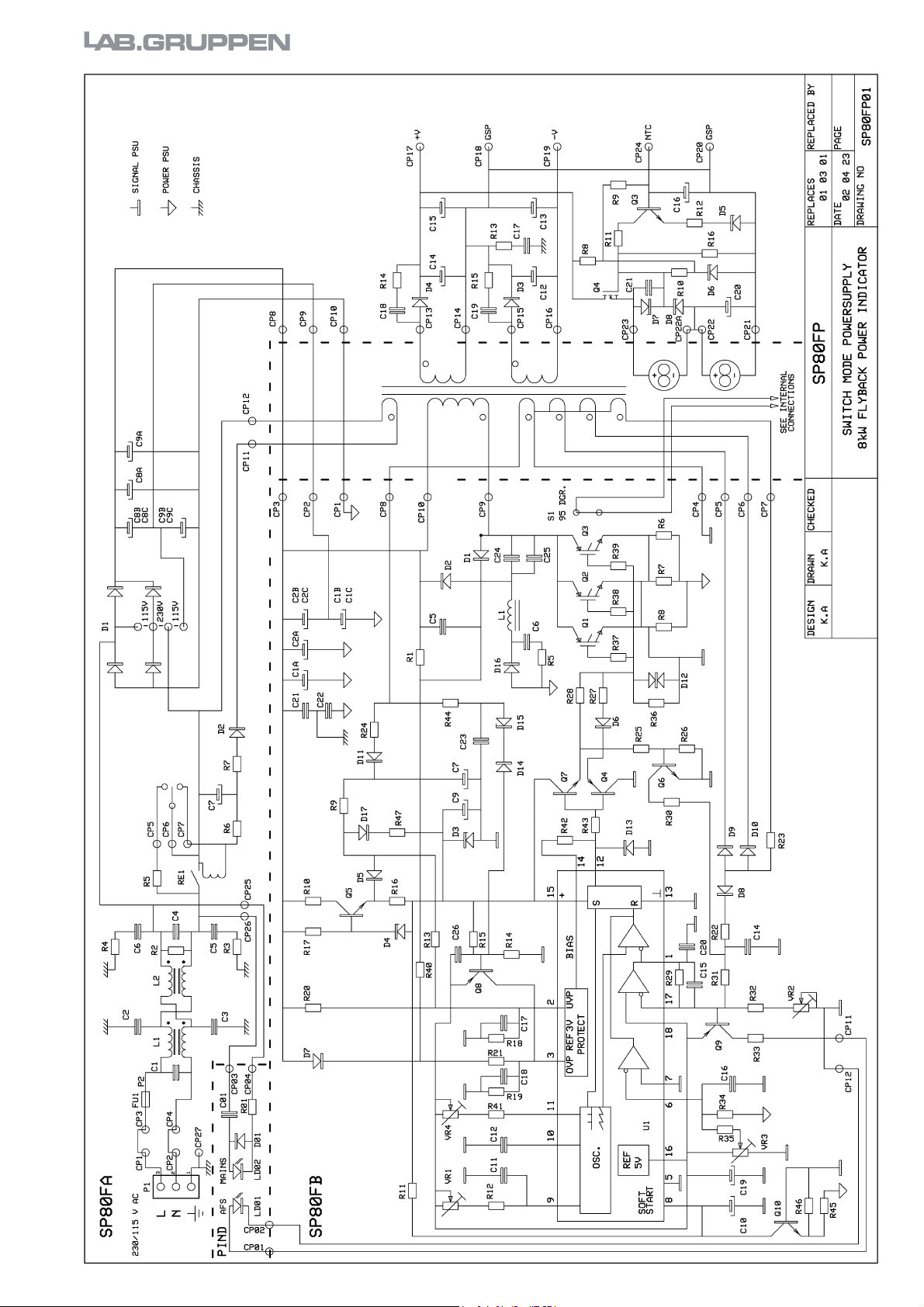

Schematics for SP80FA, SP80FB & PIND.......................................................5
SP80FA.............................................................................................................6

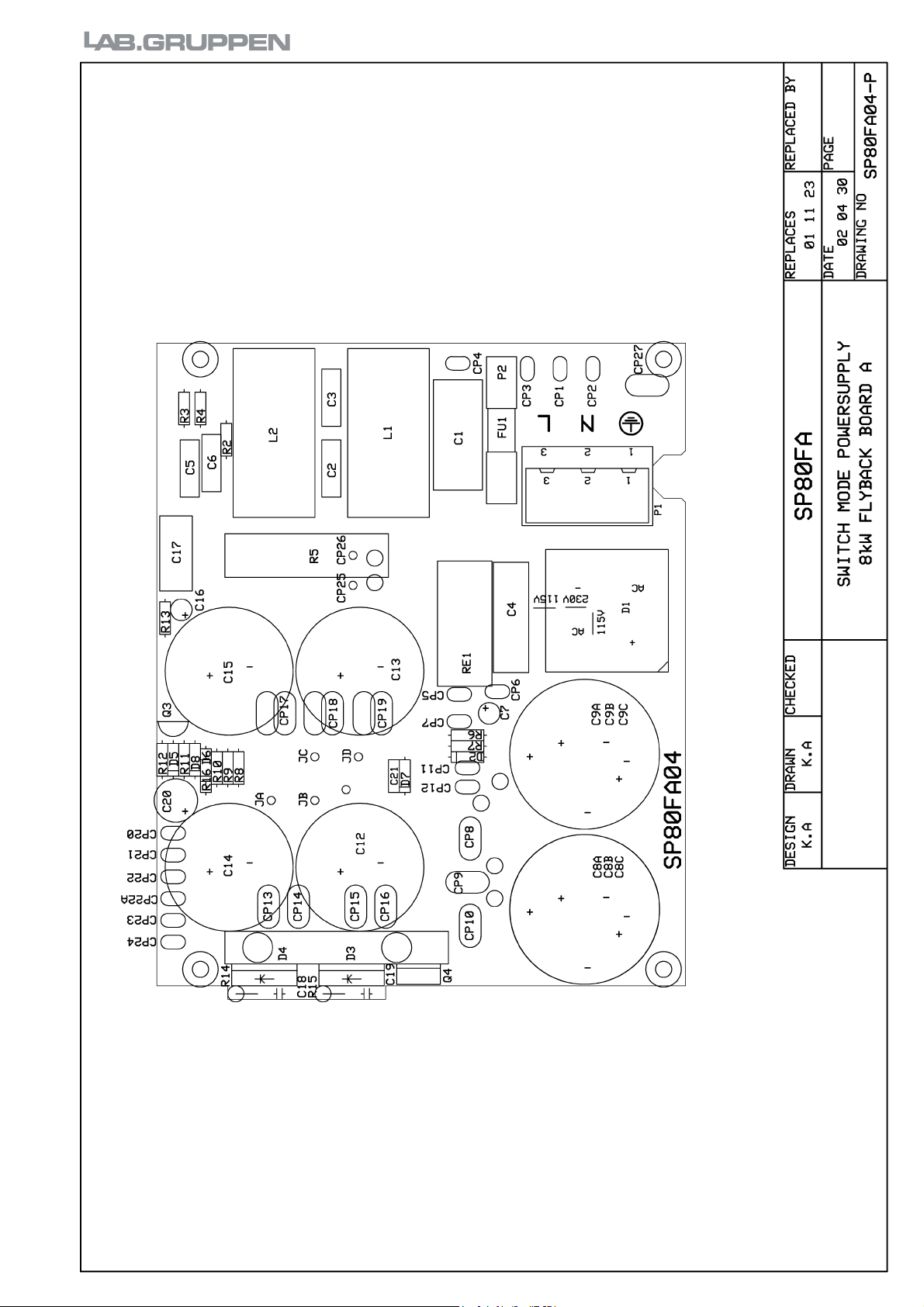

Board placement for SP80FA - rev 04..............................................................6

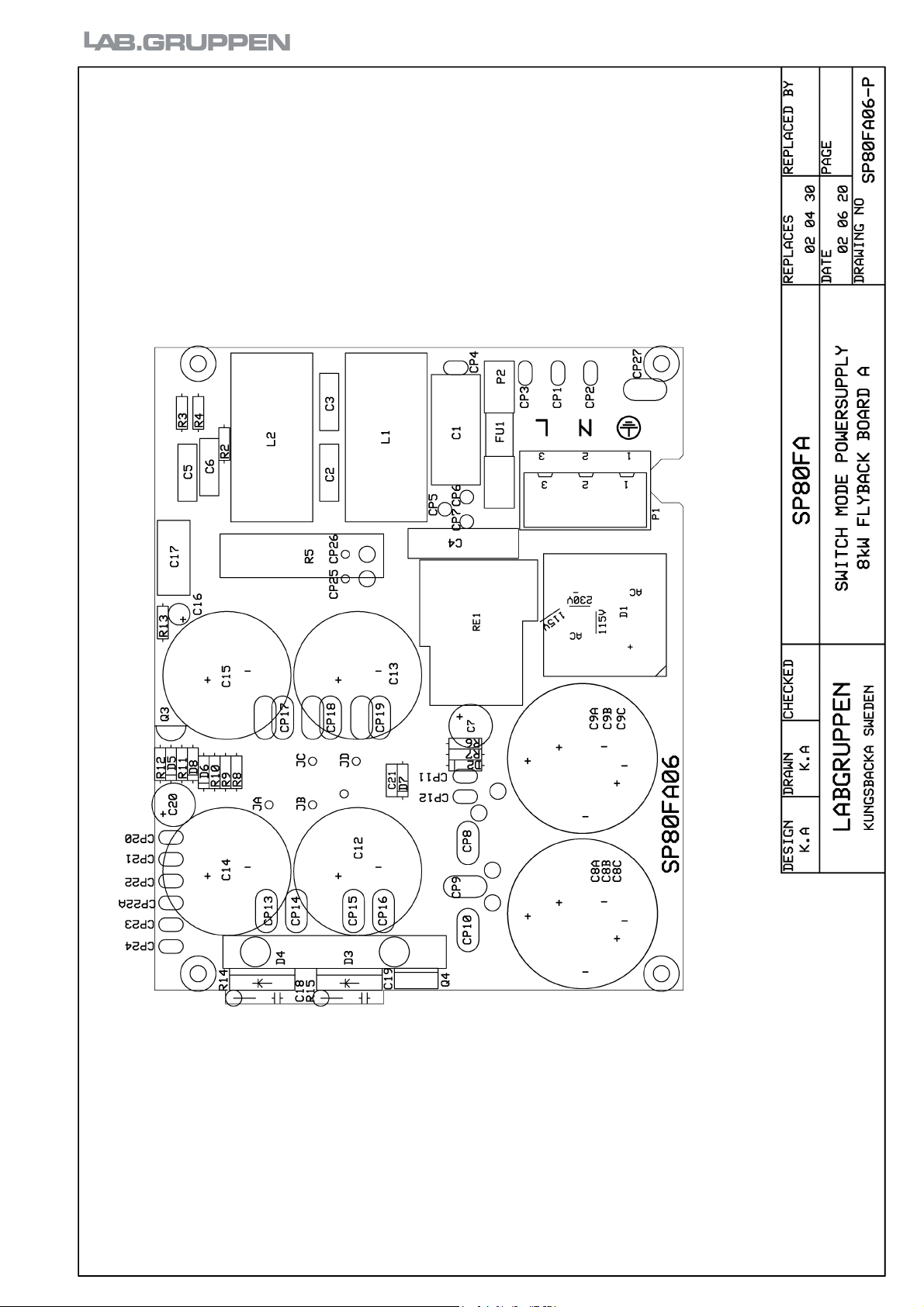

Board placement for SP80FA - rev 06..............................................................7
Component list for SP80FA - rev 06.................................................................8
Variant specific components for 230V versions - rev 06..................................9
Variant specific components for 115V versions - rev 06................................10
Description for variant dependent components...............................................11
SP80FB ...........................................................................................................12
Board placement for SP80FB & PIND ...........................................................12
=
= pЙкобЕЙ=j~ем~д=СmOOMM= m~ÖÉ=O=ERF=
Component list for PIND, SP80FB - rev 01A.................................................13
Variant specific components for 230V versions - rev 01A .............................15
Variant specific components for 115V versions - rev 01A .............................16
Description for variant dependent components...............................................17
=
= pЙкобЕЙ=j~ем~д=СmOOMM= m~ÖÉ=P=ERF=
fенЙке~д=ЕзееЙЕнбзел=
=
= pЙкобЕЙ=j~ем~д=СmOOMM= m~ÖÉ=Q=ERF=
`згйзеЙен=дблн=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment
FAN201 F80x25-24HS Fan 80x80x25mm 24VDC high speed
FAN202 F80x25-24HS Fan 80x80x25mm 24VDC high speed
K201 2K4FUI9330_LAB Trafo. 2,4KW flyback U93/76/30 I93/28/30 core LAB. Rev01
P201 Variant dependent, see separate list
P201A Variant dependent, see separate list
S201 Variant dependent, see separate list
S202 Variant dependent, see separate list
VR1 VR10KLIN31_TOK Potentiometer 10K LIN 31step TOKOS B103 TP96N08 Y4929 Rev1
VR101 VR10KLIN31_TOK Potentiometer 10K LIN 31step TOKOS B103 TP96N08 Y4929 Rev1
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=
Position 230V 115V
P201 MLEU3x1.52.5mBLK SJOOW-3xAWG12
P201A - MP5-15P15A125V
S201 RK2-0-10A15x21 S202 - RK1-1-6A15x21
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
MLEU3x1.52.5mBLK Mains lead EU Plug type CEE7/VII 3x1.5mm2 2.5m Black
MP5-15P15A125V Mains plug type 5-15P 15A 125V
RK1-1-6A15x21 Switch Rocker Single Pole Double Trough on - on 6A 15x21mm
RK2-0-10A15x21 Switch Rocker Double Pole Single Trough on - off 10A 15x21mm
SJOOW-3xAWG12 Cable SJOOW 3xAWG12 UL style 817
=
= pЙкобЕЙ=j~ем~д=СmOOMM= m~ÖÉ=R=ERF=
pé~êÉé~êí=äáëí=Ñçê=ÑmOOMM=
Completed modules
Partnumber Description
A08B-11-2 Amplifier 800W class B, variant 11-2
IN2G-CXG 2 channel input amplifier and gainswitch, variant CXG
LD92-2x13-2 Led display 9 x led 2 channel, variant 2x13-2
OUT2CHA-A08B 2 channel output connector board channel A, variant A08B
OUT2CHB-A08B 2 channel output connector board channel B, variant A08B
SP80FA-2x13-2 Switch mode powersupply 8kW flyback board A, variant 2x13-2, 230V
SP80FA-2x13-2U Switch mode powersupply 8kW flyback board A, variant 2x13-2U, 115V
SP80FB-2x11-2 Switch mode powersupply 8kW flyback board B, variant 2x11-2, 230V
SP80FB-2x11-2U Switch mode powersupply 8kW flyback board B, variant 2x11-2U, 115V
Mecanical parts
- Safety critical component. Should only be replaced with the specified type.
Partnumber Description
TCA08BA-PBLK Top / bottom cover
FP-FP2200 Front panel
SPLA08BA-A Side panel left
SPRA08BA-A Side panel right
RP-FP2200 Rear panel 230V
RP-FP2200U Rear panel 115V
HDL2HEM5_MEN Handle
DCSL1-PBLK Dustfilter clip left
DCSR1-PBLK Dustfilter clip right
DF139x62x5-20
DF115x62x5-20
KNBD18.5_TAI Gain potentiometer knob
Screws
Partnumber Description
MRX3x10SV Machine screw, pan head, phillips, M3x10, black
MFX3x12SV Machine screw, countersunk head, phillips, M3x12, black
MFX3x20SV Machine screw, countersunk head, phillips, M3x20, black
RTS-HST2.9x9.5SV Self tapping screw, pan head, torx, 2.9x9.5mm, black
MC6S4x10FBB-SV Hexagon socket screw, cap head, M4x10 with spring washer, black
LAB_T3x8-SV Top / bottom cover screw, torx, M3x8, black
Dustfilter left
Dustfilter right
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=N=ENMF=
A04B / A08B
Schematics for A04B, A08B.............................................................................2
Board placement for A04B ...............................................................................3
Board placement for A08B ...............................................................................4
Component list for A04B, A08B - rev 04A ......................................................5
Variant specific components for A04B versions - rev 04A ..............................9
Variant specific components for A08B versions - rev 04A ..............................9
Description for variant dependent components...............................................10
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=O=ENMF=
pÅÜÉã~íáÅë=Ñçê=^MQ_I=^MU_=
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=P=ENMF=
_ç~êЗ=йд~ЕЙгЙен=Сзк=^MQ_=
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=Q=ENMF=
_ç~êЗ=йд~ЕЙгЙен=Сзк=^MU_=
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=R=ENMF=
`згйзеЙен=дблн=Сзк=^MQ_I=^MU_=J=кЙо=MQ^=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment Side
C1 150p100VNP05%5 Capacitor ceramic 150p 100V NP0 5% 5mm Top
C2 470u16V Capacitor electrolytic 470u 16V 5mm Top
C3 47u25V Capacitor electrolytic 47u 25V 5mm Top
C4 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C5 680p400VK20005%5 Capacitor ceramic 680p 400V K2000 5% 5mm Top
C6 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C7 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C8 470p200VNP05%5 Capacitor ceramic 470p 200V NP0 5% 5mm Top
C9 2u2100V Capacitor electrolytic 2u2 100V 5mm Top
C10 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C11 100p200VNP05%5 Capacitor ceramic 100p 200V NP0 5% 5mm Top
C12 10u50V Capacitor electrolytic 10u 50V 5mm Top
C13 10u50V Capacitor electrolytic 10u 50V 5mm Top
C14 22n250VMMK10 Capacitor polyester 22n 250V MMK 10mm Top
C15 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C16 33n100VMMK5 Capacitor polyester 33n 100V MMK 5mm Top
C17 2u2100V Capacitor electrolytic 2u2 100V 5mm Top
C18 470p200VNP05%5 Capacitor ceramic 470p 200V NP0 5% 5mm Top
C19 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C20 10u50V Capacitor electrolytic 10u 50V 5mm Top
C21 10u50V Capacitor electrolytic 10u 50V 5mm Top
C22 10u50V Capacitor electrolytic 10u 50V 5mm Top
C23 4u750V Capacitor electrolytic 4u7 50V 5mm Top
C24 39p200VNP05%5 Capacitor ceramic 39p 200V NP0 5% 5mm Top
C25 2u2100VMMK15 Capacitor polyester 2u2 100V MMK 15mm Top
C26 2u2100VMMK15 Capacitor polyester 2u2 100V MMK 15mm Top
D1 15V.4W5% Diode zener 15V .4W 5% Top
D2 1N4148 Diode signal 1N4148 Top
D3 1N4148 Diode signal 1N4148 Top
D4 1N4148 Diode signal 1N4148 Top
D5 1N4148 Diode signal 1N4148 Top
D6 BAV21 Diode signal BAV21 Top
D7 - Not used Top
D8 1N4148 Diode signal 1N4148 Top
D9 1N4148 Diode signal 1N4148 Top
D10 1N4148 Diode signal 1N4148 Top
D11 1N4148 Diode signal 1N4148 Top
D12 1N4148 Diode signal 1N4148 Top
D13 1N4148 Diode signal 1N4148 Top
D14 BAV21 Diode signal BAV21 Top
D15 15V.4W5% Diode zener 15V .4W 5% Top
D16 15V.4W5% Diode zener 15V .4W 5% Top
D17 1N4148 Diode signal 1N4148 Top
D18 1N4148 Diode signal 1N4148 Top
D19 1N4148 Diode signal 1N4148 Top
D20 1N4148 Diode signal 1N4148 Top
D21 BAV21 Diode signal BAV21 Top
D22 1N4004 Diode power 1N4004 Top
D23 1N4004 Diode power 1N4004 Top
D24 1N4004 Diode power 1N4004 Top
D25 1N4004 Diode power 1N4004 Top
D26 Variant dependent, see separate list Top
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=S=ENMF=
Position Partnumber Description Comment Side
FU1 Variant dependent, see separate list Top
FU2 Variant dependent, see separate list Top
L1 Variant dependent, see separate list Top
NTC1 NTC150KM3_EPC Resistor NTC 150K M3 EPCOS B57045-K154-K Top
NTC2 NTC150KM3_EPC Resistor NTC 150K M3 EPCOS B57045-K154-K Top
P1 FBPC5x209M Fuseblock PCB 5x20mm fuse 9 modules Top
P2 FBPC5x209M Fuseblock PCB 5x20mm fuse 9 modules Top
Q1 BC549C Transistor bipolar signal BC549C Top
Q2 BC549C Transistor bipolar signal BC549C Top
Q3 BC557B Transistor bipolar signal BC557B Top
Q4 BC557B Transistor bipolar signal BC557B Top
Q5 BC547B Transistor bipolar signal BC547B Top
Q6 MPSA42 Transistor bipolar signal MPSA42 Top
Q7 MPSA42 Transistor bipolar signal MPSA42 Top
Q8 BC557B Transistor bipolar signal BC557B Top
Q9 BC557B Transistor bipolar signal BC557B Top
Q10 BC547B Transistor bipolar signal BC547B Top
Q11 BC557B Transistor bipolar signal BC557B Top
Q12 MPSA42 Transistor bipolar signal MPSA42 Top
Q13 Q6015L5LY Triac Q6015L5 lying Top
Q14 BC557B Transistor bipolar signal BC557B Top
Q15 BC547B Transistor bipolar signal BC547B Top
Q16 BC547B Transistor bipolar signal BC547B Top
Q17 BC547B Transistor bipolar signal BC547B Top
Q18 MPSA92 Transistor bipolar signal MPSA92 Top
Q19 MPSA42 Transistor bipolar signal MPSA42 Top
Q20 MPSA92 Transistor bipolar signal MPSA92 Top
Q21 BC547B Transistor bipolar signal BC547B Top
Q22 BC557B Transistor bipolar signal BC557B Top
Q23 BC547B Transistor bipolar signal BC547B Top
Q24 BC557B Transistor bipolar signal BC557B Top
Q25 BC547B Transistor bipolar signal BC547B Top
Q26 BC557B Transistor bipolar signal BC557B Top
Q27 BC547B Transistor bipolar signal BC547B Top
Q28 BC547B Transistor bipolar signal BC547B Top
Q29 MJE350LY Transistor bipolar power MJE350 lying Top
Q30 MJE350LY Transistor bipolar power MJE350 lying Top
Q31 BD329LY Transistor bipolar power BD329 lying Top
Q32 MJE340LY Transistor bipolar power MJE340 lying Top
Q33 MJE350LY Transistor bipolar power MJE350 lying Top
Q34 MJE340LY Transistor bipolar power MJE340 lying Top
Q35 - Not used Bot.
Q36 Variant dependent, see separate list May have different
value
Q37 Variant dependent, see separate list May have different
value
Q38 Variant dependent, see separate list May have different
value
Bot.
Bot.
Bot.
Q39 - Not used Bot.
Q40 MJL21194_SA Transistor bipolar power MJL21194 surface mounted May have different
value
Q41 MJL21194_SA Transistor bipolar power MJL21194 surface mounted May have different
value
Q42 Variant dependent, see separate list May have different
value
Bot.
Bot.
Bot.
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=T=ENMF=
Position Partnumber Description Comment Side
Q43 MJL3281_SA Transistor bipolar power MJL3281 surface mounted May have different
value
Q44 MJL1302_SA Transistor bipolar power MJL1302 surface mounted May have different
value
Q45 Variant dependent, see separate list May have different
value
Q46 MJL21193_SA Transistor bipolar power MJL21193 surface mounted May have different
value
Q47 MJL21193_SA Transistor bipolar power MJL21193 surface mounted May have different
value
Bot.
Bot.
Bot.
Bot.
Bot.
Q48 - Not used Bot.
Q49 Variant dependent, see separate list May have different
value
Q50 Variant dependent, see separate list May have different
value
Q51 Variant dependent, see separate list May have different
value
Bot.
Bot.
Bot.
Q52 - Not used Bot.
R1 - Not used Top
R2 2K7.7W1% Resistor Metal Film 2K7.7W1% Top
R3 1K8.7W1% Resistor Metal Film 1K8.7W1% Top
R4 15K.7W1% Resistor Metal Film 15K.7W1% Top
R5 6K8.7W1% Resistor Metal Film 6K8.7W1% Top
R6 1K.25W5% Resistor Carbon Film 1K.25W5% Top
R7 2K2.7W1% Resistor Metal Film 2K2.7W1% Top
R8 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R9 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R10 309R.7W1% Resistor Metal Film 309R.7W1% Top
R11 10R.25W5% Resistor Carbon Film 10R.25W5% Top
R12 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R13 6K8.7W1% Resistor Metal Film 6K8.7W1% Top
R14 47K.25W5% Resistor Carbon Film 47K.25W5% Top
R15 47K.25W5% Resistor Carbon Film 47K.25W5% Top
R16 6K8.7W1% Resistor Metal Film 6K8.7W1% Top
R17 22K.7W1% Resistor Metal Film 22K.7W1% Top
R18 150K.7W1% Resistor Metal Film 150K.7W1% May have different
value
Top
R19 10K.7W1%SO5 Resistor Metal Film 10K.7W1% 5mm stand off Top
R20 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R21 100R.7W1% Resistor Metal Film 100R.7W1% Top
R22 82K.25W5% Resistor Carbon Film 82K.25W5% Top
R23 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R24 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R25 100R.7W1% Resistor Metal Film 100R.7W1% Top
R26 82K.25W5% Resistor Carbon Film 82K.25W5% Top
R27 294K.7W1% Resistor Metal Film 294K.7W1% Top
R28 150K.7W1% Resistor Metal Film 150K.7W1% Top
R29 499R.7W1% Resistor Metal Film 499R.7W1% Top
R30 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R31 68K.7W1% Resistor Metal Film 68K.7W1% Top
R32 5K6.25W5% Resistor Carbon Film 5K6.25W5% Top
R33 68K.7W1% Resistor Metal Film 68K.7W1% Top
R34 47K.25W5% Resistor Carbon Film 47K.25W5% Top
R35 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R36 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R37 560R.25W5% Resistor Carbon Film 560R.25W5% Top
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=U=ENMF=
Position Partnumber Description Comment Side
R38 180R.25W5% Resistor Carbon Film 180R.25W5% Top
R39 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R40 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R41 330K.7W1% Resistor Metal Film 330K.7W1% Top
R42 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R43 22K.25W5% Resistor Carbon Film 22K.25W5% Top
R44 390K.25W5% Resistor Carbon Film 390K.25W5% Top
R45 22K.25W5% Resistor Carbon Film 22K.25W5% Top
R46 220R.25W5% Resistor Carbon Film 220R.25W5% Top
R47 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R48 220R.25W5% Resistor Carbon Film 220R.25W5% Top
R49 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R50 82K.25W5% Resistor Carbon Film 82K.25W5% Top
R51 100R.7W1% Resistor Metal Film 100R.7W1% Top
R52 100R.7W1% Resistor Metal Film 100R.7W1% Top
R53 82K.25W5% Resistor Carbon Film 82K.25W5% Top
R54 33K.7W1% Resistor Metal Film 33K.7W1% Top
R55 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R56 100K.7W1% Resistor Metal Film 100K.7W1% Top
R57 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R58 47K.25W5% Resistor Carbon Film 47K.25W5% Top
R59 68K.7W1% Resistor Metal Film 68K.7W1% Top
R60 5K6.25W5% Resistor Carbon Film 5K6.25W5% Top
R61 68K.7W1% Resistor Metal Film 68K.7W1% Top
R62 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R63 499R.7W1% Resistor Metal Film 499R.7W1% Top
R64 150K.7W1% Resistor Metal Film 150K.7W1% Top
R65 294K.7W1% Resistor Metal Film 294K.7W1% Top
R66 56K.7W1% Resistor Metal Film 56K.7W1% Top
R67 100K.7W1% Resistor Metal Film 100K.7W1% Top
R68 5K6.25W5% Resistor Carbon Film 5K6.25W5% Top
R69 33K.7W1% Resistor Metal Film 33K.7W1% Top
R70 Variant dependent, see separate list Top
R71 2M2.25W5% Resistor Carbon Film 2M2.25W5% Top
R72 Variant dependent, see separate list Top
R73 4K32.7W1% Resistor Metal Film 4K32.7W1% Top
R74 33K.7W1% Resistor Metal Film 33K.7W1% Top
R75 56K.7W1% Resistor Metal Film 56K.7W1% Top
R76 56K.7W1% Resistor Metal Film 56K.7W1% Top
R77 180K.7W1% Resistor Metal Film 180K.7W1% Top
R78 100K.7W1% Resistor Metal Film 100K.7W1% Top
R79 100K.7W1% Resistor Metal Film 100K.7W1% Top
R80 10K.7W1% Resistor Metal Film 10K.7W1% Top
R81 5K6.25W5% Resistor Carbon Film 5K6.25W5% Top
R82 - Not used Top
R83 Variant dependent, see separate list Top
R84 6K82W5%SO5 Resistor metal film 6K8 2W 5% 5mm stand off Top
R85 Variant dependent, see separate list Top
R86 Variant dependent, see separate list Top
R87 - Not used Top
R88 R335W10% Resistor wirewound R33 5W 10% Top
R89 R335W10% Resistor wirewound R33 5W 10% Top
R90 Variant dependent, see separate list Top
R91 4R75W5% Resistor wirewound 4R7 5W 5% Top
R92 4K73W5% Resistor metal film 4K7 3W 5% Top
=
Position Partnumber Description Comment Side
R93 10R2W5% Resistor metal film 10R 2W 5% Top
R94 4R75W5% Resistor wirewound 4R7 5W 5% Top
R95 Variant dependent, see separate list Top
R96 R335W10% Resistor wirewound R33 5W 10% Top
R97 R335W10% Resistor wirewound R33 5W 10% Top
R98 Variant dependent, see separate list Top
R99 - Not used Top
R100 Variant dependent, see separate list Top
R101 Variant dependent, see separate list Top
R102 - Not used Top
R103 Variant dependent, see separate list Top
R104 Variant dependent, see separate list Top
R105 Variant dependent, see separate list Top
S1 SPPJ32F29A_ALP Switch inter locking PCB DPDT ALPS SPPJ32F29A Top
U1 VTL5C4 IC photocoupler VTL5C4 Top
VR1 VR220RLY2X3M Trimpotentiometer 220R lying 2x3modules Top
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=V=ENMF=
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=Сзк=^MQ_=оЙклбзел=J=кЙо=MQ^=
Position A04B-3-2 A04B-4.5-2 A04B-6-2
D26 1N4148 1N4148 1N4148
FU1 T6A3250-5x20 T10A250-5x20 T10A250-5x20
FU2 T6A3250-5x20 T10A250-5x20 T10A250-5x20
L1 1u2HD1.4_LAB 1u2HD1.4_LAB 1u2HD1.4_LAB
Q36 - - Q37 - - Q38 - - Q42 - MJL21194_SA MJL21194_SA
Q45 - MJL21193_SA MJL21193_SA
Q49 - - Q50 - - Q51 - - R70 200K.7W1% 294K.7W1% 294K.7W1%
R72 - - 270K.7W1%
R83 - - R85 - - R86 - - R90 - R335W10% R335W10%
R95 - R335W10% R335W10%
R98 - - R100 5K62W5% 5K62W5% 5K62W5%
R101 - - R103 - - R104 10R2W5% 10R2W5% 10R2W5%
R105 390K.7W1% 390K.7W1% 390K.7W1%
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=Сзк=^MU_=оЙклбзел=J=кЙо=MQ^=
Position A08B-6.5-2 A08B-10-2 A08B-11-2 A08B-13-2
D26 - - - -
FU1 T10A250-5x20 T15A250-5x20 T10A250-5x20 T15A250-5x20
FU2 T10A250-5x20 T15A250-5x20 T10A250-5x20 T15A250-5x20
L1 - - - -
=
Position A08B-6.5-2 A08B-10-2 A08B-11-2 A08B-13-2
Q36 MJL21194_SA MJL21194_SA MJL21194_SA MJL21194_SA
Q37 MJL21194_SA MJL21194_SA MJL21194_SA MJL21194_SA
Q38 - MJL21194_SA MJL21194_SA MJL21194_SA
Q42 - MJL21194_SA - MJL21194_SA
Q45 - MJL21193_SA - MJL21193_SA
Q49 - MJL21193_SA MJL21193_SA MJL21193_SA
Q50 MJL21193_SA MJL21193_SA MJL21193_SA MJL21193_SA
Q51 MJL21193_SA MJL21193_SA MJL21193_SA MJL21193_SA
R70 220K.7W1% 180K.7W1% 220K.7W1% 180K.7W1%
R72 - - 220K.7W1% 270K.7W1%
R83 R335W10% R335W10% R335W10% R335W10%
R85 R335W10% R335W10% R335W10% R335W10%
R86 - R335W10% R335W10% R335W10%
R90 - R335W10% - R335W10%
R95 - R335W10% - R335W10%
R98 - R335W10% R335W10% R335W10%
R100 12K2W5% 12K2W5% 12K2W5% 12K2W5%
R101 R335W10% R335W10% R335W10% R335W10%
R103 R335W10% R335W10% R335W10% R335W10%
R104 - - - R105 - - - -
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=NM=ENMF=
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
10R2W5% Resistor metal film 10R 2W 5%
12K2W5% Resistor metal film 12K 2W 5%
180K.7W1% Resistor Metal Film 180K.7W1%
1N4148 Diode signal 1N4148
1u2HD1.4_LAB Inductor 1,2uH axial LAB. Rev 01
200K.7W1% Resistor Metal Film 200K.7W1%
220K.7W1% Resistor Metal Film 220K.7W1%
270K.7W1% Resistor Metal Film 270K.7W1%
294K.7W1% Resistor Metal Film 294K.7W1%
390K.7W1% Resistor Metal Film 390K.7W1%
5K62W5% Resistor metal film 5K6 2W 5%
MJL21193_SA Transistor bipolar power MJL21193 surface mounted
MJL21194_SA Transistor bipolar power MJL21194 surface mounted
R335W10% Resistor wirewound R33 5W 10%
T10A250-5x20 Fuse slow blow 10A 250V 5x20mm
T15A250-5x20 Fuse slow blow 15A 250V 5x20mm
T6A3250-5x20 Fuse slow blow 6.3A 250V 5x20mm
=
= pЙкобЕЙ=j~ем~д=fkOd= m~ÖÉ=N=ERF=
IN2G
Schematics for IN2G.........................................................................................2
Board placement for IN2G................................................................................3
Component list for IN2G - rev 04.....................................................................4
Variant specific components.............................................................................5
Description for variant dependent components.................................................5
=
= pЙкобЕЙ=j~ем~д=fkOd= m~ÖÉ=O=ERF=
pÅÜÉã~íáÅë=Ñçê=fkOd=
=
= pЙкобЕЙ=j~ем~д=fkOd= m~ÖÉ=P=ERF=
_ç~êЗ=йд~ЕЙгЙен=Сзк=fkOd=
=
= pЙкобЕЙ=j~ем~д=fkOd= m~ÖÉ=Q=ERF=
`згйзеЙен=дблн=Сзк=fkOd=J=кЙо=MQ=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment Side
C1 100n63VMMK5 Capacitor polyester 100n 63V MMK 5mm Top
C2 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C3 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C4 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C5 22u50V Capacitor electrolytic 22u 50V 5mm Top
C6 22u50V Capacitor electrolytic 22u 50V 5mm Top
C101 100n63VMMK5 Capacitor polyester 100n 63V MMK 5mm Top
C102 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C103 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C104 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C105 22u50V Capacitor electrolytic 22u 50V 5mm Top
C106 22u50V Capacitor electrolytic 22u 50V 5mm Top
C201 22u50V Capacitor electrolytic 22u 50V 5mm Top
C202 22u50V Capacitor electrolytic 22u 50V 5mm Top
C203 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C204 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C205 100n50VY5W5%5 Capacitor ceramic 100n 50V Y5W 5% 5mm Top
D201 Variant dependent, see separate list Top
D202 1N5404 Diode power 1N5404 Top
D203 1N5404 Diode power 1N5404 Top
D204 1N4148 Diode signal 1N4148 Top
D205 18V1.3W5% Diode zener 18V 1.3W 5% Top
D206 1N4148 Diode signal 1N4148 Top
D207 18V1.3W5% Diode zener 18V 1.3W 5% Top
L1 L2xBEAD2M Inductor bead double 2 modules Top
L2 L2xBEAD2M Inductor bead double 2 modules Top
L101 L2xBEAD2M Inductor bead double 2 modules Top
L102 L2xBEAD2M Inductor bead double 2 modules Top
P1 NCJ6FI-H_NEU Connector XLR/J 3pole female+jack 90dg NEUTRIK NCJ6FI-H Top
P2 Variant dependent, see separate list Top
P3 Variant dependent, see separate list Top
P101 NCJ6FI-H_NEU Connector XLR/J 3pole female+jack 90dg NEUTRIK NCJ6FI-H Top
P102 Variant dependent, see separate list Top
P103 Variant dependent, see separate list Top
P201 16PDILV2.5X2.5 DIL16V Top
Q201 MPSA42 Transistor bipolar signal MPSA42 Top
Q202 MPSA92 Transistor bipolar signal MPSA92 Top
R1 10K.7W1% Resistor Metal Film 10K.7W1% Top
R2 10K.7W1% Resistor Metal Film 10K.7W1% Top
R3 10K.7W1% Resistor Metal Film 10K.7W1% Top
R4 10K.7W1% Resistor Metal Film 10K.7W1% Top
R5 5K49.7W1% Resistor Metal Film 5K49.7W1% Top
R6 16K5.7W1% Resistor Metal Film 16K5.7W1% Top
R7 2K.7W1% Resistor Metal Film 2K.7W1% Top
R8 4K7.7W1% Resistor Metal Film 4K7.7W1% Top
R9 4K7.7W1% Resistor Metal Film 4K7.7W1% Top
R10 4K7.7W1% Resistor Metal Film 4K7.7W1% Top
R11 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R101 10K.7W1% Resistor Metal Film 10K.7W1% Top
R102 10K.7W1% Resistor Metal Film 10K.7W1% Top
R103 10K.7W1% Resistor Metal Film 10K.7W1% Top
R104 10K.7W1% Resistor Metal Film 10K.7W1% Top
=
Position Partnumber Description Comment Side
R105 5K49.7W1% Resistor Metal Film 5K49.7W1% Top
R106 16K5.7W1% Resistor Metal Film 16K5.7W1% Top
R107 2K.7W1% Resistor Metal Film 2K.7W1% Top
R108 4K7.7W1% Resistor Metal Film 4K7.7W1% Top
R109 4K7.7W1% Resistor Metal Film 4K7.7W1% Top
R110 4K7.7W1% Resistor Metal Film 4K7.7W1% Top
R111 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R201 4K73W5% Resistor metal film 4K7 3W 5% Top
R202 470R.7W1% Resistor Metal Film 470R.7W1% Top
R203 10R.25W5% Resistor Carbon Film 10R.25W5% Top
R204 1K.7W1% Resistor Metal Film 1K.7W1% Top
R205 18K.7W1% Resistor Metal Film 18K.7W1% Top
R206 1K.7W1% Resistor Metal Film 1K.7W1% Top
R207 4K73W5% Resistor metal film 4K7 3W 5% Top
R208 18K.7W1% Resistor Metal Film 18K.7W1% Top
S202 Variant dependent, see separate list Top
U1 MC33078 IC Operational amplifier MC33078 Top
U101 MC33078 IC Operational amplifier MC33078 Top
U201 NE5532 IC Operational amplifier NE5532 Top
= pЙкобЕЙ=j~ем~д=fkOd= m~ÖÉ=R=ERF=
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=
Position IN2G-CBG IN2G-CXG IN2G-CXGM
D201 - - LREDD3_EVE
P2 - NC3MA-H_NEU NC3MA-H_NEU
P3 TBPI3P90M_SAU - P102 - NC3MA-H_NEU NC3MA-H_NEU
P103 TBPI3P90M_SAU - S202 - - SPPJ32F29A_ALP
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
LREDD3_EVE Diode LED Red D3 lying EVERLIGHT A264B
NC3MA-H_NEU Connector XLR 3pole male 90dg NEUTRIK NC3MA-H
SPPJ32F29A_ALP Switch inter locking PCB DPDT ALPS SPPJ32F29A
TBPI3P90M_SAU Terminal block plug in 3pole 90dg male 3.81mm Sauro CTM039PT
=
= pЙкобЕЙ=j~ем~д=iaVO= m~ÖÉ=N=ESF=
LD92
Schematics for LD92 ........................................................................................2
Board placement for LD92................................................................................3
Component list for LD92 - rev 01.....................................................................4
Variant specific components.............................................................................5
Description for variant dependent components.................................................6
=
= pЙкобЕЙ=j~ем~д=iaVO= m~ÖÉ=O=ESF=
pÅÜÉã~íáÅë=Ñçê=iaVO=
=
= pЙкобЕЙ=j~ем~д=iaVO= m~ÖÉ=P=ESF=
_ç~êЗ=йд~ЕЙгЙен=Сзк=iaVO=
=
= pЙкобЕЙ=j~ем~д=iaVO= m~ÖÉ=Q=ESF=
`згйзеЙен=дблн=Сзк=iaVO=J=кЙо=MN=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment Side
C1 Variant dependent, see separate list Top
C101 Variant dependent, see separate list Top
D1 1N4004 Diode power 1N4004 Top
D2 LYEL2.5x5 Diode LED Yellow 2.5x5mm Top
D3 LYEL2.5x5 Diode LED Yellow 2.5x5mm Top
D4 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D5 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D6 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D7 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D8 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D9 LRED2.5x5 Diode LED Red 2.5x5mm Top
D10 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D101 1N4004 Diode power 1N4004 Top
D102 LYEL2.5x5 Diode LED Yellow 2.5x5mm Top
D103 LYEL2.5x5 Diode LED Yellow 2.5x5mm Top
D104 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D105 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D106 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D107 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D108 LGRN2.5x5 Diode LED Green 2.5x5mm Top
D109 LRED2.5x5 Diode LED Red 2.5x5mm Top
D110 LGRN2.5x5 Diode LED Green 2.5x5mm Top
Q1 MPSA42 Transistor bipolar signal MPSA42 Top
Q2 MPSA42 Transistor bipolar signal MPSA42 Top
Q3 MPSA92 Transistor bipolar signal MPSA92 Top
Q4 BC547B Transistor bipolar signal BC547B Top
Q5 BC547B Transistor bipolar signal BC547B Top
Q6 BC547B Transistor bipolar signal BC547B Top
Q7 BC547B Transistor bipolar signal BC547B Top
Q8 BC547B Transistor bipolar signal BC547B Top
Q9 BC547B Transistor bipolar signal BC547B Top
Q101 MPSA42 Transistor bipolar signal MPSA42 Top
Q102 MPSA42 Transistor bipolar signal MPSA42 Top
Q103 MPSA92 Transistor bipolar signal MPSA92 Top
Q104 BC547B Transistor bipolar signal BC547B Top
Q105 BC547B Transistor bipolar signal BC547B Top
Q106 BC547B Transistor bipolar signal BC547B Top
Q107 BC547B Transistor bipolar signal BC547B Top
Q108 BC547B Transistor bipolar signal BC547B Top
Q109 BC547B Transistor bipolar signal BC547B Top
R1 Variant dependent, see separate list Top
R2 Variant dependent, see separate list Top
R3 Variant dependent, see separate list Top
R4 Variant dependent, see separate list Top
R5 Variant dependent, see separate list Top
R6 Variant dependent, see separate list Top
R7 Variant dependent, see separate list Top
R8 Variant dependent, see separate list Top
R9 Variant dependent, see separate list Top
R10 Variant dependent, see separate list Top
R11 Variant dependent, see separate list Top
R12 Variant dependent, see separate list Top
=
Position Partnumber Description Comment Side
R13 Variant dependent, see separate list Top
R14 Variant dependent, see separate list Top
R15 Variant dependent, see separate list Top
R16 2K7.25W5% Resistor Carbon Film 2K7.25W5% Top
R17 2K7.25W5% Resistor Carbon Film 2K7.25W5% Top
R101 Variant dependent, see separate list Top
R102 Variant dependent, see separate list Top
R103 Variant dependent, see separate list Top
R104 Variant dependent, see separate list Top
R105 Variant dependent, see separate list Top
R106 Variant dependent, see separate list Top
R107 Variant dependent, see separate list Top
R108 Variant dependent, see separate list Top
R109 Variant dependent, see separate list Top
R110 Variant dependent, see separate list Top
R111 Variant dependent, see separate list Top
R112 Variant dependent, see separate list Top
R113 Variant dependent, see separate list Top
R114 Variant dependent, see separate list Top
R115 Variant dependent, see separate list Top
R116 2K7.25W5% Resistor Carbon Film 2K7.25W5% Top
R117 2K7.25W5% Resistor Carbon Film 2K7.25W5% Top
= pЙкобЕЙ=j~ем~д=iaVO= m~ÖÉ=R=ESF=
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=
Position LD92-2x13-2 LD92-2x32-2
C1 4u7100V5x10A 2u2250V6.5x18A
C101 4u7100V5x10A 2u2250V6.5x18A
R1 680R.25W5% 1K2.7W1%SO5
R2 2K73W5% 4K73W5%
R3 1K21W5% 2K2.7W1%
R4 680R.25W5% 1K2.7W1%
R5 330R.25W5% 560R.25W5%
R6 120R.25W5% 220R.25W5%
R7 220R.25W5% 390R.25W5%
R8 33K.25W5% 56K.25W5%
R9 33K.25W5% 56K.25W5%
R10 33K.25W5% 56K.25W5%
R11 33K.25W5% 56K.25W5%
R12 33K.25W5% 56K.25W5%
R13 33K.25W5% 56K.25W5%
R14 33K.25W5% 56K.25W5%
R15 100R.7W1% 220R.25W5%
R101 680R.25W5% 1K2.7W1%SO5
R102 2K73W5% 4K73W5%
R103 1K21W5% 2K2.7W1%
R104 680R.25W5% 1K2.7W1%
R105 330R.25W5% 560R.25W5%
R106 120R.25W5% 220R.25W5%
R107 220R.25W5% 390R.25W5%
R108 33K.25W5% 56K.25W5%
R109 33K.25W5% 56K.25W5%
=
Position LD92-2x13-2 LD92-2x32-2
R110 33K.25W5% 56K.25W5%
R111 33K.25W5% 56K.25W5%
R112 33K.25W5% 56K.25W5%
R113 33K.25W5% 56K.25W5%
R114 33K.25W5% 56K.25W5%
R115 100R.7W1% 220R.25W5%
= pЙкобЕЙ=j~ем~д=iaVO= m~ÖÉ=S=ESF=
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
100R.7W1% Resistor Metal Film 100R.7W1%
120R.25W5% Resistor Carbon Film 120R.25W5%
1K2.7W1% Resistor Metal Film 1K2.7W1%
1K2.7W1%SO5 Resistor Metal Film 1K2.7W1% 5mm stand off
1K21W5% Resistor metal film 1K2 1W 5%
220R.25W5% Resistor Carbon Film 220R.25W5%
2K2.7W1% Resistor Metal Film 2K2.7W1%
2K73W5% Resistor metal film 2K7 3W 5%
2u2250V6.5x18A Capacitor electrolytic 2u2 250V 6.5x18mm axial
330R.25W5% Resistor Carbon Film 330R.25W5%
33K.25W5% Resistor Carbon Film 33K.25W5%
390R.25W5% Resistor Carbon Film 390R.25W5%
4K73W5% Resistor metal film 4K7 3W 5%
4u7100V5x10A Capacitor electrolytic 4u7 100V 5x10mm axial
560R.25W5% Resistor Carbon Film 560R.25W5%
56K.25W5% Resistor Carbon Film 56K.25W5%
680R.25W5% Resistor Carbon Film 680R.25W5%
=
= pЙкобЕЙ=j~ем~д=lrqO= m~ÖÉ=N=EQF=
OUT2
Schematics for OUT2........................................................................................2
Board placement for OUT2...............................................................................3
Component list for OUT2CHA, OUT2CHB - rev 01A ....................................4
Variant specific components.............................................................................4
Description for variant dependent components.................................................4
=
= pЙкобЕЙ=j~ем~д=lrqO= m~ÖÉ=O=EQF=
pÅÜÉã~íáÅë=Ñçê=lrqO=
=
= pЙкобЕЙ=j~ем~д=lrqO= m~ÖÉ=P=EQF=
_ç~êЗ=йд~ЕЙгЙен=Сзк=lrqO=
=
= pЙкобЕЙ=j~ем~д=lrqO= m~ÖÉ=Q=EQF=
`згйзеЙен=дблн=Сзк=lrqO`e^I=lrqO`e_=J=кЙо=MN^=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment Side
C1 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C2 2u250VMMK5 Capacitor polyester 2u2 50V MMK 5mm Top
C3 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C4 2u250VMMK5 Capacitor polyester 2u2 50V MMK 5mm Top
L1 Variant dependent, see separate list Top
L2 Variant dependent, see separate list Top
P1 NL4MD-V_NEU Connector speakon PCB 4pole NEUTRIK NL4MD-H Top
P101 NL4MD-V_NEU Connector speakon PCB 4pole NEUTRIK NL4MD-H Top
R1 Variant dependent, see separate list Top
R2 Variant dependent, see separate list Top
R3 Variant dependent, see separate list Top
R4 Variant dependent, see separate list Top
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=
Position OUT2-A04B OUT2-A08B
L1 - 1u2HD1.4_LAB
L2 - 1u2HD1.4_LAB
R1 - 10R2W5%
R2 R04M.6 R3 - 10R2W5%
R4 R04M.6 -
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
10R2W5% Resistor metal film 10R 2W 5%
1u2HD1.4_LAB Inductor 1,2uH axial LAB. Rev 01
R04M.6 Resistor jumper 0R 4modules D.6mm
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=N=ENUF=
SP80FA / SP80FB
Functional description for switch mode powersupply SP80FA & SP80FB......2
Schematics for SP80FA & SP80FB..................................................................4
Schematics for SP80FA, SP80FB & PIND.......................................................5
SP80FA.............................................................................................................6
Board placement for SP80FA - rev 04..............................................................6
Board placement for SP80FA - rev 06..............................................................7
Component list for SP80FA - rev 06.................................................................8
Variant specific components for 230V versions - rev 06..................................9
Variant specific components for 115V versions - rev 06................................10
Description for variant dependent components...............................................11
SP80FB ...........................................................................................................12
Board placement for SP80FB & PIND ...........................................................12
Component list for PIND, SP80FB - rev 01A.................................................13
Variant specific components for 230V versions - rev 01A .............................15
Variant specific components for 115V versions - rev 01A .............................16
Description for variant dependent components...............................................17
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=O=ENUF=
cмеЕнбзе~д=ЗЙлЕкбйнбзе=Сзк=лпбнЕЬ=гзЗЙ=йзпЙклмййду=pmUMc^=C=pmUMc_=
Theory of function
SP80FA-board:
AC-power is coming in to terminal P1, passing interference filter L1, L2 and then reaching RE1 and R5.
In some variants the on-off switch is located directly after terminal P1, in other variants it is connected to CP5-CP7, controlling
the soft start relay RE1. When the on-off switch turns in position CP5-CP6, soft start resistor R5 gives power to mains rectifier
D1.
The voltage is rectified by D1 and filtered by C8, C9 and C1, C2 (SP80FB). This gives 310V DC to the transformer.
SP80FB-board:
Current generator R17, D4, Q5, R16, R10 charge C9 until D3 conduct at 15V. Q8 work as under voltage protection for the +15V
voltage by turning U1:3 to 5V if U1:15 drops below 14V.
When U1:2 (under voltage protect) reach 3V soft start capacitor C10 (U1:8) is released, witch slowly increase the pulse width of
U1:12.
The PWM-controller U1:12 controls the switch Q1-Q3 to give the correct output voltage at terminal CP17, CP19 (SP80FA).
When the switch Q1-Q3 is closed, current flows trough transformer, storing energy. Because of the voltage polarity, diode D3,
D4 (SP80FA) are reverse-biased, thus no voltage present at the load. When the switch is open, the transformer reverses polarity
because of the collapsing magnetic field, forward-biasing diode D3, D4 and inducing a current flow into the capacitors C12, C14
(SP80FA).
If U1:3 (over voltage protect) goes above 3V the pulses on pin 12 stops immediately. This occurs if the main voltage is too high,
or the voltage across snubber capacitor C5 is too high.
The reversed voltage is sensed by a winding in the transformer and rectified by diode D8. The PWM-controller adjust the ontime of the switch, by comparing the voltage across C14 (U1:17) with an internal reference (U1:16), to give the right rail voltage
across the capacitors C12, C14 (SP80FA). The voltage can be adjusted by potentiometer VR2.
The maximum current in the transformer is sensed over the resistor R6-R8. The voltage across R6-R8 is compared (U1:6) with a
reference-voltage, set by VR3, witch make it possible to adjust the maximum output power from the power supply. Normally
VR3 is in maximum position, but if something has to be repaired in the amplifier, VR3 is used for "slow starting" the amplifier.
SP80FA-board:
Immediately when Q1-Q3 (SP80FB) turn on, D2 rectify the pulse from the transformer (CP11, CP12). The DC voltage across C7
activates RE1 witch short soft start resistor R5.
To turn off the amplifier the on-off switch is set in position CP6-CP7. This disconnects R5, and open RE1, turning the amplifier
off.
Repairing instructions
REQUIRED MEASUREMENT EQUIPMENT:
-Audio generator
-Dummy load, 16 ohm
-Digital voltmeter
-Variac 0-280V, 6A
-50Mhz oscilloscope, ex. Tek 2225 with 100x probe ex. Tek P6009
-Isolation transformer for the mains, 1:1
1) Turn VR3 (SP80FB) fully counter clockwise.
2) Change FU1 (SP80FA).
3) Increase the main voltage slowly by the variac.
4) Measure the voltage across C8 and C9 (SP80FA).
a) No voltage: -change R5 (SP80FA).
b) The current increases quickly:
-check D1 (SP80FA).
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=P=ENUF=
-check Q1, Q2, Q3 (SP80FB).
It is now possible to increase the voltage across C8 and C9 (SP80FA) to approx. 300V without current inrush.
Measure across Q1 (SP80FB) collector and emitter with an oscilloscope. This oscilloscope should be connected to mains power
with an isolation transformer.
7) Turn VR3 slowly clockwise until a pulse is visible on the scope. The frequency is approx. 27 kHz (see figure1). If the
graph is seen, go to item 9).
8) If only narrow spikes is seen, check the following components.
a) D3, D4 (SP80FA) or the output circuits.
b) D1, C5, R1 (SP80FA) -makes U1 go into over voltage protection.
c) U1 -the output will remain low all the time.
9) Turn VR3 fully clockwise:
a) Check the output voltage on C12, C14 (SP80FA). Adjust with VR2.
b) Check the soft start circuit by turning the main switch on and off and look at the oscilloscope.
c) Increase the power by applying an audio signal to the amplifier and turn up the gain controls. -The pulse width will
increase.
d) Check the over/ under voltage protection circuits by turning the variac up to 280 VAC and down to 130 VAC. (No load)
Fig. 1
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=Q=ENUF=
pÅÜÉã~íáÅë=Ñçê=pmUMc^=C=pmUMc_=
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=R=ENUF=
pÅÜÉã~íáÅë=Ñçê=pmUMc^I=pmUMc_=C=mfka=
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=S=ENUF=
pmUMc ^=
_з~кЗ=йд~ЕЙгЙен=Сзк=pmUMc^=J=кЙо=MQ=
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=T=ENUF=
_з~кЗ=йд~ЕЙгЙен=Сзк=pmUMc^=J=кЙо=MS=
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=U=ENUF=
`згйзеЙен=дблн=Сзк=pmUMc^=J=кЙо=MS=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment Side
C1 u47X22.5 Capacitor 470n X2 metallized propylene 22.5mm Top
C2 Variant dependent, see separate list Top
C3 Variant dependent, see separate list Top
C4 u22X22.5 Capacitor 220n X2 metallized propylene 22.5mm Top
C5 Variant dependent, see separate list Top
C6 Variant dependent, see separate list Top
C7 100u50V Capacitor electrolytic 100u 50V 5mm Top
C8A Variant dependent, see separate list Top
C8B Variant dependent, see separate list Top
C8C Variant dependent, see separate list Top
C9A Variant dependent, see separate list Top
C9B Variant dependent, see separate list Top
C9C Variant dependent, see separate list Top
C12 Variant dependent, see separate list Top
C13 Variant dependent, see separate list Top
C14 Variant dependent, see separate list Top
C15 Variant dependent, see separate list Top
C16 22u50V Capacitor electrolytic 22u 50V 5mm Top
C17 2u2100VMMK15 Capacitor polyester 2u2 100V MMK 15mm Top
C18 Variant dependent, see separate list Top
C19 Variant dependent, see separate list Top
C20 100u50V Capacitor electrolytic 100u 50V 5mm Top
C21 Variant dependent, see separate list Top
D1 GBPC35-06 Diode bridge GBPC35-06 Top
D2 BYV26C Diode power switch BYV26C Top
D3 STTA3006PI Diode power STTA3006PI standing Top
D4 STTA3006PI Diode power STTA3006PI standing Top
D5 5V6.4W2% Diode zener 5V6 .4W 2% Top
D6 62V.4W2% Diode zener 62V .4W 2% May have different
value
D7 Variant dependent, see separate list Top
D8 Variant dependent, see separate list Top
FU1 Variant dependent, see separate list Top
JMPR 230V Variant dependent, see separate list Top
JMPR 1 115V Variant dependent, see separate list Top
JMPR 2 115V Variant dependent, see separate list Top
JMPR JB-JC R04M1.2 Resistor jumper 0R 4modules D1.2mm Top
JMPR СP1-СP3 Variant dependent, see separate list Top
JMPR СP2-СP4 Variant dependent, see separate list Top
JMPR СP5-СP6 Variant dependent, see separate list Top
L1 Variant dependent, see separate list Top
L2 Variant dependent, see separate list Top
P1 TBPC3P4M8 Terminal bloc PCB 3pole 4module 8mm2 Top
P2 FCPC5x20-6.3x32 Fuse clip combi PCB 5x20 and 6.3x32 mm fuse
(2pcs)
Top
Q3 BC546 Transistor bipolar signal BC546 Top
Q4 Variant dependent, see separate list Top
R2 1M.7W1% Resistor Metal Film 1M.7W1% Top
R3 33R.25W5% Resistor Carbon Film 33R.25W5% Top
R4 33R.25W5% Resistor Carbon Film 33R.25W5% Top
R5 Variant dependent, see separate list Top
Top
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=V=ENUF=
Position Partnumber Description Comment Side
R6 33R.25W5% Resistor Carbon Film 33R.25W5% Top
R7 2R21W5% Resistor metal film 2R2 1W 5% Top
R8 Variant dependent, see separate list May have different
value
R9 Variant dependent, see separate list May have different
value
R10 39K.7W1% Resistor Metal Film 39K.7W1% May have different
value
R11 18K.7W1% Resistor Metal Film 18K.7W1% May have different
value
R12 4K7.7W1% Resistor Metal Film 4K7.7W1% May have different
value
Top
Top
Top
Top
Top
R13 4R7.25W5% Resistor Carbon Film 4R7.25W5% Top
R14 Variant dependent, see separate list Top
R15 Variant dependent, see separate list Top
R16 - Not used May have different
RE1 PCSPNO40A18V Relay PCB SPNO 40A 18V May have different
value
value
Top
Top
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=Сзк=OPMs=оЙклбзел=J=кЙо=MS=
Position SP80FA-4x6-2 SP80FA-2x13-2 SP80FA-2x17-2 SP80FA-2x32-2
C2 1n5Y10 1n5Y10 1n5Y10 1n5Y10
C3 1n5Y10 1n5Y10 1n5Y10 1n5Y10
C5 1n5Y10 1n5Y10 1n5Y10 1n5Y10
C6 1n5Y10 1n5Y10 1n5Y10 1n5Y10
C8A 220u385V35x55PW 220u385V35x55PW 220u385V35x55PW C8B - - - 1500u200V35x504TSI
C8C - - - C9A 220u385V35x55PW 220u385V35x55PW 220u385V35x55PW C9B - - - 1500u200V35x504TSI
C9C - - - C12 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C13 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C14 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C15 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C18 4n7400VMFKT5 4n7400VMFKT5 - C19 4n7400VMFKT5 4n7400VMFKT5 - C21 - - 680p400VK20005%5 680p400VK20005%5
D7 - - 15V.4W5% 15V.4W5%
D8 - - 39V.4W2% 39V.4W2%
FU1 T10AH250-5x20 T10AH250-5x20 T10AH250-5x20 T15AH250-6.3x32
JMPR
230V
R02M.8 R02M.8 R02M.8 R02M.8
JMPR 1
115V
- - - -
JMPR 2
115V - - - -
JMPR
СP1-СP3 - - - R03M.8
JMPR
СP2-СP4 - - - AWG16BLU300VVW1
JMPR
СP5-СP6 R02M.8 R02M.8 R02M.8 -
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NM=ENUF=
Position SP80FA-4x6-2 SP80FA-2x13-2 SP80FA-2x17-2 SP80FA-2x32-2
L1 2x3m7H8A-LAB 2x3m7H8A-LAB 2x3m7H8A-LAB 2x4m7H16A-LAB
L2 2x3m7H8A-LAB 2x3m7H8A-LAB 2x3m7H8A-LAB 2x4m7H16A-LAB
Q4 TIP132 TIP132 IRF730 IRF730
R5 47R9W5%17MSO5 47R9W5%17MSO5 47R9W5%17MSO5 47R9W5%17MSO5
R8 4K7.7W1% 8K2.7W1% 27K.7W1%SO5 27K.7W1%SO5
R9 1M.7W1% 150K.25W5% 180K.7W1% 180K.7W1%
R14 2R22W5%2MST 2R22W5%2MST - R15 2R22W5%2MST 2R22W5%2MST - -
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=Сзк=NNRs=оЙклбзел=J=кЙо=MS=
Position SP80FA-4x6-2U SP80FA-2x13-2U SP80FA-2x17-2U SP80FA-2x32-2U
C2 2n2Y10 2n2Y10 2n2Y10 2n2Y10
C3 2n2Y10 2n2Y10 2n2Y10 2n2Y10
C5 2n2Y10 2n2Y10 2n2Y10 2n2Y10
C6 2n2Y10 2n2Y10 2n2Y10 2n2Y10
C8A - - - C8B 1500u200V35x504TSI 1500u200V35x504TSI 1500u200V35x504TSI C8C - - - 2200u200V35x55
C9A - - - C9B 1500u200V35x504TSI 1500u200V35x504TSI 1500u200V35x504TSI C9C - - - 2200u200V35x55
C12 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C13 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C14 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C15 3900u100V30x45 3900u100V30x45 1800u160V30x50 1800u160V30x50
C18 4n7400VMFKT5 4n7400VMFKT5 - C19 4n7400VMFKT5 4n7400VMFKT5 - C21 - - 680p400VK20005%5 680p400VK20005%5
D7 - - 15V.4W5% 15V.4W5%
D8 - - 39V.4W2% 39V.4W2%
FU1 T20AH250-6.3x32 T20AH250-6.3x32 T20AH250-6.3x32 T30AH125-6.3x32
JMPR
230V
JMPR 1
115V
JMPR 2
115V R02M.8 R02M.8 R02M.8 R02M.8
JMPR
СP1-СP3 R03M.8 R03M.8 R03M.8 R03M.8
JMPR
СP2-СP4 AWG16BLU300VVW1 AWG16BLU300VVW1 AWG16BLU300VVW1 AWG16BLU300VVW1
JMPR
СP5-СP6 - - - -
L1 2x4m7H16A-LAB 2x4m7H16A-LAB 2x4m7H16A-LAB 2x2mH32A-LAB
L2 2x4m7H16A-LAB 2x4m7H16A-LAB 2x4m7H16A-LAB 2x2mH32A-LAB
Q4 TIP132 TIP132 IRF730 IRF730
R5 22R9W5%17MSO5 22R9W5%17MSO5 22R9W5%17MSO5 22R9W5%17MSO5
R8 4K7.7W1% 8K2.7W1% 27K.7W1%SO5 27K.7W1%SO5
R9 1M.7W1% 150K.25W5% 180K.7W1% 180K.7W1%
R14 2R22W5%2MST 2R22W5%2MST - R15 2R22W5%2MST 2R22W5%2MST - -
- - - -
R02M.8 R02M.8 R02M.8 R02M.8
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NN=ENUF=
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
1500u200V35x504TSI Cap. electrolytic 1500u 200V 35x50mm 4 terminals snap in
150K.25W5% Resistor Carbon Film 150K.25W5%
15V.4W5% Diode zener 15V .4W 5%
1800u160V30x50 Capacitor electrolytic 1800u 160V 30x50mm snap in
180K.7W1% Resistor Metal Film 180K.7W1%
1M.7W1% Resistor Metal Film 1M.7W1%
1n5Y10 Capacitor 1n5 Y2 metallized paper 10mm
2200u200V35x55 Capacitor electrolytic 2200u 200V 35x45mm snap in
220u385V35x55PW Cap. electrolytic 220u 385V 35x55mm printed wiring terminals
22R9W5%17MSO5 Resistor wirewound 22R 9W 5% 17modules 5mm stand off
27K.7W1%SO5 Resistor Metal Film 27K.7W1% 5mm stand off
2n2Y10 Capacitor 2n2 Y2 metallized paper 10mm
2R22W5%2MST Resistor metal film 2R2 2W 5% 2modules standing
2x2mH32A-LAB Supression choke 2x2mH 32A 2x18 varv 1.8mm LAB. Rev01
2x3m7H8A-LAB Supression choke 2x3m7H 8A 2x21 varv 1mm LAB. Rev01
2x4m7H16A-LAB Supression choke 2x4m7H 16A 2x24 varv 1.25mm LAB. Rev01
3900u100V30x45 Capacitor electrolytic 3900u 100V 30x45mm snap in
39V.4W2% Diode zener 39V .4W 2%
47R9W5%17MSO5 Resistor wirewound 47R 9W 5% 17modules 5mm stand off
4K7.7W1% Resistor Metal Film 4K7.7W1%
4n7400VMFKT5 Capacitor polyester metal foil 4n7 400V MFKT 5mm
680p400VK20005%5 Capacitor ceramic 680p 400V K2000 5% 5mm
8K2.7W1% Resistor Metal Film 8K2.7W1%
AWG16BLU300VVW1 Cable AWG16 Blue UL style 1569 VW1
IRF730 Transistor MOS power IRF730
R02M.8 Resistor jumper 0R 2modules D.8mm
R03M.8 Resistor jumper 0R 3modules D.8mm
T10AH250-5x20 Fuse slow blow 10A 250V 1500A IR 5x20mm
T15AH250-6.3x32 Fuse slow blow 15A 250V 1500A IR 6.3x32mm
T20AH250-6.3x32 Fuse slow blow 20A 250V 10000A IR 6.3x32mm
T30AH125-6.3x32 Fuse slow blow 30A 125V 400A IR 6.3x32mm
TIP132 Transistor bipolar power TIP132
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NO=ENUF=
pmUMc_=
_з~кЗ=йд~ЕЙгЙен=Сзк=pmUMc_=C=mfka=
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NP=ENUF=
`згйзеЙен=дблн=Сзк=mfkaI=pmUMc_=J=кЙо=MN^=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment Side
C01 Variant dependent, see separate list Top
C1A Variant dependent, see separate list Top
C1B Variant dependent, see separate list Top
C1C Variant dependent, see separate list Top
C2A Variant dependent, see separate list Top
C2B Variant dependent, see separate list Top
C2C Variant dependent, see separate list Top
C5 u68X27.5 Capacitor 680n X2 metallized propylene 27.5mm Top
C6 Variant dependent, see separate list Top
C7 10u63V6x10A Capacitor electrolytic 10u 63V 6x10mm axial Top
C9 10u50V Capacitor electrolytic 10u 50V 5mm Top
C10 22u50V Capacitor electrolytic 22u 50V 5mm Top
C11 470p200VNP05%5 Capacitor ceramic 470p 200V NP0 5% 5mm Top
C12 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C14 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C15 330p200VNP05%5 Capacitor ceramic 330p 200V NP0 5% 5mm Top
C16 330p200VNP05%5 Capacitor ceramic 330p 200V NP0 5% 5mm Top
C17 - Not used Top
C18 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C19 10u50V Capacitor electrolytic 10u 50V 5mm Top
C20 - Not used Top
C21 Variant dependent, see separate list Top
C22 Variant dependent, see separate list Top
C23 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C24 Variant dependent, see separate list Top
C25 Variant dependent, see separate list Top
C26 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C27 Variant dependent, see separate list Top
D01 Variant dependent, see separate list Top
D1 BYT12PI1000LY Diode power BYT12PI1000 lying Bot.
D2 Variant dependent, see separate list Bot.
D3 15V1.3W5% Diode zener 15V 1.3W 5% Top
D4 5V6.4W2% Diode zener 5V6 .4W 2% Top
D5 1N4148 Diode signal 1N4148 Top
D6 BYV26C Diode power switch BYV26C Top
D7 1N4004 Diode power 1N4004 Top
D8 1N4148 Diode signal 1N4148 Top
D9 1N4148 Diode signal 1N4148 Top
D10 1N4148 Diode signal 1N4148 Top
D11 BYV26C Diode power switch BYV26C Top
D12 BZW06P15B Diode transient voltage suppression BZW06P15B Top
D13 BAT85 Diode signal BAT85 Top
D14 1N4148 Diode signal 1N4148 Top
D15 Variant dependent, see separate list Top
D16 Variant dependent, see separate list Top
D17 Variant dependent, see separate list Top
L1 Variant dependent, see separate list Top
LD01 Variant dependent, see separate list Top
LD02 Variant dependent, see separate list Top
Q1 - Not used May have different
value
Bot.
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NQ=ENUF=
Position Partnumber Description Comment Side
Q2 SGW25N120LY Transistor IGBT power SGW25N120 lying May have different
value
Q3 SGW25N120LY Transistor IGBT power SGW25N120 lying May have different
value
Bot.
Bot.
Q4 BC327 Transistor bipolar signal BC327 Top
Q5 TIP50 Transistor bipolar power TIP50 Top
Q6 BC547B Transistor bipolar signal BC547B Top
Q7 R01M.6 (b-e) Resistor jumper 0R 1module D.6mm Top
Q8 BC557B Transistor bipolar signal BC557B Top
Q9 Variant dependent, see separate list Top
Q10 Variant dependent, see separate list Top
R01 Variant dependent, see separate list Top
R1 Variant dependent, see separate list Top
R1A - Not used Top
R2 Variant dependent, see separate list Top
R3 Variant dependent, see separate list Top
R3A - Not used Top
R5 Variant dependent, see separate list Top
R6 R104W10%SO5 Resistor wirewound R10 4W 10% 5mm stand off Top
R7 R104W10%SO5 Resistor wirewound R10 4W 10% 5mm stand off Top
R8 R104W10%SO5 Resistor wirewound R10 4W 10% 5mm stand off Top
R9 Variant dependent, see separate list Top
R10 4K77W5%10MSO5 Resistor wirewound 4K7 7W 5% 10modules 5mm stand
off
Top
R11 680K.25W5% Resistor Carbon Film 680K.25W5% Top
R12 33K.7W1% Resistor Metal Film 33K.7W1% Top
R13 270K.7W1% Resistor Metal Film 270K.7W1% Top
R14 10K.7W1% Resistor Metal Film 10K.7W1% Top
R15 18K.7W1% Resistor Metal Film 18K.7W1% Top
R16 180R.7W1% Resistor Metal Film 180R.7W1% Top
R17 120K2W5%SO5 Resistor metal film 120K 2W 5% 5mm stand off Top
R18 10K.7W1% Resistor Metal Film 10K.7W1% Top
R19 Variant dependent, see separate list Top
R20 432K1W1% Resistor Metal Film 432K 1W 1% Top
R21 750K.7W1% Resistor Metal Film 750K.7W1% Top
R22 4R7.25W5% Resistor Carbon Film 4R7.25W5% Top
R23 Variant dependent, see separate list Top
R24 4R7.25W5% Resistor Carbon Film 4R7.25W5% Top
R25 15K.7W1% Resistor Metal Film 15K.7W1% Top
R26 1K.7W1% Resistor Metal Film 1K.7W1% Top
R27 Variant dependent, see separate list Top
R28 82R.25W5% Resistor Carbon Film 82R.25W5% Top
R29 4M7.25W5% Resistor Carbon Film 4M7.25W5% Top
R30 Variant dependent, see separate list Top
R31 220K.7W1% Resistor Metal Film 220K.7W1% Top
R32 Variant dependent, see separate list Top
R33 Variant dependent, see separate list Top
R34 Variant dependent, see separate list Top
R35 Variant dependent, see separate list Top
R36 15K.7W1% Resistor Metal Film 15K.7W1% Top
R37 Variant dependent, see separate list Top
R38 Variant dependent, see separate list Top
R39 Variant dependent, see separate list Top
R40 Variant dependent, see separate list Top
R41 18K.7W1% Resistor Metal Film 18K.7W1% Top
R42 - Not used Top
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NR=ENUF=
Position Partnumber Description Comment Side
R43 R04M.6 Resistor jumper 0R 4modules D.6mm Top
R44 Variant dependent, see separate list Top
R45 Variant dependent, see separate list Top
R46 Variant dependent, see separate list Top
R47 Variant dependent, see separate list Top
R48 Variant dependent, see separate list Top
S1 TP1-0-5A3x8x21 Thermal protector Single Pole Single Trough on - off 5A
3x8x21mm
Bot.
U1 UC3851 IC PWM UC3851 Top
U2A Variant dependent, see separate list May have different
value
Top
U2B Variant dependent, see separate list Top
VR1 VR10KLY2X3M Trimpotentiometer 10K lying 2x3modules Top
VR2 VR22KLY2X3M Trimpotentiometer 22K lying 2x3modules Top
VR3 VR10KLY2X3M Trimpotentiometer 10K lying 2x3modules Top
VR4 15K.7W1% Resistor Metal Film 15K.7W1% Top
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=Сзк=OPMs=оЙклбзел=J=кЙо=MN^=
Position SP80FB-4x6-2 SP80FB-2x11-2 SP80FB-2x13-2 SP80FB-2x17-2 SP80FB-2x32-2
C01 - - - - 100n400VMMK15
C1A 220u385V35x55PW 220u385V35x55PW 220u385V35x55PW 220u385V35x55PW -
1500u200V35x504
C1B - - - C1C - - - - C2A 220u385V35x55PW 220u385V35x55PW 220u385V35x55PW 220u385V35x55PW -
C2B - - - C2C - - - - C6 - - - - 1n1250VMKP15
C21 1n5Y10 1n5Y10 1n5Y10 1n5Y10 1n5Y10
C22 1n5Y10 1n5Y10 1n5Y10 1n5Y10 1n5Y10
C24 - - - - 22n1000VMKP22.5
C25 - - - - 22n1000VMKP22.5
C27 100p1600VFKP15 100p1600VFKP15 100p1600VFKP15 100p1600VFKP15 D01 - - - - 1N4148
D2 - - - - STTA1512PILY
D15 43V.4W2% 43V.4W2% 39V.4W2% 43V.4W2% 43V.4W2%
D16 - - - - BYM26E
D17 - - - - 1N4148
L1 - - - - 400uHEFD30_LAB
LD01 - - - - LYEL2.5x5LY
LD02 - - - - LGRN2.5x5LY
Q9 R01M.6 (b-c) - R01M.6 (b-c) - BC557B
Q10 - - - - BC547B
R01 - - - - 4K7.7W1%
R1 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 33K9W5%17MSO5
R2 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 R3 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 R5 - - - - 330R2W5%SO5
R9 1K52W5%SO5 1K52W5%SO5 1K52W5%SO5 1K52W5%SO5 1K3W5%SO5
R19 5K62.7W1% 5K62.7W1% 5K62.7W1% 5K62.7W1% 5K9.7W1%
R23 8K2.7W1% 6K8.7W1% 6K8.7W1% 6K8.7W1% 6K8.7W1%
TSI
1500u200V35x504
TSI
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NS=ENUF=
Position SP80FB-4x6-2 SP80FB-2x11-2 SP80FB-2x13-2 SP80FB-2x17-2 SP80FB-2x32-2
R27 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% R04M.6
R30 56K.7W1% 56K.7W1% 56K.7W1% 56K.7W1% 180K.7W1%
R32 133K.7W1% 88K7.7W1% 169K.7W1% 88K7.7W1% 88K7.7W1%
R33 270K.7W1% - 330K.7W1% - 1K.7W1%
R34 2K2.7W1% 2K2.7W1% 2K2.7W1% 2K2.7W1% 2K4.7W1%
R35 4K7.7W1% 4K7.7W1% 4K7.7W1% 4K7.7W1% 3K3.7W1%
R37 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% 2R2.25W5%
R38 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% 2R2.25W5%
R39 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% 2R2.25W5%
R40 1M.7W1% 1M.7W1% 1M.7W1% 1M.7W1% 1M2.7W1%
R44 470R.25W5% 470R.25W5% 470R.25W5% 470R.25W5% 560R.25W5%
R45 - - - - 698R.7W1%
R46 - - - - 196R.7W1%
R47 - - - - 820R.25W5%
R48 2R22W5%SO5 2R22W5%SO5 2R22W5%SO5 2R22W5%SO5 -
U2A TCET1102G - TCET1102G - R04M.6 (2-4)
U2B - - - - R04M.6 (1-5)
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=Сзк=NNRs=оЙклбзел=J=кЙо=MN^=
Position SP80FB-4x6-2U SP80FB-2x11-2U SP80FB-2x13-2U SP80FB-2x17-2U SP80FB-2x32-2U
C01 - - - - 220n250VMMK15
C1A - - - - -
C1B
1500u200V35x504
TSI
1500u200V35x504
TSI
1500u200V35x504
TSI
1500u200V35x504
TSI
C1C - - - - 2200u200V35x55
C2A - - - - -
C2B
1500u200V35x504
TSI
1500u200V35x504
TSI
1500u200V35x504
TSI
1500u200V35x504
TSI C2C - - - - 2200u200V35x55
C6 - - - - 1n1250VMKP15
C21 2n2Y10 2n2Y10 2n2Y10 2n2Y10 2n2Y10
C22 2n2Y10 2n2Y10 2n2Y10 2n2Y10 2n2Y10
C24 - - - - 22n1000VMKP22.5
C25 - - - - 22n1000VMKP22.5
C27 100p1600VFKP15 100p1600VFKP15 100p1600VFKP15 100p1600VFKP15 D01 - - - - 1N4148
D2 - - - - STTA1512PILY
D15 43V.4W2% 43V.4W2% 39V.4W2% 43V.4W2% 43V.4W2%
D16 - - - - BYM26E
D17 - - - - 1N4148
L1 - - - - 400uHEFD30_LAB
LD01 - - - - LYEL2.5x5LY
LD02 - - - - LGRN2.5x5LY
Q9 R01M.6 (b-c) - R01M.6 (b-c) - BC557B
Q10 - - - - BC547B
R01 - - - - 4K7.7W1%
R1 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 33K9W5%17MSO5
R2 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 R3 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 18K9W5%17MSO5 R5 - - - - 330R2W5%SO5
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NT=ENUF=
Position SP80FB-4x6-2U SP80FB-2x11-2U SP80FB-2x13-2U SP80FB-2x17-2U SP80FB-2x32-2U
R9 1K52W5%SO5 1K52W5%SO5 1K52W5%SO5 1K52W5%SO5 1K3W5%SO5
R19 5K62.7W1% 5K62.7W1% 5K62.7W1% 5K62.7W1% 5K9.7W1%
R23 8K2.7W1% 6K8.7W1% 6K8.7W1% 6K8.7W1% 6K8.7W1%
R27 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% R04M.6
R30 56K.7W1% 56K.7W1% 56K.7W1% 56K.7W1% 180K.7W1%
R32 133K.7W1% 88K7.7W1% 169K.7W1% 88K7.7W1% 88K7.7W1%
R33 270K.7W1% - 330K.7W1% - 1K.7W1%
R34 2K2.7W1% 2K2.7W1% 2K2.7W1% 2K2.7W1% 2K4.7W1%
R35 4K7.7W1% 4K7.7W1% 4K7.7W1% 4K7.7W1% 3K3.7W1%
R37 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% 2R2.25W5%
R38 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% 2R2.25W5%
R39 4R7.25W5% 4R7.25W5% 4R7.25W5% 4R7.25W5% 2R2.25W5%
R40 1M.7W1% 1M.7W1% 1M.7W1% 1M.7W1% 1M2.7W1%
R44 470R.25W5% 470R.25W5% 470R.25W5% 470R.25W5% 560R.25W5%
R45 - - - - 698R.7W1%
R46 - - - - 196R.7W1%
R47 - - - - 820R.25W5%
R48 2R22W5%SO5 2R22W5%SO5 2R22W5%SO5 2R22W5%SO5 -
U2A TCET1102G - TCET1102G - R04M.6 (2-4)
U2B - - - - R04M.6 (1-5)
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
100n400VMMK15 Capacitor polyester 100n 400V MMK 15mm
100p1600VFKP15 Capacitor polypropylene 100p 1600V FKP 15mm
133K.7W1% Resistor Metal Film 133K.7W1%
1500u200V35x504TSI Cap. electrolytic 1500u 200V 35x50mm 4 terminals snap in
169K.7W1% Resistor Metal Film 169K.7W1%
180K.7W1% Resistor Metal Film 180K.7W1%
18K9W5%17MSO5 Resistor wirewound 18K 9W 5% 17modules 5mm stand off
196R.7W1% Resistor Metal Film 196R.7W1%
1K.7W1% Resistor Metal Film 1K.7W1%
1K3W5%SO5 Resistor metal film 1K 3W 5% 5mm stand off
1K52W5%SO5 Resistor metal film 1K5 2W 5% 5mm stand off
1M.7W1% Resistor Metal Film 1M.7W1%
1M2.7W1% Resistor Metal Film 1M2.7W1%
1n1250VMKP15 Capacitor polypropylene 1n 1250V MKP 15mm
1N4148 Diode signal 1N4148
1n5Y10 Capacitor 1n5 Y2 metallized paper 10mm
2200u200V35x55 Capacitor electrolytic 2200u 200V 35x45mm snap in
220n250VMMK15 Capacitor polyester 220n 250V MMK 15mm
220u385V35x55PW Cap. electrolytic 220u 385V 35x55mm printed wiring terminals
22n1000VMKP22.5 Capacitor polypropylene 22n 1000V MKP 22.5mm
270K.7W1% Resistor Metal Film 270K.7W1%
2K2.7W1% Resistor Metal Film 2K2.7W1%
2K4.7W1% Resistor Metal Film 2K4.7W1%
2n2Y10 Capacitor 2n2 Y2 metallized paper 10mm
2R2.25W5% Resistor Carbon Film 2R2.25W5%
2R22W5%SO5 Resistor metal film 2R2 2W 5% 5mm stand off
330K.7W1% Resistor Metal Film 330K.7W1%
=
= pЙкобЕЙ=j~ем~д=pmUMc^=L=pmUMc_= m~ÖÉ=NU=ENUF=
330R2W5%SO5 Resistor metal film 330R 2W 5% 5mm stand off
33K9W5%17MSO5 Resistor wirewound 33K 9W 5% 17modules 5mm stand off
39V.4W2% Diode zener 39V .4W 2%
3K3.7W1% Resistor Metal Film 3K3.7W1%
400uHEFD30_LAB Inductor 400uH EFD30 LAB.GRUPPEN Rev 01
43V.4W2% Diode zener 43V .4W 2%
470R.25W5% Resistor Carbon Film 470R.25W5%
4K7.7W1% Resistor Metal Film 4K7.7W1%
4R7.25W5% Resistor Carbon Film 4R7.25W5%
560R.25W5% Resistor Carbon Film 560R.25W5%
56K.7W1% Resistor Metal Film 56K.7W1%
5K62.7W1% Resistor Metal Film 5K62.7W1%
5K9.7W1% Resistor Metal Film 5K9.7W1%
698R.7W1% Resistor Metal Film 698R.7W1%
6K8.7W1% Resistor Metal Film 6K8.7W1%
820R.25W5% Resistor Carbon Film 820R.25W5%
88K7.7W1% Resistor Metal Film 88K7.7W1%
8K2.7W1% Resistor Metal Film 8K2.7W1%
BC547B Transistor bipolar signal BC547B
BC557B Transistor bipolar signal BC557B
BYM26E Diode power switch BYM26E
LGRN2.5x5LY Diode LED Green 2.5x5mm lying
LYEL2.5x5LY Diode LED Yellow 2.5x5mm lying
R01M.6 (b-c) Resistor jumper 0R 1module D.6mm
R04M.6 Resistor jumper 0R 4modules D.6mm
R04M.6 (1-5) Resistor jumper 0R 4modules D.6mm
R04M.6 (2-4) Resistor jumper 0R 4modules D.6mm
STTA1512PILY Diode power STTA1512PI lying
TCET1102G IC photocoupler TCET1102G
Loading...
