Cutting-edge power, proven reliability, and
unprecedented output configuration flexibility.
All with seamless network integration and
onboard system surveillance.
Barclays Center, New York
One advanced install-dedicated
amplifier platform.Two integrated
DSP and networking choices.
D Series is based on the same foundation of robust, high-power
amplifier technologies as Lab.gruppen’s renowned PLM Series
of Powered Loudspeaker Management systems – an amplifier
platform with a proven record of reliability and sonic performance
on the world’s most grueling concert tours and in high-profile,
large-scale installations.
With D Series, those same core technologies have been updated
and refocused to provide the ultimate solution for the most
demanding digitally networked installed sound applications – in
stadia, arenas, theme parks, performing arts centers, racecourses
and other large commercial sound installations.
Tesira® Variant Lake Variant
In addition to legendary Lab.gruppen reliability and sonic
excellence, D Series incorporates newly refined output stage
technologies along with installation-targeted hardware and
software features that enable optimized audio system design and
configuration. Together, these new technologies allow systems
integrators to minimize both initial equipment costs and end users’
long-term energy consumption.
The D Series platform is available in two variants. The Lake variants
come with on-board Dante networking as standard, and also offer
options for full integration with leading third-party networking and
control systems via purpose-developed middleware. Meanwhile, the
Tesira® variants integrate seamlessly into Biamp Systems’ AVB-based
networked DSP platform as a dedicated, high-power output object.
INCORPORATINGINCORPORATING
Features and benefits:
Four-channel amplifiers available in three
•
power models
- D 200:4 - 20000 W of total output power
- D 120:4 - 12000 W of total output power
- D 80:4 - 8000 W of total output power
Rational Power Management (RPM™)
•
- True flexibility in allocating power output across
channels to match requirements, enabling more
efficient use of amplifier inventory
- Any channel is capable of delivering up to 5000 W
power output, from total available power in
each frame
True ‘open-interoperability’ for seamless
•
integration with a wide range of networked
audio and control environments
Redundant audio inputs & dedicated on-board
•
surveillance & load monitoring system
Unique power supply technologies
•
- Regulated Switch-Mode Power Supply (R.SMPS™)
maintains stability despite mains voltage and
fluctuations
- Best-in-class Power Factor Correction (PFC)
- Current Draw Modelling (CDM™) reduces mains
peak draw
- Breaker Emulation Limiter (BEL™) - Tailors
D Series to the available mains distribution
- Under-voltage Limiting (UVL™) for continued
operation despite severe voltage drops
CAFÉ (Configuring Amplifiers For the
•
Environment) Software incorporating ESP™
(Equipment Specification Predictor) for
design, system and equipment planning,
installation and commissioning
Sir Chris Hoy Velodrome, Glasgow
The Solid Foundation:
Lab.gruppen Core Technologies
D Series is built around proven Lab.gruppen amplifier technologies
with an established track record of undisputed sonic excellence
and rock-solid reliability in both touring and high performance for
large scale installed applications.
Key Lab.gruppen technologies incorporated in the D Series platform include:
Regulated Switch-Mode Power Supply (R.SMPS) –
•
A fully regulated design that ensures stable output power
independent of deviations in the mains voltage
Breaker Emulation Limiter (BEL) –
•
Dedicated algorithm anticipates breaker behavior to prevent
power interruption
Under-voltage Limiting (UVL) –
•
Reduces power output for continued operation despite
severe voltage drops
Best-in-class Power Factor Correction (PFC) –
•
Unique Current Draw Modeling (CDM™) reduces mains
peak draw.
Patented Class TD® Output Stage –
•
Combines the efficiency of Class D with the sonic qualities of
Class B topologies.
Inter-Sample Voltage Peak Limiter (ISVPL™) –
•
Digitally controlled peak limiter with exceptional accuracy
for maintaining sonic purity
Intercooler® Cooling System –
•
Extraordinarily efficient, the copper-finned Intercooler is
mounted transverse to air flow to prevent “heat island”
overheating of last output devices
Full Suite of Protection Circuits –
•
D Series units and connected loads protected by Current
Average Limiter (CAL), Very High Frequency Protection (VHF),
Direct Current Protection (DC), Short Circuit Protection,
Current Clip Limiter, Voltage Clip Limiter
Regulated Switch-Mode
Power Supply (R.SMPS)
“We have taken much of the
technology that made PLM
so appealing for install,
and evolved it to meet what
are really quite applicationspecific demands in large-
scale venue audio.”
Håkan Gustafsson,
Product Manager
BC Place, Vancouver, Canada.
RPM & CAFÉ: Optimizing efficiency
with flexible output configurations
Rational Power Management (RPM): True flexibility in power allocation
Lab.gruppen’s D Series provides consultants and integrators with
unprecedented flexibility for specifying amplifier output channels
to meet the varying load conditions within a single complex project.
For the first time, Rational Power Management (RPM) provides
true flexibility in allocating available power across the four output
channels. Each channel may be tailored to meet the requirements
of the connected load, and any power not used for that channel
may be allocated for use on other channels.
In addition, regardless of model, RPM ensures that one or more
channels can supply up to 5000 W of output. This avoids amplifier
“over-specification” on all channels or bridging of adjacent
channels in order to meet minimum demands on one powerhungry load, resulting in loss of channel count.
SUBS
LOW FREQUENCY
DRIVERS
RPM also incorporates features that safeguard the defined power
output of one or more specified channels. Using CAFÉ software, it
is possible to ensure that the full output power will be maintained
regardless of demand of other channels, with the remaining
channels responding to a best-case scenario to deliver defined
power output while maintaining rail voltage and power supply
optimisation.
Rational Power Management results in real-world savings, both
immediate and long-term. In many cases, fewer amplifiers – or
lower cost models – may be specified while still fulfilling all power
requirements. It also allows better mains management, avoiding
over-specification of mains distribution, cooling, and UPS (where
required). Finally, the overall gains in efficiency in larger systems
will minimize current consumption and reduce operation costs – a
“green bonus” for the system owner.
MID FREQUENCY
DRIVERS
HIGH FREQUENCY
MID
DRIVERS
HIGH
Amplifier Power Required
SUB
D Series - Amp channels power adjusted to match the loudspeaker requirements
LOW
Frequency
Windows 8
CAFÉ with ESP: Integrated software for efficient project planning and fast system configuration
CAFÉ (Configuring Amplifiers For the Environment) is a dedicated
software application for Windows and OSX that provides tools
for system planning, specification and commissioning. CAFÉ
improves work flow efficiency at every stage of the project, from
initial design through bid tender and final system optimization.
CAFÉ software incorporates an innovative design tool, the
Equipment Specification Predictor (ESP), that assures optimum
specification of D Series units for any complex installation project.
ESP examines the system requirement and then generates
a comprehensive report that includes models numbers and
quantities, heat generation, channel power allocation, and current
draw.
Once the D Series units are implemented into the design,
CAFÉ provides the tools for channel output configuration
and commissioning. During operation, CAFÉ also provides
comprehensive system surveillance for monitoring critical
operating parameters of amplifier channels and connected loads.
Incorporating technologies from
Lake Variants:
Power and flexibility for any
networked solution
D Series Lake variants provide extraordinary input flexibility,
the legendary power of exclusive Lake processing algorithms,
comprehensive control and load monitoring via Lake Controller,
and seamless integration into Dante digital audio networks. In
addition, by employing dedicated middleware, D Series Lake
variants can be integrated with many of the most widely used
third-party digitally networked matrix and DSP platforms.

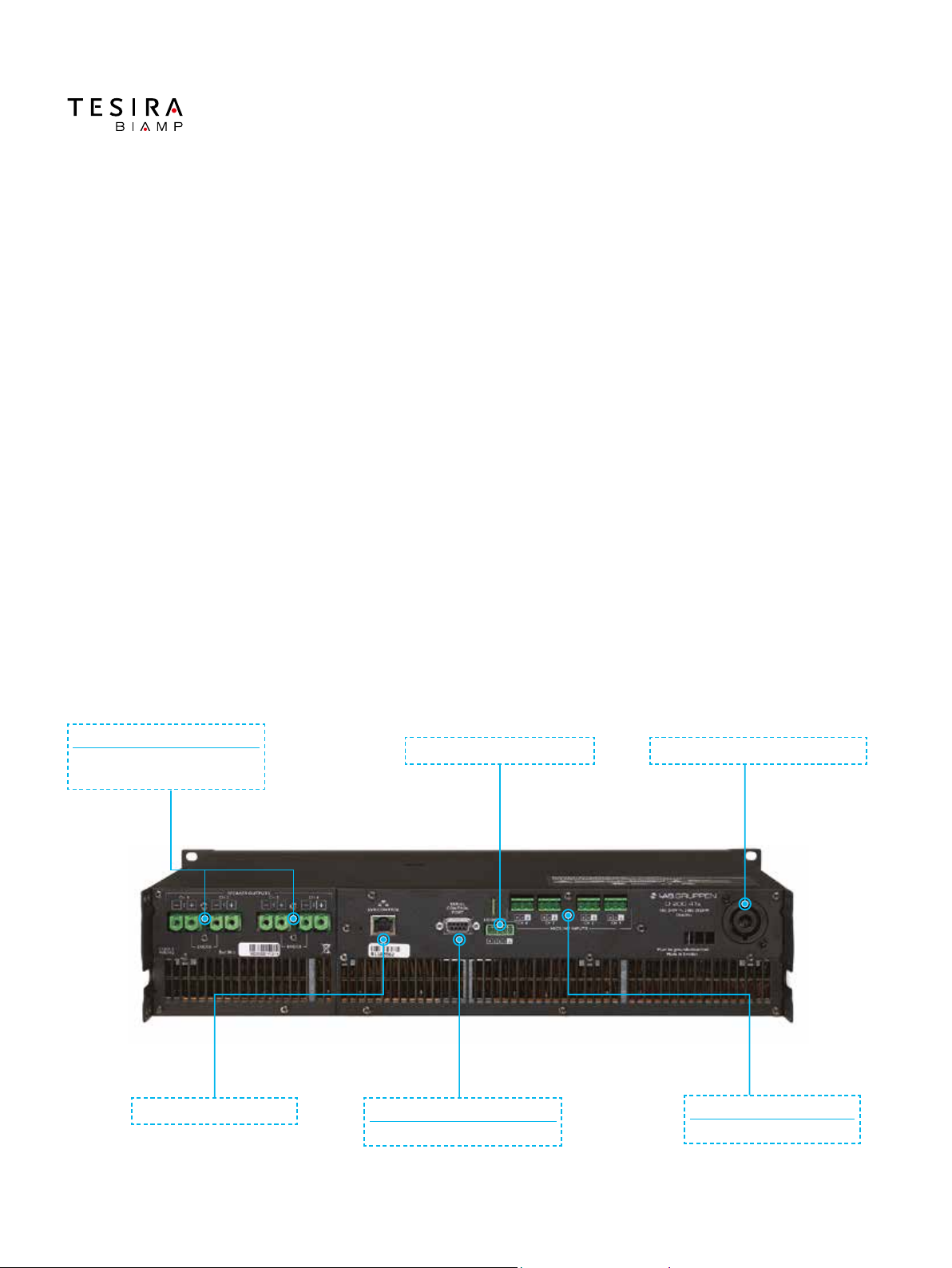

Speaker outputs
Deta chable ter minal bloc k connect ors for ea sy
inst all (up to 16 mm
2
or 6 AWG cab les)
Two AES3 dig ital inputs (4 au dio channels) 32 amp loc king powerC ON for mains sup ply
All three D Series Lake models incorporate four full-featured
Lake Processing modules, with four discrete channels of audio
throughput input to output. Audio signals are selectable from
four channels of analog (each with exclusive Iso-float™ ground
isolation), four channels of AES3 digital, and eight dual redundant
Dante networked digital inputs. Input signals are individually
selectable for each channel, with programmable failover to analog.
Analog inputs with Iso-Float
Four “L ake class ” analog inp uts with I so-Flo at
ground isolat ion
EtherCON inputs
Two ether CON jack s are provi ded for the d ual
redundant control and Dant e connections
All D Series Lake variants offer:
Four complete Lake Processing modules –
•
Classic, linear phase and FIR filters
Group control with Raised Cosine™ MESA EQ™ asymmetric filters
LimiterMax™ peak and RMS limiters
Input flexibility and redundancy –
•
Four analog inputs with Iso-float ground isolation
Two AES3 digital inputs (four audio channels)
Eight dual redundant Dante network inputs
Comprehensive loudspeaker preset database (LoadLibrary™)
•
Wireless tablet control with Lake Controller software for
•
convenient remote system tuning and commissioning
Module Data stored in Module FIles (Speaker Presets)
Opposite is the signal ow block diagram
of D series Lake. The input section (inputs,
input router and input mixer) allows for
mixing capabilities as well as redundant
and prioritized inputs with automatic
switch-over in case of signal failure. Up
to four Lake Processing modules provide
user EQ and loudspeaker processing,
including LimiterMax limiting. Each
power output channel provides individual
channel processing, including ISVPL
limiter, RPM and load monitoring.
Frame Data stored in System Files and Frame Presets
INPUTS
Dante Receivers 1-8
AES/Analog
pass through
to Dante
AES 1-4
Analog 1-4
OUTPUTS
Dante 1-8
(no mutes)
Input
Routers
1-4
WITH
INPUT
MUTES
Input
Mixer A
Input
Mixer B
Input
Mixer C
Input
Mixer D
Lake Contour
Module A
Lake Contour
Module B
Lake Contour
Module C*
Lake Contour
Module D*
Attenuator
Phase Rev
Custom RPM
Attenuator
Phase Rev
Custom RPM
Attenuator
Output Routing
Phase Rev
Custom RPM
Attenuator
Phase Rev
Custom RPM
ISVPL
Mute
Auto RPM
Mute
Auto RPM
Mute
Auto RPM
Mute
Auto RPM
Amp Gain LoadSmart LoadPilot AMP
ISVPL
Amp Gain LoadSmart LoadPilot AMP
ISVPL
Amp Gain LoadSmart LoadPilot AMP
ISVPL
Amp Gain LoadSmart LoadPilot AMP
“D Series is about offering freedom -
freedom to use any network, any loudspeaker,
any third party control system, and in any
configuration. We believe it is now the most
compelling choice of amplifier for large scale
projects available on the market.”
Klas Dalbjorn,
Product Research Manager
Incorporating technologies from
Tesira® Variants:
Potent Power for the AVB
Networked Environment
All th ree power mo d e l s in the D Series plat f o r m are ava i l a b le as Tesira®
variants for full integration into Biamp Systems’ comprehensive
networked environment based on AVB protocols. The D Series
units function as a discrete high-power output device in the Tesira®
Speaker outputs
Deta chable ter minal bloc k connect ors for ea sy
inst all (up to 16 mm
2
or 6 AWG cab les)
GPIO for l ocal contr ol and monitori ng 32 amp loc king powerC ON for mains sup ply
environment, with multi-channel audio inputs, control and monitoring
all carried over a single Gigabit Ethernet port. An analog input option
is available for local system input or analog failover redundancy, which
may be required in critical PA/VA applications.
AVB digita l audio and contr ol Serial control port
Contr ol/moni tor powe r state, w ake from sl eep
Option al analog mic/ line inputs
Availa ble with or w ithout on e ach model
All D Series Tesira® variants offer:
Ethernet-based Audio Video Bridging (AVB) networking
•
Comprehensive amplifier surveillance
•
Full functionality as Tesira® expander device with integration
•
of amplifier configuration and surveillance
Hot-swappable - Host name hot swap with complete
•
configuration transfer
Power state management for auto power down and ultra-low
•
draw sleep state
Optional four channels of Mic/Line input for local system input
•
or analog failover
Creation of customized control programs using Biamp Canvas software
•
GPIO and RS232 connectivity for integration flexibility
•
Opposite is the the block diagram
showing the signal ow and control
points for D Series Tesira
The portion shown in red is controlled
within the Tesira
shown in green is accessible via CAFÉ
software and monitored from the
®
Tesi ra
software.
®
software; the portion
®
variants.
Tesira
freewire DSP
processing
hosted by
Tesira
servers
AVB
Network
D Series Tesira Amplifier
Mute Level Invert AmpGain RPM/ISVPL
Mute Level Invert
Mute Level Invert
Mute Level Invert
AmpGain RPM/ISVPL
AmpGain RPM/ISVPL
AmpGain RPM/ISVPL
Load
Monitoring
Load
Monitoring
Load
Monitoring
Load
Monitoring
Lab.gruppen adopts a policy of continuous improvement and product specication is subject to change.
RPM, R.SMPS, PFC, CDM, BEL, UVL, CAFÉ, ESP, ISVPL, Iso-Float, Raised Cosine, MESA EQ,
LimiterMax and LoadLibrary are trademarks of Lab.gruppen AB. Tesira is a trademark of Biamp Systems.
All other trademarks remain the property of their respective owners.
Copyright © 2015 MUSIC Group Innovation Sweden AB. All rights reserved.
LABGRUPPE N.COM
6483 1250/161215
Loading...
