Lab Gruppen D 40:4L, D 120:4L Lake Controller Operation Manual

Download
Operation Manual
Operation Manual
Lake® Controller
+ Lake Update & Preset Manager
Rev 1.7.0
Item no. OM-LC
Table of Contents
1. Welcome ...................................................................................................................................................1
1.1 Important Information ..........................................................................................................................1
1.2 Introduction ..........................................................................................................................................1
1.3 Controller Overview ............................................................................................................................. 2
1.4 Manual Overview ................................................................................................................................. 2
2. Software Installation .............................................................................................................................. 5
2.1 Computer Requirements ......................................................................................................................5
2.2 Lake Controller Installation ................................................................................................................. 10
2.3 Moving User Files between Installations ........................................................................................... 11
3. Network & Firewall Overview .............................................................................................................. 12
3.1 Ethernet Overview ............................................................................................................................. 12
3.2 Firewall Conguration......................................................................................................................... 13
3.3 IP Address Conguration ...................................................................................................................14
3.4 Wired Network Setup ........................................................................................................................17
3.5 Wireless Network Setup .................................................................................................................... 19
3.6 Dante and AES67 Digital Audio Networking ...................................................................................... 22
4. Lake Controller Tutorial ........................................................................................................................27
4.1 Starting the Lake Controller ...............................................................................................................27
4.2 Overview of Main Page Components ................................................................................................ 28
4.3 Modules and Frames .........................................................................................................................31
4.4 Equalization ........................................................................................................................................47
4.5 Crossovers .........................................................................................................................................55
4.6 Groups ................................................................................................................................................ 57
4.7 Lake Controller File Types .................................................................................................................. 59
5. Home Menu Reference ..........................................................................................................................62
5.1 Main Screen Home Menu ..................................................................................................................62
5.2 Accessing EQ/Levels from HOME .....................................................................................................64
6. EQ/Levels Menu Reference ..................................................................................................................65
6.1 EQ/Levels Overview ..........................................................................................................................65
6.2 Levels ................................................................................................................................................. 68
6.3 Input EQ ............................................................................................................................................. 79
6.4 Crossovers and HPF/LPF ...................................................................................................................94
6.5 Auxiliary Output Channels ................................................................................................................106
ii
7. System Store Recall Menu Reference ............................................................................................... 114
7.1 System Store Recall Navigation ....................................................................................................... 114
7.2 Shortcut to Data/User Folder ........................................................................................................... 114
7.3 Recall as New System—Open ........................................................................................................ 115
7.4 Recall as Subsystem ........................................................................................................................ 115
7.5 Recall Compare ................................................................................................................................ 115
7.6 Recall as Virtual Sub System (SS) .................................................................................................... 116
7.7 Store System .................................................................................................................................... 117
7.8 Store Subsystem .............................................................................................................................. 117
7.9 File Utilities ....................................................................................................................................... 117
7.10 System Presets ............................................................................................................................... 119
8. Modules Menu Reference ................................................................................................................... 123
8.1 EQ/Levels ......................................................................................................................................... 123
8.2 I/O Cong ......................................................................................................................................... 123
8.3 Label & Lock ....................................................................................................................................156
8.4 Copy/Paste/Replace ......................................................................................................................... 158
8.5 Remove ............................................................................................................................................ 162
8.6 Module Store/Recall ......................................................................................................................... 162
8.7 Add Page .......................................................................................................................................... 167
8.8 Super Modules (LM & PLM Series only) ......................................................................................... 167
9. Module File Types & Lake LoadLibrary™ .......................................................................................... 171
9.1 Module Types Overview .................................................................................................................. 171
9.2 Supplementary Module Data ........................................................................................................... 171
9.3 Module Type Abbreviations.............................................................................................................. 172
9.4 Classic Crossovers/Auxiliary Outputs ...............................................................................................173
9.5 Linear Phase Crossovers .................................................................................................................. 178
9.6 FIR Module ....................................................................................................................................... 180
9.7 XP Module [PLM+ and D Series only] .............................................................................................182
9.8 Mesa EQ Module ............................................................................................................................. 184
9.9 Lake LoadLibrary .............................................................................................................................. 185
9.10 Additional Information ...................................................................................................................... 185
10. Groups Menu Reference .....................................................................................................................186
10.1 Adding a Group ................................................................................................................................186
10.2 EQ/Levels .........................................................................................................................................187
10.3 Assign .............................................................................................................................................187
10.4 Label ................................................................................................................................................189
10.5 Copy/Paste ....................................................................................................................................... 189
10.6 Remove ............................................................................................................................................190
10.7 Gang ................................................................................................................................................. 190
10.8 Add Page .........................................................................................................................................191
10.9 Discovering Module Group Assignments ..........................................................................................191
iii
11. Solo/Mute Menu Reference ...............................................................................................................192
11.1 EQ/Levels ......................................................................................................................................... 192
11.2 Solo/Mute Enable ............................................................................................................................ 192
11.3 Pile ...................................................................................................................................................193
11.4 All Mute ............................................................................................................................................193
12. Icon Control Menu Reference .............................................................................................................194
12.1 Meters On/Off .................................................................................................................................194
12.2 Fast Meters .......................................................................................................................................194
12.3 Icon Small/Normal/Medium/Large ...................................................................................................194
13. User Preferences Menu Reference ....................................................................................................195
13.1 Contexts .......................................................................................................................................... 195
13.2 Delay Units ....................................................................................................................................... 195
13.3 Designer Functions ..........................................................................................................................196
13.4 Keyboard Shortcuts ..........................................................................................................................197
13.5 About ...............................................................................................................................................197
13.6 Graphics ...........................................................................................................................................197
13.7 Show Mode ......................................................................................................................................199
14. Pages Menu Reference ........................................................................................................................200
14.1 Cut Icon ...........................................................................................................................................200
14.2 Copy Icon ........................................................................................................................................ 201
14.3 Paste Icon ........................................................................................................................................201
14.4 Page Label ......................................................................................................................................201
14.5 Page Delete .....................................................................................................................................202
14.6 Page Add .......................................................................................................................................... 202
14.7 Page Hide ......................................................................................................................................... 202
14.8 Scrolling Pages ................................................................................................................................. 202
15. Network Menu Reference ...................................................................................................................203
15.1 Network ...........................................................................................................................................203
15.2 Multiple Controllers ..........................................................................................................................204
15.3 Working Ofine ............................................................................................................................... 206
16. Communication and Synchronization ..............................................................................................208
16.1 Ofine Modules ...............................................................................................................................208
16.2 Communication/Network Errors ......................................................................................................208
16.3 Synchronization ................................................................................................................................209
17. Faults and Warnings ............................................................................................................................ 214
17.1 Faults and Warnings Indication ........................................................................................................ 214
18. Analyzer Plug-in ................................................................................................................................... 216
18.1 Overview .......................................................................................................................................... 216
18.2 System Requirements ......................................................................................................................217
18.3 Analyzer Plug-in Quick Start Guide .................................................................................................. 218
18.4 Function Reference .......................................................................................................................... 219
iv
19. Designer Mode Menu Reference........................................................................................................229
19.1 Designer Mode Basics ..................................................................................................................... 229
19.2 Designer Mode Security ..................................................................................................................232
19.3 Functional Reference Guide ............................................................................................................. 243
19.4 Designer Worksheets .......................................................................................................................250
20. Lake-enabled Amplier Reference ....................................................................................................257
20.1 Signal Flow ......................................................................................................................................258
20.2 Monitoring & Control ........................................................................................................................258
20.3 Lake LoadLibrary™ ..........................................................................................................................258
20.4 LoadSmart™ ....................................................................................................................................258
20.5 Navigation ........................................................................................................................................259
20.6 Status Tab ........................................................................................................................................259
20.7 History Tab .......................................................................................................................................263
20.8 Events Tab ........................................................................................................................................ 265
20.9 LoadSmart Tab .................................................................................................................................266
20.10 Output Tab .......................................................................................................................................270
20.11 Power ............................................................................................................................................... 274
21. LM Series Reference and Operation ..................................................................................................275
21.1 Pass-Thru Input Router Functionality ............................................................................................... 275
21.2 GPIO Conguration .......................................................................................................................... 278
21.3 Remote Power Control & Event Logs .............................................................................................. 278
22. MY8-LAKE Reference and Operation ................................................................................................ 281
22.1 Signal Flow ....................................................................................................................................... 281
22.2 Operation Mode ...............................................................................................................................284
22.3 Host Analog Output Reference Conguration .................................................................................284
22.4 I/O Conguration View Mode Options .............................................................................................285
23. Global Events and Control .................................................................................................................. 287
23.1 Global Events Tab .............................................................................................................................287
23.2 Global Control Tab ............................................................................................................................290
23.3 Array Opt (XP Modules only).............................................................................................................294
23.4 Log Files ...........................................................................................................................................296
24. Keyboard Shortcuts ............................................................................................................................. 297
24.1 Enabling/Disabling Keyboard Shortcuts ...........................................................................................297
24.2 General Keyboard Shortcuts ............................................................................................................297
24.3 Button Bar Shortcuts........................................................................................................................297
24.4 EQ, LEVELS, XOVER, and AUX Screen Shortcuts .........................................................................298
25. External Control Interfaces ................................................................................................................303
25.1 GPIO (LM Series Only) ..................................................................................................................... 303
25.2 AMX® and Crestron® Control ............................................................................................................303
25.3 Q-SYS Plugin ..................................................................................................................................... 304
26. Command Line Options ......................................................................................................................305
26.1 Over v iew ..........................................................................................................................................305
26.2 Reference .........................................................................................................................................305
v
27. Firmware Update .................................................................................................................................308
27.1 Backup System Conguration and Presets ......................................................................................308
27.2 Updating Firmware ...........................................................................................................................308
27.3 Incompatible Firmware Notication in Lake Controller .................................................................... 311
27.4 Remote Power Cycle .......................................................................................................................312
28. Preset Manager .................................................................................................................................... 313
28.1 Starting the Lake Preset Manager ...................................................................................................313
28.2 Screen Layout .................................................................................................................................. 314
28.3 Working with Frames ....................................................................................................................... 315
28.4 Working with Bank Files ..................................................................................................................318
28.5 Common Functionality .....................................................................................................................323
29. IP Address Reference .........................................................................................................................324
29.1 Network Essentials .......................................................................................................................... 324
29.2 Factory Reset Conguration.............................................................................................................324
30. Corporate Information ........................................................................................................................326
30.1 Contact Details ................................................................................................................................. 326
30.2 Trademarks ....................................................................................................................................... 326
vi
Welcome
1. Welcome
1.1 Important Information
In January 2009, Lab.gruppen acquired from Dolby Laboratories, Inc. both the Lake trademarks and the exclusive rights for use of Dolby® Lake® Processor technology for both touring and permanent sound reinforcement markets. Lab.gruppen is now developing the Lake Processing technology and the Controller software independently for these markets. The Lab.gruppen-developed Controller software version will be forthwith named Lake Controller software.
1.2 Introduction
The Lake Controller software provides a unied interface for the Lab.gruppen PLM™ Series, PLM+ Series, D Series, Lake LM Series and the MY8-LAKE (Yamaha Mini-YGDAI). Optimized for a wireless touch-screen or Tablet PC, the Controller uses a unique Graphic interface that brings back the feel of analog faders and controls. The software operates on any Microsoft® Windows® PC with a standard Ethernet network interface.
The Lake Controller may also be accessed via media tablet devices such as the Apple® iPad™ by using remote desktop connectivity software that requires additional conguration. For further details on congur­ing the Lake Controller for use via a media tablet, please refer to the Product Documentation category of the support section at http://lakeprocessing.com.
This manual describes the functionality of the Lake Controller software suite, including the main Lake Controller component, along with associated Firmware Update Utilities and Preset Manager Utilities.
For a full understanding of the Lake Controller System, use this manual together with associated hardware operation manuals, audio networking information and quick reference guides that are provided in the docu­mentation folder of your software installation.
Note that the Lake Controller software has all necessary functionality to control the Lake LM Series devices, Lab.gruppen PLM, PLM+ and D Series devices and the MY8-LAKE (Yamaha Mini-YGDAI). Support for legacy devices including the Dolby Lake Processor™,Contour Pro 26™ and Mesa Quad EQ™ discontinued in Lake Controller v6.x; for control of these devices please use Lake Controller v5.x.
Throughout this manual, the generic term ‘device’ will be used to describe any hardware product containing Lake Processing technology.
1
Welcome
1.3 Controller Overview
Using the Controller software, a sound engineer can control a distributed network of Lake devices from a single location. Instant adjustments can be made to any parameter of any device on the network, or to selected device Groups. By creating Groups, the Controller can deliver the appropriate EQ and level settings to a large, segmented sound system.
A single device can belong to multiple Groups (up to 28); for example, a traditional arena-sized system comprises several left and right main stacks, side-, front-, and down-lls, and multiple levels of delays to different subsystems. Typical technology requires a chain of processing units to enable an overall stereo master and various sub-masters to individually control equalization, dynamics, and gain.
In contrast, the Controller can use multiple Groups to send global adjustments to all PA areas while still providing independent control of individual system components.
1.4 Manual Overview
This operation manual provides software installation instructions, a tutorial for new users, and full-detail reference information for all software functions and features of the Lake Controller user interface.
The manual is organized as follows:
▸ Chapter 1, Welcome, this chapter.
▸ Chapter 2, Software Installation, provides details for installing the Lake Controller software, along with
information for conguring various Tablet PC related options.
▸ Chapter 3, Network & Firewall Overview, provides information for PC networking and rewall congura-
tion, and verifying of both wired and wireless Lake Controller and device connectivity.
▸ Chapter 4, Lake Controller Tutorial, provides a tutorial that introduces the features of the software, and
the terminology utilized in the user interface.
▸ Chapter 5, Home Menu Reference, describes the top-level functions of the button bar located at the
bottom of the Lake Controller user interface.
▸ Chapter 6, EQ/Levels Menu Reference, details the functions found within the EQ/Levels menu. This
menu provides the most commonly used functions within the Lake Controller.
▸ Chapter 7, System Store Recall Menu Reference, describes menu functions related to saving and
recalling system conguration les.
▸ Chapter 8, Modules Menu Reference, details the functions found on the Modules Menu, including how
to store and recall Module les, Super Module functionality, adjusting the I/O conguration of Modules and Super Modules, and accessing other Module-specic functions.
2
Welcome
▸ Chapter 9, Module File Types & Lake LoadLibrary™, provides a reference for the available Module le
types, including traditional crossovers, linear phase crossovers, and Mesa EQ Modules.
▸ Chapter 10, Groups Menu Reference, describes Groups, which provide a sophisticated way to partition
complex systems, enabling system-wide control of EQ and Levels in real time. This chapter details all functions related to creating and assigning Modules to Groups.
▸ Chapter 11, Solo/Mute Menu Reference, describes functionality relating to Solo/Mute.
▸ Chapter 12, Icon Control Menu Reference, describes how to change the size of Module icons within the
interface, as well as how to change meter icon views.
▸ Chapter 13, User Preferences Menu Reference, provides explanation of the functions contained in the
User Preferences menu, including access to Designer Mode, daylight operation, Show mode, and more.
▸ Chapter 14, Pages Menu Reference, details the functions associated with adding and naming new page
displays within the user interface.
▸ Chapter 15, Network Menu Reference, describes how to change between available networks, along
with details on Multiple Controller functionality.
▸ Chapter 16, Communication and Synchronization, describes how the Lake Controller synchronizes to
Lake devices, and provides explanations and suggestions on how to resolve issues that may arise due to network problems, such as moving out of range of a wireless access point.
▸ Chapter 18, Analyzer Plug-in, details the functionality of the analyzer plug-in that enables the Lake
Controller to display and control third-party analyzers.
▸ Chapter 19, Designer Mode Menu Reference, details the security features provided by the Designer
Mode of operation.
▸ Chapter 20, Lake-enabled Amplier Reference, provides Lake Controller specic information relevant to
all Lake-enable ampliers (PLM, PLM+ and D Series).
▸ Chapter 21, LM Series Reference and Operation, provides Lake Controller specic information relevant
to the LM Series devices.
▸ Chapter 22, MY8-LAKE Reference and Operation, provides Lake Controller specic information relevant
to MY8-LAKE devices.
▸ Chapter 23, Global Events and Control, details the Lake Controller global functions for system control
and logging.
▸ Chapter 24, Keyboard Shortcuts, details the available Lake Controller keyboard shortcuts.
▸ Chapter 25, External Control Interfaces, describes the available external-control interfaces supported by
the Lake Controller, including GPIO, AMX®, Crestron®.
3
Welcome
▸ Chapter 26, Command Line Options, provides the list of available switches that can be used when
▸ Chapter 27, Firmware Update, presents the methods in which you can update the rmware of your Lake
▸ Chapter 28, Preset Manager, provides information on using the separate Preset Manager utilities that
▸ Chapter 29, IP Address Reference, provides reference information for conguring IP addresses for the
If you are using the Controller for the rst time, please read the tutorial in chapter 4 to become familiar with the features and terminology. For information on Lake device hardware and front panel functionality, please refer to the associated operation manuals.
The information in this manual is based on the use of a touchscreen Tablet PC, which utilizes a pen interface instead of a mouse. Therefore the word TAP is used instead of CLICK when referring to tapping the pen on the screen, which is equivalent to clicking the left mouse button. If you are using a mouse instead of a pen, substitute a click of your left mouse button when instructed to tap.
starting the Lake Controller to provide alternate functionality.
device using the associated Firmware Update Utilities.
are provided in the Lake Controller software suite.
Lake Controller and Lake device network.
4
Software Installation
2. Software Installation
These software installation instructions assume some basic knowledge of Microsoft Windows concepts, such as selecting menu items, locating folders and les, and starting programs. For more information on Windows, please consult your Windows documentation.
Before installing the Lake Controller software, please read the license agreement presented at the beginning of the Lake Controller software installer.
It is highly recommended that the video card driver is updated to the latest version prior to installing the Lake Controller software.
2.1 Computer Requirements
This section describes the recommended computer specications and settings for optimal use of the Lake Controller software.
2.1.1 General PC Requirements
▸ Microsoft DirectX® 8.1 or later
▸ 100/1000 Base-T wired Ethernet adapter and/or 802.11 wireless Ethernet adapter
▸ Latest video card drivers download and installed from the manufacturer’s website
2.1. 2 Recommended PC Specications
The recommended computer specications for using the Lake Controller software are:
▸ 1.5 GHz Dual Core Processor or faster
▸ 1 GB RAM or greater
▸ 256 MB video RAM or greater (ensure latest video drivers are installed)
▸ Windows 7 or later
▸ A touch-screen Tablet style interface
5
Software Installation
2.1.3 Minimum PC Specications
The minimum computer specications for using the Lake Controller software are:
▸ 1 GHz Processor (for Intel Atom processors the ‘emulation’ command line option is required - please
refer to “26. Command Line Options” on page 305)
▸ 512 MB RAM
▸ 128 MB video RAM WinXP, ‘emulation’ for Win 7 (ensure latest video drivers are installed)
▸ Windows XP Service Pack 3 or later
▸ A screen resolution of at least 1024 x 768 (800 x 600 works as well, but with reduced user experience,
with some features not directly accessible)
2.1.4 Video Card Settings
It is important that the video card is congured correctly to ensure smooth operation of the Lake Controller software. Incorrect video card settings may result in corruption of Graphics, unusual behavior, or unexpected exit of the Lake Controller software.
In addition to the settings presented below, please visit your video card manufacturer’s website and download the latest drivers for your specic video card. The video drivers that come pre-installed with Windows are often out of date and do not include enhancements provided by the video card manufacturer’s drivers. Almost all video card issues can be resolved by updating your video card driver to the latest release version.
It is highly recommended that the video card driver is updated to the latest version if you encounter any Graphical problems when using the Lake Controller software.
For optimal results, please ensure the follow settings are made on your Lake Controller PC:
▸ A display resolution of 1024 x 768 pixels or greater is recommended. Resolutions of 800 x 600 and
1024 x 600 pixels are supported, but provide a lower-quality interface with some features less acces­sible or unavailable.
▸ Color should be set to 32-bit (does work with 16 bit, but screen minimize / maximize is faster with a
32-bit color mode setting).
▸ 3D Acceleration set for best performance with anti-aliasing turned off.
6
Software Installation
▸ For high resolution tablet running Windows 8.1 or later, the Lake Controller enables Windows DPI scal-
ing. If native resolution is preferred, right-click the Lake Controller executable, select the Compatibility tab, and select Disable scaling for High-DPI. This option may improve performance on low specication processors.
2.1.5 Tablet PC and Laptop Power Settings
When using a wireless laptop or Tablet PC with the Lake Controller, you may need to switch off power­saving features, which can reduce the performance of yourPC.
If you experience slower performance while using the Controller on battery power, turn off any battery power-saving settings that affect general performance of your PC. Some battery optimizations also affect wireless connection speed; if you experience a slow wireless connection while in Battery mode, these settings should be disabled.
To turn off power-saving features, navigate using the Windows Control Panel:
1. Go to Windows Start Menu > Settings > Control Panel > Power Options
2. As settings vary depending on each Tablet or laptop, please consult the appropriate hardware manual for further information.
7
Software Installation
Figure 2-1: Power Option Properties
2.1.6 Tablet PC Input Panel Settings
Windows XP Tablet Edition provides the pen action Start Input Panel gesture, which starts the Tablet Input Panel (keyboard or writing pad). This gesture is a quick movement of the pen from side to side. If the Input Panel appears while using the Lake Controller, it will cause ickering because both the Controller and the Input Panel attempt to be in the foreground.
To disable the Input Panel gesture:
1. Access TABLET AND PEN SETTINGS through the Windows Control Panel.
Start Menu > Settings > Control Panel > Tablet and Pen Settings, Pen Options
2. Select PEN OPTIONS.
8
Software Installation
Figure 2-2: Tablet and Pen Settings
3. Select START INPUT PANEL GESTURE, and tap SETTINGS.
Figure 2-3: Disabling Start Input Panel Gesture
4. Uncheck ENABLE START INPUT PANEL GESTURE.
5. Tap OK.
6. Tap OK again to store your changes.
9
Software Installation
2.2 Lake Controller Installation
2.2.1 First Time Lake Controller Installation
To install the Lake Controller software suite, insert the installer CD-ROM or USB key into your computer or double-tap the executable installer that was downloaded via the Internet; choose INSTALL LAKE CONTROLLER then follow the on-screen setup instructions.
1. Read installation information, and tap NEXT to proceed through the installation dialog boxes.
2. Tap INSTALL when requested.
3. Tap FINISH when installation is complete.
Following successful installation, the Lake Controller icon appears on the desktop.
Before using the Lake Controller with a network of Lake devices, please follow the conguration procedures described in chapter3.
2.2.2 Overwriting Existing Lake Controller Installation
Overwriting an existing installation requires that both the Installation and Shortcut folders be identical to those of the existing installation.
If you decide to overwrite your existing installation, ensure that you specify the same location during the software installation process.
2.2.3 Multiple Lake Controller Installations
If you wish to retain previous versions of the Lake Controller, please ensure that the installation location specied during software installation is unique.
Only one instance of the software may be used at any one time. Be aware that different versions of the software are only compatible with certain rmware versions.
10
Software Installation
2.3 Moving User Files between Installations
To copy preset les from an existing (old) installation to a new Lake Controller installation.
1. Tap Windows Start > All Programs > Lake Controller vX.X > User Data Files Where X.X is previous version of the Lake Controller installation.
2. Tap Windows Start > All Programs > Lake Controller vY.Y > User Data Files Where Y.Y is the latest Lake Controller installation.
3. Use the two Explorer folders that are now visible to transfer user les and folders between the old and new installations of the Lake Controller.
User Data Files can be accessed in My Documents\Lake\
From Lake Controller v6.3.1 an option is provided to migrate user data content from v6.3 installations and later
11
Network & Firewall Overview
3. Network & Firewall Overview
This chapter provides an overview of key requirements in terms of rewall conguration, wired and wireless network conguration, and Dante audio network conguration. The separate Lake Network Conguration Guide and Dante conguration literature that is included as part of Lake Controller installation should also be consulted for additional information.
3.1 Ethernet Overview
The TCP/IP protocol suite is structured in layers as illustrated in Figure 3-1. The link layer is Ethernet and is responsible for connecting to the cabling and Ethernet switches. For communication to occur, each device must have a valid IP address. The IP layer uses these addresses to route packets between devices. The transport layer provides ows of data and is used by applications to communicate with each other over the network.
The Lake Controller uses UDP messaging to communicate with Lake devices on the network. Network setup and conguration is fast and easy; simply hook up all the devices on the network, and the Lake Controller software detects and communicates with all devices as required.
Figure 3-1: TCP/IP Protocol Suite
Lake devices are congured to use Automatic Private Addressing which allocates IP addresses from the range 169.254.x.x. In most scenarios, this automatic allocation setting will not need to be changed. How­ever, if the device is integrated into a sophisticated network conguration, the IP address allocation method can be changed using the Lake Controller software.
12
Network & Firewall Overview
3.2 Firewall Conguration
3. 2 .1 Overview
By default the Lake Controller Installer creates exceptions for all Lake applications, so manual conguration should not be required.
If all devices connected to the network are not appearing as expected, it is possible that a rewall is enabled and is blocking these programs from obtaining network access. Lake applications utilize TCP/IP networking for Controller and device communication and must be allowed access through any rewall in order to work correctly.
The Audinate services “common” and “Dante Discovery” must be installed and running for the Lake Controller Dante functionality to operate, and for the Lake Update utility to function correctly for PLM+ and D Series ampliers. Please ensure these services are allowed full access if requested, or restart to correct any problems should they occur.
UDP- Broadcast trafc cannot be blocked as it forms part of the unique device discovery process.
3.2.2 Windows 7 Specic
By default, Windows 7 security functions will display a security alert similar to that shown in the rst time each application is started.
Figure 3-2: Standard Windows Firewall Security Alert
13
Network & Firewall Overview
When using the standard Windows 7 rewall and an alert similar to that shown in Figure 3-2 is displayed:
1. Select checkboxes to allow the Lake Controller (or other Lake application) to access both the Private and Public networks.
2. Tap Allow Access.
When the Lake Controller or other Lake application opens without this warning, but connected Frames cannot be identied on the network, the application rewall settings can be veried manually:
1. Type “rewall” into the Windows 7 search feature as shown in Figure 3-3.
2. Select “Allow a program through Windows Firewall” from the list of Control Panel options.
3. Tap Change Settings and locate the Lake application in the list
4. Ensure all checkboxes are marked then tap OK
Figure 3-3: Allow a Program through Windows Firewall (via Win 7 Search)
3.3 IP Address Conguration
The network card of the host computer running the Lake Controller must have a valid IP address to com­municate with Lake devices on the network.
By default, Windows computers are congured to obtain an IP address automatically. This default setup works successfully for most congurations and is the recommended starting point. On an unmanaged network this option will allocate the PC an IP address from the range 169.254.x.x.
14
Network & Firewall Overview
If using automatic IP address allocation, please ensure your Ethernet switch and/or Lake devices are turned on and connected to your PC for a minute or so (Windows XP - generally faster on Windows 7) before start­ing the Lake Controller. This allows Windows time to correctly identify your PC’s IP address, and therefore allows the Lake Controller to communicate properly when it scans the network.
If you are on a managed network (such as a corporate network) with a DHCP server and you are having communication problems, it is recommended that you change the IP addressing mode on the devices to use DHCP. Please consult a network specialist if you have trouble with complex network congurations.
A xed IP address is useful if you are frequently switching between network adapters, or unplugging and reconnecting your network cable. The automatic IP address allocation used by Windows requires a valid network to be present, and can take up to one minute for the PC to discover its IP address. In this case it is recommended that you try using a xed IP address in the same subnet as that used by default address allocation (i.e. 169.254), but using the reserved ranges of either 169.254.0.x or 169.254.255.x.
The IP address ranges 169.254.0.x and 169.254.255.x are reserved by IANA so future use of these address ranges cannot be guaranteed.
You can specify a xed IP address by following these steps in Windows 7:
1. Tap the Windows Start icon, type “network” in the search bar then tap NETWORK AND SHARING CENTER from the options listed under the Control Panel heading as shown in Figure 3-4.
Figure 3-4: Opening Windows Network and Sharing Center
15
Network & Firewall Overview
2. Select the appropriate network connection (Local Area Connection or Wireless Network Connection) to congure, then select “Change settings of this connection” as shown in Figure 3-5.
Figure 3-5: Selecting Wired Network Connection
Although this tutorial uses Local Area Connection as an example, the principles also apply to Wireless Network Connection.
3. Select INTERNET PROTOCOL VERSION 4 (TCP/IPV4), and tap the PROPERTIES button.
Figure 3-6: Local Area Connection Properties
16
Network & Firewall Overview
4. Select “Use the following IP address,” enter an IP address, tap TAB or tap in the Subnet mask box to auto-populate with the correct mask.
Figure 3-7: TCP/IPv4 Properties
5. Tap OK to apply changes, and exit Internet Protocol (TCP/IP) Properties.
6. Tap OK to apply changes, and exit Local Area Connection Properties.
Please refer to Chapter 29 for more information on the selection of an appropriate IP address.
3.4 Wired Network Setup
3.4 .1 Overview
The Lake Controller host computer can be connected directly to any Lake device through the Ethernet con­nectors. Multiple devices can be connected by cascading connections between units, although this is not a recommended solution for the successful use of Dante™ (Digital Audio Networking via Ethernet). Connecting devices via a good quality external Ethernet switch with QoS is highly recommended. Please refer to tutorial section 4.3.6 for further information regarding Dante, and section 3.6.4 for details on using QoS with Dante.
The Lake Controller can be connected to a network of Lake devices using a wired or wireless Ethernet solution. A wired network is a simpler, faster and more robust solution and should be implemented where possible in preference to using a wireless system. Additionally, when implementing Dante audio networking in conjunction with a wireless access point for Lake Controller data, additional conguration of an external
17
Network & Firewall Overview
Ethernet switch is required to lter Dante audio trafc from reaching the access point. Please refer to section 3.6.3.
The Controller can connect anywhere on a network of Lake devices. LEDs next to each port ash to conrm valid communication. Please connect the Controller computer to the network with an Ethernet cable, and follow the verication steps in the next section.
3.4.2 Verifying Wired Controller and Device Communication
Once the network is connected, follow these steps to conrm communication between the Lake Controller and Lake devices:
1. Double-tap the Lake Controller shortcut icon from the Windows desktop. The SELECT NETWORK Adapter dialog box (shown) appears if your computer has more than one network interface enabled. This typically occurs if your PC has both wired and wireless network interfaces.
Only one network adapter should be enabled on your PC when using the Lake Controller. Network adapters can be disabled via the Windows Network and Sharing Center > Change Adapter Settings.
2. Select the Ethernet adapter currently used for the network (the wired adapter for this example).
Figure 3-8: Select Network Adapter
When the Controller begins, you will be prompted with a dialog box asking whether to load the last congu­ration.
3. Tap NO to this dialog. The Main page of the Controller is displayed.
4. To verify that the devices are on the network and communicating, tap the Modules button. The Module scroll bar will be displayed.
18
Network & Firewall Overview
Figure 3-9: Module Scroll Bar
The folder to the left of the Module scroll bar provides Virtual Frames, which are always available whether or not the network is connected. Virtual Frames allow you to create a complete system conguration ofine.
If your network connections are valid, all devices connected to the network appear on the Module scroll bar to the right of the Virtual Frames.
Figure 3-9 shows the Module scroll bar, which visually identies the number of Modules within each Frame on the network. The number of Modules within a Frame depends on the device type/conguration. Modules shown with a circle are available on the network, but not currently in use; Modules identied with text only are already in use in the current system conguration. Please refer to the tutorial in chapter 4 for more information on Modules and Frames.
3.5 Wireless Network Setup
3.5 .1 Overview
Several hardware manufacturers supply wireless networking solutions that adhere to the various 802.11 wireless Ethernet standards. This means that any standard Ethernet 802.11 wireless networking solution should work with this network system.
When using a wireless access point on the same network as Dante digital audio, an approved external Ethernet switch must be congured to lter Dante audio packets from reaching the wireless network. Please refer to section 3.6.3 for further information.
An access point is used in a wireless Ethernet network conguration to connect Lake devices to the Lake Controller host computer. The access point is connected to the wired network using standard Ethernet cables. It performs the same function as a switch: receiving, buffering, and transmitting data between wired and wireless networks.
19
Network & Firewall Overview
Figure 3-10: Basic Wireless Setup (Not Suitable for Use with Dante or larger networks)
Ideally, the procedure just described yields a perfectly functional and secure system. However, there are two complications: Some environments have additional wireless network systems and communications equipment competing for the same airspace used by the Lake system. It is also important to provide secu­rity so another wireless network cannot access this network system.
As part of the 802.11 standard, various levels of access control and encryption exist. There are also different communication channels that operate at different frequencies.
The service set identier (SSID) controls access to this wireless network by functioning as a password or key between wireless network devices to differentiate them from each other. The SSID must be exactly the same on all wireless devices (the access point and all Controller host computers). The SSID is case sensi­tive.
Although the SSID differentiates among wireless systems, it does not provide security to the network. Wired Equivalent Privacy (WEP) is a security protocol for wireless networks dened in the 802.11 standard. The WEP protocol provides the same level of security as a wired network by encrypting data over radio waves to protect it during transmission. It is recommend that WEP encryption is enabled if other computers are connected to your Ethernet network.
3.5.2 Conguring the Tablet PC for Wireless Networking
Assuming that the wireless access point has been set up appropriately and is turned on, we now need to congure the Tablet PC to connect to this access point.
1. Navigate to the Windows Network and Sharing Center as shown in Figure 3-4.
2. Tap the wireless signal strength icon at the bottom-right of the screen in the Windows notications area and select the wireless access point from the list that appears and tap CONNECT as shown in Figure 3-11.
20
Network & Firewall Overview
Figure 3-11: Connecting to a wireless access point
3. Enter the network security key, or press the button on the wireless access point if requested.
4. If you encounter network problems when using the default automatic IP address allocation (more likely with Windows XP), please setup a xed IP address as described in section 3.3.
Please refer to chapter 29 for more information on the selection of an appropriate IP address.
3.5.3 Conrming Wireless Operation of the Lake Controller
To conrm wireless operation:
1. Double-tap the LAKE CONTROLLER icon to start the software. If you have more than one network adapter enabled, the SELECT NETWORK ADAPTER dialog box will be displayed; select the WIRELESS NETWORK ADAPTER.
2. Tap NO when asked whether to recall the last conguration. A brief resync message will appear for each Lake device on your network, conrming that your network connection is operating properly.
3. Tap MODULES. Each online device is represented on the Module scroll bar by a number of Module icons surrounded by a border.
4. Tap QUIT CONTROLLER to exit.
21
Network & Firewall Overview
3.6 Dante and AES67 Digital Audio Networking
Dante and AES67 provide multi-channel digital audio networking over standard a standard Ethernet network, alongside control data for the Lake network. Various topics relating to network conguration are summarized in this section; for further details please refer to associated Dante literature available via:
Start > All Programs > Lake Controller vX.X > Documentation > Dante Documentation after installing the Lake Controller software.
Additional Dante product information is available at the Audinate website: http://www.audinate.com/
AES67 is a new open standard making it possible connect more devices together and share audio.
3.6 .1 Dante Controller Compatibility
All devices are compatible with Audinate’s Dante Controller software (not applicable for MY8-LAKE). AES67 conguration for AES67-enabled devices are also done in Dante Controller.
Changes made via the Lake Controller will be reected in the Dante Controller and vice-versa:
▸ When both the Lake Controller and Dante are active, changes will synchronize immediately across both
software controllers and affected devices.
▸ When Dante-related parameters are changed via the Lake Controller while the Dante Controller is
disconnected or closed, the Dante Controller will inherit the change the next time it is connected or opened.
▸ When Dante-related parameters are changed via the Dante Controller while the Lake Controller is
disconnected or closed, the Lake Controller will identify the Frames as Out of Sync the next time it is connected, or opened using the Recall Last System Conguration option.
3.6.2 Dual Redundant Network Conguration
With dual redundancy activated, the Controller can be connected to the secondary network connection using an IP address in the range 172.31.x.x. on the Lake Controller computer. This conguration allows for fail-over to the secondary network should a problem occur with the primary network. AES67 audio can only be transmitted and received on the Primary network. For PLM+ and D Series devices, it is also possible to manually congure the IP Conguration for the secondary network via Lake Controller Technical Data.
Do not connect Controllers to the primary and secondary network connections simultaneously.
22
Network & Firewall Overview
3.6.3 Using Dante with Wireless Data Control or Low-Bandwidth Devices
Dante (Digital Audio Networking) technology requires a reliable 100 Mbps (or faster) network to operate, and therefore cannot operate via a wireless transmitter/receiver. However, in most Lake networks, it is likely that wireless control of the Lake devices will be required on the same network that is transmitting and receiving Dante digital audio signals.
To achieve this, you must congure the Ethernet switch on the boundary of the wireless network to lter Dante trafc from reaching the wireless access point or other lower bandwidth devices (e.g. legacy devices such as the Contour Pro 26 or Mesa Quad EQ), or you will most likely experience communication problems.
The diagram below summarizes the desired outcome from correctly conguring your Ethernet switch to lter Dante audio packet
Figure 3-12: Using Dante with Low Bandwidth devices
Please refer to the Audinate® document AUD-ANO-ACL Filtering SRW224G4 for further details regarding ACL packet ltering. This document is available via:
Start > All Programs > Lake Controller vX.X > Documentation > Dante Documentation after installing the Lake Controller software.
Additional Dante product information is available at the Audinate website: http://www.audinate.com/
23
Network & Firewall Overview
3.6.4 Dante with Quality of Service Ethernet Switches
The use of an external Ethernet switch with QoS (Quality of Service) is strongly recommended when using Dante digital audio over your Lake network. Dante uses standard network QoS techniques available in off-the-shelf Ethernet switches to prioritize clocking and audio trafc, and to allow non-Dante devices such as personal computers to share a single network with Dante devices. The diagram below shows the order of priority given to the different types of data packets going through the switch. Using a switch without QoS, or with QoS turned off on a busy network, may result in audio packets arriving too late to be played out, resulting in audio glitches.
Figure 3-13: Dante Quality of Service Switch Conguration
Please refer to the Audinate document AUD-ANO-QoS Switch Conguration for further details regarding ACL packet ltering. This document is available via:
Start > All Programs > Lake Controller vX.X > Documentation > Dante Documentation after installing the Lake Controller software.
Additional Dante product information is available at the Audinate website: http://www.audinate.com/
24
Network & Firewall Overview
3.6.5 Recommended Network Topologies When Using Dante
The use of an external Ethernet 100 Mbps switch with QoS (Quality of Service) is highly recommended. It is also recommended that each device has its own direct connection to that switch. Where switches are connected together, this should be achieved via a gigabit ber or copper connection.
Figure 3-14: Recommended Network Topologies
Two Lake devices may be daisy chained together and run Dante. The recommended latency when connect­ing two Lake devices in this manner is 0.8 ms.
Figure 3-15: Only two Lake devices may be daisy chained for use with Dante
25
Network & Firewall Overview
More than two Lake devices should not be daisy chained together when Dante is being used.
Figure 3-16: Do not daisy chain more than two Lake devices when using Dante
The use of Dante across wireless networks as shown below is not supported.
Figure 3-17: Do not use Dante across wireless networks
Please refer to the Audinate document AUD-ANO-QoS Recommended Network Topologies for further details regarding ACL packet ltering.
This document is available via:
Start > All Programs > Lake Controller vX.X > Documentation > Dante Documentation after installing the Lake Controller software.
Additional Dante product information is available at the Audinate website: http://www.audinate.com/
26
Lake Controller Tutorial
4. Lake Controller Tutorial
This tutorial will help you start using the Lake Controller software quickly and easily by providing an overview of common features. There are many underlying details not covered in this tutorial, so please refer to the other sections of this manual for detailed reference information.
The tutorial uses the Lake LM 26 (Contour Mode) & LM 44 (Mesa Mode) these are the two main types of Modules that are available across Lake-enabled devices. You may however follow this tutorial with any product; most features and functionality are common across all products.
4.1 Starting the Lake Controller
To start the Lake Controller:
1. Double-tap the Lake Controller software icon located on the Microsoft® Windows® desktop.
2. Tap NO in the dialog box asking if you would like to recall the last conguration.
Tapping YES recalls the conguration in use prior to exiting the last Lake Controller session. A compari­son occurs and any differences are highlighted for online Modules. Audio processing is not affected.
The Main page appears and is in its default, blank state.
Figure 4-1: Main Lake Controller HOME Page
27
Lake Controller Tutorial
4.2 Overview of Main Page Components
This section covers the various components shown on the main page.
4. 2.1 Button Bar Interface
The button bar, located at the bottom of every page in the software, is used to navigate through and activate the Lake Controller features and functions. Three colors indicate the button status:
▸ ORANGE - currently selected menu or function
▸ BLUE - available menu or function based on current selection
▸ GRAY - currently unavailable menu or function
Figure 4-2: Context, Scroll and HOME Buttons
The button with the numbered arrows pointing upward shown in Figure 4-2 is the CONTEXT button, which enables fast system navigation. Contexts allow you to jump directly from one view to another view without having to use the tool bar for navigation. For further detail, please refer to section 13.1.
The button with arrows pointing right is active when a page or menu scroll bar contains more information than can be displayed on the width of the screen. Tap this button to move the scroll bar, pages, or overlay tabs to the right, revealing additional data.
The HOME button is available from almost all menu levels, and returns you to the Main page of the system.
Figure 4-3: Scroll and Undo Buttons
The scroll and undo buttons shown in Figure 4-3 are available on the right side of the button bar and may be active or deactive depending on the screen being viewed. The button with arrows pointing left moves the scroll bar, pages, or overlay tabs to the left.
The button labeled UNDO (or REDO after UNDO has been used) provides a single-level UNDO/REDO function for adjustments made to EQ/levels and crossovers (where applicable).
Generally, labels on buttons describe the open submenu or the function performed by tapping the button.
28
Lake Controller Tutorial
4.2.2 Help and Status Messages
Context-sensitive help is displayed above the button bar on the left.
Figure 4-4: Context Level Help
System status messages are displayed above the button bar on the right. In the following example, the network status is shown to be ofine.
Figure 4-5: Network Status Messages
4.2.3 Pa ge Tabs
At the top left of the user interface, the MAIN and ALL pages are presented. The MAIN page is the default page ready to use. The ALL page provides monitoring of up to 260 Modules on a 1,024 × 768 pixel screen without scrolling. It displays a status summary for each Module, with additional status information for Lab.gruppen ampliers. More pages can be added as required to logically partition your system.
Figure 4-6: Example Page Tabs
For further details, please refer to section 8.7.
4.2.4 Global Input Router Priority Control
If enabled, the Global Input Router Priority Control (formally known as “Digswitch”) makes it possible to control all input routers in the system. LM Mesa Mode devices can be excluded from this control via the separate option from the Global Control tab.
The function is to instantly switch between input router priority Force 1, 2, 3 or 4, or set to Autoselect. It is also possible to check the current status of all input routers in all frames in the system via the magnifying glass.
The Force options:
[Prio 1] forces all online devices in the current system conguration to use forced priority 1 input for all input routers. Prio 2, 3 and 4 work the same way for the associated input priorities.
29
Lake Controller Tutorial
Autoselect:
[Auto] sets all input routers to AUTOSELECT priority selection.
[Alert] can be used in conjunction with Auto. When Alert is enabled, an “Input Prio Drop” warning is displayed on the module and it will display the GSI (Global Status Indicator) warning if not all input routers for that device are using Prio1 in the input routers. This way it is easy to see if one or more devices have changed to a lower prioritized input.
[Magnifying glass] displays a matrix of all input router statuses for all frames (not including LM if excluded) in the current system conguration. Each cell is clickable and will then display the FrameLabel of the device(s) with input routers in that specic cell.
Figure 4-7: Prio button
Figure 4-8: Prio button expanded
4.2.5 Minimizing the Lake Controller
To minimize the Lake Controller software and return to Windows, tap the Lake icon in the top-right corner of any screen. When running in Windowed-mode, minimize the controller using the standard Windows minimize button.
Figure 4-9: Use the Lake logo (top right of screen) to minimize the Lake Controller
This icon is animated. It rotates when the software is performing any function that requires the user to wait for data to be transferred or for a processing to complete.
30
Lake Controller Tutorial
4.3 Modules and Frames
4. 3 .1 Overview
A Frame represents one physical Lake device on the network. Multiple Modules are contained within each Frame. The number of Modules available for a given device is dependent upon the signal processing conguration/capabilities of the device.
PRODUCT CONFIGURATION NUMBER OF MODULES
D 200:4L 4x4 Power Amplier 4 Contour Modules
D 120:4L 4x4 Power Amplier 4 Contour Modules
D 80:4L 4x4 Power Amplier 4 Contour Modules
D 40:4L 4x4 Power Amplier 4 Contour Modules
D 20:4L 4x4 Power Amplier 4 Contour Modules
D 10:4L 4x4 Power Amplier 4 Contour Modules
PLM+ 20K44 4x4 Power Amplier 4 Contour Modules
PLM+ 12K4 4 4x4 Power Amplier 4 Contour Modules
PLM+ 5K44 4x4 Power Amplier 4 Contour Modules
PLM 20000Q 2x4 Power Amplier 2 Contour Modules
PLM 14000 2x2 Power Amplier 2 Contour Modules
PLM 10000Q 2x4 Power Amplier 2 Contour Modules
2x6 Loudspeaker Processor 2 Contour Modules
Lake LM 26
4x4 System Equalizer 4 Mesa Modules
4x4 System Equalizer 4 Mesa Modules
Lake LM 44
2x6 Loudspeaker Processor 2 Contour Modules
4x12 Loudspeaker Processor 4 Contour Modules
MY8-LAKE
Table 4-1: Overview of Lake Devices and Module Congurations
Figure 4-10 shows the Module scroll bar displaying Virtual Frames for Lake-enable devices, after accessing the Virtual Frame folder.
8x8 System Equalizer 8 Mesa Modules 2x6 Loudspeaker Processor +
4x4 System Equalizer
2 Contour Modules + 4 Mesa Modules
31
Lake Controller Tutorial
Figure 4-11 shows the Module scroll bar displaying Virtual Frames for Lake-enable devices, after accessing the Virtual Frame folder.
To place an online Frame in the work area for use during this tutorial:
Figure 4-10: Module Scroll bar
Figure 4-11: Module Scroll bar - Virtual Frames
1. Tap the Module button to display the Module scroll bar as shown in Figure 4-11
2. Tap one of the gray circles (which indicates an available online Frame) The cursor takes on the form of the selected frame.
3. Place the selected Frame in the work area by tapping in the required location.
An LM 26 (Contour Mode) and an LM 44 (Mesa Mode) are used for most examples in this tutorial; the resulting screen will look similar to that shown in Figure 4-12, depending on the product you are using.
32
Lake Controller Tutorial
Figure 4-12: LM 26 Frame Placed in Main Work area
4.3.2 Module Icons
Each Module icon provides conguration information as shown in Figure 4-13.
Figure 4-13: Module Icon Components
▸ Module ID - Identies a particular Module within the device, represented by this icon.
▸ Frame Label - Identies the Frame (device) associated with this icon by a user-dened label that also
appears on the front panel of the device.
▸ Module Type - For Contour modules, this identies the number of output channels of the module. For
Classic and Aux modules it will only state the number of outputs, and for the other module types it will state XP, FIR or LP before the number of channels. MEq is for Mesa EQ Module.
▸ Module Label - User-dened label that describes the Module’s use or speaker type.
▸ Module Selection and Clip Indicator - The Module icon border is yellow to indicate the Module is
selected. If it ashes red, a channel on that Module is clipping.
33
Lake Controller Tutorial
▸ Power Output Mute Indicator (Lake-enabled ampliers only) - A red bar indicates the power output
channel is muted; a blue bar indicates it is unmuted. This indicator appears on the Module from where the channel is routed.
▸ Input Mute Indicator - If the central round part of the icon is red, the input is muted; if the icon is blue,
the input is not muted.
▸ Output Mute Indicators - Displayed as small red bars when the outputs are muted and are absent if
unmuted. The number of mute indicators depends on the number of output channels in the selected Module type.
▸ Module Label - Displays the label for the Module, in this case a default Classic 3-Way. The Module label
is by default changed to the name of the Module le recalled, but with use of Dynamic Module Label this behavior can be changed depending of the need. For further details on Module label abbreviations, Dynamic Module Label, and an explanation on Module types, please refer to chapter 9.
4.3.3 Selecting and Moving Icons
Multiple icons may be selected (via the MODULES, GROUPS, PAGES, and ICON CONTROL menus), provid­ing a faster solution to Graphical arrangement of the work area. For example, multiple icons can be dragged back to the scroll bar, moved around on screen, or dragged to another page tab. In addition, the icon meters can be enabled/disabled or icon size can be modied.
This example uses an LM 26 (Contour Mode) and an LM 44 (Mesa Mode) for demonstration purposes; the logic remains the same for all types of Group, Module, and Super Module icons.
1. Drag a box around the icons you wish to move.
Figure 4-14: Click and drag around Module icons
2. Release the pen (or mouse); icons inside the yellow rectangle are now selected.
Figure 4-15: Yellow border snaps to selected Module icons
34
3. Tap inside the yellow box, and drag it to the new area.
Figure 4-16: Dragging multiple Module icons
4. Release the pen (or mouse); the icons are now deselected.
Figure 4-17: Release to deselect Module icons
Lake Controller Tutorial
To drag icons to a new page, select the icons you wish to move and then drag them over the page’s tab at the top. That page will be automatically selected. You may then place the icons where required.
4.3.4 Labeling Frames and Modules
The Frame label initially shows the product code (e.g. 10000Q) which varies depending on the device. The Frame label is the same on all Modules in the Lake Controller, and on the front panel of the associated device. The Frame label helps to identify the physical location of a device on the network.
To label a Frame:
1. Tap the A Module to select it. A yellow border surrounding the Module icon indicates it is selected.
If a Module is not selected, most of the button bar functions are gray to signify they are inactive.
2. Tap LABEL & LOCK.
3. Tap LABEL FRAME to display the on-screen keyboard.
35
Lake Controller Tutorial
4. Type ‘Demo’ using the on-screen (or external) keyboard, and tap OK.
The Frame label eld for the Frame’s Modules displays ‘Demo’.
Figure 4-18: On-screen keyboard
Figure 4-19: Changing the Frame Label
Now let’s assign a name to the A Module:
5. Tap the A Module to select it.
6. Select LABEL MODULE from the button bar.
7. Name this Module ‘My 3-Way’ using the on-screen keyboard, and tap OK.
8. Tap LABEL EXIT to return to the MODULES menu.
Figure 4-20: Labelling a Module
To label a Super Module, select it in the work area and tap LABEL SUPERMOD.
36
Lake Controller Tutorial
4.3.5 I/O Cong
This section assumes the use of classic routing mode; all providing extensive I/O routing options. The MY8-LAKE in simplied view provides a xed output cong.
1. Tap the I/O CONFIG button to display the block diagrams of each Module in the Frame.
Figure 4-21: LM 44 I/O Conguration Screen with Input Conguration Summary enabled
The right side of the I/O CONFIG page can be dragged to scroll up and down for viewing of all Module block diagrams where all diagrams cannot t on the screen.
2. Tap any black space within the block diagram area and drag up or down to scroll. The I/O CONFIG page is interactive; each blue processing block can be selected to directly access the relevant screen in the software. Each block diagram has a front-end input mixer.
3. Tap any one of the four inputs of the ‘My 3-Way’ Module to access the input mixer.
37
Lake Controller Tutorial
Figure 4-22: Four-Channel Input Mixer
The number of inputs preset in the input mixer is relevant to the number of inputs available simultaneously for the device / module combination, and allows the inputs to be selected or mixed together appropriately.
4. Tap the exit button in the bottom-right corner of the Input Mixer pop-up window to return to the I/O CONFIG screen.
Each output can be custom congured by the user. Tap one of the zoom icons (represented by a magnify­ing glass) on the right side of the Module’s block diagram. This action will open the Output Conguration window.
38
Lake Controller Tutorial
Figure 4-23: LM 26 Output Conguration
The Output Conguration window provides the ability to route any physical input or Module output to any available analog or digital output on the device. The arrows below the source and destination labels allow selection and mapping of all available I/O.
LM Series devices provide the ability to route any of the eight the Input Router Outputs directly to any output. This allows fail-over input switching to be congured for pass-thru / format conversion purposes. For instance, an input router can be congured for fail-over to Analog if AES input fails, and the whichever audio is used can be passed through to Dante (or any other output type). For further information, please refer to section 21.1.
5. Tap the blue EXIT/RETURN button in the bottom right to return to the I/O CONFIG page.
The left side of the I/O CONFIG summary screen provides both clock and INPUT CONFIGURATION func­tions along with other Frame specic functionality. Status information is provided, and zoom icons open pop-up windows for access to conguration parameters.
Lake devices have sophisticated digital clocking systems, allowing selection between internal and external clock sources at all standard audio sample rates. By default, all Lake devices (except the MY8-LAKE) use
39
Lake Controller Tutorial
an internal clock operating at 96 kHz. You can choose to use any available external clock source using the interface provided by the clock source conguration window.
Figure 4-24: LM 44 Digital Clock Conguration
The current Primary Clock Source is shown on the top left of the screen, and the current Sample Rate Converter Clock Source is shown on the top right. You can choose any available clock source using the Clock Source Selector scroll bar at the bottom of this window. The Inputs/Outputs tab are available on some products providing quick access to set unique digital clocks for specic inputs and outputs.
Please refer to each product’s Operational manual for further details on clocks, clock source priorities, sample-rate converters, and signal processing latency the product.
The INPUT CONFIGURATION pop-out window allows exible routing of all available inputs to each Input Mixer channel along with a four-level auto-select priority allocation for each input, as shown in Figure 4-25.
40
Lake Controller Tutorial
Figure 4-25: LM 44 Input Conguration Screen
From this interface, you can allocate which input is used for each input channel of the Input Mixer, and in which order up to four inputs should auto-select (fail over) for each input channel.
The input AUTOSELECT feature allows you to set up a redundant system. The device will attempt to use the rst signal; if the rst signal is unavailable it will try the second, third, and fourth signals.
Tapping DISPLAY DETAILS allows control of digital clock selection/digital gain offsets and analog input headroom as shown in Figure 4-26.
DIGITAL GAIN OFFSET allows ne-tuning of gain between different digital and analog signals to allow for a seamless transition between the signal sources.
41
Lake Controller Tutorial
Figure 4-26: LM 44 Input Conguration - Details View
The next summary item on the left side of the I/O CONFIG screen (LM Series devices only) is GPIO Conguration. Tapping this icon, or the summary text, will display the screen shown in Figure 4-27.
Figure 4-27: GPIO Conguration (LM Series Devices Only)
GPIO Conguration is used to set the actions for this contact-closure style external control interface. For further details, please refer to the LM Series Operation Manual and to section 8.2.3 in this document.
The last item on the left side of the I/O CONFIG page allows remote control of Iso-Float™. This powerful feature allows you to troubleshoot grounding issues remotely from the Controller.
42
Lake Controller Tutorial
Figure 4-28: Analog Iso-Float Status Screen
The ANALOG ISO-FLOAT STATUS window shows you the current state of the device hardware and allows you to make changes to the grounding state of each analog converter card.
After closing the ANALOG ISO-FLOAT STATUS pop-up window, return to the Main page by tapping the HOME button.
4.3.6 Dante
Dante audio networking technology from Audinate provides a hassle-free digital audio networking solution for Dante-enabled Lake devices providing reliable, sample-accurate, low-latency audio distribution over Ethernet.
Dante provides a reliable, digital-audio networking system with complete exibility, ease of use, and cost-effectiveness. With innovative features such as Zen™, Dante-enabled Lake devices automatically nd each other and also allow any Dante audio channel on the network to be routed to the input of one or more devices.
Dante can be easily integrated into an existing network, sharing the system with normal data trafc. Dante also offers a virtual sound card feature for audio recording, processing or playback using computer-based programs. This feature is enabled by plugging into the standard Ethernet port on a PC; no external boxes or sound cards are required.
On Dante-enabled Lake devices no additional hardware is required; a single Ethernet connection can transmit all audio and control data. Table 8-3 on page 140 summarizes the number of Dante input and output channels per Lake product, along with an indication of whether the product provides dual redundant Dante audio networking which as described in section 3.6.2, and the associated Product Operation manuals. Some Dante-enabled Lake products also support AES67. For these products the Dante Conguration view is named “Dante and AES67 Conguration”.
43
Lake Controller Tutorial
The Audinate services ‘Dante ConMon’ and ‘Dante Discovery’ must be running to enable Dante congu­ration from the Lake Controller; restart these services if Dante-related problems persist.
4.3.7 Levels and Meters
From the Main page, tap the My 3-Way Module icon to display its parameters. This action will enter the EQ and Levels interface for the Module, displaying the EQ screen the rst time it is accessed.
Tap the LEVELS tab at the top left of the display to access the LEVELS interface. This provides metering information and faders for adjustment of gains, delays, and limiters.
By default, gain controls and meters are displayed for the input and all outputs of the Module. Mute controls are located below each input and output meter, with a polarity button for the input.
Figure 4-29: Levels Screen
To unmute the Module input, tap the red mute button labeled Input MUTED.
The Module input mute button controls the post input mixer signal mute. To adjust levels of each physical input, tap the Input Mixer button below the Module Input Mute button.
44
Lake Controller Tutorial
4.3.7.1 Adjusting Levels
There are three ways to adjust the gain of an input or output:
▸ Make large changes (1 dB increments) by tapping and sliding the fader.
▸ Make small adjustments (0.1 dB increments) by tapping and dragging above, below, or to the left of
each fader control.
▸ Adjust the gain to an exact value (0.01 dB increments) by tapping the gain value directly and using the
on-screen keyboard to enter the new value as follows:
1. Tap the input gain value (highlighted in blue at the top left of the screen).
2. Enter –3.75 dB of gain, and tap OK.
Figure 4-30: Using the parameter edit function to enter values
The same principles apply to adjusting other levels (delays, limiters, and so on) throughout the Lake Controller software.
To view/update other types of levels, simply tap the required type of level from the button bar (Delay, Limiter Max RMS, and so on). The faders and levels change to display the value of the selected level type.
4.3.7. 2 Metering
In the Levels interface, all input and output levels are accompanied by metering. Input meters show both average level and peak level, with a user-denable peak hold. Output meters show the aforementioned level metering on the left side of the meter face, and additionally show limiter activity on the right side of the meter face.
Regardless of the level type currently being adjusted, gain and limiter metering is always displayed.
If an audio channel is clipped, the meter face turns red. Additionally, if an audio channel is within 2 dB of clipping, the meter face turns orange.
45
Lake Controller Tutorial
Figure 4-31: Clipping and -2 dB warning indicators
As limiters are engaged, the amount of gain reduction is shown with a meter operating in the downward direction.
Figure 4-32: Orange downward meters indicate channel limiting
The limiter meter displays the total amount of limiting resulting from both peak and RMS limiter functions of the LimiterMax™ loudspeaker protection system.
46
Lake Controller Tutorial
4.4 Equalization
From the LEVELS interface, tap the EQ tab in the top-left corner of the display to move to the EQ controls for the Module. Parametric EQ (PEQ) is displayed by default.
Figure 4-33: PEQ tab with EQ lter tools and options
Multiple EQ overlays are identied by tabs at the top left of the display. A three-way Module initially has one Parametric (PEQ1) and one Band Level (BLEQ2) overlay, in addition to the XOVER tab. A Mesa EQ Module has a tab labeled HPF/LPF instead of XOVER.
The Parametric EQ overlay (PEQ) provides low-shelf, parametric, Mesa, and high-shelf lters. The Band Level EQ overlay (BLEQ) enables the creation and adjustment of linked lter bands. The XOVER screen allows selection and adjustment of crossover lters, in addition to output EQ.
4.4.1 EQ Overlay Store/Recall
EQ Overlays can be stored and recalled, either to an existing EQ Overlay which will replace the current EQ Overlay content or by Recall as New to add an additional EQ Overlay. All types of EQ Overlays can be stored and recalled to and from Modules and Groups.
When an EQ Overlay is stored or recalled, the path to where it was stored or recalled from is stored by the Module or Group. The path is relative the Modules and EQ Overlay folder, so it will function correctly for migrated les (i.e. the path information will always resolve to the My Documents > Lake Controller folder relevant for the software version after upgrade). If an EQ Overlay le is stored outside the Modules and EQ Overlay folder, the path will not be stored in the Module for that Overlay.
The paths for different EQ Overlays in Modules and Groups are also stored in the System le however the path is not stored in the frame. E.g. Recalling settings through a FramePreset recall, for dragging frames from scrollbar to the main workarea will not contain path information for EQ Overlays.
4.4.2 Graphic EQ
By default a Graphic EQ overlay is not present on Modules or Groups. To create an additional Graphic EQ Overlay follow the steps below:
1. Tap EQ Overlay Functions
2. Tap EQ Overlay New
47
Lake Controller Tutorial
3. Tap Graphic EQ.
A GEQ3 overlay will appear showing a 28-band Graphic EQ with third octave lters. The bottom section of the Graphic EQ screen contains the EQ Tool, which is used to select a frequency band for gain adjustment.
4. To select a frequency band, tap and drag the selector left or right. To adjust gain of the selected lter, tap the red rotating X and slide up to boost or down to cut.
If Frequency Lock is off (blue), the frequency can also be selected and changed by directly tapping and dragging a yellow X lter point on the EQ interface.
Figure 4-34: EQ Selector Tool
Figure 4-35: Graphic EQ Screen
5. Tap Filter Flat on the button bar to atten the selected lter.
Many other features are available on the EQ button bar; please refer to chapter 6 for further details.
48
Lake Controller Tutorial
4.4.3 Ideal Graphic EQ
A unique innovation found in all Lake devices is the Ideal Graphic EQ. Conventional analog and digital Graphic equalizers do not provide intuitive results. For example, pulling up the faders on a conventional Graphic equalizer to boost 6 dB at 500; 630; 800; 1,000; 1,250; 1,600; and 2,000 Hz produces the frequency response shown in Figure 4-36.
™
Figure 4-36: Conventional Graphic Equalization and Resulting Frequency Response
This measured frequency response is not what you would expect from the Graphic EQ controls.
If we use the Lake Controller GEQ overlay to boost 6 dB at 500; 630; 800; 1,000; 1,250; 1,600; and 2,000Hz, the frequency response is shown by the at top trace in Figure 4-37.
49
Lake Controller Tutorial
Figure 4-37: Lake Ideal Graphic EQ and Resulting Frequency Response
To implement this EQ overlay:
1. Tap and drag the lter tool on the bottom to 500 Hz.
2. Tap and drag the red X upward until the lter’s gain parameter reads 6 dB.
3. Perform these steps for each of the frequencies listed.
The bottom trace in Figure 4-37 shows that the adjacent lters on a Contour or Mesa EQ sum to at, unlike all previous Graphic equalizer implementations. This is because of the raised cosine lters that give rise to the Ideal Graphic EQ.
Figure 3-7 shows a traditional third-octave Graphic EQ lter (red curve) in comparison to a third-octave raised cosine lter. The area highlighted gray shows the difference between the two lter shapes.
50
Lake Controller Tutorial
Figure 4-38: Comparison of Raised Cosine (blue) and Traditional Third-Octave (red)
4.4.4 EQ Overlays
The concept of EQ overlays is another innovative Lake feature. Tap the PEQ1 tab at the top of the screen. PEQ1, BLEQ2 and GEQ3 are all different EQ overlays. The white line represents the composite response of all EQ overlays, including those from the Module and Overlays from all assigned Groups. A grey line, if visible separate from the white line, indicates the EQ response for the selected overlay only.
With the PEQ1 screen selected in Figure 4-1 on page 27, the white line (composite curve) indicates the wide band 6 dB boost created in the GEQ3 overlay. The next section illustrates how multiple EQ overlays interact.
4.4.5 Parametric EQ
To add a Parametric lter to the PEQ1 overlay:
1. Tap the Parametric lter at top of the EQ display.
2. Tap the screen near 125 Hz to insert the lter there.
51
Lake Controller Tutorial
Figure 4-39: Adding a Parametric EQ lter on the PEQ1 Overlay
The Parametric lter tool is similar to Graphic EQ tool except the lter bandwidth is adjustable.
3. Tap and drag the red X up to boost the volume of this frequency.
Figure 4-40: Changing lter gain by dragging the lter point
4. Tap and drag either of the vertical end lines on the lter tool to increase the bandwidth as shown:
Figure 4-41: Changing the lter bandwidth using the EQ tool
5. Change the center frequency of the Parametric lter by tapping and dragging inside the vertical divider lines of the EQ tool.
52
Lake Controller Tutorial
6. Drag the Parametric lter into the same frequency range as the GEQ3 lters to see the result of all the lters (the white composite line in the previous gure).
4.4.6 Mesa Filter
The Mesa lter is a highly versatile lter that can rapidly adjust a loudspeaker’s frequency response. The Mesa lter provides a fast, effective optimization tool that truly matches a loudspeaker’s asymmetric response. The Mesa lter allows independent adjustment of the slopes and center frequencies of the lower and higher edges.
To add a Mesa lter to the PEQ1 overlay:
1. Tap the Mesa lter type at the top of the EQ interface.
2. Tap the EQ display near the frequency you wish to insert the Mesa lter.
Figure 4-42: Adding a Mesa lter
3. Tap and drag up between the red X marks in the EQ display to increase gain.
53
Lake Controller Tutorial
The Mesa lter tool has four dividing lines.
Figure 4-43: Increasing the gain on a Mesa lter
Figure 4-44: Mesa EQ Filter Tool
4. Tap between the center and right dividing lines and drag to the right. This spreads the lter points, creating a variable-width at top.
Figure 4-45: Adjusting the Mesa lter width
5. Tap and drag to the left of the far-left divider line.
54
Figure 4-46: Adjusting a Mesa Filter Slope
Figure 4-47: Effect of Adjusting the Mesa Filter Slope
The same principle applies to the high-frequency edge (right side).
6. Tap and drag between the two center divider lines to change the frequency.
Lake Controller Tutorial
4.5 Crossovers
The Lake Controller, when used in conjunction with Contour loudspeaker Modules, allows real-time adjust­ments to crossovers through the XOVER screen.
Crossover frequency and type and post-crossover equalization can be adjusted. In the default three-way conguration, the Contour Module has 24 dB Linkwitz-Riley crossovers with center frequencies set at 250 Hz and 1.6 kHz. Tap the XOVER tab to view the crossover interface.
Figure 4-48: Crossover Screen
The low-output crossover is selected in this example. Use the crossover tool to change the center fre­quency. The low and high parts of the crossover are currently combined. Tap the CROSSOVER SPLIT button
55
Lake Controller Tutorial
to split the crossover, and drag the CROSSOVER SELECTor tool left to reduce the frequencies sent to the low output.
Parametric lters (with the exception of the Mesa lter) can be added to further modify the crossover. Add a Parametric lter near the center frequency of the low-output crossover.
Figure 4-49: Splitting and moving the low channel HPF
Figure 4-50: Adding a Parametric EQ to the low channel
The full response of the Parametric lter is shown in blue, but the Parametric lter affects only the output it is associated with. The solid white line shows the resulting crossover curve for the low output.
Tap the CROSSOVER SELECT button to display the crossover scroll bar, from which you can select various standard crossover types. If crossover sections are combined, the new CROSSOVER SELECTion is applied to both sides of the selected crossover. If crossovers are split, the CROSSOVER SELECTion applies only to the currently selected output.
To change the crossover type to a 48 dB Linkwitz-Riley:
1. Tap the 1.6 kHz lter box to select that crossover.
2. Tap CROSSOVER SELECT.
3. Select 48 dB Linkwitz/Riley from the scroll bar.
4. Tap CROSSOVER SET.
56
Lake Controller Tutorial
5. Tap YES in the dialog box to load the new crossover.

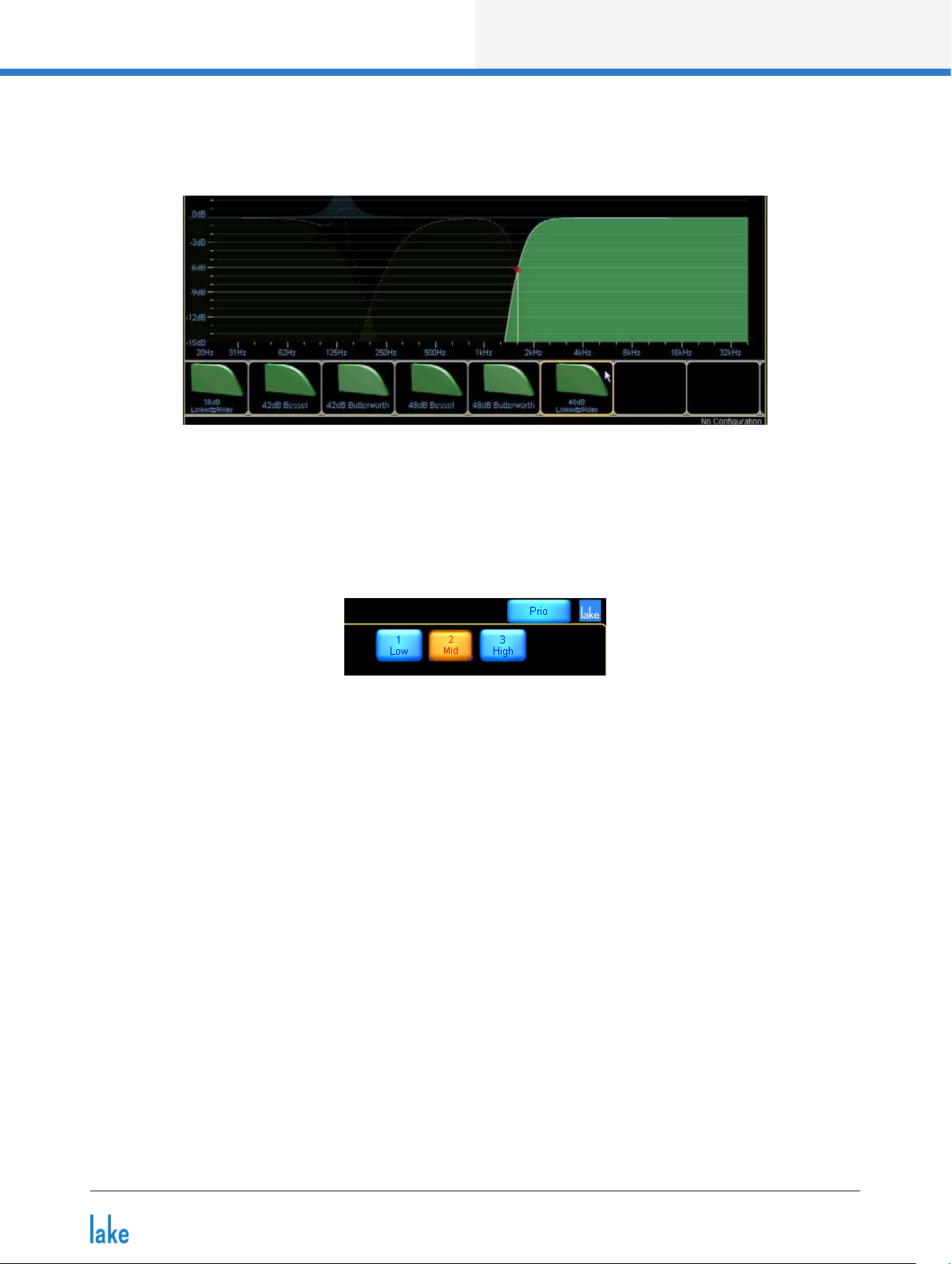

Figure 4-51: Changing the crossover slope
The crossover interface provides a fast and easy method for conguring your loudspeaker system. You can create your own presets or build them based upon data available from speaker manufacturers.
For XP modules 2-way, 3-way and 4-way, the XOVER screen has an Output selector available in the top right corner where the specic output is selected.
4.6 Groups
The Lake Controller allows Grouping of multiple Modules. This unique concept allows the EQ and levels of multiple Modules to be changed with a single adjustment. Every Module may be a member of up to 28 Groups.
All EQ functions available for a Module are also available for a Group, with a maximum of four EQ overlays per Group.
Most Levels functions are also available for Groups, except the following:
▸ LimiterMax RMS Corner
▸ LimiterMax RMS Attack
▸ LimiterMax RMS Release
▸ Input Headroom
▸ Control of output levels where the Group contains Modules of varying crossover types (e.g. 3-Way and
4-Way Modules assigned to the same Group).
57
Lake Controller Tutorial
4.6.6.1 Assigning Modules to a Group
To assign both Modules of a Frame to a Group:
1. Tap the HOME button to locate to the MAIN page.
2. Tap the GROUPS button to display the Groups scroll bar.
3. Tap GROUP 1, and then tap the MAIN page to add the Group to your conguration.
Figure 4-52: Adding a Group to the Main page
4. Tap the TOGGLE ASSIGN button, and tap the icons for Modules A and B to assign them to the Group. Assigned Modules are highlighted with a yellow border. It is also possible to use multi-selection to assign, see section 10.3 Assign for further info.
Figure 4-53: Assigning Modules to a Group
5. Tap the ASSIGN button again to exit ASSIGN mode.
6. Tap GROUPS EXIT or HOME to return to the MAIN page.
58
Lake Controller Tutorial
4.7 Lake Controller File Types
Before saving the simple conguration just created, it is useful to learn about the le types used to store and recall settings within the Lake Controller software. The following sections describe the various le types.
4.7.1 Base Conguration Files
A base conguration le denes a starting point for the Module setup. It can contain EQ, crossover, and level settings that can be hidden or protected from end-user adjustment. The result of all EQ, levels, and crossover settings for the Module, and any Group that it belongs to, can be combined and stored in the base conguration le.
Figure 4-54: Contour [.cbm] & Mesa [.mbm] Base Conguration Files
4.7.2 Single Module File
These les store all information contained in the base conguration le plus user settings for each Module including the mute states, levels (gain, delay, and limiters), and equalization (lters and EQ overlays).
Figure 4-55: Contour [.csm] and Mesa [.msm] Single Module Files
4.7.3 System Conguration File
This le stores/recalls all information contained within all Contour or Mesa single-Module les on a given network, and additionally includes generic Frame data and all Group assignments and settings.
59
Lake Controller Tutorial
Figure 4-56: Lake Controller System Conguration File [.csc]
4.7.4 Storing a System Conguration
To store a system conguration le:
1. Tap HOME.
2. Tap SYSTEM STORE/RECALL to display the scroll bar.
3. Tap the STORE SYSTEM button to display the on-screen keyboard.
4. Name the system conguration ‘Example’ and tap OK. The system conguration is stored and the le is displayed in the scroll bar.
5. Tap the le labelled ‘Example’ to select it. This activates all recall and store options on the SYSTEM STORE/RECALL button bar.
▸ RECALL AS NEW SYSTEM clears current conguration and loads the selected conguration.
▸ RECALL AS SUB-SYSTEM retains the current conguration and appends the selected conguration.
▸ RECALL COMPARE allows a comparison between the data stored on le and the current system
conguration.
▸ RECALL AS VIRTUAL SS (Sub System) loads the data from the le into a virtual ofine system, append-
ing it to any currently recalled system conguration.
▸ STORE SYSTEM stores the entire conguration.
▸ STORE SUB-SYSTEM stores only the data in the selected Modules and Groups.
60
Lake Controller Tutorial
Individual Module settings can also be stored to a le. The single-Module le stores everything about a particular Module, including its EQ overlays, but does not retain Frame data (such as I/O cong) or Group assignments. This le can be recalled into any Module of the same type (Contour/Mesa).
4.7.5 Storing a Single Module File
To store the settings of a single Module:
1. Tap the HOME button, then tap MODULES.
2. Select the Module ‘My 3-Way’.
3. Tap MODULE STORE/RECALL.
4. Tap FILE UTILITIES, then NEW FOLDER.
5. Enter the folder name ‘Test’, and tap OK.
6. Tap FILE UTIL EXIT
7. Double-tap the folder icon labelled ‘Test’ on the scroll bar to open it.
8. Tap NEW STORE, name the le My 3-Way, then tap OK.
61
Home Menu Reference
5. Home Menu Reference
This chapter provides detailed information on the top-level structure of the Lake Controller button bar, located at the bottom of every display within the software.
5.1 Main Screen Home Menu
When the Controller starts, the MAIN page, ALL page, and HOME button bar are displayed.
Figure 5-1: Main Screen - HOME Menu
From the HOME button bar, you can navigate to all user-interface displays and functions provided by the Controller. Table 5-1 provides a description of each button.
62
Button Description
Available from most screens in the Lake Controller, the HOME button returns you to the top-level display.
Submenu providing functionality for storing and recalling system congura­tion les. File utilities are also provided for creating, renaming, and deleting les and folders.
Submenu providing Module functionality. This is one of the most extensive menus within the Controller, providing access to Modules, Super Modules, EQ, Levels, I/O Conguration, labeling, locking, copying, pasting, removing, recalling, and storing.
Submenu providing Grouping functions. Groups are a powerful component of the Controller, allowing you to Group any number of Modules into logical partitions. Groups provide EQ level control across the set of Modules that are assigned to the given Group.
Submenu providing solo and mute functionality. The solo/mute controls allow you to solo Modules and Groups, and also provide a mode to allow soloing for multiple Modules and Groups.
Submenu providing page functions. You can add pages, label pages, and move Groups and Modules between the pages that you create.
Submenu providing user preferences. These functions include contexts, delay units, designer mode functions, keyboard shortcuts, Graphic options (incl. windowed/fullscreen display modes), and show mode.
Submenu providing options to control icon size and icon metering.
Submenu providing network functions. You can select between available networks and access multiple-controller functions.
Quits the Lake Controller.
Home Menu Reference
Table 5-1: Summary of HOME Menu Options
63
Home Menu Reference
The menu reference chapters that follow this chapter provide detailed reference for each of the top-level functions on the HOME button bar.
5.2 Accessing EQ/Levels from HOME
When the Lake Controller displays the HOME button bar, you can tap any icon on the current page to immediately access the EQ/Levels interface for the given Module, Super Module, or Group. This provides instant access to the Module or Group, without having to navigate through the button bar to gain access to these most important parameters.
Tapping a Module icon from HOME is equivalent to the following sequence:
1. From HOME, tap MODULES.
2. Tap a Module icon to select the Module.
3. Tap EQ/LEVELS.
Tapping a Group icon from HOME is equivalent to the following sequence:
1. From HOME, tap GROUPS.
2. Tap a Group icon to select the Group.
3. Tap EQ/LEVELS.
Since the EQ/Levels interface for Modules and Groups is the most frequently used component of the Lake Controller, this is the rst menu reference chapter to be presented.
64
EQ/Levels Menu Reference
6. EQ/Levels Menu Reference
The EQ/Levels functionality of the Lake Controller provides a sophisticated and accurate real-time interface to both Modules and Groups on the network. Modules and Groups require different features and functions for setup and conguration, although they provide the same EQ and level functionality for system optimiza­tion and during the show.
6.1 EQ/Levels Overview
Figure 6-1 shows a general overview of how Modules and Groups utilize the same EQ/Levels interface for access to the underlying signal processing parameters.
Figure 6-1: EQ/Levels Overview
Modules, Super Modules, and Groups use the EQ/Levels interface to present gain, polarity, delay, limiter, EQ, crossover, and auxiliary output parameters to the sound engineer. When adjusting any of these parameters from a Module, the sound engineer makes changes to a single Module on the network. When adjusting any of these parameters from a Group, the sound engineer makes changes simultaneously to a Group of Modules on the network.
This chapter provides a menu reference for EQ/Levels functionality, which can be accessed from multiple locations within the Controller.
65
EQ/Levels Menu Reference
6.1.1 General Access
The EQ/LEVELS button accesses the following information:
▸ Module and Group Parametric EQ (PEQ)
▸ Module and Group Band Level EQ (BLEQ)
▸ Module and Group Graphic EQ (GEQ)
▸ Module and Group levels (gain, delays, limiters, etc.)
▸ Module crossovers and high-pass lter/low-pass lter (HPF/LPF) (Contour) or HPF/LPF only (Mesa EQ)
The EQ/Levels functions can be accessed by several methods from the following menu locations:
▸ HOME Tap a Module/Group icon once
▸ MODULES Select a Module/Group icon, then tap the EQ/Levels button
▸ GROUPS Select a Module/Group icon, then tap the EQ/Levels button
▸ SOLO/MUTE Select a Module/Group icon, then tap the EQ/Levels button
▸ I/O CONFIG Tap a section of the interactive block diagram
6.1.2 Restricted Access
The Lake Controller provides security by allowing a system designer to hide parts of the system or set them to View Only. This can be done globally in a system, or for individual Modules. This security specication may affect the screens allowed to be displayed when accessing EQ/Levels. Please refer to chapter 19 for further details.
6.1.3 Group Adjustments
Group EQ and levels are in “view only” mode when viewing via a Module. To adjust Group EQ or levels, access the Group EQ/Levels page via the Group icon.
Groups do not have a Xover or HPF/LPF page. However, the Gang Xover/Aux/HPF/LPF functions, available from the Groups menu, can be used to link the Xover/Aux/HPF/LPF for all Modules in a Group.
Group Gang is not available for XP Modules.
66
EQ/Levels Menu Reference
6.1.4 Default Settings
The following example shows the available screens and default EQ overlays for a Contour loudspeaker Module placed on the Main page of the Lake Controller.
Figure 6-2: Default Screen Tabs for Contour Loudspeaker Module
The default Module contains a Classic 3-Way (CL3way) crossover. The default tabs for this Module are:
▸ LEVELS Displays gain, delay and limiters
▸ XOVER Displays crossover and output EQ settings
▸ PEQ1 Parametric EQ overlay
▸ BLEQ2 Band Level EQ overlay
Tap the LEVELS tab to toggle between LEVELS and the XOVER / EQ screens.
These four screen tabs cannot be deleted, but they can be hidden if required. Please refer to the Designer Mode chapter in this manual for further details.
67
EQ/Levels Menu Reference
6.2 Levels
Figure 6-3 shows the LEVELS interface for a Classic 3-Way Module with letters identifying key features.
Figure 6-3: Levels Screen Overview
Table 6-1 on page 69 provides denitions for the labels in Figure 6-3 above.
Level Limits
All levels are subject to limits set by the system designer. If you are unable to change a value to the desired level, this may be due to restrictions set for that channel.
Hidden Output Channels
A system designer may choose to hide an output channel if it is not being used. It is possible that the number of visible output channels will differ from the number suggested by the Module type.
68
Label Function Description
For Modules, the value presented in brackets represents the overall parameter value, which includes any Groups the Module
A Parameter Values
B Limiter Indicator
C Frame/Module/Group Label
D Fader
E Additional Outputs
F Peak Level / Peak Hold
is assigned to. The bottom value (in the blue box) represents the value of the Module parameter.
The Group parameter value is shown in the blue edit box. Indicates the total RMS and peak limiting gain reduction with an
orange bar that moves downward as gain reduction increases. Modules display the selected Module’s name.
Groups display the name of the Module providing metering. Drag the fader up or down to adjust its level. Drag below, above,
or to the left of the fader to adjust by smaller increments. For a 4-, 5-, or 6-Way/Aux Module, additional output channels
appear here. The number of output channels depends on the Module type.
Indicates peak level with a thin green bar, and peak hold with a wide orange segment.
EQ/Levels Menu Reference
G RMS Level Indicator Indicates RMS level with a wide green bar.
The channel label is user dened. The color and label of the mute button identies the mute status of the channel:
A blue UNMUTED button = channel unmuted
A red MUTED button = channel muted
Input Channel
H
Label Mute Button Polarity Button
I Input Mixer
J Input Router Mutes
K Events & Control
L Levels Menu Button Bar
Table 6-1: Function Descriptions for Levels Screen
Modules: A red button with blue text denotes the channel has been muted by a Group the Module is assigned to. The polarity button for the channel is located to the right of the mute button.
Groups: An orange button with blue text denotes that at least one Module in that Group has the channel muted. A red mute button with blue text denotes the channel is muted on all Modules in the Group. The polarity button is not available at Group level.
Modules only - provides access to the Input Mixer, which allows audio input channel from available Input Routers to be enabled, disabled, and mixed as required.
Modules only - provides access to the Input Router Mutes, which will affect any Module on a device using selected Input Router.
Opens a screen containing product specic event logging and other features (not applicable for MY8-LAKE)
The functions and submenus available on the Levels screens are described throughout in this section.
69
EQ/Levels Menu Reference
6. 2.1 Gain
Tap GAIN to display the gain levels for each channel of the selected Module/Group. To adjust gain values, drag the fader (D) for large increments, drag above or below the fader for ne adjustment, or tap the value (A) for keyboard entry.
6.2.2 Delay
Tap DELAY to display the delay time for each channel of the selected Module/Group. Delay values can be adjusted in four ways:
▸ Drag the fader (D) to adjust by large increments
▸ Drag above or below the fader for ne adjustment
▸ Drag on the meter to the left of the fader for very ne adjustment
▸ Tap the delay value (A) for keyboard entry
A total delay of 2,000 ms (input plus output) can be set, subject to level limits set by the system designer.
6.2.3 LimiterMax
Tap the LIMITERMAX button to view a submenu containing functions relating to the MaxRMS and MaxPeak limiters and access to the Multiband Limiter Conguration (XP modules only).
6.2 . 3 .1 MaxRMS Level
Tap MAXRMS LEVEL to display the maximum RMS signal level (dB) allowed at the output. An orange bar moves downward from the top of the channel meter to indicate the limiting amount. To adjust Limiter MaxRMS values, drag the fader (D) for large increments, drag above or below the fader for ne adjustment, or tap the value (A) for keyboard entry.
The MaxRMS Level value is relative to the factory MaxRMS value (dBu). While dragging the fader, the total value is displayed in the status bar as dBu-rms, dBV-rms and Vrms.
6.2.3.2 MaxRMS Corner
™
MaxRMS Corner applies to Modules only; this function is inactive if a Group is selected.
This limiter corner function softens MaxRMS limiting by creating a curve that gradually introduces limiting. This function is similar to an audio compressor’s knee function. For example, if MaxRMS Level equals –6
70
EQ/Levels Menu Reference
dB and Limiter Corner equals –4 dB, limiting begins gradually when the Max RMS level reaches –10 dB and increases until maximum limiting occurs at –6 dB.
Tap MAXRMS CORNER to display the value (dB) for each channel of the selected Module. To adjust, drag the fader (D) or tap the value (A) for keyboard entry.
6.2.3.3 MaxRMS Attack and MaxRMS Release
MaxRMS Attack MaxRMS Release apply only to Modules; these functions are inactive if a Group is selected.
The attack and release times (also referred to as ‘time constants’) determine the time in milliseconds that the MaxRMS Limiter takes to fully engage and disengage once the MaxRMS Corner level has been reached.
Tap MAXRMS ATTACK or MAXRMS RELEASE to display the value (ms) for each channel of the selected Module. To adjust the value, drag the fader (D) or tap the value (A) for keyboard entry.
6.2.3.4 Auto Time Constant
The MaxRMS attack and release values may be set manually by the user, or may be calculated automati­cally. Automatic calculation is determined by the crossover frequency of the channel’s high-pass lter, if applicable. Otherwise, it is xed at 160 ms.
The TC AUTO button is displayed underneath the slider when viewing either the attack or release settings. When TC AUTO is enabled (Orange), the slider is disabled and the attack or release values are calculated automatically.
Figure 6-4: Tc Auto Attack and Release Controls
6.2.3.5 MaxPeak Level
Tap MAXPEAK LEVEL to display the maximum peak signal level (dB) allowed at the output.
71
EQ/Levels Menu Reference
The MaxPeak limiter process is disabled when the total MaxPeak level (including Group and factory settings) is 25 dBu or greater.
An orange bar moves downward from the top of the channel meter to indicate the limiting amount. To adjust Limiter MaxPeak values, drag the fader (D) for large increments, drag above or below the fader for ne adjustment, or tap the value (A) for keyboard entry.
The MaxPeak Level value is relative to the factory MaxPeak value (dBu-pk). While dragging the fader, the total value is displayed in the status bar as dBu-pk, dBV-pk, and Vpk
6.2.3.6 Multiband Limiter (XP modules only)
For XP modules, there is an optional Multiband Limiter. Access to the Multiband Limiter is available via the Multiband Limiter button in the LimiterMax view. Note that for locked modules, the Multiband Limiter can be locked away by the creator of the Speaker Preset, or the Multiband Limiter button can be congured to go directly to All-view without any conguration accessible.
Figure 6-5: Multiband Limiter Conguration button
6.2.3.6.1 Multiband Limiter Conguration
The Multiband Limiter offers the ability to congure the limiter to act differently on different frequency bands within one module output. The advantage this offers over a full-bandwidth limiter is that audible “pumping” in other frequency bands is not caused by changing signal levels in a single frequency band. The Multiband Limiter offers up to three separate bands per Module Output. These bands can be merged if fewer bands are desired.
The crossover to divide the signal into the different bands uses proprietary Zero Phase Shift lters, which makes it possible to sum the bands. The Multiband Limiter can also be enabled on some of the outputs and disabled on others with minimal acoustic summing phase distortion. It is also possible to link the limiters between the bands in Soft, Medium or Hard options.
72
EQ/Levels Menu Reference
Figure 6-6: Multiband Limiter Conguration view for an XP4way
module with a three band MBL enabled on each of the four outputs
73
EQ/Levels Menu Reference
Label Function Description
A Module Output
Selector
B Split Frequency
Control
C Enable the Multi-
band Limiter
D Select Fader
Function
E Desiger Mode
Selections
F ALL The ALL view will display Meters and Mute buttons for all bands within the
G Band Button Each band within the Multiband Limiter have a button below the meter. By
H Module Output
Button
I Select Button
Function
J Band Fader The band fader will adjust the limiter threshold for the function selected in (D).
Select the Module Output to work on. For an XP1way, there is only one module output. XP2way will display two ouputs, XP3 will display three outputs and XP4 will display four outputs. Below the selector, the Label(s) of each band within that output are displayed. If the band is muted, the label is displayed in red. If the band is bypassed, the label is displayed in grey. The number of bands displayed depends on how many bands the output has. If the Multiband Limiter is disabled for an Output, it will say “DISABLED” in black on grey background.
Displays and enables adjustment of the split frequency used for the proprietory Zero Phase Shift crossover lters creating the bands.
This button enables or disables the Multiband Limiter for the selected Module Output. This makes it possible to enable the Multiband Limiter on one or more of the Module outputs for the Module individually.
Selects what function the Fader will have: MaxRMS Level MaxRMS Corner MaxRMS Attack MaxRMS Release MaxPeal Level
These buttons are only available while in Designer mode for an unlocked module. Level Limits = will display the Level Limits conguration for the Multiband Limiter as well as other access rights. Adjust Factory = makes it possible to congure Factory offset values.
Module. For example, for a XP4way with all three bands enabled on each mod­ule output, ALL view will display all 12 bands at the same time.
default, this is a mute button, but the function for the button is selected in the Buttom Mode menu (I). The button can function for: Mute = Mute or unmute the selected band Bypass = Bypass all limiters for the band Label = Label the band Merge/Split = Merge the center band with either the lower and/or the higher band, making it possible to create a two-band or one-band multiband limiter.
Button for the Module Output selected in (A) and function selected in (I).
This selection will decide the function of the band buttons (G) and Module output button (H)
Drag the fader up or down to adjust its level. Drag below, above, or to the left of the fader to adjust by smaller increments.
74
EQ/Levels Menu Reference
Label Function Description
K Band Meter The band meter will display RMS level with a wide green bar, display peak level
with a thin green bar, and peak hold with a wide orange segment. The total RMS and peak limiting gain reduction is indicated with an orange bar that moves downward as gain reduction increases. When the Limiter is bypassed, the gain reduction meter changes to striped grey, indicating the amount of gain reduction that would have been applied to the signal if the limiter was inserted.
L Module Output
Meter
6.2.4 Enable Mute
This button locks and unlocks the mute buttons and is active by default (that is, muting or unmuting is allowed). When the button is active (orange), channel muting via the Controller is enabled. When the button is inactive (blue), channel muting is disabled.
The band meter will display RMS level with a wide green bar, peak level with a thin green bar, and peak hold with a wide orange segment. The total RMS and peak limiting gain reduction is indicated with an orange bar that moves downward as gain reduction increases.
Table 6-2: Function Description for Multiband Conguration Screen
6.2.5 Enable Polarity
This button locks or unlocks the polarity buttons and is inactive by default (polarity buttons locked). When the button is active (orange), the polarity can be changed. When the button is inactive (blue), the polarity cannot be changed.
If a system designer has locked polarity changes on one or more outputs, the polarity button for the outputs will not be displayed in User mode.
75
EQ/Levels Menu Reference
6.2.6 Label Channel
This function applies to Modules only and is inactive if a Group is selected. Channel labels for Groups are derived from the Module that has been assigned for metering purposes as just described.
The channel label is a user-dened value that appears on the mute button at the bottom of each channel, the Module I/O CONFIG page, and on any auxiliary output EQ tabs.
To label a channel:
1. Access a Module levels page through a Module icon.
2. Tap LABEL CHANNEL, then tap the required channel label/mute button.
3. Enter the channel label using the on-screen keyboard (or an external keyboard).
4. Tap LABEL CHANNEL to exit this mode.
6.2.7 Meter Options
Tap the METER OPTIONS button to view a submenu containing functions relating to alternate meter views and system designer features.
6.2 .7.1 Input +4dBu Reference
Tap INPUT +4dBu REFERENCE to view the physical input signal meter relative to +4 dBu. Tap the button again to return to the default Digital Clip [DClip] view.
The DClip metering mode shows the audio level prior to any gain adjustment (input headroom, or digital gain offset), and indicates when the A/D converters will clip. The +4 dBu metering mode shows the audio level after any gain adjustment, and is useful for comparing levels of different input signals prior to processing.
This is a global function; all physical input meters throughout the system display the reference selected here.
6.2.7.2 Pre Limiter
Tap the PRE LIMITER button to view the pre-limiter output signals. Tap again to return to post-limiter mode. This is a global function; all meters throughout the system display the reference selected here.
The limiter status is identied on the bottom right of each output meter above the channel label/mute button.
76
EQ/Levels Menu Reference
6.2.7.3 AmpClip Reference
Tap the AMPCLIP REFERENCE button to view output signals with respect to the AmpClip reference level. Tap again to return to the normal view, which is relative to the factory MaxRMS level as dened using Designer Mode.
When AMPCLIP REFERENCE is selected, the Amp Clip level is used as the reference for the 0 dB level on the meter. With correct settings, the output meter will identify the onset of clipping.
AMPCLIP REFERENCE is a global function; all meters throughout the system display the reference selected here.
The Multiband Limiter band meters are always MaxRMS.
6.2.7.4 Assign Meters
The ASSIGN METERS function is active only when a Group levels page is accessed via a Group icon. For metering purposes, a Module may be assigned to a Group. This provides an overview of the input/output signals for that Group.
When a Group is created, the rst Module to be assigned to that Group is assigned to metering automati­cally.
To assign a Module to a Group for metering purposes:
1. Access a Group LEVELS page through a Group icon.
2. Tap METER OPTIONS, then tap ASSIGN METERS.
3. The Module scroll bar appears displaying Modules assigned to the selected Group.
4. On the scroll bar, tap the Module you wish to use for metering.
5. Tap ASSIGN METERS again, then METER OPTIONS EXIT to exit this mode
77
EQ/Levels Menu Reference
6.2.7.5 AmpClip
AmpClip provides a parameter for scaling the output metering of the Lake device to calibrate the clipping point to a given amplier’s sensitivity. This value (the AmpClip reference level) is set in dBu and is a sum of the factory AmpClip value (dBu) and the user AmpClip value (dB).
In both AmpClip Reference and MaxRMS Reference metering modes, the output peak meters will turn red at the AmpClip reference level to indicate possible output clipping as shown in Figure 6-7.
Figure 6-7: AmpClip Level Indicators
6.2.7.6 Level Limits
This function button is visible only in Designer Mode, and is used for setting minimum and maximum values for all Levels attributes described in this chapter.
6.2.7.7 Adjust Factory
This function button is visible only in Designer Mode and is used for dening default level settings and level limits for all attributes described in this chapter.
78
EQ/Levels Menu Reference
6.3 Input EQ
The Controller has three types of input EQ: Parametric EQ, Band Level EQ and Graphic EQ. Additional Parametric output EQ is available on the XOVER page and Aux tabs. This section deals with input EQ.
Groups and Modules can have multiple layers of EQ, called EQ overlays. Each Module can have up to eight EQ overlays, and each Group can have up to four EQ overlays. A Module can have up to 256 input EQ lters distributed amongst these EQ overlays. The large number of lters is necessary in order to allow for sophis­ticated Grouping of Graphic EQ overlays. Input EQ Overlays can be stored and recalled from a le.
A Module’s overall input EQ response is calculated by combining its input EQ overlays with those of all Groups to which that Module is assigned. The resulting composite EQ curve is indicated by a white line that is displayed on all overlays. A grey line, if visible separate from the white line, indicates the EQ response curve for the selected overlay only; refer to section 6.4.6.4 on page 100for instruction on enabling/disabling this feature.
Figure 6-8: Composite EQ Curve (white line) + current Overlay response (grey line)
6. 3 .1 Default Overlays
Modules and Groups both use the same EQ overlays and EQ functions. If a Module is assigned to a Group, the Group EQ overlays can be viewed from the Module but cannot be updated. Changes to Group EQ are performed by accessing the Group’s controls.
By default, a Module has Parametric EQ (PEQ1) and Band Level EQ (BLEQ2); a Group has a single Paramet­ric EQ (PEQ1). A small gray dot to the bottom right of these EQ OVERLAY LABELs signies they are default overlays that cannot be removed.
Figure 6-9: PEQ1 Tab
79
EQ/Levels Menu Reference
6.3.2 EQ Overlay Properties
A system designer can:
▸ Hide specic overlays
▸ Hide all overlays throughout the system
▸ Set specic overlays to View Only
▸ Set all overlays to View Only
It is important to note that a Module or Group may contain EQ overlays or lters that affect the overall EQ response, but are not visible or accessible to the end user (e.g. manufacture speaker presets)
6.3.3 Parametric EQ Screen
Figure 6-10 shows a Parametric EQ (PEQ1) screen, including letters marking its key functions.
Figure 6-10: Parametric EQ Screen
Table 6-3 describes the functions labelled in Figure 6-10 above.
80
Label Function Description
Frequency Lock
A
A/B
Filter Edit
B Filter Box
C Low Shelf Filter
D Parametric Filter
E Mesa Filter
F High Shelf Filter
Refer to section 6.3.6 on page 85.
Displays the frequency, bandwidth, and gain values of each lter.
Tap a lter box to select a particular lter. Double-tap the lter box to switch to Fine Adjustment mode. Drag the lter box down to bypass the lter. Drag the lter box up to insert. Drag the lter box off the top of the screen to delete.
Boost/cut low frequencies. The shelf lter can be adjusted from very shallow to extremely steep lter slopes.
Boost/cut a specied frequency band, from one-tenth of an octave to multiple octaves of bandwidth.
The unique Mesa lter contains two lter points that can be adjusted on either side to create a steep peak or a gentle slope with a variable-width at-top frequency response.
Boost/cut high frequencies. The shelf lter can be adjusted from very shallow to extremely steep lter slopes.
EQ/Levels Menu Reference
G Module Icon Displays the currently selected Module and status information.
H Filter Shape EQ Curve
I EQ Tool (Left Side)
J EQ Tool (Center)
K EQ Tool (Flat Top)
L EQ Tool (Right Side)
M EQ Menu Button Bar
Table 6-3: Function Descriptions for Parametric EQ Screen
The selected lter is highlighted in light blue. The overall EQ curve is identied by a white line.
Adjusts the lter bandwidth for Parametric, Mesa, and high-shelf lters by dragging left or right.
Changes the frequency of the selected lter by dragging left or right.
Drag left or right at this point on either side of (J) to adjust the at top width of the Mesa lter.
Adjusts the lter octave width for Parametric, Mesa, and low­shelf lters by dragging left or right.
The functions and submenus available on the EQ overlays are described in the following sections.
81
EQ/Levels Menu Reference
To add an EQ lter to a Parametric EQ overlay:
1. Tap the required Parametric EQ shape (C, D, E, or F).
2. Tap again anywhere on the EQ curve (H).
3. Boost/cut the frequency gain by dragging the lter point up or down.
If a mouse with a wheel is attached to the com­puter, you can use the wheel to adjust the gain of the selected lter.
4. Adjust the frequency by dragging the lter point left or right.
If FREQUENCY LOCK (A) is active (orange), you cannot adjust the frequency by dragging the lter point in the main EQ overlay display. Deactivate FREQUENCY LOCK (A) or use the EQ Tool (J) to adjust frequency.
6.3.4 Band Level EQ Screen
Figure 6-11 shows a Band Level EQ (BLEQ2) screen, including letters marking its key functions.
82
Figure 6-11: Band Level EQ Screen
EQ/Levels Menu Reference
On a BLEQ overlay the EQ lters are linked together, creating bands. Changing one band will also change the linked neighboring lter(s). By default, the BLEQ overlay has three bands. Any band can be split into two bands making it possible to create up to eight bands.
When fewer bands are required, bands can be merged together. Select a band and then tap MERGE TO RIGHT to merge the selected band with the band to the right; MERGE TO LEFT will merge the selected band with the band to the left. The MERGE TO LEFT and MERGE TO RIGHT functions replace the FILTER DELETE function for this overlay type.
Label Function Description
Frequency Lock
A
A/B
Filter Edit
B Filter Box
Refer to section 6.3.6.
Displays the gain value of each band or the frequency & band­width of the currently selected band.
Tap a lter box containing a single gain value to select a particular band.
Double-tap the lter box to switch to Fine Adjustment mode.
Drag the lter box down to bypass the band.
Drag the lter box up to insert the band.
Merge to Left
C
Split Band
Merge to Right
D Frame and Module Label Displays the currently selected Frame and Module labels.
E Filter Shape EQ Curve
F EQ Tool (Left Side)
G EQ Tool (Left Outer)
H EQ Tool (Centre)
I EQ Tool (Right Inner)
J EQ Tool (Right Outer)
K EQ Menu Button Bar
Table 6-4: Function Descriptions for Band Level EQ Screen
Functions to combine or split the selected band
The selected band is highlighted in light blue. The overall EQ curve is identied by a white line.
Adjusts the lter bandwidth for the low-freq lter for the selected band (and any adjoining lter)
Adjusts the centre frequency of the low-freq lter for the selected band (and any adjoining lter)
Adjust the centre frequency of both lters for the selected band (and any adjoining lters)
Adjusts the centre frequency of the hi-freq lter for the selected band (and any adjoining lters)
Adjusts the lter bandwidth for the hi-freq lter for the selected band (and any adjoining lter)
The functions and submenus available on the EQ overlays are described in the following sections.
83
EQ/Levels Menu Reference
6.3.5 Graphic EQ Screen
The Lake Controller provides a 28-band Graphic EQ overlay. This overlay is not present by default and must rst be created by following the steps below:
1. From the PEQ1 or BLEQ2 screens, tap EQ OVERLAY FUNCTIONS
2. Tap EQ OVERLAY NEW
3. Tap GRAPHIC EQ
Figure 6-12 shows the Graphic EQ (GEQ3) screen that will appear along with letters identifying key functions that are described in Table 6-5.
84
Figure 6-12: Graphic EQ Overlay
EQ/Levels Menu Reference
Label Function Description
Frequency Lock
A
A/B
Filter Edit
B Filter Box
C Frame & Module Label Describes the currently selected Module and status.
D EQ Curve A white line identies the overall EQ curve.
E EQ Tool Drag the EQ Tool left or right to select the frequency to change.
Table 6-5: Function Descriptions for Graphic EQ Screen
Refer to section 6.3.6 on page 85.
Displays the frequency, bandwidth, and gain values of each lter. Tap a lter box to select a particular lter. Double-tap the lter box to switch to Fine Adjustment mode. Drag the lter box down to bypass the lter. Drag the lter box up to insert. Drag the lter box off the top of the screen to delete.
To adjust the Graphic EQ:
4. Select the lter point to adjust using the EQ Tool (E).
5. Drag the lter point up or down to increase or decrease gain.
If FREQUENCY LOCK (A) is inactive (BLUE), you can tap to select a lter point then drag up or down to adjust the gain.
6.3.6 Input EQ On-Screen Functions
The following three functions are permanently available on all input EQ overlays in addition to those available on the button bar at the bottom of the screen.
6.3.6.1 Frequency Lock
Frequency Lock provides an option to lock the selected frequency to ensure when dragging the lter point up and down to change gain inadvertently change the frequency.
If FREQUENCY LOCK is blue then lter frequency is unlocked; the frequency is locked if the button is orange. When locked, the frequency can be adjusted using the EQ Tool (J) or FILTER EDIT functionality.
85
EQ/Levels Menu Reference
6.3.6.2 Overlay A/B
Tapping the A/B button creates a bypassed copy of the selected overlay. Changes can then be made to one version of the EQ overlay and the two overlays compared by tapping EQ OVERLAY COMPARE (F4), or by dragging one of the overlays up or down to switch between the two.
Tapping A/B Mode EXIT will exit this EQ comparison mode and delete the bypassed overlay.
6.3.6.3 Filter Edit
This function allows manual entry of gain (dB), frequency (Hz), and bandwidth (octave) for the selected lter. If a PEQ overlay is selected and the FILTER EDIT button is pressed, the Parametric shapes are replaced with the values of the selected lter
Figure 6-13: Manual Filter Edit Options
To adjust lter parameters using FILTER EDIT:
1. Tap the overlay to select it.
2. Tap the lter box, or use the EQ Tool to select the lter.
3. Tap FILTER EDIT.
4. Tap the gain, frequency, or bandwidth value (highlighted in blue).
5. Enter the value required using the on-screen keyboard (or an external keyboard), and tap OK. The FILTER EDIT function is inactive if the selected overlay does not contain any lters.
High-frequency values can be entered using k to denote kHz, instead of Hz (for example, 12k instead of 12,000 Hz).
6.3.7 Input EQ Menu Reference
The button bar presented while viewing the Input EQ display provides a number of applicable functions for adjusting EQ and conguring EQ overlays.
86
EQ/Levels Menu Reference
Figure 6-14: EQ/Levels Menu
EQ OVERLAY FUNCTIONS, immediately to the right of the EQ/LEVELS button, provides a submenu with the following items:
Figure 6-15: EQ Overlay Functions Menu
6.3.7.1 EQ Overlay Properties/EQ Preferences
In User Mode, the only function active under the EQ OVERLAY PROPERTIES menu is EQ PREFERENCES, which provides a submenu containing functions that control the view of the EQ scale and screens.
Separate settings can be stored for crossover EQ and input/auxiliary EQ. Therefore, most changes made using EQ OVERLAY PROPERTIES/EQ PREFERENCES affect only the input and auxiliary output EQ scales.
Function Description
No Scale [F2] Removes the scale lines on all EQ/Crossover and Auxiliary screens.
Reset Scale [F3] Resets the EQ scale to the default setting of ±15 dB.
Zoom In [F4]
Zoom Out [F5]
EQ Pref Exit [F6] Returns the previous menu level.
Full Response [F7]
Up [F8] Moves the zero line up in 3 dB increments.
Zooms the EQ scale in by 3 dB increments (for example, if scale is ±15 dB, tapping Zoom In will change the scale to ±12 dB).
Zooms the EQ scale out by 3 dB increments (for example, if scale is ±15 dB, tapping Zoom Out will change the scale to ±18 dB).
Available only for Crossover and Auxiliary Output screens. When active (orange), the overall EQ curve is shown taking into account all crossovers, HPF, LPF, input and output EQ (and any loaded FIR for the XP module) for the Module and any Groups it is assigned to. Not applicable for input EQ screens (PEQ/BLEQ/GEQ).
Down [F9] Moves the zero line down in 3 dB increments.
Available only for input EQ overlays (PEQ/BLEQ/GEQ). Enable (orange) by Current OVLAY Response
default. When enabled, a grey line is displayed for the selected EQ overlay
to show EQ response for the current overlay only. The white line (overall EQ
composite curve) remains present at all times.
Table 6-6: Function Descriptions for EQ Preferences Menu
87
EQ/Levels Menu Reference
6.3.7. 2 EQ Overlay Hide/EQ Overlay View Only
These functions are active only when in Designer Mode. Please refer to chapter 19.
6.3.7.3 EQ Overlay Type
The EQ Overlay Type menu provides options to convert any overlay to Parametric (PEQ), Band Level (BLEQ) or Graphic (GEQ) EQ overlays.
The current Overlay type is indicated by an orange button, and other available options are indicated by blue buttons.
While in Multiple Controller mode the EQ Overlay Type function is disabled for conversions to or from GEQ Overlays.
Changing the EQ overlay type will atten and delete all existing lters from the selected EQ overlay.
6.3.7. 4 EQ Overlay Delete
EQ OVERLAY DELETE is inactive for the default overlays. An overlay created by a user may be deleted by selecting the overlay and tapping EQ OVERLAY DELETE. If the overlay contains lters, a warning message will be displayed.
6.3.7. 5 EQ Overlay Copy
Tap EQ OVERLAY COPY to copy the selected overlay. This function is used in conjunction with EQ OVERLAY PASTE OVER.
6.3.7. 6 EQ Overlay New
Tap OVERLAY NEW then select an EQ Overlay Type to create an additional EQ overlay.
GEQ Overlays cannot be created while in multiple controller mode.
Each Module can have up to eight overlays; Groups can have up to four overlays.
88
EQ/Levels Menu Reference
6.3.7.7 EQ Overlay Paste Over
After using the EQ OVERL AY COPY action, tapping EQ OVERLAY PASTE OVER pastes the copied data into the selected overlay, overwriting its previous content.
6.3.7. 8 EQ Overlay Label
An EQ Overlay Label is a user-dened value that appears on the overlay tab at the top of the screen.
To label an overlay:
1. Tap the desired overlay tab.
2. Tap EQ OVERLAY LABEL.
3. Enter the label name using the on-screen keyboard (or an external keyboard).
4. Tap OK.
The EQ Overlay Label is also stored as part of the EQ Overlay le although the lename for the EQ Overlay le can be set as required.
6.3.8 EQ Overlay Bypass/Insert/Compare
This button’s label changes depending on whether the selected overlay is currently active or bypassed.
If the overlay is active, the button reads EQ OVERLAY BYPASS. Tap the button to bypass the overlay. A bypassed overlay is displayed at the bottom of the screen, just above the button bar.
If the overlay is bypassed, the button reads EQ OVERLAY INSERT. Tap the button to insert the overlay. An active overlay is displayed at the top of the screen.
If a bypassed overlay is placed directly underneath an active overlay, the button reads EQ OVERLAY COMPARE.
An overlay can be bypassed by dragging the overlay tab downwards or inserted by dragging upwards. In A/B mode, dragging up or down swaps the active/ bypassed overlays.
89
EQ/Levels Menu Reference
6.3.8.1 A/B Overlay Compare
In addition to the bypass feature, you can compare two overlays within a Module or Group. The two ways to create an A/B comparison are described in the following sections.
6.3.8.2 Using the A/B Button
The A/B button at the top left of the screen creates a bypassed copy of the selected overlay. Changes can then be made to one of the overlays, and compared by tapping EQ OVERL AY COMPARE, or just pull down on the inserted overlay and it will switch with the other overlay.
6.3.8.3 Comparing Existing Overlays
Follow this process to compare two existing EQ overlays:
1. Tap overlay A to select it.
2. Tap EQ OVERLAY BYPASS. Overlay A moves to the bottom of the screen.
3. Tap and drag overlay A left or right along the bottom of the screen until it is aligned directly underneath the EQ overlay you wish to compare.
4. Tap EQ OVERL AY COMPARE.
Each time the button is tapped, the two overlays switch positions; the top overlay is active and the bottom is bypassed.
6.3.9 EQ Overlay Store/Recall
The EQ Overlay Store/Recall button opens a submenu containing functions relating to storing and recalling EQ overlays.
6.3.9.1 Recall As New
Selecting a previously stored EQ Overlay le and tapping RECALL AS NEW loads the selected EQ Overlay le as a new additional EQ Overlay. A module can have up to eight EQ Overlays, and a Group can have up to four EQ Overlays.
6.3.9.2 Recall
Selecting a previously stored EQ Overlay le and tapping RECALL (or double-tapping the icon) loads the EQ Overlay into the currently selected EQ Overlay, replacing all settings.
90
EQ/Levels Menu Reference
6.3.9.3 Store
Tapping STORE will store the currently selected EQ Overlay into the selected EQ Overlay le overwriting its content.
6.3.9.4 New Store
Tapping NEW STORE will store the currently selected EQ Overlay into a new EQ Overlay le, providing the ability to enter a lename via the on-screen or manual keyboard. Ensure the Overlay is appropriately labelled before storing; the EQ Overlay lename is independent from the OVERLAY LABEL.
EQ Overlays with Hidden or View Only properties cannot be stored to an EQ Overlay File.
6.3.9.5 File Utilities
This button provides a submenu containing further functions that manage les and folders from within the Lake Controller.
Open
This button is active only when a folder is selected. Tap OPEN to open the selected folder.
Read Only
This function protects important les from being accidentally overwritten or deleted and is active only when a le is selected. The currently selected le’s status is identied by the color of the READ ONLY button:
▸ ORANGE - indicates the selected le is set to READ ONLY.
▸ BLUE - indicates the selected le is not protected.
To change the Read Only status of a le:
1. Tap a le from the scroll bar to select it.
2. Tap READ ONLY to toggle function ON (orange) and OFF (blue).
91
EQ/Levels Menu Reference
Rename
This button allows the name of a le/folder to be changed.
1. Tap the required le/folder from the scroll bar, then tap RENAME.
2. Enter the new name, and tap OK.
Delete
This button is active only when a le or folder is selected. When a le is selected, this function will only be available if the le is not set to READ ONLY. To delete a le or folder:
3. Tap a le or folder to select it, then tap DELETE.
4. Conrm action by tapping YES in the warning message.
Deletion of a le is permanent and cannot be restored using the UNDO function.
New Folder
This button creates a new folder in the current directory.
1. Navigate to the desired directory location and tap NEW FOLDER.
2. Enter the folder name, and tap OK.
6. 3 .10 EQ Overlay Flat
Tap EQ OVERLAY FLAT to atten and delete all lters from the selected overlay. This function is inactive if the selected overlay does not contain any lters.
6. 3 .11 Filter Bypass/Filter Insert
The button label changes depending on whether the selected lter is active or bypassed. The button reads:
FILTER BYPASS: If the lter is active; tap to bypass the lter.
FILTER INSERT: If the lter is bypassed; tap to insert the lter.
92
EQ/Levels Menu Reference
The FILTER EDIT box of a bypassed lter is positioned slightly lower than an active lter’s edit box and does not have a yellow border when selected.
A lter can be bypassed/inserted by dragging the lter edit box down (bypass) or up (insert).
6. 3 .12 Filter Flat
Tap FILTER FLAT to atten the selected lter. This sets the lter gain to zero, but frequency and bandwidth remain unchanged.
FILTER FLAT is inactive if the selected overlay does not contain any lters.
6. 3 .13 Filter Delete
Tap FILTER DELETE to remove the selected lter from the overlay.
A PEQ lter can be deleted by dragging the lter box upward off the screen
FILTER DELETE is inactive if the selected overlay is a:
▸ Graphic EQ, because its lter points are xed and cannot be deleted
▸ Parametric EQ overlay without any lters
6. 3 .14 Analyzer Tap to Search
The Lake Controller can interface directly with certain audio analyzer software programs that are installed on the same computer, or on another computer on the same network.
When the analyzer is enabled, and a compatible audio analyzer is online and on the same network, the Lake Controller provides spectrum, spectrograph, and transfer function displays on the XOVER, Aux, and EQ overlays.
93
EQ/Levels Menu Reference
6. 3 .15 High-Precision Filter Adjustments
Double-tap the lter parameters box so it turns from its normal appearance to a gray outline and gray text. This switches from Normal Adjustment to Fine Adjustment mode. To return to Normal Adjustment mode, tap the lter box once. Fine Adjustment mode is also implemented globally when Show mode is selected.
6.4 Crossovers and HPF/LPF
The XOVER and HPF/LPF screens display the crossover and/or HPF/LPF information for the selected Module, depending on the Module type. The XOVER and HPF/LPF screens do not apply to Groups.
To view the XOVER screen:
1. Access EQ/LEVELS, and tap the EQ page tab at the top left of the screen.
2. Tap the XOVER or HPF/LPF tab next to Levels at the top of screen.
Figure 6-16 shows the XOVER screen along with letters marking key functions that are described in Table 6-7.
94
