RapidVap Vacuum, N2 & N2/48

Evaporation Systems

Models

Warranty

Labconco Corporation provides a warranty to the original buyer for the repair or replacement of parts and
reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken
glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not
warranted. Excluded from warranty are products with improper installation, erratic electrical or utility supply,
unauthorized repair and products used with incompatible chemicals.

The warranty for RapidVap® Vacuum, N2 & N2/48 Evaporation Systems will expire one year from date of
installation or two years from date of shipment from Labconco, whichever is sooner. Warranty is non­transferable and only applies to the owner (organization) of record.

Buyer is exclusively responsible for the set-up, installation, verification, decontamination or calibration of
equipment. This limited warranty covers parts and labor, but not transportation and insurance charges. If the
failure is determined to be covered under this warranty, the dealer or Labconco Corporation will authorize
repair or replacement of all defective parts to restore the unit to operation. Repairs may be completed by 3rd
party service agents approved by Labconco Corporation. Labconco Corporation reserves the rights to limit this

warranty based on a service agent’s travel, working hours, the site’s entry restrictions and unobstructed access

to serviceable components of the product.

Under no circumstances shall Labconco Corporation be liable for indirect, consequential, or special damages
of any kind. This warranty is exclusive and in lieu of all other warranties whether oral, or implied.

Copyright © 2017 Labconco Corporation. The information contained in this manual and the accompanying
products are copyrighted and all rights reserved by Labconco Corporation. Labconco Corporation reserves
the right to make periodic design changes without obligation to notify any person or entity of such change.

Returned or Damaged Goods

Do not return goods without the prior authorization from Labconco. Unauthorized returns will not be
accepted. If your shipment was damaged in transit, you must file a claim directly with the freight carrier.
Labconco Corporation and its dealers are not responsible for shipping damages.

The United States Interstate Commerce Commission rules require that claims be filed with the delivery
carrier within fifteen (15) days of delivery.

Limitation of Liability

The disposal and/or emission of substances used in connection with this equipment may be governed by
various federal, state, or local regulations. All users of this equipment are required to become familiar with

any regulations that apply in the user’s area concerning the dumping of waste materials in or upon water,

land, or air and to comply with such regulations. Labconco Corporation is held harmless with respect to
user’s compliance with such regulations.

Contacting Labconco Corporation

If you have questions that are not addressed in this manual, or if you need technical assistance, contact
Labconco’s Customer Service Department or Labconco’s Product Service Department at 1-800-821-5525
or 1-816-333-8811, between the hours of 7:30 a.m. and 5:30 p.m., Central Standard Time.

Part #7490100, Rev. K

ECO #L122

ORIGINAL INSTRUCTIONS

T

T

AABBLLEE

O

O

FF

C

C

OONNTTEENNTTSS

CHAPTER 1: INTRODUCTION 1

About This Manual 2
Typographical Conventions 3
Your Next Step 3

CHAPTER 2: PREREQUISITES 5

Electrical Requirements 5
Location and Exhaust Requirements 6
Vacuum Pump Requirements 6
Vacuum Line Traps 7
Nitrogen Supply Requirements 8
Space Requirements 8
Tools Required 8
Your Next Step 8

CHAPTER 3: GETTING STARTED 9

Unpacking Your RapidVap 9
RapidVap Components 10
Setting Up Your RapidVap 12

Vacuum Pump Connection 12
Sample Block 13
Nitrogen Gas Connection 15
Exhaust Port 15
Electrical Connection 15

Calibrate the Vacuum Sensor 15
Chemical Attack on RapidVap Components 15
Solvent Safety Precautions 17
Your Next Step 18

CHAPTER 4: USING YOUR RAPIDVAP 19

Planning 19

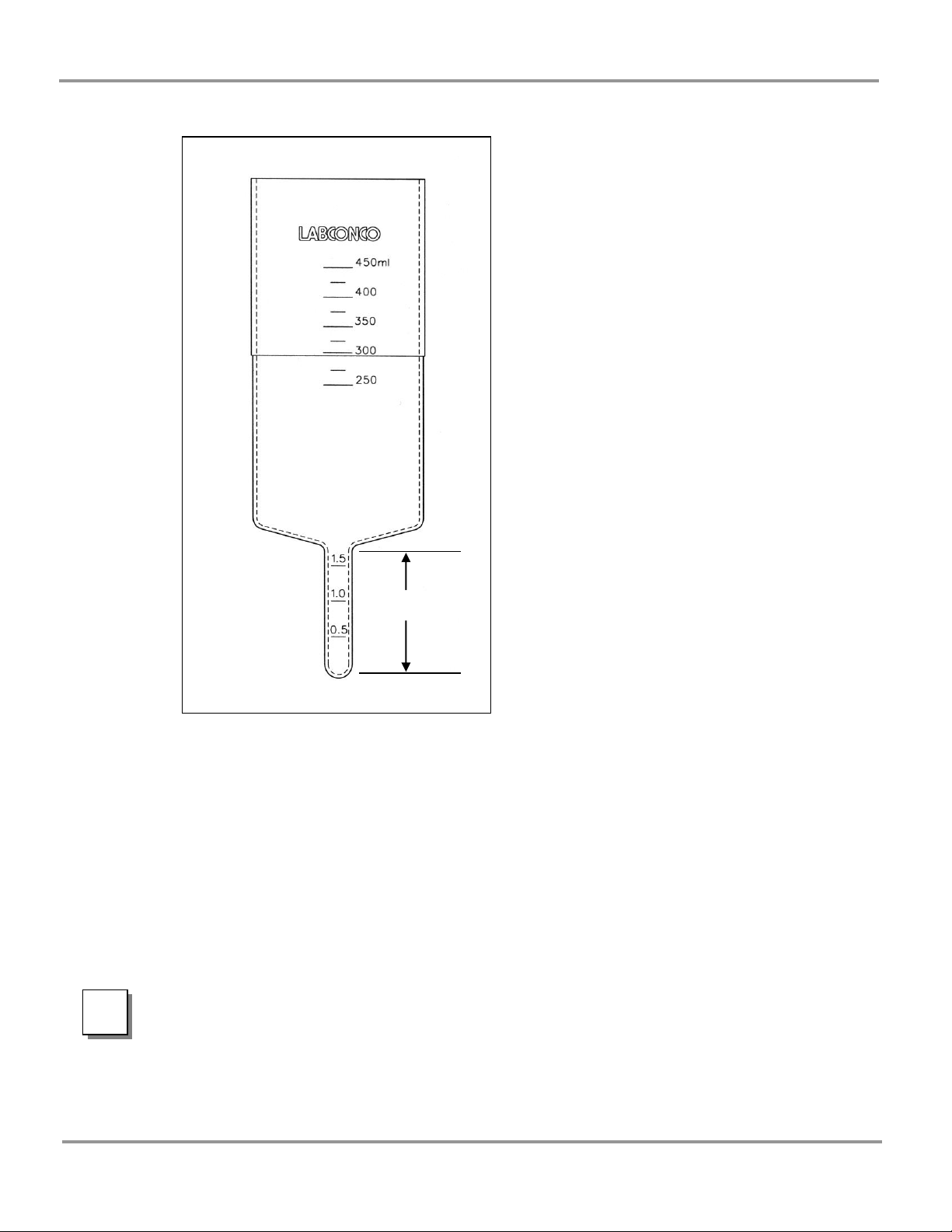

Glassware Selection and Speed Setting Guidelines 20
Loading Glassware Into the RapidVap 22
Heat Setting Guidelines 23
Time Setting Guidelines 27

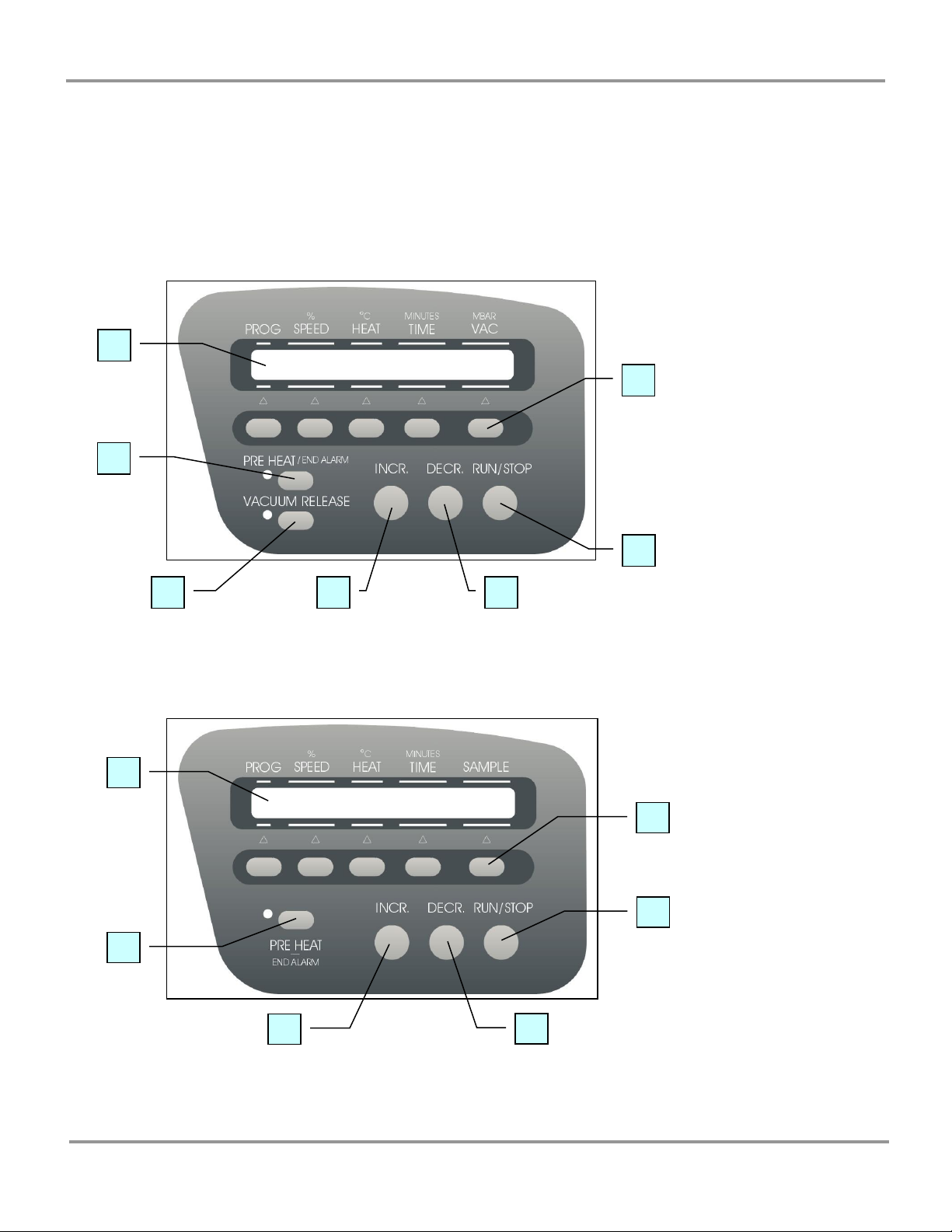

RapidVap Controls 29

Operating the RapidVap Controls 30

Operating The RapidVap 32

Operational Notes 33
Interrupting a Cycle After it Has Begun 33
End Alarms 33
RS-232 Communications 34

RS-232 Programming Syntax 34

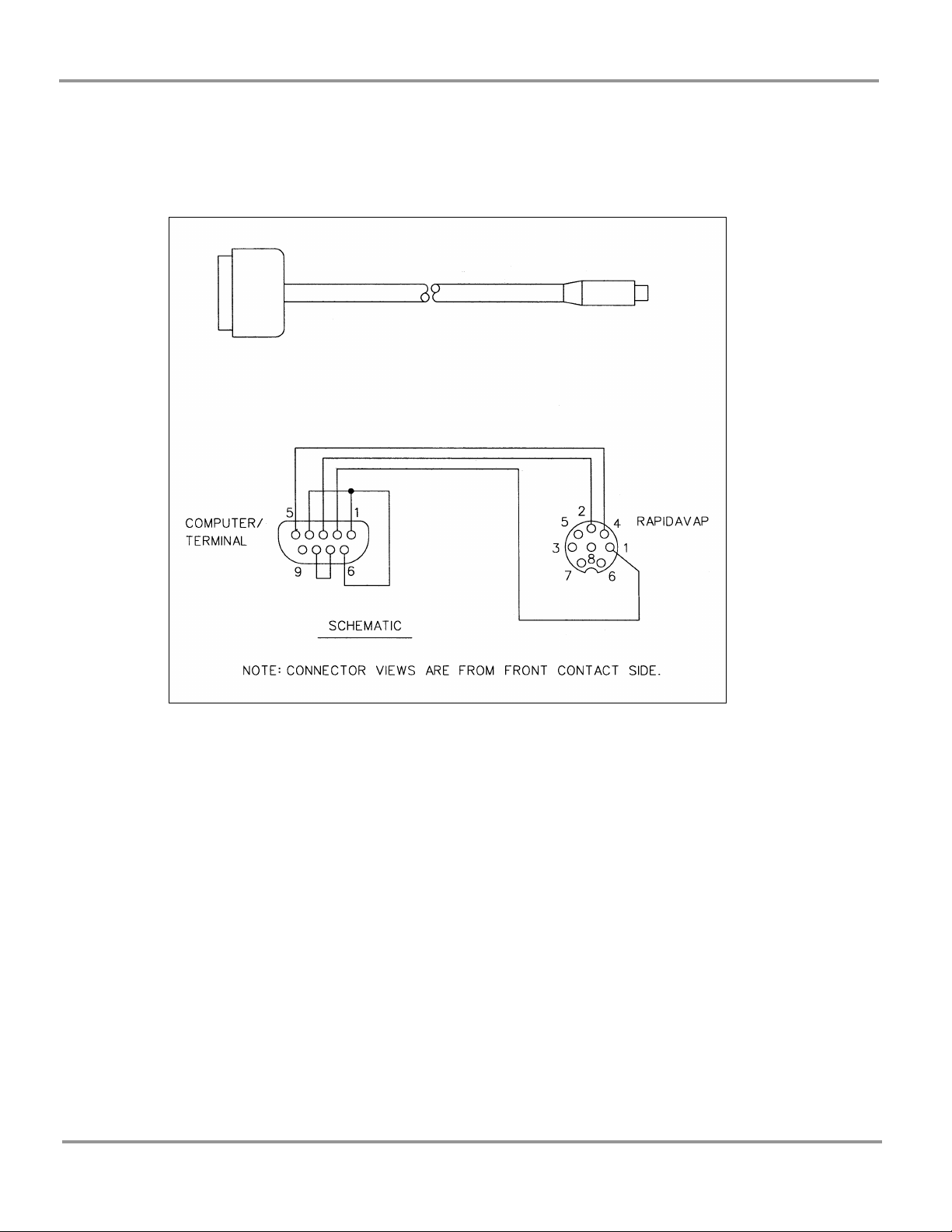

RS-232 Hardware Required 36

CHAPTER 5: MAINTAINING YOUR RAPIDVAP 37

CHAPTER 6: MODIFYING YOUR RAPIDVAP 39

Changing the Sample Blocks 39
Installing the Optional Lid Heater 40

CHAPTER 7: TROUBLESHOOTING 41

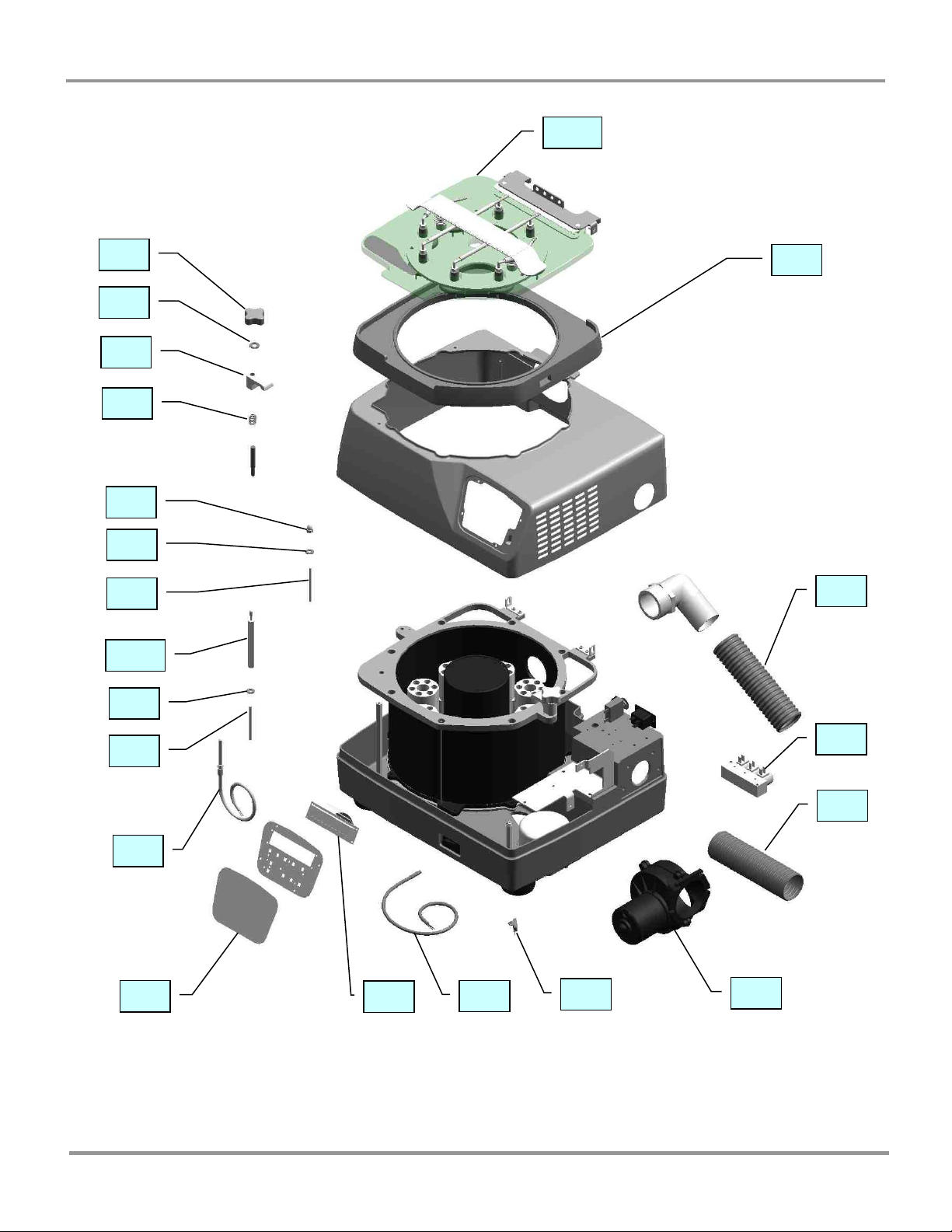

APPENDIX A: RAPIDVAP AND RAPIDVAP N2 COMPONENTS 45

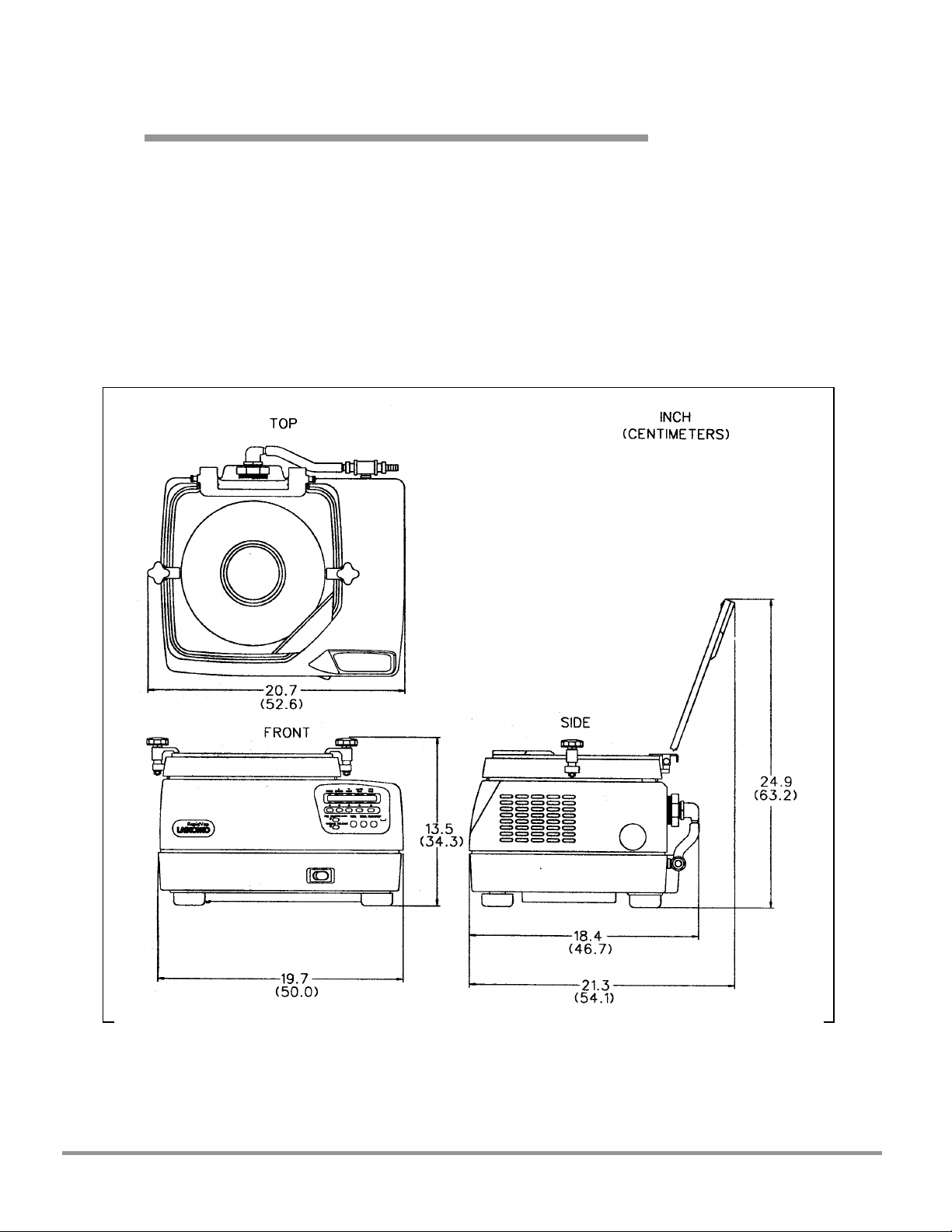

APPENDIX B: RAPIDVAP DIMENSIONS 52

APPENDIX C: RAPIDVAP SPECIFICATIONS 54

Wiring Diagram (115V) 56
Wiring Diagram (230V) 57
Evaporation Rates 58

RapidVap Vacuum Models 58

RapidVap N2 Models 59

RapidVap N2/48 Models 63

APPENDIX D: RAPIDVAP ACCESSORIES 65

RapidVap Vacuum Model Accessories 65
RapidVap N2 Model Accessories 68
RapidVap N2/48 Model Accessories 70

1

Original instructions

C

C

HHAAPPTTEERR

1

1

I

I

NNTTRROODDUUCCTTIIOONN

Congratulations on your purchase of a Labconco RapidVap. Labconco
manufactures two types of RapidVaps - one utilizes vacuum and the other utilizes
nitrogen as an aid to evaporation. Each model is available for operation on 115V
or 230V.

Superior evaporation rates are achieved by the unique blending of several gentle
forces on the sample. Samples are subjected to a gyrating motion causing the
liquid to form a vortex configuration which greatly increases the surface area and
hence the ability to evaporate. A precisely controlled amount of thermal energy
can be supplied to the sample to heat it. In the vacuum model, the sample can be
subjected to a decreased pressure by the application of a regulated vacuum. In
summary, the vacuum model RapidVap performance is maximized by increasing
the sample’s surface area, increasing temperature and decreasing pressure.

In the RapidVap N2, a stream of nitrogen or dry gas is directed downward onto the
surface of the sample. This reduces the partial pressure directly over the liquid to
speed evaporation and helps remove the solvent as it evaporates. In summary, the
RapidVap N2 performance is maximized by increasing the sample’s surface area,
increasing temperature and directing gas over the sample.

The gyrating motion imparted to the sample causes other, more subtle effects to
occur. Excellent mixing of the components in the liquid sample is obtained. Also,
as the liquid forms the vortex shape, a centrifugal force is established which forces
the liquid outward against the tube walls. This helps prevent bumping and in turn
allows the evaporation rate to be optimized.

The microprocessor which controls the operation of the heater and the motor
provides excellent regulation and reproducibility of protocols. The end of the run
can be signaled by the automatic end point system or by a manually preset timer.
Nine different protocols can be stored in memory so exact test parameters can be
easily repeated.

Product Service 1-800-522-7658

Chapter 1: Introduction

2

Original instructions

About This Manual

This manual is designed to help you learn how to install, use, and maintain your
RapidVap. Instructions for performing routine maintenance and making minor
modifications to your RapidVap are also included.

Chapter 1: Introduction provides a brief overview of the RapidVap, explains the
organization of the manual, and defines the typographical conventions used in the
manual.

Chapter 2: Prerequisites explains what you need to do to prepare your site before
you install your RapidVap. Electrical and exhaust requirements are discussed as
well as vacuum pump or nitrogen requirements.

Chapter 3: Getting Started contains the information you need to properly unpack,
inspect, install, and test your RapidVap.

Chapter 4: Using Your RapidVap discusses the basic operation of your RapidVap.
Information on how to arrange the samples inside your RapidVap and select an
operating cycle is included.

Chapter 5: Maintaining Your RapidVap explains how to perform routine
maintenance on your RapidVap.

Chapter 6: Modifying Your RapidVap describes how to install other blocks and the
optional lid heater.

Chapter 7: Troubleshooting contains a table of problems you may encounter while
using your RapidVap, including the probable causes of the problems, and
suggested corrective actions.

Appendix A: RapidVap and RapidVap N2 Components contains labeled diagrams
of the components of the RapidVaps.

Appendix B: RapidVap Dimensions contains comprehensive diagrams showing the
dimensions for the RapidVap and RapidVap N2.

Appendix C: RapidVap Specifications contains product specifications. Wiring
diagrams for both the 115V and 230V RapidVaps are also included.

Appendix D: RapidVap Accessories lists the part numbers and descriptions of all of
the accessories available for your RapidVap.

Product Service 1-800-522-7658

Chapter 1: Introduction

3

Original instructions

!



V

N

!

Typographical Conventions

Recognizing the following typographical conventions will help you understand and
use this manual:

 Book, chapter, and section titles are shown in italic type (e.g., Chapter 3:

Getting Started).

 Steps required to perform a task are presented in a numbered format.
 Comments located in the margins provide suggestions, reminders, and

references.

 Critical information is presented in boldface type in paragraphs that are

preceded by the exclamation icon. Failure to comply with the information
following an exclamation icon may result in injury to the user or permanent
damage to your RapidVap.

 Les informations critiques sont présentées en caractères gras dans les

paragraphes qui sont précédés par le point d'exclamation. Le non respect de
l'information suite à un point d'exclamation peut entraîner des blessures pour
l'utilisateur ou des dommages permanents à votre RapidVap.

 Important information is presented in capitalized type in paragraphs that are

preceded by the pointer icon. It is imperative that the information contained in
these paragraphs be thoroughly read and understood by the user.

 Information that is specific to a particular model of RapidVap is preceded by a

letter icon. The V icon indicates the text is specific to the Vacuum model. The
N icon indicates the text is specific to the RapidVap N2 model.

 CAUTION – See Manual. When this symbol is on the unit it indicates a

caution that is detailed in this manual.

 ATTENTION – Voir le manuel. Lorsque ce symbole est allumé l'unité, il

indique une mise en garde qui est détaillée dans ce manuel.

Your Next Step

If your RapidVap needs to be installed, proceed to Chapter 2: Prerequisites to
ensure your installation site meets all of the requirements. Then, go to Chapter 3:
Getting Started for instructions on how to install your RapidVap and make all of
the necessary connections.

For information on the operational characteristics of your RapidVap, go to Chapter

4: Using Your RapidVap.

If your RapidVap is installed and you need to perform routine maintenance on the
RapidVap, proceed to Chapter 5: Maintaining Your RapidVap.

Product Service 1-800-522-7658

Chapter 1: Introduction

4

Original instructions

For information on making modifications to the configuration of your RapidVap
go to Chapter 6: Modifying Your RapidVap.

Refer to Chapter 7: Troubleshooting if you are experiencing problems with your
RapidVap.

Product Service 1-800-522-7658

5

Original instructions

C

C

HHAAPPTTEERR

2

2

P

P

RREERREEQQUUIISSIITTEESS

V

!

Before you install your RapidVap, you need to prepare your site for installation.
Carefully examine the location where you intend to install your RapidVap. You
must be certain that the area is level and of solid construction. In addition, an
exhaust means must be provided and a source of nitrogen must be available for the
RapidVap N2. An electrical source must be located near the installation site.

Carefully read this chapter to learn:

 the electrical supply requirements.
 the exhaust requirements.
 the nitrogen supply requirements for the RapidVap N2.
 the vacuum pump requirements for the RapidVap Vacuum.

Refer to Appendix C: RapidVap Specifications for complete RapidVap electrical
and environmental conditions, specifications and requirements.

If the unit is not operated as specified in this manual it may
impair the protection provided by the unit.

Si l'appareil n'est pas utilisé comme spécifié dans ce manuel, il
peut compromettre la protection offerte par l'appareil.

Electrical Requirements

If your RapidVap is a Vacuum model, a dedicated electrical outlet is required.
This outlet requires a 20 Amp circuit breaker or fuse for models rated at 115V (60
Hz). A 10 Amp circuit breaker or fuse is required for models rated at 230V (50/60
Hz). 115V models are equipped with a 20 Amp NEMA 5-20P plug. 230V models
are equipped with a 16 Amp CEE 7/7 plug. It may be necessary to remove the
plug and install a different plug to match the available receptacle.

Product Service 1-800-522-7658

Chapter 2: Prerequisites

6

Original instructions

N

V

N

V

!

!

If your RapidVap is a Nitrogen model, a dedicated electrical outlet is required.
This outlet requires a 15 Amp circuit breaker or fuse for models rated at 115V (60
Hz) or an 8 Amp circuit breaker or fuse is required for 230V (50/60 Hz) models.
115V models are equipped with a 20 Amp NEMA 5-20P plug. 230V models are
equipped with a 16 Amp CEE 7/7 plug. It may be necessary to remove the plug
and install a different plug to match the available receptacle.

Do not use any detachable power cord that is not adequately rated for the unit.

N'utilisez pas de cordon d'alimentation amovible qui n'est pas suffisamment
puissant pour l'unité.

Location and Exhaust Requirements

The RapidVap Vacuum Evaporation System should be located within a fume hood
if hazardous or flammable solvents are used. In all cases, regardless of the solvent
used, it is strongly recommended that the vacuum pump is located and vented in a
fume hood.

The RapidVap N2 Evaporation System should be located within a fume hood if
hazardous or flammable solvents are used. In all cases, regardless of the solvent
used, it is recommended that the exhaust hose is vented into a fume hood or other
laboratory ventilation device.

Do not position the unit so that it is difficult to operate the main
disconnect device.

Ne pas placer l'appareil de sorte qu'il est difficile de faire
fonctionner le dispositif de déconnexion principal.

Vacuum Pump Requirements

A vacuum pump must be provided by the user. For most applications, it is
recommended that the vacuum pump is capable of a free air flow of 63 L/min and

1.5 mbar vacuum although, in some applications other pumps may be satisfactory
or be required. The inlet fitting on the vacuum pump must be suitable for 0.50 I.D.
hose.

Biological samples, for example, are often dissolved in water, a high boiling point
solvent, and are often heat liable. Such samples require the high vacuum
achievable with a mechanical vacuum pump, usually with an ultimate vacuum of
7 x 10-3 mBar to achieve a good evaporation rate.

Product Service 1-800-522-7658

Chapter 2: Prerequisites

7

Original instructions

!



!

On the other hand, samples dissolved in methylene chloride, a low boiling point
solvent, can be efficiently concentrated using a water aspirator.

The nomograms in Chapter 4: Using Your RapidVap will help determine the
boiling point of a solvent at pressures below atmospheric. This can serve as a
guide to the appropriate vacuum source.

TO INSURE THAT AGGRESSIVE SAMPLES USED IN THE
RAPIDVAP DO NOT DAMAGE THE VACUUM PUMP, IT IS
RECOMMENDED THAT ALL INTERNAL WETTED PARTS
ARE PTFE OR PTFE COATED. TO PREVENT A HAZARDOUS
CONDITION, THE PUMP MUST BE SUITABLE FOR
HANDLING THE VAPORS FROM THE SOLVENTS THAT
WILL BE EVAPORATED IN THE RAPIDVAP.

CAUTION: When selecting the vacuum pump it is very
important to consider the flammability of the solvents that will
be used. If the solvents are flammable, an explosion proof
vacuum pump is recommended.

ATTENTION: Lors de la sélection de la pompe à vide, il est très
important d'examiner l'inflammabilité des solvants qui seront
utilisés. Si les solvants sont inflammables, d'une pompe à vide à
l'épreuve des explosions est recommandé

Vacuum Line Traps

When using a mechanical pump which is not corrosion resistant, a trap must be
used in the vacuum line to prevent damage from solvent vapors. This is most often
a condenser-type trap chilled with dry ice/acetone. When evaporating acids, it is
advisable to include a soda lime acid trap in the vacuum line. This adds additional
protection for the pump.

Several components within the RapidVap are made from
stainless steel and can be degraded if exposed to acids. Before
evaporating acids, be sure to contact Labconco.

Plusieurs composants du RapidVap sont en acier inoxydable et
peuvent être dégradés s'ils sont exposés à des acides. Avant de
s'évaporer acides, n'oubliez pas de contacter Labconco.

A moisture trap and radioisotope trap are also available. When evaporating high
boiling point solvents, a liquid trap should be positioned between the RapidVap
and the vacuum pump to prevent liquid from entering the pump. Refer to
Appendix D: RapidVap Accessories for ordering information.

Product Service 1-800-522-7658

Chapter 2: Prerequisites

8

Original instructions

N

Nitrogen Supply Requirements

The 1/4" I.D. hose on the rear of the RapidVap N2 must be attached to a source of
nitrogen or other suitable gas. Pressure must NOT exceed 20 psi. A regulator
must be supplied by the user. The nitrogen supply must be capable of 0.6 CFM
flow rate for the 8 place RapidVap N2. The RapidVap N2/48 requires a flow rate
of 3.5 CFM. A suitable barb or compression fitting must be supplied by the user.

Space Requirements

Refer to Appendix C: RapidVap Specifications for dimensional drawings of the
RapidVap.

Tools Required

Common hand tools are required to set up the RapidVap. A screwdriver or 5/16"
socket is needed to attach hose clamps. A tubing cutter or knife is needed to
shorten exhaust hoses. If the sample block must be installed or exchanged,
attaching nuts on the RapidVap Vacuum and RapidVap N2 require a 7/16" socket.
The manifold guides, which secure the block on the RapidVap N2/48, require a
9/16" socket.

Your Next Step

After you have determined that the location for your RapidVap accommodates the
installation and operational requirements, you are ready to unpack and install your
RapidVap. Proceed to Chapter 3: Getting Started.

Product Service 1-800-522-7658

9

Original instructions

C

C

HHAAPPTTEERR

3

3

G

G

EETTTTIINNGG

S

S

TTAARRTTEEDD

!

The United
States Interstate
Commerce
Commission
rules require
that claims be
filed with the
delivery carrier
within fifteen
(15) days of
delivery.



Now that the site for your RapidVap is properly prepared, you are ready to unpack,
inspect, install, and test your RapidVap. Read this chapter to learn how to:

 unpack and move your RapidVap.
 set up your RapidVap.
 connect the vacuum pump or nitrogen source to your RapidVap.
 connect the electrical supply source to your RapidVap.
 properly exhaust your RapidVap.
 calibrate the vacuum sensor.
 solvent safety precautions.

Depending upon which model of RapidVap you are installing, you will need
common hand tools including a flat blade screw driver, a 7/16" socket and an
adjustable wrench to complete the instructions in this chapter.

The RapidVap weighs over 70 lbs. (33 Kg). The carton allows
for lifting with a mechanical lift truck or hand truck. If you
must lift the RapidVap manually, use at least two (2) persons
and follow safe-lifting guidelines.

Unpacking Your RapidVap

Carefully unpack your RapidVap and inspect it for damage that may have occurred
in transit. If your RapidVap is damaged, notify the delivery carrier immediately
and retain the entire shipment intact for inspection by the carrier.

DO NOT RETURN GOODS WITHOUT THE PRIOR
AUTHORIZATION OF LABCONCO. UNAUTHORIZED
RETURNS WILL NOT BE ACCEPTED.

Product Service 1-800-522-7658

Chapter 3: Getting Started

10

Original instructions

Catalog #

RapidVap Description

79000-00

RapidVap Vacuum System – 115V

79000-01

RapidVap Vacuum System – 230V

79000-02

RapidVap Vacuum System – 115V with lid heater

79000-03

RapidVap Vacuum System – 230V with lid heater

79000-10

RapidVap Vacuum System – 115V with RS 232 Interface

79000-11

RapidVap Vacuum System – 230V with RS 232 Interface

79000-12

RapidVap Vacuum System – 115V with lid heater with RS 232 Interface

79000-13

RapidVap Vacuum System – 230V with lid heater with RS 232 Interface

Plus the Following:

Part #

Component Description

78286-04

Hose - Vacuum

14888-00

Two (2) Clamps

13364-00

13365-00

Power Cord – 115V

or

Power Cord – 230V

19116-00

Washer (3)

19092-21

Acorn Nut (3)

12556-00

Heat Transfer Grease

74901-00

User’s Manual

74848-00

Cable Assembly RS232 (Models 79000-10, -11, -12, -13)



IF YOUR RAPIDVAP WAS DAMAGED IN TRANSIT, YOU
MUST FILE A CLAIM DIRECTLY WITH THE FREIGHT
CARRIER. LABCONCO CORPORATION AND ITS DEALERS
ARE NOT RESPONSIBLE FOR SHIPPING DAMAGES.

Do not discard the carton or packing material for your RapidVap until you have
checked all of the components and installed and tested the RapidVap.

RapidVap Components

As previously mentioned, Labconco manufactures two types of RapidVap, the
Vacuum and the Nitrogen models. Each model is available in 115V or 230V.

The different RapidVap models require different assembly components. Locate
the model of RapidVap you received in the following tables. Verify that the
components listed are present and undamaged.

Product Service 1-800-522-7658

Chapter 3: Getting Started

11

Original instructions

Catalog #

RapidVap Description

79100-00

RapidVap N2 Evaporation System – 115V

79100-01

RapidVap N2 Evaporation System – 230V

79100-10

RapidVap N2 Evaporation System – 115V with RS 232 Interface

79100-11

RapidVap N2 Evaporation System – 230V with RS 232 Interface

Plus the Following:

Part #

Component Description

79131-01

Exhaust Hose

19660-00

One (1) Clamp

79255-00

Eight (8) Sample Tube Caps

13364-00

13365-00

Power Cord – 115V

or

Power Cord – 230V

12556-00

Heat Transfer Grease

74901-00

User’s Manual

74848-00

Cable Assembly RS232 (Models 79100-10, -11)

Catalog #

RapidVap Description

79100-12

RapidVap N2/48 Evaporation System – 115V

79100-13

RapidVap N2/48 Evaporation System – 230V

79100-14

RapidVap N2/48 Evaporation System – 115V with RS 232 Interface

79100-15

RapidVap N2/48 Evaporation System – 230V with RS 232 Interface

Plus the Following:

Part #

Component Description

79131-00

Exhaust Hose – 6 ft.

19660-00

One (1) Clamp

13364-00

13365-00

Power Cord – 115V

or

Power Cord – 230V

12556-00

Heat Transfer Grease

74901-00

User’s Manual

74488-00

Manifold Guide (3)

19116-00

Washer (3)

74848-00

Cable Assembly RS232 (Models 74100-14, -15)

Since users’ preference of sample size varies, the sample holding block is not

included with the RapidVap Vacuum System or the RapidVap N2/48 Evaporation
System. The correct size block must be selected and ordered separately. Refer to
Appendix D: RapidVap Accessories for block selection.

If you do not receive one or more of the components listed for your RapidVap, or
if any of the components are damaged, contact Labconco Corporation immediately
for further instructions.

Product Service 1-800-522-7658

Chapter 3: Getting Started

12

Original instructions

V

Optional vacuum
pump exhaust hose
to ventilation device

Hose

Vacuum hose

Clamp all connections

Optional liquid trap or
chilled trap or
secondary trap

Vacuum pump
inlet fitting

Vacuum pump
power connection

Setting Up Your RapidVap

After you verify the RapidVap components, move your RapidVap to the location
where you want to install it. Then, follow the steps listed below.

Vacuum Pump Connection

Connect the pump inlet to the fitting at the right hand rear corner of the RapidVap
using the hose and clamps provided. Route the hose to prevent kinks. Clamp all
connections securely. Plug the pump into the pump receptacle on the back of the
unit and turn the pump switch on if it is so equipped. When evaporating high boiling
point solvents, a liquid trap should be positioned between the RapidVap and the
vacuum pump to prevent liquid from entering the pump. It is recommended that the
vacuum pump is located inside a fume hood. If that is not possible, the exhaust of
the pump should be directed to a laboratory fume hood or other laboratory
ventilation device.

Product Service 1-800-522-7658

Chapter 3: Getting Started

13

Original instructions

There is a switch on the back of the RapidVap Vacuum that is used to select the
operation of an optional RapidVap Trapping Valve. When the RapidVap is used
without the Trapping Valve as shown above, set the switch to the “Off” position.

Sample Block

If the RapidVap was not shipped with the sample block installed then it must be
installed by the user. The sample block must be securely attached to its mounting
plate. Note the asymmetric hole pattern of the three thru mounting holes. Locate
the three flat washers either nuts or manifold guides that were shipped with the
RapidVap. The RapidVap Vacuum uses nuts while the RapidVap N2/48 uses
guide rods.

Apply a small amount of heat transfer grease that was shipped with the RapidVap
to the end of the temperature sensor probe that extends up from the bottom of the
chamber. Position the block over the three studs in the chamber. Install the flat
washers and either nuts or guide rods. Tighten securely.

Product Service 1-800-522-7658

Chapter 3: Getting Started

14

Original instructions

!

Nut or guide rods – 3 required

Washer – 3 required

Block

Mounting stud

Temperature sensor

Apply heat
transfer grease

Never lift the lid if the block is moving. Samples may splash
out.

Ne jamais soulever le couvercle si le bloc est en mouvement. Les
échantillons peuvent gicler.

Never operate the RapidVap without the sample block securely
fastened in place. Excessive vibration will occur.

Ne jamais faire fonctionner le RapidVap sans le bloc
d'échantillon fixé solidement en place. Des vibrations excessives
se produira.

Never attempt to reach into the chamber if the block is moving.

Ne jamais tenter de mettre la main dans la chambre si le bloc
est en mouvement.

Product Service 1-800-522-7658

Chapter 3: Getting Started

15

Original instructions

N

N

V



Nitrogen Gas Connection

Turn the gas supply off. Install a barb fitting suitable for a 1/4" I.D. hose into the
“out” port of the regulator. Clamp securely. Alternately, a compression fitting
may be used that is suitable for a hose with a 3/8" O.D. and 1/4" I.D.

THE NITROGEN PRESSURE MUST NEVER BE ALLOWED
TO EXCEED 20 PSI. (103 KPA)

Exhaust Port

If the RapidVap N2 is not located in a fume hood, attach one end of the two inch
diameter venting hose that is supplied with the RapidVap to the exhaust port on the
right side of the unit. Clamp securely. Route the other end to a fume hood or
other laboratory ventilation device.

Electrical Connection

Plug the power cord into the receptacle on the back of the RapidVap and plug the
other end into a suitable wall power receptacle.

Calibrate the Vacuum Sensor

The vacuum sensor can be calibrated to room ambient atmospheric pressure. To
do this, determine the atmospheric pressure using a known reference device such
as a mercury barometer. Press and hold the vacuum release button on the
RapidVap while turning on the RapidVap power switch. Use the increase or
decrease buttons to make the vacuum display agree with the reference pressure.
Press run to store the calibration in memory.

Chemical Attack on RapidVap
Components

Your RapidVap Evaporation System is designed to be chemical resistant to most
compounds that are commonly used in the concentration processes that are
performed in it. However, by necessity, the RapidVap is comprised of a number of
different materials, some of which may be attacked and degraded by certain
chemicals. The degree of degradation is obviously dependent on the concentration
and duration of exposure. Some of the major components of the RapidVap that are
susceptible to degradation are as follows:

Product Service 1-800-522-7658

Chapter 3: Getting Started

16

Original instructions

Acids

Bases

Solvents

COMPONENT

MATERIAL

Acetic Acid 20%

Boric Acid

Formic Acid
Hydrobromic Acid 20%

Hydrochloric Acid 20%

Nitric Acid 20%
Sulfuric Acid 10%

Trifluoroacetic Acid (TFA)

Ammonium Hydroxide

Potassium Hydroxide

Acetone
Acetonitrile Chloroform

Dimethyl Formamide
Dimethyl Sulfoxide (DMSO)

Ethanol
Ethyl Acetate

Hexanes
Isoproponal

Methylene

Chloride
Toluene

Manifold N2/48

Acetal

C C C D D D C D C

Exhaust Elbow N2

Polyamid (Nylon)

D D D D D D D C D C

Blower Fan N2

Polyamid (Nylon)

D D D D D D D C D C

Exhaust Hose N2

Polyethylene

C C C C C C C

Vacuum Fittings

Polypropylene

C C

Blower Housing N2

Polypropylene

C C

Vacuum Hose

PVC D C D D D D D D C D D D D Trim Ring

Bromyl Butyl

C D D D D D D D

O- Rings

Neoprene

D D C D D C D D D D D D

Block Hardware

Stainless Steel

Nozzle N2

Stainless Steel

D D D

Vacuum Sensor

Stainless Steel

D D D

C- Moderate Degradation- Questionable Use
D- Severe Degradation- Infrequent use recommended- immediate thorough cleaning required

 If a rotary vane vacuum pump is used, most compounds used in the RapidVap

will degrade the oil if allowed to enter the pump. Generally, a rotary vane
pump is not suitable for use with the RapidVap.

 Diaphragm vacuum pumps sold by Labconco have wetted parts either made

from PTFE or protected by PTFE coatings and are suitable for nearly all
procedures.

 Glass lids are suitable for use with all common compounds.

When using compounds in the RapidVap that are hostile to the materials of
construction, it is imperative that the equipment is properly maintained.

 After each run, clean up all residues, spills, and materials that might have

splashed in the chamber using agents suitable for the substance involved.

 When using a rotary vane pump the oil in the pump should be checked often. It

must be changed if it is cloudy, shows particles or is discolored. The useful life
of vacuum pump oil can be extended if the vacuum pump is operated for an
extended period of time after the RapidVap run is over. This allows
contaminants to be purged from the hot oil. This must be done with the inlet to
the pump blocked off to prevent air from free flowing through the pump. If the
pump is operated at an elevated vacuum level, oil will be expelled from the
pump and damage will occur.

Product Service 1-800-522-7658

Chapter 3: Getting Started

17

Original instructions

!



With prudent maintenance your RapidVap will provide years of service. Warranty
on the effected parts will be void if maintenance has obviously been neglected. If
you have questions about using specific compounds in your RapidVap, contact
Labconco Technical Service at 1-800-821-5525 or 816-333-8811 or e-mail
[e-mail].

Solvent Safety Precautions

The RapidVap is not classified as “explosion proof.” It has been designed with
safety as a primary consideration and should be used in a prudent manner using

“good laboratory practices.” It has been designed for use with compounds as

described in the United States National Electrical Code Class I, Group D. The
block that holds the sample tubes may be programmed to run as hot as 100°C,
however, the heater element may normally run at 110°C. A thermal fuse limits the
heater to a maximum temperature of 130°C. It is important that the solvents used
are compatible with these temperatures. Do not evaporate solvents that have an
autoignition temperature below 180°C. Do not evaporate solvents that are
classified as Group A, B, or C by the National Electrical Code. Evaporate only
non-flammable or Group D solvents with autoignition temperatures 180°C or
above. Use of other compounds could cause an explosion.

Solvents used in the RapidVap may be flammable or hazardous.
Use extreme caution and keep sources of ignition away from the
solvents. When using flammable or hazardous solvents, both
the RapidVap and the vacuum pump should be operated inside
a fume hood.

If a sample is spilled in the chamber it must immediately be
cleaned up.

Hazardous materials such as strong acids or bases, radioactive
substances and volatile organics, must be handled carefully and
promptly cleaned up if spilled.

Several components of the RapidVap which are located inside
the chamber are made of stainless steel which can be attacked
by acids. Use of acids such as trifluoroacetic acid can result in
degradation of the product and the vacuum pump if the
vacuum system is being used. Use care when using aggressive
liquids which can damage the RapidVap and thoroughly clean
the RapidVap after each use. Contact Labconco before
evaporating acids.

WARNING: The disposal of substances used in connection with
this equipment may be governed by various Federal, State or
local regulations. All users of this equipment are urged to

Product Service 1-800-522-7658

Chapter 3: Getting Started

18

Original instructions

become familiar with any regulations that apply in the user’s

area concerning
the dumping of waste materials in or upon water, land or air
and to comply with such regulations.

AVERTISSEMENT: L'élimination des substances utilisées
dans le cadre de ce matériel peut être régie par diverses
réglementations fédérales, provinciales ou locales. Tous les
utilisateurs de cet équipement sont invités à se familiariser avec
tous les règlements qui s'appliquent dans le domaine de
l'utilisateur concernant le déversement de déchets dans ou sur
l'eau, la terre ou de l'air et de se conformer à ces règlements.

Your Next Step

The installation and setup of your RapidVap is now complete. To learn how to
load and operate your RapidVap, proceed to Chapter 4: Using Your RapidVap. To
make a modification to the configuration of your RapidVap, proceed to Chapter 6:
Modifying your RapidVap. To perform additional diagnostics on your RapidVap,
proceed to Chapter 7:Troubleshooting. To learn about the maintenance
requirements for your RapidVap, proceed to Chapter 5: Maintaining Your
RapidVap.

Product Service 1-800-522-7658

19

Original instructions

C

C

HHAAPPTTEERR

4

4

U

U

SSIINNG

G

Y

Y

OOUURR

R

R

AAPPIID

D

V

V

AAPP

!

V

After your RapidVap has been installed as detailed in Chapter 3: Getting Started,
you are ready to begin using your RapidVap. Read this chapter to learn how to:

 set operating parameters.
 operate the controls.
 properly select and position glassware inside your RapidVap.
 understand the display.
 interrupt a cycle after it has begun.

Do not use the RapidVap in a manner not specified by the
manufacturer (refer to Appendix C: RapidVap Specifications).
The electrical protection properties of the RapidVap may be
impaired if the RapidVap is used inappropriately.

Planning

Thoroughly understand procedures and the equipment operation prior to beginning
work. The unique performance of the RapidVap Vacuum is dependent upon the
proper balance of heat, vacuum and vortexing action. If the proper balance is not
established, it is possible to damage or lose a portion of the sample. Therefore, if
you are unfamiliar with the RapidVap or are attempting a new protocol, it may be
helpful to make a trial run that is void of the sample you are attempting to
concentrate.

Select the size of the sample tube so it is compatible with the block. Tubes should
not be loose in the block. Blocks are available with holes for various size tubes.
Refer to Appendix D: RapidVap Accessories for available block sizes and pages 19
and 20 for recommended usable tube volumes and vortex speeds.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

20

Original instructions

N



The unique performance of the RapidVap N2 is dependent upon the proper balance
of heat, gas flow and vortexing action. If the proper balance is not established, it is
possible to damage or lose a portion of the sample. Therefore, if you are
unfamiliar with the RapidVap N2 or are attempting a new protocol, it may me
helpful to make a trial run that is void of the sample you are attempting to
concentrate.

Determine if the sample which is to be processed will be allowed to go to dryness
or whether the evaporation is to cease prior to dryness. If the process should not
go to dryness, the proper sample tubes must be selected to allow the desired
amount of solvent to remain in the tubes. Sample tubes are available for various
end point volumes. Refer to Appendix D: Accessories for available sample tubes.
Any style ground glass tube may be used if the sample is to go to dryness,
however, flat bottom tubes evaporate the quickest.

Glassware Selection and Speed Setting
Guidelines

The speed at which the sample block should oscillate is dependent on the sample
tube size and the sample volume. Generally, the tube should be no more than half
full. The faster the speed, the higher the sample will vortex giving a maximum
surface area and therefore a maximum evaporation rate. However, if the speed is
too fast, samples will raise above the top of the tube and be lost. Smaller tubes can
be run faster than larger tubes. The following table gives recommended safe
speeds for tubes loaded with water. Experimentation with the specific sample may
determine faster speeds. When setting the speed, keep in mind that the sample will
raise up slightly in the tube when vacuum is applied to the chamber of the vacuum
model.

GLASS VIALS USED IN THE RAPIDVAP SHOULD BE OF
THE STYLE THAT DO NOT HAVE THE BEAD OR LIP ON
THE TOP EDGE. IF VIALS WITH BEADS ARE USED, THE
BEADS COULD HIT EACH OTHER AND BREAK THE
GLASS.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

21

Original instructions

TUBE

SIZE

SAMPLE

VOLUME

VORTEX

SPEED

12 x 75 mm (6 ml)

3 ml

95%

13 x 100 mm (10 ml)

5 ml

95%

16 x 150 mm (23 ml)

12 ml

95%

15 ml centrifuge

7.5 ml

66%

28 mm (46 ml)

23 ml

48%

600 ml

50 ml

45%

100 ml

45%

200 ml

38%

300 ml

29%

400 ml

20%

450 ml

18%

TUBE

SIZE

SAMPLE

VOLUME

VORTEX

SPEED

170 ml

50 ml

50%

75 ml

47%

100 ml

42%

125 ml

35%

TUBE

SIZE

SAMPLE

VOLUME

VORTEX

SPEED

600 ml

50 ml

90%

100 ml

90%

200 ml

76%

300 ml

58%

400 ml

40%

450 ml

36%

170 ml

50 ml

100%

75 ml

95%

100 ml

85%

125 ml

70%

N

V

Several different size sample blocks are available for the RapidVap Vacuum
model. The maximum recommended sample volumes and vortex speeds are as
follows:

Two sample blocks are available for the RapidVap N2. Recommended speeds are
as follows:

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

22

Original instructions

TUBE

SIZE

SAMPLE

VOLUME

VORTEX

SPEED

12 mm (6 ml)

3 ml

100%

13 mm (10 ml)

5 ml

100%

16 mm (23 ml)

12 ml

100%

20 mm (35 ml)

18 ml

100%

N



Four sample blocks are available for the RapidVap N2/48. Recommended speeds
are as follows:

Loading Glassware Into the RapidVap

Smooth operation of the RapidVap is dependent upon proper balance of the
machine. Therefore, if less than a full load of samples is run, it is important to
load samples into the RapidVap in a fairly uniform manner distributing the weight
of the samples and glassware evenly in the sample block.

IN ORDER TO MAXIMIZE THE PERFORMANCE OF THE
RAPIDVAP IT IS IMPORTANT THAT SOME OF THE
SAMPLES ARE CLUSTERED AROUND THE FRONT LEFT
HAND BLOCK MOUNTING STUD. THE BLOCK
TEMPERATURE SENSOR IS LOCATED ADJACENT TO THIS
BLOCK MOUNTING STUD. BY POSITIONING THE SAMPLE
NEAR THE SENSOR, THE SENSOR WILL DETECT THE
COOLING EFFECT OF THE EVAPORATING SAMPLES AND
SIGNAL THE CONTROLS TO SUPPLY MORE HEAT TO THE
SAMPLE BLOCK.

The best evaporation rate is achieved under conditions that maximize sample
surface area. These include using the largest tube possible, and using the highest
vortex speed possible.

When less than 8 samples are run in the RapidVap N2 or less than 48 samples are
run in the RapidVap N2/48, nitrogen flow can be directed to 2, 4, or 6 positions. It
is important to position glassware properly in the RapidVap N2 when less than a
full block is run to ensure that nitrogen gas is directed downward where the sample
is located. Note the label on the hub in the center of the chamber. This indicates
which nozzles on a RapidVap N2 or nozzle clusters on a RapidVap N2/48 will be
activated. If one or two positions are to be run, samples must be positioned at
locations identified (2). If three or four positions are to be run, samples must be
positioned at locations identified (4). If five or six positions are to be run, samples
must be positioned at locations identified (6). If seven or eight positions are to be
run, samples may be positioned at any of the locations. When using the RapidVap
N2/48, glassware may be placed anywhere within the activated cluster of nozzles.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

23

Original instructions

V

Heat Setting Guidelines

The evaporation rate achieved by the RapidVap is dependent upon a variety of
factors. These include the nature of the solvent, the temperature, the pressure in
the vacuum system or the flow of the nitrogen gas in the RapidVap N2, the volume
of sample, shape of tubes and vortex speed. Because of the multiplicity of factors
it is impossible to give “typical” performance data.

By design, the RapidVap Vacuum model can be run at lower temperature settings
than the RapidVap N2 model. This is because the decrease in pressure will cause
the sample to evaporate at a lower temperature. As a general guideline, to speed
the evaporation process, the RapidVap temperature should be set as high as
possible as long as the temperature will not damage the sample or cause the sample
to bump.

In the RapidVap Vacuum models, generally the evaporation rate will be optimized
with the block temperature set and preheated 20 to 40°C above the boiling point of
the solvent at the operating pressure.

For example, methanol (which boils at 65°C at atmospheric pressure) boils at 5°C
at pressure of 53 mBar. Under these vacuum conditions, the block temperature
should be set between 25 to 45°C. The nomogram and equation to follow will help
in this determination.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

24

Original instructions

Calculating the boiling point:

The operating pressure corresponding to the desired boiling point temperature may
be calculated for any solvent using the following formula:

log P = 2.8811 – Ta – T
(b)(T)

Where P = Vacuum (mm Hg)

Ta = Boiling Point Temperature at Atmospheric
Pressure (°K)
T = Desired Boiling Point Temperature (°K)
b = Constant from Table

Useful conversion factors:
1 mBar = .75 mm Hg

°K = °C + 273

Using the nomogram:

To use this graph, three facts must be known about a given solvent:

1. Boiling point at normal atmospheric pressure (1 Bar).

2. Constant b.

3. Either operating temperature or operating pressure.

To determine the desired boiling point at a given pressure:

1. Find the boiling point at normal atmospheric pressure (1 Bar) on the left side of

the graph.

2. Find the operating pressure on the right side of the graph.

3. Draw a straight line linking these two points.

4. Find “Constant b” for the solvent on the top of the grid. Follow that line until

it intersects with the line as drawn between the two points. This point
represents the boiling point at the given pressure and the temperature is read
off the left or right side of the grid (0-250°C).

To determine the operating pressure necessary to achieve a given boiling
point:

1. Find the boiling point at normal atmospheric pressure (1 Bar) on the left side of

the graph.

2. Find the “Constant b” and follow this line to the desired boiling point on the

grid (0-250°C).

3. Draw a straight line linking these two points and extrapolate on the right hand

scale to find the operating pressure.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

25

Original instructions

SOLVENT

BOILING
PT (°C)

DENSITY
(g/cm³)

HEAT OF
VAPORIZATION
(Kcal/Kg)

CONSTANT b

VACUUM FOR
BOILING POINT
AT 40°C (MBAR)

Acetone

56

.790

125

0.196

556

Acetonitrile

82

.786

178

0.195

208

Acetylene tetrachloride

147

1.602

53

0.200

20

Benzene

80

0.879

93

0.202

236

Butyl alcohol

118

0.810

120

0.156

26

Carbon tetrachloride

77

1.594

45

0.206

271

Chlorobenzene

132

1.110

90

0.202

36

Chloroform

60

1.480

59

0.203

474

1.2 Dichloroethane

83

1.235

126

0.201

210

Dichloroethylene

55

1.250

41

0.200

584

Diproplyether

68

0.726

76

0.207

375

Dioxide

111

1.034

98

0.195

70

Ethyl acetate

77

0.900

102

0.189

240

Ethyl alcohol

78

0.791

205

0.159

175

Ethylene dichloride

85

1.256

78

0.200

194

Heptane

98

0.680

74

0.200

120

Hexane

69

0.659

85

0.206

360

Iso-amyl alcohol

132

0.800

120

0.160

15

Iso-butyl alcohol

108

0.803

120

0.160

44

Isopropyl alcohol

82

0.785

160

0.158

136

Methyl alcohol

65

0.792

267

0.167

337

Methylene chloride

40

1.325

41

0.194

1013

Methyl ethyl ketone

80

0.810

113

0.206

243

N-Amyl alcohol

137

0.814

142

0.158

11

Pentachloroethane

159

1.700

45

0.207

15

Pentane

36

0.626

85

0.214

1013

Propyl alcohol

97

0.804

165

0.154

67

Tert, Butanol

83

0.787

141

0.154

130

1, 1, 2, 2,
Tetrachloroethane

146

1.603

60

0.198

20
Tetrachloroethylene

121

1.624

50

0.202

53

Toluene

111

0.867

86

0.202

76

1, 1, 1, Trichloroethane

74

1.346

76

0.206

301

Trichloroethylene

87

1.462

57

0.202

183

Water

100

1.000

540

0.167

72

Xylene

140

0.870

82

0.199

25

Physical constants:

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

26

Original instructions

Determination of Operating Conditions
Applied Vacuum/Boiling Point:

ts = Boiling point at 1 bar (normal pressure)
tp = Boiling point at P mbar (operating pressure)
p = Operating pressure in mbar

Example methyl alcohol:

1. Boiling point at normal (1 bar) atmospheric pressure = 65°C.

2. Constant b = 0.160

3. Operating pressure = 130 mBar

4. Boiling point at 130 mBar pressure = 24°C

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

27

Original instructions

Constant b

Groups

0.200

Aliphatic hydrocarbons

Aliphatic halogenated hydrocarbons

0.195

Aromatic hydrocarbons

Aromatic halogenated hydrocarbons

Ketones

Ethers

Nitriles

Heterocyclic compounds

0.190

Aldehydes

Esters

0.185

Amines

0.180

Phenols

0.165

Acids

0.160

Alcohols

N

Time Setting Guidelines

It is often desirable to stop the concentration process before the solvent is entirely
evaporated. This is accomplished by using glassware that has a small diameter

stem on the bottom and using the “Time” function to shut off the process after a

predetermined interval of time.

The “Cool Zone” feature is available on the RapidVap N2 with 8 places and is not
available on the RapidVap N2 with 48 places.

The design of the RapidVap N2 causes the evaporation to proceed quickly when
the sample is in the larger upper chamber of the sample tubes. When the solvent
evaporates sufficiently to drop the level into the smaller stem, the evaporation rate
decreases significantly. This phenomenon allows the solvent in all sample tubes to
evaporate out of the large upper chamber before any of the small chambers are
completely evaporated dry providing that all sample tubes are filled with nearly the
same starting volumes.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

28

Original instructions

V

Cool-Zone

When it is necessary to end the concentration process with the sample still
dissolved in a small amount of solvent, the time function should be activated and
the process time set to allow the solvent sufficient time to evaporate completely
out of the large upper portion of the sample tube and into the small lower portion

“Cool Zone.” This time can be approximated by knowing the starting sample size,

the desired end point volume, the stem size of the sample tube used and the
solvent. The tables in Appendix C: RapidVap Specifications indicate the
approximate time required to evaporate various common solvents. Actual times
must be determined by the user. When the set time has expired, the RapidVap N2
will give an audible alarm and turn off all RapidVap functions.

The tables in Appendix C: RapidVap Specifications indicate approximate times
required to evaporate various common solvents. Actual times must be determined
by the user. The RapidVap can be set to alarm after a preset period of operation.
When the time expires, the RapidVap will give an audible alarm and turn off all
functions.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

29

Original instructions

1 2 4

6 7 3

5

1

6 5 4

3

2

RapidVap Controls

The control panel for the RapidVap vacuum model and the RapidVap N2 are
shown below with a description about their function.

RapidVap Vacuum Model

RapidVap N2 Model

1. Display – The liquid crystal display (LCD) shows set point parameters and

actual measured conditions.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

30

Original instructions

2. Set Point Select Button – To select a parameter to change, press the set point

select button directly below the parameter.

3. Run/Stop Button – Used to start or stop a run.

4. Decrease Button – When pressed, the last selected set point will decrease.

5. Increase Button – When pressed, the last selected set point will increase.

6. Preheat Button – Used to turn on the heaters to preheat the sample block prior

to loading samples. When pressed during a run, it will switch the end point
alarm from audible to muted or back to audible. The audible alarm is the
default mode when the RapidVap is powered up.

7. Vacuum Release (Vacuum Model Only) – When pressed and held, the vacuum

valve will open to break vacuum. This is used to quickly decrease vacuum
should bumping of the sample occur.

Operating The RapidVap Controls

Preheat:

To preheat the chamber, press the preheat button. The LED next to the button will
illuminate and the display will show:

SP: XXC ACT: XXC

Press increase or decrease buttons until the desired set point is displayed. The
actual block temperature will be displayed to the right. When power is being
supplied to the heaters, a bar under the actual temperature will illuminate. The
block will continue to preheat until either the preheat button is pressed again or the
run button is pressed.

Select existing program:

Operating parameters can be stored in memory so protocols can be repeated. Nine
programs can be stored. To select a program, press the set point select button

directly under the word “PROG.” An arrow will point to the current program

number indicating that this set point can be altered. To change the program
number, press the increase or decrease button until the desired program number is
displayed. When the program number is changed, all its set points will change
also to indicate the last entered parameters. Pressing the “PROG” set point button
will reset the timer to the previous set point time.

Change speed set point:

To change the speed set point parameter, press the set point select button directly
under the word “SPEED.” Arrows will point to the present set point. The speed
may be altered from 0 to 100% by pressing the increase or decrease buttons. The
last entered set point will be stored in memory.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

31

Original instructions

V

N

It is suggested that the user set the vortex speed at a low percentage and gradually
increase it after the run is started. This will minimize the possibility of samples
sloshing out of the tubes. Reruns of the same protocol may start at the speed
determined by previous runs.

Change heat set point:

To change the heat set point, press the set point select button under the word
“HEAT.” Arrows will point to the present set point which can be changed from

-- (OFF) up to 99° by pressing the increase or decrease buttons. The set point is
100°C if the display shows “HI.” The last entered set point will be stored in
memory.

Change time set point:

To change the time set point, press the set point select button under the word

“TIME.” Arrows will point to the present set point which can be changed from 1

to 999 minutes by pressing the increase or decrease buttons. If it is desired to have
the RapidVap run continuously without alarming at the end of a time period, press

the increase button until the display says “RUN.” The last entered set point will be

stored in memory.

To reset the timer to the previous set point time, the “PROG” set point button must
be pressed.

Change the Vacuum set point (Vacuum model only):

To change the vacuum set point, press the set point select button directly under the

word “VACUUM.” An arrow will point to the last entered vacuum set point. The

vacuum level may be set between 0 to 999 mBar by pressing the increase or
decrease buttons. Above 999 mBar, the display will show “HI.” With a “HI”
setting, the vacuum pump will not operate. The last entered set point will be stored
in memory. Keep in mind that even though a deep vacuum set point may be
entered, the actual vacuum level that the RapidVap will try to maintain can be no
deeper than the vacuum level that the vacuum pump can maintain.

Select the number of samples that will be run (RapidVap N2 only):

Press the set point select button under the word “SAMPLE.” An arrow will point
to the last entered set point. By pressing the increase or decrease button, the
number of samples or clusters may be changed from 2 to 4 to 6 to 8. When
running less than eight samples in the RapidVap N2 or 48 samples in the RapidVap
N2/48, be sure to position them as described in the previous paragraph “Loading
Glassware Into the RapidVap.”

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

32

Original instructions

!

Operating The RapidVap

Never lift the lid if the block is moving. Samples may splash
out.

Ne jamais soulever le couvercle si le bloc est en mouvement. Les
échantillons peuvent éclabousser.

Never attempt to reach into the chamber if the block is moving.

Ne jamais tenter de mettre la main dans la chambre si le bloc
est en mouvement.

Keep hands clear of lid at all times and do not place objects on
the lid. Upon power up the unit may resume an interrupted
program and the lid may start moving.

Gardez les mains éloignées de couvercle à tout moment et ne
pas placer d'objets sur le couvercle. Dès la mise sous tension
l'appareil peut reprendre un programme interrompu et le
couvercle peut commencer à bouger.

1. Turn the power switch ON.

2. Select a program or set the set point parameters.

3. Turn on the nitrogen (RapidVap N2 only).

4. Preheat the block if desired.

5. Place samples in vials. Normally the vials should be no more than half full.

6. Load sample vials in the chamber.

7. Close the lid. On RapidVap N2/48 models, press down and rotate the cross bar

on the top of the lid counter clockwise approximately 1/8".

8. Swing both latches over the lid and tighten both knobs. Do not over tighten.

9. Press RUN. If the display was showing set point parameters, it will change to

show actual parameters. Press “RUN” again. The “S” (STOP) in the display

will change to “R” (RUN).

10. Set point parameters can be altered at any time during a run by first selecting

the parameter using the appropriate set point select button and then pressing
the “Increase” or “Decrease” switch.

11. If the time set point is used, at the end of the set time an alarm will sound. All

operating functions will cease.

12. Press STOP to terminate operation if the RapidVap has not already stopped

itself.

13. When the evaporation is complete, allow the chamber to stop moving, unlatch

the latches, on the RapidVap N2/48 models rotate the cross bar clockwise
approximately 1/8", lift the lid and remove the samples.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

33

Original instructions

14. Any time the RapidVap is not in operation, the power switch should be turned

OFF. This will prolong the life of the cooling fan and the blower in the
RapidVap N2.

Operational Notes

The LCD display conveys various pieces of information. When the RapidVap is
turned on, the RapidVap will return to the same mode (RUN or STOP) that it was
in when the power was turned off. If the RapidVap was in the RUN mode when
the power was turned off, when the power is turned on, the RapidVap will attempt
to return to the programmed set points.

If the previous run is to be duplicated, it is important to press the program set point
button prior to pressing run. This will show all the set points for that program and
will reset the timer back to the programmed set point. Without pressing the
program set point button, the time will not be reset and will continue to count
down from the time at which it was stopped.

Interrupting a Cycle After it Has Begun

At any time during a run, the cycle may be stopped by pressing the STOP button.
This shuts off all operating functions. After the chamber stops oscillating, the
latches may be unlatched and the lid opened. If it is necessary to re-start the
RapidVap, close the lid and secure the latches and press RUN. The RapidVap will
resume operation at the same set point parameters and the timer will continue to
count down from the time at which the RapidVap was stopped.

End Alarms

The RapidVap has two means to signal the completion of a run. The first method is
determined by the operator when the run time is set as described in the previous
paragraph, Time Setting Guidelines. In the second method the RapidVap will
automatically sense when an evaporation process is nearly complete by comparing
temperatures in the unit. When the RapidVap detects end point, it will sound an

alarm and the LED next to the “PREHEAT/ END ALARM” button will flash. This
alerts the operator to closely monitor the run’s completion. This method performs

best when large samples are processed at high temperatures. When small samples
or low temperatures are used, the alarm may signal prior to the end of evaporation.

The audible alarm may be canceled by pressing the “PREHEAT/ END ALARM”

button. The LED will continue to flash until the “STOP” button is pressed. If the
button is pressed again, the audible alarm will become active again.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

34

Original instructions

#R[x];

x=0 for stop, x=1 for run and x=2 for pre-heat, will get a x’\n’

response for confirmation; when a “#R;” with no “[x]” is sent,

the RapidVap will respond 0, 1 or 2

#S[xxx];

Selects the vortex speed of program 9 from 0% or 12% to
100%, will get a xxx;yyy’\n’ response for confirmation.
(xxx:speed setpoint, yyy:actual speed)

#T[xxx];

Selects the HEAT TEMPERATURE SET POINT of program 9
from 30 to 100 (C), will get a xxx;yyy’\n’ response for
confirmation. (xxx:temperature setpoint, yyy:actual
temperature); by entering “#T0;”, the heat will be set to OFF

RS-232 Communications

Some RapidVaps are equipped with RS-232 communications capabilities. This
hardware and software allows a user to perform all the front panel functions from a
standard RS-232 link. Communications will be at 4800 baud, no parity, 8 bit
word, 1 stop bit, and a 3-wire interface (TXD, RXD and circuit common). The
RS-232 link will be duplex or two-way, that is, it will allow the RapidVap Basic
and N2 models to be controlled externally (incoming commands) as well as
provide status information coming out of the RapidVap (outgoing status). All
communications will be done in standard ASCII format using the programming
syntax below.

RS-232 Programming Syntax

The RapidVap only responds to commands sent by the connected computer or
terminal – it does not send out commands on its own. The programming syntax
has two forms:

1. # [command abbreviation letter] [value]; when the command requires a

numeric value.

2. # [command abbreviation letter ]; when the command does not require a

numeric value.

When the programming syntax contains a numeric value, it will change the
operation of the RapidVap. When the programming syntax does not contain a
numeric value, the RapidVap will respond with its current status for that command
value.

Note that the lead-in character is “#” while the “[ ]” (brackets) are shown only to
separate parameters for ease of understanding. These brackets will not be used in

the actual ASCII command string. Finally, the “;” is used to indicate the end of a

command. Also note that ‘\n’ indicates a newline character.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

35

Original instructions

#t[xxxx]

Selects the TIME SET POINT of program 9 from 1 to 999
minutes, and 1000 for no stopping (will run continuously), will
get a xxxx;yyyy’\n’ response for confirmation. (xxxx:time
setpoint, yyyy:time left)

#V[xxxx];

Selects the VACUUM SET POINT (if the RapidVap is a
Vacuum model) of program 9 from 1 to 1000 mBar, will get a
xxxx;yyyy’\n’ response for confirmation. (xxxx:vacuum
setpoint, yyyy:actual vacuum)

#H[xxx];

Selects the PRE-HEAT SET POINT of program 9 from 30 to
100 C, will get a xxx;yyy’\n’ response for
confirmation.(xxx:pre-heat setpoint, yyy:actual temperature)

#L[x];

KEY LOCKED when x=1 and UNLOCKED when x=0, will
get a x’\n’ response for confirmation

#N[x]

elects the N2 VALVES (if the RapidVap is an N2 model) of
program 9 from 0,2,4,6,8, will get a x’\n’ response for
confirmation

#M[x];

x=1 will mute the audio alarm; x=0 will allow the audio alarm
to work normally

#E;

The RapidVap will respond to this command with a numeric

value as follows :’”1"’=indicates an endpoint has been reached;

“0”=endpoint has not been reached

#e;

The RapidVap will respond to this command with a numeric

value as follows: 0=all functions are normal; “1”=lid is open;
“2”=communication problem; “3” and later numbers will be

established later as specific error messages

Note: When controlling the RapidVap using the RS-232 link, all control parameters
will be entered into program 9.

Note: All of the above commands can be sent with no numeric value, that is

‘#[command];’ (without value) to read out the setpoint and actual value without

changing the setpoint.

Note: There is no command for the vacuum release button on the front panel since
this button is momentary in nature – the “#V0000;” command will bleed the
vacuum chamber to atmospheric pressure.

Note: The above commands can be sent at a maximum rate of one command per
second.

Product Service 1-800-522-7658

Chapter 4: Using Your RapidVap

36

Original instructions

RS-232 Hardware Required

The connecting cable, Labconco #7484800 is supplied with the unit and is wired as
shown below.

Product Service 1-800-522-7658

37

Original instructions

C

C

HHAAPPTTEERR

5

5

M

M

AAIINNTTAAIINNIINNG

G

Y

Y

OOUURR

R

R

AAPPIID

D

V

V

AAPP

V

Under normal operation, the RapidVap requires little maintenance. The following
maintenance schedule is recommended:

As needed:

1. Clean up all spills; remove liquids from chamber.

2. Clean lid and gasket using soft cloth, sponge or chamois and a mild, non-

Weekly:

1. If the vacuum pump contains oil, check the condition and level. If the oil level

Monthly:

1. The rubber components on the RapidVap may eventually deteriorate and

2. Using a soft cloth, sponge or chamois and a mild, non-abrasive soap or

abrasive soap or detergent.

is low, add oil. If the oil contains excessive amounts of moisture, detected by a
cloudiness in the oil, it will be necessary to change the oil. For further
information regarding procedures for changing the vacuum pump oil, refer to

the vacuum pump manufacturer’s instructions. To expel small amounts of

water that may have accumulated in the pump oil, periodically operate the
vacuum pump against a dry, leak-tight system. The gas ballast must be open.

require replacement. The effective life of rubber parts depends upon both their
usage and the surrounding environment. Check all rubber hoses and gaskets
and replace any that show signs of hardening, permanent set or deterioration.

detergent, clean the glass lid.

Product Service 1-800-522-7658

Chapter 5: Maintaining Your RapidVap

38

Original instructions

3. Using a soft cloth, sponge, or chamois and a mild, non-abrasive soap or

detergent, clean the exterior surfaces of the unit. Liquid spray cleaners and
polishes may be used on the exterior surfaces. Do not use solvents to remove
stains from the exterior surfaces as they may damage the finish.

4. All weekly activities.

Product Service 1-800-522-7658

39

Original instructions

C

C

HHAAPPTTEERR

6

6

M

M

OODDIIFFYYIINNG

G

Y

Y

OOUURR

R

R

AAPPIID

D

V

V

AAPP

The configuration of your RapidVap may need to be changed to accommodate
your needs. For example, you may want to change the sample size you are running
so you will need to change the block or you may want to add a lid heater to
eliminate condensation inside the lid. Read this chapter to learn how to:

 change blocks.
 install a lid with heater.

Changing the Sample Blocks

If it is necessary to change from one sample size to another, it may be necessary to
change the block. Refer to Appendix D: RapidVap Accessories for available
sample blocks.

First, using a 7/16" socket (RapidVap Vacuum and RapidVap N2), remove the
three nuts and washers on the top of the existing block. The RapidVap N2/48
requires a 9/16" socket to remove the three manifold guides that secure the block.
Lift the block out of the chamber. Note the asymmetric hole pattern of the three
mounting holes. Apply a small amount of heat transfer grease supplied with the
RapidVap to the end of the temperature sensor probe that extends up from the
bottom of the chamber.

Position the block over the three studs in the chamber. Install the flat washers and
nuts or manifold guide rods. Tighten securely.

Product Service 1-800-522-7658

Chapter 6: Modifying Your RapidVap

40

Original instructions

V

Installing the Optional Lid Heater

If a Lid Heater is to be added by the user, first disconnect the main power cord to
the RapidVap. Then remove the existing lid by removing the two screws that hold
either the RH or LH hinge pivot support bracket. Remove the bracket and then
slide the lid assembly off of the other bracket. Install the new lid with the heater
attached by reversing the process. Plug the jack attached to the lid heater into the
receptacle on the back of the RapidVap. The lid heater will operate any time the
main power switch is on.

Product Service 1-800-522-7658

41

Original instructions

C

C

HHAAPPTTEERR

7

7

T

T

RROOUUBBLLEESSHHOOOOTTIINNG

G

DISPLAY
ERROR CODE

CAUSE

CORRECTIVE ACTION

Top Temp Sensor

Top sensor failure

Replace top sensor assembly.

Connection failure

Repair connection.

Bottom Temp
Sensor

Bottom sensor
failure

Replace bottom sensor assembly.
Connection failure

Repair connection.

Vacuum Sensor

Sensor failure

Replace sensor assembly.

Connection failure

Repair connection.

Lid Opened

Lid open

Close lid.

Switch failure

Replace switch.

Connection failure

Repair connection.

Refer to the following if your RapidVap fails to operate properly. If the suggested
corrective actions do not solve your problem, contact Labconco for additional
assistance. The following failure codes may appear on the display when problems
are sensed by the internal self check routine.

Product Service 1-800-522-7658

Chapter 7: Troubleshooting

42

Original instructions

DISPLAY
ERROR CODE

CAUSE

CORRECTIVE ACTION

Mem Fail – Push
Prog

Memory failure

Push program button.

New memory IC
chip

Push program button.

Bad memory IC
chip

Call Labconco – Replace IC chip or control
PCB.

Motor Error

Stalled condition

Turn power off. Try to restart after one
minute. Call Labconco if error message
remains.

Excessive speed
detected, i.e. >120%

Turn power off. Try to restart after one
minute. Call Labconco if error message
remains.

Defective motor

Turn power off. Try to restart after one
minute. Call Labconco if error message
remains.

PROBLEM

CAUSE

CORRECTIVE ACTION

Unit will not
operate

Unit not connected to
electrical power

Connect unit to proper electrical
receptacle.

Circuit breaker blown

Correct electrical problem and reset
circuit breaker by pressing button.

Lid open

Close lid.

Excessive
vibration

Sample tubes not
located symmetrically
in block

Reposition sample tubes.

Sample block loose

Tighten all three mounting screws.

Sample block not
installed

Install sample block.

Sample odor in
lab

Vent hose exhausting
into lab area

Redirect hose to fume hood.

Inoperable blower
(RapidVap N2)

Replace blower.

Other corrective actions for potential problems are as follows:

Product Service 1-800-522-7658

Chapter 7: Troubleshooting

43

Original instructions

PROBLEM

CAUSE

CORRECTIVE ACTION

Sample in
bottom of
chamber

Gas pressure too high
(RapidVap N2)

Reduce pressure.

Vortex speed too high

Reduce speed.

Condensation forming
inside lid (RapidVap
Vacuum)

Install lid heater. See page 36.

Poor recovery
rates

Sample going to
dryness (RapidVap N2)

Program RapidVap N2 to prevent dryness.

Sample sloshing out of
tube

Decrease vortex speed.
Heat setting is too high

Decrease heat.

Evaporation
rate is reduced

Gas supply depleted
(RapidVap N2)

Replenish gas.
Heater inoperable

Contact Labconco.

Vacuum pump failure
(RapidVap Vacuum)

Check pump.

No vacuum
poor vacuum
(RapidVap
Vacuum)

Pump not on

Turn on pump.

Control valve open

Check control valve.

Leaks in lines or
connectors

Locate and repair.

Foreign material on lid
gasket

Clean gasket and lid.
Vacuum pump oil low

Add oil.

Excessive
contamination in
vacuum pump oil

Replace oil.
Pump not connected to
RapidVap

Connect hose and power cord.

Product Service 1-800-522-7658

Chapter 7: Troubleshooting

44

Original instructions

PROBLEM

CAUSE

CORRECTIVE ACTION

No gas flow
(RapidVap N2)

Gas depleted

Install new supply of gas.

Sample position not
activated

Activate position per page 30.
Nozzle clogged

Unplug nozzle with fine wire.

Valve inoperable

Contact Labconco

Gas flows
continuously

Valve inoperable

Contact Labconco
Control inoperable

Contact Labconco

Product Service 1-800-522-7658

45

Original instructions

A

A

PPPPEENNDDIIXX

A

A

R

R

AAPPIID

D

V

V

AAPP

V

V

AACCUUUUMM AANNDD

R

R

AAPPIID

D

V

V

AAPP

N

N

2

2

C

C

OOMMPPOONNEENNTTSS

The following pages list components that are available for your RapidVap. The
parts shown are the most common replacement parts. If other parts are required,
contact Product Service.

Product Service 1-800-522-7658

Appendix A: RapidVap Vacuum & RapidVap N2 Components

46

Original instructions

Item

Quantity

Part No.

Description

1 1 13023-00

Switch, Power

2 4 74953-00

Foot 3 1

79167-00

Fan Cooling

4 1 74838-00

PCB, Main (RapidVap Vacuum)

4A 1 74838-03

PCB, Main (RapidVap N2 & RapidVap N2/48)

4B 1 74838-04

PCB, Main (RapidVap Vacuum w/RS232)

4C 1 74838-05

PCB, Main (RapidVap N2 & RapidVap N2/48 w/ RS232)

5 8 74887-00

Isolator, Upper

6 8 74915-00

Isolator, Lower

7 1 13364-00

Cord, Power (115V)

7A 1 13365-00

Cord, Power (230V)

8 1 12926-00

Triac 9 1

79176-00

Diode Bridge

10 1 78252-00

Belt

11 1 12111-00

Motor

-- 1 13444-06

Fuse, 12A, Type T, Slow Blow (Not Shown)

RapidVap Vacuum and RapidVap N2 Components

Product Service 1-800-522-7658

Appendix A: RapidVap Vacuum & RapidVap N2 Components

47

Original instructions

1

2 3 4 5 6 7 8 9 11

10

Product Service 1-800-522-7658

Appendix A: RapidVap Vacuum & RapidVap N2 Components

48

Original instructions

Item

Quantity

Part No.

Description

21 1 74917-00

Temperature Sensor, Lower

22 1 74870-00

Temperature Sensor, Upper

23 1 74916-00

Vacuum Sensor

24 2 74882-00

Spring, Latch

25 2 74880-00

Latch

26 6 19271-05

Washer, Latch

27 2 74883-00

Knob, Latch

28 3 19092-21

Nut, Block

29 3 19116-00

Washer, Block

30 3 79046-01

Stud, Block

31 1 74979-00

Trim Ring

32 1 15532-00

Hose, Exhaust

33 1 74847-00

Shield, Lid

34 1 74846-00

Lid

34A 1 74844-00

Lid With Heater

35 1 79759-01

Thermal Fuse

36 1 73449-00

Valve, Vacuum

37 1 74920-02

PCB, Display/Control

38 1 74926-00

Label, Control Panel

39 1 13061-00

Relay, Vacuum Pump

--

1

Fuse, Main Vacuum PCB, 2A, Type T, Slow Blow
(Not Shown)

RapidVap Vacuum Components

Product Service 1-800-522-7658

Appendix A: RapidVap Vacuum & RapidVap N2 Components

49

Original instructions

26

34

33

32

31

30

35

28

29

27

25

24

23

22

21

39

36

37

38

Product Service 1-800-522-7658

Appendix A: RapidVap Vacuum & RapidVap N2 Components

50

Original instructions

Item

Quantity

Part No.

Description

51 1 74917-00

Temperature Sensor, Lower

52 1 74870-00

Temperature Sensor, Upper

53 2 74882-00

Spring, Latch

54 2 74880-00

Latch

55 6 19271-05

Washer, Latch

56 2 74883-00

Knob, Latch

57 3 19092-21

Nut, Block (RapidVap N2)

57A 3 74488-00

Guide Stud (RapidVap N2/48)

58 3 19116-00

Washer, Block

59 3 79046-01

Stud, Block

60 1 74845-00

Lid (RapidVap N2)

60A 1 74497-00

Lid (RapidVap N2/48)

61 1 74979-00

Trim Ring

62 1 79131-01

Hose, Exhaust Short

63 1 74889-01

Valve Assembly, Nitrogen

64 1 79131-02

Hose Exhaust Long

65 1 79096-00

Blower, Exhaust

66 1 74920-02

PCB, Display/Control

67 1 74922-00

Label, Control Panel

68 1 79759-01

Thermal Fuse

-- 1 13444-03

Fuse, Exhaust Blower, 4A, Type T, Slow Blow
(Not Shown)

RapidVap N2 and RapidVap N2/48 Components

Product Service 1-800-522-7658

Appendix A: RapidVap Vacuum & RapidVap N2 Components

51

Original instructions

51

67

66

65

64

63

62

68

61

58

60A

59

53

56

54

52

57A

59

58

57

55

Product Service 1-800-522-7658

52

Original instructions

A

A

PPPPEENNDDIIXX

B

B

R

R

AAPPIID

D

V

V

AAPP

D

D

IIMMEENNSSIIOONNSS

RapidVap Vacuum

Product Service 1-800-522-7658

Appendix A: RapidVap Vacuum & RapidVap N2 Components

53

Original instructions

RapidVap N2

Product Service 1-800-522-7658

54

Original instructions

A

A

PPPPEENNDDIIXX

C

C

R

R

AAPPIID

D

V

V

AAPP

S

S

PPEECCIIFFIICCAATTIIOONNSS

This Appendix contains technical information about the RapidVap including
specifications, environmental operations conditions, wiring diagrams and
evaporation rates.

Electrical Specifications

 Nominal amperage for 115V RapidVap Vacuum (model 79000-00 &

 Nominal amperage for 230V RapidVap Vacuum (model 79000-01 &

 Nominal amperage for 115V RapidVap Vacuum (model 79000-02 &

 Nominal amperage for 230V RapidVap Vacuum (model 79000-03 &

 Nominal amperage for 115V RapidVap N2 (model 79100-00, 79100-10,
 Nominal amperage for 230V RapidVap N2 (model 79100-01, 79100-11,
 Frequency (all models): 50/60 Hz

 Phase: Single
 Heater power: 1000 watts
 Lid heater power: 40 watts

Environmental Conditions

 Indoor use only.
 Maximum altitude: 6562 feet (2000 meters).
 Ambient temperature range: 41° to 104°F (5° to 40°C).
 Maximum relative humidity: 80% for temperatures up to 88°F (31°C),

 Main supply voltage fluctuations not to exceed ±10% of the nominal

79000-10) excluding vacuum pumps: 8A
Maximum amperage with vacuum pump: 16A

79000-11) excluding vacuum pumps: 4A
Maximum amperage with vacuum pump: 8A

79000-12) with Lid Heater excluding vacuum pump: 8.6A
Maximum amperage with vacuum pump: 16A

79000-13) with Lid Heater excluding vacuum pump: 4.3A
Maximum amperage with vacuum pump: 8A

79100-12 & 79100-14): 8A

79100-13 & 79100-15): 4A

decreasing linearly to 50% relative humidity at 104°F (40°C).

voltage.

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

55

Original instructions

N

 Transient overvoltages according to Installation Categories II (Overvoltage

Categories per IEC 1010). Temporary voltage spikes on the AC input line
that may be as high as 1500V for 115V models and 2500V for 230V
models are allowed.

 Used in an environment of Pollution degrees 2 (i.e., where normally only

non-conductive atmospheres are present). Occasionally, however, a
temporary conductivity caused by condensation must be expected, in
accordance with IEC 664.

Nitrogen Consumption

 Gas flow RapidVap N2 with 8 active nozzles:

0.55 SCFM @ 12 psi

0.41 SCFM @ 6 psi

 Gas flow RapidVap N2/48with 48 active nozzles:

3.5 SCFM @ 20 psi

2.5 SCFM @ 10 psi

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

56

Original instructions

Wiring Diagram (115V Models)

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

57

Original instructions

Wiring Diagram (230V Models)

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

58

Original instructions

Solvent:

Methylene

Chloride

Toluene

Acetonitrile

Water

Block Preheat &
Block Set Point
Temperature:

50°C

80°C

75°C

80°C

Vacuum:

250 mbar

133 mbar

167 mbar

133 mbar

Starting Volume

300ml

62

90

102

402

250

56

72

84

345

200

49

66

71

289

150

42

57

60

239

100

36

33

49

189

50

22

40

37

95

V

Evaporation Rates

RapidVap Vacuum Models

The following tables show the approximate time to evaporate various solvents in
75mm and 16mm sample tubes when the sample block is fully loaded. Other
sample blocks are available for different size tubes. If they are used or if a
different number of samples is run at one time, the evaporation times can be
estimated from these charts or determined experimentally.

Evaporation Time – 75 mm dia. Sample Tube

(Time in Minutes)

Number of samples: 8
Vortex speed: 28%
Vacuum pump: Labconco model – 79249-00
Rated free air flow – 88 L/min
Max. attainable vacuum – 31 mbar

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

59

Original instructions

Solvent:

Methylene

Chloride

Toluene

Acetonitrile

Water

Block Preheat &
Block Set Point
Temperature:

50°C

80°C

75°C

80°C

Vacuum:

200 mbar

200 mbar

330 mbar

133 mbar

Starting Volume

10 ml

18

25

25

119 8 14

20

22

101 6 10

14

17

72

4

8

12

13

50

2

4 6 7

26

V

N

Evaporation Time – 16 mm dia. Sample Tube

(Time in Minutes)

Number of samples: 69
Vortex speed: 95%
Vacuum pump: Labconco model – 79249-00
Rated free air flow – 88 L/min
Max. attainable vacuum – 31 mbar

RapidVap N2 Models

The following tables indicate the approximate time required to evaporate various
common solvents. Tables A and B show the average time required to evaporate 8
samples from the selected beginning volume to a level where the solvent is at the
top of the Cool-Zone stem. Tables C shows the average time to evaporate various
solvents in different length Cool-Zone stems. It shows the average time for
solvents to evaporate from the top of the stem to the indicated remaining volume
when 8 vials are run simultaneously. The following example illustrates the use of
the charts:

Assume that a starting volume of 300 ml methylene chloride is
placed in a 600 ml sample vial with a 1.5 ml stem. The vial is
covered with a cap. The desired endpoint volume is 0.5 ml. From
Table A, the time to evaporate to the top of the stem is 59 minutes.
From Table C, the time to evaporate from the top of the stem to 0.5
ml is 17 minutes. Adding the two times together, the total time to
evaporate 300 ml of methylene chloride to 0.5 ml in a sample tube
with a 1.5 ml stem is approximately 76 minutes.

If fewer than eight samples are run at a time, the time to evaporate
will become shorter.

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

60

Original instructions

Solvent:

Methylene

Chloride

Ethyl

Acetate

Hexanes

Acetone

Toluene

Water

Block Preheat &
Block Set Point
Temperature:

40°C

75°C

70°C

55°C

100°C

95°C

Starting Volume

450 ml

91

82

54

90

109

623

400

80

65

52

75

80

531

350

69

56

35

64

69

437

300

59

48

29

54

60

379

250

51

40

22

45

50

323

200

43

33

19

38

41

270

150

36

26

16

31

32

221

100

28

19

11

23

23

173

50

18

12 7 14

13

106

Table A

Evaporation Time in Upper Portion of Sample Vial

(600 ml Sample Tubes) (Time in Minutes)

N

Number of samples: 8
Nitrogen pressure: 10 psi at volumes 0 thru 300 ml
(see Note 1) 5 psi at volumes above 300 thru 350 ml
4 psi at volumes above 350 thru 400 ml
2 psi at volumes above 400 thru 450 ml
Vortex speed: 70% at volumes 0 thru 300 ml
(see Note 1) 36% at volumes above 300 thru 450 ml
Sample tubes covered with caps

Note 1: Even though the RapidVap N2 is capable of processing starting volumes
as high as 450 ml using the 600 ml sample vial, its optimum volume is 300 ml.
Above 300 ml, the vortex speed must be reduced and the nitrogen pressure must be
decreased to prevent the sample from splashing out. This data for starting volumes
over 300 ml was generated by starting the evaporation at reduced levels of nitrogen
pressure and vortex speed. As the solvent evaporated, the nitrogen pressure and
vortex speed were increased.

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

61

Original instructions

Solvent:

Methylene

Chloride

Ethyl

Acetate

Hexanes

Acetone

Toluene

Water

Block Preheat &
Block Set Point
Temperature:

40°C

75°C

70°C

55°C

100°C

95°C

Starting Volume

450 ml

58

56

33

68

75

420

400

53

48

29

61

63

352

350

48

40

24

54

52

321

300

41

35

21

47

45

266

250

35

31

19

43

40

230

200

30

26

16

38

35

193

150

25

22

14

34

28

153

100

19

17

11

29

22

120

50

10 9 7

16

15

68

Table B

Evaporation Time in Upper Portion of Sample Vial

(600 ml Sample Tubes) (Time in Minutes)

N

Number of samples: 8
Nitrogen pressure: 10 psi at volumes 0 thru 300 ml
(see Note 1) 5 psi at volumes above 300 thru 350 ml
4 psi at volumes above 350 thru 400 ml
2 psi at volumes above 400 thru 450 ml
Vortex speed: 70% at volumes 0 thru 300 ml
(see Note 1) 36% at volumes above 300 thru 450 ml
Sample tubes: Not covered with caps

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

62

Original instructions

Solvent:

Methylene

Chloride

Ethyl

Acetate

Hexanes

Acetone

Toluene

Water

Block
Preheat &
Block Set
Point Temp:

40°C

75°C

70°C

55°C

100°C

95°C

Glassware

Ending

Volume

0.5 ml Stem

0.5

Dry

4

10 4 9 3 7 4 9 5 10

42
78

1.5 ml Stem

1.5

1.0

0.5

Dry

4

9
17
31

4

7
13
24

2

5

8
16

3

7
12
22

5

9
15
26

23
43
75

120

2.0 ml Stem

2.0

1.0

Dry

3
17
64

3
11
34

2

8
26

3
15
47

4
14
50

28
80

201

3.0 ml Stem

3.0

2.0

1.0

Dry

4
20
57

128

4
12
34
81

3
10
25
52

3
16
50

108

5
17
40
89

34
76

170
339

Table C

Evaporation Rate in Cool-Zone Stem

(600 ml Sample Tubes) (Time in Minutes)

Number of samples: 8
Vortex speed: 70%
Nitrogen pressure: 10 psi
Sample tubes: Covered or not covered with caps

Glassware Used:

0.5 ml (PN 79259-00) .77 in (1.9 cm) Long Stem

1.5 ml (PN 79139-00) 1.37 in (3.5 cm) Long Stem

2.0 ml (PN 79137-00) 1.62 in (4.1 cm) Long Stem

3.0 ml (PN 79135-00) 2.25 in (5.7 cm) Long Stem

N

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

63

Original instructions

Solvent:

Methylene

Chloride

Toluene

Acetonitrile

Methanol

Hexane/

Ethyl Acetate

75:25

Hexane/

Ethyl Acetate

50:50

Block Preheat
& Block Set
Point Temp:

40°C

80°C

75°C

40°C

40°C

40°C

Starting Volume

2 ml

6 8 8

18 5 5

Evaporation Time RapidVap N2/48 Models

(12 mm Sample Tubes) (Time in Minutes)

Number of samples: 48
Vortex speed: 100%
Nitrogen pressure: 8 psi

N

RapidVap N2/48 Models

The following tables show the approximate time to evaporate various solvents in
12mm and 20mm sample tubes when the sample block is fully loaded. Other
sample blocks are available for different size tubes. If they are used or if a
different number of samples is run at one time, the evaporation times can be
estimated from these charts or determined experimentally. Evaporation rates may
vary from tube to tube.

Product Service 1-800-522-7658

Appendix C: RapidVap Specifications

64

Original instructions

Solvent:

Methylene

Chloride

Toluene

Acetonitrile

Methanol

Hexane/

Ethyl Acetate

75:25

Hexane/

Ethyl Acetate

50:50

Block Preheat &
Block Set Point
Temp:

50°C

80°C

75°C

40°C

40°C

40°C

Starting Volume

10 ml

17

23

24

49

18

20

8

14

21

21 6

11

18

18 4

9

15

14 2

5 9 8

Evaporation Time RapidVap N2/48 Models

(20 ml Sample Tubes) (Time in Minutes)

Number of samples: 48
Vortex speed: 100%
Nitrogen pressure: 20 psi

Product Service 1-800-522-7658

65

Original instructions

A

A

PPPPEENNDDIIXX

D

D

R

R

AAPPIID

D

V

V

AAPP

A

A

CCCCEESSSSOORRIIEESS

PART #

DESCRIPTION

7491300

Block. 110-12 mm dia. tubes.

7485800

Block. 110-13 mm dia. tubes.

7491400

Block. 69-16 mm dia. tubes.

7496300

Block. 69-15 ml centrifuge tubes.

7496400

Block. 26-28 mm scintillation tubes.

7494500

Block. 8-600 ml tubes. Order tubes from Labconco.

7486400

Block. 8-170 ml tubes. Order tubes from Labconco.

Block. Special orders (size and number of tubes). Contact Labconco.

7909200

Sample Tube – Flat Bottom. Borosilicate glass. 600 ml capacity.
Package of one (1).

7913408

Sample Tube – Flat Bottom. Borosilicate glass. 600 ml capacity.
Package of eight (8).

V

This following accessories are available for the RapidVap Vacuum model.

Product Service 1-800-522-7658

Appendix D: RapidVap Accessories

66

Original instructions

PART #

DESCRIPTION

7927000

Sample Tube – Flat Bottom. Borosilicate glass. 170 ml capacity.
Package of one (1).

7927108

Sample Tube – Flat Bottom. Borosilicate glass. 170 ml capacity.
Package of eight (8).

7393000

Vacuum Pump. Diaphragm pump - corrosion resistant. 115V, 60 Hz,

4.0 amps, single phase. 63 liters per minute, 1.5 mbar max vacuum.

7393001

Vacuum Pump. Diaphragm pump - corrosion resistant. 230V, 50/60
Hz, 3.0 amps, single phase. 63 liters per minute, 1.5 mbar max
vacuum.

7587000

Vacuum Pump. Scroll pump. 115 VAC, 50/60 Hz, 10 amps, single
phase. 189/195 liters per minute, 7 x 10-3 mbar max vacuum. Requires
½ fitting 1472701.

7587002

Vacuum Pump. Scroll pump. 230 VAC, 50/60 Hz, 6 amps, single
phase. 189/195 liters per minute, 7 x 10-3 mbar max vacuum. Requires
½ fitting 1472701.

7587300

Silencer. For scroll pumps 7587000 and 7587002.

1472700

Fitting. For scroll pumps 7587000 and 7587002. For ½ I.D. hose.

7815300

Secondary Trap Canister. Includes stand and fittings. Requires an
insert suitable for the application.

7814800

Acid Trap Insert. Installs inside secondary trap canister. Contains
acid neutralizing desiccant.

Product Service 1-800-522-7658

Appendix D: RapidVap Accessories

67

Original instructions

PART #

DESCRIPTION

7814900

Moisture Trap Insert. Installs inside secondary trap canister.
Contains desiccant.

7815000

Radioisotope Trap Insert. Installs inside secondary trap canister.
Contains activated charcoal.

7815200

Solvent Trap Insert. Installs inside secondary trap canister. Contains
molecular sieve.

7538000

Secondary Vacuum Trap. 9 ¾" h x 7 7/8" diameter with ¾" vacuum
connections. Volume of inner pot holds 2.85 liters of dry ice and
alcohol. Ice trapping capacity is over 900 ml. Shipping weight 9 lbs.

7538200

Secondary Vacuum Trap. 9 ¾" h x 7 7/8" diameter with 1/2" vacuum
connections. Volume of inner pot holds 2.85 liters of dry ice and
alcohol. Ice trapping capacity is over 900 ml. Shipping weight 9 lbs.

7538400

Secondary Vacuum Trap. 7 7/8" h x 6 5/8" diameter with 1/2"
vacuum connections. Volume of inner pot holds 1.8 liters of dry ice and
alcohol. Ice trapping capacity is 200 ml. Shipping weight 5 lbs.

7486500

Lid Heater. Includes glass lid with heater attached.

7873400

Liquid Trap. Capable of trapping 2,550 ml.

7970500

Liquid Trap. Capable of trapping 240 ml.

7348000

Trapping Valve. Requires a user supplied trap.

Product Service 1-800-522-7658

Appendix D: RapidVap Accessories

68

Original instructions

PART #

DESCRIPTION

7486400

Block. 8–170 ml tubes. Order tubes from Labconco.

7927000

Sample Tube – Flat Bottom. Borosilicate glass. 170 ml capacity.
Package of one (1).

7927108

Sample Tube – Flat Bottom. Borosilicate glass. 170 ml capacity.
Package of eight (8).

7926600

Sample Tube – End Point Stem 1.5 ml. Borosilicate glass. 170 ml
capacity. Package of one (1).

7926908

Sample Tube – End Point Stem 1.5 ml. Borosilicate glass. 170 ml
capacity. Package of eight (8).

7909200

Sample Tube – Flat Bottom. Borosilicate glass. 600 ml capacity.
Package of one (1).

7913408

Sample Tube – Flat Bottom. Borosilicate glass. 600 ml capacity.
Package of eight (8).

7925900

Sample Tube – End Point Volume 0.5 ml. Borosilicate glass. 600
ml capacity. Package of one (1).

7926008

Sample Tube – End Point Volume 0.5 ml. Borosilicate glass. 600
ml capacity. Package of eight (8).

7913900

Sample Tube – End Point Volume 1.5 ml. Borosilicate glass. 600
ml capacity. Package of one (1).

7914008

Sample Tube – End Point Volume 1.5 ml. Borosilicate glass. 600
ml capacity. Package of eight (8).

N

The following accessories are available for the RapidVap N2.

Product Service 1-800-522-7658

Appendix D: RapidVap Accessories

69

Original instructions

PART #

DESCRIPTION

7913700

Sample Tube – End Point Volume 2 ml. Borosilicate glass. 600 ml
capacity. Package of one (1).

7913808

Sample Tube – End Point Volume 2 ml. Borosilicate glass. 600 ml
capacity. Package of eight (8).

7913500

Sample Tube – End Point Volume 3 ml. Borosilicate glass. 600 ml
capacity. Package of one (1).

7913608

Sample Tube – End Point Volume 3 ml. Borosilicate glass. 600 ml
capacity. Package of eight (8).

7487600

Rack – For 600 ml Sample Tubes. Holds eight (8) tubes.

7486300

Rack – For 170 ml Sample Tubes. Holds eight (8) tubes.

7925408

Sample Tube Cap–PTFE – For 600 ml Sample Tubes. Package of
eight (8).

7926808

Sample Tube Cap–PTFE – For 170 ml Sample Tubes. Package of
eight (8).

7926508

Sample Tube Cap–Polyethylene – For 170 ml Sample Tubes.
Package of eight (8).

7925500

Sample Tube Cap–Polyethylene – For 600 ml Sample Tubes.

Package of one (1).

Product Service 1-800-522-7658

Appendix D: RapidVap Accessories

70

Original instructions

PART #

DESCRIPTION

7482100

Block. 48 – 12 x 75 mm tubes.

7482200

Block. 48 – 13 x 100 mm tubes.

7482300

Block. 48 – 16 x 150 mm tubes.

7482400

Block. 48 – 20 x 150 mm tubes.

7494500

Block. 8 – 600 ml glass tubes.

7909200

Glass Tubes for Block 74945-00. 600 ml flat bottom. Pkg. of 1.

7913408

Glass Tubes for Block 74945-00. 600 ml flat bottom. Pkg. of 8.

N

The following accessories are available for the RapidVap N2/48.

Product Service 1-800-522-7658
