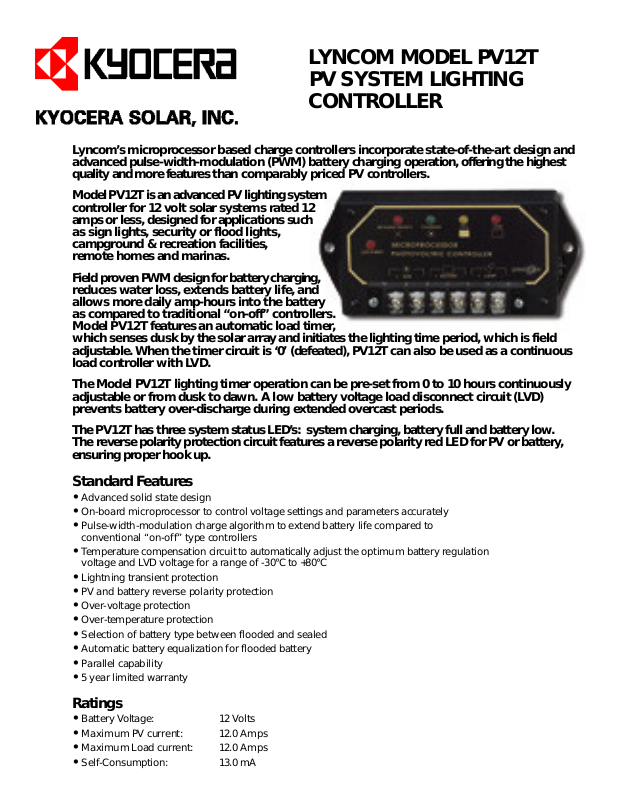

Kyocera PV12T DATASHEET
LYNCOM MODEL PV12T
PV SYSTEM LIGHTING
C O N T R O L L E R
Ly n c o m ’s micro p rocessor based charge controllers incorporate state-of-the-art design and
advanced pulse-width-modulation (PWM) battery charging operation, offering the highest
quality and more feature sthan comparably priced PV contro l l e r s .
Model PV12T is an advanced PV lighting system
c o n t roller for 12 volt solar systems rated 12
amps or less, designed for applications such
as sign lights, security or flood lights,
c a m p g round & re c reation facilities,
remote homes and marinas.
Field proven PWM design for battery charg i n g ,
reduces water loss, extends battery life, and
allows more daily amp-hours into the battery
as compared to traditional “on-off” contro l l e r s .
Model PV12T features an automatic load timer,
which senses dusk by the solar array and initiates the lighting time period,which is f i e l d
adjustable. When the timer circuit is ‘0’ (defeated), PV12T can also be used as a continuous
load controller with LV D .
The Model PV12T lighting timer operation can be pre-set from 0 to 10 hours continuously
adjustable or from dusk to dawn. A low battery voltage load disconnect circuit (LVD)
p revents battery over- d i s c h a rge during extended overcast periods.
The PV12T has three system status LED’s: system charging, battery full and battery low.
The reverse polarity protection circuit features a reverse polarity red LED for PV or battery,
ensuring proper hook up.
S t a n d a rd Feature s
• Advanced solid state design
• O n - b o a rd micro p rocessor to control voltage settings and parameters accurately
• Pulse-width-modulation charge algorithm to extend battery life compared to
conventional “on-off” type contro l l e r s
• Te m p e r a t u re compensation circuit to automaticallyadjust the optimum battery re g u l a t i o n
voltage and LVD voltage for a range of -30°C to +80°C
• Lightning transient pro t e c t i o n
• PV and battery reverse polarity pro t e c t i o n
• O v e r-voltage pro t e c t i o n
• O v e r- t e m p e r a t u re pro t e c t i o n
• Selection of battery type between flooded and sealed
• Automatic battery equalization for flooded battery
• Parallel capability
• 5 year limited warr a n t y
R a t i n g s
• B a t t e ry Voltage: 12 Vo l t s
• Maximum PV current: 12.0 Amps
• Maximum Load current: 12.0 Amps
• Self-Consumption: 13.0 mA
LYNCOM MODEL PV12T
PV SYSTEM LIGHTING CONTROLLER
Te m p e r a t u re Setpoints
High Te m p e r a t u re Shutdown:
•
Disconnect PV: 7 0 ° C
Disconnect Load: 8 0 ° C
Reconnect PV: 6 0 ° C
Reconnect Load: 5 0 ° C
Operating Te m p e r a t u re Range: -40°C to +80°C
•
Te m p e r a t u re Compensation Coeff i c i e n t : - 4 m V / C e l l / C °
•
Cold Te m p e r a t u re Load Cutoff : - 3 0 ° C
•
Reconnect of Cold Te m p e r a t u re Load Cutoff : - 2 0 ° C
•
C o n t rol Setpoints
S e a l e d F l o o d e d
B a t t e ry B a t t e ry
High Battery Voltage System
•
Shutdown (8 seconds): 15.5 V 15.5 V
Reset For High Voltage Shutdown (
•
B a t t e ry Equalization: – 15.3 V
•
Regulation Vo l t a g e : 14.1 V 14.4 V
•
B a t t e ry LVD Voltage (32 seconds): 11.3 V 11.4 V
•
Load Reconnect After Low Voltage
•
Disconnect (LVD) ( I n s t a n t l y ): 12.8 V 13.0 V
Automatic equalization: – 14 days
•
Equalization can be triggered (32 seconds): –
•
I n s t a n t l y
): 14.5 V 14.5 V
V < 1 1 . 4 V
M i c ro p rocessor Sampling Period
PV Voltage Sampling: 8 seconds
•
B a t t e ry Voltage Sampling: Constantly
•
Te m p e r a t u re Sampling: 3 seconds
•
Load Current Sampling
•
After Over- C u rrent Sampling: 3 - 6 seconds
Other Specifications(All ratings at 25°C)
Weight: 6 oz.(.17 kg)
•
D i m e n s i o n s : 5.7 x 2.6 x 2.1 in.(14.48 x 6.6 x 5.33 cm)
•
Voltage Drop PV/Battery : 0.17 Vo l t s
•
7812 EAST ACOMA DRIVE
SCOTTSDALE, AZ 85260 USA
480/951-6330 • 800/544-6466
FAX: 480/951-6329
www.kyocerasolar.com
e-mail: info@kyocerasolar.com
Specifications subject to change without notice.
