LASERBEAM PRINTER

P−2000/2002

PARTS CATALOGUE

17−11−1998

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 1

P−2000/2002 Parts Catalogue

Table of Contents

3Covers (Fig.1) 5Upper Frame (Fig.2) 7Face Down Unit (Fig.2a)

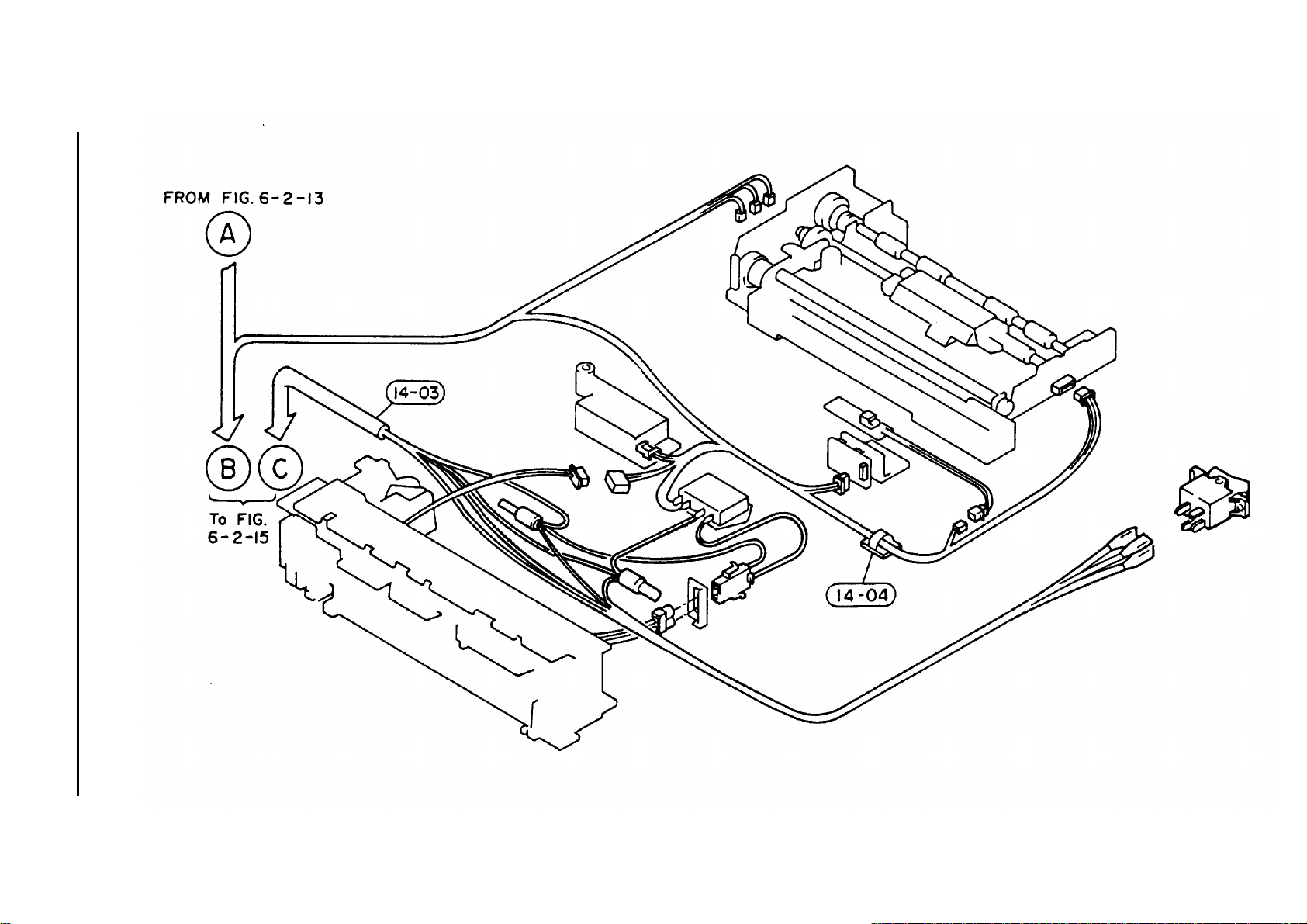

9Upper Half − Electrical (Fig.3) 11Lower Half (Fig.4) 13Lower Half − Electrical (Fig.5) 15Controller (Fig.6) 17Motor and Main Drive Gears (Fig.7) 19Paper Feed Assembly (Fig.8) 21Paper Feed Electrical (Fig.9) 23Developer (Fig.10) 25Scanner (Fig.11) 27Fuser (Fig.12) 29Harness − Upper Half (Fig.13) 31Harness − Lower Half (Fig.14) 33Harness − Controller Etc. (Fig.15)

Introduction

The figures which follow depict the major assemblies of the printer or option, broken down into components. Following each figure are the list giving the following information:

’Ref No.’

Only the parts highlighted in BOLD should be ordered. All other parts are for reference only and are not stocked.

Reference number which corresponds to the parts in the figure

Part code which identifies the part’Part code’

A brief description of the part’Part description’

Quantity of the part used in the printer or option’Quantity’

Consumables and Maintanence Kits

Toner KitTK−4 Drum (10K pages)DK−3 Developer (50K pages)DV−9 Fuser (80K pages)FK−4

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 2

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 3

Fig.1 − Covers

QuantityDescriptionPart CodeRef No.

1Assy Front Cover5AAVCOVER12401−00A 1Control Panel PWB5AAYP2000*2401−001 1Top Cover5MVB883SH01901−002 1FD Subcover5MVL832SH00201−003 1Rear Cover5MVB876SH02401−006 1Cover Right5MVB873SH01301−007 1Blind Cover5MVX843SH00201−008 1Assy Base5AAMP2000*0101−010 1Cover Develop5MVB873SH01201−011 1Print Tray5MVX872SH00101−012 1Pad Sheild5MVX752SF00301−015 1Knob5MVN110SH01801−016 1Sheet Pad Sheild5MVS513XF00301−023 1Bracket FD Subcover5MML822SL00601−024 1Discharger FD5MVX821XJ00101−025 1Plate FD Ground5MMS323RD00101−026 1Sheet Top Cover5MVS623KF00101−027 1Holder Paper01−028

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 4

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 5

Fig.2 − Upper Frame

QuantityDescriptionPart CodeRef No.

1Assy DLP Lock Lever5AAYF1010*6302−00A 1Cover Scanner Area5MMZ871SL00102−001 1Assy Rail A5AAMF1000*0402−002 2Cleaner Press5MMX644LD00202−003 1Frame Assy5AAVFRAME06302−004 1Pad Scanner Seal5MVS838RB00302−006 1Sheet Cover5MVS635SCH00102−007 1Plate Barrier Top5MVS663KF00102−024 1Plate A Hook5MMX644SL00102−027 1Plate B Hook5MMX444SL00302−028 1Hook A Hinge5MVX654DN00102−029 1Hook B Hinge5MVX632DN00102−030 1Arm Hinge5MMX861SL00102−031 1Spring Hinge5MMW172LJ00302−032 1Plate Ground C5MMX747RJ00102−033 1Plate Ground A5MMS334RJ00102−034 1Guide Frame F5ENX221DB00602−035 1Guide Frame R5MVX221DN00502−036 1Guide Upper M−Feed5MVB862SB00102−038 1Actuator Sens M−Feed5MVX442SB00302−039 1Spring Sensor5MMW161LJ00802−040 1Bracket Interlock5MMX653SL00602−041 1Lever Interlock5MVU122DB00202−042 1Bracket Interlock5MVX443DB00102−043 1Bearing Drum5AAVHOLDR01802−048 1Gear Drum Z305MMG138SX00602−049 1Nozzle B5MVB773SB00202−050 1Filter Assy5AAYW1****2102−051 1Seal Nozzle5MVS229RB00802−052 1Seal5MVS519RB00102−053 1Lever DLP CAM5MVX643CX00102−054 1Lever DLP CAM B5MVX622DB00102−055 1Bushing R Drum5MVM177DJ00102−056 1Guide R DLP5MVX662SB01102−062 1Guide F DLP5MVX662SB01202−063 1Sheet Seal5MVS227RF00902−081 1Switch Interlock5AAXSW020GEA02−083 2Sheet Blind5MVS622KF00202−084

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 6

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 7

Fig.2a − Face Down Unit

QuantityDescriptionPart CodeRef No.

1FACE DOWN UNIT5AAYF1000*6302−000 1Cover FD Switch5MVB651SB00302−005

Shaft FD Cover02−011

1Roller FD B5MMT876SN01302−012 1Gear FD Z205MVG127DB00302−013 1Roller FD C5MMT876SN02502−014 1Spring Idle02−015 1Plate FD Side R02−016 1Plate FD Side F‘02−017 1Guide FD02−018 1Guide FD Paper02−019 1Flange Pulley5MVM176DB00202−020 2Bracket Ext Pulley02−021 1Belt FD5MVX811RB00102−022 2Pulley FD Feed5MVM123DB00102−023 2Pulley Outlet5MVM177DB00302−064 1Spring Jam Actuator5MMW161LJ01202−065 1Jam Actuator5MVX422DB00202−066 1Shaft FD Enter02−067 2Spring FD Enter5MMU131LJ00202−068 6Bearing5MVM176DN00902−069 1Jam Actuator FD5MVX422DB00302−070 1Spring FD Actuator5MMW163LJ00102−071 2Pulley FD B5MVM474DB00102−072 4FD Pressure5MMU131LD00102−073 1Gear Joint FD5MVG127DN01502−074 1Roller Middle FD5MMT876SN01002−075 4Pulley Idle Belt5MVM177DB00402−076 1Bracket Idle02−077 1Gear Belt Pulley5MVG022DB00102−078 2Pulley Belt5MVG327DB00102−079 1Cover FD02−084 1Switch Interlock5AAXSW020GEA02−085

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 8

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 9

Fig.3 − Upper Half − Electrical

QuantityDescriptionPart CodeRef No.

1Eraser Led Assy5AAYF1000*5303−00A 1Assy PWB DLP Bias5ETNB60102***0103−001 1Counter Print5EZKD6Z02301*0103−002 1Bracket Counter5MML822SL00603−003 1PWB Motor Control5AAPRZZ003AA03−004 1Main HV Unit5ETNB66202***0103−005 1Fan DC5EZNF2403001*0103−006 3Photosensor5ENXGP1A05HR*0103−007 1PWB Drum Life5AAPRZZ005AA03−008 1Connect MCH5MVX543XN00203−010 6Support PWB03−012 1Assy PWB Polygon5AAPRZZC1004BH03−013 1Switch Interlock5AAXSW020GEA03−014 1Cover FD Switch03−015 1Clamper5MVS526CB00103−016 1PWB Density Control5AAPRVRC1001AH03−017

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 10

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 11

Fig.4 − Lower Half

QuantityDescriptionPart CodeRef No.

2Support Base5MMU832SL00104−001 1Assy Shield Plate5AAVPLATE01204−002 2Plate Ground5MML232RD00104−003 1Cover Inside F5MVB866SB00204−007 1Plate Fuser5MVS836CB00104−008 1Plate Sensor5MMS746SB00104−010 1Plate Ground Sensor5MMX222RJ00104−011 1Plate Paper Ramp5AAYP2000*4204−015 1Seal A5MVS618RB00504−016 1Seal D5MVS218RB00504−017 1Seal C5MVS618RB00304−018 1Guide R5MVS732KN00204−019 1Guide F5MVS632KN00104−020 1Pad B Tank5MVS439RH00204−021 1Pad A Tank5MVS428RH00204−022 1Plate B Ground5MMX542RJ00104−023 2Plate Ground Fuser5MMX332RJ00104−024 1Cover Inside RA5MVX764SB00304−025 1Cover Inside RB5MVX743SB00304−026 2Plate Hinge Base5MMS657SL01004−027 2Pin Stopper5MMT326LJ00104−028 1Arm Frame L5MMX763SL00904−029 1Arm Frame R5MMX763SL00804−030 1Stopper L5MMS637SL00304−031 1Stopper R5MML264SL00104−032 1Spring Stopper5MMW172LJ00404−033 1Stopper5MMS226SL00204−034 1Rod Torsion A5MMW908SM00204−035 1Rod Torsion B5MMW908SM00104−036 1Discharger Transfer5MMX852AJ00104−037 5Rubber Piece04−039 1Hold Corotron5MMX641LJ00104−040 1Assy TR Corotron5AAVSH1LD02704−064 1Earth Plate L5MMS832RD00104−068 1Earth Plate R5MMS832RD00204−069

TC CORONA WIRE5MMW801XJ003

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 12

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 13

Fig.5 − Lower Half − Electrical

QuantityDescriptionPart CodeRef No.

1HV Unit Transfer5ETNB66201***0105−001 1Relay Solid State5EZR1G012301*0105−002 1PWB Assy Cassette5AAXAP002GEA05−003 1Assy PWB Paper5AAPRSS005BA05−005 1Base SSR ETC5MMX765SL00705−008 1Assy Actuator HVU5AAVHOLDR01605−009 1Receptacle TC5MVX332XH00105−010 1Sheet Blind5MVS533KN00105−011 1Switch Power5ESC020103***0105−012 1Bracket Sensor Cas5MVX743SB00105−013 1Bracket Switch Power5MMU543SL00105−014 1HEAT CONTROL5AAPRHCC1003AH

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 14

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 15

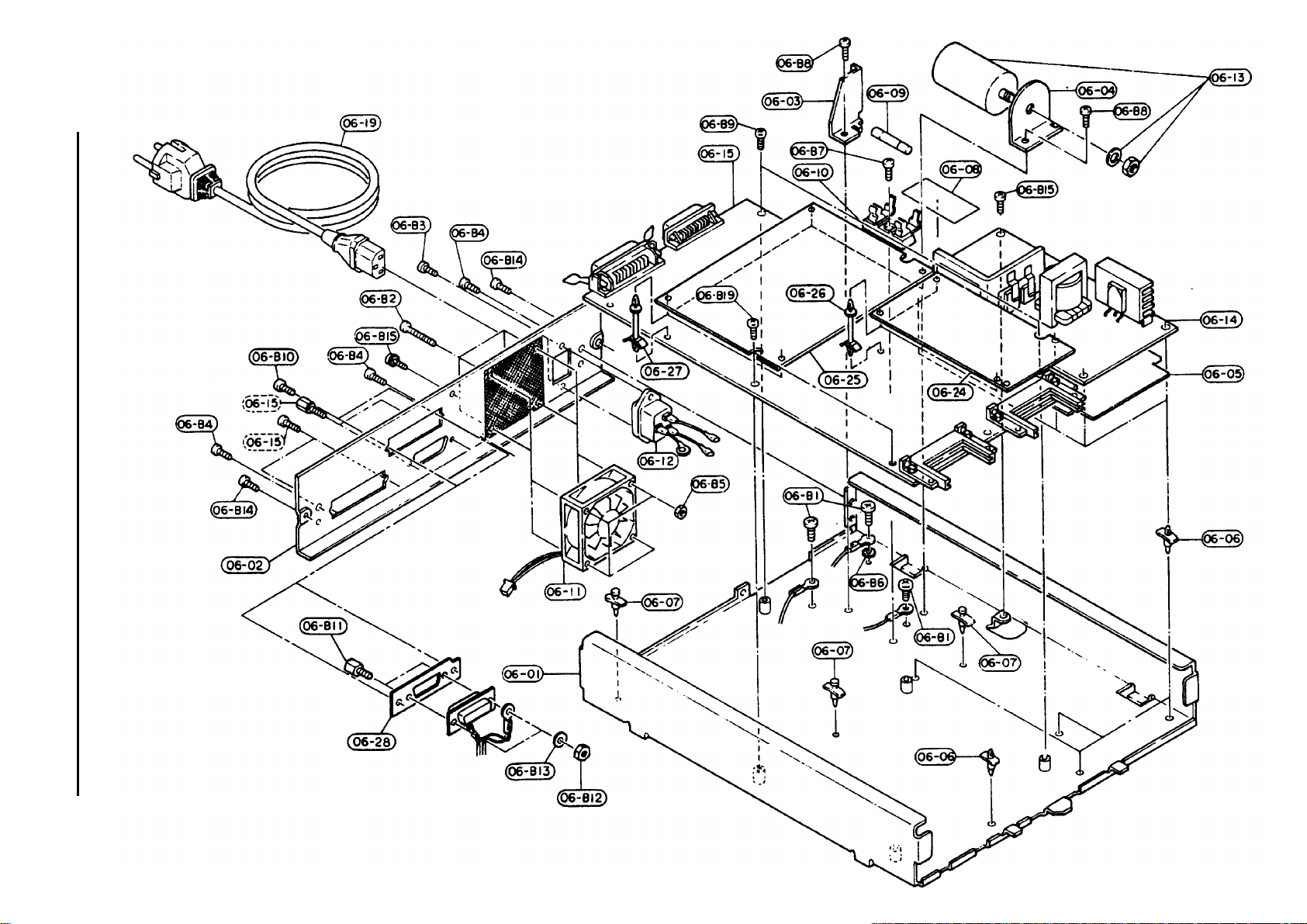

Fig.6 − Controller

QuantityDescriptionPart CodeRef No.

Box Controller5MMU886SL00206−001 Panel Rear5MML861SM00306−002 Bracket Connector5MMX533SL00106−003 Bracket Filter5MML452SL00206−004 Insulator5MVS875SVF00106−005 Spacer Locking5MVX221NN02206−006 Spacer Card5MVX221NN02206−007 Decal Fuse5MVVL631WN4906−008 Fuse5EYFBQ50205**0106−009 Block Fuse5EYHF102004**0106−010 Fan DC5EZNF2403401*0106−011 Inlet Assy5AACCNCP0GEA06−012 Noise Filter5EFNZSB2210050106−013 PWB Assy Power Sup5AAEZF1000*406−014 PWB Assy Main CNTRL5AAPRLGG4001BH06−015 Cable Assy06−018 Cable Power5AACAC278EEA06−019 PWB Assy Font Rom5AAPRMEG2007BH06−024 PWB Assy Appletalk IF5AAPRIFG4001CH06−025 PWB Support Nylon06−026 PWB Support Nylon06−027 Plate Connector06−028

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 16

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 17

Fig.7 − Motor and Main Drive Gears

QuantityDescriptionPart CodeRef No.

Assy Drive Gears5AAYF1000*3707−00A Motor DC5EZNS180R401*0107−001 Plate Motor5MMX642SL00707−002 Gear Z305MMG138SX00507−003 Plate Earth5MMX521RJ00107−005

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 18

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 19

Fig.8 − Paper Feed Assembly

QuantityDescriptionPart CodeRef No.

1Paper−feed Assy5AAYF1010*1808−00A 1Assy Cover Sensor5AAYP2000*1508−00B 1Assy Clutch M−Feed5AAYF1010*2608−00C 1Assy Clutch Feed5AAYF1010*2708−00D 1Assy Clutch Regist5AAYF1010*2808−00E 1Bracket Solenoid5MMX766SL00208−001 1Spring CAM M−Feed5MMW171LJ00408−002 1Lever Cam M−Feed FD5MVX442DN00108−003 2Pad Solenoid5MVS226RB00508−004 1Spring Cam Feed5MMW171LJ00308−005 1Lever Cam Feed5MVX552DN00108−006 6Bush Metal KD5MMM176CJ00308−015 1Frame R5MMX776SL00108−016 2Spring Roller M5MMW171LJ00208−017 1Bush R5MVX322DB00108−018 3Gear Z285MVG138DN01108−023 2Spring Regist5MMW241LJ00908−024 2Bush Roller Regist5MMM121XJ00108−025 1Cover5MVS852KN00108−030 1Guide TC5MVX532DD00208−031 1Seal B5MVS618RB00408−032 1Bracket Sensor5MMX543LJ00108−037 1Paper Chute A5MMX865SN00108−038 1Paper Chute B08−039 1Bush Tension F5MVX322DB00208−040 1Roller B M5MMT866SN00208−041 1Roller A M5MMT876SN00708−042 1Guide Cassette R5MVX764SB00108−043 1Roller A Regist5MMT866SN00308−044 1Roller B Regist5MMT876SN02408−045 1Guide Cassette F5MVX763SB00308−047 1Gear Z205MVG127DN01708−048 1Gear Z325MVG147DN00108−049 1Actuator Interlock08−050 1Frame F5MMX775SL00108−051 1Assy Wheel Feed5AAMF1000*0508−066 1Shaft Roller Feed08−067

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 20

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 21

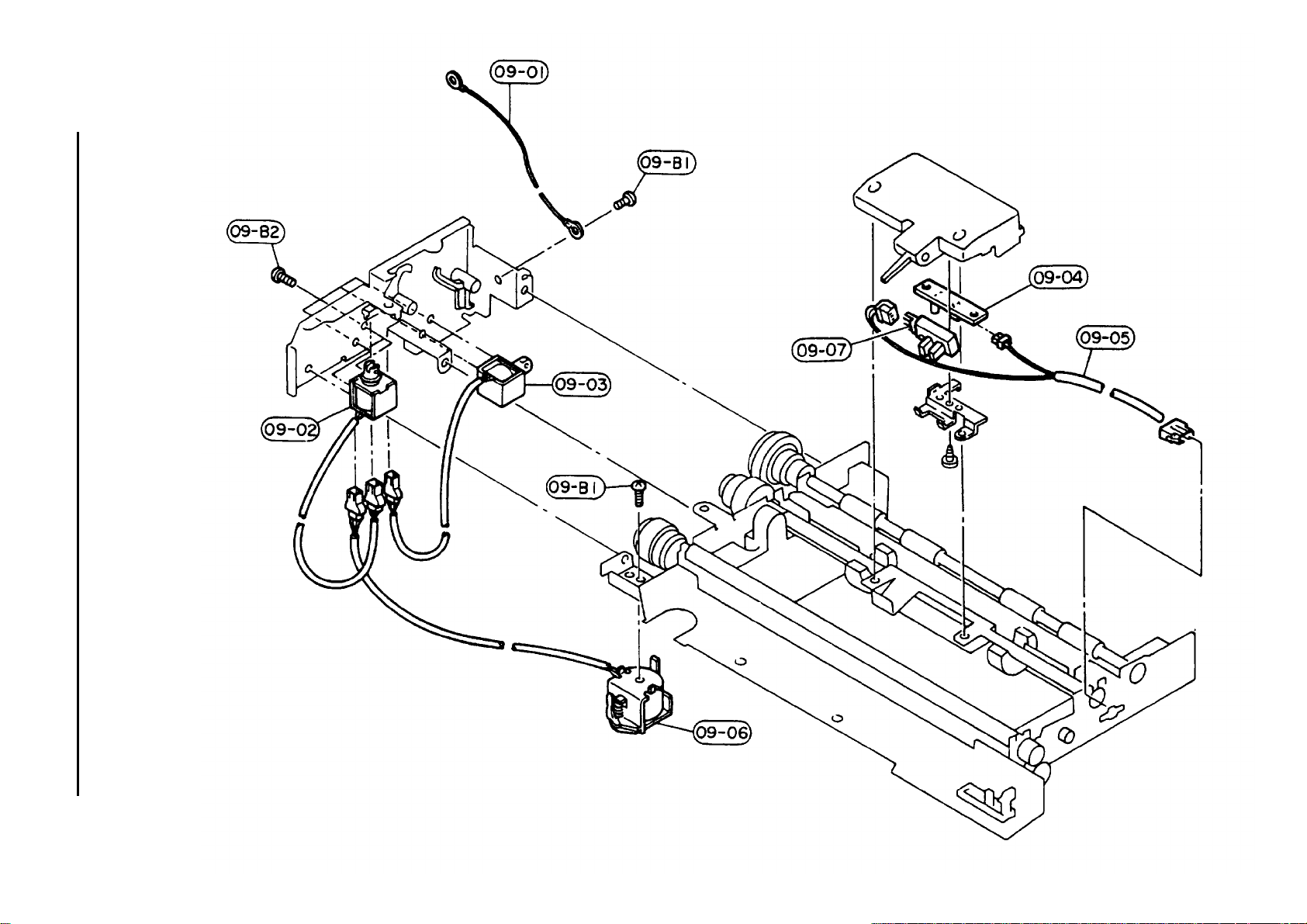

Fig.9 − Paper Feed Electrical

QuantityDescriptionPart CodeRef No.

1Cable Assy5AACCNAN8GEA09−001 1Solenoid Feed5EZSA240301030209−002 1Solenoid Manual5EZSA240301030309−003 1Assy PWB5AAPRSS005AA09−004 1Cable Assy5AACCNAG4GEA09−005 1Solenoid Regist5EZSA240301010209−006 1Photosensor5ENXGP1A05HR*0109−007

LASERBEAM PRINTER − Parts Catalogue KYOCERA P−2000/2002 Page 22
