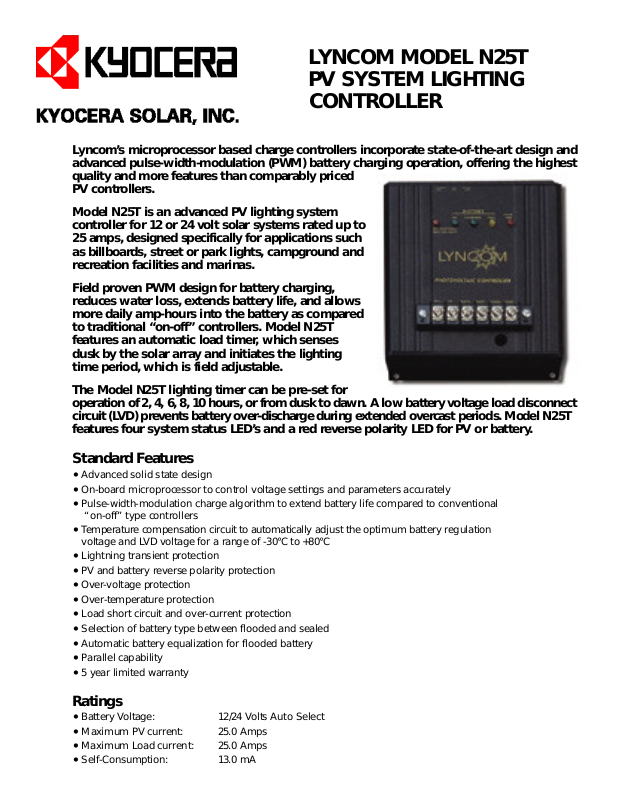

Kyocera LYNCOM N25T DATASHEET
LYNCOM MODEL N25T
PV SYSTEM LIGHTING
C O N T R O L L E R
Ly n c o m ’s micro p rocessor based charge controllers incorporate state-of-the-art design and
advanced pulse-width-modulation (PWM) battery charging operation, offering the highest
quality and more features than comparably priced
PV contro l l e r s .
Model N25T is an advanced PV lighting system
c o n t roller for 12 or 24 volt solar systems rated up to
25 amps, designed specifically for applications such
as billboards, street or park lights, campground and
re c reation facilities and marinas.
Field proven PWM design for battery charg i n g ,
reduces water loss, extends battery life, and allows
m o re daily amp-hours into the battery as compare d
to traditional “on-off” controllers. Model N25T
f e a t u res an automatic load timer, which senses
dusk by the solar array and initiates the lighting
time period, which is field adjustable.
The Model N25T lighting timer can be pre-set for
operation of 2, 4, 6, 8, 10 hours, or from dusk to dawn. A low battery voltage load disconnect
c i rcuit (LVD) prevents battery over- d i s c h a rge during extended overcast periods. Model N25T
f e a t u res four system status LED’s and a red reverse polarity LED for PV or battery.
S t a n d a rd Feature s
Advanced solid state design
•
O n - b o a rd micro p rocessor to control voltage settings and parameters accurately
•
Pulse-width-modulation charge algorithm to extend battery life compared to conventional
•
“ o n - o ff” type contro l l e r s
Te m p e r a t u re compensation circuit to automatically adjust the optimum battery regulation
•
voltage and LVD voltage for a range of -30°C to +80°C
Lightning transient pro t e c t i o n
•
PV and battery reverse polarity pro t e c t i o n
•
O v e r-voltage pro t e c t i o n
•
O v e r- t e m p e r a t u re pro t e c t i o n
•
Load short circuit and over- c u rrent pro t e c t i o n
•
Selection of battery type between flooded and sealed
•
Automatic battery equalization for flooded battery
•
Parallel capability
•
5 year limited warr a n t y
•
R a t i n g s
B a t t e ry Voltage: 12/24 Volts Auto Select
•
Maximum PV current: 25.0 Amps
•
Maximum Load current: 25.0 Amps
•
Self-Consumption: 13.0 mA
•
LYNCOM MODEL N25T
PV SYSTEM LIGHTING CONTROLLER
Te m p e r a t u re Setpoints
High Te m p e r a t u re Shutdown:
•
Disconnect PV: 7 0 ° C
Disconnect Load: 8 0 ° C
Reconnect PV: 6 0 ° C
Reconnect Load: 5 0 ° C
Operating Te m p e r a t u re Range: -40°C to +80°C
•
Te m p e r a t u re Compensation Coeff i c i e n t : - 4 m V / C e l l / C °
•
Cold Te m p e r a t u re Load Cutoff : - 3 0 ° C
•
Reconnect of Cold Te m p e r a t u re Load Cutoff : - 2 0 ° C
•
C o n t rol Setpoints
S e a l e d F l o o d e d
B a t t e ry B a t t e ry
High Battery Voltage System
•
Shutdown (8 seconds): 15.5 V 15.5 V
Reset For High Voltage Shutdown (
•
B a t t e ry Equalization: – 15.3 V
•
Regulation Vo l t a g e : 14.1 V 14.4 V
•
B a t t e ry LVD Voltage (32 seconds): 11.3 V 11.4 V
•
Load Reconnect After Low Voltage
•
Disconnect (LVD) ( I n s t a n t l y ): 12.8 V 13.0 V
Automatic equalization: – 14 days
•
Equalization can be triggered (32 seconds): –
•
(24V set points are twice the 12V values)
I n s t a n t l y
): 14.5 V 14.5 V
V < 1 1 . 4 V
M i c ro p rocessor Sampling Period
PV Voltage Sampling: 8 seconds
•
B a t t e ry Voltage Sampling: Constantly
•
Te m p e r a t u re Sampling: 3 seconds
•
Load Current Sampling
•
After Over- C u rrent Sampling: 3 - 6 seconds
Other Specifications (All ratings at 25°C)
Weight: 14 oz. (.4 kg)
•
D i m e n s i o n s : 6.3 x 5.3 x 1.8 in. (16.0 x 13.46 x 4.57 cm)
•
Voltage Drop PV/Battery : 0.25 Volts
•
Load Short Circuit Rating: 30 Amps
•
7812 EAST ACOMA DRIVE
SCOTTSDALE, AZ 85260 USA
480/951-6330 • 800/544-6466
FAX: 480/951-6329
www.kyocerasolar.com
e-mail: info@kyocerasolar.com
Specifications subject to change without notice.
