Page 1
LT-412
PARTS LIST
Published in Oct.’02
5HF70770
Page 2
NOTE
1.Indicate parts number and machine model when placing an order.
eg. Parts Number Parts Name Machine Model Cycle Quantity
5HF10010 PAPER SUPPLY COVER LT-412 60Hz 1
2.Service calls and freight will be charged separately.
Page 3
Parts List
LT-412
Page 4
CONTENTS
FIG.1 LT-412 (1) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
FIG.2 LT-412 (2) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
FIG.3 LT-412 (3) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
FIG.4 LT-412 (4) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8
FIG.5 LT-412 (5) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10
FIG.6 LT-412 (6) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 12
FIG.7 LT-412 (7) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 14
FIG.8 LT-412 (8) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 16
FIG.9 LT-412 (9) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 18
• INDEX · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 20
– 1 –
Page 5
FIG. 1 LT-412 (1)
5HF
5
11
17
1
g
4
g
f
f
g
e
9
7
6
b
f
a
2
b
b
a
b
16
b
15
3
d
b
23
25
b
b
b
b
24
17
17
12
22
14
b
b
a
18
5
b
b
b
b
13
19
a
10
a
a
8
20
b
25
19
20
c
21
a
b
– 2 –
Page 6
FIG. 1 LT-412 (1)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C710020 BOARD CONNECTING STAY/LEFT a-5A807450
2 5C710070 DRIVING PROTECT COVER b-5A807460
3 5C710030 MAIN POSITIONING PLATE c-5BA07510
4 5C710040 SENSOR FIXED PLATE d-5A809310
5 5C319250 PHOTO SENSOR e-5A912110
6 5C710080 DOOR SENSOR PLATE/COMBINED f-5A812850
7 5C710620 INTER LOCK SWITCH g-5A807440
8 5BA07930 SWITCH(1)
9 5C710510 LCT SIGNAL WIRING/FRONT
10 5C710090 JAM DOOR HINGE/LOWER COMBINED
11 5BA08000 ACTUATOR
12 5HF10090 LCT DRIVING BOARD ASSEMBLY
13 5HA11290 HEATER MOUNTING PLATE ASSEMBLY
14 5HA11850 HEATER COVER
15 5HF10110 MAIN FIXED PIN
16 5C710610 MAGNET PRESSURE PLATE
17 5HD10200 LCT CONTROL WIRING
18 5C710050 SENSOR SUPPORT PLATE/LOWER
19 5BA07230 LCT SETTING ROLLER(LEFT)
20 5C710630 LCT SUPPORT PART/LEFT
21 5C710060 BOTTOM PLATE SUPPORT PART
22 5C710760 HUSE
23 5D510310 MAIN BODY FIXING PLATE/1
24 5HF10030 PAPER BASE LABEL
25 5HF10100 MAIN FIXED PLATE
– 3 –
Page 7
FIG. 2 LT-412 (2)
16
5
c
15
10
5HF
4
8
b
3
17
b
a
1
2
h
2
e
d
9
d
d
6
d
a
18
b
11
19
g
2
d
d
d
13
12
f
20
d
d
d
7
6
5
c
21
d
d
d
14
b
22
– 4 –
Page 8
FIG. 2 LT-412 (2)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5HF10010 PAPER SUPPLY COVER a-5A808630
2 5BA07620 STOPPER MATERIAL b-5A807460
3 5D510020 OPEN/SHUT HINGE c-5A823400
45A819620 SPRING MT PLATE d-5A808350
55A825890 MAGNET CATCH e-5A809280
6 5C710570 HINGE PLLATE/A f-5C331400
7 5HD10060 JAM OPEN-CLOSE DOOR g-5A812100
8 5HD10150 CUSHION/C h-5A912100
9 5HD10070 PAPER FEED AUXILIARY COVER/FRONT
10 5C710590 OPEN-CLOSE SPRING
11 5BA07600 LIFT UP SPRING
12 5HD10080 PAPER GUIDE KNOB
13 5HF10020 PAPER SUPPLY LABEL
14 5D510320 ACCESSORIES INSTALLING COVER
15 5C710580 MOUNT PLATE
16 5HD10010 MOUNT COVER/B
17 5HD10020 OPEN-CLOSE KNOB
18 5HF10120 PAPER FEED INDICATION LABEL/L
19 5HD10130 CLUTCH EXCHANGING COVER
20 5HF10050 REAR COVER
21 5HF10040 FRONT COVER
22 5HD10110 SIDE COVER/RIGHT
– 5 –
Page 9

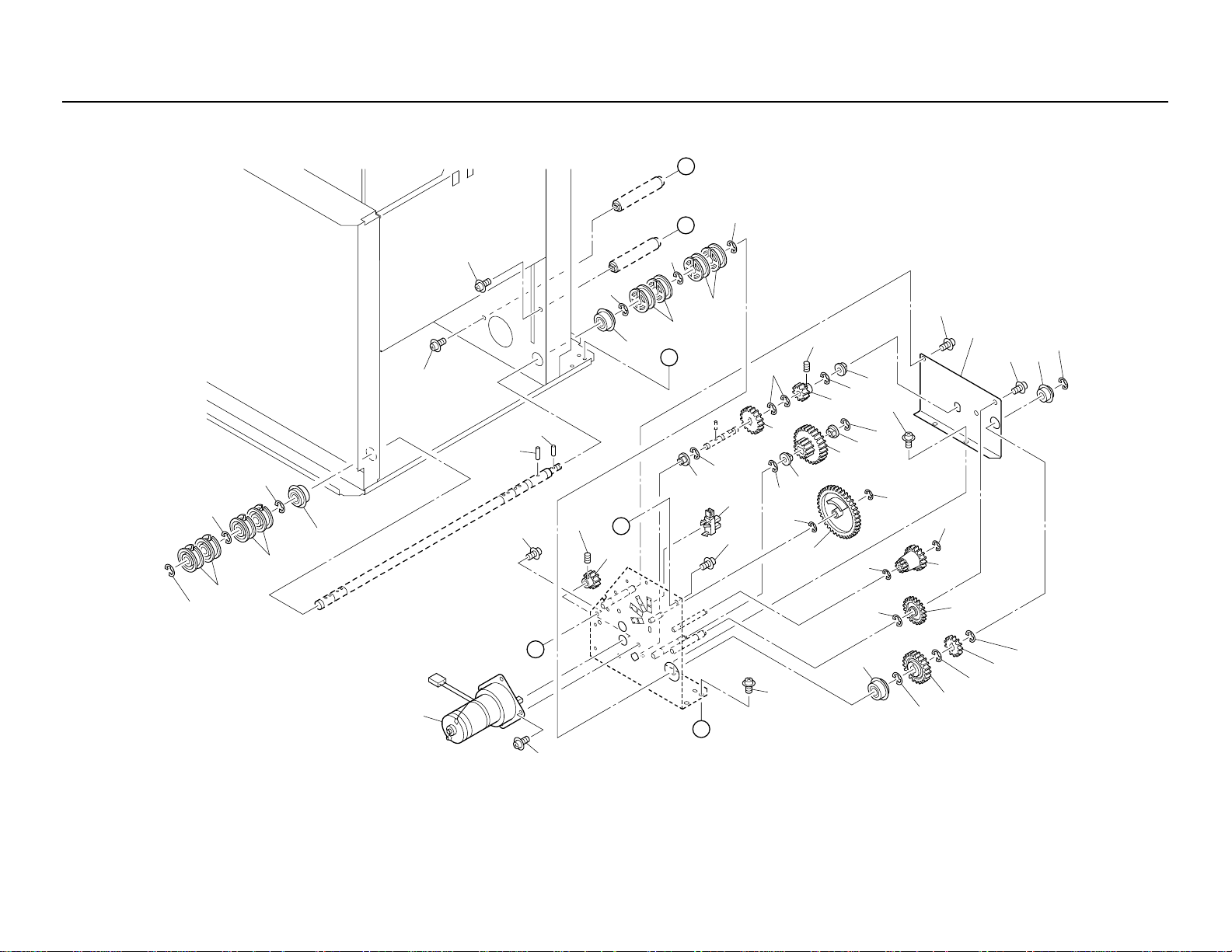

FIG. 3 LT-412 (3)
5HF
26
31
30
32
c
g
30
29
32
20
20
d
22
19
13
25
c
3
a
5
24
2
a
1
a
f
2
a
a
7
2
12
a
5
8
9
11
a
a
27
28
a
d
4
c
a
14
f
6
c
c
15
16
c
17
f
e
18
c
23
f
b
f
21
10
– 6 –
Page 10
FIG. 3 LT-412 (3)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C710190 FUNNING DRIVE SHAFT a-5A807490
25A810950 DRIVE SHAFT HOLDER b-5A812850
3 5C312640 SHAFT SUPPORT PLATE c-5A807460
4 5C312120 PAPER FEED HOLDER PLATE/LOWER d-5A808640
55A815900 PIN(B)(3X14) e-5A912110
6 5HA11310 DC BRUSHLESS MOTOR/15 f-5A807450
7 5HA10400 PAPER FEED DRIVING GEAR/B(Z=22/30) g-5A807440
8 5HA10410 PAPER FEED DRIVING GEAR/C(Z=22)
9 5C710180 PAPER FEED INPUT SHAFT
10 5BA08000 ACTUATOR
11 5C317040 PAPER FEED REVERSAL GEAR/A(Z=60)
12 5HD10180 REGISTRATION IDLER GEAR(Z=66/27)
13 5C710450 TORQUE DRIVE SHAFT ASSEMBLY
14 5C330500 PAPER FEED SHAFT HOLDER
15 5C319250 PHOTO SENSOR
16 5C710040 SENSOR FIXED PLATE
17 5C710620 INTER LOCK SWITCH
18 5C710530 LCT DRIVING WIRING
19 5A811870 PIN (2X8)
20 5A814320 STOPPER RING
21 5C312540 ENTRANCE GUIDE SHEET
22 5C314340 FEEDING ROLLER ASSEMBLY/B
23 5C710250 ENTRANCE GUIDE PLATE
24 5C331120 REVERSAL ROLLER
25 5C317150 PAPER FEED REVERSAL GEAR/D(Z=19)
26 5A821360 TORQUE LIMITTER
27 5C317060 PAPER FEED REVERSAL GEAR/C(Z=14)
28 5C317080 IDLER GEAR/B(Z=24)
29 5C312720 PAPER FEED DRIVING COVER/2
30 5A814660 SPACER(18X13)
31 5C312170 REVERSAL SPRING/B
32 5A814600 OILLESS METAL
– 7 –
Page 11
FIG. 4 LT-412 (4)
5HF
10
1
14
e
c
18
g
d
11
15
e
6
7
a
21
4
19
15
b
16
A
17
a
9
7
f
18
22
23
19
20
b
13
a
21
2
f
12
17
a
A
a
17
d
3
13
5
5
a
d
9
8
– 8 –
Page 12
FIG. 4 LT-412 (4)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C313330 PAPER DUST SCRAPER a-5A807490
2 5C312950 LOCK SHAFT HOLDER b-5A809700
3 5C330160 CONNECTING PART/A c-5A810180
4 5HD10170 FEEDING COVER ASSEMBLY d-5A807450
5 5C312680 SHAFT STOPPER e-5A820670
6 5C710230 EXIT GUIDE PLATE/LOWER f-5A807460
75A908030 STOPPER RUBBER g-5A808370
8 5C710710 OPEN-CLOSE LEVER
9 5C710690 SPRING GUIDE PART
10 5C710300 PAPER FEED PRESSURE SPRING/FRONT
11 5C710290 PAPER FEED PRESSURE SPRING/REAR
12 5C710270 ENTRANCE GUIDE PLATE/REAR
13 5HA11350 PAPER FEED DRIVE CLUTCH
14 5C710330 SENSOR MOUNT PLATE/A
15 5C319250 PHOTO SENSOR
16 5C710200 PAPER FEED DRIVING SHAFT/A
17 5A811470 METAL
18 5HF10080 LCT SIGNAL WIRING/UPPER
19 5HA11400 APS SENSOR/1
20 5C710240 PAPER CONVEYANCE ROLLER
21 5C316140 PAPER FEED SHAFT HOLDER/B
22 5HD10140 CUSHION/B
23 5HD10160 RUBBER/A
– 9 –
Page 13
FIG. 5 LT-412 (5)
5HF
c
13
14
10
b
9
7
11
2
b
12
D
1
2
A
C
2
4
3
1
b
3
19
a
22
e
21
6
15
B
5
6
b
10
12
b
16
20
20
b
17
f
25
2
See FIG.4
B
A
D
a
17
2
e
C
24
26
8
d
23
18
– 10 –
a
Page 14
FIG. 5 LT-412 (5)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C312510 PAPER FEED STANDARD ACTUATOR a-5A808630
25A814320 STOPPER RING b-5A808640
3 5C312160 PAPER FEEDING SHAFT HOLDER c-5A810700
4 5C710320 PAPER FEED HOLDER PLATE d-5A810180
5 5C710440 FEEDING SHAFT e-5A807450
65A814450 PIN(B)(2X9.5) f-5A809690
7 5C314340 FEEDING ROLLER ASSEMBLY/B
8 5C710280 LEVER SPRING
9 5C312090 DOUBLE FEED FEEDING ROLLER
10 5A814410 ROLLER COLLAR(16X6)
11 5A814420 PAPER FEED DRIVE BELT(L=126)
12 5A814430 PULLEY(1)(Z=15)
13 5C312150 PAPER FEED LIFT-UP LEVER
14 5C312480 LEVER AUXILIARY PLATE
15 5C312080 PAPER FEEDING ROLLER/A
16 5C314350 FEEDING ROLLER ASSEMBLY/A
17 5A814270 OILLESS METAL(A)
18 5C710260 ENTRANCE GUIDE PLATE/FRONT
19 5C313350 PICK-UP SOLENOID
20 5A811720 PAPER FEED DELIVERY SHAFT HOLDER
21 5C312670 SOLENOID STOPPER SHEET
22 5C330170 SWITCH LEVER/1
23 5C312700 POSITIONING SCREW
24 5C330160 CONNECTING PART/A
25 5C312240 PRESSURE PLATE/B
26 5C710310 PRESSURE PLATE/L
– 11 –
Page 15
FIG. 6 LT-412 (6)
5HF
d
4
6
18
a
6
1
2
e
A
e
7
c
C
12
c
B
9
13
18
3
F
18
5
E
b
d
d
A
a
a
a
B
17
c
a
a
D
10
d
d
14
c
a
16
d
c
e
e
7
8
d
9
12
D
16
c
14
10
d
F
E
c
a
15
11
d
9
11
c
a
19
16
C
16
17
a
– 12 –
Page 16
FIG. 6 LT-412 (6)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C710600 STOPPER RUBBER a-5A808640
2 5C710370 PAPER STOPPER PLATE b-5A808630
3 5D510080 REAR GUIDE ARM/REAR AEEMBLY c-5A807460
4 5HA11800 CONVEYANCE DRIVEN ROLLER d-5A807450
5 5D510090 REAR GUIDE ARM/FRONT ASSEMBLY e-5A808350
6 5C313540 RESIST PRESSURE SPRING
7 5D510110 PAPER POSITIONIMG PLATE
8 5C710730 PAPER GUIDE SEAL
9 5C710390 PAPER SUPPLY SIDE PLATE
10 5C710420 SIDE FIXED PLATE
11 5C510440 GUIDE SHAFT HOLDER/A
12 5A817060 RACK(FRONT)
13 5A817070 CASSETTE PINION(Z=14)
14 5D510130 SIDE CONNECTING PLATE
15 5D510140 BOTTOM PLATE LOCKING PLATE
16 5C510450 GUIDE SHAFT HOLDER/B
17 5D510120 SHAFT SUPPORT PLATE/A
18 5A807950 SCALEPLATE FIXED SCREW(M4X4.5)
19 5D510150 REAR SLIDE PLATE
– 13 –
Page 17
FIG. 7 LT-412 (7)
5HF
c
1
d
b
c
3
4
2
d
8
e
d
d
4
d
e
8
9
6
15
a
e
g
16
5
12
a
B
11
f
13
7
D
7
A
A
g
f
B
11
a
15
e
a
C
6
d
d
8
e
16
5
a
14
e
8
12
12
10
11
12
e
5
16
15
a
13
a
11
11
12
a
13
11
12
a
10
a
5
e
15
16
12
a
13
11
11
12
14
a
d
d
D
C
e
16
5
a
16
d
d
10
10
a
5
e
– 14 –
Page 18
FIG. 7 LT-412 (7)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C312450 DOUBLE FEED PREVENTIVE PLATE a-5A807490
2 5D510100 PAPER UP/DOWN PLATE b-5C331380
3 5C710740 SPACER PLATE c-5A808350
4 5C710431 BOARD POSITIONING BLOCK d-5A807450
5 5C330240 WIRE PULLEY e-5A807460
6 5C710680 WIRE FIXED PLATE/A COOMBINED f-5A810180
7 5C710700 WIRE FIXED PLATE/B COMBINED g-5A807890
8 5C710660 UP-DOWN SPRING
9 5C313130 SENSOR DETECTING PLATE
10 5D510070 DRIVING UP-DOWN WIRE/D
11 5C710650 WIRE HOLDER/A
12 5C710640 DRIVEN PULLEY
13 5D510040 DRIVE UP/DOWN WIRE/A
14 5D510050 DRIVE UP/DOWN WIRE/B
15 5D510060 DRIVE UP/DOWN WIRE/C
16 5C710670 WIRE MOUNT PLATE COMBINED
– 15 –
Page 19
FIG. 8 LT-412 (8)
5HF
A
B
d
b
b
b
1
1
2
C
d
4
5
b
b
e
2
d
B
a
11
7
d
13
1
e
a
11
a
13
10
d
a
11
15
11
a
c
c
8
c
d
9
d
b
6
c
16
1
b
A
a
2
d
12
C
17
b
3
b
14
b
d
– 16 –
Page 20
FIG. 8 LT-412 (8)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C710120 DRIVING UP-DOWN PULLEY a-5A807490
2 5C319210 BALL BEARING(A) b-5A816190
3 5BA08570 DELIVERY GEAR(Z=26) c-5A808640
45A815900 PIN(B)(3X14) d-5A807460
55A910030 PIN C e-5C331800
65A810950 DRIVE SHAFT HOLDER
7 5C319250 PHOTO SENSOR
8 5C710460 SENSOR DETECTING GEAR(Z=92)
9 5D510030 DRIVING UP-DOWN PLATE/FRONT
10 5C710720 TONER SUPPLY AGITATE GEAR
11 5A811470 METAL
12 5D510390 PAPER FEED UNIT MOTOR
13 5D510160 MOTOR DRIVING GEAR/B
14 5A910020 UP-DOWN GEAR/C(Z=30)
15 5A909980 UP-DOWN GEAR/B(Z=52,15)
16 5D510400 GEAR(B)
17 5D510410 PAPER FEED DRIVING GEAR/3
– 17 –
Page 21
FIG. 9 LT-412 (9)
5HF
CN749 CN745
1
CN772
2
CN775
3
CN751
CN750 CN761
CN720 CN771 CN774
CN715
CN721 CN746
CN715
CN700
4
CN710
CN773 CN748
5
CN780 CN781 CN782 CN783
CN742
CN741
CN740
CN767
CN722
CN723
6
CN747
CN773
CN766
CN762
CN765
CN744
– 18 –
Page 22
FIG. 9 LT-412 (9)
5HF
Ref.No.
Parts No. Standard partsDescription
1 5C710510 LCT SIGNAL WIRING/FRONT
2 5C710530 LCT DRIVING WIRING
3 5HA10200 WEB DRIVING MOTOR
4 5HF10060 LCT SIGNAL WIRING/1
5 5HF10070 LCT SIGNAL WIRING/LOWER
6 5HF10080 LCT SIGNAL WIRING/UPPER
– 19 –
Page 23
INDEX
Parts No. Fig. No.Description Parts No. Fig. No.Description
5HF
5A807950 SCALEPLATE FIXED SCREW(M4X4.5) 6
5A810950 DRIVE SHAFT HOLDER 3,8
5A811470 METAL 4,8
5A811720 PAPER FEED DELIVERY SHAFT HOLD 5
5A811870 PIN (2X8) 3
5A814270 OILLESS METAL(A) 5
5A814320 STOPPER RING 3,5
5A814410 ROLLER COLLAR(16X6) 5
5A814420 PAPER FEED DRIVE BELT(L=126) 5
5A814430 PULLEY(1)(Z=15) 5
5A814450 PIN(B)(2X9.5) 5
5A814600 OILLESS METAL 3
5A814660 SPACER(18X13) 3
5A815900 PIN(B)(3X14) 3,8
5A817060 RACK(FRONT) 6
5A817070 CASSETTE PINION(Z=14) 6
5A819620 SPRING MT PLATE 2
5A821360 TORQUE LIMITTER 3
5A825890 MAGNET CATCH 2
5A908030 STOPPER RUBBER 4
5A909980 UP-DOWN GEAR/B(Z=52,15) 8
5A910020 UP-DOWN GEAR/C(Z=30) 8
5A910030 PIN C 8
5BA07230 LCT SETTING ROLLER(LEFT) 1
5BA07600 LIFT UP SPRING 2
5BA07620 STOPPER MATERIAL 2
5BA07930 SWITCH(1) 1
5BA08000 ACTUATOR 1,3
5BA08570 DELIVERY GEAR(Z=26) 8
5C312080 PAPER FEEDING ROLLER/A 5
5C312090 DOUBLE FEED FEEDING ROLLER 5
5C312120 PAPER FEED HOLDER PLATE/LOWER 3
5C312150 PAPER FEED LIFT-UP LEVER 5
5C312160 PAPER FEEDING SHAFT HOLDER 5
5C312170 REVERSAL SPRING/B 3
5C312240 PRESSURE PLATE/B 5
5C312450 DOUBLE FEED PREVENTIVE PLATE 7
5C312480 LEVER AUXILIARY PLATE 5
5C312510 PAPER FEED STANDARD ACTUATOR 5
5C312540 ENTRANCE GUIDE SHEET 3
5C312640 SHAFT SUPPORT PLATE 3
5C312670 SOLENOID STOPPER SHEET 5
5C312680 SHAFT STOPPER 4
5C312700 POSITIONING SCREW 5
5C312720 PAPER FEED DRIVING COVER/2 3
5C312950 LOCK SHAFT HOLDER 4
5C313130 SENSOR DETECTING PLATE 7
5C313330 PAPER DUST SCRAPER 4
5C313350 PICK-UP SOLENOID 5
5C313540 RESIST PRESSURE SPRING 6
5C314340 FEEDING ROLLER ASSEMBLY/B 3,5
5C314350 FEEDING ROLLER ASSEMBLY/A 5
5C316140 PAPER FEED SHAFT HOLDER/B 4
5C317040 PAPER FEED REVERSAL GEAR/A(Z=60) 3
5C317060 PAPER FEED REVERSAL GEAR/C(Z=14) 3
5C317080 IDLER GEAR/B(Z=24) 3
5C317150 PAPER FEED REVERSAL GEAR/D(Z=19) 3
5C319210 BALL BEARING(A) 8
5C319250 PHOTO SENSOR 1,3,4,8
5C330160 CONNECTING PART/A 4,5
5C330170 SWITCH LEVER/1 5
5C330240 WIRE PULLEY 7
5C330500 PAPER FEED SHAFT HOLDER 3
5C331120 REVERSAL ROLLER 3
5C510440 GUIDE SHAFT HOLDER/A 6
5C510450 GUIDE SHAFT HOLDER/B 6
5C710020 BOARD CONNECTING STAY/LEFT 1
5C710030 MAIN POSITIONING PLATE 1
5C710040 SENSOR FIXED PLATE 1,3
5C710050 SENSOR SUPPORT PLATE/LOWER 1
5C710060 BOTTOM PLATE SUPPORT PART 1
5C710070 DRIVING PROTECT COVER 1
5C710080 DOOR SENSOR PLATE/COMBINED 1
5C710090 JAM DOOR HINGE/LOWER COMBINED 1
5C710120 DRIVING UP-DOWN PULLEY 8
5C710180 PAPER FEED INPUT SHAFT 3
5C710190 FUNNING DRIVE SHAFT 3
5C710200 PAPER FEED DRIVING SHAFT/A 4
5C710230 EXIT GUIDE PLATE/LOWER 4
5C710240 PAPER CONVEYANCE ROLLER 4
– 20 –
Page 24
Parts No. Fig. No.Description Parts No. Fig. No.Description
5HF
5C710250 ENTRANCE GUIDE PLATE 3
5C710260 ENTRANCE GUIDE PLATE/FRONT 5
5C710270 ENTRANCE GUIDE PLATE/REAR 4
5C710280 LEVER SPRING 5
5C710290 PAPER FEED PRESSURE SPRING/REAR 4
5C710300 PAPER FEED PRESSURE SPRING/FRONT 4
5C710310 PRESSURE PLATE/L 5
5C710320 PAPER FEED HOLDER PLATE 5
5C710330 SENSOR MOUNT PLATE/A 4
5C710370 PAPER STOPPER PLATE 6
5C710390 PAPER SUPPLY SIDE PLATE 6
5C710420 SIDE FIXED PLATE 6
5C710431 BOARD POSITIONING BLOCK 7
5C710440 FEEDING SHAFT 5
5C710450 TORQUE DRIVE SHAFT ASSEMBLY 3
5C710460 SENSOR DETECTING GEAR(Z=92) 8
5C710510 LCT SIGNAL WIRING/FRONT 1,9
5C710530 LCT DRIVING WIRING 3,9
5C710570 HINGE PLLATE/A 2
5C710580 MOUNT PLATE 2
5C710590 OPEN-CLOSE SPRING 2
5C710600 STOPPER RUBBER 6
5C710610 MAGNET PRESSURE PLATE 1
5C710620 INTER LOCK SWITCH 1,3
5C710630 LCT SUPPORT PART/LEFT 1
5C710640 DRIVEN PULLEY 7
5C710650 WIRE HOLDER/A 7
5C710660 UP-DOWN SPRING 7
5C710670 WIRE MOUNT PLATE COMBINED 7
5C710680 WIRE FIXED PLATE/A COOMBINED 7
5C710690 SPRING GUIDE PART 4
5C710700 WIRE FIXED PLATE/B COMBINED 7
5C710710 OPEN-CLOSE LEVER 4
5C710720 TONER SUPPLY AGITATE GEAR 8
5C710730 PAPER GUIDE SEAL 6
5C710740 SPACER PLATE 7
5C710760 HUSE 1
5D510020 OPEN/SHUT HINGE 2
5D510030 DRIVING UP-DOWN PLATE/FRONT 8
5D510040 DRIVE UP/DOWN WIRE/A 7
5D510050 DRIVE UP/DOWN WIRE/B 7
5D510060 DRIVE UP/DOWN WIRE/C 7
5D510070 DRIVING UP-DOWN WIRE/D 7
5D510080 REAR GUIDE ARM/REAR AEEMBLY 6
5D510090 REAR GUIDE ARM/FRONT ASSEMBLY 6
5D510100 PAPER UP/DOWN PLATE 7
5D510110 PAPER POSITIONIMG PLATE 6
5D510120 SHAFT SUPPORT PLATE/A 6
5D510130 SIDE CONNECTING PLATE 6
5D510140 BOTTOM PLATE LOCKING PLATE 6
5D510150 REAR SLIDE PLATE 6
5D510160 MOTOR DRIVING GEAR/B 8
5D510310 MAIN BODY FIXING PLATE/1 1
5D510320 ACCESSORIES INSTALLING COVER 2
5D510390 PAPER FEED UNIT MOTOR 8
5D510400 GEAR(B) 8
5D510410 PAPER FEED DRIVING GEAR/3 8
5HA10200 WEB DRIVING MOTOR 9
5HA10400 PAPER FEED DRIVING GEAR/B(Z=22/30) 3
5HA10410 PAPER FEED DRIVING GEAR/C(Z=22) 3
5HA11290 HEATER MOUNTING PLATE ASSEMBLY 1
5HA11310 DC BRUSHLESS MOTOR/15 3
5HA11350 PAPER FEED DRIVE CLUTCH 4
5HA11400 APS SENSOR/1 4
5HA11800 CONVEYANCE DRIVEN ROLLER 6
5HA11850 HEATER COVER 1
5HD10010 MOUNT COVER/B 2
5HD10020 OPEN-CLOSE KNOB 2
5HD10060 JAM OPEN-CLOSE DOOR 2
5HD10070 PAPER FEED AUXILIARY COVER/FRONT 2
5HD10080 PAPER GUIDE KNOB 2
5HD10110 SIDE COVER/RIGHT 2
5HD10130 CLUTCH EXCHANGING COVER 2
5HD10140 CUSHION/B 4
5HD10150 CUSHION/C 2
5HD10160 RUBBER/A 4
5HD10170 FEEDING COVER ASSEMBLY 4
5HD10180 REGISTRATION IDLER GEAR(Z=66/27) 3
5HD10200 LCT CONTROL WIRING 1
5HF10010 PAPER SUPPLY COVER 2
– 21 –
Page 25
Parts No. Fig. No.Description Parts No. Fig. No.Description
5HF10020 PAPER SUPPLY LABEL 2
5HF10030 PAPER BASE LABEL 1
5HF10040 FRONT COVER 2
5HF10050 REAR COVER 2
5HF10060 LCT SIGNAL WIRING/1 9
5HF10070 LCT SIGNAL WIRING/LOWER 9
5HF10080 LCT SIGNAL WIRING/UPPER 4,9
5HF10090 LCT DRIVING BOARD ASSEMBLY 1
5HF10100 MAIN FIXED PLATE 1
5HF10110 MAIN FIXED PIN 1
5HF10120 PAPER FEED INDICATION LABEL/L 2
5HF
– 22 –
Page 26
330/331
Page 27
KYOCERA MITA AMERICA, INC.
Headquarters:
225 Sand Road, P.O. Box 40008
Fairfield, New Jersey 07004-0008
TEL : (973) 808-8444
FAX : (973) 882-6000
New York Show Room:
1410 Broadway 23rd floor
New York, NY 10018
TEL : (917) 286-5400
FAX : (917) 286-5402
Northeastern Region:
225 Sand Road, P.O. Box 40008
Fairfield, New Jersey 07004-0008
TEL : (973) 808-8444
FAX : (973) 882-4401
Midwestern Region:
201 Hansen Court Suite 119
Wood Dale, Illinois 60191
TEL : (630) 238-9982
FAX : (630) 238-9487
KYOCERA MITA CANADA, LTD.
6120 Kestrel Road, Mississauga,
Ontario L5T 1S8, Canada
TEL : (905) 670-4425
FAX : (905) 670-8116
Western Region:
14101 Alton Parkway,
Irvine, California 92618-7006
TEL : (949) 457-9000
FAX : (949) 457-9119
Southeastern Region:
1500 Oakbrook Drive,
Norcross, Georgia 30093
TEL : (770) 729-9786
FAX : (770) 729-9873
Southwestern Region:
2825 West Story Road,
Irving, Texas 75038-5299
TEL : (972) 550-8987
FAX : (972) 570-4704
Dallas Parts Distribution Center
& National Training Center:
2825 West Story Road,
Irving, Texas 75038-5299
TEL : (972) 659-0055
FAX : (972) 570-5816
KYOCERA MITA MEXICO, S.A. DE C.V.
Av. 16 de Septiembre #407
Col. Santa Inés,
02130 Azcapotzalco
México, D.F. México
TEL : (55) 383-2741
FAX : (55) 383-7804
© 2002 KYOCERA MITA CORPORATION
is a trademark of Kyocera Corporation
is a registered trademark of KYOCERA MITA CORPORATION
Printed in U.S.A.
Loading...
