Kyocera FAXSYSB P Diagram

Fax System(B)

CONTENTS

FIG.1 FAX SYSTEM · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2

– 1 –

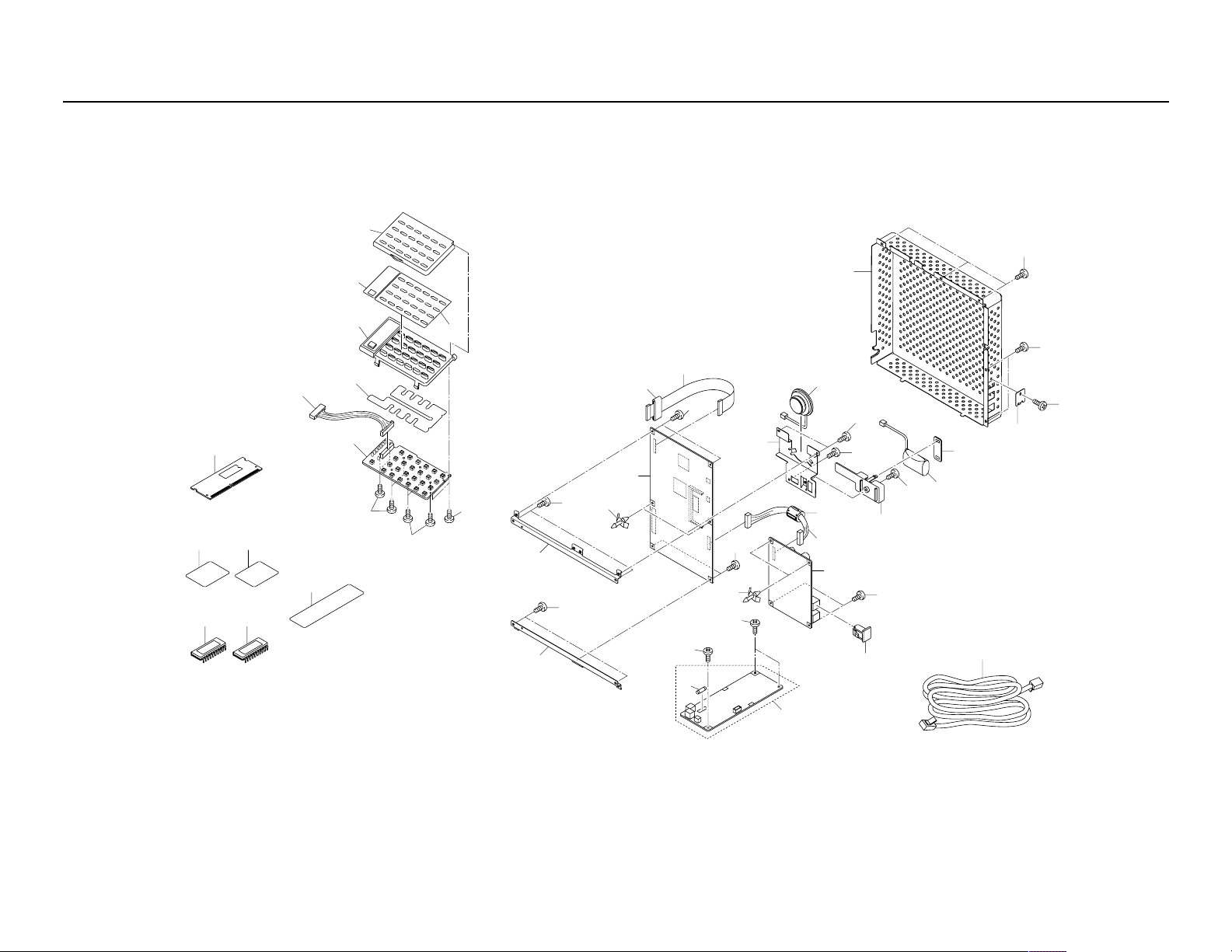

FIG. 1 FAX SYSTEM

6

3B1

4

´

%

ˇ

3

$

*(

0

)

9

7

8

Œ

Œ

5

Œ

›

‹

´

´

„

1

¤

^

#

‰

‰

„

‰

‰

°

@

‡

2

&

Á

´

´

‚

fi

‰

´

´

´

!

fl

·

⁄

– 2 –

FIG. 1 FAX SYSTEM

Ref.

SP Part. No. Description

No.

'

1 3B101010 MAIN ASS’Y FAX(EXP) 1 1
2 65027470 CORE,7-15X18 1

'

3 3B125040 LABEL,FAX UNIT 1 1

'

4 3B125010 COVER,FAX UNIT(INCH) 1

'

4 3B125050 COVER,FAX UNIT(METRIC) 1

'

5 3B125020 RIGHT SHEET,FAX UNIT(INCH) 1

'

5 3B125060 RIGHT SHEET,FAX UNIT(METRIC) 1

'

6 3B125030 LEFT SHEET,FAX UNIT(INCH) 1

'

6 3B125070 LEFT SHEET,FAX UNIT(METRIC) 1

'

7 2AW24011 OPERATION UNIT PCB FAX 1 1

'

8 2AW25010 HOUSING,FAX UNIT 1 1

'

9 2AW25050 SHEET,DUST SHIELD 1 1
10 2AW27060 WIRE,OPERATION UNIT 1 1
11 3B126010 LID,MODULAR JACK 1 1

'

12 2AW28050 SUB POWER SOURCE PCB(100) 1

'

12 3B128020 SUB POWER SOURCE PCB(200) 1

'

13 •M1652020 FUSE,237002(LITTEL-FUSE) 1

'

13 •M1751000 FUSE,S505-1.6A(BUSSMANN) 1

'

14 2AW25060 SEAL,ONE-TOUCH 1 1
15 2AW26010 COVER FAX,SHIELD 1 1

'

16 2AW27010 WIRE FAX 1 1
17 2AW27020 WIRE,NCU 1 1

'

18 2AW29310 IC 1,ROM CONTROL 1 1

'

19 2AW29320 IC 2,ROM CONTROL 1 1

'

20 3B125080 LABEL,LANGUAGE INDICATION 1
21 76727300 MODULAR CORD B 1
22 3A127060 CORE 27-31X12 1
23 2AW26030 LOWER MOUNT,FAX 1 1
24 2AW26020 UPPER MOUNT,FAX 1 1
25 34426010 HOLDER,BATTERY 1 1
26 34426020 HOLDER,BATTERY 1 1
27 79327160 SPEAKER 1 1
28 2AW26040 MOUNT,SPEAKER 1 1

'

29 35927800 BATTERY,BACKUP (USA) 1

'

29 35927810 BATTERY,BACKUP (EUR) 1

'

30 63527370 MODULAR COVER 1 1
31 B3313080 BINDING TAP-TITE SCREW M3X08 9 9
32 M2108120 SPACER,KGLS-4S 4 4
33 B1303050 BINDING SCREW BVM3X5 (BLACK) 14 14
34 B4303050 TRIPLE SCREW M3X5 (BLACK) 9 9

Quantity

230V120V

SP

'

NCU

'
'
'

3B1

HA

Quantity

230V120V

HBB HMN

Ref.

Part. No. Description

No.

35 2AW60010 MEMORY BOARD ASS’Y(OPTION) 1 1

36 3B101030 NCU ASS’Y(N.A.) 1
36 3B101040 NCU ASS’Y(C T R) 1
36 3B101050 NCU ASS’Y(E U G) 1

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

• Parts with "'" indicates the Service parts.
