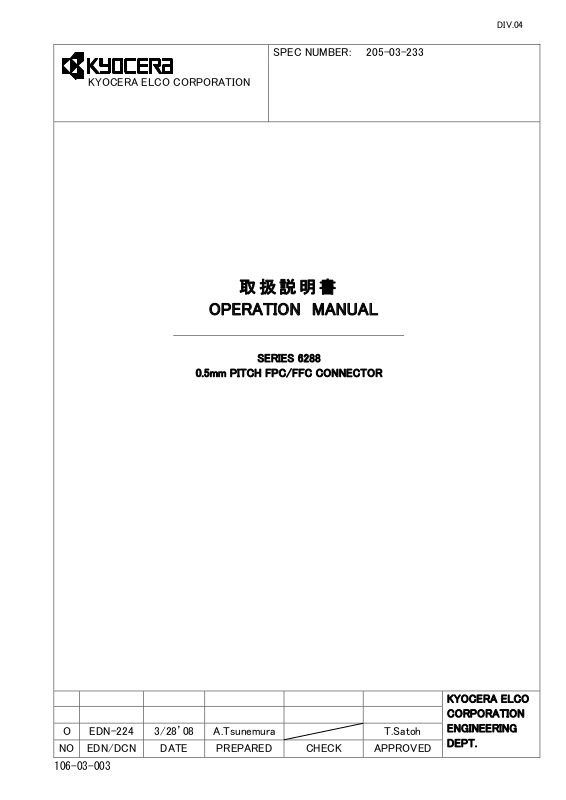

KYOCERA 6288 User Manual
DIV.04
SPEC NUMBER: 205-03-233
KYOCERA ELCO CORPORATION
OPERATION MANUAL
0.5mm PITCH FPC/FFC CONNECTOR
O EDN-224 3/28’08 A.Tsunemura T.Satoh
NO EDN/DCN DATE PREPARED CHECK APPROVED
取扱説明書
SERIES 6288
KYOCERA ELCO
CORPORATION
ENGINEERING
DEPT.
106-03-003
KYOCERA ELCO CORPORATION
目 次
TABLE OF CONTENTS
1. 概要 OUTLINE ························································································································································································ 2
2. 6288 シリーズ 各部の名称 SERIES 6288 NAME OF EACH PART ················································································ 2
3. 取り扱い上の注意 PRECAUTIONS IN HANDLING ················································································································· 3
3.1 基板搭載について MOUNTING ON THE BOARD ············································································································ 3
3.2 FPC/FFC の挿入について INSERTION OF FPC/FFC ·································································································· 3
3.3 FPC/FFC の挿入方法ついて INSERTION PROCEDURE OF FPC/FFC ······························································ 6
3.4 FPC/FFC の抜去について PULLING OUT FPC/FFC ··································································································· 7
3.5 FPC/FFC の屈曲について FLEXION OF FPC/FFC ······································································································· 7
4. その他の注意事項 OTHER CAUTIONS ······································································································································ 8
5. 製品の保管及び管理 STORAGE MANAGEMENT ··················································································································· 8
SERIES 6288 INSTRUCTION MANUAL SPEC No.205-03-233
106-03-004 PAGE 1/8
KYOCERA ELCO CORPORATION
r
r
1. 概要 OUTLINE
本製品 6288 シリーズコネクタは、車載(カーナビゲーション等)向けに開発され 0.5mm ピッチ セキュアロック
タイプ(FPC 誤嵌合／脱落防止タブ付き)の FPC 用コネクタです。
本コネクタは製品の大きさが非常に小さいため、取り扱いには注意が必要です。
こ こ で 、 6288 シリーズコネクタの取り扱い上の注意点について記載します。
Series 6288 is a 0.5mm-pitch secure-locking type (applicable for FPCs with tabs to prevent wrong-oriented way
of insertion and/or unintentional detachment) FPC connector that was developed for the usage in vehicles, such
as a car-navigation system.
Since the size of this product is very small, it requires careful handling. Please follow instructions described
below.
2. 6288 シリーズ 各部の名称 SERIES 6288 NAME OF EACH PART
インシュレータ
Insulato
スライダー
Slide
金具
Anchor Plate
コンタクト
Contact
SERIES 6288 INSTRUCTION MANUAL SPEC No.205-03-233
106-03-004 PAGE 2/8
