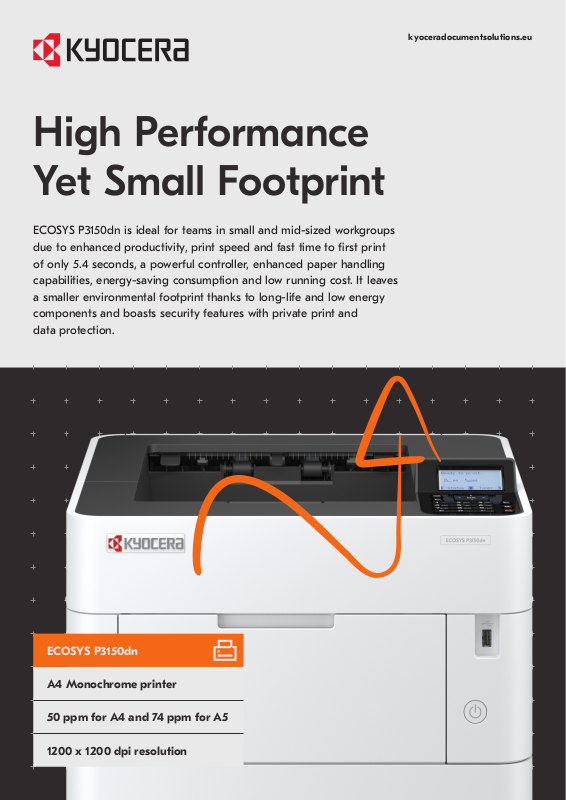

Kyocera 1102TS3NL0 Product Data Sheet

High Performance
Yet Small Footprint

ECOSYS P3150dn is ideal for teams in small and mid-sized workgroups
due to enhanced productivity, print speed and fast time to first print
of only 5.4 seconds, a powerful controller, enhanced paper handling
capabilities, energy-saving consumption and low running cost. It leaves
a smaller environmental footprint thanks to long-life and low energy

kyoceradocumentsolutions.eu

components and boasts security features with private print and
data protection.

ECOSYS P3150dn

A4 Monochrome printer

50 ppm for A4 and 74 ppm for A5

1200 x 1200 dpi resolution

Specifications

NERAL

GE

KYOCERA ECOSYS Laser Monochrome Printer
Operation panel: 5 line LCD/LED display with
back light with alphanumeric keypad
Engine speed (pages per minute): Up to 50 pages A4
in b/w. Duplex print speed: up to 35.5 page per minute A4

Resolution: 1,200 x 1,200 dpi
Warm-up time: Approx. 20 seconds or less from power on.
Time to first page: Approx. 5.4 sec. or less.
CPU: ARM Cortex-A9 Dual core 1.2GHz

(+ ARM Cortex-M 3 100MHz)

Memory: Standard 512 MB RAM, max. 2,560 MB RAM
Standard interfaces: USB 2.0 (Hi-Speed USB), 2 x USB Host

Interfaces, Ethernet (10/100/1000Base), Slot for optional
internal print ser ver or SSD hard disc, Slot for optional
SD / SDHC Card.
Integrated accounting: 100 department codes
Dimensions (W x D x H) – 3 80 mm × 410 mm × 320 mm,
388 mm × 410 mm × 343 mm incl. projections.
Weight: Main unit approx. 15.5 kg.
Approx. 16.1 kg (with starter toner)

Power source: AC 220 V ~ 240 V, 50/60 Hz
Power consumption

Print - mode: 636 Wh
Ready mode: 11 Wh
Sleep mode: 0.5 Wh

Noise (sound pressure level ISO 77 79/
measurement distance of 1 meter)

Stand by mode: No measurable noise*
Printing: 54.5 dB(A) LpA. Quiet mode: 50. 3 dB (A) LpA
Sleep mode: No measurable noise
Safety standards: GS, TÜV, CE; This unit is manufactured
according to ISO 9001 quality standard and ISO 14001
environmental standard. RoHS compatibility.
*in a standard oce environment

PAPER HANDLING

All paper capacities quoted are based on paper thickness
of max. 0.11 mm. Please use paper recommended by
Kyocera under normal environmental conditions.

Input capacity: 100-sheet multi-purpose tray: MP tray:
60 - 220g/m², A4, A 5, A6, Letter, Legal, Custom (70
x 140 - 216 x 356 mm), Banner paper up to 915 mm
500-sheet universal paper cassette: 60 - 120g/m² A4, A5 ,
A6, Letter, Legal, Custom (105 x 148 - 216 x 356 mm)
Max. input capacity incl. options: 2 ,600 sheets
Duplex functionality as standard: A4, A5, B5, Letter, Legal,
Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m²
Output capacity: 500-sheet- face-down with paper
full sensor, 250-sheets-face-up with PT-320.

PRINT FUNCTIONS

Controller language: PRESCRIBE
Emulations: PCL6 (5c/XL), KPDL3 (PostScript 3 compatible),

PDF Direct Print, XPS Direct Print, TIFF/JPEG Direct Print
Support, Open XPS, Line Printer, IBM Proprinter X24E,
Epson LQ-850 with automatic emulation sensing.
Operating systems: All current Windows operating
systems, Mac OS X Version 10.9 or higher, UNIX LINUX,
as well as other operating systems on request.
Fonts/barcodes: 93 outline fonts (PCL6/KPDL 3), 8 fonts
(Windows), 1 Bitmap font, 45 types of one-dimensional
barcodes, 1 type of two-dimensional barcode (PDF417)
Print features: PDF Direct Print, IPP printing,
e-mail printing, WSD print, secure printing via SSL,
IPsec, SNMPv3, Encrypted PDF Direct Print.
Mobile printing support: KYOCERA Mobile Print app for
iOS and Android; Mopria, Google Cloud
Print, Airprint, Direct Wi-Fi (opt).

CONSUM ABLES

Average continuous toner yield in accordance with
ISO/IEC 19752. Starter toner is 8,000 pages , A4.

TK-3160 Toner Kit: Microfine toner for 12,500 pages, A4.
TK-3170 Toner Kit: Microfine toner for 15, 500 pages, A4 .

OPTIONS

PF-3110 Paper feeder (max. 4 units): Max . 500 sheets,

60 - 120 g/m²; A4, A5, B5, Letter, Legal, Custom

(92 x 162 mm - 216 x 356 mm)
PF-3100 Bulk paper feede r and PB-325 Printer base:
Max. 2,000 sheets, 60 - 220 g/m², (76 x 148 - 216
x 305 mm), not to be combined with PF­CB-360W Cabinet: Wooden desk with storage
capacity, Approx. 380 x 411 x 508 mm ( WxDxH)
CB-365W Cabinet: Wooden desk with storage
capacity, Approx. 380 x 411 x 254 mm (WxDxH)
PT-320 Paper tray: 250-sheet-face-up output tray
Caster unit CA-3100
Memory upgrade: MD3-1024, MDDR3 -2G, DDR3, 1GB/2GB
Storage Devices: HD -6 SSD hard disk: 32GB for
easy document management. HD-7 SSD hard disk:
128 GB for easy docum ent management.

SECURITY

Data security kit (E): Encrypts data stored on optional SSD,

available when HD-6/7 is installed without any license
UG-33: ThinPrint support
USB IC Card Reader + Card Authentication Kit (B):
Support for various authentication keys available
Optional interface:
IB-50: Gigabit Ethernet: 10BaseT/100BaseTX/1000BaseT
(RJ45). IB-51: Wireless Lan (802.11b/g/n).
IB-36: Wireless Land (802 .11b/g/n) with Wi-Fi Direct
IB-32B: IEEE1284 interface.

WARRANTY

1-year warranty as standard **. Kyocera guarantees
the drum and developer for 3 years or 500,000 pages
(whichever occurs sooner), provided each device is used
and cleaned in accordance with the service instructions.

KYOlife

Up to 5-year on-site warranty extensions
available for product and options.

3110

ECOSYS stands for ECOlogy, ECOnomy and SYStem printing.
With long-life components, ECOSYS devices are designed to
maximise durability and minimise the total cost of ownership.
The cartridge-free system means that you only need to add
toner regularly. The modular design concept allows workflow
enhancing functions. Integrated system software also provides
crossnetwork compatibility.
