TRAILER PARTS MANUAL

VERTICAL MIXER

MODELS 5073, 5085 and 50100

Abbreviations ................................................................................................. 2

Using This Service Parts Listing .................................................................... 3

Body Parts ..................................................................................................... 4

Light Kit.......................................................................................................... 5

Wheel and Hub Parts - 5073 ......................................................................... 6

Undercarriage Parts ...................................................................................... 7

Input Shaft and Pinion Gear Drive Parts ...................................................... 10

Gearbox ....................................................................................................... 11

Auger Drive and Tower Assembly Parts ...................................................... 12

Auger Assembly Parts ................................................................................. 16

Door and Cylinder Parts .............................................................................. 25

Door and Cylinder Parts 5073-068 and Before............................................ 26

Slide Tray Parts ........................................................................................... 27

4 Auger Discharge Parts .............................................................................. 28

Chain and Slat Discharge Parts .................................................................. 30

High-Speed Clean-Out Option ..................................................................... 32

High-Speed Clean-Out Option - Gearcase Replacement Parts................... 34

Selector Valve Option .................................................................................. 35

PTO Driveline (1000 RPM - 21 - Spline -1 3/8 Yoke) After S/N 5073-066.... 36

PTO Driveline (1000 RPM - 21 -Spline-1 3/8 Yoke) Before S/N 5073-065 .. 37

Side Extension Options ............................................................................... 39

Decal and Paint List ..................................................................................... 40

Hardware Part Number Listing .................................................................... 41

Catalog Part Number 005907 Unit Serial Number_____________

Operator Instruction Manual for this unit: 005893

5073TR 005907 R060706

Abbreviations

Assy ................................................ Assembly

A/R ..............................................As Required

B ............................................................... Bolt

Brg ...................................................... Bearing

BSN .............................. Before Serial Number

Btm ...................................................... Bottom

C-Bolt ........................................ Carriage Bolt

Cttr ........................................................ Cotter

CV ....................................... Constant Velocity

Deg..................................................... Degree

Dia .................................................... Diameter

ea ........................................................... Each

eq or Equiv .....................................Equivalent

Fln ...................................... Flanged Lock Nut

Fw ............................................... Flat Washer

Ga ....................................................... Gauge

Gr or Grd .............................................. Grade

Hd ........................................................... Head

Hfw ................................... Heavy Flat Washer

Hyd .................................................. Hydraulic

ID ........................................... Inside Diameter

Ill or Illus ......................................... Illustration

Ind .....................................................Indicator

Jn ...................................................... Jam Nut

Kw ...................................................... Keyway

LH .................................................... Left Hand

Ln ..................................................... Lock Nut

Lw .............................................. Lock Washer

Mtg Hrd ........................... Mounting Hardware

NC .........................................National Coarse

NF ............................................. National Fine

NLA ................................ No Longer Available

NPT ...............................National Pipe Thread

OD ...................................... Outside Diameter

Pc(s) .................................................. Piece(s)

PD ........................................... Pitch Diameter

PHB .......................................... Pan head bolt

PTO ............................... Power Takeoff (shaft)

Qty ..................................................... Quantity

RH ................................................ Right Hand

SN ........................................... Serial Number

SHCS ...................... Socket Head Cap Screw

Spk, or Spkt or Sprkt ......................... Sprocket

Sq ........................................................ Square

SS ........................................... Stainless Steel

SSB .................................. Stainless Steel Bolt

St ........................................................ Straight

Std .................................................... Standard

STS .................................. Self Tapping Screw

UASN .....................Used After Serial Number

UBSN ................. Used Before Serial Number

W ............................................................. With

W/O .................................................. With Out

Using This Service Parts Listing

This listing uses a number indentation system to specify the parts of an assembly. Any number which is indented to the right, indicates that it is a component of the item to the upper left. Example:

Part no Qty Description 102-AAA # Assembly A

102-BBB # Sub-Assembly B (Component of A)

140-xxx # Sub-Component of B

140-xxx # Sub-Component of B 102-CCC # Sub-Assembly C (Component of A)

etc.

5073TR 005907 R060706

The serial number may consist of a number, or a number with a letter prefix. When referring to serial number breaks in the text of this manual, a serial number with a prefix will have been manufactured after a serial number without a prefix (A001 made after 0123). Likewise, a higher prefix letter would indicate manufacture after a lower prefix letter (B001 made after A123). Therefore, if the text refers to units manufactured after serial number B123, this would include “B” series numbers greater than 123, and all numbers with a higher letter prefix.

If you cannot find the part you need, be as descriptive as possible when placing an order:

Using this system, the subassemblies and their components are included if an Assembly is ordered. Similarly, the components of a subassemblies are included if a subassembly is ordered.

The quantity (Qty) associated with an assembly, represents the number of times an assembly could be shown in the drawing. The subassembly quantity however, is the number of times a subassembly is used to build one assembly. Similarly, the component quantity refers to the number of times a given component is found in one subassembly.

MODEL AND SERIAL NUMBER INFORMATION is located near the front left hand corner (Fig. A). The model number, serial number and part number should be known when asking service personnel for parts.

Sprockets: give the bore size, number of teeth, and size of keyway. Roller chain: give the size of chain (stamped on the side of each link) and number of links. Shafting: give the diameter, length, and quantity and size of keyways.

Hardware is generally not included with parts. If you need any hardware, check the size, the length, and the grade (Fig. B), then check the hardware list in this manual for the part numbers.

All hex head bolts are grade 5, and nuts are grade 5 unless otherwise stated.

The hardware listing also includes zerks, cotter pins, set screws, and roller chain links.

The illustrations in this manual are meant to be used only as a guide for identifying parts and locating their relative positions.

Figure A

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

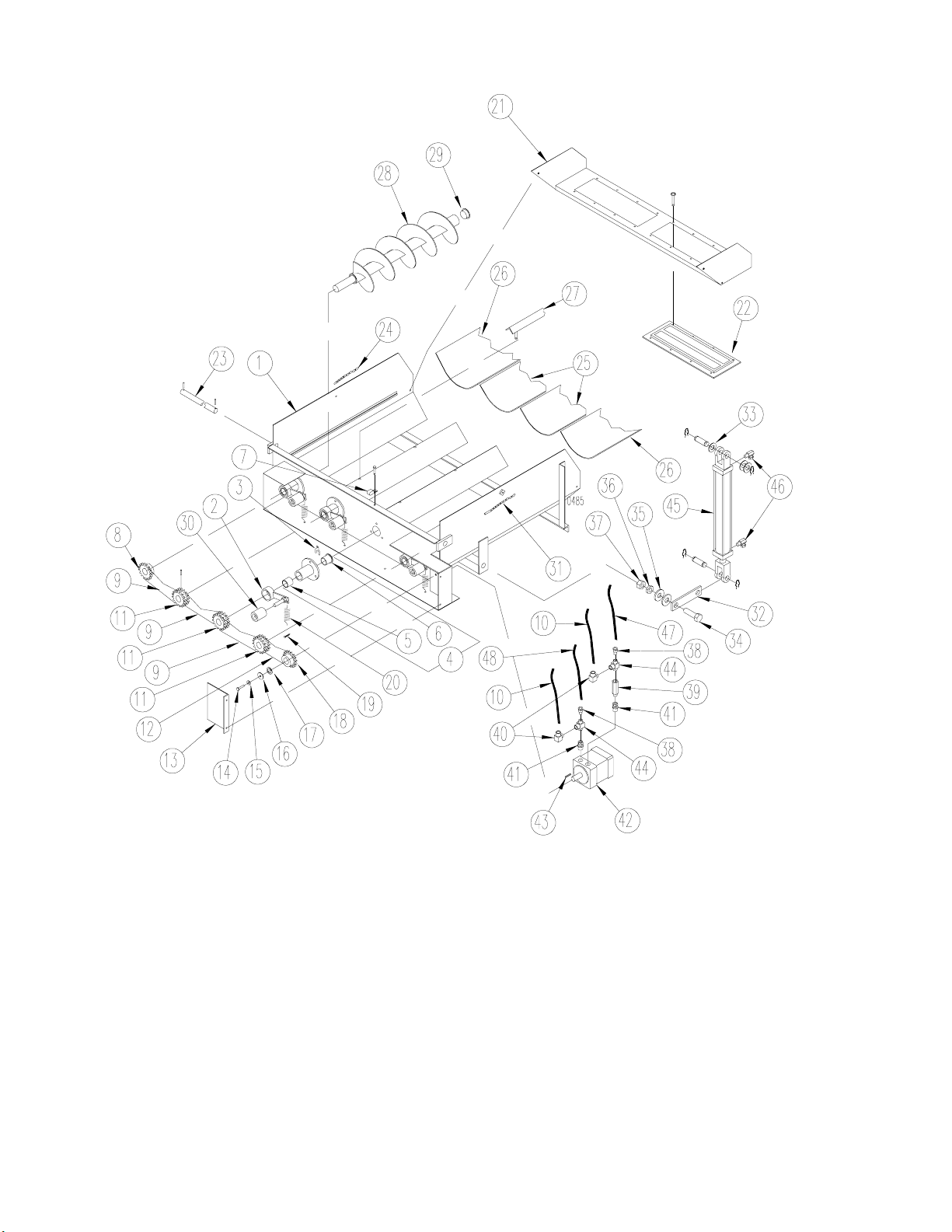

Body Parts

REF PART NO QTY DESCRIPTION

1 103-678 2 Haydog; Mtg. Hrd: 1/2” x 1 3/4”B, LN (1EA) 2 174-765 2 Bent Hitch Pin, 1/2” DIA x 2 1/2” 3 102-437 1 Swing Arm, Outer; Mtg. Hrd: 1/2” x 1 1/2” B, LN,Includes T-bolt 4 136-454 1 Spacer Pad” 5 102-439 1 Swing Arm, Inner 6 141-301 1 Shield, Drive; Mtg Hrd: 5/16” x 1”B, Belleville Washer,LN(2EA) (5073 ONLY)

141-366 1 Shield, Drive - Front; Mtg Hrd: 3/8” x 1”B, Belleville Washer,LN(2EA) (5085 & 50100 ONLY)

144-462 1 Shield, Drive - Rear (5085 & 50100 ONLY) 7 103-674 1 Clevis Mount; Mtg. Hrd: 3/4” x 4 1/2” GRD-8 B,LN (5073 ONLY) 8 140-611 2 Clevis, Retainer (5073 ONLY) 9 103-779 1 Clevis; Mtg. Hrd: 3/4” x 2”B, LN (4EA) 10 141-547 1 Dipstick 11 174-839 1 Jack Mount Tube(Weld On) 12 171-919 1 Drain Plug 13 141-297 1 Fender, RH (weld-on) (5073 ONLY)

141-302 1 Fender, LH (weld-on) (5073 ONLY)

141-370 2 Fender, dual axle (5085 & 50100 ONLY)

Mtg Hrd: 5/16” x 1-1/4” Bolt, FW, LW, and Nut, (8ea) 3/8” Heavy Washer (8ea)

14 174-763 1 Weigh Bar, Hitch, 2-1/2”; Mtg; Hrd: 3/4’ x 4 1/2” GRD8 B, LN

Body Parts

REF PART NO QTY DESCRIPTION

1 174-676 1 Jack, Sidewind 10,000lb 2 174-838 1 Jack Mount Pin (includes “R” clip) 3 174-840 1 Crank Assembly 4 174-839 1 Jack Mount Tube (weld on)

5073TR 005907 R060706

Light Kit

REF PART NO QTY DESCRIPTION

1 174-675 1 Light Kit 2 174-673 2 Light, Amber

174-674 2 Light, Red 3 174-725 4 Grommet 4 174-775 1 Wire Harness 5 174-724 4 Light Connector (pigtail only) 6 172-110 1 7 Pin Connector (SAE J560B)

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Wheel and Hub Parts - 5073

REF PART NO QTY DESCRIPTION

1 174-755 1 Grease Seal; Transcom #37605SA 2 173-001 1 Bearing Cone; HM218248 3 172-999 1 Hub, Wheel 10 Hole 4 173-031 1 Bearing Race; HM218210 5 174-784 10 Stud, Wheel, 3/4” NF 6 170-920 10 Lug Nut; 3/4” NF 7 173-032 1 Bearing Race; HM212011 8 173-002 1 Bearing Cone; HM212049 9 174-757 1 Washer Spindle 2 1/16” x 4” 10 174-756 1 Nut; Castle 11 173-007 1 Cover; Mtg. Hrd: 5/16” x 3/4”B, LW (4EA) 12 174-804 1 Roll Pin, 3/8” x 3” 13 170-023 1 Grease Fitting 1/4”

14 173-008 2 Wheel and Tire Assy (Aircraft) 15 173-170 1 Wheel Rim (inner); Mtg. Hrd: 1/2” x 1 1/4” B, LN (32EA) 16 173-171 1 Wheel Rim (outer) 17 173-172 1 Tire 44 1/2” x 16 1/2” 18 173-173 1 Inner Tube 44 1/2” x 16 1/2“ (not shown) 19 173-174 1 Flap, 44 1/2” x 16 1/2“ (not shown)

14 175-331 2 Wheel and Tire Assy 46 x 18 - 20, (neg 2” offset) (Aircraft) 15 175-334 1 Wheel Rim (inner); Mtg. Hrd: 1/2” x 1 1/4” B, LN (32EA) 16 175-333 1 Wheel Rim (outer) 17 175-332 1 Tire, 46” X 18” Aircraft 30 ply 18 175-335 1 Inner Tube 46 x 18 - 20 (not shown) 19 175-336 1 Flap, 46 x 18 - 20 (not shown)

20 174-759 2 Weigh Bar, Spindle, 3-3/4”; Mtg; Hrd: 5/8” x 5 1/2” B, LN

5073TR 005907 R060706

Undercarriage Parts - 5085 and 50100 (S/N 5085-B0001, 50100 C0001 and after)

1064

17 18 19

REF PART NO QTY DESCRIPTION

104-646 1 Undercarriage with Bogies 1 104-559 1 Undercarriage Weldment 2 103-844 1 Tie Rod Assembly 3 103-910 1 RH Bogie Assembly with Hubs

103-911 1 LH Bogie Assembly with Hubs

4 103-908 1 RH Bogie Weldment (170-865) 1/8” NPT Grease Zerk

103-909 1 LH Bogie Weldment (170-865) 1/8” NPT Grease Zerk 5 141-569 2 Spindle, 4 1/2” x 18” (Weld On) 6 141-967 1 Spacer (Weld On) 7 141-574 1 Bushing, Bogie Pivot 8 173-006 2 Grease Seal 9 173-001 2 Inside Bearing Cone; HM218248 10 172-999 2 10-Bolt Hub 11 173-031 1 Inside Bearing Race; HM218210 12 174-784 10 Wheel Stud, 3/4” 13 170-023 1 Grease Zerk 14 170-920 10 Wheel Nut, 3/4” 15 173-032 1 Outside Bearing Race; HM212011 16 173-002 2 Outside Bearing Cone; HM212049 17 173-003 2 Spindle Nut, Inner; DANA# M10HM101 18 173-004 2 Lock Washer; DANA# M10HM100 19 173-005 2 Spindle Nut, Outer; DANA# M10HN102 20 173-007 2 Dust Cap Mtg Hrd: 5/16” x 3/4” Bolt (Qty 6)

21 175-174 4 Wheel, 22.5 x 13 22 171-653 4 Tire, 22.5 385-65R 23 174-577 4 Tube, 15R/16.5 (Not Shown)

21 175-177 4 Wheel, 22.5 x 11.75 22 175-178 4 Tire, 22.5 315/80R 23 174-577 4 Tube, 15R/16.5 (Not Shown)

24 174-979 4 Weigh Bar; 2.875” 25 103-845 4 Weigh Bar Mount

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Undercarriage Parts - 5085 and 50100 (After S/N 5085-054, 50100-069, Before S/N 5085-B0001, 50100 C0001)

REF PART NO QTY DESCRIPTION

1 103-906 1 Undercarriage with Bogies 2 103-779 1 Clevis; Mtg Hrd: 3/4” x 4 1/2” GRD-8 B, LN 3 103-844 1 Tie Rod Assembly Mtg Hrd: 3/4” Nut, Jam Nut, (170-236) Cotter Pin (1 ea) & FW (2) 4 141-574 1 Bushing, Bogie Pivot 5 103-911 1 LH Bogie Assembly

103-910 1 RH Bogie Assembly

6 103-909 1 LH Bogie Weldment (170-865) 1/8” NPT Grease Zerk

103-908 1 RH Bogie Weldment (170-865) 1/8” NPT Grease Zerk 7 141-967 1 Spacer (Welds to the bogie axle receptical) 8 141-569 2 Spindle, 4 1/2” x 18” 9 172-999 2 10-Bolt Hub 10 173-031 1 Inside Bearing Race; HM218210 11 174-784 10 Wheel Stud, 3/4” 12 170-920 10 Wheel Nut, 3/4” 13 173-032 1 Outside Bearing Race; HM212011 14 173-002 2 Outside Bearing Cone; HM212049 15 173-003 2 Spindle Nut, Inner; DANA# M10HM101 16 173-004 2 Lock Washer; DANA# M10HM100 17 173-005 2 Spindle Nut, Outer; DANA# M10HN102 18 173-007 2 Dust Cap; Mtg Hrd: 5/16” x 3/4” Bolt (Qty 6) 19 173-006 2 Grease Seal 20 173-001 2 Inside Bearing Cone; HM218248 21 175-174 4 Wheel, 22.5 x 13.5 10 Hole, 1.5 Neg Offset 22 171-653 4 Tire, 385-65R Truck Recap w/ Rib Hwy Tread 23 174-577 4 Tube, Tire (not shown) 24 174-979 4 Weigh Bar; 2.875”

5073TR 005907 R060706

Undercarriage Parts - 5085 and 50100 (Before S/N 5085-055, 50100-070*)

REF PART NO QTY DESCRIPTION

1 103-906 1 Undercarriage with Bogies 2 103-779 1 Clevis; Mtg Hrd: 3/4” x 4 1/2” GRD-8 B, LN 3 103-844 1 Tie Rod Assembly Mtg Hrd: 3/4” Nut, Jam Nut (170-236) Cotter Pin (1 ea) & FW (2) 4 134-843 1 Bushing, Bogie Pivot 5 102-049* 1 LH Bogie Assembly

102-048* 1 RH Bogie Assembly

6 102-065* 1 LH Bogie Weldment (170-865) 1/8” NPT Grease Zerk

102-066* 1 RH Bogie Weldment (170-865) 1/8” NPT Grease Zerk 7 134-824 2 Spindle, 3-3/8” x 17-3/4” 8 172-396 2 10-Bolt Hub 9 172-361 1 Inside Bearing Race; HM218210 10 174-784 10 Wheel Stud, 3/4” 11 170-920 10 Wheel Nut, 3/4” 12 170-922 1 Outside Bearing Race; HM212011 13 170-921 2 Outside Bearing Cone; HM212049 14 170-927 2 Spindle Nut, Inner; DANA# M10HM101 15 170-928 2 Lock Washer; DANA# M10HM100 16 173-005 2 Spindle Nut, Outer; DANA# M10HN102 17 170-926 2 Dust Cap; Mtg Hrd: 5/16” x 3/4” Bolt (Qty 6) 18 172-362 2 Grease Seal 19 172-360 2 Inside Bearing Cone; HM218248 20 175-174 4 Wheel, 22.5 x 13.00, 10 Hole, 1.5 Neg Offset 21 171-653 4 Tire, 385-65R Truck Recap w/ Rib Hwy Tread 22 174-577 4 Tube, Tire (not shown) 23 174-979 4 Weigh Bar; 2.875”

* Used on undercarriages with 6-1/2” diameter axle tubes. Units before 5085-055 and 50100-070 may have been retrofited. If the axle is 8” in diameter, order replacement parts using page 8.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

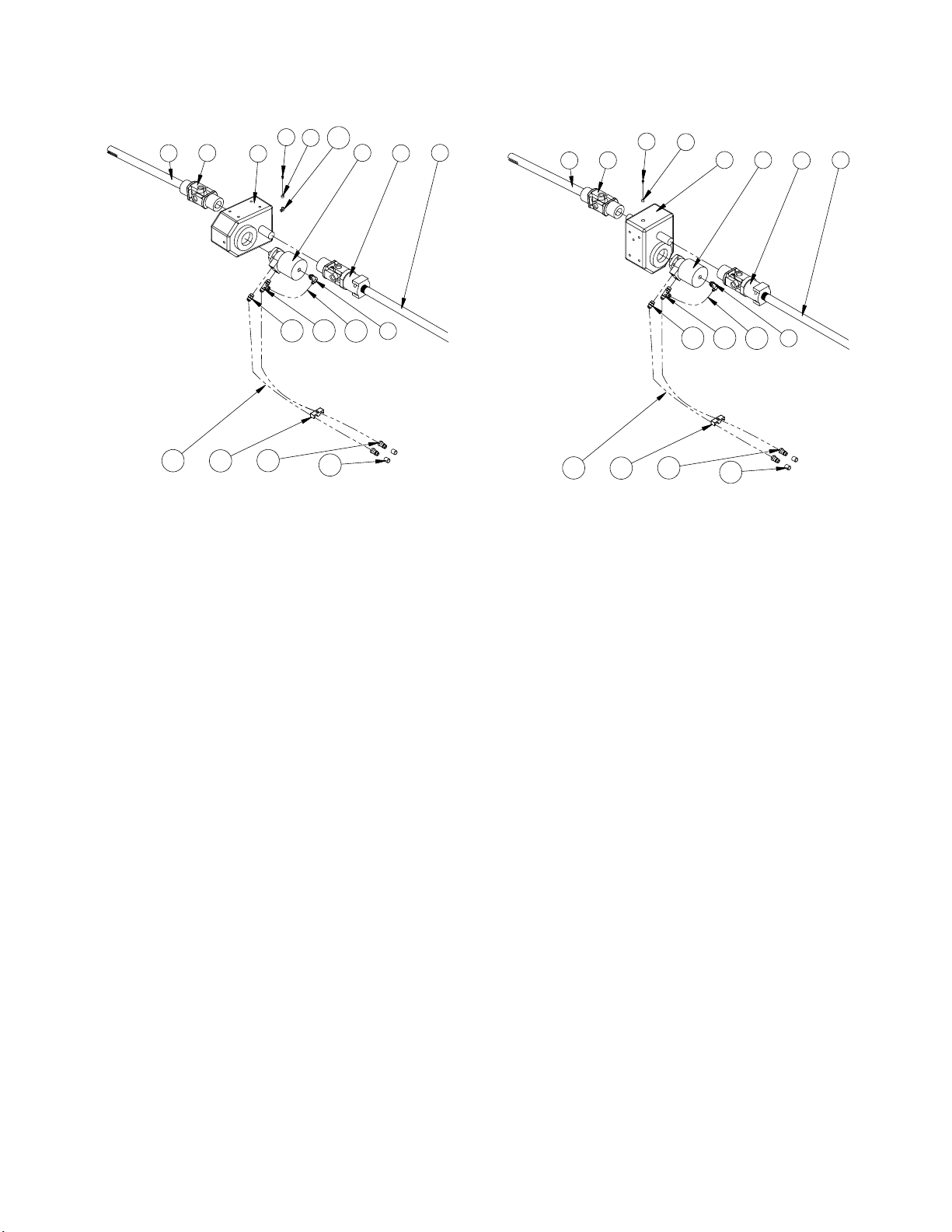

Input Shaft and Pinion Gear Drive Parts

REF PART NO QTY DESCRIPTION

1 175-079 2 Flange Bearing, Ecc. Lock 1 3/4”;

Mtg Hrd: 1/2” x 1 3/4” B, LW, Nut (6EA)(5073 only)

175-079 3 Flange Bearing, Ecc. Lock 1 3/4”;

Mtg Hrd: 1/2” x 1 3/4” B, LW, Nut (6EA)(5085 & 50100 only)

172-288

2 Flange Bearing, Ecc. Lock 1 1/2”; Mtg Hrd: 1/2” x 1 3/4” B, LW, Nut (6EA)

2 141-044 1 Bearing Mount Plate; Mtg Hrd: 1/2” x 1 1/4”B,FW,LW,Nut (2EA)(5073 only)

141-245 1 Bearing Mount Plate;

Mtg Hrd: 1/2” x 1 1/4”B,FW,LW,Nut (2EA)(5085 & 50100 only)

3 141-600 1 Shaft; 1 3/4 “ x 108 1/2” (5073 only)

141-495 1 Shaft; 1 3/4 “ x 120 13/16” (5085 & 50100 only) 141-294

1 Shaft; 1 1/2 “ x 108 1/2”

4 170-019 1 Key; 1/2” x 1/2” x 2”

170-052

1 Key; 3/8” x 3/8” x 2 1/8”

5 175-082 1 U-Joint Assembly; Mtg Hrd: 1/2” x 5/8” set screw (170-249) (2EA)

175-124 2 Yoke; 1 3/4”, 1/2” KW 174-909 1 Cross & Bearing Kit

174-907

1 U-Joint Assembly 174-925A1 Yoke; 1 1/2”, 3/8” KW 175-124A1 Yoke; 1 3/4”, 1/2” KW 174-909A1 Cross & Bearing Kit

6 141-136 1 Trash Guard 7 170-019 1 Key; 1/2” x 1/2” x 2” 8 174-873 1 Gearbox; 4 1/4:1 ratio, Mtg Hrd: (174-911) M12 x 45MM B(10EA) 9 141-549 2 Gearbox Spacer 10 140-955 1 Gearbox Mount; Mtg Hrd: 3/4” x 2”B,LW,(6EA) 11 171-934 2 Snap Ring; 3” External, Waldes 5100 Series 12 141-388 1 Oil Slinger; 3”ID (Weld to Pinion Gear) 13 141-291 1 Pinion Gear; 3” ID 14 136-040 AR Shim; 1/8” x 3” x 4 1/4”

172-367 AR Shim; 1/16” x 3” x 4 1/4”

15 141-465 1 O-Ring; 5/16” x 50”

Used on Units Before Serial Number (5073-066)

Gearbox

5073TR 005907 R060706

1084

REF PART NO QTY DESCRIPTION

174-873 1 Gearbox Assembly, 4.25:1 1 175-014 1 Gear, Bevel, Pinion set 2 175-015 1 Casting 3 175-016 10 Bolt, HEXHD, M10 x 22MM 8.8 4 174-904 2 Plug, 1/2” Gas 5 175-017 1 Cover 6 175-018 1 Elbow 90o, 1/2” Gas 7 173-344 1 Bolt, HEXHD, M10 x 25MM 8.8 8 174-905 1 Oil Filler Plug, 1/2” Gas 9 175-020 16 Bolt, HEXHD, M12 x 35MM 8.8 10 175-021 2 Cover 11 175-022 1 Seal, Lip, 80MM x 110MM x 10MM 12 175-023 1 Shaft 13 175-024 3 Shim, 125.5 x 139.5 14 175-025 2 Bearing, 30216 15 175-026 1 Bearing, 32313 16 175-027 1 Bearing, 32212 17 175-028 1 Seal, Oil, 50MM x 110MM x 12MM 18 175-029 1 Nut, M60 x 2MM 19 175-030 1 Cap, 110MM x 10MM 20 175-031 1 Gearcase, Oil Slinger

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Auger Drive and Tower Assembly Parts

Serial Number (5073-A0012, 5085-064, 50100-083 and After)

REF PART NO QTY* DESCRIPTION

1 103-985 1 Auger Drive Shaft; 5” Dia 2 174-784 6 Stud, Wheel;3/4” x 3 1/8” 3 103-981 1 Front Tower; Mtg Hrd: 174-948 Plow Bolt, 3/4” x 2-1/2” (23ea)

103-982 1 Rear Tower; Mtg Hrd: 174-948 Plow Bolt, 3/4” x 2-1/2” (23ea) 4 141-595 2 Bearing, Plastic; 5”ID x 5” 5 174-980 2 Quad-Ring Seal; 5”ID 6 141-872 3 Thrust Washer 7 141-868 1 Thrust Plate 8 141-048 1 Inspection cover; Mtg Hrd: 5/16” x 3/4” SSB (3EA) 9 171-935 24’** Foam Rubber Seal; 3/8” x 3/4” (48’ Total for unit) 10 103-817 1 Bull Gear 11 142-727 AR Shim (7Ga)

142-728 AR Shim (14Ga) 12 174-981 1 Washer; 3/16” x 8” OD x 5 1/16” ID

* Quantity shown is for 1 Tower Assembly ** Sold By Linear Foot.

Continued on next page

Auger Drive and Tower Assembly Parts

Used on Units,Serial Number (5073-A0012, 5085-064, 50100-083 and After)

5073TR 005907 R060706

REF PART NO QTY* DESCRIPTION

13 172-289 1 Snap Ring; 5” External, Waldes 5100 series 14 174-769 2 Magnet (4 Total for unit) 15 180-768** Copper Grease Line 1/4”;(Front Upper Plate 87“, Front Upper Bearing 87”,

Front Lower Bearing 84”) (Rear Upper Plate 99“, Rear Upper Bearing 99”,

Rear Lower Bearing 96”) 46’ Total for unit. 16 170-865 3 Grease Zerk 1/8” NPT 17 174-762 3 Pipe Coupling; 1/8” STD NPT (weld on) 18 172-024 3 Straight Adapter; 1/8” NPTF F x 1/8” NPTF F 19 173-583 12 Straight Adapter; 1/4” Tube x 1/8” NPTF M

175-344 3 Grommet, Rubber; 1” x 1/4” x 1/4”(Not Shown) 20 170-244 3 Washer, 3/8” 21 142-240 A/R Shim

* Qty shown is for 1 Tower Assembly (3 grease line assemblies per tower) ** Sold By Linear Foot.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Auger Drive and Tower Assembly Parts

Used on Units,Serial Number (5073-A0011, 5085-063, 50100-082 and Before)

REF PART NO QTY* DESCRIPTION

1 103-806 1 Auger Drive Shaft; 5” Dia 2 174-784 6 Stud, Wheel;3/4” x 3 1/8” 3 141-084 1 Thrust Washer, Nylon; 7-3/4” OD x 5-1/16” ID x 3/8”

300-059 1 Thrust Washer Kit - Retrofit

4 103-820

1 Thrust Plate

5 103-811 1 Front Tower; Mtg Hrd: 174-948 Plow Bolt,3/4” x 2 1/2”, LN (23EA)

103-812 1 Rear Tower; Mtg Hrd: 174-948 Plow Bolt,3/4” x 2 1/2”, LN (23EA)

6 141-595 2 Bearing, Plastic; 5”ID x 4 15/16”

141-046

2 Bearing, Plastic; 5”ID x 3-11/16” 7 174-980 2 Quad-Ring Seal; 5”ID 8 141-048 1 Inspection cover; Mtg Hrd: 5/16” x 3/4” SSB (3EA) 9 180-768 1 Copper Grease Line, 1/4”(Front Upper Auger 87“ Rear Upper Auger 99)

(Front Lower Auger 84“ Rear Lower Auger 96“)32’ Total for unit.

181-036**

Copper Grease Line; 3/16” (Front Upper Auger 87“ Rear Upper Auger 99)

(Front Lower Auger 84“ Rear Lower Auger 96“)32’ Total for unit. 10 170-865 2 Grease Zerk 1/8” NPT 11 172-024 3 Straight Adapter; 1/8” NPTF F x 1/8” NPTF F

* Quantity shown is for 1 Tower Assembly ** Sold By Linear Foot.

Not used in current production. Used on units before Serial number (5073-069, 5085-056, & 50100-072)

Used on units S/N 5073-A0026, 5085-A0005 and 50100-A0004.

Continued on next page

Auger Drive and Tower Assembly Parts

Used on Units,Serial Number (5073-A0011, 5085-063, 50100-082 and Before)

5073TR 005907 R060706

REF PART NO QTY* DESCRIPTION

12 173-583 10 Stratght Adapter; 1/4” Tube x 1/8” NPTF M

172-822

10 Straight Adapter; 3/16” Tube x 1/8” NPTF M 175-344 2 Grommet, Rubber; 1” x 1/4” x 1/4” (Not Shown) 174-807

2 Grommet, Rubber; 3/4” x 3/16” x 3/16”(Not Shown) 13 174-762 2 Pipe Coupling; 1/8” STD NPT (weld on) 14 170-244 2 Washer, 3/8” 15 181-048 1’** Stainless Steel Line; (24” total) 16 103-817 1 Bull Gear 17 141-115 AR Shim (1/4”)

141-116 AR Shim (1/16”) 18 174-981 1 Washer; 3/16” x 8” x 5 1/16” ID 19 172-289 1 Snap Ring; 5” External, Waldes 5100 series 20 174-769 2 Magnet (4 total) 21 171-935 24’** Foam Rubber Seal; 3/8” x 3/4” (48’ total)

* Qty shown is for One Tower Assy. ** Sold By Linear Foot.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Auger Assembly Parts - 5073 Front (S/N B0001 and After)

1065

REF PART NO QTY DESCRIPTION

1 103-922 1 Auger Assembly, 5073 Front 2 141-156 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 3 141-155 1 Middle Flighting , 46” OD x 20” ID x 5/8” (weld on) 4 141-062 1 Flighting Brace (weld on) 5 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 6 104-640 4 Auger Kicker (weld on) 7 141-066 1 Sharktooth (weld on) 8 141-065 1 Filler Bar (weld on) 9 141-113 1 Leading Edge (weld on) 10 141-063 1 Auxiliary Kicker (weld on) 11 141-134 1 Auxiliary Kicker Brace (weld on) 12 141-064 1 Auger Cover Mtg Hrd: 3/8” x 1-1/4” Bolt, Fw 13* 141-114 4 Knife, Serrated (Standard) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea)

144-198 4 Knife, Serrated - Carbide Tip (Optional) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea) 14 141-406 2 Knife, Scallopeded (5-MAX QTY) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea) 15 170-920 6 Nut, Wheel; 3/4” 16 174-793 6 Lock Washer, 3/4”, External Tooth

* Maximum of 5 of either knife can be installed.

Auger Assembly Parts - 5073 Front (Before S/N B0001*)

5073TR 005907 R060706

REF PART NO QTY DESCRIPTION

1 141-064 1 Auger Cover;Mtg hrd; 3/8” x 1 1/4” SSB, LW(2EA) 2 103-922* 1 Auger Assembly, 5073 Front 3 141-156 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 4 141-155 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) 5 (space intentionally left blank) 6 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 7 141-062 1 Flighting Brace (weld on) 8 141-066 1 Sharktooth (weld on) 9 141-065 1 Filler Bar (weld on) 10 141-113 1 Leading Edge (weld on) 11 141-063 1 Sweeper Bar (weld on) 12 141-134 1 Sweeper Bar Brace (weld on)(Behind Item 11) 13 141-469 2 Auxiliary Kicker (weld on) 14 141-470 2 Auxiliary Kicker Brace (weld on) 15 141-468 2 Leading Edge, Auxiliary Kicker (weld on) 16 141-114 4 Knife,Serrated (5-MAX QTY) Mtg Hrd: 5/8” x 2” GRD 5 C-bolt, FW, LN (2EA) 17 141-406 2 Knife,Scalloped (5-MAX QTY) Mtg Hrd:1/2” x 1 1/2” GRD 5 C-bolt,LN(2EA) 18 174-793 6 3/4” LW, External Tooth 19 170-920 6 Nut, Wheel; 3/4”

*Orders for new auger assemblies will include the sub-components shown on page 16.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Auger Assembly Parts - 5073 Rear

REF PART NO QTY DESCRIPTION

1 141-064 1 Auger Cover;Mtg hrd; 3/8” x 1 1/4” SSB, LW(2EA) 2 103-925 1 Auger Assembly, 5073 Rear 3 141-156 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 4 141-155 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) 5 (space intentionally left blank) 6 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 7 141-062 1 Flighting Brace (weld on) 8 141-066 1 Sharktooth (weld on) 9 141-065 1 Filler Bar (weld on) 10 141-113 1 Leading Edge (weld on) 11 141-063 1 Sweeper Bar (weld on) 12 141-134 1 Sweeper Bar Brace (weld on)(Behind Item 11) 13 (space intentionally left blank) 14 (space intentionally left blank) 15 (space intentionally left blank) 16 141-114 4 Knife,Serrated (5-MAX QTY) Mtg Hrd: 5/8” x 2” GRD 5 C-bolt, FW, LN (2EA) 17 141-406 2 Knife,Scalloped (5-MAX QTY) Mtg Hrd:1/2” x 1 1/2” GRD 5 C-bolt,LN(2EA) 18 174-793 6 3/4” LW, External Tooth 19 170-920 6 Nut, Wheel; 3/4”

* 141-114 (knife) replaces knife and backer combination used on previous models.

Auger Assembly Parts - 5085 Front (S/N B0001 and After)

5073TR 005907 R060706

1066

REF PART NO QTY DESCRIPTION

1 103-923 1 Auger Assembly, 5085 Front 2 141-287 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 3 141-333 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) 4 141-062 1 Flighting Brace (weld on) 5 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 6 141-066 1 Sharktooth (weld on) 7 104-640 4 Auger Kicker (weld on) 8 141-065 1 Filler Bar (weld on) 9 141-113 1 Leading Edge (weld on) 10 141-063 1 Auxiliary Kicker (weld on) 11 141-134 1 Auxiliary Kicker Brace (weld on) 12 141-064 1 Auger Cover Mtg Hrd: 3/8” x 1-1/4” Bolt, Fw 13* 141-114 5 Knife, Serrated (Standard) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea)

144-198 5 Knife, Serrated - Carbide Tip (Optional) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea) 14 141-406 5 Knife, Scalloped (10-MAX QTY) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea) 15 170-920 6 Nut, Wheel; 3/4” 16 174-793 6 Lock Washer, 3/4”, External Tooth

* Maximum of 6 of either knife can be installed.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Auger Assembly Parts - 5085 Front (Before S/N B0001*)

REF PART NO QTY DESCRIPTION

1 141-064 1 Auger Cover;Mtg hrd; 3/8” x 1 1/4” SSB, LW(2EA) 2 103-923* 1 Auger Assembly, 5085 Front 3 141-287 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 4 141-333 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) 5 (space intentionally left blank) 6 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 7 141-062 1 Flighting Brace (weld on) 8 141-066 1 Sharktooth (weld on) 9 141-065 1 Filler Bar (weld on) 10 141-113 1 Leading Edge (weld on) 11 141-063 1 Sweeper Bar (weld on) 12 141-134 1 Sweeper Bar Brace (weld on)(Behind Item 11) 13 141-469 2 Auxiliary Kicker (weld on) 14 141-470 2 Auxiliary Kicker Brace (weld on) 15 141-468 2 Leading Edge, Auxiliary Kicker (weld on) 16 141-114 4 Knife,Serrated (5-MAX QTY) Mtg Hrd: 5/8” x 2”B, FW, LN (2EA) 17 141-406 5 Knife,Scalloped (10-MAX QTY) Mtg Hrd:1/2” x 1 1/2” GRD 5 C-bolt,LN(2EA) 18 174-793 6 3/4” LW, External Tooth 19 170-920 6 Nut, Wheel; 3/4”

*Orders for new auger assemblies will include the sub-components shown on page 19.

AugerAssembly Parts - 5085 Rear

5073TR 005907 R060706

REF PART NO QTY DESCRIPTION

1 141-064 1 Auger Cover;Mtg hrd; 3/8” x 1 1/4” SSB, LW(2EA) 2 103-926 1 Auger Assembly, 5085 Rear 3 141-287 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 4 141-333 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) 5 (space intentionally left blank) 6 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 7 141-062 1 Flighting Brace (weld on) 8 141-066 1 Sharktooth (weld on) 9 141-065 1 Filler Bar (weld on) 10 141-113 1 Leading Edge (weld on) 11 141-063 1 Sweeper Bar (weld on) 12 141-134 1 Sweeper Bar Brace (weld on)(Behind Item 11) 13 (space intentionally left blank) 14 (space intentionally left blank) 15 (space intentionally left blank) 16 141-114 4 Knife,Serrated (5-MAX QTY) Mtg Hrd: 5/8” x 2” GRD 5 C-bolt, FW, LN (2EA) 17 141-406 5 Knife,Scalloped (10-MAX QTY) Mtg Hrd:1/2” x 1 1/2” GRD 5 C-bolt,LN(2EA) 18 174-793 6 3/4” LW, External Tooth 19 170-920 6 Nut, Wheel; 3/4”

* 141-114 (knife) replaces knife and backer combination used on previous models.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Auger Assembly Parts - 50100 Front (S/N C0001 and After)

10 11

1067

REF PART NO QTY DESCRIPTION

1 103-924 1 Auger Assembly, 50100 Front 2 141-287 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 3 141-286 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) (top) 4 141-155 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) (bottom) 5 141-062 1 Flighting Brace (weld on) 6 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 7 104-640 4 Auger Kicker (weld on) 8 141-066 2 Sharktooth (weld on) 9 141-065 1 Filler Bar (weld on) 10 141-113 1 Leading Edge (weld on) 11 141-063 1 Auxiliary Kicker (weld on) 12 141-134 1 Auxiliary Kicker Brace (weld on) 13 141-064 1 Auger Cover Mtg Hrd: 3/8” x 1-1/4” Bolt, Fw 14* 141-114 5 Knife, Serrated (Standard) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea)

144-198 5 Knife, Serrated - Carbide Tip (Optional) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea) 15 141-406 5 Knife, Scalloped (10-MAX QTY) Mtg Hrd: 5/8” x 2” C-Bolt, Fw, Ln (2 ea) 16 170-920 6 Nut, Wheel; 3/4” 17 174-793 6 Lock Washer, 3/4”, External Tooth

* Maximum of 6 of either knife can be installed.

Auger Assembly Parts - 50100 Front (Before S/N C0001*)

5073TR 005907 R060706

REF PART NO QTY DESCRIPTION

1 141-064 1 Auger Cover;Mtg hrd; 3/8” x 1 1/4” SSB, LW(2EA) 2 103-924* 1 Auger Assembly, 50100 Front 3 141-287 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 4 141-286 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) (top) 5 141-155 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) (bottom) 6 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 7 141-062 1 Flighting Brace (weld on) 8 141-066 2 Sharktooth (weld on) 9 141-065 1 Filler Bar (weld on) 10 141-113 1 Leading Edge (weld on) 11 141-063 1 Sweeper Bar (weld on) 12 141-134 1 Sweeper Bar Brace (weld on)(Behind Item 11) 13 141-469 2 Auxiliary Kicker (weld on) 14 141-470 2 Auxiliary Kicker Brace (weld on) 15 141-468 2 Leading Edge, Auxiliary Kicker (weld on) 16 141-114 5 Knife,Serrated (6-MAX QTY) Mtg Hrd: 5/8” x 2” GRD 5 C-bolt, FW, LN (2EA) 17 141-406 5 Knife,Scalloped (10-MAX QTY) Mtg Hrd:1/2” x 1 1/2” GRD 5 C-bolt,LN(2EA) 18 174-793 6 3/4” LW, External Tooth 19 170-920 6 Nut, Wheel; 3/4”

*Orders for new auger assemblies will include the sub-components shown on page 22.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Auger Assembly Parts - 50100 Rear

REF PART NO QTY DESCRIPTION

1 141-064 1 Auger Cover;Mtg hrd; 3/8” x 1 1/4” SSB, LW(2EA) 2 103-927 1 Auger Assembly, 50100 Rear 3 141-287 1 Top Flighting, 46” OD x 20” ID x 5/8” (weld on) 4 141-286 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) (top) 5 141-155 1 Middle Flighting, 46” OD x 20” ID x 5/8” (weld on) (bottom) 6 141-157 1 Lower Flighting, 69-3/8” x 36-5/16” x 3/4” (weld on) 7 141-062 1 Flighting Brace (weld on) 8 141-066 2 Sharktooth (weld on) 9 141-065 1 Filler Bar (weld on) 10 141-113 1 Leading Edge (weld on) 11 141-063 1 Sweeper Bar (weld on) 12 141-134 1 Sweeper Bar Brace (weld on)(Behind Item 11) 13 (space intentionally left blank) 14 (space intentionally left blank) 15 (space intentionally left blank) 16 141-114 5 Knife,Serrated (6-MAX QTY) Mtg Hrd: 5/8” x 2” GRD 5 C-bolt, FW, LN (2EA) 17 141-406 5 Knife,Scalloped (10-MAX QTY) Mtg Hrd:1/2” x 1 1/2” GRD 5 C-bolt,LN(2EA) 18 174-793 6 3/4” LW, External Tooth 19 170-920 6 Nut, Wheel; 3/4”

* 141-114 (knife) replaces knife and backer combination used on previous models.

Door and Cylinder Parts

5073TR 005907 R060706

REF PART NO QTY DESCRIPTION

1 103-882 1 Door Assembly 2 141-423 2 Linkage 3 140-806 1 Spacer Tube 4 170-122 1 Flat Washer, 1” 5 170-074 1 Hair pin, .16 dia x 3.12 6 170-073 2 Clevis Pin, 1” dia x 2.50 7 141-430 1 Lever Arm 8 173-567 1 Hydraulic Cylinder; 2.50” x 12” (Seal Kit 174-823) 9 171-030 2 Adapter,3/8” x 90° 10 172-793 1 Hydraulic Hose; 1/4” x 252” 11 173-285 1 Hydraulic Hose; 1/4” x 234” 12 174-772 4 Clamp, Tube; 1/2” ID, Mtg Hrd: 5/16” Nut, 5/16”FW 13 173-275 2 Hair pin, Monarch# 134952, West Wire# 407

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Door and Cylinder Parts 5073-068 and Before

REF PART NO QTY DESCRIPTION

1 103-872 1 Door Cylinder Mount; Mtg Hrd; 1/2” x 1 1/2” C-bolt, LN(4EA) 2 174-822 1 Hydraulic Cylinder; 2” x 30” (Seal Kit 174-823) 3 173-483 1 Straight Adapter 4 174-843 1 Relief Valve 5 171-202 1 Hydraulic Hose; 1/4” x 31 1/2” 6 170-233 2 Straight Adapter; Swivel 7 173-653 1 Tee Adapter 8 173-285 1 Hydraulic Hose; 1/4” x 234” 9 171-030 1 Adapter,3/8” x 90° 10 172-793 1 Hydraulic Hose; 1/4” x 252” 11 103-821 1 Door Assembly 12 174-772 4 Clamp, Tube; 1/2” ID, Mtg Hrd: 5/16” Nut, 5/16”FW

Slide Tray Parts

5073TR 005907 R060706

REF PART NO QTY DESCRIPTION

1 102-527 1 Slide Tray Assembly, LH Discharge 2 140-003 1 Pivot Rod, 7/8” x 46-5/8”; Mtg. Hrd: Cotter Pin 3/16” x 2” (2EA) 3 171-346 2 Magnet; Mtg. Hrd: 1/4” x 3/4” Truss Head Bolt, FW, LW (6EA) 4 173-270 1 Cylinder; 2” Dia x 8”,(Seal Kit #170-075) 173-274 Pin,173-275 Hairpin 5 171-030 2 Swivel Connector; 3/8” x 90° 6 170-468 1 Hydraulic Hose; 1/4” x 162” 7 170-235 2 Fitting Reducer; 1/2” to 3/8” 8 173-488 1 Hydraulic Hose; 1/4” x 153” 9 181-040* 5.4’ Extension Belting; Mtg Hrd: 1/4” x 1” Truss Head Bolt, FW, Nut (9 ea)

* 181-040 ordered by the foot

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

4 Auger Discharge Parts

REF PART NO QTY DESCRIPTION

103-856 1 Complete Chute Assembly, 3’

103-855 1 Complete Chute Assembly, 2’ 1 102-346* 1 Chute Weldment, 3’

103-854** 1 Chute Weldment, 2’ 2 101-231 4 Chain Tightener Arm 3 171-265 A/R Shim; .017" Thick (1-2 each for auger adjustment) 4 101-227 4 Auger Bearing Assy; Mtg Hrd: 3/8" x 1" Bolt, Lw, Nut (3 ea)170-865 Zerk; (1 ea) 5 171-259 1 Bushing; Bronze, 1-3/8" I.D. 6 171-260 1 Bushing; Bronze 1-3/8" I.D. Flanged 7 171-782 1 Double Hose Clamp; Mtg Hrd: 5/16" x 3/4" Bolt, Lw & Nut 8 132-701 1 Sprocket; 50-B-18, 1-3/8" Bore; Mtg Hrd: 171-414 Roll Pin; 5/16" x 2-1/2" (1 ea) 9 171-932 3 Roller Chain; 50-1-56 Pitch, W/Connector Link

5073TR 005907 R060706

4 Auger Discharge Parts

REF PART NO QTY DESCRIPTION

10 171-330 2 Hydraulic Hose; 1/2" x 168" OAL - (TO TRACTOR) 11 134-390 3 Sprocket; 50-2R-18, 1-3/8" Bore; Mtg Hrd: 171-414 Roll Pin; 5/16" x 2-1/2" (1 ea) 12 171-178 1 Roller Chain; 50-1-48 Pitch, W/Connector Link 13 134-394 1 Motor Drive Shield; Mtg Hrd: 5/16" x 3/4" Bolt, Lw & Nut (2 ea) 14 170-262 1 Bolt; 5/16" x 3/4" Hex Head 15 170-118 1 Washer; 5/16" Lock 16 170-302 1 Washer; 3/8" Heavy 17 171-576 1 Machine Washer 18 134-389 1 Sprocket; 50-B-18, 1" Bore 19 170-056 4 Cotter Pin; 1/4" x 2" 20 170-110 4 Spring, Extension 4" Lg x 15/16" OD 21 102-347 1 Tipoff Assembly; Mtg Hrd: 5/16" x 3/4" Bolt, Lw & Nut (4 ea) 22 171-346 2 Magnet; Mtg Hrd: 1/4" x 3/4" Truss Head Bolt, Lw, Fw & Nut (8 ea) 23 140-001 1 Tipoff Pivot Rod 7/8" Dia x 51" Lg; Mtg Hrd: 170-115 Cotter Pin 3/16" x 2" (2 ea) 24 141-608 1 Chain; 5/0 Coil x 27 Link Mtg Hrd: 3/8" x 1" Bolt, FW, ln ( 1 ea)

5/16" x 1" Truss Head Bolt, FW, LW, Nut (1 ea)

25 133-943* 2 Plastic Chute Liner-Center, 3’; Mtg Hrd: 1/4" x 3/4" Truss Head Bolt, Lw, Nut (2 ea)

140-938** 2 Plastic Chute Liner-Center, 2’; Mtg Hrd: 1/4" x 3/4" Truss Head Bolt, Lw, Nut (2 ea)

26 133-942* 2 Plastic Chute Liner-Side, 3’; Mtg Hrd: 1/4" x 3/4" Truss Head Bolt, Lw, Nut (2 ea)

140-937** 2 Plastic Chute Liner-Side, 2’; Mtg Hrd: 1/4" x 3/4" Truss Head Bolt, Lw, Nut (2 ea)

27 140-897* 3 Liner Hold-Down, 3’, Mtg Hrd: 5/16 x 1.5 Carriage Bolt, LW, FW, Nut (2 ea)

140-933** 3 Liner Hold-Down, 3’, Mtg Hrd: 5/16 x 1.5 Carriage Bolt, LW, FW, Nut (2 ea)

28 101-736* 4 Auger Assy, 3’

103-756** 4 Auger Assy, 2’ 29 171-186 4 Plastic Cap Plug; #16 30 134-395 4 Tightener Block, 2" Dia x 2 1/2" Lg; Mtg Hrd: 5/8" LW & Jam Nut 31 103-918 1 Chute Restraint Chain Assy;Mtg Hrd: 5/16" x 1" Truss Head Bolt, Fw, Lw,N,3/8" Fw, Ln 32 133-952 1 Chute Cylinder Linkage Bar; Mtg Hrd: 170-074 Hairpin Clip (1 ea) 33 170-122 5 Spacer Washer; 1" Sae Flat 34 173-021 1 Bolt, 1” x 3 1/2” Hex Head 35 170-122 2 Spacer Washer; 1” SAE Flat 36 174-927 1 Nut, 1” Hex Jam 37 174-928 1 Nut, 1” Hex Lock 38 170-235 2 Reducer Bushing; 1/2" to 3/8" 39 171-151 1 Line Check Valve; 1/2" 40 171-136 2 Street Elbow; 1/2" x 90° 41 171-668 2 Straight Thread Swivel Adapter 42 171-666 1 Hydraulic Motor; 12 cu.in. (Seal Kit #171-257) Mtg Hrd: 3/8" x 7/8" Bolt, Lw (4ea) 43 171-883 1 Key, Sq 1/4" x 1" 44 170-859 2 Service Tee; 1/2" 45 173-220 1 Hydraulic Cylinder; 2" x 18" (Seal Kit #170-075)173-274 Pin, 173-275 Hairpin 46 171-030 2 Swivel Adapter; 3/8" x 90 Degree 47 175-062 1 Hyd Hose; 1/4" x 42" Overall Length (TO CLEVIS END OF CYLINDER) 48 171-193 1 Hyd Hose; 1/4" x 29-1/2" Overall (TO ROD END OF CYLINDER)

* For use with 3’ Chute only. ** For use with 2’ Chute only.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Chain and Slat Discharge Parts

5073TR 005907 R060706

Chain and Slat Discharge Parts

REF PART NO QTY DESCRIPTION

103-898 1 Complete Chute Assembly 3’ 1 103-893 1 Chute Frame Weldment 3’ 2 103-895 1 Drive Sprocket Weldment 3 170-120 1 Key; 1/4” Woodruff #807 4 103-894 1 Chain & Slat Assembly

103-919 A/R Chain; Assy, Repair, Slat 171-288 A/R Connector Link

171-287 A/R Offset Link 5 142-217 1 Belting Retainer Mtg Hrd: 5/16” x 1” Bolt, Fw, Ln (Qty 5) 6 142-214 1 Rubber Belting, 0.4” x 3-1/2” x 43-1/4” 7 170-026 2 Bearing, Flange, 1” Mtg Hrd: 5/16” x 1” Bolt, Lw, Nut (2 ea) 8 134-389 2 Sprocket; 50-B 18 1” B,1/4 KW Mtg Hrd: 5/16” x 3/4” Bolt, 3/8” Fw - Heavy, 5/16” Lw 9 171-178 1 Chain, Roller 50-1-48P 10 171-883 1 Key; 1/4” x 1/4” x 1” Long 11 171-666 1 Motor, Hyd., 12.0 Cu. In. Mtg Hrd: 3/8” x 1” Bolt, Lw, Fw (Qty 4) 12 141-204 1 Shield Mtg Hrd: 5/16” x 3/4” Bolt, Lw, Nut (Qty 2) 13 171-668 1 Adapter, Straight, 7/8” x 1/2”

171-151 1 Check Valve 14 141-606 1 Cylinder Linkage Mtg Hrd: 1” x 3-1/2” Bolt, Fw (Qty 4), Jam Nut, Ln 15 103-897 1 Rear Cover - Lower Mtg Hrd: 1/2” Push Nut, Unthreaded (Part # 176-579) (Qty 2) 16 103-918 1 Chute Restraint Chain Assy. Mtg Hrd Top: 3/8” Fw, Ln

Mtg Hrd Bottom: 5/16” x 1” Truss Head Bolt, Fw, Lw, Nut 17 141-474 1 Rear Cover - Upper Mtg Hrd: 5/16” x 3/4” Bolt, Lw, Nut (Qty 4) 18 141-472 1 Idler Shaft, 1” x 46-1/4” Mtg Hrd: 3/8” x 5-1/2” Full Thread Bolt, Fw, Ln 19 141-473 1 Discharge Floor Mtg Hrd: 1/4” x 3/4” Truss Head Bolt, Fw, Lw, Nut (Qty 3) 20 170-238 2 Spring; Compression 21 170-110 2 Spring, Extension 22 174-309 2 Lock Collar, Shaft (Set Screw # 170-248) 23 141-216 2 Bushing; Plastic, 2 1/2” x 1” x 2 5/8” 24 141-220 2 Washer; Plastic, 1/8” x 4” x 1” 25 141-608 1 Chain; 5/0 Coil x 27 Link Mtg Hrd Top: 3/8” x 1-1/4” Bolt, Fw, Ln

Mtg Hrd Bottom: 5/16” x 1” Bolt, Fw, Lw, Nut 26 140-003 1 Pivot Rod, 7/8” x 47” (Cotter Pin # 170-056) 27 173-220 1 Hydraulic Cylinder, 2 DIA x 18”, (Seal Kit#170-075, 173-274 Pin,173-275 Hairpin) 28 170-122 6 Spacer Washer; 1” SAE Flat 29 170-235 1 Adapter, Straight, 1/2” NPTM x 3/8” NPTF 30 141-692 1 Adapter, Straight, 1/2” NPTM x 3/8” NPTM 31 171-171 2 Adapter, Tee 1/2” NPTF x 1/2” NPTF x 1/2” NPTF 32 173-483 1 Adapter, Straight, 3/8” NPTM x 3/8” NPTM 33 173-658 1 Hydraulic Hose, 1/2” x 56” 100R1 34 172-239 1 Hydraulic Hose, 1/2” x 36.5” 100R1 35 171-330 2 Hydraulic Hose, 1/2” x 168” 100R1 36 175-536 2 Quick Coupler 37 176-064 2 Cap 38 174-771 2 Clamp, Tube; 3/4” ID

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

High-Speed Clean-Out Option - (5073 & 5085 S/N B0001, 50100 S/N C0001 and after)

1079

REF PART NO QTY DESCRIPTION

1 175-228 1 Gearcase, 1:3.82

Mtg Hrd: M12 x 35MM Bolt (Part # 175-020) , Fw (Part # 172-445), (Qty 4) 2 170-679 1 Vent Plug 3 173-150 1 Straight Adapter, 1/2” NPF M x .12 NTPF 4 175-082 1 U-Joint Assembly

175-124 2 Yoke, 1-3/4” 174-909 1 Cross & Bearing Kit

5 144-307 1 Rear Shaft (5073 Only)

144-264 1 Rear Shaft (5085 & 50100)

6 175-229 1 Overrunning Clutch Assembly (Key # 170-019)

175-255 1 Overrunning Clutch Yoke 175-124 1 Yoke, 1-3/4” 174-909 1 Cross & Bearing Kit

7 144-295 1 Front Shaft (5073 Only)

144-267 1 Front Shaft (5085 & 50100, Only) 8 175-227 1 Motor, 12.0 CU Mtg Hrd: 1/2” x 1-1/2” Bolt (Qty 2), Lw (Qty 6) 9 175-093 1 Adapter, 90º, 10OM x 06JM 10 175-276 1 Hydraulic Hose, 3/8” x 10 11 175-274 1 Tee Adapter, 10JM x 10JM x 10OM 12 172-627 1 Straight Adapter, 10OM x 10JM 13 175-240 2 Hydraulic Hose, 3/4” x 102” (5073)

176-303 2 Hydraulic Hose, 3/4” x 150” (5085 & 50100) 14 175-275 1 Hose Clamp Mtg Hrd: 3/8” x 2” Bolt, Fw, Nut 15 175-536 2 Quick Coupler 16 176-064 2 Cap

5073TR 005907 R060706

High-Speed Clean-Out Option - (Before 5073 & 5085 S/N B0001, 50100 S/N C0001)

5073

1095

5085 & 50100

REF PART NO QTY DESCRIPTION

1 175-228 1 Gearcase, 1:3.82 Mtg Hrd: M12 x 35MM Bolt (Part # 175-020),

Fw (Part# 170040), Lw (Part # 170-003)

(Qty 4 - 5073) (Qty 5 - 5085 & 50100) 2 170-679 1 Vent Plug 3 173-150 1 Straight Adapter, 1/2” NPF M x .12 NTPF 4 175-082 1 U-Joint Assembly

175-124 2 Yoke, 1-3/4” 174-909 1 Cross & Bearing Kit

5 141-957 1 Rear Shaft (5073 Only)

141-961 1 Rear Shaft (5085 & 50100)

6 175-229 1 Overrunning Clutch Assembly (Key # 170-019)

175-255 1 Overrunning Clutch Yoke 175-124 1 Yoke, 1-3/4” 174-909 1 Cross & Bearing Kit

7 141-957 1 Front Shaft (5073 Only)

141-960 1 Front Shaft (5085 & 50100 Only) 8 175-227 1 Motor, 12.0 CU Mtg Hrd: 1/2” x 1-1/2” Bolt (Qty 2), Lw (Qty 6) 9 175-093 1 Adapter, 90º, 10OM x 06JM 10 175-276 1 Hydraulic Hose, 3/8” x 10 11 175-274 1 Tee Adapter, 10JM x 10JM x 10OM 12 172-627 1 Straight Adapter, 10OM x 10JM 13 175-239 2 Hydraulic Hose, 3/4” x 90” (5073)

175-240 2 Hydraulic Hose, 3/4” x 102” (5085 & 50100) 14 175-275 1 Hose Clamp Mtg Hrd: 3/8” x 2” Bolt, Fw, Lw, Nut 15 175-536 2 Quick Coupler 16 176-064 2 Cap 17 175-018 1 Elbow, Pipe, 90°, 1/2”

104-032 1 Gearbox Mount Mtg Hrd: 5/8” x 2” Bolt, Fw, Fw, Lw, Nut (Qty 3)(5073) Not Shown

104-033 1 Gearbox Mount (5085 & 50100) (Weld On) Not Shown

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

High-Speed Clean-Out Option - Gearcase Replacement Parts

REF PART NO QTY DESCRIPTION

175-228 1 Gearcase Assy 1 176-197 1 Cap 2 176-198 3 Snap Ring 3 176-199 4 Bearing 4 176-200 1 Key 5 176-201 1 Gear 6 174-904 4 Plug 7 176-202 1 Shaft 8 176-203 2 Oil Seal 9 173-342 2 Plug 10 176-204 1 Flange 11 174-610 8 Bolt 12 176-205 1 Cover 13 176-206 1 Pinion 14 176-207 1 Double Lip Seal 15 176-208 4 Bolt 16 176-209 1 Elbow 17 173-342 1 Oil Filler Plug

Selector Valve Option

5073TR 005907 R060706

REF PART NO QTY DESCRIPTION

1 101-791 1 Control Handle; Mtg Hrd: 1/4” x 1-1/2” B, LN 2 101-891 1 Selector Valve Assy.(Seal Kit # 171-847); Mtg Hrd: 3/8” x7/8” B,LW (2EA), Fw (4EA) 3 140-792 1 Valve Mount; Mtg Hrd: 3/8” x 7/8”B, LW, Nut (2EA) 4 140-790 1 Valve Support; Mtg Hrd: 3/8” x 7/8”B, LW, Nut (2EA) 5 140-791 1 Valve Support; Mtg Hrd: 3/8” x 7/8”B, LW, Nut (2EA) 6 171-430 6 Reducer; 3/4” to 1/2” 7 171-136 6 Elbow; Bushing, 1/2” - 90° 8 172-324 2 Hydraulic Hose; (to slide tray) 1/4” x 72” OAL (3/8” Ends)

171-426 2 Hydraulic Hose; (to power chute) 1/2” x 93” OAL (1/2” Ends) 9 170-513 2 Swivel Connector; 1/2” straight 10 171-425 2 Hydraulic Hose; (to tractor) 1/2” x 70” OAL (1/2” Ends) 11 171-428 1 Hydraulic Hose; (to door) 1/4” x 102” OAL (3/8” Ends) 12 170-465 1 Hydraulic Hose; (to door) 1/4” x 127” OAL (3/8” Ends) 13 170-235 2 Reducer; Bushing, 1/2” to 3/8”

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

PTO Driveline (1000 RPM - 21 - Spline -1 3/8 Yoke) After S/N 5073-066

REF PART NO QTY DESCRIPTION

175-080 Complete PTO Assembly 1 175-001 1 Half Shaft 2 174-984 1 Yoke 1 3/8 - 21 Spline

174-996 1 Collar Kit 3 174-909 1 Cross & Bearing Kit 4 174-994 1 Spring Pin 10 x 90 5 174-985 1 InBoard Yoke 6 174-986 1 Inner Profile 7 174-992 1 Outer Shield 8 171-979 1 Bearing Ring 9 171-550 1 Decal, Danger Keep Away 10 172-210 1 Screw 11 174-991 1 Shield Cone 7 Rib 12 175-083 1 Half Shaft 13 174-988 1 Outer Profile & Sleeve 14 174-987 1 InBoard Yoke 15 175-084 1 Cut-out Clutch

174-966 1 Lockbolt (Must be torqued to 75 ftlbs) 16 174-993 1 Inner Shield 17 172-040 1 Safety Chain 18 172-210 1 Screw 19 175-071 1 Shield Cone 6 Rib 20 171-799 1 Decal, Danger Shield 21 172-207 1 Support Bearing 22 172-209 1 Zerk 23 171-979 1 Bearing Ring 24 174-909 1 Cross and Bearing Kit 25 174-994 1 Spring Pin 10 x 90

5073TR 005907 R060706

PTO Driveline (1000 RPM - 21 -Spline-1 3/8 Yoke) Before S/N 5073-065

REF PART NO QTY DESCRIPTION

174-883 Complete PTO Assembly 1 175-001 1 Half Shaft 2 174-984 1 Yoke 1 3/8 - 21 Spline

174-996 1 Collar Kit 3 174-909 1 Cross & Bearing Kit 4 174-994 1 Spring Pin 10 x 90 5 174-985 1 Inboard Yoke 6 174-986 1 Inner Profile 7 174-992 1 Outer Shield 8 171-979 1 Bearing Ring 9 171-550 1 Decal, Danger Keep Away 10 172-210 1 Screw 11 174-991 1 Shield Cone 7 Rib 12 175-002 1 Half Shaft 13 174-988 1 Outer Profile & Sleeve 14 174-987 1 Inboard Yoke 15 174-989 1 Shearbolt Clutch

174-995 1 QD Pin Kit 16 174-993 1 Inner Shield 17 172-040 1 Safety Chain 18 172-210 1 Screw 19 174-991 1 Shield Cone 7 Rib 20 171-799 1 Decal, Danger Shield 21 172-207 1 Support Bearing 22 172-209 1 Zerk 23 171-979 1 Bearing Ring 24 174-909 1 Cross and Bearing Kit 25 170-369 1 Bolt, 5/16” x 2 1/2” NC Grd5 26 174-994 1 Spring Pin 10 x 90

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

PTO Driveline (1000 RPM - 20 - Spline -1 3/4 Yoke)

REF PART NO QTY DESCRIPTION

175-081 Complete PTO Assembly 1 175-060 1 Half Shaft 2 175-059 1 Yoke 1 3/4 - 20 Spline

174-967 1 Collar Kit 3 174-909 1 Cross & Bearing Kit 4 174-994 1 Spring Pin 10 x 90 5 174-985 1 InBoard Yoke 6 174-986 1 Inner Profile 7 174-992 1 Outer Shield 8 171-979 1 Bearing Ring 9 171-550 1 Decal, Danger Keep Away 10 172-210 1 Screw 11 174-991 1 Shield Cone 7 Rib 12 175-083 1 Half Shaft 13 174-988 1 Outer Profile & Sleeve 14 174-987 1 InBoard Yoke 15 175-084 1 Cut-out Clutch

175-278 1 Lockbolt (Must be torqued to 75 ftlbs) 16 174-993 1 Inner Shield 17 172-040 1 Safety Chain 18 172-210 1 Screw 19 175-071 1 Shield Cone 6 Rib 20 171-799 1 Decal, Danger Shield 21 172-207 1 Support Bearing 22 172-209 1 Zerk 23 171-979 1 Bearing Ring 24 174-909 1 Cross and Bearing Kit 25 174-994 1 Spring Pin 10 x 90

Side Extension Options

5073TR 005907 R060706

REF PART NO QTY DESCRIPTION

1 141-318 4 Plastic Side Extension 5073, Mtg Hrd; 5/16” x 1 1/2” B,5/16 x 1 1/4”B (5EA),

3/8”Fw (7EA),FLN(6EA)

2 181-043 25.5’ Rubber Belting; 3/8” x 8”,Mtg Hrd: 5/16” x 1 1/4” B,(10EA), 3/8” Fw(12EA), Fln (10EA)

(12’-9”’ per side) (5073 only)

27.5’ Rubber Belting; 3/8” x 8”, Mtg Hrd: 5/16” x 1 1/4” B,(10EA), 3/8” FW(12EA), FLN(10EA) (13’-9”’ per side) (5085 only)

28.5’ Rubber Belting; 3/8” x 8”, Mtg Hrd: 5/16” x 1 1/4” B,(10EA), 3/8” FW(12EA), FLN(10EA) (14’-3” per side) (50100 only)

Safety Chain for Towed Equipment P/N 173-077

This chain is designed to retain the connection between towing and towed machines, in the event of separation of the primary attaching system. It should be utilized whenever the unit is on the highway.

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Decal and Paint List

The following decals are listed below for your convenience. Use the operator’s manual for decal location and part number ordering.

PART NO QTY DESCRIPTION

175-862 1 Complete Decal Set (5073) 175-863 1 Complete Decal Set (5085) 175-864 1 Complete Decal Set (50100)

170-490 1 Reduce Engine RPM... 170-849 2 WARNING, Stay Clear Of Power Driven Parts 170-893 1 SMV 171-712 1 Retighten Setscrews... 171-820 2 DANGER, Rotating Auger Inside 171-911 1 CAUTION, Operating Precautions 171-913 1 WARNING, Do Not Operate Unless Shields Are In Place 171-914 2 WARNING, Moving Parts Hazard 171-947 2 DANGER, Do Not Hand Load 174-686 5 Red Reflector 174-687 3 Amber Reflector 172-786 1 DANGER, Keep Away, Rotating Driveline 175-230 1 Patent 172-820 1 CAUTION, Lifting Instructions 173-040 1 CAUTION, PTO Operation 173-078 1 DANGER, Shield Missing 174-792 1 Notice: Upon Initial Use... 175-850 12’ Black Stripe (5073)

13’ Black Stripe (5085)

14’ Black Stripe (50100) 175-056 1 Door Gauge 174-808 175-800 3 Kuhn Knight 175-850 2 Verti-Maxx 175-109 1 NOTICE, Check Oil 174-872 2 Spindle Weigh bar (5073 only) 174-924 1 Lift Points Inside 175-811 2 5073 175-812 2 5085 175-813 2 50100 175-151 1 Info, Kuhn Knight approved knives 175-156 1 Important Auger Info

1 Door Gauge (Used on Units Before Serial Number 5073-068)

Chain & Slat Conveyor Decals:

171-914 2 WARNING, Stay Clear of Chute... 172-603 2 Grease 173-078 1 WARNING, Rotating Parts... 174-687 1 Amber Reflector 174-686 1 Red Reflector

4 Auger Chute Decals:

171-914 2 WARNING, Stay Clear of Chute... 171-915 1 Warning, Do Not Operate ... 172-603 4 Grease 174-687 1 Amber Reflector 174-686 1 Red Reflector

Slide Tray Decals:

171-914 2 WARNING, Stay Clear of Chute... 174-687 1 Amber Reflector 174-686 1 Red Reflector

PTO Driveline Decals:

171-550 1 DANGER - Rotating Driveline 171-799 1 DANGER - Shield Missing 171-609 1 Do Not Exceed 1000 RPM

(1000 RPM units only)

Paint:

303-163 Black Aerosol Can 180-281 Black Quart Can 173-945 Black Gallon Can

After 10/15/05

175-790 Sandstone Silver - Aerosol Can 175-792 Sandstone Silver - Quart Can 175-793 Sandstone Silver - Gallon Can

Before 10/15/05

173-731 Kuhn Knight Gray - Aerosol Can 173-281 Kuhn Knight Gray - Quart Can 173-282 Kuhn Knight Gray - Gallon Can

Hardware Part Number Listing

All fasteners are NC thread, Grade 5 unless otherwise specified.

HEX HEAD BOLTS

Size .....................................Part No

1/4 x 1/2 ............................. 173-279

1/4 x 3/4 ............................. 170-803

1/4 x 7/8 ............................. 171-094

1/4 x 1 ................................ 170-310

1/4 x 1-1/2 ..........................170-068

1/4 x 2 ................................ 172-986

1/4 x 2 (Grade 8) ................175-073

1/4 x 2-3/4 ..........................171-203

1/4 x 3 ................................ 171-403

1/4 x 3-1/2 ..........................173-640

1/4 x 4 ................................ 173-505

5/16 x 5/8 ........................... 170-532

5/16 x 3/4 ........................... 170-262

5/16 x 3/4 (Stainless steel) .174-787

5/16 x 7/8 ........................... 170-256

5/16 x 1 .............................. 170-027

5/16 x 1-1/4 (Full thread) .... 170-188

5/16 x 1-1/2 ........................ 170-372

5/16 x 1-3/4 ........................ 170-263

5/16 x 2 .............................. 172-987

5/16 x 2-1/2 ........................ 170-369

5/16 x 3 .............................. 170-295

5/16 x 3-1/4 ........................ 171-639

5/16 x 3-1/2 ........................ 173-748

5/16 x 4 .............................. 170-293

5/16 x 4-1/2 ........................ 170-294

5/16 x 5 (Grade 8) ..............172-983

5/16 x 5-1/2 (Grade 8) ........172-952

3/8 x 3/4 ............................. 170-439

3/8 x 3/4 (Stainless steel) ... 174-788

3/8 x 7/8 ............................. 170-268

3/8 x 1 ................................ 170-054

3/8 x 1-1/4 ..........................170-005

3/8 x 1-1/4 (Stainless steel) 174-917

3/8 x 1-1/2 ..........................170-368

3/8 x 1-3/4 ..........................172-383

3/8 x 2 ................................ 170-245

3/8 x 2-1/4 ..........................170-320

3/8 x 2-1/2 ..........................170-257

3/8 x 2-1/2 (Full thread) ......170-128

3/8 x 2-1/2 (Lag) .................171-775

3/8 x 3 ................................ 170-380

3/8 x 3-1/2 ..........................170-292

3/8 x 4 ................................ 170-877

3/8 x 4-1/4 (Black oxide) .... 171-813

3/8 x 4-1/2 ..........................170-519

3/8 x 5 ................................ 170-493

3/8 x 5-1/2 ..........................174-196

3/8 x 5-1/2 (Full thread) ......170-593

3/8 x 6 ................................ 174-304

3/8 x 6-1/2 ..........................171-291

3/8 x 7 ................................ 172-587

7/16 x 3/4 ........................... 170-265

7/16 x 1 .............................. 170-032

7/16 x 1-1/4 ........................ 170-354

7/16 x 1-1/4 (Grade 8) ........174-216

7/16 x 1-1/2 ........................ 170-059

7/16 x 2 .............................. 170-356

7/16 x 2-1/2 ........................ 170-379

7/16 x 3 .............................. 170-270

7/16 x 5-1/2 ........................ 170-377

7/16 x 6 .............................. 170-378

1/2 x 3/4 ............................. 171-252

1/2 x 1 ................................ 170-149

1/2 x 1-1/4 ..........................170-373

1/2 x 1-1/2 ..........................170-002

1/2 x 1-1/2 (Grade 8) .......... 172-951

1/2 x 1-3/4 ..........................171-774

1/2 x 2 ................................ 171-802

1/2 x 2-1/4 ..........................172-387

1/2 x 2-1/2 ..........................170-885

1/2 x 2-1/2 (Full thread) ......171-099

1/2 x 2-3/4 ..........................172-007

1/2 x 3 ................................ 170-168

1/2 x 3-1/2 ..........................170-167

1/2 x 3-1/2 (Grade 8) .......... 172-950

1/2 x 4 ................................ 173-111

1/2 x 4 (Full thread) ............171-509

1/2 x 4-1/2 ..........................175-920

1/2 x 4-1/2 (Grade 8) .......... 171-573

1/2 x 5 ................................ 171-412

1/2 x 6 ................................ 173-506

1/2 x 6 (Grade 8) ................174-944

1/2 x 6-1/2 .......................... 173-711

1/2 x 7 ................................ 174-328

1/2 x 7-1/2 ..........................175-107

1/2 x 8-1/2 ..........................170-504

1/2 x 11 ............................... 170-506

9/16 x 1 .............................. 173-699

9/16 x 1-1/4 ........................ 173-700

9/16 x 1-1/2 ........................ 173-701

9/16 x 2 .............................. 172-219

5/8 x 1 ................................ 171-087

5/8 x 1-1/4 ..........................171-366

5/8 x 1-1/2 ..........................170-153

5/8 x 1-3/4 (Full thread) ......170-030

5/8 x 2 ................................ 170-009

5/8 x 2 (Full thread) ............171-772

5/8 x 2-1/4 ..........................173-009

5/8 x 2-1/2 ..........................172-381

5/8 x 2-1/2 (Full thread) ......170-129

5/8 x 2-3/4 ..........................172-356

5/8 x 3 ................................ 170-258

5/8 x 3-1/2 ..........................170-038

5/8 x 4 ................................ 170-371

5/8 x 4-1/2 ..........................170-067

5/8 x 5 ................................ 170-065

5/8 x 5-1/2 ..........................172-421

5/8 x 6 ................................ 170-381

5/8 x 6-1/2 ..........................173-777

5/8 x 7-1/2 ..........................173-019

5/8 x 9-1/2 ..........................171-039

3/4 x 1-1/2 ..........................173-507

3/4 x 2 ................................ 171-768

3/4 x 2 (Full thread) ............170-058

3/4 x 2 (Grade 8) ................171-877

3/4 x 2-1/4 ..........................171-275

3/4 x 2-1/2 ..........................170-374

3/4 x 2-1/2 (Grade 8) .......... 175-055

3/4 x 3 ................................ 170-014

3/4 x 3 UNF ........................173-776

3/4 x 3-1/2 ..........................170-195

3/4 x 3-1/2 (Grade 8) .......... 171-899

3/4 x 4 ................................ 170-419

3/4 x 4 (Grade 8) UNF ........ 173-579

3/4 x 4-1/2 ..........................170-846

3/4 x 4-1/2 (Grade 8) .......... 173-039

3/4 x 4-1/2 (Grade 8) UNF . 173-588

3/4 x 5 ................................ 173-508

3/4 x 5 UNF ........................173-510

3/4 x 5-1/2 (Grade 8) UNF . 173-514

3/4 x 6 ................................ 171-116

3/4 x 6 UNF ........................ 173-511

3/4 x 6 (Grade 8) ................173-231

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

3/4 x 6 1/2 .......................... 176-148

3/4 x 7 ................................ 173-745

3/4 x 7 UNF ........................173-747

3/4 x 7-1/2 ..........................175-004

3/4 x 8 ................................ 173-509

7/8 x 2-1/4 ..........................172-892

7/8 X 2-1/2 .......................... 175-633

7/8 x 3 ................................ 172-002

7/8 x 3-1/2 ..........................173-020

7/8 x 4 ................................ 173-299

7/8 x 4-1/2 ..........................175-953

7/8 x 4 UNF ........................171-092

7/8 x 6-1/2 ..........................173-774

7/8 x 7 ................................ 173-749

7/8 x 7 UNF ........................174-097

7/8 x 8 ................................ 173-750

7/8 x 8 UNF ........................173-515

1 x 3-1/2 ............................. 173-021

1 x 4 ................................... 175-119

1 x 4 (Grade 8) ...................175-248

1 x 7 UNF ...........................173-516

1 x 8 ................................... 174-723

1 x 8 (grade 8) UNF ........... 173-713

1-1/4 x 4-1/2 (grade 8) ....... 175-003

M8 x 16MM (Grade 8.8) .....174-610

M8 x 20MM (Grade 8.8) .....175-193

M8 x 25MM (Grade 8.8) .....174-900

M10 x 22MM (Grade 8.8) ...175-016 M10 x 25MM (Grade 8.8) ...173-344 M12 x 25MM (Grade 8.8) ...171-566 M12 x 35MM (Grade 8.8) ...175-020 M12 x 40MM (Grade 12.9) .175-190 M12 x 45MM (Grade 10.9) . 174-911 M14 x 30MM (Grade 8.8) ...173-518 M16 x 40MM (Grade 8.8) ...175-631 M16 x 44MM (Grade 8.8) ...175-634

SOCKET HEAD CAP SCREW

3/8 x 7/8 ............................. 172-044

1/2 x 2-1/2 ..........................175-921

SELF TAPPING SCREW

1/4 x 3/4 ............................. 174-874

CARRIAGE BOLTS

1/4 x 1-1/4 (Grade 2) .......... 170-311

1/4 x 1-1/2 (Grade 2) .......... 170-355

1/4 x 2 (Grade 2) ................170-299

1/4 x 2-1/2 (Grade 2) .......... 171-394

1/4 x 2-3/4 (Grade 2) .......... 170-508

1/4 x 3 ................................ 170-509

5/16 x 1 (Grade 2) ..............170-370

5/16 x 1-1/4 ........................ 175-715

5/16 x 1-1/2 (Grade 2) ........170-296

5/16 x 2-1/2 (Grade 2) ........171-395

5/16 x 5-1/2 (Grade 2) ........170-494

3/8 x 1 ................................ 176-170

3/8 x 1 Short Neck .............. 175-970

3/8 x 3-1/2 (Grade 2) .......... 171-283

3/8 x 4-1/2 (Grade 2) .......... 170-191

3/8 x 5 (Grade 2) ................170-495

3/8 x 6-1/2 (Grade 2) .......... 171-174

3/8 x 8 (Grade 2) ................170-297

3/8 x 13 (Grade 2) ..............170-298

3/8 x 13-1/2 (Grade 2) ........170-300

1/2 x 1-1/2 (Grade 5) .......... 174-918

1/2 x 3 ................................ 176-169

1/2 x 6-1/2 (Grade 2) .......... 171-098

1/2 x 9 (Grade 2) ................171-255

5/8 x 2 ................................ 175-110

5073TR 005907 R060706

Hardware Part Number Listing

5/8 x 2-1/2 (Grade 5) .......... 174-790

PLOW BOLTS

5/8 x 2 ................................ 174-767

3/4 x 2-1/2 ..........................174-948

TRUSS HEAD BOLTS

#6-32 x 3/4 .........................172-416

#6-32 x 1 ............................ 173-079

#8-32 x 1-1/2 ......................171-210

#10-32 x 3/4 ....................... 171-604

#10-32 x 1 ..........................172-882

1/4 x 3/4 ............................. 170-193

1/4 x 1 ................................ 170-194

5/16 x 1 .............................. 170-117

SET SCREWS (Socket Head)(Cup Point)

1/4 x 1/4 ............................. 170-247

1/4 x 5/8 ............................. 172-985

5/16 x 1/4 ........................... 170-993

5/16 x 5/16 ......................... 170-248

5/16 x 5/16 UNF .................170-825

5/16 x 3/8 UNF ...................173-367

5/16 x 1/2 ........................... 170-254

5/16 x 5/8 UNF ...................170-456

5/16 x 1 (Sq hd) .................. 173-610

5/16 x 1-1/2 ........................ 172-917

3/8 x 1/4 ............................. 170-856

3/8 x 3/8 ............................. 170-151

3/8 x 1/2 ............................. 170-857

3/8 x 1/2 UNF .....................171-469

3/8 x 3/4 ............................. 174-190

3/8 x 3/4 (Sq hd) ................. 170-290

3/8 x 1 ................................ 170-021

3/8 x 1 (Sq hd) .................... 173-609

3/8 x 1 (Sq hd) (Dog pt) ...... 171-551

7/16 x 7/16 ......................... 170-288

7/16 x 1 (Sq hd) .................. 170-147

1/2 x 5/8 ............................. 170-249

1/2 x 1 ................................ 170-438

1/2 x 1-1/4 (half dog point) .171-085

5/8 x 5/8 ............................. 170-250

3/4 x 3/4 (Sq hd) (Dog pt) ... 170-251

HEX NUTS

#6-32 ..................................172-418

#10-32 ................................171-606

1/4 ......................................170-125

5/16 .................................... 170-119

3/8 ......................................170-007

7/16 ....................................170-062

7/16 (Grade 8) UNF ........... 174-217

1/2 ......................................170-004

9/16 ....................................173-702

5/8 ...................................... 170-011

3/4 ......................................170-017

3/4 UNF ..............................170-159

3/4 (Grade 8) UNF ............. 173-520

7/8 ......................................171-776

1 .........................................173-022

1 UNF .................................173-714

1 (Grade 8) .........................175-247

1 (Grade 8) UNF ................ 173-519

1-1/8 UNF ..........................174-095

1-1/4 UNF ..........................170-130

1-1/4 (Grade 8) ..................175-006

M8 x 1.25MM ..................... 172-949

M30 x 1.5MM ..................... 174-902

M50 x 1.5MM ..................... 175-200

LOCK NUTS

#6-32 ..................................174-188

#10-32 ................................174-073

1/4 ......................................170-069

5/16 flange lock ..................170-028

3/8 ......................................170-047

3/8 flange lock ....................176-246

7/16 ....................................170-239

1/2 ......................................170-042

1/2 UNF ..............................170-566

1/2 (Grade 8) ......................171-671

9/16 ....................................172-220

5/8 ......................................170-031

3/4 ......................................170-185

3/4 (Grade 8) ......................171-900

3/4 (Grade 8) UNF ............. 173-578

7/8 ......................................173-069

7/8 UNF ..............................171-093

1 .........................................174-928

1 UNF .................................170-527

M45 x 1.5MM ..................... 175-199

M50 x 1.5MM ..................... 175-197

JAM NUTS

1/4UNF ...............................171-386

5/16 ....................................173-521

3/8 ......................................170-022

7/16 ....................................170-046

1/2 ......................................170-036

1/2 Lock .............................174-063

5/8 ......................................170-037

3/4 ......................................170-035

1 .........................................174-927

FLAT WASHERS

#10 .....................................171-525

1/4 ......................................170-301

1/4 Heavy ...........................171-083

1/4 Fender ..........................173-672

5/16 ....................................170-127

5/16 Fender ........................ 173-811

3/8 ......................................170-244

3/8 Heavy ...........................170-302

3/8 Aluminum .....................173-900

3/8 Belleville .......................171-393

7/16 ....................................170-138

1/2 ......................................170-040

1/2 (Grade 8) ......................172-984

9/16 ....................................173-693

5/8 ......................................170-066

5/8 (Grade 8) ......................173-581

3/4 ......................................170-015

7/8 ......................................173-298

7/8 Heavy ...........................170-131

1 .........................................170-122

1-1/4 ...................................170-928

LOCK WASHERS

#6 .......................................172-417

#10 .....................................171-605

1/4 ......................................170-124

5/16 .................................... 170-118

3/8 ......................................170-006

7/16 ....................................170-061

1/2 ......................................170-003

9/16 ....................................173-692

5/8 ......................................170-010

3/4 ......................................170-016

3/4 External Tooth .............. 174-793

7/8 ......................................172-003

1 .........................................171-021

1-1/4 ...................................175-005

ZERKS

1/8 NPT .............................. 170-865

1/8 NPT-45 Deg .................170-864

1/8 NPT-65 Deg .................170-215

1/8 NPT-90 Deg .................170-866

3/16 drive in .......................174-124

1/4-28 .................................170-023

1/4-28 - 45 Deg ..................170-148

1/4-28 - 90 Deg ..................170-049

1/4 NPT .............................. 170-277

1/4 NPT - 45 Deg ............... 174-130

COTTER PINS

1/16 x 1/2 ........................... 170-992

3/32 x 3/4 ........................... 170-364

1/8 x 1 ................................ 170-045

1/8 x 1-1/4 ..........................170-033

1/8 x 1-1/2 ..........................170-382

5/32 x 1 .............................. 170-421

5/32 x 1-1/2 ........................ 170-236

5/32 x 3 .............................. 170-135

3/16 x 1-1/4 ........................ 170-991

3/16 x 2 .............................. 170-115

1/4 x 1-1/2 ..........................170-521

1/4 x 2 ................................ 170-056

1/4 x 2-1/2 ..........................173-961

ROLLER CHAIN CONNECTOR LINKS

#50 .....................................170-088

#50-2R ............................... 170-094

#60 .....................................170-089

#60-2R ............................... 170-095

#60H ..................................171-102

#80 .....................................170-090

#80H ..................................170-821

#80-2R ............................... 176-134

#100 ...................................170-091

#100H ................................171-969

#120 ...................................170-092

#140 ...................................170-093

#140H ................................173-552

#160 ...................................170-888

OFFSET LINKS

#50 .....................................170-096

#50-2R ............................... 170-102

#60 .....................................170-097

#60-2R ............................... 170-103

#60H ..................................171-103

#80 .....................................170-098

#80H ..................................170-820

#80-2R ............................... 176-135

#100 ...................................170-099

#100H ................................172-145

#120 ...................................170-100

#140 ...................................170-101

#140H ................................173-553

#160 ...................................170-887

ROLLER LINKS

#50 .....................................171-415

#60 .....................................171-416

#80 .....................................171-417

#80H ..................................170-795

#100 ...................................171-418

#100H ................................172-146

#120 ...................................171-419

#140 ...................................171-420

#160 ...................................171-421

Part Number Index

5073TR 005907 R060706

101-227 ...28 101-231 ...28 101-736 ...29 101-791 ...35 101-891 ...35 102-048 ...9 102-049 ...9 102-065 ...9 102-066 ...9 102-346 ...28 102-347 ...29 102-437 ...4 102-439 ...4 102-527 ...27 103-674 ...4 103-678 ...4 103-756 ...29 103-779 ...4, 8, 9 103-806 ...14 103-811 ...14 103-812 ...14 103-817 ...12, 15 103-820 ...14 103-821 ...26 103-844 ...7, 8, 9 103-845 ...7 103-854 ...28 103-855 ...28 103-856 ...28 103-872 ...26 103-882 ...25 103-893 ...31 103-895 ...31 103-897 ...31 103-906 ...8, 9 103-908 ...7, 8 103-909 ...7, 8 103-910 ...7, 8 103-911 ...7, 8 103-918 ...29, 31 103-919 ...31 103-922 ...16, 17 103-923 ...19, 20 103-924 ...22, 23 103-925 ...18 103-926 ...21 103-927 ...24 103-981 ...12 103-982 ...12 103-985 ...12 104-032 ...33 104-033 ...33 104-559 ...7 104-640 ...16, 19, 22 104-646 ...7 104-703 ...31 132-701 ...28 133-942 ...29 133-943 ...29 133-952 ...29, 31 134-389 ...29, 31 134-390 ...29

134-394 ...29 134-395 ...29 134-824 ...9 134-843 ...9 136-040 ...10 136-454 ...4 140-001 ...29 140-003 ...27, 31 140-611 ...4 140-790 ...35 140-791 ...35 140-792 ...35 140-806 ...25 140-897 ...29 140-93 ...29 140-933 ...29 140-938 ...29 140-955 ...10 141-044 ...10 141-046 ...14 141-048 ...12, 14 141-062

...16, 17, 18, 19, 20, 21, 22, 23, 24

141-063

...16, 17, 18, 19, 20, 21, 22, 23, 24

141-064

...16, 17, 18, 19, 20, 21, 22, 23, 24

141-065

...16, 17, 18, 19, 20, 21, 22, 23, 24

141-066

...16, 17, 18, 19, 20, 21, 22, 23, 24 141-084 ...14 141-113

...16, 17, 18, 19, 20, 21, 22, 23, 24 141-114

...16, 17, 18, 19, 20, 21, 22, 23, 24 141-115 ...15 141-116 ...15 141-134

...16, 17, 18, 19, 20, 21, 22, 23, 24 141-136 ...10 141-155

...16, 17, 18, 22, 23, 24 141-156 ...16, 17, 18 141-157

...16, 17, 18, 19, 20, 21, 22, 23, 24 141-204 ...31 141-216 ...31 141-220 ...31 141-286 ...22, 23, 24 141-287

...19, 20, 21, 22, 23, 24 141-291 ...10 141-294 ...10 141-297 ...4 141-301 ...4 141-302 ...4 141-318 ...39 141-333 ...19, 20, 21 141-366 ...4 141-370 ...4 141-388 ...10

141-406

...16,17,18,19,20,21,22,23,24 141-423 ...25 141-430 ...25 141-465 ...10 141-468 ...17, 20, 23 141-469 ...17, 20, 23 141-470 ...17, 20, 23 141-472 ...31 141-473 ...31 141-474 ...31 141-495 ...10 141-547 ...4 141-549 ...10 141-569 ...7, 8 141-574 ...7, 8 141-595 ...12, 14 141-600 ...10 141-608 ...29, 31 141-692 ...31 141-868 ...12 141-872 ...12 141-957 ...33 141-960 ...33 141-961 ...33 141-967 ...7 142-214 ...31 142-217 ...31 142-727 ...12 142-728 ...12 144-198 ...16, 19, 22 144-264 ...32 144-267 ...32 144-295 ...32 144-307 ...32 170-003 ...33 170-019 ...10, 33 170-023 ...6, 7 170-026 ...31 170-052 ...10 170-056 ...29 170-073 ...25 170-074 ...25 170-075 ...27, 29, 31 170-110 ...29, 31 170-118 ...29 170-120 ...31 170-122 ...25, 29, 31 170-233 ...26 170-235 ...27, 29, 31, 35 170-238 ...31 170-244 ...13, 15 170-248 ...31 170-249 ...10 170-262 ...29 170-302 ...29 170-369 ...37 170-465 ...35 170-468 ...27 170-490 ...40 170-513 ...35 170-679 ...32, 33

170-849 ...40 170-859 ...29 170-865 ...9, 13, 14 170-893 ...40 170-920

...6,7,8,9,16,17,18,19,20,21,22,23,24 170-922 ...9 170-926 ...9 170-927 ...9 170-928 ...9 171-030 ...25, 26, 27, 29 171-136 ...29, 35 171-151 ...29, 31 171-178 ...29, 31 171-186 ...29 171-193 ...29 171-202 ...26 171-257 ...29 171-259 ...28 171-260 ...28 171-265 ...28 171-287 ...31 171-288 ...31 171-330 ...29, 31 171-346 ...27, 29 171-425 ...35 171-426 ...35 171-428 ...35 171-430 ...35 171-550 ...36, 37, 38, 40 171-576 ...29 171-609 ...40 171-653 ...7, 8, 9 171-666 ...29, 31 171-668 ...29 171-712 ...40 171-782 ...28 171-799 ...36, 37, 38, 40 171-820 ...40 171-883 ...29, 31 171-911 ...40 171-913 ...40 171-914 ...40 171-919 ...4 171-932 ...28 171-934 ...10 171-935 ...12, 15 171-947 ...40 171-979 ...36, 37, 38 172-024 ...13, 14 172-040 ...36, 37, 38 172-110 ...5 172-207 ...36, 37, 38 172-209 ...36, 37, 38 172-210 ...36, 37, 38 172-239 ...31 172-288 ...10 172-289 ...13, 15 172-324 ...35 172-360 ...9 172-361 ...9 172-362 ...9

Kuhn Knight, Inc.

1501 West 7th Ave., Brodhead, WI 53520

701 Cherry Ave., Greeley, CO 80632

5073TR 005907 R060706

Part Number Index

172-367 ...10 172-603 ...40 172-627 ...32, 33 172-786 ...40 172-793 ...25, 26 172-820 ...40 172-822 ...15 172-999 ...6, 7, 8 173-001 ...6, 7, 8 173-002 ...6, 7, 8 173-003 ...7, 8 173-004 ...7, 8 173-005 ...7, 8, 9 173-006 ...7, 8 173-007 ...6, 7, 8 173-008 ...6 173-021 ...29 173-031 ...6, 7 173-032 ...6, 7, 8 173-040 ...40 173-077 ...39 173-078 ...40 173-150 ...32, 33 173-170 ...6 173-171 ...6 173-172 ...6 173-173 ...6 173-174 ...6 173-220 ...29, 31 173-270 ...27 173-274 ...31 173-275 ...25, 27, 29, 31 173-281 ...40 173-282 ...40 173-285 ...25, 26 173-342 ...34 173-344 ...11 173-396 ...9 173-483 ...26, 31 173-488 ...27 173-567 ...25 173-583 ...13, 15 173-653 ...26 173-658 ...31 173-731 ...40 173-945 ...40 174-309 ...31 174-577 ...7, 8, 9 174-610 ...34 174-673 ...5 174-674 ...5 174-675 ...5 174-676 ...5 174-686 ...40 174-687 ...40 174-724 ...5 174-725 ...5 174-755 ...6 174-756 ...6 174-757 ...6 174-759 ...6 174-762 ...13, 15

174-763 ...4 174-765 ...4 174-769 ...13, 15 174-771 ...25, 31 174-772 ...26 174-775 ...5 174-784 ...6, 7, 8, 9, 12, 14 174-792 ...40 174-793

...16, 17, 18, 19, 20, 21, 22, 23, 24 174-804 ...6 174-807 ...15 174-808 ...40 174-822 ...26 174-823 ...25 174-838 ...5 174-839 ...4, 5 174-840 ...5 174-843 ...26 174-872 ...40 174-873 ...10, 11 174-883 ...37 174-904 ...11, 34 174-905 ...11 174-907 ...10 174-909

...10, 32, 33, 36, 37, 38 174-924 ...40 174-925 ...10 174-927 ...29 174-928 ...29 174-966 ...36 174-967 ...38 174-979 ...7, 8, 9 174-980 ...12, 14 174-981 ...12, 15 174-984 ...36, 37 174-985 ...36, 37, 38 174-986 ...36, 37, 38 174-987 ...36, 37, 38 174-988 ...36, 37, 38 174-989 ...37 174-991 ...36, 37, 38 174-992 ...36, 37, 38 174-993 ...36, 37, 38 174-994 ...36, 37, 38 174-995 ...37 174-996 ...36, 37 175-001 ...36, 37 175-002 ...37 175-014 ...11 175-015 ...11 175-016 ...11 175-017 ...11 175-018 ...11, 33 175-020 ...11, 33 175-021 ...11 175-022 ...11 175-023 ...11 175-024 ...11 175-025 ...11 175-026 ...11

175-027 ...11 175-028 ...11 175-029 ...11 175-030 ...11 175-031 ...11 175-056 ...40 175-059 ...38 175-060 ...38 175-062 ...29 175-071 ...36, 38 175-079 ...10 175-080 ...36 175-081 ...38 175-082 ...10, 32, 33 175-083 ...36, 38 175-084 ...36, 38 175-093 ...32, 33 175-109 ...40 175-124 ...10, 32, 33 175-151 ...40 175-156 ...40 175-174 ...7, 8, 9 175-177 ...7 175-178 ...7 175-227 ...32, 33 175-228 ...32, 33, 34 175-229 ...32, 33 175-230 ...40 175-239 ...33 175-240 ...32, 33 175-255 ...32, 33 175-274 ...32, 33 175-275 ...32, 33 175-276 ...32, 33 175-278 ...38 175-331 ...6 175-332 ...6 175-333 ...6 175-334 ...6 175-335 ...6 175-336 ...6 175-344 ...13, 15 175-536 ...31, 32, 33 175-703 ...31 175-711 ...31 175-790 ...40 175-792 ...40 175-793 ...40 175-800 ...40 175-811 ...40 175-812 ...40 175-813 ...40 175-850 ...40 175-862 ...40 175-863 ...40 175-864 ...40 176-064 ...31, 32, 33 176-197 ...34 176-198 ...34 176-199 ...34 176-200 ...34 176-201 ...34

176-202 ...34 176-203 ...34 176-204 ...34 176-205 ...34 176-206 ...34 176-207 ...34 176-208 ...34 176-209 ...34 176-303 ...32 176-579 ...31 180-281 ...40 180-768 ...13, 14 181-036 ...14 181-040 ...27 181-043 ...39 181-048 ...15 303-163 ...40

Kuhn Rikon 5085, 5073, 50100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table Of Contents

Abbreviations

Using This Service Parts Listing

Body Parts

Light Kit

Wheel and Hub Parts - 5073

Input Shaft and Pinion Gear Drive Parts

Gearbox

Auger Drive and Tower Assembly Parts

Door and Cylinder Parts

Door and Cylinder Parts 5073-068 and Before

Slide Tray Parts

4 Auger Discharge Parts

Chain and Slat Discharge Parts

High-Speed Clean-Out Option - Gearcase Replacement Parts

Selector Valve Option

PTO Driveline (1000 RPM - 21 - Spline -1 3/8 Yoke) After S/N 5073-066

PTO Driveline (1000 RPM - 21 -Spline-1 3/8 Yoke) Before S/N 5073-065

Side Extension Options

Decal and Paint List

Hardware Part Number Listing
