Kubota M6800S, M6800, M8200, M9000 Workshop Manual

WORKSHOP MANUAL

KiSC issued 03, 2008 A

TRACTOR

M6800,M6800S,

M8200,M9000

TO THE READER

KiSC issued 03, 2008 A

This Workshop Manual has been prepared to provide servicing personnel with
information on the mechanism, service and maintenance of KUBOTA Tractors M6800,
M6800S, M8200 and M9000. It is divided into two parts, “Mechanism” and “Servicing”
for each section except “ENGINE” section.

Q Mechanism

Information on the constructuion and function are included. This part should be
understood before proceeding with troubleshooting, disassembling and servicing.

Q Servicing

Under the heading “General” section comes general precautions, check and
maintenance and special tools. Other section, there are troubleshooting, servicing
specification lists, checking and adjusting, disassembling and assembling, and servicing
which cover procedures, precautions, factory specifications and allowable limits.

All information illustrations and specifications contained in this manual are based on
the latest product information available at the time of publication.

The right is reserved to make changes in all information at any time without notice.

August 2001

© KUBOTA Corporation 2001

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

SAFETY FIRST

This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on

the machine itself to warn of the possibility of personal injury. Read these instructions carefully.

It is essential that you read the instruct ions and safe ty regulations before y ou attempt to re p air or use

this unit.

DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

Q IMPORTANT : Indicates that equipment or property damage could result if instructions are not

followed.

Q NOTE : Gives helpful information.

BEFORE SERVICING AND REPAIRING

• Read all instructions and safety instructions in this
manual and on your machine safety decals.

• Clean the work area and machine.

• Park the machine on a firm and level ground, and se t
the parking brake.

• Lower the implement to the ground.

• Stop the engine, and remove the key.

• Disconnect the battery negative cable.

• Hang a “DO NOT OPERATE” tag in operator
station.

1

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SAFETY INSTRUCTIONS

SAFETY STARTING

• Do not start the engine by shorting across starter
terminals or bypassing the safety start switch.

• Do not alter or remove any part of machine safety
system.

• Before starting the engine, make sure that all shift
levers are in neutral positions or in disengaged
positions.

• Never start the engine while standing on ground.
Start the engine only from operator’s seat.

SAFETY WORKING

• Do not work on the machine while under the influe nce
of alcohol, medication, or other substances or while
fatigued.

• Wear close fitting clothing and safety equipment
appropriate to the job.

• Use tools appropriate to the work. Makeshift tools,
parts, and procedures are not recommended.

• When servicing is performed together by two or more
persons, take care to perform all work safely.

• Do not work under the machine that is supported
solely by a jack. Always support the machine by
safety stands.

• Do not touch the rotating or hot parts while the engine
is running.

• Never remove the radiator cap while the engine is
running, or immediately after stopping. Otherwise, hot
water will spout out from radiator. Only remove
radiator cap when cool enough to touch with bare
hands. Slowly loosen the cap to first stop to relieve
pressure before removing completely.

• Escaping fluid (fuel or hydraulic oil) under pressure
can penetrate the skin causing serious injury. Relieve
pressure before disconnecting hydraulic or fuel lines.
Tighten all connections before applying pressure.

AVOID FIRES

• Fuel is extremely flammable and explosive under
certain conditions. Do not smoke or allow flames or
sparks in your working area.

• To avoid sparks from an accidental short circuit,
always disconnect the battery negative cable first and
connect it last.

• Battery gas can explode. Keep sparks and open
flame away from the top of battery, especially when
charging the battery.

• Make sure that no fuel has been spilled on the engine.

2

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SAFETY INSTRUCTIONS

VENTILATE WORK AREA

• If the engine must be running to do some work, make
sure the area is well ventilated. Never run the engine
in a closed area. The exhaust gas contains poisonous
carbon monoxide.

PREVENT ACID BURNS

• Sulfuric acid in battery electrolyte is poisonous. It is
strong enough to burn skin, clothing and cause
blindness if splashed into eyes. Keep electrolyte
away from eyes, hands and clothing. If you spill
electrolyte on yourself, flush with water, and get
medical attention immediately.

DISPOSE OF FLUIDS PROPERLY

• Do not pour fluids into the ground, down a drain, or
into a stream, pond, or lake. Observe relevant
environmental protection regula tions when disp osing
of oil, fuel, coolant, electrolyte and other harmful
waste.

PREPARE FOR EMERGENCIES

• Keep a first aid kit and fire extinguisher handy at all
times.

• Keep emergency numbers for doctors, ambulance
service, hospital and fire department near your
telephone.

3

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SAFETY INSTRUCTIONS

SAFETY DECALS

The following safety decals are installed on the machine.
If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in
the parts list.

4

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SAFETY INSTRUCTIONS

5

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SAFETY INSTRUCTIONS

6

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SPECIFICATIONS

SPECIFICATIONS

Model

2WD 4WD 2WD 4WD

M6800 M6800S

Model V3300-E / V3300-E2
Type Vertical, water-cooled, 4-cycle diesel engine
Number of cylinders 4

3

Total displacement 3318 cm

(202.5 cu.in.)
Bore and stroke 98 × 110 mm (3.9 × 4.3 in.)
Net power 50.8 kW (68 HP)*

Engine

PTO power
(factory observe)

46.3 kW (62 HP)* / 2600 min

Maximum torque 235 N·m (24.0 kgf·m, 173.3 ft-lbs) / 1300 to 1500 min

−1

(rpm)

−1

(rpm)
Battery capacity 12 V, CCA : 1000 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)]
Fuel tank capacity 65 L (17.2 U.S.gals., 14.3 Imp.gals.)
Engine oil capacity 10.7 L (11.3 U.S.qts., 9.4 Imp.qts.)
Coolant capacity 8.5 L (9.0 U.S.qts., 7.5 Imp.qts.)
Overall length 3530 mm (139.0 in.) 3420 mm (134.6 in.) 3560 mm (140.2 in.) 3525 mm (138.8 in.)
Overall width (min. tread) 1860 mm (73.2 in.)

Dimensions

Overall height
(with ROPS)

Wheel base 2050 mm (80.7 in.)

Tread

Front

1420 to 1820 mm

(55.9 to 71.7 in.)

1420 to 1520 mm

(55.9 to 59.8 in.)

2450 mm (96.9 in.)

1420 to 1820 mm

(55.9 to 71.7 in.)

1420 to 1520 mm

(55.9 to 59.8 in.)

Rear 1420 to 1720 mm (55.9 to 67.7 in.)

Minimum ground
clearance

430 mm (16.9 in.) (COVER TANK) 430 mm (16.9 in.) (BRACKET DRAWBAR)

Weight (with ROPS) 2030 kg (4475 lbs) 2090 kg (4608 lbs) 2030 kg (4475 lbs) 2090 kg (4608 lbs)

Front 9.5L-15, 7.5-16 9.5-24 9.5L-15, 7.5-16 9.5-24
Rear 16.9-30

Travelling
system

Standard
tire size

Clutch Dry, single plate
Steering Hydrostatic power steering
Braking system Multiple wet disc mechanical
Differential Bevel gears with differential lock (Front, Rear)
Hydraulic control system Position, draft and mix control
Pump capacity 41.3 L (43.6 U.S.qts., 36.3 Imp.qts.) / min. 38.3 L (40.5 U.S.qts., 33.7 Imp.qts.) / min.
Three point hitch SAE Category I & II

Hydraulic
system

Max.
lifting
force

At lift points** 2050 kg (4520 lbs)
24 in. behind

lift points

1500 kg (3307 lbs)

Remote hydraulic control One remote valve

2

, 2775.4 psi)

−1

(rpm) at 2295 min−1 (rpm)

−1

(rpm) at 2307 min−1 (rpm)

−1

(rpm) at 2471 min−1 (rpm)

−1

(rpm) at 2307 min−1 (rpm)

−1

(rpm) at 1828 min−1 (rpm)

PTO

System pressure 19.1 MPa (195 kgf/cm

Live PTO
(Indipen­dent)

Direction of
turning

Standard PTO

Fixed PTO shaft type with 1 speed : 540 min

Fixed PTO shaft type with 2 speeds : 540 min

1000 min

Clockwise, viewed from tractor rear

Fixed PTO shaft type with 2 speeds : 540 min

540E min

Note : * Manufacture’s estimate

** At lower link and with links horizontal.
The company reserves the right to change the specifications without notice.

W10281170

7

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

SPECIFICATIONS

Model

2WD 4WD 2WD 4WD

M8200 M9000

Model V3300-TE / V3300-TE2 V3300-TIE / V3300-TIE2
Type Vertical, water-cooled, 4-cycle diesel engine
Number of cylinders 4

3

Total displacement 3318 cm

(202.5 cu.in.)
Bore and stroke 98 × 110 mm (3.9 × 4.3 in.)
Net power 61.2 kW (82 HP)* 67.2 kW (90 HP)*

Engine

PTO power
(factory observe)

Maximum torque

54.5 kW (73 HP)* / 2600 min
285 N·m (29.1 kgf·m, 210.2 ft-lbs) /

1300 to 1500 min

−1

(rpm) 59.7 kW (80 HP)* / 2600 min−1 (rpm)

−1

(rpm)

311 N·m (31.7 kgf·m, 229.4 ft-lbs) /

1400 to 1600 min−1 (rpm)
Battery capacity 12 V, CCA : 1000 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)]
Fuel tank capacity 90 L (23.8 U.S.gals., 19.8 Imp.gals.)
Engine oil capacity 10.7 L (11.3 U.S.qts., 9.4 Imp.qts.)
Coolant capacity 9.0 L (9.5 U.S.qts., 7.9 Imp.qts.)
Overall length 3915 mm (154.1 in.) 3800 mm (150.0 in.) 3915 mm (154.1 in.) 3800 mm (150.0 in.)
Overall width (min. tread) 1980 mm (78.0 in.)

Dimensions

Overall height
(with ROPS)

Wheel base 2250 mm (88.6 in.)

1440 to 2040 mm

(56.7 to 80.3 in.)

Tread

Front

2475 mm (97.4 in.) 2500 mm (98.4 in.)

1420 to 1520 mm

(55.9 to 59.8 in.)

1440 to 2040 mm

(56.7 to 80.3 in.)

1520 to 1620 mm

(59.8 to 63.8 in.)

Rear 1520 to 1920 mm (59.8 to 75.6 in.)

Minimum ground
clearance

430 mm (16.9 in.) (BRACKET DRAWBAR) 450 mm (17.7 in.) (BRACKET DRAWBAR)

Weight (with ROPS) 2270 kg (5004 lbs) 2470 kg (5445 lbs) 2310 kg (5093 lbs) 2530 kg (5578 lbs)

Front 7.5-18 11.2-24 7.5-18 12.4-24
Rear 18.4-28 18.4-30

Travelling
system

Standard
tire size

Clutch Dry, single plate
Steering Full hydrostatic power steering
Braking system Multiple wet disc mechanical
Differential Bevel gears with differential lock (Front, Rear)
Hydraulic control system Position, draft and mix control

Hydraulic
system

PTO

Individual flow

Pump
capacity

type
Combine flow

type

Three point hitch SAE Category II
Max.

lifting
force

System pressure

Live PTO
(Indipen­dent)

At lift points**
24 in. behind

lift points

Direction of
turning

PTO / engine
speed

Individual flow type pump : 19.1 MPa (195 kgf/cm

Combine flow type pump : 19.6 MPa (200 kgf/cm2, 2846.6 psi)

Fixed PTO shaft type with 1 speed : 540 min

Fixed PTO shaft type with 2 speeds : 540 min

540E min

Interchangeable PTO shaft type : 540 min

1000 min

41.3 L (43.6 U.S.qts., 36.3 Imp.qts.) / min.

64.3 L (67.9 U.S.qts., 56.6 Imp.qts.) / min.

Standard : 2500 kg (5560 lbs)

with assist cylinder : 3400 kg (7497 lbs)

Standard : 2100 kg (4630 lbs)

with assist cylinder : 2900 kg (6395 lbs)

2

Clockwise, viewed from tractor rear

−1

(rpm) at 2205 min−1 (rpm)

−1

(rpm) at 2035 min−1 (rpm)

−1

(rpm) at 1519 min−1 (rpm)

−1

(rpm) at 2035 min−1 (rpm)

−1

(rpm) at 2389 min−1 (rpm)

, 2775.4 psi)

Note : * Manufacture’s estimate

** At lower link and with links horizontal.
The company reserves the right to change the specifications without notice.

W10319630

8

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

DIMENSIONS

DIMENSIONS

9

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

DIMENSIONS

10

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

DIMENSIONS

11

G GENERAL

KiSC issued 03, 2008 A

GENERAL

KiSC issued 03, 2008 A

CONTENTS

1. FEATURES...................................................................................................... G-1

2. TRACTOR IDENTIFICATION ......................................................................... G-3

[1] MODEL NAME AND SERIAL NUMBERS.............................................. G-3

[2] E2 ENGINE............................................................................................... G-5

[3] CYLINDER NUMBER ..................... ... ... ... ....................................... ... ... .... G-5

3. GENERAL PRECAUTIONS............................................................................ G-6

4. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS AND WIRING.. G-7

[1] WIRING...................................................................................................... G-7

[2] BATTERY................................................................................................... G-9

[3] FUSE.......................................................................................................... G-9

[4] CONNECTOR............................................................................................ G-9

[5] HANDLING OF CIRCUIT TESTER....................................................... G-10

5. LUBRICANTS FUEL AND COOLANT ........................................................ G-11

6. TIGHTENING TORQUES ............................................................................. G-13

[1] GENERAL USE SCREWS, BOLTS AND NUTS................................. G-13

[2] STUD BOLTS.......................................................................................... G-13

7. MAINTENANCE............................................................................................. G-14

8. CHECK AND MAINTENANCE..................................................................... G-15

[1] DAILY CHECK........................................................................................ G-15

[2] CHECK POINTS OF INITIAL 50 HOURS........................................... G-16

[3] CHECK POINTS OF EVERY 50 HOURS........................................... G-18

[4] CHECK POINTS OF EVERY 100 HOURS......................................... G-21

[5] CHECK POINTS OF EVERY 200 HOURS......................................... G-25

[6] CHECK POINTS OF EVERY 300 HOURS......................................... G-26

[7] CHECK POINTS OF EVERY 400 HOURS......................................... G-26

[8] CHECK POINTS OF EVERY 600 HOURS......................................... G-28

[9] CHECK POINTS OF EVERY 800 HOURS......................................... G-29

[10]CHECK POINTS OF EVERY 1 YEAR................................................ G-30

[11]CHECK POINTS OF EVERY 2 YEARS.............................................. G-30

[12]OTHERS .................................................................................................. G-32

9. SPECIAL TOOLS.......................................................................................... G-34

10. TIRES............................................................................................................. G-56

[1] TYPE OF TIRES.................................................................................... G-56

[2] TREAD ADJUSTMENT........................................................................... G-56

(1) Front Wheels [2WD]........................................................................... G-56

(2) Front Wheels [4WD]........................................................................... G-57

(3) Rear Wheels ......................................................................................G-57

[3] WHEEL HUB........................................................................................... G-58

[4] TIRE PRESSURE................................................................................... G-58

[5] TIRE LIQUID INJECTION...................................................................... G-59

11. IMPLEMENT LIMITATIONS.......................................................................... G-62

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

1. FEATURES

G GENERAL

1. New Design
Full-open Hood and Flat Top Fender

2. Hydrostatic Power Steering

3. Synchro-Shuttle
Lo-Reverse [M6800]
Forward-Reverse [M6800S · M8200 · M9000]

4. Hydraulic Independent PTO

5. Foldable ROPS

6. New Transmission
[M6800]

- Main Shift : Partially Synchronized

- Forward 8 / Reverse 4 Speeds

- Forward 12 / Reverse 4 Spe e ds (with Cr ee p, if equip p ed )
[M6800S · M8200 · M9000]

- Main Shift : Full Synchronized

- Forward 8 / Reverse 8 Speeds

- Forward 12 / Reverse 12 Speeds (with Creep, if equipped)

7. Semi-Flat Deck and Rubber Mounted Deck

8. Hanging Pedal

9. New E-TVCS Diesel Engine
Low Noise and Vibration
High Torque Rise

G-1

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

10.Wet Disc Brake

11.Three Point Hitch with Big Lift Power

12.Telescope Lower Link (M8200 · M9000)

13.Remote Valve
Self-Cancelling with Detents (Standard)
Flow Control Valve (Option)
Floating Valve with Detent (Option)

G-2

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

2. TRACTOR IDENTIFICATION

[1] MODEL NAME AND SERIAL NUMBERS

When contacting your local KUBO TA distributor, always specify

engine serial number, tractor serial number and hourmeter reading.

(1) Tractor Identification Plate
(2) Tractor Serial Number

G GENERAL

(3) Engine Serial Number

W1010800

G-3

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

Engine Serial Number

The engine serial number is an identified number for the engine.

It is marked after the engine model number.

It indicates month and year of manufacture as follows.

• Year of manufacture

Alphabet or

Number

1 2001 F 2015
2 2002 G 2016
3 2003 H 2017
4 2004 J 2018
5 2005 K 2019
6 2006 L 2020
7 2007 M 2021
8 2008 N 2022

9 2009 P 2023
A 2010 R 2024
B 2011 S 2025

C 2012 T 2026
D 2013 V 2027
E 2014

Year

Alphabet or

Number

Year

• Month of manufacture

Month

January A0001 ~ A9999 B0001 ~
February C0001 ~ C9999 D0001 ~
March E0001 ~ E9999 F0001 ~
April G0001 ~ G9999 H0001 ~
May J0001 ~ J9999 K0001 ~
June L0001 ~ L9999 M0001 ~
July N0001 ~ N9999 P0001 ~
August Q0001 ~ Q9999 R0001 ~
September S0001 ~ S9999 T0001 ~
October U0001 ~ U9999 V0001 ~
November W0001 ~ W9999 X0001 ~
December Y0001 ~ Y9999 Z0001 ~

Engine Serial Number
0001 ~ 9999 10000 ~

e.g. V3300-YA0001
“Y” indicates 2000 and “A” indicates January.

So, YA indicates that the engine was manufactured on January,

2000.

(1) Engine Model and Serial Number

W1010477

G-4

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

[2] E2 ENGINE

[3] CYLINDER NUMBER

G GENERAL

[ex.: Model Name V3300-E2]

The emission controls that have be en put into effect in various
countries to prevent air pollution will be stepped up. The time to
enforce the regulations differs depending on the engine output
classifications.

Kubota has been supplying the diesel engines conforming to the
emission regulations in respective countries. Exhaust emissions
regulations shift to the second stage. Kubota executed the
improvement of the engine according to this regulation.

In order to discriminate the engines conforming to Tier 1 / Phase
1 requirements and those conforming to Tier 2 / Phase 2
requirements, we have adopted E2 as a new model name for the
engines conforming Tier 2 / Phase 2 regulations with emissio n label
(1) or (2).

In the after-sale services for V3300-E2, V3300-TE2 and V3300­TIE2 series engines, only use the dedicated parts for E2 models a nd
carry out the maintenance services accordingly.

(1) Emission Label for EPA (2) Emission Label for EC

W1113734

The cylinder numbers of V3300-E2, V3300-T E2 and V3300-TIE2
diesel engine are designated as shown in the figure.

The sequence of cylinder numbers is given as No.1, No.2, No.3
and No.4 starting from the gear case side.

W1011077

G-5

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

3. GENERAL PRECAUTIONS

• During disassembly, carefully arrange removed parts in a clean
area to prevent confusion later. Screws, bolts and nuts should b e
installed in their original position to prevent reassembly errors.

• When special tools are required, use KUBOTA genuine special
tools. Special tools which are not frequently used should be
made according to the drawings provide d.

• Before disassembling or servicing electrical wires, always
disconnect the ground cable from the battery first.

• Remove oil and dirt from parts before measuring.

• Use only KUBOTA genuine parts for parts replacement to
maintain machine performance and to assure safety.

• Gaskets and O-rings must be replaced during reassembly.
Apply grease to new O-rings or oil seals before assembling.
See the figure left side.

• When reassembling external snap rings or internal snap rings,
they must be positioned so that sharp edge faces against the
direction from which a force is applied. See the figure left side.

• When inserting spring pins, their splits must face the direction
from which a force is applied. See the figure left side.

• To prevent damage to the hydraulic syst em, use only specified
fluid or equivalent.

(1) Grease
(2) Force
(3) Sharp Edge
(4) Axial Force
(5) Rotating Movement

G GENERAL

(A) External Snap Ring
(B) Internal Snap Ring

W1010904

G-6

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

4. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS
AND WIRING

To ensure safety and prevent damage to the machine and
surrounding equipment, heed the following precautions in handling
electrical parts and wiring.

IMPORTANTQ

• Check electrical wiring for damage and loosened
connection every year. To this end, educate the c ustomer to
do his or her own check and at the same time recommend
the dealer to perform periodic check for a fee.

• Do not attempt to modify or remodel any e lectrical parts and
wiring.

• When removing the battery cables, disconnect the negative
cable first. When installing the battery cables, connect the
positive cable first.

(1) Negative Terminal (2) Positive Terminal

W1011114

[1] WIRING

• Securely tighten wiring terminals.

(1) Correct

(Securely Tighten)

(2) Incorrect

(Loosening Leads to Faulty Contact)

W1011216

• Do not let wiring contact dangerous part.

(1) Wiring (Correct)
(2) Wiring (Incorrect)

(3) Dangerous Part
(4) Dangerous Part

• Repair or change torn or aged wiring immediately.

(1) Aged
(2) Torn

(3) Insulating Vinyl Tape

W1011313

W1012292

G-7

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

• Securely insert grommet.

(1) Grommet (A) Correct

(B) Incorrect

• Securely clamp, being careful not to damage wiring.

(1) Clamp

• Wind Clamp Spirally

(2) Wire Harness

(3) Clamp
(4) Welding Dent

G GENERAL

W1011388

W1011458

• Clamp wiring so that there is no twist, unnecessary sag, or
excessive tension, except for movable part, where sag be
required.

(1) Wiring
(2) Clamp

(A) Correct
(B) Incorrect

W1011587

• In installing a part, take care not to get wiring caught by it.

(1) Wiring (A) Incorrect

W1011670

• After installing wiring, check protection of terminals and clamped
condition of wiring, only connect battery.

(1) Cover

• Securely Install Cover
W1011735

G-8

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

[2] BATTERY

[3] FUSE

G GENERAL

• Take care not to confuse positive and neg at ive te rm ina ls.

• When removing battery cord, disconnect negative wire first.
When installing battery cord, check for polarity and connect
positive wire first.

• Do not install any battery with capacity other than is specified
(Ah).

• After connecting cord to batt ery termina ls, apply gr ease to t hem
and securely install terminal covers on them.

• Do not allow dirt and dust to collect on battery.

CAUTION

• Take care not to let battery liquid spill on your skin and
clothes. If contaminated, wash it off with water immediately.

• Before recharging the battery, remove it from the machine.

• Before recharging, remove cell caps.

• Do recharging in a well-ventilated place where there is no
open flame nearby, as hydrogen gas and oxygen ar e formed.

W1011816

[4] CONNECTOR

• Use fuses with specified capacity.
Neither too large or small capacity fuse is acceptable.

• Never use steel or copper wire in place of fuse.

• Do not install working light, radio set, etc. on machine which is not
provided with reserve power supply.

• Do not install accessories if fuse capacity of reserve power
supply is exceeded.

(1) Fuse (2) Slow Blow Fuse

W1012092

• For connector with lock, push lock to separate.

(A) Push

W1012211

• In separating connectors, do not pull wire harnesses.

• Hold connector bodies to separate.

(A) Correct (B) Incorrect

W1012272

G-9

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

• Use sandpaper to remove rust from terminals.

• Repair deformed terminal. Make certain there is no terminal
being exposed or displaced.

(1) Exposed Terminal
(2) Deformed Terminal

(3) Sandpaper
(4) Rust

W1012346

• Make certain that there is no female connector being too open.

(A) Correct (B) Incorrect

W1012430

• Make certain plastic cover is large enough to cover whole
connector.

(1) Cover (A) Correct

[5] HANDLING OF CIRCUIT TESTER

• Use tester correctly following manual provided with tester.

• Check for polarity and range.

(B) Incorrect

W1012519

W1012684

G-10

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

5. LUBRICANTS FUEL AND COOLANT

G GENERAL

Place

1 Fuel tank

2 Coolant

Engine

3

crankcase

Transmission

4

case

Front differential

5

case oil

Front axle gear

6

case oil

Air cleaner

7

(Oil bath type)

Place No. of greasing point Capacity Type of grease

Front wheel hub
[2WD]

Knuckle shaft
[2WD]

Front wheel case
support [4WD]

Front axle

8

support [4WD]
Top link 2
Top link bracket 2
Lift rod 3

Battery terminal 2

* KUBOTA original transmission hydraulic fluid.

M6800(S) M8200 M9000

65 L

17.2 U.S.gals.

14.3 Imp.gals.

8.5 L

9.0 U.S.qts.

7.5 Imp.qts.

11.3 U.S.qts.

9.4 Imp.qts.

43 L

45.4 U.S.qts.

37.8 Imp.qts.

5.0 L

5.3 U.S.qts.

4.4 Imp.qts.

3.7 U.S.qts.

3.1 Imp.qts.

2.1 U.S.qts.

1.8 Imp.qts.

Capacity

23.8 U.S.gals.

19.8 Imp.gals.

9.5 U.S.qts.

7.9 Imp.qts.

10.7 L

57.0 U.S.qts.

47.5 Imp.qts.

3.5 L

2.0 L

Greasing

2

2

2

2

90 L

9.0 L

54 L

6.0 L

6.3 U.S.qts.

5.3 Imp.qts.

Lubricants, fuel and coolant

No. 2-D diesel fuel
No. 1-D diesel fuel if temperature is
below −10 °C (14 °F)

Fresh clean water with anti-freeze

API Service Classification
CD, CE or CF
Below 0 °C (32 °F): SAE10W,
10W-30 or 10W-40
0 to 25 °C (32 to 77 °F): SAE20,
10W-30 or 10W-40
Above 25 °C (77 °F): SAE30,
10W-30 or 10W-40

KUBOTA SUPER UDT fluid*

KUBOTA SUPER UDT fluid or
SAE80, SAE90 gear oil

Engine oil

Until grease
overflows

Moderate
amount

Multipurpose
type grease

Multipurpose
type grease or
petroleum jelly

G-11

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

NOTEQ

• Engine Oil : Oil used in the engine should have an Americ an Petroleum Institute (API) service classif ication
and Proper SAE Engine Oil according to the ambient temperature as shown above.
Do not mix different brands together.

• With the emission control now in effect, the CF-4 and CG-4 lubricating oils have been developed for use
of a low-sulfur fuel on-road vehicle engines. When an off-road vehicle engine runs on a high-sulfur fuel,
it is advisable to employ the CF, CD or CE lubricating oil with a high total base number. If t he CF-4 or CG­4 lubricating oil is used with a high-sulfur fuel, change the lubricating oil at shorter intervals.

• Lubricating oil recommended when a low-sulfur or high-sulfur fuel is employed.

Fuel
Lubricating

Low sulfur

(0.5 % ≥)

High sulfur Remarks

oil class

CF PPTBN ≥ 10

CF-4 P X

CG-4 P X

P : Recommendable X : Not recommendable

• Transmission Oil : The oil used to lubricate the transmission is also used as hydraulic fluid. To insure
proper operation of the hydraulic system and complete lubrica tion of the transmission, it is important that
a multi-grade transmission fluid be used in t his system. We recommend the use of KUBOTA SUPER UDT
fluid for optimum protection and performance.
Do not mix different brands together.

• Indicated capacity of water and oil are manufacture’s estimate.

G-12

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

6. TIGHTENING TORQUES

Screws, bolts and nuts whose tightening torques are not specified in this Workshop Manual should be tightened

according to the table below.

[1] GENERAL USE SCREWS, BOLTS AND NUTS

Indication on top of

bolt

Material of bolt SS400, S20C S43C, S48C

Material of opponent

part

Unit
Diameter

M6

(6 mm, 0.24 in.)

M8

(8 mm, 0.31 in.)

M10

(10 mm, 0.39 in.)

M12

(12 mm, 0.47 in.)

M14

(14 mm, 0.55 in.)

M16

(16 mm, 0.63 in.)

M18

(18 mm, 0.71 in.)

M20

(20 mm, 0.79 in.)

No-grade or 4T 7T 9T

Ordinariness Aluminum Ordinariness Aluminum Ordinariness

N·m kgf·m ft-lbs N·m kgf·m ft-lbs N·m kgf·m ft-lbs N·m kgf·m ft-lbs N·m kgf·m ft-lbs

7.84

0.80

5.79

7.84

0.80

5.79

9.81

1.00

to

9.31

17.7
to

20.5

39.2
to

45.0

62.8
to

72.5

108

to

125

167

to

191
245

to

284
334

to

392

to

0.95

1.8
to

2.1

4.0
to

4.6

6.4
to

7.4

11.0
to

12.8

17.0
to

19.5

25.0
to

29.0

34.0
to

40.0

to

6.87

13.0
to

15.2

29.0
to

33.2

46.3
to

53.5

79.
to

92.

123

to

141
181

to

210
246

to

289

to

to

8.83

0.90

16.7

19.6

31.4

34.3

6

5

1.7

to

to

2.0

3.2

to

to

3.5

–––

–––

–––

–––

–––

to

6.51

12.3
to

14.5

23.1
to

25.3

to

11.2

23.6
to

27.4

48.1
to

55.8

77.5
to

90.1

124

to

147
196

to

225
275

to

318
368

to

431

to

1.15

2.4
to

2.8

4.9
to

5.7

7.9
to

9.2

12.6
to

15.0

20.0
to

23.0

28.0
to

32.5

37.5
to

44.0

7.24
to

8.32

17.4
to

20.2

35.5
to

41.2

57.2
to

66.5

91.2
to

108
145

to

166
203

to

235
272

to

318

7.84

0.80
to

0.90

1.8
to

2.1

4.0
to

4.5

6.4
to

7.4

5.79
to

6.51

13.0
to

15.2

28.9
to

32.5

46.3
to

53.5

–

to

8.83

17.7
to

20.6

39.2
to

44.1

62.8
to

72.5

–––

–––

–––

––

12.3
to

14.2

29.4
to

34.3

60.8
to

70.5

103

to

117
167

to

196
260

to

303
343

to

401
49

to

568

SCr435,

SCM435

0

1.25
to

1.45

0

3.
to

5

3.

6.2
to

7.2

10.5
to

12.0

17.0
to

20.0

26.5
to

31.0

35.0
to

41.0

50.0
to

58.0

W1034542

9.05
to

10.5

21.7
to

25.3

44.9
to

52.1

76.0
to

86.8

123

to

144
192

to

224
254

to

297
362

to

420

[2] STUD BOLTS

Material of opponent

part

Unit
Diameter

M8

(8 mm, 0.31 in.)

M10

(10 mm, 0.39 in.)

M12

(12 mm, 0.47 in.)

Ordinariness Aluminum

N·m kgf·m ft-lbs N·m kgf·m ft-lbs

11.8
to

15.6

24.6
to

31.3

29.5
to

49.0

1.2
to

1.6

2.5
to

3.2

3.0
to

5.0

8.68

8.82

to

to

11.5

11.8

18.1

19.7

to

to

23.1

25.4

21.7
to

31.4 3.2 23.1

36.1

0.90
to

1.2

2.0
to

2.6

6.51
to

8.67

14.5
to

18.8

W1048139

G-13

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

7. MAINTENANCE

G GENERAL

Period

No.

Item

1 Engine oil Change +, G-16
2 Engine oil filter Replace +, G-16
3 Fuel filter Replace , @G-27
4 Front differential case oil Change +, G-29
5 Hydraulic oil filter Replace +, G-17
6 Front axle gear case oil Change +, G-29
7 Water separator Clean , G-27
8 Engine start system Check , G-19

9 Wheel bolt torque Check , G-21
10 Greasing – , G-24
11 Battery condition Check , G-21

Primary

Air cleaner element

12

[Double type]

Air cleaner

13

[Oil bath type]

14 Fan belt Adjust , G-23
15 Clutch Adjust +, G-18
16 Brake Adjust , G-23

17 Radiator hose and clamp

18

Power steering oil line

19 Fuel line
20 Toe-in Adjust , G-26

21 Greasing (2WD front wheel hub) – , G-26
22 Transmission fluid Change +, G-17

23 Intake air line
24 Front axle pivot Adjust , G-29

25 Engine valve clearance Adjust , 1-S19

Fuel injection nozzle injection

26

pressure
27 Injection pump Check , @1-S67
28 Cooling system Flush , G-30, 31
29 Coolant Change , G-30, 31
30 Fuel system Bleed
31 Clutch housing water Drain G-32
32 Fuse Replace G-33
33 Light bulb Replace G-33

element
Secondary

element
Oil
Element

Clean , *
Replace , ** G-22

Replace , G-22
Check , G-18

Clean , G-28

Check , G-25
Replace , G­Check , G-25
Replace , G-25
Check ,
Replace , G-25

Check ,
Replace , *** –

Check , @1-S68

50 100 200 300 400 600 800 1500 3000

Indication on hour meter

After

purchase

1

year2 years

Service as

required

Important

@

@

@

Reference

page

G-22

25

G-25

–

G-32

IMPORTANTQ

• The jobs indicated by + must be done after the first 50 hours of operation.

• * : Air cleaner should be cleaned more often in dusty conditions than in normal conditions.

• ** : Every year or every 6 times of cleaning.

• *** : Replace only if necessary.

• The items listed above (@ marked) are registered as emission related critical parts by KUBOTA in the U.S.EPA nonroad emission
regulation. As the engine owner, you are responsible for the perfo rmance of the required maintenance on the eng ine according t o
the above instruction.
Please see the Warranty Statement in detail.

W1035769

G-14

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

8. CHECK AND MAINTENANCE

CAUTION

• Be sure to check and service the tractor on a flat plac e with engine shut off, the parking brake on and chock
the wheels.

[1] DAILY CHECK

To prevent trouble from occurrin g, it is important to know th e condition of the tracto r. Check the following ite ms

before starting.

Checking

• Check areas where previous trouble was experienced.

• Walk around the tractor.

1. Check the tire pressure, and check for wear and damage.

2. Check for oil and water leaks.

3. Check the engine oil level.

4. Check the transmission fluid level.

5. Check the coolant level.

6. Check the condition of ROPS attaching hardware.

7. Check and clean the radiator screen and grill.

8. Check the bolts and nuts of the tires are tight.

9. Check the number plate or SMV emblem for damage and cleaner replace as necessary if equipped.

10.Care of danger, warning and caution labels.

11.Clean around the exhaust manifold and the muffler of the engine.

• While sitting in the operator’s seat.

1. Check the throttle pedal, brake pedals and clutch pedal.

2. Check the parking brake.

3. Check the steering wheel.

• Turning the key switch.

1. Check the performance of the Easy Checker lights.

2. Check head lights, tail lights and hazard light.
Clean if necessary.

3. Check the performance of the meters and gauges.

• Starting the engine.

1. Check to see that the lights on the Easy Checker go off.

2. Check the color of the exhaust.

3. Check the brakes for proper operation.

G-15

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

[2] CHECK POINTS OF INITIAL 50 HOURS

Changing Engine Oil

CAUTION

• Before changing oil, be sure to stop the engine.

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

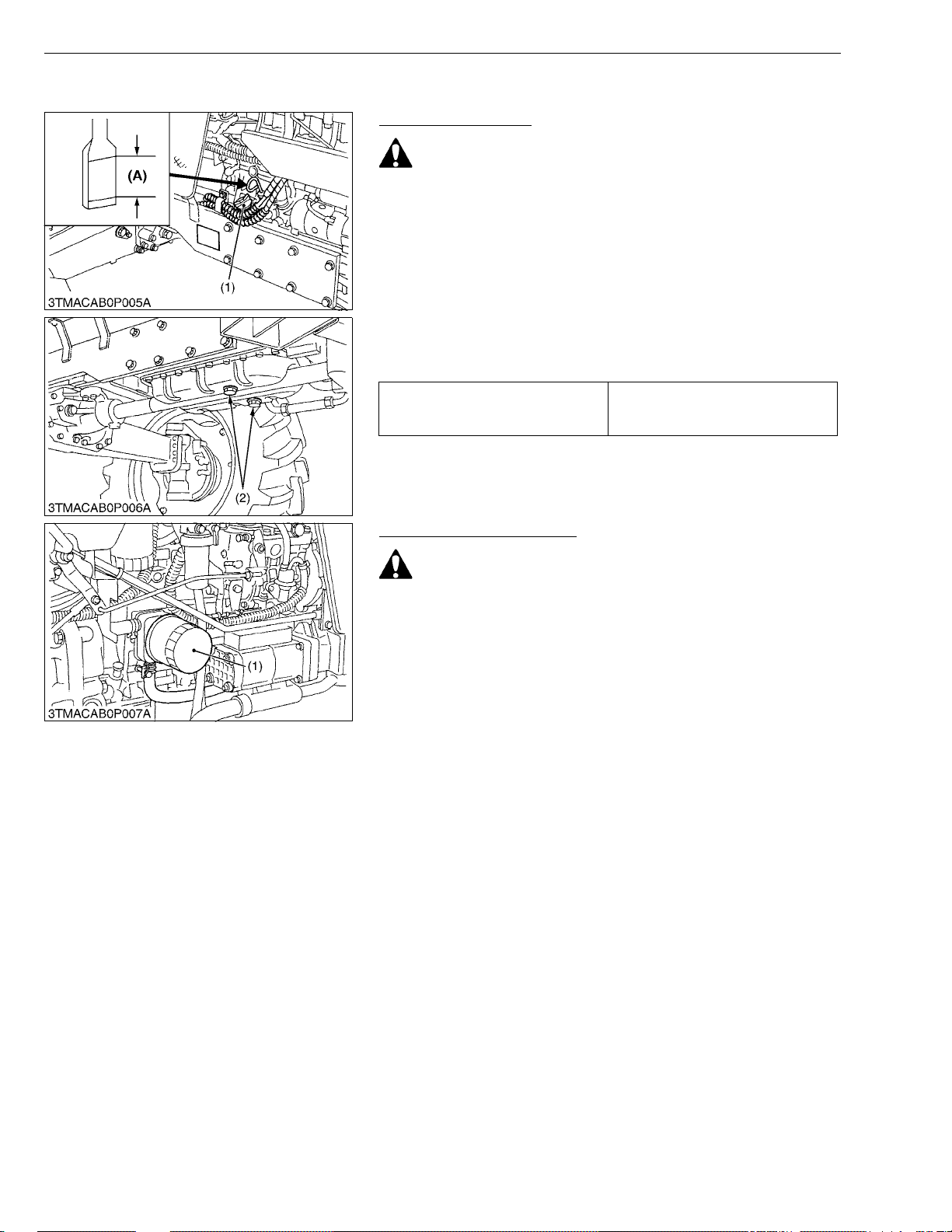

1. To drain the used oil, remove the drain plugs (2) at the b ottom of
the engine and drain the oil completely into the oil pan.
All the used oil can be drained out easily when the e ngine is still
warm.

2. After draining reinstall the drain plugs (2).

3. Fill with the new oil up to the upper notch on the dipstick.
(See “5. LUBRICANTS, FUEL AND COOLANT” at GENERAL
Section.)

Oil capacity with filter

G GENERAL

10.7 L

11.3 U.S.qts.

9.4 Imp.qts.

(1) Oil Inlet
(2) Drain Plugs

(A) Oil level is acceptable within this

range.

W1021565

Replacing Engine Oil Filter

CAUTION

• Be sure to stop the engine before changing oil filter
cartridge.

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

1. Remove the oil filter (1).

2. Put a film of clean engine oil on rubber seal of new filter.

3. Tighten the filter quickly until it contacts the mounting surface.
Tighten filter by hand an additional 1/2 turn only.

4. After the new filter has been replaced, the engine oil normally
decreases a little. Make sure that the engine oil does not leak
through the seal and be sure to check the oil level on the dipstick.
Then, replenish the engine oil up to the prescribed level.

IMPORTANTQ

• To prevent serious damage to the engine, use only a
KUBOTA genuine filter.

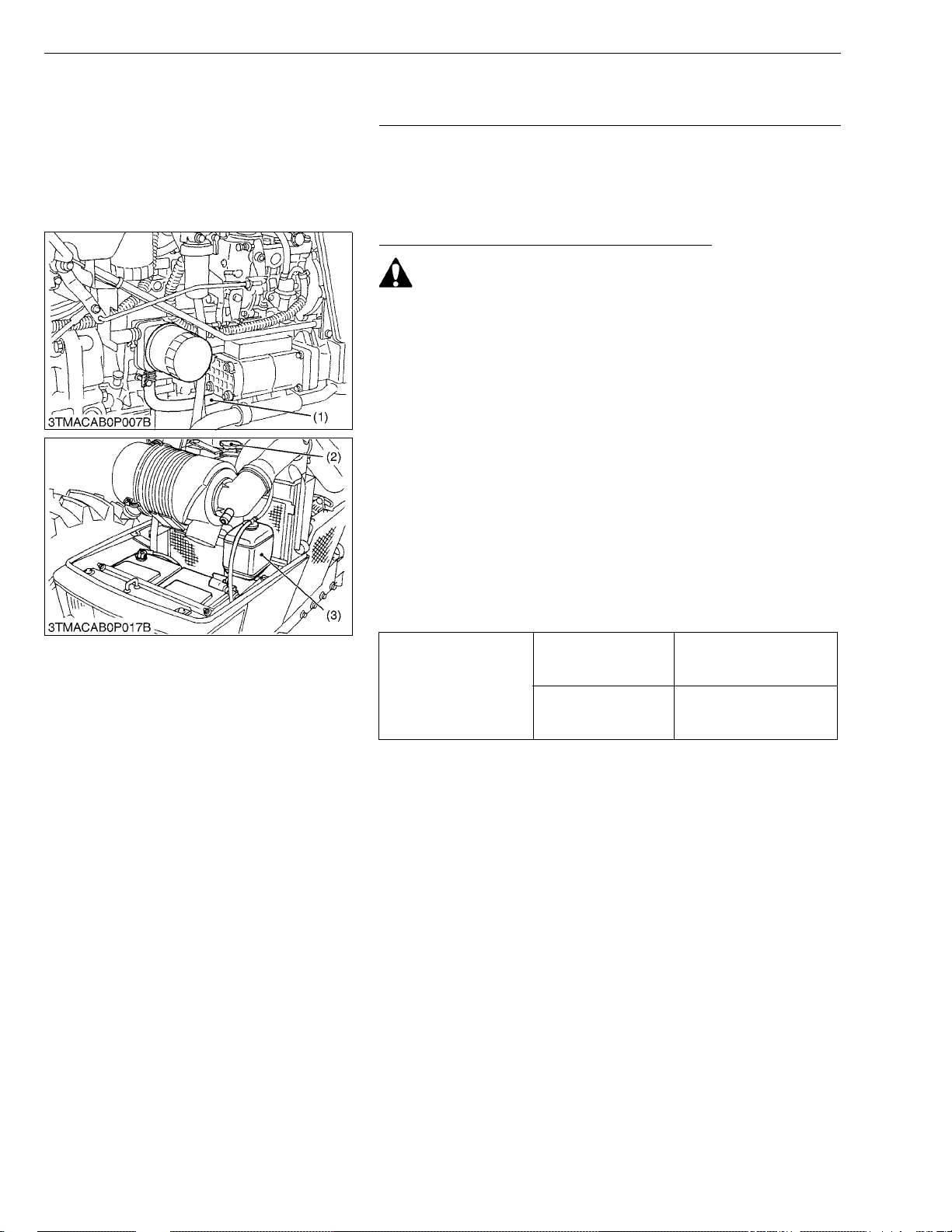

(1) Engine Oil Filter

W1021852

G-16

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

Replacing Hydraulic Oil FIlter

CAUTION

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

1. Remove the drain plug at the bottom of the transmission case
and drain the oil completely into the oil pan.

2. After draining reinstall the drain plug.

3. Remove the two oil filters (1).

4. Clean off metal fillings with clean rags at the magnetic filters (2).

5. Put a film of clean transmission fluid on rubber seal of new filters.

6. Tighten the filter quickly until it contacts the mounting surface.
Tighten filter by hand and additional 1/2 turn only.

7. After the new filter has been replaced, fill with the oil up to the
upper notch on the dipstick (3).

8. After running the engine for a few minutes, stop it and check the
oil level again, add oil to the prescribed level.

9. Make sure that the transmission fluid doesn’t leak through the
seal.

IMPORTANTQ

• To prevent serious damage to the hydraulic system, use
only a KUBOTA genuine filter.

(1) Hydraulic Oil Filter
(2) Magnetic Filter (Clean off Metal

Fillings)
(3) Dipstick
(4) Oil Filling Plug

(A) Oil level is acceptable within this

range.

W1022033

Changing Transmission Fluid

CAUTION

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

1. To drain the used oil, remove the drain plug (1) at the bottom of
the transmission case and drain the oil completely into the oil
pan.

2. After draining reinstall the drain plug.

3. Fill with the new KUBOTA SUPER UDT fluid up to the upper
notch on the dipstick (2).

4. (See “5. LUBRICANTS, FUEL AND COOLANT” at GENERAL
Section.)

5. After running the engine for a few minutes, stop it and check the
oil level again; add oil to prescribed level.

42 L

45.4 U.S.qts.

37.8 Imp.qts.
54 L

57.0 U.S.qts.

47.5 Imp.qts.

W1022400

Oil capacity

(1) Drain Plug
(2) Dipstick
(3) Oil Inlet

M6800(S)

M8200
M9000

(A) Oil level is acceptable within the

range.

G-17

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

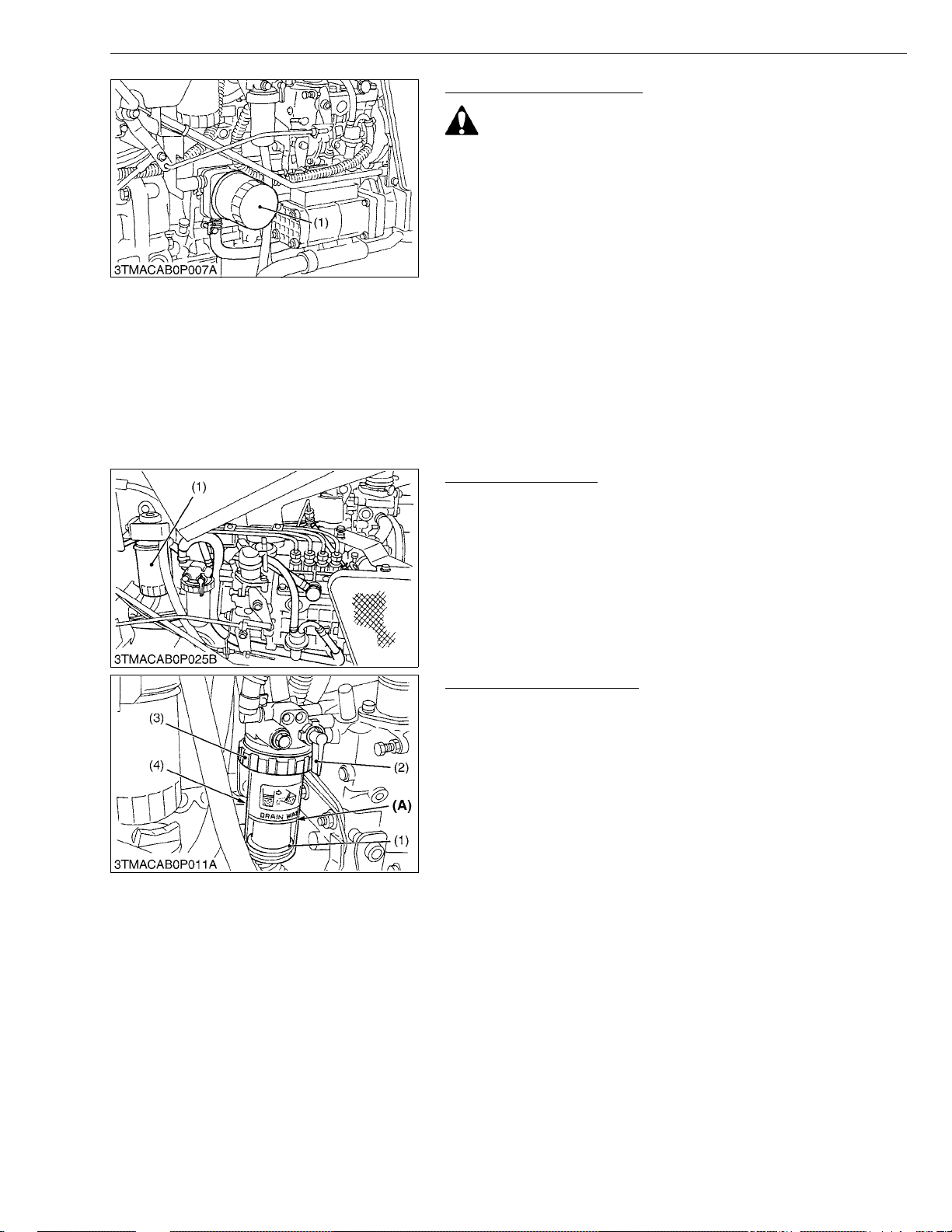

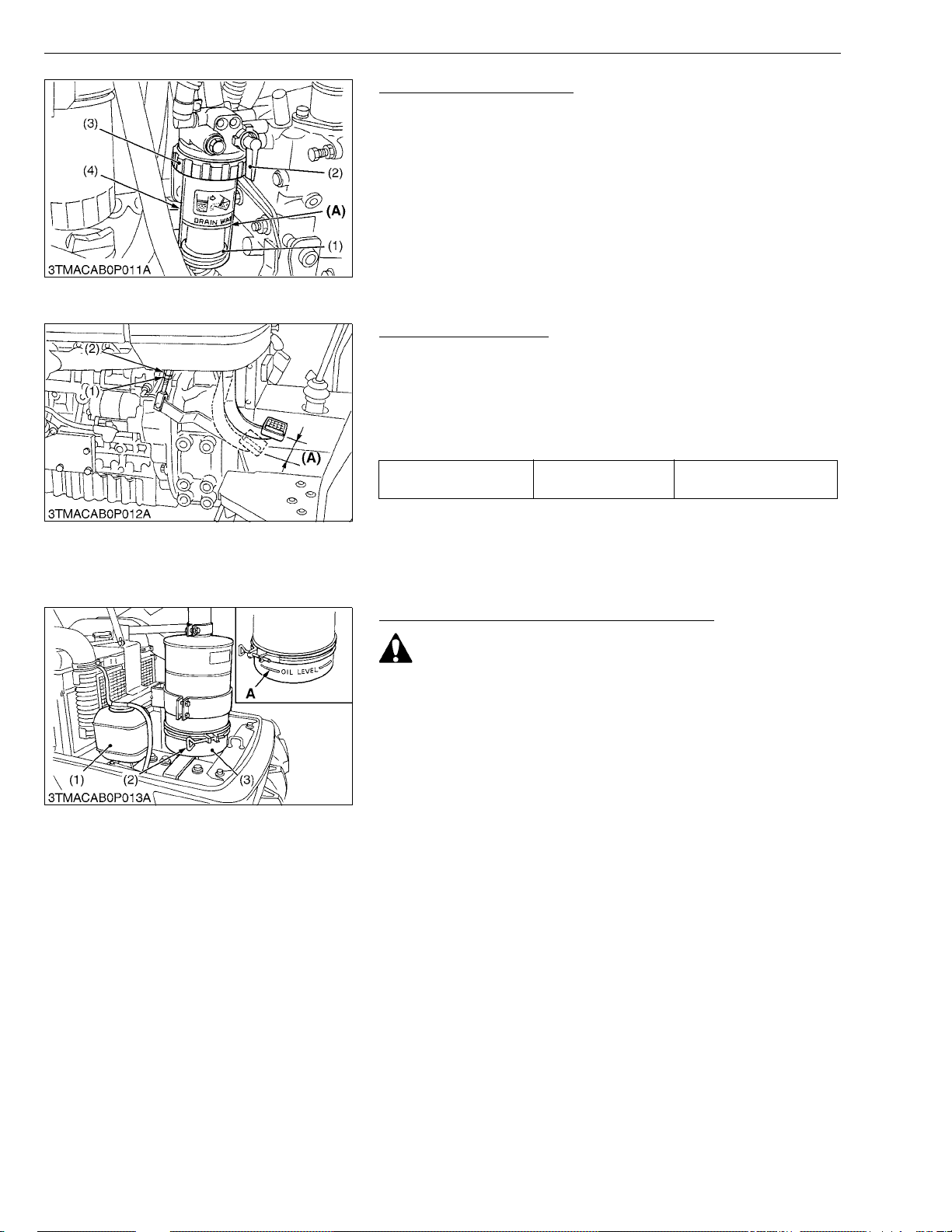

Checking Water Separator

1. As water is collected in the water separator, the red float (1) is
raised.

2. When the red float (1) has reached th e white lin e le vel, close th e
fuel cock (2), loosen the retainer ring (3), and take out and empty
the cup (4). Be careful not to break the element.

3. Place the cup back into position. Vent air out of the fuel system.
(See “SERVICE AS REQUIRED” in periodic service section.)

(1) Red Float
(2) Fuel Cock
(3) Retainer Ring
(4) Cup

(A) “WHITE LINE”

W1022648

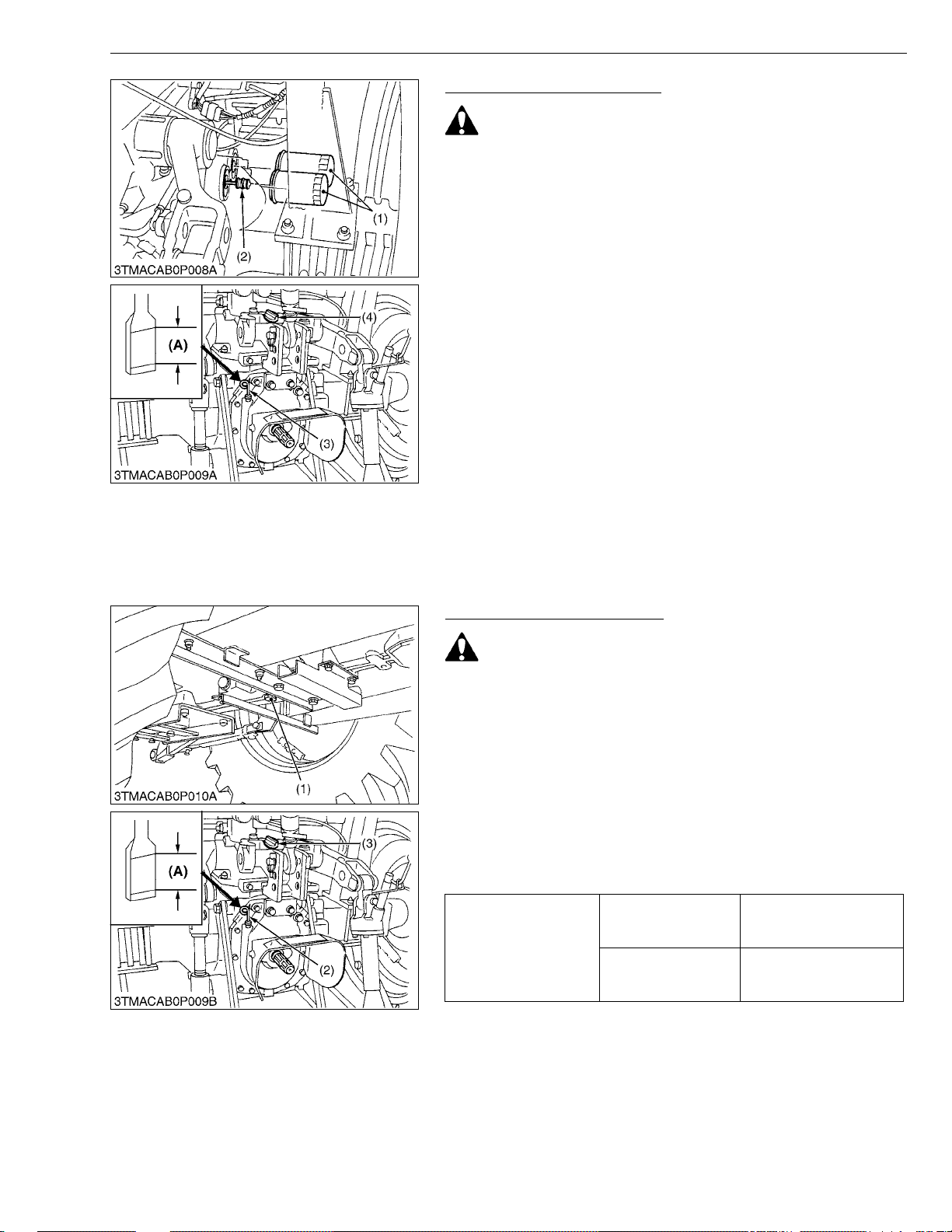

Adjusting Clutch Pedal

1. Stop the engine and remove the key.

2. Slightly depress the clutch pedal and measure free travel at top
of pedal stroke.

3. If adjustment is needed, loosen the lock nut (1) and turn the
turnbuckle (2) to adjust the rod length within acceptab le limit s.

4. Retighten the lock nut (1).

Proper clutch pedal Free travel

35 to 45 mm (1.4 to 1.8
in.) on the pedal

(1) Lock Nut
(2) Turnbuckle

[3] CHECK POINTS OF EVERY 50 HOURS

Checking Air Cleaner Oil Level (Oil bath type)

CAUTION

• Be sure to stop the engine before checking the oil level.

1. Park the machine on a flat surface.

2. Check air cleaner oil before starting the engine or 15 minutes or
more after the engine has stopped.

3. Pull out the recovery tank assembly (1).

4. To check the oil level, unscrew the clamp screw (2) and remove
the oil pan (3).
Check the see that the oil level is just “OIL LEVEL” mark on the
oil pan.
If the level is too low, add new oil to the prescribed level.

5. If the oil contains impurities, or sediments are deposited nearly
12 mm (0.5 in.) thick on the bottom of oil pan, clean the oil pan
and change the oil.

IMPORTANTQ

• The clamp screw is surely tightened so that oil should not
leak when the oil pan is attached.

(1) Recovery Tank Assembly
(2) Clamp Screw
(3) Oil Pan

(A) Free Travel

W1022869

A : “OIL LEVEL”

W1075390

G-18

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

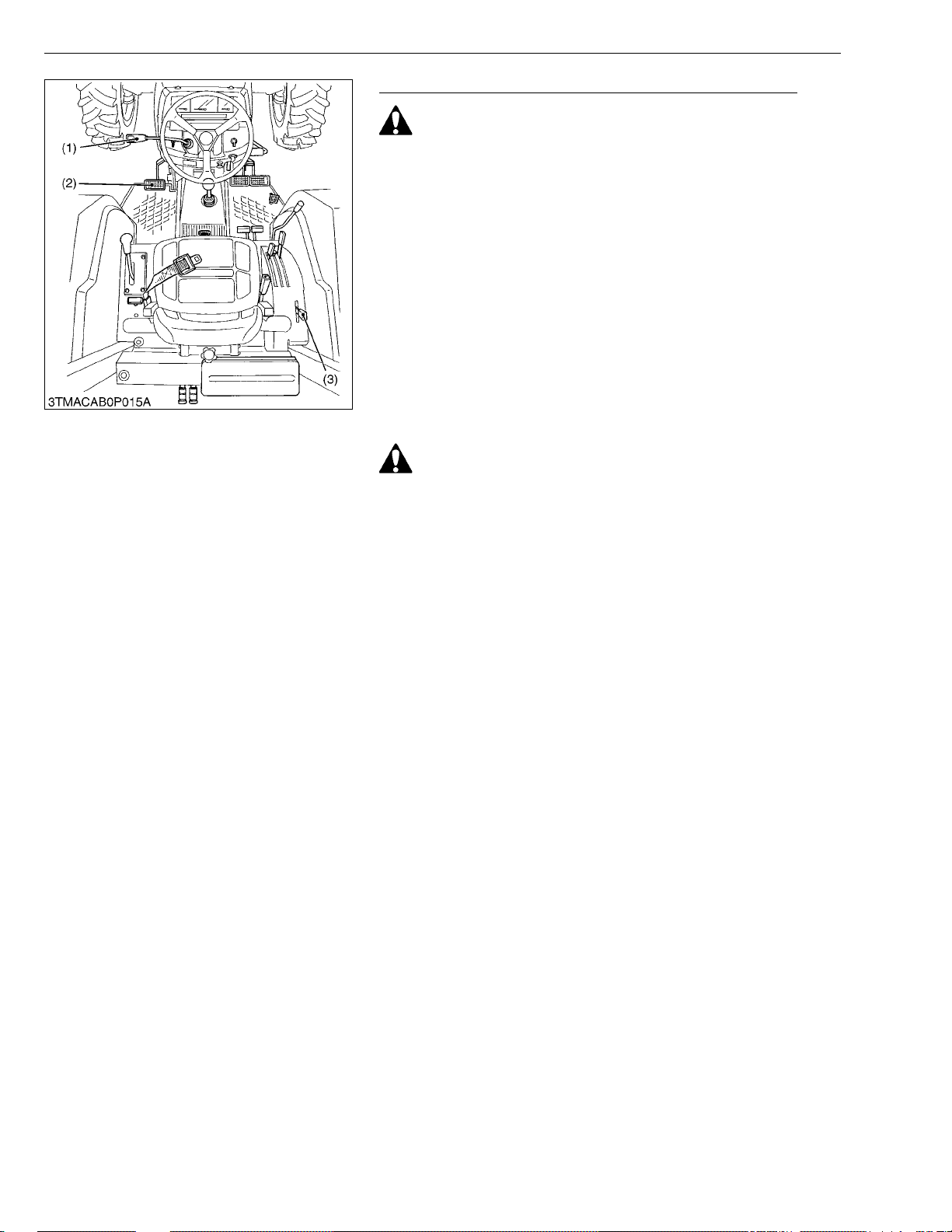

Checking Engine Start System [M6800]

CAUTION

• Do not allow anyone near the tractor while testing.

• If the tractor does not pass the test, do not operate the
tractor.

Q Preparation before testing

1. Place all control levers in the “NEUTRAL” position.

2. Set the parking brake and stop the engine.

Q Test 1 : Switch for the range gear shift lever.

1. Sit on operator’s seat.

2. Shift the range gear shift lever (1) to the desired position.

3. Depress the clutch pedal (2) fully.

4. Disengage the PTO clutch control lever (3).

5. Pull out the engine stop knob and turn the key to “START”
position.

6. The engine must not crank.

7. If it cranks, inspect the safety switch.

Q Test 2 : Switch for the PTO clutch control lever.

WARNING

• Disconnect the implement drive universal joint from the PTO
shaft, if the implement has mounted.

1. Sit on operator’s seat.

2. Engage the PTO clutch control lever (3).

3. Depress the clutch pedal (2) fully.

4. Shift the range gear shift lever (1) to the neutral position.

5. Pull out the engine stop knob and turn the key to “START”
position.

6. The engine must not crank.

7. If it cranks, inspect the safety switch.

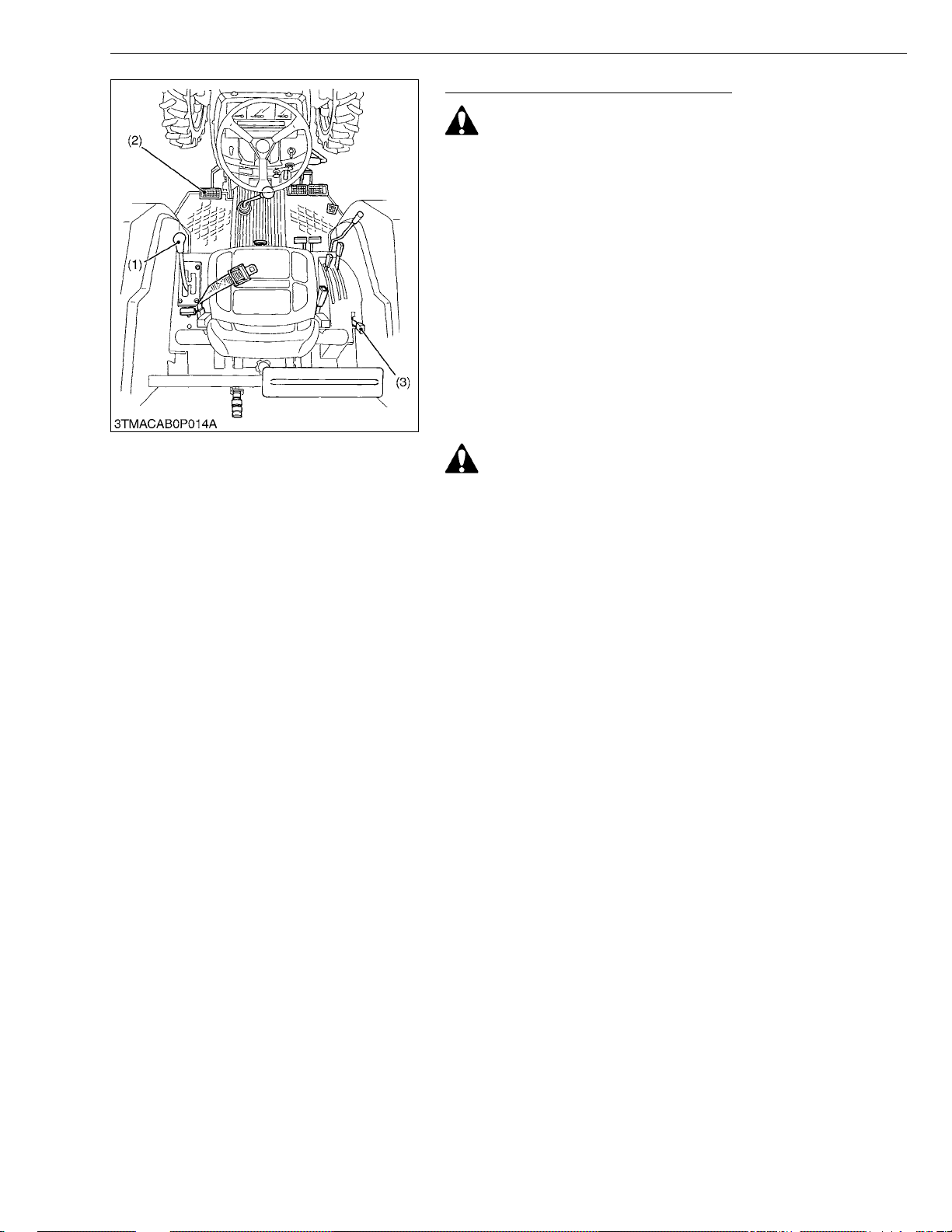

(1) Range Gear Shift Lever
(2) Clutch Pedal

(3) PTO Clutch Control Lever

W1023076

G-19

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

Checking Engine Start System [M6800S · M8200 · M9000]

CAUTION

• Do not allow anyone near the tractor while testing.

• If the tractor does not pass the test, do not operate the
tractor.

Q Preparation before testing

1. Place all control levers in the “NEUTRAL” position.

2. Set the parking brake and stop the engine.

Q Test 1 : Switch for the shuttle shift lever.

1. Sit on operator’s seat.

2. Shift the shuttle shift lever (1) to the desired position.

3. Depress the clutch pedal (2) fully.

4. Disengage the PTO clutch control lever (3).

5. Pull out the engine stop knob and turn the key to “START”
position.

6. The engine must not crank.

7. If it cranks, inspect the safety switch.

Q Test 2 : Switch for the PTO clutch control lever.

WARNING

• Disconnect the implement drive universal joint f rom the PTO
shaft, if the implement has mounted.

1. Sit on operator’s seat.

2. Engage the PTO clutch control lever (3).

3. Depress the clutch pedal (2) fully.

4. Shift the shuttle shift lever (1) to the neutral position.

5. Pull out the engine stop knob and turn the key to “START”
position.

6. The engine must not crank.

7. If it cranks, inspect the safety switch.

Q Test 3 : Checking Operator Presence Control (OPC) System

1. Sit on the seat.

2. Turn the key to “ON” position.

3. Shift the PTO lever to “ON”.
Make sure the warning buzzer does not whistle.
If the buzzer whistles while sitting on the seat, check the parts
which compose the PTO safety switch.

4. Stand up from the seat.

5. The warning buzzer whistles about one second after sta nding up.
It whistles for 10 seconds.
If the buzzer does not whistle, check the corresponding parts.
(Refer to “9. ELECTRICAL SYSTEM”.)

(1) Shuttle Shift Lever
(2) Clutch Pedal

(3) PTO Clutch Control Lever

W1062967

G-20

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

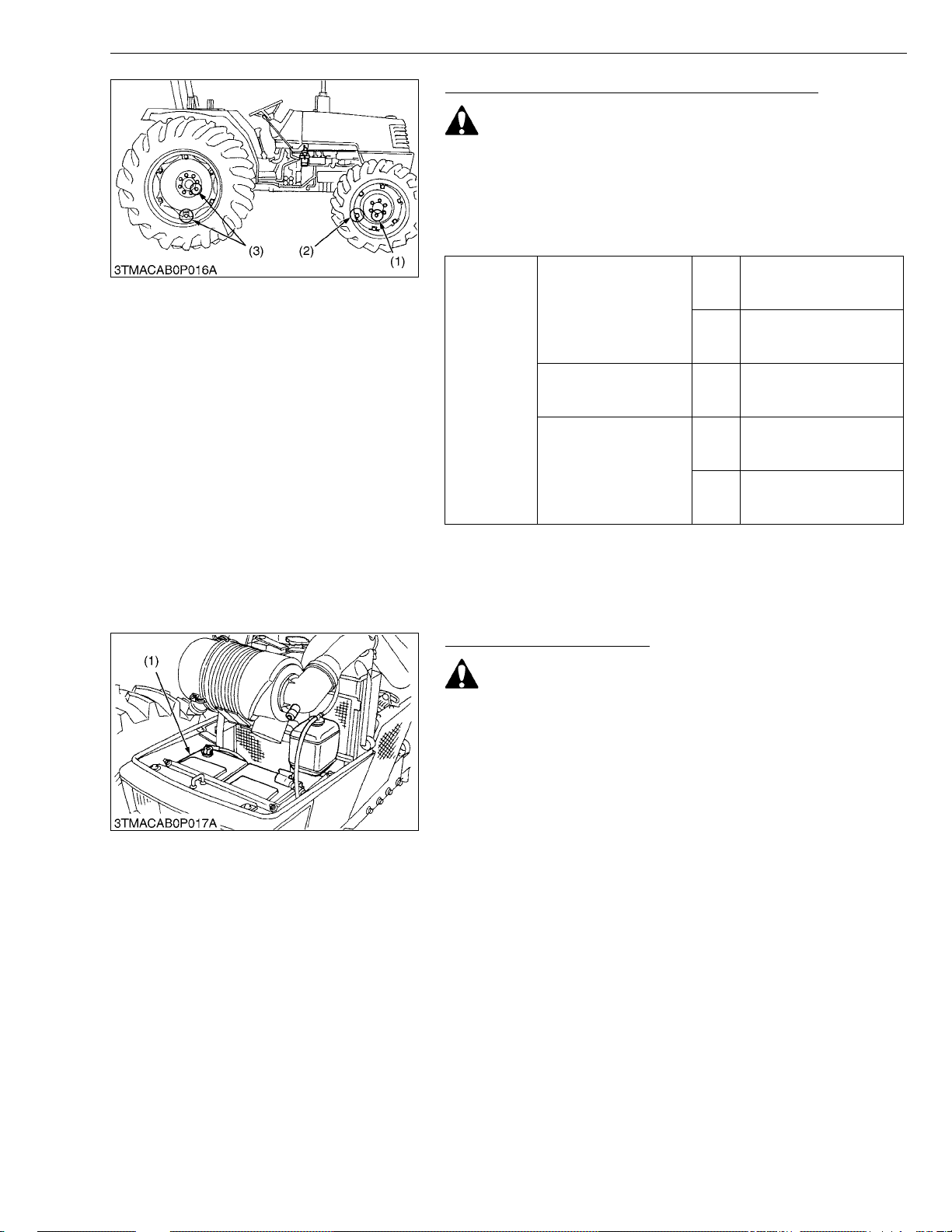

Checking Wheel Mounting Nuts Tightening Torque

CAUTION

• Never operate tractor with a loose rim, wheel, or axle.

• Any time bolts and nuts are loosened, retighten to specif ied
torque.

• Check all bolts and nuts frequently and keep them tight.

1. Check the wheel mounting nuts regularly especially when new.
If there are loosened, tighten as follows.

168 to 296 N·m

17.1 to 20.0 kgf·m

123.7 to 144.7 ft-lbs

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 ft-lbs

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 ft-lbs

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 ft-lbs

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 ft-lbs

Tightening
torque

2WD

Front wheel mounting
nut

4WD

Front disc mounting nut 4WD

Rear wheel mounting
nut and rear disc
mounting nut

2WD

4WD

(1) Front Wheel Mounting Nut
(2) Front Disc Mounting Nut

[4] CHECK POINTS OF EVERY 100 HOURS

Checking Battery Condition

CAUTION

• Never remove the vent plugs while the engine is running.

• Keep electrolyte away from eyes, hands and clothes. If you
are spattered with it, wash it away completely with water
immediately and get medical attention.

• Keep open sparks and flames away from the battery at all
times. Hydrogen gas mixed with oxygen becomes very
explosive.

• Wear eye protection and rubber gloves when working
around battery.

1. The original battery is maintenance free type battery.
When the performance becomes low, inspect the battery.

2. Clean the battery surface with a clean cloth.
Keep the terminals clean and coated with petroleum jelly.

(1) Battery

(3) Rear Wheel Mounting Nut and Rear

Disc Mounting Nut

W1023970

W1024321

G-21

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

Directions for Storage

CAUTION

• When connecting the battery, do not reverse the polarities.
Connection with reverse polarities will cause spark and
troubles to the battery and electrical system in the tractor.

• When disconnecting the cable from the battery, start with
the negative terminal first.

• When connecting the cable to the battery, start with the
positive terminal first.

• Reversing the steps may cause shortcircuiting, should a
metallic tool touch the terminals.

• When storing the tractor for long periods of time , remove the
battery from the tractor and store in a cool, dry place.

W1024462

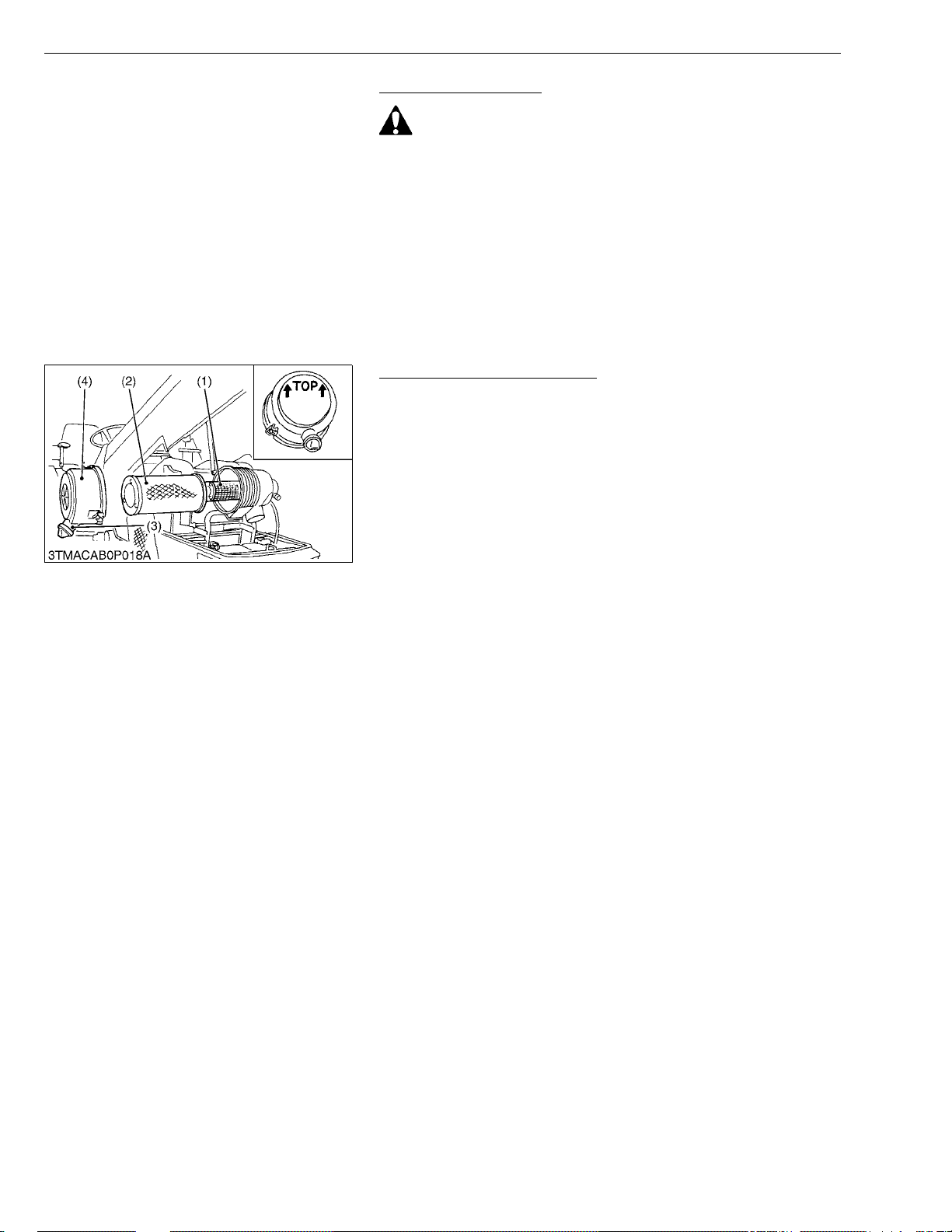

Cleaning Air Cleaner Element

1. Remove the air cleaner cover (4) and primary element (2).

2. Clean the primary element if:

- When dry dust adheres to the element, blow compressed air

from the inside turning the element. Pressure of compressed

2

air must be under 205 kPa (2.1 kgf/cm

, 30 psi).

- When carbon or oil adheres to the element, soak the element

in detergent for 15 minutes then wash it several times in water,
rinse with clean water and dry it naturally. After element is fully
dried, inspect inside of the element with a light and check if it is
damaged or not.

3. When replacing the air cleaner primary element (2), replace the
secondary element (1) as well :
Once a year or after every six times of cleaning, whichever
comes first.

IMPORTANTQ

• The air cleaner uses a dry element, never apply oil.

• Do not run the engine with filter element removed.

• Be sure to refit the dust cup with the arrow ↑ (on the rear of
cup) upright. If the dust cup is improperly fitted, evacuator
valve will not function and dust will adhere to the element.

• Do not touch the secondary element except in cases where
replacing is required.

Q Evacuator Valve

Open evacuator valve once a week under ordinary conditions or

daily when used in a dusty place to get rid of large particles of dust
and dirt.

(1) Secondary (Safety) Element
(2) Primary Element

(3) Evacuator Valve
(4) Cover

W1024610

G-22

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

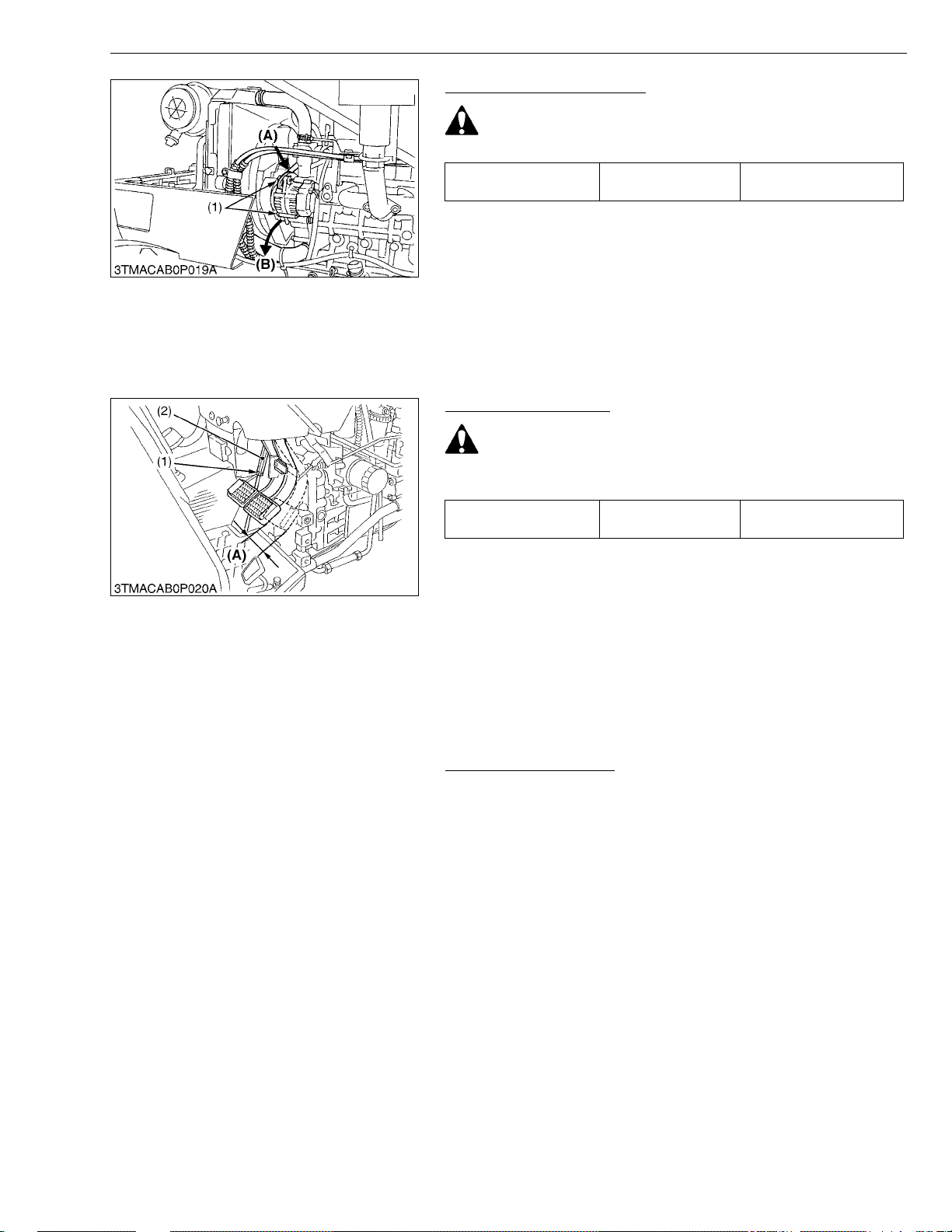

Adjusting Fan Belt Tension

CAUTION

• Be sure to stop the engine before checking belt tension.

Belt tension Factory spec.

10 to 12 mm

0.39 to 0.47 in.

1. Stop the engine and remove the key.

2. Apply moderate thumb pressure to belt between pulleys.

3. If tension is incorrect, loosen the alternator mounting bolts and,
using a lever placed between the alternator and the e ngine block,
pull the alternator out until the deflection of the belt falls within
acceptable limits.

4. Replace fan belt if it is damaged.

(1) Bolt (A) Check the belt tension

(B) To tighten

W1024843

Adjusting Brake Pedal

CAUTION

• Stop the engine and chock the wheels before checking
brake pedal.

Brake pedal free travel Factory spec.

40 to 45 mm

1.6 to 1.8 in.

1. Release the parking brake.

2. Slightly depress the brake pedals and measure free travel at top
of pedal stroke.

3. If adjustment is needed, loosen the lock nut and turn the
turnbuckle to adjust the rod length within acceptable limits.

4. Retighten the lock nut.

IMPORTANTQ

• Keep the free travel in the right and left brake pedals equal.

(1) Lock Nut
(2) Turnbuckle

(A) Free Travel

W1025046

Adjusting Clutch Pedal

• See page G-18.

W1025213

G-23

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

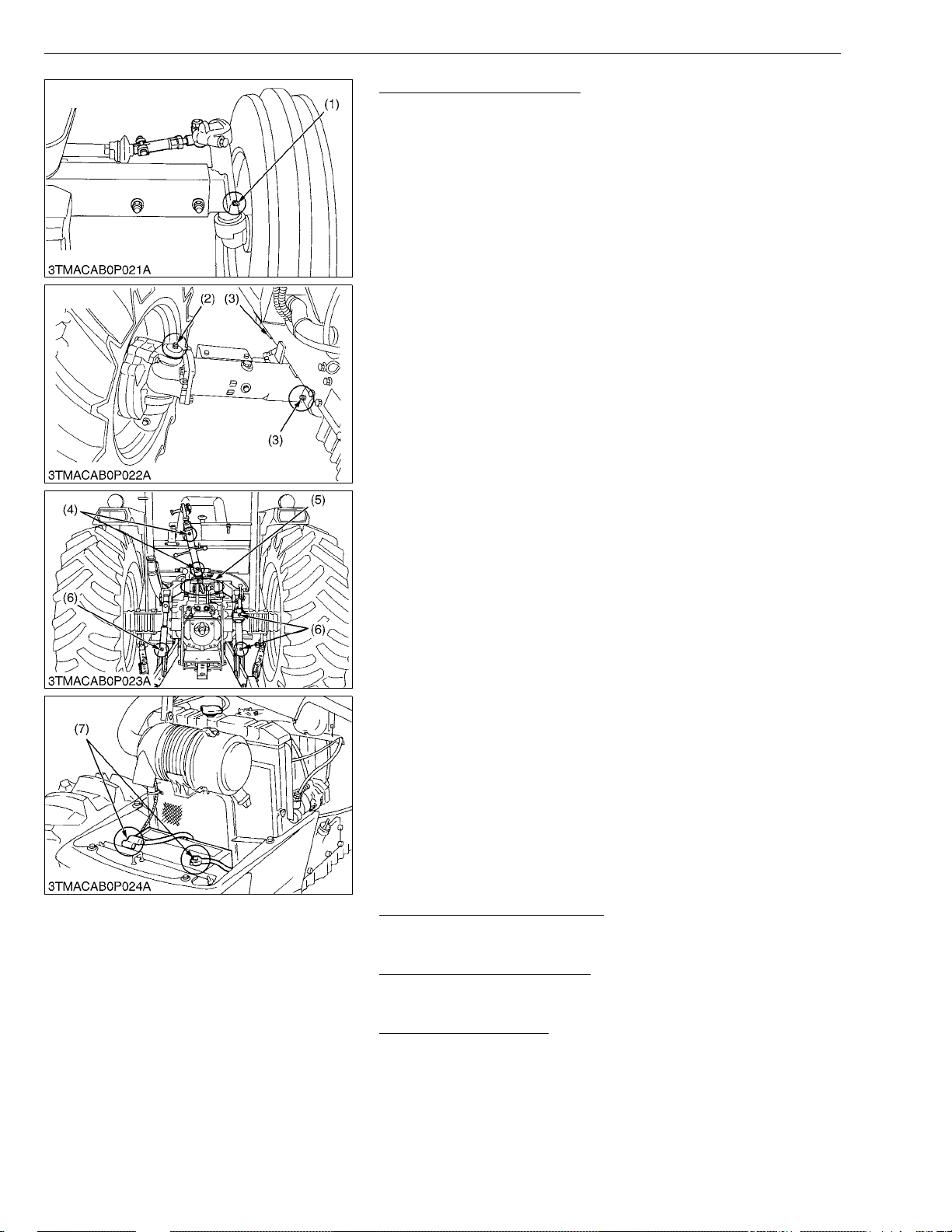

Lubricating Grease Fittings

1. Apply a small amount of multipurpose grease to following points
every 100 hours :

2. If you operated the machine in extremely wet and muddy
condition, lubricate grease fittings more often.

(1) Grease Fitting (Knuckle Shaft)

[RH, LH]

(2) Grease Fitting (Front Wheel Case

Support) [RH, LH]

(3) Grease Fitting (Front Axle Support)

(4) Grease Fitting (Top Link)
(5) Grease Fitting (Top Link Bracket)
(6) Grease Fitting (Lifting Rod) [RH, LH]
(7) Battery Terminals

W1025259

Checking Engine Start System

• See page G-19.

W1025522

Checking Wheel Bolt Torque

• See page G-21.

W1025583

Adjusting Clutch Pedal

• See page G-18.

W1025628

G-24

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

[5] CHECK POINTS OF EVERY 200 HOURS

Changing Engine Oil

• See page G-16.

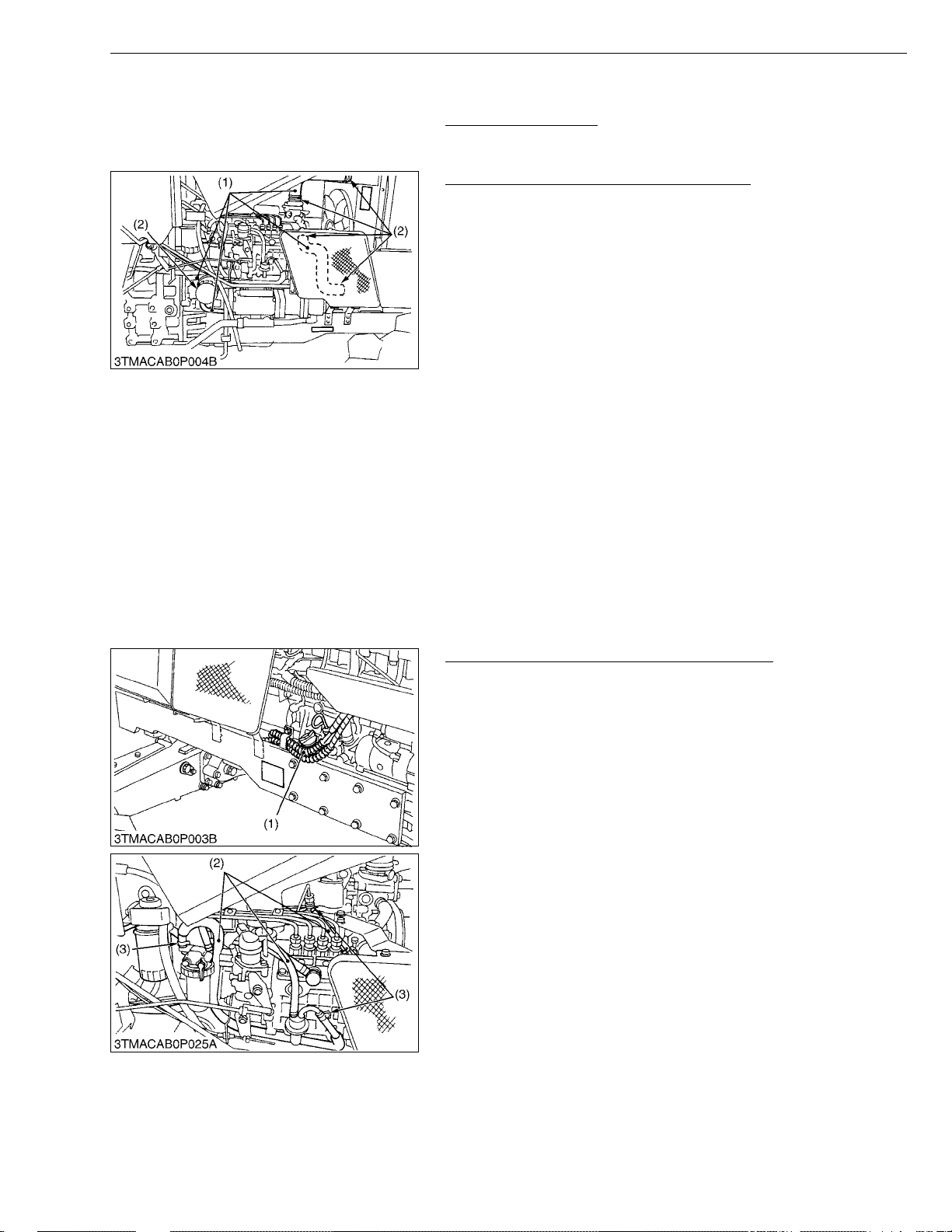

Checking Radiator Hose and Hose Clamp

Check to see if radiator hoses are properly fixed every 200 hours

of operation or six months, whichever comes first.

1. If hose clamps (2) are loose or water leaks, tighten bands (2)
securely.

2. Replace hoses (1) and tighten hose clamps (2) securely, if
radiator hoses (1) are swollen, hardened or cracked.
Replace hoses and hose clamps every 2 years or earlier if
checked and found that hoses are swollen, harden ed or cracked.

Q Precaution at Overheating

Take the following actions in the event the coolant temperature

be nearly or more than the boiling point, what is called
“Overheating”.

1. Stop the machine operation in a safe place and keep the engine
unloaded idling.

2. Don’t stop the engine suddenly, but stop it after about 5 minutes
of unloaded idling.

3. Keep yourself well away from the machine for further 10 minutes
or while the steam blown out.

4. Checking that there gets no danger such as burn, get rid of the
causes of overheating according to the manual, see “1.
TROUBLESHOOTING” at ENGINE Section, and then start
again the engine.

(1) Radiator Hose (2) Clamp

Checking Power Steering Line and Fuel Line

1. Check to see that all line and hose clamps are tight and not
damaged.

2. If hoses and clamps are found worn or damaged, replace or
repair them at once.

NOTEQ

• If the fuel line is removed, be sure to properly bleed the furl
system.
(See “Bleeding Fuel System” in as required maintenance.)

(1) Power Steering Hose
(2) Fuel Line

G GENERAL

W1025684

W1025730

(3) Clamp

W1025907

G-25

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

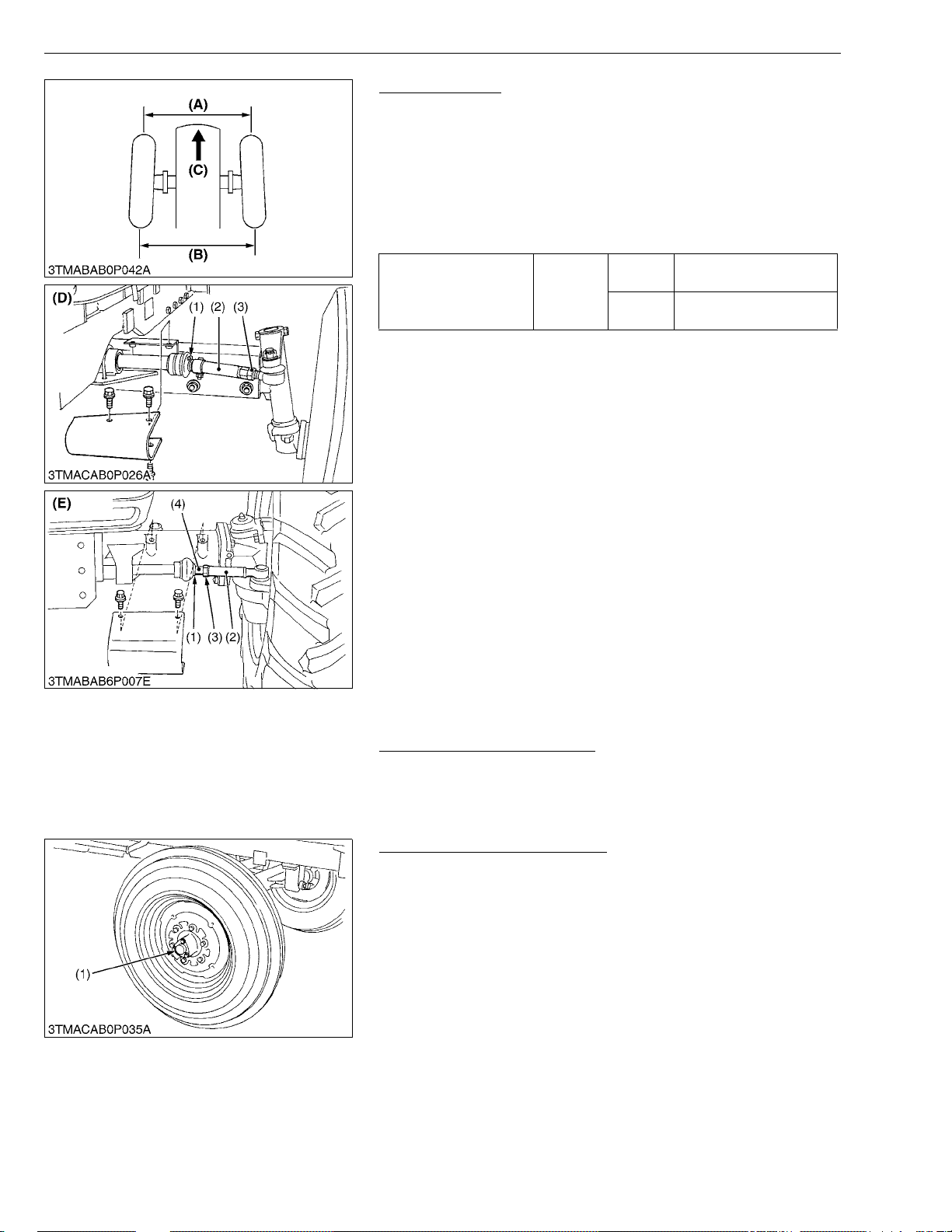

Adjusting Toe-in

1. Park tractor on a flat place.

2. Turn steering wheel so front wheels are in the straight ahead
position.

3. Lower the implement, lock the park brake and stop the engine.

4. Measure distance between tire beads at front of tire, hub height.

5. Measure distance between tire beads at rear of tire, hub height.

6. Front distance should be shorter than rear distance.

7. If not, adjust tie-rod length.

1.0 to 5.0 mm

0.04 to 0.20 in.

2.0 to 8.0 mm

0.08 to 0.31 in.

Toe-in (B–A)

Factory
spec.

2WD

4WD

Q Toe-in Adjustment

1. Detach the snap ring (1).

2. Loosen the tie-rod nut (3).

3. Turn the tie-rod joint (2) to adjust until the proper toe-in
measurement is obtained. (2WD)
Turn the rod end (4) to adjust until the proper toe-in measurement
is obtained. (4WD)

4. Retighten the tie-rod nut (3).

5. Attach the snap ring (1) of the tie-rod joint.

(1) Snap Ring
(2) Tie-rod Joint
(3) Tie-rod Nut
(4) Rod End

(A) Wheel-to-wheel distance at front
(B) Wheel-to-wheel distance at rear
(C) “FRONT”
(D) 2WD
(E) 4WD

W1026029

[6] CHECK POINTS OF EVERY 300 HOURS

Replacing Hydraulic Oil Filter

• See page G-17.

[7] CHECK POINTS OF EVERY 400 HOURS

Lubricate Grease Fitting (2WD)

1. Detach the front wheel hub cover (1), and apply bearing grease.

(1) Front Wheel Hub Cover

W1026536

W1027029

G-26

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

Replacing Engine Oil Filter

CAUTION

• Be sure to stop the engine before changing the oil filter
cartridge.

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

1. Remove the oil filter (1).

2. Put a film of clean engine oil on rubber seal of new filter.

3. Tighten the filter until it contacts the mounting surface. Tighten
filter by hand an additional 1/2 turn only.

4. After the new filter has been replaced, the engine oil normally
decreases a little. Make sure that the engine oil does not leak
through the seal and be sure to check the oil level on the dipstick.
Then, replenish the engine oil up to the prescribed level.

IMPORTANTQ

• To prevent serious damage to the engine, use only a
KUBOTA genuine filter.

(1) Engine Oil Filter

W1026591

Replacing Fuel Filter

1. Remove the fuel filter (1).

2. Put a film of clean fuel on rubber seal of new filter.

3. Tighten the filter until it contacts the mounting surface. Tighten
filter by hand an additional 1/2 turn only.

4. Bleed the fuel system.
(See “Bleeding Fuel System” in as required maintenance.)

(1) Fuel Filter

W1026760

Checking Water Separator

1. As water is collected in the water separator, the red float (1) is
raised.

2. When the red float has reached the white line level, close the fuel
cock (2), loosen the retainer ring (3), and take out and empty the
cup (4). Be careful not to break the element.

3. Place the cup (4) back into position. Vent air out of the fuel
system.
(See “SERVICE AS REQUIRED” in periodic service section.)

IMPORTANTQ

• If water is drawn through to the fuel pump, extensive
damage will occur.

(1) Red Float
(2) Fuel Cock
(3) Retaining Ring
(4) Cup

(A) “WHITE LINE”

W1026874

G-27

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

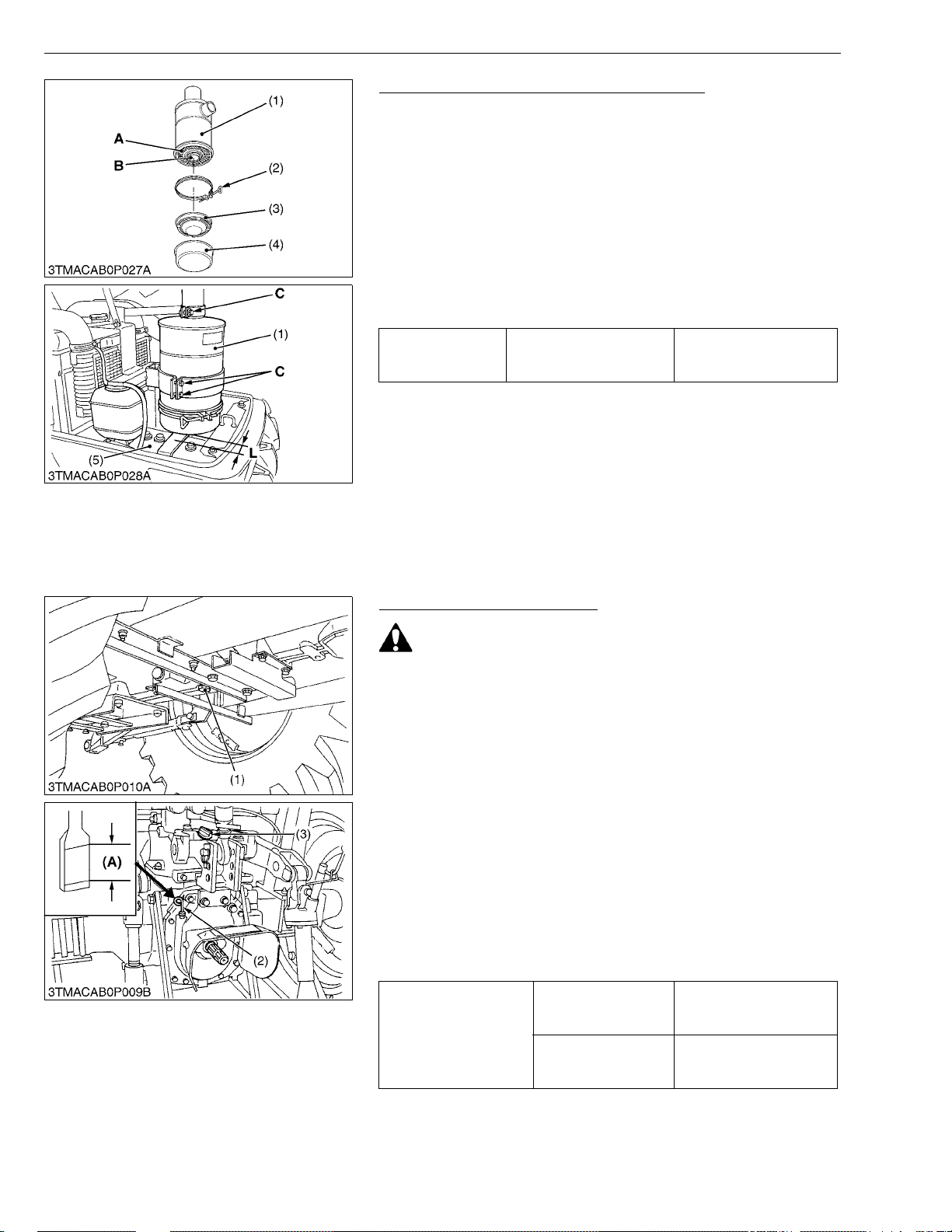

Cleaning Air Cleaner Element (Oil bath type)

1. Remove the air cleaner assembly.
Unscrew the clamp screw (2) and remove the oil pan (4).

2. Clean the element (A) and center tube (B) etc, with petroleum,
and inspect lower portion of body assembly and center tube (B)
for structural integrity.
Replace broken, cracked, or missing parts.

3. Before assembling, dry the air cleaner and moisten each part
with oil.

4. Add new oil to the prescribed level.

(When reassembling)

• Clearance (L) of the oil pan (4) secured.

• Tighten the each screw (C) are specified torque.

23.5 to 27.5 N·m

Tightening torque Screw (C)

2.4 to 2.8 kgf·m

17.3 to 20.2 ft-lbs

IMPORTANTQ

• To prevent serious damage to the engine, use only a
KUBOTA genuine pre-cleaner on the oil bath air cleaner.

(1) Air Cleaner
(2) Clamp Screw
(3) Inner Oil Pan
(4) Oil Pan
(5) Battery

A : Element
B : Center Tube
C : Screw
L : 38.0 mm (1.5 in.)

W1076788

[8] CHECK POINTS OF EVERY 600 HOURS

Changing Transmission Fluid

CAUTION

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

1. To drain the used oil, remove the drain plug (1) at the bottom of
the transmission case and drain the oil completely into the oil
pan.

2. After draining reinstall the drain plug (1).

3. Fill with the new KUBOTA SUPER UDT fluid up to the upper
notch on the dipstick (2).
(See “5. LUBRICANTS, FUEL AND COOLANT” at GENERAL
Section.)

4. After running the engine for a few minutes, stop it and check the
oil level again, add oil to prescribed level.

IMPORTANTQ

• Do not operate the tract or immediately after changing the
transmission fluid.

• Run the engine at medium speed for a few minutes to
prevent damage to the transmission.

Oil capacity

M6800(S)

M8200
M9000

43 L

45.4 U.S.qts.

37.8 Imp.qts.
54 L

57.0 U.S.qts.

47.5 Imp.qts.

(1) Drain Plug
(2) Dipstick
(3) Oil Inlet

G-28

(A) Oil level is acceptable within this

range.

W1027210

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

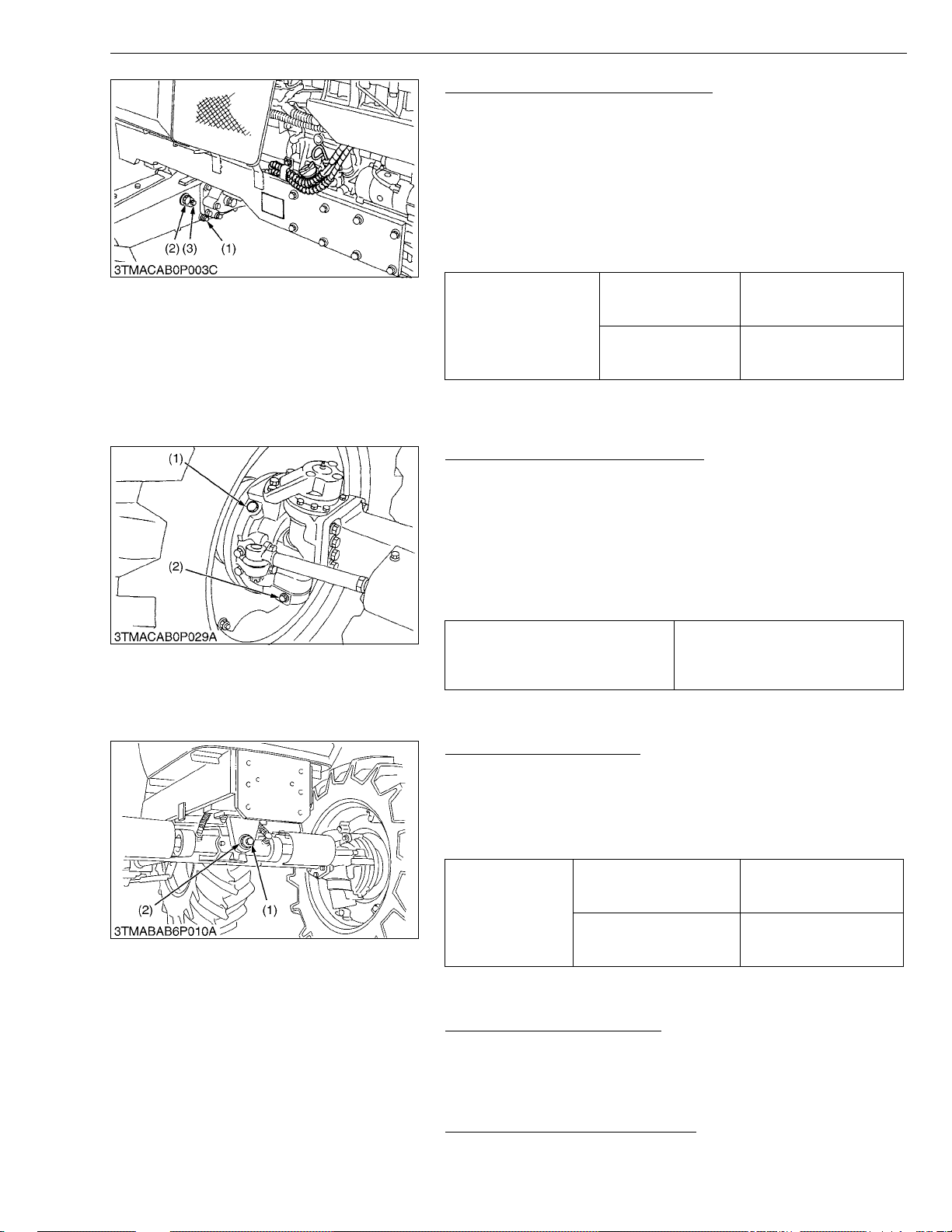

Changing Front Differential Case Oil

1. To drain the used oil, remove the drain and filling plug (1), (2) at
the front differential case and drain the oil completely into the oil
pan.

2. After draining reinstall the drain plug (1).

3. Remove the oil level check plug (3).

4. Fill with the new oil up to the lower rim of check plug port.
(See “5. LUBRICANTS, FUEL AND COOLANT” at GENERAL
Section.)

5. After filling reinstall the filling plug (2) and check plugs (3).

M6800(S)
M8200

Oil capacity

M9000

5.0 L

5.3 U.S.qts.

4.4 Imp.qts.

6.0 L

6.3 U.S.qts.

5.3 Imp.qts.

(1) Drain Plug
(2) Filling Plug

(3) Check Plug

W1027428

Changing Front Axle Gear Case Oil

1. To drain the used oil, remove the right and left drain plugs (2) and
filling plugs (1) at the front axle gear case and drain the oil
completely into the oil pan.

2. After draining reinstall the drain plugs (2).

3. Fill with the new oil up to the filling plug port.
(See “5. LUBRICANTS, FUEL AND COOLANT” at GENERAL
Section.)

4. After filling reinstall the filling plugs (1).

3.5 L

Oil capacity

(1) Filling Plug (2) Drain Plug

3.7 U.S.qts.

3.1 Imp.qts.
for each side

W1027622

Adjusting Front Axle Pivot

1. If the front axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.

Q Adjusting Procedure

1. Loosen the lock nut (2), tighten the adjusting screw (1) with
specified torque. Then tighten the lock nut (2).

19.6 to 29.4 N·m

Adjusting screw

Tightening torque

Lock nut

2.0 to 3.0 kgf·m

14.5 to 21.7 ft-lbs

98.1 to 147.1 N·m

10.0 to 15.0 kgf·m

72.3 to 108.5 ft-lbs

[9] CHECK POINTS OF EVERY 800 HOURS

(1) Adjusting Screw (2) Lock Nut

W1027783

Replacing Hydraulic Oil Filter

• See page G-17.

W1027886

Adjusting Engine Valve Clearance

1. See page 1-S19.

W1027950

G-29

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

[10] CHECK POINTS OF EVERY 1 YEAR

Replacing Air Cleaner Primary Element and Secondary Element

1. See “Cleaning Air Cleaner Primary Element” in every 100
hours maintenance.

[11] CHECK POINTS OF EVERY 2 YEARS

Flush Cooling System and Changing Coolant

CAUTION

• Do not remove the radiator cap when the engine is hot. The n
loosen cap slightly to the stop to relieve any excess
pressure before removing cap completely.

1. Stop the engine and let cool down.

2. To drain the coolant, remove the radiator hose (1) and radiator
cap. The radiator cap (2) must be removed to completely drain
the coolant.

3. After all coolant is drained, install the hose (1) securely.

4. Fill with clean water and cooling system cleaner.

5. Follow directions of the cleaner instruction.

6. After flushing, fill with clean water and anti-freeze until the coolant
level is just below the port.

7. Fill with clean water and anti-freeze up to the upper line of
recovery tank (3).

8. Install the radiator cap (2) securely.

9. Start and operate the engine for few minutes.

10.Stop the engine. Check coolant level and add coolant if
necessary.

Coolant capacity

M6800(S)

M8200
M9000

G GENERAL

W1028012

8.5 L

9.0 U.S.qts.

7.5 Imp.qts.

9.0 L

9.5 U.S.qts.

7.9 Imp.qts.

IMPORTANTQ

• Do not start engine without coolant.

• Use clean, fresh water and anti-freeze to fill the radiator.

• When the anti-freeze is mixed with water, the anti-freeze
mixing ratio must be less than 50 %.

• Securely tighten radiator cap (2). If the cap is loose or
improperly fitted, water may lead out and the engine could
overheat.

(1) Radiator Hose
(2) Radiator Cap

(3) Recovery Tank

W1028088

G-30

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

Flush Cooling System and Changing Coolant (Continued)
Q Anti-Freeze

If coolant freezes, it can damage the cylinders and radiator. It is
necessary, if the ambient temp erature falls below 0 °C (32 °F), to
remove coolant after operating or to add anti-freeze to it.

1. There are two types of anti-freeze available ; use the permanent

type (PT) for this engine.

2. Before adding anti-freeze for the first time, clean the radiator

interior by pouring fresh water and draining it a few times.

3. The procedure for mixing of water and anti-freeze differs

according to the make of the anti-freeze and the ambient

temperature, basically is should be referred to SAE J1034

standard, more specifically also to SAE J814c.

4. Mix the anti-freeze with water, and then fill in to the radiator.

Vol % Anti-freeze

40 −24 −12 106 222
50 −37 −34 108 226

Freeze Point Boiling Point*

°C °F °C °F

*At 760 mmHg pressure (atmospheric). A high er boiling points is
obtained by using a radiator pressure cap which permits the
development of pressure within the cooling system.

NOTEQ

• The above data represent industry standards that
necessitate a minimum glycol content in the concentrated
anti-freeze.

• When the coolant level drops due to evaporation, add water
only. In case of leakage, add anti-freeze and water in the
specified mixing ratio.

• Anti-freeze absorbs moisture. Keep unused anti-freeze in a
tightly sealed container.

• Do not use radiator cleaning agents when anti-freeze has
been added to the coolant. (Anti-freeze contains an anti­corrosive agent, which will react with the radiator cleaning
agent forming sludge which will affect the engine parts.)

W1038591

Replacing Radiator Hose (Water Pipes)

1. Replace the hoses and clamps.
Refer to “Checking Radiator Hose and Hose Clamp”.
(See page G-25.)

W1028672

Replacing Power Steering Hose

1. Replace the hoses and clamps, if necessary.
Refer to “Checking Power Steering Line and Fuel Line”.
(See page G-25.)

W1028718

Replacing Fuel Hose

1. Replace the fuel hoses and clamps, if necessary.
Refer to “Checking Power Steering Line and Fuel Line”.
(See page G-25.)

W1028763

G-31

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

[12] OTHERS

G GENERAL

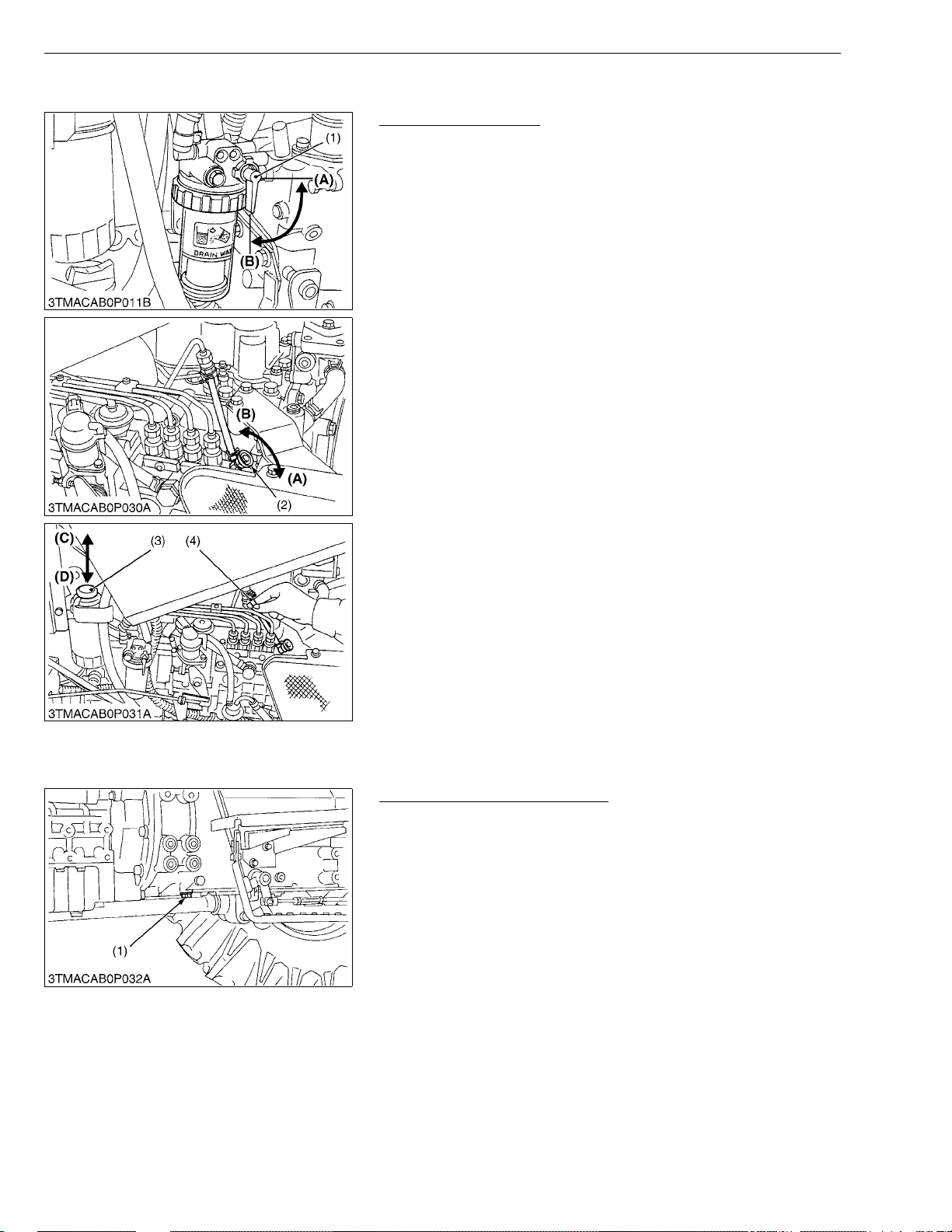

Bleeding Fuel System

Air must be removed:

1. When the fuel filter or lines are removed.

2. When water is drained from water separator.

3. When tank is completely empty.

4. After the tractor has not been used for a long period of time.

Q Bleeding Procedure is as Follows:

1. Make sure the fuel cock is in the “OPEN” position.

2. Open the air vent cock (2) on the fuel injection pump.

3. Pump the fuel pump knob (3) located on the top of the fuel filter.
The fuel pump knob (3) will pump easily at first and with added
resistance as air is purged from the system. To make sure air is
completely purged, pinch the fuel overflow hose (4) with fingers,
if a pulsation is felt when the knob is pumped, then, no air
remains.

4. Set the hand throttle lever at the maximum speed position, turn
on the key switch to the start the engine, and then reset the
throttle lever at the mid speed (around 1500 min

−1

(rpm))
position.
If engine doesn’t start, try it several times with 30 seconds
intervals.

5. Accelerate the engine to remove the small portion of air left in the
fuel system.

6. If air still remains and the engine stops, repeat the above steps.

7. Close the air vent cock (2).

IMPORTANTQ

• Do not hold key switch at engine start p osition for more than
10 seconds continuously. If more engine cranking is
needed, try again after 30 seconds.

• Always close the air vent cock except for ble eding fuel lines.
Otherwise, engine runs irregularly or stalls frequently.

(1) Fuel Cock
(2) Air Vent Cock
(3) Fuel Pump Knob
(4) Fuel Overflow Hose

(A) Close
(B) Open
(C) Up
(D) Down

W1028841

Draining Clutch Housing Water

1. The tractor is equipped with drain plug (1) under the clutch
housing.

2. After operating in rain, snow or tractor has been washed, water
may get into the clutch housing.

3. Remove the drain plug (1) and drain the water, then install the
plug (1) again.

(1) Drain Plug (Water)

W1029193

G-32

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

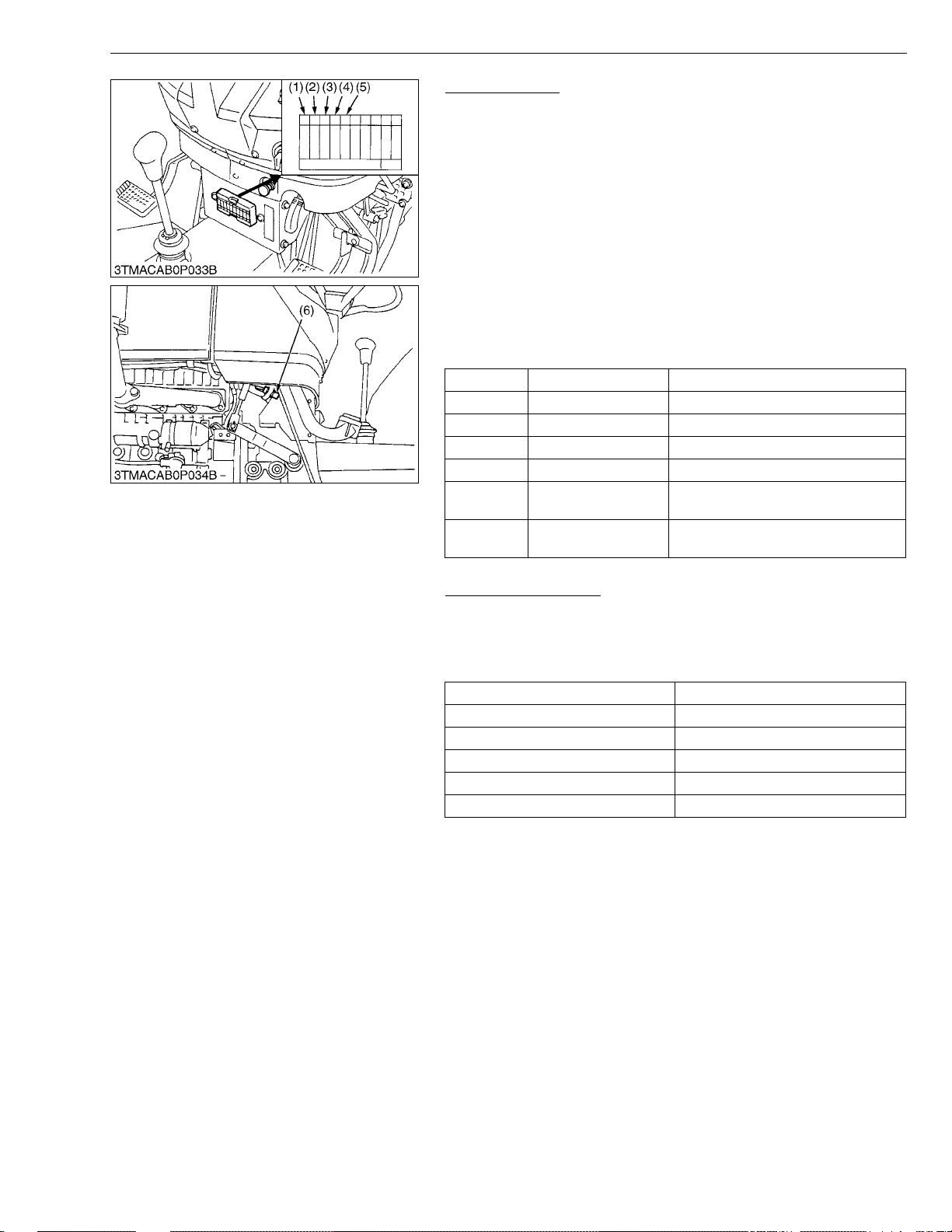

Replacing Fuse

1. The tractor electrical system is protec ted from pote ntial damag e
by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.

2. If any of the fuses should blow, replace with a new one of the
same capacity.

IMPORTANTQ

• Before replacing a blown fuse, determine why the fuse blew
and make any necessary repairs. Failure to follow this
procedure may result in serious damage to the tractor
electrical system. Refer to troubleshooting section of this
manual for specific information dealing with electrical
problems.

Q Protected Circuit

Fuse No. Capacity (A) Protected circuit

1 20 Main key
2 1 5 Head Light
3 10 Parking · Flasher (Hazard)
4 10 Work Light

510

6

50

Slow-Blow Fuse

Meter Panel, Seat Switch
(with OPC System)

Check circuit against wrong battery
connection

W1029292

Replacing Light Bulb

1. Head lights :
Take the bulb out of the light body and replace with a new one.

2. Other lights :
Detach the lens and replace the bulb.

Light Capacity
Head lights 45 W
Tail light 8 W
Hazard light / turn signal 27 W
Instrument panel light 3.4 W
Work light 27 W

W1039659

G-33

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

9. SPECIAL TOOLS

G GENERAL

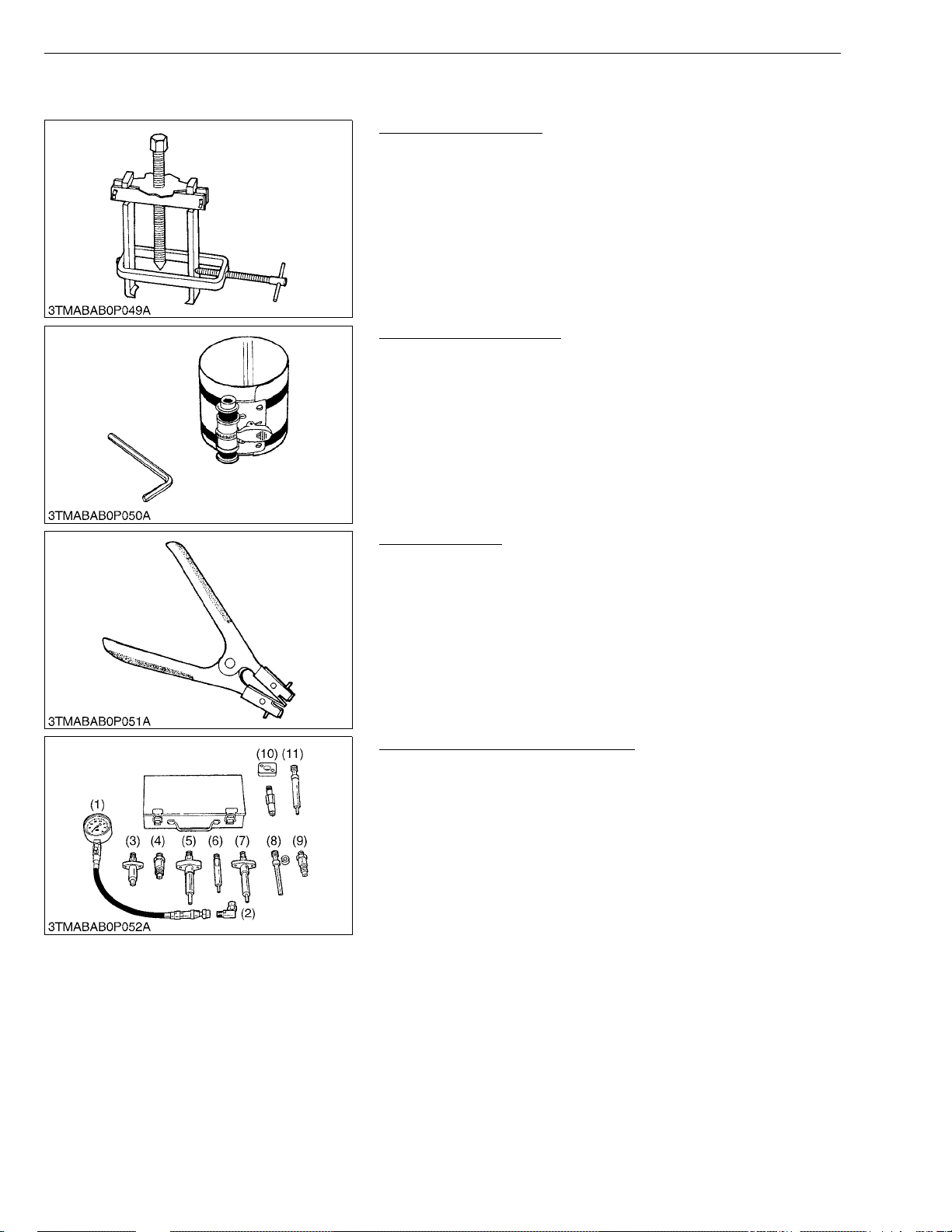

Special Use Puller Set

Code No: 07916-09032
Application: Use exclusively for pulling out bearing, gears and other

parts with ease.

W1024050

Piston Ring Compressor

Code No: 07909-32111
Application: Use exclusively for pushing in the piston with piston

rings into the cylinder.

W1024100

Piston Ring Tool

Code No: 07909-32121
Application: Use exclusively for removing or installing the piston ring

with ease.

W1024150

Diesel Engine Compression Tester

Code No: 07909-30208 (Assembly) 07909-31251 (G)

07909-30934 (A to F) 07909-31271 (I)
07909-31211 (E and F) 07909-31281 (J)
07909-31231 (H)

Application: Use to measure diesel engine compression and

diagnostics of need for major overhaul.

(1) Gauge
(2) L Joint
(3) Adaptor A
(4) Adaptor B
(5) Adaptor C
(6) Adaptor E

(7) Adaptor F
(8) Adaptor G

(9) Adaptor H
(10) Adaptor I
(11) Adaptor J

W1024200

G-34

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

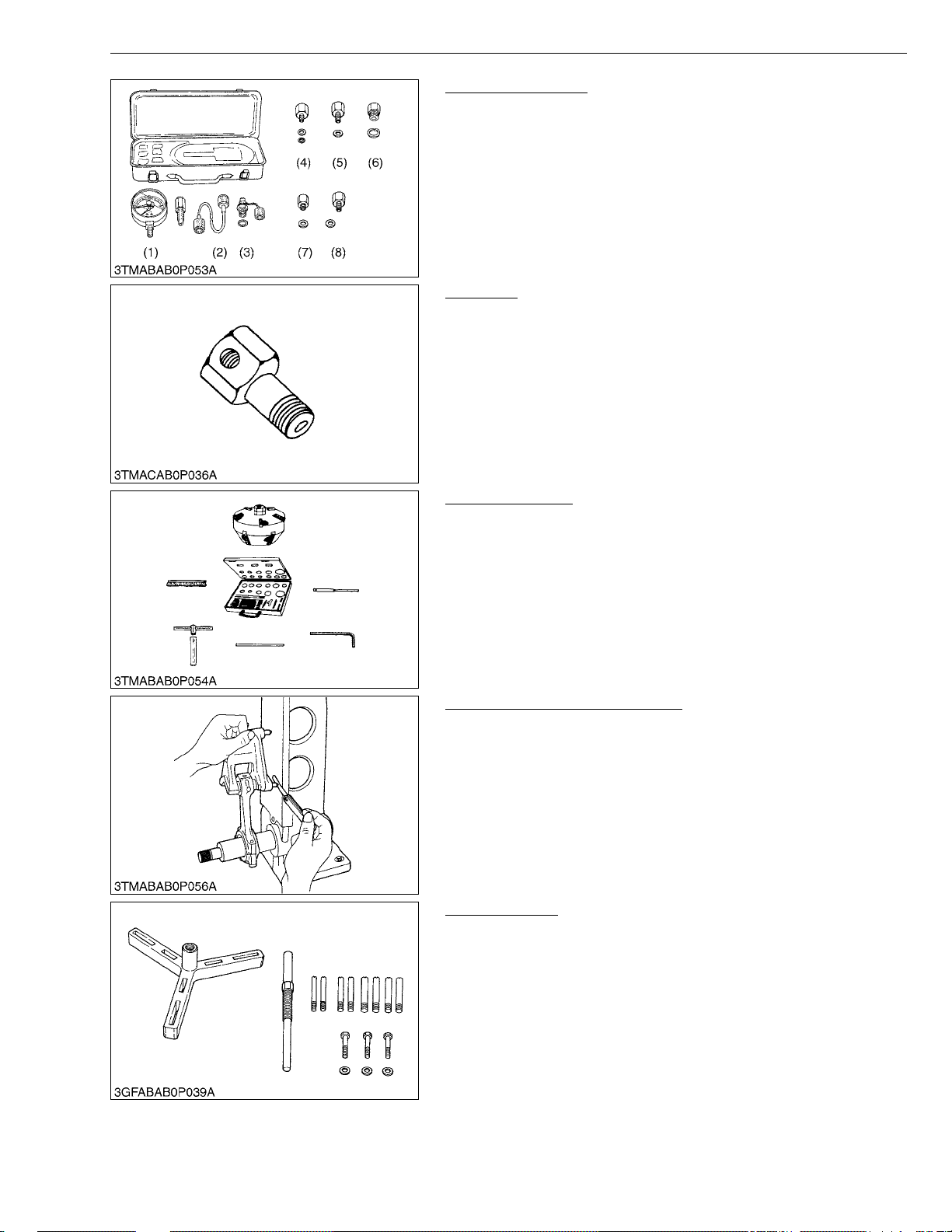

Oil Pressure Tester

Code No: 07916-32032
Application: Use to measure lubricating oil pressure.

(1) Gauge
(2) Cable
(3) Threaded Joint
(4) Adaptor 1

(5) Adaptor 2
(6) Adaptor 3
(7) Adaptor 4
(8) Adaptor 5

Adaptor 7

Code No: 07916-32591
Application: Use to measure lubricating oil pressure.

G GENERAL

W1024318

W1030102

Valve Seat Cutter

Code No: 07909-33102
Application: Use to reseat valves.
Angle: 0.785 rad (45°)

0.262 rad (15°)

Diameter: 28.6 mm (1.126 in.) 38.0 mm (1.496 in.)

31.6 mm (1.244 in.) 41.3 mm (1.626 in.)

35.0 mm (1.378 in.) 50.8 mm (2.000 in.)

W1024458

Connecting Rod Alignment Tool

Code No: 07909-31661
Application: Use to check the connecting rod alignment.
Applicable: Connecting rod big end I.D.
range 30 to 75 mm (1.18 to 2.95 in.) dia.

Connecting rod length
65 to 300 mm (2.56 to 11.81 in.)

W1024583

Flywheel Puller

Code No: 07916-32011
Application: Use exclusively for removing the flywheel with ease.

W12299460

G-35

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

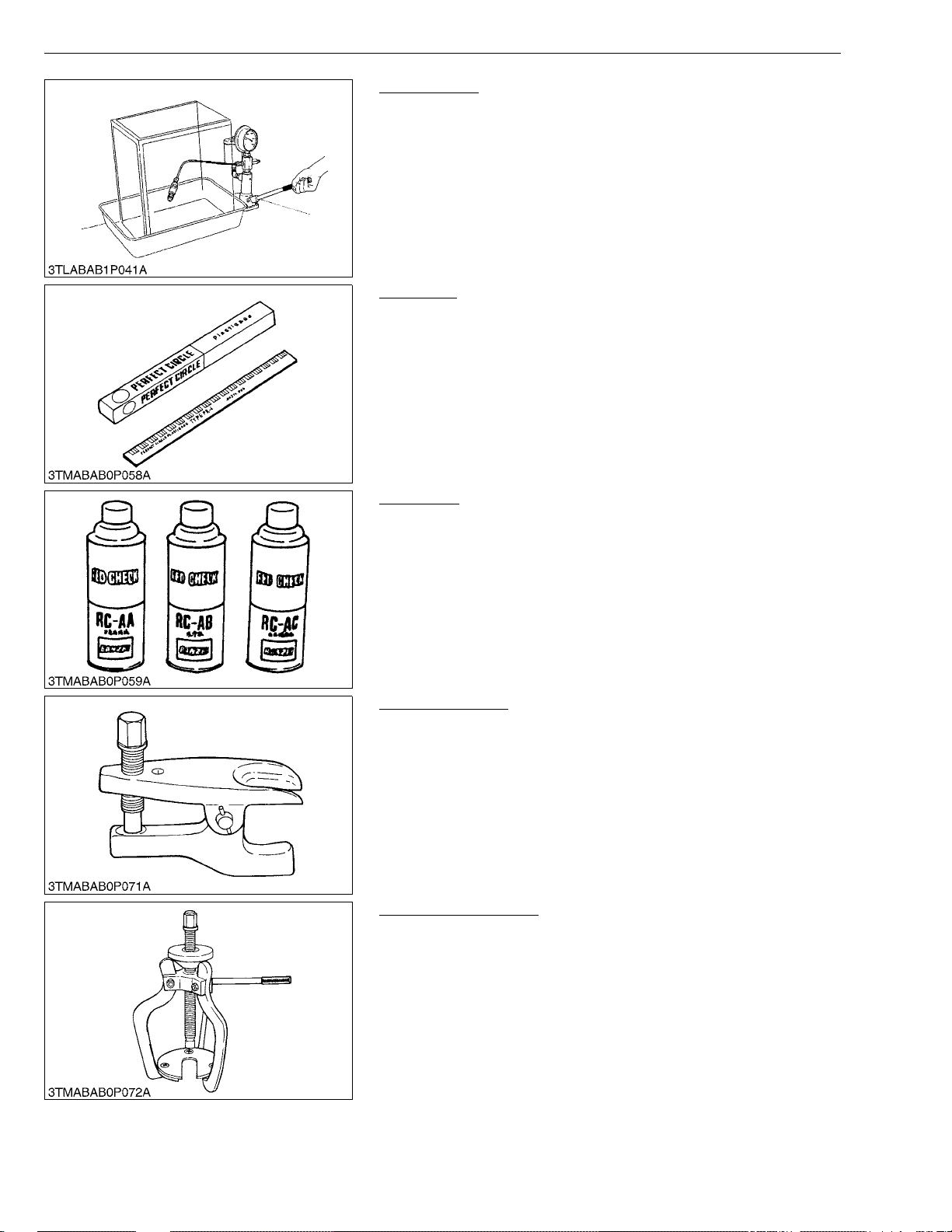

Nozzle Tester

Code No: 07909-31361
Application: Use to check the fuel injection pressure and spray

pattern of nozzle.

Measuring: 0 to 50 MPa

range (0 to 500 kgf/cm

2

, 0 to 7000 psi)

W1024653

Plastigage

Code No: 07909-30241
Application: Use to check the oil clearance between crankshaft and

bearing, etc.

Measuring: Green ....0.025 to 0.076 mm (0.001 to 0.003 in.)

range Red........0.051 to 0.152 mm (0.002 to 0.006 in.)

Blue.......0.102 to 0.229 mm (0.004 to 0.009 in.)

W1024719

Red Check

Code No: 07909-31371
Application: Use to check cracks on cylind er head, cylinder block,

etc.

W1024909

Tie-rod End Lifter

Code No: 07909-39051
Application: Use for removing the tie-rod end with ease.

W1026472

Steering Wheel Puller

Code No: 07916-51090
Application: Use for removing the steering wheel without damaging

the steering shaft.

W1026533

G-36

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

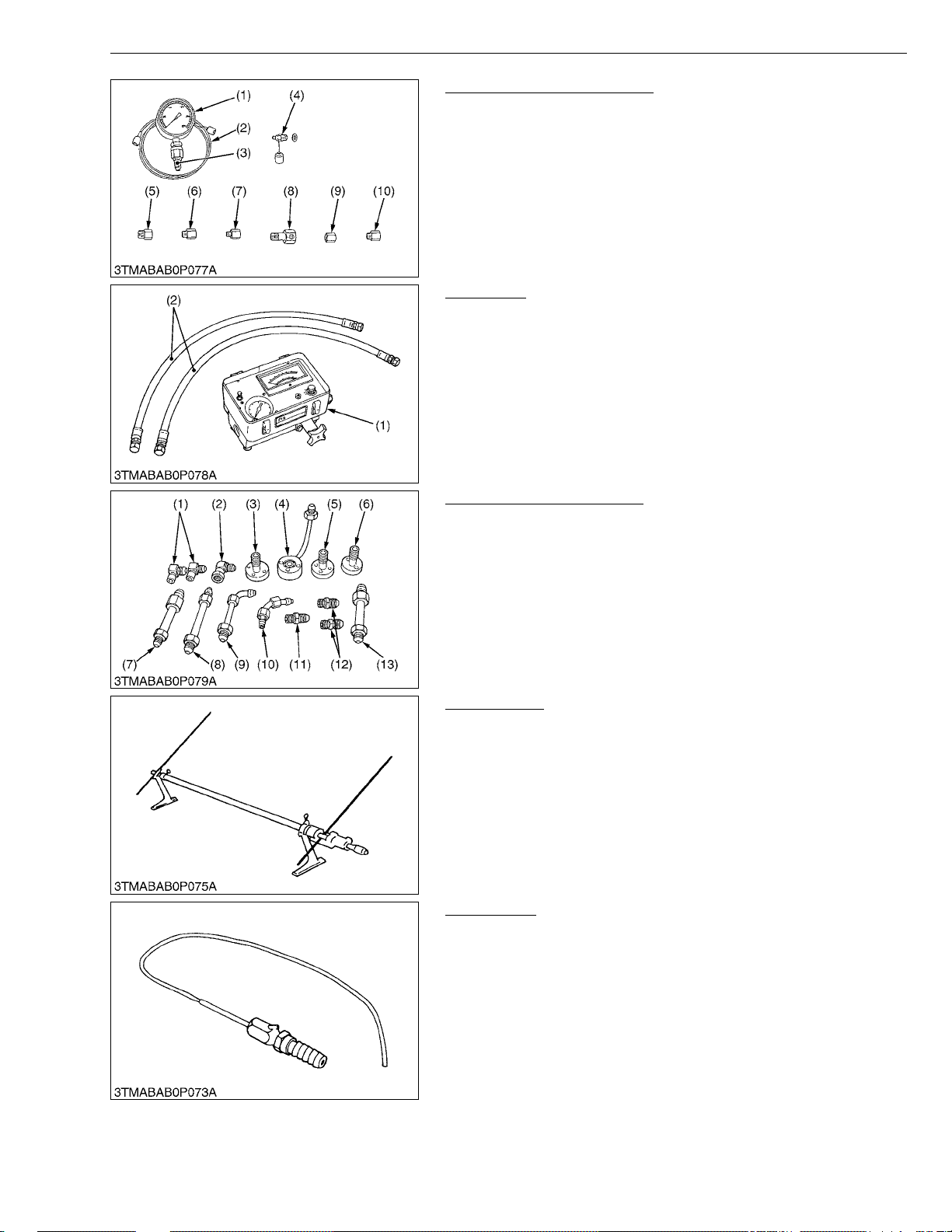

Relief Valve Pressure Tester

Code No: 07916-50045
Application: This allows easy measurement of relief set pressure.

(1) Gauge (07916-50322)
(2) Cable (07916-50331)
(3) Threaded Joint (07916-50401)
(4) Threaded Joint (07916-50341)
(5) Adaptor B (M18 × P1.5)

(07916-50361)

(6) Adaptor C (PS3/8) (07916-50371)
(7) Adaptor D (PT1/8) (07916-50381)
(8) Adaptor E (PS3/8) (07916-50392)
(9) Adaptor F (PF1/2) (07916-62601)

(10) Adaptor 58 (PT1/4) (07916-52391)

W1026741

Flow Meter

Code No: 07916-52791 (Flow Meter)

07916-52651 (Hydraulic Test Hose)

Application: This allows easy testing of hydraulic system.

(1) Flow Meter (2) Hydraulic Test Hose

W1031318

Adaptor Set for Flow Meter

Code No: 07916-54031
Application: Use for testing the hydr au lic system.

(1) Adaptor 52
(2) Adaptor 53
(3) Adaptor 54
(4) Adaptor 61
(5) Adaptor 62
(6) Adaptor 63
(7) Adaptor 64

(8) Adaptor 65

(9) Adaptor 66
(10) Adaptor 67
(11) Adaptor 68
(12) Adaptor 69
(13) Hydraulic Adaptor 1

W1031396

Toe-in Gauge

Code No: 07909-31681
Application: This allows easy measurement of toe-in for all machine

models.

W1026689

Injector CH3

Code No: 07916-52501
Application: Use for injecting calcium chloride solution into, and

removing it from, rear tires.

W1026585

G-37

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

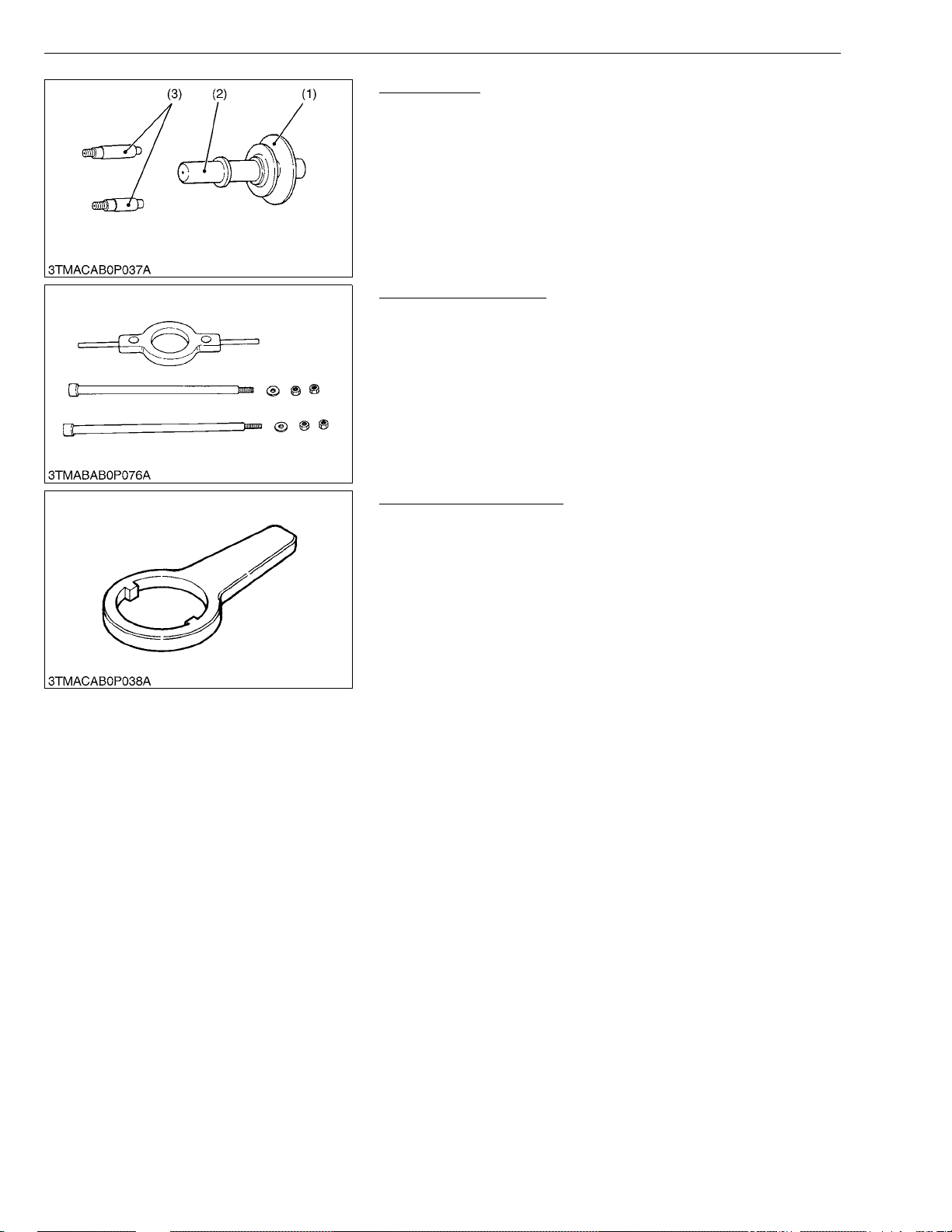

Clutch Tool B

Code No: 07916-53041
Application: Use for mounting the clutch to the flywheel.

(1) Gauge Ring
(2) Center Bar

(3) Centering Guide

W1031036

Rear Axle Cover Puller

Code No: 07916-51041
Application: Use for removing a rear axle cover from rear axle.

W1073259

Rear Axle Nut Wrench 85

Code No: 07916-52541
Application: Use for removing and installing a rear axle nut.

W1031880

G-38

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

NOTEQ

• The following special tools are not provided, so make them referring to the figure.

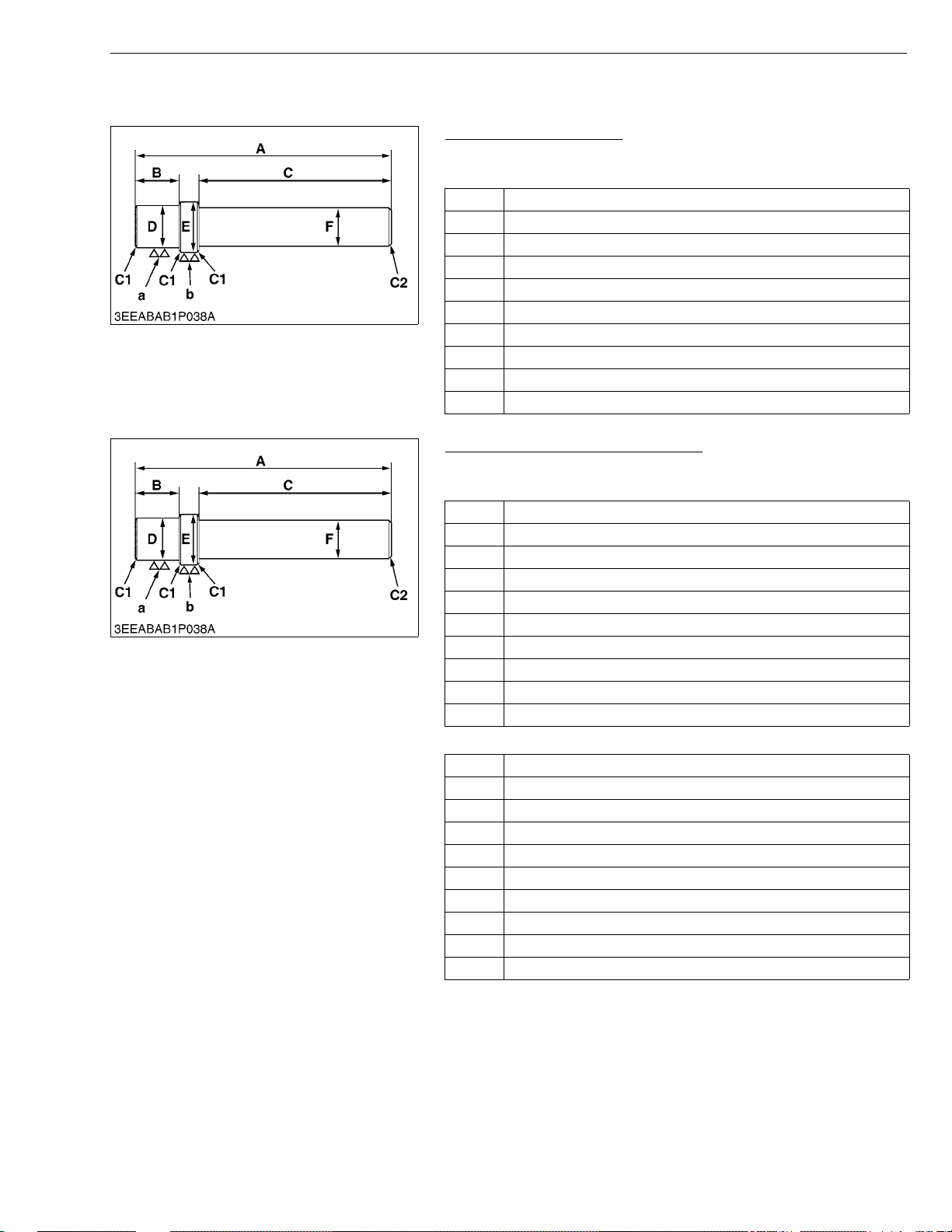

Bushing Replacing Tool

Application: Use to press out and to press fit the bushing.

1. For idle gear bushing

A 196 mm (7.7165 in.)

B 37.5 mm (1.476 in.)
C 150 mm (5.9055 in.)
D 44.95 mm dia. (1.7697 in. dia.)

E 48.100 to 48.075 mm dia. (1.8937 to 1.8927 in. dia.)

F 20 mm (0.7874 in.)

a6.3 μm (250 μin.)

b6.3 μm (250 μin.)

C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

Small End Bushing Replacing Tool

Application: Use to press out and to press fit the small end bushing.

[Press out]

A 157 mm (6.1811 in.)

B 14.5 mm (0.571 in.)
C 120 mm (4.7244 in.)
D 30.0 mm dia. (1.1811 in. dia.)

E 32.95 mm dia. (1.2972 in. dia.)

F 20 mm dia. (0.7874 in. dia.)

a6.3 μm (250 μin.)

b6.3 μm (250 μin.)

C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

[Press fit]

A 157 mm (6.1811 in.)

B 14.5 mm (0.571 in.)
C 120 mm (4.7244 in.)
D 30.0 mm dia. (1.1811 in. dia.)

E 42.000 mm dia. (1.6535 in. dia.)

F 20 mm dia. (0.7874 in. dia.)

a6.3 μm (250 μin.)

b6.3 μm (250 μin.)

C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

G GENERAL

W1025500

W1031485

G-39

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

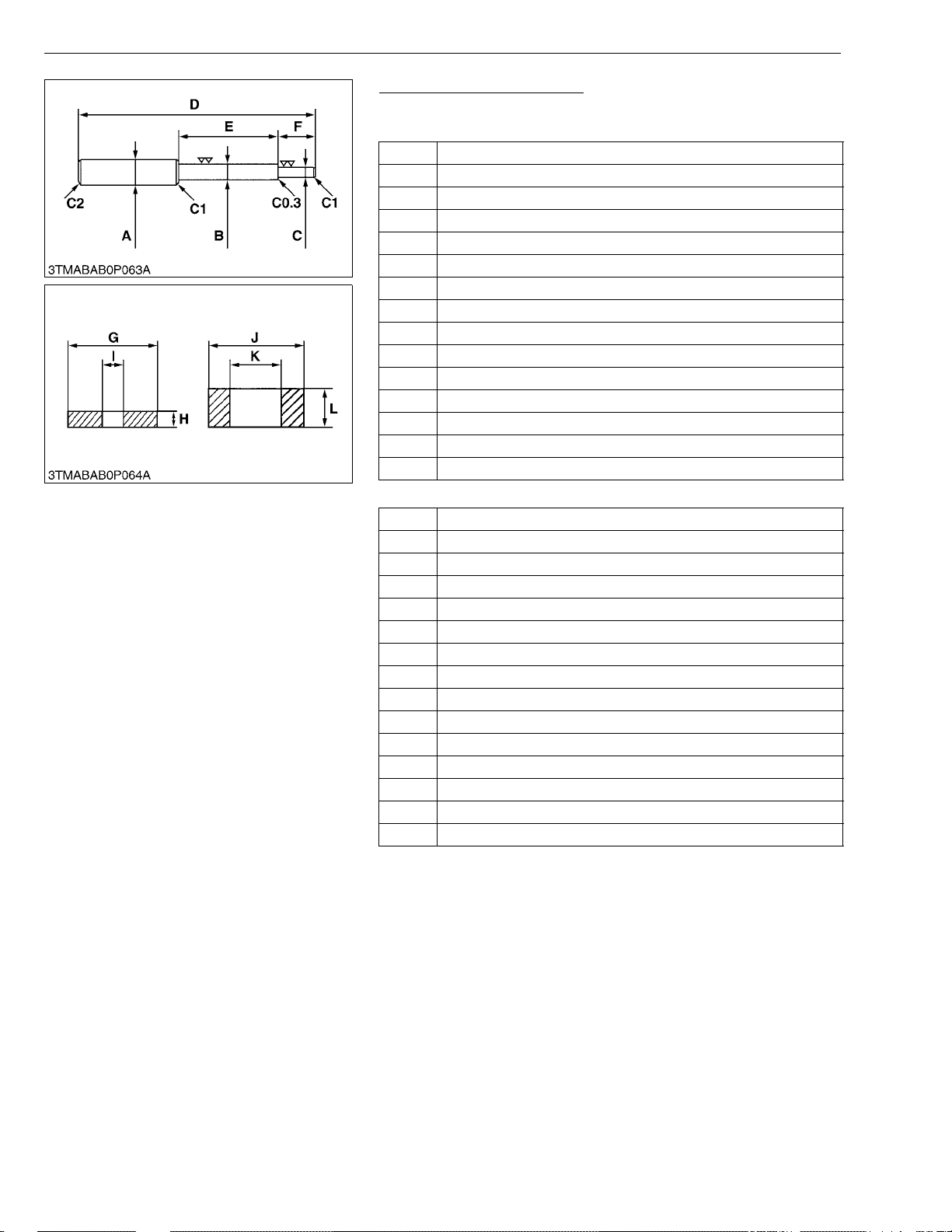

Valve Guide Replacing Tool

Application: Use to press out and pre ss fit the valve guide.

[Intake valve guide]

A 20 mm dia. (0.79 in. dia.)
B 11.7 to 11.9 mm dia. (0.460 to 0.468 in. dia.)
C 6.5 to 6.6 mm dia. (0.256 to 0.259 in. dia.)
D 225 mm (8.86 in.)
E 70 mm (2.76 in.)

F 45 mm (1.77 in.)
G 25 mm dia. (0.98 in. dia.)
H 5 mm (0.197 in.)

I 6.7 to 7.0 mm dia. (0.263 to 0.275 in. dia.)

J 20 mm dia. (0.787 in. dia.)
K 12.5 to 12.8 mm dia. (0.492 to 0.504 in. dia.)

L 8.9 to 9.1 mm (0.350 to 0.358 in.)

C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

C0.3 Chamfer 0.3 mm (0.012 in.)

[Exhaust valve guide]

A 20 mm dia. (0.79 in. dia.)
B 12.96 to 12.98 mm dia. (0.510 to 0.511 in. dia.)
C 7.50 to 7.70 mm dia. (0.295 to 0.303 in. dia.)
D 225 mm (8.86 in.)
E 80 mm (3.15 in.)

F 40 mm (1.57 in.)
G 14.5 to 15.5 mm dia. (0.57 to 0.61 in. dia.)
H 5 mm (0.197 in.)

I 8.0 to 8.1 mm dia. (0.31 to 0.32 in. dia.)

J 17.5 to 18.5 mm dia. (0.689 to 0.728 in. dia.)
K 13.1 to 13.2 mm dia. (0.516 to 0.520 in. dia.)

L 9.9 to 10.1 mm (0.390 to 0.398 in.)

C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

C0.3 Chamfer 0.3 mm (0.012 in.)

W1025017

G-40

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

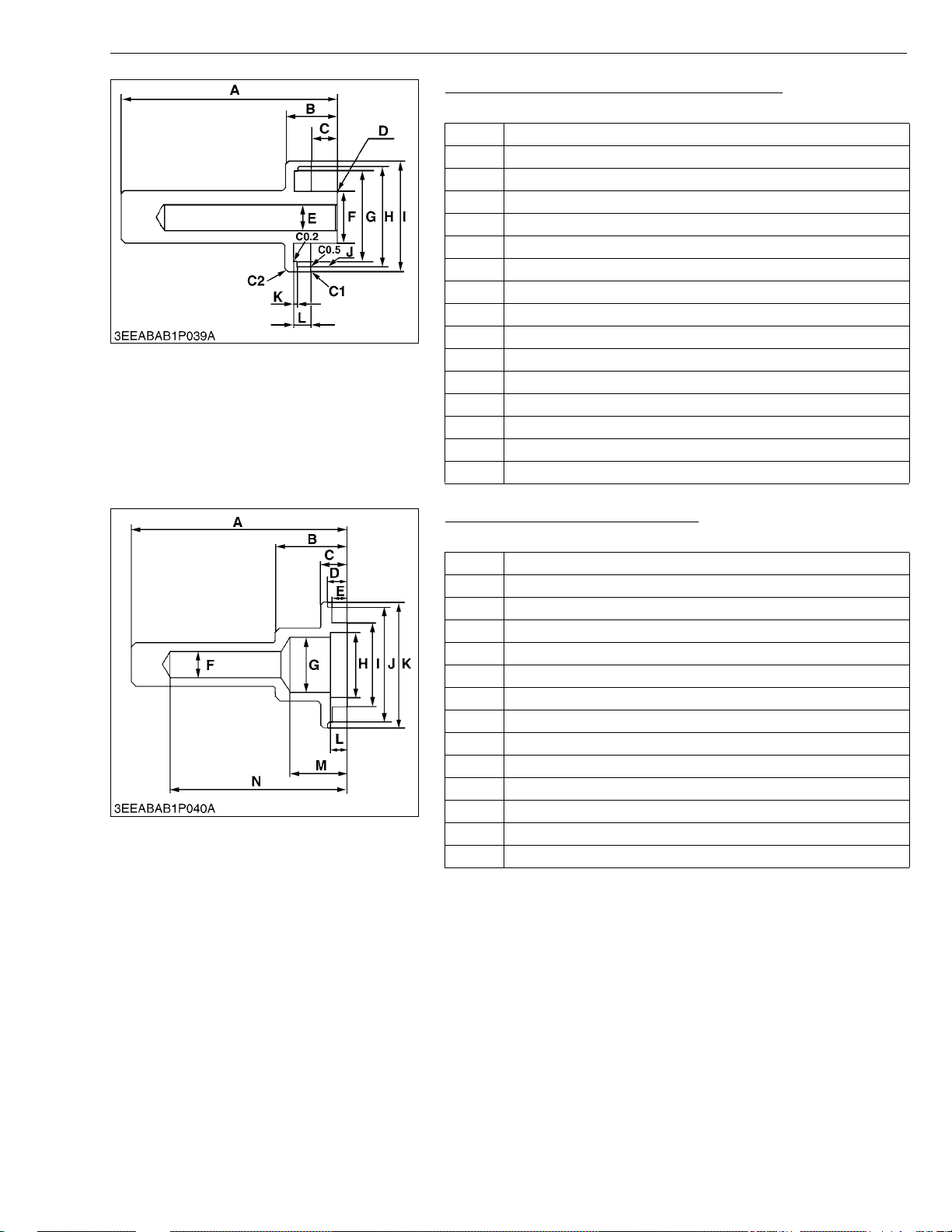

Sleeve (Fan Drive Pulley Side) Replacing Tool

Application: Use to press fit the fan drive pulley sleeve.

A 125 mm (4.9212 in.)
B 30 mm (1.1811 in.)
C 15 mm (0.5905 in.)
D Rmax = 12.5 S

E 15 mm dia. (0.5905 in. dia.)

F 30 mm dia. (1.1811 in. dia.)
G 52.9 to 53.1 mm dia. (2.0827 to 2.0906 in. dia.)
H 58.5 mm dia. (2.3031 in. dia.)

I 65 mm dia. (2.5590 in. dia.)

J Rmax = 12.5 S
K 2 mm (0.0789 in.)

L 10 mm (0.3937 in.)

C1 Chamfer 1.0 mm (0.039 in.)

C2 Chamfer 2.0 mm (0.079 in.)
C0.2 Chamfer 0.2 mm (0.0079 in.)
C0.5 Chamfer 0.5 mm (0.02 in.)

W1041128

Gear Case Oil Seal Replacing Tool

Application: Use to press fit the oil seal.

A 148.8 mm (5.8582 in.)
B 50 mm (1.9685 in.)
C 18.8 mm (0.7401 in.)
D 13.7 to 13.9 mm (0.5394 to 0.5472 in.)

E 11 mm (0.433 in.)

F 18 mm dia. (0.7087 in. dia.)
G 38 mm dia. (1.4961 in. dia.)
H 45 mm dia. (1.7716 in. dia.)

I 57.9 to 58.1 mm dia. (2.2795 to 2.2874 in. dia.)

J 79.5 mm dia. (3.1299 in. dia.)
K 87 mm dia. (3.452 in. dia.)

L 12 mm (0.4724 in.)
M 40 mm (1.5748 in.)
N 120 mm (4.7244 in.)

W1041529

G-41

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

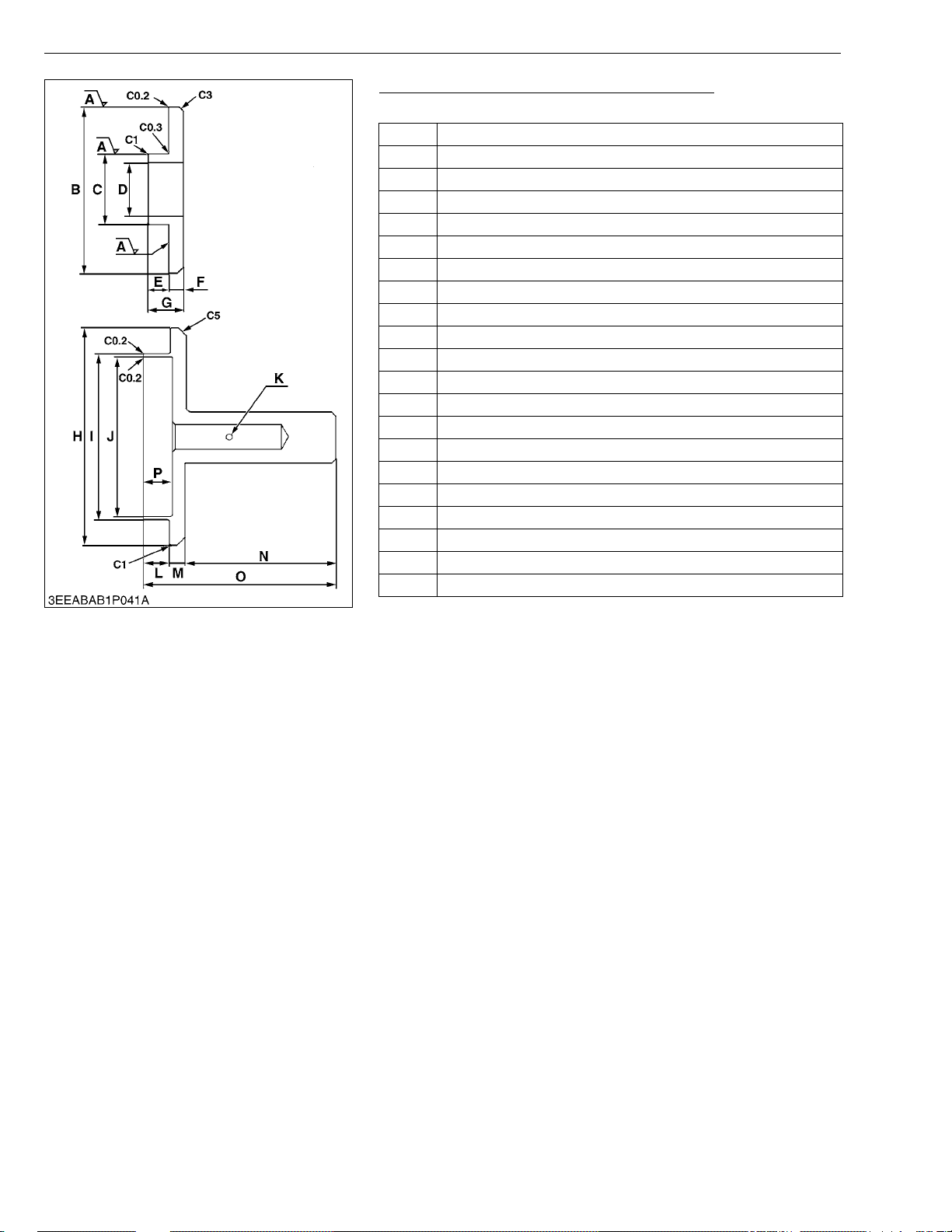

Auxiliary Socket for Fixing Crankshaft Sleeve

Application: Use to fix the crankshaft sleeve of the diesel engine.

A Rmax = 12.5 S
B 94.5 to 95.0 mm dia. (3.7205 to 3.7402 in. dia.)
C 40 mm dia. (1.5748 in. dia.)
D 30 mm dia. (1.1811 in. dia.)
E 12 mm (0.4724 in.)
F 7.9 to 8.1 mm (0.3110 to 0.3189 in.)
G 20 mm (0.0787 in.)
H 130 mm dia. (5.1181 in. dia.)

I 99.4 to 99.6 mm dia. (3.9134 to 3.9213 in. dia.)

J 95.05 to 95.20 mm dia. (3.7421 to 3.7480 in. dia.)
K 3 mm dia. (0.1181 in.dia.)
L 15 mm (0.5905 in.)
M 10 mm (0.3937 in.)
N 90 mm (3.5433 in.)
O 115 mm (4.5275 in.)
P 16.9 to 17.1 mm (0.6654 to 0.6732 in.)

C1 Chamfer 1.0 mm (0.039 in.)
C3 Chamfer 3.0 mm (0.1181 in.)

C5 Chamfer 5.0 mm (0.1969 in.)
C0.2 Chamfer 0.2 mm (0.0079 in.)
C0.3 Chamfer 0.3 mm (0.0118 in.)

W1041815

G-42

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

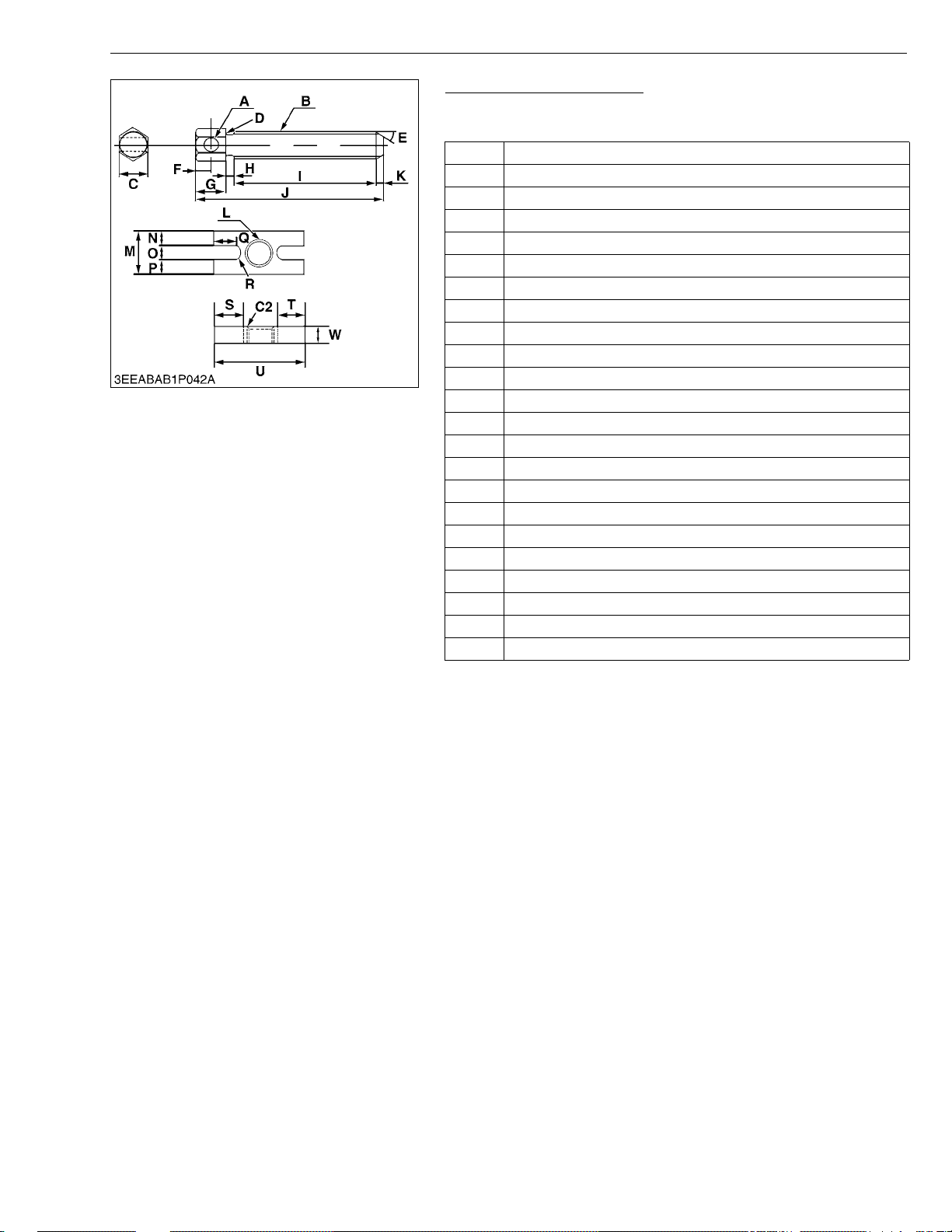

Injection Pump Gear Puller

Application: Use for remove the injection pump gear from governor

shaft.

A 10 mm dia. (0.39 in. dia.)

B M16 × Pitch 1.5
C 19 mm (0.75 in.)
D 0.5 mm radius (0.02 in. radius)

E 0.89 rad (50 °)

F 10 mm (0.39 in.)
G 20 mm (0.79 in.)
H 5 mm (0.20 in.)

I 95 mm (3.74 in.)

J 125 mm (4.93 in.)
K 5 mm (0.20 in.)
L M16 × Pitch 1.5

M 30 mm (1.18 in.)
N 9.5 mm (0.3740 in.)
O 11 mm (0.4331 in.)

P 9.5 mm (0.3740 in.)

Q 15.5 mm (0.6102 in.)
R 4.5 mm radius (0.18 in. radius)

S 20 mm (0.79 in.)
T 20 mm (0.79 in.)

U 80 mm (3.1496 in.)
W 12 mm (0.47 in.)

C2 Chamfer 2.0 mm (0.079 in.)

W1033030

G-43

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

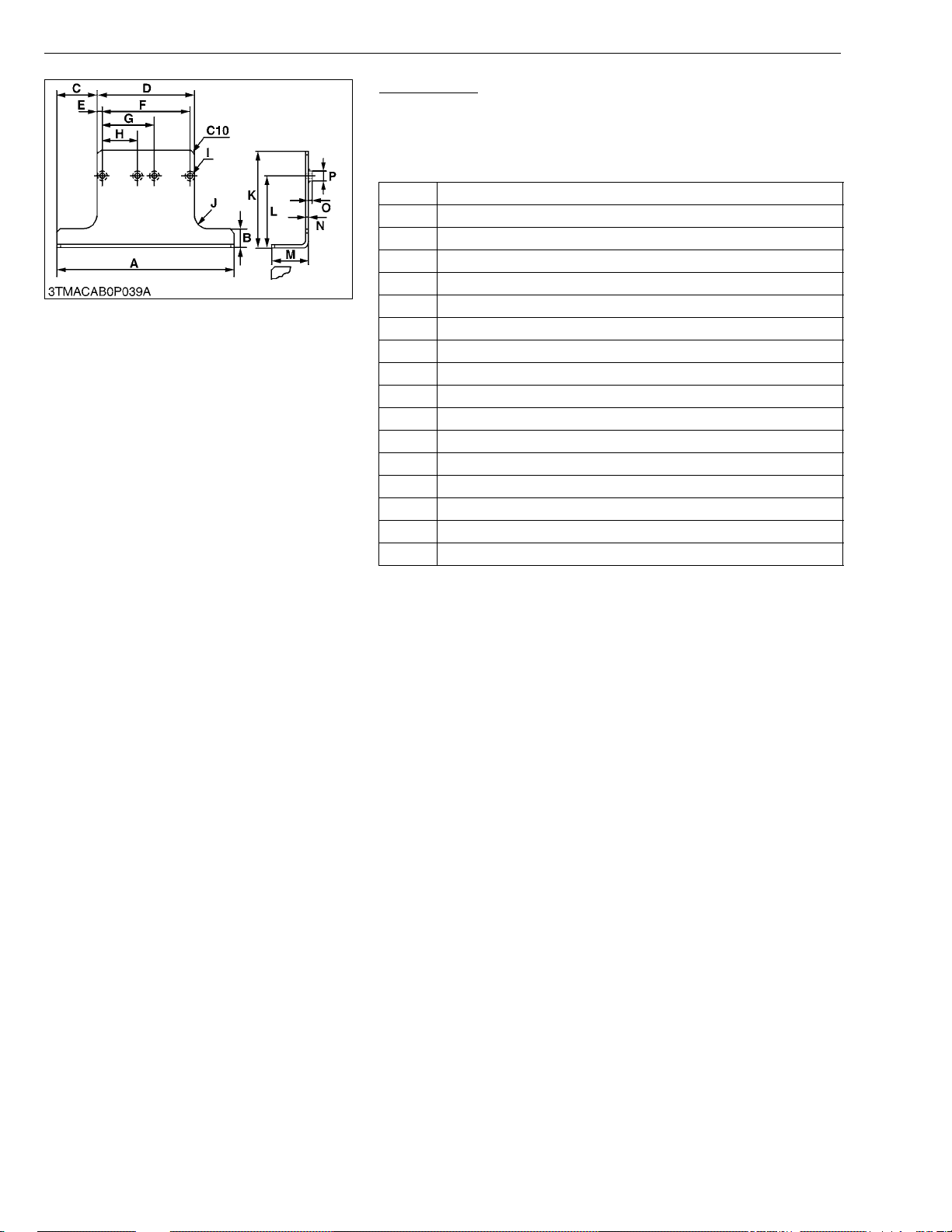

Engine Stand

Application: Use to support engine.

NOTEQ

• This special tool is not provided, so make it referring to the
figure.

A 480 mm (18.90 in.)
B 50 mm (1.97 in.)
C 108.5 mm (4.272 in.)
D 263 mm (10.35 in.)
E 12.5 mm (0.492 in.)

F 237.5 mm (9.350 in.)
G 142.5 mm (5.610 in.)
H 95 mm (3.74 in.)

I 4.14 mm dia. (0.55 in. dia.)

J 40 mm (1.57 in.)
K 210 mm (8.27 in.)

L 190 mm (7.48 in.)
M 100 mm (3.94 in.)
N 6 mm (0.24 in.)
O 6 mm (0.24 in.)
P 25 mm dia. (0.98 in. dia.)

C10 Chamfer 10 mm (0.394 in.)

W1033645

G-44

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

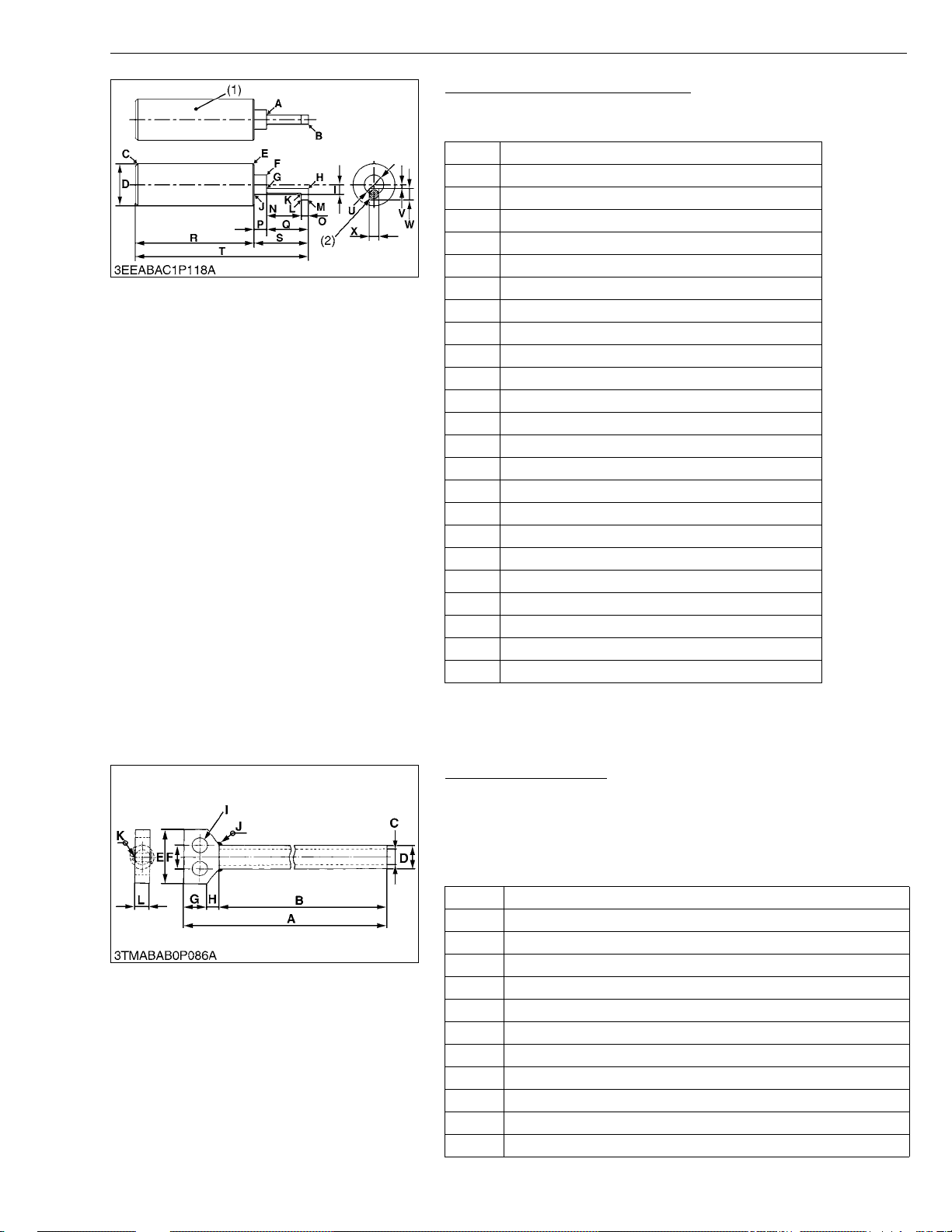

Jig for Governor Connecting Rod

Application: Use for connecting the governor connecting rod to the

rack pin of the fuel injection pump assembly.

A R1 mm (0.0394 in. radius)
B C0.2 mm (0.0079 in.)
C C2 mm (0.0787 in.)
D 35 mm dia. (1.3780 in. dia.)

E C1 mm (0.0394 in.)

F C0.1 mm (0.0039 in.)
G R1 mm (0.0394 in. radius)
H C0.2 mm (0.0079 in.)

I R8 mm (0.3150 in. radius)

J R1 mm (0.0394 in. radius)
K R1 mm (0.0394 in. radius)

L C0.2 mm (0.0079 in.)
M C0.2 mm (0.0079 in.)
N 29 mm (1.1417 in.)
O 6 mm (0.2362 in.)

P 10.7 mm (0.4213 in.)
Q 35 mm (1.3780 in.)
R 99.3 mm (3.9095 in.)

S 45.65 to 45.75 mm (1.7972 to 1.8012 in.)

T 145 mm (5.7087 in.)
U 16.15 to 16.35 mm dia. (0.6358 to 0.6437 in. dia.)

V 3 mm (0.1181 in.)
W 10 mm (0.3937 in.)

X 8 mm (0.3150 in.)

(1) Material: S45C-D (2) Permanent Magnet: 8 mm dia.

(0.3150 in. dia.)
Thickness: 3 mm (0.1181 in.)

W1115114

Draft Control Test Bar

Application: Use for checking the lift range and floating range of

hydraulic draft control.

NOTEQ

• This special tool is not provi ded, so make it referring to the
figure.

A 1045 mm (41.14 in.)

B 1000 mm (29.37 in.)
C 20 mm dia. (0.79 in. dia.)
D 30 mm dia. (1.18 in. dia.)

E 90 mm (3.54 in.)

F 30 mm (1.18 in.)
G 30 mm (1.18 in.)
H 15 mm (0.59 in.)

I 20 mm dia. (0.79 in. dia.)

J Weld all around
K Weld all around
L 20 mm (0.79 in.)

W1062519

G-45

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

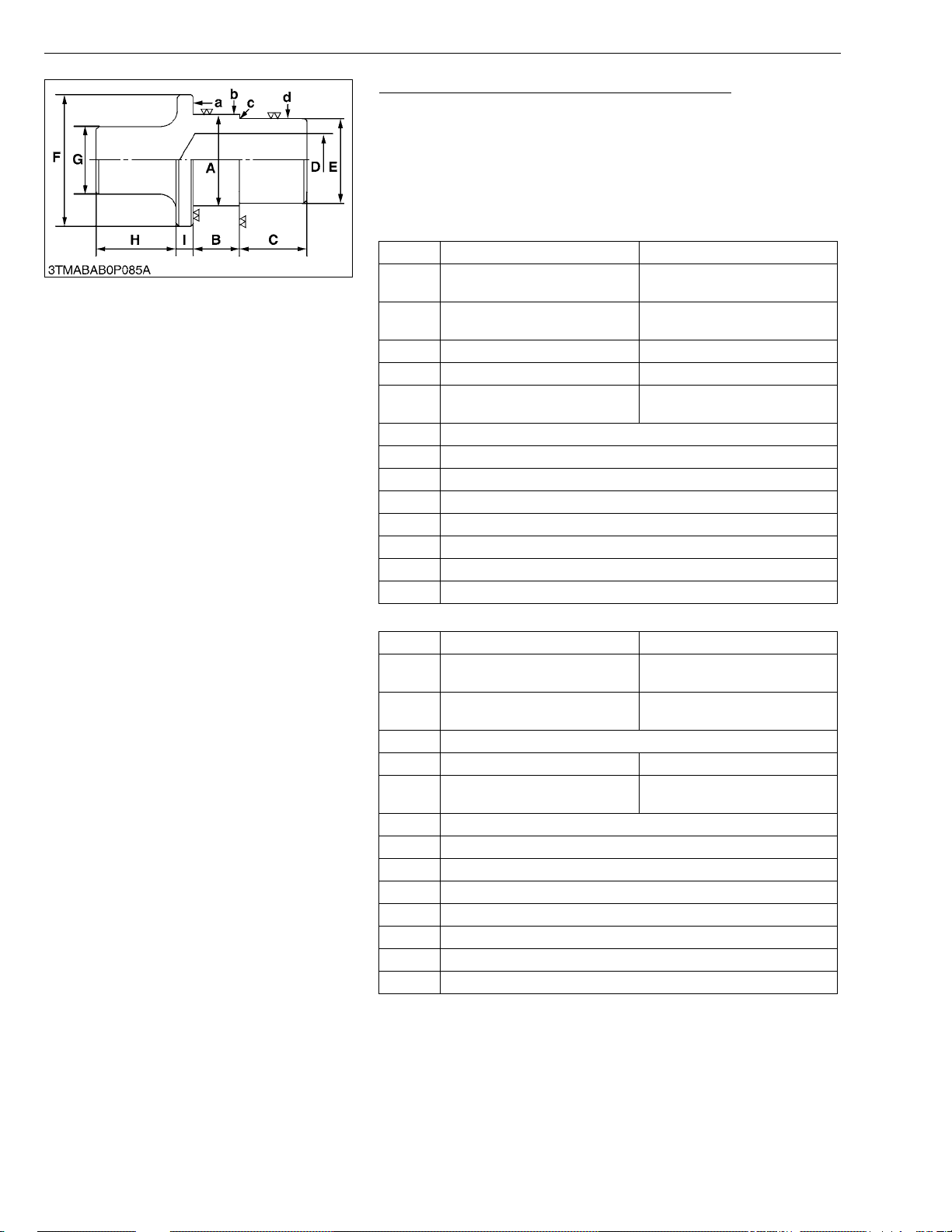

Hydraulic Arm Shaft Bushing Press-Fitting Tool

Application: Use for replacing the hydraulic arm shaft bushings in

the hydraulic cylinder body.

NOTEQ

• This special tool is not provided, so make it referring to the
figure.

• Unless otherwise specified : All surface 12.5 μm (500 μin.)

[M6800(S)]

Right Left

54.7 to 54.9 mm dia.

A

(2.1535 to 2.1614 in. dia.)

22.5 to 23.5 mm

B

(0.729 to 0.767 in.)
C 55 mm (2.10 in.) 60 mm (2.36 in.)
D 32 mm dia. (1.26 in. dia.) 30 mm dia. (1.18 in. dia.)

49.7 to 49.9 mm dia.

E

(1.9567 to 1.9646 in. dia.)
F 70 mm dia. (2.76 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)

I 10 mm (0.39 in.)
a6.3 μm (250 μin.)
b6.3 μm (250 μin.)
c6.3 μm (250 μin.)
d6.3 μm (250 μin.)

49.7 to 49.9 mm dia.
(1.9567 to 1.9646 in. dia.)

18.5 to 19.0 mm
(0.886 to 0.925 in.)

44.7 to 44.9 mm dia.
(1.7598 to 1.7677 in. dia.)

[M8200 · M9000]

Right Left

64.75 to 64.95 mm dia.

A

(2.5492 to 2.5571 in. dia.)

17.5 to 18.5 mm

B

(0.6890 to 0.7283 in.)
C 60 mm (2.3622 in.)
D 32 mm dia. (1.26 in. dia.) 40 mm (1.5748 in.)

59.97 to 59.999 mm dia.

E

(2.3610 to 2.3618 in. dia.)
F 70 mm dia. (2.76 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)

I 10 mm (0.39 in.)
a6.3 μm (250 μin.)
b6.3 μm (250 μin.)
c6.3 μm (250 μin.)
d6.3 μm (250 μin.)

69.75 to 69.95 mm dia.
(2.7461 to 2.7539 in. dia.)

13.5 to 14.5 mm
(0.5315 to 0.5709 in.)

64.97 to 64.99 mm dia.
(2.5579 to 2.5587 in. dia.)

W1031655

G-46

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

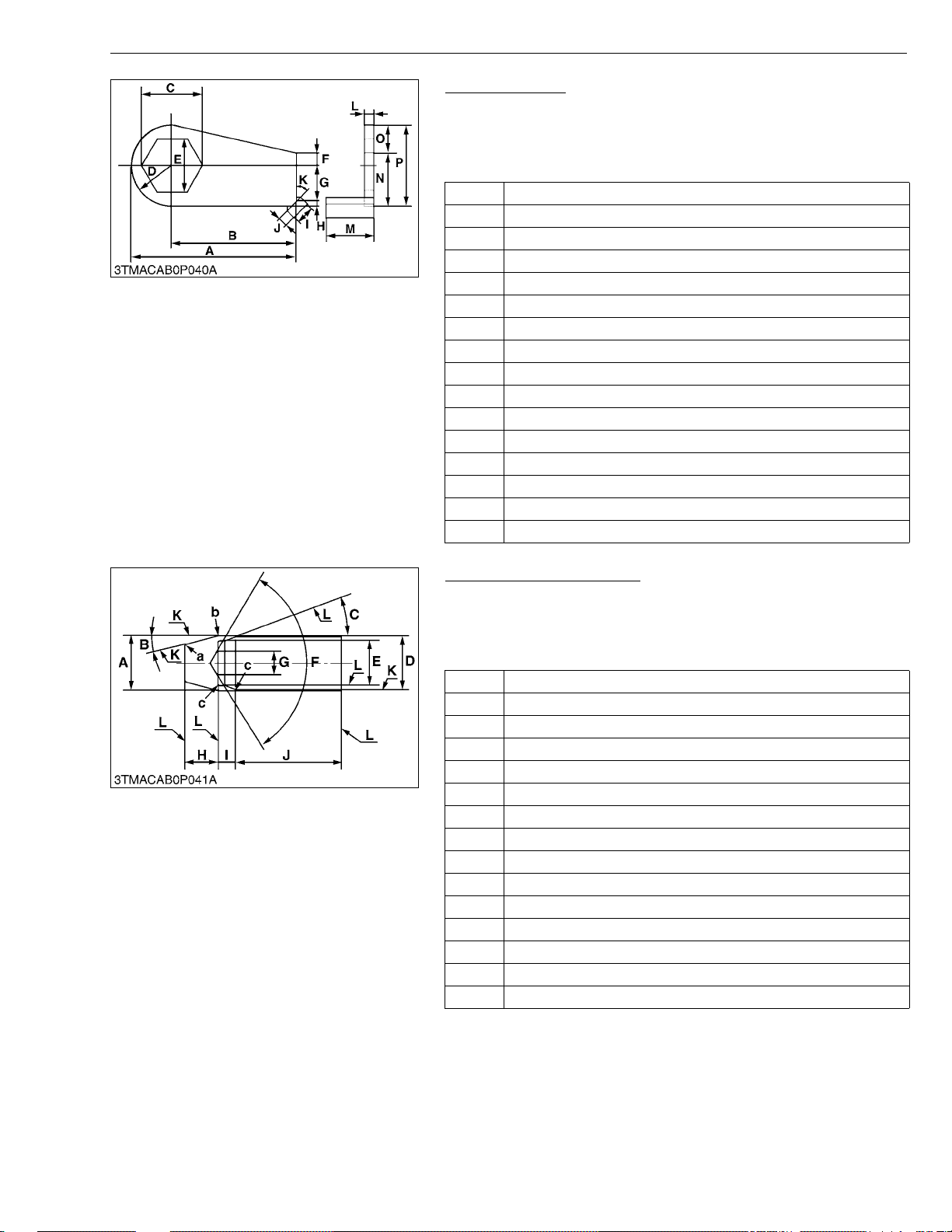

Locking Wrench

Application: Use for locking a pinion nut.

NOTEQ

• This special tool is not provi ded, so make it referring to the
figure.

A 170 mm (6.69 in.)

B 130 mm (5.12 in.)
C 63.5 mm (2.5 in.)
D 40 mm radius (1.57 in. radius)

E 55 mm (2.17 in.)

F 15 mm (0.59 in.)
G 35 mm (1.38 in.)
H 5 mm (0.2 in.)

I 20 mm (0.55 in.)

J 10 mm (0.39 in.)
K 0.78 rad (45 °)
L 10 mm (0.39 in.)

M 50 mm (1.97 in.)
N 55 mm (2.17 in.)
O 25 mm (0.97 in.)

P 80 mm (3.15 in.)

W1034911

PTO Propeller Shaft Guide

Application: Use to installing the propeller shaft to 21T gear shaft.

NOTEQ

• This special tool is not provi ded, so make it referring to the
figure.

A 24.85 to 24.95 mm dia. (0.9783 to 0.9823 in. dia.)

B 0.26 rad (15 °)
C 0.35 rad (20 °)
D 23.7 to 23.8 mm dia. (0.9331 to 0.9370 in. dia.)

E 20 mm dia. (0.79 in. dia.)

F 2.1 rad (120 °)
G Under 12 mm dia. (0.47 in. dia.)
H 15 mm (0.59 in.)

I 8 mm (0.31 in.)

J 48 mm (1.89 in.)
K Rmax = 25 S
L Rmax = 6.3 S
a 1.0 mm radius (0.039 in. radius)
b 2.0 mm radius (0.079 in. radius)

c 0.8 mm radius (0.031 in. radius)

W1078372

G-47

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

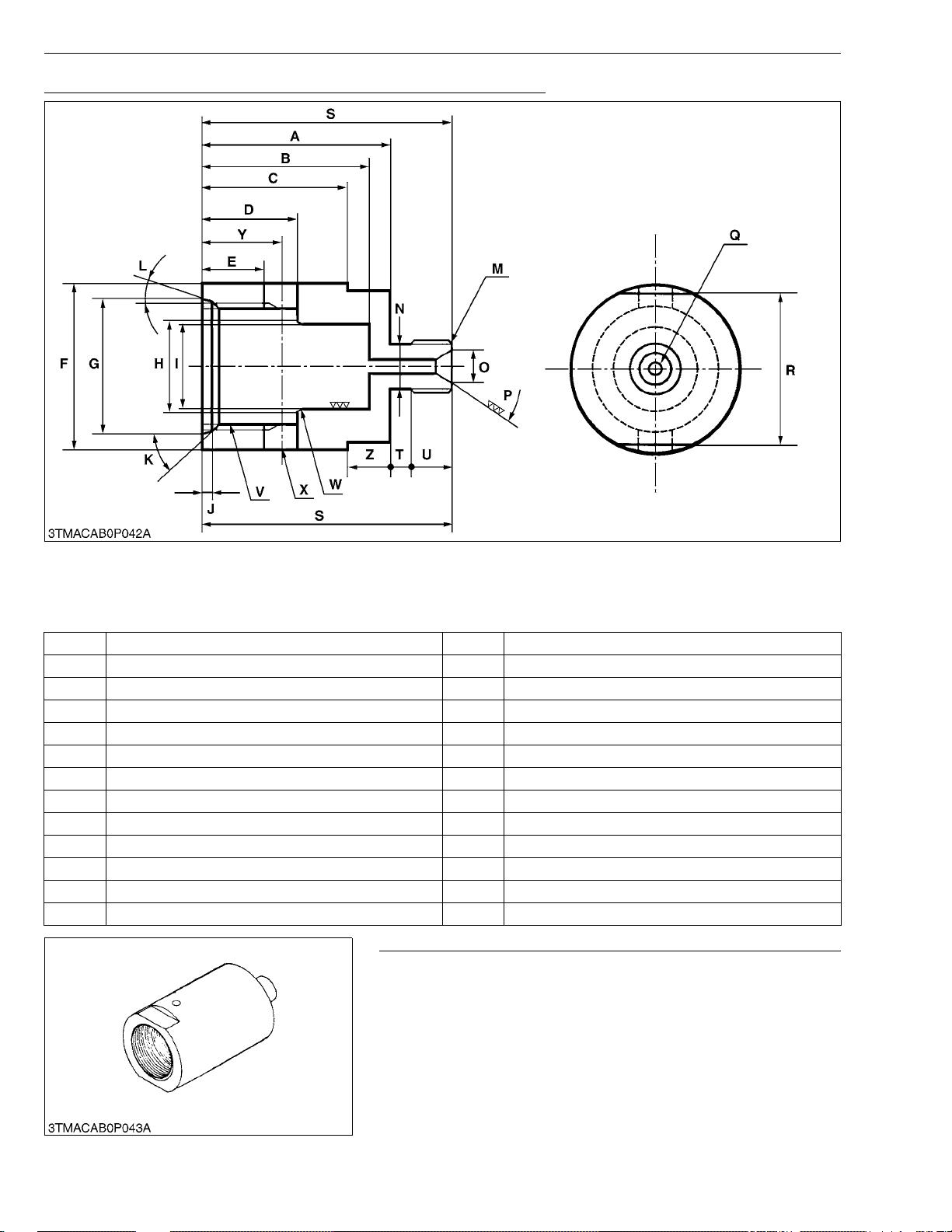

Cylinder Safety Valve Setting Pressure Adaptor (For M8200 · M9000)

G GENERAL

Application: Use for setting the safety valve to the nozzle tester to measure cracking pressure and check oil tightness

of the safety valves.

NOTEQ

• This special tool is not provided, so make it referring to the figure.

A 45 mm (1.77 in.) N 10 mm dia. (0.39 in. dia.)
B 40 mm (1.58 in.) O 7.5 mm dia. (0.3 in. dia.)
C 35 mm (13.8 in.) P 1.05 rad (60 °)
D 23 to 23.3 mm (0.9055 to 0.9713 in.) Q 3 mm dia. (1.18 in. dia.)
E 16 mm dia. (0.63 in. dia.) R 36 mm (1.18 in.)
F 40 mm dia. (1.58 in. dia.) S 60 mm (2.36 in.)
G 32.4 to 32.7 mm dia. (1.2756 to 1.2874 in. dia.) T 5 mm (0.20 in.)
H 21 mm dia. (0.83 in. dia.) U 10 mm (0.39 in.)

I 20 to 20.05 mm dia. (0.7874 to 0.7894 in. dia.) V M30 × P1.5
J 2.5 to 2.59 mm (0.0984 to 0.1097 in.) W 0.52 rad (30 °)
K 0.79 rad (45 °) X 8 mm dia. (0.32 in. dia.)
L 0.26 rad (15 °) Y 19 mm (0.75 in.)

M M12 × P1.5 Z 10 mm (0.39 in.)

Cylinder Safety Valve Setting Pressure Adaptor [For M6800(S)]

Code No: 07916-52581
Application: Use for setting the safety valve to the nozzle tester to

measure cracking pressure and check oil-tightness of
the safety valves.

W1035543

G-48

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

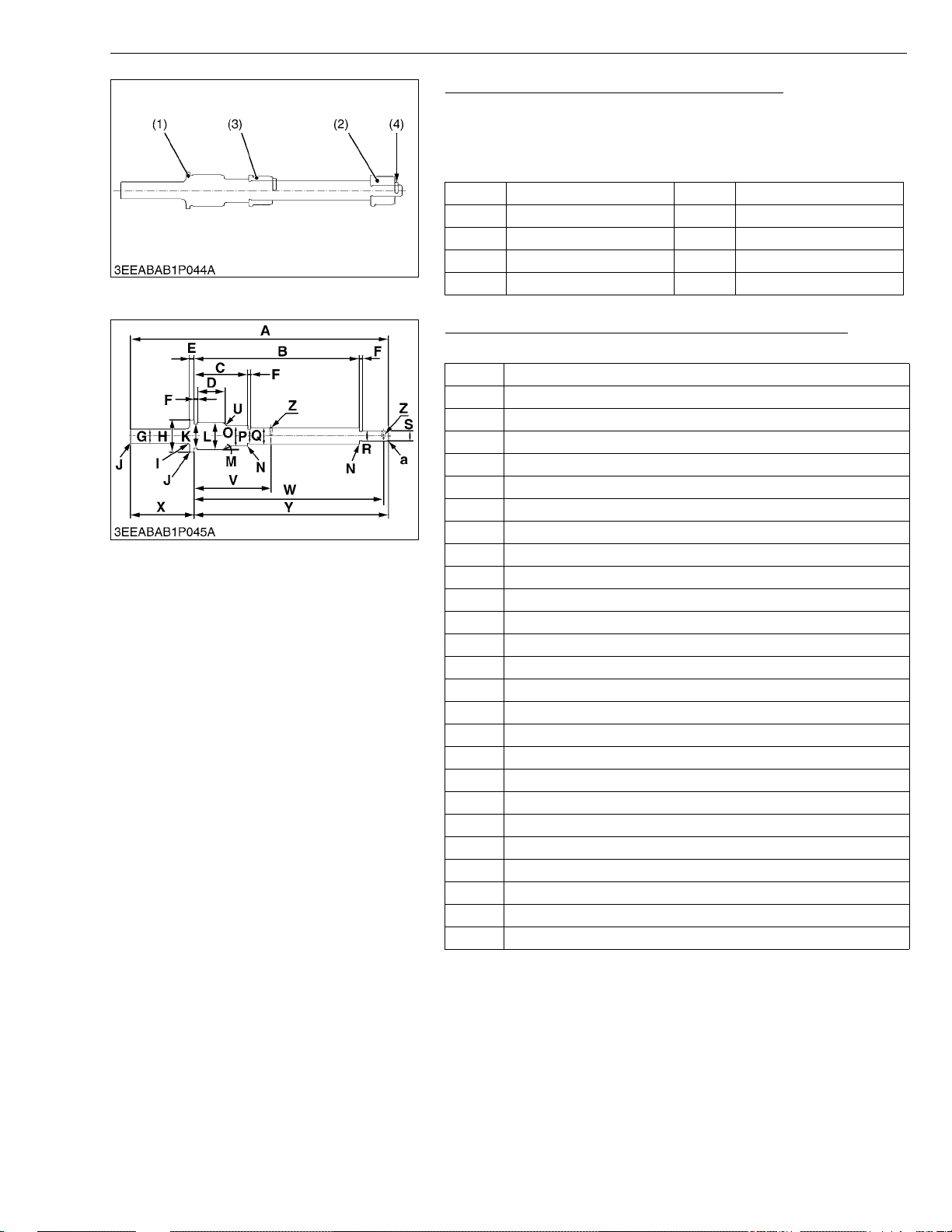

Balancer Bushing Replacing Tool 1 Assembly

Application: Use to press fit the bushing.

NOTEQ

• This special tool is not provi ded, so make it referring to the
figure.

No. Name of Part Q’ty Remarks

1 Shaft 1 –
2Piece 1 1–
3Piece 2 1–
4Bolt 2M6 × P1.0

W1035596

Balancer Bushing Replacing Tool 1 Components Parts

1) Shaft

A 498 mm (19.61 in.)

B 318.8 to 319.2 mm (12.5726 to 12.5669 in.)
C 102.8 to 103.2 mm (4.0472 to 4.0630 in.)
D 60 mm (2.36 in.)

E 8 mm (0.31 in.)

F 5 mm (0.20 in.)
G 30 mm dia. (1.18 in. dia.)
H 65 mm dia. (2.56 in. dia.)

I 6 mm (0.24 in.)

J Chamfer 1 mm (0.04 in.)
K 53 mm dia. (2.09 in. dia.)
L 54.7 to 54.9 mm dia. (2.1535 to 2.1614 in. dia.)

M 0.26 rad (15 °)
N Chamfer 0.5 mm (0.02 in.)
O 41 mm dia. (1.61 in. dia.)

P 32 mm dia. (1.26 in. dia.)

Q 33.961 to 34.0 mm dia. (1.3370 to 1.3386 in. dia.)
R 18 mm dia. (0.71 in. dia.)

S 19.967 to 20.0 mm dia. (0.7861 to 0.7874 in. dia.)

U 3 mm (0.12 in.)

V 149.1 to 149.4 mm (5.8701 to 5.8819 in.)

W 365.1 to 365.4 mm (14.3740 to 14.3858 in.)

X 123 mm (4.84 in.)
Y 375 mm (14.76 in.)
ZM6 × P1.0 depth 7 mm (0.28 in.)
a Chamfer 2 mm (0.08 in.)

W1036035

G-49

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

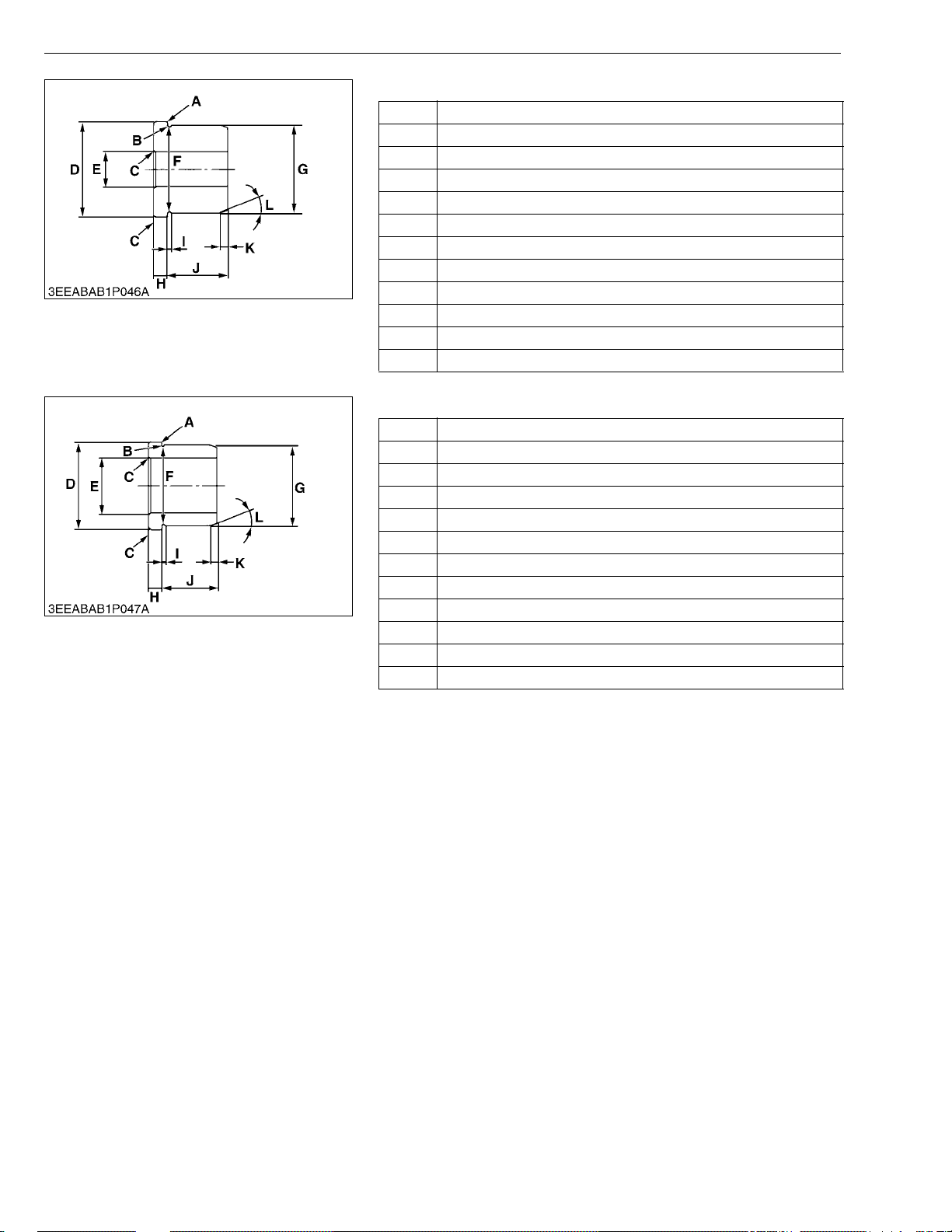

2) Piece 1

A Chamfer 0.1 mm (0.004 in.)
B 1 mm (0.04 in.)
C Chamfer 1 mm (0.04 in.)
D 53.8 to 53.9 mm dia. (2.1181 to 2.1220 in. dia.)
E 20.02 to 20.041 mm dia. (0.7882 to 0.7890 in. dia.)

F 48 mm dia. (1.89 in. dia.)
G 49.934 to 49.94 mm dia. (1.9659 to 1.9661 in. dia.)
H 8 mm (0.31 in.)

I 2 mm (0.08 in.)

J 35 mm (1.38 in.)
K 5 mm (0.20 in.)

L 0.26 rad (15 °)

W1036402

3) Piece 2

A Chamfer 0.1 mm (0.004 in.)
B 1 mm (0.04 in.)
C Chamfer 1 mm (0.04 in.)
D 54.3 to 54.4 mm dia. (2.1378 to 2.1417 in. dia.)
E 34.025 to 34.05 mm dia. (1.3396 to 1.3406 in. dia.)

F 48.5 mm dia. (1.9094 in. dia.)
G 50.421 to 50.44 mm dia. (1.9851 to 1.9858 in. dia.)
H 8 mm (0.31 in.)

I 2 mm (0.08 in.)

J 35 mm (1.38 in.)
K 5 mm (0.20 in.)

L 0.26 rad (15 °)

W1036583

G-50

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

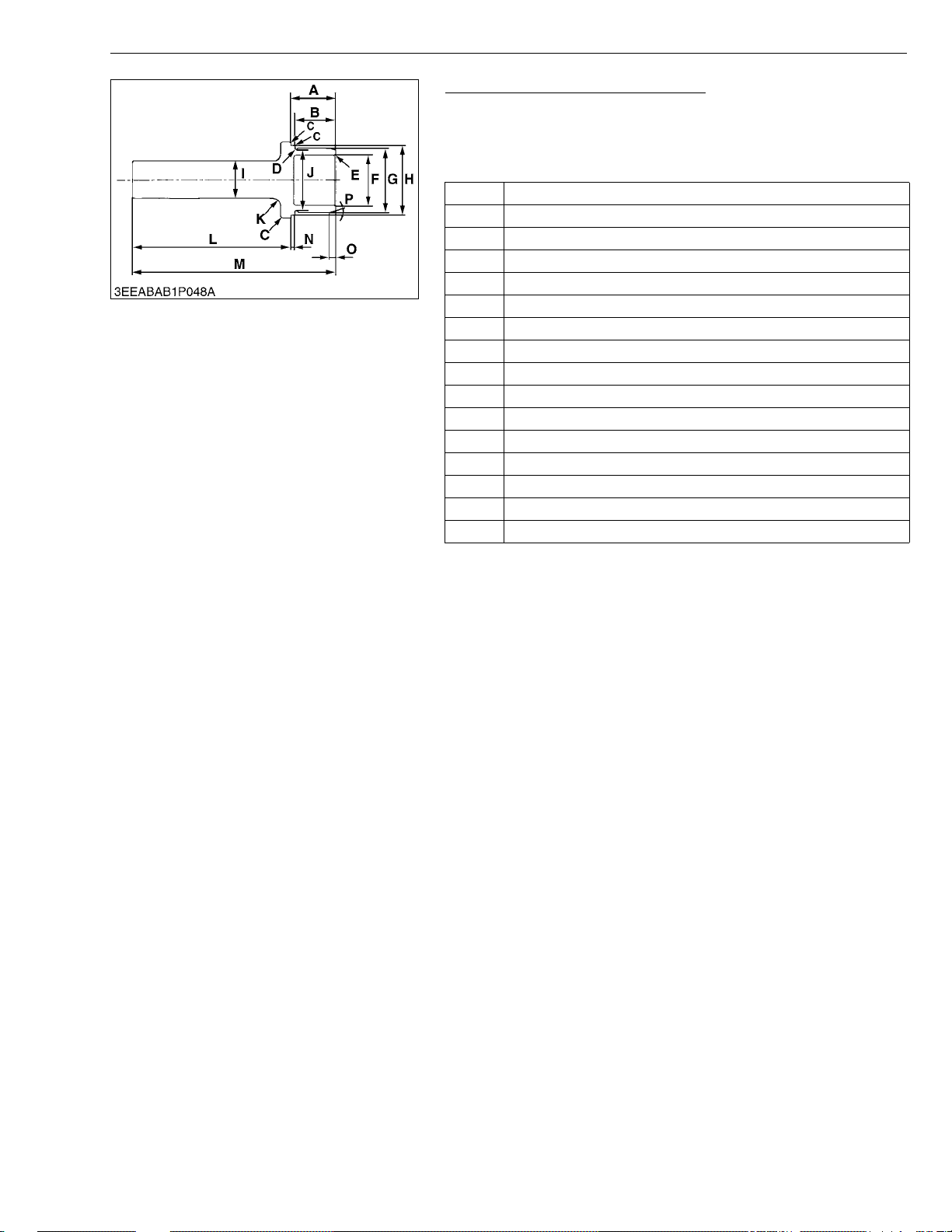

Balancer Bushing Replacing Tool 2

Application: Use to press fit the bushing.

NOTEQ

• This special tool is not provi ded, so make it referring to the
figure.

A 35 mm (1.38 in.)

B 33 mm (1.30 in.)
C Chamfer 0.5 mm (0.02 in.)
D 1 mm (0.04 in.)

E Chamfer 1 mm (0.04 in.)

F 40 mm dia. (1.57 in. dia.)
G 50.921 to 50.94 mm dia. (2.0048 to 2.0055 in. dia.)
H 54.8 to 54.9 mm dia. (2.1575 to 2.1614 in. dia.)

I 30 mm dia. (1.18 in. dia.)

J 49 mm dia. (1.93 in. dia.)
K 6 mm (0.24 in.)
L 125 mm (4.92 in.)

M 160 mm (6.30 in.)
N 3 mm (0.12 in.)
O 5 mm (0.20 in.)

P 0.26 rad (15 °)

W1036805

G-51

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

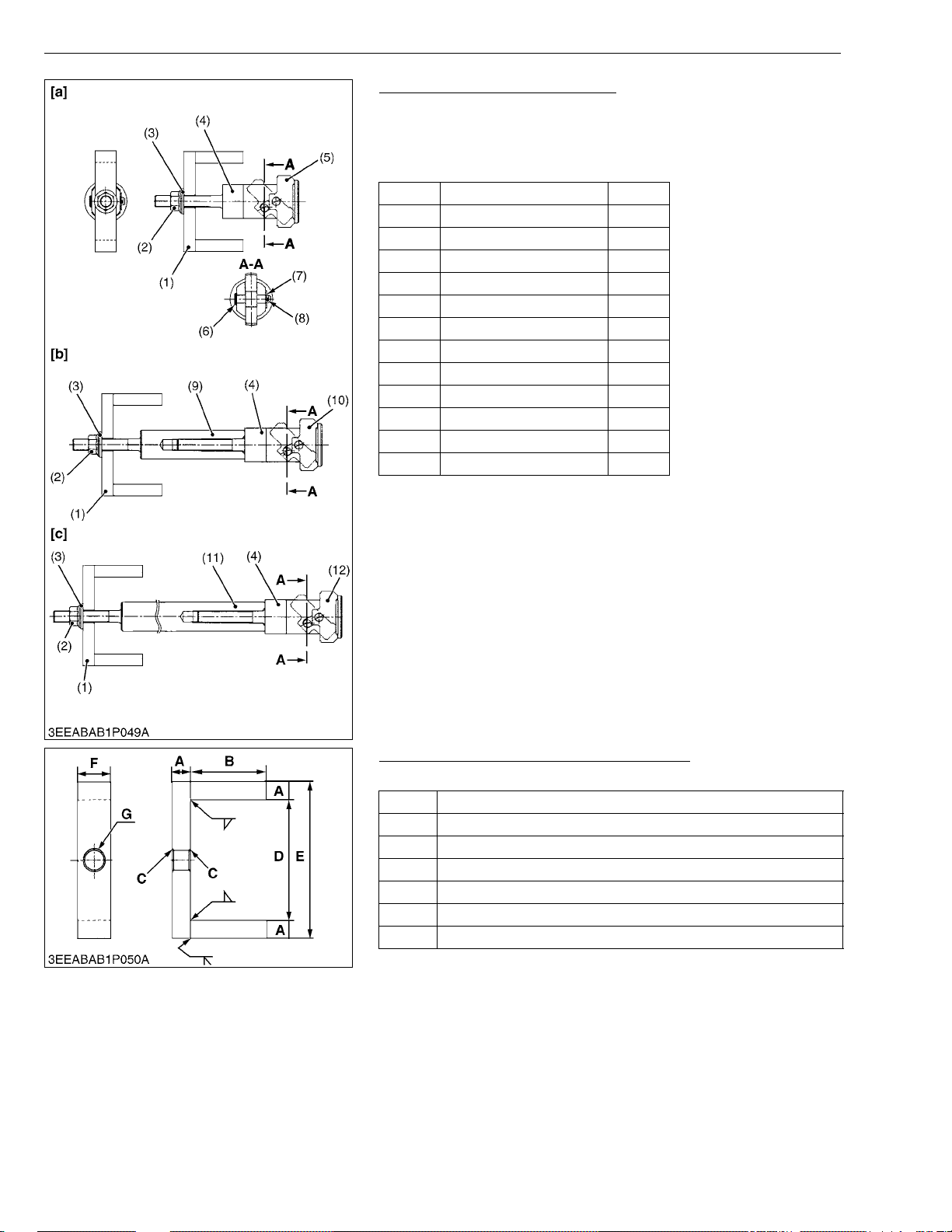

Balancer Replacing Tools 3, 4, 5

Application: Use to press fit the bushing.

NOTEQ

• This special tool is not provided, so make it referring to the
figure.

No. Name of Part Q’ty

1Bracket 1
2 Flange Nut 1
3 Washer 1
4 Shaft 1
5Piece 1 1
6Clevis 1
7 Washer 1
8 Cotter Pin 1

9 Joint 1 1
10 Piece 2 1
11 Joint 2 1
12 Piece 3 1

[a] Tool 3
[b] Tool 4

[c] Tool 5

Balancer Bushing Tool Components Parts

1) Bracket

A 12 mm (0.47 in.)
B 50 mm (1.97 in.)
C Chamfer 1 mm (0.04 in.)
D 80 mm (3.15 in.)
E 104 mm (4.09 in.)

F 22 mm (0.87 in.)

G 13 mm dia. (0.51 in. dia.)

W1037123

W1037894

G-52

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

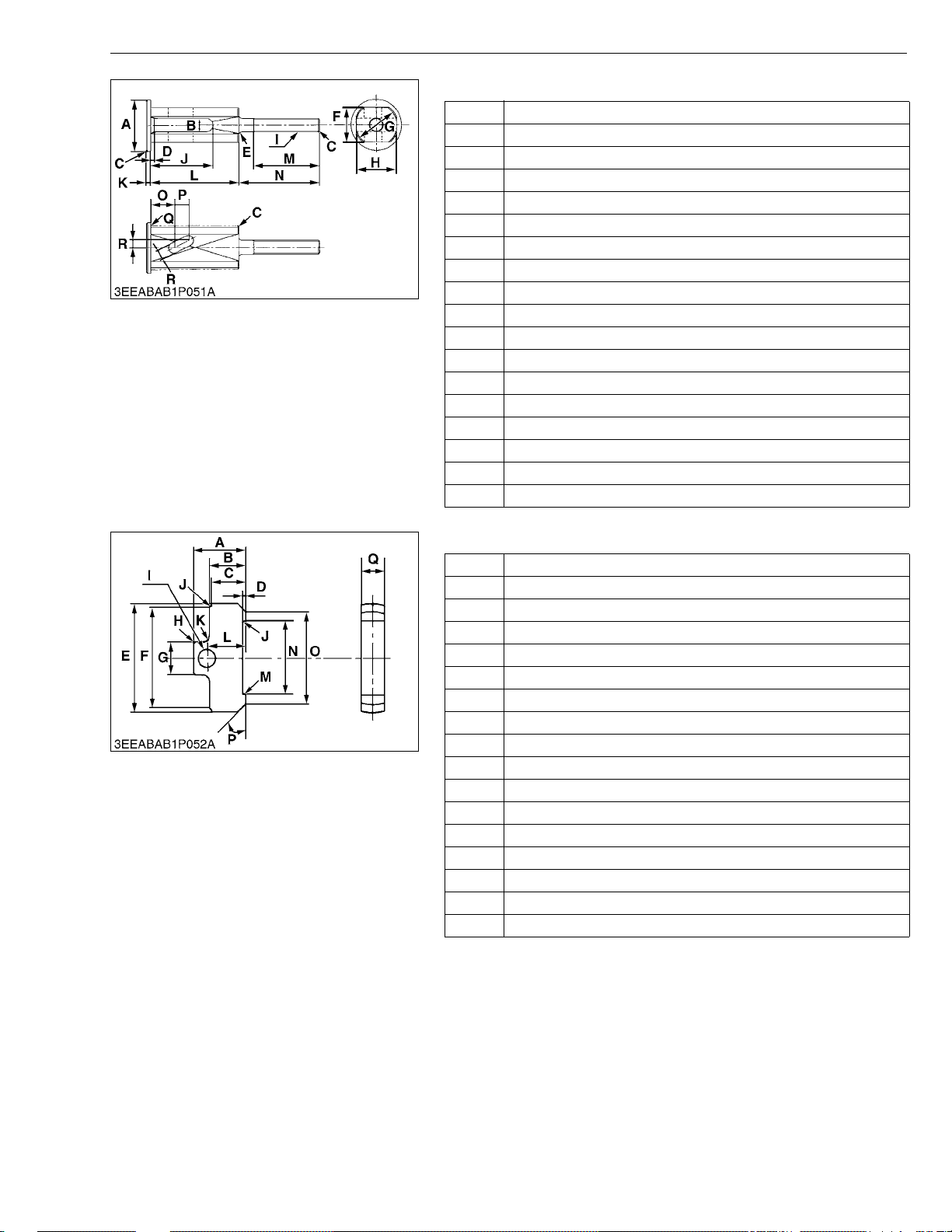

2) Shaft

A 44 mm dia. (1.73 in. dia.)

B 12 mm (0.47 in.)
C Chamfer 1 mm (0.04 in.)
D 3 mm (0.12 in.)

E 3 mm (0.12 in.)

F 30 mm (1.18 in.)
G 38 mm (1.38 in.)
H 35 mm (1.38 in.)

IM12 × P1.25

J 53 mm (2.09 in.)
K 4 mm (0.16 in.)
L 75 mm (2.95 in.)

M 57 mm (2.24 in.)
N 70 mm (2.76 in.)
O 19.5 mm (0.77 in.)

P 12 mm (0.47 in.)

Q 0.8 mm (0.03 in.)
R 6 mm (0.24 in.)

W1037691

3) Piece 1

A 26 mm (1.02 in.)
B 18 mm (0.71 in.)

C 16.5 to 17.0 mm (0.6496 to 0.6693 in.)
D 1.5 mm (0.06 in.)

E 54.0 to 54.2 mm dia. (2.1260 to 2.1339 in. dia.)
F 50.55 to 50.75 mm dia. (1.9902 to 1.9980 in. dia.)

G 16 mm (0.63 in.)
H Chamfer 1 mm (0.04 in.)

I 8.5 mm dia. (0.33 in. dia.)

J 0.4 mm (0.0157 in.)
K 3 mm (0.12 in.)
L 19 mm (0.75 in.)

M Chamfer 0.5 mm (0.02 in.)
N 36 mm (1.42 in.)
O 45 mm dia. (1.77 in. dia.)

P 0.78 rad (45 °)

Q 11.5 mm (0.45 in.)

W1038038

G-53

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

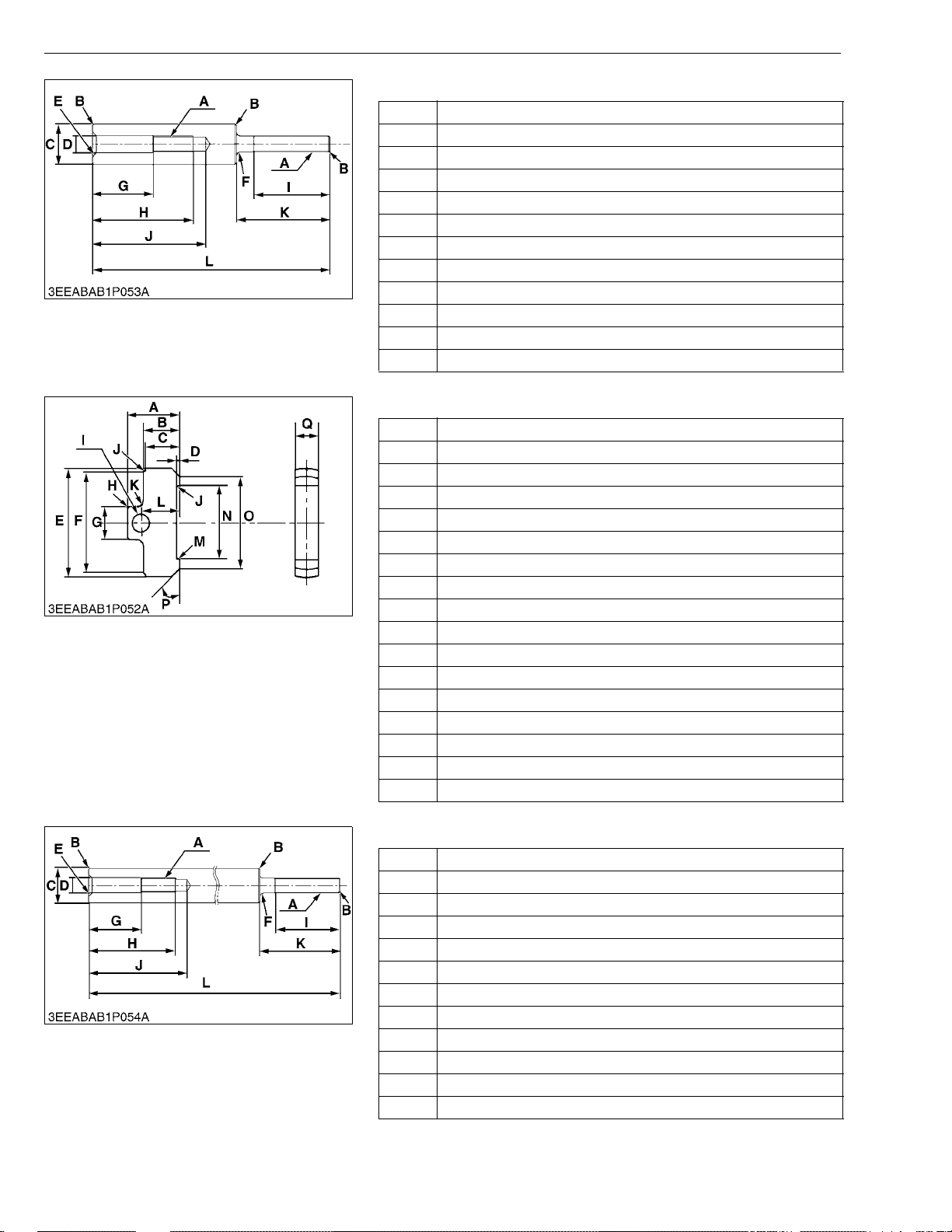

4) Joint 1

A M12 × P1.25
B Chamfer 1 mm (0.04 in.)
C 30 mm dia. (1.18 in. dia.)
D 13 mm dia. (0.51 in. dia.)
E Chamfer 3 mm (0.12 in.)

F R3 mm (0.12 in. radius)
G 45 mm (1.77 in.)
H 75 mm (2.95 in.)

I 57 mm (2.24 in.)

J 85 mm (3.35 in.)
K 70 mm (2.76 in.)

L 178 mm (7.01 in.)

W1038382

5) Piece 2

A 26 mm (1.02 in.)
B 18 mm (0.71 in.)
C 16.5 to 17.0 mm (0.6496 to 0.6693 in.)
D 1.5 mm (0.06 in.)
E 53.5 to 53.7 mm dia. (2.1063 to 2.1142 in. dia.)

F 50.05 to 50.25 mm dia. (1.9705 to 1.9783 in. dia.)
G 16 mm (0.63 in.)
H Chamfer 1 mm (0.04 in.)

I 8.5 mm dia. (0.33 in. dia.)

J 0.4 mm (0.0157 in.)
K 3 mm (0.12 in.)

L 19 mm (0.75 in.)
M Chamfer 0.5 mm (0.02 in.)
N 36 mm (1.42 in.)
O 45 mm dia. (1.77 in. dia.)
P 0.78 rad (45 °)
Q 11.5 mm (0.45 in.)

W1038568

6) Joint 2

A M12 × P1.25
B Chamfer 1 mm (0.04 in.)
C 30 mm dia. (1.18 in. dia.)
D 13 mm dia. (0.51 in. dia.)
E Chamfer 3 mm (0.12 in.)

F R3 mm (0.12 in. radius)
G 45 mm (1.77 in.)
H 75 mm (2.95 in.)

I 57 mm (2.24 in.)

J 85 mm (3.35 in.)
K 70 mm (2.76 in.)

L 394 mm (15.51 in.)

W1038747

G-54

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

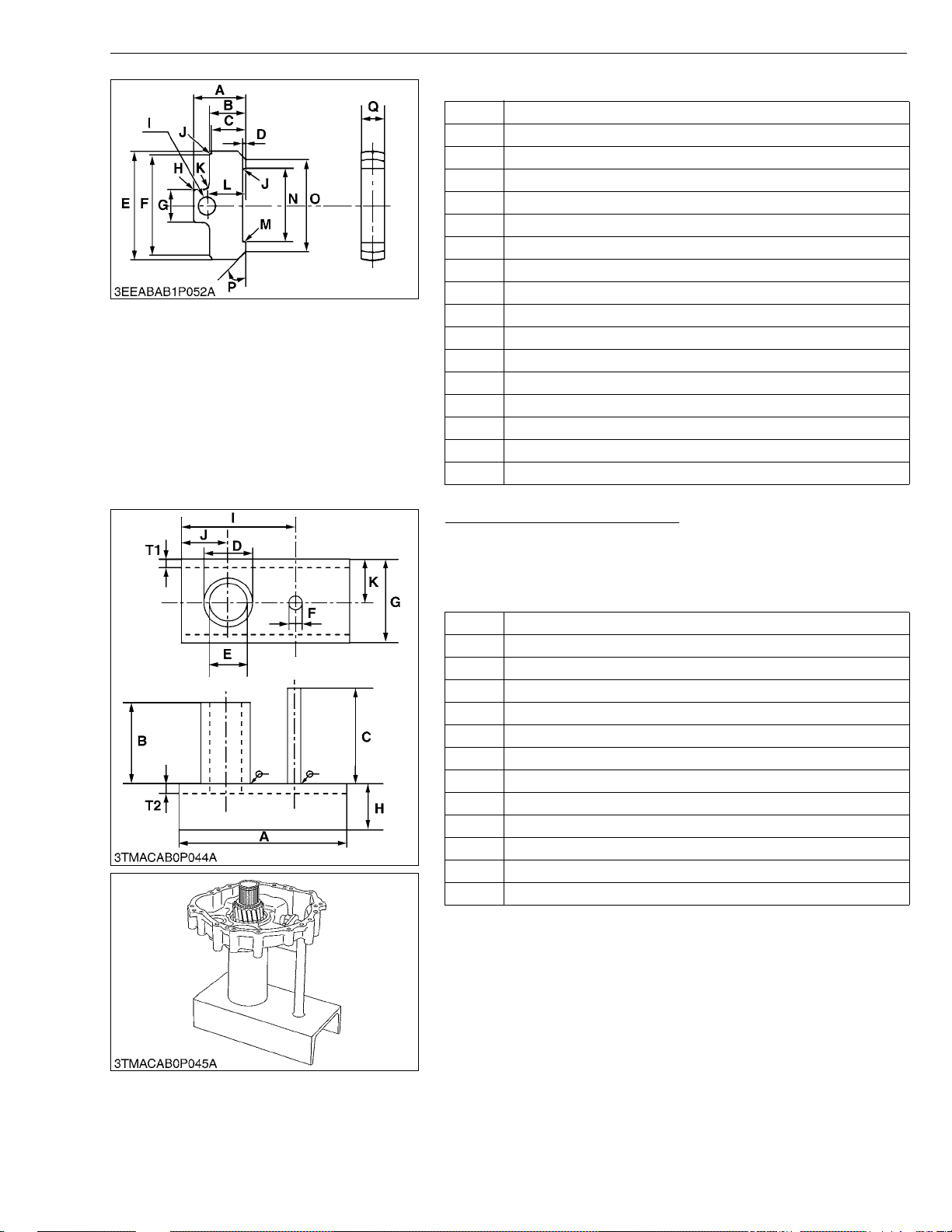

7) Piece 3

A 26 mm (1.02 in.)

B 18 mm (0.71 in.)
C 16.5 to 17.0 mm (0.6496 to 0.6693 in.)
D 1.5 mm (0.06 in.)

E 53.0 to 53.2 mm dia. (2.0866 to 2.0945 in. dia.)

F 49.55 to 49.75 mm dia. (1.9508 to 1.9587 in. dia.)
G 16 mm (0.63 in.)
H Chamfer 1 mm (0.04 in.)

I 8.5 mm dia. (0.33 in. dia.)

J 0.4 mm (0.0157 in.)
K 3 mm (0.12 in.)
L 19 mm (0.75 in.)

M Chamfer 0.5 mm (0.02 in.)
N 36 mm (1.42 in.)
O 45 mm dia. (1.77 in. dia.)

P 0.78 rad (45 °)

Q 11.5 mm (0.45 in.)

W1038887

Shuttle Case Assembling Stand

Application: Use for assembling the shuttle case.

NOTEQ

• This special tool is not provided so make it referring to the
figure.

A 300 mm (11.81 in.)

B 175 mm (6.89 in.)
C 195 mm (7.68 in.)
D 85 mm dia. (3.35 in. dia.)

E 75 mm dia. (2.95 in. dia.)

F 21 mm dia. (0.83 in. dia.)
G 150 mm (5.91 in.)
H 75 mm (2.95 in.)

I 220 mm (8.665 in.)

J 80 mm (3.15 in.)

K 75 mm (2.95 in.)

T1 15 mm (0.59 in.)
T2 15 mm (0.59 in.)

W1031821

G-55

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

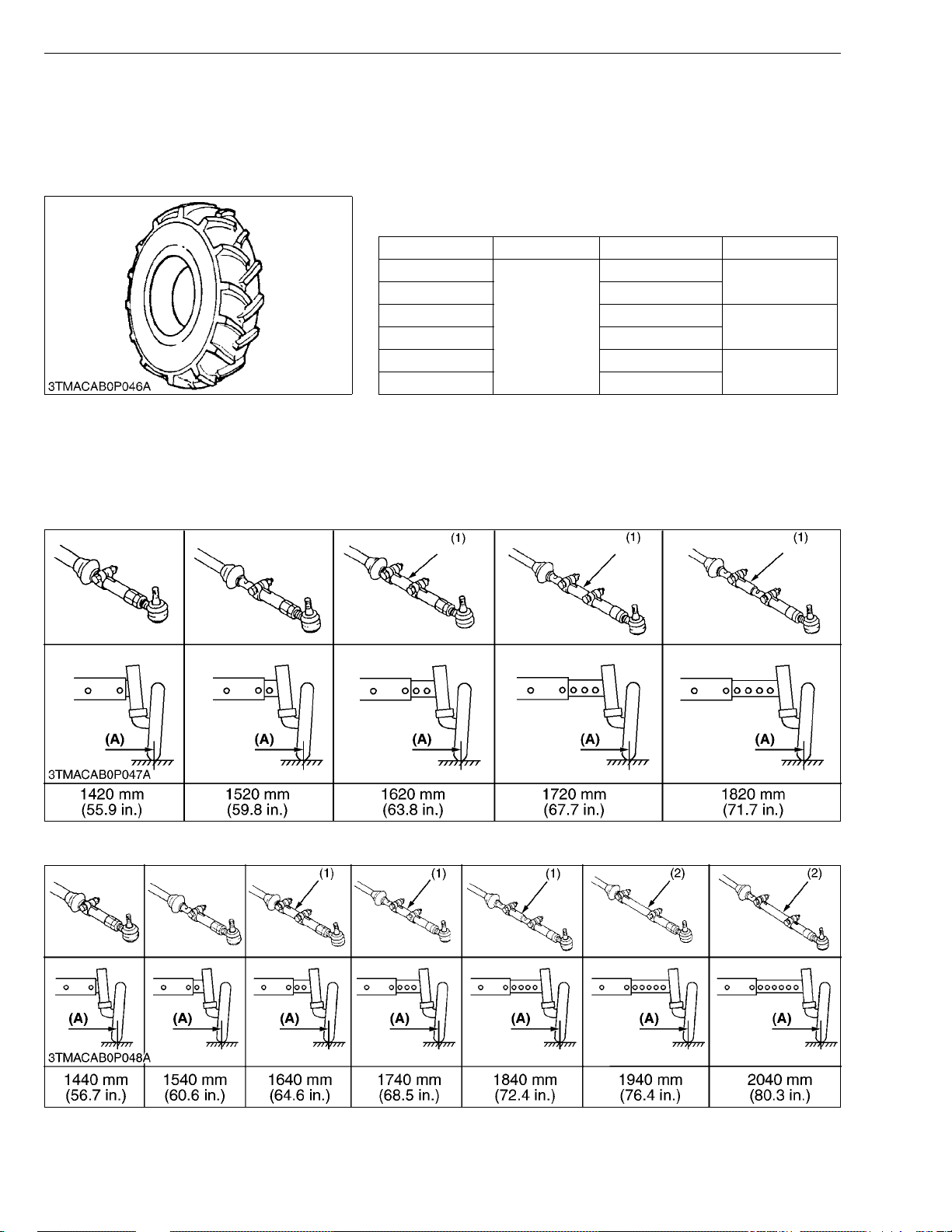

10.TIRES

[1] TYPE OF TIRES

IMPORTANTQ

• Do not use tires larger than specified.

[2] TREAD ADJUSTMENT

(1) Front Wheels [2WD]

Front wheels can be adjusted.

[M6800(S)]

G GENERAL

The following tires can be mounted on models M6800(S), M8200

and M9000.

Model Type of Tire Front Rear
M6800(S) [2WD]
M6800(S) [4WD] 9.5 – 24
M8200 [2WD] 7.5 – 18
M8200 [4WD] 11.2 – 24
M9000 [2WD] 7.5 – 18
M9000 [4WD] 12.4 – 24

Farm Tire

9.5L – 15, 7.5 – 16

16.9 – 30

18.4 – 28

18.4 – 30

W1019656

[M8200 · M9000]

(1) Extension 1 (a short spacer) (2) Extension 2 (a long spacer) (A) “TREAD”

G-56

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

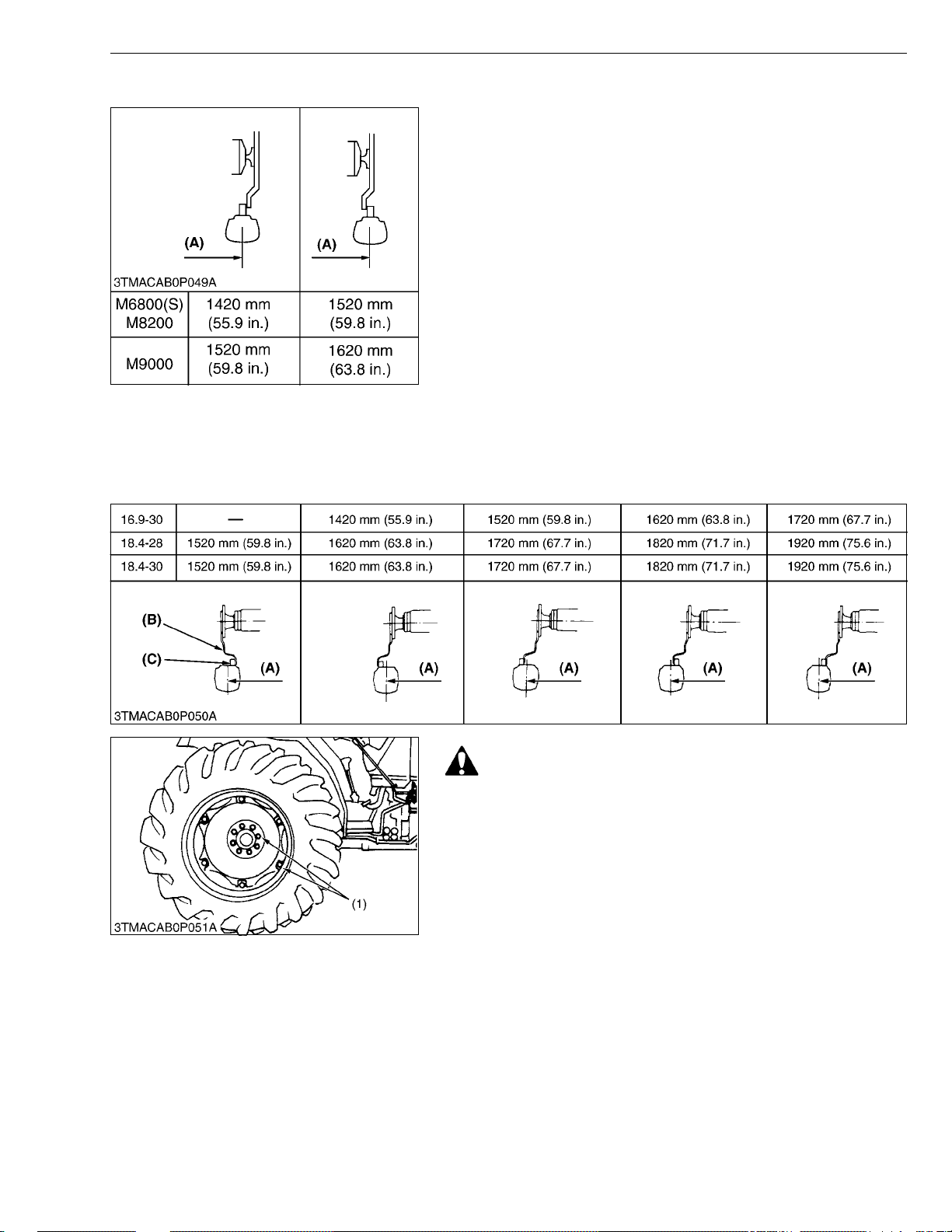

(2) Front Wheels [4WD]

Front wheels can be adjusted.

(A) Tread

(3) Rear Wheels

Rear tread can be adjusted in 6 steps depending on the model.
To change the tread

1. Lift the rear tires off the ground.

2. Follow the illustrations below to get the desired tread width.

G GENERAL

W1039833

CAUTION

• When working on slopes or working with trailer, set the
wheel tread as wide as practical for the job for maximum
stability.

IMPORTANTQ

• Always attach tires as shown in the drawings above.

• If not attached as illustrated, transmission parts may be
damaged.

• Do not use tires larger than specified.

• When re-fitting or adjusting a wheel, tighten the nuts to the
following torques then recheck after driving the tractor 200
m (200 yards) and thereafter daily check service.

(1) Rear Wheel Mounting Nut and Rear

Disc Mounting Nut
[Refer to “Checking Wheel Mounting
Nuts Tightening Torque”. (See page
G-19)]

(A) Tread
(B) Rear Wheel Disc
(C) Rear Wheel Rim

W1039946

G-57

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

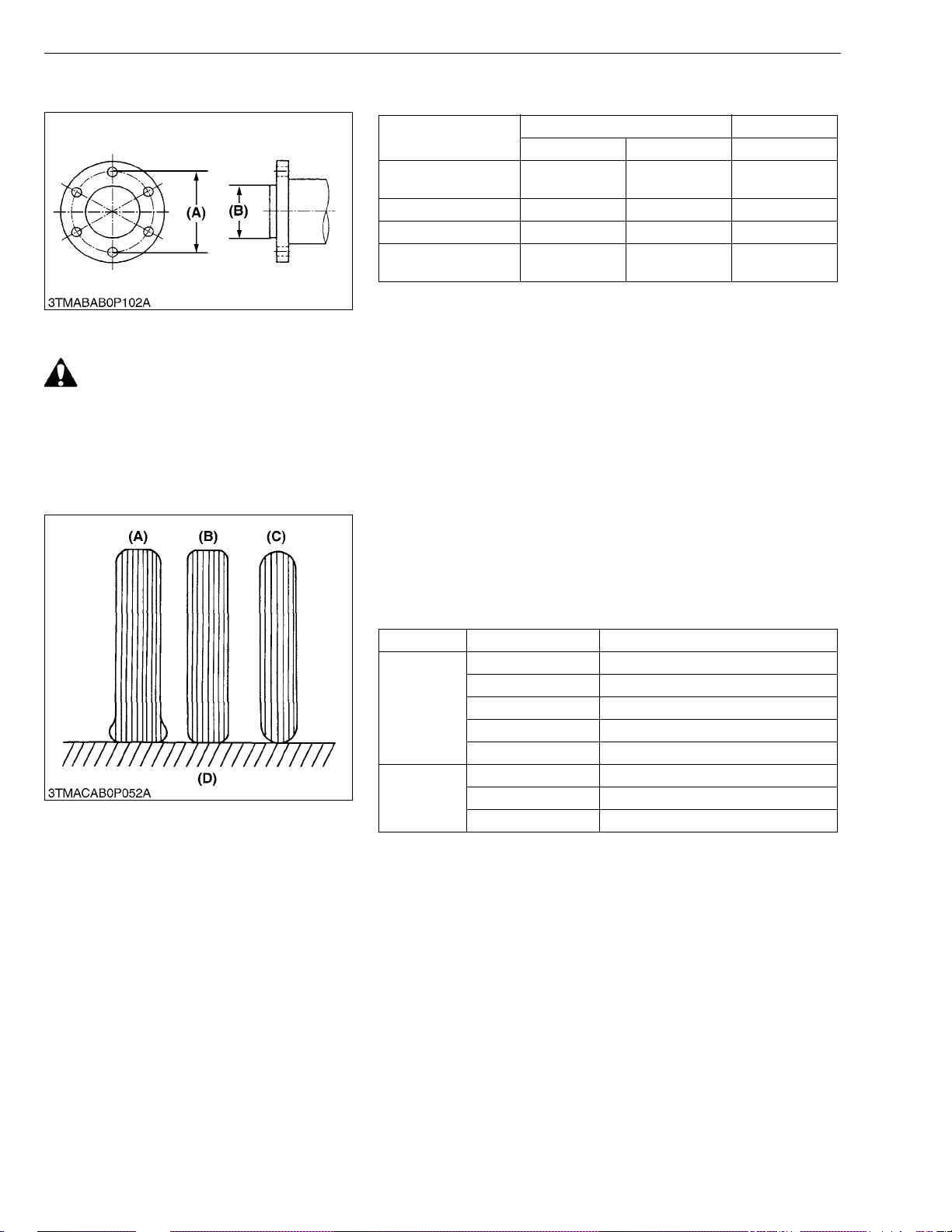

[3] WHEEL HUB

Front wheel hub Rear wheel hub

2WD 4WD –

Screw circle diameter

(A)

Number of screws 6 8 8
Screws M14 × P1.5 M16 × P1.5 M16 × P1.5

Hub pilot diameter (B)

152.4 mm
(6 in.)

114.0 mm

(4.488 in.)

203.2 mm
(8 in.)

152.4 mm
(6 in.)

203.2 mm
(8 in.)

152.4 mm
(6 in.)

W1043392

[4] TIRE PRESSURE

CAUTION

• Do not attempt mount a tire. This should be done by a qualified person with the proper equipment.
IMPORTANTQ

• Do not use tires larger than specified.

• When you intend to mount different size of tires from equipped ones, consult your distributor about front
drive gear ratio for detail.

• Excessive wear of tires may occur due to improper gear ratio.

Through the tire pressure is fa ctor y-set to the prescribed level, it
naturally drops slowly in the course of time. Thus, check it every day
and inflate as necessary.

To inflate the wheel tires, use an air compressor or hand pump.

Q Recommended Inflation Pressure

• Maintain the pressure shown below for normal use.

Tire sizes Inflation pressur e

2

, 40 psi)

2

, 40 psi)

2

, 26 psi)

2

, 23 psi)

2

, 20 psi)

2

, 18 psi)

2

, 16 psi)

2

, 16 psi)

Front

Rear

7.50 – 16 280 kPa (2.8 kgf/cm

7.50 – 18 280 kPa (2.8 kgf/cm

9.50 – 24 180 kPa (1.8 kgf/cm

11.2 – 24 160 kPa (1.6 kgf/cm

12.4 – 24 140 kPa (1.4 kgf/cm

16.9 – 30 120 kPa (1.2 kgf/cm

18.4 – 28 110 kPa (1.1 kgf/cm

18.4 – 30 110 kPa (1.1 kgf/cm

NOTEQ

• Maintain the maximum pressure in front tires, if using a front
loader of when equipped with lots of front weight.

(A) Insufficient
(B) Standard

(C) Excessive
(D) Ground

W1027488

G-58

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

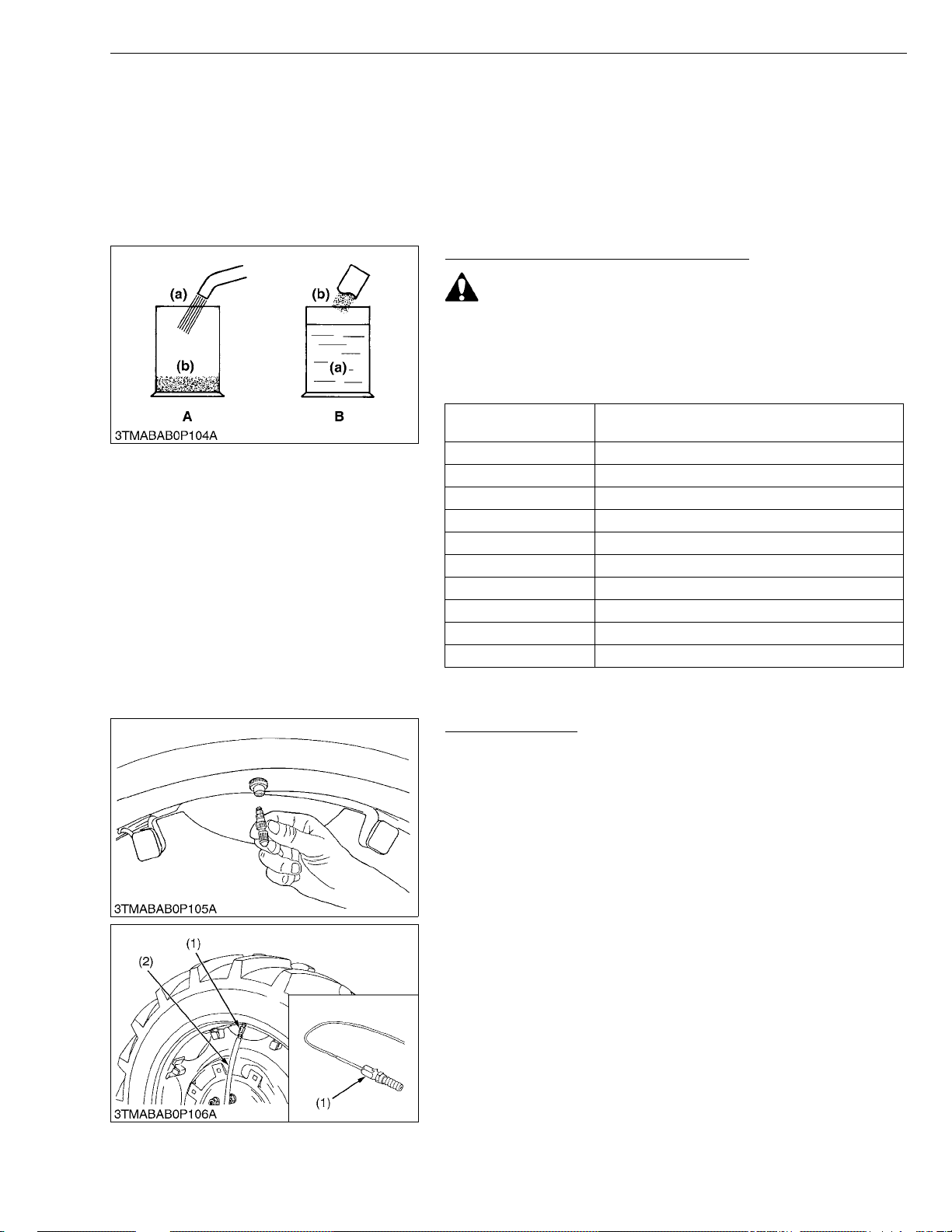

[5] TIRE LIQUID INJECTION

Auxiliary weights can be used to increase traction force for plowing in fields or clayey ground.

Another way is to inject water or another liquid, such as a calcium chloride solution in the tires. Water must not be
used in winter since it freezes at 0 °C (32 °F). The calcium chloride solution will not freeze and moreover, affords
higher effect than water since its spec ific gr a v ity is hi gh e r than that of water by about 20 %. Below is an explanation
of calcium chloride solution injection.

IMPORTANTQ

• Do not fill the front tires with liquid.
Preparation of Calcium Chloride Solution

CAUTION

• When making a calcium chloride solution, do not pour water
over calcium chloride since this results in chemical reaction
which will cause high temperature. Instead add a small
amount of calcium chloride to the water at a time until the
desired solution is achieved.

Freezing temp.

−5 °C (23 °F) 12 kg (26.4 lbs)

−10 °C (14 °F) 21 kg (46.3 lbs)

−15 °C (5 °F) 28 kg (61.7 lbs)

−20 °C (−4 °F) 34 kg (75.0 lbs)

−25 °C (−13 °F) 40 kg (88.2 lbs)

−33 °C (−22 °F) 44 kg (97.0 lbs)

−35 °C (−31 °F) 49 kg (108.0 lbs)

−40 °C (−40 °F) 52 kg (114.6 lbs)

−45 °C (−49 °F) 56 kg (123.5 lbs)

−50 °C (−58 °F) 61 kg (134.5 lbs)

Weight of CaCl

(26.5 U.S.gals., 22.0 Imp.gals.) of water

2 to be dissolved in 100 L

(a) Water (b) CaCl

2 (Calcium Chloride)

W1033083

Attaching Injector

1. Lift the rear tires off the ground.

2. Turn the tire so that the air valve is at the top.

3. Remove the air valve, and attach the injector. (Code No. 07916-

52501)

(1) Injector (2) Hose

W1033331

G-59

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

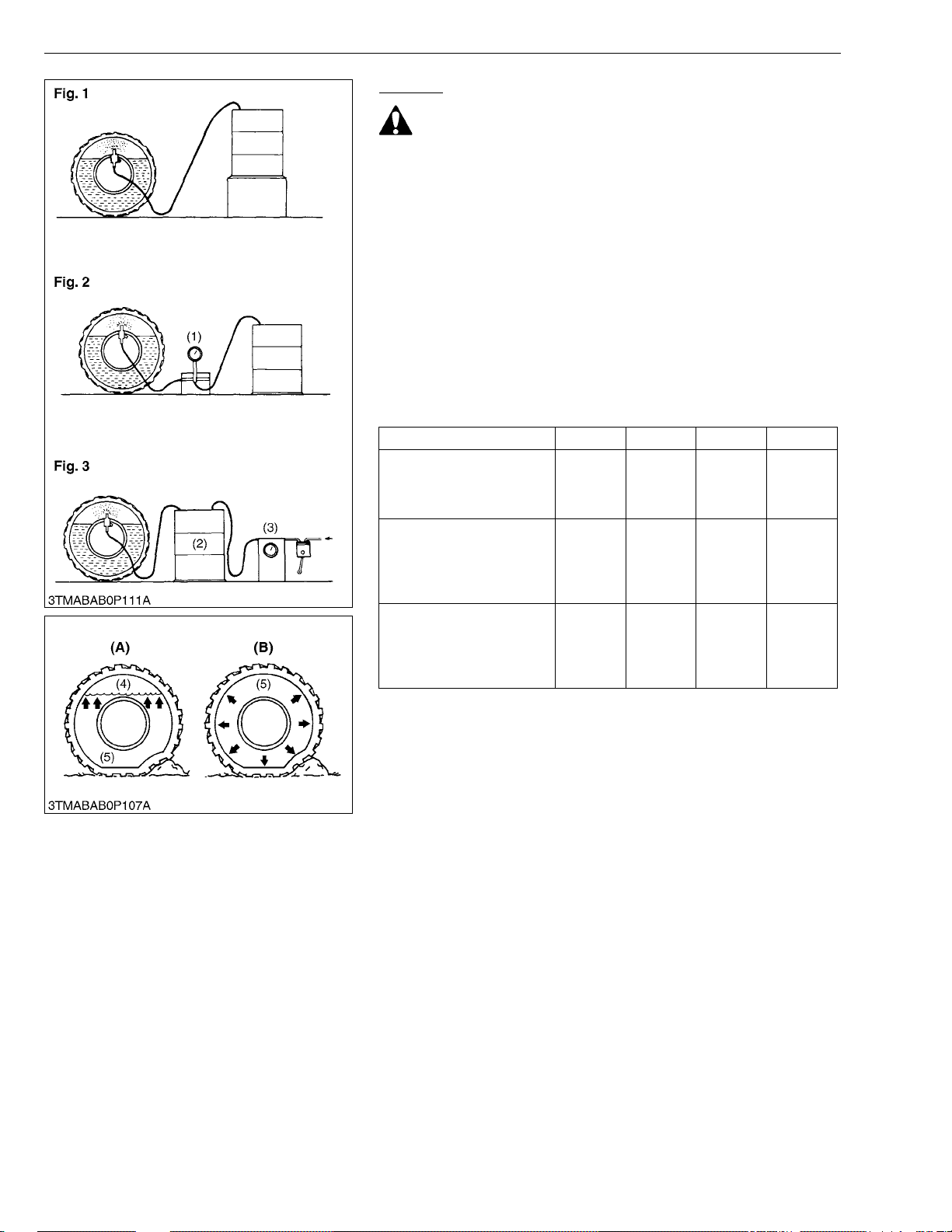

Injection

CAUTION

• When a calcium chloride solution is used, cool it before
pouring it into the tire.

• Do not fill tires with water or solution more than 75 % of full
capacity (to the valve stem level).

The following four ways can be used to inject water or a calcium

chloride solution into tires.

1. Gravity injection (Fig. 1)

2. Pump injection (Fig. 2)

3. Pressure tank injection (Fig. 3)

4. Injection directly from tap (only when water is being used).

NOTEQ

• Once injection is completed, reset the air valve, and pump
air into the tire to the specified pressure.

Weight of Calcium Chloride Solution Filling 75 % of Full Capacity

of a Tire

Tire sizes 16.9 – 30 16.9 – 34 18.4 – 28 18.4 – 30

Slush free at −10 °C (14 °F)
Solid at −30 °C (−22 °F)
[Approx. 1 kg (2 lbs.) CaCl
per 4 L (1 gal.) of water]

Slush free at −24 °C (−11 °F)
Solid at −47 °C (−53 °F)
[Approx. 1.5 kg (3.5 lbs.)

2 per 4 L (1 gal.) of

CaCl
water]

Slush free at −47 °C (−53 °F)
Solid at −52 °C (−62 °F)
[Approx. 2.25 kg (5 lbs.)

2 per 4 L (1 gal.) of

CaCl
water]

2

314 kg

(693 lbs)

338 kg

(746 lbs)

357 kg

(787 lbs)

346 kg

(762 lbs)

376 kg

(829 lbs)

399 kg

(880 lbs)

357 kg

(786 lbs)

387 kg

(852 lbs)

411 kg

(907 lbs)

385 kg

(848 lbs)

414 kg

(912 lbs)

436 kg

(960 lbs)

(1) Pump
(2) Pressure Tank
(3) Compressor
(4) Air
(5) Water

(A) Correct : 75 %

Air Compresses Like A Cushion

(B) Incorrect : 100 % Full

Water Can Not Be Compressed

W1033435

G-60

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

Draining Water or Solution

1. Lift the rear tires off the ground.

2. Turn the tire so that the air valve is at the bottom.

3. Remove the air valve, and drain liquid (liquid can only be drained
to the level of the valve and liquid under that level remains
inside).

4. To drain liquid completely, use the injector (1), and direct
compressed air into the tire to force out the liquid through the
injector’s vent (3).

(1) Injector
(2) Hose
(3) Vent

A: Compressed Air

W1045167

G-61

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

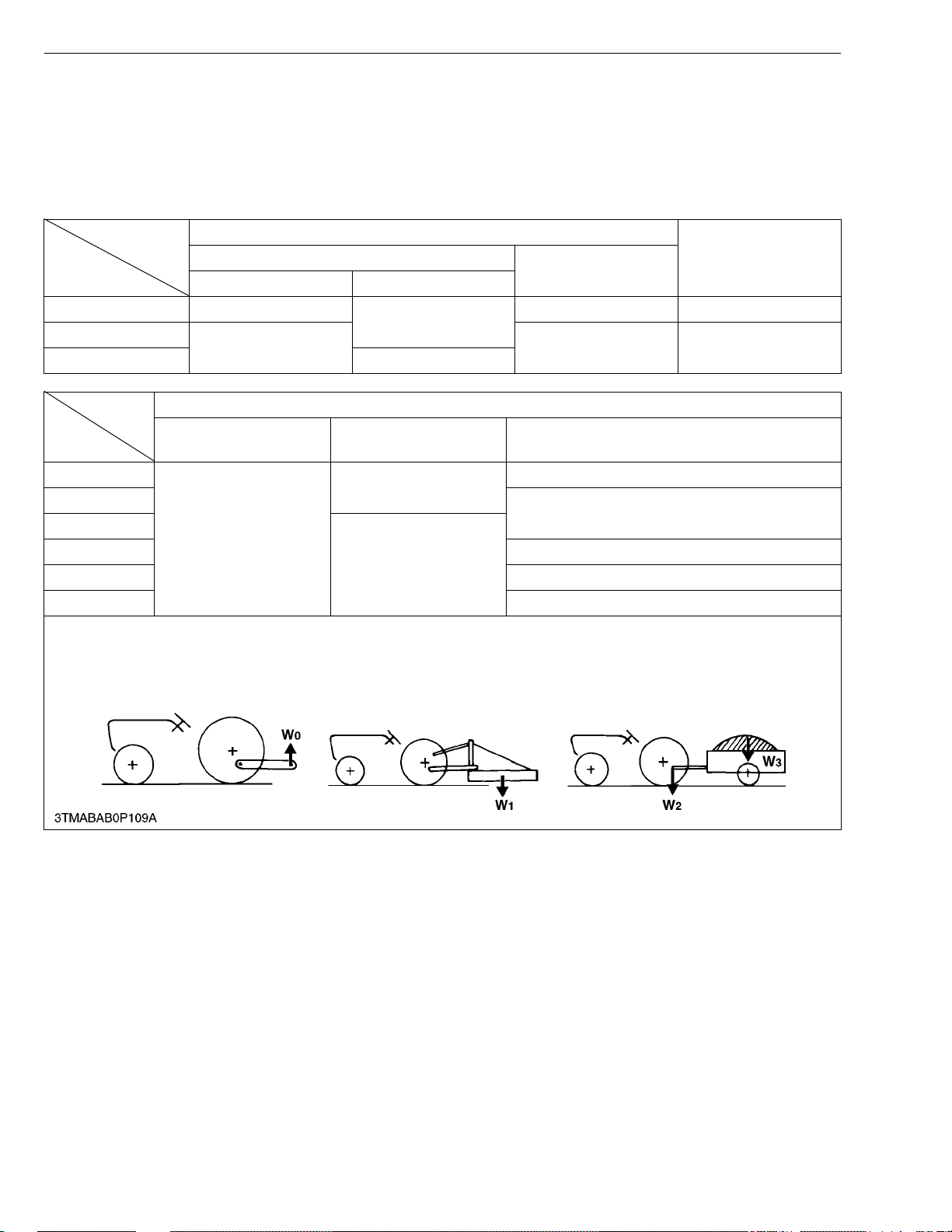

11.IMPLEMENT LIMITATIONS

The KUBOTA Tractor has been thoroughly tested for proper performance with implements sold or approved by
KUBOTA. Use with implements which exceed the maximum specifications listed below, or which are otherwise unfit
for use with the KUBOTA Tractor may result in malfunctions or failures of the tractor, damage to other property and
injury to the operator or others. [Any malfunctions or failures of the tractor resulting from use with improper implements
are not covered by the warranty.]

Tread (max. width) with farm tires

Front

Rear

2WD 4WD

M6800(S) 1820 mm (71.7 in.)

1720 mm (67.7 in.) 2050 kg (4550 lbs)

1520 mm (59.8 in.)

M8200

2040 mm (80.3 in.) 1920 mm (75.6 in.) 2500 kg (5560 lbs)

M9000 1620 mm (63.8 in.)

Actual figures

Implement Weight W

and / or size

M6800(S)

1

Max. Drawbar Load

W

Trailer loading weight W3

2

Max. capacity

4500 kg (9900 lbs)

1000 kg (2200 lbs)

M6800(S)DT

M8200

As in the following list

5500 kg (11000 lbs)

(shown on the next

M8200DT 6000 kg (13200 lbs)

page)

1500 kg (3300 lbs)

M9000 5000 kg (11000 lbs)

M9000DT 6000 kg (13200 lbs)

Lower link end max. hydraulic lifting capacity .....W

0

Implement weight...............................................The implement’s weight which can be put on the lower link : W1

Max. drawbar load ....................................... ......W2

Trailer loading weight .........................................The max. loading weight for trailer (without trailer’s weight ) : W3

Lower link end max.

loading weight W

0

NOTEQ

• Implement size may vary depending on soil operating conditions.

G-62

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

No. Implement Remarks

Max. Tank
Capacity

1Slurry Tank

Max. Load
Capacity

Max. Load
Capacity

2 Trailer

Max. Drawbar
Load

Max. Cutting

Rotary-

Width

Cutter

Max. Weight 540 kg (1200 lbs) 600 kg (1320 lbs)

3 Mower

Flail
Mower
(Heavy)

Sickle
Bar

Max. Cutting
Width

Max. Weight 800 kg (1760 lbs) 1000 kg (2200 lbs)
Max. Cutting

Width

Mid

Rear
3P

4 Sprayer

Max.
Tank­capacity

Draw­bar

Max. Tilling Width 2330 mm (91 in.) 2400 mm (96 in.)

5 Rotary Tiller

Max. Weight

Max. Size

6 Bottom Plow

Max. Weight
Max. Size

Max. Harrowing

Disc-

7

harrow

Drawbar
Type

3P Type

Width
Max. Weight
Max. Harrowing

Width
Max. Size

8 Disc Plow

Max. Weight

M6800(S) M8200 M9000

2WD4WD2WD4WD2WD4WD

3000 L
(790 U.S.gals.
660 Imp.gals.)

4000 mm
(8800 in.)

4500 kg

(9900 lbs)

1000 kg

(2200 lbs)

5000 kg
(11000 )

4000 L

(1060 U.S.gals.

880 Imp.gals.)

5000 mm (11000 in.)

6000 kg

(13200

lbs)

5000 kg

(11000

lbs)

1500 kg (3300 lbs)

6000 kg

(13200

ilbs)

2130 mm (84 in.) 2300 mm (90 in.)

3050 mm

(120 in.)

3660 mm (144 in.)

2130 mm (84 in.) 2743 mm (108 in.)

680 L
(180 U.S.gals.
150 Imp.gals.)

680 L
(180 U.S.gals.
150 Imp.gals.)

3500 L

(920

U.S.gals.

770

Imp.gals.)

4000 L

(1300 U.S. gals.

8800 Imp.gals.)

800 kg

(1760 lbs)

16 in. × 2
14 in. × 3

550 kg (1000 lbs)

18 in. × 24 20 in. × 24 24 in. × 24

2130 mm

(84 in.)

550 kg (1000 lbs)

2750 mm

(96 in.)

24 in. × 3
26 in. × 2

550 kg (1000 lbs)

16 in. × 3
18 in. × 2

(1400 lbs)

2450 mm (96 in.)

(1400 lbs)

3050 mm

(120 in.)

26 in. × 3

(1400 lbs)

800 L
(200 U.S.gals.
170 Imp.gals.)

800 L
(200 U.S.gals.
170 Imp.gals.)

650 kg

650 kg

26 in. × 3
28 in. × 3

650 kg

(260 U.S.gals.
220 Imp.gals.)

(260 U.S.gals.
220 Imp.gals.)

4500 L

(1200 U.S.gals.

990 Imp.gals.)

1000 kg (2200 lbs)

16 in. × 4
18 in. × 3
24 in. × 1

750 kg

(1650 lbs)

2850 mm

(112 in.)

750 kg

(1650 lbs)

3660 mm

(144 in.)

750 kg

(1650 lbs)

900 kg (2000 lbs)

900 kg (2000 lbs)

26 in. × 4
28 in. × 4

900 kg (2000lbs)

1000 L

1000 L

5000 L

(1320

U.S.gals.

1100

Imp.gals.)

14 in. × 5
16 in. × 4
20 in. × 3
24 in. × 1

3300 mm

(130 in.)

4300 mm

(168 in.)

W1012736

G-63

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

G GENERAL

No. Implement Remarks

Numbers of

9 Sub Soiler

Cultivating Tines
Cultivating Depth

Max. Width

10 Cultivator

Number of Rows 4 6
Max. Weight
Max. Cutting

Width

11 Front Blade*

Max. Oil Pressure

Max. Cutting
Width

12 Rear Blade

Max. Oil Pressure

Max. Lifting
Capacity

13 Front Loader*

Max. Oil Pressure

Max. Cutting

14 Box Blade

Width
Max. Weight
Max. Digging

15 Back Hoe

Depth
Max. Weight 900 kg (2000 lbs) 1200 kg (2650 lbs)

Max. Width

16 Snow Blade

Max. Weight

M6800(S) M8200 M9000

2WD4WD2WD4WD2WD4WD

2

400 mm

(16 in.)

3660 mm

(144 in.)

550 kg (1000 lbs)

1820 mm

(72 in.)

450 mm (18 in.) 500 mm (20 in.)

4270 mm (168 in.) 4880 mm (192 in.)

650 kg

(1400 lbs)

2130 mm (84 in.) 2430 mm (96 in.)

750 kg

(1650 lbs)

900 kg (2000 lbs)

550 mm

(22 in.)

5490 mm

(216 in.)

2600 mm

(102 in.)

19.1 MPa

(195 kgf/cm2,

19.6 MPa (200 kgf/cm2, 2844 psi)

2773 psi)

1820

mm

(72 in.)

2130 mm (84 in.) 2430 mm (96 in.)

2600

mm

(102 in.)

19.1 MPa

(195 kgf/cm

2

,

19.6 MPa (200 kgf/cm2, 2844 psi)

2773 psi)

1000 kg

(2200 lbs)

1250 kg (2750 lbs)

18.6 MPa

(190 kgf/cm

,

20.6 MPa (210 kgf/cm2, 3000 psi)

2

2702 psi)

1820 mm

(72 in.)

550 kg (1000 lbs)

2530 mm

(100 in.)

1820 mm

(72 in.)

450 kg

(1000 lbs)

2130 mm (84 in.)

650 kg

(1400 lbs)

2130 mm (84 in.) 2430 mm (96 in.)

5500 kg

(1200 lbs)

650 kg

(1400 lbs)

2430 mm

(96 in.)
750 kg

(1650 lbs)

2130 mm

(84 in.)

800 kg (1760 lbs)

3050 mm (120 in.)

750 kg

(1650 lbs)

800 kg (1760 lbs)

2430 mm

(96 in.)

2600 mm

(102 in.)

NOTEQ

• Implement size may very depending on soil operating conditions.

* Must remove front weight with this impl ement.

W1043839

G-64

1 ENGINE

KiSC issued 03, 2008 A

MECHANISM

KiSC issued 03, 2008 A

CONTENTS

1. ENGINE BODY .... ....................................... ... .... ... ... ... .................................. 1-M1

[1] CYLINDER BLOCK............................ ....................................... ... ... ... ... .. 1-M1

[2] CRANKSHAFT.........................................................................................1-M1

2. FUEL SYSTEM .............................................................................................1-M2

[1] FUEL FILTER.......................................................................................... 1-M2

3. TURBO CHARGER SYSTEM...................................................................... 1-M3

[1] BOOST COMPENSATOR .................... ... .... ... ...................................... .. 1-M3

NOTICE

For not above-mentioned engine mechanism informa tion, please refer ENGINE MECHANISM
WSM (97897-0187-0).

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

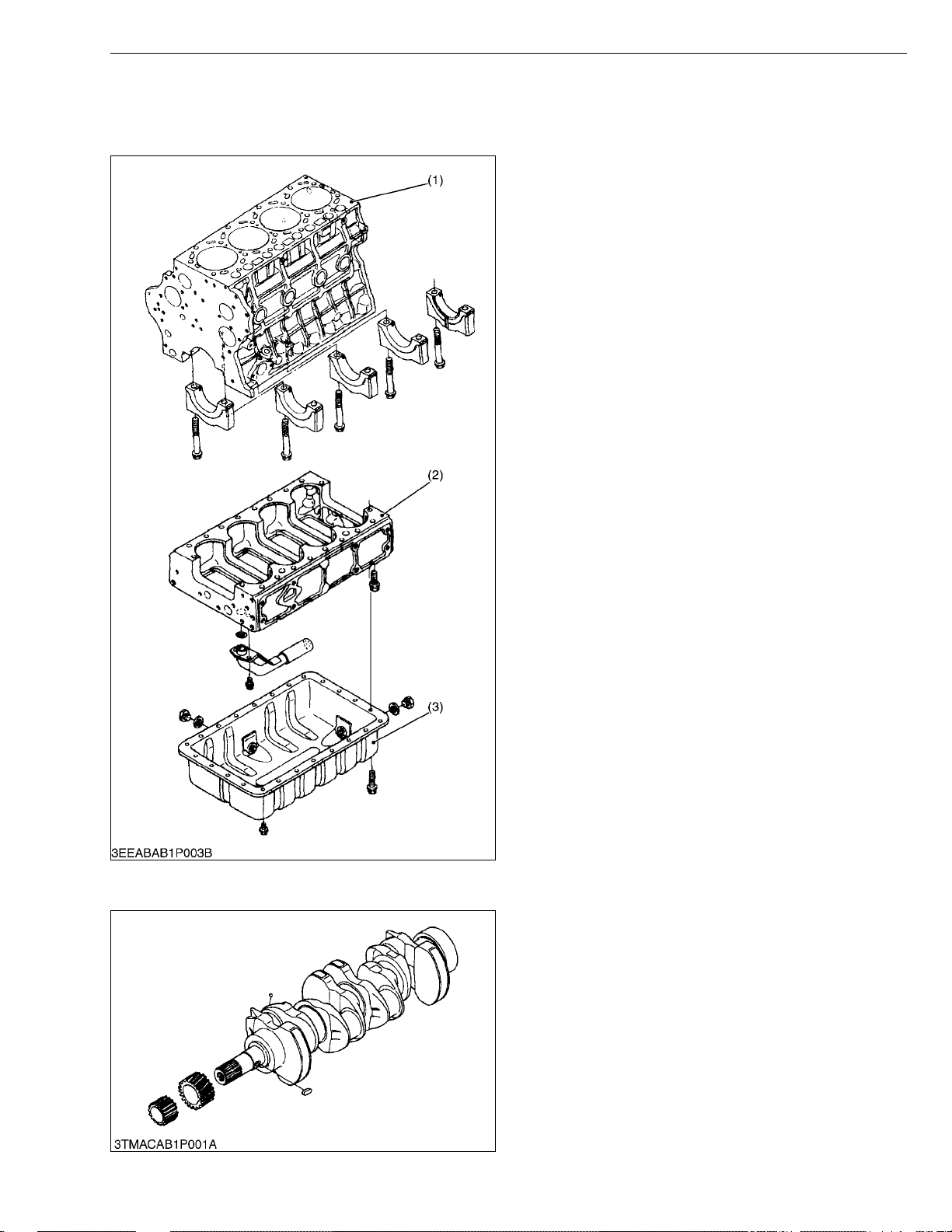

1. ENGINE BODY

[1] CYLINDER BLOCK

ENGINE

This engine employs separa te type crankcases - the
crankcase 1 with combustion part and the crankcase 2
which supports the crankcase 1 and reduces noise.

Since it is a hanger type, you can easily assemble /
disassemble it. The cylinder is a linerless type which
enables good cooling operation, less strain and good
abrasion resistance.

(1) Crankcase 1
(2) Crankcase 2

(3) Oil Pan

W1012651

[2] CRANKSHAFT

This engine adopts the half counter system and
lightweight moving elements, and optimizes the oil
clearance of bearings to reduce noise and vibration.

It also adopts a large diameter journal to improve
rigidity and reliability, and enable large capacity P.T.O.
(Power take-off).

W1012727

1-M1

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

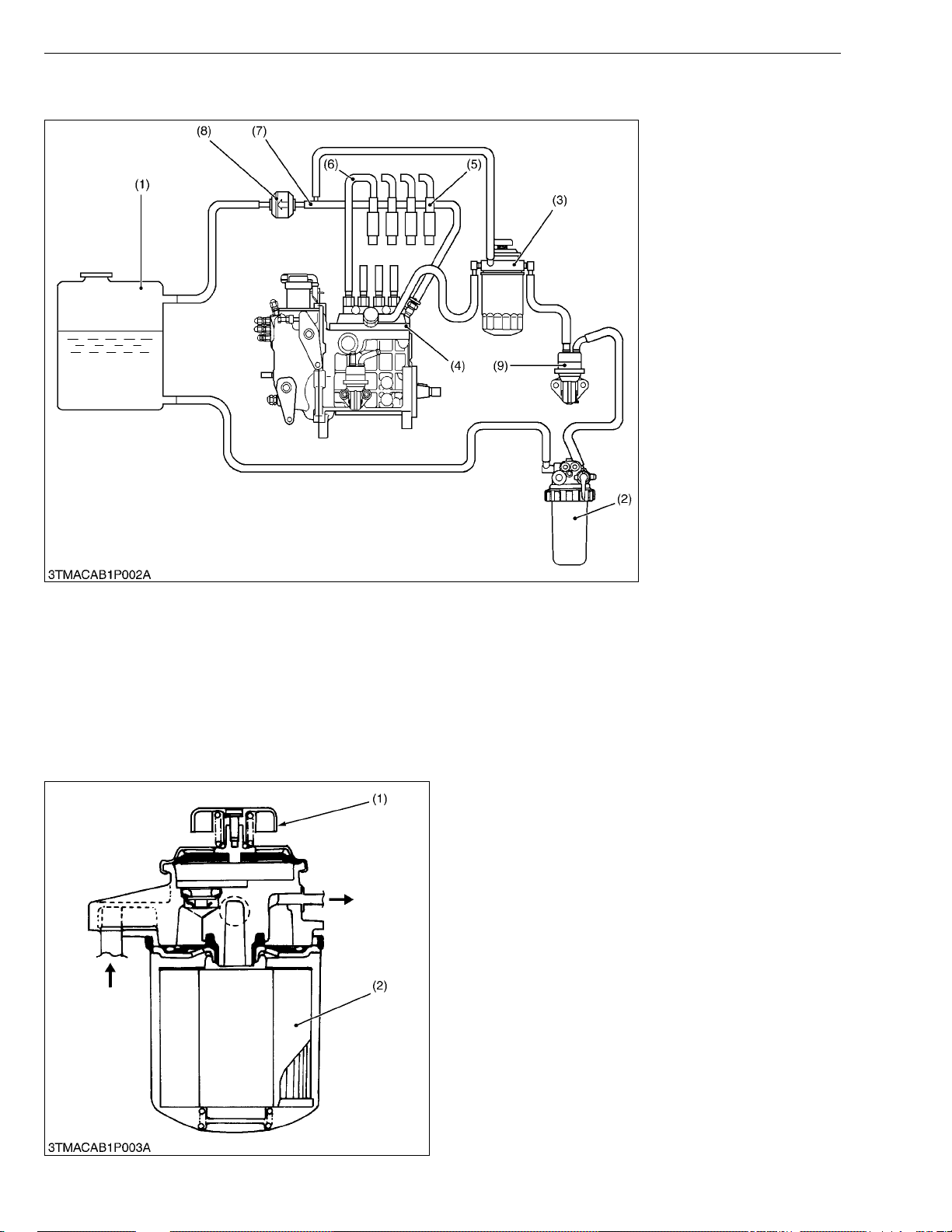

2. FUEL SYSTEM

ENGINE

(1) Fuel Tank
(2) Separator
(3) Fuel Filter
(4) Injection Pump
(5) Injection Nozzle
(6) Injection Pipe
(7) Fuel Overflow Pipe
(8) Check Valve
(9) Fuel Feed Pump

W1012785

Fuel from the fuel tank (1) suck up by feed pump (9) through the separator (2) and then enter the fuel filter (3).
After impurities such as dirt, water etc. are remove d, the fuel en te r th e inje ction pu m p (4 ) an d is pre ss ur ize d.
The fuel pressurized by the injection pump to the opening pressure (13.7 to 14.71 MPa, 140 to 150 kgf/cm

2

, 1991

to 2062 psi) of the injection nozzle (5) is injected into the combustion chamber.

Part of the fuel fed to the injection nozzle (5) lubricates the moving parts of the plunger inside the nozzle, then
returns to the fuel tank (1) through the overflow pipe (7) and check valve (8) another end of overflow pipe is connected
to pump body by joint.

Thus, this system is designed to prevent mixing of air into fu el whic h ca us es ha rd sta rtin g .

[1] FUEL FILTER

The fuel filter is installed between the fuel tank and
fuel lift pump, and serves to remove dirt and impurities
from the fuel.

Fuel from the fuel tank enters the outside of the filter
element (2) and passes through the filter element under
its own pressure. As it passes through, the dirt and
impurities in the fuel are filtered out, allowing only clean
fuel to enter the interior of the filter element.

The feed pump (1) sends fuel from the fuel tank to the
injection pump by applying pressure to fuel.

(1) Feed Pump (2) Element

W1012915

1-M2

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

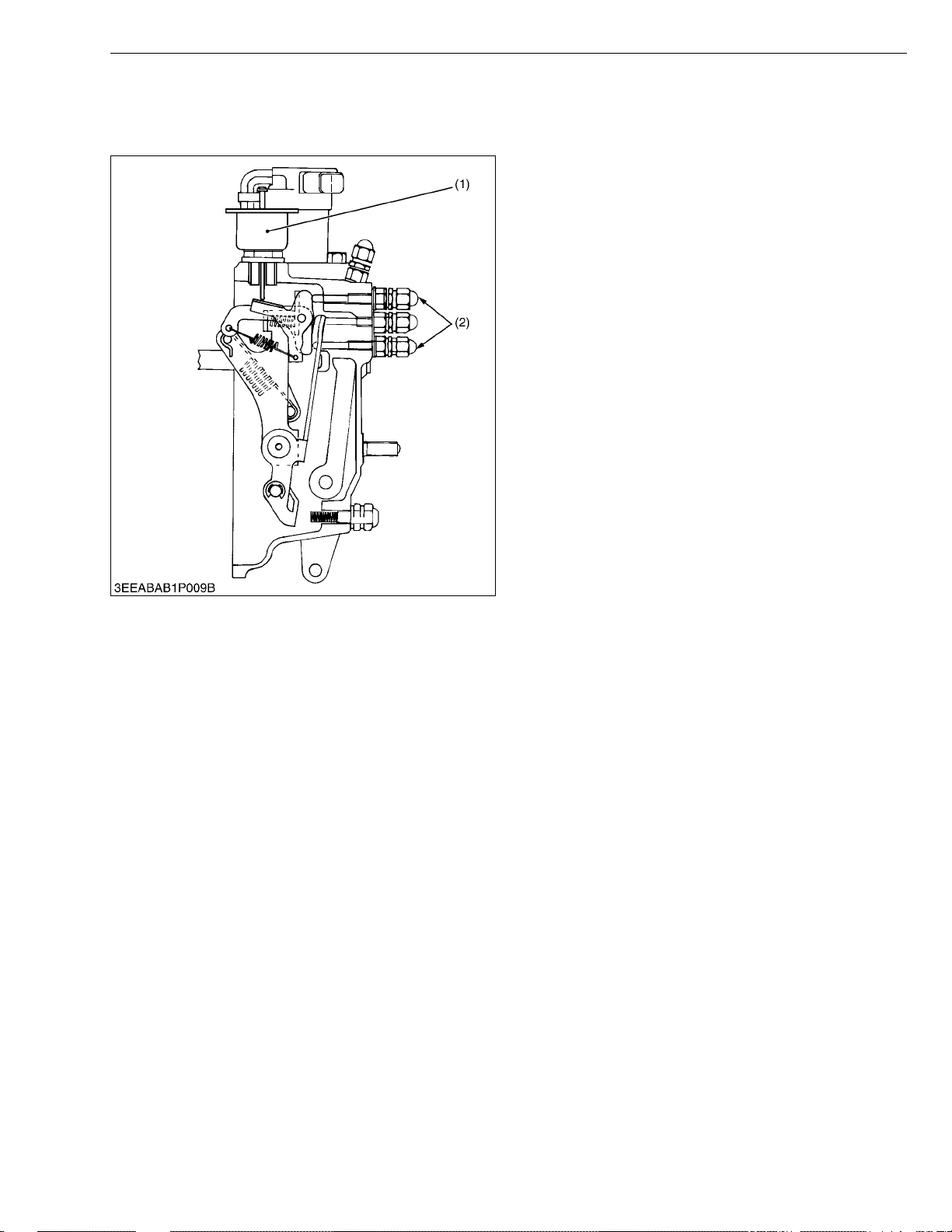

3. TURBO CHARGER SYSTEM

[1] BOOST COMPENSATOR

pressure of the control mechanism which controls
transient smoke caused by oversu pply of fuel when the
engine starts and accelerates.

pressure of the boost actuator (1), it prevents oversupply
of fuel to reduce transient smoke.

pressure of the boost actuator (1), it controls the supply
of fuel to the equivalent of maximum power / rated speed
output.

and tamper-proof capped in factory, so never take off the
tamper-proof cap and readjust the screws.

(1) Boost Actuator (2) Boost Compensator Adjusting

ENGINE

The boost compensator is controlled by the boost

When the boost pressure is lower than working

When the boost pressure is higher than working

The boost compensator adjusting s crews (2) are set

Screw

W1013012

1-M3

SERVICING

KiSC issued 03, 2008 A

CONTENTS

1. TROUBLESHOOTING....................................................................................1-S1

2. SERVICING SPECIFICATIONS ....................................................................1-S4

3. TIGHTENING TORQUES ............................................................................1-S11

4. CHECKING, DISASSEMBLING AND SERVICING....................................1-S12

[1] SEPARATING ENGINE FROM TRACTOR..................... ... .... ... ...... ... .1-S12

[2] ENGINE BODY ......................................................................................1-S17

(1) Cylinder Head...................................................................................1-S17

(2) Timing Gear.............. .... ... ... ... .... ... ... ....................................... ... ... ... .1-S32

(3) Piston and Connecting Rod..............................................................1-S48

(4) Flywheel and Crankshaft ..................................................................1-S54

[3] LUBRICATING SYSTEM.......................................................................1-S63

(1) Checking...........................................................................................1-S63

(2) Disassembling and Assembling........................................................1-S63

(3) Servicing...........................................................................................1-S64

[4] COOLING SYSTEM...............................................................................1-S65

(1) Checking and Adjusting ....................................................................1-S65

(2) Disassembling and Assembling........................................................1-S66

[5] FUEL SYSTEM......................................................................................1-S67

(1) Checking and Adjusting ....................................................................1-S67

(2) Disassembling and Assembling........................................................1-S69

[6] TURBOCHARGER SYSTEM.................................................................1-S69

(1) Checking...........................................................................................1-S69

(2) Disassembling and Assembling........................................................1-S70

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

1. TROUBLESHOOTING

ENGINE

Symptom Probable Cause Solution

Engine Does Not
Start

• No fuel

• Air in the fuel system

• Water in the fuel system

• Fuel pipe clogged

• Fuel filter clogged

• Excessively high viscosity of fuel or engine oil
at low temperature

• Fuel with low cetane number

• Fuel leak due to loose injection pipe retaining
nut

• Incorrect injection timing

• Injection nozzle clogged

• Injection pump malfunctioning

• Seizure of crankshaft, camshaft, piston,
cylinder or bearing

• Compression leak from cylinder

• Improper valve timing

• Piston ring and cylinder worn

• Excessive valve clearance

Replenish fuel
Vent air
Change fuel and
repair or replace fuel
system
Clean
Replace
Use specified fuel or
engine oil
Use specified fuel
Tighten retaining nut

Adjust
Clean
Repair or replace
Repair or replace

Replace head
gasket, tighten
cylinder head screw,
glow plug and nozzle
holder
Correct or replace
timing gear
Replace
Adjust

Reference
Page

–

G-32

–

–
G-27
G-11

G-12

–

1-S67
1-S68, S69
1-S39, S67

1-S44,

S53 to S58

1-S22

1-S43
1-S53, S61

1-S19

(Starter Does Not
Run)

Engine Revolution Is
Not Smooth

• Battery discharged

• Starter malfunctioning

• Key switch malfunctioning

• Wiring disconnected

• Fuel filter clogged or dirty

• Air cleaner clogged

• Fuel leak due to loose injection pipe retaining
nut

• Injection pump malfunctioning

• Incorrect nozzle opening pressure

• Injection nozzle stuck or clogged

• Governor malfunctioning

• Bearing worn out

• Turbocharger shaft bent

• Turbocharger fin or other part damaged due
to foreign matters

Charge
Repair or replace
Repair or replace
Connect

Replace
Clean or replace
Tighten retaining nut

Repair or replace
Adjust
Repair or replace
Repair
Replace
Replace
Replace

–

9-S14

9-S10, S11

–

G-27

G-22, 28

–

1-S39, S67

1-S68
1-S69

–

–
1-S70
1-S70

W1014322

1-S1

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

ENGINE

Symptom Probable Cause Solution

Either White or Blue
Exhaust Gas Is
Observed

Oil Leak into Exhaust

• Excessive engine oil

Reduce to specified
level

• Piston ring and liner worn or stuck

• Incorrect injection timing

Repair or replace
Adjust

• Waste oil pipe clogged or deformed Repair or replace –

Pipe or Suction Pipe
Either Black or Dark

Gray Exhaust Gas Is
Observed

• Overload

• Low grade fuel used

• Fuel filter clogged

• Air cleaner clogged

• Deficient nozzle injection

Lessen load
Use specified fuel
Replace
Clean or replace
Repair or replace
nozzle

Deficient Output • Incorrect injection timing

• Engine’s moving parts seem to be seizing

• Injection pump malfunctioning

• Deficient nozzle injection

Adjust
Repair or replace
Repair or replace
Repair or replace
nozzle

• Compression leak

Check the
compression
pressure and repair

• Gas leak from exhaust system

• Air leak from compressor discharge side

• Air cleaner dirty or clogged

• Compressor wheel turning heavily

Repair or replace
Repair or replace
Clean or replace
Replace the
turbocharger
assembly

Excessive Lubricant
Oil Consumption

• Piston ring’s gap facing the same direction

• Oil ring worn or stuck

• Piston ring groove worn

• Valve stem and valve guide worn

• Crankshaft bearing, and crank pin bearing

Shift ring gap
direction
Replace
Replace piston
Replace
Replace

worn

Fuel Mixed into
Lubricant Oil

• Oil leaking due to defective seals or packing

• Injection pump’s plunger worn

• Deficient nozzle injection

Replace
Replace the injection

pump
Repair or replace
nozzle

• Injection pump broken

Replace

Reference
Page

–

1-S53, S61

1-S67

–
G-12
G-27

G-22, 28

1-S68, S69

1-S67

–

1-S39, S67

1-S69
1-S17

–

–

G-22, 28

1-S70

1-S51
1-S51

1-S53
1-S27

1-S57 to

S60

–

1-S39
1-S68
1-S39

W1014322

1-S2

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

ENGINE

Symptom Probable Cause Solution

Water Mixed into
Lubricant Oil

Low Oil Pressure • Engine oil insufficient

• Head gasket defective

• Cylinder block or cylinder head flawed

• Oil strainer clogged

• Relief valve stuck with dirt

• Relief valve spring weaken or broken

• Excessive oil clearance of crankshaft bearing

• Excessive oil clearance of crankpin bearing

• Oil passage clogged

• Different type of oil

Replace
Replace

Replenish
Clean
Clean
Replace
Replace
Replace
Clean
Use specified type of
oil

• Oil pump defective

High Oil Pressure • Different type of oil

Repair or replace
Use specified type of

oil

• Relief valve defective

Engine Overheated • Engine oil insufficient

• Fan belt broken or elongated

• Coolant insufficient

• Radiator net and radiator fin clogged with

Replace
Replenish

Replace or adjust
Replenish
Clean

dust

Battery Quickly
Discharged

• Inside of radiator corroded

• Coolant flow route corroded

• Radiator cap defective

• Overload running

• Head gasket defective

• Incorrect injection timing

• Unsuitable fuel used

• Battery electrolyte insufficient

• Fan belt slips

Clean or replace
Clean or replace
Replace
Loosen load
Replace
Adjust
Use specified fuel

Replenish distilled
water and charge
Adjust belt tension or
replace

• Wiring disconnected

• Rectifier defective

• Alternator defective

• Battery defective

Correct
Replace
Replace

Replace

Reference
Page

1-S22, S24

1-S25

–

1-S48

–
–

1-S60

1-S58, S59

–

G-11

1-S64

G-11

–
–

1-S65

–
–

G-30, 31

–

1-S66

–

1-S22, S24

1-S63

G-11

–

1-S67

–

9-S22

9-S18 to

S22

–

W1014322

1-S3

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

2. SERVICING SPECIFICATIONS

Cylinder Head

Item Factory Specification Allowable Limit

Cylinder Head Surface Flatness – 0.05 mm

0.0020 in.

Top Clearance V3300-E

V3300-E2

0.72 to 0.90 mm

0.0283 to 0.0354 in.

–

ENGINE

V3300-TE
V3300-TE2

0.92 to 1.10 mm

0.0362 to 0.0433 in.

–

V3300-TIE
V3300-TIE2

Compression Pressure V3300-E

V3300-E2

V3300-TE
V3300-TE2
V3300-TIE
V3300-TIE2

4.32 MPa /

250 min

44 kgf/cm

250 min

626 psi /

250 min

3.92 MPa /

250 min

40 kgf/cm

250 min

569 psi /

250 min

−1

(rpm)

−1

(rpm)

−1

(rpm)

−1

(rpm)

−1

(rpm)

−1

(rpm)

2

/

2

/

3.26 MPa /

250 min

−1

33.2 kgf/cm

250 min

−1

472 psi /

250 min

2.99 MPa /

250 min

−1

30.5 kgf/cm

250 min

−1

434 psi /

250 min

−1

−1

Variance Among Cylinders – 10 % or less

Valves

Valve Clearance (Cold) 0.23 to 0.27 mm

–

0.0091 to 0.0106 in.

Valve Seat Width IN.

2.12 mm

–

0.0835 in.

(rpm)

2

/

(rpm)

(rpm)

(rpm)

2

/

(rpm)

(rpm)

W1013874

Valve Seat Angle IN.

Valve Face Angle IN.

Valve Recessing IN.

EX.

EX.

EX.

EX.

1-S4

2.12 mm

0.0835 in.

1.047 rad
60 °

0.785 rad
45 °

1.047 rad
60 °

0.785 rad
45 °

−0.2 to 0 mm

−0.079 to 0 in.

−0.05 to 0.15 mm

−0.0019 to 0.0059 in.

–

–

−0.4 mm

−0.0157 mm

−0.4 mm

−0.0157 mm

W1023972

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

Valves (Continued)

Item Factory Specification Allowable Limit

Clearance between Valve Stem and Valve
Guide (Serial No : below 3N8371)

IN.

0.035 to 0.065 mm

0.0014 to 0.0025 in.

ENGINE

0.1 mm

0.0039 in.

Valve Stem O.D.

Valve Guide I.D.

Valve Stem O.D.

Valve Guide I.D.

Clearance between Valve Stem and Valve
Guide (Serial No : above 3N8372)

Valve Stem O.D.

Valve Guide I.D.

EX.

IN.

EX.

6.960 to 6.975 mm

0.2740 to 0.2764 in.

7.010 to 7.025 mm

0.2760 to 0.2765 in.

0.040 to 0.070 mm

0.0016 to 0.0028 in.

7.960 to 7.975 mm

0.3134 to 0.3140 in.

8.015 to 8.030 mm

0.3155 to 0.3161 in.

0.055 to 0.085 mm

0.0022 to 0.0033 in.

6.960 to 6.975 mm

0.2740 to 0.2764 in.

7.030 to 7.045 mm

0.2768 to 0.2774 in.

0.040 to 0.070 mm

0.0016 to 0.0028 in.

–

–

0.1 mm

0.0039 in.
–

–

0.1 mm

0.0039 in.
–

–

0.1 mm

0.0039 in.

Valve Stem O.D.

Valve Guide I.D.

Valve Timing

Intake Valve

Open

Close

Exhaust Valve

Open

Close

7.960 to7.975 mm

0.3134 to 0.3140 in.

8.015 to 8.030 mm

0.3155 to 0.3161 in.

0.24 rad (14 °)
before T.D.C.

0.61 rad (36 °)

after B.D.C.

0.79 rad (45 °)

before B.D.C.

0.29 rad (17 °)

after T.D.C.

–

–

W1013874

–

–

W1025647

1-S5

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

Valve Spring

Item Factory Specification Allowable Limit

Valve Spring Intake

35.1 to 35.6 mm

1.3819 to 1.4016 in.

ENGINE

34.6 mm

1.3622 in.

Exhaust

Setting load / Setting length Intake

41.7 to 42.2 mm

1.6417 to 1.6614 in.

63.547 N / 31.5 mm

6.48 kgf / 31.5 mm

14.256 lbs / 1.2401 in.

41.2 mm

1.6220 in.

45.864 N /

31.5 mm

4.68 kgf / 31.5 mm

10.296 lbs /

1.2401 in.

Exhaust

117.6 N / 35 mm
12 kgf / 35 mm

26.4 lbs / 1.3780 in.

100 N / 35 mm

10.2 kgf / 35 mm

22.5 lbs /

1.3780 in.

Tilt – 1.0 mm

0.039 in.

Rocker Arm

Clearance between valve arm bridge and valve arm bridge shaft

Valve arm bridge I.D.

0.018 to 0.042 mm

0.0007 to 0.0017 in.

9.050 to 9.065 mm

0.15 mm

0.0059 in.

0.3563 to 0.3556 in.

Valve arm bridge shaft O.D.

9.023 to 9.032 mm

0.3552 to 0.3566 in.

Clearance between rocker arm shaft and rocker arm

0.016 to 0.045 mm

0.0006 to 0.0018 in.

0.15 mm

0.0059 in.

Rocker arm shaft

15.973 to 15.984 mm

0.6289 to 0.6293 in.

Rocker arm I.D. for shaft

16.000 to 16.018 mm

0.6299 to 0.6306 in.

W1014538

–

–

–

–

W1026474

Tappet

Clearance between tappet and guide

Tappet guide I.D.

Tappet O.D.

Push Rod

Alignment of Push Rod – 0.25 mm

1-S6

0.020 to 0.062 mm

0.0008 to 0.0024 in.

24.000 to 24.021 mm

0.9449 to 0.9457 in.

23.959 to 23.980 mm

0.9433 to 0.9441 in.

0.07 mm

0.0028 in.
–

–

W1026740

0.0098 in.

W1013973

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

Camshaft

Item Factory Specification Allowable Limit

Camshaft Side Clearance 0.07 to 0.22 mm

0.0028 to 0.0087 in.

0.3 mm

0.0118 in.

Camshaft Alignment – 0.01 mm

0.00039 in.

Cam Height IN.

37.63 mm

1.4815 in.

37.13 mm

1.4618 in.

ENGINE

Oil Clearance of Camshaft

Camshaft Journal O.D.

Camshaft Bearing I.D.

Timing Gear

Timing Gear Backlash

Crank Gear - Idle Gear 1

Idle Gear 1 - Cam Gear

Idle Gear 1 - Idle Gear 2

Idle Gear 2 - Injection Pump Gear

EX.

38.96 mm

1.5338 in.

0.050 to 0.091 mm

0.0020 to 0.0035 in.

45.934 to 45.950 mm

1.8084 to 1.8091 in.

46.000 to 46.025 mm

1.8110 to 1.8120 in.

0.049 to 0.193 mm

0.0019 to 0.0076 in.

0.049 to 0.189 mm

0.0019 to 0.0074 in.

0.044 to 0.185 mm

0.0017 to 0.0073 in.

0.044 to 0.177 mm

0.0017 to 0.0070 in.

38.46 mm

1.5141 in.

0.15 mm

0.0059 in.
–

–

W1016466

0.22 mm

0.0087 in.

0.22 mm

0.0087 in.

0.22 mm

0.0087 in.

0.22 mm

0.0087 in.

Cam Gear - Balancer Gear 1

0.047 to 0.182 mm

0.0018 to 0.0072 in.

Idle Gear - Balancer Gear 2

0.044 to 0.183 mm

0.0017 to 0.0072 in.

Clearance between Idle Gear Shaft and Idle Gear Bushing

0.050 to 0.091 mm

0.0020 to 0.0036 in.

Idle Gear Bushing I.D.

45.025 to 45.050 mm

1.7726 to 1.7736 in.

Idle Gear Shaft 1, 2 O.D.

44.959 to 44.975 mm

1.7700 to 1.7707 in.

Idle Gear Side Clearance 0.15 to 0.30 mm

0.0059 to 0.0118 in.

1-S7

0.22 mm

0.0087 in.

0.22 mm

0.0087 in.

0.10 mm

0.0039 in.
–

–

0.9 mm

0.0354 in.

W1022015

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

Balancer Shaft

Item Factory Specification Allowable Limit

Balancer Shaft Side Clearance 0.07 to 0.22 mm

0.0028 to 0.0087 in.

0.3 mm

0.0118 in.

Balancer Shaft Alignment – 0.02 mm

0.0008 in.

Oil Clearance of Balancer Shaft

0.070 to 0.159 mm

0.0028 to 0.0063 in.

0.2 mm

0.0079 in.

ENGINE

Balancer Shaft Journal O.D.

50.92 to 50.94 mm

2.0047 to 2.0055 in.

Balancer Bearing I.D.

51.01 to 51.08 mm

2.0083 to 2.0110 in.

Piston / Piston Ring

Piston Pin Bore I.D. 30.000 to 30.013 mm

1.1811 to 1.1816 in.

Clearance between Compression Ring 2 and Ring Groove 0.093 to 0.120 mm

0.0037 to 0.0047 in.

Clearance between Oil Ring and Ring Groove 0.02 to 0.06 mm

0.0008 to 0.0023 in.

Ring Gap

Compression Ring 1

0.30 to 0.45 mm

0.0118 to 0.0177 in.

Compression Ring 2

0.30 to 0.45 mm

0.0118 to 0.0177 in.

Oil Ring

0.25 to 0.45 mm

0.0098 to 0.0177 in.

–

–

W1027958

30.05 mm

1.1831 in.

0.20 mm

0.0079 in.

0.15 mm

0.0059 in.

1.25 mm

0.0492 in.

1.25 mm

0.0492 in.

1.25 mm

0.0492 in.

W1028289

Connecting Rod

Connecting Rod Alignment – 0.05 mm

Clearance between Piston Pin and Small End Bushing

Piston Pin O.D.

Small End Bushing I.D.

1-S8

0.020 to 0.040 mm

0.0008 to 0.0016 in.

30.006 to 30.011 mm

1.1813 to 1.1815 in.

30.031 to 30.046 mm

1.1823 to 1.1829 in.

0.0020 in.

0.15 mm

0.0059 in.
–

–

W1028602

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

Crankshaft

Item Factory Specification Allowable Limit

Crankshaft Alignment – 0.02 mm

0.00079 in.

Crankpin O.D. 52.977 to 52.990 mm

–

2.0857 to 2.0862 in.

Crankshaft Journal O.D. 74.977 to 74.990 mm

–

2.9518 to 2.9524 in.

Oil Clearance between Crankshaft Journal
and Crankshaft Bearing

Below YL0485 0.034 to 0.074 mm

0.0013 to 0.0029 in.

Above YL0486 0.018 to 0.062 mm

–

–

0.0007 to 0.0024 in.

Oil Clearance between Crank Pin and Pin
Bearing

Below YN3106 0.030 to 0.063 mm

0.0012 to 0.0025 in.

Above YN3107 0.018 to 0.051 mm

–

–

0.0007 to 0.0020 in.

Crankshaft Side Clearance 0.15 to 0.31 mm

0.0059 to 0.0122 in.

0.50 mm

0.0197 in.

ENGINE

W1028928

Cylinder Bore

Cylinder Bore I.D. 98.000 to 98.022 mm

3.8582 to 3.8591 in.

Oversized Cylinder Bore I.D. 98.500 to 98.522 mm

3.8780 to 3.8788 in.

Oil Pump

Engine Oil Pressure At Idle Speed

At Rated Speed

196 to 392 kPa

–

2.0 to 4.0 kgf/cm
28 to 56 psi

Engine Oil Pressure Switch Working Pressure 39.2 to 58.8 kPa

0.4 to 0.6 kgf/cm

5.6 to 8.4 psi

Clearance between Inner Rotor and Outer Rotor 0.04 to 0.16 mm

0.0016 to 0.0063 in.

Clearance between Outer Rotor and Pump Body 0.100 to 0.184 mm

0.0039 to 0.0072 in.

Clearance between Rotor and Cover 0.025 to 0.075 mm

0.0010 to 0.0030 in.

Relief Valve Working Pressure 885 kPa

9.04 kgf/cm

2

129 psi

98.15 mm

3.8642 in.

98.65 mm

3.8839 in.

W1029426

49 kPa

0.5 kgf/cm

2

7 psi

2

147.1 kPa

1.5 kgf/cm

2

21.3 psi

2

–

0.3 mm

0.118 in.

0.3 mm

0.118 in.

0.225 mm

0.0089 in.
–

W1024567

1-S9

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

Thermostat

Item Factory Specification Allowable Limit

Thermostat Valve Opening Temperature 74.5 to 78.5 °C

166.1 to 173.3 °F

Temperature at which Thermostat completely Opens 90 °C

194 °F

Radiator

Radiator Water Tightness Water tightness at

specified pressure

137 kPa, 1.4 kgf/cm

20 psi

Radiator Cap Air Leakage 10 seconds or more

88 → 59 kPa

0.9 → 0.6 kgf/cm
13 → 9 psi

Fan Belt

Fan Belt Tension 10 to 12 mm / 10 kgf

0.394 to 0.472 in. /

22.1 lbs

ENGINE

–

–

W1026075

–

2

,

–

2

W1030127

–

W1030302

Injection Pump

Injection Timing V3300-E

V3300-TE

0.26 to 0.30 rad (15 ° to
17 °) before T.D.C.

–

V3300-TIE
V3300-E2 0.20 to 0.22 rad (11.5 °

–

to 12.5 °) before T.D.C.

V3300-TE2 0.1 1 to 0.13 rad (6 .5 ° to

–

7.5 °) before T.D.C.

V3300-TIE2 0.15 to 0.17 rad (8.5 ° to

–

9.5 °) before T.D.C.

Fuel Tightness of Pump Element – 14.7 MPa

150 kgf/cm

2133 psi

Fuel Tightness of Delivery Valve More 10 seconds

14.7 → 13.7 MPa

150 → 140 kgf/cm

2133 → 1990 psi

2

5 seconds

14.7 → 13.7 MPa
150 →

140 kgf/cm

2133 → 1990 psi

Injection Nozzle

Fuel Injection Pressure 13.73 to 14.71 MPa

140 to 150 kgf/cm

2

–

1991 to 2133 psi

Fuel Tightness of Nozzle Valve Seat When the pressur e is

12.75 MPa

(130 kgf/cm

2

, 1849 psi),

–

the valve seat must be

fuel tightness

2

2

W1027540

W1027594

1-S10

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

3. TIGHTENING TORQUES

Tightening torques of screws, bolts and nuts on the table below are especially specified.

(For general use screws, bolts and nuts : Refer to “6. TIGHTENING TORQUES” at GENERAL Section.)

Item N·m kgf·m ft-lbs

Turning delivry hose retaining nut
Front axle support mounting screw (M14 UBS)
Bonnet support mounting screw
Bonnet support frame mounting screw
Engine and clutch housing mounting screw and nut
Engine and clutch housing mounting stud bolt
Cylinder head cover mounting screw
Idle gear mounting screw
Camshaft set screw
Balancer shaft set screw
Gear case cover mounting screw
Plate mounting screw
* Cylinder head mounting screw
* Connecting rod screw
* Flywheel screw
PTO propeller shaft spline hub screw
Flywheel housing screw
Crankcase 2 mounting screw
* Crankshaft screw (Below YN0476)
(Above YN0477)
* Main bearing case screw
Rocker arm bracket screw
Nozzle holder
Nozzle holder assembly
Injection pipe retaining nut

Glow plug
Anti-rotation nut
Governor housing mounting screw
Boost actuator
Injection pump mounting screw
Injection pump mounting nut

Injection pump gear mounting nut

Fuel camshaft stopper mounting screw

Governor weight mounting screw

Starter’s terminal B mounting nut
Housing clamp screw
Overflow pipe nut

Oil pump cover screw

Relief valve retaining screw

Oil cooler joint scre

Oil switch

24.5 to 29.4

166.7 to 196.1

48.1 to 55.9

48.1 to 55.9

77.5 to 90.2

39.2 to 49.0

6.9 to 11.3

23.5 to 27.5

23.5 to 27.5

23.5 to 27.5

23.5 to 27.5

23.5 to 27.5

98.1 to 107.9

78.5 to 83.4

98.1 to 107.9

23.5 to 27.5

98.1 to 107.9

49.0 to 55.9

343.2 to 372.7

255.0 to 274.6

137.3 to 147.1

49.0 to 55.9

34.3 to 39.2

49.0 to 68.6

22.6 to 36.3

19.6 to 24.5

2.8 to 4.0

9.8 to 11.3

39.2 to 45.1

23.5 to 27.5

17.7 to 20.6

73.6 to 83.4

7.9 to 9.3

62.8 to 72.6

9.8 to 11.8

1.5 to 2.5

19.6 to 24.5

7.9 to 9.3

68.6 to 78.4

39.2 to 44.1

14.7 to 196

2.5 to 3.0

17.0 to 20.0

4.9 to 5.7

4.9 to 5.7

7.9 to 9.2

4.0 to 5.0

0.7 to 1.15

2.4 to 2.8

2.4 to 2.8

2.4 to 2.8

2.4 to 2.8

2.4 to 2.8

10.0 to 11.0

8.0 to 8.5

10.0 to 11.0

2.4 to 2.8

10.0 to 11.0

5.0 to 5.7

35.0 to 38.0

26.0 to 28.0

14.0 to 15.0

5.0 to 5.7

3.5 to 4.0

5.0 to 7.0

2.3 to 3.7

2.0 to 2.5

0.29 to 0.41

1.00 to 1.15

4.0 to 4.6

2.4 to 2.8

1.8 to 2.1

7.5 to 8.5

0.80 to 0.95

6.4 to 7.4

1.0 to 1.2

0.15 to 0.25

2.0 to 2.5

0.80 to 0.95

7.0 to 8.0

4.0 to 4.5

1.5 to 2.0

18.1 to 21.7

123.0 to 144.7

35.4 to 41.2

35.4 to 41.2

57.1 to 66.5

28.9 to 36.2

5.1 to 8.32

17.4 to 20.3

17.4 to 20.3

17.4 to 20.3

17.4 to 20.3

17.4 to 20.3

72.3 to 79.6

50.9 to 61.5

72.3 to 79.6

17.4 to 20.3

72.3 to 79.6

36.2 to 41.2

253.2 to 274.9

188.1 to 202.5

101.3 to 108.5

36.2 to 41.2

25.3 to 28.9

36.2 to 50.6

16.6 to 26.8

14.5 to 18.1

2.1 to 3.0

7.23 to 8.32

28.9 to 33.3

17.4 to 20.3

13.0 to 15.2

54.2 to 61.5

5.8 to 6.9

46.3 to 53.5

7.2 to 8.7

1.1 to 1.8

14.5 to 18.1

5.8 to 6.9

50.6 to 57.9

28.9 to 32.5

10.8 to 14.5

ENGINE

• For “*” marked screws, bolts and nuts on the table, apply engine oil to their threads and seats before

NOTEQ
tightening.

W1012736

1-S11

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

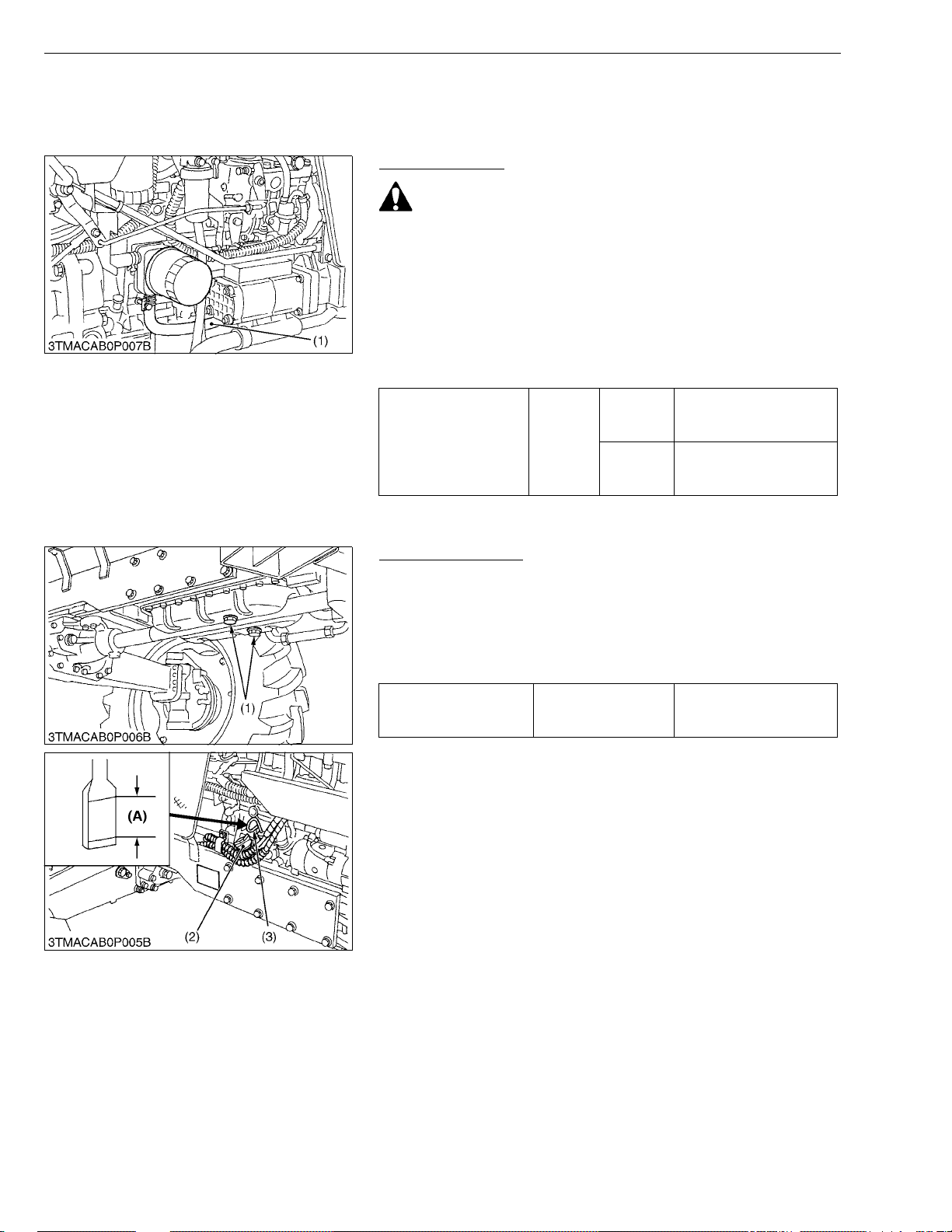

4. CHECKING, DISASSEMBLING AND SERVICING

[1] SEPARATING ENGINE FROM TRACTOR

Draining Coolant

CAUTION

• Never remove the radiator cap until coolant temperature is
well below its boiling point. Then loosen cap slightly to the
stop to relieve any excess pressure before removing cap
completely.

1. Stop the engine and let cool down.

2. Remove the radiator hose (1) from the engine side to drain the
coolant.

3. Remove the radiator cap to completely drain the coolant.

4. After all coolant is drained, reinstall the radiator hose.

8.5 L

M6800(S)

Coolant Capacity

M8200
M9000

9.0 U.S.qts.

7.5 Imp.qts.

9.0 L

9.5 U.S.qts.

7.9 Imp.qts.

ENGINE

(1) Radiator Hose

W1015463

Draining Engine Oil

1. Start and warm up the engine for approx. 5 minutes.

2. Place an oil pan underneath the engine.

3. Remove the drain plugs (1) to drain oil.

4. After draining reinstall the drain plugs (1).

(When reassembling)

• Fill the engine oil up to the upper line on the dipstick (3).

10.7 L

Engine oil Capacity

11.3 U.S.qts.

9.4 Imp.qts.

IMPORTANTQ

• Never mix two different type of oil.

• Use the proper SAE Engine Oil according to ambient
temperatures.
Refer to “5. LUBRICANTS, FUEL AND COOLANT” at
GENERAL Section.

(1) Drain Plug
(2) Oil Inlet Plug
(3) Dipstick

(A) Oil level is acceptable within this

range.

W1015820

1-S12

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

ENGINE

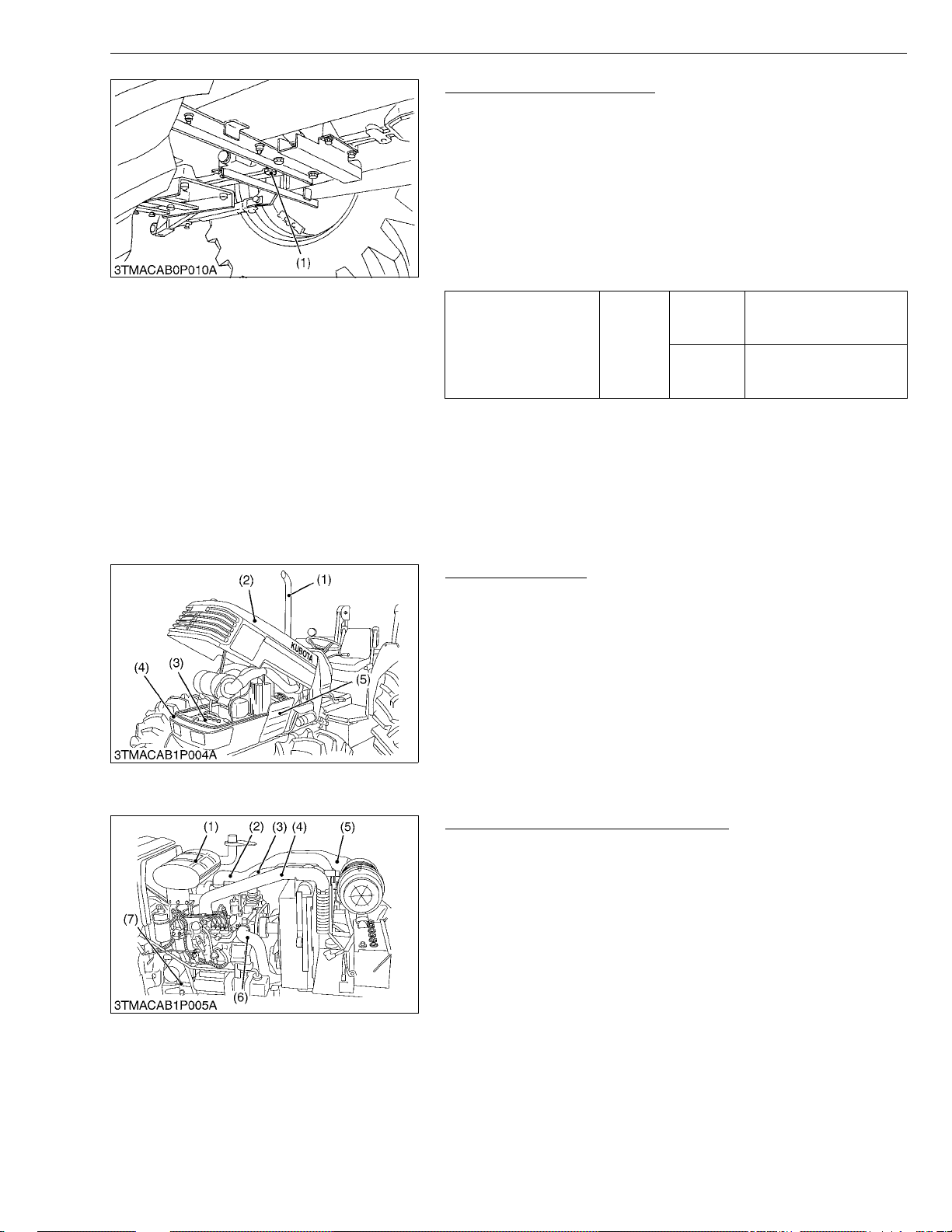

Draining Transmission Fluid

1. Place oil pans underneath the transmission case.

2. Remove the drain plug (1).

3. Drain the transmission fluid.

4. Reinstall the drain plug (1).

(When reassembling)

• Fill up from filling port after removing the filling plug until reaching
the gauge.

• After running the engine for a few minutes, stop it and check the
fluid level again, add fluid to prescribed level if it is not correct
level.

43 L

M6800(S)

Transmission fluid Capacity

M8200
M9000

45.4 U.S.qts.

37.8 Imp.qts.
54 L

57.0 U.S.qts.

47.5 Imp.qts.

IMPORTANTQ

• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmisison or hydraulic system.

• Refer to “5. LUBRICANTS, FUEL AND COOLANT” at
GENERAL Section.

• Do not mix different brands fluid together.

(1) Drain Plug

W1016368

Muffler and Bonnet

1. Remove the muffler (1).

2. Remove the bonnet (2).

3. Disconnect the battery’s cable.

4. Disconnect the head light 3P connectors.

5. Remove the front lower cover (4) and side cover (5).

IMPORTANTQ

• When disconnecting the battery cord, disconnect the
grounding cord first. When connecting, positive cord first.

(1) Muffler (Upper)
(2) Bonnet
(3) Battery

(4) Front Lower Cover
(5) Side Cover

W1016871

Radiator Hoses and Air Cleaner Hoses

1. Disconnect the radiator hoses (3) and (6) from engine side.

2. Disconnect the air cleaner hose (5) from the intake manifold.

3. Disconnect the hose 1 (2) and hose 2 (4) from engine side
(M9000 only).

4. Disconnect the radiator hose (7).

5. Remove the delivery pipe clamp.

6. Remove the muffler (1).

(1) Muffler
(2) Hose 1
(3) Radiator Hose
(4) Hose 2

(5) Air Cleaner Hose
(6) Radiator Hose
(7) Radiator Hose

W1017028

1-S13

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

ENGINE

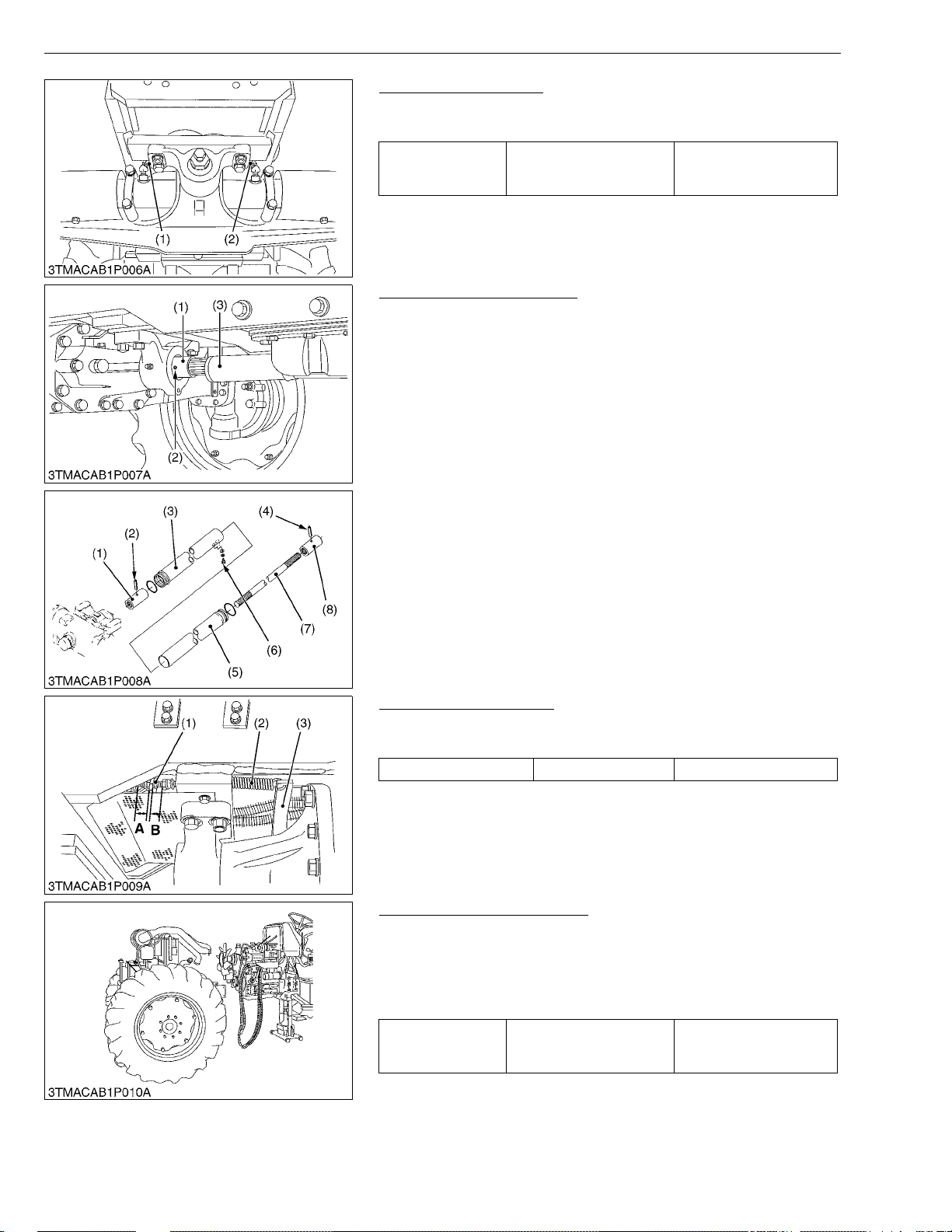

Power Steering Hoses

1. Disconnect the power steering hoses (1), (2).

(When reassembling)

Tightening torque

(1) Right Turning Delivery Hose (2) Left Turning Delivery Hose

Turning delivery hose
retaining nut

24.5 to 29.4 N·m

2.5 to 3.0 kgf·m

18.1 to 21.7 ft-lbs

W1017198

Propeller Shaft (4WD Only)

1. Slide the propeller shaft cover (3), (5) after removing the screws
(6).

2. Tap out the spring pin (2), (4) and then slide the coupling (1), (8)
to the front and rear.

(When reassembling)

• Apply grease to the splines of the propeller shaft (7) and pinion
shaft.

(1) Coupling
(2) Spring Pin
(3) Propeller Shaft Cover
(4) Spring Pin

(5) Propeller Shaft Cover
(6) Screw
(7) Propeller Shaft
(8) Coupling

W1017385

Differential Lock Spring

1. Loosen the lock nut (1).

2. Remove the spring (2) from differential lock lever (3).

Length A and B Factory spec. A = B

(1) Lock Nut
(2) Spring

(3) Differential Lock Lever

W1017521

Front Axle Support as a Unit

1. Check the front axle and clutch housing case are securely
mounted on the disassembling stands.

2. Separate the front axle support as a unit after removing the front
axle support mounting screws.

(When reassembling)

Tightening torque

Front axle support
mounting screw
(M14, UBS)

166.7 to 196.1 N·m

17.0 to 20.0 kgf·m

123.0 to 144.7 ft-lbs
W1017664

1-S14

M6800 · M6800S · M8200 · M9000, WSM

KiSC issued 03, 2008 A

ENGINE

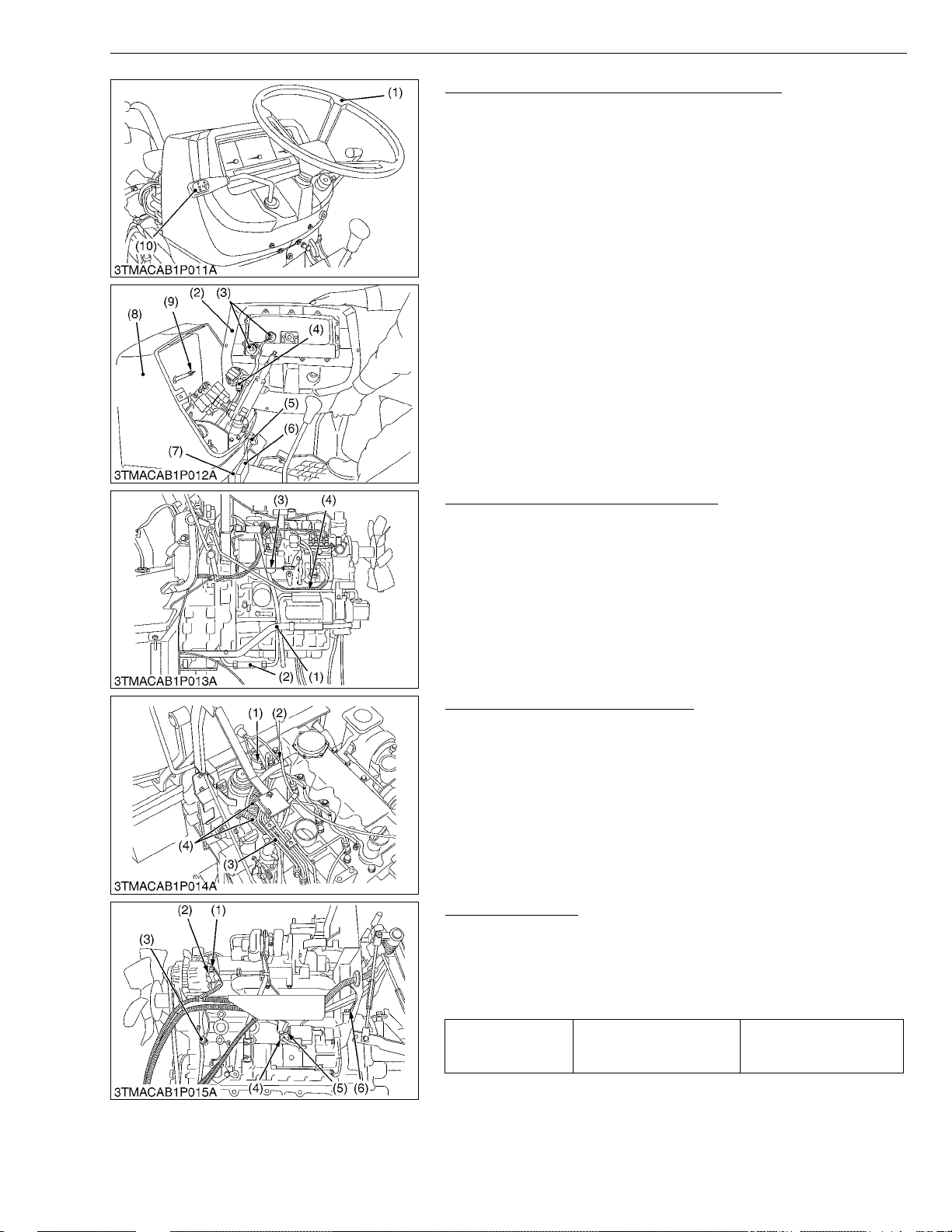

Steering Wheel, Meter Panel and Rear Bonnet

1. Remove the steering wheel (1) with a steering wheel puller (Code
No. 07916-51090).

2. Remove the shuttle lever grip (10).

3. Remove the meter panel mounting screw and disconnect the
meter cable (9).

4. Disconnect the connectors (3).

5. Disconnect the main switch connector (4) and headlight switch
connector, hazard and turn signal switch connector.

6. Disconnect the engine stop cable (5) at the engine side.

7. Remove the rear bonnet (8).

8. Remove the fuse box (7) and cover (6).

(1) Steering Wheel
(2) Meter Panel
(3) Connectors
(4) Main Switch Connector
(5) Engine Stop Cable

(6) Cover
(7) Fuse Box
(8) Rear Bonnet
(9) Meter Cable

(10) Shuttle Lever Grip

W1017775

Hydraulic Pipes and Accelerator Rod

1. Remove the suction pipe (1).

2. Remove the delivery pipe (2) and (4).

3. Remove the accelerator rod (3).

(1) Suction Pipe
(2) Delivery Pipe for 3-point Hydraulic

System

(3) Accelerator Rod
(4) Delivery Pipe for Power Steering

W1018078

Wire Harness R.H. and Fuel Pipes

1. Disconnect the 3P connector for solenoid valve (3).

2. Disconnect the wiring lead (2) from the glow plug.

3. Disconnect the coolant thermo sensor 1P connector (1).

4. Remove the fuel pipes (4).

(1) Coolant Thermo Sensor 1P

Connector

(2) Wiring Lead for Glow Plug

(3) 3P Connector for Solenoid Valve
(4) Fuel Pipes

W1017957

Wire Harness L.H.

1. Disconnect the alternator 2P connector (1) and B terminal (2).

2. Disconnect the starter motor C terminal (5) and B terminal (4).

3. Disconnect the engine oil pressure switch terminal (3).

4. Remove the earth wire (6).

(When reassembling)

9.8 to 11.8 N·m

1.0 to 1.2 kgf·m

7.2 to 8.7 ft-lbs

Tightening torque

Starter’s terminal B
mounting nut

(1) Alternator 2P Connector
(2) Alternator B Terminal
(3) Engine Oil Pressure Switch Terminal

1-S15

(4) Starter Motor B Terminal
(5) Starter Motor C Terminal
(6) Earth Wire

W1018206
