Kubota M5040, M7040, M6040 Workshop Manual

WORKSHOP MANUAL

KiSC issued 06, 2008 A

TRACTOR

M5040,M6040,M7040

TO THE READER

KiSC issued 06, 2008 A

This Workshop Manual has been prepared to provide servicing personnel with
information on the mechanism, service and maintenance of M5040, M6040 and M7040.
It is divided into three parts, “General”, “Mechanism” and “Servicing”.

Q General

Information on the tractor identification, the general precautions, maintenance check
list, check and maintenance and special tools ar e descr ib ed .

Q Mechanism

Information on the construction and function are included. This part should be
understood before proceeding with troubleshooting, disassembling and servicing.

Refer to Diesel Engine / Tractor Mechanism Workshop Manual (Code No. 9Y021­01874 / 9Y021-18201) for the one which has not been described to this workshop
manual.

Q Servicing

Information on the troubleshooting, servicing specification lists, tightening torque,
checking and adjusting, disassembling and assembling, and servicing which cover
procedures, precautions, factory specifications and allowable limits.

All information illustrations and specifications contained in this manual are based on
the latest product information available at the time of publication.

The right is reserved to make changes in all information at any time without notice.

Due to covering many models of this manual, information or picture being used, have
not been specified as one model.

May 2006

© KUBOTA Corporation 2006

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

SAFETY FIRST

This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on

the machine itself to warn of the possibility of personal injury. Read these instructions carefully.

It is essential that you read the instruct ions and safe ty regulations before y ou attempt to re p air or use

this unit.

DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

Q IMPORTANT : Indicates that equipment or property damage could result if instructions are not

followed.

Q NOTE : Gives helpful information.

BEFORE SERVICING AND REPAIRING

• Read all instructions and safety instructions in this
manual and on your machine safety decals.

• Clean the work area and machine.

• Park the machine on a firm and level ground, and se t
the parking brake.

• Lower the implement to the ground.

• Stop the engine, and remove the key.

• Disconnect the battery negative cable.

• Hang a “DO NOT OPERATE” tag in operator
station.

1

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

SAFETY STARTING

• Do not start the engine by shorting across starter
terminals or bypassing the safety start switch.

• Do not alter or remove any part of machine safety
system.

• Before starting the engine, make sure that all shift
levers are in neutral positions or in disengaged
positions.

• Never start the engine while standing on ground.
Start the engine only from operator’s seat.

SAFETY WORKING

• Do not work on the machine while under the influe nce
of alcohol, medication, or other substances or while
fatigued.

• Wear close fitting clothing and safety equipment
appropriate to the job.

• Use tools appropriate to the work. Makeshift tools,
parts, and procedures are not recommended.

• When servicing is performed together by two or more
persons, take care to perform all work safely.

• Do not work under the machine that is supported
solely by a jack. Always support the machine by
safety stands.

• Do not touch the rotating or hot parts while the engine
is running.

• Never remove the radiator cap while the engine is
running, or immediately after stopping. Otherwise, hot
water will spout out from radiator. Only remove
radiator cap when cool enough to touch with bare
hands. Slowly loosen the cap to first stop to relieve
pressure before removing completely.

• Escaping fluid (fuel or hydraulic oil) under pressure
can penetrate the skin causing serious injury. Relieve
pressure before disconnecting hydraulic or fuel lines.
Tighten all connections before applying pressure.

AVOID FIRES

• Fuel is extremely flammable and explosive under
certain conditions. Do not smoke or allow flames or
sparks in your working area.

• To avoid sparks from an accidental short circuit,
always disconnect the battery negative cable first and
connect it last.

• Battery gas can explode. Keep sparks and open
flame away from the top of battery, especially when
charging the battery.

• Make sure that no fuel has been spilled on the engine.

2

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

VENTILATE WORK AREA

• If the engine must be running to do some work, make
sure the area is well ventilated. Never run the engine
in a closed area. The exhaust gas contains poisonous
carbon monoxide.

PREVENT ACID BURNS

• Sulfuric acid in battery electrolyte is poisonous. It is
strong enough to burn skin, clothing and cause
blindness if splashed into eyes. Keep electrolyte
away from eyes, hands and clothing. If you spill
electrolyte on yourself, flush with water, and get
medical attention immediately.

DISPOSE OF FLUIDS PROPERLY

• Do not pour fluids into the ground, down a drain, or
into a stream, pond, or lake. Observe relevant
environmental protection regula tions when disp osing
of oil, fuel, coolant, electrolyte and other harmful
waste.

PREPARE FOR EMERGENCIES

• Keep a first aid kit and fire extinguisher handy at all
times.

• Keep emergency numbers for doctors, ambulance
service, hospital and fire department near your
telephone.

3

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

SAFETY DECALS

The following safety decals are installed on the machine.
If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in
the parts list.
Q ROPS Model

4

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

5

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

6

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

7

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

Q CABIN Model

SAFETY INSTRUCTIONS

8

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

9

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

10

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SAFETY INSTRUCTIONS

11

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SPECIFICATIONS

[ROPS Model]

Model

Model V3007-DI-E2 V3307-DI-E2 V3307-DI-E2-1
Type Direct injection, liquid cooled 4 cylinder diesel
Number of cylinders 4
Total displacement 3053 cm
Bore and stroke 94 × 110 mm (3.7 × 4.3 in.) 94 × 120 mm (3.7 × 4.7 in.)
Rated speed 2600 min
Net power

Engine

Dimensions

Weight

Traveling
system

Note : *1 : Manufacture’s estimate

*2 : Cast iron discs available for wheels.
*3 : At lower link end with links horizontal.
The company reserves the right to change the specifications without notice.

PTO power

Maximum torque

Battery capacity 12 V, RC : 160 min, CCA : 900 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)]
Fuel tank capacity 70 L (18.5 U.S.gals., 15.4 Imp.gals.)
Engine oil capacity 11 L (11.6 U.S.qts., 9.7 Imp.qts.)
Coolant capacity 8 L (8.5 U.S.qts., 7.0 Imp.qts.)

Overall length
Overall width (min. tread) 1860 mm (73 in.)

Overall height 2420 mm (95 in.) 2460 mm (97 in.) 2470 mm (97 in.)
Wheel base

Tread

Minimum ground
clearance

Standard
tire size

Clutch Dry, single plate / Multiple wet discs
Steering Hydraulic power steering
Braking system Multiple wet discs mechanical
Differential Bevel gears with differential lock (rear)

*1

*1

1300 to 1500 min

3565 mm

(140 in.)

2085 mm

(82 in.)

Front

Rear

Front 6.5-16 9.5-24 7.5-16 9.5-24 7.5-16 9.5-24
Rear 14.9-28 16.9-28 16.9-30

1420 to 1820

mm (55.9 to

71.7 in.)

2050 kg

(4519 lbs)

M5040 M6040 M7040

2WD 4WD 2WD 4WD 2WD 4WD

3

(186 cu.in.) 3331 cm3 (203 cu.in.)

37.6 kW (50.5 HP) 46.2 kW (62 HP) 50.7 kW (68 HP)

33.6 kW (45 HP) 41.0 kW (55 HP) 46.2 kW (62 HP)

178.5 N·m (18.2 kgf·m,

131.7 lbf·ft) /

1320 to 1720 mm

(52.0 to 67.7 in.)

370 mm (14.6 in.)

(Fuel tank stay)

−1

(rpm)

3445 mm

(136 in.)

2050 mm

(81 in.)

1420, 1520

mm (55.9,

59.8 in.)

2120 kg

(4674 lbs)

213 N·m (21.7 kgf·m,

157.1 lbf·ft) /

1300 to 1500 min

3565 mm

(140 in.)

2085 mm

(82 in.)

1420 to 1820

mm (55.9 to

71.7 in.)

390 mm (15.4 in.)

(Fuel tank stay)

2110 kg

(4652 lbs)

−1

(rpm)

−1

(rpm)

3445 mm

(136 in.)

2050 mm

(81 in.)

1420, 1520

mm (55.9,

59.8 in.)
1420 to 1720 mm

2170 kg

(4784 lbs)

1300 to 1500 min

3565 mm

(140 in.)

2085 mm

(82 in.)

1420 to 1820

mm (55.9 to

71.7 in.)

(55.9 to 67.7 in.)

2120 kg

(4674 lbs)

SPECIFICATIONS

232 N·m (23.7 kgf·m,

171.1 lbf·ft) /

415 mm (16.3 in.)

(Fuel tank stay)

−1

(rpm)

3445 mm

(136 in.)

2050 mm

(81 in.)

1420, 1520

mm (55.9,

59.8 in.)

2180 kg

(4806 lbs)

*2

W10281170

12

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SPECIFICATIONS

Model

M5040 M6040 M7040

2WD 4WD 2WD 4WD 2WD 4WD

Hydraulic control system Position, draft (top link sensing) and mix control
Pump capacity 41.6 L (11.0 U.S.gals., 9.2 Imp.gals.) / min.
3-point hitch SAE Category 1 and 2

Hydraulic
unit

Max.
lifting
force

At lift points
24 in. behind

lift points

*3

*3

Remote hydraulic control 1 standard with detent and selfcancelling (2nd and 3rd valve optinal)
System pressure 19.1 MPa (195 kgf/cm

Traction system Swinging drawbar, adjustable in direction

Direction of
turning

PTO speed 540 min

PTO

Live PTO
(Indipen­dent)

Note : *1 : Manufacture’s estimate

*2 : Cast iron discs available for wheels.
*3 : At lower link end with links horizontal.
The company reserves the right to change the specifications without notice.

At lower link end with links horizontal

1900 kg (4189 lbs)

1500 kg (3307 lbs)

2

, 2770.3 psi)

Clockwise, viewed from tractor rear

−1

(rpm) at 2160 min−1 (rpm)

W10309210

13

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[CABIN Model]

Model

Model V3007-DI-E2 V3307-DI-E2 V3307-DI-E2-1
Type Direct injection, liquid cooled 4 cylinder diesel
Number of cylinders 4
Total displacement 3053 cm
Bore and stroke 94 × 110 mm (3.7 × 4.3 in.) 94 × 120 mm (3.7 × 4.7 in.)
Rated speed 2600 min

*1

*1

Engine

Net power
PTO power

Maximum torque

1300 to 1500 min
Battery capacity 12 V, RC : 160 min, CCA : 900 A
Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)]
Fuel tank capacity 90 L (23.8 U.S.gals., 19.8 Imp.gals.)
Engine oil capacity 11 L (11.6 U.S.qts., 9.7 Imp.qts.)
Coolant capacity 8 L (8.5 U.S.qts., 7.0 Imp.qts.)

Overall length

3625 mm

(142.7 in.)
Overall width (min. tread) 1860 mm (73 in.)
Overall height 2515 mm (99 in.) 2555 mm (100.6 in.) 2565 mm (97 in.)

Wheel base

Dimensions

Front

Tread

2145 mm

(84.4 in.)

1420 to 1820

mm (55.9 to

71.7 in.)

Rear

Minimum ground
clearance

Weight

Traveling
system

Standard
tire size

Front 6.5-16 9.5-24 7.5-16 9.5-24 7.5-16 9.5-24

Rear 14.9-28 16.9-28 16.9-30
Clutch Dry, single plate / Multiple wet discs
Steering Hydraulic power steering

2310 kg

(5093 lbs)

Braking system Multiple wet discs mechanical
Differential Bevel gears with differential lock (rear)

Note : *1 : Manufacture’s estimate

*2 : Cast iron discs available for wheels.
*3 : At lower link end with links horizontal.
The company reserves the right to change the specifications without notice.

M5040 M6040 M7040

2WD 4WD 2WD 4WD 2WD 4WD

3

(186 cu.in.) 3331 cm3 (203 cu.in.)

37.6 kW (50.5 HP) 46.2 kW (62 HP) 50.7 kW (68 HP)

33.6 kW (45 HP) 41.0 kW (55 HP) 46.2 kW (62 HP)

178.5 N·m (18.2 kgf·m,

131.7 lbf·ft) /

−1

(rpm)

3505 mm

(138 in.)

2110 mm

(83.1 in.)

1420, 1520

mm (55.9,

59.8 in.)

1320 to 1720 mm

(52.0 to 67.7 in.)

410 mm (16.1 in.)

(Fuel tank stay)

2380 kg

(5247 lbs)

213 N·m (21.7 kgf·m,

157.1 lbf·ft) /

1300 to 1500 min

3625 mm

(142.7 in.)

2145 mm

(84.4 in.)

1420 to 1820

mm (55.9 to

71.7 in.)

430 mm (16.9 in.)

(Fuel tank stay)

2370 kg

(5225 lbs)

−1

(rpm)

−1

(rpm)

3505 mm

(138 in.)

2110 mm

(83.1 in.)

1420, 1520

mm (55.9,

59.8 in.)
1420 to 1720 mm

2430 kg

(5357 lbs)

1300 to 1500 min

3625 mm

(142.7 in.)

2145 mm

(84.4 in.)

1420 to 1820

mm (55.9 to

71.7 in.)

(55.9 to 67.7 in.)

2380 kg

(5247 lbs)

SPECIFICATIONS

232 N·m (23.7 kgf·m,

171.1 lbf·ft) /

440 mm (17.3 in.)

(Fuel tank stay)

−1

(rpm)

3505 mm

(138 in.)

2110 mm

(83.1 in.)

1420, 1520

mm (55.9,

59.8 in.)

2440 kg

(5379 lbs)

*2

W10281170

14

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

SPECIFICATIONS

Model

M5040 M6040 M7040

2WD 4WD 2WD 4WD 2WD 4WD

Hydraulic control system Position, draft (top link sensing) and mix control
Pump capacity 41.6 L (11.0 U.S.gals., 9.2 Imp.gals.) / min.
3-point hitch SAE Category 1 and 2

Hydraulic
unit

Max.
lifting
force

At lift points
24 in. behind

lift points

*3

*3

Remote hydraulic control 1 standard with detent and selfcancelling (2nd and 3rd valve optinal)
System pressure 19.1 MPa (195 kgf/cm

Traction system Swinging drawbar, adjustable in direction

Direction of
turning

PTO speed 540 min

PTO

Live PTO
(Indipen­dent)

Note : *1 : Manufacture’s estimate

*2 : Cast iron discs available for wheels.
*3 : At lower link end with links horizontal.
The company reserves the right to change the specifications without notice.

At lower link end with links horizontal

1900 kg (4189 lbs)

1500 kg (3307 lbs)

2

, 2770.3 psi)

Clockwise, viewed from tractor rear

−1

(rpm) at 2160 min−1 (rpm)

W10331560

15

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

TRAVELING SPEEDS

Model M5040, M6040 M7040

Tire size (Rear) 14.9-28 16.9-28 16.9-30

Shuttle shift

lever

Forward

Reverse

The company reserves the right to change the specifications without notice.

Range gear shift

lever

CREEP
(option)

L

H

CREEP
(option)

L

H

Main gear shift

lever

1 0.33 (0.20) 0.34 (0.21) 0.35 (0.22)
2 0.46 (0.29) 0.48 (0.30) 0.50 (0.31)
3 0.62 (0.39) 0.64 (0.40) 0.67 (0.42)
4 1.0 (0.63) 1.0 (0.65) 1.1 (0.68)
1 2.3 (1.4) 2.4 (1.5) 2.5 (1.5)
2 3.3 (2.0) 3.4 (2.1) 3.5 (2.2)
3 4.4 (2.7) 4.5 (2.8) 4.7 (2.9)
4 7.1 (4.4) 7.4 (4.6) 7.7 (4.8)
1 8.9 (5.6) 9.3 (5.8) 9.6 (6.0)
2 12.7 (7.9) 13.1 (8.2) 13.6 (8.5)
3 17.0 (10.5) 17.6 (10.9) 18.2 (11.3)
4 27.6 (17.1) 28.6 (17.8) 29.7 (18.5)
1 0.33 (0.21) 0.34 (0.21) 0.35 (0.22)
2 0.47 (0.29) 0.49 (0.30) 0.51 (0.31)
3 0.63 (0.39) 0.65 (0.41) 0.68 (0.42)
4 1.0 (0.64) 1.1 (0.66) 1.1 (0.69)
1 2.3 (1.5) 2.4 (1.5) 2.5 (1.6)
2 3.3 (2.1) 3.4 (2.1) 3.6 (2.2)
3 4.4 (2.8) 4.6 (2.9) 4.8 (3.0)
4 7.2 (4.5) 7.5 (4.6) 7.8 (4.8)
1 9.1 (5.6) 9.4 (5.8) 9.7 (6.1)
2 12.8 (8.0) 13.3 (8.3) 13.8 (8.6)
3 17.2 (10.7) 17.8 (11.1) 18.5 (11.5)
4 28.0 (17.4) 29.0 (18.0) 30.1 (18.7)

TRAVELING SPEEDS

(At rated engine rpm)

km/h (mph)

W1035065

16

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

DIMENSIONS

ROPS Model

DIMENSIONS

17

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

CABIN Model

DIMENSIONS

18

G GENERAL

KiSC issued 06, 2008 A

GENERAL

KiSC issued 06, 2008 A

CONTENTS

1. TRACTOR IDENTIFICATION ......................................................................... G-1

[1] MODEL NAME AND SERIAL NUMBERS.............................................. G-1

(1) ROPS Model........................................................................................ G-1

(2) CABIN Model ....................................................................................... G-2

[2] CYLINDER NUMBER ..................... ... ... ... ....................................... ... ... .... G-4

2. GENERAL PRECAUTIONS............................................................................ G-5

3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS AND WIRING.. G-6

[1] WIRING...................................................................................................... G-6

[2] BATTERY................................................................................................... G-8

[3] FUSE.......................................................................................................... G-8

[4] CONNECTOR............................................................................................ G-8

[5] HANDLING OF CIRCUIT TESTER......................................................... G-9

4. LUBRICANTS, FUEL AND COOLANT ....................................................... G-10

5. TIGHTENING TORQUES ............................................................................. G-12

[1] GENERAL USE SCREWS, BOLTS AND NUTS................................. G-12

[2] STUD BOLTS.......................................................................................... G-12

[3] HYDRAULIC FITTINGS.......................................................................... G-13

6. MAINTENANCE............................................................................................. G-14

7. CHECK AND MAINTENANCE..................................................................... G-17

[1] DAILY CHECK........................................................................................ G-17

[2] CHECK POINTS OF INITIAL 50 HOURS........................................... G-18

[3] CHECK POINTS OF EVERY 50 HOURS........................................... G-21

[4] CHECK POINTS OF EVERY 100 HOURS......................................... G-23

[5] CHECK POINTS OF EVERY 200 HOURS......................................... G-28

[6] CHECK POINTS OF EVERY 300 HOURS......................................... G-31

[7] CHECK POINTS OF EVERY 400 HOURS......................................... G-31

[8] CHECK POINTS OF EVERY 600 HOURS......................................... G-32

[9] CHECK POINT OF EVERY 800 HOURS ........................................... G-32

[10]CHECK POINT OF EVERY 1500 HOURS ......................................... G-32

[11]CHECK POINTS OF EVERY 3000 HOURS....................................... G-33

[12]CHECK POINT OF EVERY 1 YEAR................................................... G-33

[13]CHECK POINTS OF EVERY 2 YEARS.............................................. G-34

[14]OTHERS .................................................................................................. G-37

8. SPECIAL TOOLS.......................................................................................... G-42

[1] SPECIAL TOOLS FOR ENGINE .......................................................... G-42

[2] SPECIAL TOOLS FOR TRACTOR....................................................... G-63

[3] SPECIAL TOOLS FOR AIR CONDITIONER UNIT............................. G-73

9. TIRES............................................................................................................. G-75

[1] TYPE OF TIRES.................................................................................... G-75

[2] TREAD ADJUSTMENT........................................................................... G-76

(1) Front Wheels [2WD Model]................................................................ G-76

(2) Front Wheels [4WD Model]................................................................ G-77

(3) Rear Wheels ...................................................................................... G-78

[3] WHEEL HUB........................................................................................... G-79

[4] TIRE PRESSURE................................................................................... G-79

[5] TIRE LIQUID INJECTION...................................................................... G-80

10. IMPLEMENT LIMITATIONS.......................................................................... G-83

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

1. TRACTOR IDENTIFICATION

[1] MODEL NAME AND SERIAL NUMBERS

(1) ROPS Model

When contacting your local KUBO TA distributor, always specify

engine serial number, tractor serial number and hourmeter reading.

(1) Tractor Identification Plate
(2) Tractor Serial Number
(3) Engine Serial Number

G GENERAL

(4) ROPS Identification Plate

(ROPS Serial Number)

W1030262

G-1

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

(2) CABIN Model

G GENERAL

When contacting your local KUBOTA distributor, alway s specify

engine serial number, tracto r ser ial nu m ber and hourmeter reading.

(1) Tractor Identification Plate
(2) CABIN Identification Plate

(CABIN Serial Number)

(3) Tractor Serial Number
(4) Engine Serial Number

W1030474

G-2

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Engine Serial Number

The engine serial number is an identified number for the engine.

It is marked after the engine model number.

It indicates month and year of manufacture as fo llows.

• Year of manufacture

Alphabet or

Number

1 2001 F 2015
2 2002 G 2016
3 2003 H 2017
4 2004 J 2018
5 2005 K 2019
6 2006 L 2020
7 2007 M 2021
8 2008 N 2022

9 2009 P 2023
A 2010 R 2024
B 2011 S 2025
C 2012 T 2026
D 2013 V 2027
E 2014

Year

Alphabet or

Number

Year

• Month of manufacture

Month

January A0001 ~ A9999 B0001 ~
February C0001 ~ C9999 D0001 ~
March E0001 ~ E9999 F0001 ~
April G0001 ~ G9999 H0001 ~
May J0001 ~ J9999 K0001 ~
June L0001 ~ L9999 M0001 ~
July N0001 ~ N9999 P0001 ~
August Q0001 ~ Q9999 R0001 ~
September S0001 ~ S9999 T0001 ~
October U0001 ~ U9999 V0001 ~
November W0001 ~ W9999 X0001 ~
December Y0001 ~ Y9999 Z0001 ~

Engine Serial Number
0001 ~ 9999 10000 ~

e.g. V3007-6A0001
“6” indicates 2006 and “A” indicates January.

So, 6A indicates that the engine was manufactured on January,

2006.

(1) Engine Model and Serial Number

W1010477

G-3

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[2] CYLINDER NUMBER

G GENERAL

The cylinder numbers of KUBOTA diesel engine is desig nated as

shown in the figure.

The sequence of cylinder numbers is given as No.1, No.2, No.3

and No.4 starting from the front cover side.

W1011077

G-4

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

2. GENERAL PRECAUTIONS

• During disassembly, carefully arrange removed parts in a clean
area to prevent confusion later. Screws, bolts and nuts should be
installed in their original position to prevent reassembly errors.

• When special tools are required, use KUBOTA genuine special
tools. Special tools which are not frequently used should be
made according to the drawings provided.

• Before disassembling or servicing electrical wires, always
disconnect the ground cable from the battery first.

• Remove oil and dirt from parts before measuring.

• Use only KUBOTA genuine parts for parts replacement to
maintain machine performance and to assure safety.

• Gaskets and O-rings must be replaced during reassembly.
Apply grease to new O-rings or oil seals before assembling.
See the figure left side.

• When reassembling external snap rings or internal snap rings,
they must be positioned so that sharp edge faces against the
direction from which a force is applied. See the figure left side.

• When inserting spring pins, their splits must face the direction
from which a force is applied. See the figure left side.

• To prevent damage to the hydraulic system, use only specified
fluid or equivalent.

(1) Grease
(2) Force
(3) Sharp Edge
(4) Axial Force
(5) Rotating Movement

G GENERAL

(A) External Snap Ring
(B) Internal Snap Ring

W1010904

G-5

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS
AND WIRING

To ensure safety and prevent damage to the machine and
surrounding equipment, heed the following precautions in handling
electrical parts and wiring.

IMPORTANTQ

• Check electrical wiring for damage and loosened
connection every year. To this end, educa te the customer to
do his or her own check and at the same time recommend
the dealer to perform periodic check for a fee.

• Do not attempt to modify or remodel any ele ctrical parts and
wiring.

• When removing the battery cables, disconnect the negative
cable first. When installing the battery cables, connect the
positive cable first.

(1) Negative Terminal (2) Positive Terminal

W1011114

[1] WIRING

• Securely tighten wiring terminals.

(1) Correct

(Securely Tighten)

(2) Incorrect

(Loosening Leads to Faulty Contact)

W1011216

• Do not let wiring contact dangerous part.

(1) Dangerous Part
(2) Wiring (Incorrect)

(3) Wiring (Correct)
(4) Dangerous Part

• Repair or change torn or aged wiring immediately.

(1) Aged
(2) Torn

(3) Insulating Vinyl Tape

W1011313

W1012292

G-6

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

• Securely insert grommet.

(1) Grommet (A) Correct

(B) Incorrect

• Securely clamp, being careful not to damage wiring.

(1) Clamp

• Wind Clamp Spirally

(2) Wire Harness

(3) Clamp
(4) Welding Dent

G GENERAL

W1011388

W1011458

• Clamp wiring so that there is no twist, unnecessary sag, or
excessive tension, except for movable part, where sag be
required.

(1) Wiring
(2) Clamp

(A) Correct
(B) Incorrect

W1011587

• In installing a part, take care not to get wiring caught by it.

(1) Wiring (A) Incorrect

W1011670

• After installing wiring, check protection of terminals and clamped
condition of wiring, only connect battery.

(1) Cover

• Securely Install Cover
W1011735

G-7

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

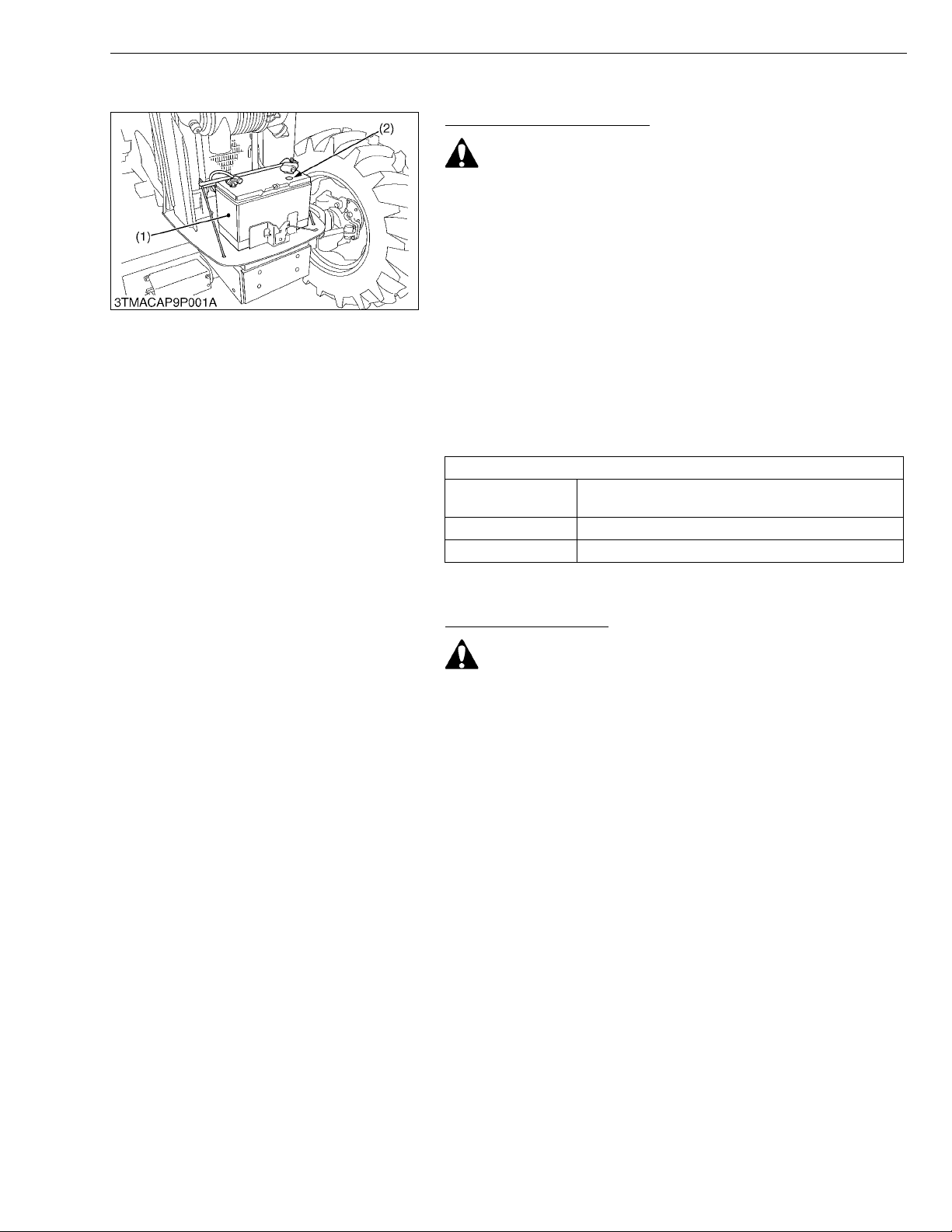

[2] BATTERY

[3] FUSE

G GENERAL

• Take care not to confuse positive and negative terminals.

• When removing battery cable, disconnect negative wire first.
When installing battery cable, check for polarity and connect
positive wire first.

• Do not install any battery with capacity other than is specified
(Ah).

• After connecting cable to battery terminals, apply grease to them
and securely install terminal covers on them.

• Do not allow dirt and dust to collect on battery.

CAUTION

• Take care not to let battery liquid spill on your skin and
clothes. If contaminated, wash it off with water immediately.

• Before recharging the battery, remove it from the machine.

• Before recharging, remove cell caps.

• Do recharging in a well-ventilated place where there is no
open flame nearby, as hydrogen gas and oxygen are formed.

W1011816

[4] CONNECTOR

• Use fuses with specified capacity.
Neither too large or small capacity fuse is acceptable.

• Never use steel or copper wire in place of fuse.

• Do not install working light, radio set, etc. on machine which is not
provided with reserve power supply.

• Do not install accessories if fuse capacity of reserve power
supply is exceeded.

(1) Fuse (2) Slow Blow Fuse

W1012092

• For connector with lock, push lock to separate.

(A) Push

W1012211

• In separating connectors, do not pull wire harnesses.

• Hold connector bodies to separate.

(A) Correct (B) Incorrect

W1012272

G-8

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

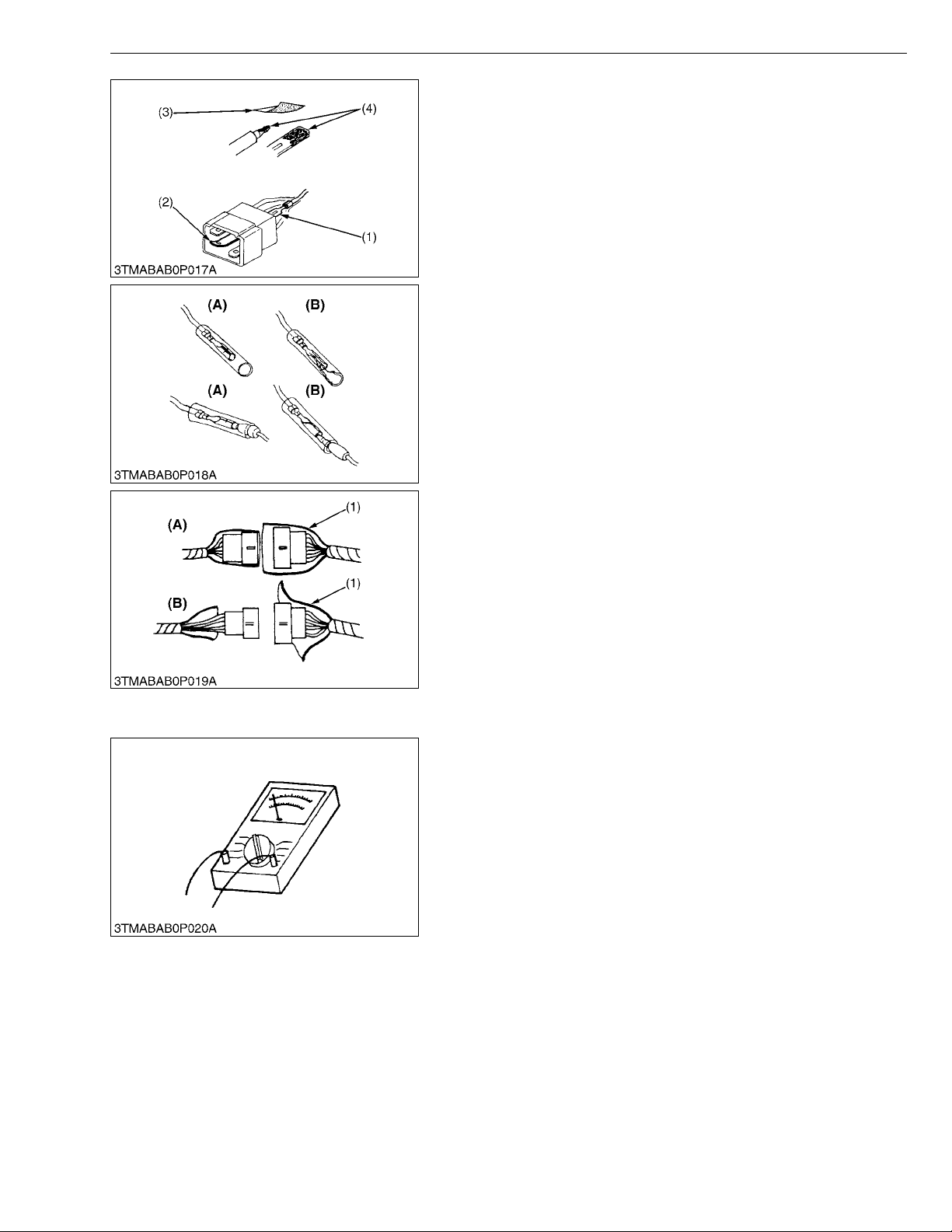

• Use sandpaper to remove rust from terminals.

• Repair deformed terminal. Make certain there is no terminal
being exposed or displaced.

(1) Exposed Terminal
(2) Deformed Terminal

(3) Sandpaper
(4) Rust

W1012346

• Make certain that there is no female connector being too open.

(A) Correct (B) Incorrect

W1012430

• Make certain plastic cover is large enough to cover whole
connector.

(1) Cover (A) Correct

[5] HANDLING OF CIRCUIT TESTER

• Use tester correctly following manual provided with tester.

• Check for polarity and range.

(B) Incorrect

W1012519

W1012684

G-9

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

4. LUBRICANTS, FUEL AND COOLANT

G GENERAL

Place

1 Fuel tank

Coolant

2

Recovery tank

3 Washer liquid –

Engine

4

crankcase
(with filter)

Transmission

5

case
Front differential

6

case oil
[4WD model]

Front axle gear
case oil (one

7

side)
[4WD model]

* KUBOTA original transmission hydraulic fluid.

ROPS CABIN

70 L

18.5 U.S.gals.

15.4 Imp.gals.

8.5 U.S.qts.

7.0 Imp.qts.

1.1 U.S.qts.

0.9 Imp.qts.

11.6 U.S.qts.

9.7 Imp.qts.

59.2 U.S.qts.

49.3 Imp.qts.

5.8 U.S.qts.

4.8 Imp.qts.

3.2 U.S.qts.

2.6 Imp.qts.

Capacity

8.0 L

1.0 L

11 L

56 L

5.5 L

3.0 L

90 L

23.8 U.S.gals.

19.8 Imp.gals.

1.3 L

1.4 U.S.qts.

1.1 Imp.qts.

Lubricants, fuel and coolant

No. 2-D diesel fuel
No. 1-D diesel fuel if temperature is
below −10 °C (14 °F)

Fresh clean water with anti-freeze

Automobil washer liquid

API Service Classification
CD, CE or CF
Below 0 °C (32 °F): SAE10W,
10W-30 or 10W-40
0 to 25 °C (32 to 77 °F): SAE20,
10W-30 or 10W-40
Above 25 °C (77 °F): SAE30,
10W-30 or 10W-40

KUBOTA SUPER UDT fluid*

KUBOTA SUPER UDT fluid or
SAE80, SAE90 gear oil

G-10

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

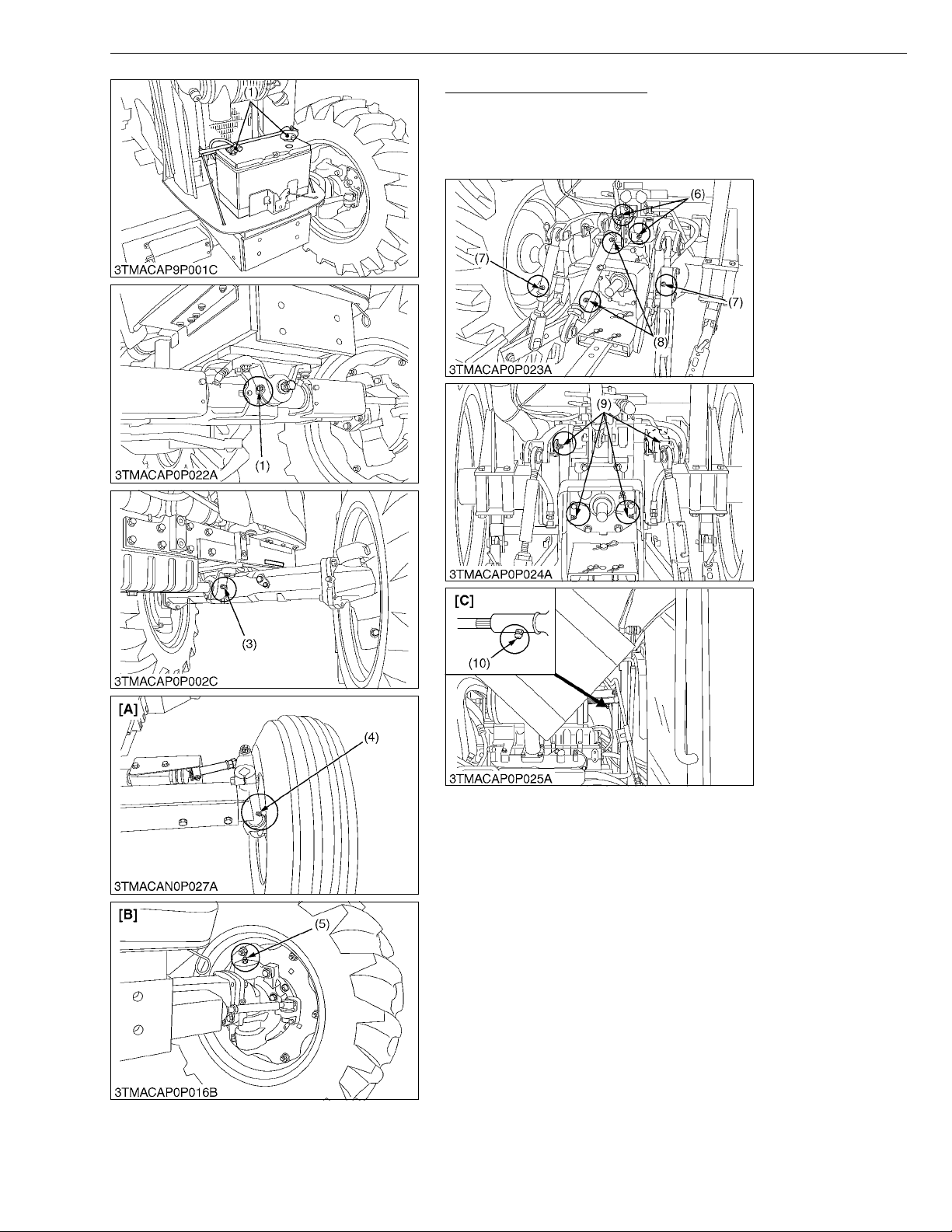

Place No. of greasing points Capacity Type of grease

Front wheel hub
[2WD model]

Knuckle shaft
[2WD model]

Front axle gear
case support
[4WD model]

Front axle
support

Top link 1

8

Top link bracket 2
Lift rod 2
Hydraulic lift

cylinder pin
Steering joint

shaft
[CABIN model]

Battery terminal 2

Greasing

2

2

2

2

4

1

Until grease
overflows

Moderate
amount

G GENERAL

Multipurpose
NLGI-2 or NLGI­1 (GC-LB)
grease

Multipurpose
type grease or
petroleum jelly

NOTEQ

• Engine Oil : Oil used in the engine should have an Ame rican Petroleum Institute (API) service classification
and Proper SAE Engine Oil according to the ambient temperature as shown above.
Do not mix different brands together.

• With the emission control now in effect, the CF-4 and CG-4 lubricating oils have been developed for use
of a low-sulfur fuel on-road vehicle engines. When an off-road vehicle engine runs on a high-sulfur fuel,
it is advisable to employ the CF, CD or CE lubricating o il with a high total base number. If the CF-4 or CG­4 lubricating oil is used with a high-sulfur fuel, change the lubricating oil at shorter intervals.

• Lubricating oil recommended when a low-sulfur or high-sulfur fuel is employed.

Fuel
Lubricating

Low sulfur

(0.5 % ≥)

High sulfur Remarks

oil class

CF PPTBN ≥ 10

CF-4 P X

CG-4 P X

P : Recommendable X : Not recommendable

• Transmission Oil : The oil used to lubricate the transmission is also used as hydraulic fluid. To insure
proper operation of the hydraulic system and complete lubrication of the transmission, it is important that
a multi-grade transmission fluid be used in t his syste m. We rec ommend t he use of KUBOTA SUPER UDT
fluid for optimum protection and performance.
Do not mix different brands together.

• Indicated capacity of water and oil are manufacture’s estimate.

G-11

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

5. TIGHTENING TORQUES

Screws, bolts and nuts who se tightening tor ques are not specified in this Workshop Manu al should be tig htened

according to the table below.

[1] GENERAL USE SCREWS, BOLTS AND NUTS

Indication on top of

bolt

Material of bolt SS400, S20C S43C, S48C

Material of opponent

Unit
Diameter

part

M6

(6 mm, 0.24 in.)

M8

(8 mm, 0.31 in.)

M10

(10 mm, 0.3

(12 mm, 0.47 in.)

(14 mm, 0.55 in.)

(16 mm, 0.6

(18 mm, 0.71 in.)

(20 mm, 0.79 in.)

9 in.)

M12

M14

M16

3 in.)

M18

M20

No-grade or 4T 7T 9T

Ordinariness Aluminum Ordinariness Aluminum Ordinariness

N·m kgf·m lbf·ft N·m kgf·m lbf·ft N·m kgf·m lbf·ft N·m kgf·m lbf·ft N·m kgf·m lbf·ft

7.84

0.80

5.79

7.84

0.80

5.79

9.81

1.00

to

9.31

17.7
to

20.5

39.2
to

45.0

62.8
to

72.5

108

to

125
167

to

191
245

to

284
334

to

392

to

0.95

1.8
to

2.1

4.0
to

4.6

6.4
to

7.4

11.0
to

12.8

17.0
to

19.5

25.0
to

29.0

34.0
to

40.0

to

6.87

13.0
to

15.2

29.0
to

33.2

46.3
to

53.5

79.6
to

92.5

123

to

141
181

to

210
246

to

289

to

to

to

8.83

0.90

6.51

16.7

19.6

31.4

34.3

1.7
to

2.0

3.2
to

3.5

12.3
to

14.5

23.1
to

25.3

–

to

to

–––

––

–––

–––

–––

to

11.2

23.6
to

27.4

48.1
to

55

77.5
to

90.1

124

to
147
196

to
225
275

to
318

368

to
431

.8

to

1.15

2.4
to

2.8

4.9
to

5.7

7.9
to

9.2

12.6
to

15.0

20.0
to

23.0

28.0
to

32.5

37.5
to

44.0

7.24
to

8.32

17.4
to

20.2

35.5
to

41.2

57.2
to

66.5

91.2
to

108
145

to

166
203

to

235
272

to

318

7.84

0.80
to

0.90

1.8
to

2.1

4.0
to

4.5

6.4
to

7.4

5.79
to

6.51

13.0
to

15.2

28.9
to

32.5

46.3
to

53.5

–

to

8.83

17.7
to

20.6

39.2
to

44.1

62.8
to

72.5

–––

–––

–––

––

12.3
to

14.2

29.4
to

34.3

60.8
to

70.5

103

to

117
167

to

196
260

to

303
343

to

401
490

to

568

SCr435,

SCM435

1.25
to

1.45

3.0
to

3.5

6.2
to

7.2

10.5
to

12.0

17.0
to

20.0

26.5
to

31.0

35.0
to

41.0

50.0
to

58.0

W1034542

9.05
to

10.5

21.7
to

25.3

44.9
to

52.1

76.0
to

86.8

123

to

144
192

to

224
254

to

297
362

to

420

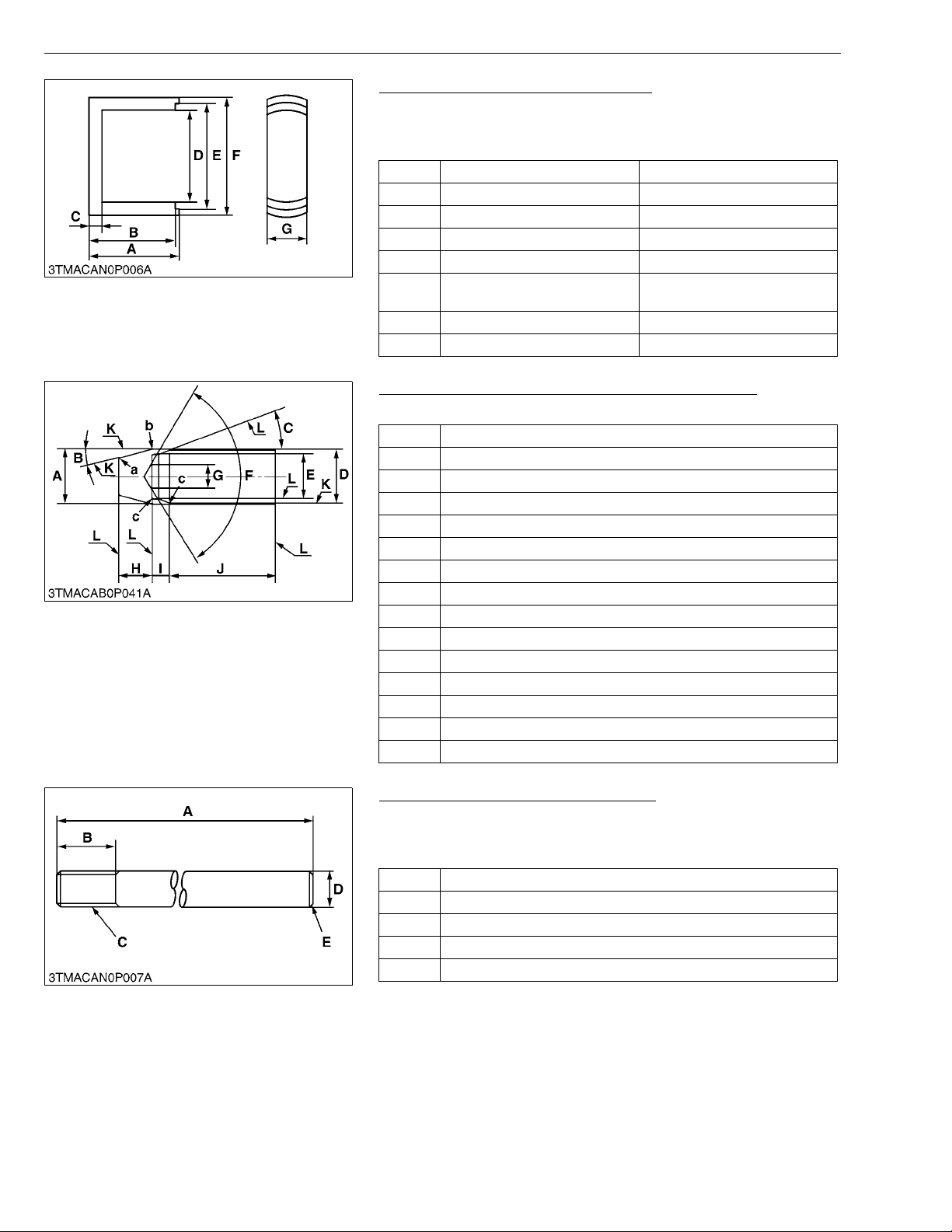

[2] STUD BOLTS

rial of opponent

Mate

part

Unit
Diameter

M8

(8 mm, 0.31 in.)

M10

(10 mm, 0.39 in.)

M12

(12 mm, 0.47 in.)

M14

(14 mm, 0.55 in.)

M16

(16 mm, 0.63 in.)

M18

(18 mm, 0.71 in.)

Ordinariness Aluminum

N·m kgf·m lbf·ft N·m kgf·m lbf·ft

11.8
to

15.6

24.6
to

31.3

29.5
to

49.0

62

to

73.5

98.1
to

112.8
172

to

201.1

1.2
to

1.6

2.5
to

3.2

3.0
to

5.0

6.3
to

7.5

10.0
to

11.5

17.5
to

20.5

8.68
to

11.5

18.1
to

23.1

21.7
to

36.1

45.6
to

54

72.3
to

83.2

126.5
to

148.2

8.82

0.90
to

1.2

2.0
to

2.6

6.51
to

8.67

14.5
to

18.8

–

to

11.8

19.7
to

25.4

31.4 3.2 23.1

–––

–––

––

W1048139

G-12

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[3] HYDRAULIC FITTINGS

Q Hydraulic Hose Fittings

G GENERAL

Hose size Thread size

02 1/8 13.7 to 15.7 1.4 to 1.6 10.1 to 11.6
03
04
05
06

Q Hydraulic Pipe Cap Nuts

Pipe size

φ4 × t1.0 19.6 to 29.4 2.0 to 3.0 14.5 to 21.7
φ6 × t1.0 24.5 to 34.3 2.5 to 3.5 18.1 to 25.3

φ8 × t1.0 29.4 to 39.2 3.0 to 4.0 21.7 to 28.9
φ10 × t1.0 39.2 to 49.0 4.0 to 5.0 28.9 to 36.1
φ12 × t1.5 49.0 to 68.6 5.0 to 7.0 36.1 to 50.6
φ15 × t1.6 107.9 to 117.7 11.0 to 12.0 79.6 to 86.8
φ18 × t1.6 107.9 to 117.7 11.0 to 12.0 79.6 to 86.8

Tightening torque

N·m kgf·m lbf·ft

1/4 22.6 to 27.5 2.3 to 2.8 16.6 to 20.3

3/8 45.1 to 53.0 4.6 to 5.4 33.3 to 39.0

W1014711

Tightening torque

N·m kgf·m lbf·ft

W1014848

Q Adaptors, Elbows and Nipples

Items Thread size

PF 1/8 44.1 to 53.9 4.5 to 5.5 32.5 to 39.8

POA-PF

(Nipple with O-ring)

PF 1/4 73.5 to 83.4 7.5 to 8.5 54.2 to 61.5
PF 3/8 93.2 to 103.0 9.5 to 10.5 68.7 to 75.9
PF 1/2 112.8 to 122.6 11.5 to 12.5 83.2 to 90.4
PF 1/8 22.6 to 26.5 2.3 to 2.7 16.6 to 19.5

POB-PF

PF 1/4 35.3 to 43.1 3.6 to 4.4 26.0 to 31.8

(Elbow with O-ring

and no nut)

PF 3/8 53.9 to 63.7 5.5 to 6.5 39.8 to 47.0
PF 1/2 73.5 to 83.4 7.5 to 8.5 54.2 to 61.5
PF 1/8 9.8 to 14.7 1.0 to 1.5 7.2 to 10.8
PF 1/4 29.4 to 34.3 3.0 to 3.5 21.7 to 25.3

Adaptor (NPT)

PF 3/8 49.0 to 68.6 5.0 to 7.0 36.2 to 50.6
PF 1/2 68.6 to 88.3 7.0 to 9.0 50.6 to 65.1

Tightening torque

N·m kgf·m lbf·ft

W1015484

G-13

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

6. MAINTENANCE

G GENERAL

No. Item

1 Engine start system Check ,,,,,,,,,,,,,,

2 Wheel bolt torque Check ,,,,,,,,,,,,,,

3 Battery condition Check ,,,,,,,

4Greasing – ,,,,,,,

5 Fan/Air-conditioner belt Adjust ,,,,,,,

6 Alternator belt Adjust ,,,,,,,

7 Brake pedal Adjust ,,,,,,,

Clutch pedal

8

[Synchro shuttle model]

Air cleaner

9

element
[Double type]

10 Fuel line

11 Toe-in Adjust ,,,

12 Fuel tank water Drain ,,,

13 Power steering oil line

14 Radiator hose and clamp

15 Intake air line

16 Engine oil Change +, ,

17 Hydraulic oil filter Replace +, ,

Greasing

18

(2WD front wheel hub)

Primary
element

Secondary
element

Adjust +,,,,,,,

Clean ,,,,,,,

Replace

Replace

Check ,,,,,,,

Replace

Check ,,,

Replace

Check ,,,

Replace

Check ,,,

Replace

– ,

50 100 150 200 250 300 350 400 450 500 550 600 650 700

Indication on hour meter

Inter-

val

every
50 Hr

every
50 Hr

every

100 Hr

every

100 Hr

every

100 Hr

every

100 Hr

every

100 Hr

every

100 Hr

every

100 Hr

every 1

year

every 1

year

every

100 Hr

every 2

years
every

200 Hr

every

200 Hr

every

200 Hr

every 2

years
every

200 Hr

every 2

years
every

200 Hr

every 2

years
every

300 Hr

every

300 Hr

every

400 Hr

tant

@

@

@

W1035769

Refe-

rence

page

G-21

G-22

G-27

G-25

G-25

G-26

G-18

G-24

G-24

G-26

G-26

G-29

G-29

G-

G-

G-28

G-28

G-28

G-18

G-19

G-31

Impor-

*4 G-23

*1

*2 G-24

*3 G-28

28

28

G-14

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Service Interval

No. Item

19 Water separator Clean ,

20 Fuel filter Replace ,

21 Engine oil filter Replace +,

22 Transmission fluid Change +,

23 Front differential case oil Change +,

24 Front axle case oil Change +,

25 Front axle pivot Adjust ,

26 Engine valve clearance Adjust

Fuel injection nozzle injection

27

pressure

28 Injection pump Check

29 Cooling system Flush

30 Coolant Change

31 Lift cylinder hose Replace
32 Clutch housing water Drain Service

33 Fuse Replace G-38
34 Light bulb Replace G-40

Check

50 100 150 200 250 300 350 400 450 500 550 600 650 700

Since

then

every

400 Hr

every

400 Hr

every

600 Hr

every

600 Hr

every

600 Hr

every

600 Hr

every

600 Hr

every

800 Hr

every

1500 Hr

every

3000 Hr

every 2

years

every 2

years

every 2

years

as

requi-

red

Impor-

Refe­rence

tant

@G-31

@G-32

@G-32

@G-33

W1028983

page

G-31

G-19

G-20

G-20

G-20

G-32

G-34

G-34

G-36
G-37

G-15

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Service Interval

No. Item

1 Fan/Air conditioner drive belt Adjust ,,,,,,,

2 Inner air filter Clean ,,,

3 Fresh air filter Clean ,,,

4 Air conditioner condenser Clean ,,,

Air conditioner pipes and

5

hoses
6 Cabin isolation cushion Check
7 Washer liquid Add Service

8 Refrigerant (gas) Check G-41

Check

50 100 150 200 250 300 350 400 450 500 550 600 650 700

Since

then

every

100 Hr

every

200 Hr

every

200 Hr

every

200 Hr

every 1

year

every 1

year

as

requi-

red

Impor-

tant

Refe-

rence

page

G-25

G-29

G-30

G-30

G-33

G-33
G-41

IMPORTANTQ

• The jobs indicated by + must be done after the first 50 hours of operation.

• *1 : Air cleaner should be cleaned more often in dusty conditions than in normal conditions.

• *2 : Every year or every 6 times of cleaning.

• *3 : Replace only if necessary.

• *4 : When the battery is used for less than 100 hours per year, check the battery condition by reading the indicator annually.

• The items listed above (@ marked) are registered as emisson related critical parts by KUBOTA in U.S.EPA nonroad emission
regulation. As the engine owner, you are re sponsible fo r the perfo rmance of the required ma intenanc e on the eng ine according t o
the above instruction.
Please see the Warranty Statement in detail.

W1025390

G-16

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

7. CHECK AND MAINTENANCE

CAUTION

• Be sure to check and service the tractor on a flat plac e with engine shut off, the parking brake on and chock
the wheels.

[1] DAILY CHECK

To prevent trouble from occurrin g, it is important to know th e condition of the tracto r. Check the following ite ms

before starting.

Checking

• Check areas where previous trouble was experienced.

• Walk around the tractor.

1. Check the tire pressure, and check for wear and damage.

2. Check for oil and water leak.

3. Check the engine oil level.

4. Check the transmission fluid level.

5. Check the coolant level.

6. Check the condition of ROPS attaching hardware. (ROPS model).

7. Check the washer liquid level. (CABIN model)

8. Check the water separator.

9. Check air cleaner evacuator valve.

10.Check and clean the radiator screen, grill and oil cooler.

11.Check and clean the radiator screen, grill, oil cooler and condenser (CABIN model).

12.Check and clean the air conditioner condenser screen. (CABIN model)

13.Check the nuts of tires are tight.

14.Check the number plate or SMV emblem for damage and replace as necessary if equipped.

15.Care of danger, warning and caution labels.

16.Clean around the exhaust manifold and the muffler of the engine.

• While sitting in the operator's seat.

1. Check the throttle pedal, brake pedal and clutch pedal.

2. Check the throttle lever and shuttle lever.

3. Check the parking brake.

4. Check the steering wheel.

5. Check the seat belt.

• Turning the key switch.

1. Check the performance of the easy checker lights.

2. Check the head lights, turn signal lights, hazard lights and other light equipment. Clean if necessary.

3. Check the performance of the meters and gauges.

• Starting the engine.

1. Check to see that the lights on the easy checker go off.

2. Check the color of the exhaust gas.

3. Check the brakes for proper operation.

G-17

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[2] CHECK POINTS OF INITIAL 50 HOURS

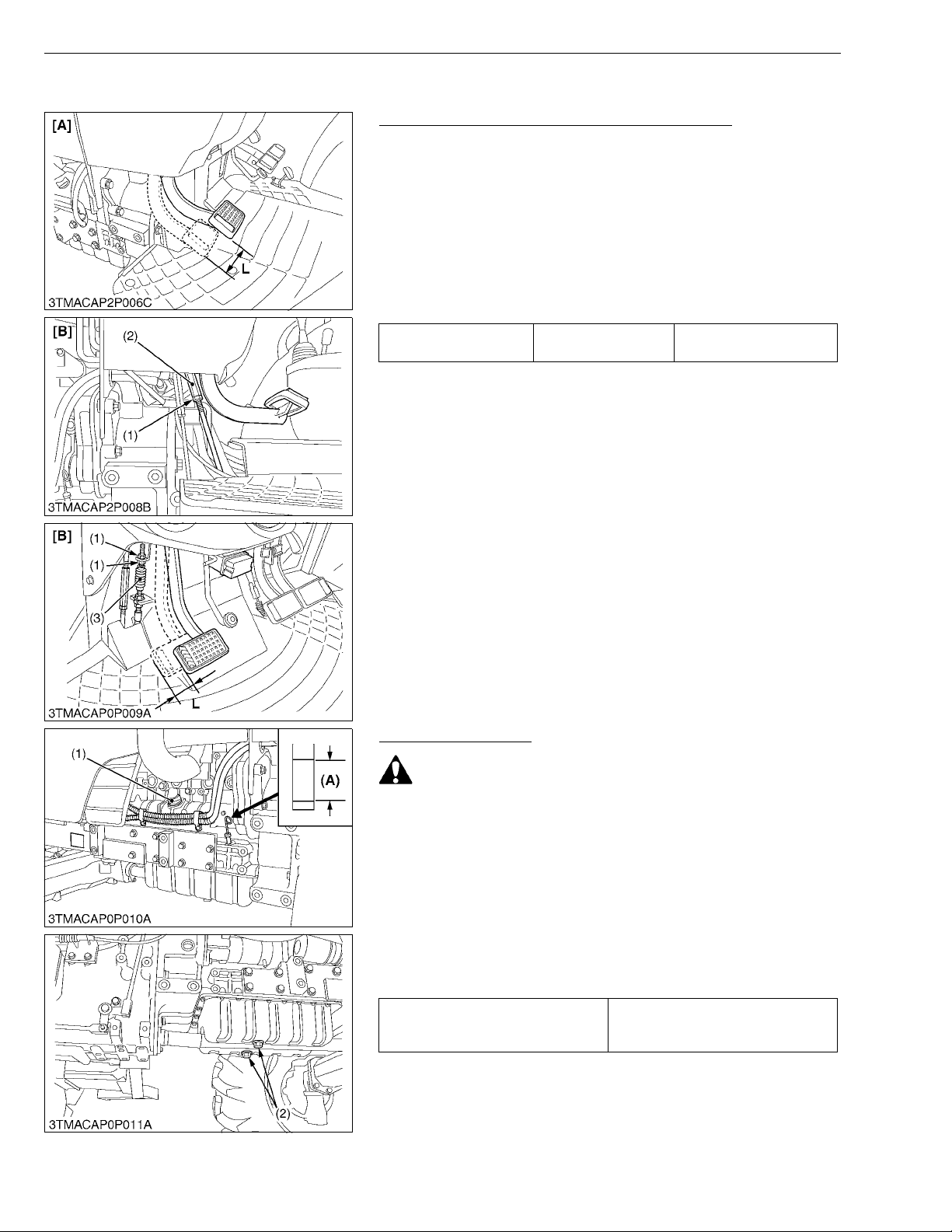

Adjusting Clutch Pedal (Synchro Shuttle Model)

1. Stop the engine and remove the key.

2. Slightly depress the clutch pedal and measure free travel at the
top of pedal stroke.

3. [ROPS model]
If adjustment is needed, loosen the lock nut (1) and turn the
turnbuckle (2) to adjust the rod length within acceptab le limit s.
[CABIN model]
If adjustment is needed, loosen the lock nut (1) and to adjust the
cable length within acceptable limits.

4. Retighten the lock nut (1).

Proper clutch pedal free
travel (L)

Factory spec.

G GENERAL

40 to 45 mm

1.57 to 1.77 in.

(1) Lock Nut
(2) Turnbuckle
(3) Cable

L : Free Travel
[A] ROPS Model
[B] CABIN Model

W1066699

Changing Engine Oil

CAUTION

• Before changing oil, be sure to stop the engine.

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

1. To drain the used oil, remove the drain plugs (2) at the b ottom of
the engine and drain the oil completely into the oil pan.
All the used oil can be drained out easily when the e ngine is still
warm.

2. After draining reinstall the drain plugs (2).

3. Fill with the new oil up to the upper notch on the dipstick.
(Refer to “4. LUBRICANTS, FUEL AND COOLANT” in this
section.)

11 L

Oil capacity with filter

11.6 U.S.qts.

9.7 Imp.qts.

(1) Oil Inlet
(2) Drain Plugs

G-18

(A) Oil level is acceptable within this

range.

W1021565

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Replacing Engine Oil Filter

CAUTION

• Be sure to stop the engine before changing oil filter
cartridge.

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

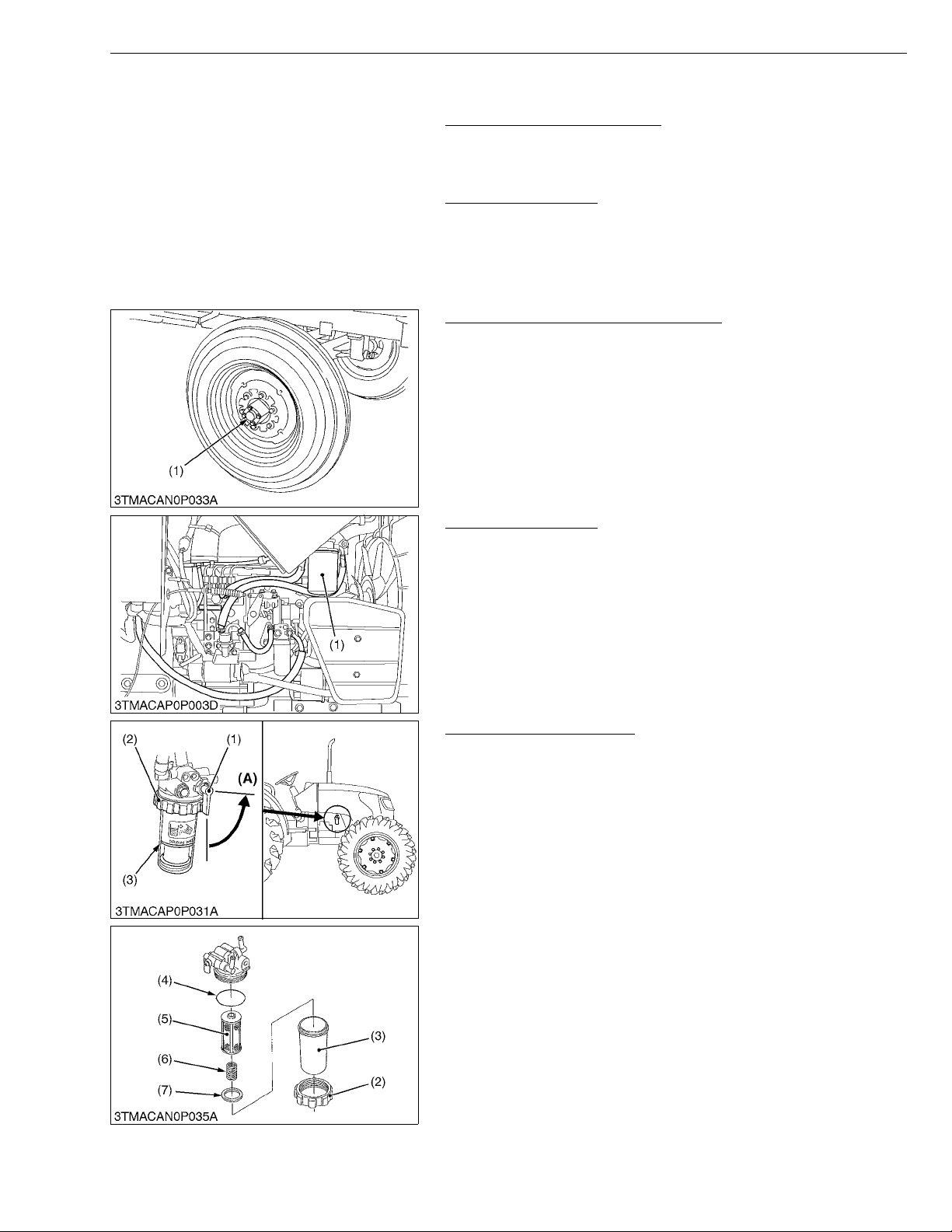

1. Remove the oil filter (1).

2. Put a film of clean engine oil on rubber seal of new filter.

3. Tighten the filter quickly until it contacts the mounting surface.
Tighten filter by hand an additional 1/2 turn only.

4. After the new filter has been replaced, the engine oil normally
decreases a little. Make sure that the engine oil does not leak
through the seal and be sure to check the oil level on the dipstick.
Then, replenish the engine oil up to the prescribed level.

IMPORTANTQ

• To prevent serious damage to the engine, use only a
KUBOTA genuine filter.

(1) Engine Oil Filter

W1021852

Replacing Hydraulic Oil FIlter

CAUTION

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

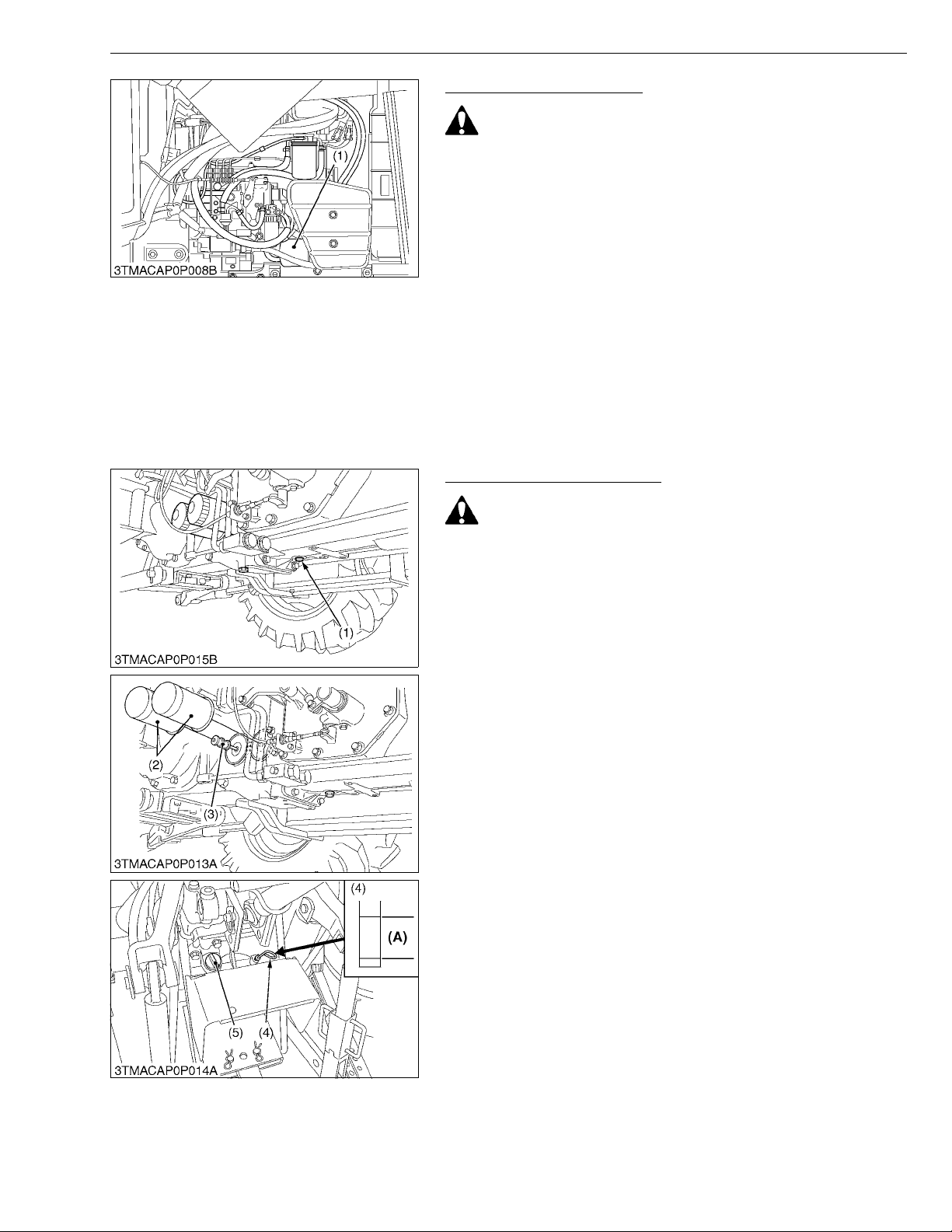

1. Remove the drain plug (1) at the bottom of the transmission case
and drain the oil completely into the oil pan.

2. After draining reinstall the drain plug (1) .

3. Remove the two oil filters (2).

4. Wipe off metal fillings with clean rags at the magnetic filters (3).

5. Put a film of clean transmission fluid on rubber seal of new filters.

6. Tighten the filter quickly until it contacts the mounting surface.
Tighten filter by hand and additional 1/2 turn only.

7. After the new filter has been replaced, fill with the oil up to the
upper notch on the dipstick (4).

8. After running the engine for a few minutes, stop it and check the
oil level again, add oil to the prescribed level.

9. Make sure that the transmission fluid doesn’t leak through the
seal.

IMPORTANTQ

• To prevent serious damage to the hydraulic system, use
only a KUBOTA genuine filter.

(1) Drain Plug
(2) Hydraulic Oil Filter
(3) Magnetic Filter (Clean off Metal

Fillings)
(4) Dipstick
(5) Oil Filling Plug

(A) Oil level is acceptable within this

range.

W1022033

G-19

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

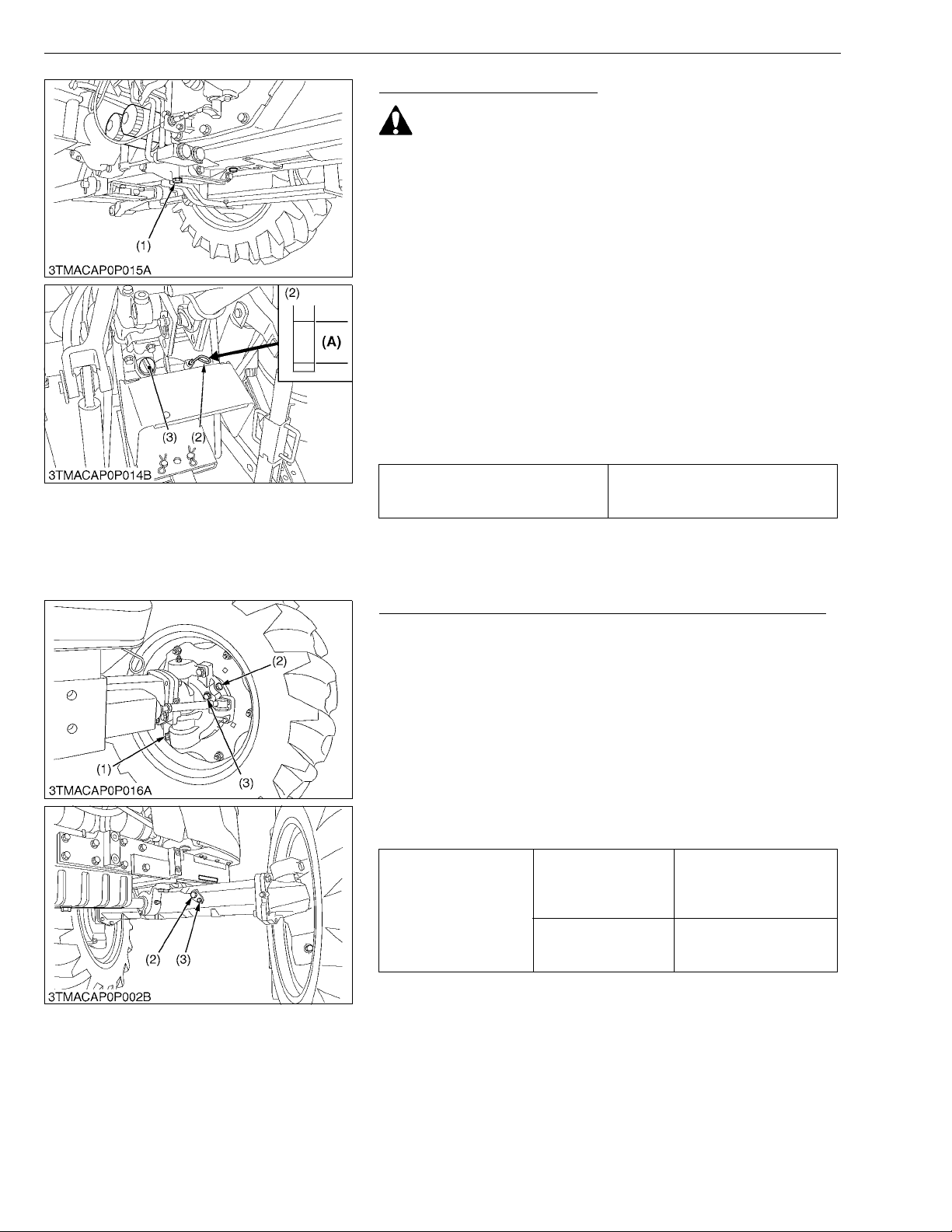

Changing Transmission Fluid

CAUTION

• Allow engine to cool down sufficiently, oil can be hot and
can burn.

1. To drain the used oil, remove the drain plug (1) at the bottom of
the transmission case and drain the oil completely into the oil
pan.

2. After draining reinstall the drain plug.

3. Fill with the new KUBOTA SUPER UDT fluid up to the upper
notch on the dipstick (2).

4. (Refer to “4. LUBRICANTS, FUEL AND COOLANT” in this
section.)

5. After running the engine for a few minutes, stop it and check the
oil level again; add oil to prescribed level.

IMPORTANTQ

• Do not operate the tract or immediately after changing the
transmission fluid.
Run the engine at medium speed for a few minutes to
prevent damage to the transmission.

56 L

Oil capacity

59.2 U.S.qts.

49.3 Imp.qts.

(1) Drain Plug
(2) Dipstick
(3) Oil Inlet

(A) Oil level is acceptable within the

range.

W1022400

Changing Front Differential Case Oil and Front Axle Case Oil

1. To drain the used oil, remove the drain plugs at the both front axle
gear cases and filling plugs, and drain the oil completely into the
oil pan.

2. After draining reinstall the drain plugs (1).

3. Remove the oil level check plugs (3).

4. Fill with the new oil up to the lower rim of check plug port on the
both front axle gear cases.

5. Finally fill with the new oil up to the lower rim of check plug port
on the front differential case. (Refer to “4. LUBRICANTS, FUEL
AND COOLANT” in this section.)

6. After checking oil is visible through the openings of three check
plugs, reinstall filling plugs and check plugs.

3.0 L

Front axle gear case

Oil capacity

Front differential case

3.2 U.S.qts

2.6 Imp.qts
for each side

5.5 L

5.8 U.S.qts

4.8 Imp.qts

(1) Drain Plug
(2) Filling Port

G-20

(3) Check Plug

W1063019

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[3] CHECK POINTS OF EVERY 50 HOURS

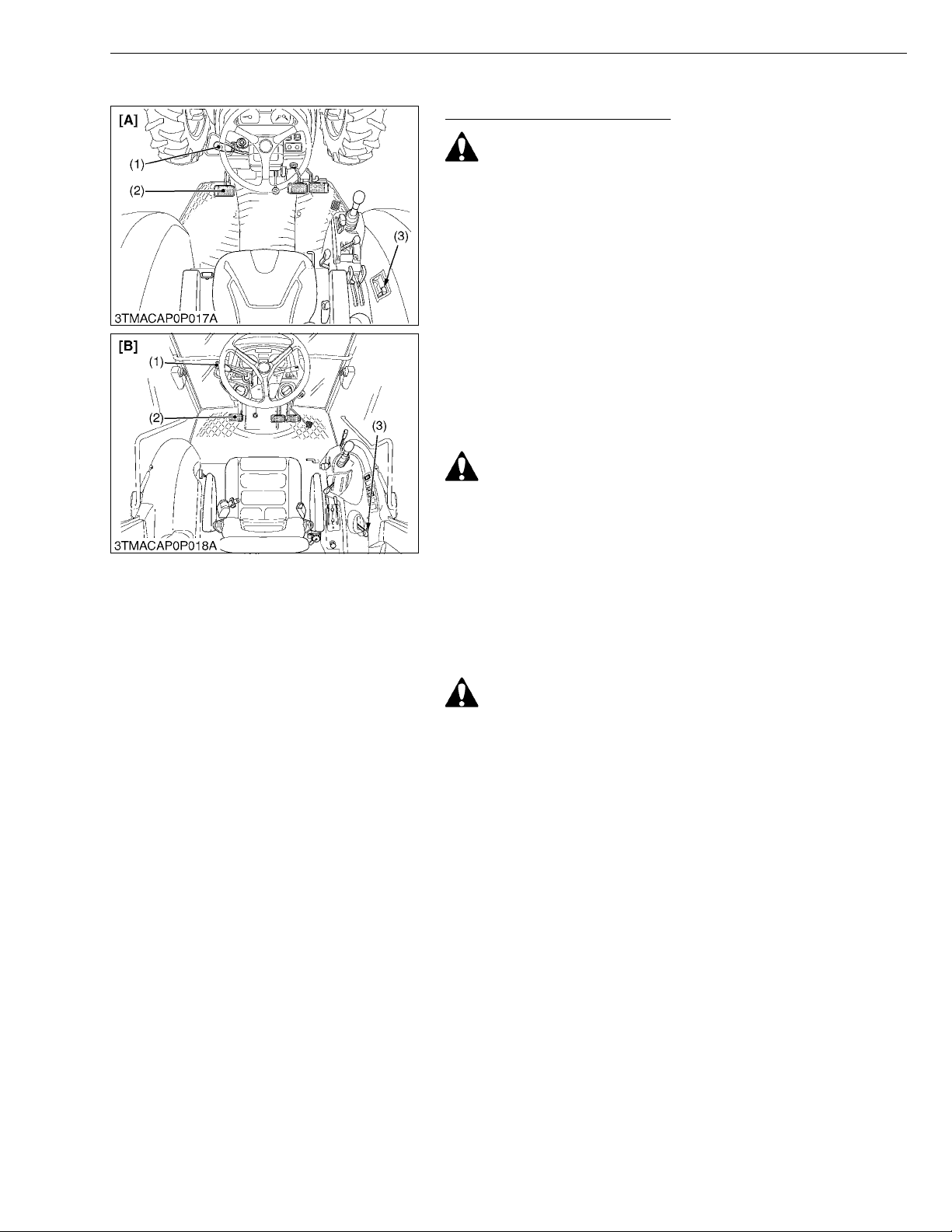

Checking Engine Start System

CAUTION

• Do not allow anyone near the tractor while testing.

• If the tractor does not pass the test, do not operate the
tractor.

Q Preparation before testing

1. Place all control levers in the “NEUTRAL” position.

2. Set the parking brake and stop the engine.

Q Test 1 : Switch for the shuttle shift lever.

1. Sit on operator’s seat.

2. Shift the shuttle shift lever (1) to the desired position.

3. Depress the clutch pedal (2) fully.

4. Disengage the PTO clutch control lever (3).

5. Turn the key to “START” position.

6. The engine must not crank.

7. If it cranks, inspect the safety switch.

Q Test 2 : Switch for the PTO clutch control lever.

WARNING

• Disconnect the implement drive universal joint from the PTO
shaft, if the implement has mounted.

1. Sit on operator’s seat.

2. Engage the PTO clutch control lever (3).

3. Depress the clutch pedal (2) fully.

4. Shift the shuttle shift lever (1) to the neutral position.

5. Turn the key to “START” position.

6. The engine must not crank.

7. If it cranks, inspect the safety switch.

Q Test 3 : Checking Operator Presence Control (OPC) System

G GENERAL

WARNING

• Disconnect the implement drive universal joint from the PTO
shaft, if the implement has mounted.

1. Sit on the seat.

2. Run the engine.

3. Shift the PTO lever to “ON”.
Make sure the warning buzzer does not whistle.
If the buzzer whistles while sitting on the seat, check the parts
which compose the PTO safety switch.

4. Stand up from the seat.

5. The warning buzzer whistles about one second af ter standing up.
It whistles for 10 seconds.
If the buzzer does not whistle, check the corresponding parts.
(Refer to “4. CHECKING AND ADJUSTING” at “9.
ELECTRICAL SYSTEM” section.)

(1) Shuttle Shift Lever
(2) Clutch Pedal
(3) PTO Clutch Control Lever

[A] ROPS Model
[B] CABIN Model

W1062967

G-21

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

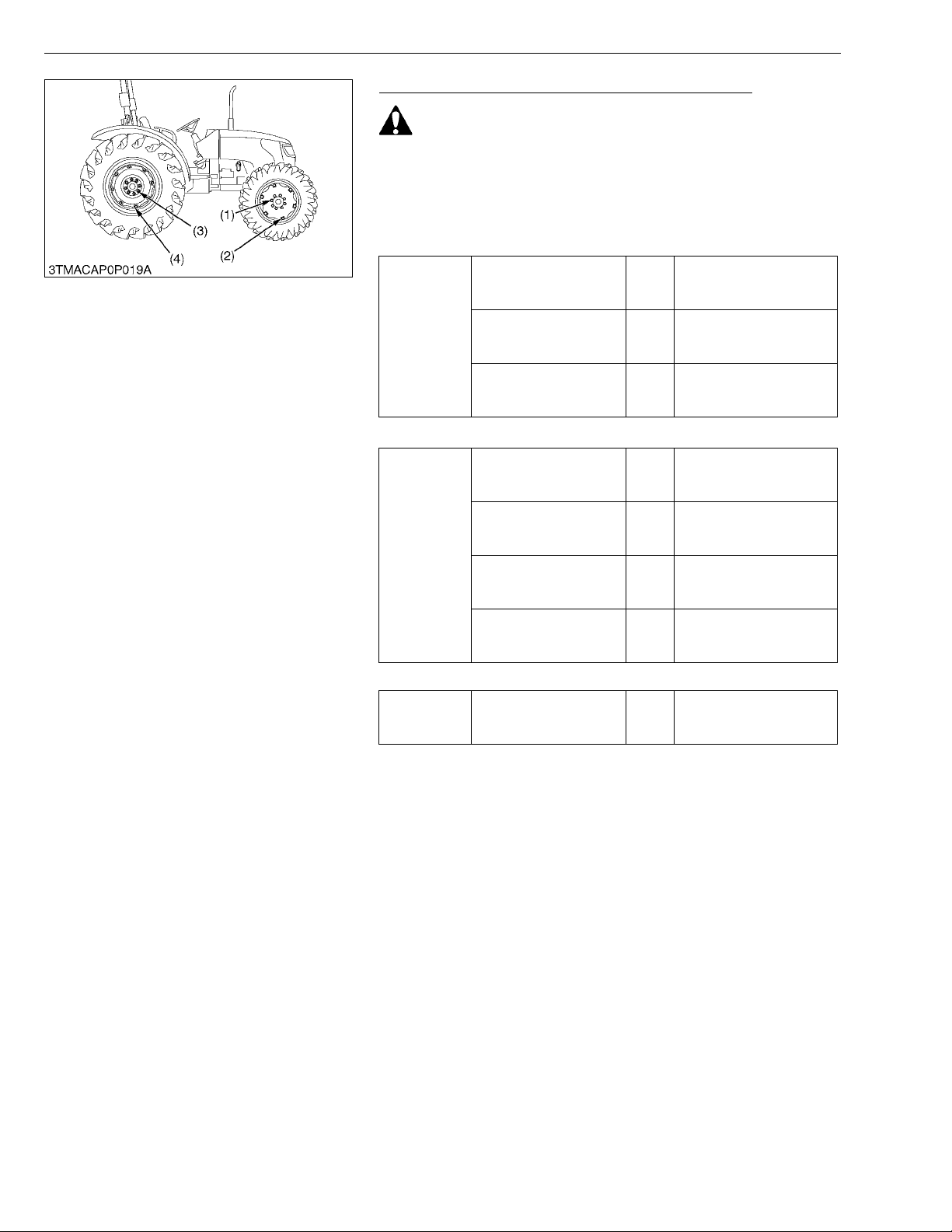

Checking Wheel Mounting Nuts Tightening Torque

CAUTION

• Never operate tractor with a loose rim, wheel, or axle.

• Any time bolts and nuts are loosened, retighten to specifie d
torque.

• Check all bolts and nuts frequently and keep them tight.

1. Check the wheel mounting nuts regularly especially when new.
If there are loosened, tighten as follows.

168 to 296 N·m

17.1 to 20.0 kgf·m

123.7 to 144.7 lbf·ft

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

Tightening
torque

Front wheel mounting
nut (2WD)

Front wheel mounting
nut (4WD)

Rear wheel mounting
nut

M14

M16

M16

Disc : Manufactured by TITAN INTERNATIONAL INC.

298 to 366 N·m

30.4 to 37.3 kgf·m
220 to 270 lbf·ft

244 N·m

24.9 kgf·m
180 lbf·ft

244 N·m

24.9 kgf·m
180 lbf·ft

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

Tightening
torque

Front disc mounting nut
(waffle wheel) (4WD)

Front disc mounting nut
(Except waffle wheel)
(4WD)

Rear disc mounting nut
(steel disc) (4WD)

Rear disc mounting nut
(cast iron disc) (4WD)

M16

M16

M16

M16

Disc : Other manufactured

Tightening
torque

(1) Front Wheel Mounting Nut
(2) Front Disc Mounting Nut

Front and rear disc
mounting nut (Both steel
disc and cast iron disc)

259.9 to 304.0 N·m

M16

(3) Rear Wheel Mounting Nut
(4) Rear Disc Mounting Nut

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

W1023970

G-22

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[4] CHECK POINTS OF EVERY 100 HOURS

Checking Battery Condition

CAUTION

• Never remove the vent plugs while the engine is running.

• Keep electrolyte away from eyes, hands and clothes. If you
are spattered with it, wash it away completely with water
immediately and get medical attention.

• Keep open sparks and flames away from the battery at all
times. Hydrogen gas mixed with oxygen becomes very
explosive.

• Wear eye protection and rubber gloves when working
around battery.

1. The original battery is maintenance free type battery (Non­refillable type).
When the performance becomes low, inspect the battery.

2. Clean the battery surface with a clean cloth.
Keep the terminals clean and coated with petroleum jelly.

3. Check the battery condition by reading the indica to r.

Green

Black Needs charging battery.
White Needs changing battery.

G GENERAL

State of indicator display

Specific gravity of electrolyte and quality of electrolyte
are both in good condition.

(1) Battery (2) Indicator

W1024321

Directions for Storage

CAUTION

• When connecting the battery, do not reverse the polarities.
Connection with reverse polarities will cause spark and
troubles to the battery and electrical system in the tractor.

• When disconnecting the cable from the battery, start with
the negative terminal first.

• When connecting the cable to the battery, start with the
positive terminal first.

• Reversing the steps may cause shortcircuiting, should a
metallic tool touch the terminals.

• When storing the tractor for long periods of time, remove the
battery from the tractor and store in a cool, dry place.

W1024462

G-23

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Cleaning Air Cleaner Element

1. Remove the air cleaner cover (4) and primary element (2).

2. Clean the primary element if:

- When dry dust adheres to the element, blow compressed air
from the inside turning the element. Pressure of compressed
air must be under 205 kPa (2.1 kgf/cm

2

, 30 psi).

- When carbon or oil adheres to the element, soak the element
in detergent for 15 minutes then wash it several times in water,
rinse with clean water and dry it naturally. After element is fully
dried, inspect inside of the element with a light and check if it is
damaged or not.

3. Replace the primary element (2) :
Once a year or after every six times of cleaning, whichever
comes first.

IMPORTANTQ

• The air cleaner uses a dry element, never apply oil.

• Do not run the engine with filter element removed.

• Be sure to refit the dust cup with the arrow ↑ (on the rear of
cup) upright. If the dust cup is improperly fitted, evacuator
valve will not function and dust will adhere to the element.

• Do not touch the secondary element except in cases where
replacing is required.

Q Evacuator Valve

Open evacuator valve once a week under ordinary conditions or

daily when used in a dusty place to get rid of large particles of dust
and dirt.

(1) Secondary (Safety) Element
(2) Primary Element

(3) Evacuator Valve
(4) Cover

W1024610

G-24

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

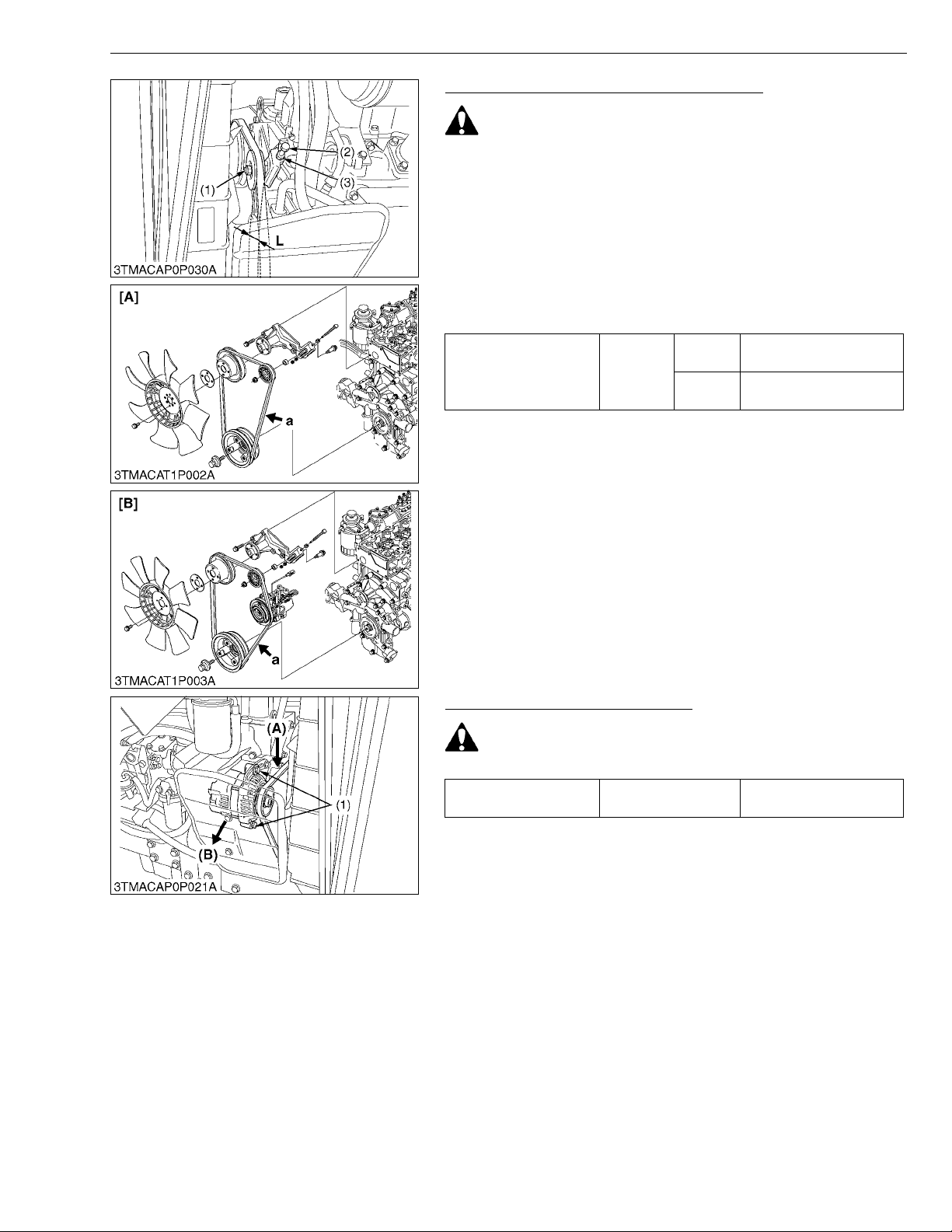

Adjusting Fan/Air Conditioner Belt Tension

CAUTION

• Be sure to stop the engine before checking belt tension.

1. Stop the engine and remove the key.

2. Apply moderate thumb pressure to belt between pulleys.

3. If tension is incorrect, loosen the ten sion pulley nut (1) and lo ck
nut (3). And turn clockwise the te nsion adjus ting screw (2 ) until
the deflection of the belt falls within acceptable limits.

4. Replace fan belt if it is damaged.

NOTEQ

• Turn counterclockwise the tension adjusting screw (2) to
increase belt tension.

Deflection (L)

Factory
spec.

ROPS
Model

CABIN
Model

16 to 17 mm

0.63 to 0.66 in.
11 to 12 mm

0.44 to 0.47 in.

(1) Tension Pulley Nut
(2) Tension Adjusting Screw
(3) Lock Nut

[A] ROPS Model
[B] CABIN Model
L : Deflection
a : Measurement Point

W1104407

Adjusting Alternator Belt Tension

CAUTION

• Be sure to stop the engine before checking belt tension.

Belt tension Factory spec.

10 to 12 mm

0.39 to 0.47 in.

1. Stop the engine and remove the key.

2. Apply moderate thumb pressure to belt between pulleys.

3. If tension is incorrect, loosen the alternator mounting bolts and,
using a lever placed between the alternator and the e ngine block,
pull the alternator out until the deflection of the belt falls within
acceptable limits.

4. Replace fan belt if it is damaged.

(1) Bolt (A) Check the belt tension

(B) To tighten

W1024843

G-25

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Adjusting Brake Pedal

1. To check and adjusting for brake pedal, refer to “[1] CHECKING
AND ADJUSTING” at “5. BRAKES” section.

W1025046

Adjusting Clutch Pedal (Synchro Shuttle Model)

1. To check and adjusting for clutch pedal, refer to “[2] CHECK
POINTS OF INITIAL 50 HOURS” in this section.

W1109219

Checking Fuel Line

1. Check to see that all lines and hose clamps are tight and not
damaged.

2. If hoses and clamps are found worn or damaged, replace or
repair them at once.

NOTEQ

• If the fuel line is removed, be sure to properly bleed the fuel
system. (Refer to “[14] OTHERS” in this section.)

(1) Fuel Line (2) Clamp Band

W1067279

G-26

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Lubricating Grease Fittings

1. Apply a small amount of multipurp ose grea se to fo llowing po ints
every 100 hours.

2. If you operated the machine in extremely wet and muddy
condition, lubricate grease fittings more often.

(1) Battery Terminals
(2) Grease Fitting (Front Axle Support)
(3) Grease Fitting (Front Axle Support)
(4) Grease Fitting (Knuckle Shaft)

[RH, LH]

(5) Grease Fitting (Front Axle Gear

Case Support) [RH, LH]
(6) Grease Fitting (Top Link Bracket)
(7) Grease Fitting (Lifting Rod)

G-27

(8) Grease Fitting (Top Link)
(9) Grease Fitting (Hydraulic Lift

Cylinders Pin)

(10) Steering Joint Shaft

[A] 2WD Model
[B] 4WD Model
[C] CABIN Model

W1025259

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[5] CHECK POINTS OF EVERY 200 HOURS

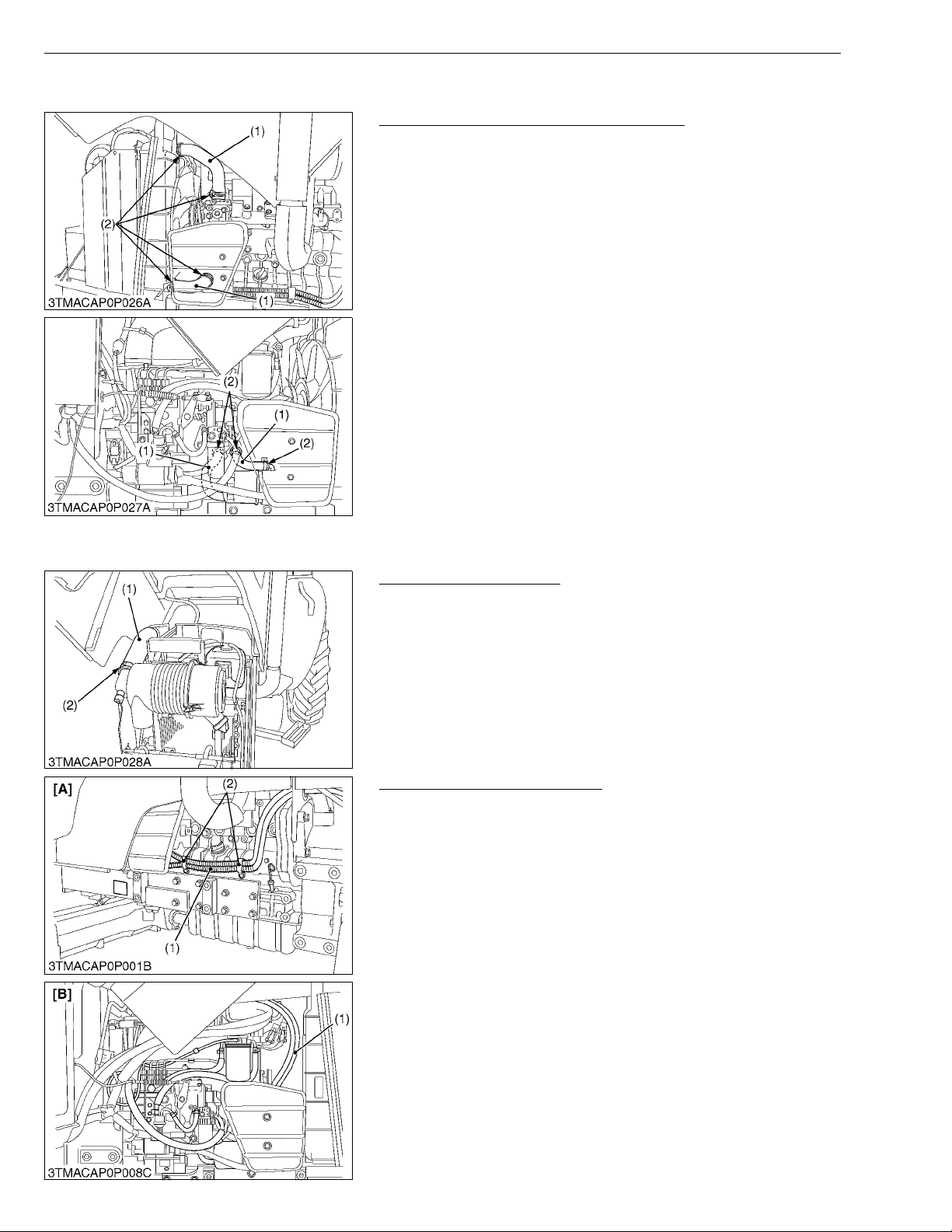

Checking Radiator Hose and Hose Clamp

Check to see if radiator hoses are properly fixed ever y 200 hours

of operation or six months, whichever comes first.

1. If hose clamps (2) are loose or water leaks, tighten bands (2)
securely.

2. Replace hoses (1) and tighten hose clamps (2) securely, if
radiator hoses (1) are swollen, hardened or cracked.
Replace hoses and hose clamps every 2 years or earlier if
checked and found that hoses are swollen, hardened or cr acked.

Q Precaution at Overheating

Take the following actions in the event the coolant temperature

be nearly or more than the boiling point, what is called
“Overheating”.

1. Stop the machine operation in a safe place and keep the engine
unloaded idling.

2. Do not stop the engine suddenly, but stop it after about 5 minutes
of unloaded idling.

3. Keep yourself well away from the machine for further 10 minutes
or while the steam blown out.

4. Checking that there gets no danger such as burn. Get rid of the
causes of overheating, refer to “1. TROUBLESHOOTING” at “1.
ENGINE” section, and then start again the engine.

(1) Radiator Hose (2) Clamp

Checking Intake Air Line

1. Check to see that hoses and hose clamps are tight and not
damaged.

2. If hoses and clamps are found worn or damaged, replace or
repair them at once.

(1) Hose (2) Clamp

G GENERAL

W1069560

W1069940

Checking Power Steering Line

1. Check to see that all line and hose clamps are tight and not
damaged.

2. If hoses and clamps are found worn or damaged, replace or
repair them at once.

(1) Power Steering Hose
(2) Clamp

[A] ROPS Model
[B] CABIN Model

W1070096

G-28

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

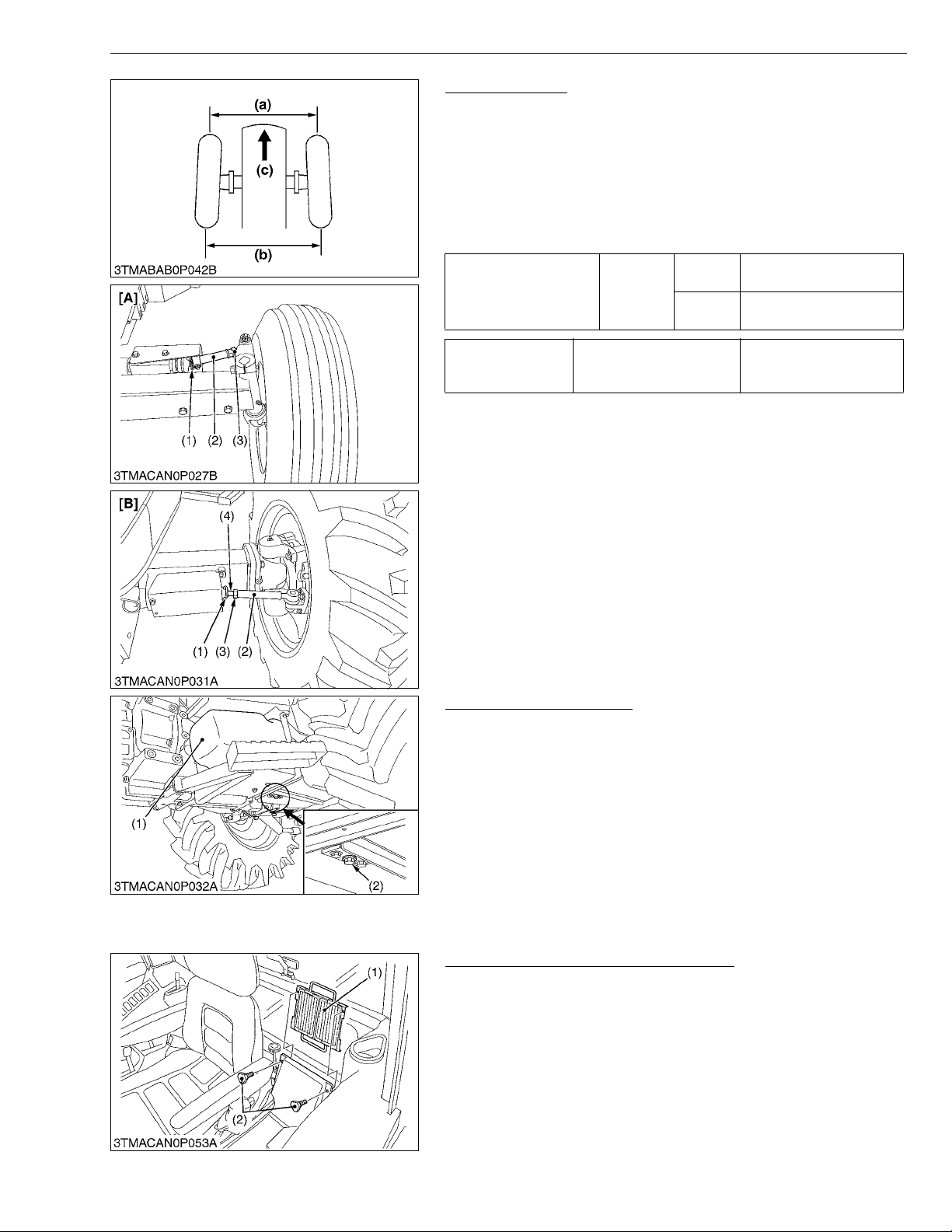

Adjusting Toe-in

1. Park tractor on a flat place.

2. Turn steering wheel so front wheels are in the straight ahead
position.

3. Lower the implement, lock the park brake and stop the engine.

4. Measure distance between tire beads at front of tire, hub height.

5. Measure distance between tire beads at rear of tire, hub height.

6. Front distance should be shorter than rear distance.

7. If not, adjust tie-rod length.

1.0 to 5.0 mm

0.04 to 0.20 in.

2.0 to 8.0 mm

0.08 to 0.31 in.

167 to 196 N·m
17 to 20 kgf·m

123.2 to 144.6 lbf·ft

Toe-in (b–a)

Tightening torque Tie-rod nut

Factory
spec.

2WD

4WD

Q Toe-in Adjustment

1. Detach the snap ring (1).

2. Loosen the tie-rod nut (3).

3. Turn the tie-rod joint (2) to adjust until the proper toe-in
measurement is obtained. (2WD model)
Turn the rod end (4) to adjust until the proper toe-in measure ment
is obtained. (4WD model)

4. Retighten the tie-rod nut (3).

5. Attach the snap ring (1) of the tie-rod joint.

(1) Snap Ring
(2) Tie-rod Joint
(3) Tie-rod Nut
(4) Rod End

(a) Wheel-to-wheel distance at front
(b) Wheel-to-wheel distance at rear
(c) “FRONT”
[A] 2WD Model
[B] 4WD Model

W1026029

Draining Fuel Tank Water

1. Loosen the drain plug (2) at the bottom of the fuel tank (1) to let
sediments, impurities and water out of the tank. Finally tighten
up the plug.

IMPORTANTQ

• If the fuel contains poor qualities with much water in it, drain
the fuel tank at shorter intervals.

• Drain the fuel tank before operating the tractor after a long
period of storage.

• The fuel tank is made of plastic. Be careful not to
overtighten the bolts.

(1) Fuel Tank (2) Drain Plug

W1070846

Cleaning Inner Air Filter (CABIN Model)

1. Remove the knob bolt (2) and pull out the filter (1).

2. Blow air from the direction opposite to the filter’s normal air flow.
Pressure of compressed air must be under 205 kPa (2.1 kgf/cm
30 psi).

(1) Inner Air Filter (2) Knob Bolt

W1103342

2

,

G-29

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

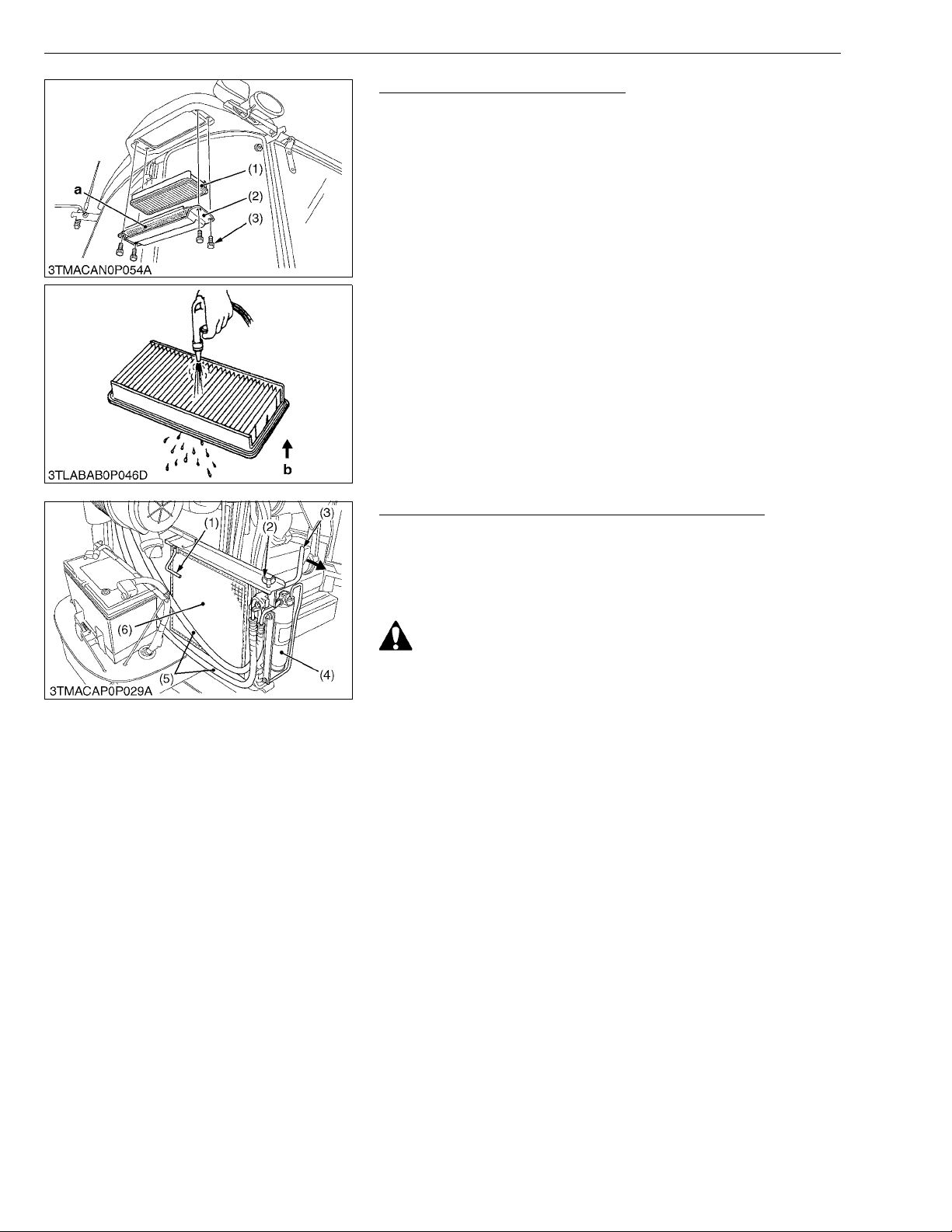

Cleaning Air Filter (CABIN Model)
Q Fresh Air Filter

1. Remove the knob bolts (3) and pull out the fresh air filter (1 ).

2. Blow air from the opposite direction to the filter’s normal air flow.

NOTEQ

• If the filter is very dirty :
Dip the filter in lukewarm water with mild dish washing
detergent.
Move it up and down as well as left and right to loosen dirt.
Rinse the filter with clean water and let it air-dry.

IMPORTANTQ

• Do not use gasoline, thinner or similar chemicals to clean
the filter as damage to the filter may occur.

• If may also cause an unpleasant odor in the cabin when the
system is used next.

• Do not hit the filter. If the filter becomes deformed, dust may
enter into the air-conditioner, which may caus e damage and
malfunction.

(1) Fresh Air Filter
(2) Cover
(3) Knob Bolt

a : Air Inlet Port
b : Air Conditioner Air Flow

W1019336

Checking Air Conditioner Condenser (CABIN Model)

1. Release the air conditioner hoses off the hook (1).

2. Loosen the wing nut (2).

3. Hold the handle (3), slide out the air conditioner condenser
assembly (6).

4. Check air conditioner condenser to be sure it is clean of debris.

CAUTION

• Be sure to stop the engine before removing the screen.

• The condenser and receiver become hot while the air
conditioner is running. Before checking or cleaning them,
wait long enough until they cool down.

IMPORTANTQ

• Do not hold the air conditioner receiver or the air conditione r
pipes when sliding out the condenser for cleaning.

(1) Hook
(2) Wing Nut
(3) Handle

(4) Receiver
(5) Air Condenser Hose
(6) Condenser

W1019699

G-30

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[6] CHECK POINTS OF EVERY 300 HOURS

Replacing Hydraulic Oil Filter

1. Refer to “[2] CHECK POINTS OF INITIAL 50 HOURS” in this
section.

Changing Engine Oil

1. Refer to “[2] CHECK POINTS OF INITIAL 50 HOURS” in this
section.

[7] CHECK POINTS OF EVERY 400 HOURS

Lubricate Grease Fitting (2WD Model)

1. Detach the front wheel hub cover (1), and apply bearing grease.

(1) Front Wheel Hub Cover

G GENERAL

W1072600

W1071704

W1027029

Replacing Fuel Filter

1. Remove the fuel filter (1).

2. Put a film of clean fuel on rubber seal of new filter.

3. Tighten the filter until it contacts the mounting surface. Tighten
filter by hand an additional 1/2 turn only.

4. Bleed the fuel system. (Refer to “[14] OTHERS” in this section.)

(1) Fuel Filter

W1026760

Cleaning Water Separator

This job should not be done in the field, but in a clean place.

1. Close the fuel cock (1).

2. Unscrew the retainer ring (2) and remove the cup (3), and rinse
the inside with kerosene.

3. Take out the element (5) and dip it in the kerosene to rinse.

4. After cleaning, reassemble the water separator, keeping out d ust
and dirt.

5. Bleed the fuel system. (Refer to “[14] OTHERS” in this section.)

(1) Fuel Cock
(2) Retaining Ring
(3) Cup
(4) O-ring
(5) Element

(6) Spring
(7) Red Float

(A) Close

W1073022

G-31

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[8] CHECK POINTS OF EVERY 600 HOURS

Replacing Engine Oil Filter

1. Refer to “[2] CHECK POINTS OF INITIAL 50 HOURS” in this
section.

Changing Transmission Fluid

1. Refer to “[2] CHECK POINTS OF INITIAL 50 HOURS” in this
section.

Changing Front Differential Case Oil

1. Refer to “[2] CHECK POINTS OF INITIAL 50 HOURS” in this
section.

Changing Front Axle Gear Case Oil

1. Refer to “[2] CHECK POINTS OF INITIAL 50 HOURS” in this
section.

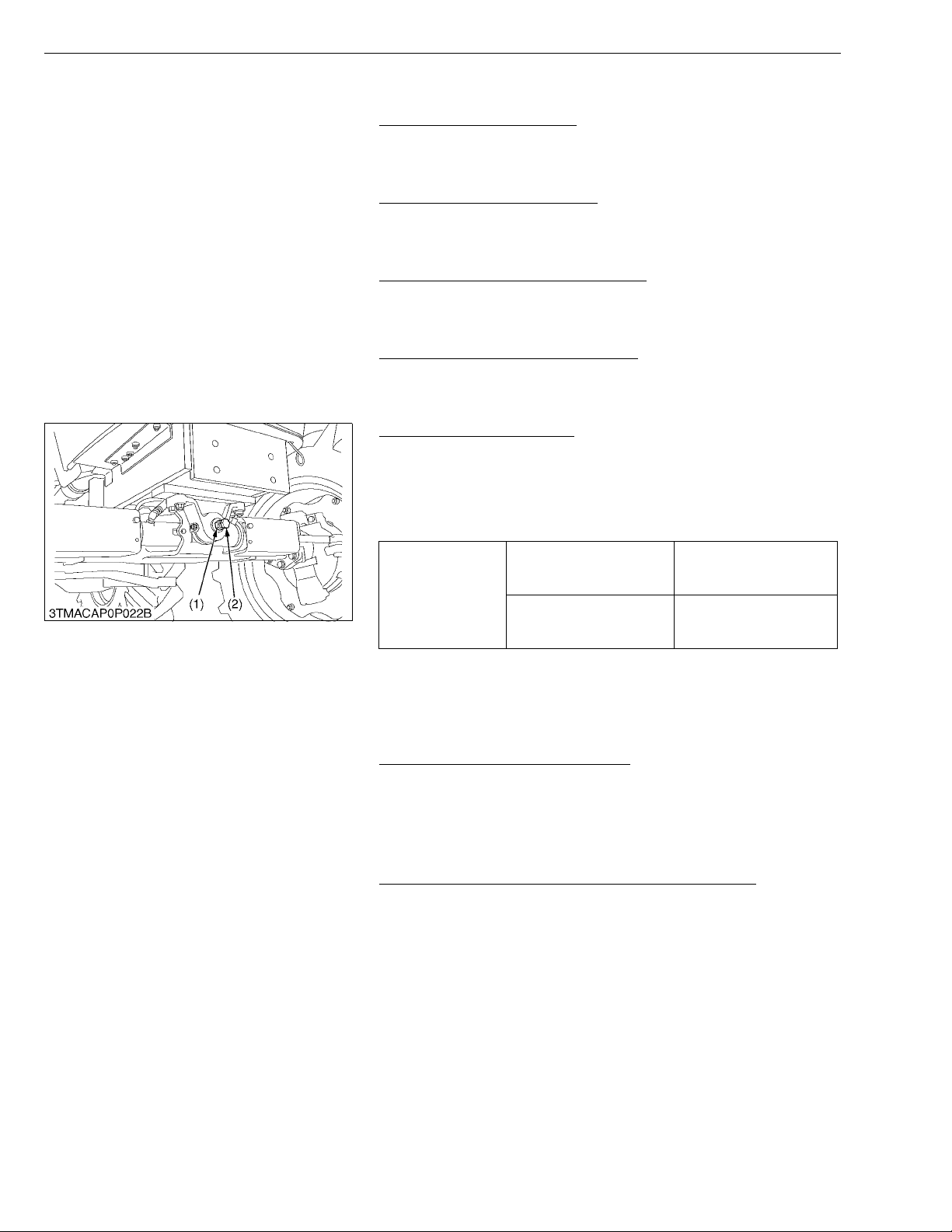

Adjusting Front Axle Pivot

1. If the front axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.

Q Adjusting Procedure

1. Loosen the lock nut (1), tighten the adjusting screw (2) with
specified torque. Then tighten the lock nut (1).

Tightening torque

Adjusting screw

Lock nut

G GENERAL

W1074023

W1074077

W1074134

W1074346

19.6 to 29.4 N·m

2.0 to 3.0 kgf·m

14.5 to 21.7 lbf·ft

98.1 to 147.1 N·m

10.0 to 15.0 kgf·m

72.3 to 108.5 lbf·ft

(1) Lock Nut (2) Adjusting Screw

[9] CHECK POINT OF EVERY 800 HOURS

Adjusting Engine Valve Clearance

1. Refer to “[1] CHECKING AND ADJUSTING” at “1. ENGINE”
section.

[10] CHECK POINT OF EVERY 1500 HOURS

Checking Fuel Injection Nozzle (Injection Pressure)

1. Refer to “[1] CHECKING AND ADJUSTING” at “1. ENGINE”
section.

W1027783

W1027950

W1075043

G-32

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

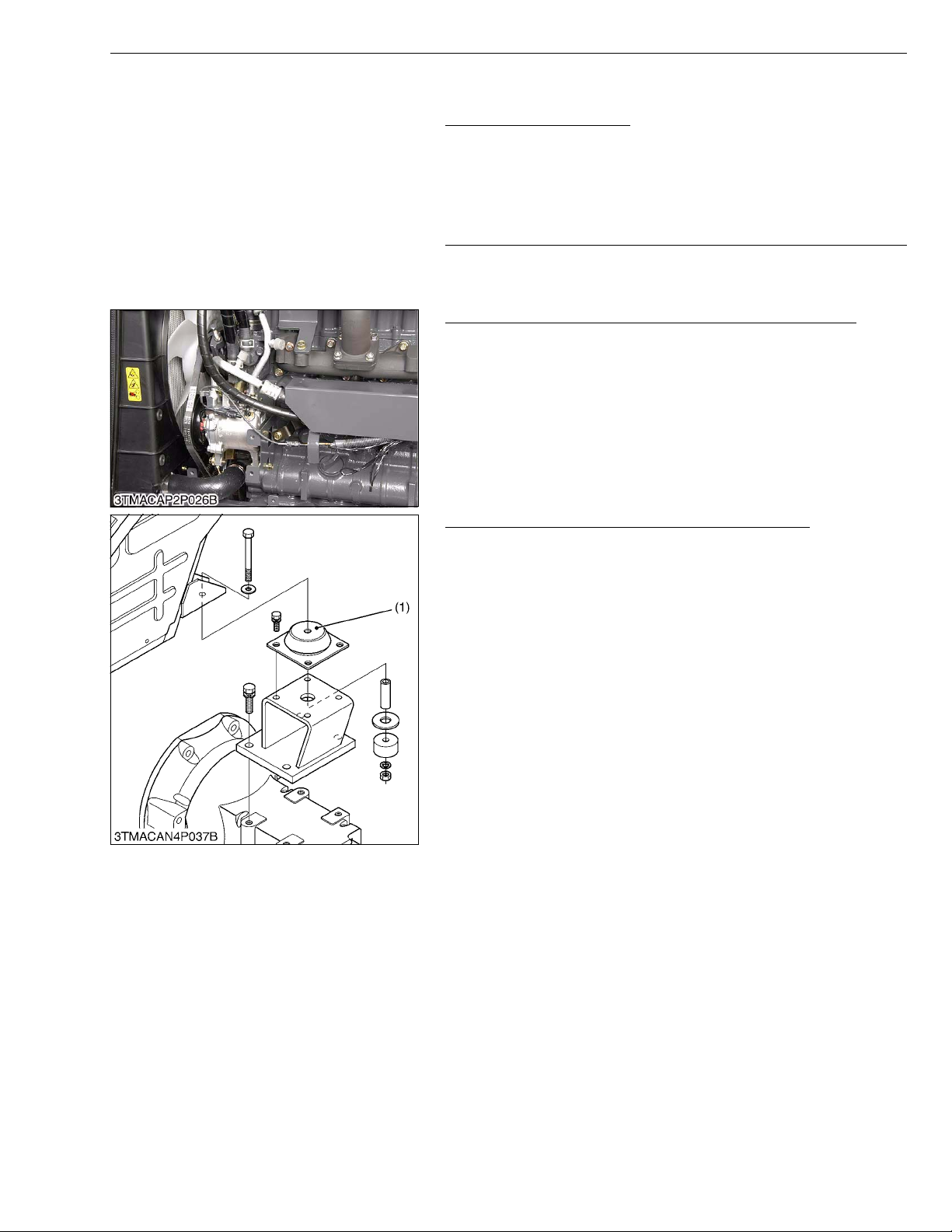

[11] CHECK POINTS OF EVERY 3000 HOURS

Checking Injection Pump

1. Refer to “[1] CHECKING AND ADJUSTING” at “1. ENGINE”
section.

[12] CHECK POINT OF EVERY 1 YEAR

Replacing Air Cleaner Primary Element and Secondary Element

1. Refer to “[4] CHECK POINTS OF EVERY 100 HOURS” in this
section.

Checking Air Conditioner Pipe and Hose (CABIN Model)

1. Check to see that all lines a nd hose clamps are tight and not
damaged.

2. If hoses and clamps are found worn or damaged, replace or
repair them at once.

G GENERAL

W1074724

W1028012

W1105842

Checking Cabin Isolation Cushion (CABIN Model)

1. Check the cushion (1) for any breakage or fatigue. Replace them
if they are deteriorated.

(1) Isolation Cushion

W1105936

G-33

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[13] CHECK POINTS OF EVERY 2 YEARS

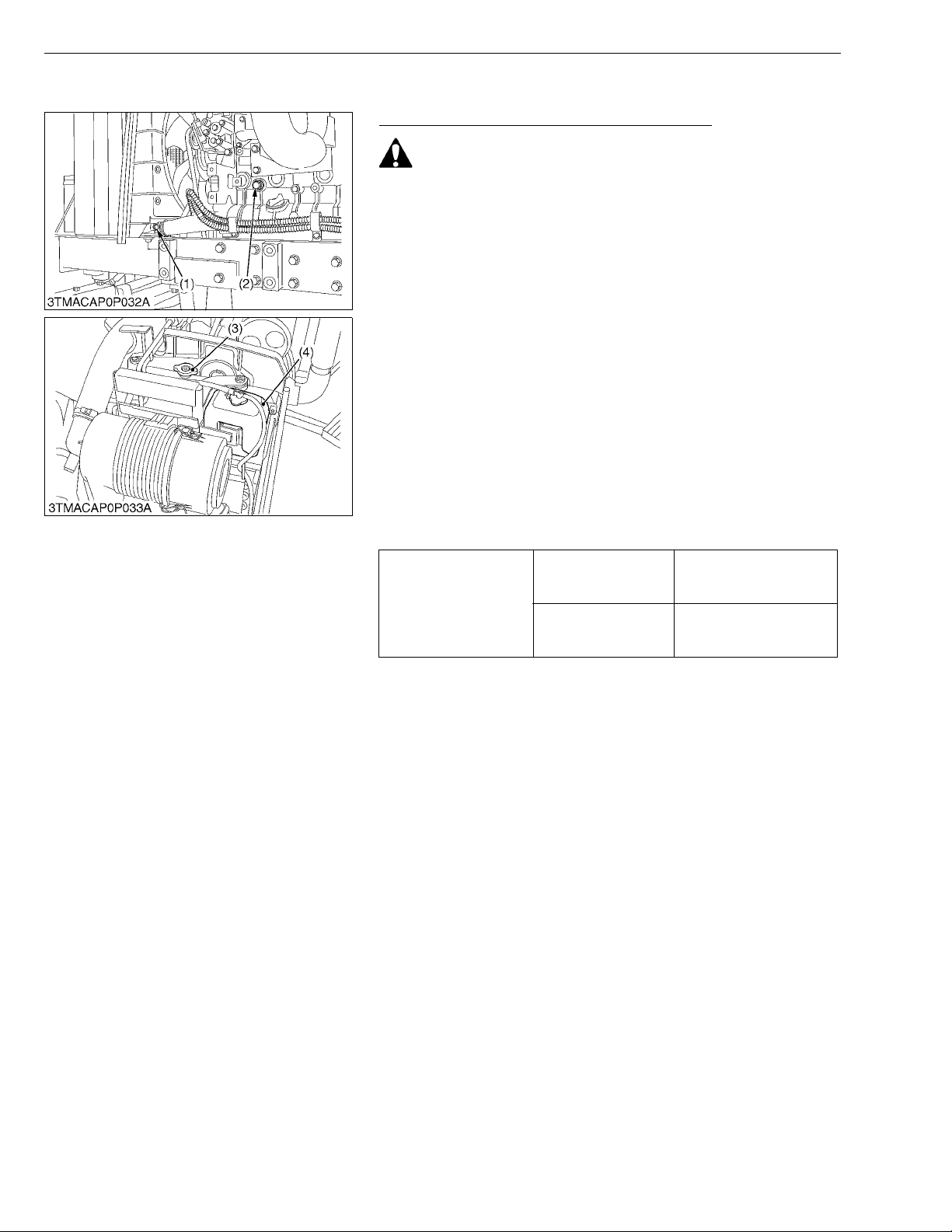

Flush Cooling System and Changing Coolant

CAUTION

• Do not remove the radiator cap when the engine is hot. The n
loosen cap slightly to the stop to relieve any excess
pressure before removing cap completely.

1. Stop the engine and let cool down.

2. To drain the coolant, open the radiator drain plug (1) and remove
the drain plug (2) and radiator cap (3). The radi ator cap (3) must
be removed to completely drain the coolant.

3. After all coolant is drained, install the drain plug (1) and (2)
securely.

4. Fill with clean water and cooling system cleaner.

5. Follow directions of the cleaner instruction.

6. After flushing, fill with clean water and anti-freeze until the coolant
level is just below the radiator cap. Install the radiator cap (3)
securely.

7. Fill with clean water and anti-freeze up to the upper line of
recovery tank (4).

8. Start and operate the engine for few minutes.

9. Stop the engine. Check coolant level and add coolant if
necessary.

10.Properly dispose of used coolant.

Coolant capacity

Engine block and
radiator

Recovery tank

G GENERAL

8.0 L

8.5 U.S.qts.

7.0 Imp.qts.

1.0 L

1.1 U.S.qts.

0.9 Imp.qts.

IMPORTANTQ

• Do not start engine without coolant.

• Use clean, fresh water and anti-freeze to fill the radiator.

• When the anti-freeze is mixed with water, the anti-freeze
mixing ratio must be less than 50 %.

• Securely tighten radiator cap (3). If the cap is loose or
improperly fitted, water may lead out and the engine could
overheat.

(1) Drain Plug (Radiator)
(2) Drain Plug (Crankcase)

(3) Radiator Cap
(4) Recovery Tank

W1028088

G-34

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Flush Cooling System and Changing Coolant (Continued)
Q Anti-Freeze

CAUTION

• When using antifreeze, put on some protection such as
rubber gloves (Antifreeze contains position).

• If should drink antifreeze, throw up at once and take medical
attention.

• When antifreeze comes in contact with the skin or clothing,
wash it off immediately.

• Do not mix different types of Antifreeze.
The mixture can produce chemical reaction caus ing harmful
substances.

• Antifreeze is extremely flammable and explosive under
certain conditions. Keep fire and children away from
antifreeze.

• When draining fluids from the engine, place some conta iner
underneath the engine body.

• Do not pour waste onto the grounds, down a drain, or into
any water source.

• Also, observe the relevant environmental protection
regulations when disposing of antifreeze.

If it freezes, coolant can damage the cylinders and radiator. If the

ambient temperature falls below 0 °C or befor e a long- term storage ,
let out coolant completely, or mix fresh water with long-life coolant
and fill the radiator and reserve tank with the mixture.

1. Long-life coolant (hereafter LLC) comes in several types. Use
ethylene glycol (EG) type for this engine.

2. Before employing LLC-mixed coolant, fill the radiator with fresh
water and empty it again.
Repeat this procedure 2 or 3 times to clean up the inside.

3. Mixing the LLC
Put the LLC in coolant in the percentage (%) for a target
temperature. When mixing, stir it up well, and then fill into the
radiator.

4. The procedure for the mixing of water and antifreeze differs
according to the make of the antifreeze and the ambient
temperature. Refer to SAE J1034 standard, more specifically
also to SAE J814c.

IMPORTANTQ

• When the antifreeze is mixed with water, the antifreeze
mixing ratio must be less than 50 %.

Vol % Anti-freeze

40 −24 −12 106 222
50 −37 −34 108 226

Freeze Point Boiling Point*

°C °F °C °F

*At 1.013 x 1000000 Pa (760 mmHg) pressure (atmospheric).

A higher boiling point is obtained by using a radiator pressure cap
which permits the development of pressure within the cooling
system.

W1052897

G-35

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

5. Adding the LLC
(1) Add only water if the mixture reduces in amount by
evaporation.
(2) If there is a mixture leak, add the LLC of the same
manufacture and type in the same mixture percentage.
*Never add any long-life coolant of different manufacture.
(Different brands may have different additive components, and
the engine may fail to perform as specified.)

6. When the LLC is mixed, do not employ any radiator cleaning
agent. The LLC contains anticorrosive agent. If mixed with the
cleaning agent, sludge may build up, adversely affecting the
engine parts.

7. Kubota's genuine long-life coolant has a service life of 2 years.
Be sure to change the coolant every 2 years.

NOTEQ

• The above data represents industry standards that
necessitate a minimum glycol co ntent in the concentrated
anti-freeze.

• When the coolant level drops due to evaporation, add water
only to keep the antifreeze mixing ratio less than 50 %. In
case of leakage, add antifreeze and water in the specified
mixing ratio before filling in to the radiator.

W1053945

Replacing Radiator Hose (Water Pipes)

1. Replace the hoses and clamps.
Refer to “[5] CHECK POINTS OF EVERY 200 HOURS” in this
section.

W1054349

Replacing Intake Air Line

1. Replace the hoses and clamps.
Refer to “[5] CHECK POINTS OF EVERY 200 HOURS” in this
section.

W1034887

Replacing Fuel Hose

1. Replace the fuel hose and clamps.
Refer to “[4] CHECK POINTS OF EVERY 100 HOURS” in this
section.

W1054573

Replacing Power Steering Hose

1. Replace the hoses and clamps.
Refer to “[5] CHECK POINTS OF EVERY 200 HOURS” in this
section.

W1054527

Replacing Air Conditioner Hose

1. Check the air conditioner hoses, when the hose has damaged
replace them.

W1106052

Replacing Lift Cylinder Hose

1. Replace the lift cylinder hoses.

W1044940

G-36

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[14] OTHERS

G GENERAL

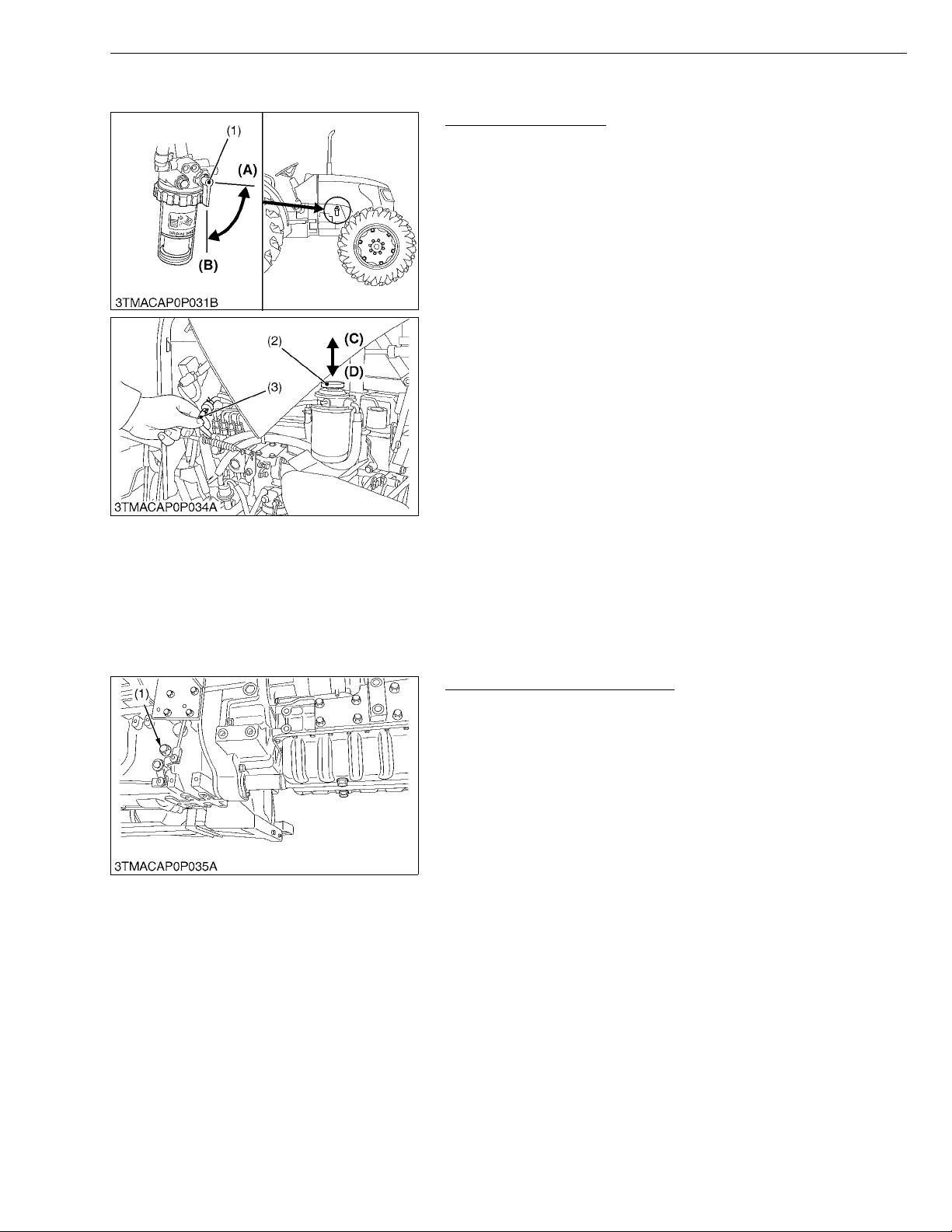

Bleeding Fuel System

Air must be removed:

1. When the fuel filter or lines are removed.

2. When water is drained from water separator.

3. When tank is completely empty.

4. After the tractor has not been used for a long period of time.

Q Bleeding procedure is as follows:

1. Fill the fuel tank with fuel, and open the fuel cock (1).

2. Pump the fuel pump knob (2) located on the top of the fuel filter.
The fuel pump knob will pump easily at first and with added
resistance as air is purged from the system. To make sure air is
completely purged, pinch the fuel overflow hose (3) with fingers,
if a pulsation is felt when the knob is pumped, then, no air
remains.

3. Set the hand throttle lever at the maximum speed position, turn
the key switch to start the engine, and then reset the throttle lever
at the mid speed (around 1500 min

−1

(rpm)) position.

If engine does not start, try it several times at 30 second intervals.

4. Accelerate the engine to remove the small portion of air left in the
fuel system.

5. If air still remains and the engine stops, repeat the above steps.

IMPORTANTQ

• Do not hold key switch at engine start position fo r more than
10 seconds continuously. If more engine cranking is
needed, try again after 30 seconds.

(1) Fuel Cock
(2) Fuel Pump Knob
(3) Fuel Overflow Hose

(A) Close
(B) Open
(C) Up
(D) Down

W1055254

Draining Clutch Housing Water

1. The tractor is equipped with drain plug (1) under the clutch
housing.

2. After operating in rain, snow or tractor has been washed, water
may get into the clutch housing.

3. Remove the drain plug (1) and drain the water, then install the
plug (1) again.

(1) Drain Plug (Water)

W1055587

G-37

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

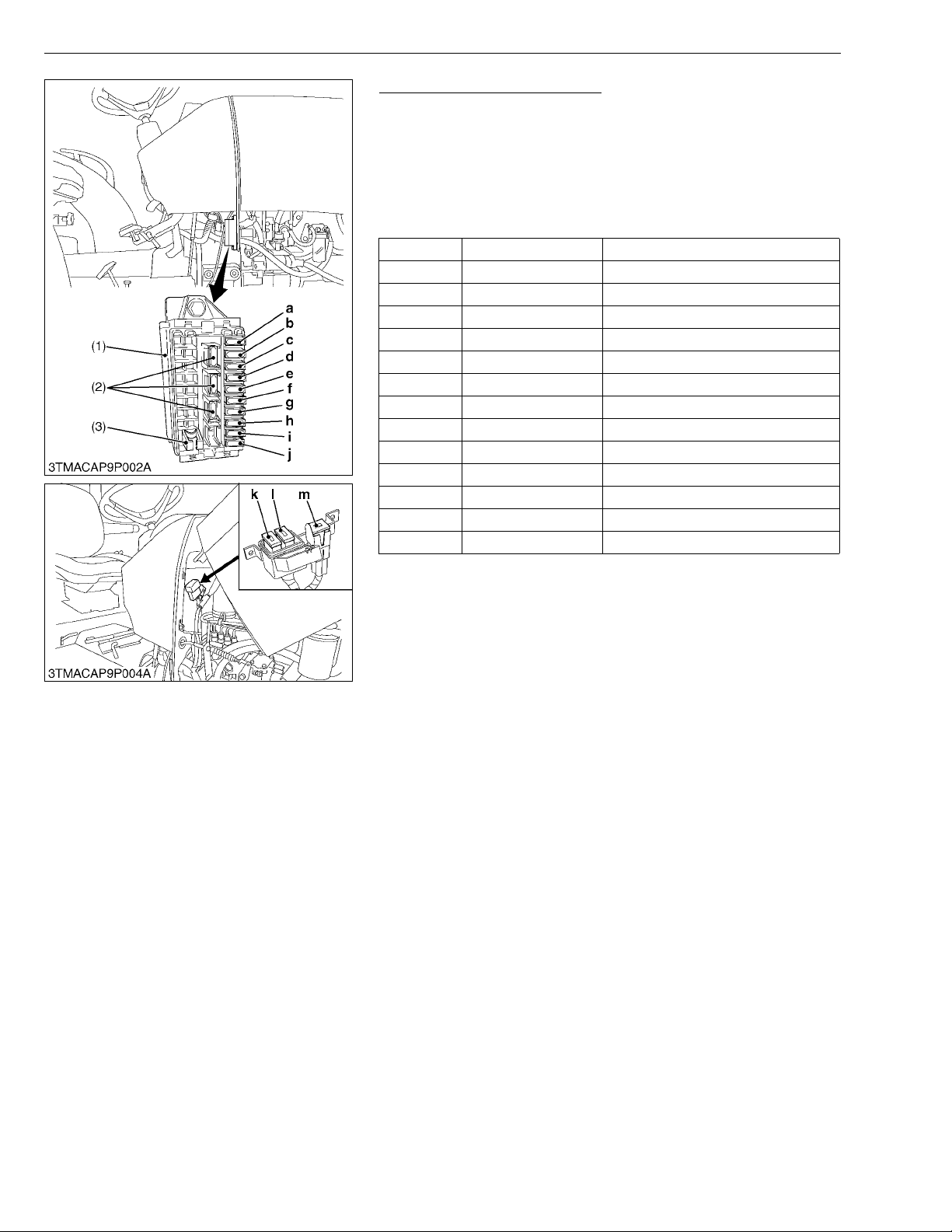

Replacing Fuse (ROPS Model)

1. When inspect the circuit line, check the related fuses.

2. If any of the fuse is blown, replace with a new one of the same
capacity.

IMPORTANTQ

• If a fuse is blown, check the cause and be sure to replace it
with a new one of the same capacity.

Q Protected Circuit

Fuse I.D. Capacity (A) Protected circuit

a 15 Work light R

b 15 Work light L

c 5 Alternator, Engine glow plug

d 5 Meter panel, OPC

e 10 Turn signal

f 15 Auxiliary power
g 5 Meter (Back up)
h 15 Head light, Tail lamp

i 15 Flasher (Hazard)

j 5 Starter relay

k 40 Key switch, Head light, Hazard

l 30 Fuel cut solenoid, Work light

m 50 Charge, Glow plug

(1) Fuse Case
(2) Spare Fuse

(3) Fuse Puller

W1054191

G-38

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

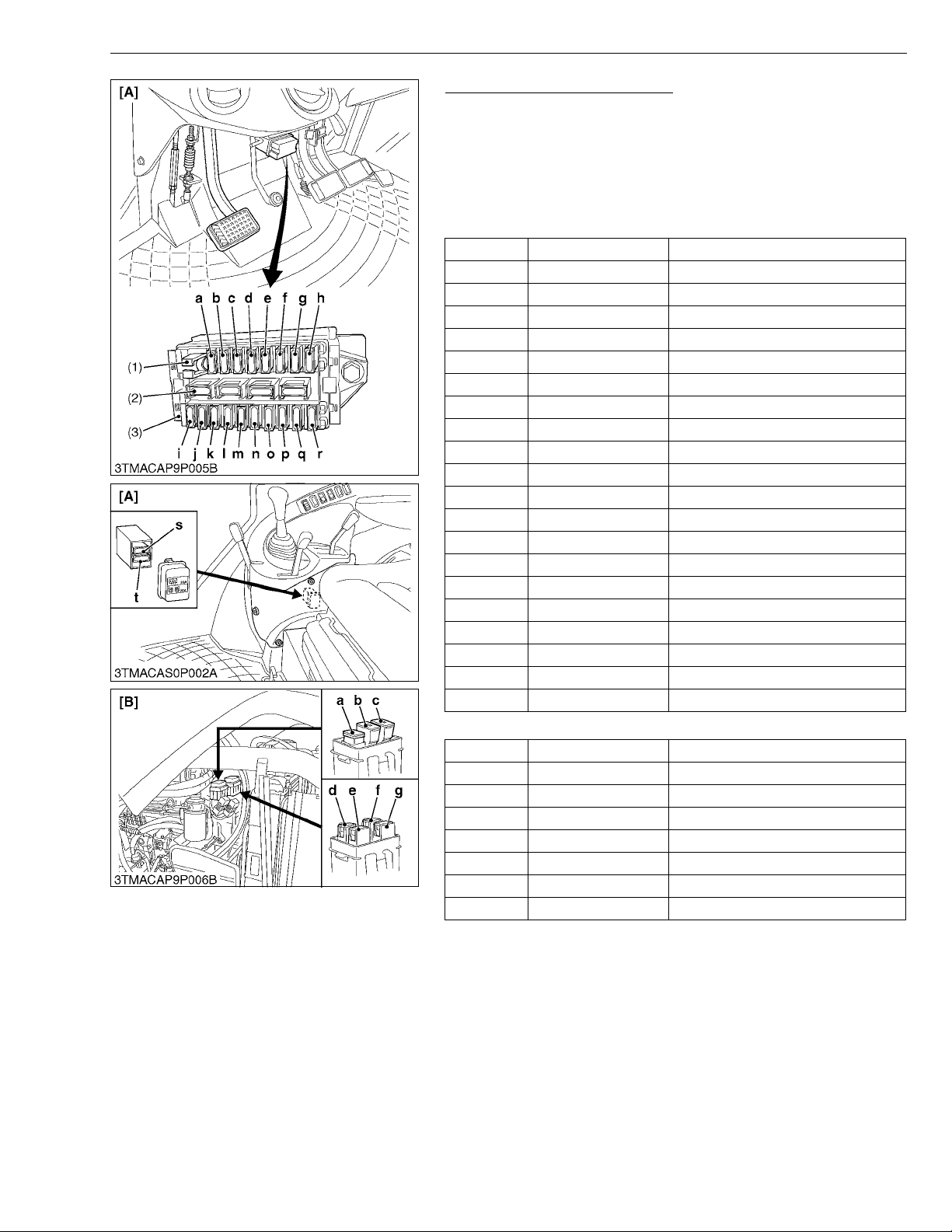

Replacing Fuse (CABIN Model)

1. When inspect the circuit line, check the related fuses.

2. If any of the fuse is blown, replace with a new one of the same
capacity.

IMPORTANTQ

• If a fuse is blown, check the cause and be sure to replace it
with a new one of the same capacity.

Q Protected Circuit (Fuse)

Fuse I.D. Capacity (A) Protected circuit

a 5 Starter relay
b 15 Auxiliary power
c 15 Work light (front, side)
d 10 Air conditioner (compressor)
e 30 Air conditioner (fan motor)

f 15 Cigarette lighter
g 15 Work light (front)
h 15 Work light (rear)

i 20 Spare fuse

j 20 Flasher (hazard)
k 20 Head light, tail lamp

l 10 Meter, Radio (back up), Horn

m 10 Turn signal, Stop lamp

n 5 Meter panel, OPC
o 5 Alternator, Engine glow plug
p 15 Wiper
q 5 Air conditioner (control)
r 5 Radio
s 20 Rear window defogger
t 20 Side window defogger

Q Protected Circuit (Slow Blow Fuse)

Fuse I.D. Capacity (A) Protected circuit

a 100 Charge
b 50 Glow plug
c 50 Head light, Hazard
d 30 Work light, Fuel cut solenoid
e 30 Key switch
f 30 Electrical outlet
g 40 Air conditioner

NOTEQ

• Refer to “5. DISASSEMBLING AND ASSEMBLING” at “9.
ELECTRICAL SYSTEM” for replacing procedure of 100 A
capacity fuse(s) (slow blow fuse).

(1) Fuse Case
(2) Spare Fuse
(3) Fuse Puller

[A] Fuse
[B] Slow Blow Fuse

W1054474

G-39

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

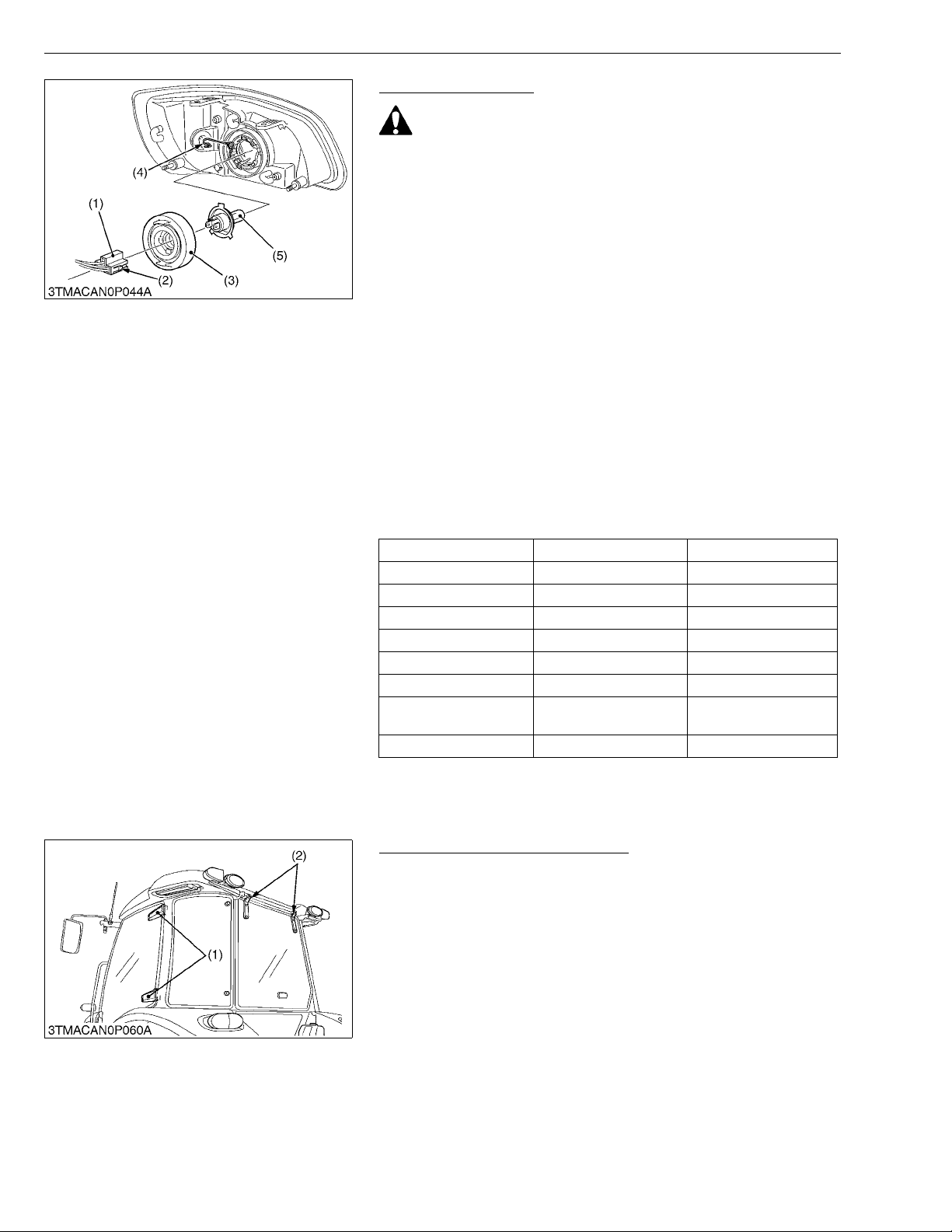

Replacing Light Bulb

CAUTION

• Be careful not to drop the bulb, hit anything against the
lamp, apply excess force, and get the lamp scratched. If
broken, glass may cause injury. Pay more attention to
halogen lamps in particular, which have high pressure
inside.

• Before replacing the lamp, be sure to turn off the light and
wait until the bulb cools down, otherwise, you may get
burned.

Q Head lights

1. While pushing the right and left lock buttons (2), pull and remove
the electrical connector (1).

2. Remove the rubber boot (3).

3. Remove the clamping fixture (4) and take out the bulb (5).

4. Replace with a new bulb and reinstall the head lamp a ssembly in
the reverse order.

Q Other lights

1. Detach the lens and replace the bulb.

IMPORTANTQ

• Be sure to use a new bulb of the specified wattage.

• Never touch the bulb surface (glass) with bare hands.
Fingerprints, for example, may break the bulb.

Light Capacity Remark
Head lights 12V, 55 / 60 W (H4)
Hazard lights 12V, 23 W
Turn signal 12V, 21 W
Tail light 12 V, 5 W
Work light (if equipped) 12 V, 35 W Option for ROPS Model
Front work light 12 V, 21 W
Work light

(for outer roof)
Dome light (Room lamp) 12 V, 5 W CABIN Model

12 V, 55 W CABIN Model

(1) Electrical Connector
(2) Lock Button
(3) Rubber Boot

(4) Clamping Fixture
(5) Bulb

Lubricating Points (CABIN Model)

(1) Door Hinge (2) Rear Window Hinge

G-40

W1080544

W1120093

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

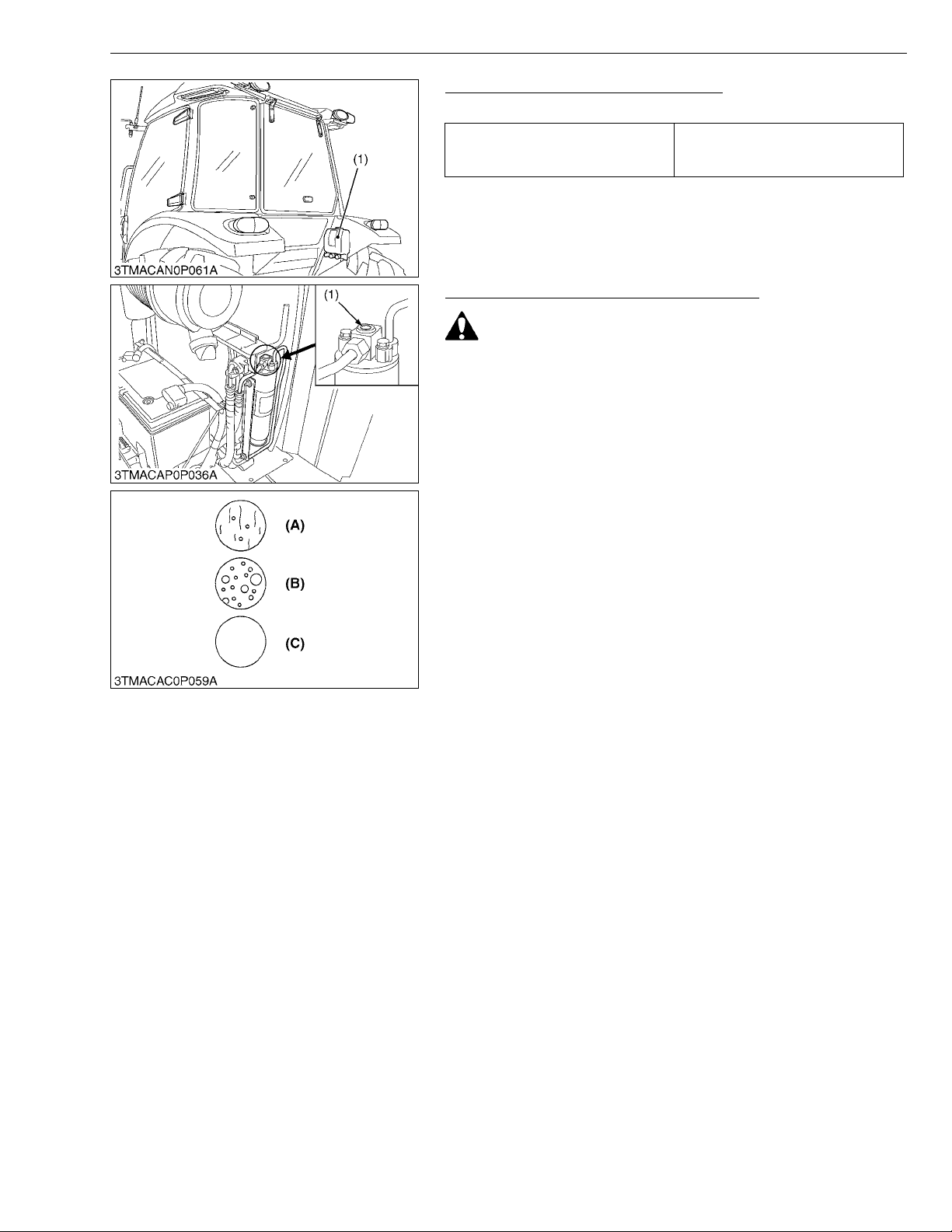

Adding Washer Liquid (CABIN Mode l)

1. Add a proper amount of automobile washer liquid.

1.3 L

Tank capacity

(1) Washer Liquid Tank

1.4 U.S.gals.

1.1 Imp.gals.

W1120170

Checking Refrigerant (Gas) (CABIN Mode l)

CAUTION

• Liquid contact with eyes or skin may cause frostbite.

• In the event of a leakage, wear safety goggles. Escaping
refrigerant can cause severe injuries to eyes.

• In contact with a flame, R134a refrigerant gives a toxic gas.

• Do not disconnect any part of the refrigeration circuit of the
air conditioning system.

A shortage of refrigerant impairs the air-conditioner per formance.

Check the following points. If it is indicated that the amount of
refrigerant is extremely low, inspect and charge. (Refer to “(4)
Checking Charge Refrigerant Amount” at “10. CABIN” section.)

Q Checking Procedure

1. Run the air-conditioner in the following conditions.

- Engine speed : About 150 0 min

-1

(rpm)

- Temperature con tr ol lev er : Maximu m co olin g po sitio n

- Fan switch : Highest blow (HI)

- Air-conditioner switch : ON

2. Look into the sight glass (1) to see if the refrigerant is flowing
through its circuit.

IMPORTANTQ

• Charge only with R134a not R12 refrigerant (gas).

(1) Sight Glass (A) Proper : Little or no air bubbles in

the refrigerant flow.

(B) Low : Lots of air bubbles in the

refrigerant flow (air bubbles or
foam passing continuously).

(C) Overfull or no refrigerant :

Colorless and transparent.

W1120282

G-41

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

8. SPECIAL TOOLS

[1] SPECIAL TOOLS FOR ENGINE

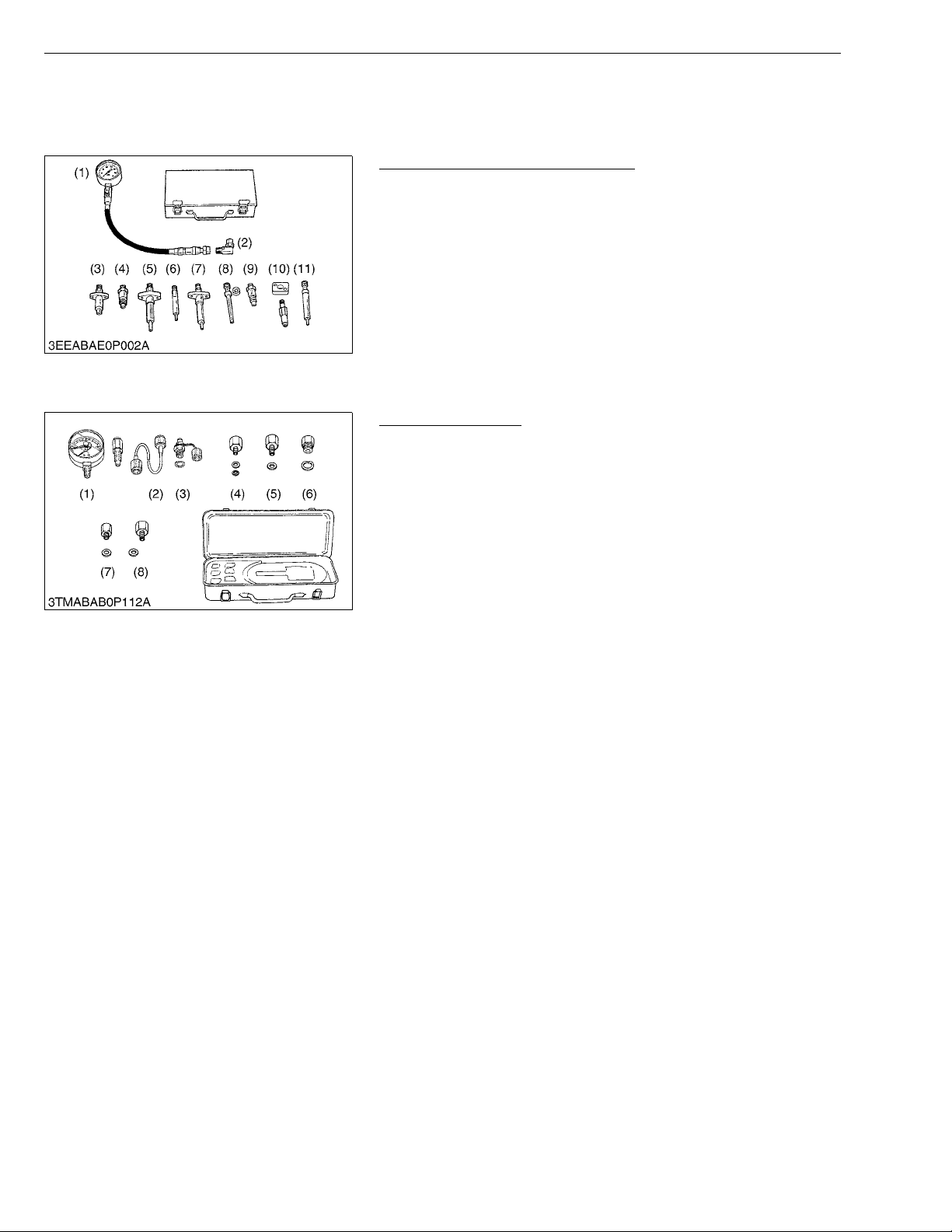

Diesel Engine Compression Tester

Code No: 07909-30208 (Assembly)07909-31251 (G)

Application: Use to measure diesel engine compression and

(1) Gauge
(2) L Joint
(3) Adaptor A
(4) Adaptor B
(5) Adaptor C
(6) Adaptor E

Oil Pressure Tester

Code No: 07916-32032
Application: Use to measure lubricating oil pressure.

(1) Gauge
(2) Cable
(3) Threaded Joint
(4) Adaptor 1

G GENERAL

07909-30934 (A to F) 07909-31271 (I)
07909-31211 (E and F) 07909-31281 (J)
07909-31231 (H)

diagnostics of need for major overhaul.

(7) Adaptor F
(8) Adaptor G

(9) Adaptor H
(10) Adaptor I
(11) Adaptor J

W1024200

(5) Adaptor 2
(6) Adaptor 3
(7) Adaptor 4
(8) Adaptor 5

W1024318

G-42

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

NOTEQ

• The following special tools are not provided, make them referring to the figure.

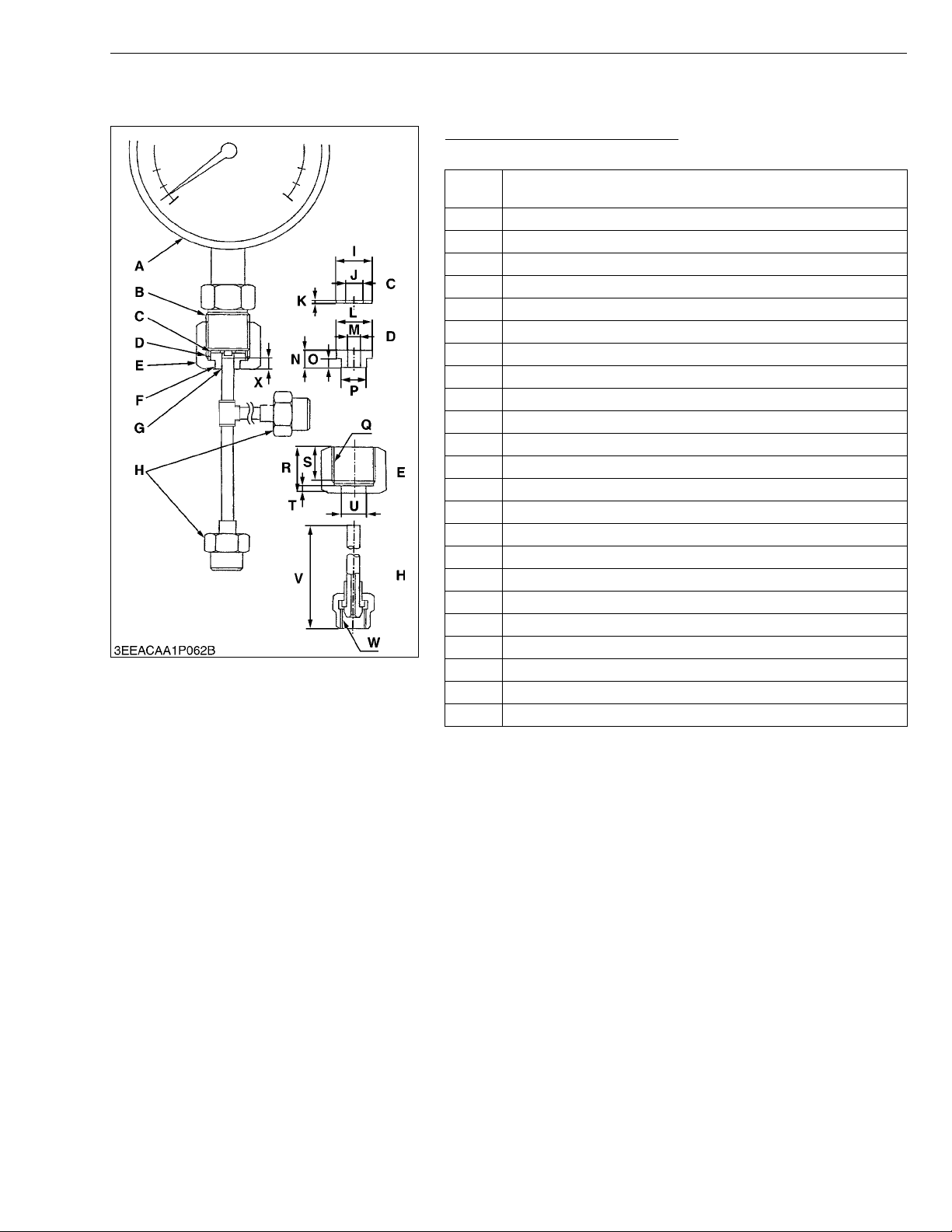

Injection Pump Pressure Tester

Application: Use to check fuel tightness of injection pumps.

Pressure gauge full scale : More than 29.4 MPa

A

(300 kgf/cm

B PF 1/2
C Copper gasket
D Flange (Material : Steel)

E Hex. nut 27 mm (1.06 in.) across the plat

F Adhesive application
G Fillet welding on the enter circumference
H Retaining nut

I 17 mm dia. (0.67 in. dia.)

J 8 mm dia. (0.31 in. dia.)
K 1.0 mm (0.039 in.)

L 17 mm dia. (0.67 in. dia.)
M 6.10 to 6.20 mm dia. (0.2402 to 0.2441 in. dia.)
N 8 mm (0.31 in.)
O 4 mm (0.16 in.)

P 11.97 to 11.99 mm dia. (0.4713 to 0.4720 in. dia.)
Q PF 1/2
R 23 mm (0.91 in.)

S 17 mm (0.67 in.)

T 4 mm (0.16 in.)
U 12.00 to 12.02 mm dia. (0.4724 to 0.4732 in. dia.)

V 100 mm (3.94 in.)

W M12 × P1.5

X 5 mm (0.20 in.)

2

, 4267 psi)

G GENERAL

W10252400

G-43

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

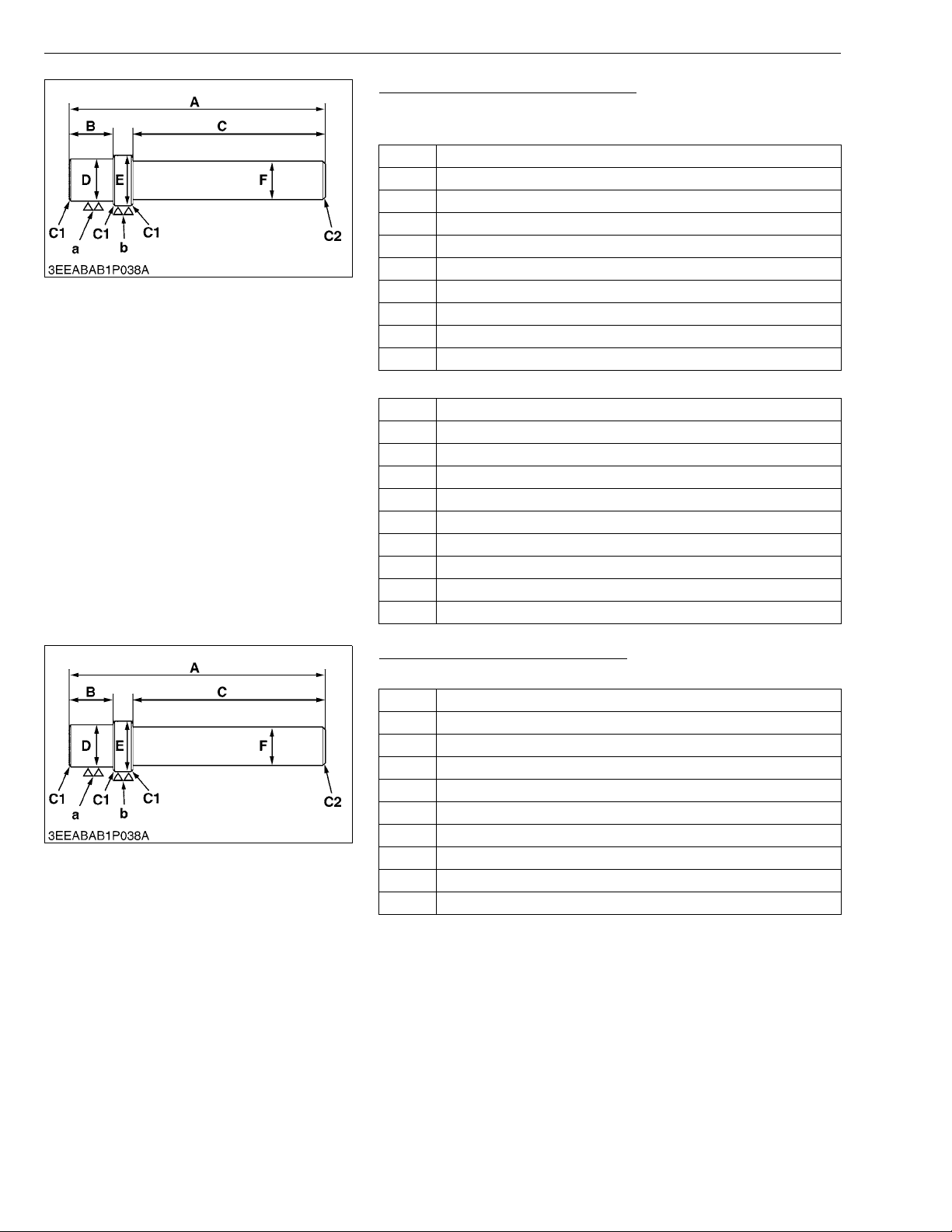

Small End Bushing Replacing Tool

Application: Use to press out and to press fit the small end bushing.

[Press out]

A 157 mm (6.181 in.)
B 14.0 mm (0.5512 in.)
C 120 mm (4.7244 in.)
D 27.4 mm dia. (1.0787 in. dia.)
E 30.95 mm dia. (1.2185 in. dia.)

F 20 mm dia. (0.7874 in. dia.)
a 6.3 μm (250 μin.)

b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

[Press fit]

A 157 mm (6.181 in.)
B 14.0 mm (0.5512 in.)
C 120 mm (4.7244 in.)
D 27.4 mm dia. (1.0787 in. dia.)
E 42.000 mm dia. (1.6535 in. dia.)

F 20 mm dia. (0.7874 in. dia.)

a 6.3 μm (250 μin.)

b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

W1040702

Idle Gear Bushing Replacing Tool

Application: Use to press out and to press fit the bushing.

A 196 mm (7.7165 in.)
B 25.0 mm (0.9843 in.)
C 150 mm (5.9055 in.)
D 34.5 mm dia. (1.3583 in. dia.)
E 38.075 to 38.100 mm dia. (1.4990 to 1.5000 in. dia.)

F 20 mm dia. (0.7874 in. dia.)

a 6.3 μm (250 μin.)

b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

W1040289

G-44

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

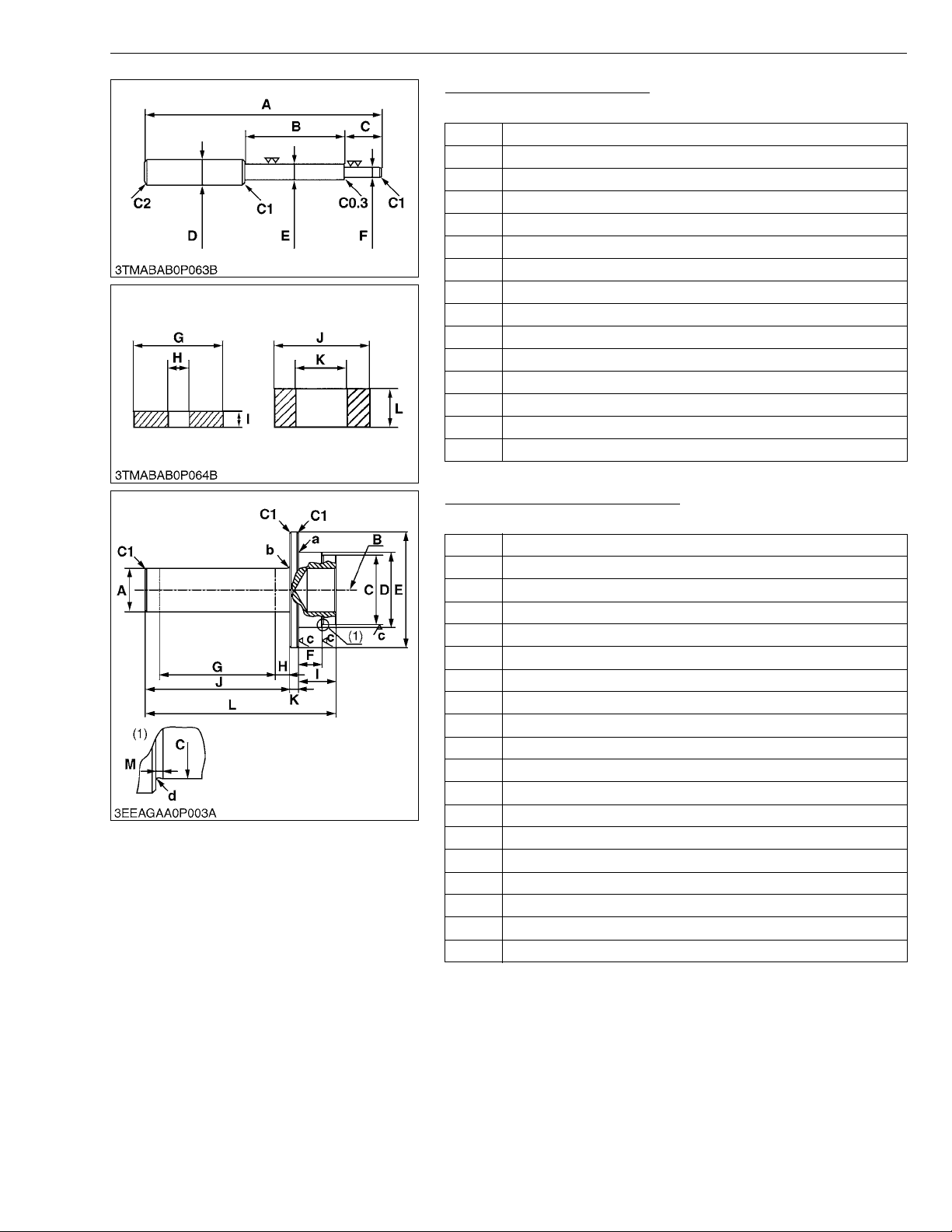

Valve Guide Replacing Tool

Application: Use to press out and press fit the valve guide.

A 225 mm (8.86 in.)
B 70 mm (2.76 in.)
C 45 mm (1.77 in.)
D 20 mm dia. (0.79 in dia.)

E 11.7 to 11.9 mm dia. (0.460 to 0.468 in. dia.)

F 6.5 to 6.6 mm dia. (0.256 to 0.259 in. dia.)
G 25 mm dia. (0.98 in. dia.)
H 6.7 to 7.0 mm dia. (0.263 to 0.275 in. dia.)

I 5 mm (0.197 in.)

J 20 mm dia. (0.787 in.dia.)
K 12.5 to 12.8 mm dia. (0.492 to 0.504 in. dia.)

L 8.5 to 8.9 mm (0.3346 to 0.3504 in.)

C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)

C0.3 Chamfer 0.3 mm (0.012 in.)

W1038887

Camshaft Cover Replacing Tool

Application: Use to press fit the camshaft cover.

A 30 mm (1.1811 in.)
B 30 mm dia., 20 mm depth (1.1811 in. dia., 0.7874 in. depth)
C 47.975 to 48.000 mm (1.8888 to 1.8898 in.)
D 52 mm (2.0472 in.)

E 80 mm (3.1496 in.)

F 16.5 to 16.6 mm (0.6496 to 0.6535 in.)
G 80 mm (3.1496 in.)
H 10 mm (0.3937 in.)

I 26 mm (1.0236 in.)

J 100 mm (3.9370 in.)
K 6 mm (0.2362 in.)

L 132 mm (5.1969 in.)
M 1 mm (0.0394 in.)

a 1 mm radius (0.0394 in. radius)

b 2 mm radius (0.0787 in. radius)

c Ra = 3.2a

d 0.4 mm radius (0.0157 in. radius)

C0.5 Chamfer 0.5 mm (0.0197 in.)

C1 Chamfer 1.0 mm (0.0394 in.)

W1014056

G-45

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

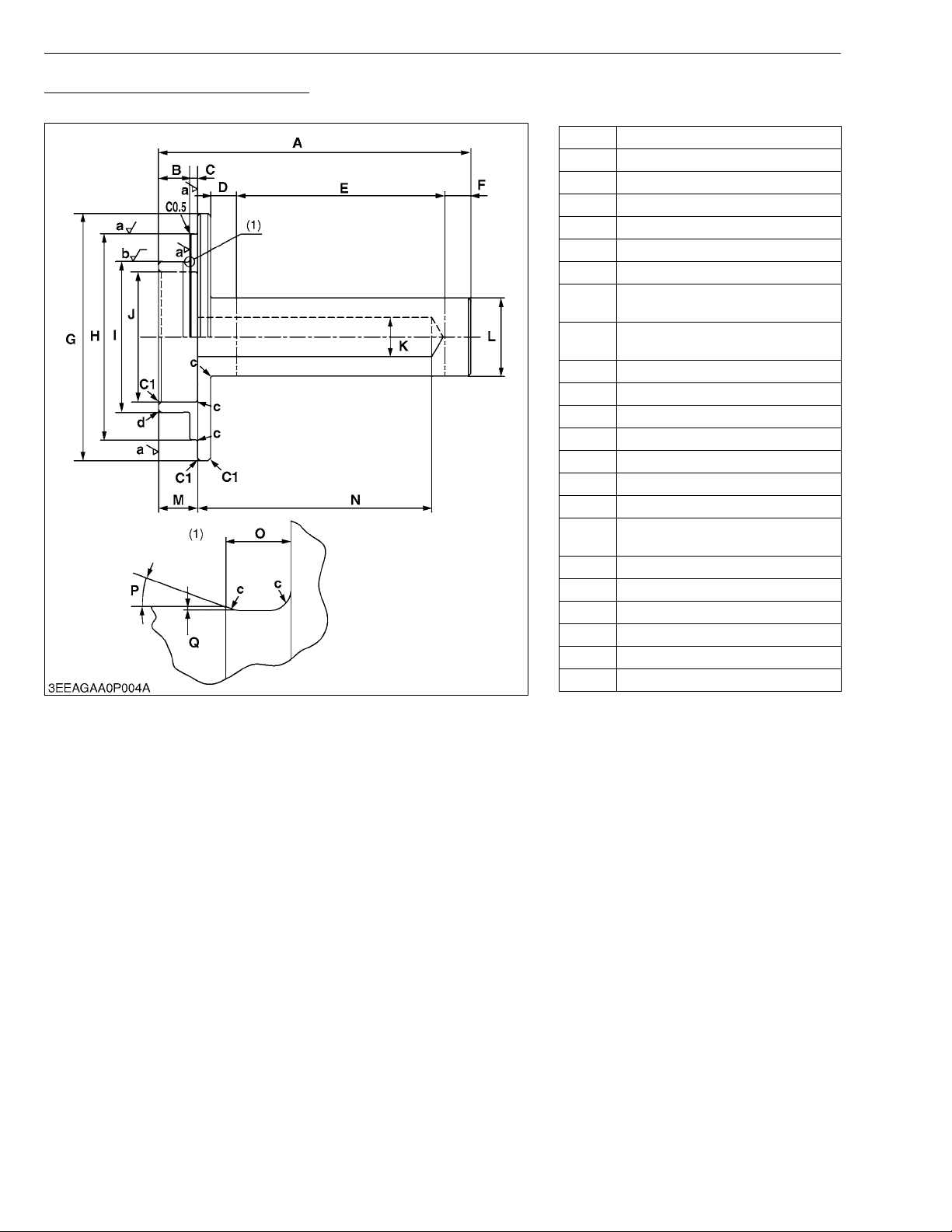

Front Cover Oil Seal Replacing Tool

Application: Use to press fit the front cover oil seal.

G GENERAL

A 120 mm (4.7244 in.)
B 12 mm (0.4724 in.)
C 2.9 to 3.0 mm (0.1142 to 0.1181 in.)
D 10 mm (0.3937 in.)
E 80 mm (3.1496 in.)
F 10 mm (0.3937 in.)

G 95 mm dia. (3.7402 in. dia.)

78.9 to 79.1 mm dia.

H

(3.1063 to 3.1142 in. dia.)

57.971 to 57.990 mm dia.

I

(2.2823 to 2.2831 in. dia.)

J 50 mm dia. (1.9685 in. dia.)
K 15 mm dia. (0.5906 in. dia.)
L 30 mm dia. (1.1811 in. dia.)

M 15 mm (0.5906 in.)

N 90 mm (3.5433 in.)

O 2.5 mm (0.0984 in.)

P 0.349 rad (20 °)

0.15 to 0.25 mm

Q

(0.0059 to 0.0098 in.)

a Ra = 3.2 a
b Ra = 1.6 a
c 0.8 mm radius (0.0315 in. radius)
d 1.5 mm radius (0.0591 in. radius)

C0.5 Chamfer 0.5 mm (0.0197 in.)

C1 Chamfer 1.0 mm (0.0394 in.)

W1014589

G-46

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

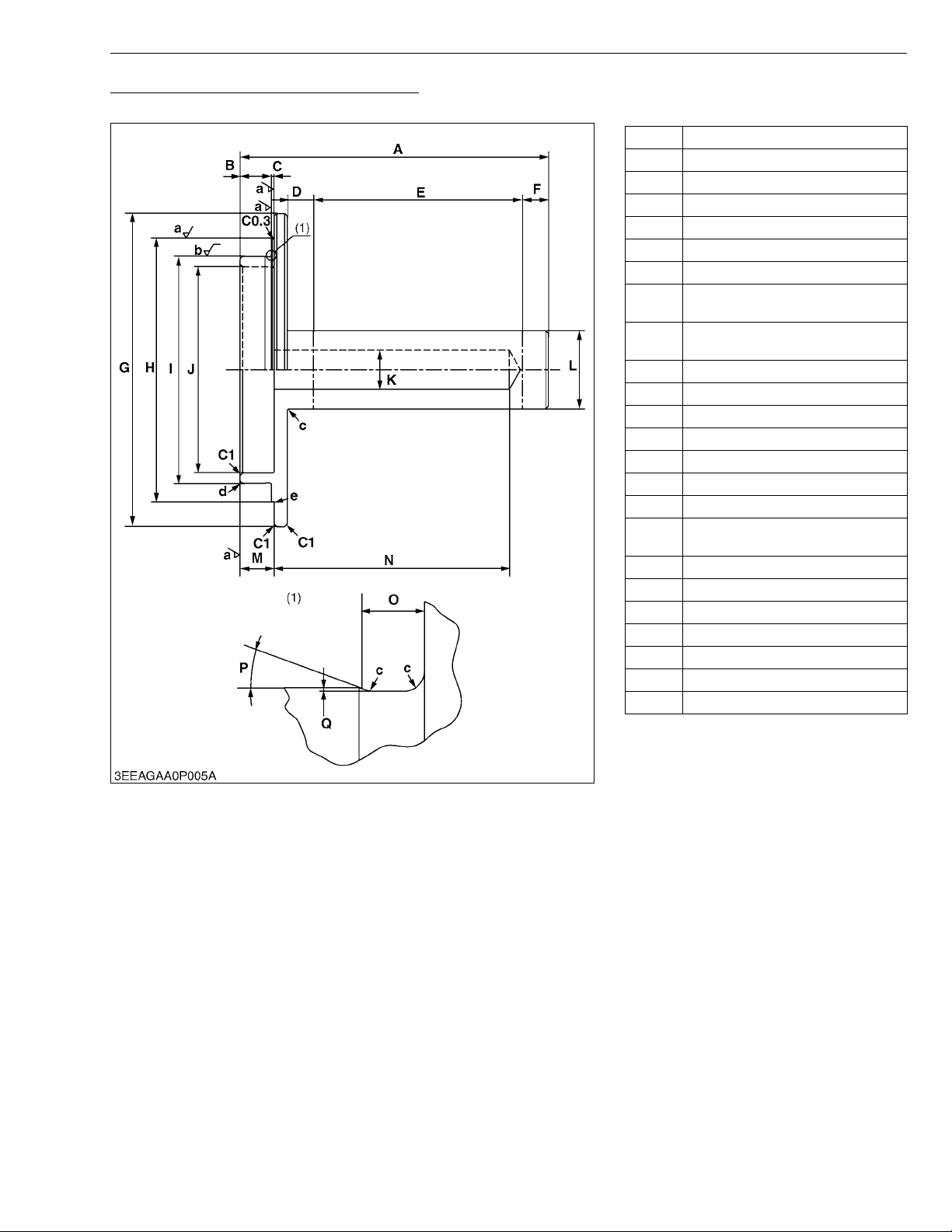

Flywheel Housing Oil Seal Replacing Tool

Application: Use to press fit the flywheel housing oil seal.

G GENERAL

A 118 mm (4.6457 in.)
B 12 mm (0.4724 in.)
C 0.9 to 1.0 mm (0.0354 to 0.0394 in.)
D 10 mm (0.3937 in.)
E 80 mm (3.1496 in.)
F 10 mm (0.3937 in.)
G 120 mm dia. (4.7244 in. dia.)

100.9 to 101.1 mm dia.

H

(3.9724 to 3.9803 in. dia.)

86.966 to 86.988 mm dia.

I

(3.4239 to 3.4247 in. dia.)

J 79 mm dia. (3.1102 in. dia.)
K 15 mm dia. (0.5906 in. dia.)

L 30 mm dia. (1.1811 in. dia.)
M 13 mm (0.5118 in.)
N 90 mm (3.5433 in.)
O 2.5 mm (0.0984 in.)
P 0.349 rad (20 °)

0.15 to 0.25 mm

Q

(0.0059 to 0.0098 in.)

a Ra = 3.2 a

b Ra = 1.6 a

c 0.8 mm radius (0.0315 in. radius)

d 1.5 mm radius (0.0591 in. radius)

e 0.2 mm radius (0.0079 in. radius)

C0.3 Chamfer 0.3 mm (0.0118 in.)

C1 Chamfer 1.0 mm (0.0394 in.)

W1015151

G-47

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

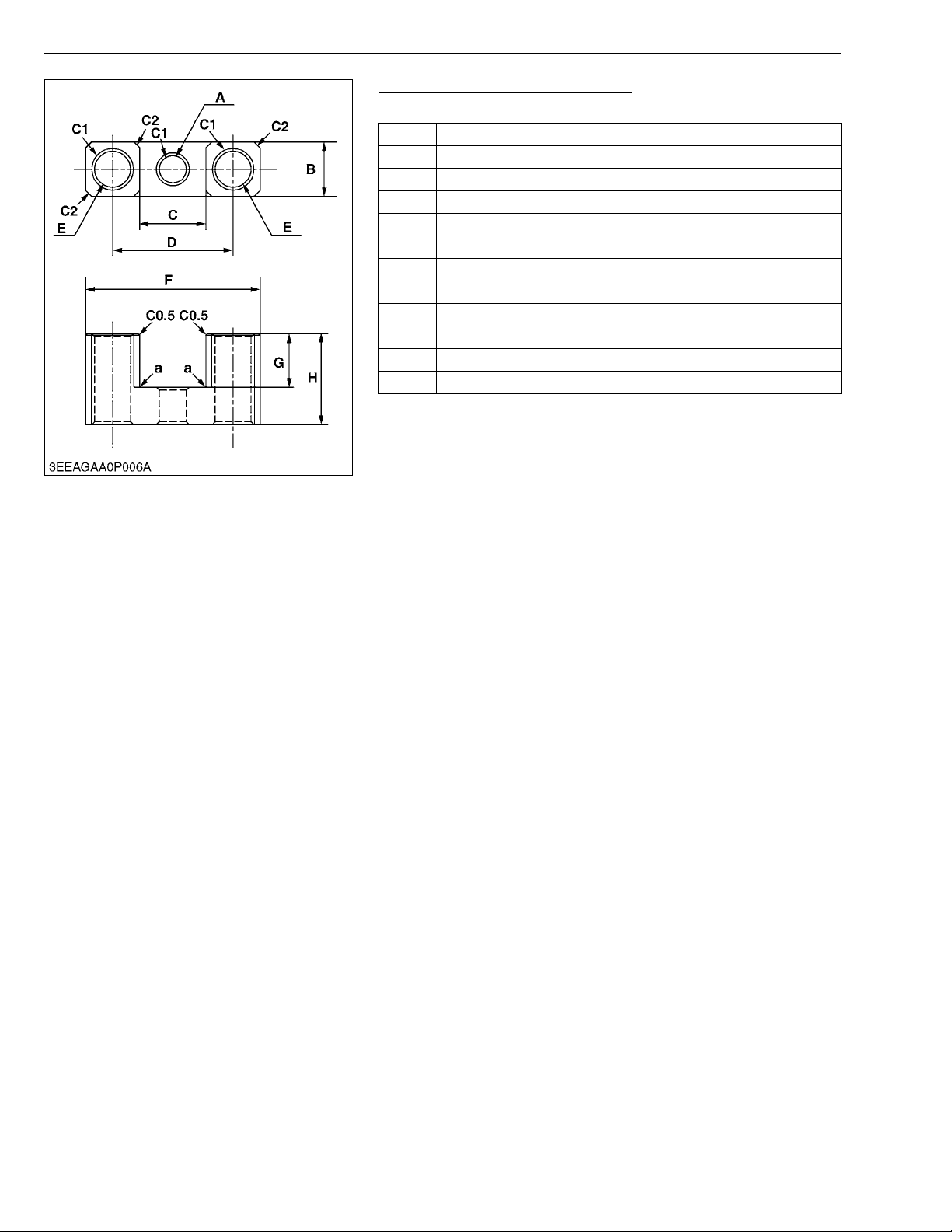

Valve Bridge Shaft Replacing Tool

Application: Use to press fit the valve bridge shaft.

A 9.5 mm dia. (0.3740 in. dia.) through hole
B 19 mm (0.7480 in.)
C 23.2 mm (0.9134 in.)
D 42.0 to 42.4 mm (1.6535 to 1.6693 in.)
E 12.5 mm dia. (0.4921 in. dia.) through hole

F 61 mm (2.4016 in.)
G 18.7 mm (0.7362 in.)
H 30.9 to 31.7 mm (1.2165 to 1.2480 in.)

a 0.3 mm radius (0.0118 in. radius)

C0.5 Chamfer 0.5 mm (0.0197 in.)

C1 Chamfer 1.0 mm (0.0394 in.)
C2 Chamfer 2.0 mm (0.0787 in.)

W1015898

G-48

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

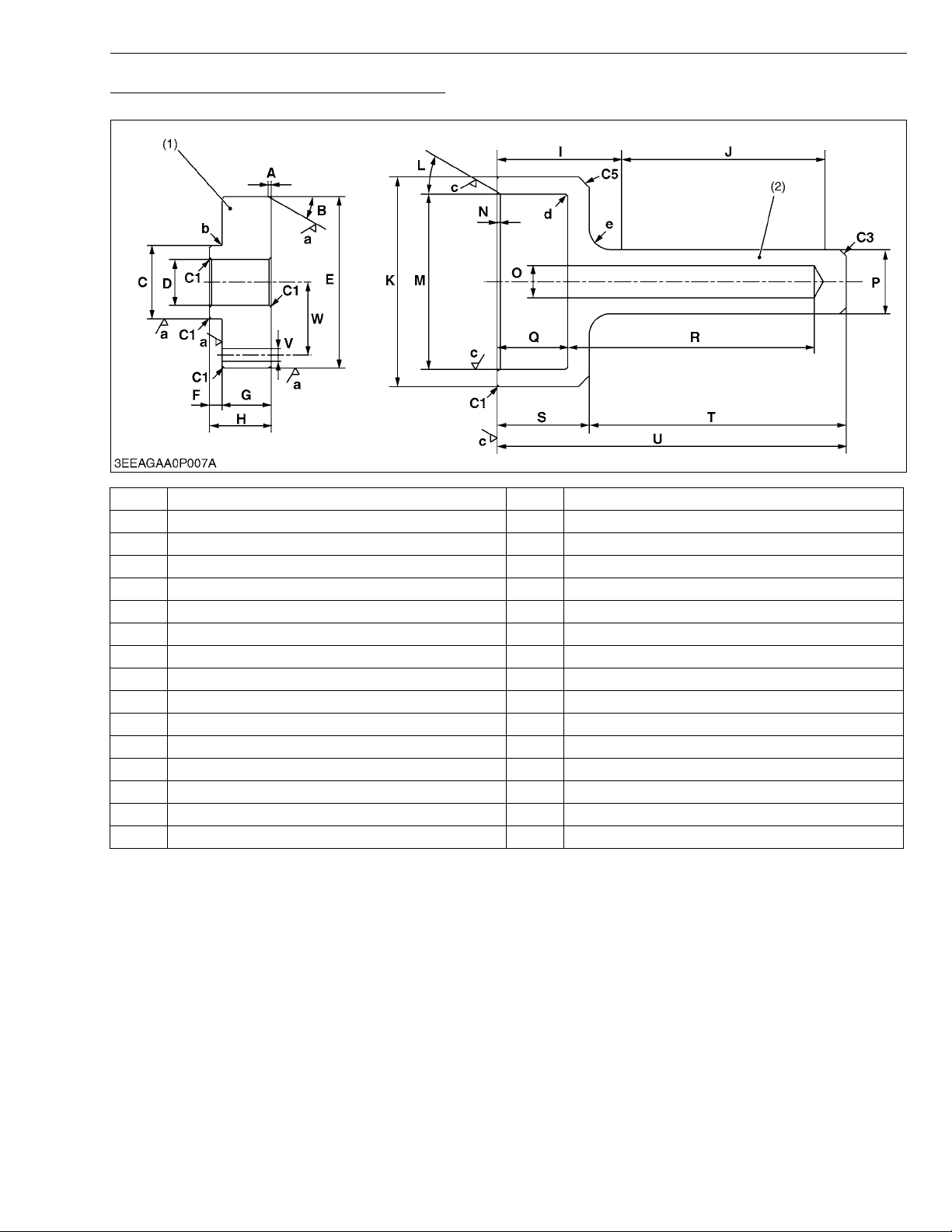

Auxiliary Socket for Fixing Crankshaft Sleeve

Application: Use to fix the crankshaft sleeve of the diesel engine.

G GENERAL

A 1.5 mm (0.0591 in.) Q 33 mm (1.2992 in.)
B 0.523 rad (30 °) R 115 mm (4.5276 in.)
C 34.925 to 34.950 mm dia. (1.3750 to 1.3760 in. dia.) S 43 mm (1.6929 in.)
D 22 mm dia. (0.8661 in. dia.) T 120 mm (4.7244 in.)
E 81.980 to 81.985 mm dia. (3.2276 to 3.2278 in. dia.) U 163 mm (6.4173 in.)
F 6 mm (0.2362 in.) V 8 mm dia. (0.315 in. dia.)
G 23.5 mm (0.9252 in.) W 33.475 to 33.525 mm (1.3180 to 1.3198 in.)
H 29.5 mm (1.1614 in.) a Ra = 1.6 a

I 58 mm (2.2835 in.) b 0.5 mm radius (0.0197 in. radius)

J 95 mm (3.7402 in.) c Ra = 3.2 a
K 98 mm dia. (3.8583 in. dia.) d 1.5 mm radius (0.0591 in. radius)
L 0.523 rad (30 °) e 10 mm radius (0.3937 in. radius)
M 82.1 to 82.2 mm dia. (3.2323 to 3.2362 in. dia.) C1 Chamfer 1.0 mm (0.0394 in.)
N 1.5 mm (0.0591 in.) C3 Chamfer 3.0 mm (0.1181 in.)
O 15 mm dia. (0.5906 in. dia.) C5 Chamfer 5.0 mm (0.1969 in.)
P 30 mm dia. (1.1811 in. dia.)

(1) Sleeve Guide (2) Auxiliary Socket for Pushing

G-49

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

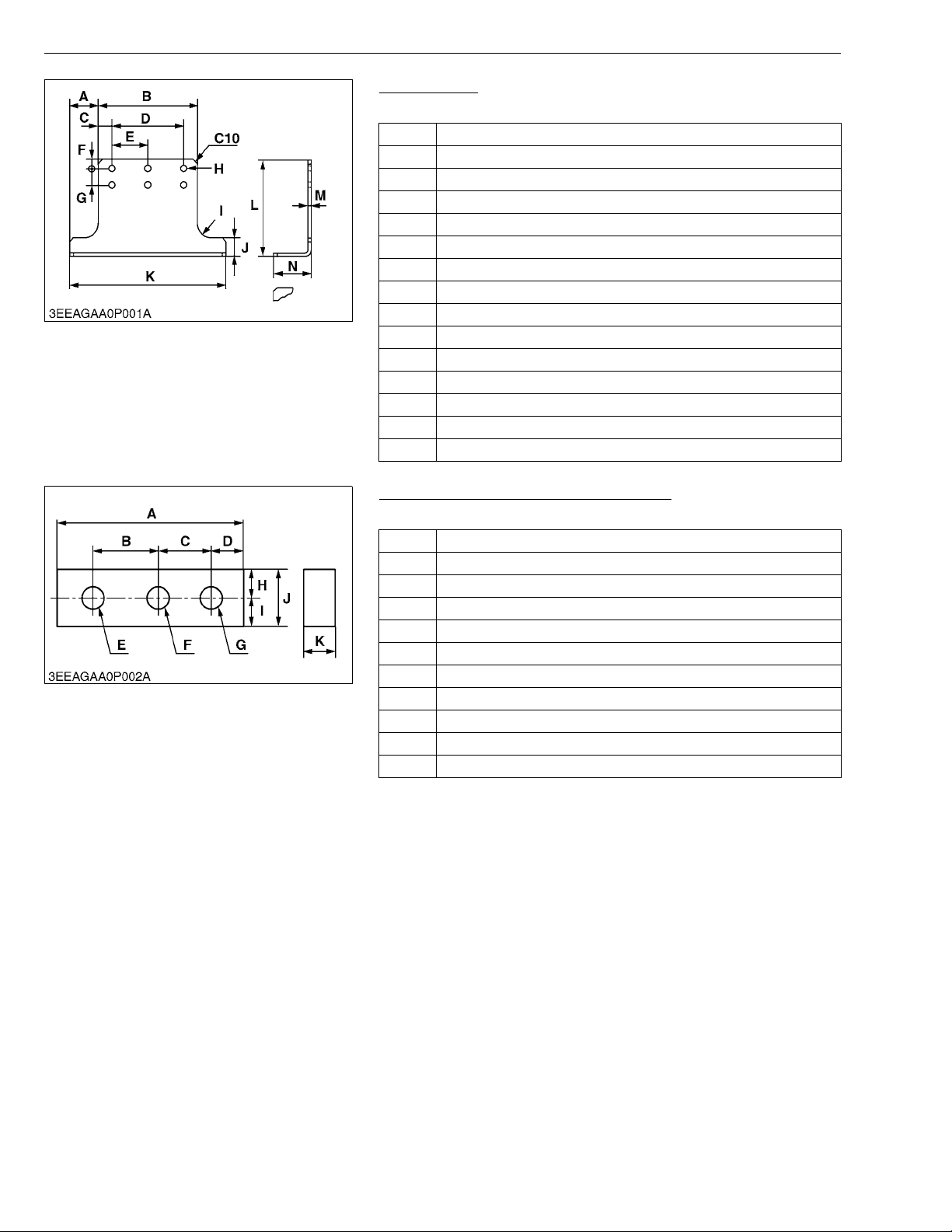

Engine Stand

Application: Use to support engine.

A 107 mm (4.213 in.)
B 246 mm (9.685 in.)
C 21 mm (0.827 in.)
D 204 mm (8.032 in.)
E 102 mm (4.016 in.)

F 15 mm (0.591 in.)
G 59 mm (2.323 in.)
H 14 mm dia. (0.551 in. dia.)

I 80 mm radius (3.150 in. radius)

J 70 mm (2.756 in.)
K 460 mm (18.110 in.)

L 270 mm (10.630 in.)
M 6 mm (0.236 in.)
N 70 mm (2.756 in.)

C10 Chamfer 10 mm (0.394 in.)

W1033645

Tool for Aligning the Crankcase 1 and 2

Application: Use for aligning the crankcase 1 and 2.

A 126.6 mm (4.9843 in.)
B 49.1 mm (1.9331 in.)
C 37.5 mm (1.4764 in.)
D 20 mm (0.7874 in.)
E 14 mm dia. (0.5512 in. dia.)

F 14 mm dia. (0.5512 in. dia.)
G 14 mm dia. (0.5512 in. dia.)
H 17.5 mm (0.6890 in.)

I 17.5 mm (0.6890 in.)

J 35 mm (1.3780 in.)
K 19 mm (0.7480 in.)

W1047882

G-50

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

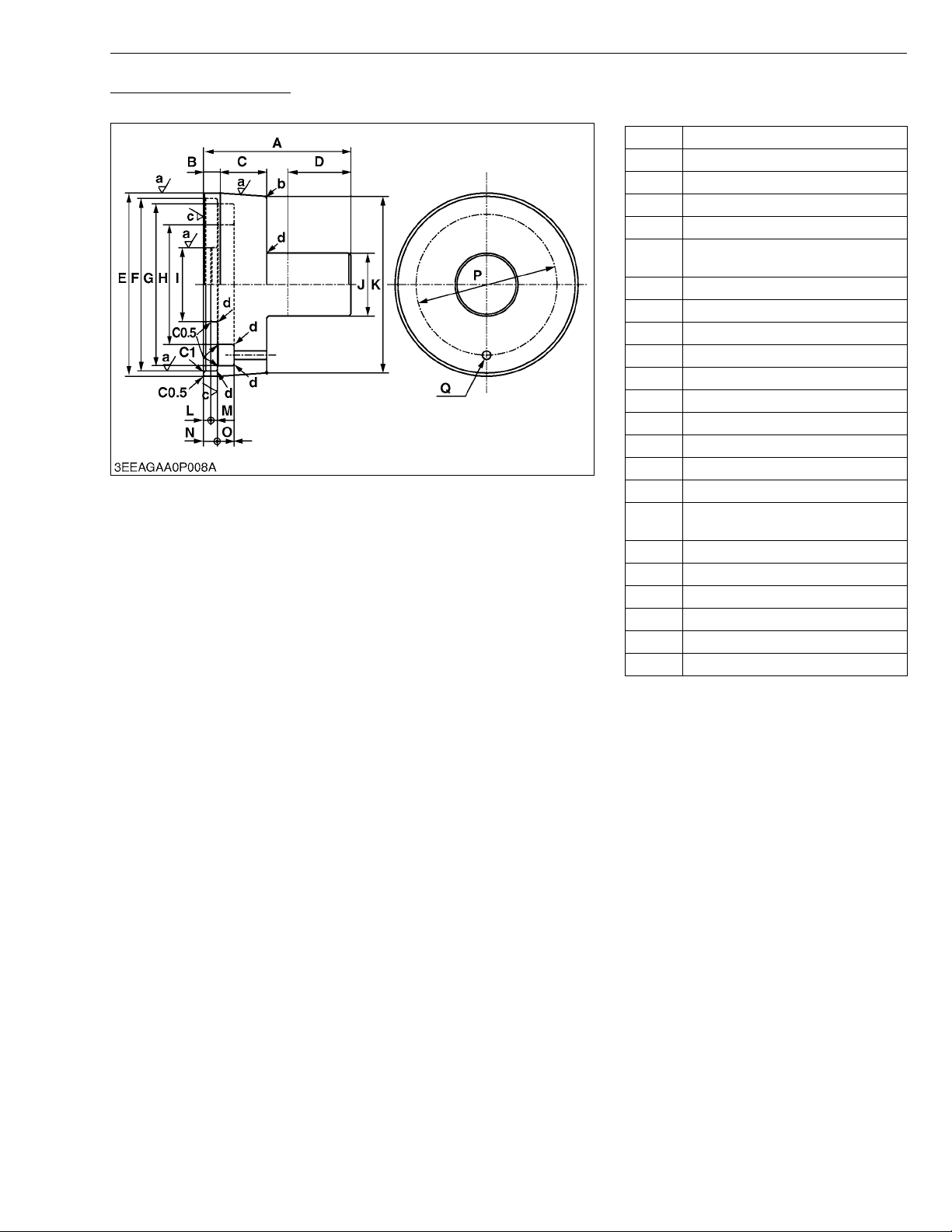

Flywheel Housing Guide

Application: Use to install the flywheel housing to the crankcase.

G GENERAL

A 70 mm (2.7559 in.)
B 8 mm (0.3150 in.)
C 22 mm (0.8661 in.)
D 30 mm (1.1811 in.)
E 87 mm dia. (3.4252 in. dia.)

82.036 to 82.071 mm dia.

F

(3.2298 to 3.2311 in. dia.)

G 77 mm dia. (3.0315 in. dia.)
H 57 mm dia. (2.2441 in. dia.)

I 35 mm dia. (1.3780 in. dia.)

J 30 mm dia. (1.1811 in. dia.)

K 84 mm dia. (3.3071 in. dia.)

L 3.5 mm (0.1378 in.)
M 3 mm (0.1181 in.)
N 6.6 to 6.8 mm (0.2598 to 0.2677 in.)
O 8 mm (0.3150 in.)
P 67 mm dia. (2.6378 in. dia.)

4 mm dia. (0.1575 in. dia.)

Q

through hole

a Ra = 1.6 a

b 1.5 mm radius (0.0591 in. radius)

c Ra = 3.2 a

d 0.8 mm radius (0.0315 in. radius)

C0.5 Chamfer 0.5 mm (0.0197 in.)

C1 Chamfer 1.0 mm (0.0394 in.)

W1017819

G-51

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

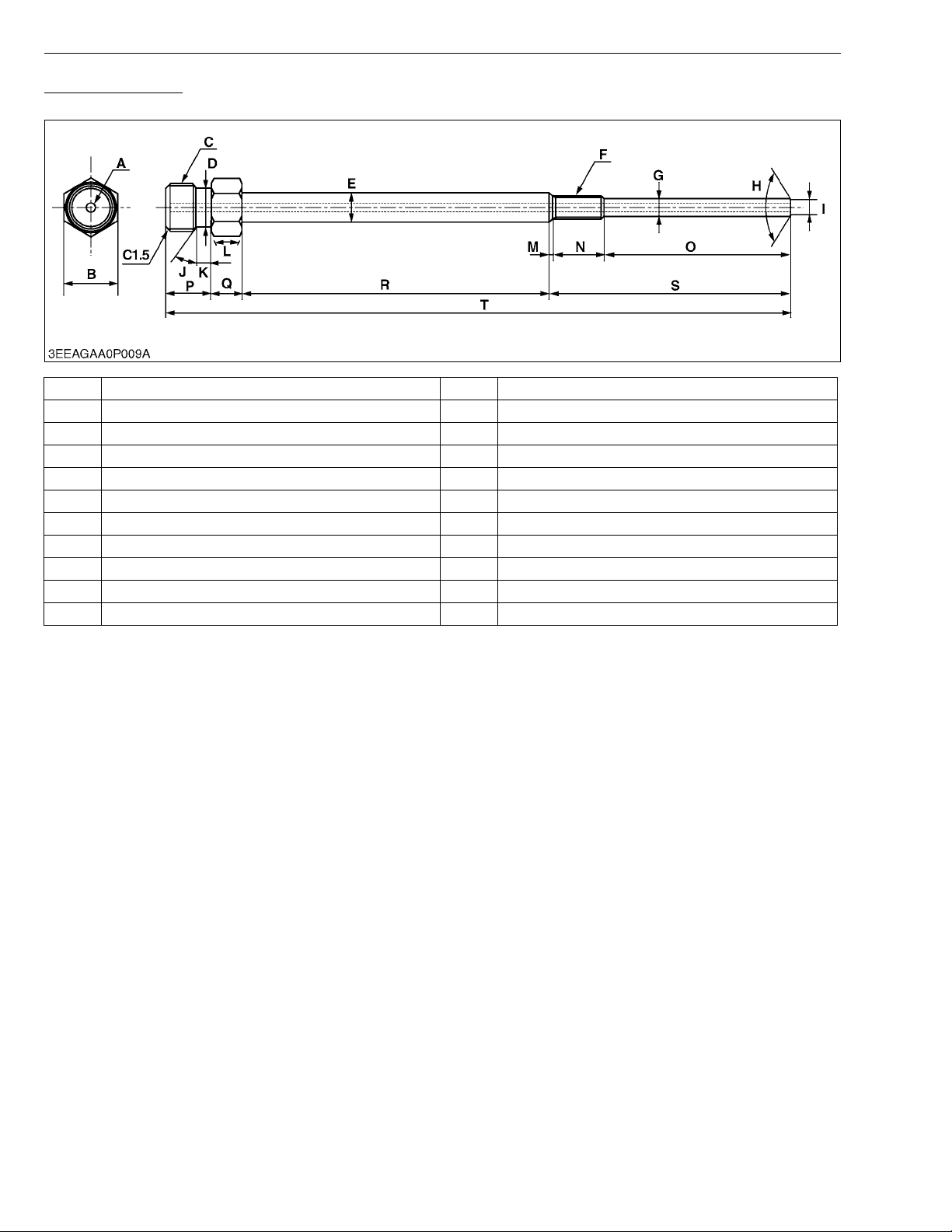

Glow Plug Adapter

Application: Use to check compression pressure through glow plug hole.

A 3 mm dia. (0.118 in. dia.) through hole L 1.047 rad (60 °)
B 17 mm (0.669 in.) M 1 mm (0.039 in.)
C 16 mm dia. (0.630 in. dia.) P0.5 N 17 mm (0.669 in.)
D 13 mm dia. (0.512 in. dia.) O 61.5 mm (2.421 in.)
E 9.5 mm dia. (0.374 in. dia.) P 15 mm (0.591 in.)
F M8 x 1.0 Q 10 mm (0.394 in.)
G 6.5 to 6.7 mm dia. (0.256 to 0.264 in. dia.) R 100 mm (3.937 in.)
H 2.144 to 2.147 rad (122.9 to 123.1 °) S 79.5 mm (3.130 in.)

I 4.9 to 5.5 mm dia. (0.193 to 0.217 in. dia.) T 204.5 mm (8.051 in.)

J 0.523 rad (30 °) C1.5 Chamfer 1.5 mm (0.059 in.)

K 5 mm (0.197 in.)

G GENERAL

G-52

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

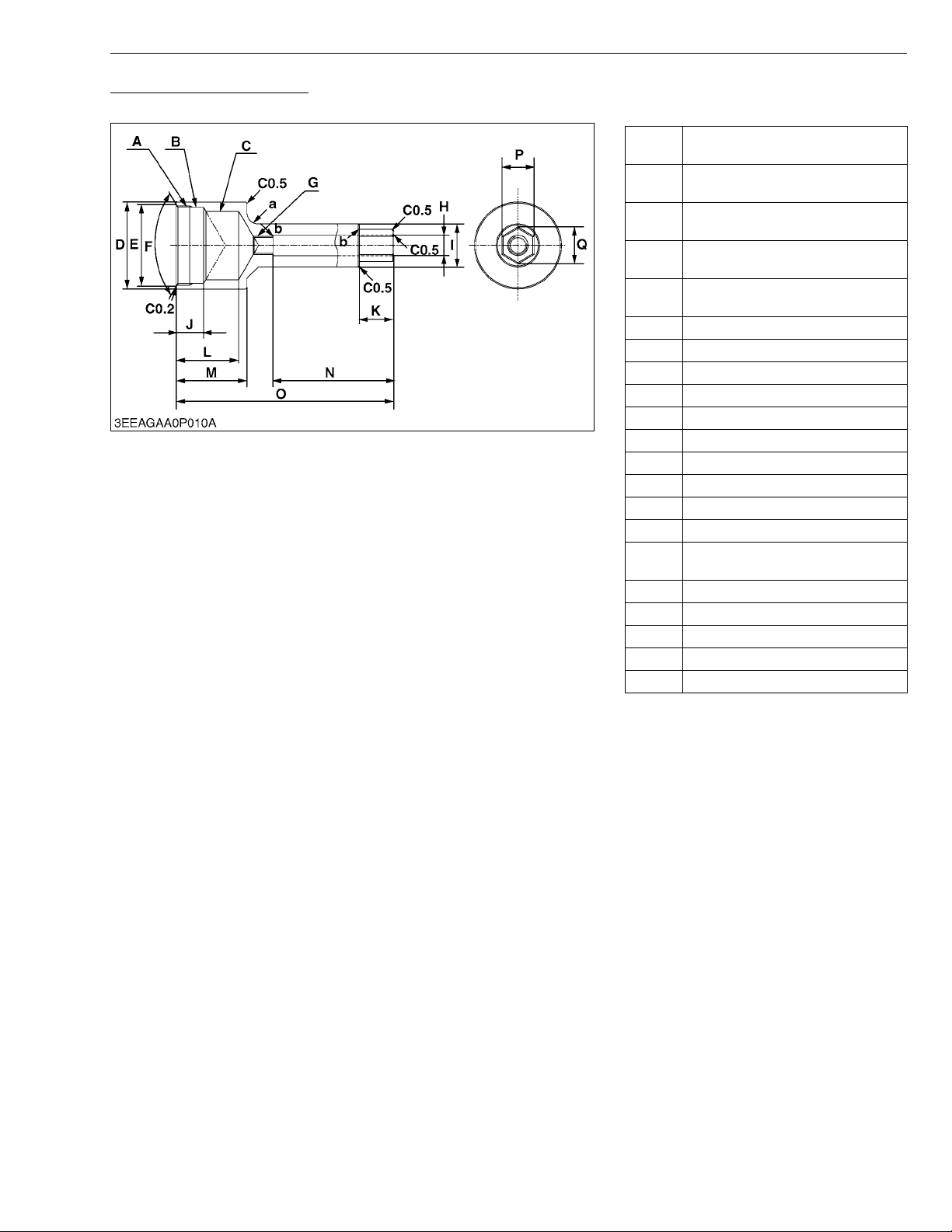

Injection Pump Gear Puller

Application: Use for remove the injection pump gear from governor shaft.

G GENERAL

M35 x P1.5, 6 mm depth

A

(0.2362 in. depth)
35 mm dia., 12 mm depth

B

(1.3780 in. dia., 0.4724 in. depth)
30 mm dia., 27.5 mm depth

C

(1.1811 in. dia., 1.0827 in. depth)

40.0 to 40.2 mm dia.

D

(1.5748 to 1.5827 in. dia.)

35.9 to 36.1 mm dia.

E

(1.4134 to 1.4213 in. dia.)

F 2.256 rad (120 °)
G M8
H 9 mm dia. (0.3543 in. dia.)

I 19 mm dia. (0.7480 in. dia.)

J 12 mm (0.4724 in.)
K 15 mm (0.5906 in.)

L 27.5 mm (1.0827 in.)
M 31 mm (1.2205 in.)
N 57.5 mm (2.2638 in.)
O 100 mm (3.9370 in.)

3.75 to 4.00 mm

P

(0.1476 to 0.1575 in.)

Q 16.17 mm (0.6366 in.)

a 5 mm radius (0.1969 in. radius)

b 0.4 mm radius (0.0157 in. radius)

C0.2 Chamfer 0.2 mm (0.0079 in.)
C0.5 Chamfer 0.5 mm (0.0197 in.)

W1018612

G-53

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

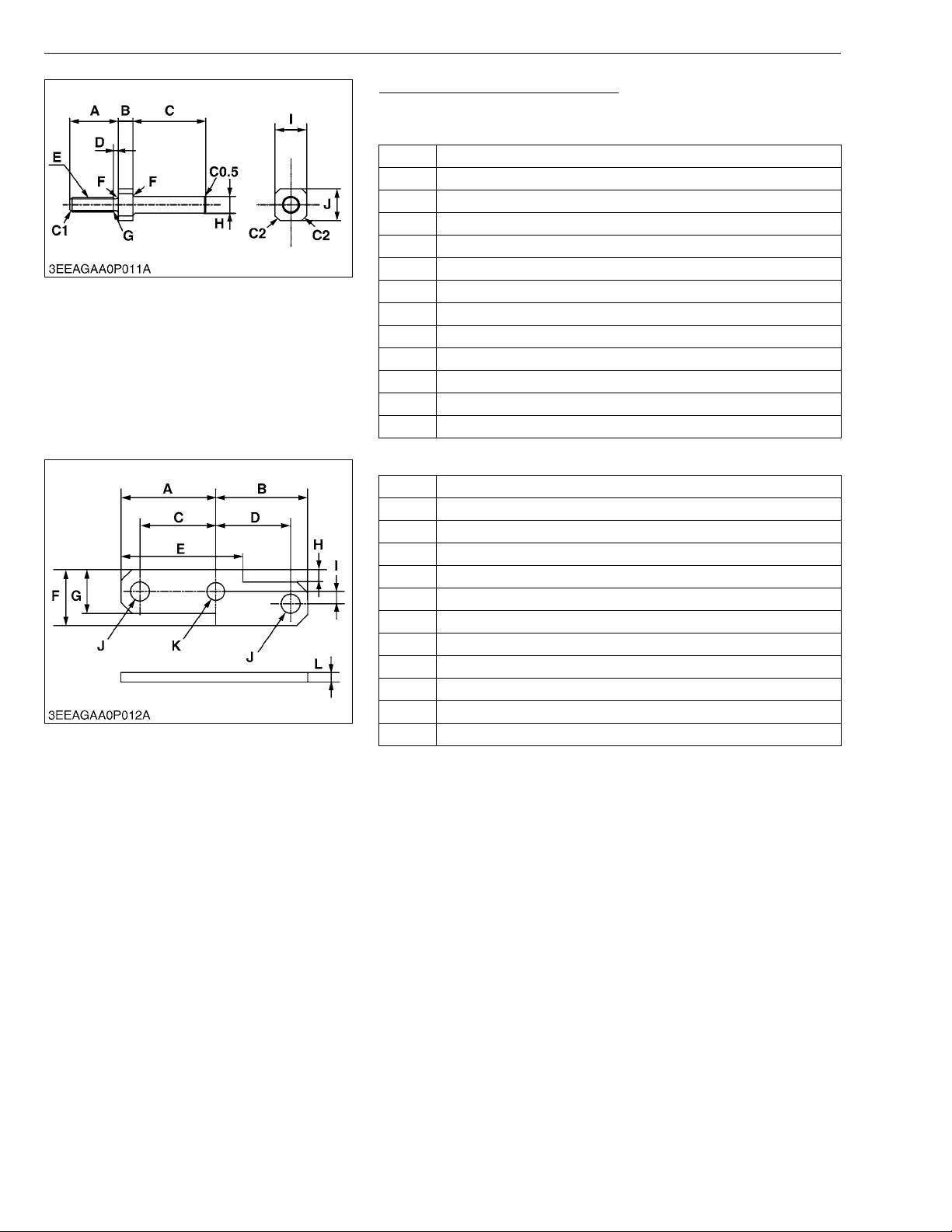

Injection Pump Rack Fixing Tool

Application: Use to fix the injection pump control rack.

1) Shaft

A 20 mm (0.787 in.)
B 6 mm (0.236 in.)
C 29.9 to 30.1 mm (1.177 to 1.185 in.)
D 2.0 to 3.0 mm (0.079 to 0.118 in.)
E M6 x P1.0

F 1 mm radius (0.0394 in. radius)
G 0.5 mm radius (0.0197 in. radius)
H 7 mm dia. (0.276 in. dia.)

I 13 mm (0.512 in.)

J 13 mm (0.512 in.)

C0.5 Chamfer 0.5 mm (0.0197 in.)

C1 Chamfer 1.0 mm (0.0394 in.)
C2 Chamfer 2.0 mm (0.0787 in.)

W1018945

2) Flange

A 35 mm (1.378 in.)
B 34 mm (1.339 in.)
C 28 mm (1.102 in.)
D 27.64 mm (1.088 in.)
E 45 mm (1.772 in.)

F 20.5 mm (0.807 in.)
G 16 mm (0.630 in.)
H 4.5 mm (0.177 in.)

I 4.5 mm (0.177 in.)

J 7.0 mm dia. (0.276 in. dia.) through hole
K 6.5 mm dia. (0.256 in. dia.) through hole

L 3.2 mm (0.126 in.)

W1019425

G-54

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

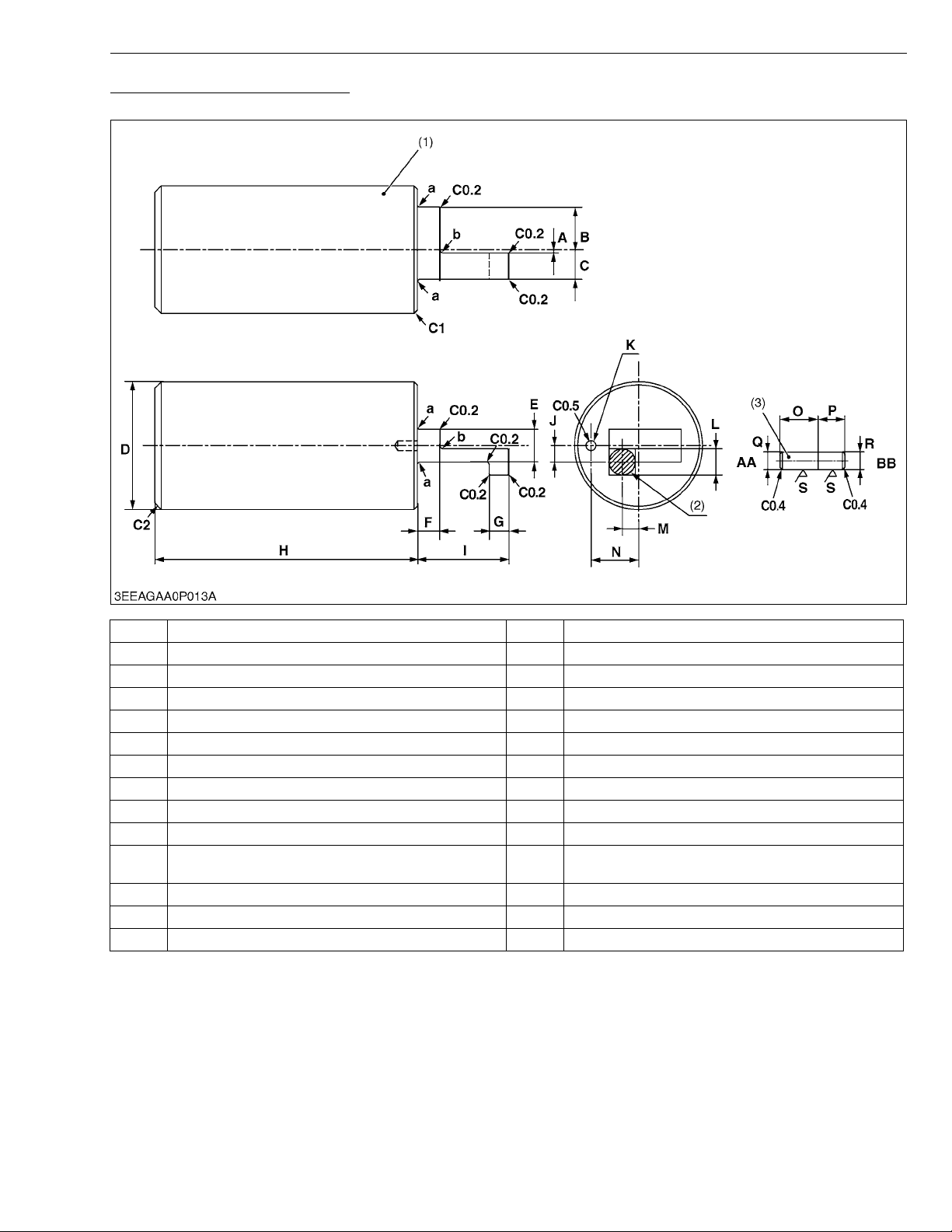

Jig for Govenor Connecting Rod

Application: Use for connecting the governor connecting rod to the rack pin of the fuel injectio n pump assembly.

A 0.5 mm (0.0197 in.) O 5 mm (0.1969 in.)
B 12.7 to 13.0 mm (0.5000 to 0.5118 in.) P 4 mm (0.1575 in.)
C 8.7 to 9.0 mm (0.3425 to 0.3543 in.) Q 2.955 to 2.965 mm dia. (0.1163 to 0.1167 in. dia.)
D 39 mm (1.5354 in.) R 3.020 to 3.030 mm dia. (0.1189 to 0.1193 in. dia.)
E 10 mm (0.3937 in.) S Ra = 1.6 a
F 7 mm (0.2756 in.) AA Governor housing side
G 6 mm (0.2362 in.) BB Press in side
H 80 mm (3.1496 in.) a 0.6 mm radius (0.0236 in. radius)

I 27.95 to 28.05 mm (1.1004 to 1.1043 in.) b 1 mm radius (0.0394 in. radius)

J 5 mm (0.1969 in.) C0.2 Chamfer 0.2 mm (0.0079 in.)

3.00 to 3.01 mm dia., 6 mm depth (0.1181 to 0.1185 in.

K

dia., 0.2362 in. depth)

L 9 mm (0.3543 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
M 5 mm (0.1969 in.) C1 Chamfer 1.0 mm (0.0394 in.)
N 14.45 to 14.55 mm (0.5689 to 0.5728 in.) C2 Chamfer 2.0 mm (0.0787 in.)

(1) Material : S43C-D (2) Permanent Magnet : 8 mm dia.

(0.3150 in. dia.)
Thickness : 3 mm (0.1181 in.)

C0.4 Chamfer 0.4 mm (0.0157 in.)

(3) Pin

G-55

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

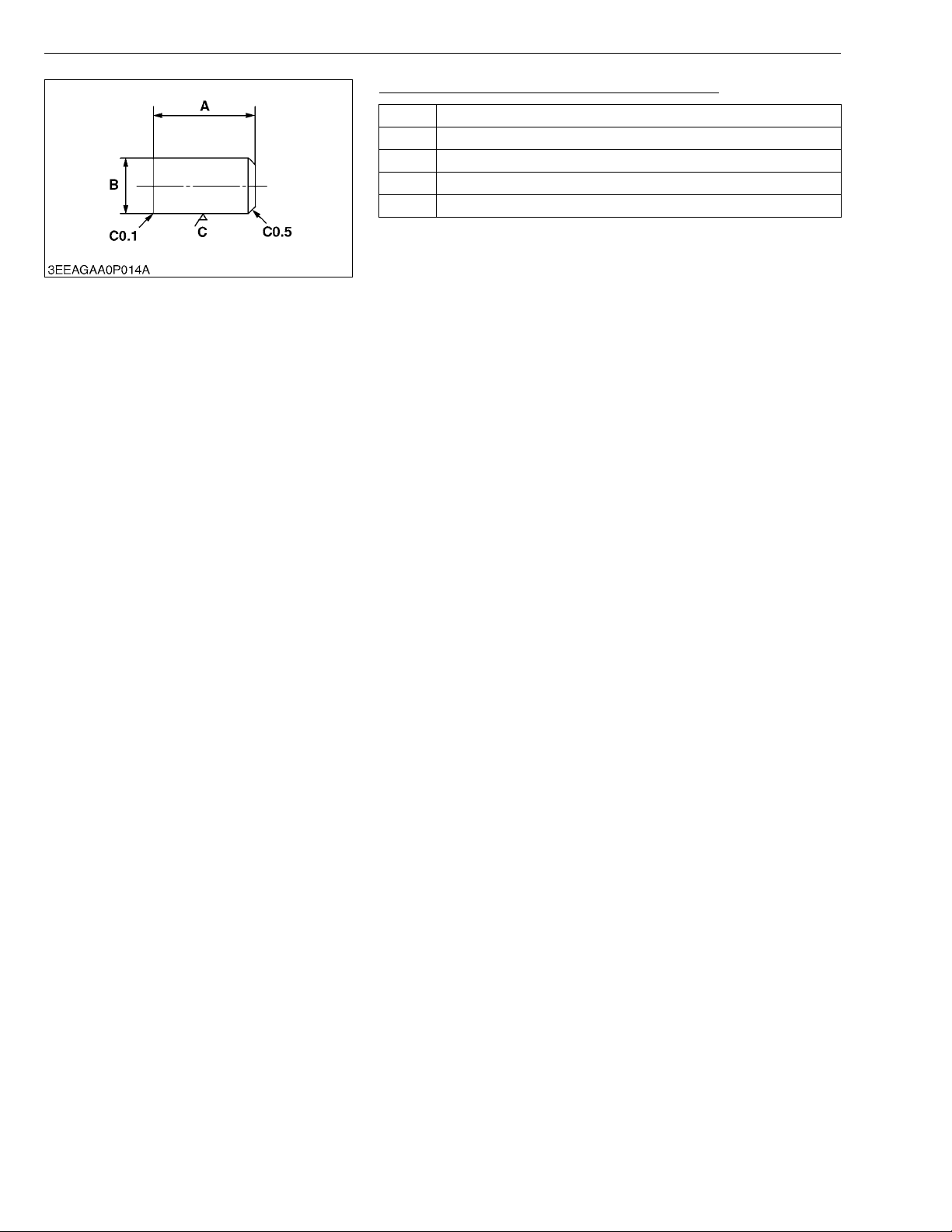

Pin for Balancer Shaft Bearing Replacing Tool

A 7.2 to 7.4 mm (0.283 to 0.291 in.)
B 4.0 mm dia. (0.158 in. dia.)
C Ra = 0.8 a

C0.1 Chamfer 0.1 mm (0.0039 in.)
C0.5 Chamfer 0.5 mm (0.0197 in.)

W1020662

G-56

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

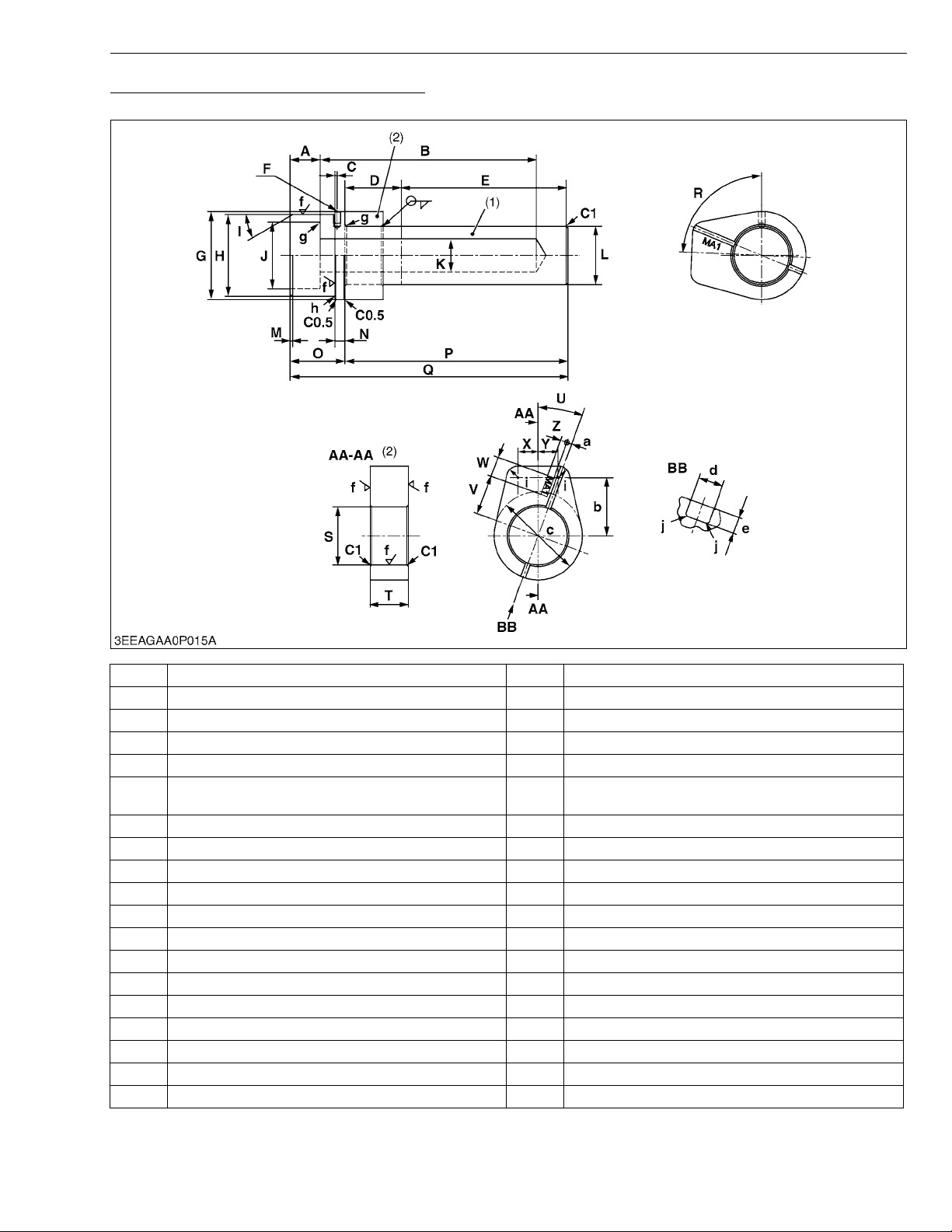

Balancer Shaft 1 Bearing A Replacing Tool

Application: Use to press fit the bearing.

G GENERAL

A 18 mm (0.7087 in.) T 23 mm (0.9055 in.)
B 130 mm (5.1181 in.) U 0.349 rad (20 °)
C 1.2 mm (0.0472 in.) V 24 mm (0.9449 in.)
D 34 mm (1.3386 in.) W 12 mm (0.4724 in.)
E 99 mm (3.8976 in.) X 12 mm (0.4724 in.)

4.000 to 4.018 mm dia., 7 mm depth

F

(0.1575 to 0.1582 in. dia., 0.2756 in. depth)

G 53 mm dia. (2.0866 in. dia.) Z 4 mm (0.1575 in.)
H 48.8 to 48.9 mm dia. (1.9213 to 1.9252 in. dia.) a 3 mm (0.1181 in.)

I 0.523 rad (30 °) b 35 mm (1.3780 in.)

J 40 mm dia. (1.5748 in. dia.) c 53 mm (2.0866 in.)
K 20 mm dia. (0.7874 in. dia.) d 3 mm (0.1181 in.)
L 34.9 to 35.0 mm dia. (1.3740 to 1.3780 in. dia.) e 2 mm (0.0787 in.)
M 1.5 mm (0.0591 in.) f Ra = 3.2 a
N 5.5 to 6.5 mm (0.2165 to 0.2559 in.) g 0.8 mm radius (0.0315 in. radius)
O 33 mm (1.2992 in.) h 0.3 mm radius (0.0118 in. radius)
P 134 mm (5.2756 in.) i 7.0 mm radius (0.2756 in. radius)
Q 167 mm (6.5748 in.) j 0.4 mm radius (0.0157 in. radius)
R 1.526 rad (87.5 °) C0.5 Chamfer 0.5 mm (0.0197 in.)
S 35 mm dia. (1.3780 in. dia.) C1 Chamfer 1.0 mm (0.0394 in.)

Y 12 mm (0.4724 in.)

(1) Shaft (2) Stopper

G-57

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

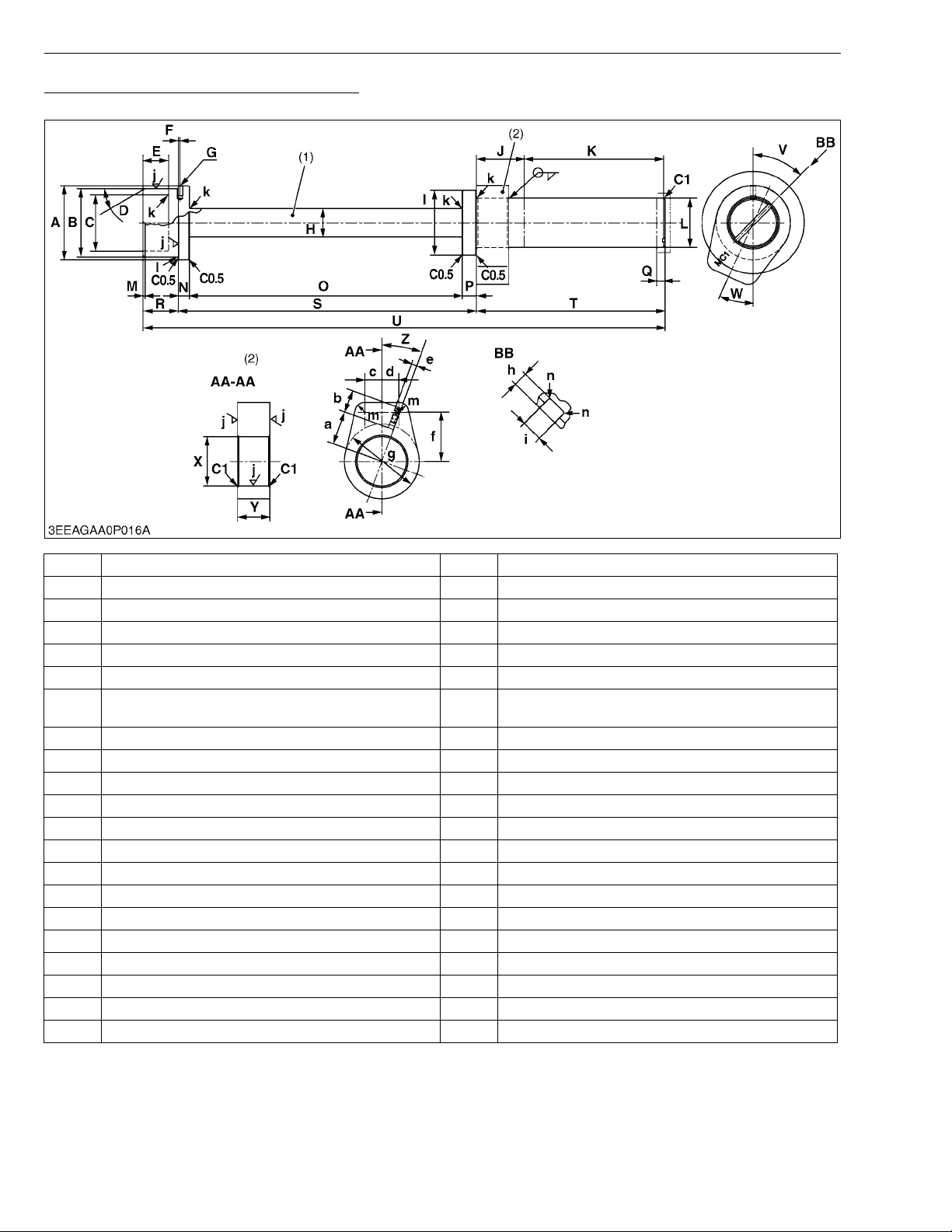

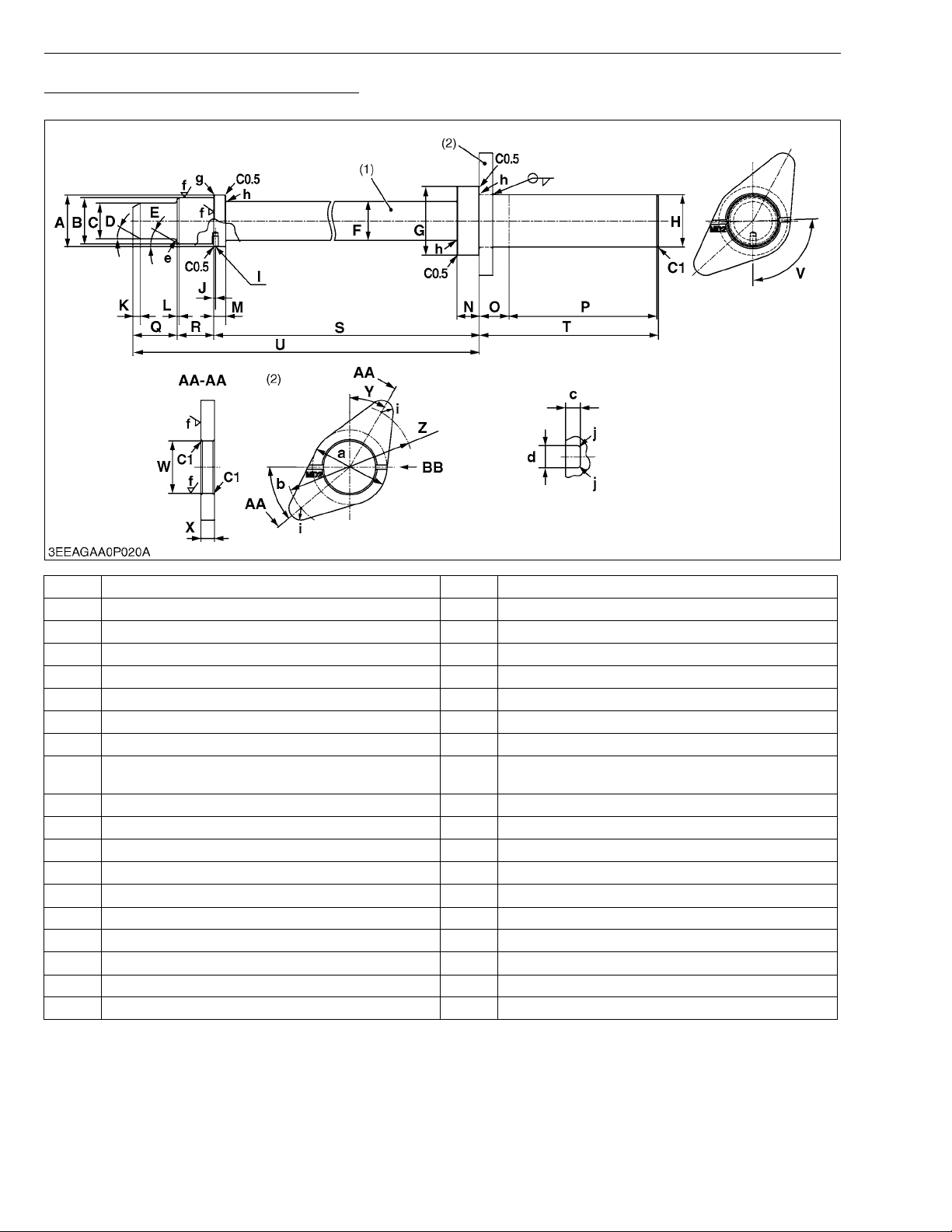

Balancer Shaft 1 Bearing C Replacing Tool

Application: Use to press fit the bearing.

G GENERAL

A 52.5 mm dia. (2.0669 in. dia.) V 0.855 rad (49 °)
B 48.4 to 48.5 mm dia. (1.9055 to 1.9095 in.) W 0.427 rad (24.5 °)
C 40 mm dia. (1.5748 in. dia.) X 35 mm dia. (1.3780 in. dia.)
D 0.523 rad (30 °) Y 23 mm (0.9055 in.)
E 18 mm (0.7087 in.) Z 0.349 rad (20 °)

F 1.2 mm (0.0472 in.) a 24 mm (0.9449 in.)

4.000 to 4.018 mm dia., 7 mm depth

G

(0.1575 to 0.1582 in. dia., 0.2756 in. depth)

H 20 mm dia. (0.7874 in. dia.) c 12 mm (0.4724 in.)

I 46 mm dia. (1.8110 in. dia.) d 12 mm (0.4724 in.)

J 34 mm (1.3386 in.) e 4 mm (0.1575 in.)

K 99 mm (3.8976 in.) f 35 mm (1.3780 in.)

L 34.9 to 35.0 mm (1.3740 to 1.3780 in.) g 53 mm (2.0866 in.)
M 1.5 mm (0.0591 in.) h 2 mm (0.0787 in.)
N 8 mm (0.3150 in.) i 3 mm (0.1181 in.)
O 193.5 mm (7.6181 in.) j Ra = 3.2 a
P 10 mm (0.3937 in.) k 0.8 mm radius (0.0315 in. radius)
Q 6 mm (0.2362 in.)
R 25 mm (0.9843 in.) m 7.0 mm radius (0.2756 in. radius)
S 211.0 to 212.0 mm (8.3071 to 8.3465 in.) n 0.4 mm radius (0.0157 in. radius)
T 134 mm (5.2756 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
U 370.5 mm (14.5866 in.) C1 Chamfer 1.0 mm (0.0394 in.)

b 16 mm (0.6299 in.)

l 0.3 mm radius (0.0118 in. radius)

(1) Shaft (2) Stopper

G-58

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

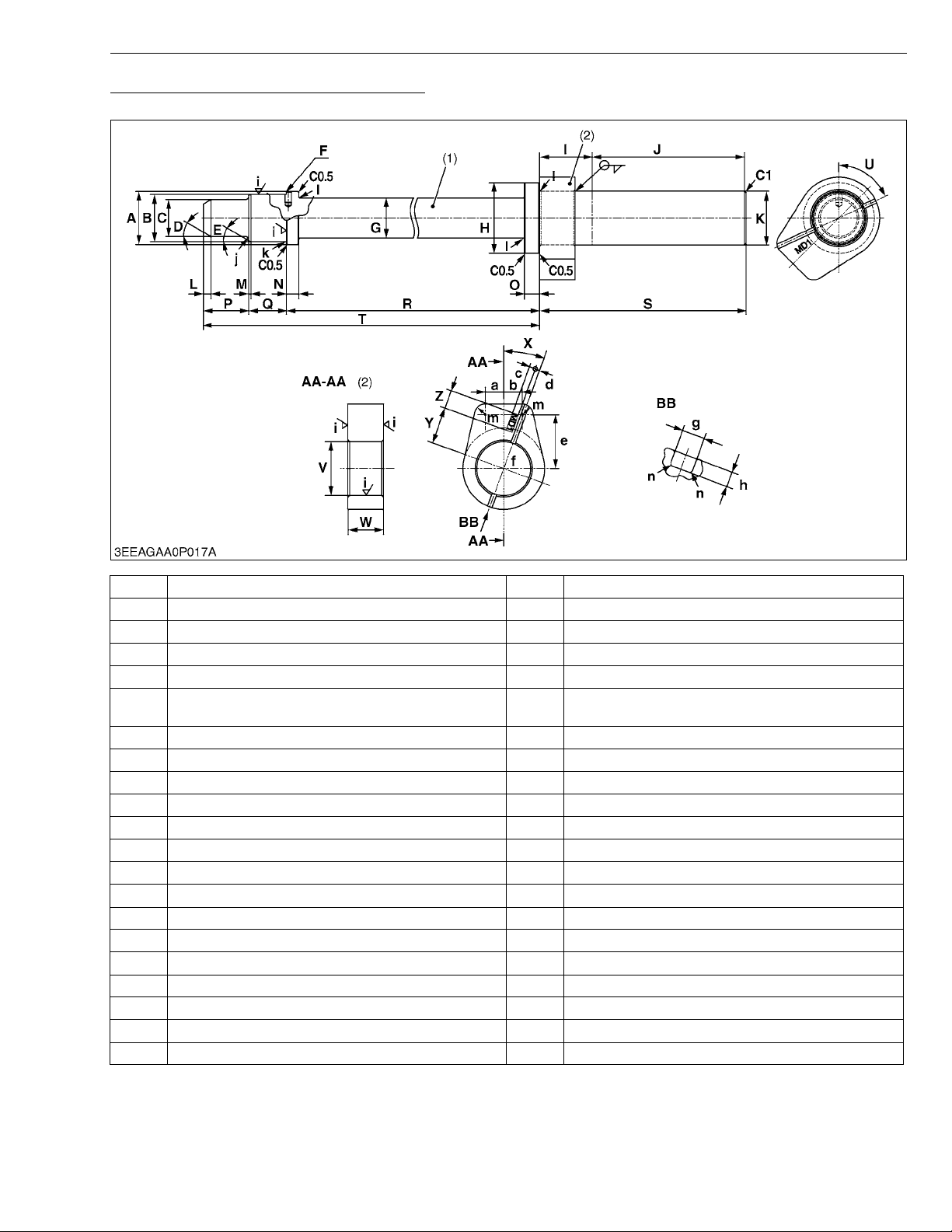

Balancer Shaft 1 Bearing D Replacing Tool

Application: Use to press fit the bearing.

G GENERAL

A 34.5 mm dia. (1.3583 in. dia.) V 35 mm dia. (1.3780 in. dia.)
B 30.8 to 30.9 mm dia. (1.2126 to 1.2165 in. dia.) W 23 mm (0.9055 in.)
C 24 mm dia. (0.9449 in. dia.) X 0.349 rad (20 °)
D 0.523 rad (30 °) Y 24 mm (0.9449 in.)
E 0.523 rad (30 °) Z 12 mm (0.4724 in.)

4.000 to 4.018 mm dia., 7 mm depth

F

(0.1575 to 0.1582 in. dia., 0.2756 in. depth)

G 26 mm dia. (1.0236 in. dia.) b 12 mm (0.4724 in.)
H 46 mm dia. (1.8110 in. dia.) c 4 mm (0.1575 in.)

I 34 mm (1.3386 in.) d 3 mm (0.1181 in.)

J 99 mm (3.8976 in.) e 35 mm (1.3780 in.)
K 34.9 to 35.0 mm (1.3740 to 1.3780 in.) f 53 mm (2.0866 in.)
L 5 mm (0.1969 in.) g 3 mm (0.1181 in.)
M 1.5 mm (0.0591 in.) h 2 mm (0.0787 in.)
N 8 mm (0.3150 in.) i Ra = 3.2 a
O 10 mm (0.3937 in.) j 2.0 mm radius (0.0787 in. radius)
P 29.5 mm (1.1614 in.) l 0.3 mm radius (0.0118 in. radius)
Q 24.5 mm (0.9646 in.) k 0.8 mm radius (0.0315 in. radius)
R 413.5 to 414.5 mm (16.2795 to 16.3189 in.) m 7.0 mm radius (0.2756 in. radius)
S 134 mm (5.2756 in.) n 0.4 mm radius (0.0157 in. radius)
T 468 mm (18.4252 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
U 1.134 rad (65 °) C1 Chamfer 1.0 mm (0.0394 in.)

a 12 mm (0.4724 in.)

(1) Shaft (2) Stopper

G-59

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

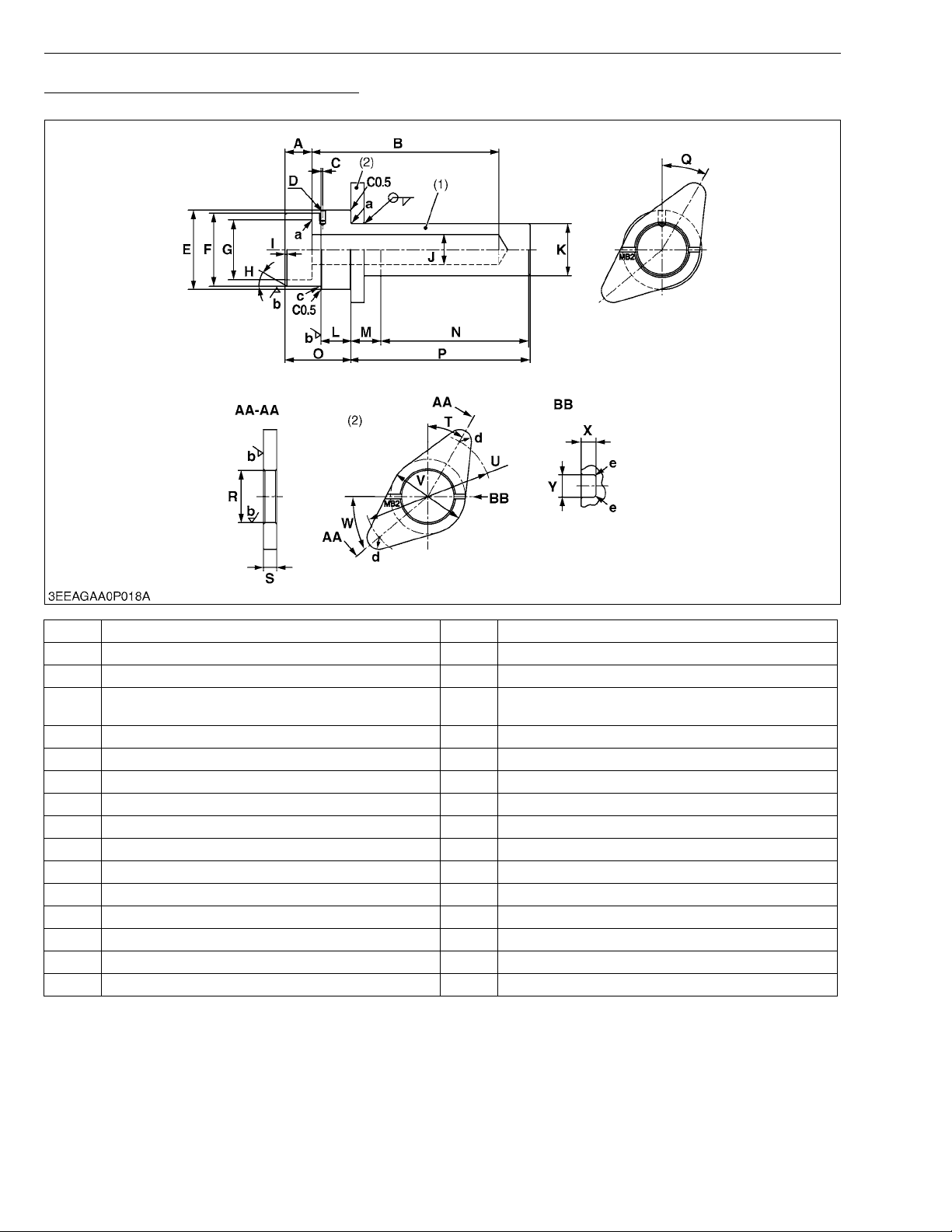

Balancer Shaft 2 Bearing B Replacing Tool

Application: Use to press fit the bearing.

G GENERAL

A 18 mm (0.7087 in.) Q 0.523 rad (30 °)
B 125 mm (4.9213 in.) R 35 mm dia. (1.3780 in. dia.)
C 1.2 mm (0.0472 in.) S 9 mm (0.3543 in.)

4.000 to 4.018 mm dia., 7 mm depth

D

(0.1575 to 0.1582 in. dia., 0.2756 in. depth)

E 53 mm dia. (2.0866 in.) U 84.5 to 85.5 mm (3.3268 to 3.3661 in.)
F 48.8 to 48.9 mm dia. (1.9213 to 1.9252 in. dia.) V 50 mm (1.9685 in.)
G 40 mm dia. (1.5748 in. dia.) W 0.698 rad (40 °)
H 0.523 rad (30 °) X 2 mm (0.0787 in.)

I 1.5 mm (0.0591 in.) Y 3 mm (0.1181 in.)

J 20 mm dia. (0.7874 in. dia.) a 0.8 mm radius (0.0315 in. radius)

K 34.9 to 35.0 mm dia. (1.3740 to 1.3780 in. dia.) b Ra = 3.2 a

L 19.5 to 20.5 mm dia. (0.7677 to 0.8071 in. dia.) c 0.2 mm radius (0.0079 in. radius)
M 20 mm (0.7874 in.) d 8.0 mm radius (0.3150 in. radius)
N 99 mm (3.8976 in.) e 0.4 mm radius (0.0157 in. radius)
O 44 mm (1.7323 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
P 120 mm (4.7244 in.) C1 Chamfer 1.0 mm (0.0394 in.)

(1) Shaft (2) Stopper

T 0.523 rad (30 °)

G-60

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

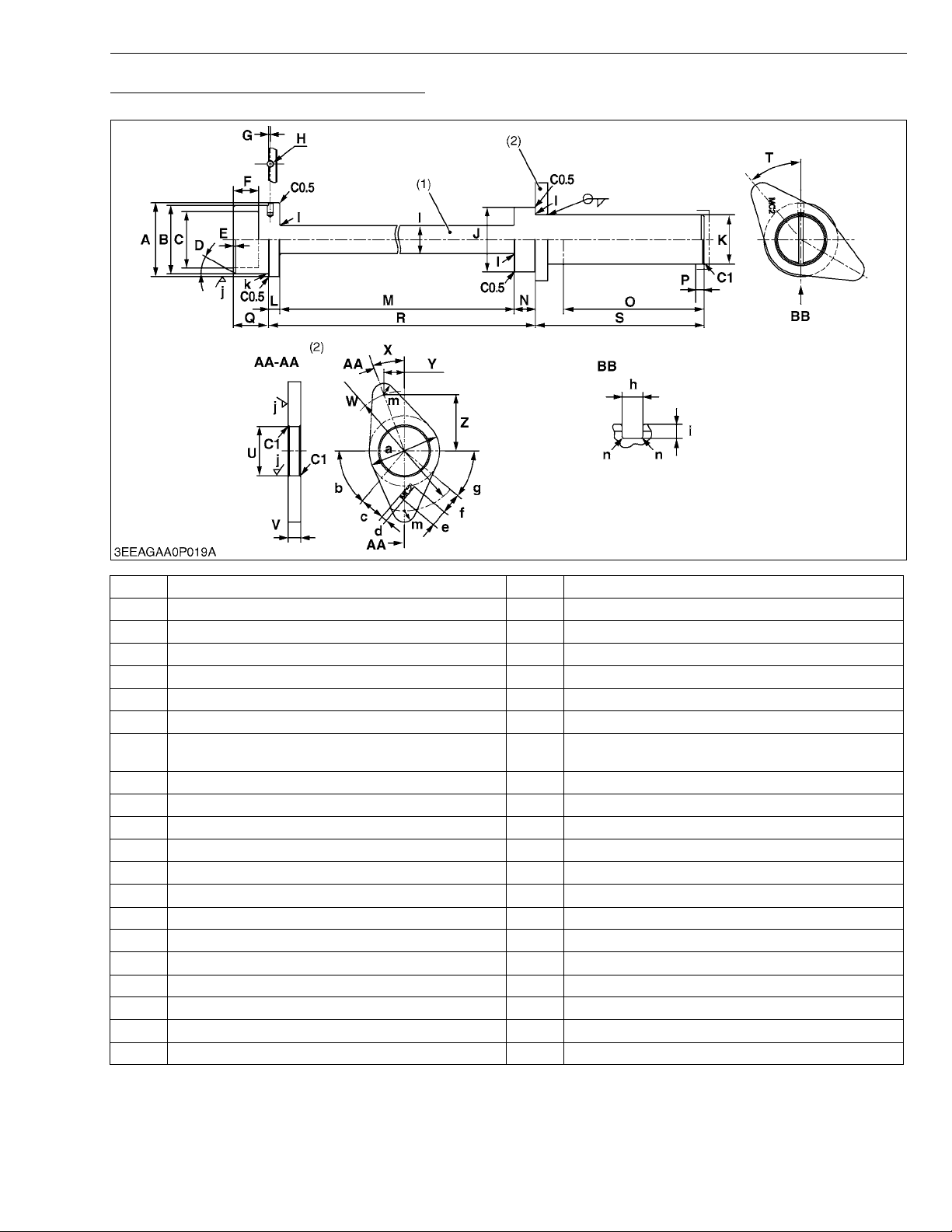

Balancer Shaft 2 Bearing C Replacing Tool

Application: Use to press fit the bearing.

G GENERAL

A 52.5 mm dia. (2.0669 in. dia.) V 9 mm (0.3543 in.)
B 48.3 to 48.4 mm dia. (1.9016 to 1.9055 in.) W 84.5 to 85.5 mm (3.3268 to 3.3661 in.)
C 40 mm dia. (1.5748 in. dia.) X 0.349 rad (20 °)
D 0.523 rad (30 °) Y 14.54 mm (0.5724 in.)
E 1.5 mm (0.0591 in.) Z 39.94 mm (1.5724 in.)
F 18 mm (0.7087 in.) a 50 mm (1.9685 in.)
G 1.2 mm (0.0472 in.) b 0.872 rad (50 °)

4.000 to 4.018 mm dia., 7 mm depth

H

(0.1575 to 0.1582 in. dia., 0.2756 in. depth)

I 20 mm dia. (0.7874 in. dia.) d 4 mm (0.1575 in.)

J 46 mm dia. (1.8110 in. dia.) e 12 mm (0.4724 in.)
K 34.9 to 35.0 mm dia. (1.3740 to 1.3780 in. dia.) f 15 mm (0.5906 in.)
L 8 mm (0.3150 in.) g 0.698 rad (40 °)
M 199.5 mm (7.8543 in.) h 3 mm (0.1181 in.)
N 15 mm (0.5906 in.) i 2 mm (0.0787 in.)
O 100 mm (3.9370 in.) j Ra = 3.2 a
P 6 mm (0.2362 in.) l 0.2 mm radius (0.0079 in. radius)
Q 25 mm (0.9843 in.) k 0.8 mm radius (0.0315 in. radius)
R 222.0 to 223.0 mm (8.7402 to 8.7795 in.) m 8.0 mm radius (0.3150 in. radius)
S 120 mm (4.7244 in.) n 0.4 mm radius (0.0157 in. radius)
T 0.698 rad (40 °) C0.5 Chamfer 0.5 mm (0.0197 in.)
U 35 mm dia. (1.3780 in.) C1 Chamfer 1.0 mm (0.0394 in.)

c 18 mm (0.7087 in.)

(1) Shaft (2) Stopper

G-61

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

Balancer Shaft 2 Bearing D Replacing Tool

Application: Use to press fit the bearing.

G GENERAL

A 34.5 mm dia. (1.3583 in. dia.) T 120 mm (4.7244 in.)
B 30.8 to 30.9 mm dia. (1.2126 to 1.2165 in.) U 479 mm (18.8583 in.)
C 24 mm dia. (0.9449 in. dia.) V 1.605 rad (92 °)
D 0.523 rad (30 °) W 35 mm dia. (1.3780 in. dia.)
E 0.523 rad (30 °) X 9 mm (0.3543 in.)

F 26 mm dia. (1.0236 in. dia.) Y 0.523 rad (30 °)
G 46 mm dia. (1.8110 in. dia.) Z 84.5 to 85.5 mm (3.3268 to 3.3661 in.)
H 34.9 to 35.0 mm dia. (1.3740 to 1.3780 in. dia.) a 50 mm (1.9685 in.)

4.000 to 4.018 mm dia., 7 mm depth

I

(0.1575 to 0.1582 in. dia., 0.2756 in. depth)

J 1.2 mm (0.0472 in.) c 2 mm (0.0787 in.)
K 5 mm (0.1969 in.) d 3 mm (0.1181 in.)

L 1.5 mm (0.0591 in.) e 2 mm radius (0.0787 in. radius)
M 8 mm (0.3150 in.) f Ra = 3.2 a
N 15 mm (0.5906 in.) g 0.3 mm radius (0.0118 in. radius)
O 20 mm (0.7874 in.) h 0.8 mm radius (0.0315 in. radius)
P 99 mm (3.8976 in.) i 8.0 mm radius (0.3150 in. radius)
Q 29.5 mm (1.1614 in.) j 0.4 mm radius (0.0157 in. radius)
R 24.5 mm (0.9646 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
S 424.5 to 425.5 mm (16.7126 to 16.7520 in.) C1 Chamfer 1.0 mm (0.0394 in.)

b 0.698 rad (40 °)

(1) Shaft (2) Stopper

G-62

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

[2] SPECIAL TOOLS FOR TRACTOR

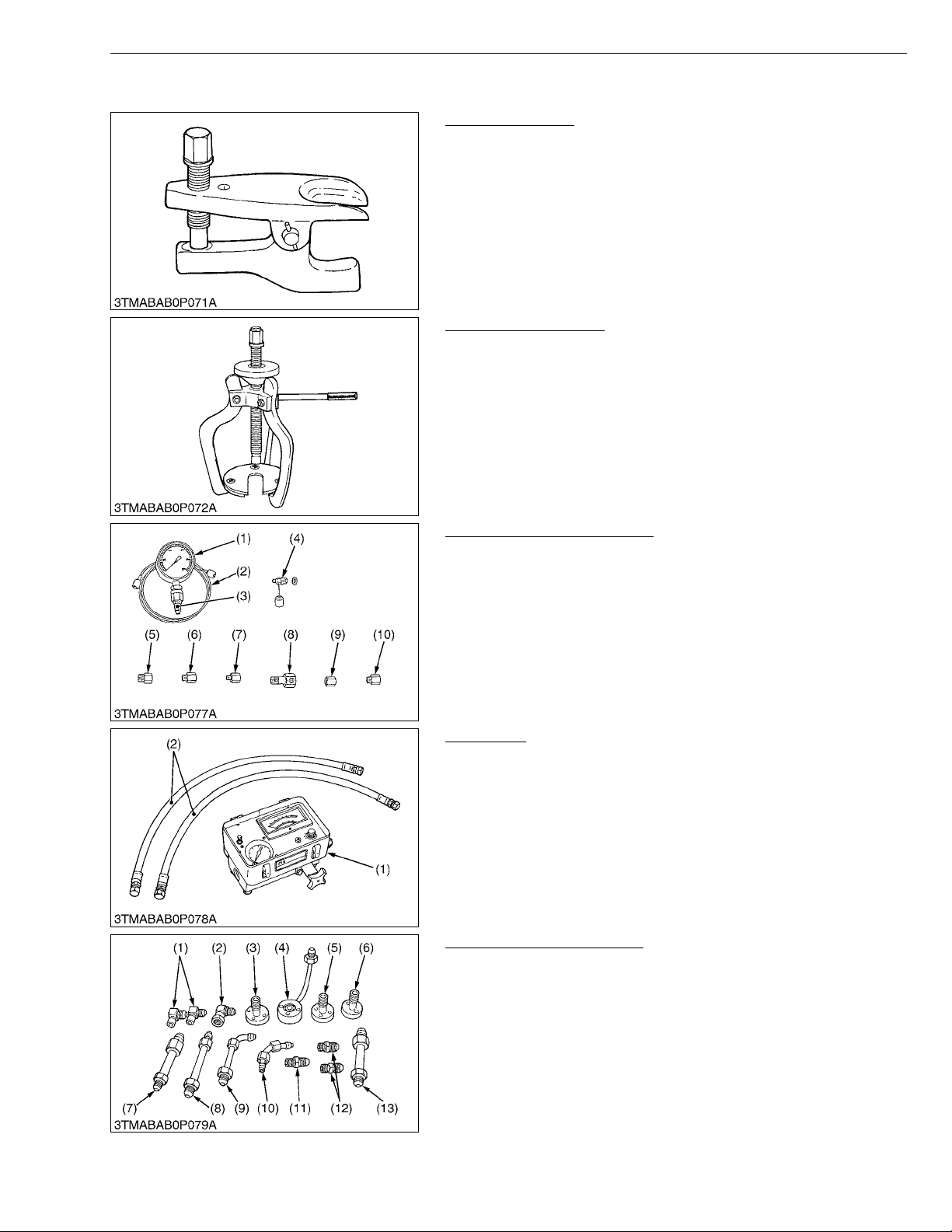

Tie-rod End Lifter

Code No.: 07909-39051
Application: Use for removing the tie-rod end with ease.

Steering Wheel Puller

Code No.: 07916-51090
Application: Use for removing the steering wheel without damaging

G GENERAL

W10264720

the steering shaft.

W10265330

Relief Valve Pressure Tester

Code No.: 07916-50045
Application: This allows easy measurement of relief set pressure.

(1) Gauge (07916-50322)
(2) Cable (07916-50331)
(3) Threaded Joint (07916-50401)
(4) Threaded Joint (07916-50341)
(5) Adaptor B (M 18 × P1.5)

(07916-50361)

(6) Adaptor C (PS3/8) (07916-50371)
(7) Adaptor D (PT1/8) (07916-50381)
(8) Adaptor E (PS3/8) (07916-50392)
(9) Adaptor F (PF1/2) (07916-62601)

(10) Adaptor 58 (PT1/4) (07916-52391)

W10267410

Flow Meter

Code No.: 07916-52791 (Flow Meter)

07916-52651 (Hydraulic Test Hose)

Application: This allows easy testing of hydraulic system.

(1) Flow Meter (2) Hydraulic Test Hose

W10313180

Adaptor Set for Flow Meter

Code No.: 07916-54031
Application: Use for testing the hydr au lic system.

(1) Adaptor 52
(2) Adaptor 53
(3) Adaptor 54
(4) Adaptor 61
(5) Adaptor 62
(6) Adaptor 63
(7) Adaptor 64

(8) Adaptor 65
(9) Adaptor 66

(10) Adaptor 67

(11) Adaptor 68
(12) Adaptor 69
(13) Hydraulic Adaptor 1

W10313960

G-63

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

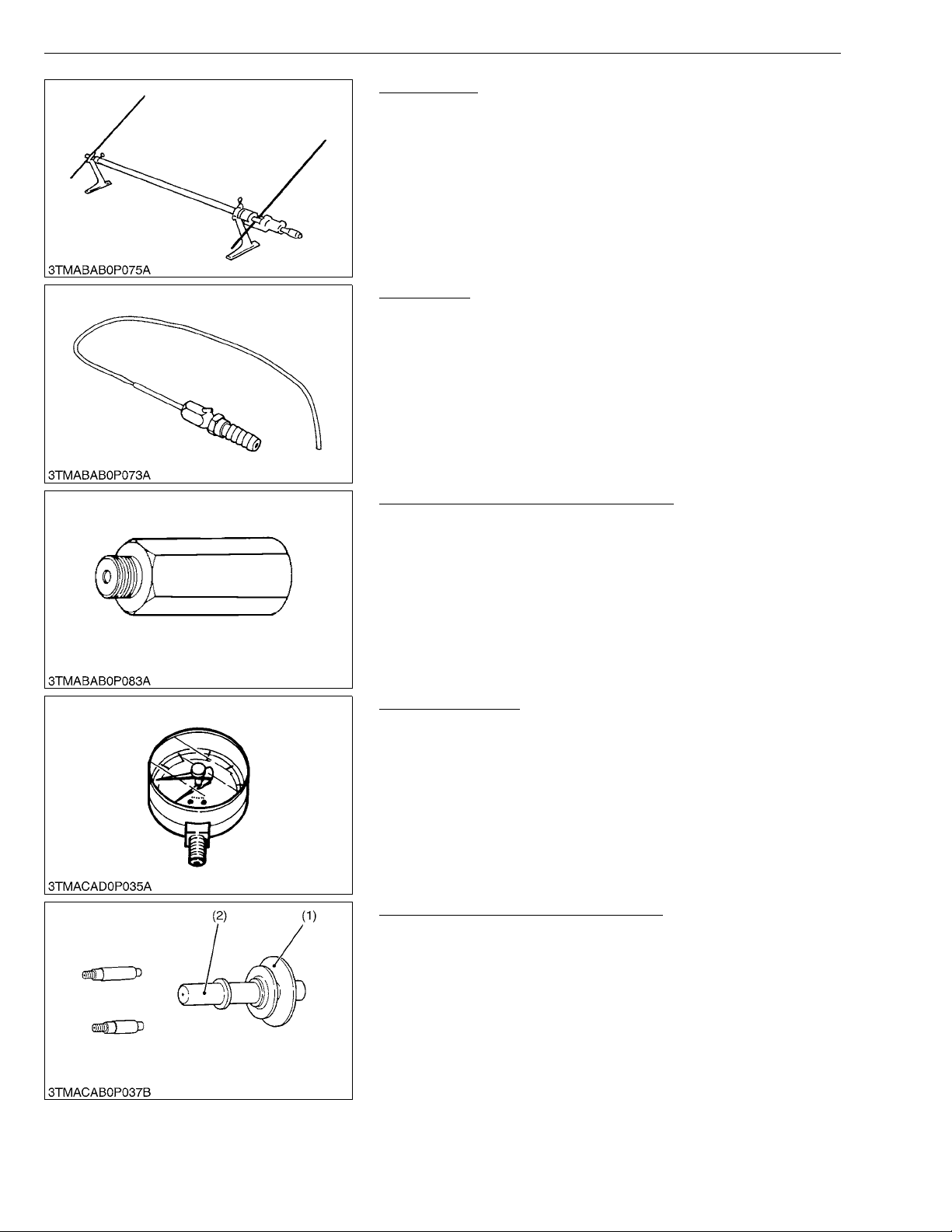

Toe-in Gauge

Code No.: 07909-31681
Application: This allows easy measurement of toe-in for all machine

models.

W10266890

Injector CH3

Code No.: 07916-52501
Application: Use for injecting calcium chloride solution into, and

removing it from, rear wheel.

W10265850

Relief Valve Setting Pressure Adaptor G

Code No.: 07916-52751
Application: This offers easy measurement of relief valve setting

pressure from the hydraulic coupler . This is available
with the relief valve setting pressure tester.

W10623960

Pressure Gauge 50

Code No.: 07916-52961
Application: This pressure gauge is used to measure the low oil

pressure.

W10518650

Clutch Tool B (Synchro Shuttle Model)

Code No.: 07916-53041
Application: Use for mounting the clutch to the flywheel.

(1) Gauge Ring (2) Center Par

W10520300

G-64

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

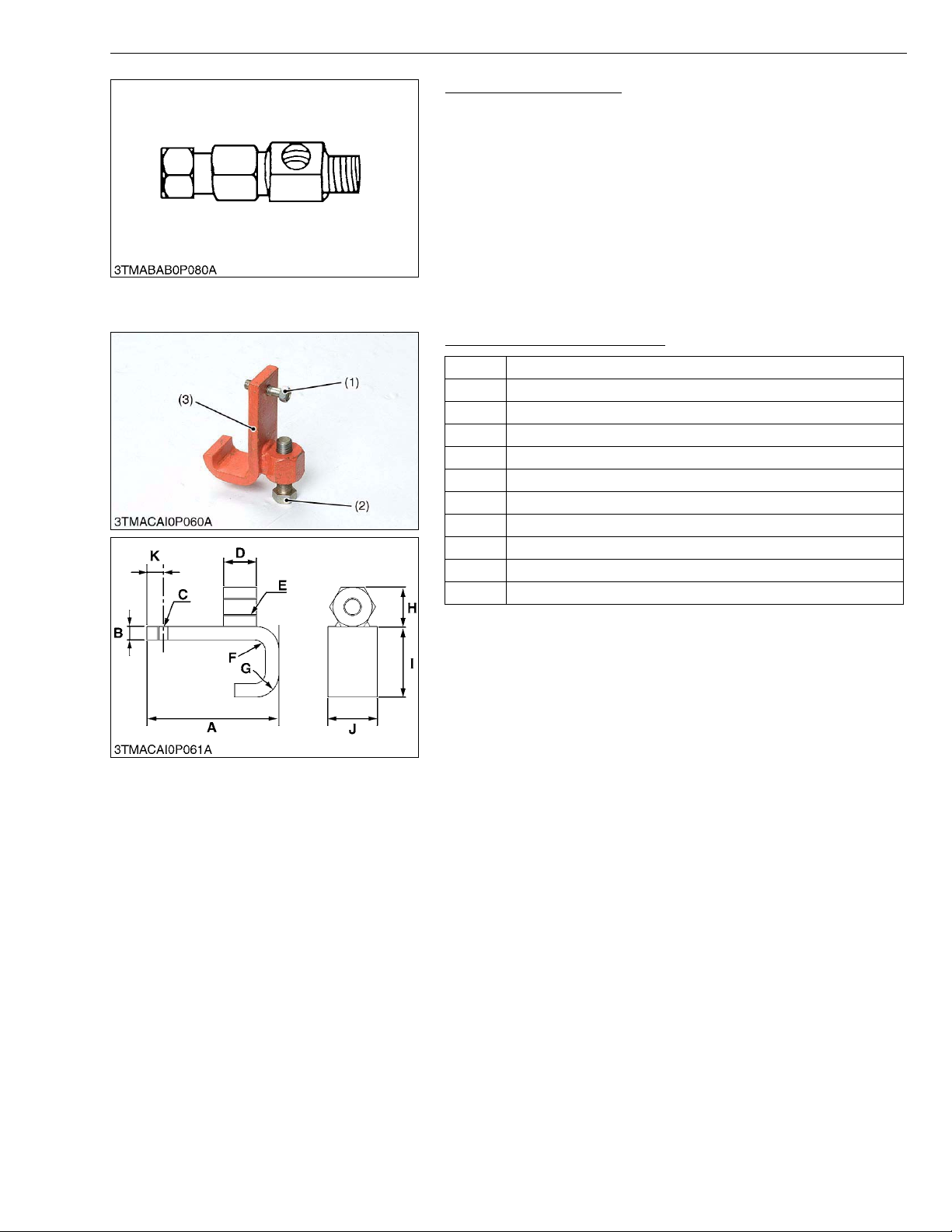

Power Steering Adaptor

Code No.: 07916-54021
Application: Use for measuring the relief valve setting pressure for

power steering.

NOTEQ

• The following special tools are not provided, make them referring to the figure.
Front Axle Rocking Restrictor

A 120 mm (4.72 in.)
B 12 mm (0.72 in.)
C M10 × P1.25
D 30 mm (1.18 in.)
E M16 × P1.5

F 10 mm (0.39 in.)
G 20 mm (0.79 in.)
H 36 mm (1.42 in.)

I 64 mm (2.52 in.)

J 45 mm (1.77 in.)
K 20 mm (0.79 in.)

G GENERAL

W10442870

(1) Screw

M10 × P1.25 × L50 mm (2 in.)

(2) Screw

M16 × P1.5 × L50 mm (2 in.)

(3) Rocking Restrictor

W10545380

G-65

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

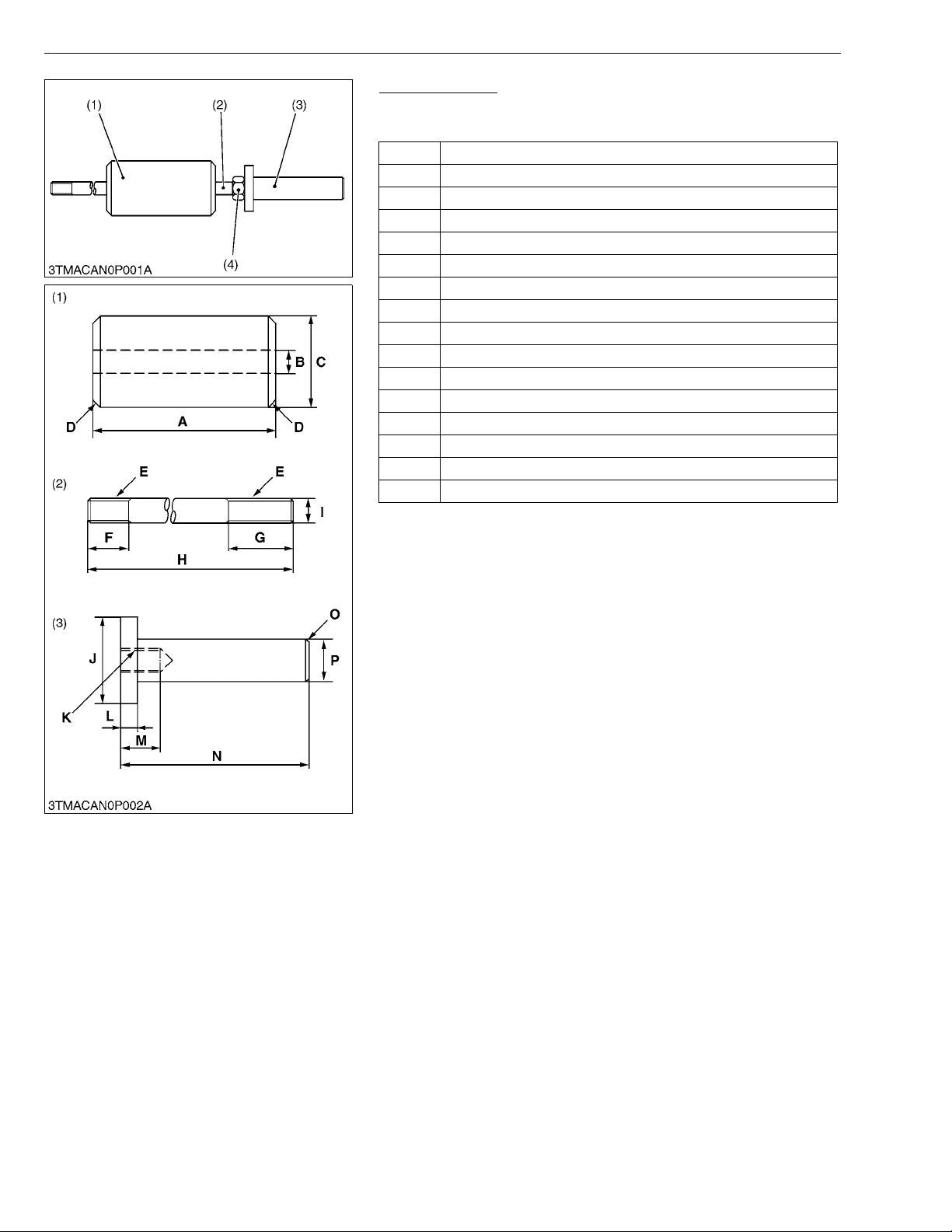

Sliding Hammer

Application : Use to removing the bevel pinion shaft with adaptor for

front axle.

A 120 mm (4.72 in.)
B 14.5 mm dia. (0.57 in. dia.)
C 60 mm dia. (2.36 in. dia.)
D Chamfer 5 mm (0.20 in.)

E M14 x P1.5

F 25 mm (0.98 in.)
G 40 mm (1.57 in.)
H 450 mm (17.72 in.)

I 14 mm dia. (0.55 in. dia.)

J 50 mm dia. (1.97 in. dia.)
K M14 x P1.5

L 10 mm (0.39 in.)
M 30 mm (1.18 in.)
N 110 mm (4.3 in.)
O Chamfer 2 mm (0.08 in.)

P 25 mm dia. (0.98 in. dia.)

(1) Hammer
(2) Sliding Shaft

(3) Handle
(4) Nut (M14 x P1.5)

W10532280

G-66

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

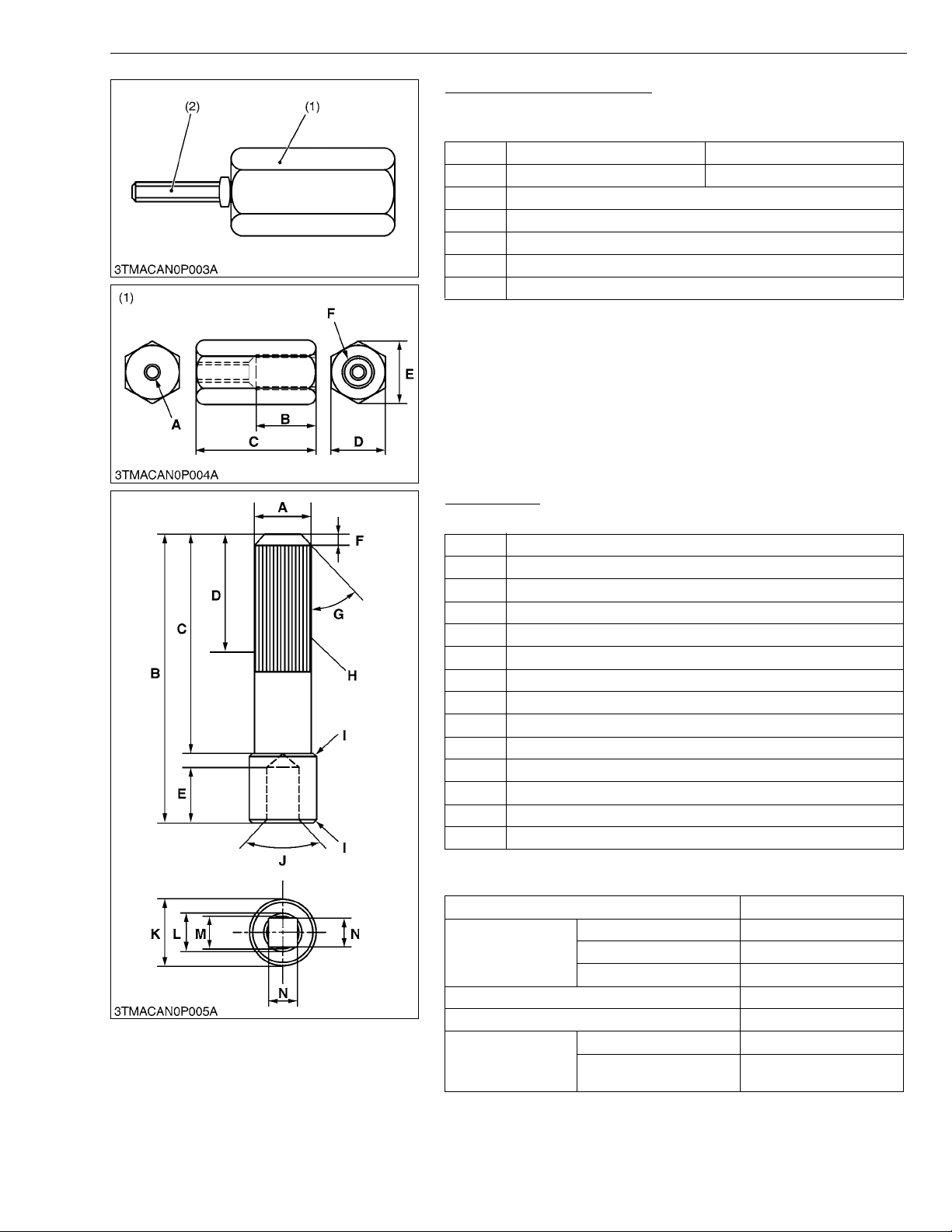

Adaptor for Sliding Hammer

Application :Use to removing the front axle bevel pinion shaft and

hydraulic pump drive gear pin with sliding hammer.

Front axle bevel pinion shaft Hydraulic pump drive gear pin

A M6 x P1.0 M8 x P1.25
B 25 mm (0.98 in.)
C 50 mm (1.97 in.)
D 23 mm (0.91 in.)
E 27 mm (1.06 in.)
F M14 x P1.5

(1) Adaptor (M6) (2) Stud Bolt (M6 x P1.0)

Stud Bolt (M8 x P1.25)

W10124150

LSD Adaptor

Application : Use for measuring the turning torque of LSD.

A 24.65 to 24.80 mm dia. (0.970 to 0.976 in. dia.)
B 131.85 to 132.15 mm (5.19 to 5.20 in.)
C 99.25 to 100.75 mm (3.91 to 3.97 in.)
D 54 to 60 mm full spline (2.12 to 2.36 in. full spline)
E 22.4 to 28.4 mm (0.88 to 1.11 in.)

F 4 to 6 mm (0.16 to 0.23 in.)
G 0.52 rad (30 °)
H Involute spline (refer to below)

I Chamfer 3.0 mm (0.12 in.)

J 1.05 rad (60 °)
K 29.5 to 30.5 mm dia. (1.16 to 1.20 in. dia.)

L 17.87 mm dia. (0.7 in. dia.)
M 13.95 to 14.25 mm dia. (0.55 to 0.56 in. dia.)
N 12.75 to 12.90 mm square (0.50 to 0.51 in. square)

(Involute Spline)

• EXTERNAL 25 x 24Z x 1.0 m x 30

Coefficient of profile shifting 0.000

Tooth form Stub tooth

Tool

Number of teeth 24
Diameter of basic pitch circle 24 mm

Tooth thickness

Module 1.00
Pressure angle 0.52 rad (30 °)

Grade Class a
Over pitch diameter

26.534 to 26.645 mm
(Pin diameter = 1.8 mm)

(Reference)

• This tool can be made by welding the yoke shaft R.H. (3C091-

43210) and socket wrench.

W1088756

G-67

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

Hydraulic Clutch Spring Compressor

Application: Use exclusively for pushing the spring, to remove the

external circlip for hydraulic shuttle clutch and PTO
hydraulic clutch.

PTO hydraulic clutch Hydraulic shuttle clutch

A 70 mm (2.76 in.) 70 mm (2.76 in.)
B 67.5 mm (2.66 in.) 67.5 mm (2.66 in.)
C 10 mm (0.39 in.) 10 mm (0.39 in.)
D 55 mm dia. (2.17 in. dia.) 80 mm dia. (3.15 in. dia.)

60.35 to 60.40 mm dia.

E

(2.376 to 2.378 in. dia.)

F 65 mm dia. (2.56 in. dia.) 90 mm dia. (3.54 in. dia.)

G 40 mm (1.57 in.) 40 mm (1.57 in.)

85.35 to 85.40 mm dia.
(3.360 to 3.362 in. dia.)

W1013752

PTO Propeller Shaft Guide (Synchro Shuttle Model)

Application: Use to installing the propeller shaft to 21T gear shaft.

A 24.85 to 24.95 mm dia. (0.9783 to 0.9823 in. dia.)
B 0.26 rad (15 °)
C 0.35 rad (20 °)
D 23.7 to 23.8 mm dia. (0.9331 to 0.9370 in. dia.)

E 20 mm dia. (0.79 in. dia.)

F 2.1 rad (120 °)
G Under 12 mm dia. (0.47 in. dia.)
H 15 mm (0.59 in.)

I 8 mm (0.31 in.)

J 48 mm (1.89 in.)
K Rmax = 25 S

L Rmax = 6.3 S

a 1.0 mm radius (0.039 in. radius)

b 2.0 mm radius (0.079 in. radius)

c 0.8 mm radius (0.031 in. radius)

W1078372

Guide Screw (Synchro Shuttle Model)

Application: Use for mounting the synchro shuttle together with PTO

propeller shaft guide.

Quantity: 4 screws.

A 630 mm (24.8 in.)
B 20 mm (0.78 in.)
C M10 x P1.25
D 10 mm dia. (0.39 in. dia.)

E Chamfer 1.0 mm (0.039 in.)

W1014554

G-68

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

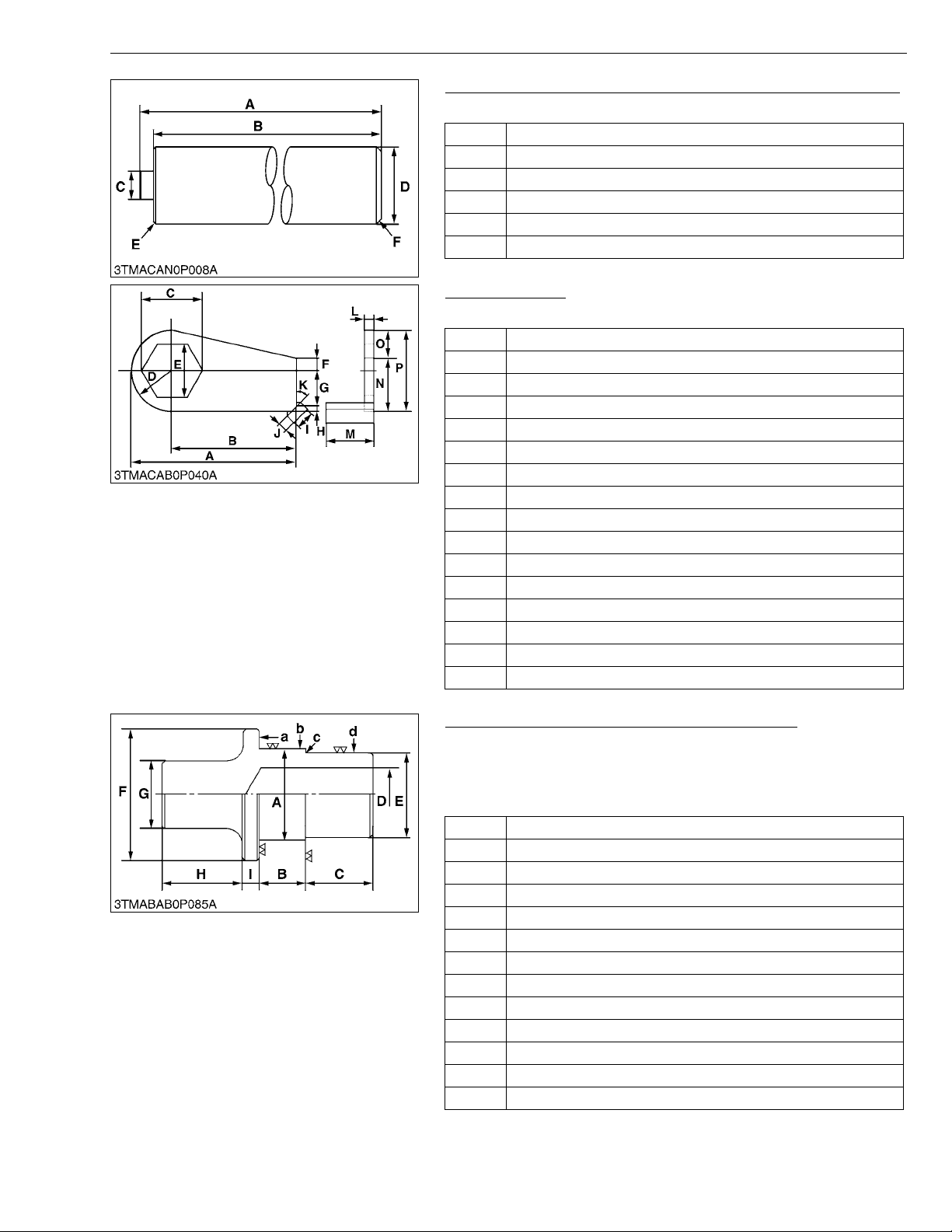

PTO Propeller Shaft Oil Seal Installer (Synchro Shuttle Model)

Application : Use for installing the PTO propeller shaft oil seal.

A 200 mm (7.87 in.)
B 194 mm (7.64 in.)
C 24.4 to 24.6 mm dia. (0.961 to 0.969 in. dia.)
D 34.5 to 34.95 mm dia. (1.36 to 1.37 in. dia.)
E Chamfer 1.0 mm (0.039 in.)

F Chamfer 2.0 mm (0.078 in.)

W10148580

Locking Wrench

Application : Use for locking pinion nut.

A 170 mm (6.69 in.)
B 130 mm (5.12 in.)
C 63.5 mm (2.5 in.)
D 40 mm radius (1.57 in. radius)
E 55 mm (2.17 in.)

F 15 mm (0.59 in.)
G 35 mm (1.38 in.)
H 5 mm (0.2 in.)

I 20 mm (0.55 in.)

J 10 mm (0.39 in.)
K 0.78 rad (45 °)

L 10 mm (0.39 in.)
M 50 mm (1.97 in.)
N 55 mm (2.17 in.)
O 25 mm (0.97 in.)
P 80 mm (3.15 in.)

W1034911

Hydraulic Arm Shaft Bushing Press-Fitting Tool

Application : Use for replacing the hydraulic arm shaft bushings in

the hydraulic cylinder body.

NOTEQ

• Unless otherwise specified : All surface 12.5 μm (0.0005 in.)

A 49.85 to 49.95 mm (1.963 to 1.966 in.)
B 15 mm (0.59 in.)
C 50 mm (1.969 in.)
D 30 mm (1.18 in.)
E 44.85 to 44.95 mm (1.766 to 1.770 in.)

F 78 mm dia. (3.07 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)

I 20 mm (0.79 in.)

a 6.3 μm (0.00025 in.)
b 6.3 μm (0.00025 in.)

c 6.3 μm (0.00025 in.)
d 6.3 μm (0.00025 in.)

W10316550

G-69

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

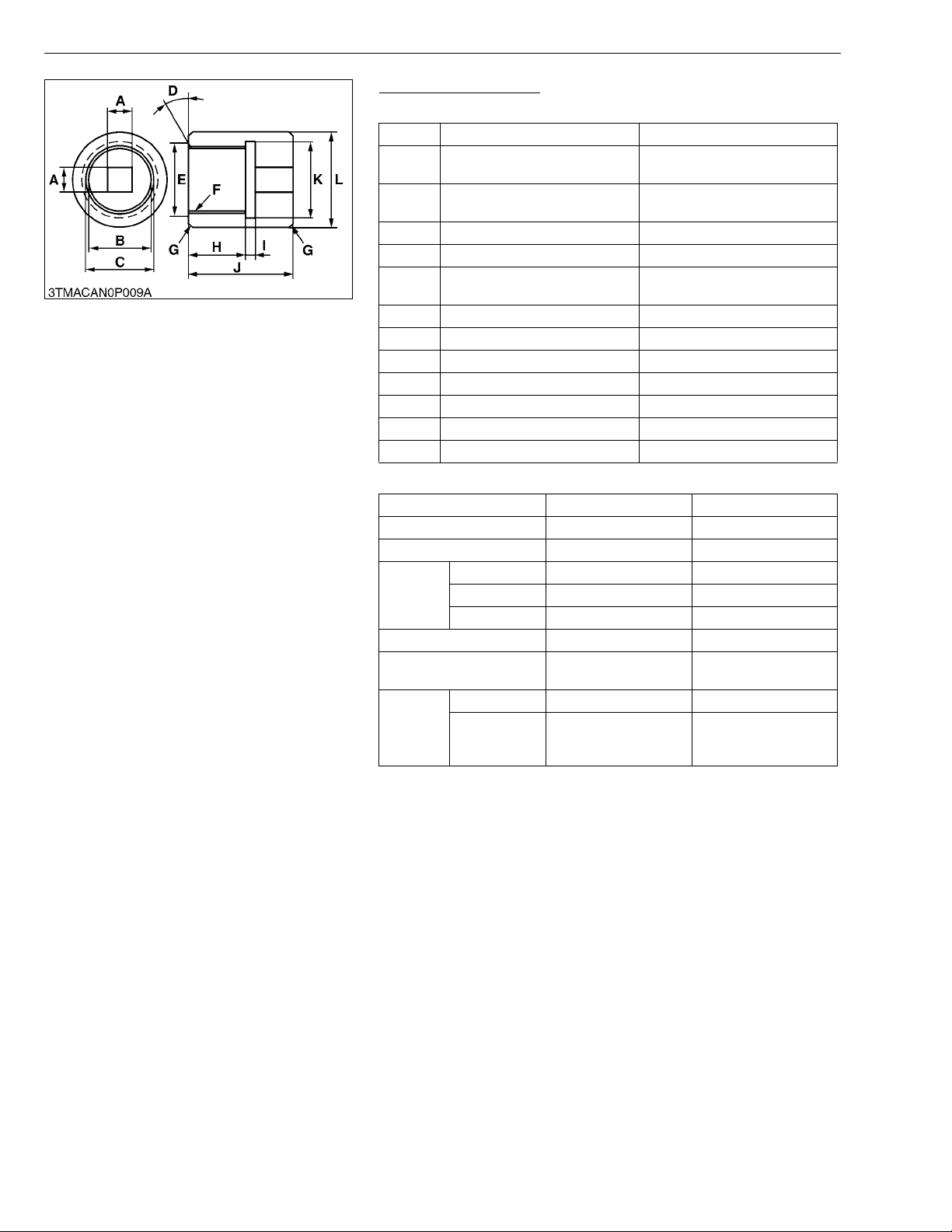

Bevel Gear Shaft Tool

Application :Use for measuring and tightening the bevel gear shaft.

Bevel gear for front axle Bevel gear for rear axle

12.75 to 12.90 mm square

A

(0.50 to 0.51 in. square)

B 25 mm dia. (0.984 in. dia.)
C 22.5 mm dia. (0.886 in. dia.) 32.5 mm dia. (1.28 in. dia.)

D 0.52 rad (30 °) 0.52 rad (30 °)
E 26.0 mm dia. (1.02 in. dia.)

F Involute spline (refer to below) Involute spline (refer to below)
G Chamfer 1.0 mm (0.039 in.) Chamfer 1.0 mm (0.039 in.)
H 30 mm (1.18 in.) 30 mm (1.18 in.)

I 5 mm (0.19 in.) 5 mm (0.19 in.)

J 55 mm (2.17 in.) 55 mm (2.17 in.)
K 30 mm dia. (1.18 in. dia.) 40 mm dia. (1.57 in. dia.)

L 40 mm dia. (1.57 in. dia.) 50 mm dia. (1.97 in. dia.)

12.75 to 12.90 mm square
(0.50 to 0.51 in. square)

30.000 to 30.025 mm dia.
(1.1811 to 1.1821 in. dia.)

32.6 to 33.0 mm dia.
(1.28 to 1.29 in. dia.)

(Involute Spline)

Bevel gear for front axle Bevel gear for rear axle
Spline (Internal) 25 x 18Z x 1.25m x 20 32.5 x 24Z x 1.25m x 20
Coefficient of profile shifting +0.800 +0.800

Tooth form Stub tooth Stub tooth

Tool

Number of teeth 18 24
Diameter of basic pitch

circle

Tooth
thickness

Module 1.250 1.250
Pressure angle 0.35 rad (20 °) 0.35 rad (20 °)

22.5 mm 30.0 mm
Grade Class a Class a
Between pin

diameter

20.084 to 20.155 mm

(Pin diameter = 2.50
mm)

27.584 to 27.656 mm
(Pin diameter = 2.50
mm)

(Reference)

• This tool can be made by welding the coupling (33710-04130)
and socket wrench for front bevel gear shaft.

• This tool can be made by welding the coupling (3C001-32010)
and socket wrench for rear bevel gear shaft.

W1015236

G-70

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

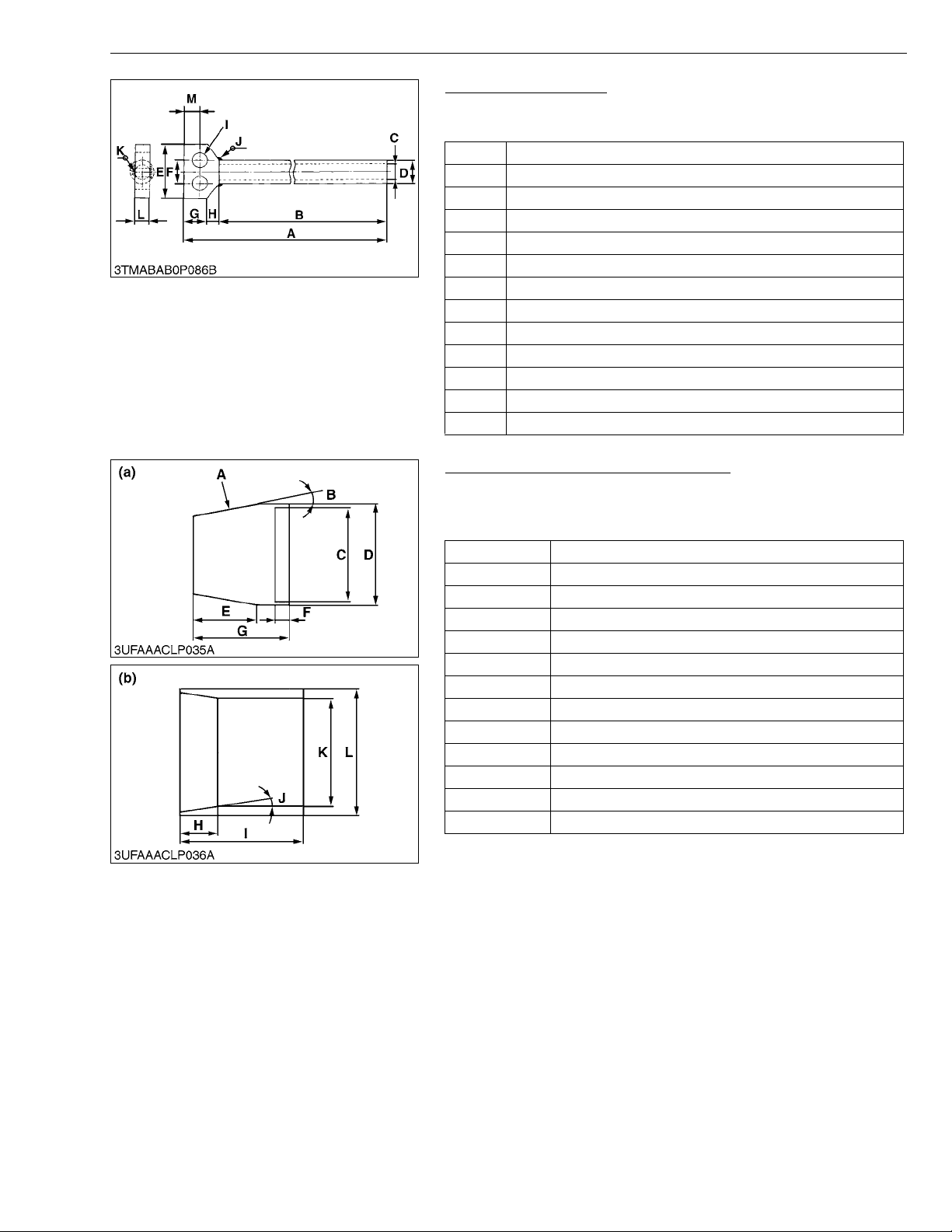

Draft Control Test Bar

Application : Use for checking the lift range and floating range of

hydraulic draft control.

A 1045 mm (41.14 in.)
B 1000 mm (29.37 in.)
C 20 mm dia. (0.79 in. dia.)
D 30 mm dia. (1.18 in. dia.)
E 100 mm (3.94 in.)

F 35.5 mm (1.4 in.)
G 30 mm (1.18 in.)
H 15 mm (0.59 in.)

I 20 mm dia. (0.79 in. dia.)

J Weld all around
K Weld all around

L 20 mm (0.79 in.)
M 26 mm (1.02 in.)

W1062519

Hydraulic Cylinder Piston Sealing Tool

Application :

Tool (a) : Use for installing the piston seals to the piston.
Tool (b) :Use for installing the piston to the cylinder.

Cylinder Size 55 mm (2.17 in.)

A 80 √
B 0.16 rad (9.0 °)
C 55.18 mm (2.172 in.)
D 56.18 mm (2.212 in.)
E 42 mm (1.7 in.)
F 10 mm (0.39 in.)
G 58.5 mm (2.30 in.)
H 14 mm (0.55 in.)

I 35 mm (1.4 in.)
J 0.12 rad (7.0 °)
K 55.0 mm (2.17 in.)
L 63.9 mm (2.52 in.)

W1045740

G-71

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

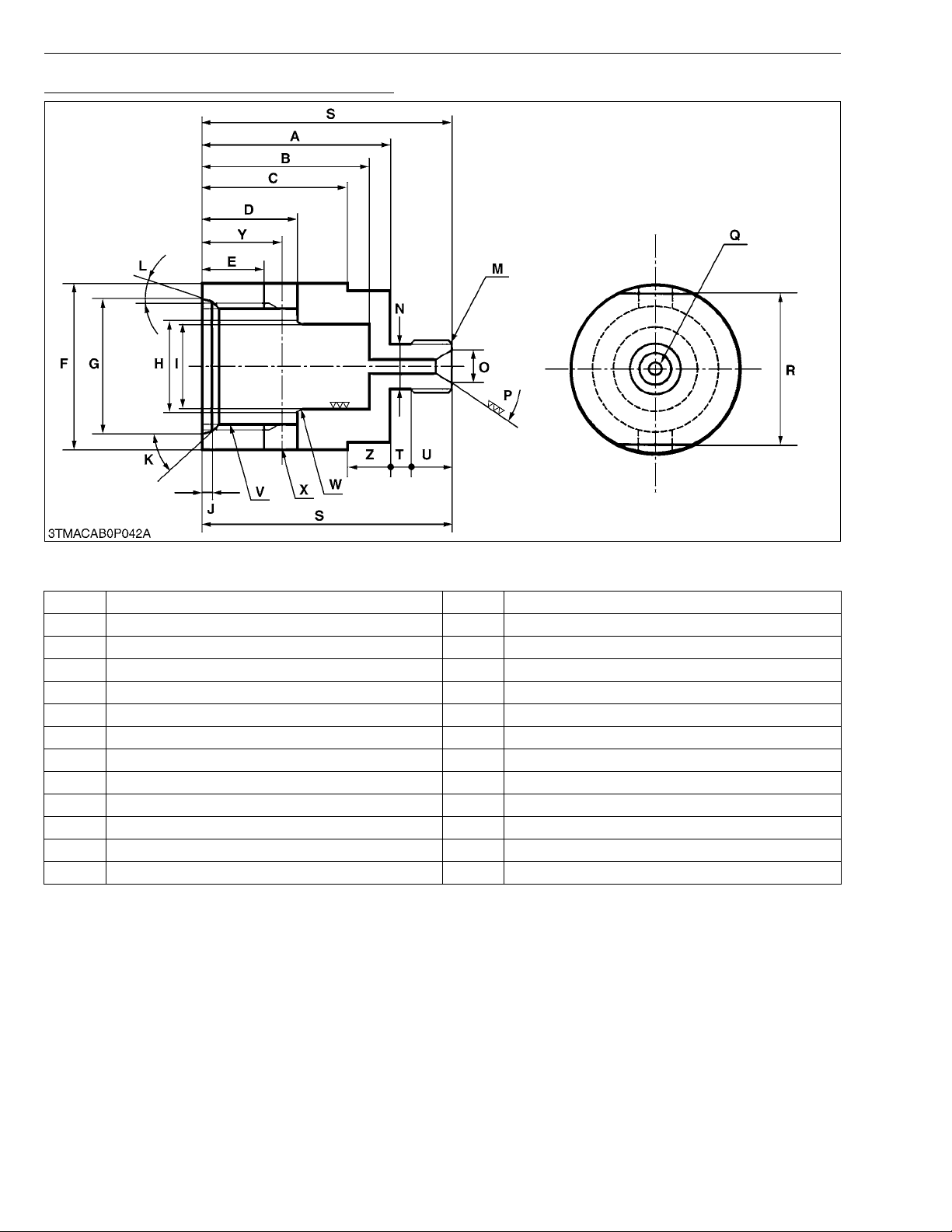

Cylinder Safety Valve Setting Pressure Adaptor

G GENERAL

Application : Use to adapt the safety valve to the nozzle tester to measure cracking pressure and test the check valve

on the safety valves.

A 45 mm (1.77 in.) N 10 mm dia. (0.39 in. dia.)
B 40 mm (1.58 in.) O 7.5 mm dia. (0.3 in. dia.)
C 35 mm (13.8 in.) P 1.05 rad (60 °)
D 23 to 23.3 mm (0.9055 to 0.9713 in.) Q 3 mm dia. (1.18 in. dia.)

E 16 mm (0.63 in.) R 36 mm (1.18 in.)

F 40 mm dia. (1.58 in. dia.) S 60 mm (2.36 in.)
G 32.4 to 32.7 mm dia. (1.2756 to 1.2874 in. dia.) T 5 mm (0.20 in.)
H 21 mm dia. (0.83 in. dia.) U 10 mm (0.39 in.)

I 20 to 20.05 mm dia. (0.7874 to 0.7894 in. dia.) V M30 × P1. 5

J 2.5 to 2.59 mm (0.0984 to 0.1097 in.) W 0.52 rad (30 °)
K 0.79 rad (45 °) X 8 mm dia. (0.32 in. dia.)

L 0.26 rad (15 °) Y 19 mm (0.75 in.)
M M12 × P1.5 Z 10 mm (0.39 in.)

G-72

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

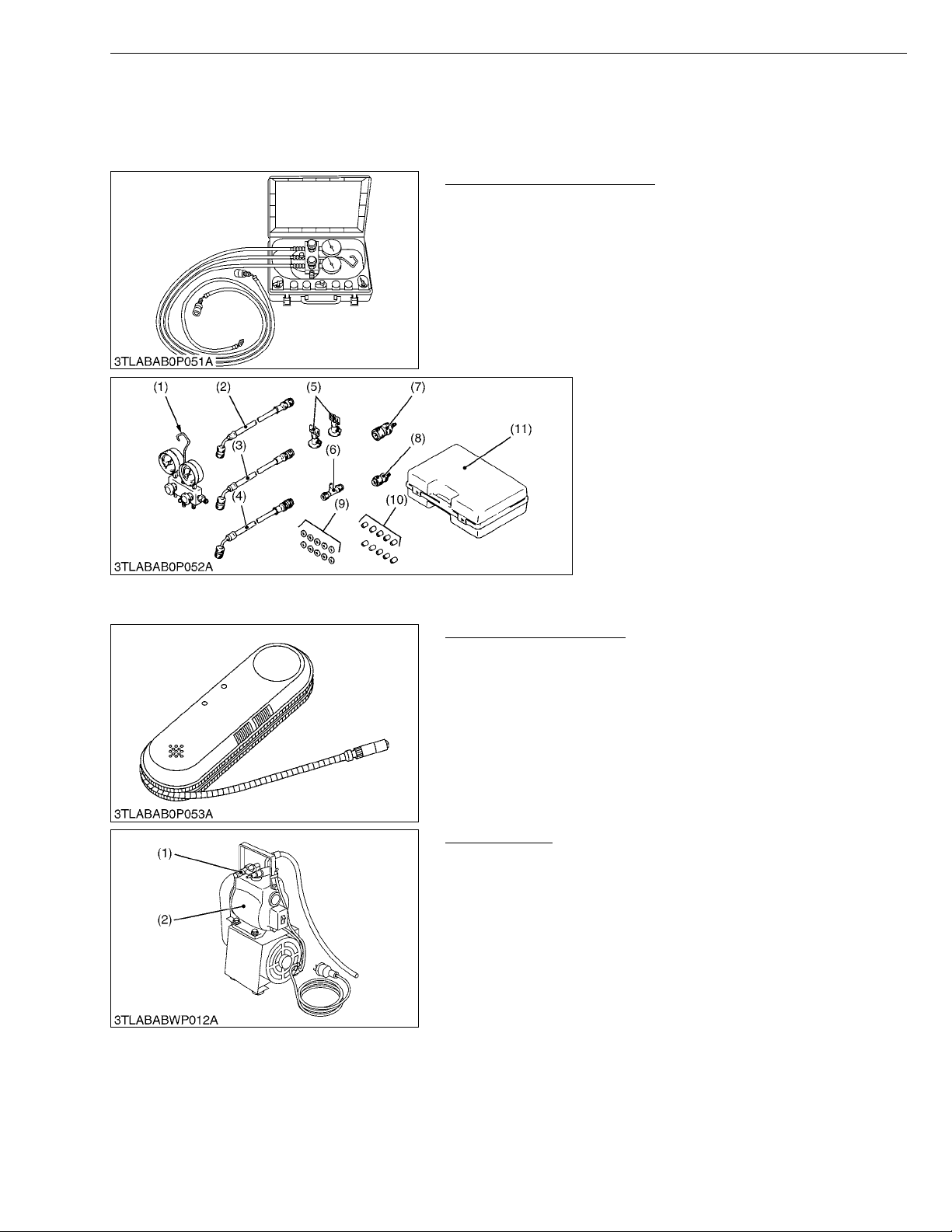

[3] SPECIAL TOOLS FOR AIR CONDITIONER UNIT

NOTEQ

• Special tools for R134a refrigerant air conditioning system introduced below are available from DENSO
CO. LTD.

Air Conditioner Service Tool

Code No.: DENSO.CO. 95048-00061
Application: Use for charging, testing or discharging the air

conditioning system.

W1013507

(1) Manifold Gauge

Assembly

(2) Charging Hose

(Red : HI)

(3) Charging Hose

(Blue : LO)
(4) Charging Hose (Green)
(5) Can Tap Valve
(6) T Joint
(7) Quick Coupler (HI)
(8) Quick Coupler (LO)
(9) Service Valve Packing

(10) Charging Hose Packing
(11) Tool Case

95048-10090

95948-10270

95948-10280
95948-10260
95048-10150
95048-10160
95048-10130
95048-10140
95906-10310
95906-10300
95949-10610

W1014733

Electric Gas Leak Tester

Code No.: DENSO.CO. 95146-00060
Application: Use for gas leak testing the air conditioning system.

W1013817

Vacuum Pump

Code No.: DENSO.CO. 95046-00040 (AC220V)

95046-00050 (AC240V)

Application: Use for evacuating the air conditioning system.

(1) Adaptor (For 134a) (2) Vacuum Pump

W1013764

G-73

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

NOTEQ

• The following special tools are not provided, make them referring to the figure.

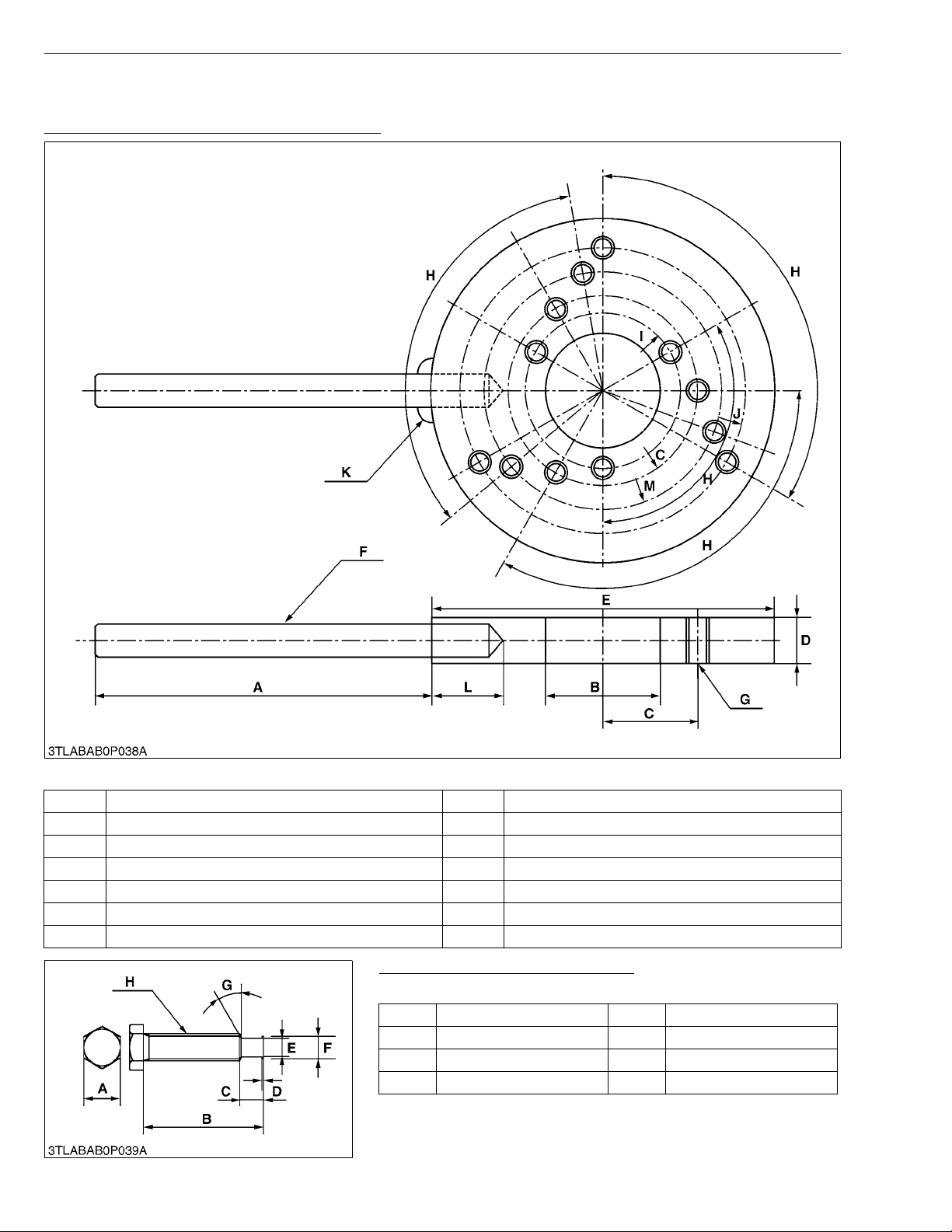

Stopper Magnet Clutch (For A/C Compressor)

G GENERAL

Application: Use to loosen and tighten the magnet clutch mounting nut. (Use radius M)

A 125 mm (4.92 in.) H 4.52 rad (120 °)
B 40 mm dia. (1.57 in. dia.) I Radius 27 mm (Radius 1.06 in.)
C Radius 33 mm (Radius 1.30 in.) J Radius 50 mm (Radius 1.97 in.)
D 16 mm (0.63 in.) K Weld all around

E 120 mm dia. (4.72 in. dia.) L 20 mm (0.78 in.)
F 12 mm dia. (0.47 in. dia.) M Radius 41 mm (Radius 1.61 in.)

G 3 × M8 × 1.25 All screws

Stopper Bolt (for A/C Compressor)

Application : Use with the stopper magnet clutch.

A 12 mm (0.47 in.) E 5.5 mm dia. (0.22 in. dia.)
B 35 mm (1.38 in.) F 6.5 mm dia. (0.26 in. dia.)
C 7 mm (0.28 in.) G 0.52 rad (30 °)
D 0.4 mm (0.016 in.) H M8 × P1.25

G-74

W1065437

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

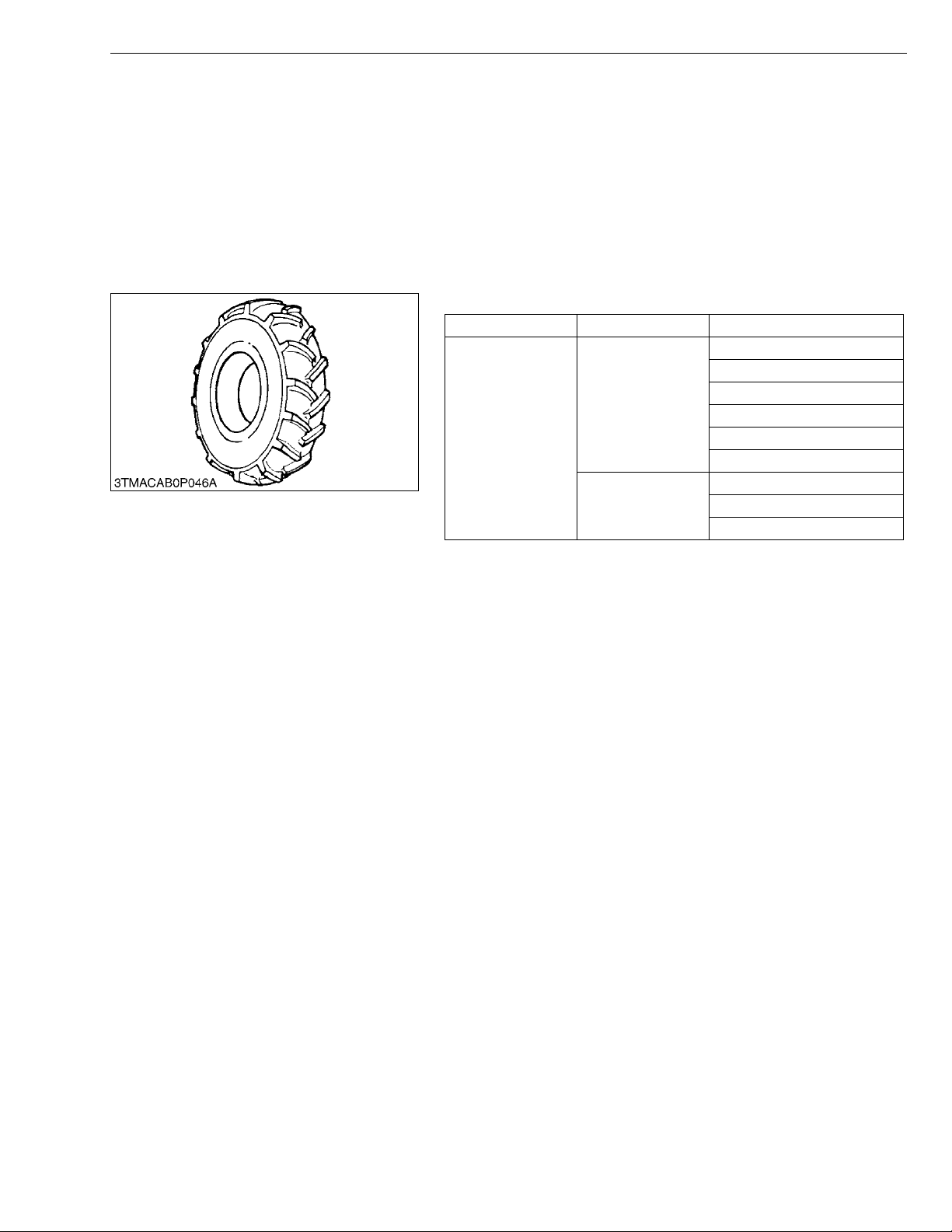

9. TIRES

[1] TYPE OF TIRES

IMPORTANTQ

• Do not use tires other than those approved by KUBOTA.
NOTEQ

• When optional different-diameter tires are fitted on the machine, the travel speed display mode must be
changed. Otherwise the travel speed will not get correc tly displayed. Such mode switching is also need ed
when the original tires are back on the machine. (Refer to “4. CHECKING AND ADJUSTING” at “9.
ELECTRICAL SYSTEM” section.)

The following tires can be mounted.

Type Tire sizes

6.50-16, 6PR

7.50-16, 6PR

Front

Farm Tire

Rear

9.5L-15, 6PR

9.5-20, 6PR

9.5-22, 6PR

9.5-24, 6PR

14.9-28, 6PR

16.9-28, 6PR

16.9-30, 6PR
W1019656

G-75

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

G GENERAL

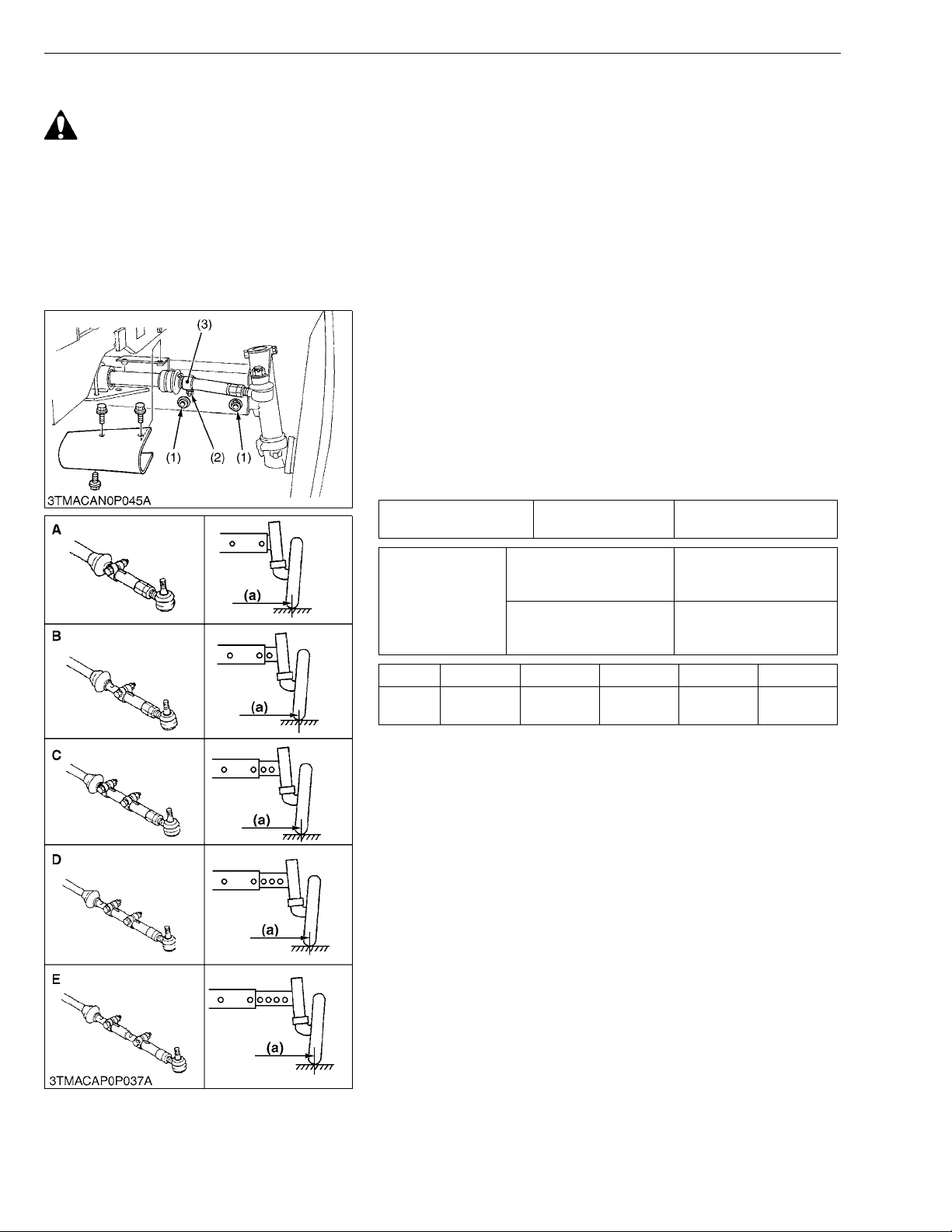

[2] TREAD ADJUSTMENT

CAUTION

• When working on slopes or when working with trailer, set the wheel t read as wide as practical for maximum
stability.

• Support tractor securely on stands before removing a wheel.

• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be
accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.

• Never operate tractor with a loose rim, wheel, or axle.

(1) Front Wheels [2WD Model]

Front tread width can be adjusted as shown with the standard

equipped tires.

To change the tread width

1. Remove the front axle mountin g bolts (1)and the tie-rod mounting
bolt (2).

2. Move the front axles (right and left) to the desired position, and
tighten the bolts.

3. Adjust the toe-in. (Refer to “[5] CHECK POINTS OF EVERY
200 HOURS” at “7. CHECK AND MAINTENANCE” in this
section.)

Toe-in Factory spec.

1.0 to 5.0 mm

0.04 to 0.20 in.

Front axle mounting bolt

Tightening torque

Tie-rod mounting bolt

ABCDE

Tread

(a)

(1) Front Axle Mounting Bolt
(2) Tie-rod Mounting Bolt
(3) Tie-rod Clamp
(4) Extension 1 (a short spacer)

1420 mm

55.9 in.

1520 mm

59.8 in.

124 to 147 N·m

12.6 to 15.0 kgf·m

91.5 to 108.9 lbf·ft
61 to 71 N·m

6.2 to 7.2 kgf·m

44.8 to 52.1 lbf·ft

1620 mm

63.8 in.
(5) Extension 2 (a long spacer)

(a) Tread

1720 mm

67.7 in.

1820 mm

71.7 in.

W1082120

G-76

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

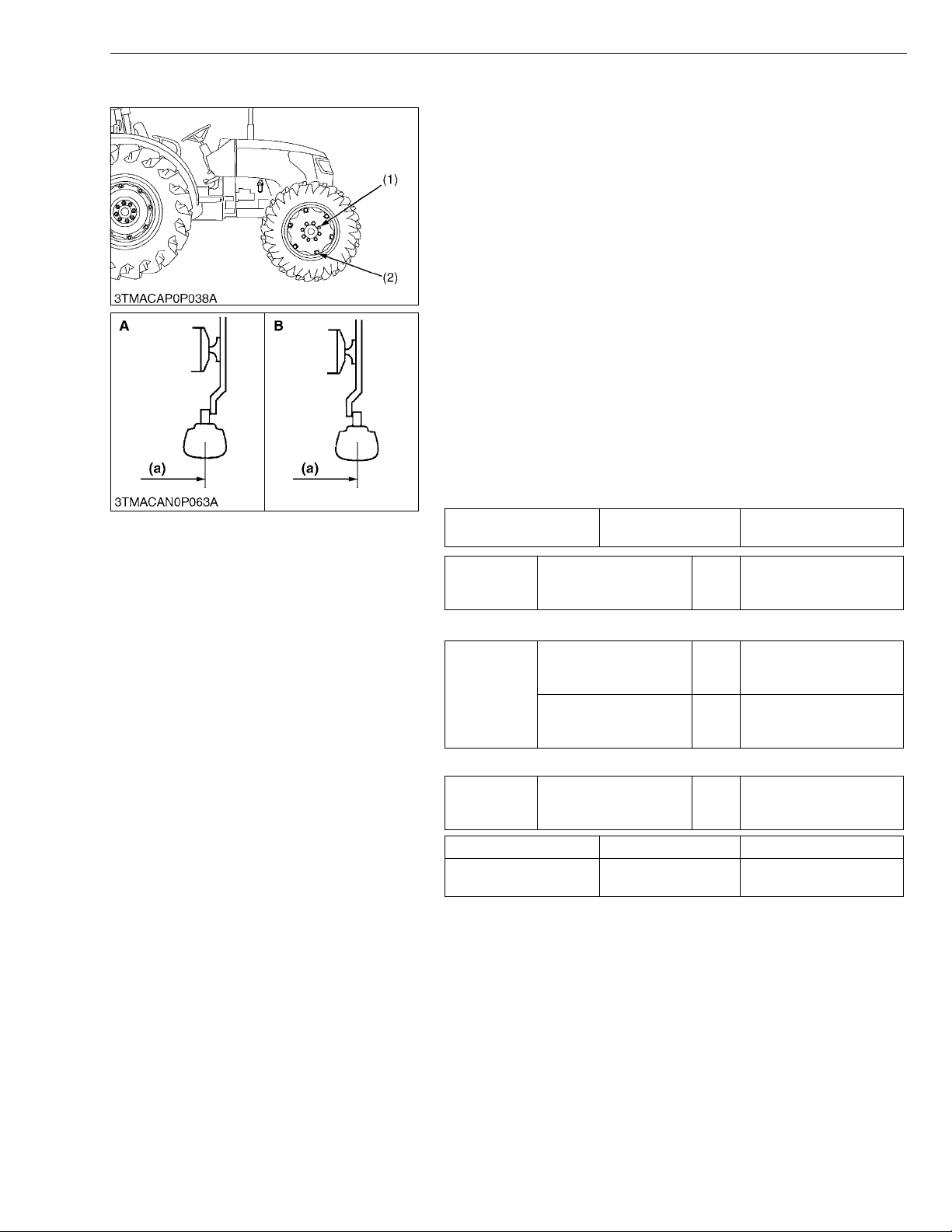

(2) Front Wheels [4WD Model]

G GENERAL

Front tread width can be adjusted as shown with the standard

equipped tires.

To change the tread width

1. Remove the wheel rim and disc mounting bolts.

2. Change the position of the rim and disc (right and left) to the
desired position, and tighten the bolts.

3. Adjust the toe-in. (Refer to “[5] CHECK POINTS OF EVERY
200 HOURS” at “7. CHECK AND MAINTENANCE” in this
section.)

IMPORTANTQ

• Always attach wheels as shown in the figure.

• If not attached as illustrated, transmission parts may be
damaged.

• When re-fitting or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor 200
m (200 yards) and thereafter according to service interval.
(Refer to “[5] CHECK POINTS OF EVERY 50 HOURS” at
“7. CHECK AND MAINTENANCE” in this section.)

NOTEQ

• Wheels with beveled or tapered holes: use the tapered side
of lug nut.

Toe-in Factory spec.

2.0 to 8.0 mm

0.08 to 0.31 in.

Tightening
torque

Front wheel mounting
nut (4WD)

M16

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

Disc : Manufactured by TITAN INTERNATIONAL INC.

298 to 366 N·m

30.4 to 37.3 kgf·m
220 to 270 lbf·ft

244 N·m

24.9 kgf·m
180 lbf·ft

Tightening
torque

Front disc mounting nut
(waffle wheel) (4WD)

Front disc mounting nut
(Except waffle wheel)
(4WD)

M16

M16

Disc : Other manufactured

Tightening
torque

Tread (a)

(1) Front Wheel Mounting Nut
(2) Front Disc Mounting Nut

Front disc mounting nut
(Both steel disc and cast
iron disc)

M16

AB

1420 mm

55.9 in.

(a) Tread

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

1520 mm

59.8 in.

W1039833

G-77

M5040, M6040, M7040, WSM

KiSC issued 06, 2008 A

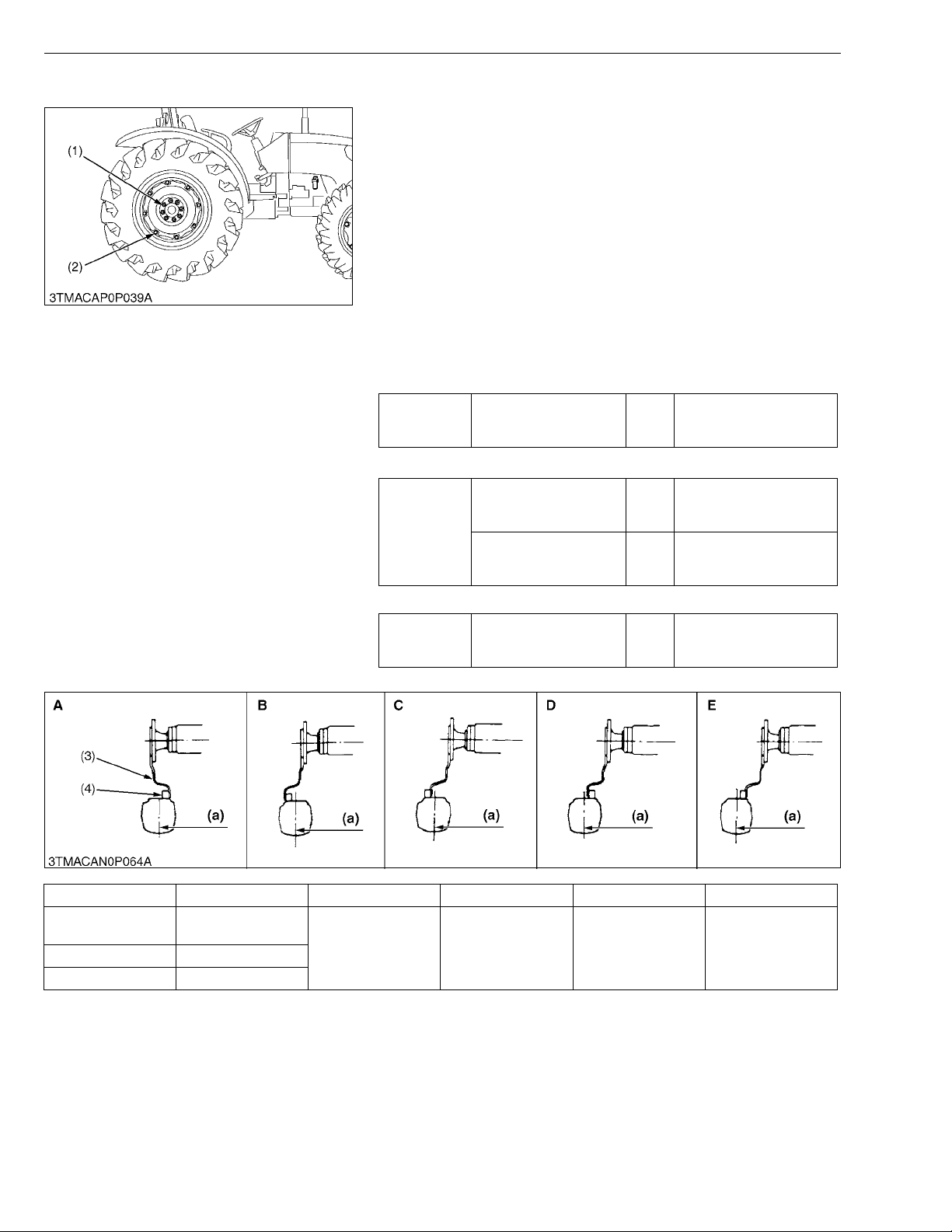

(3) Rear Wheels

G GENERAL

Rear tread width can be adjusted as shown with the standard

equipped tires.

To change the tread width

1. Remove the wheel rim and / or disc mounting bolts.

2. Change the position of the rim and disc (right and left) to the
desired position, and tighten the bolts.

IMPORTANTQ

• Always attach wheels as shown in the figure.

• If not attached as illustrated, transmission parts may be
damaged.

• When re-fitting or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor 200
m (200 yards) and thereafter according to service interval.
(Refer to “[5] CHECK POINTS OF EVERY 50 HOURS” at
“7. CHECK AND MAINTENANCE” in this section.)

Tightening
torque

Rear wheel mounting
nut

M16

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

Disc : Manufactured by TITAN INTERNATIONAL INC.

244 N·m

24.9 kgf·m
180 lbf·ft

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft

Tightening
torque

Rear disc mounting nut
(steel disc) (4WD)

Rear disc mounting nut
(cast iron disc) (4WD)

M16

M16

Disc : Other manufactured

Tightening
torque

Tread (a)ABCDE

14.9-28 (M5040)

16.9-30 (M7040) –

(1) Rear Wheel Mounting Nut
(2) Rear Disc Mounting Nut

1320 mm

52.0 in.

1420 mm

55.9 in.

(3) Rear Wheel Disc (4) Rear Wheel Rim (a) Tread

Rear disc mounting nut
(Both steel disc and cast
iron disc)

1520 mm

59.8 in.

M16

1620 mm

63.8 in.

259.9 to 304.0 N·m

26.5 to 31.0 kgf·m

191.7 to 224.2 lbf·ft
W1082792

1720 mm

67.7 in.16.9-28 (M6040) –

G-78
