KTM 690 Duke 2014, 690 Duke R 2014 Setup Instructions

SETUP INSTRUCTIONS 2014

690 Duke EU

690 Duke AU/GB

690 Duke US

690 Duke MY

690 Duke R EU

690 Duke R AU/GB

690 Duke R MY

Art. no. 3213153en

INTRODUCTION 1

INTRODUCTION

The work described in these setup instructions must be performed before the vehicle is delivered to the customer.

Read the setup instructions in their entirety before beginning work.

Print out the current PDI form found on the KTM DEALER.NET.

These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the inter­est of technical advancement without at the same time updating this manual.
We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here.
It is assumed that the work will be performed by a fully trained mechanic.

All specifications are non-binding. KTM Sportmotorcycle AG specifically reserves the right to modify or delete technical specifica­tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt
these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery
options, deviations from illustrations and descriptions, as well as misprints and other errors. The models portrayed partly contain spe­cial equipment that does not belong to the regular scope of supply.

© 2014 KTM-Sportmotorcycle AG, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright
owner.

ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead
to the maximum possible quality of the products.
Issued by: TÜV Management Service

KTM-Sportmotorcycle AG
5230 Mattighofen, Austria

1 MEANS OF REPRESENTATION 2

1.1 Symbols used

The meaning of specific symbols is described below.

Indicates an expected reaction (e.g. of a work step or a function).

Indicates an unexpected reaction (e.g. of a work step or a function).

Indicates a page reference (more information is provided on the specified page).

Indicates information with more details or tips.

Indicates the result of a testing step.

Denotes a voltage measurement.

Denotes a current measurement.

Denotes a resistance measurement.

1.2 Formats used

The typographical formats used in this document are explained below.

Proprietary name Identifies a proprietary name.

®

Name

Brand™ Identifies a trademark.

Identifies a protected name.

2 SETUP 3

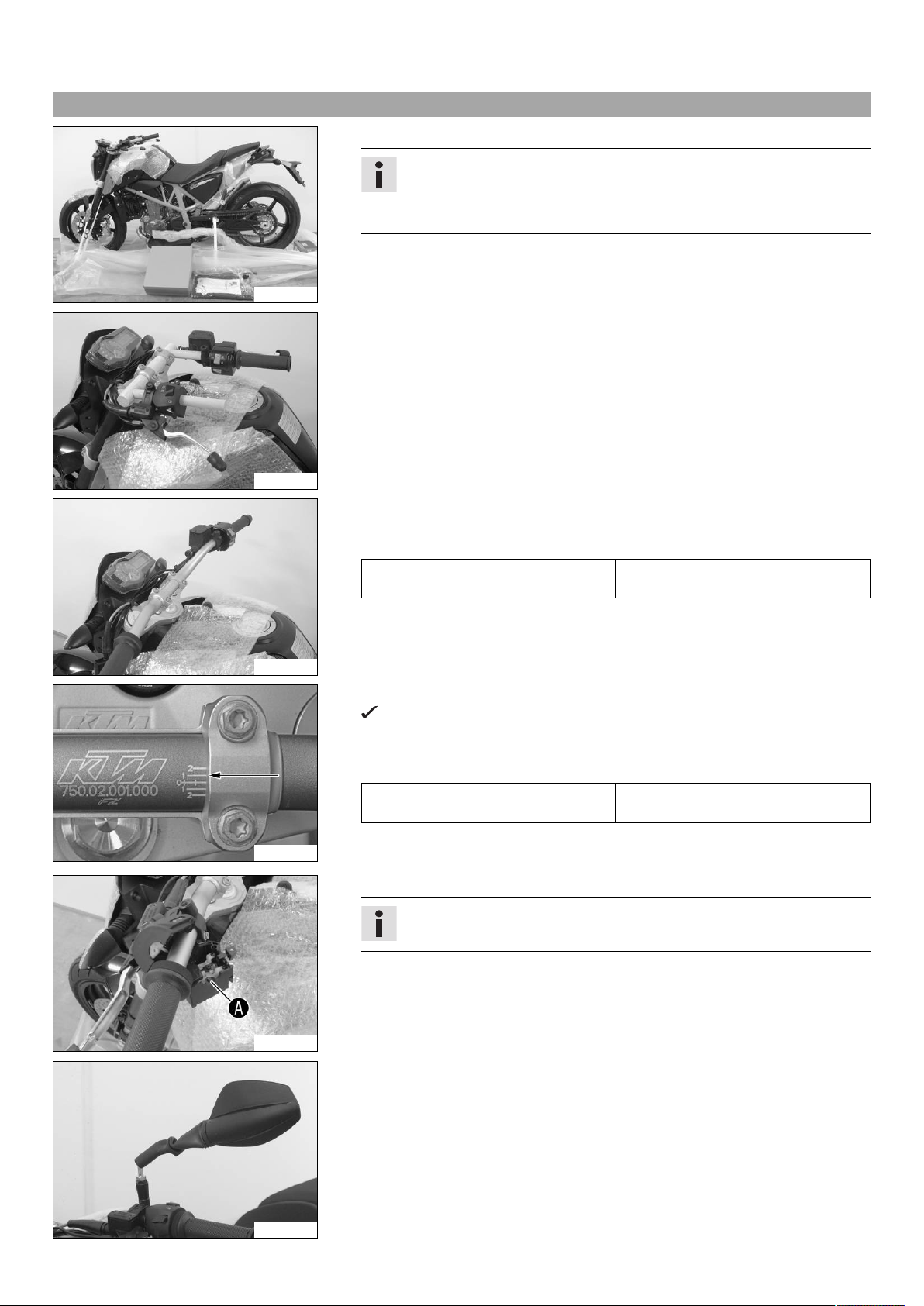

2.1 Unpacking and setting up the vehicle

– Remove the box and the plastic packaging.

Info

To avoid damaging the motorcycle while mounting the handlebar, leave the
film on the fuel tank until all of the work on the motorcycle has been fin­ished.

– Check the vehicle for transport damage.
– Unpack the separate enclosure and check its contents on the basis of the enclosure

201895-10

201896-10

list.

– Remove the controls from the transport holder. Remove the screws and handlebar

clamps. Remove the transport holder.

– Remove the right-hand handlebar weight.
– Position the controls on the right half of the handlebar. Tighten the screws.

Guideline

Screw, throttle grip M5 3.5 Nm

(2.58 lbf ft)

201897-10

100322-10

201898-10

– Position the handlebar.

Marking 1 on the scale on the handlebar is situated in the middle of the han­dlebar clamp.

– Position the handlebar clamps. Tighten the screws evenly.

Guideline

Screw, handlebar clamp M8 20 Nm

(14.8 lbf ft)

– Mount and tighten the right handlebar weight.
– Check the throttle grip for smooth operation.
– Position the controls on the left half of the handlebar.

Info

Position holding lugin the drill hole of the handlebar.

– Position all controls in their exact positions on the handlebar. Tighten all screws.

– Mount and tighten the rear mirror adapter and rear mirror on both sides.

201899-10

2 SETUP 4

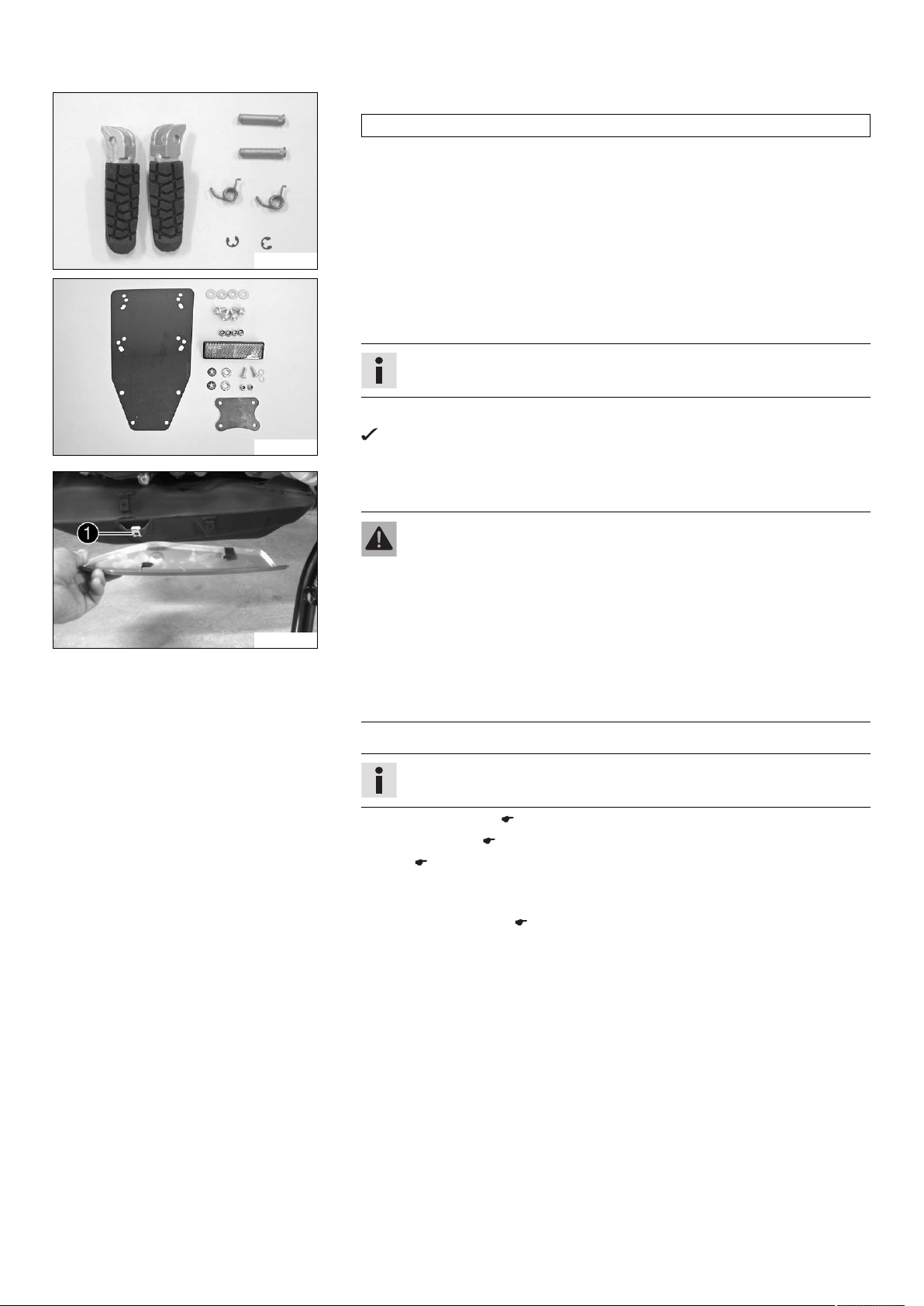

– Mount the footrests with the springs and bolts. Secure the pins with the lock rings.

Pliers for footrest spring (58429083000)

201900-10

– Mount the reflector.
– Remove the protective plastic.
– Carefully loosen and remove the tensioning belt over the swingarm.

Info

An assistant prevents the motorcycle from falling over.

– Carefully loosen and remove the tensioning belts around the lower triple clamp.

201901-10

– Together with an assistant, take the vehicle off the pallet.

–

The vehicle is released at the front.

Mount clip-in nuton both sides. Hook the holdings lugs of the covers into the
tabs. Mount and tighten screw.

201902-10

Warning

Risk of injury Battery acid and battery gases cause serious chemical burns.

– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in

well-ventilated rooms.

– In the event of skin contact, rinse with large amounts of water. If battery

acid gets in the eyes, rinse with water for at least 15 minutes and con­tact a physician.

– Fill the battery.

Info

Read the notes in the battery package.

– Recharge the battery. ( p. 5)
– Install the battery. ( p. 6)
– Refuel. ( p. 7)
– Print out the current PDI form found on KTM DEALER.NET and perform the delivery

inspection.

– Set kilometers or miles. ( p. 7)

3 WORK 5

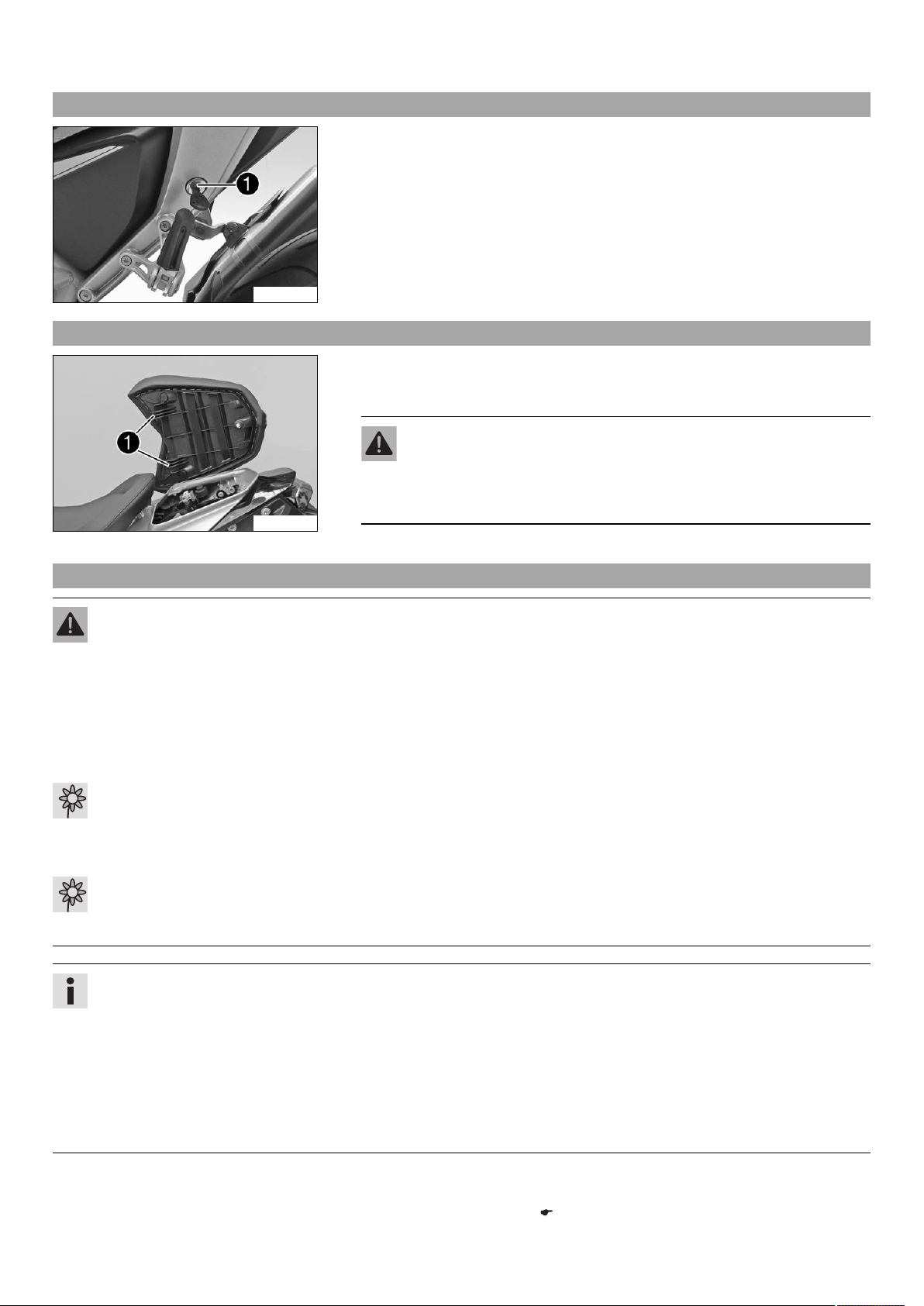

3.1 Removing the passenger seat

–

Insert the ignition key in seat lockand turn it clockwise.

– Raise the rear of the passenger seat, push it towards the rear, and remove it

upward.

– Remove the ignition key from the seat lock.

B00928-10

3.2 Mounting the passenger seat

–

Hook catchesof the passenger seat onto the storage compartment, lower the
rear, and simultaneously push forward.

– Press down the passenger seat until it clicks into place.

Warning

Danger of accidents The passenger seat can come loose from the anchoring

if it is not mounted correctly.
– After mounting the passenger seat, check that it is locked correctly by

B00940-10

– Finally, check that the passenger seat is correctly mounted.

pulling up.

3.3 Recharging the battery

Warning

Risk of injury Battery acid and battery gases cause serious chemical burns.

– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least

15 minutes and contact a physician.

Warning

Environmental hazard The battery contains elements that are harmful to the environment.

– Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner.

Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.

Warning

Environmental hazard Hazardous substances cause environmental damage.

– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

Info

Even when there is no load on the battery, it discharges steadily.
The charge state and the type of charge are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage, and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, i.e., the acid level does not have to be checked.

Preparatory work

– Switch off all power consumers and switch off the engine.
– Remove the passenger seat. ( p. 5)

3 WORK 6

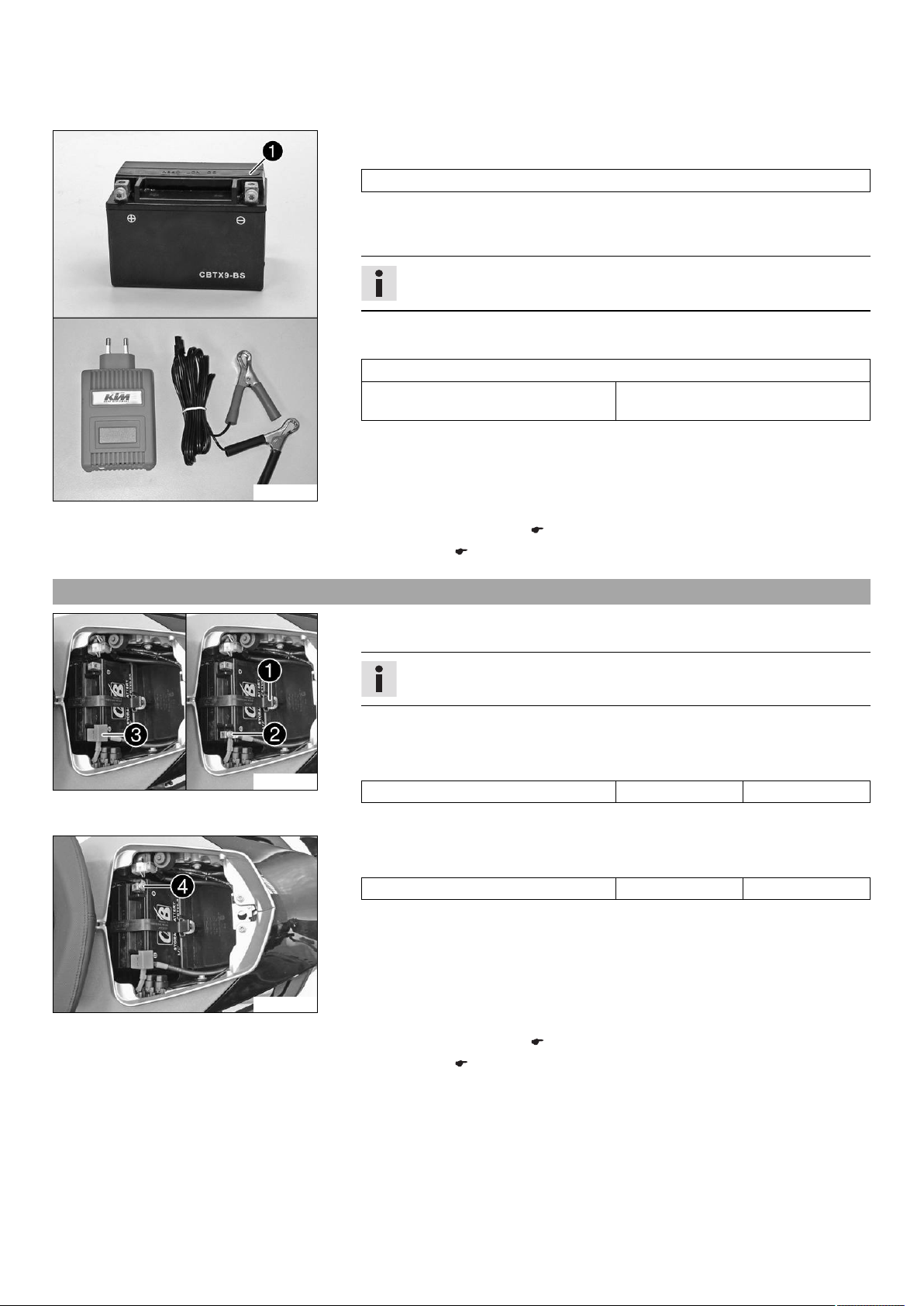

– Disconnect the negative cable of the battery to avoid damage to the motorcycle's

electronics.

Main work

– Connect the battery charger to the battery. Switch on the battery charger.

Battery charger (58429074000)

You can also use the battery charger to test the rest potential and start potential of
the battery, and to test the alternator. With this device, you cannot overcharge the
battery.

Info

Never remove lid.

– Switch off the charger after charging. Disconnect the battery.

Guideline

The charge current, charge voltage, and charge time must not be exceeded.
Charge the battery regularly when the

motorcycle is not in use

B00964-10

Finishing work

– Mount the passenger seat. ( p. 5)
– Set the clock. ( p. 7)

3 months

3.4 Installing the battery

B00963-11

B00962-11

Main work

– Position the battery in the battery holder.

Info

The terminals of the battery must face in the direction of travel.

–

Attach rubber band.

–

Reconnect the positive cableof the battery.
Guideline

Screw, battery terminal M6 2 Nm (1.5 lbf ft)

–

Position positive terminal cover.

–

Connect the negative cableof the battery.
Guideline

Screw, battery terminal M6 2 Nm (1.5 lbf ft)

Finishing work

– Mount the passenger seat. ( p. 5)
– Set the clock. ( p. 7)

3 WORK 7

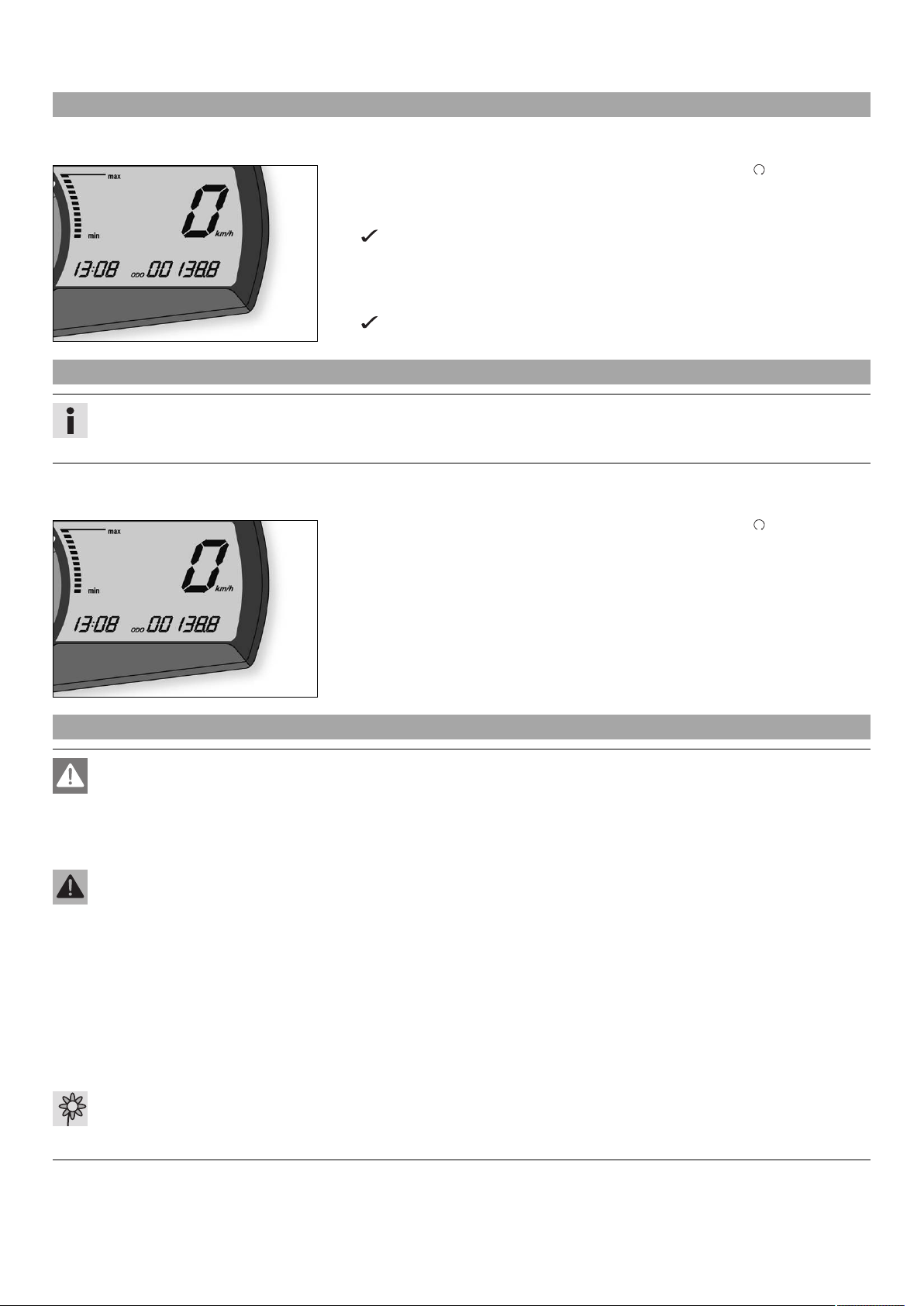

3.5 Setting the clock

Condition

The motorcycle is stationary.

– Switch on the ignition by turning the ignition key to the position .
– Press the MODE button repeatedly until the ODO mode is active.
– Keep the MODE button and the SET button pressed simultaneously.

The time display begins to flash.

– Press the MODE button to set the hour.
– Press the SET button to set the minute.
– Keep the MODE button and the SET button pressed simultaneously.

401444-01

3.6 Setting kilometers or miles

Info

If you change the unit, the value ODO is retained and converted accordingly.
Making the setting according to the country.

Condition

The motorcycle is stationary.

– Switch on the ignition by turning the ignition key to the position .
– Press the MODE button repeatedly until the ODO mode is active.
– Keep the MODE button pressed until the display mode changes from km/h to mph or

The time is set.

from mph to km/h.

401444-01

3.7 Refueling

Danger

Fire hazard Fuel is highly flammable.

– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no

fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.

– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.

Warning

Danger of poisoning Fuel is poisonous and a health hazard.

– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with

the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.

Note

Material damage Premature clogging of the fuel filter.

– In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with

the fuel system.

– Only refuel with clean fuel that meets the specified standards.

Warning

Environmental hazard Improper handling of fuel is a danger to the environment.

– Do not allow fuel to get into the ground water, the ground, or the sewage system.

3 WORK 8

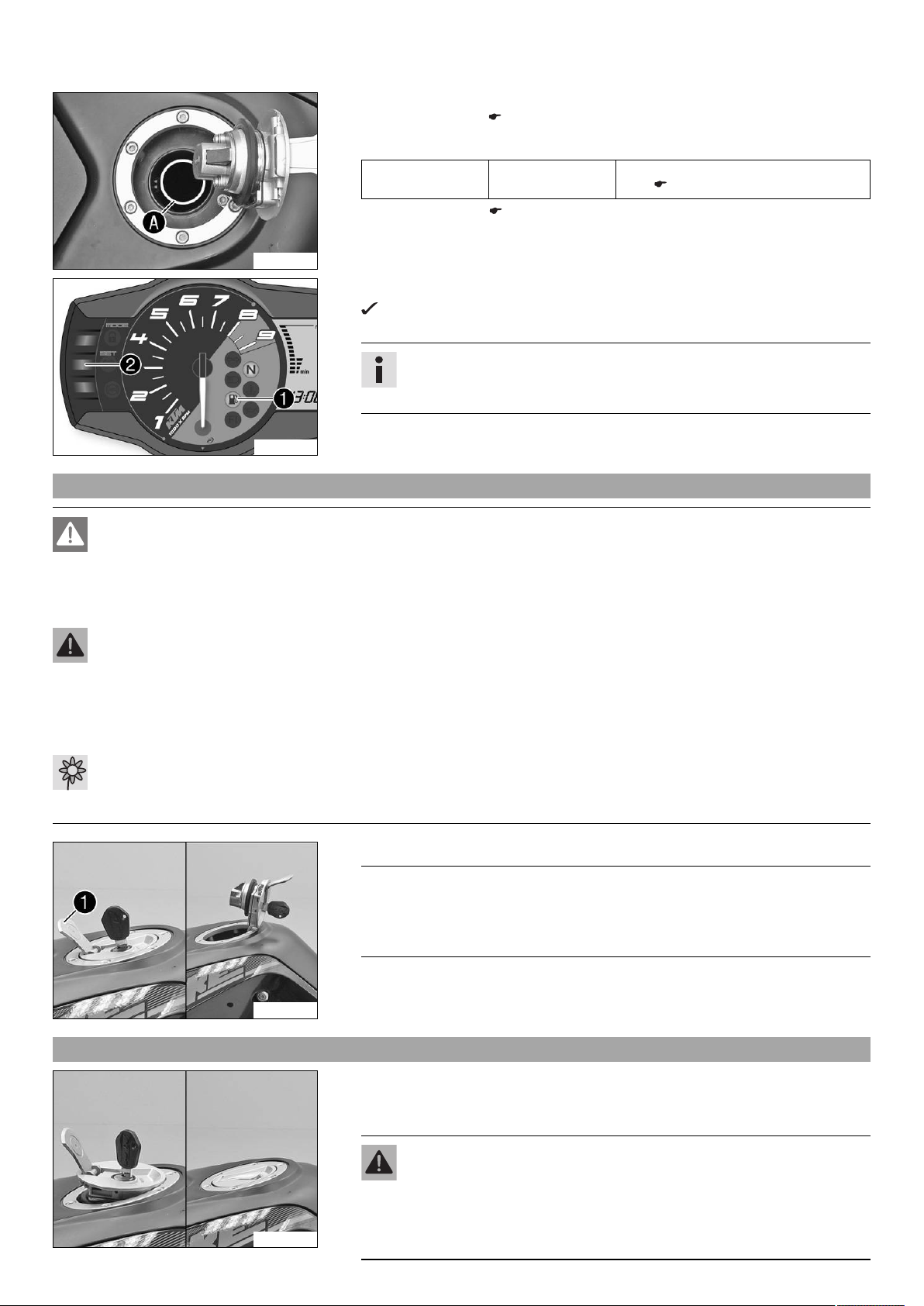

– Switch off the engine.
– Open the filler cap. ( p. 8)

–

Fill the fuel tank with fuel up to the lower edgeof the filler neck.

B00935-10

Total fuel tank
capacity, approx.

– Close the filler cap. ( p. 8)

–

Press the SET buttonfor two seconds.

The low fuel warning lampswitches off. TRIP F is set to 0 and the previous
display mode appears.

13.8 l
(3.65 US gal)

Super unleaded (ROZ 95/RON 95/PON

91) ( p. 12)

Info

If you do not press the SET button, the reset takes place automatically
after about three minutes.

401429-10

3.8 Opening the filler cap

Danger

Fire hazard Fuel is highly flammable.

– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no

fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.

– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.

Warning

Danger of poisoning Fuel is poisonous and a health hazard.

– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with

the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.

Warning

Environmental hazard Improper handling of fuel is a danger to the environment.

– Do not allow fuel to get into the ground water, the ground, or the sewage system.

–

Lift coverof the filler cap and insert the ignition key in the lock.

Note

Danger of damage Ignition key breakage.

– To take pressure off of the ignition key, push down on the filler cap. Damaged

ignition keys must be replaced.

– Turn the ignition key 90° clockwise.
– Open the filler cap.

B00926-10

3.9 Closing the filler cap

– Fold down the filler cap.
– Turn the ignition key 90° clockwise.
– Press down the filler cap and turn back the ignition key until the lock locks.

B00927-01

Warning

Fire hazard Fuel is highly flammable, poisonous and harmful to your

health.
– After closing the filler cap, ensure that it is locked properly. Change

clothing that has been contaminated with fuel. Immediately clean con­taminated areas on the skin with soap and water.

3 WORK 9

– Remove the ignition key and close the cover.

4 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS 10

Screw, combination instrument EJOT 1 Nm (0.7 lbf ft) –
Screw, headlight EJOT 2 Nm (1.5 lbf ft) –
Screw, headlight mask EJOT 1 Nm (0.7 lbf ft) –
Screw, side stand switch M4 2 Nm (1.5 lbf ft) Loctite®243™
Remaining screws, chassis M5 5 Nm (3.7 lbf ft) –
Retaining clamp, brake line M5 3 Nm (2.2 lbf ft) –
Screw, air filter box M5 3 Nm (2.2 lbf ft) –
Screw, cable on starter motor M5 3 Nm (2.2 lbf ft) –
Screw, foot brake lever stub (Duke,

690 Duke US, 690 Duke MY)
Screw, fuel level sensor M5 3 Nm (2.2 lbf ft) –
Screw, fuel pump M5 4 Nm (3 lbf ft) –
Screw, heat guard M5 5 Nm (3.7 lbf ft) Loctite®243™
Screw, light switch mount and emer-

gency OFF switch
Screw, plastic clamp of brake line on

fork leg
Screw, pressure regulator M5 4 Nm (3 lbf ft) –
Bolt, headlight mask M6 6.3 Nm (4.65 lbf ft) Loctite®243™
Chain guard M6 4 Nm (3 lbf ft) Loctite®243™
Double-sided grub screw M6 6 Nm (4.4 lbf ft) Loctite®243™
Nut, push rod, foot brake lever M6 6 Nm (4.4 lbf ft) –
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft) –
Remaining screws, chassis M6 10 Nm (7.4 lbf ft) –
Screw, ball joint of push rod on foot

brake cylinder
Screw, battery terminal M6 2 Nm (1.5 lbf ft) –
Screw, brake fluid reservoir of rear

brake
Screw, chain sliding guard M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, control unit holder M6 3 Nm (2.2 lbf ft) –
Screw, exhaust pipe clamp M6 8 Nm (5.9 lbf ft) Copper paste
Screw, foot brake cylinder M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, foot brake lever stub (Duke R) M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, fuel spoiler M6 3 Nm (2.2 lbf ft) –
Screw, lower radiator bracket M6 5 Nm (3.7 lbf ft) –
Screw, magnetic holder on side stand M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, seat lock M6 10 Nm (7.4 lbf ft) Loctite®222™
Screw, tail light cover M6 8 Nm (5.9 lbf ft) –
Screw, voltage regulator M6 8 Nm (5.9 lbf ft) –
Shift rods, nut M6 6 Nm (4.4 lbf ft) –
Shift rods, nut M6LH 6 Nm (4.4 lbf ft) –
Main silencer holder (Duke R) M8x40 25 Nm (18.4 lbf ft) –
Main silencer holder (Duke R) M8x60 25 Nm (18.4 lbf ft) –
Nut, manifold on cylinder head M8 25 Nm (18.4 lbf ft) Copper paste
Nut, rear sprocket screw M8 35 Nm (25.8 lbf ft) Loctite®2701™
Remaining nuts, chassis M8 25 Nm (18.4 lbf ft) –
Remaining screws, chassis M8 25 Nm (18.4 lbf ft) –
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft) –
Screw, exhaust system M8 25 Nm (18.4 lbf ft) –
Screw, footrest bracket, rear M8x30 25 Nm (18.4 lbf ft) Loctite®243™
Screw, footrest bracket, rear M8x50 25 Nm (18.4 lbf ft) Loctite®243™
Screw, footrest bracket, rear M8x20 Countersunk screw

M5 6 Nm (4.4 lbf ft) Loctite®243™

M5 3.5 Nm (2.58 lbf ft) –

M5 2 Nm (1.5 lbf ft) –

M6 10 Nm (7.4 lbf ft) Loctite®243™

M6 5 Nm (3.7 lbf ft) –

Loctite®243™

25 Nm (18.4 lbf ft)

4 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS 11

Screw, footrest bracket, rear M8x45 Countersunk screw

25 Nm (18.4 lbf ft)
Screw, fork stub M8 15 Nm (11.1 lbf ft) –
Screw, front brake disc M8 30 Nm (22.1 lbf ft) Loctite®243™
Screw, front footrest bracket M8 25 Nm (18.4 lbf ft) Loctite®243™
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft) –
Screw, handrail M8x30 Countersunk screw

18 Nm (13.3 lbf ft)
Screw, handrail, cover M8x20 18 Nm (13.3 lbf ft) Loctite®243™
Screw, ignition lock (tamper-proof

screw)
Screw, license plate holder M8 18 Nm (13.3 lbf ft) Loctite®243™
Screw, linkage bracket, front engine

fixing arm
Screw, main silencer clamp (Duke R) M8 15 Nm (11.1 lbf ft) –
Screw, main silencer fixation M8 25 Nm (18.4 lbf ft) –
Screw, rear brake disc M8 30 Nm (22.1 lbf ft) Loctite®243™
Screw, side stand bracket M8 25 Nm (18.4 lbf ft) Loctite®243™
Screw, spring holder on side stand

bracket
Screw, top triple clamp M8 17 Nm (12.5 lbf ft) –
Engine carrying screw M10 45 Nm (33.2 lbf ft) Loctite®243™
Remaining nuts, chassis M10 45 Nm (33.2 lbf ft) –
Remaining screws, chassis M10 45 Nm (33.2 lbf ft) –
Screw, foot brake lever M10 25 Nm (18.4 lbf ft) –
Screw, handlebar support M10 20 Nm (14.8 lbf ft) –
Screw, side stand M10 35 Nm (25.8 lbf ft) Loctite®243™
Screw, subframe M10 45 Nm (33.2 lbf ft) Loctite®243™
Banjo bolt, brake line M10x1 22 Nm (16.2 lbf ft) –
Banjo bolt, pressure modulator M10x1 20 Nm (14.8 lbf ft) –
Screw, bottom shock absorber M10x1.25 50 Nm (36.9 lbf ft) Loctite®243™
Screw, front brake caliper M10x1.25 45 Nm (33.2 lbf ft) Loctite®243™
Screw, top shock absorber M10x1.25 50 Nm (36.9 lbf ft) Loctite®243™
Lambda sensor M12x1.25 25 Nm (18.4 lbf ft) –
Nut, frame to linkage lever M14x1.5 100 Nm (73.8 lbf ft) –
Nut, linkage lever on swingarm M14x1.5 100 Nm (73.8 lbf ft) –
Nut, linkage lever to rocker arm M14x1.5 100 Nm (73.8 lbf ft) –
Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft) –
Screw, steering head M20x1.5 40 Nm (29.5 lbf ft) –
Adjusting ring of swingarm bearing M24x1.5 25 Nm (18.4 lbf ft) –
Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) –
Nut, rear wheel spindle M25x1.5 90 Nm (66.4 lbf ft) –
Nut, steering head M28x1 12 Nm (8.9 lbf ft) –

M8 Loctite®243™

M8 25 Nm (18.4 lbf ft) Loctite®243™

M8 25 Nm (18.4 lbf ft) Loctite®243™

Loctite®243™

Loctite®243™

5 SUBSTANCES 12

Super unleaded (ROZ 95/RON 95/PON 91)

Standard/classification

– DIN EN 228 (ROZ 95/RON 95/PON 91)

Guideline

– Only use unleaded super fuel that matches or is equivalent to the specified fuel grade.
– Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use.

Info

Do not use fuel containing methanol (e. g. M15, M85, M100) or more than 10 % ethanol (e. g. E15, E25, E85, E100).

*3213153en*

3213153en

01/2014

KTM-Sportmotorcycle AG

5230 Mattighofen/Austria

http://www.ktm.com

Photo: Mitterbauer/KTM
