Kramer Electronics, Ltd.
USER MANUAL
Model:
VP-8x4
8x4 VGA / UXGA Matrix Switcher
Contents
Contents
1
Introduction 1
2
Getting Started 1
2.1 Quick Start 1
3
Overview 3
4
Your VP-8x4 8x4 VGA / UXGA Matrix Switcher 3
4.1 Using the IR Transmitter 7
5
Installing the VP-8x4 in a Rack 8
6
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher 9
6.1 Connecting the VP-8x4 Rear Panel 9
6.2 Controlling via RS-232 (for example, using a PC) 11
6.3 Controlling via RS-485 11
6.4 Control Configuration via the Ethernet Port 12
6.5 Setting the DIP-switches 12
6.5.1 Setting the Delay 13
6.5.2 Setting the Machine # DIP-switches 13
6.6 Cascading Machines 14
7
Operating the VP-4x8 8x4 VGA / UXGA Matrix Switcher 16
7.1 Displaying Unit Characteristics 16
7.2 Confirming Settings 17
7.2.1 Toggling between the At Once and Confirm Modes 17
7.2.2 Confirming a Switching Action 17
7.3 Storing/Recalling Input/Output Configurations 18
7.3.1 Storing an Input/Output Configuration 18
7.3.2 Recalling an Input/Output Configuration 18
7.3.3 Deleting an Input/Output Configuration 19
7.4 Locking the Front Panel 19
8
Flash Memory Upgrade 20
8.1 Downloading from the Internet 20
8.2 Connecting the PC to the RS-232 Port 20
8.3 Upgrading Firmware 21
9
Technical Specifications 26
10
Table of Hex Codes for Serial Communication 26
11
Kramer Protocol 2000 27
i
Contents
Figures
Figure 1: VP-8x4 8x4 VGA / UXGA Matrix Switcher – Front and Rear View 4
Figure 2: VP-8x4 8x4 VGA / UXGA Matrix Switcher Underside View 6
Figure 3: Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher 10
Figure 4: Connecting a PC without using a Null-modem Adapter 11
Figure 5: Controlling via RS-485 (for example, using an RC-3000) 12
Figure 6: VP-8x4 DIP-switches 12

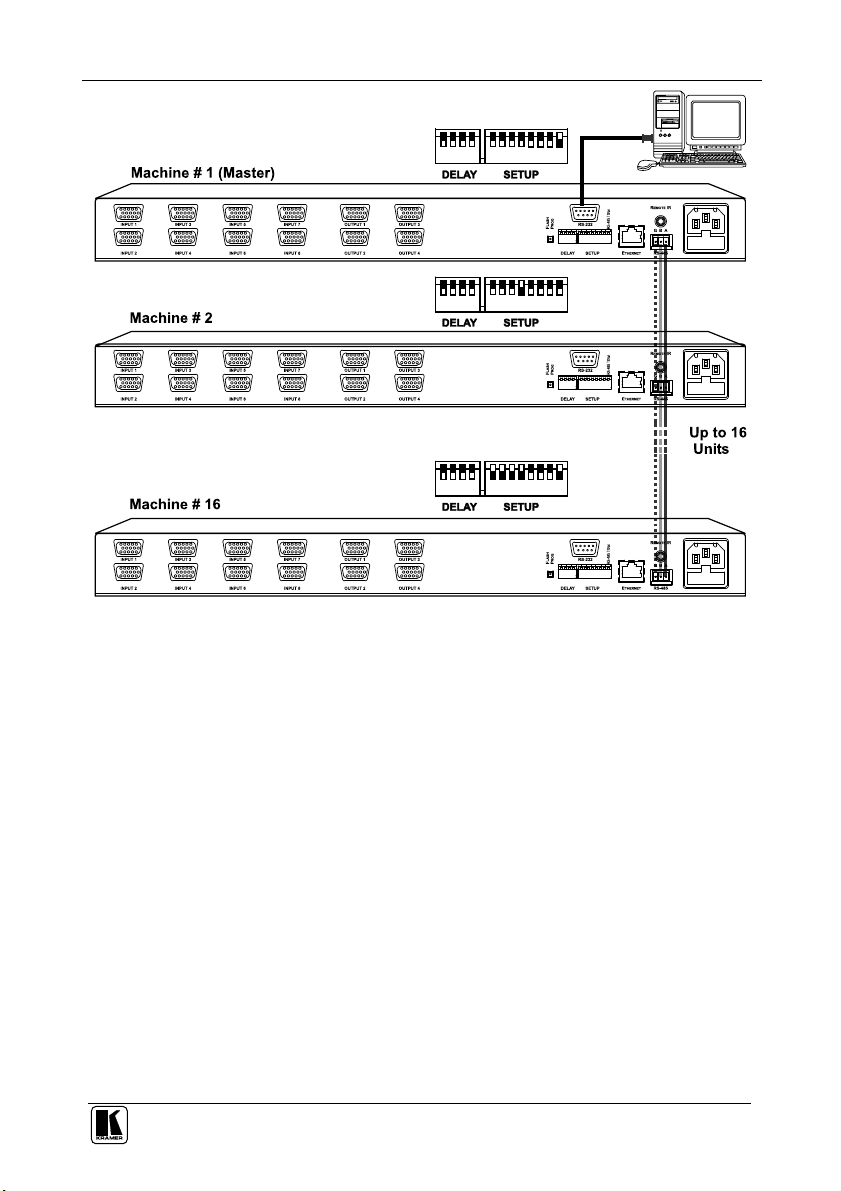

Figure 7: Control Configuration via RS-232 and RS-485 15
Figure 8: Storing and Recalling using the Input/Output Buttons 18
Figure 9: Splash Screen 21
Figure 10: Atmel – Flip Window 21
Figure 11: Device Selection Window 22
Figure 12: Selecting the Device from the Selection Window 22
Figure 13: Loading the Hex 23
Figure 14: RS-232 Window 23
Figure 15: Atmel – Flip Window (Connected) 24
Figure 16: Atmel – Flip Window (Operation Completed) 25
Tables
Table 1: Front Panel VP-8x4 8x4 VGA / UXGA Matrix Switcher Features 5
Table 2: Rear Panel VP-8x4 8x4 VGA / UXGA Matrix Switcher Features 6
Table 3: VP-8x4 8x4 VGA / UXGA Matrix Switcher Underside Panel Feature 6
Table 4: DIP-switch Settings 12
Table 5: DELAY DIP-switch Settings 13
Table 6: Machine # DIP-switch Settings 13
Table 7: STATUS 7-segment Display 16
Table 8: VP-8x4 Technical Specifications 26
Table 9: VP-8x4 Hex Codes for Switching via RS-232/RS-485 26
Table 10: Protocol Definitions 27
Table 11: Instruction Codes for Protocol 2000 28
ii
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models
now appear in 11 groups1 that are clearly defined by function.
Congratulations on purchasing the Kramer VP-8x4 8x4 VGA / UXGA Matrix
Switcher, which is ideal for:
Any professional display system requiring a true 8x4 computer graphics
matrix operation
Multimedia and presentation source, and acceptor selection
Each package includes the following items:
The VP-8x4 8x4 VGA / UXGA Matrix Switcher
Windows®-based Kramer control software2
Windows®-based Configuration Manager XPort software and Com Port
Redirector
Kramer RC-IR2 Infrared Remote Control Transmitter (including the
required battery and a separate user manual3)
Power cord, null-modem adapter and this user manual3
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables4
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 Downloadable from our Web site at http://www.kramerelectronics.com
3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
The VP-8x4 is a high-performance, high-resolution computer graphics video
switcher. The VP-8x4 lets you simultaneously route any or all of the eight
inputs to any or all of the four outputs.
The VP-8x4 8x4 VGA / UXGA Matrix Switcher features:
Video bandwidth of 400MHz that ensures transparent performance even
in the most critical applications
12 preset memory locations for quick access to common configurations
Delayed switching mode (ranging from 0 to 3.5 sec1) for clean transitions
(seamless switching) when switching between non-genlocked sources
DC coupled inputs and outputs
A TAKE button that allows you to place multiple switches in a queue and
then activate them simultaneously with one touch of this button
A LOCK button to prevent tampering with the front panel
Automatic detection of connected input signals (respective button illuminates)
Control the VP-8x4 using the front panel buttons, or remotely via:
RS-485 or RS-232 serial commands transmitted by a PC, touch screen
system, or other serial controller
The Kramer RC-IR2 Infrared remote control transmitter or an external
remote IR receiver (optional)
The Ethernet
The VP-8x4 is a dependable and rugged unit that fits into one vertical space
(1U) of a standard 19-inch professional rack2.
To achieve the best performance:
Use only good quality connection cables3 to avoid interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low-quality cables).
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VP-8x4 away
from moisture, excessive sunlight and dust
4 Your VP-8x4 8x4 VGA / UXGA Matrix Switcher
Figure 1, Table 1 and Table 2 define the VP-8x4 8x4 VGA / UXGA Matrix
Switcher.
1 In increments of 0.5sec
2 The RGBHV signals are connected on 15-pin HD pin connectors to reduce enclosure size
3 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
3
Your VP-8x4 8x4 VGA / UXGA Matrix Switcher
Figure 1: VP-8x4 8x4 VGA / UXGA Matrix Switcher – Front and Rear View
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-8x4 8x4 VGA / UXGA Matrix Switcher
Table 1: Front Panel VP-8x4 8x4 VGA / UXGA Matrix Switcher Features
# Feature Function
1 IR Receiver The red LED is illuminated when receiving signals from the Infrared
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 IN SELECTOR Buttons Select the input to switch to the output (from 1 to 8).
4 OUT SELECTOR Buttons Select the output to which the input is switched (from 1 to 4)
5 OFF Button Press an OUT SELECTOR button and then an OFF button to disconnect
6 ALL Button Pressing ALL followed by an INPUT button, connects that input to all
7 TAKE Button Pressing TAKE toggles the mode between the Confirm mode2 and the
8 STO (Store) Button Pressing STO followed by an input/output button stores the current
9 RCL (Recall) Button Pressing the RCL button and the corresponding IN/OUT button recalls
10 LOCK Button Disengages the front panel switches
11 STATUS 7-segment
Display
remote control transmitter
When a signal is detected, the input button illuminates in green
that output from the inputs
Press the ALL button and then the OFF button to disconnect all the
outputs
outputs1
At Once mode (user confirmation per action is unnecessary). When in
TAKE mode, pressing TAKE implements the action
setting3
a setup from the non-volatile memory4
Displays the selected input switched to the output (marked above each
input)5
1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
2 When in the Confirm mode, the TAKE button illuminates
3 For example, press STO and then the Output button # 3 to store in Setup # 3
4 See section 7.3.2
5 Also displays the number of IN and OUT ports, the firmware version number, and the MACHINE #. Refer to section 7.1
5
Your VP-8x4 8x4 VGA / UXGA Matrix Switcher
Table 2: Rear Panel VP-8x4 8x4 VGA / UXGA Matrix Switcher Features
# Feature Function
12 INPUT 15-pin HD (F) Connectors Connect to the video sources (from 1 to 8)
13 OUTPUT 15-pin HD (F) Connectors Connect to the output acceptor (from 1 to 4)
14 RS-232 9-pin D-sub (F) Port Connects to the PC or the Remote Controller
15 FLASH PROG Button Push in for “Program” to upgrade to the latest Kramer
16 DELAY Dipswitches Dipswitches for setup of the unit (DELAY dips 1, 2, 3 are for
17 SETUP, and RS-485 TERM
Dipswitches
18 ETHERNET RJ-45 Connector Connects to the PC or other Serial Controller through computer
19 RS-485 Terminal Block Port Pin G is for Ground connection; Pins B (-) and A (+) are for
20 REMOTE IR 3.5mm Mini Jack Connect to an external IR receiver unit for controlling the machine
21 Power Connector with Fuse AC connector enabling power supply to the unit
firmware (see section 8), or release for Normal (the factory
default)1
setting the delay time)2
Dipswitches for setup of the unit (SETUP dips 1, 2, 3, 4 are for
setting machine #; 8 is for RS-485 Termination)3
networking
RS485
via an IR remote controller (instead of using the front panel IR
receiver)4
Figure 2 illustrates the underside of the VP-8x4 unit, and Table 3 defines the
underside features.
Figure 2: VP-8x4 8x4 VGA / UXGA Matrix Switcher Underside View
Table 3: VP-8x4 8x4 VGA / UXGA Matrix Switcher Underside Panel Feature
RESET FOR PROGRAM Button Press to reset unit prior to firmware upgrade (see section 8)
Feature Function
1 The “RESET FOR PROGRAM” button is located on the underside of the unit
2 See section 6.5.1
3 See section 6.5.2
4 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal
IR connection cable has been installed)
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-8x4 8x4 VGA / UXGA Matrix Switcher
4.1 Using the IR Transmitter
You can use the RC-IR2 IR transmitter to control the machine via the built-in
IR receiver on the front panel or, instead, via an optional external IR receiver1.
The external IR receiver can be located 15 meters away from the machine.
This distance can be extended to up to 60 meters when used with three
extension cables2.
Before using the external IR receiver, be sure to arrange for your Kramer
dealer to insert the internal IR connection cable3 with the 3.5mm connector
that fits into the REMOTE IR opening on the rear panel.
Connect the external IRreceiver to the REMOTE IR 3.5mm connector.
1 Model: C-A35M/IRR-50
2 Model: C-A35M/A35F-50
3 P/N: 505-70434010-S
7
Installing the VP-8x4 in a Rack
5 Installing the VP-8x4 in a Rack
This section describes how to install the VP-8x4 in a rack.
Before Installing on a Rack
Before installing on a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5º to +45º C (41º to 113º F)
Operating humidity range 10 to 90% RHL, non-condensing
Storage temperature range -20º to +70º C (-4º to 158º F)
Storage humidity range 5 to 95% RHL, non-condensing
When installing on a 19" rack, avoid hazards by taking
CAUTION!!
care that:
1. It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
2. Once rack mounted, enough air will still flow around
the machine.
3. The machine is placed straight in the correct
horizontal position.
4. You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the
product label.
5. The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention to situations where
electricity is supplied indirectly (when the power cord
is not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip, and that you use only the power cord that is
supplied with the machine.
To rack-mount a machine:
1. Attach both ear brackets to the
2. Place the ears of the machine
Note that:
In some models, the front panel
Detachable rack ears can be
Always mount the machine in the
If you are using a Kramer rack
How to Rack Mount
machine. To do so, remove the
screws from each side of the
machine (3 on each side), and
replace those screws through the
ear brackets.
against the rack rails, and insert the
proper screws (not provided)
through each of the four holes in the
rack ears.
may feature built-in rack ears
removed for desktop use
rack before you attach any cables
or connect the machine to the
power
adapter kit (for a machine that is not
19"), see the Rack Adapters user
manual for installation instructions
(you can download it at:
http://www.kramerelectronics.com)
8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
6 Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
This section describes how to:
Connect the VP-8x4 rear panel (see section 6.1)
Connect the VP-8x4 to a controlling device via RS-232 (see section 6.2),
RS-485 (see section 6.3) and/or the Ethernet (see section 6.4)
Set the dipswitches (see section 6.5)
Connect several VP-8x4 machines (see section 6.6)
6.1 Connecting the VP-8x4 Rear Panel
To connect the VP-8x4 as shown in the example in Figure 3, do the
following1:
1. Connect up to eight VGA/UXGA computer graphics sources to the INPUT
connectors2.
2. Connect3 up to four output connectors to the VGA/UXGA video acceptors
(for example displays or connectors).
3. Set the dipswitches (see section 6.4).
4. If required, connect a PC and/or controller to the RS-232 port (see section
6.2) and/or RS-485 port (see section 6.3).
5. Connect the power cord4 (not shown in Figure 3).
1 Switch OFF the power on each device before connecting it to your VP-8x4. After connecting your VP-8x4, switch on its
power and then switch on the power on each device. DO NOT push in the rear panel Flash Program “Program” button and
DO NOT push in the underside Flash Program “Reset” button. These are only used for upgrading to the latest Kramer
firmware (see section 8)
2 Not all inputs need to be connected
3 When less than four outputs are required, connect only those outputs of the VP-8x4 that are required, and leave the other
outputs unconnected
4 We recommend that you use only the power cord that is supplied with this machine
9
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
Figure 3: Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
9-pin D-sub
9-pin D-sub
PIN 5 Connected to PIN 5 (Ground)
6.2 Controlling via RS-232 (for example, using a PC)
To connect a PC to the VP-8x4 unit, using the null-modem adapter provided
with the machine (recommended):
Connect the null-modem adapter to the RS-232 9-pin D-sub port on the
rear panel of the Master VP-8x4. Connect the null-modem adapter to the
RS-232 9-pin D-sub port on your PC with a 9-wire flat cable
To connect a PC to the VP-8x4 unit, without using a null-modem adapter:
Connect the RS-232 9-pin D-sub port on your PC to the RS-232 9-pin
D-sub rear panel port on the Master VP-8x4 unit, as Figure 4 illustrates
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3
(From PC)
PIN 4 is connected to PIN 6
PINs 8, 7, 1 are connected together
If a shielded cable is used, connect the shield to PIN 5
(Male)
Figure 4: Connecting a PC without using a Null-modem Adapter
6.3 Controlling via RS-485
You can control a VP-8x4 unit via an RS-485 controller, for example, a PC
(equipped with an RS-485 interface) or a Master Programmable Remote
Control system such as the Kramer RC-3000.
To connect an RC-3000 to a VP-8x4 unit (see Figure 5):
1. Connect the RS-485 terminal block port on the RC-3000 to the RS-485
port on the VP-8x4 unit, as follows:
Connect the “ A” (+) PIN on the RS-485 rear panel port of the
RC-3000 to the “ A” (+) PIN on the RS-485 rear panel port of the
VP-8x4 unit
Connect the “B” (-) PIN on the RS-485 rear panel port of the RC-3000
to the “ B” (-) PIN on the RS-485 rear panel port of the VP-8x4 unit
If shielded twisted pair cable is used, the shield may be connected to the
“G” (Ground) PIN on one of the units (for example, on the RC-3000)
2. Set the VP-8x4 unit as Machine # 1, according to Table 6 (that is, DIP 1,
DIP 2, DIP 3, and DIP 4 OFF), and set the other dipswitches on the
VP-8x4 unit, as follows:
Set DIP 5, DIP 6, and DIP 7 OFF
Set DIP 8 ON (for RS-485 Line Termination with 120)
11
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
Figure 5: Controlling via RS-485 (for example, using an RC-3000)
6.4 Control Configuration via the Ethernet Port
To connect and configure the Ethernet port of the VP-8x4, refer to the
ETHERNET Configuration (Lantronix) GUIDE on our Web site:
http://www.kramerelectronics.com.
6.5 Setting the DIP-switches
By default, all dipswitches are set to OFF. Figure 6 illustrates the VP-8x4
DIP-switches:
Figure 6: VP-8x4 DIP-switches
Table 4: DIP-switch Settings
DIPS Function Description
1, 2, 3 DELAY Determines switching delay time
4, 5, 6, 7 Machine # Determines the number of the machine in the sequence
8 RS-485 TERM
12
ON for RS-485 line termination with 120;
OFF for no RS-485 line termination
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
6.5.1 Setting the Delay
You can achieve clean transitions when switching between non-genlocked
sources by setting the delay time—ranging from 0 sec to 3.5 sec1—via the
DELAY DIP-switches, as Table 5 defines. The VP-8x4 unit is shipped (its
factory default state) with no delay, that is, the DELAY DIP-switches are set up
for a 0 sec delay. The delay time is the period where the output will be forced
to black when switching between inputs.
Table 5: DELAY DIP-switch Settings
sec DIP 1 DIP 2 DIP 3
0 OFF OFF OFF
0.5 OFF OFF ON
1.0 OFF ON OFF
1.5 OFF ON ON
2.0 ON OFF OFF
2.5 ON OFF ON
3.0 ON ON OFF
3.5 ON ON ON
6.5.2 Setting the Machine # DIP-switches
The Machine # determines the address of a VP-8x4 unit, specifying which
VP-8x4 unit is being controlled when several VP-8x4 units are connected to a
PC or serial controller. Set the Machine # on a VP-8x4 unit via MACH# DIPs
4, 5, 6 and 7, according to Table 6.
When using a standalone VP-8x4 unit, set the Machine # to 1. When
connecting more than one VP-8x4 unit, set the first machine (the Master) that
is closest to the PC, as Machine # 1 (DIP-switches are set to OFF).
Table 6: Machine # DIP-switch Settings
Mach. # DIP 4 DIP 5 DIP 6 DIP 7 Mach. # DIP 4 DIP 5 DIP 6 DIP 7
1 OFF OFF OFF OFF 9 ON OFF OFF OFF
2 OFF OFF OFF ON 10 ON OFF OFF ON
3 OFF OFF ON OFF 11 ON OFF ON OFF
4 OFF OFF ON ON 12 ON OFF ON ON
5 OFF ON OFF OFF 13 ON ON OFF OFF
6 OFF ON OFF ON 14 ON ON OFF ON
7 OFF ON ON OFF 15 ON ON ON OFF
8 OFF ON ON ON 16 ON ON ON ON
1 In increments of 0.5sec
13
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
6.6 Cascading Machines
You can cascade up to 16 VP-8x4 units with control from a PC or serial
controller (see Figure 7).
To cascade up to 16 individual VP-8x4 units via RS-485, do the following:
1. Connect the VGA/UXGA sources and acceptors, as section 6.1 describes.
2. Connect the RS-232 port1 on the first VP-8x4 unit to the PC using the
null-modem adapter provided with the machine (recommended), as section
6.2 describes.
3. Connect the RS-485 terminal block port on the first unit to the RS-485 port
on the second VP-8x4 unit and so on, connecting all the RS-485 ports.
4. Set the dipswitches, as section 6.4 describes:
Set the first VP-8x4 unit as Machine # 1 and the following 15 VP-8x4
units as Machine # 2 to Machine # 16, according to Table 6
Set DIP 8 ON on the first and last VP-8x4 units (terminating the
RS-485 line at 120). Set DIP 8 OFF on the other VP-8x4 units
Set DIP 5, DIP 6 and DIP 7 OFF on all VP-8x4 units
1 Alternatively, the RS-485 port could be used for PC control (instead of RS-232)
14
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-8x4 8x4 VGA / UXGA Matrix Switcher
Figure 7: Control Configuration via RS-232 and RS-485
15
Operating the VP-4x8 8x4 VGA / UXGA Matrix Switcher
7 Operating the VP-4x8 8x4 VGA / UXGA Matrix Switcher
You can operate your VP-8x4 via:
The front panel buttons
RS-232/RS-485 serial commands transmitted by a touch screen system,
PC, or other serial controller
The Kramer RC-IR Infrared Remote Control Transmitter
The Ethernet
7.1 Displaying Unit Characteristics
The STATUS 7-segment display shows several sets of information in sequence,
as defined in Table 7:
Table 7: STATUS 7-segment Display
The STATUS Display Sequence Indicates the: When:
Device type:
VP-8x4
Immediately (and
automatically) after
switching on the power
Firmware version Immediately (and
Machine number
Normal display:
Inputs switched to the
outputs
automatically) after
switching on the power
During normal operation,
appears a few seconds
after the first display1
1 The “ First Display” appears initially, followed a few seconds later by the “ Second Display”, then the “ Third Display”
16
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the VP-4x8 8x4 VGA / UXGA Matrix Switcher
7.2 Confirming Settings
You can choose to work in the At Once or the Confirm mode.
In the At Once mode (the TAKE button is not illuminated):
Pressing an OUT-IN combination implements the switch immediately
You save time as execution is immediate and actions require no user
confirmation
No protection is offered against changing an action in error
In the Confirm mode (TAKE button is illuminated):
You can key-in several actions and then confirm them by pressing the
TAKE button, to simultaneously activate the multiple switches
Every action requires user confirmation, protecting against erroneous
switching
Execution is delayed1 until the user confirms the action
7.2.1 Toggling between the At Once and Confirm Modes
To toggle between the At Once and Confirm modes, do the following:
1. Press the dim TAKE button to toggle from the At Once mode (in which the
TAKE button is dim) to the Confirm mode (in which the TAKE button
illuminates).
Actions now require user confirmation and the TAKE button illuminates.
2. Press the illuminated TAKE button to toggle from the Confirm mode back
to the At Once mode.
Actions no longer require user confirmation and the TAKE button no
longer illuminates.
7.2.2 Confirming a Switching Action
To confirm a switching action (in the Confirm mode), do the following:
1. Press an OUT-IN combination.
The corresponding 7-segment Display blinks. The TAKE button also
blinks.
2. Press the blinking TAKE button to confirm the action.
The corresponding 7-segment Display no longer blinks. The TAKE button
illuminates.
1 Failure to press the TAKE button within one minute (the Timeout) aborts the action
17
Operating the VP-4x8 8x4 VGA / UXGA Matrix Switcher
To confirm several actions (in the Confirm mode), do the following:
1. Press each OUT-IN combination in sequence.
The corresponding 7-segment Display blinks. The TAKE button also
blinks.
2. Press the blinking TAKE button to confirm all the actions.
The corresponding 7-segment Display no longer blinks. The TAKE button
illuminates.
7.3 Storing/Recalling Input/Output Configurations
You can store and recall up to 12 setups1 using the eight input buttons and the
four output buttons, as Figure 8 illustrates:
Figure 8: Storing and Recalling using the Input/Output Buttons
7.3.1 Storing an Input/Output Configuration
To store the current status in memory, do the following:
1. Press the STO button.
The STO button blinks.
2. Press one of the 12 INPUT/OUTPUT buttons (this will be the setup # in
which the current status is stored). If in the Confirm mode, press the
blinking TAKE button to confirm the action.
The memory stores the data at that reference.
7.3.2 Recalling an Input/Output Configuration
To recall an input/output configuration, do the following:
1. Press the RCL button.
The RCL button blinks.
2. Press the appropriate INPUT/OUTPUT button (the button # corresponding
to the setup #). If in the Confirm mode, that setup configuration will blink
in the 7-segment Display, together with the RCL button and the TAKE
button, and will only be implemented after pressing the TAKE button.
The memory recalls the stored data from that reference.
1 OUT 1 is used for setup # 1 and IN 1 is used for setup # 5
18
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the VP-4x8 8x4 VGA / UXGA Matrix Switcher
Tip: If you cannot remember which of the 12 input/output configurations is
the one that you want, set the VP-8x4 to the Confirm mode and manually scan
all the input/output configurations until you locate it.
7.3.3 Deleting an Input/Output Configuration
To delete an input/output configuration, do the following:
1. Press the STO and RCL buttons simultaneously.
Both the STO and RCL buttons blink.
2. Press the appropriate INPUT/OUTPUT button.
This erases that specific input/output configuration from the memory,
leaving it empty and available1.
7.4 Locking the Front Panel
To prevent changing the settings accidentally or tampering with the unit via
the front panel buttons, lock2 your VP-8x4. Unlocking releases the protection
mechanism.
To lock the VP-8x4:
Press the LOCK button for more than two seconds, until the LOCK button
is illuminated
The front panel is locked. Pressing a button will have no effect other than
causing the LOCK button to blink3
To unlock the VP-8x4:
Press the illuminated LOCK button for more than two seconds, until the
LOCK button is no longer illuminated
The front panel unlocks
1 Storing a new configuration over a previous configuration (without deleting it first) replaces the previous configuration
2 Nevertheless, even though the front panel is locked you can still operate via RS-232 or RS-485, as well as via the Kramer
RC-IR2 Infrared Remote Control Transmitter
3 Warning that you need to unlock to regain control via the front panel
19
Flash Memory Upgrade
8 Flash Memory Upgrade
The VP-8x4 firmware is located in FLASH memory, which lets you upgrade
to the latest Kramer firmware version in minutes!
Note: The firmware update should be carried out by skilled technical
personnel. Failure to update correctly can cause machine malfunction.
The process involves:
Downloading from the Internet (see section 8.1)
Connecting the PC to the RS-232 port (see section 8.2)
Upgrading Firmware (see section 8.3)
8.1 Downloading from the Internet
You can download the up-to-date file1 from the Internet. To do so:
1. Go to our Web site at www.kramerelectronics.com and download the file:
“FLIP_VP8x4.zip” from the Technical Support section.
2. Extract the file: “FLIP_VP8x4.zip” to a folder (for example, C:\Program
Files\Kramer Flash).
3. Create a shortcut on your desktop to the file: “FLIP.EXE”.
8.2 Connecting the PC to the RS-232 Port
Before installing the latest Kramer firmware version on a VP-8x4 unit, do the
following:
1. Connect a serial cable from the VP-8x4 RS-232 9-pin D-sub rear panel
port to a PC as explained in section 6.2.
2. On the rear panel, push in the FLASH PROG button (to program), using a
screwdriver.
3. Connect the power on the VP-8x4 unit and switch it ON.
4. On the underside panel, push in the RESET FOR PROGRAM button (see
Figure 2), using a screwdriver.
1 The files indicated in this section are given as an example only. File names are liable to change from time to time
20
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Flash Memory Upgrade
8.3 Upgrading Firmware
Follow these steps to upgrade the firmware:
1. Double click the desktop icon: “ Shortcut to FLIP.EXE”.
The Splash screen appears as follows:
Figure 9: Splash Screen
2. After a few seconds, the Splash screen is replaced by the “Atmel – Flip”
window:
Figure 10: Atmel – Flip Window
3. Press the keyboard shortcut key F2 (or select the “ Select” command from
the Device menu, or press the integrated circuit icon in the upper right
corner of the window).
The “Device Selection” window appears:
21
Flash Memory Upgrade
Figure 11: Device Selection Window
4. Click the button next to the name of the device and select from the list:
AT89C51RD2:
AT89C51RD 2
T89C5 1RD2
Figure 12: Selecting the Device from the Selection Window
5. Click OK and select “Load Hex” from the File menu.
22
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Flash Memory Upgrade
A
Figure 13: Loading the Hex
6. The Open File window opens. Select the correct HEX file that contains the
updated version of the firmware for VP-8x4 (for example
8x4M_V1p2.hex) and click Open.
7. Press the keyboard shortcut key F3 (or select the “ Communication /
RS232” command from the Settings menu, or press the keys: Alt SCR).
The “RS232” window appears. Change the COM port according to the
configuration of your computer and select the 9600 baud rate:
Figure 14: RS-232 Window
8. Click Connect.
In the “Atmel – Flip” window, in the Operations Flow column, the Run
button is active, and the name of the chip appears as the name of the third
column: AT89C51RD2.
23
Flash Memory Upgrade
Verify that in the Buffer Information column, the “ HEX File: VP8x4.hex”
appears.
A
VP8x4.hex
Figure 15: Atmel – Flip Window (Connected)
9. Click Run.
After each stage of the operation is completed, the check-box for that stage
becomes colored green1.
When the operation is completed, all 4 check-boxes will be colored green
and the status bar message: Memory Verify Pass appears2:
1 See also the blue progress indicator on the status bar
2 If an error message: “ Not Finished” shows, click Run again
24
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Flash Memory Upgrade
A
VP8x4.hex
Figure 16: Atmel – Flip Window (Operation Completed)
10. Close the “ Atmel – Flip” window.
11. Disconnect the power on the VP-8x4.
12. Disconnect the RS-232 rear panel port on the VP-8x4 unit from the
Null-modem adapter.
13. Release FLASH PROG button on rear panel (see Figure 1).
14. Connect the power to the VP-8x4.
Upon initialization, the new VP-8x4 software version shows in the INPUT
STATUS 7-segment Display (see Table 7).
25
Technical Specifications
9 Technical Specifications
The VP-8x4 technical specifications are shown in Table 8:
Table 8: VP-8x4 Technical Specifications1
INPUTS: 8 computer graphics video on 15-pin HD connectors (VGA through UXGA)
OUTPUTS: 4 computer graphics video on 15-pin HD connectors (VGA through UXGA)
MAX. OUTPUT LEVEL: 1.5Vpp
BANDWIDTH (-3dB): 400MHz
DIFF. GAIN: 0.04%
DIFF. PHASE: 0.04Deg
K-FACTOR: <0.05%
S/N RATIO: 75dB
CROSSTALK (all hostile): –53dB
CONTROLS: 18 front panel buttons, RS-232, RS-485, Ethernet
COUPLING: DC
POWER SOURCE: 100–240V AC, 50/60Hz, 11VA
DIMENSIONS 19" x 7" x 1U W, D, H, rack mountable
WEIGHT: 2.7kg (6lbs) approx
ACCESSORIES: Power cord, null-modem adapter, Windows®-based Kramer control
OPTIONS: External remote IR receiver cable
software, infrared remote control transmitter
10 Table of Hex Codes for Serial Communication
Table 9 lists the Hex values for a single machine (MACHINE # 1):
Table 9: VP-8x4 Hex Codes for Switching via RS-232/RS-485
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
IN 8
OUT 1 OUT 2 OUT 3 OUT 4
7 7 7 7
8 8 8 8
Switching Video Channels
1 Specifications are subject to change without notice
26
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Kramer Protocol 2000
11 Kramer Protocol 20001
The VP-8x4 is compatible with Kramer’s Protocol 20002, version 0.50. This
RS-232/RS-485 communication protocol uses four bytes of information as
defined below. For RS-232, a null-modem connection between the machine
and controller is used. The default data rate is 9600 baud, with no parity, 8
data bits, and 1 stop bit.
Table 10: Protocol Definitions
MSB LSB
DESTI-
0 D N5 N4 N3 N2 N1 N0
7 6 5 4 3 2 1 0
1st byte
INPUT
1 I6 I5 I4 I3 I2 I1 I0
7 6 5 4 3 2 1 0
2nd byte
OUTPUT
1 O6 O5 O4 O3 O2 O1 O0
7 6 5 4 3 2 1 0
3rd byte
MACHINE NUMBER
1 OVR X M4 M3 M2 M1 M0
7 6 5 4 3 2 1 0
4th byte
1st BYTE: Bit 7 – Defined as 0.
D – “DESTINATION”: 0 - for sending information to the switchers (from the PC);
1 - for sending to the PC (from the switcher).
N5…N0 – “INSTRUCTION”
The function that is to be performed by the switcher(s) is defined by the INSTRUCTION (6 bits). Similarly, if a function is
performed via the machine’s keyboard, then these bits are set with the INSTRUCTION NO., which was performed. The
instruction codes are defined according to the table below (INSTRUCTION NO. is the value to be set for N5…N0).
2nd BYTE: Bit 7 – Defined as 1.
I6…I0 – “INPUT”.
When switching (ie. instruction codes 1 and 2), the INPUT (7 bits) is set as the input number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the INPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
3rd BYTE: Bit 7 – Defined as 1.
O6…O0 – “ OUTPUT”.
When switching (ie. instruction codes 1 and 2), the OUTPUT (7 bits) is set as the output number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the OUTPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
NATION
INSTRUCTION
1 You can download our user-friendly “ Software for Calculating Hex Codes for Protocol 2000” from the technical support
section on our Web site at: http://www.kramerelectronics.com
2 The instruction codes in Table 11 are a sub-set of the Protocol 2000. You can find the full protocol on our Web site at
http://www.kramerelectronics.com
27
Kramer Protocol 2000
4th BYTE: Bit 7 – Defined as 1.
Bit 5 – Don’t care.
OVR – Machine number override.
M4…M0 – MACHINE NUMBER.
Used to address machines in a system via their machine numbers. When several machines are controlled from a single serial
port, they are usually configured together with each machine having an individual machine number. If the OVR bit is set, then
all machine numbers will accept (implement) the command, and the addressed machine will reply.
For a single machine controlled via the serial port, always set M4…M0 = 1, and make sure that the machine itself is
configured as MACHINE NUMBER = 1.
Table 11: Instruction Codes for Protocol 2000
Note: All values in the table are decimal, unless otherwise stated.
0 RESET VIDEO 0 0 1
1 SWITCH VIDEO Set equal to video input
3 STORE VIDEO STATUS Set as SETUP # 0 - to store
4 RECALL VIDEO STATUS Set as SETUP # 0 2, 3, 15
5 REQUEST STATUS OF A
15 REQUEST WHETHER SETUP
16 ERROR / BUSY For invalid / valid input (i.e.
30 LOCK FRONT PANEL 0 - Panel unlocked
31 REQUEST WHETHER PANEL
57 SET AUTO-SAVE I3 - no save
61 IDENTIFY MACHINE 1 - video machine name
62 DEFINE MACHINE 1 - number of inputs
NOTES on the above table:
NOTE 1 - When the master switcher is reset, (e.g. when it is turned on), the reset code is sent to the PC. If this code is sent to
the switchers, it will reset according to the present power-down settings.
NOTE 2 - These are bi-directional definitions. That is, if the switcher receives the code, it will perform the instruction; and if
the instruction is performed (due to a keystroke operation on the front panel), then these codes are sent. For example, if the
HEX code
01 85 88 83
was sent from the PC, then the switcher (machine 3) will switch input 5 to output 8. If the user switched input 1 to output 7
via the front panel keypad, then the switcher will send HEX codes:
41 81 87 83
to the PC.
When the PC sends one of the commands in this group to the switcher, then, if the instruction is valid, the switcher replies by
sending to the PC the same four bytes that it was sent (except for the first byte, where the DESTINATION bit is set high).
INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION
# DESCRIPTION INPUT OUTPUT
Set equal to video output which is
to be switched
(0 = to all the outputs)
1 - to delete
status is reqd
0 - for checking if setup is defined
1 - for checking if input is valid
0 - error
1 - invalid instruction
2 - out of range
3 - machine busy
4 - invalid input
5 - valid input
6 - RX buffer overflow
0 2
0 12, 2
0 - Request first 4 digits
1 - Request first suffix
2 - Request second suffix
3 - Request third suffix
10 - Request first prefix
11 - Request second prefix
12 - Request third prefix
1 - for video
VIDEO OUTPUT
IS DEFINED / VALID INPUT IS
DETECTED
IS LOCKED
which is to be switched
(0 = disconnect)
Set as SETUP # Equal to output number whose
SETUP #
or
Input #
OUTPUT byte = 4 or
OUTPUT byte = 5),
this byte is set as the input
#
1 - Panel locked
0 0 16
I4 - auto-save
3 – video software version
2 - number of outputs
3 - number of setups
NOTE
2, 15
2, 3, 15
4, 3
8
9, 25
13
14
28
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Kramer Protocol 2000
NOTE 3 - SETUP # 0 is the present setting. SETUP # 1 and higher are the settings saved in the switcher's memory, (i.e. those
used for Store and Recall).
NOTE 4 - The reply to a "REQUEST" instruction is as follows: the same instruction and INPUT codes as were sent are
returned, and the OUTPUT is assigned the value of the requested parameter. The replies to instructions 10 and 11 are as per
the definitions in instructions 7 and 8 respectively. For example, if the present status of machine number 5 is breakaway
setting, then the reply to the HEX code
0B 80 80 85
would be HEX codes
4B 80 81 85
NOTE 8 - The reply is as in TYPE 3 above, except that here the OUTPUT is assigned with the value 0 if the setup is not
defined / no valid input is detected; or 1 if it is defined / valid input is detected.
NOTE 9 - An error code is returned to the PC if an invalid instruction code was sent to the switcher, or if a parameter
associated with the instruction is out of range (e.g. trying to save to a setup greater than the highest one, or trying to switch an
input or output greater than the highest one defined). This code is also returned to the PC if an RS-232 instruction is sent
while the machine is being programmed via the front panel. Reception of this code by the switcher is not valid.
NOTE 12 - Under normal conditions, the machine's present status is saved each time a change is made. The "power-down"
save (auto-save) may be disabled using this code. Note that whenever the machine is turned on, the auto-save function is set.
NOTE 13 - This is a request to identify the switcher/s in the system. If the OUTPUT is set as 0, and the INPUT is set as 1, 2,
5 or 7, the machine will send its name. The reply is the decimal value of the INPUT and OUTPUT. For example, for a 2216,
the reply to the request to send the audio machine name would be (HEX codes):
7D 96 90 81 (i.e. 128dec+ 22dec for 2nd byte, and 128dec+ 16dec for 3rd byte).
If the request for identification is sent with the INPUT set as 3 or 4, the appropriate machine will send its software version
number. Again, the reply would be the decimal value of the INPUT and OUTPUT - the INPUT representing the number in
front of the decimal point, and the OUTPUT representing the number after it. For example, for version 3.5, the reply to the
request to send the version number would be (HEX codes):
7D 83 85 81 (i.e. 128dec+ 3dec for 2nd byte, 128dec+ 5dec for 3rd byte).
If the OUTPUT is set as 1, then the ASCII coding of the lettering following the machine’s name is sent. For example, for the
VS-7588YC, the reply to the request to send the first suffix would be (HEX codes):
7D D9 C3 81 (i.e. 128dec+ ASCII for “ Y”; 128dec+ ASCII for “ C”).
NOTE 14 - The number of inputs and outputs refers to the specific machine which is being addressed, not to the system. For
example, if six 16X16 matrices are configured to make a 48X32 system (48 inputs, 32 outputs), the reply to the HEX code
3E 82 81 82 (ie. request the number of outputs)
would be HEX codes
7E 82 90 82
ie. 16 outputs
NOTE 15 – When the OVR bit (4th byte) is set, then the “ video” commands have universal meaning. For example, instruction
1 (SWITCH VIDEO) will cause all units (including audio, data, etc.) to switch. Similarly, if a machine is in “FOLLOW”
mode, it will perform any “ video” instruction.
NOTE 16 - The reply to the “ REQUEST WHETHER PANEL IS LOCKED” is as in NOTE 4 above, except that here the
OUTPUT is assigned with the value 0 if the panel is unlocked, or 1 if it is locked.
NOTE 25 – For units which detect the validity of the video inputs, Instruction 16 will be sent whenever the unit detects a
change in the state of an input (in real-time).
For example, if input 3 is detected as invalid, the unit will send the HEX codes
10 83 84 81
If input 7 is detected as valid, then the unit will send HEX codes
10 87 85 81.
29
LIMI TED WA RRANTY
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRA NTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECT ED?
Only the first purchase customer may enforce this warranty.
WHAT I S CO VERED AND WHAT IS NOT COVERED
Kramer
by the w arranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
IF reattached, removed or otherwise interfered with.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY F OR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CA N G ET WARRANTY SERVI CE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMI TATIO N O F IMPLIED WARRANTIE S
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSIO N OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
NOTE:
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC* Rules and Regulations:
CAUTI ON!
generic emission standard.
Part 1:
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
* FCC and CE approved using STP cable (for twisted pair products)
30
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Caution
P/N:
2900-000517
Rev:
1
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000517 REV 1
Loading...
