Kramer Electronics, Ltd.
USER MANUAL
Model:
VP-81KSi
8x1 UXGA/Audio STEP-IN Switcher
Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
3.1 Defining EDID 4
4 Defining the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher 5
4.1 Using the IR Transmitter for the VP-81KSi 7
5 Installing in a Rack 8
6 Connecting the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher 9
6.1 Connecting the Balanced/Unbalanced Stereo Audio Output 10
6.2 Connecting Remote Contact Closure Input Selection Switches 11
6.3 Connecting the SI-1VGA Remote Step-in Module 11
6.4 Connecting the AV ON CAT 5 Twisted Pair Output 12
6.5 Connecting to the VP-81KSi via the RS-232 Port 12
6.6 Connecting to the VP-81KSi via the RS-485 Port 13
6.6.1 Setting the RS-485 Machine Number and Bus Termination DIP-switches 13
6.6.2 Connecting and Controlling Multiple VP-81KSi Devices 14
6.7 Cascading Multiple VP-81KSi Devices 14
6.8 Controlling a Remote RS-232 Device 15
6.9 Connecting to the VP-81KSi via the Ethernet Port 16
6.9.1 Connecting Directly to the Ethernet Port 16
6.9.2 Connecting via a Network Hub, Switch, or Router 18
6.9.3 Configuring the Ethernet Port on the VP-81KSi 18
7 Operating the VP-81KSi Locally via the Front Panel Buttons 19
7.1 Using the Front Panel INPUT SELECTOR Buttons 19
7.2 Using the Audio-Follow-Video/Breakaway Modes 20
7.2.1 Operating in Breakaway Mode 20
7.2.2 Switching to Audio Follow Video Mode 20
7.3 Setting the Audio Output Gain 20
7.4 Operating Cascaded VP-81KSi Devices 20
8 Operating the VP-81KSi Remotely 21
9 Operating the VP-81KSi Remotely using a Web Browser 21
9.1 To Log On to the VP-81KSi Web Pages 22
9.2 The Switching Matrix Page 23
9.2.1 Switching an Input to an Output 24
9.2.2 Operating in the Confirm Mode 25
9.3 The Audio Gain Page 26
9.4 The Configurations Page 27
10 Upgrading the Firmware 28
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
ii
11 EDID 28
12 Technical Specifications 29
13 Communication Parameters 30
14 Default EDID 30
15 Table of ASCII Codes for Serial Communication (Protocol 3000) 31
16 Table of Hex Codes for Serial Communication (Protocol 2000) 32
17 Kramer Protocol 33
17.1 Switching Protocols 34
17.1.1 Switching Protocols via the Front Panel Buttons 34
17.1.2 Switching Protocols via Protocol Commands 34
17.2 Kramer Protocol 3000 34
17.2.1 Protocol 3000 Syntax 34
17.2.2 Command Part Details 35
17.3 Kramer Protocol 2000 41
Figures
Figure 1: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Front Panel 5
Figure 2: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Rear Panel 6
Figure 3: Connecting the VP-81KSi
Figure 4: Balanced Stereo Audio Connection
Figure 5: Unbalanced Stereo Audio Connection
Figure 6: Remote Input Selection Switch Wiring 11
Figure 7: Connecting the SI-1VGA
Figure 8: RS-485 DIP-switches
Figure 9: Cascading up to Eight VP-81KSi Devices
Figure 10: Local Area Connection Properties Window
Figure 11: Internet Protocol (TCP/IP) Properties Window 17
Figure 12: Connect Window
Figure 13: Device Properties Window
Figure 14: Java Test Page Success Message
Figure 15: The Loading Page 22
Figure 16: First Time Security Warning
Figure 17: VP-81KSi Switching Matrix Page
Figure 18: Switching an Input to an Output
Figure 19: Switching an Input to an Output 25
Figure 20: Exiting Offline Warning
Figure 21: Audio Gain Page
Figure 22: Configurations Page
9
10
10
12
13
15
17
18
19
21
23
24
25
26
26
27
Contents
iii
Tables
Table 1: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Front Panel Features 5
Table 2: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Rear Panel Features 6
Table 3: RS-485 DIP-switch Settings
Table 4: Machine Number DIP-switch Settings
Table 5: Button Illumination Descriptions
Table 6: Technical Specifications of the VP-81KSi 29
Table 7: Communication Parameters
Table 8: VP-81KSi Video and Audio Signal Codes
Table 9: VP-81KSi Audio Input Gain Codes
Table 10: VP-81KSi Audio and Audio Output Gain Codes 32
Table 11: VP-81KSi Hex Codes for Protocol 2000
Table 12: VP-81KSi Hex Codes that Increase/Decrease Audio Input Gain
Table 13: Hex Codes that Set the Audio Input Gain
Table 14: VP-8x8AK Hex Codes for Increasing/Decreasing the Output Gain
Table 15: Hex Codes for Setting the Audio Output Gain 33
Table 16: Instruction Codes for Protocol 3000
Table 17: Protocol Definitions
Table 18: Instruction Codes for Protocol 2000
13
14
20
30
31
32
32
32
33
33
36
41
42
Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models now
appear in 11 groups
Congratulations on purchasing your Kramer VP-81KSi 8x1 UXGA/Audio STEP-IN
Switcher.
The VP-81KSi is ideal for:
• Display systems requiring simple input selection
• Remote monitoring of computer activity in schools and businesses
• Rental/staging applications
• Multimedia and presentation source selection
The package includes the following items:
• VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
• Infrared RC-IR3 remote control transmitter (including the required battery
and a separate user manual
• One SI-1VGA Remote Step-in Module and user manual
• Power cord
• This user manual
1
that are clearly defined by function.
2
)
2
2
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high resolution cables

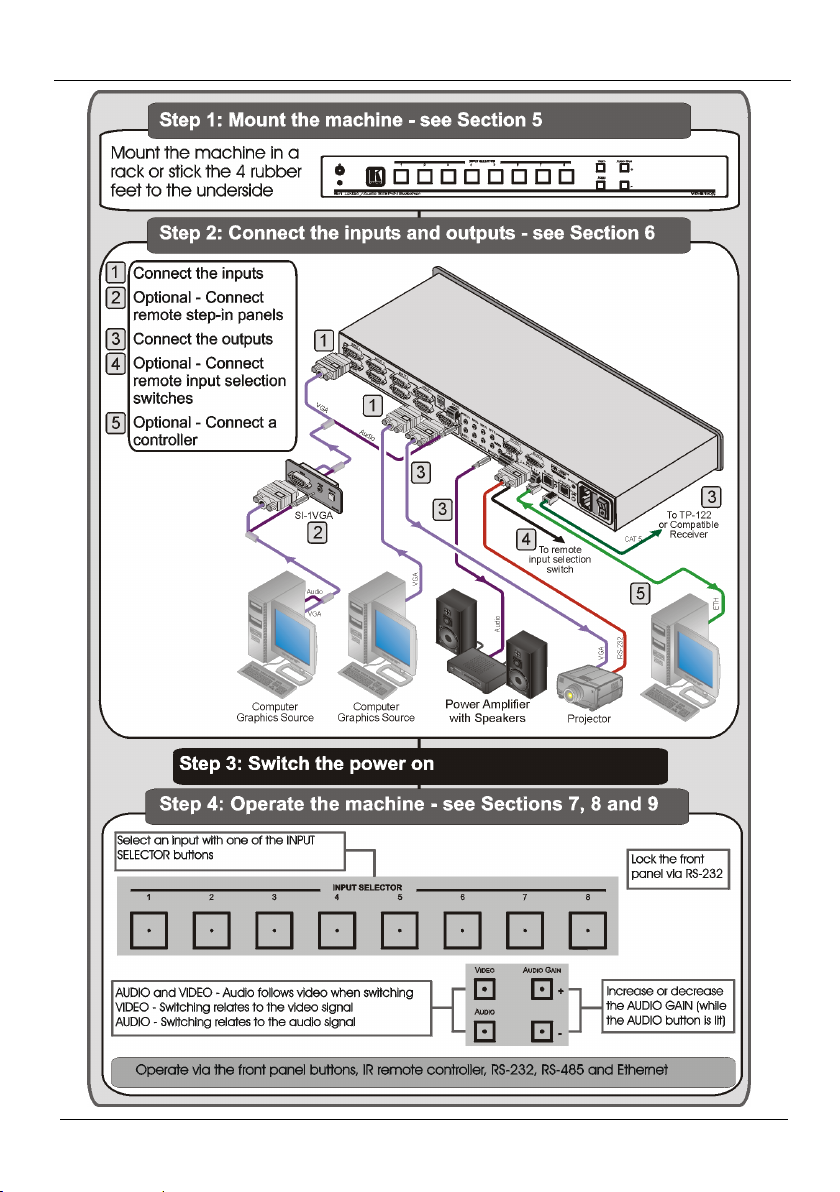

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack
Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com
3 The complete list of Kramer cables is available from http://www.kramerelectronics.com
3
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
Overview
3
3 Overview
The VP-81KSi routes any input to both outputs, using 15-pin HD female connectors
for the computer graphics video signals, a 3.5mm mini jack for the unbalanced stereo
audio Output 1 signal, and a detachable terminal block connector for the balanced
stereo audio Output 2 signal.
In particular, the VP-81KSi:
• Has a very high video bandwidth ensuring transparent WUXGA performance
• Features audio-follow-video (AFV) in which all operations relate to both the
video and the audio channels, or audio breakaway option, in which video and
audio channels are switched independently
• Features volume control
• Includes the Kramer innovative integrated sync processing Kr-isp™
technology, which lets you achieve a sharp, stable image even when the sync
level is too low, by restoring the sync signal waveform
• Up to eight units can be cascaded to provide a single “virtual” switcher with
up to 57 inputs
• Supports the SI-1VGA Remote Step-in Panel for remote inputs and remote
step-in control
You can control the VP-81KSi using the front panel buttons, or remotely via:
• RS-485 or RS-232 serial commands transmitted by a touch screen system, PC
or other serial controller
• Ethernet over a LAN using a Web browser
• The SI-1VGA Remote Step-in Panel
• The Kramer RC-IR3 Infrared Remote Control Transmitter or infrared remote
extension cable transmitter (optional)
• Remote, contact closure switches
To achieve the best performance:
• Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise levels
(often associated with low quality cables)
• Avoid interference from neighboring electrical appliances that may adversely
influence signal quality and position your VP-81KSi away from moisture,
excessive sunlight and dust
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3.1 Defining EDID
1
The Extended Display Identification Data (EDID
) is a data-structure, provided by
a display that describes its capabilities to a graphics card (that is connected to the
display’s source). The EDID enables the PC or laptop to “know” what kind of
monitor is connected to the output. The EDID includes the manufacturer’s name,
product type, timing data supported by the display, display size, luminance data
and (for digital displays only) pixel mapping data.
1 Defined by a standard published by the Video Electronics Standards Association (VESA)
Defining the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
1
4 Defining the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher

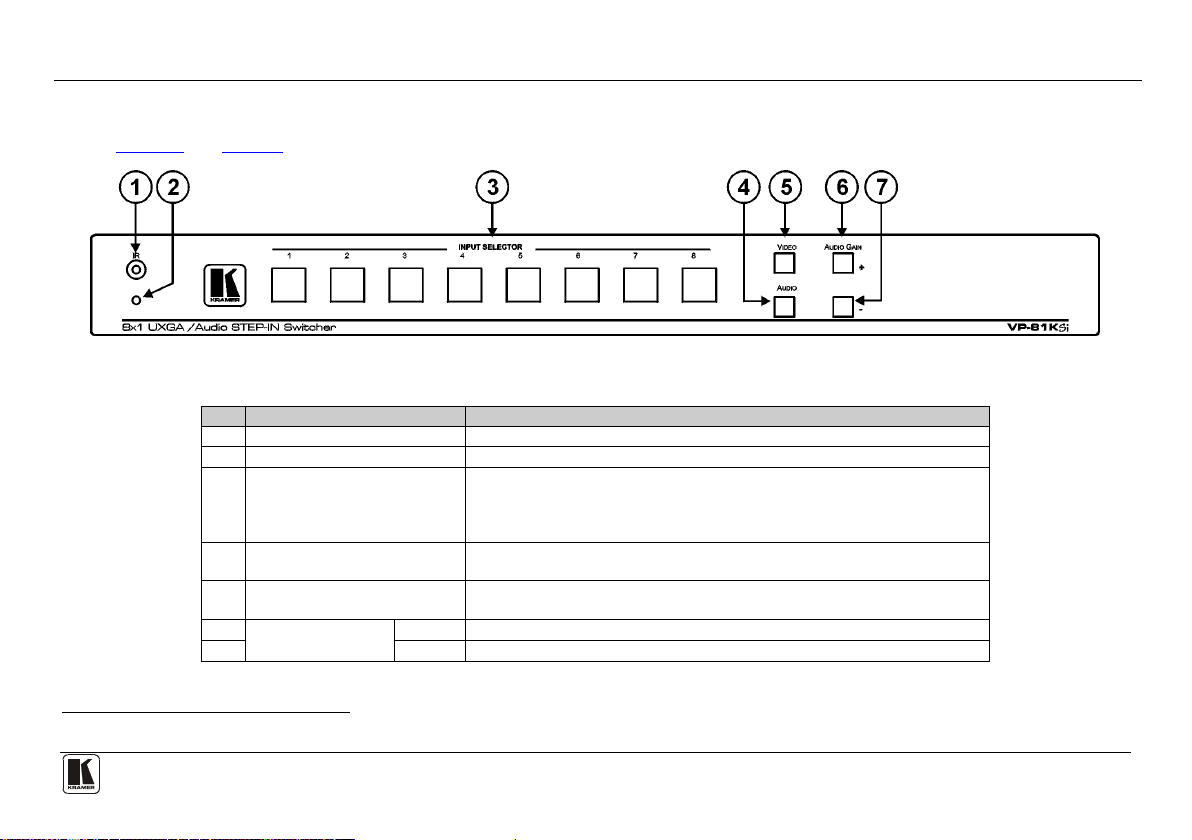

Figure 1 and Table 1 define the front panel of the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher.
Figure 1: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Front Panel
Table 1: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Front Panel Features
# Feature Function
1 IR Sensor Receiver for the IR Remote Control signal
2 IR LED Lights yellow when the unit receives an IR signal
3 INPUT SELECTOR Buttons Press to select the input (from 1 to 8) to switch to the outputs.
4 AUDIO Button Press to execute audio related actions.
5 VIDEO Button Press to execute video related actions.
6
AUDIO GAIN Buttons
7
1 While the AUDIO button is lit
+ Press to increase the audio output level of the selected input
– Press to decrease the audio output level of the selected input1
The button lights red if it is selected and there is no input signal.
The button lights green if it is not selected but there is an input signal at that input.
The button lights violet if it is selected and there is an input signal connected
The button lights when the audio mode is operational
The button lights when the video mode is operational
5
Defining the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
6
#
Feature
Function
Figure 2 and Table 2 define the rear panel of the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher.
Figure 2: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Rear Panel
Table 2: VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher Rear Panel Features
8 VIDEO INPUT 15-pin HD (F) Connectors Connect to the VGA (up to WUXGA) sources (from 1 to 8)
9 Mach # DIP-switches DIP-switches 1, 2 and 3 assign the RS-485 machine number (see Section 6.6.1
10 ) TERM DIP -switch DIP-switch 4 sets the RS-485 termination on or off (see Section 6.6.1
11 ) RS-485 Terminal Block Connect to RS-485 port on a remote controller or another VP-81KSi (see Section 6.6
12 ) AUDIO INPUT 3.5mm Mini Jacks Connect to the unbalanced stereo audio sources (from 1 to 8)
13 RS-232-1 9-pin D-sub Port (F) Connect to the RS-232 port on a remote controller (see Section 6.3
14 ) RS-232-2 9-pin D-sub Port (M) Connect to an RS-232 controllable device (for example, a projector, see Figure 3)
15 ETHERNET RJ-45 Connector Connect to a remote controller via a LAN (see Section 6.9
16 ) AV ON CAT 5 RJ-45 Connector Connect to a compatible TP receiver (for example, TP-122)
17 REMOTE IR 3.5mm Mini Jack Connect to an external IR receiver unit for controlling the machine via an IR remote controller (see Section 4.1
18
Mains Power Connector Connect to the AC mains supply
19 Main Power Fuse Fuse for protecting the unit
20 Mains Power Switch AC mains switch
21 OUTPUT 15-pin HD Connector Connect to the VGA (up to W UXGA) acceptor
22 AUDIO OUT 1 3.5mm Mini Jack Connect to the unbalanced stereo audio acceptor
23 AUDIO OUT 2 Terminal Block Connector Connect to the balanced stereo audio acceptor
24 REMOTE Switch Terminal Block Connect to contact closure switches for duplicating the function of the front panel Input Selector buttons (see Section 6.2
25 ) PROG. Button For the use of Kramer technical support only
26 FACTORY RESET Button Press and hold while turning the unit on to reset all parameters to factory default values (see Table 7)
KRAMER: SIMPLE CREATIVE TECHNOLOGY
)
Defining the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
4.1 Using the IR Transmitter for the VP-81KSi
You can use the RC-IR3 IR transmitter to operate the machine via the built-in IR
receiver on the front panel or, instead, via an optional external IR receiver
external IR receiver can be located 15m (49ft) away from the machine. This
distance can be extended to up to 60m (197ft) when used with three extension
2
cables
Before using the external IR receiver, be sure to arrange for your Kramer dealer to
insert the internal IR connection cable
3
7F
with the 3.5mm jack that fits into the
REMOTE IR opening on the rear panel. Connect the external IR receiver to the
REMOTE IR 3.5mm jack.
1
. The
1 Model: C-A35M/IRR-50
2 Model: C-A35M/A35F-50
3 P/N: 505-70434010-S
7
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Installing in a Rack
8
5 Installing in a Rack
This section describes the preparation and installation of the unit in a rack.
.
Connecting the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
6 Connecting the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
Figure 3: Connecting the VP-81KSi
To connect1 the VP-81KSi, as illustrated in the example in Figure 3:
1. Connect up to eight
15-pin HD VIDEO INPUT connectors
2
SI-1VGA Remote Step-in Panels to the VP-81KSi
3
and to the 3.5mm mini jacks (from 1
to 8).
2. Connect up to eight WUXGA computer graphics sources to the SI-1VGA
15-pin HD video connectors.
3. Connect up to eight unbalanced audio sources to the 3.5mm mini jack audio
connectors on the SI-1VGA panels.
4. Connect the 15-pin HD VIDEO OUTPUT connector to a WUXGA acceptor
(for example, a projector).
1 Be sure that the power is switched off on each device before connecting it to your VP-81KSi. After connecting all the devices to your
VP-81KSi, switch on the power of the VP-81KSi, and then switch on the power of each device
2 You do not have to connect all the inputs
3 The cable used must connect all 15 pins
9
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
10
5. Connect the RJ-45 AV ON CAT 5 output connector to a compatible TP
receiver (for example, TP-120).
6. Connect the unbalanced audio 3.5mm AUDIO OUTPUT jack to an
unbalanced audio acceptor (for example, power amplifier).
7. Connect the balanced audio 5-pin terminal block (see
acceptor
1
.
Section 6.1) to an audio
8. Connect up to eight remote, contact closure input selection switches to the
REMOTE terminal block (see
Section 6.2
).
9. Connect a PC over a LAN to the Ethernet for remote operation.
10. Set the DIP-switches (see
Section 6.6.1
) for remote operation. You can
connect a PC and/or controller to the:
RS-232 port (see
RS-485 port (see ) Section 6.6.1
11. Connect
1
the power cord
Section 6.3
2
.
)
6.1 Connecting the Balanced/Unbalanced Stereo Audio Output
This section illustrates how to wire the devices to the balanced audio output:
• A balanced stereo output connection, see
• An unbalanced stereo output connection, see
Figure 4
Figure 5
1 Not shown in the illustration
2 We recommend that you use only the power cord that is supplied with this machine
Figure 4: Balanced Stereo Audio Connection
Figure 5: Unbalanced Stereo Audio Connection
Connecting the VP-81KSi 8x1 UXGA/Audio STEP-IN Switcher
6.2 Connecting Remote Contact Closure Input Selection Switches
You can connect remote input selection switches to the Remote terminal block on
the rear panel of the VP-81KSi which enables you to remotely activate the relevant
input.
The following example (see
Figure 6) illustrates three switches (A, B and C)
connected to remotely controlled inputs 1, 2 and 3 respectively (up to eight
switches can be connected). Pressing switch A causes input 1 on the VP-81KSi to
be the active input, pressing switch B causes input 2 to be the active input, and
pressing switch C causes input 3 to be the active input.
Figure 6: Remote Input Selection Switch Wiring
To connect remote input selection switches as illustrated in the example in
Figure 6:
1. Connect Switch A to pins 1 and G
2. Connect Switch B to pins 2 and G
3. Connect Switch C to pins 3 and G
1
on the terminal block.
1
on the terminal block.
1
on the terminal block.
4. If required, repeat for a total of up to eight switches.
6.3 Connecting the SI-1VGA Remote Step-in Module
For detailed instructions refer to the SI-1VGA Step-in Module Installation
Instructions
2
.
To connect an SI-1VGA remote step-in module to the VP-81KSi as illustrated
in the example in
Figure 7:
1. Mount the SI-1VGA in either the TBUS-10 or the K-POD301.
1 You can connect any of the switches to either of the two Gnd connections
2 Available for download from
http://www.kramerelectronics.com
11
Loading...
