Kramer Electronics, Ltd.
USER MANUAL
Model:
VP-719DS, Seamless Switcher / Scaler
Contents
Contents
1 Introduction 1
2 Getting Started 1
3 Overview 1
4 Your Seamless Switcher / Scaler 3
5 Connecting the Seamless Switcher / Scaler 7
5.1 Connecting a PC 8
6 Understanding the Seamless Switcher / Scaler 10
6.1 Understanding the OUTPUT MODE SELECT Button Functionality 10
6.2 Locking and Unlocking the Front Panel 12
7 Operating the Seamless Switcher / Scaler 13
7.1 Switching and Scaling 13
7.1.1 Switching an Input 13
7.1.2 Choosing the Output Resolution 13
7.2 Controlling the Seamless Switcher / Scaler 14
7.3 Operating via the OSD MENU Screen 14
7.3.1 Controlling the Brightness and Contrast 15
7.3.2 Controlling the Gamma and Color 15
7.3.3 Selecting the Source 16
7.3.4 Controlling the Scale Geometry 17
7.3.5 Adjusting the Zoom Ratio and Position 18
7.3.5.1 Adjusting the Zoom Ratio 20
7.3.5.2 Adjusting the Zoom Position 20
7.3.6 Configuring via the Utility Screens 21
7.3.6.1 Choosing the Graph ic U tility Settings 22
7.3.6.2 Choosing the Video Utility Settings 23
7.3.6.3 Choosing the Audio U tility Se ttin gs 24
7.3.6.4 Choosing the Seamle ss Switch Utility Settings 25
7.3.6.5 Choosing the OSD U tility Se tting s 25
7.3.6.6 Choosing the Output U tility Settings 27
7.3.6.7 Choosing Factory Reset 29
7.3.7 Verifying Configuration Details via the Information Screen 29
7.3.8 Operating via the Infra-red Remote Control Transmitter 29
7.4 Upgrading Firmware 32
8 Technical Specifications 32
9 Communication Protocol 33
i
Contents
Figures
Figure 1: VP-719DS Seamless Switch er / Scaler 4
Figure 2: Connecting the PC 8
Figure 3: Connecting the VP-719DS Rear Panel 9
Figure 4: OUTPUT MODE LED Sequence 11
Figure 5: Locking / Unlocking the Front Panel 12
Figure 6: OSD Input Status 13
Figure 7: OSD Output Status 14
Figure 8: MENU Screen 15
Figure 9: Menu Screen Icons 15
Figure 10: Brightness and Contrast Screen 15
Figure 11: Gamma and Color Screen 16
Figure 12: Gamma, Color Temperature/Manager User 1/2 Screen 16
Figure 13: Source Selection Screen 16
Figure 14: Geometry (Scale and Zoom) Screen 17
Figure 15: Geometry (Scale: Aspect Ratio and Nonlinear) Screen 17
Figure 16: Geometry (Scale: Asp ect Ratio) Screen 18
Figure 17: Geometry (Zoom) Screen 18
Figure 18: OSD Enlarge Status 19
Figure 19: Zoom Ratio Adjustment Example 19
Figure 20: Zoom Position Adjustment Example 19
Figure 21: Geometry (Zoom Ratio) Screen 20
Figure 22: Preset Position Control Keys 20
Figure 23: Navigation Control Keys 21
Figure 24: Geometry (Zoom Position Adjustment) Screen 21
Figure 25: Utility Screen 21
Figure 26: Graphic Setting Utility Screen 22
Figure 27: Graphic Setting Color Format Utility Screen 22
Figure 28: Video Setting Utility Screen 23
Figure 29: Video Setting Standard Utility Screen 23
Figure 30: Audio Setting Utility Screen 24
Figure 31: Audio Setting Stereo Utility Screen 24
Figure 32: Seamless Switch Utility Screen 25
Figure 33: OSD Setting Utility Screen 25
Figure 34: OSD Size Utility Screen 26
Figure 35: OSD Source Prompt Activation Utility Screen 26
Figure 36: OSD Blank Color Utility Screen 26
Figure 37: Output Setting Utility Screen 27
Figure 38: Output Setting Resolution Utility Screen 27
Figure 39: Output Setting Refresh Rate Utility Screen 28
Figure 40: Output Setting User Mode Setting Utility Screen 28
Figure 41: Factory Reset Utility Screen 29
Figure 42: Infra-red Remote Control Transmitter 30
ii
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
Tables
Table 1: Front Panel VP-719DS, Seamless Switcher / Scaler Features 5
Table 2: Rear Panel VP-719DS, Seamless S witch er / Scaler Features 6
Table 3: Selecting the Output Mode Resolution 10
Table 4: User Mode Setting Definitions 28
Table 5: Infra-red Remote Control Transmitter Functions 31
Table 6: Technical Specifications of the VP-719DS 32
Table 7: RS-232 Protocol 33
Table 8: RS-232 Communication Code 33
Table 9: RS-232 Read Command 35
iii
Addendum: Scalers Group
Additional Features of the Scaler Products Group according to
the Master-Firmware Ver-2.33 Release.
1. This version requires Slave Firmware version 1.06 or higher. The version can be
seen in the INFO section of the on-screen menu. Contact your Kramer service center if
you have any questions.
2. Improved functionality lets you select the PIP source via the RS-232
command. Sending an inappropriate PIP source command (request video PIP source
while the main video input is selected; or the same for graphic sources) will not cause
the unit to operate erroneously. In such a case, the unit will ignore the command and
return the message: “ineffective source”. This option does not apply to the VP-719DS.
3. Added PIP position(s) commands in the RS-232 protocol. These commands
let you input the absolute value (from 0 to 36) of the horizontal and vertical positions of
the PIP. For details, see the protocol table. This option does not apply to the VP-719DS.
4. Added new output resolution 1280x768. This resolution is marked with an
asterisk “*” to attract your attention to the fact that this is not a standard VESA
resolution and its parameters vary from manufacturer to manufacturer. Therefore, this
resolution must be used with caution. It is also possible to use the parameters of this
resolution in combination with the User Defined resolution (see below). There is also an
RS-232 command for this resolution. For details, see the protocol table.
5. Added 50 Hz output refresh rate. This is for special cases only. Many of the
modern screens and projectors have difficulties working with such a low frequency.
6. In the OSD under UTILITIES>ADVANCED there is new item: “Input
Button”. This item defines an action after repeatedly pressing the same input selection
button. This item has following options:
FREEZE/BLANK – this is the current situation (quoting from the user
manual: Press again (when the LED illuminates) to freeze the image; the LED
flashes. Press once again (when the LED flashes), to display a blank screen; the
LED flashes more slowly)). This remains the factory default
FREEZE – pressing the button toggles between LIVE and FREEZE
BLANK – pressing the button toggles between LIVE and BLANK
IGNORE – after selecting the source, the button is ignored
The settings also apply to the input buttons on the IR control.
7. Under the Utility>PIP Setting there is new item: “PIP Frame”. This feature
allows the enable/disable yellow frame around the PIP through the OSD or the new
RS-232 command: L 50AF. The RS-232 command allows PIP frame enable/disable
while the PIP is activated. However, before doing it via the OSD you must switch the
PIP OFF. While the frame is activated, pressing the UP and DOWN buttons on the front
panel and on the IR remote control would toggle through the PIP size settings. This
option does not apply to the VP-719DS.
P/N: 2900-0070144 A1
Addendum: Scalers Group
8. Under the Utility>Output Setting>User Mode Setting there is a new option:
“Set Current”. This feature lets you apply the parameters of the currently selected
output resolution to the User Define output resolution (Utility>Output
Setting>Resolution). This set of parameters can be used as a “starting point” to adjust
parameters according to the requirements of the signal receiver. The changes to the User
Define parameters are applied immediately and require confirmation in the same part of
the OSD.
9. In the OSD under UTILITIES>ADVANCED there is new item “User
Define Measure”. This feature lets you modify the automatically detected parameters
of the input graphic signal and save them in one of 3 sets for further use. The changes
are applied in real time and therefore can be monitored directly on the screen. This
feature is especially useful in working with non-standard input resolutions. The
following parameters can be changed:
H Total: Horizontal total
H Start: Horizontal active start point
H Active: Horizontal active region
V Start: Vertical active start point
V Active: Vertical active region
Ch Pump: Charge Pump current
Color: Color Format
10. Under the Utility>PIP Setting>PIP Size, there is a new option: “User
Define”. This feature lets you set the size of the PIP to your exact needs. To use this
option, select “User Define”, then press the “PIP User Define” bar and set the PIP
V-size (0-2551) and H-size (0-2551). This option does not apply to the VP-719DS.
11. By pressing the +, -, UP and DOWN buttons continuously, you can speed
up their response. For example, to roughly set the brightness to a higher level, open
“Brightness and Contrast”>Brightness, and press and hold the + button. For step-by-step
response, press and release these buttons as many times as needed.
12. New firmware supports an updated set of RS-232 protocol commands.
These commands are available on our Web site at http://www.kramerelectronics.com
13. Under Geometry>Scale>Aspect Ratio there is a new option: “User Define”.
This feature lets you adjust the geometry of the outputted picture.
14. A new refresh rate for HDTV resolutions. This new feature supports the
HDTV outputs with 50Hz refresh rate2.
1 255 corresponds to a full screen
2 This option applies to machines that support HDTV resolutions
A2
Introduction
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
300-plus different models now appear in 8 Groups
1
, which are clearly defined
by function. Congratulations on purchasing your Kramer VP -719DS
Seamless Switcher / Scaler, which is ideal for the following typical
applications:
• Presentation and conference room systems
• Production studios, rental and stagi ng
The VP-719DS package includes the following items:
• Seamless Switcher / Scaler
2
• Power cord
, Infra-red remote control transmitter and Null-modem
adapter
• This user manual
3
and the Kramer concise product catalog/CD
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high resolution cables
4
3 Overview
The VP-719DS is a Seamless Switcher / Scaler designed for a wide variety of
presentation and multimedia applications. It is a true multi-standard video to
RGBHV (pixel) scaler that converts composite video, s-Video, component
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 We recommend that you use only the power cord that is supplied with this machine
3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables and Connectors”
in the Products section)
1
Overview
video, VGA/SVGA/XGA/UXGA, and DVI signals to the following
user-selectable pixel rates:
• VGA (640x480)
• SVGA (800x600)
• XGA (1024x768)
• SXGA (1280x1024)
• UXGA (1600x1200)
• 852x1024
• 1024x1024
• 1366x768
• 1365x1024
• 1280x720
• 720x483
• 852x480
• 1400x1050
• A user definable output mode
1
1
1
1
1
2
The VP-719DS is a 7-input seamless presentation switcher, that:
• Digitally reprocesses the signal to correct mastering errors, and
regenerates the video at a chosen line and pixel rate format, providing, for
example, native-resolution video for LCD, DLP and Plasma displays
3
• Facilitates scaling of any graphics resolution to any other resolution
• Incorporates a unique graphics-scaling engine with image enhancement
algorithms, which are built into the firmware
• Is s pecifically designed to improve video quality by reducing chroma noise
• Scales and zooms (to up to 400% of the original size)
In addition, the VP-719DS:
• Switches in true audio-follow-video mode
• Includes an OSD (on-screen display) for making the adjustments that can
be located anywhere on the screen, and can be doubled in size. The OSD can
be used to deactivate the source prompt, choose the color of the blank screen,
and choose from three seamless switching image transition speeds
• Includes seven multi-functional input buttons that cycle between selecting
1 Not shown on the front panel
2 Recommended for advanced users only – non-standard settings may not be recognized by the display device
3 For example, scaling a VGA input to an UXGA output, or an SXGA input to an SVGA output
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Seamless Switcher / Scaler
a source, freezing that source, or deactivating that source (and displaying a
blank screen)
• Includes a front panel lock
• Incorporates full ProcAmp
• Offers high quality de-interlacing 3:2/2:2 pull down
• Can provide non-linear scaling for 4:3, 16:9 transformation
1
processing for video and audio correction
2
3
• Supports firmware upgrade via RS-232
• Includes non-volatile memory that retains the last setting, after switching
the power off and then on again
Control the VP-719DS:
• From the front panel OSD control buttons
• Remotely, from the infra-red remote control transmitter
• Remotely, via RS-232
Achieving the best performance means:
• Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
• Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your Kramer VP-719DS
away from moisture, excessive sunlight and dust
4 Your Seamless Switcher / Scaler
Figure 1, Table 1 and Table 2 define the front and rear panels of the
VP-719DS.
1 Processing amplification enables adjustment of different video and audio signal parameters
2 Accommodates the frame-rate of a converted movie (24 frames per second) to video frequencies (25 frames per second
(PAL); 30 frames per second (NTSC)
3 See Figure 16
3
Your Seamless Switcher / Scaler
Figure 1: VP-719DS Seamless Switcher / Scaler
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Seamless Switcher / Scaler
LEDs
LEDs
Table 1: Front Panel VP-719DS, Seamless Switcher / Scaler Features
# Feature Function
1 POWER Switch Illuminated switch supplying power to the unit
2 IR Receiver / LED Green when the unit will accept IR remote commands
3 AV1 Illuminates1 when the composite video / audio source 1 is selected
4 AV2 Illuminates1 when the composite video / audio source 2 is selected
5 YC1 Illuminates1 when the s-Video (Y/C) / audio source 1 is selected
6 YC2 Illuminates1 when the s-Video (Y/C) / audio source 2 is selected
7 Component Illuminates1 when the component video / audio source is selected
8 VGA Illuminates1 when the VGA / audio source is selected
INPUT SELECTOR
9
10
11
12
13
14
15
DVI Illuminates1 when the DVI / audio source is selected
SV Illuminates when the SVGA resolution is selected2
V Illuminates when the VGA resolution is selected3
X Illuminates when the XGA resolution is select ed4
1366x768 Illuminates when the 1366x768 resolution is selected5
852x1024 Illuminates when the 852x1024 resolution is selected6
OUTPUT MODE
1024x1024 Illuminates when the 1024x1024 resolution is selected7
16 SELECT Button Selects the output resolution and illuminates the appropriate LED8
17 UP Button Moves up one step (in the same level) in the OSD screen
18 DOWN Button Moves down one step (in the same level) in the OSD screen
19 + Button Increases the range by one step in the OSD screen
20 - Button Decreases the range by one step in the OSD screen
1 Flashes when the image is frozen, and flashes more slowly when a blank screen is displayed
2 Illuminates with the V LED when the SXGA resolution is selected, with the X LED when the UXGA resolution is selected,
with the 852x1024, 1024x1024 and 1366x768 LEDs when the 852x480 resolution is selected, and with all the other LEDs
when UserDefine is selected
3 Illuminates with the SV LED when the SXGA resolution is selected, with the 852x1024, 1024x1024 and 1366x768 LEDs
when the 720x483 resolution is selected, and with all the other LEDs when UserDefine is selected
4 Illuminates with the SV LED when the UXG A resolution is selected, w ith the 852x1024, 1 024x1024 and 1366x768 LEDs
when the 1400x1050 resolution is selected, and with all the other LEDs when UserDefine is selected
5 Illuminates with the 1024x1024 LED when the 1280x720 (not shown on the front panel) resolution is selected, with the V,
852x1024, and 1024x1024 LEDs when the 720x483 resolution is select ed, with the SV, 852x1024, and 1024x1024 LEDs
when the 852x480 resolution is selected, with the X, 852x1024, and 1024x1024 LEDs when the 1400x1050 resolution is
selected, and with all the other LEDs when UserDefine is selected
6 Illuminates with the 1024x1024 LED when the 1365x1024 ( not shown on the front panel) resolution is selected, with the V,
1024x1024, and 1366x768 LEDs when the 720x483 resolution is select ed, with the SV, 1024x1024, and 1366x768 LEDs
when the 852x480 resolution is selected, with the X, 1024x1024, and 1366x768 LEDs when the 1400x1050 resolution is
selected, and with all the other LEDs when UserDefine is selected
7 Illuminates with the 852x1024 LED when 1365x1024 (not shown on the front panel) resolution is selected, with th e
1366x768 LED when the 1280x720 (not shown on the front panel) is selected, with the V, 852x1024, and 1366x768 LEDs
when the 720x483 resolution is selected, with the SV, 852x1024, and 1366x768 LEDs when the 852x480 resolution is
selected, with the X, 852x1024, and 1366x768 LEDs when the 1400x1050 resolution is selec ted, and with all the other LEDs
when UserDefine is selected
8 See section 6.1
5
Your Seamless Switcher / Scaler
Buttons
# Feature Function
21 ENTER Button Moves to the next level in the OSD screen
22 MENU Button Displays the OSD Menu screen1 and locks/unlocks the front panel2
23
24
25
26
27
28
29
DVI Press3 to select the DVI / audio source and illuminate the DVI LED
VGA Press3 to select the VGA / audio source and illuminates the VGA LED
Component Press3 to select the component video/audio source and illuminate the
YC2 Press3 to select the s-Video (Y/C) / audio source 2 and illuminate the YC2 LED
YC1 Press3 to select the s-Video (Y/C) / audio source 1 and illuminate the YC1 LED
AV2 Press3 to select the composite video / au d io sou rc e 2 and i llu min ate the A V 2 LED
INPUT SELECTOR
AV1 Press3 to select the composite video / audio source 1 and illuminate the AV1 LED
component LED
Table 2: Rear Panel VP-719DS, Seamless Switcher / Scaler Features
# Feature Function
1 VIDEO HD15
2
3 COMPONENT L and
4 VIDEO 2 L and R
5 VIDEO 1 L and R
6
7 DVI Connector Connects to the DVI (digital video interface) graphics source
8 VGA HD15 Connector Connects to the VGA (analog interface) graphics source
9 Y
10
11
12
13
14
15
16 RS-232 DB 9 Connector Connects to PC or Serial Controller
17 Power Connector with FUSE AC connector enabling power supply to the unit
Connector
AUDIO L and R RCA
OUTPUTS
Connectors
R RCA Connectors
RCA Connectors
RCA Connectors
AUDIO INPUTS
PC 3.5 mm Socket Connects to the audio input from either the DVI (digital video
Pb/Cb
RCA
Pr/Cr
Connector s
Component
YC 2 4p Connector Connects to the s-Video source 2
VIDEO INPUTS
YC 1 4p Connector Connects to the s-Video source 1
CV 2 RCA Connector Connects to the composite video source 2
CV 1 RCA Connector Connects to the composite video source 1
Connects to the video acceptor (for example, Plasma display,
projector or monitor) that displays the scaled output (with the OSD
superimposed over it)
Connects to the left and right stereo audio acceptors
Connects to the left and right stereo audio inputs from the
COMPONENT video source
Connects to the left and right stereo audio inputs from one of the
composite or s-Video sources
Connects to the left and right stereo audio inputs from one of the
composite or s-Video sources
interface) graphics sou rce or th e VGA anal og gr ap hi cs sou rce
Connect to the component video source
4
5
6
1 Or moves to the previous level in the OSD screen
2 See section 6.2
3 Press again (when the LED illuminates) to freeze the image; the LED flashes. Press once again (when the LED flashes), to
display a blank screen; the LED flashes more slowly. Alternatively, to freeze the image, press the FREEZE key on the
infra-red remote control transmitter (see Figure 42)
4 Either CV 2 or YC 2
5 Either CV 1 or YC 1
6 Or to an RGB signal; connect RED to the “Y” connector, GREEN to the “Pb/Cb ” connector, and BLUE to the “Pr/Cr ” connector
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the Seamless Switch er / Scaler
5 Connecting the Seamless Swit cher / Scaler
Using the VP-719DS you can select any one of the 7 inputs and scale that
input to the output at the set
To connect the VP-719DS, connect the following
1
resolution.
2
to the rear panel, as the
example in Figure 3 illustrates:
1. Connect one or more of the following video sources:
• 2 composite video sources, “Composite Video Source 1” and “Composite
Video Source 2”, to the RCA connectors CV 1 and CV2, respectively
3
• 2 s-Video sources: “s-Video Source 1” and “s-Video Source 2”, to the 4p
connectors, YC 1 and YC 2, respectively
• A component video source
in Figure 3), to the 3 RCA connectors, Y, Pb/Cb, and Pr/C
4
, for example, a Betacam VCR (as illustrated
5
r
• A VGA graphics source, for example, a PC with an analog graphics
output, to the VGA HD15F connector
• A DVI graphics source, for example, a PC with a digital graphics output,
to the DVI connector
2. Connect the stereo audio sources, as illustrated in Figure 3. In particular:
• The audio of the “Composite Video Source 1” to the AUDIO INPUT
VIDEO 1 pair of RCA connectors
• The audio of the “s-Video Source 2” to the AUDIO INPUT VIDEO 2 pair
of RCA connectors
7
6
• The audio of the Component video source, the Betacam VCR, to the
AUDIO INPUT COMPONENT pair of RCA connectors
• The audio of the DVI Graphics Source to the AUDIO INPUT PC 3.5mm
8
socket
. Alternatively, connect the audio from the VGA Graphics Source (not
illustrated in Figure 3)
1 For details of how to set the output resolution, refer to section 6.1
2 Switch OFF the power on each device before connecting it to your Seamless Switcher / Scaler. After connecting your
Seamless Switcher / Scaler, switch on its power and then switch on the power on each device
3 Connection to CV 2 is not shown in the example in Figure 3
4 Sometimes called YUV, or Y, B-Y, R-Y, or Y, Pb, Pr
5 Alternatively, you can connect an RGB signal (not shown in Figure 3), as follows: RED to the “Y” connector, GREEN to
the “Pb/Cb” connector, and BLUE to the “Pr/Cr” connector
6 The VIDEO 1 connectors are common to CV 1 and YC 1
7 The VIDEO 2 connectors are common to CV 2 and YC 2
8 The PC connector is common to DVI and VGA
7
Connecting the Seamless Switch er / Scaler
DB9 (To Seam less
Switcher
/
Scaler
)
3. Connect the VIDEO OUTPUT HD15F connector to the video acceptor,
for example, a projector or a Plasma monitor (as shown in Figure 3), and
connect the AUDIO OUTPUT pair of RCA connectors to the audio
acceptor, for example, a power amplifier.
4. The power cord
1
(the power connector is not illustrated in Figure 3).
5. A PC (optional), as section 5.1 describes.
5.1 Connecting a PC
You can connect a PC (or other controller) to the VP-719DS via the RS-232
port for remote control, and for upgrading the firmware, as section 7.4
describes.
To connect a PC to the VP-719DS unit, using the Null-modem adapter
provided with the machine (recommended):
• Connect the RS-232 DB9 rear panel port on the VP-719DS unit to the
Null-modem adapter and connect the Null-modem adapter with a 9 wire flat
cable to the RS-232 DB9 port on your PC
To connect a PC to a VP-719DS unit, without using a Null-modem adapter:
• Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel
port on the VP-719DS unit, forming a cross-connection
2
, as Figure 2 illustrates
DB9 (From PC)
Figure 2: Connecting the PC
1 We recommend that you use only the power cord that is supplied with this machine
2 Also known as a Null-modem connection
8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the Seamless Switch er / Scaler
9
Figure 3: Connecting the VP-719DS Rear Panel
Understanding the Seamless Switcher / Scaler
10
6 Understandi ng the Seamless Switcher / Scaler
The VP-719DS includes the following front panel buttons:
• A set of 7 INPUT SELECTOR buttons (AV1, AV2, YC1, YC2,
Component, VGA, and DVI)
• An OUTPUT MODE SELECT button (see section 6.1)
• A set of 6 OSD buttons, which are described in Table 1: MENU, ENTER,
-, +, UP, and DOWN
6.1 Understanding the OUTPUT MODE SELECT Button Functionality
Press the OUTPUT MODE SELECT button
resolution. Table 3 and Figure 4 define how to select the out put resolution:
Table 3: Selecting the Output Mode Resolution
To scale to this pixel resolution rate: Press the SELECT button to illuminate this LED sequence:
VGA (640x480) V
SVGA (800x600) SV
XGA (1024x768) X
SXGA (1280x1024) V and SV
UXGA (1600x1200) SV and X
852x1024i 852x1024
1024x1024i 1024x1024
1366x768 1366x768
1365x10242 852x1024 and 1024x1024
1280x7202 1024x1024 and 1366x768
720x4832 V and 852x1024 and 1024x1024 and 1366x768
852x4802 SV and 852x1024 and 1024x1024 and 1366x768
1400x10502 X and 852x1024 and 1024x1024 and 1366x768
To scale to this pixel resolution rate: Press the SELECT button to illuminate this LED sequence:
UserDefine2 All LEDs3
1
to choose the desired output
1 Item 16 in Figure 1
2 Not shown on the front panel
3 Recommended for advanced users only – non-standard settings may not be recognized by the display device
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Understanding the Seamless Switcher / Scaler
Figure 4: OUTPUT MODE LED Sequence
11
Understanding the Seamless Switcher / Scaler
12
6.2 Locking and Unlocking the Front Panel
You can lock the front panel
1
and control from the infra-red remote control
transmitter to safeguard the settings on the VP-719DS.
To lock the front panel:
2
• Press and hold the MENU front panel OSD button
or the MENU key on
the infra-red remote control transmitter (see Figure 42) for a few seconds, until
the Key Lock On OSD status appears superimposed over the top right corner
of the screen for a few seconds
3
, as Figure 5 illustrates
Figure 5: Locking / Unlocking the Front Panel
To unlock the front panel (releasing the protection mechanism):
• Press and hold the MENU front panel OSD button
2
or the MENU key on
the infra-red remote control transmitter (see Figure 42) for a few seconds, until
the Key Lock Off OSD status appears superimposed over the top right corner
of the screen for a few seconds
3
1 However, operation via RS-232 serial commands (remote controller or PC) is still available
2 Item 22 in Figure 1
3 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds), see section 7.3.6.5
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
7 Operating the Seamless Switcher / Scaler
Section 7.1 describes how to switch and scale an input. Section 7.2 describes
the methods of controlling the Seamless Switcher / Scaler.
7.1 Switching and Scaling
Section 7.1.1 describes how to switch an input. Section 7.1.2 describes how
to select the output resolution.
7.1.1 Switching an Input
You can switch seamlessly1 between each input2 that is connected to a source,
by pressing the appropriate INPUT SELECTOR button. The OSD status
appears superimposed over the top right corner of the screen for a few
seconds
3
, as Figure 6 illustrates:
Figure 6: OSD Input Status
You can also use the INPUT SELECTOR button to freeze4 the image or to
display a blank screen
5
.
7.1.2 Choosing the Output Resolution
You can select the output resolution (choosing t he pixel resolution, as section
6.1 describes), by pressing the OUTPUT MODE SELECT button
6
on the
front panel or the OUT key on the infra-red remote control transmitter (see
1 For glitchless transitions between inputs
2 To set the image transition speed (fast, safe or moderate), see section 7.3.6.4
3 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds), see section 7.3.6.5
4 By pressing the INPUT SELECTOR button again when the appropriate LED illuminates
5 By pressing the INPUT SELECTOR button once again when the appropriate LED flashes
6 Item 16 in Figure 1
13
Operating the Seamless Switcher / Scaler
14
Figure 42). The OSD status appears superimposed over the top right corner of
the screen for a few seconds
1
, as Figure 7 illustrates2:
Figure 7: OSD Output Status
7.2 Controlling the Sea m le ss Swit c her / Sc al er
You can control the Seamless Switcher / Scaler via:
• The front panel OSD control buttons (see section 7.3)
• The infra-red remote control transmitter (see section 7.3.8)
• RS-232 remote control
7.3 Operating via the OSD MENU Screen
The OSD superimposes a menu on the screen from which you can control your
the VP-719DS, using the MENU, ENTER, -, +, UP and DOWN front panel
OSD buttons.
Pressing the MENU front panel OSD button or the MENU key on the
infra-red remote control transmitter (see Figure 42) displays the first OSD
screen, the “Menu screen” (see Figure 8), which displays six interactive
3
icons
(defined in Figure 9).
After initially pressing the MENU front panel OSD button or the MENU key
on the infra-red remote control transmitter, each subsequent press moves to
the previous level in the OSD screen (Esc.).
1 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds), see section 7.3.6.5
2 Adjusting the output resolution results in a corresponding adjustment to the size of the OSD status window
3 Each icon represents a Level 1 function. In addition to Level 1, the OSD structure includes Level 2 (a subset of le vel 1),
Level 3 (a subset of level 2), Level 4 (a subset of level 3) and Range
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
Figure 8: MENU Screen
Brightness
and
Contrast
7.3.1 Controlling the Brightness and Contrast
Figure 10 illustrates the Brightness and Contrast Screen:
Gamma
and Color
Source
Figure 9: Menu Screen Icons
Geometry
Utility
Information
Figure 10: Brightness and Contrast Screen
7.3.2 Contr o l l ing the Gamma and Color
Figure 11 illustrates the Gamma and Color Screen. You can choo se No rmal
(average setting), Presentation (higher black level), Cinema (higher white
balance), Nature (higher green level), User 1 or User 2.
15
Operating the Seamless Switcher / Scaler
16
Figure 11: Gamma and Color Sc re e n
Choosing User 1 or User 2 from the Gamma and Color Screen illustrated in
Figure 11, displays the Gamma, Color Temperature and Color Manager
Screen in Figure 12. Each user setting is customized to the applicable
environment. The user sets the parameters and saves the m fo r recall later.
Figure 12: Gamma, Color Temperature/Manager User 1/2 Screen
7.3.3 Selecting the Source
Figure 13 illustrates the Source Screen, displaying the active source, as well
as facilitating changing of the source.
Figure 13: Source Selec tion Scre e n
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
7.3.4 Controlling the Scale Geometry
Figure 14 illustrates the main Geometry Screen, from which you can scale
and zoom.
Figure 14: Geometry (Scale and Zoom) Screen
Figure 15 illustrates the Geometry (Scale) Screen, from which you can scale
(Aspect Ratio and Nonlinear):
Figure 15: Geometry (Scale: Aspect Ratio and Nonlinear) Screen
Set the aspect ratio according to your specific requirements—the native
resolution—that is, depending on the specifications of the Plasma screen or
projector.
17
Operating the Seamless Switcher / Scaler
18
When using a VGA, DVI and/or component video1 source, you can choose an
aspect ratio from the following: Full Screen, Native, 4:3 Output
3
Output
When using a composite video source and/or an s-Video source and/or component
video
Screen, Pan
.
1
source, you can choose an aspect ratio from the following: Normal, Wide
4
& Scan, 4:3 Output2, and 16:9 Output3, as Figure 16 illustrates:
2
, and 16:9
Figure 16: Geometry (Scal e: Aspect Ratio) Screen
7.3.5 Adjusting the Zoom Ratio and Position
Figure 17 illustrates the Geometr y (Zoom) Screen:
Figure 17: Geometry (Zoom) Screen
1 Depending on the resolution of the component source
2 In this standard, the ratio between the length and height is 4:3
3 In this standard (a Cinema mode standard used for movies and DVDs), the ratio between the length and height is 16:9 (or
sometimes 1:2.35)
4 Panning the picture refers to resizing and cropping it
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
The zoom ratio and the zoom position are illustrated by a small rectangle
inside a transparent pop-up OSD Enlarge status box that appears at the top
right corner of the screen, as the example in Figure 18 illustrates:
Figure 18: OSD Enlarge Status
When you change the zoom ratio or zoom position, the screen image is
adjusted correspondingly, and the change is reflected in the pop-up OSD
Enlarge status box. For example, Figure 19 illustrates a zoom ratio increase
from 200% (Image A) to 400% (Image B):
Figure 19: Zoom Ratio Adjustme nt Exam ple
Figure 20 illustrates how the pop-up OSD Enlarge status box shows a zoom
position adjustment from the top left corner (Image C) to the lower right
corner (Image D):
Figure 20: Zoom Position Adjustment Example
19
Operating the Seamless Switcher / Scaler
20
7.3.5.1 Adjusting the Zoom Ratio
You can adjust the zoom ratio to up to 400% via one or both of these methods:
1
• Using the Zoom + and/or the Zoom - control keys
on the infra-red
remote control transmitter (see Figure 42). The pop-up OSD Enlarge status
box continuously displays the zoom ratio and position, as Figure 18 illustrates
• Using the OSD Menu buttons, as Figure 21 illustrates
Figure 21: Geometry (Zoom Ratio) Screen
7.3.5.2 Adjusting the Zoom Position
You can adjust the zoom position (see the example in Figure 20) via one or
more of the following methods:
• Using the preset position control keys (see Figure 22) on the infra-red
remote control transmitter (see Figure 42), which instantly move the positio n
of the zoom to up to nine preset fixed locations
2
Figure 22: Preset Position Control Keys
• Using the navigatio n control keys on the infra-red remote control
transmitter (see Figure 42), to fine tune the zoom position (that is, to slowly
zoom-in at any location on the screen)
3
, as Figure 23 illustrates
1 The and the buttons
2 For example, to zoom-in to the lower right corner of the image, press the
3 For example, to zoom-in toward the lower right of the image, press the
button
and the buttons separately, as required
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
Figure 23: Navigation Control Keys
• Using the OSD Menu buttons (see Figure 24)1
Figure 24: Geometry (Zoom Position Adjustment) Screen
7.3.6 Configuring via the Utility Screens
You can determine how your VP-719DS will function eith er generally or on a
specific o ccas ion , vi a th e Uti li ty s cre en s ettin gs (se e Figu re 25):
Figure 25: Utility Screen
1 For example, to zoom-in to the lower right part of the image instead of the top left part, press the + and DOWN OSD Menu
buttons (items 19 and 18, respectively, in Figure 1) separately, as required
21
Operating the Seamless Switcher / Scaler
22
7.3.6.1 Choosing the Graphic Utility Settings

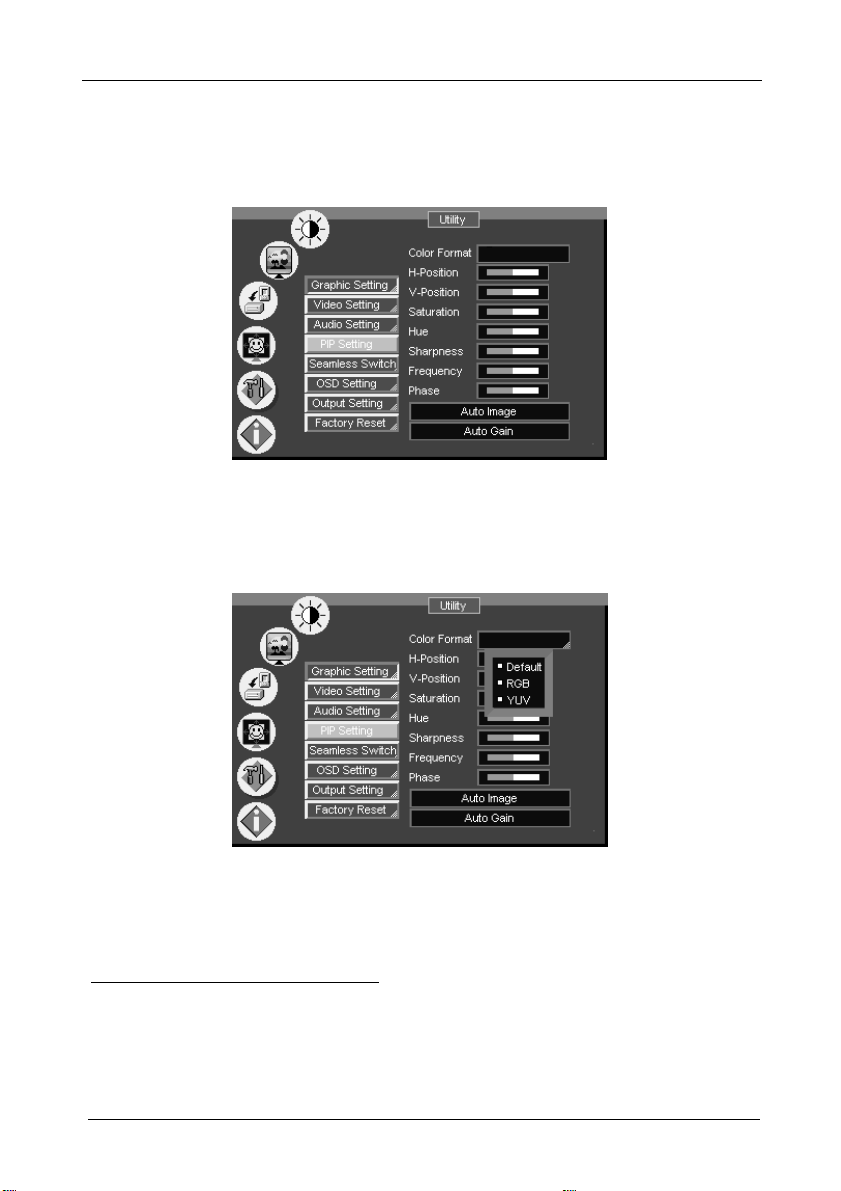

From the Graphic1 Setting Utility screen (see Figure 26), you can set the color
format (see Figure 27), position, saturation, hue, sharpness, frequency and
phase, as well as auto image
2
and auto gain3.
Figure 26: Graphic Setting Utility Screen
Selecting the color format (see Figure 27) lets you select RGB or YUV4
colorspace. When the Default setting is chosen, the colorspace is set
according to the detected input resolution.
Figure 27: Graphic Setting Color Format Utility Screen
1 When a VGA source is selected, “Graphic Setting” will be shown (or “PC Data Setting” in earlier versions)
2 Assesses the image and improves the quality accordingly, by automatically adjusting the phase, frequency and position
3 Automatically adjusts the brightness and contrast
4 That is Y, B-Y, R-Y colorspace, also known as Y, Cb, Cr or Y, Pb, Pr
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
7.3.6.2 Choosing the Video Utility Settings
From the Video Setting Utility screen (see Figure 28), you can set the
Standard (see Figure 29), color, hue, sharpness, and position.
Figure 28: Video Setting Utility Screen
Figure 29: Video Setting Standard Utility Screen
23
Operating the Seamless Switcher / Scaler
24
7.3.6.3 Choosing the Audio U t ility Settings
From the Audio Setting Utility screen (see Figure 30), you can set the
volume, treble, bass, and choose between stereo and mono (see Figure 31).
Figure 30: Audio Setting Utility Screen
Figure 31: Audio Setting Stereo Utility Screen
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
7.3.6.4 Choosing the Seamless Switch Utility Settings
From the Seamless Switch Utility screen (see Figure 32), you can choose the
image transition speed Mode
1
, set the Background screen color2 when there is
no active source (Black or Blue), and activate (finds the active source) or
deactivate (displays the source selected prior to power down) the Auto Search:
Figure 32: Seamless Switch Utility Screen
7.3.6.5 Choosing the OSD U tility Settings
From the OSD Setting Utility screen (see Figure 33), you can set the OSD
position, time out, size (see Figure 34), source prompt
choose the blank color
2
(blue or black - see Figure 36).
3
(see Figure 35), and
Figure 33: OSD Setting Utility Screen
1 FAST (an immediate switch, without checking the resolution. However, the image transition may appear unstable), SAFE (a
smooth image transition - the input resolution at the input is checked and outputted after a few seconds delay, but it takes
longer than fast) or MODERATE (between fast and safe)
2 You can select the screen color (black or blue) when there is no ac tive source and also the “blank” screen color. For
example, blue, if no active source is found (<Seamless Switch> <Background> <Blue>); and a black blan k screen (<OSD
Setting> <Blank Color> <Black>), when taking a break during a presentation
3 We recommend that you set the source prompt ON, when adjusting the system. During a presentation, set the source prompt
OFF to avoid the appearance of OSD screen labels
25
Operating the Seamless Switcher / Scaler
26
Figure 34: OSD Size Utility Screen
Figure 35: OSD Source Prompt Activation Utility Screen
Figure 36: OSD Blank Color Utility Screen
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
7.3.6.6 Choosing the Output U t ility Settings
From the Output Setting Utility screen (see Figure 37), you can set the
resolution (see Figure 38), refresh rate (see Figure 39), and a user definable
output mode
1
(see Figure 40 and Table 4).
Figure 37: Output Setting Utility Screen
Figure 38: Output Setting Resolution Utility Screen
1 Recommended for advanced users only – non-standard settings may not be recognized by the display device
27
Operating the Seamless Switcher / Scaler
28
Figure 39: Output Setting Refresh Rate Utility Screen
Figure 40: Output Setting User Mode Setting Utility Screen
Table 4: User Mode Setting Definitions
User Mode Setting Definitions
HT: Horizontal total
HW: Horizontal sync pulse width
HS: Horizontal active start point
HA: Horizontal active region
HP: Horizontal polarity
VT: Vertical total
VW: Vertical sync pulse width
VS: Vertical active start point
VA: Vertical active region
VP: Vertical polarity
OCLK: Output clock
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
7.3.6.7 Choosing Factory Reset
From the Factory Reset Utility screen (see Figure 41), you ca n reset your
VP-719DS to its preset default setting:
Figure 41: Factory Reset Utility Screen
7.3.7 Verifying Configuration Details via the Information Screen
From the Information screen, you can verify the main source, whether mute is
activated, output mode, as well as the firmware version number.
7.3.8 Operating via the Infra-red Remote Control Transmitter
You can control the Seamless Switcher / Scaler remotely, from the Infra-red
remote control transmitter, which:
• Is a hand held wireless instrument with a convenient keypad
• Receives its power from 2 AAA size 1.5V DC batteries
• Has a range of up to 15 mete rs
• Delivers instantaneous results
Figure 42 and Table 5 define
1
the Infra-red Remote Control Transmitter:
1 The illustration in Figure 42 shows an enlarged view of 3 separate parts of the Infra-red remote control transmitter
29
Operating the Seamless Switcher / Scaler
30
Figure 42: Infra-red Remote Control Transmitter
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the Seamless Switcher / Scaler
Table 5: Infra-red Remote Control Transmitter Functions
Keys Function
OUT Selects the output resolution and illuminates the appropriate LED
FREEZE Pauses the output video
POWER Cycles power
INPUT SELECTOR*
INFO. Defines the main source, whether mute is activated, output mode, as well
PRESET POSITION
CONTROL
AUTO IMAGE Assesses the image and improves the quality accordingly, by automatically
MENU Displays the OSD Menu screen4 and locks/unlocks the front panel5
NAVIGATION CONTROL6 Allow maneuvering within an OSD screen (all keys); adjusts the zoom
AUTO GAIN Automatically adjusts the brightness and contrast
SWAP Not applicable7
PIP Not applicable8
CONT. Displays the contrast status9
BRIGHT. Displays the brightness status9
AUDIO/ZOOM CONTROL6 Allow volume and zoom control
MODE Toggles between each of the following modes:
SCALE Toggles between each of the following Aspect Ratios:
1
7 separate keys for selecting each of the following sources: AV1, AV2,
COMP. (Component) YC 1, YC2 , VGA, and DVI
as the firmware version number
Adjusts the zoom
adjusting the phase, frequency and position
position (4 keys)
Normal, Presentation, Cinema, Nature, User 1 and User 2
Normal, Wide Screen, Pan & Scan, 4:3 Output, and 16:9 Output
2
position3
10
* Press to select the source; the LED illuminates. Press again to freeze
the image; the LED flashes. Press once again to display a blank screen;
the LED flashes more slowly.
1 Consists of a set of 9 separate keys. See the illustration in Figure 42 which shows an enlarged view of this part of the
Infra-red remote control transmitter
2 A small rectangle inside a transparent pop-up OSD Enlarge status box appears at the top ri ght corner of the screen showin g
the position of the zoom within a picture
3 For example, when enlarging the display, press this button:
4 As Figure 8 illustrates
5 See section 6.2
6 Consists of a set of 5 separate keys. See the illustration in Figure 42 which shows an enlarged view of this part of the
Infra-red remote control transmitter
7 Not available on the VP-719DS (to toggle between the PIP content and the screen source content). Available on machines
such as the VP-720DS
8 Not available on the VP-719DS (to select the picture-in-picture function). Available on machines such as the VP-720DS
9 Adjust using the +/- keys
10 See Figure 16
to go to the lower right corner of the display area
31
Technical Specifications
32
7.4 Upgrading Firmware
To install the latest Kramer firmware version on a VP-719DS unit, connect
the COM port on your PC to the RS-232 port on the VP-719DS unit, as
section 5.1 describes, and go to the Kramer Web site at this URL:
http://www.kramerelectronics.com for the latest information.
8 Technical Specifications
Table 6 includes the technical specifications:
Table 6: Technical Specifications1 of the VP-719DS
Inputs:
Outputs:
Output Resolutions: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA
Control: Front panel buttons/ OSD, IR rem o te cont rol , RS -2 32 on a DB -9 con nector
Additional Controls: Different vertical refresh rates, ProcAmp control, output image scaling and
Firmware: Frame freeze, digital zoom 4X, F le sh tone (sp ec ia l co lor pro cess ing) , Ga mma setting
H Frequency: 15.63~90kHz
V Frequency: 50~100Hz
Computer Resizing: Auto-resizing to panel pixel number
RGB Video Signal:
RGB Sync Signal: Separate H/VTTL, composite sync, analog
Audio Input/Output
Voltage:
Plug and Play: DDC1 / DDC2B
De-interlacing: Adaptive and pixel based
Film mode detection: 2:2 / 3:2 pull down reverse
Power Source: 100-240 VAC, 50/60 Hz, 30VA automatic power supply
Dimensions: 19" (W), 9.3" (D) 1U (H) rack mountable2
Accessories: IR remote control, power cord3
Weight: 3 kg (6.6 lbs.) approx.
VIDEO: 2 x composite video 1 Vpp/75 Ω on RCA connecto rs; 2 x Y/C (s-V id eo)
1 Vpp (Y), 0.3Vpp (C) / 75 Ω on 4 pin connectors; 1 x Component (Y, Pb/Cb,
Pr/Cr) on RCA connectors; 1x VGA (VGA/SVGA/XGA/UXGA) on an HD15F
connecto r; and 1x DVI connector
AUDIO: 3 x stereo audio on RCA connectors (for VIDEO 1, VID EO 2 and
COMPONENT) and 1x PC audio on a 3.5m m mini sock et
VIDEO: 1 x VGA/SVGA/XGA/UXGA on an HD15F connector
AUDIO: 1 x stereo audio on RCA connectors
(1600x1200), 1024x852, 1024x1024, 1366x768, 1365x1024, 1280x720,
720x483, 852x480, 1400x1050, as well as a user definable output mode
aspect ratio change
RGB, 1.0 Vpp, 75 Ω
0~0.5 Vrms
1 Specifications are subject to change without notice
2 When installing a Kramer machine on a closed or multi-unit rack assembly, be aware that the operating ambient temperature
of the rack environment may be greater than r oom ambient. In particular, ta ke care that ther e is sufficient air flow. (Refer to
the "Operating Conditions.pdf" file on our Web site at http://www.kramerelectronics.com (click "FAQs" in the Technical
Support section))
3 We recommend that you use only the power cord that is supplied with this machine
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Communication Protoc ol
9 Communication Protocol
The Com port setting details are: Baud Rate: 9600/115200, Parity: none, Data Bits: 8 bits, Stop Bits: 1 bit, Set CTS Mode:
Off, and Set XON/XOFF: Off.
Table 7: RS-232 Protocol
Field 1 Field 2 Field 3 Field 4 Field 5
"L" " " "Code" "~Code" 0x0d
"L" ASCII Code, 1 byte " " ASCII space, 1 byte "xx" Code Str, 2 byte
Example: Menu On Command is"L 12ED" + Enter
Table 8: RS-232 Communication Code
Item Code Code(Hex) ~Code(Hex) Function Command
19 18 0x12 0xED Menu On/Off L 12ED
20 19 0x13 0xEC Volume + L 13EC
21 20 0x14 0xEB Volume - L 14EB
22 21 0x15 0xEA Source L 15EA
23 22 0x16 0xE9 VGA1 L 16E9
24 23 0x17 0xE8 VGA2 L 17E8
25 24 0x18 0xE7 DVI L 18E7
26 25 0x19 0xE6 Component L 19E6
27 26 0x1A 0xE5 Video 1 L 1AE5
28 27 0x1B 0xE4 Video 2 L 1BE4
29 28 0x1C 0xE3 Freeze L 1CE3
30 29 0x1D 0xE2 PIP L 1DE2
31 30 0x1E 0xE1 Auto Image L 1EE1
32 31 0x1F 0xE0 Auto Gain L 1FE0
33 32 0x20 0xDF Zoom + L 20DF
34 33 0x21 0xDE Zoom - L 21DE
35 34 0x22 0xDD Mute L 22DD
36 35 0x23 0xDC Brightness L 23DC
37 36 0x24 0xDB Contrast L 24DB
38 37 0x25 0xDA Mode L 25DA
39 38 0x26 0xD9 Normal L 26D9
41 40 0x27 0xD8 Presentation L 27D8
40 39 0x28 0xD7 Cinema L 28D7
42 41 0x29 0xD6 Nature L 29D6
43 42 0x2A 0xD5 USER 1 L 2AD5
44 43 0x2B 0xD4 USER 2 L 2BD4
45 44 0x2C 0xD3 SWAP L 2CD3
46 45 0x2D 0xD2 Scale L 2DD2
47 46 0x2E 0xD1 Normal L 2ED1
48 47 0x2F 0xD0 WideScreen L 2FD0
49 48 0x30 0xCF Pan & Scan L 30CF
50 49 0x31 0xCE 4:3 L 31CE
51 50 0x32 0xCD Up L 32CD
52 51 0x33 0xCC Down L 33CC
53 52 0x34 0xCB Left L 34CB
54 53 0x35 0xCA Right L 35CA
55 54 0x36 0xC9 Enter L 36C9
"xx" is 1's complement of
Code str, 2 byte 0x0d, 1 byte
33
Communication Protoc ol
34
56 55 0x37 0xC8 Status L 37C8
57 56 0x38 0xC7 Enter+UP L 38C7
58 57 0x39 0xC6 C-Video 1 L 39C6
59 58 0x3A 0xC5 C-Video 2 L 3AC5
60 59 0x3B 0xC4 S-Video 1 L 3BC4
61 60 0x3C 0xC3 S-Video 2 L 3CC3
62 61 0x3D 0xC2 OUT L 3DC2
63 62 0x3E 0xC1 Blank L 3EC1
68 70 0x46 0xB9 Factory Reset L 46B9
69 71 0x47 0xB8 Key Lock L 47B8
70 72 0x48 0xB7 Wake up L 48B7
71 73 0x49 0xB6 Standby L 49B6
72 176 0xB0 0x4F PIP On L B04F
73 177 0xB1 0x4E PIP Off L B14E
74 178 0xB2 0x4D Freeze On L B24D
75 179 0xB3 0x4C Freeze Off L B34C
76 180 0xB4 0x4B Mute On L B44B
77 181 0xB5 0x4A Mute Off L B54A
78 182 0xB6 0x49 Blank On L B649
79 183 0xB7 0x48 Blank Off L B748
80 184 OxB8 0x47 Key Lock On L B847
81 185 0xB9 0x46 Key Lock Off L B946
82 186 0xBA 0x45 Output Resolution L BA45 ** ** is Resolution index
VP-719DS/VP-720DS VP-723DS/VP-724DS
640x480 L BA45 00 640x480 L BA45 00
800x600 L BA45 01 800x600 L BA45 01
1024x768 L BA45 02 1024x768 L BA45 02
1280x1024 L BA45 03 1280x1024 L BA45 03
1600x1200 L BA45 04 1600x1200 L BA45 04
852x1024i L BA45 05 852x1024i L BA45 05
1024x1024i L BA45 06 1024x1024i L BA45 06
1366x768 L BA45 07 1366x768 L BA45 07
1365x1024 L BA45 08 1365x1024 L BA45 08
1280x720 L BA45 09 1280x720 L BA45 09
720x483 L BA45 10 720x483 L BA45 10
852x480 L BA45 11 852x480 L BA45 11
1400x1050 L BA45 12 1400x1050 L BA45 12
User Define L BA45 13 480P L BA45 13
720P L BA45 14
1080i L BA45 15
User Define L BA45 16
81 227 0xE3 0x1C PIP Size L E31C ** ** is PIP size index
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Communication Protoc ol
Table 9: RS-232 Read Command
Command Sent Return
Source K 15EA VGA1 K 16E9
Freeze K 1CE3 Freeze On K B24D
Freeze Off K B34C
PIP K 1DE2 PIP On K B04F
PIP Off K B14E
Mute K 22DD Mute On K B44B
Mute Off K B54A
Blank K 3EC1 Blank On K B649
Blank Off K B748
Key Lock K 47B8 Key Lock On K B847
Key Lock Off K B946
Output Resolution K BA45 640x480 K 00FF
800x600 K 01FE
1024x768 K 02FD
1280x1024 K 03FC
1600x1200 K 04FB
852x1024i K 05FA
1024x1024i K 06F9
1366x768 K 07F8
1366x1024 K 08F7
1280x720 K 09F6
720x483 K 0AF5
852x480 K 0BF4
1400x1050 K 0CF3
480P K 0DF2
720P K 0EF1
1080i K 0FF0
User Define K 10EF
VGA/DVI Resolution K E01F 640x480 K 00FF
NTSC 60 K 01FE
PAL 50 K 02FD
720x400 K 03FC
800x600 K 04FB
832x624 K 05FA
1024x768 K 06F9
1024x800 K 07F8
1152x870 K 08F7
1280x960 K 09F6
1280x1024 K 0AF5
1600x1200 K 0BF4
1280x720P K 0CF3
853x480P K 0DF2
1920x1080I K 0EF1
720x576P K 0FF0
1152x900 K 10EF
1400x1050 K 11EE
No Signal K FF00
VGA/DVI Refresh rate K E11E Refresh rate(Hex) K ##&& ## is Value,&& is ## invert
No Signal K FF00
Video Standard K E21D NTSC K 01FE
NTSC 4.43 K 02FD
PAL K 03FC
PAL N K 04FB
PAL M K 05FA
SECAM K 06F9
PAL 60 K 07F8
NTSC 4.43 50 K 08F7
No Signal K FF00
PIP Size K E31C 1/25 K 00FF
1/16 K 01FE
1/9 K 02FD
1/4 K 03FC
Split K 04FB
PIP H position K E41B H position(Hex) K ##&& ## is Value,&& is ## inv ert
PIP V position K E51A
VGA2 K 17E8
DVI K 18E7
Component K 19E6
C-Video 1 K 39C6
C-Video 2 K 3AC5
S-Video 1 K 3BC4
S-Video 2 K 3CC3
V position(He x ) K ## && ## is Value,&& is ## invert
35
36
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free fr om defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage , deteriorat ion or malfunction resu lt ing from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any ot he r cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Co sts of initial technical adjustments (set-up) , including adjustment of user cont rols or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whene ver warranty ser vice is required, the origina l dated invo ice (or a copy) must be presented as proof of warrant y coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replace ment of t he product at our option. Kramer
shall not be liable for:
1. Damage to other property caused by defects in this product, da mages based upon inconve nience, loss o f use o f the product , loss
of time, c ommercia l loss; or:
2. A ny o ther da mages, whe ther inc ide nta l, co nseq uent ial o r o the rwise . So me c ount rie s ma y not allo w li mita tio ns on ho w long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or co nsequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC Rules and Regulations:
CAUTION!
⌦ Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
⌦ Use the supplied DC power supply to feed power to the machine.
⌦ Please use recommended interconnection cables to co nnect the machine to other components.
generic emission standard.
Part 1: Residential, commercial and light industry"
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
KRAMER: SIMPLE CREATIVE TECHNOLOGY
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com.
Updates to this user manual may be found at
http://www.kramerelectronics.com/manuals.html.
We welcome your questions, comments and feedback.
Kramer Electronics, Ltd.
3 Am VeOlamo Street. Jerusalem 95463, Israel Tel: (+972-2)-654-4000
Fax: (+972-2)-653-5369, E-mail: info@kramerel.com
P/N: 2900 – 007014 REV 3
Loading...
