Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 3
Controlling your VS-88UHD 3
Defining the VS-88UHD 8x8 UHD Matrix Switcher 4
Installing in a Rack 6
Connecting the VS-88UHD 7
Connecting to VS-88UHD via RS-232 8
Connecting VS-88UHD via the ETHERNET Port 8
Operating VS-88UHD via Front Panel Buttons 11
Routing the Signals 11
Storing and Recalling a Setup 17
Setting the Switching Mode 18
Setting the Switching Speed 18
Setting HDCP 19
Copying the EDID 19
Firmware Upgrade 21
Using the Embedded Web Pages 22
Switching and Setting the Ports 24
Changing Device Settings and Upgrading the Firmware 33
Managing Web Page Security 34
Setting the Timeout 37
Setting Switching Modes 39
Setting Step-in Devices 41
Managing the EDID 42

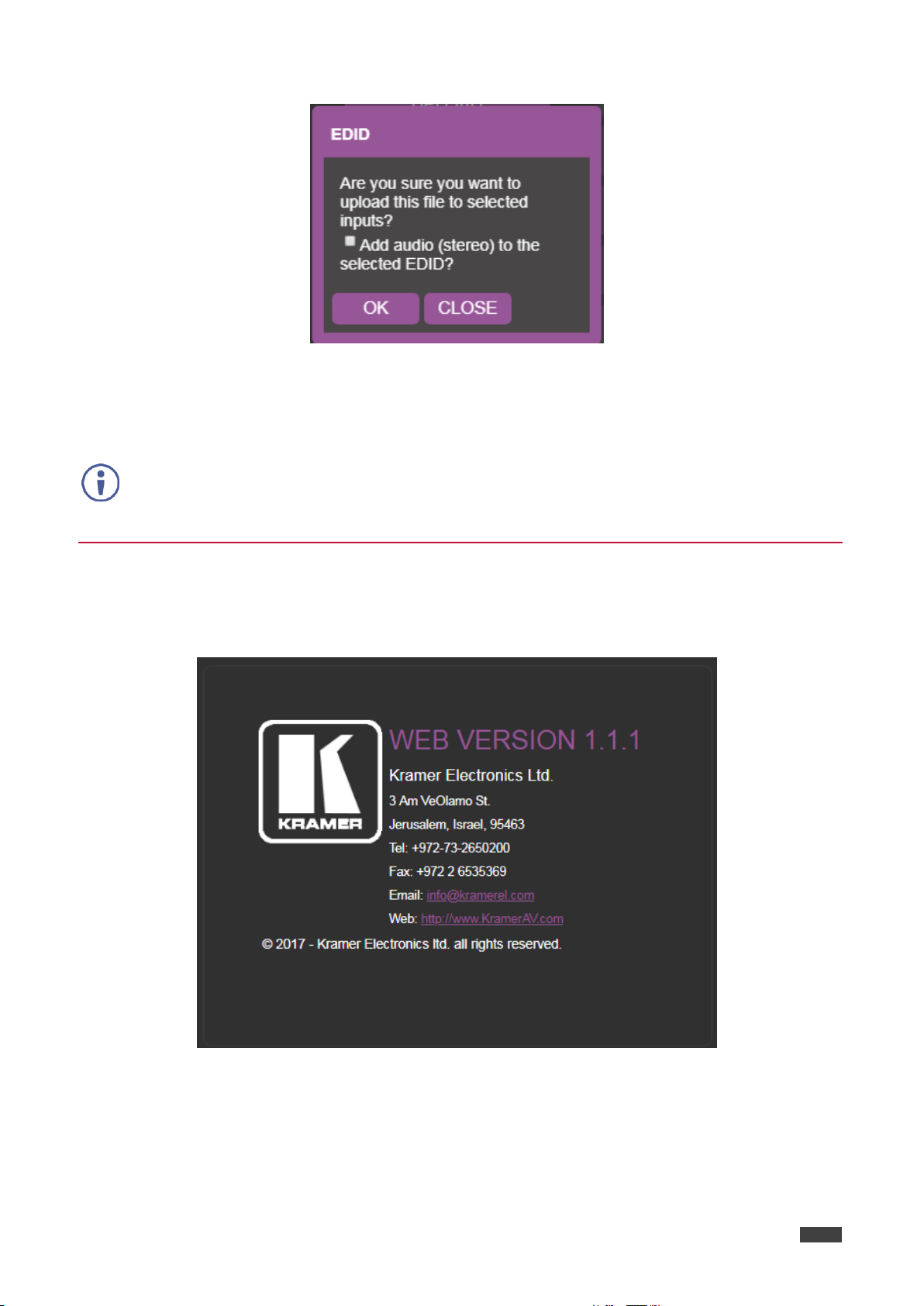

Viewing the About Page 48
Technical Specifications 49
Default Communication Parameters 49
Default Parameters 50
Go to www.kramerav.com/downloads/VS-88UHD to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of
unique, creative, and affordable solutions to the vast range of problems that confront the video,
audio, presentation, and broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 15 groups that are clearly defined by function:
GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control
Systems; GROUP 4: Format & Standards Converters; GROUP 5: Range Extenders &
Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scalers; GROUP 8: Cables and
Connectors; GROUP 9: Room Connectivity; GROUP 10: Mounting and Rack Adapters;
GROUP 11: Sierra Video; GROUP 12: Digital Signage; GROUP 13: Audio; GROUP 14:
Collaboration; and GROUP 15: KM & KVM Switches.
Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
Review the contents of this user manual.
Achieving the Best Performance
Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
Do not secure the cables in tight bundles or roll the slack into tight coils.
Avoid interference from neighbouring electrical appliances that may adversely influence
signal quality.
Position your Kramer VS-88UHD away from moisture, excessive sunlight and dust.
Page 4
Kramer Electronics Ltd.
VS-88UHD – Introduction
2
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the power cord that is supplied with the unit.
Warning:
Do not open the unit. High voltages can cause electrical shock! Servicing by
qualified personnel only.
Warning:
Disconnect the power and unplug the unit from the wall before installing.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Safety Instructions
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
Congratulations on purchasing your Kramer VS-88UHD.
VS-88UHD is a high-quality 8x8 UHD Matrix Switcher for 4K@60Hz (4:2:0) HDMI signals and
embedded audio. It reclocks and equalizes the signals and can route any one of eight HDMI,
HDCP-compliant sources (selectable) to any or all outputs simultaneously.
VS-88UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to
any HDMI digital audio output in addition to ARC support to produce an equivalent 16x12
audio matrix.
The VS-88UHD provides exceptional quality, advanced and user-friendly operation, and
flexible control.
Exceptional Quality
Max. data rate – 8.91Gbps data rate (2.97Gbps per graphics channel).
Max. resolution – Up to 4K@60Hz UHD (4:2:0).
Step-in over HDMI technology.
HDMI, HDCP and DVI Compliance.
HDMI support – Deep color, 3D, ARC, up to 7.1 uncompressed audio channels.
Kramer reKlocking™ and equalization technology – rebuilds the digital signal to travel
longer distances.
Advanced and User-friendly Operation
Automatic input selection – Based on priority selection or last connected input.
Embedded pattern generator (480p) – With selectable patterns.
Page 5
Kramer Electronics Ltd.
VS-88UHD – Introduction
3
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Selectable HDCP per input.
Memory locations – 16 presets for quick access to common configurations.
Advanced EDID management per input.
Active source and acceptor detection.
Easy front-panel operation.
Selectable switching speed.
Lock button to prevent tampering.
Kramer protocol 3000 support.
Firmware upgrade via mini USB, Ethernet or the RS-232 port.
Control Options – RS-232 serial commands transmitted by a PC, touch screen system or
other serial controller, Ethernet port via LAN.
7-segment display, indicating the video and audio status and other functions.
Audio breakaway and AFV (audio-follow-video) operation support.
Efficient power-saving features.
Includes non-volatile memory that retains the last settings, after switching the power off
and then on again.
Flexible Connectivity
8x8 switching for HDMI signals
Independent 16x12 Audio Matrix – With 8 embedded digital inputs + 8 ARC inputs and 8
digital outputs + 4 ARC outputs.
Optional ARC from HDMI outputs to HDMI inputs 1, 3, 5 and 7.
Housed in a 19” 1U rack mountable enclosure, with rack ears included, and is fed from a
100-240 VAC universal switching power supply.
Typical Applications
The VS-88UHD is ideal for the following typical applications:
Control rooms with multiple displays.
Presentation and multimedia applications.
Systems that require automatic HDMI routing.
Controlling your VS-88UHD
Control your VS-88UHD directly via the front panel push buttons, or:
By RS-232 serial commands transmitted by a touch screen system, PC, or other serial
controller.
Via the Ethernet using built-in user-friendly Web pages.
Page 6
Kramer Electronics Ltd.
VS-88UHD – Defining the VS-88UHD 8x8 UHD Matrix Switcher
4
#
Feature
Function
The behavior of the front panel buttons and the 7-segment display changes along with the operation
modes. For further details see Operating VS-88UHD via Front Panel Buttons on page 11.
IN (PATTERN)
SELECTOR Buttons
Press to select the input (1 to 8) to switch after selecting an output (also
used for storing machine setups in the STO-RCL modes and for selecting a
pattern in the Pattern mode).
OUT (MUTE) SELECTOR
Buttons
Press to select an output (1 to 8) to which the input is routed. Also used for
storing machine presets.
MUTE/PATTERN Button
Press to view the current pattern status and select the output/s to which a
pattern is routed.
Press to mute audio or video on a selected output when D-AUDIO and/or
VIDEO buttons are pressed (lit).
ALL Button
Press to perform an action on all outputs (for example setting Mute mode,
Pattern mode and so on).
For switching, press ALL and then a specific IN button to route the selected
input to all outputs. For example, press ALL and then IN 2 to route input 2
to all the outputs.
STO and RCL Buttons
Press STO to store the current switching setting to a preset button.
Press RCL to recall the switching setting from a preset button.
ARC Button
Press to set ARC mode on the inputs (see Operating in ARC Mode on page
15).
D-AUDIO Button
Press to enable digital audio routing. When pressed together with VIDEO,
the digital audio is routed together with the video signal.
VIDEO Button
Press to select video inputs. When pressed together with D-AUDIO, video
is switched together with audio.
LOCK Button
Press and hold (for about 3 seconds) to toggle locking/releasing of the front
panel buttons.
Press to save the following setups: HDCP (On/Off), ARC, Fast Switch and
Switch mode.
EDID Button
Press to capture the EDID.
OUTPUT/INPUT
7-segment LED Display
Displays the selected inputs switched to the outputs (marked above each
input).
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
When installing on a 19" rack, avoid hazards by taking care that:
It is located within recommended environmental conditions. Operating ambient
temperature of a closed or multi-unit rack assembly may exceed ambient room
temperature.
Once rack mounted, there is enough air still flow around the VS-88UHD.
The VS-88UHD is placed upright in the correct horizontal position.
You do not overload the circuit(s). When connecting the VS-88UHD to the supply
circuit, overloading the circuits may have a detrimental effect on overcurrent protection
and supply wiring. Refer to the appropriate nameplate ratings for information. For
example, for fuse replacement, see the value printed on the product label.
The VS-88UHD is earthed (grounded) and connected only to an electricity socket with
grounding. Pay particular attention when electricity is supplied indirectly (for example,
when the power cord is not plugged directly into the wall socket but to an extension
cable or power strip). Use only the supplied power cord.
To rack-mount the VS-88UHD:
1. Attach both ear brackets to the VS-88UHD:
Remove the screws from each side of the
VS-88UHD (3 on each side), and replace them
through the ear brackets.
2. Place the ears of the VS-88UHD against the rack
rails and insert the appropriate screws (not provided)
through each of the four holes in the rack ears.
Some models, may feature built-in rack ears:
Detachable rack ears can be removed for desktop use.
Always mount the VS-88UHD in the rack before connecting any cables or power.
If you are using a Kramer rack adapter kit (for a machine that is not 19"), see the Rack
Adapters user manual for installation instructions available from our Web site
www.kramerav.com/downloads/VS-88UHD.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Installing in a Rack
This section provides instructions for rack mounting the VS-88UHD. Before installing in a rack,
verify that the environment is within the recommended range:
Operation temperature – 0 to 40C (32 to 104F).
Storage temperature – -40 to +70C (-40 to +158F).
Humidity – 10% to 90%, RHL non-condensing.
Page 9
Kramer Electronics Ltd.
VS-88UHD – Connecting the VS-88UHD
7
Always switch off the power to each device before connecting it to your VS-88UHD. After
connecting your VS-88UHD, connect its power and then switch on the power to each device.
Although this connecting example shows only several inputs and outputs that are connected,
you can connect all the inputs and outputs simultaneously.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Connecting to VS-88UHD via RS-232
You can connect to the VS-88UHD via an RS-232 connection using, for example, a PC.
To connect to the VS-88UHD via RS-232:
Connect the RS-232 rear panel port on the VS-88UHD unit via a
9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be
connected) to the RS-232 9-pin D-sub port on your PC.
Connecting VS-88UHD via the ETHERNET Port
You can connect to the VS-88UHD via Ethernet using either of the following methods:
Directly to the PC using a crossover cable (see Connecting the Ethernet Port Directly to a
PC on page 8).
Via a network hub, switch, or router, using a straight-through cable (see Connecting the
Ethernet Port via a Network Hub or Switch on page 10).
Connecting the Ethernet Port Directly to a PC
You can connect the Ethernet port of the VS-88UHD directly to the Ethernet port on your PC
using a crossover cable with RJ-45 connectors.
After connecting the VS-88UHD to the Ethernet port, configure your PC as follows:
1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection.
The Local Area Connection Properties window for the selected network adapter appears
as shown in Figure 4.
Page 11
Kramer Electronics Ltd.
VS-88UHD – Connecting the VS-88UHD
9
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Figure 6: Internet Protocol Version 6 Properties Window
6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 7.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
Figure 7: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the VS-88UHD to the Ethernet port on a network hub or
using a straight-through cable with RJ-45 connectors.
Control Configuration via the Ethernet Port
To control several units via Ethernet, connect the Master unit (Device 1) via the Ethernet port
to the Ethernet port of your PC. Use your PC provide initial configuration of the settings (see
Connecting VS-88UHD via the ETHERNET Port on page 8).
Page 13
Kramer Electronics Ltd.
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
11
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Operating VS-88UHD via Front
Panel Buttons
Press the power switch to power the device. During the 10-second initialization process,
the:
7-segment display LEDs are on.
All the front panel buttons illuminate.
The FPGA/EPLD version (P), the firmware version (F) and the build version (b) appear in
succession.
Following initialization, the front panel buttons and 7-segment display enter normal operation:
The 7-segment display shows the video IN-OUT status.
The current operation mode button illuminates (VIDEO, by default).
An illuminated IN (PATTERN) button indicates an active signal connected to the input.
An illuminated OUT (MUTE) button indicates that an acceptor is connected to the
output.
The VS-88UHD front panel buttons enable performing the following functions:
Routing the Signals on page 11.
Storing and Recalling a Setup on page 17.
Setting the Switching Mode on page 18.
Setting the Switching Speed on page 18.
Setting HDCP on page 19.
Copying the EDID on page 19.
Routing the Signals
You can switch the video and the embedded audio signals together (AFV), or switch them
separately, via the following switching modes:
Switching the Video Signal on page 12.
Routing an Audio Input to the HDMI Output on page 12.
Switching the Video and the Audio Signal Simultaneously on page 13.
Muting/Unmuting an Output on page 14.
Routing a Pattern to the Output on page 14.
Operating in ARC Mode on page 15.
Page 14
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
12
On the front panel buttons:
An illuminated input button means that an active signal is detected on that input.
An illuminated output button means that a display is connected to that output.
A flashing output button means that a non-HDCP display is connected to that output.
Note that in case an HDCP-encrypted input is routed through the matrix to a
non-HDCP screen, the video will not be presented and the non-HDCP screen will turn
black.
On the 7-segment display:
A digit (from 1 to 8) shows the input number that is currently routed to the output.
“P” under an output number indicates that a pattern is routed to that output.
“0” under an output number indicates that the output is muted.
Press ALL (instead of an output button) to route the selected input to all the outputs. All
the 7-segment display LEDs flash.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Switching the Video Signal
The VIDEO button on the VS-88UHD front panel enables video routing.
To switch a video input to an output:
1. Press VIDEO .
The button illuminates and the 7-segment display shows the current IN-OUT video
status.
Kramer Electronics Ltd.
2. Press an OUT (MUTE) button (1 to 8).
The 7-segment display LED, under the selected output, flashes.
3. Press an IN (PATTERN) button (1 to 8).
The selected input is switched to the selected output (or to all the outputs if ALL was
pressed instead) and the 7-segment display shows the current status.
Routing an Audio Input to the HDMI Output
The D-AUDIO button on the VS-88UHD front panel enables to route the HDMI embedded
audio input signals to the HDMI outputs .
Generally, digital routing is enabled by pressing D-AUDIO:
When it is illuminated, the HDMI input embedded audio is the audio source.
To switch an HDMI audio input to an output:
1. Press D-AUDIO .
The button illuminates (HDMI audio input to HDMI output mode) and the 7-segment
display shows the current IN-OUT digital audio status.
Page 15
Kramer Electronics Ltd.
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
13
On the front panel buttons:
An illuminated input button means that an active digital audio signal is detected on that
input that supports LPCM audio.
A dark input button means that there is no active digital audio source on that input (or
that the source is DVI).
A flashing input button means that a Dobly digital audio, Dobly-TrueHD audio, or AC-3
audio signal from a DVD player is detected on that input.
An illuminated output button means that a display that supports LPCM audio is
connected to that output.
A dark button means either that the display that is connected does not support audio
or that a display is not connected at all.
A flashing output button means that a display is connected that does not support
LPCM.
On the 7-segment display:
“0” under an output number indicates that the audio output is muted.
“.” under an output number indicates that the HDMI output port is in ARC mode.
Any digit shows the HDMI audio input switching state.
Press ALL (instead of an output button) to route the selected input to all the outputs. All
the 7-segment display LEDs flash.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
2. While D-AUDIO is on, select an output button (for example, 6) and then an input button
(for example, 5). HDMI audio input 5 is routed to HDMI audio output 6 and on the
7-segment display, INPUT 5 appears under OUTPUT 6.
When switching you can also press:
An output button (1 to 8) and then OUT (MUTE) to mute the selected output (turns 0).
ALL (instead of an output button) and then an input button to route the selected input
to all the outputs.
All the 7-segment display LEDs flash and then display the selected input.
Switching the Video and the Audio Signal Simultaneously
You can select the audio signal to switch to the output together with the video signal.
To switch the audio and video signals together to an output:
1. Press D-AUDIO and VIDEO simultaneously.
The button illuminates and the 7-segment display shows the current IN-OUT video
status.
2. Press an OUT (MUTE) button (1 to 8).
The 7-segment display LED, under the selected output, flashes.
3. Press an IN (PATTERN) button (1 to 8).
The selected video and audio input is switched to the selected output (or to all the
outputs if ALL was pressed instead) and the 7-segment display shows the current
status.
Page 16
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
14
Press ALL (instead of an output button) to mute/unmute all the outputs. All the
7-segment display LEDs flash.
Press ALL (instead of an output button) to mute/unmute all the outputs. All the
7-segment display LEDs flash.
Once a pattern is selected, that same pattern is routed to all the selected outputs.
1 (Color Bars)
2 (Ramp)
3 (Solid White)
4 (Solid Black)
5 (Solid Red)
6 (Solid Green)
7 (Solid Blue)
8 (Checkboard)
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Muting/Unmuting an Output
You can mute/unmute an audio signal and a video signal separately.
To mute/unmute an audio signal:
1. Press A-AUDIO or D-AUDIO.
The buttons illuminate.
2. Press an OUT (MUTE) button (1 to 8).
3. Press MUTE/PATTERN to mute/unmute the output.
The muted output appears as “0” on the 7-segment display.
To mute/unmute a video signal:
1. Press VIDEO.
The button illuminates and the 7-segment display shows the current IN-OUT video
status.
Kramer Electronics Ltd.
2. Press an OUT (MUTE) button (1 to 8).
The 7-segment display LED, under the selected output, flashes.
3. Press MUTE/PATTERN to mute/unmute the output. The muted output appears as “0” on the 7-segment display.
Routing a Pattern to the Output
VS-88UHD generates 8 embedded patterns. These patterns can be routed at a resolution of
480p to any of the outputs.
A pattern is selected by pressing inputs 1 to 8 when in the Pattern mode.
Figure 8: VS-88UHD Embedded Patterns
Page 17
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
15
On the front panel buttons:
An illuminated output button means that a display is connected on that output.
An illuminated input button indicates the current pattern selected.
On the 7-segment display:
“P” under an output number indicates that a pattern is routed to that output.
“-” under an output number indicates that a video input is routed to that output.
“0” under an output number indicates that the output is muted.
Press ALL (instead of an output button) to route a pattern to all the outputs. All the
7-segment display LEDs flash.
Press VIDEO, D-AUDIO or A-AUDIO to exit pattern mode.
ARC can be enabled or disabled at any time, regardless of whether a display is connected to
the HDMI output or not.
On the front panel:
A flashing output button means that the audio of that output is set to ARC mode.
An illuminated output button means that the output is not in ARC mode.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
To route a pattern:
1. Press MUTE/PATTERN .
2. Press an OUT (MUTE) button (1 to 8).
The 7-segment display LED, under the selected output, flashes.
Kramer Electronics Ltd.
3. Press an input button to select a pattern (see Figure 8).
The 7-segment display shows the new pattern status.

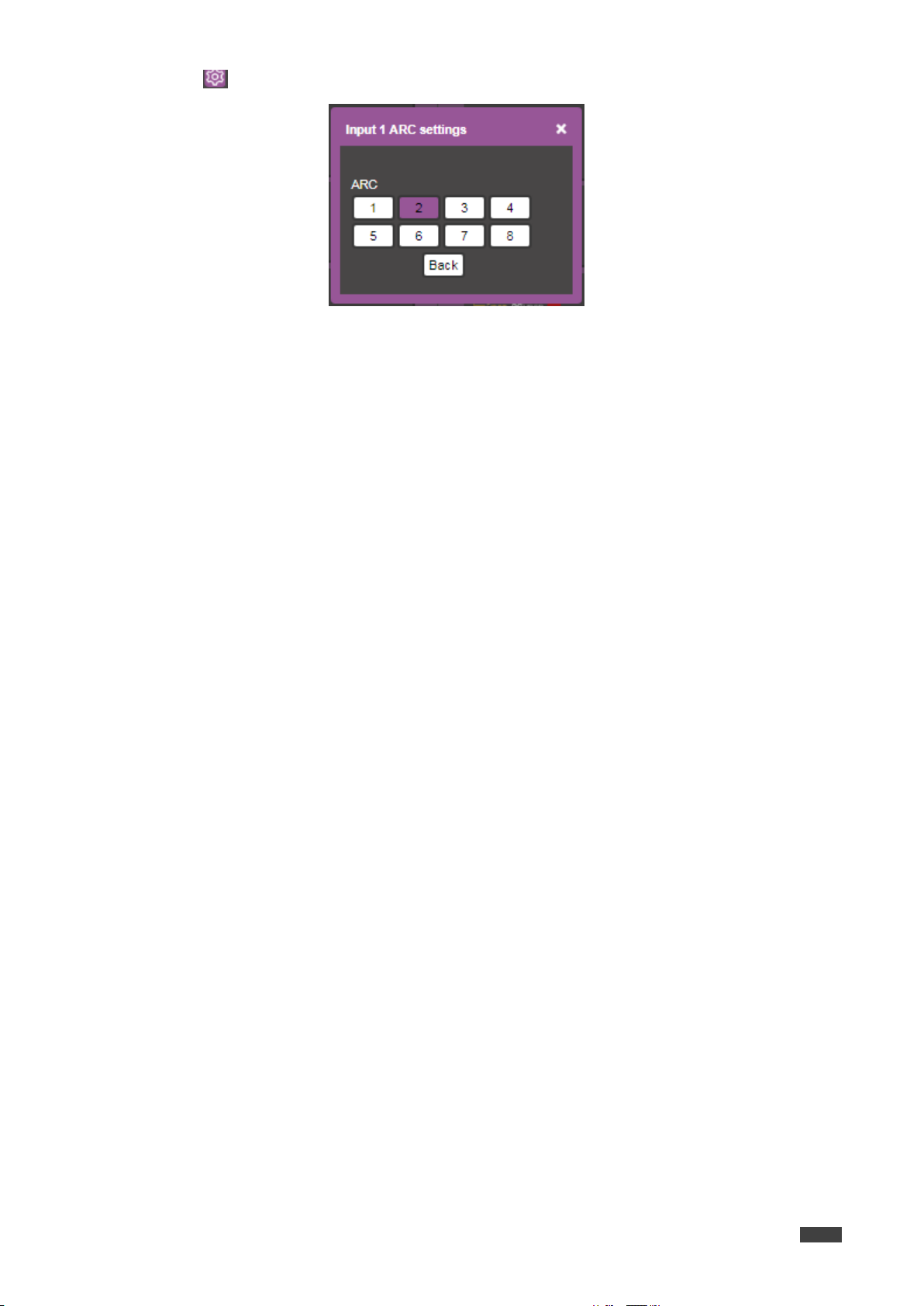

Operating in ARC Mode

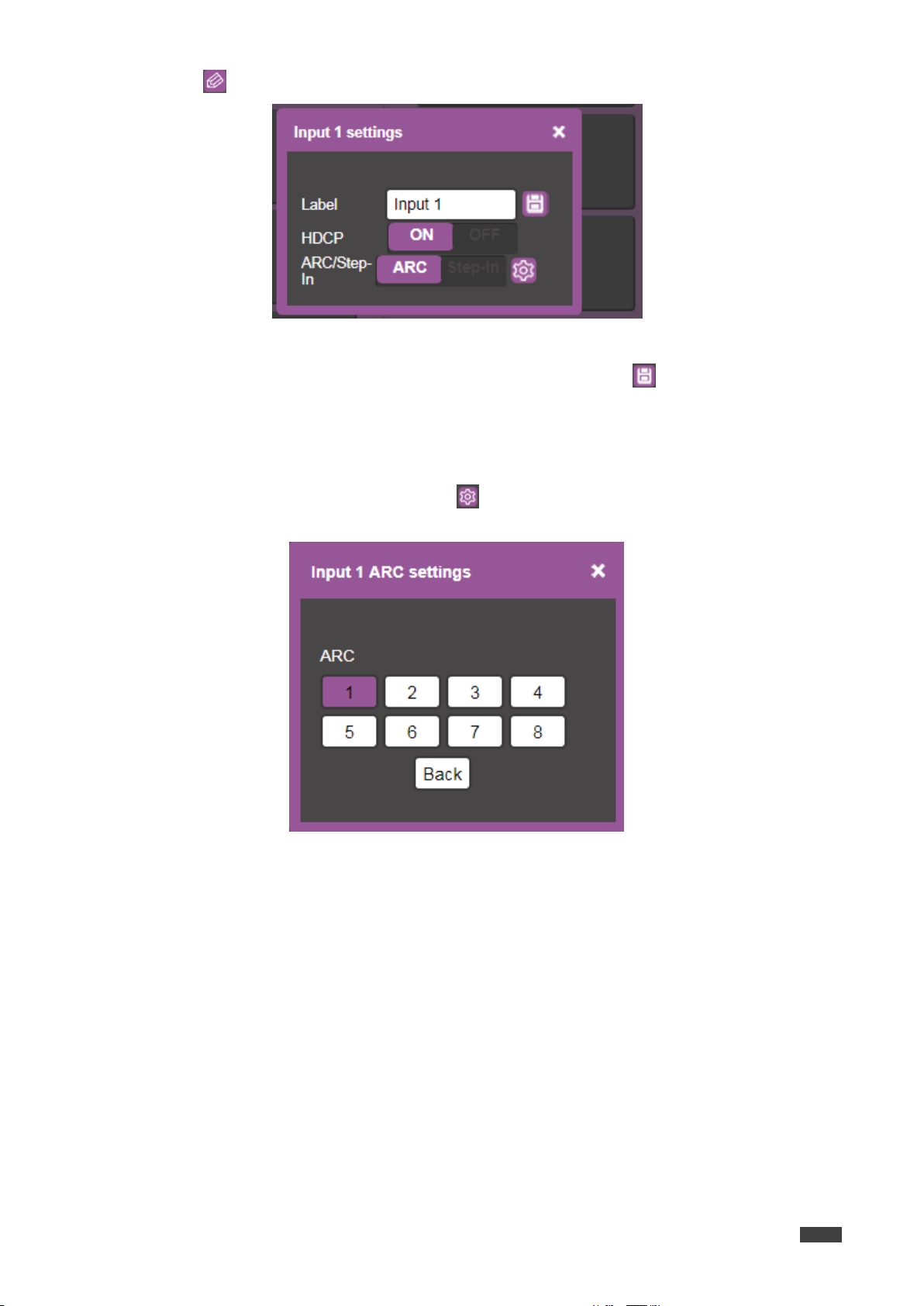

ARC (Audio Return Channel) can be set via the front panel buttons or the embedded
webpages (see Switching Audio in Breakaway Mode on page 30 and Setting Inputs 1, 3, 5 and
7 on page 26).
To route an HDMI audio output to HDMI input ports via the front panel buttons:
Enable ARC on the HDMI outputs.
Enable ARC on the HDMI inputs.
Route HDMI OUT audio to an ARC-enabled input.
To ARC-Enable an HDMI output:
1. Press MUTE/PATTERN and ALL simultaneously until both buttons illuminate and
the device enters ARC mode:
Page 18
Kramer Electronics Ltd.
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
16
The ARC-enabled outputs can be routed to inputs 1, 3. 5 and 7.
ARC can be enabled or disabled on inputs 1, 3, 5 and 7 at any time, regardless of whether
an amplifier is connected to the HDMI input or not.
On the front panel:
A flashing output button means that the audio of that output is ARC-enabled.
An illuminated output button means that the output is not iARC-enabled.
On the front panel buttons:
An illuminated output button means that the corresponding output port is
ARC-enabled.
A dark output button means that the corresponding output port is not ARC enabled.
An illuminated input button means that it is an ARC-disabled input.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
2. Press one or more output buttons:
If the selected button flashes, that output is ARC-enabled.
If the selected button stops flashing, ARC mode is disabled for that output.
The LOCK button flashes.
3. Press LOCK to save changes.
The LOCK button flashes until the changes are saved.
The device returns to Video switching mode.
To ARC-enable an HDMI input:
1. Press EDID and ALL simultaneously until both buttons illuminate and the device enters
ARC mode.
2. Press one or more of the input buttons:
If the selected button flashes, that input is ARC-enabled.
If the selected button stops flashing, ARC mode is disabled for that input.
The LOCK button flashes.
3. Press LOCK to save changes.
The LOCK button flashes until the changes are saved.
The device returns to Video switching mode.
To route an HDMI OUT ARC to an HDMI input port:
1. Press ARC.
The button illuminates and the device enters the ARC routing mode (for example, HDMI
OUT 1, 2, 3 and 8 are ARC-enabled).
The out HDMI ARC-enabled outputs illuminate.
The ARC-enabled inputs flash (for example, 1, 5 and 7 are ARC enabled, 3 is illuminated
therefore not enabled).
Page 19
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
17
A flashing input button means that it is ARC-enabled.
On the 7-segment display:
“.” under an output number (when in D-AUDIO mode) indicates that arc is enabled on
the corresponding output (outputs 1 to 3 and 8 in this example).
“0” under an output number indicates that the audio output is muted.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
2. Press an ARC-enabled input button (for example IN 5) to select the destination port.
The corresponding 7-segment display LED flashes.
3. Press an output button (for example OUT 8) to select the HDMI audio output that will be
routed to the input.
The flashing 7-segment display LED shows the selected input number and
after selecting the HDMI audio OUT the port number appears (8).
HDMI OUT 8 audio signal is routed to ARC input 5.
Storing and Recalling a Setup
Kramer Electronics Ltd.
VS-88UHD can store up to 16 setups. Each setup includes the video and audio current
switching state, the output audio volume and balance, the EDID, the ARC/audio mode, and the
switch mode and speed.
In Store-Recall mode, OUT 1 corresponds to setup 1, IN 1 corresponds to setup 9, and so on.
Figure 9: VS-88UHD 8x8 UHD Matrix Switcher Front Panel
To store a setup:
1. Press STO .
The STO button illuminates.
2. Press an IN or an OUT button (from 1 to 8).
For example, when pressing IN 5, the current device state is stored to setup 13.
3. Press STO.
The current device state is stored to setup 13 and the STO button no longer illuminates.
To recall a setup:
1. Press RCL.
The RCL button illuminates.
2. Press an IN or OUT button to recall the setup stored in that IN/OUT.
The selected button flashes.
Page 20
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
18
If a setup is stored in the selected setup button, the corresponding 7-segment display LED
flashes. If nothing is stored the 7-segment LED is on.
You need to press RCL within 10 seconds, to apply settings.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
3. Press RCL.
The recalled setup is applied and the RCL button no longer illuminates.

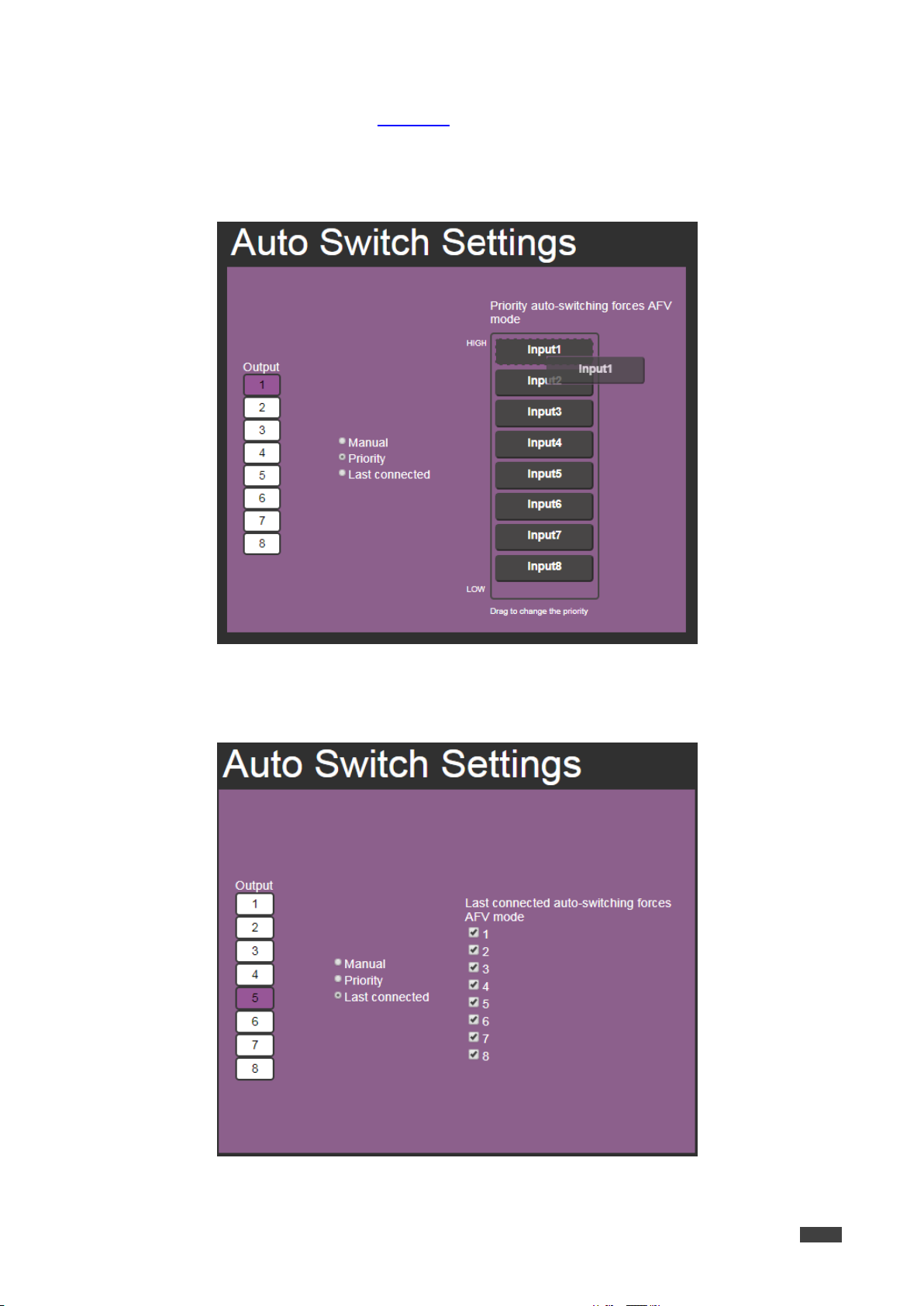

Setting the Switching Mode
Set the following switching modes separately for each output:
Manual mode (IN 1): inputs are switched to outputs via the front panel buttons.
Priority mode (IN 2): the VS-88UHD switches the source with the highest priority to the
output.
Last connected mode (IN 3): the last detected active source is switched to the output.
Kramer Electronics Ltd.
To select the switching mode:
1. Press RCL and MUTE/PATTERN simultaneously. Both buttons illuminate.
2. Press an output button (or press ALL).
The corresponding 7-segment display LEDs flash and LOCK button flashes.
3. Press IN 1, IN 2 or IN 3.
4. Press LOCK to save the settings to that output and exit Switching mode.
Setting the Switching Speed
Set the following switching speed modes separately for each output:
Ex-Fast switch speed (IN 1).
Fast switch speed (IN 2).
Normal switch speed (IN 3).
To select the switching speed:
1. Press STO and MUTE/PATTERN simultaneously. Both buttons illuminate.
The 7-segment display LEDs show the current switch speed for each port.
2. Press an output button (or press ALL).
The corresponding 7-segment display LEDs flash and LOCK button flashes.
3. Press IN 1, IN 2 or IN 3.
4. Press LOCK to save the settings and exit Speed mode.
Page 21
VS-88UHD – Operating VS-88UHD via Front Panel Buttons
19
On the front panel button:
Both input and output buttons are dark.
On the 7-segment display:
“d” under an output number indicates that the input port is set to the default EDID.
“L” under an output number indicates that the EDID was uploaded externally from a
file via Web page.
A digit under an output number indicates the output from which the EDID was copied.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Using the Embedded Web Pages
The Web pages let you control the VS-88UHD via the Ethernet. The Web pages include all the
OSD items and more, and are accessed using a Web browser and an Ethernet connection.
Before attempting to connect:
Perform the procedures described in Connecting VS-88UHD via the ETHERNET Port
on page 8.
Ensure that your browser is supported.
The following operating systems and Web browsers are supported:
The VS-88UHD Web pages enable performing the following:
Switching and Setting the Ports on page 24.
Changing Device Settings and Upgrading the Firmware on page 33.

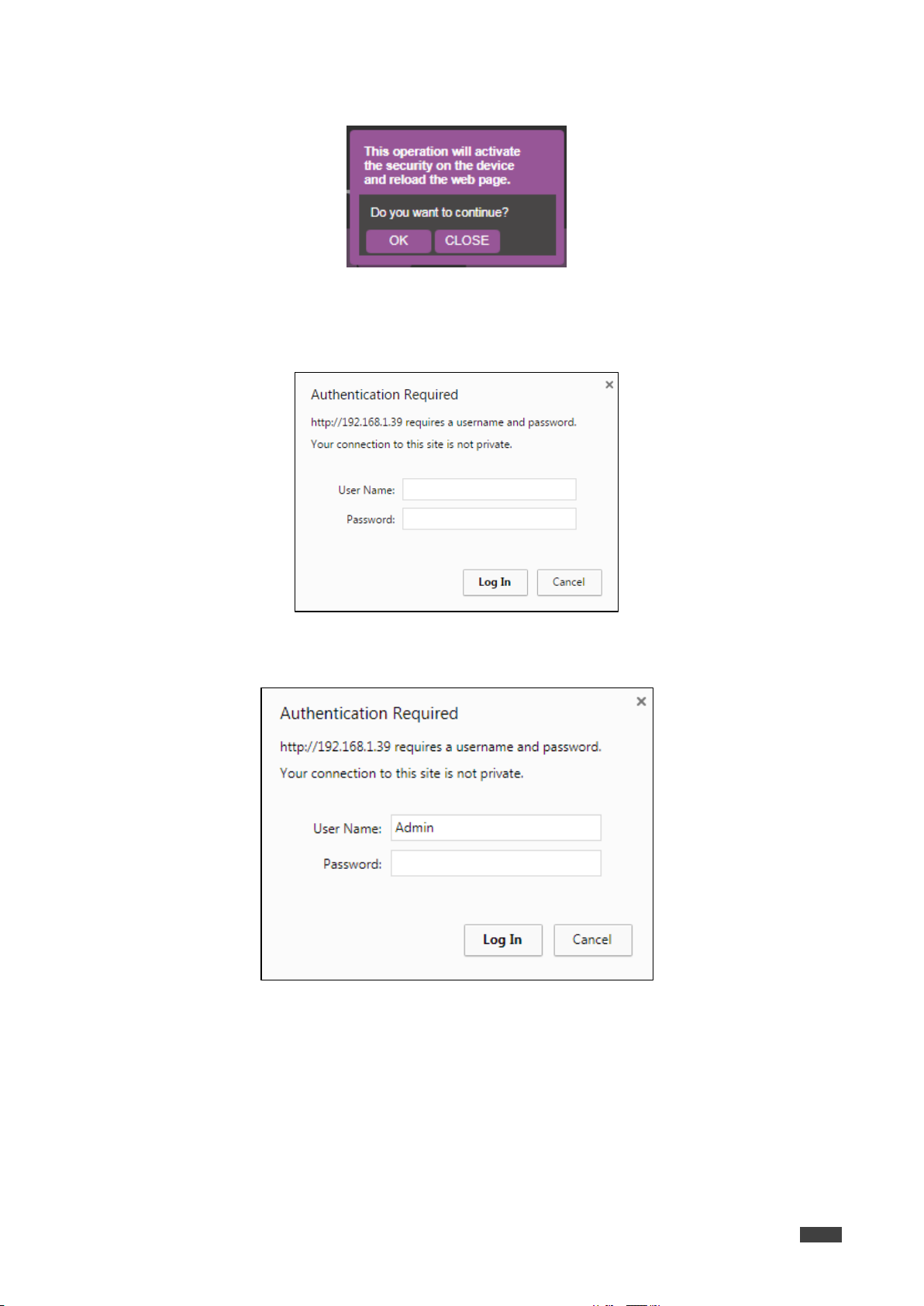

Managing Web Page Security on page 34.
Setting the Timeout on page 37.
Setting Switching Modes on page 39.
Setting Step-in Devices on page 41.
Managing the EDID on page 42.
Viewing the About Page on page 48.
Page 25
Kramer Electronics Ltd.
VS-88UHD – Using the Embedded Web Pages
23
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Switching and Setting the Ports
The Switching Web page enables performing the following functions:
Viewing and Adjusting the Output Settings on page 24.
Viewing and Adjusting the Input Settings on page 26.
Switching an input to an output on page 28.
Switching a Pattern to an Output on page 29.
Switching Audio in Breakaway Mode on page 30.

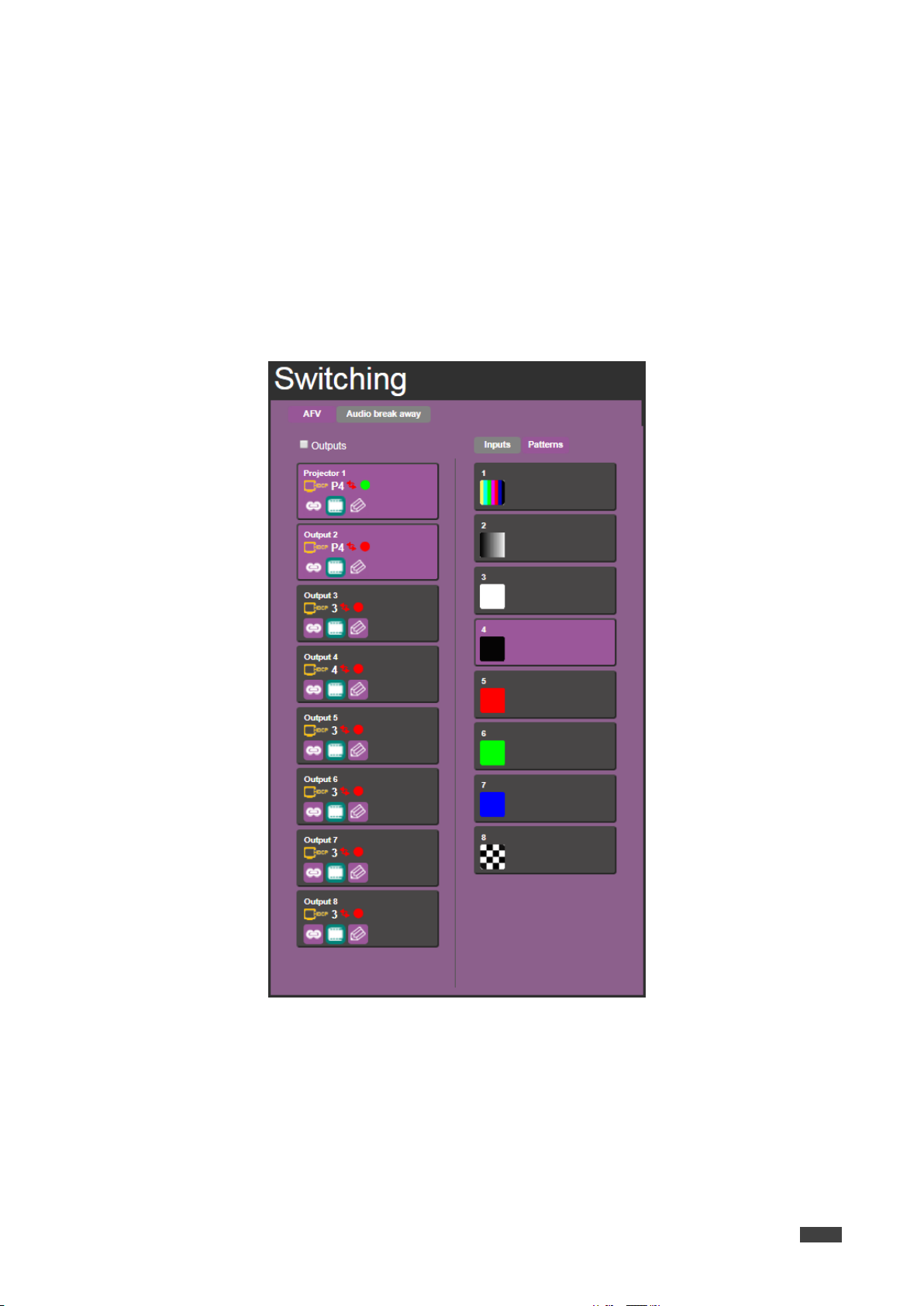

Viewing and Adjusting the Output Settings
Each of the VS-88UHD output buttons lets you view and adjust the status of that input/output.
Figure 12: Switching Page – Output Button not selected and Selected
Each output button displays the:
HDCP status – Output supports HDCP () or does not support HDCP ().
Output status – An acceptor is connected () or not connected () to the output.
An input number indicating the input switched to the output (), for example,
Input 3 is switched to Output 1.

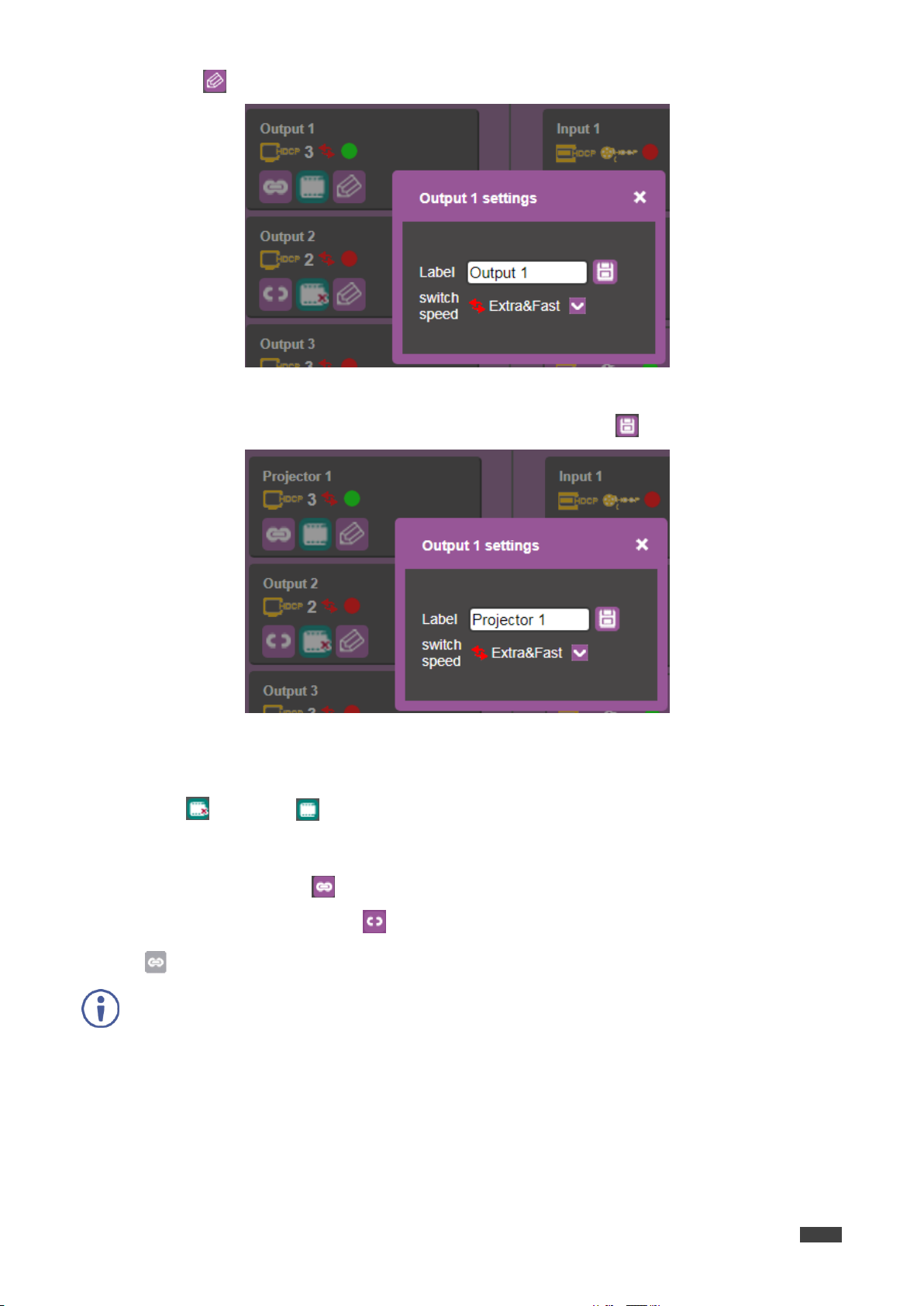

Edit () button for changing the:
Output name ().
Switching speed to normal (), fast () or extra-fast ().
Video status – Click to change to mute () or unmute ().
Audio-follow-video status – Click to change to AFV () or audio breakaway ().
To adjust the output settings:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Select the AFV tab.
Page 27
VS-88UHD – Using the Embedded Web Pages
25
Setting the AFV mode icons to AFV or Breakaway modes reflects the next switching step
and not the current status.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Viewing and Adjusting the Input Settings
Each of the VS-88UHD input buttons lets you view and adjust the status of that input/output.
Figure 15: Switching Page – Input Button Not Selected and Selected
Each input button displays the:
Input label.
Input signal HDCP status – supports HDCP () or does not support HDCP ().
HDCP status – HDCP is enabled () or disabled ().
Input status – a source is connected () or not connected () to the input.
Setting Inputs 2, 4, 6 and 8
To adjust input 2, 4, 6 and 8 settings:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Select the AFV tab. Verify that Inputs (and not Patterns) is selected.
При обращении используйте промокод AND-PDF и получите скидку.
Switching Audio in Breakaway Mode
In Breakaway mode, the HDMI embedded audio is switched separately from the video signal.
You can switch a digital audio input to a digital audio output independently. If HDMI input port
and HDMI output port ARC mode are enabled, you can switch a selected HDMI output port
ARC to any HDMI input port ARC.
To switch an audio input to an audio output in the Breakaway mode:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Select Audio break away tab.
Figure 21: Switching Page – Breakaway Mode
3. Switch an input to a selected output. For example, switch digital input 6 to
output 5:
Click an HDMI button (under the Audio Outputs column).
The selected button turns purple with a blue frame .
Click a Digital Input button.
The selected button turns purple with a blue frame .
Digital Output 5 is switched to D6.
Figure 22: Switching Page – Switching Audio signals in the Breakaway Mode
Page 33
Kramer Electronics Ltd.
VS-88UHD – Using the Embedded Web Pages
31
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
To switch ARC to an input:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Select Audio break away tab.
3. Check the ARC check boxes to ARC-enable selected outputs (under the Audio Outputs
column).
For example, Output 2 and 4 are checked, therefore ARC-enabled so they can be
switched as ARC signals.
Figure 23: Switching Page – Output 2 and 4 ARC-Enabled
4. Select AFV tab.
5. Select an ARC-functioning input button (1, 3, 5 or 7).
For example, Input 1.
6. Click on Input 1 and set to ARC mode. This input is now ARC-enabled.
Figure 24: Switching Page – Output 1 Set to ARC Mode
Page 34
VS-88UHD – Using the Embedded Web Pages
32
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
After changing the IP number, reload the Web page with the new IP address.
After changing the Subnet mask you need to turn the VS-88UHDpower off and then on
again.
If DHCP is checked, reload the Web page with the new IP address.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Changing Device Settings and Upgrading the Firmware
The Device Settings Web page shows the device details, such as name, MAC address and
firmware version and also enables performing the following functions:
Changing the Ethernet Settings on page 33.
Performing a Factory Reset on page 34.
Performing Firmware Upgrade on page 34.
Changing the Ethernet Settings
To change the Ethernet settings:
1. In the Navigation pane, click Device Settings. The Device Settings page appears:
Figure 26: Device Settings Page
2. Uncheck/check the DHCP check box.
3. If DHCP is unchecked, change any of the parameters (IP Address, Netmask and/or
Gateway).
4 . Click Save Changes.
Page 36
VS-88UHD – Using the Embedded Web Pages
34
Do not power off your device while you are uploading a file to prevent the damage of the file.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Performing a Factory Reset
To reset the device to its factory default values:
1. In the Navigation pane, click Device Settings. The Device Settings page appears
(Figure 26).
2. Click Reset. The following window appears:

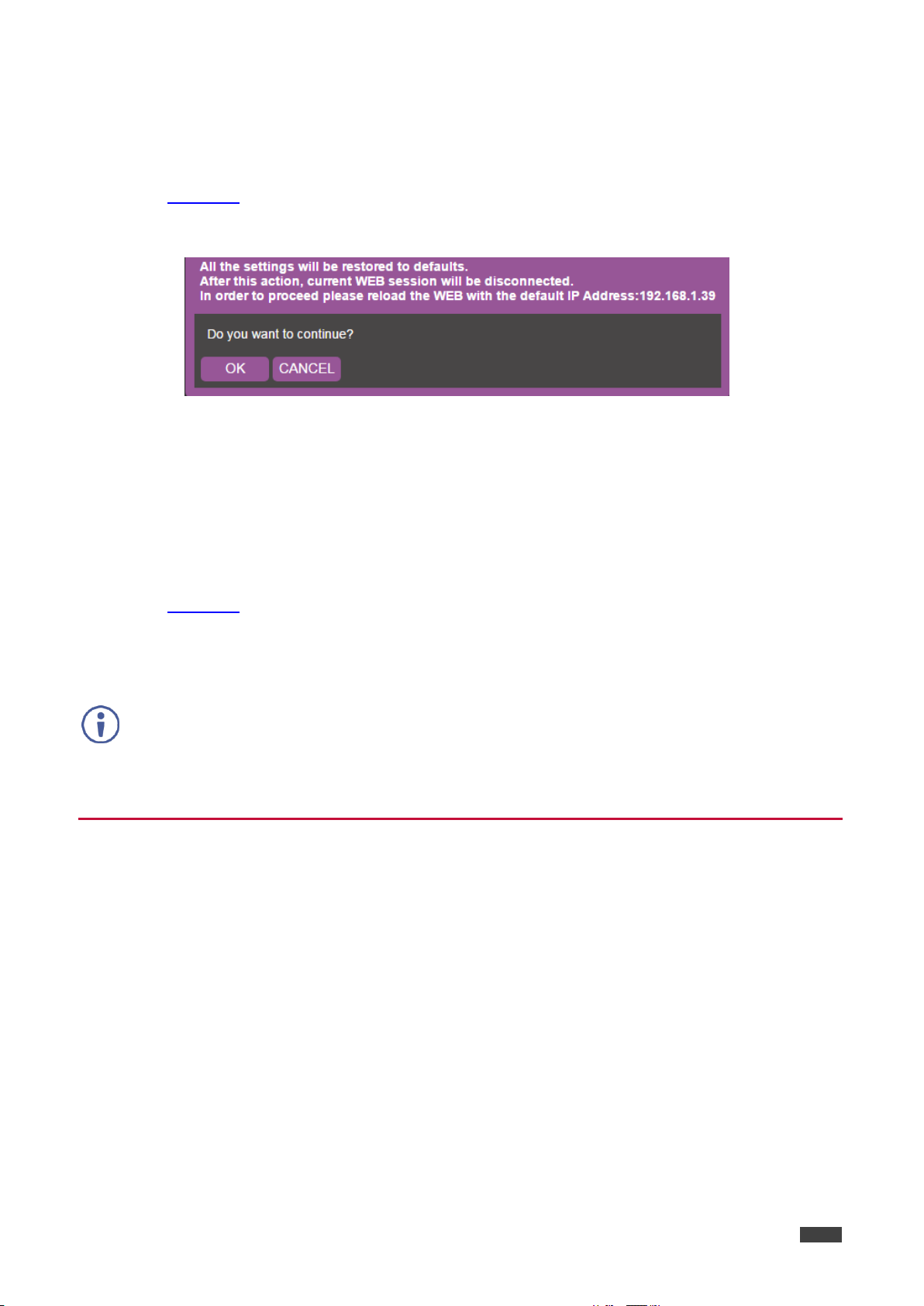

Figure 27: Device Settings Page – Factory Reset
3. Click OK to start factory reset and follow the instructions on-screen.
Kramer Electronics Ltd.
Performing Firmware Upgrade
To perform firmware upgrade:
1. In the Navigation pane, click Device Settings. The Device Settings page appears
(Figure 26).
2. Click BROWSE and select the new firmware file.
3. Click START UPGRADE and follow the instructions on-screen.
Managing Web Page Security
Use the Security page to set Web access permission:
Setting Web Page Access Permission
To define access to the Web pages, in the Navigation pane, click Password Settings. The
Password Settings page appears displaying the current status (password protected or free
access).
Page 37
VS-88UHD – Using the Embedded Web Pages
35
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
9. Click OK.
The page is reloaded and can be accessed by entering the password.
The top right side of the Web page displays the security icon locked.
Setting the Timeout
Use the Timeout Settings Web page to set the time delay to shut down if no input signal is
detected for each output and also to set the auto switching time.
Page 40
Kramer Electronics Ltd.
VS-88UHD – Using the Embedded Web Pages
38
If you do not want a specific output to shut down if an input signal is not detected, check the
Never box next to the desired output.
Support audio only can be used if the video and audio signals routed to an output, come
from separate sources.
If Support audio only is set to:
ON – The audio signal routed to the output remains active when the video source
(coming from a different input) is deactivated.
OFF – The audio signal routed to the output is deactivated together with the
deactivation of the video source (coming from a different input).
The adjustment sequence presented here is only an example. You can adjust the output
settings in any other order.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
To set the timeout:
1. In the Navigation pane, click Timeout Settings. The Timeout Settings page appears.
Figure 38: Timeout Settings Page
2. Set the specific output delay time.
3. Set audio support ON if you want shutdown to occur only if an audio signal is lost.
To set the video lost timer (when in auto-switching mode):
1. In the Navigation pane, click Timeout Settings. The Timeout Settings page appears.
2. Set the video lost timer.
Page 41
VS-88UHD – Using the Embedded Web Pages
39
If the video is lost when in the auto switching mode (Priority or Last connected) you can set
the time the device waits before it switches to the next source.
Setting to priority or last connected mode forces VS-88UHD to operate in AFV mode.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Setting Step-in Devices
Use the Step-In Settings page to manage Step-in devices (for example Kramer DIP-30).
If a step-in device is not connected to VS-88UHD, the following page appears:
Kramer Electronics Ltd.
Figure 42: Step-In Settings Page (Step-in Device is not Connected)
To manage a step-in device:
1. Connect the HDMI output of a step-in device (for example DIP-30) to an HDMI input on
the VS-88UHD.
2. In the Navigation pane, click Step-in Settings. The Step-in Settings page appears and
the input button/s to which the step-in device/s is connected turn/s white.
При обращении используйте промокод AND-PDF и получите скидку.
3. Click an active step-in input (button 2 in this example).
The selected input button turns purple, the DIP-30 Inputs list and the VS-88UHD outputs
to which the DIP-30 input is routed are displayed.
Kramer Electronics Ltd.
Figure 44: Step-In Settings Page – Step In Selected
4. Select a DIP-30 input (HDMI IN 1, HDMI IN 2 or VGA).
The respective button on DIP-30 illuminates.
5. Check the outputs to which the inputs will be routed.
6. Press the STEP-IN button on DIP-30.
The selected step-in button is routed to all the checked outputs.
Managing the EDID
The EDID Management page lets you read the EDID from:
Any of the outputs,
The default EDID
Any of the inputs,
A file in your PC (Browse).
The selected EDID can be copied to the selected input/s.
Page 45
Kramer Electronics Ltd.
VS-88UHD – Using the Embedded Web Pages
43
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
4. Click UPLOAD. The following message appears:
Figure 53: EDID Management Page – EDID Message
5. Click OK.
6. Follow the instructions on-screen.
Kramer Electronics Ltd.
Viewing the About Page
The VS-88UHD About page lets you view the Web page version and Kramer Electronics Ltd
details.
Figure 54: About Page
Page 51
VS-88UHD – Technical Specifications
49
Inputs
8 HDMI
On female HDMI connectors
Outputs
8 HDMI
On female HDMI connectors
Ports
1 USB
On a female USB-A connector
1 RS-232
On a 3-pin terminal block for serial link
extension
1 Ethernet
On an RJ-45 female connector for device
control
1 USB
On a female USB-A connector for powering
another device
Video
Max. Resolution
4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)
Compliance
Supports HDMI 1.4 and HDCP 1.4
Control
Front Panel
Front panel buttons
7-segment display
Power
Consumption
50VA
Source
100-240V AC, 50/60Hz
Regulatory Compliance
Safety
CE, UL
Environmental
RoHs, WEEE
Environmental
Conditions
Operating Temperature
0° to +40°C (32° to 104°F)
Storage Temperature
-40° to +70°C (-40° to 158°F)
Humidity
10% to 90%, RH non-condensing
General
Net Dimensions (W, D, H)
19", 9.3", 1U, rack mountable
Shipping Dimensions (W, D, H)
52.5cm x 33cm x 10.7cm
(20.7” x 13” x 4.2”)
Net Weight
2.6kg (5.73lbs) approx.
Shipping Weight
3.6 kg (7.9lbs) approx.
Accessories
Included
Rack ears, power cord
Specifications are subject to change without notice at www.kramerav.com
RS-232/Ethernet
Baud Rate:
115,200
Parity:
None
Data Bits:
8
Command Format:
ASCII Protocol 3000
Stop Bits:
1
Example (Route input 1 to output 1):
#VID1> 1<cr>
Ethernet Parameters
IP Address:
192.168.1.39
Default TCP Port #:
5000
Subnet Mask:
255.255.0.0
Default UDP Port #:
50000
Default Gateway:
192.168.0.1
Number of TCP ports:
8
Number of web clients:
5
Full Factory Reset
Front Panel Buttons:
Power off the device, press and hold the LOCK, EDID and STO buttons simultaneously for
about 3 seconds while powering the device, and then release. Until all front panel buttons
illuminate
Protocol 3000:
“#factory” command.
Web Pages:
In the Device Settings page, click Reset.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Protocol 3000
The VS-88UHD8x8 UHD Matrix Switcher can be operated using the Kramer Protocol 3000
serial commands. The command framing varies according to how you interface with the
VS-88UHD.
Generally, a basic video input switching command that routes a layer 1 video signal to HDMI
out 1 from HDMI input 2 (ROUTE 1,1,2), is entered as follows:

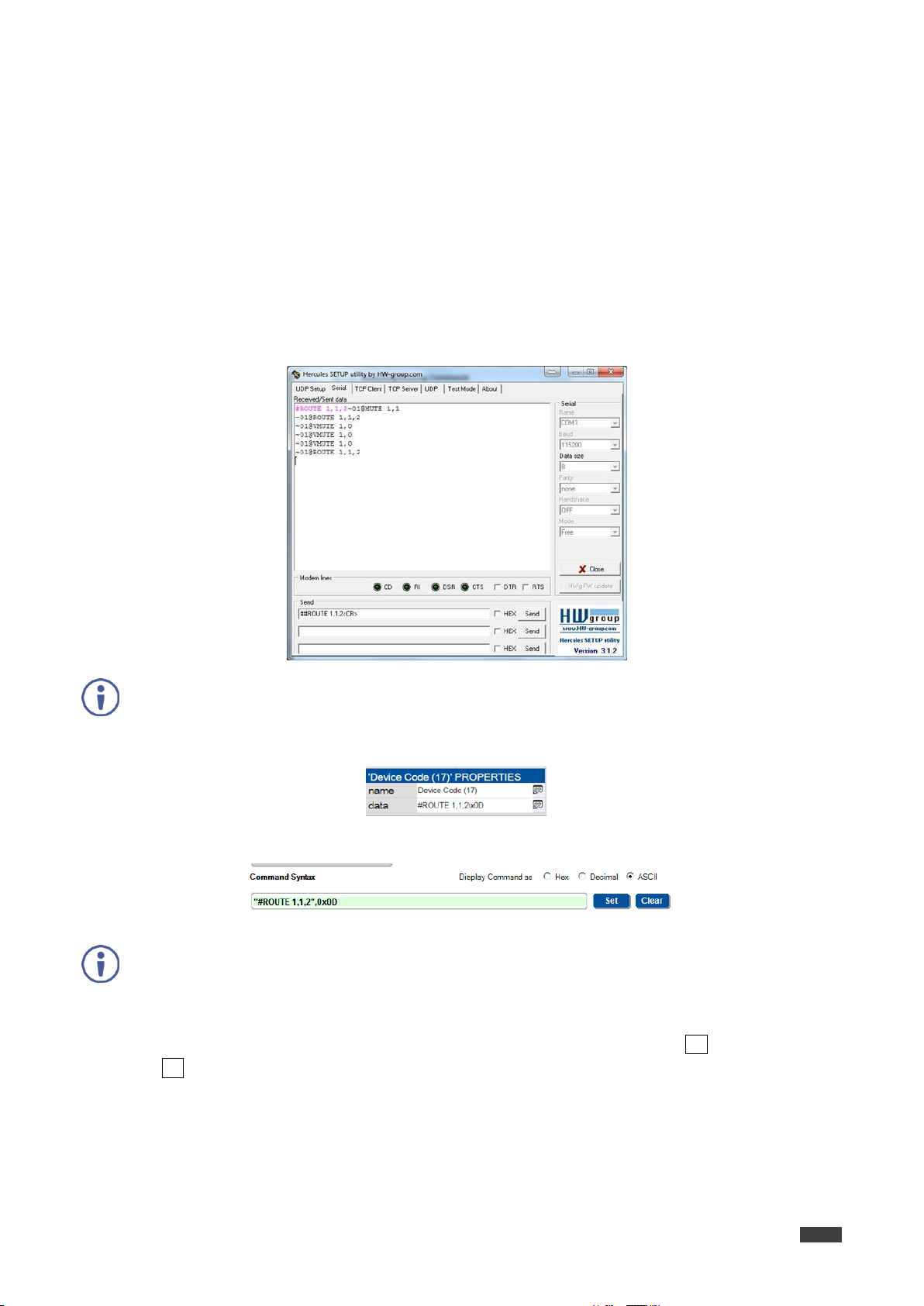

Terminal communication software, such as Hercules:
K-Touch Builder (Kramer software):
K-Config (Kramer configuration software):
You can enter commands directly using terminal communication software (e.g., Hercules) by
connecting a PC to the serial or Ethernet port on the VS-88UHD. To enter CR press the Enter
key (LF is also sent but is ignored by the command parser).
Commands sent from various non-Kramer controllers (e.g., Crestron) may require special
coding for some characters (such as, /X##). For more information, refer to your controller’s
documentation.
Page 54
Kramer Electronics Ltd.
VS-88UHD – Protocol 3000
52
A string can contain more than one command. Commands are separated by a pipe (|)
character.
Spaces between parameters or command terms are ignored. Commands in the string do not
execute until the closing character is entered. A separate response is sent for every
command in the chain.
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
For more information about Protocol 3000 commands, see:
Understanding Protocol 3000 on page 52.
Kramer Protocol 3000 Syntax on page 53.
Protocol 3000 Commands on page 54.
Understanding Protocol 3000
Protocol 3000 commands are structured according to the following:
Command – A sequence of ASCII letters (A-Z, a-z and -). A command and its parameters
must be separated by at least one space.
Parameters – A sequence of alphanumeric ASCII characters (0-9, A-Z, a-z and some
special characters for specific commands). Parameters are separated by commas.
Message string – Every command entered as part of a message string begins with a
message starting character and ends with a message closing character.
Message starting character:
# – For host command/query
~ – For device response
Device address – K-NET Device ID followed by @ (optional, K-NET only)
Query sign – ? follows some commands to define a query request
Message closing character:
CR – Carriage return for host messages (ASCII 13)
CR LF – Carriage return for device messages (ASCII 13) and line-feed (ASCII 10)
Command chain separator character – Multiple commands can be chained in the same
string. Each command is delimited by a pipe character (|). When chaining commands,
enter the message starting character and the message closing character only at the
beginning and end of the string.
Page 55
Kramer Electronics Ltd.
VS-88UHD – Protocol 3000
53
Start
Address
(optional)
Body
Delimiter
#
Device_id@
Message
CR
Start
Body
Delimiter
#
Command SP
Parameter_1,Parameter_2,…
CR
Start
Address
Body
Delimiter
#
Device_id@
Command_1
Parameter1_1,Parameter1_2,…|
Command_2
Parameter2_1,Parameter2_2,…|
Command_3
Parameter3_1,Parameter3_2,…|…
CR
Start
Address
(optional)
Body
Delimiter
~
Device_id@
Message
CR LF
Start
Address
(optional)
Body
Delimiter
~
Device_id@
Command SP [Param1 ,Param2 …] result
CR LF
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
Protocol 3000 Commands
This section includes the following commands:
Common Commands on page 54.
System Commands on page 59.
Authentication Commands on page 64.
EDID Handling Commands on page 66.
Switch Commands on page 67.
Switching Commands on page 70.
Communication Commands on page 72.
Common Commands
Kramer Electronics Ltd.
#
Page 57
VS-88UHD – Protocol 3000
55
Functions
Permission
Transparency
Set:
-
-
-
Get:
BUILD-DATE?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get device build date
#BUILD-DATE?CR
Response
~nn@BUILD-DATESPdateSPtimeCR LF
Parameters
date – Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day
time – Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds
K-Config Example
“#BUILD-DATE?”,0x0D
Functions
Permission
Transparency
Set:
FACTORY
End User
Public
Get:
- - -
Description
Syntax
Set:
Reset device to factory default configuration
#FACTORYCR
Get: - -
Response
~nn@FACTORYSPOKCR LF
Notes
This command deletes all user data from the device. The deletion can take some time.
Your device may require powering off and powering on for the changes to take effect.
K-Config Example
“#FACTORY”,0x0D
Functions
Permission
Transparency
Set:
-
-
-
Get:
HELP
End User
Public
Description
Syntax
Set:
-
-
Get:
Get command list or help for specific
command
#HELPCR
Response
Multi-line:~nn@Device available protocol 3000 commands:CR LFcommand,SP
command...CR LF
Parameters
COMMAND_NAME – name of a specific command
Notes
To get help for a specific command use:HELPSPCOMMAND_NAMECR LF
K-Config Example
“#HELP”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
BUILD-DATE
FACTORY
Kramer Electronics Ltd.
HELP
Page 58
VS-88UHD – Protocol 3000
56
Functions
Permission
Transparency
Set:
-
-
-
Get:
MODEL?
End User
Public
Description
Syntax
Set:
- - Get:
Get device model
#MODEL?CR
Response
~nn@MODELSPmodel_nameCR LF
Parameters
model_name – String of up to 19 printable ASCII chars
Notes
This command identifies equipment connected to Step-in master products and notifies of identity changes
to the connected equipment. The Matrix saves this data in memory to answer REMOTE-INFO requests.
K-Config Example
“#MODEL?”,0x0D
Functions
Permission
Transparency
Set: - -
-
Get:
PROT-VER?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get device protocol version
#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
version - XX.XX where X is a decimal digit
K-Config Example
“#PROT-VER?”,0x0D
Functions
Permission
Transparency
Set:
RESET
Administrator
Public
Get:
-
-
-
Description
Syntax
Set:
Reset device
#RESETCR
Get: - -
Response
~nn@RESETSPOKCR LF
Notes
To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after
running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.
K-Config Example
“#RESET”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
LOCK-FP
NAME
Kramer Electronics Ltd.
NAME-RST
Page 61
VS-88UHD – Protocol 3000
59
Command
Description
SIGNAL
Get input signal lock status
PRST-VID?
Get video connections from saved preset
PRST-STO
Store current connections to preset
PRST-RCL
Recall saved preset list
PRST-LST
Get saved preset list
BAUD
Set/get protocol serial port baud rate
HDCP-STAT?
Get HDCP signal status
HDCP-MOD
Set/get HDCP mode
FPGA-VER?
Get current FPGA version
Functions
Permission
Transparency
Set:
- - -
Get
SIGNAL?
End User
Public
Description
Syntax
Set: - -
Get:
Get input signal lock status
#SIGNAL?SPinp_idCR
Response
~nn@SIGNALSPinp_id,statusCR LF
Parameters
inp_id – input number: 1 (Input)
status – signal status according to signal validation: 0 (Off), 1 (On)
Response Triggers
After execution, a response is sent to the com port from which the Get was received
A response is sent after every change in input signal status from On to Off or from Off to On
K-Config Example
Get the input signal lock status of IN 1:
“#SIGNAL? 1”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
preset – preset number
in – input number or '0' if output disconnected
> – connection character between in and out parameters
out - output number or '*' for all outputs
Notes
In most units, video and audio presets with the same number are stored and recalled together by
commands #PRST-STO and #PRST-RCL.
Examples
Store current audio and video connections,
volumes and modes to preset 5
#PRST-STO 5CR
~PRST-STO 5CR LF
Recall audio and video connections from preset 3
#PRCL 3CR
~PRST-RCL 3CR LF
Show source of video output 2 from preset 3
#PRST-VID? 3,2CR
~PRST-VID 3, 4>2CR LF
K-Config Example
Get video connections from preset 3 for all outputs:
“#PRST-VID? 3,*”,0x0D
Functions
Permission
Transparency
Set:
PRST-STO
End User
Public
Get - -
-
Description
Syntax
Set:
Store current
connections, volumes
and modes in preset
baud_rate – 9600, 115200, else (new baud rate to set)
current_baud_rate – 9600, 115200, else (current protocol serial port baud rate)
Notes
The new defined baud rate is stored in the EEPROM and used when powering up
Default baud rate is 115200 (on factory reset).
Only works with devices supporting this command (if ERR 002 is returned, the default baud rate is used).
K-Config Example
Set the baud rate to 9600:
“#BAUD 9600”,0x0D
Functions
Permission
Transparency
Set:
- - -
Get
HDCP-STAT?
End User
Public
Description
Syntax
Set:
None
-
Get:
Get HDCP signal status
#HDCP-STAT?SPstage,stage_idCR
Response
~nn@HDCP-STATSPstage,stage_id,statusCR LF
Parameters
stage – 0 (input), 1 (output)
stage_id – for input stage: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (IN 5), 6 (IN 6), 7 (IN 7), 8 (IN 8), 0
status – signal encryption On/Off status: 0 (HDCP Off), 1 (HDCP On), 2 (Follow input), 3 (Mirror output
(Mac mode))
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was received
Response is sent to all com ports after execution if HDCP-STAT was set by any other external control device
(button press, device menu and similar) or HDCP mode changed.
Notes
On output – sink status.
On input – signal status.
K-Config Example
Get the output HDCP-STATUS of IN 1 (HDCP Off):
“#HDCP-STAT? 0,1”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
BAUD
Kramer Electronics Ltd.
HDCP-STAT
Page 65
VS-88UHD – Protocol 3000
63
Functions
Permission
Transparency
Set:
HDCP-MOD
Administrator
Public
Get
HDCP-MOD?
End User
Public
Description
Syntax
Set:
Set HDCP mode
#HDCP-MODSPinp_id,modeCR
Get:
Get HDCP mode
#HDCP-MOD?SPinp_idCR
Response
Set/get: ~nn@HDCP-MODSPinp_id,modeCR LF
Parameters
inp_id – input number: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (IN 5), 6 (IN 6), 7 (IN 7), 8 (IN 8)
mode – HDCP mode: 0 (HDCP Off), 1 (HDCP On)
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was received
Response is sent to all com ports after execution if HDCP-MOD was set by any other external control device
(button press, device menu and similar) or HDCP mode changed.
Notes
Set HDCP working mode on the device input:
HDCP supported – HDCP_ON (default)
HDCP not supported – HDCP OFF
HDCP supports changes following a detected sink - MIRROR OUTPUT
K-Config Example
Get the input HDCP-MODE of IN 1 (HDCP Off):
“#HDCP-MOD? 1,0”,0x0D
Functions
Permission
Transparency
Set:
- - -
Get
FPGA-VER?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get current FPGA version
#FPGA-VER?SPidCR
Response
~nn@FPGA-VERSPid,expected_ver,actual_verCR LF
Parameters
id – FPGA ID
expected_ver – expected FPGA version for current firmware
actual_ver – actual FPGA version
K-Config Example
Get current FPGA version (1):
“#FPGA-VER? 1”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
HDCP-MOD
Kramer Electronics Ltd.
FPGA-VER
Page 66
VS-88UHD – Protocol 3000
64
Command
Description
LOGIN
Set/get protocol permission
LOGOUT
Cancel current permission level
PASS
Set/get password for login level
SECUR
Set/get current security state
Functions
Permission
Transparency
Set:
LOGIN
Not Secure
Public
Get:
LOGIN?
Not Secure
Public
Description
Syntax
Set:
Set protocol permission
#LOGINSPlogin_level,passwordCR
Get:
Get current protocol permission level
#LOGIN?CR
Response
Set: ~nn@LOGINSPlogin_level,passwordSPOKCR LF
or
~nn@LOGINSPERRSP004CR LF (if bad password entered)
Get: ~nn@LOGINSPlogin_levelCR LF
Parameters
login_level – level of permissions required: User, Admin
password – predefined password (by PASS command). Default password is an empty string
Notes
When the permission system is enabled, LOGIN enables running commands with the User or Administrator
permission level.
When set, login must be performed upon each connection.
The permission system works only if security is enabled with the SECUR command. It is not mandatory to
enable the permission system in order to use the device.
K-Config Example
Set the protocol permission level to Admin (when the password defined in the PASS command is 33333):
“#LOGIN Admin,33333”,0x0D
Functions
Permission
Transparency
Set:
LOGOUT
Not Secure
Public
Get:
-
-
-
Description
Syntax
Set:
Cancel current permission level
#LOGOUTCR
Get:
-
-
Response
~nn@LOGOUTSPOKCR LF
Notes
Logs out from User or Administrator permission levels.
K-Config Example
“#LOGOUT”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
src_type – EDID source type (usually output): 0 (Input), 1 (Output), 2 (Default EDID)
src_id – for input source: 1 (Input), for output source: 0 (Default EDID source), 1 (Output 1), 2 (Output 2)
dst_type – EDID destination type (usually input): 0 (input)
dest_bitmap – bitmap representing destination IDs. Format: XXXX…X, where X is hex digit. The binary
form of every hex digit represents corresponding destinations. Setting ‘1’ indicates that EDID data is copied
to this destination. Setting ‘0’ indicates that EDID data is not copied to this destination.
Response Triggers
Response is sent to the com port from which the Set was received (before execution)
Notes
Destination bitmap size depends on device properties (for 64 inputs it is a 64-bit word)
Example: bitmap 0x0013 means inputs 1, 2 and 5 are loaded with the new EDID.
In this device, if the destination type is input (0), the bitmap size is 8 bit, for example bitmap 0x81 means the
inputs 1 and 8 are loaded with the new EDID.
K-Config Example
Copy the EDID data from the Output 1 (EDID source) to the Input:
“#CPEDID 1,1,0,0x1”,0x0D
Copy the EDID data from the default EDID source to the Input:
“#CPEDID 2,0,0,0x1”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
In – input number: 1 (HDMI IN 1), 2 (HDMI IN 2), 3 (HDMI IN 3), 4 (HDMI IN 4), 5 (HDMI IN 5),
6 (HDMI IN 6), 7 (HDMI IN 7), 8 (HDMI IN 8), 0 (output disconnected)
> – connection character between in and out parameters
out – output number: 1 (HDMI OUT 1), 2 (HDMI OUT 2), 3 (HDMI OUT 3), 4 (HDMI OUT 4),
5 (HDMI OUT 5), 6 (HDMI OUT 6), 7 (HDMI OUT 7), 8 (HDMI OUT 8), * (all outputs)
Notes
When AFV switching mode is active, this command also switches video and unit replies with command ~AV.
K-Config Examples
Switch embedded audio HDMI IN 1 to HDMI OUT 3:
“#AUD 1>3”,0x0D
Functions
Permission
Transparency
Set:
- - -
Get
DISPLAY?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get output HPD status
#DISPLAY?SPout_idCR
Response
~nn@DISPLAYSPout_id,statusCR LF
Parameters
out_id – 1 (Output 1), 2 (Output 2)
status – HPD status according to signal validation : 0 (Off), 1 (On), 2 (On and all parameters are stable
and valid)
Response Triggers
A response is sent to the com port from which the Get was received, after command execution and:
After every change in output HPD status from On to Off (0)
After every change in output HPD status from Off to On (1)
After every change in output HPD status form Off to On and all parameters (new EDID, etc.) are stable and
valid (2)
K-Config Example
Get the output HPD status of Output 1:
“#DISPLAY? 1”,0x0D
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
При обращении используйте промокод AND-PDF и получите скидку.
The warranty obligations of Kramer Electronics Inc. (“Kramer Electronics”) for this product are limited to the terms set forth below:
What is Covered
This limited warranty covers defects in materials and workmanship in this product.
What is Not Covered
This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use
or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to
the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from
the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone
unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship
of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the
technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other
product or technology with which the product may be used.
How Long this Coverage Lasts
The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:
1. All Kramer VIA products are covered by a standard three (3) year warranty for VIA hardware and a standard one (1) year warranty for
firmware and software updates. (An extended software warranty plan for an additional 2 years can be purchased separately).
2. All Kramer fiber optic cables and adapters, all Kramer speakers and Kramer touch panels are covered by a standard one (1) year warranty.
3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all
streaming, and all wireless products are covered by a standard three (3) year warranty.
4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.
5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for
three (3) years).
6. K-Touch software is covered by a standard one (1) year warranty for software updates.
7. All Kramer passive cables are covered by a ten (10) year warranty.
Who is Covered
Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or
owners of this product.
What Kramer Electronics Will Do
Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim
under this limited warranty:
1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and
labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs
necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same
function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought
under this limited warranty.
What Kramer Electronics Will Not Do Under This Limited Warranty
If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer
Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned
uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or reinstallation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any
adjustment of user controls or any programming required for a specific installation of this product.
How to Obtain a Remedy Under This Limited Warranty
To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this
product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service
providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer
Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be
required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.
If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton,
for shipping. Cartons not bearing a return authorization number will be refused.
Limitation of Liability
THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE
PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR
DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR
UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental,
consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND
IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE
MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER
ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED
WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPICABLE LAW.
IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A “CONSUMER PRODUCT” UNDER THE MAGNUSON-MOSS WARRANTY
ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY
TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE
PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.
Other Conditions
This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by
Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an
authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this
document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the
online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of
satisfaction.
Page 78
P/N:
2900- 30 0 6 2 9
Rev:
1
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
