P/N: 2900-300889 Rev 1 www.KramerAV.com
USER MANUAL
MODEL:
VS-44UHD
4x4 UHD Matrix Switcher
VS-44UHD – Contents
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 3
Controlling your VS-44UHD 3
Defining the VS-44UHD 4x4 UHD Matrix Switcher 4
Installing in a Rack 6
Connecting the VS-44UHD 7
Connecting to VS-44UHD via RS-232 8
Connecting VS-44UHD via the ETHERNET Port 8
Operating VS-44UHD via Front Panel Buttons 11
Routing the Signals 11
Storing and Recalling a Setup 17
Setting the Switching Mode 18
Setting the Switching Speed 19
Setting HDCP 19
Copying the EDID 20
Firmware Upgrade 21
Using the Embedded Web Pages 22

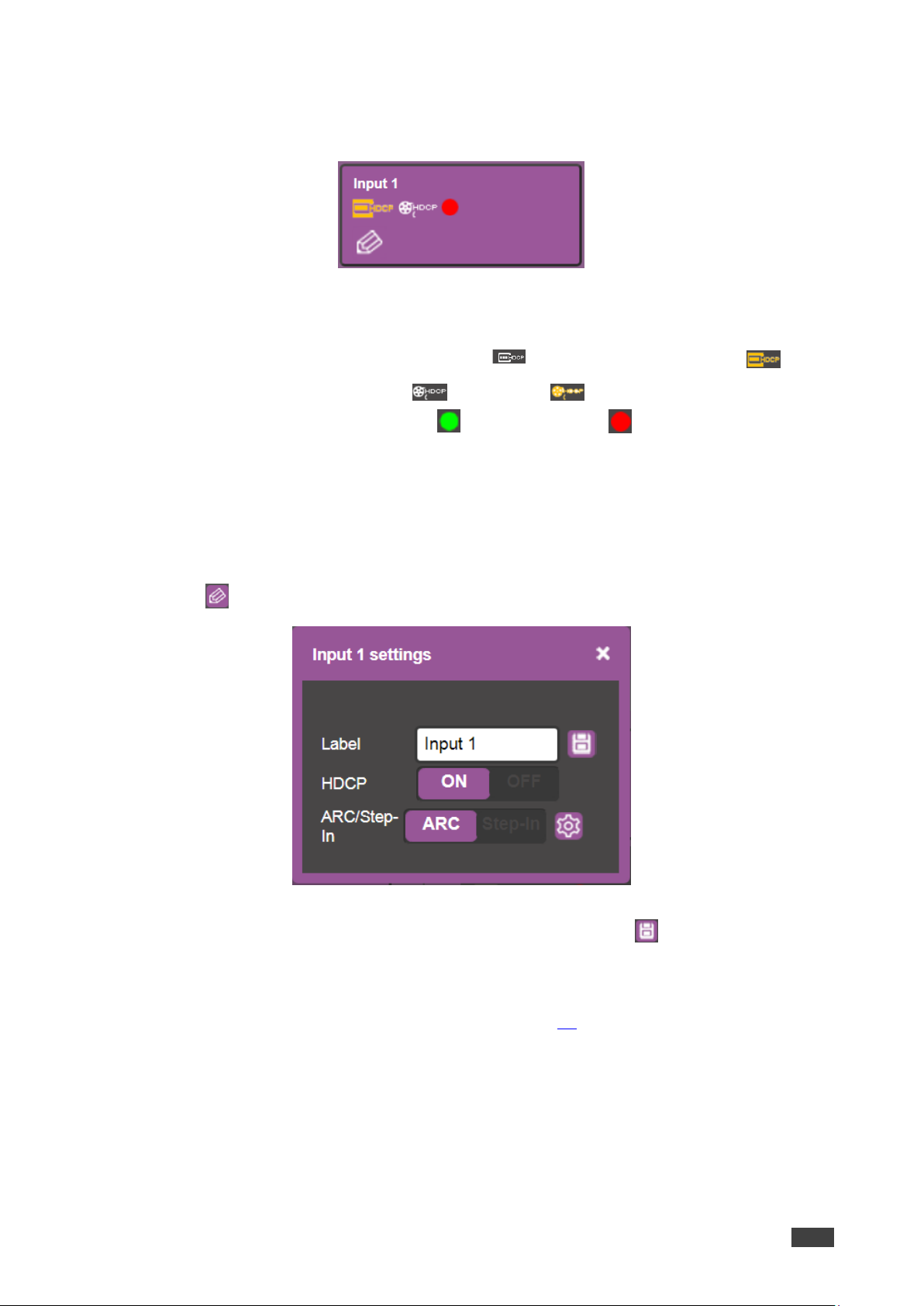

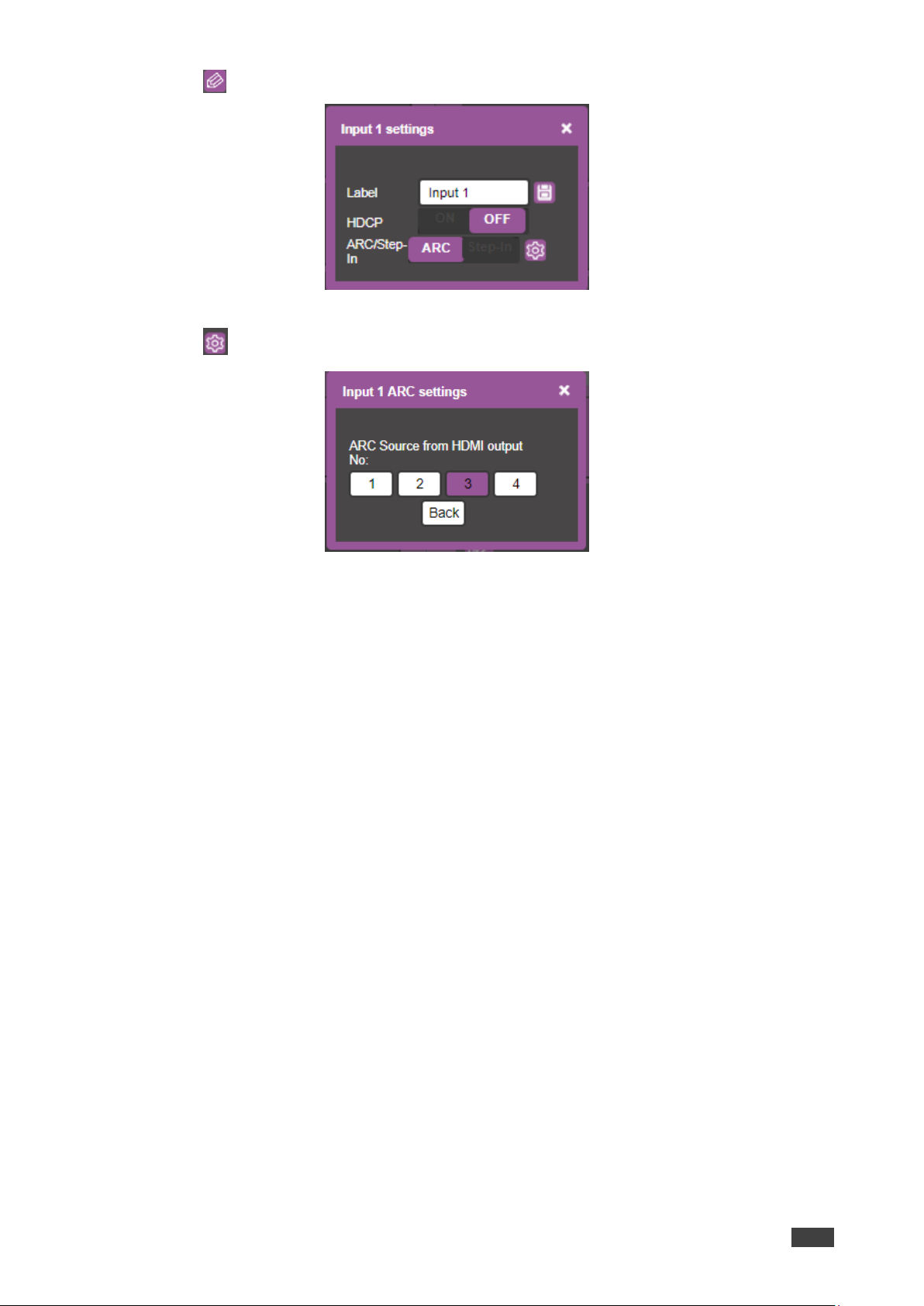

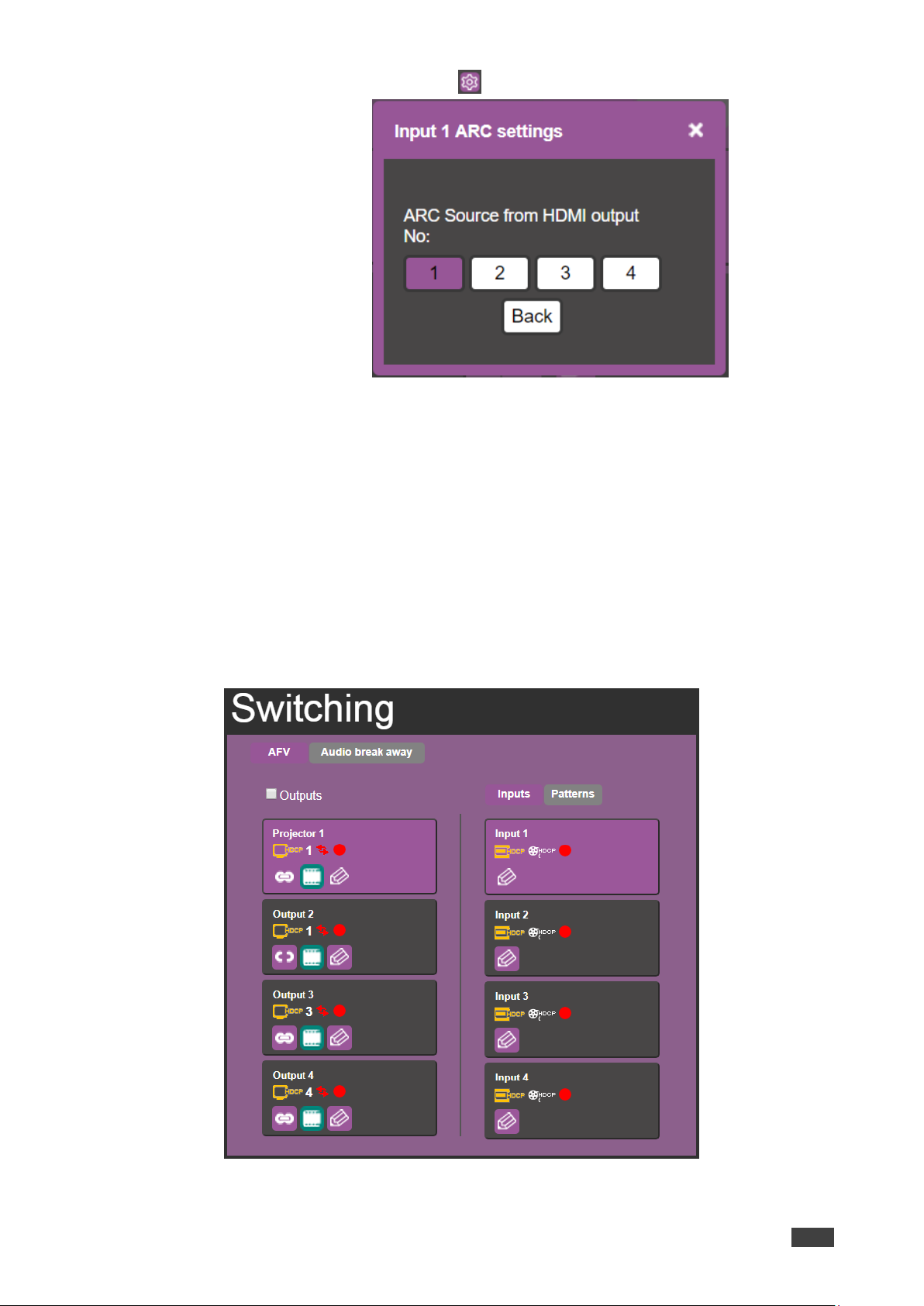

Switching and Setting the Ports 24

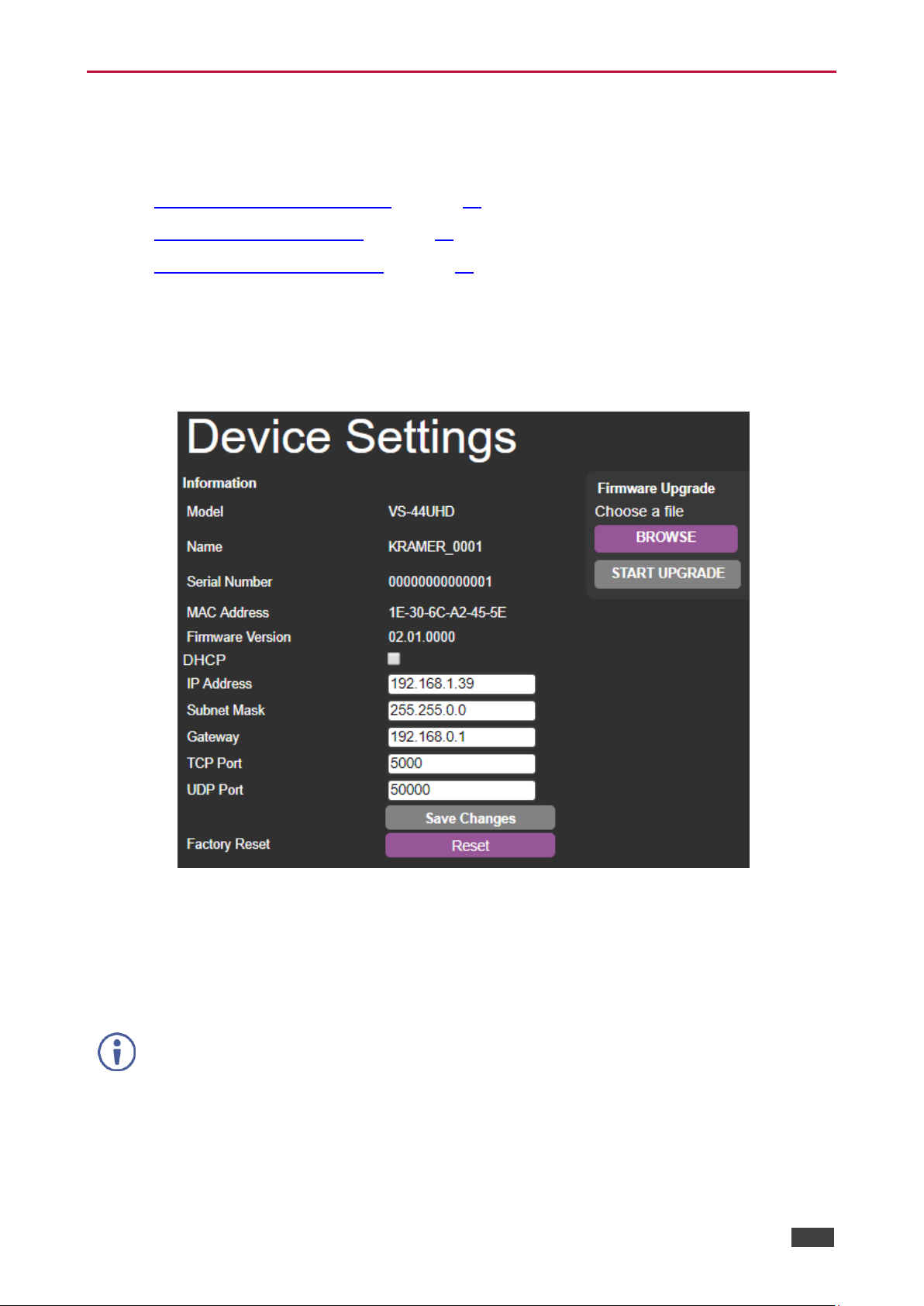

Changing Device Settings and Upgrading the Firmware 32

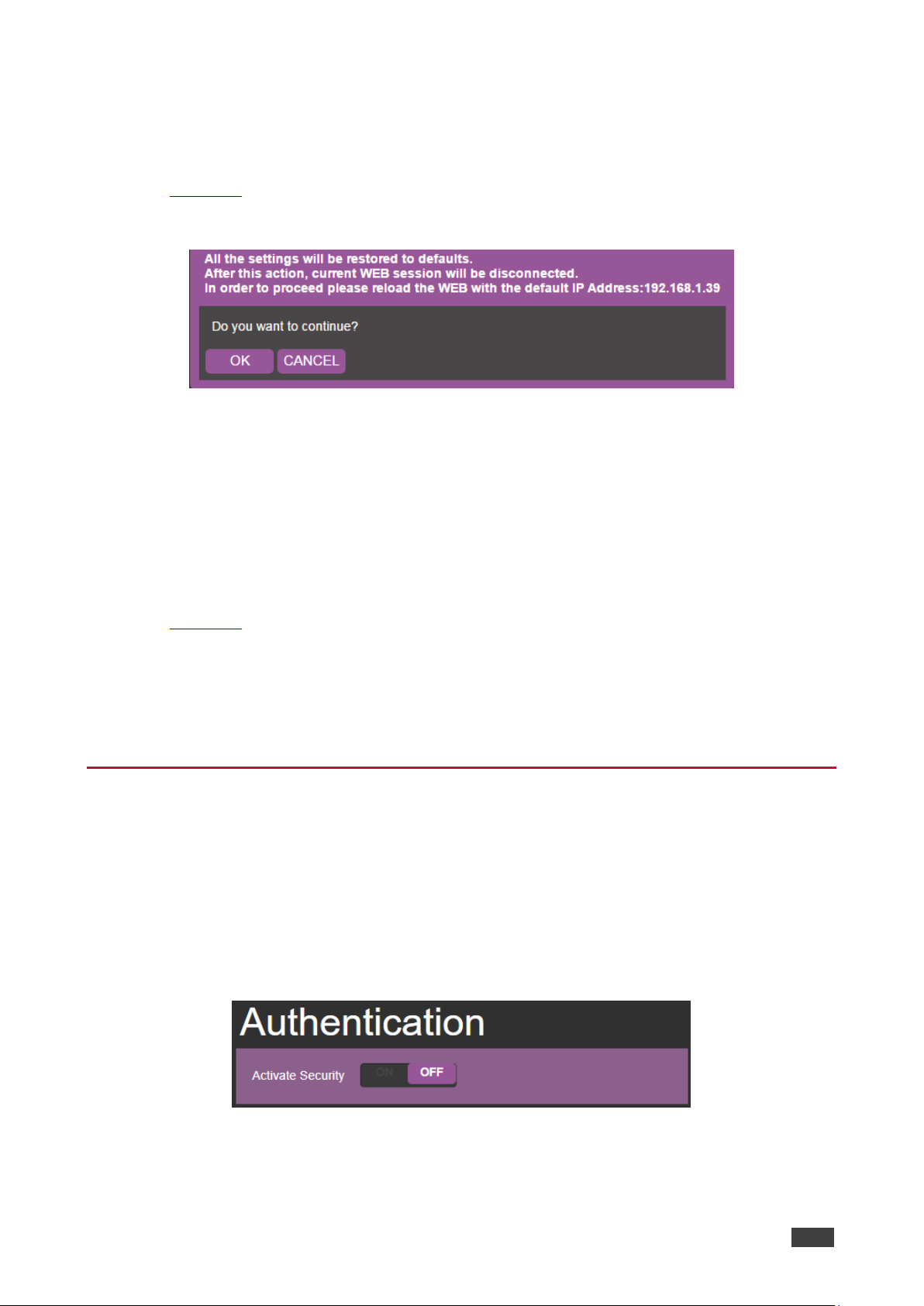

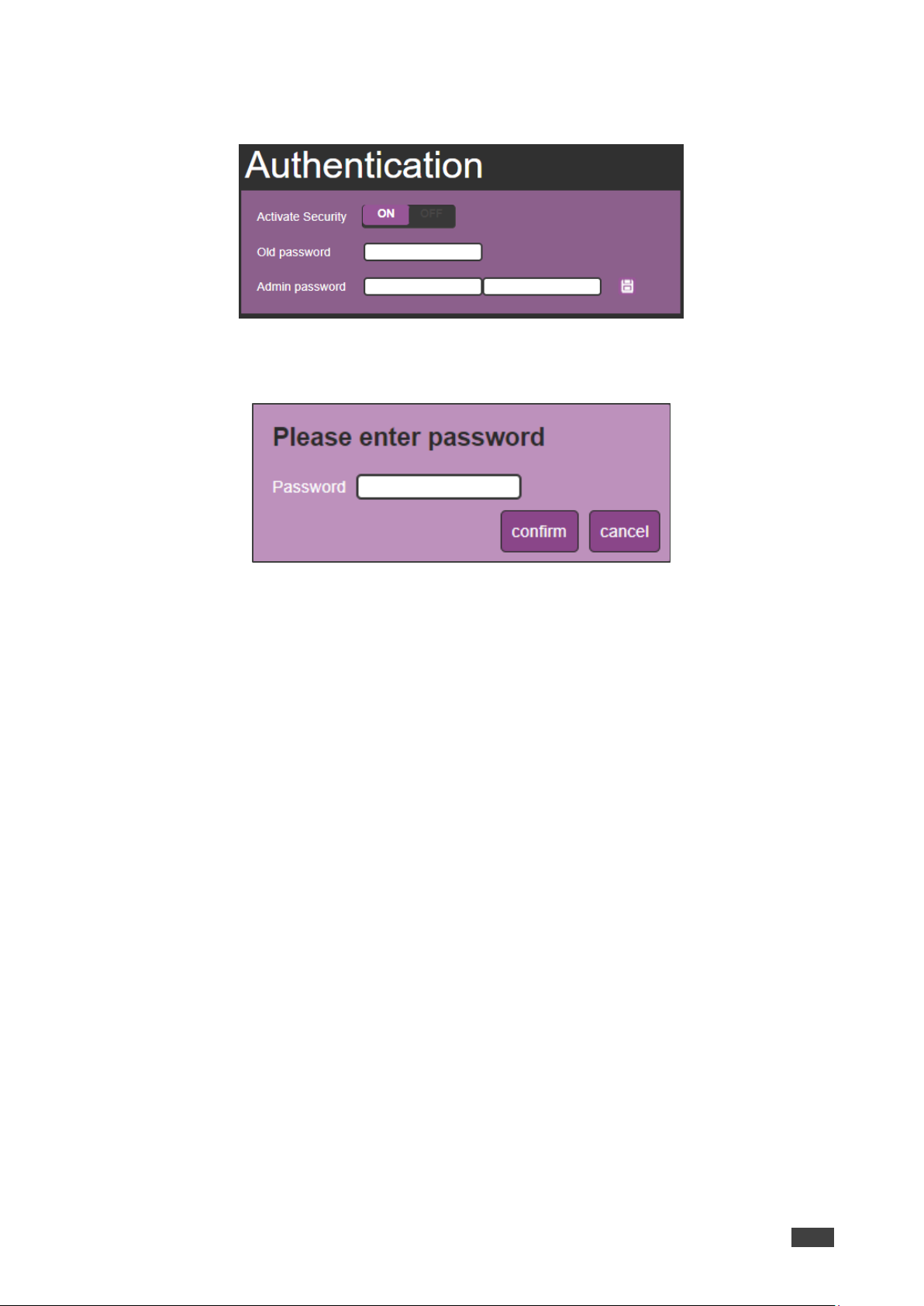

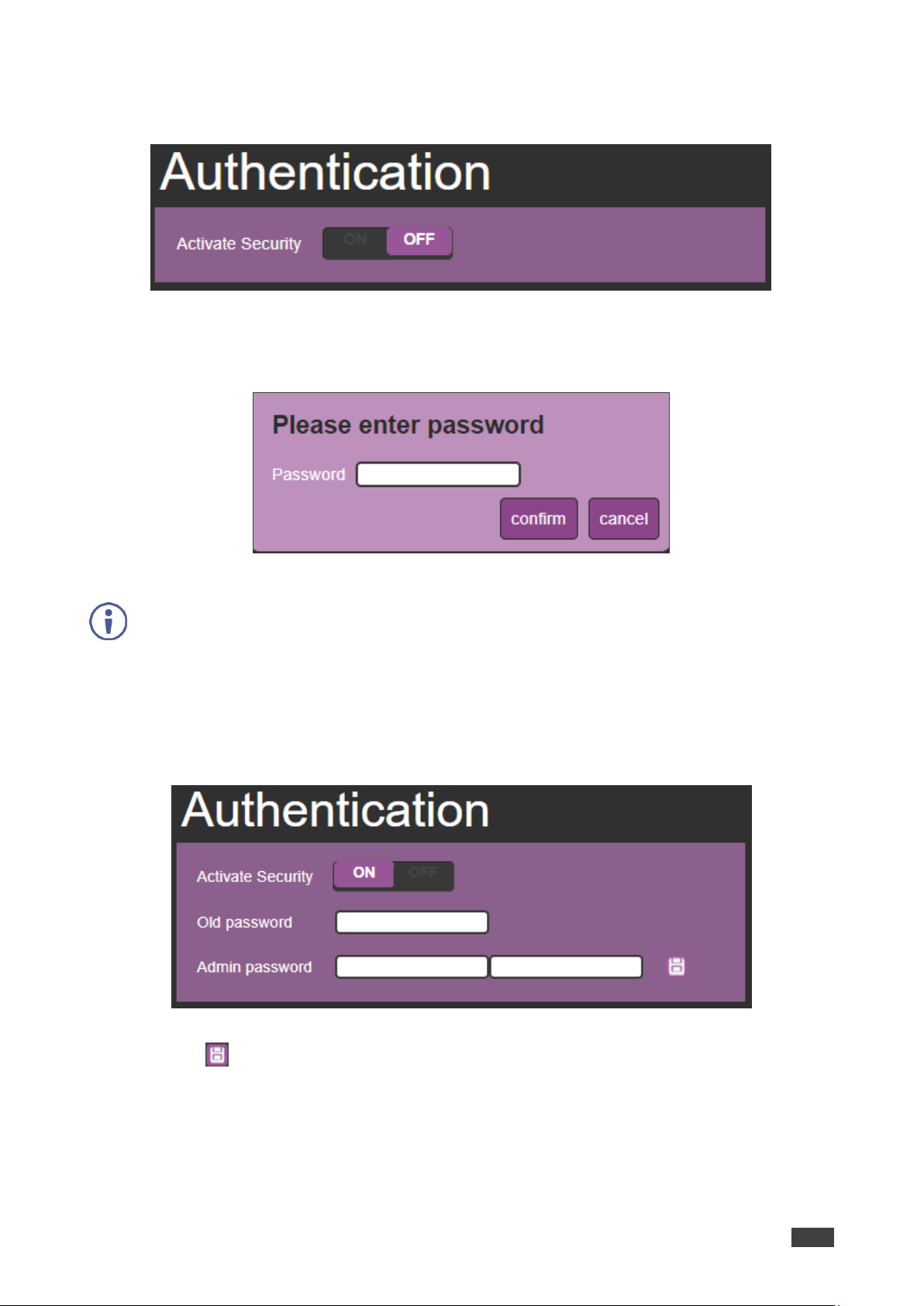

Managing Web Page Security 33

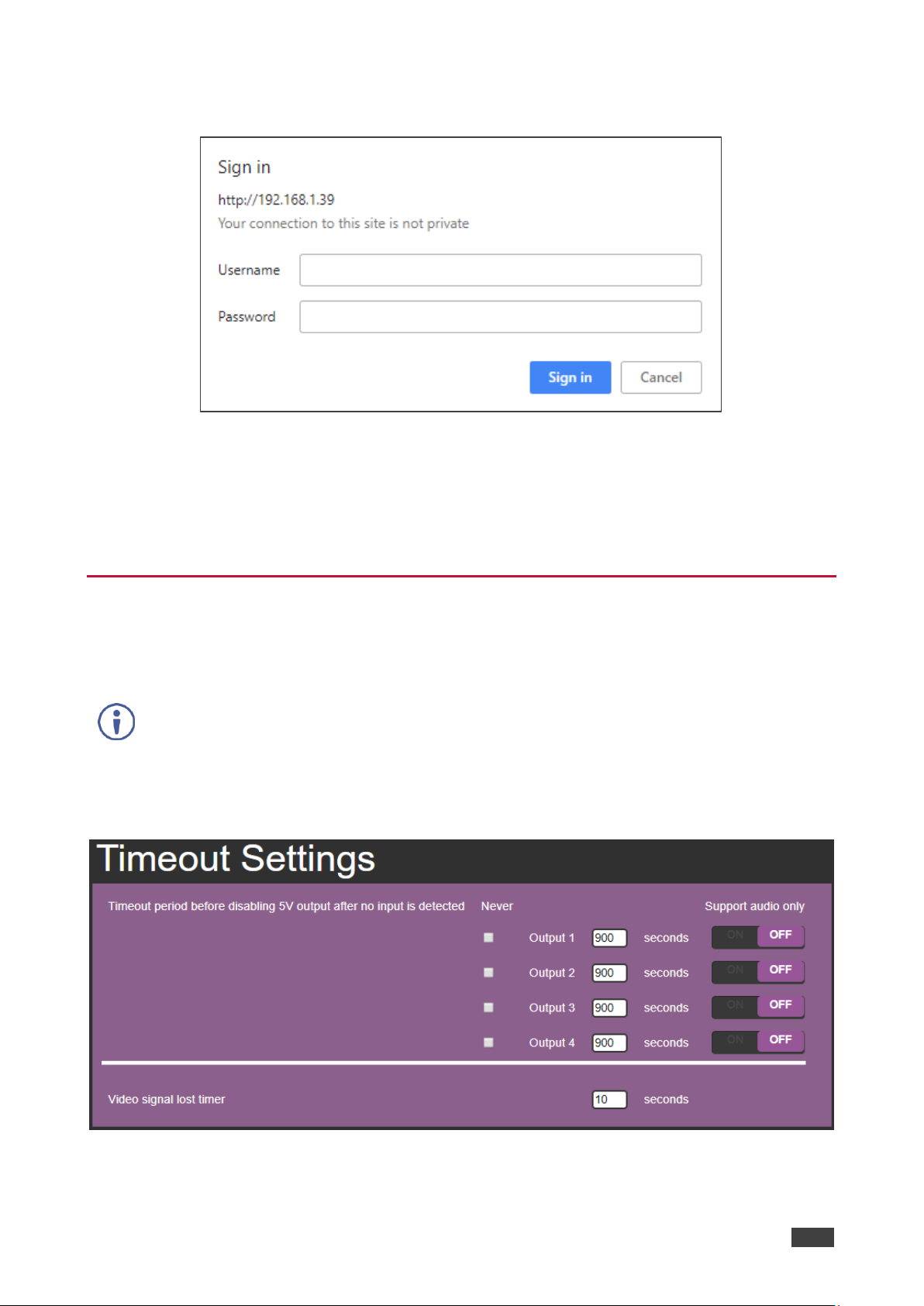

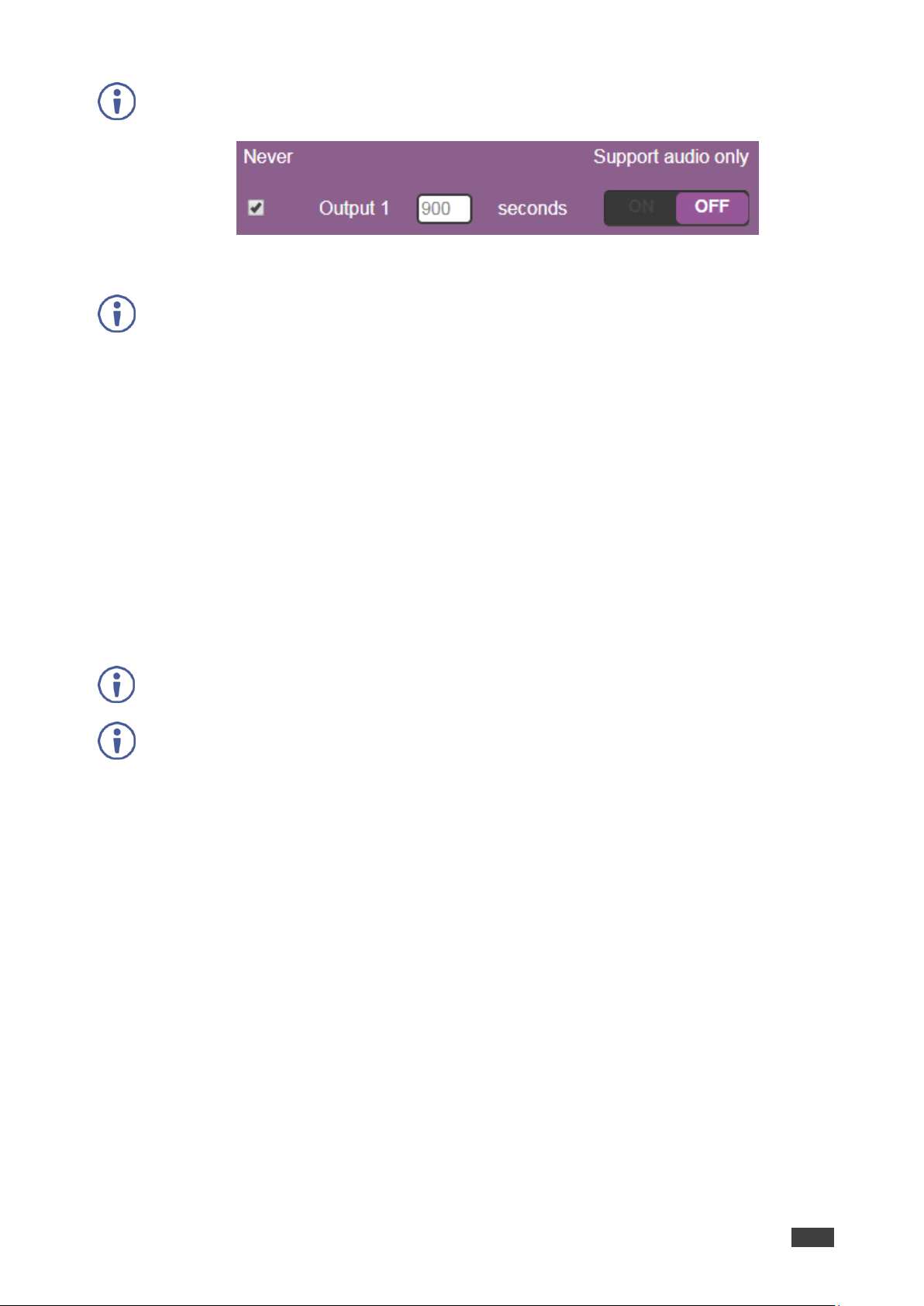

Setting the Timeout 36

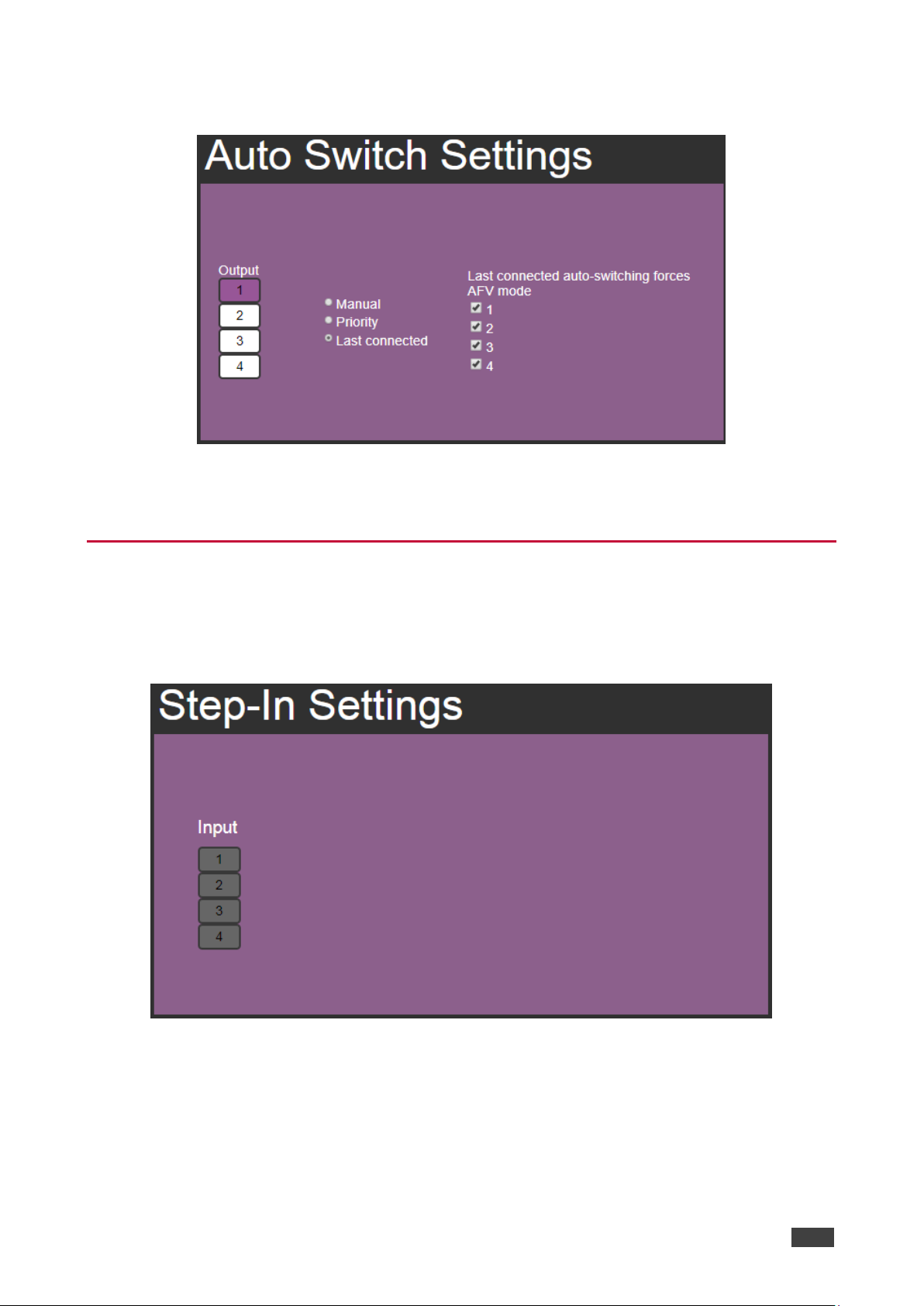

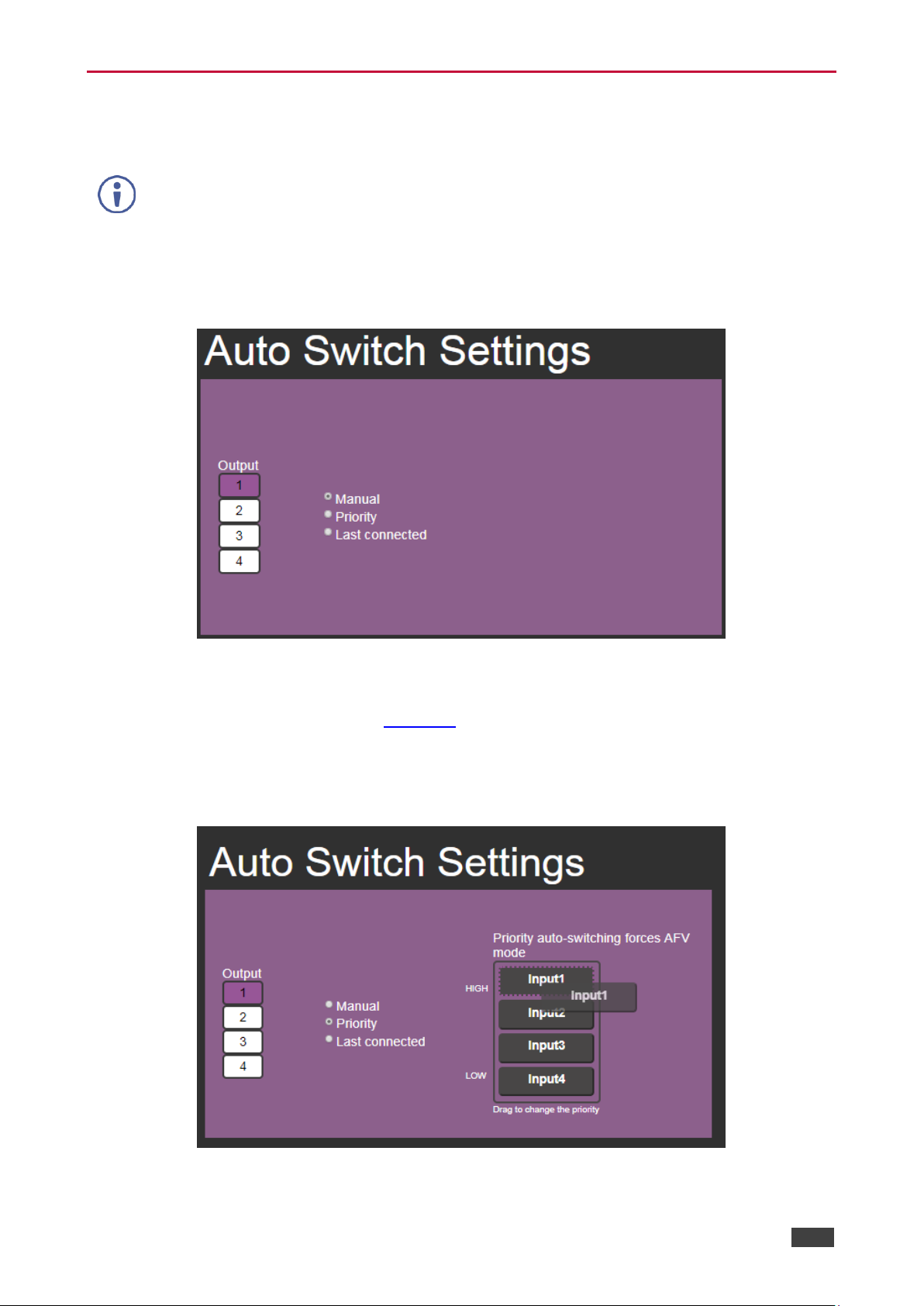

Setting Switching Modes 38

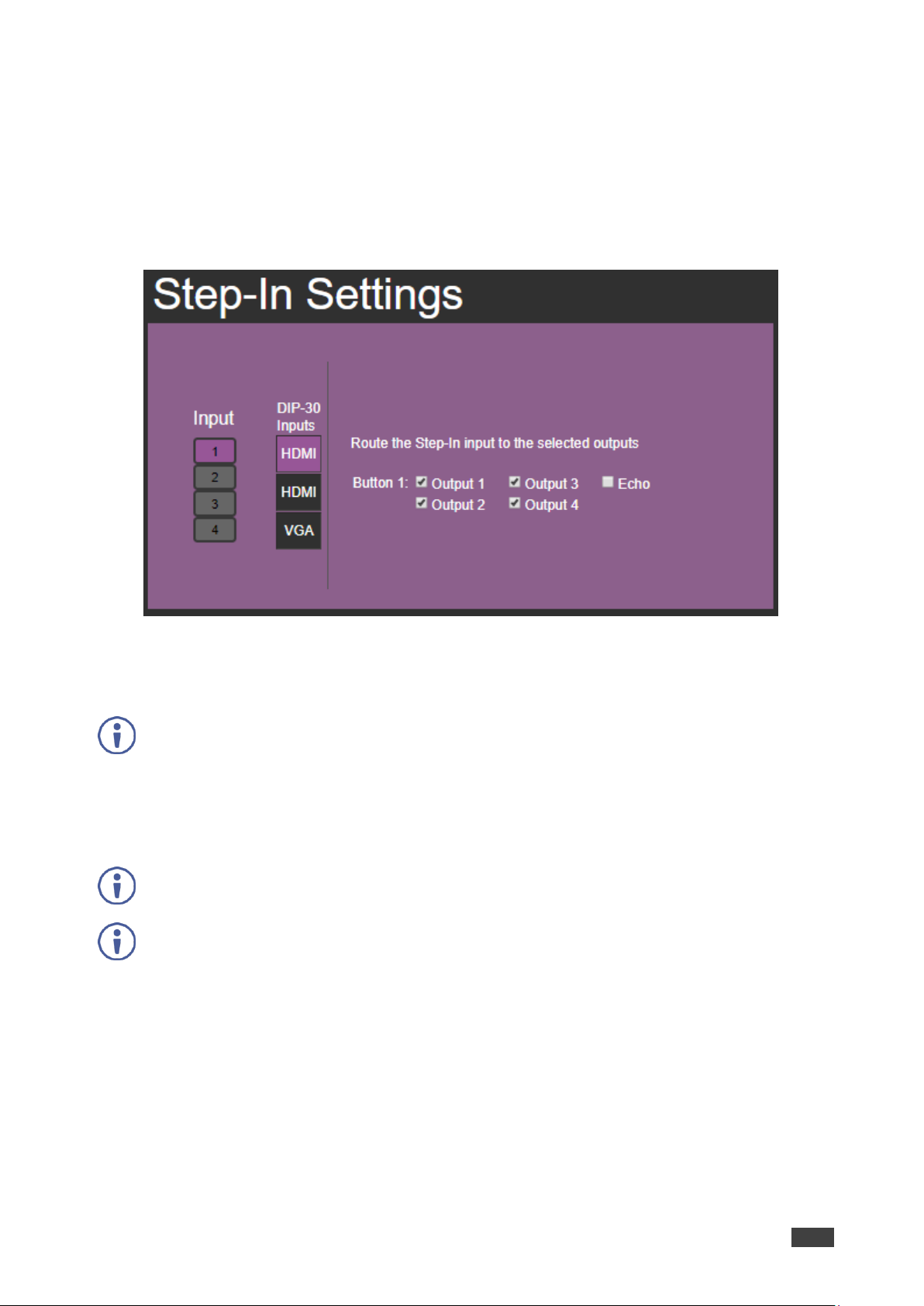

Setting Step-In Devices 39

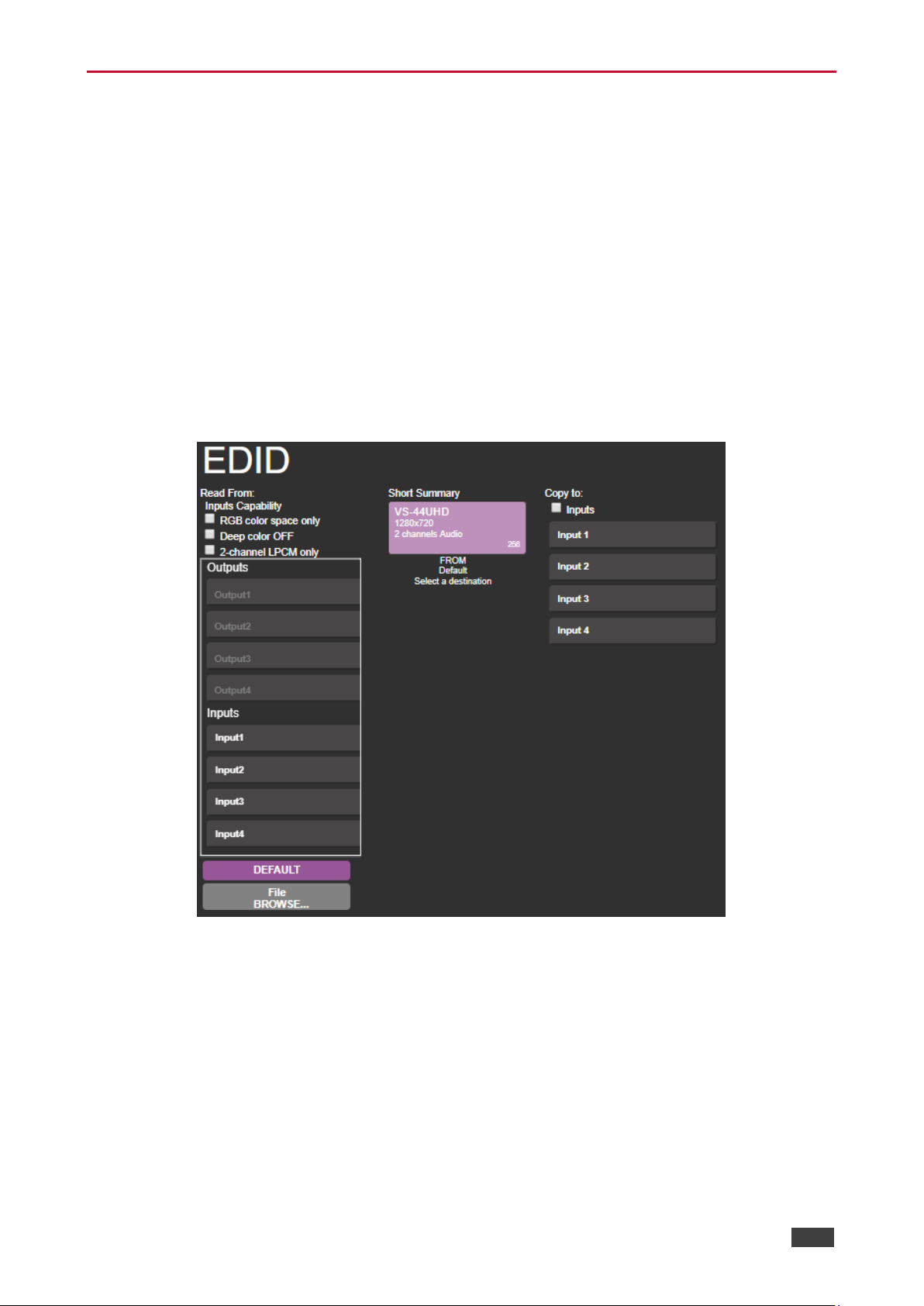

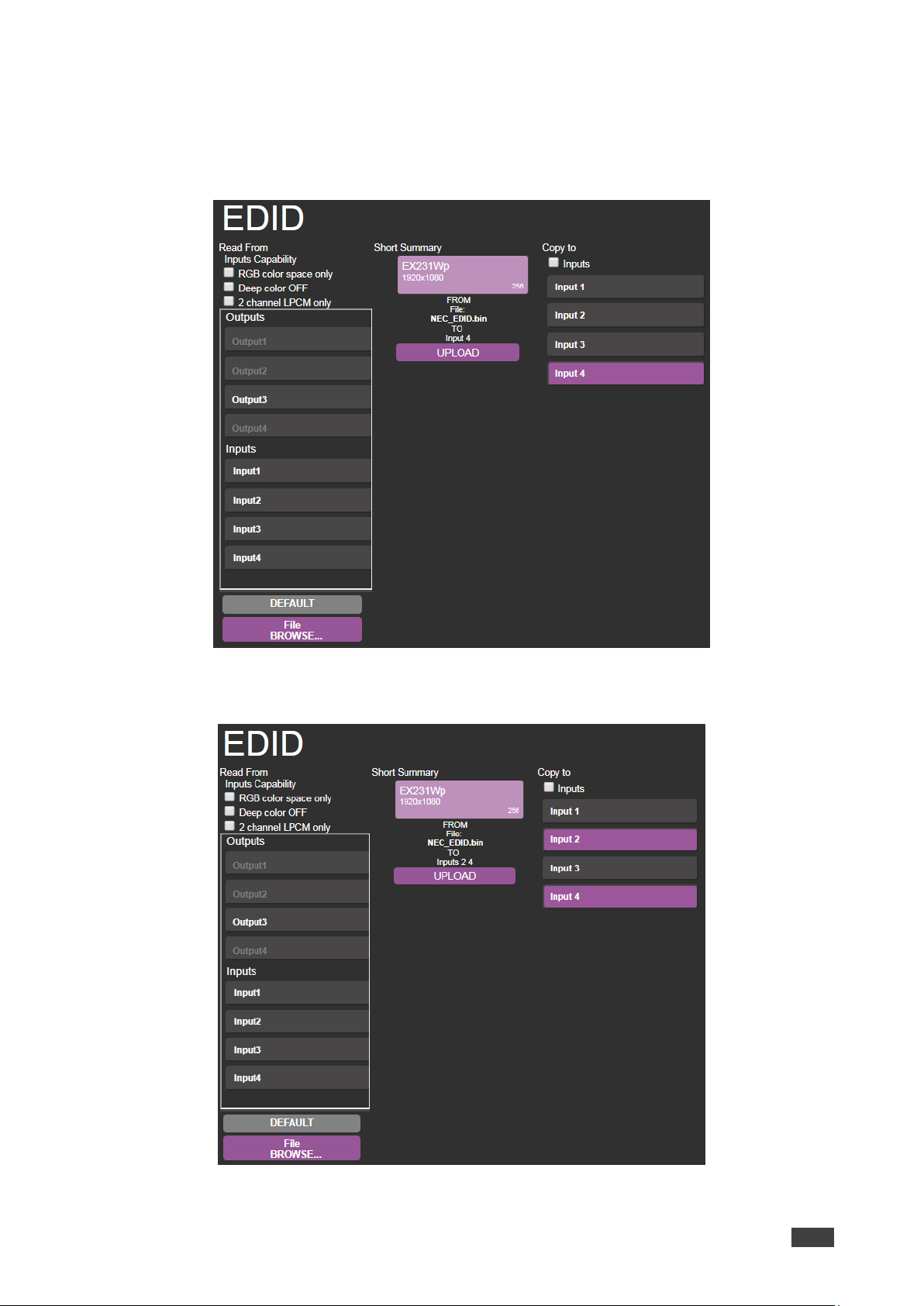

Managing the EDID 41
Viewing the About Us Page 45
Technical Specifications 46
Default Communication Parameters 46
Default Parameters 47
Protocol 3000 48
Understanding Protocol 3000 49
Kramer Protocol 3000 Syntax 50
Protocol 3000 Commands 51
Kramer Electronics Ltd.
VS-44UHD – Introduction
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 15 groups that are clearly defined by function:
GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control
Systems; GROUP 4: Format & Standards Converters; GROUP 5: Range Extenders &
Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scalers; GROUP 8: Cables and
Connectors; GROUP 9: Room Connectivity; GROUP 10: Mounting and Rack Adapters;
GROUP 11: Sierra Video; GROUP 12: Digital Signage; GROUP 13: Audio; GROUP 14:
Collaboration; and GROUP 15: KM & KVM Switches.
Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
• Review the contents of this user manual.
Go to www.kramerav.com/downloads/VS-44UHD to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
Achieving the Best Performance
• Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
• Do not secure the cables in tight bundles or roll the slack into tight coils.
• Avoid interference from neighbouring electrical appliances that may adversely influence
signal quality.
• Position your Kramer VS-44UHD away from moisture, excessive sunlight and dust.
This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the power cord that is supplied with the unit.
Warning:
Do not open the unit. High voltages can cause electrical shock! Servicing by
qualified personnel only.
Warning:
Disconnect the power and unplug the unit from the wall before installing.
Kramer Electronics Ltd.
VS-44UHD – Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
Congratulations on purchasing your Kramer VS-44UHD.
VS-44UHD is a high-quality 4x4 matrix switcher for 4K@60Hz (4:2:0) HDMI™ signals and
embedded audio. It reclocks and equalizes the signals and can route any or all of four HDMI,
HDCP-compliant sources to any or all outputs simultaneously. VS-44UHD offers a flexible
audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio
output in addition to ARC support on all ports to produce an equivalent 8x8 audio matrix.
The VS-44UHD provides exceptional quality, advanced and user-friendly operation, and
flexible control.
Exceptional Quality
• Max. data rate – 8.91Gbps data rate (2.97Gbps per graphics channel).
• Max. resolution – Up to 4K@60Hz UHD (4:2:0).
• Kramer Step-in over HDMI technology.
• HDMI, HDCP and DVI compliance.
• HDMI support – Deep color, 3D, ARC, up to 7.1 uncompressed audio channels.
• Kramer reKlocking™ and equalization technology – Rebuilds the digital signal to travel
longer distances.
Advanced and User-friendly Operation
• Automatic input selection – By priority selection or last connected input.

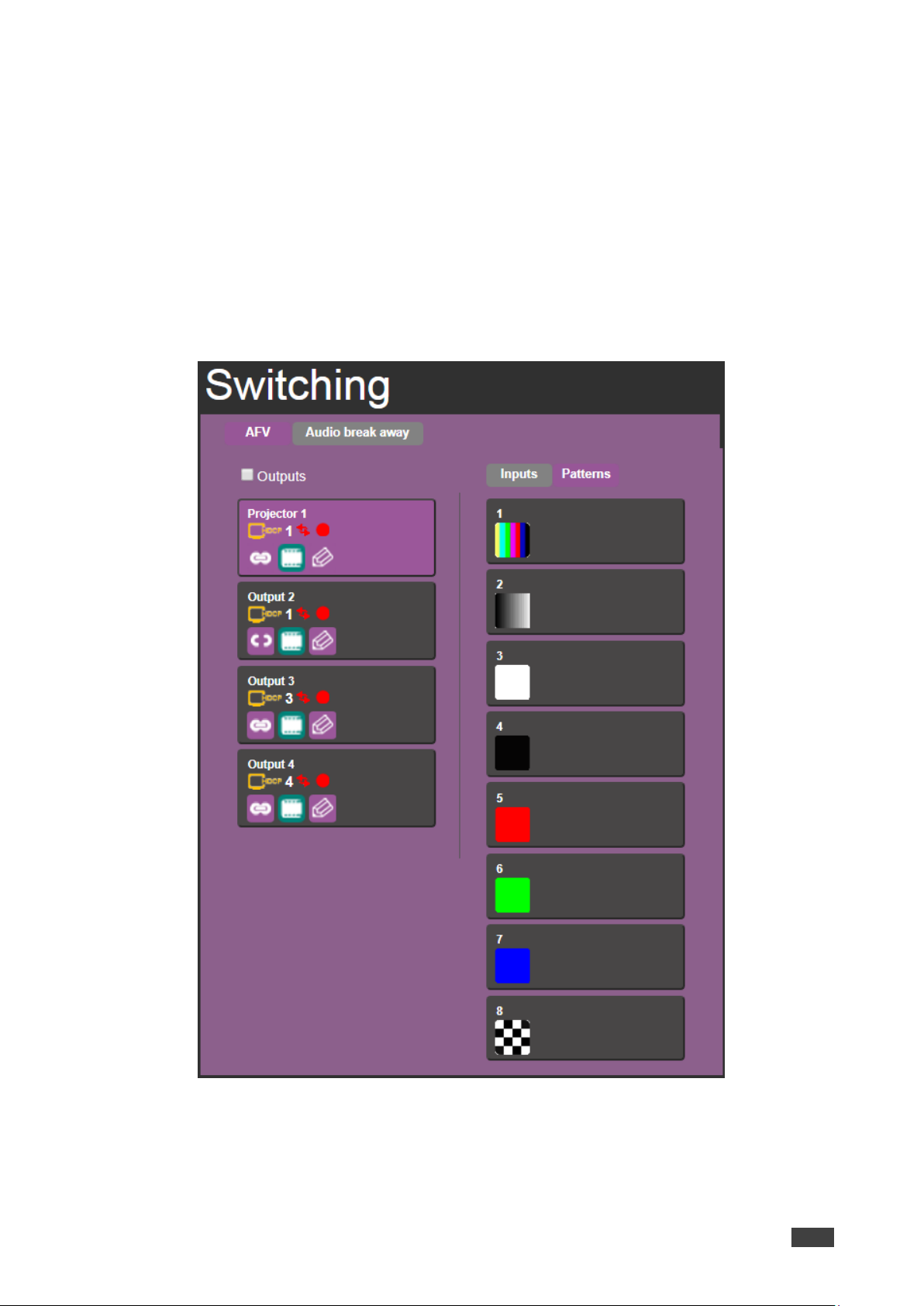

• Embedded pattern generator (480p) – With selectable patterns.
• Selectable HDCP Off per input.
• Memory locations – eight presets for quick access to common configurations.
• Advanced EDID management per input.
• Active source and acceptor detection.
• Easy front-panel operation.
• Selectable switching speed.
• Lock button to prevent tampering.
Kramer Electronics Ltd.
VS-44UHD – Introduction
3
• Kramer protocol 3000 support.
• Firmware upgrade via mini USB, Ethernet or the RS-232 port.
• Control Options – RS-232 serial commands transmitted by a PC, touch screen system or
other serial controller, Ethernet port via LAN and embedded web pages.
• 7-segment display, indicating the video and audio status and other functions.
• Efficient power-saving features.
• Includes non-volatile memory that retains the last settings after switching the power off
and then on again.
Flexible Connectivity
• 8x8 Audio Matrix – With 4 embedded digital inputs + 4 ARC inputs and 4 digital outputs +
4 ARC outputs.
• 4x4 switching for HDMI signals.
• ARC from HDMI outputs to HDMI inputs 1 to 4.
• Supports Step-in function.
• Housed in a 19” 1U rack mountable enclosure, with rack ears included, and is fed from a
100-240 VAC universal switching power supply.
Typical Applications
The VS-44UHD is ideal for the following typical applications:
• Control rooms with multiple displays.
• Presentation and multimedia applications.
• Systems that require automatic HDMI routing.
Controlling your VS-44UHD
Control your VS-44UHD directly via the front panel push buttons, or:
• By RS-232 serial commands transmitted by a touch screen system, PC, or other serial
controller.
• Via the Ethernet using built-in user-friendly web pages.
Kramer Electronics Ltd.
VS-44UHD – Defining the VS-44UHD 4x4 UHD Matrix Switcher
4
Defining the VS-44UHD 4x4 UHD Matrix Switcher
This section defines the VS-44UHD.
Figure 1: VS-44UHD 4x4 UHD Matrix Switcher Front Panel
#
Feature
Function
The behavior of the front panel buttons and the 7-segment display changes along with the
operation modes. For further details see Operating VS-44UHD via Front Panel Buttons on page
11.
IN (PATTERN)
SELECTOR
Buttons
Press to select the input (1 to 4) to switch after selecting an output (also
used for storing machine setups in the STO-RCL modes and for selecting a
pattern in the Pattern mode).
OUT (MUTE)
SELECTOR
Buttons
Press to select an output (1 to 4) to which the input is routed. Also used for
storing machine presets.
MUTE/PATTERN
Button
Press to view the current pattern status and select the output/s to which a
pattern is routed.
Press to mute audio or video on a selected output when D-AUDIO and/or
VIDEO buttons are pressed (lit).
ALL Button
Press to perform an action on all outputs (for example setting Mute mode,
Pattern mode and so on).
For switching, press ALL and then a specific INPUT button to route the
selected input to all outputs. For example, press ALL and then IN 2 to route
input 2 to all the outputs.
STO and RCL
Buttons
Press STO to store the current switching setting to a preset button.
Press RCL to recall the switching setting from a preset button.
ARC
For setting ARC mode on the inputs (see Operating in ARC Mode on
page 16).
D-AUDIO Button
Press to enable digital audio routing. When pressed together with VIDEO,
the digital audio is routed together with the video signal.
VIDEO Button
Press to select video inputs. When pressed together with D-AUDIO, video is
switched together with audio.
LOCK Button
Press and hold to toggle between locking and releasing the front panel
buttons.
Press to save the following setups: HDCP (On/Off), ARC, Fast Switch and
Switch mode.
EDID Button
Press to capture the EDID (see Copying the EDID on page 20).
OUTPUT/INPUT
7-segment LED
Display
Displays the selected inputs switched to the outputs (marked above each
input).
Kramer Electronics Ltd.
VS-44UHD – Defining the VS-44UHD 4x4 UHD Matrix Switcher
5
Figure 2: VS-44UHD 4x4 UHD Matrix Switcher Rear Panel
#
Feature
Function
INPUT HDMI Connectors
Connect to HDMI sources (from 1 to 4).
OUTPUT HDMI Connectors
Connect to HDMI acceptors (from 1 to 4).
PROG Mini USB Port
Use for firmware upgrade or communication (connecting
to a PC or a serial controller).
SETUP DIP-Switches
N/A
5V/2A USB Port
Can be used to charge an external device.
RESET Button
Press and hold to reset settings to factory default
values.
ETHERNET RJ-45 Port
Connect to your LAN.
OPTIONAL Terminal Block Connectors
N/A RS-232 3-pin Terminal Block Connectors
Connect to a PC or a serial controller.
Mains Power Connector
Connect to the mains power.
Mains Power Fuse
Fuse for protecting the device.
Mains Power Switch
Switch for turning the device on or off.
Kramer Electronics Ltd.
VS-44UHD – Installing in a Rack
6
Installing in a Rack
This section provides instructions for rack mounting VS-44UHD. Before installing in a rack,
verify that the environment is within the recommended range:
• Operation temperature – 0 to 40C (32 to 104F).
• Storage temperature – -40 to +70C (-40 to +158F).
• Humidity – 10% to 90%, RHL non-condensing.
When installing on a 19" rack, avoid hazards by taking care that:
▪ It is located within recommended environmental conditions. Operating ambient
temperature of a closed or multi-unit rack assembly may exceed ambient room
temperature.
▪ Once rack mounted, there is enough air flowing around VS-44UHD.
▪ VS-44UHD is placed upright in the correct horizontal position.
▪ You do not overload the circuit(s). When connecting VS-44UHD to the supply circuit,
overloading the circuits may have a detrimental effect on overcurrent protection and
supply wiring. Refer to the appropriate nameplate ratings for information. For example, for
fuse replacement, see the value printed on the product label.
▪ VS-44UHD is earthed (grounded) and connected only to an electricity socket with
grounding. Pay particular attention when electricity is supplied indirectly (for example,
when the power cord is not plugged directly into the wall socket but to an extension cable
or power strip). Use only the supplied power cord.
To rack-mount VS-44UHD:
1. Attach both rack ears to VS-44UHD:
Remove the screws from each side of
VS-44UHD (3 on each side), and replace them
through the rack ears.
2. Place the rack ears of VS-44UHD against the
rack rails and insert the appropriate screws (not
provided) through each of the four holes in the
rack ears.
Kramer Electronics Ltd.
VS-44UHD – Connecting the VS-44UHD
7
Connecting the VS-44UHD
Always switch off the power to each device before connecting it to your VS-44UHD. After
connecting your VS-44UHD, connect its power and then switch on the power to each
device.
Although this connecting example shows only several inputs and outputs that are
connected, you can connect all the inputs and outputs simultaneously.
To connect the VS-44UHD as illustrated in the example in Figure 3, do the following:
1. Connect up to four video sources to the HDMI inputs (from INPUT 1 to INPUT 4). For
example, connect:
▪ A laptop to the INPUT 1 and 4 HDMI connectors.
▪ Blu-ray players to the INPUT 2 and 3 HDMI connectors.
2. Connect the four video HDMI outputs (from OUTPUT 1 to OUTPUT 4) to up to four
acceptors. For example, connect the:
▪ OUTPUT 1 HDMI connector to a projector.
▪ OUTPUT 2, OUTPUT 3 and OUTPUT 4 HDMI connectors each to a display.
3. Connect the power cord .
We recommend that you use only the power cord that is supplied with this machine.
4. Connect the:
▪ ETHERNET port to a system controller.
▪ RS-232 3-pin terminal block connector to a system controller.
5. If required, connect the 5V/2A USB port to a device to charge it.
Figure 3: Connecting to the VS-44UHD Rear Panel
Kramer Electronics Ltd.
VS-44UHD – Connecting the VS-44UHD
8
Connecting to VS-44UHD via RS-232
You can connect to the VS-44UHD via an RS-232 connection using, for example, a PC.
Connect the RS-232 terminal block on the rear panel of the VS-44UHD to a PC/controller, as
follows:
• TX pin to Pin 2.
• RX pin to Pin 3.
• GND pin to Pin 5.
Figure 4: RS-232 Connection
Connecting VS-44UHD via the ETHERNET Port
You can connect to the VS-44UHD via Ethernet using either of the following methods:
• Directly to the PC using a crossover cable (see Connecting the Ethernet Port Directly to a
PC on page 8).
• Via a network hub, switch, or router, using a straight-through cable (see Connecting the
Ethernet Port via a Network Hub or Switch on page 10).
If you want to connect via a router and your IT system is based on IPv6, speak to your IT
department for specific installation instructions.
Connecting the Ethernet Port Directly to a PC
You can connect the Ethernet port of the VS-44UHD directly to the Ethernet port on your PC
using a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying the VS-44UHD with the factory
configured default IP address.
After connecting the VS-44UHD to the Ethernet port, configure your PC as follows:
1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change
settings of this connection.
Kramer Electronics Ltd.
VS-44UHD – Connecting the VS-44UHD
9
The Local Area Connection Properties window for the selected network adapter appears
as shown in Figure 5.
Figure 5: Local Area Connection Properties Window
4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4
(TCP/IPv4) depending on the requirements of your IT system.
5. Click Properties.
The Internet Protocol Properties window relevant to your IT system appears as shown in
Figure 6 or Figure 7.
Figure 6: Internet Protocol Version 4 Properties Window
Kramer Electronics Ltd.
VS-44UHD – Connecting the VS-44UHD
10
Figure 7: Internet Protocol Version 6 Properties Window
6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 8.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
Figure 8: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the VS-44UHD to the Ethernet port on a network hub or
using a straight-through cable with RJ-45 connectors.
Control Configuration via the Ethernet Port
To control several units via Ethernet, connect the Master unit (Device 1) via the Ethernet port
to the Ethernet port of your PC. Use your PC provide initial configuration of the settings (see
Connecting VS-44UHD via the ETHERNET Port on page 8).
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
11
Operating VS-44UHD via Front Panel Buttons
Press the power switch to power the device. During the 10-second initialization process,
the:
• 7-segment display LEDs are on.
• All the front panel buttons illuminate.
• The FPGA/EPLD version (P), the firmware version (F) and the build version (b) appear in
succession.
Following initialization, the front panel buttons and 7-segment display enter normal operation:
• The 7-segment display shows the video IN-OUT status.
• The current operation mode buttons illuminate (VIDEO and D-AUDIO , by default).
• An illuminated IN (PATTERN) button indicates an active signal connected to the input.
• An illuminated OUT (MUTE) button indicates that an acceptor is connected to the
output.
The VS-44UHD front panel buttons enable performing the following functions:
• Routing the Signals on page 11.
• Storing and Recalling a Setup on page 17.
• Setting the Switching Mode on page 18.
• Setting the Switching Speed on page 19.
• Setting HDCP on page 19.
• Copying the EDID on page 20.
Routing the Signals
You can switch the video and the audio signals together (AFV) or switch them separately, via
the following switching modes:
• Switching the Video Signal on page 12.
• Routing a Digital Audio Input to HDMI Outputs on page 12.
• Switching the Video and the Audio Signal Simultaneously on page 13.
• Muting/Unmuting an Output on page 14.
• Routing a Pattern to the Output on page 14.
• Operating in ARC Mode on page 16.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
12
Switching the Video Signal
The VIDEO button on the VS-44UHD front panel enables video routing.
To switch a video input to an output:
1. Press VIDEO .
The button illuminates and the 7-segment display shows the current IN-OUT video
status.
On the front panel buttons:
• An illuminated input button means that an active signal is detected on that input.
• An illuminated output button means that a display is connected to that output.
• A flashing output button means that a non-HDCP display is connected to that
output.
Note that in the case that an HDCP-encrypted input is routed through the matrix
to a non-HDCP screen, the video will not be presented and the non-HDCP
screen will turn black.
On the 7-segment display:
• A digit (from 1 to 4) shows the input number that is currently routed to the
output.
• “P” under an output number indicates that a pattern is routed to that output.
• “0” under an output number indicates that the output is muted.
2. Press an OUT (MUTE) button (1 to 4).
The 7-segment display LED, under the selected output, flashes.
Press ALL (instead of an output button) to route the selected input to all the outputs.
All the 7-segment display LEDs flash.
3. Press an IN (PATTERN) button (1 to 4).
The selected input is switched to the selected output (or to all the outputs if ALL was
pressed instead) and the 7-segment display shows the current status.
Routing a Digital Audio Input to HDMI Outputs
The D-AUDIO button on the VS-44UHD front panel enables to route the HDMI embedded
audio input signals to the HDMI outputs .
Generally, digital routing is enabled by pressing D-AUDIO:
• When this button is illuminated, the HDMI input embedded audio is the audio source.
To switch an HDMI audio input to the HDMI outputs:
1. Press D-AUDIO .
The button illuminates (HDMI audio input to HDMI output mode) and the 7-segment
display shows the current IN-OUT digital audio status.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
13
On the front panel buttons:
• An illuminated input button means that an active digital audio signal is detected
on that input that supports LPCM audio.
• A dark input button means that there is no active digital audio source on that
input (or that the source is DVI).
• A flashing input button means that a Dolby digital audio, Dolby-TrueHD audio, or
AC-3 audio signal from a DVD -player is detected on that input.
• An illuminated output button means that a display that supports LPCM audio is
connected to that output.
• A dark button means either that the display that is connected does not support
audio or that a display is not connected at all.
• A flashing output button means that a display is connected that supports LPCM,
Dolby digital, AC-3 and NLPCM audio.
On the 7-segment display:
• “0” under an output number indicates that the audio output is muted.
• “.” under an output number indicates that the HDMI output port is in ARC mode.
• Any digit shows the HDMI audio input switching state.
2. While D-AUDIO is on, select an output button (for example, 3) and then an input button
(for example, 1). HDMI audio input 1 is routed to HDMI audio output 3 and on the
7-segment display, INPUT 1 appears under OUTPUT 3.
When switching you can also press:
• An output button (1 to 4) and then OUT (MUTE) to mute the selected output (turns 0).
• ALL (instead of an output button) and then an input button to route the selected input
to all the outputs.
All the 7-segment display LEDs flash and then display the selected input.
Switching the Video and the Audio Signal Simultaneously
You can switch the digital audio signal together with the video signal to the output.
To switch the digital audio and video signals together to an output:
1. Press D-AUDIO and VIDEO simultaneously.
The buttons illuminate and the 7-segment display shows the current IN-OUT video
status.
2. Press an OUT (MUTE) button (1 to 4).
The 7-segment display LED, under the selected output, flashes.
Press ALL (instead of an output button) to route the selected input to all the outputs.
All the 7-segment display LEDs flash.
3. Press an IN (PATTERN) button (1 to 4).
The selected audio input is switched to the selected output (or to all the outputs if ALL
was pressed instead) and the 7-segment display shows the current status.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
14
Muting/Unmuting an Output
You can mute/unmute an audio signal and a video signal separately.
To mute/unmute an audio signal:
1. Press D-AUDIO.
The buttons illuminate.
2. Press an OUT (MUTE) button (1 to 4).
Press ALL (instead of an output button) to mute/unmute all the outputs. All the
7-segment display LEDs flash.
3. Press MUTE/PATTERN to mute/unmute the output.
The muted output appears as “0” on the 7-segment display.
To mute/unmute a video signal:
1. Press VIDEO.
The button illuminates and the 7-segment display shows the current IN-OUT video
status.
2. Press an OUT (MUTE) button (1 to 4).
The 7-segment display LED, under the selected output, flashes.
Press ALL (instead of an output button) to mute/unmute all the outputs. All the
7-segment display LEDs flash.
3. Press MUTE/PATTERN to mute/unmute the output.
The muted output appears as “0” on the 7-segment display.
Routing a Pattern to the Output
VS-44UHD generates 8 embedded patterns. These patterns can be routed at a resolution of
480p to any of the outputs.
Once a pattern is selected, that same pattern is routed to all the selected outputs.
A pattern is selected by pressing inputs 1 to 4 when in the Pattern mode as follows:
• When MUTE/PATTERN is illuminated, press IN1 for pattern 1, IN 2 for pattern 2, IN 3
for pattern 3 and IN 4 for pattern 4.
• When MUTE/PATTERN flashes, press IN1 for pattern 5, IN 2 for pattern 6, IN 3 for
pattern 7 and IN 4 for pattern 8.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
15
1 (Color Bars)
2 (Ramp)
3 (Solid White)
4 (Solid Black)
5 (Solid Red)
6 (Solid Green)
7 (Solid Blue)
8 (Checkboard)
Figure 9: VS-44UHD Embedded Patterns
To route a pattern:
1. Press MUTE/PATTERN :
▪ Once: button illuminates, press IN 1 to IN 4 to select patterns 1 to 4.
▪ Twice: button flashes, press IN 1 to IN 4 to select patterns 5 to 8.
On the front panel buttons:
• An illuminated output button means that a display is connected on that output.
• An illuminated input button indicates the current pattern selected.
On the 7-segment display:
• “P” under an output number indicates that a pattern is routed to that output.
• “-” under an output number indicates that a video input is routed to that output.
• “0” under an output number indicates that the output is muted.
2. Press an OUT (MUTE) button (1 to 4).
The 7-segment display LED, under the selected output, flashes.
Press ALL (instead of an output button) to route a pattern to all the outputs. All the
7-segment display LEDs flash.
3. Press an input button to select a pattern (see Figure 9).
The 7-segment display shows the new pattern status.
Press VIDEO, D-AUDIO or ARC to exit pattern mode.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
16
Operating in ARC Mode
ARC (Audio Return Channel) can be set via the front panel buttons or the embedded
webpages (see Switching Audio in Breakaway Mode on page 29 and Setting Input
Parameters on page 26).
Routing HDMI Audio Output Signals to HDMI Input Ports
To route an HDMI audio output to HDMI input ports, enable ARC on the HDMI output ports,
enable ARC on input ports and then route HDMI OUT ARC to an HDMI input port.
To set an HDMI output to ARC mode:
ARC can be enabled or disabled at any time, regardless of whether a display is
connected to the HDMI output or not.
1. Press and hold MUTE/PATTERN and ALL simultaneously until both buttons illuminate
and the device enters ARC mode:
On the front panel button:
• A flashing output button means that the audio of that output is set to ARC mode.
• An illuminated output button means that the output is not in ARC mode.
2. Press one or more output buttons:
▪ If the selected button flashes, that output is set to ARC mode.
▪ If the selected button stops flashing, ARC mode is disabled for that output.
The LOCK button flashes.
3. Press LOCK to save changes.
The LOCK button flashes until the changes are saved. The device exits the ARC mode
setup and returns to its previous status (either D-Audio mode or Video + D-Audio mode).
The ARC can now be routed to the inputs.
To route an HDMI OUT ARC to an HDMI input port:
1. Press ARC.
The button illuminates and the device enters the ARC routing mode (for example, HDMI
OUT 2 and 4 are enabled).
Inputs flash and the ARC-enabled outputs illuminate.
On the front panel buttons:
• An illuminated input button means that it is a disabled ARC input.
• A flashing input button means that it is ARC-enabled.
On the 7-segment display:
• “.” under an output number indicates that arc is enabled on the corresponding
output (outputs 1 to 4 in this example).
• A digit (from 1 to 4) under an output number indicates that that out ARC port is
routed to that input.
• “0” under an output number indicates that the audio output is muted.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
17
2. Press an input button (for example, IN 2) to select the destination port.
The corresponding 7-segment display LED flashes.
3. Press an output button (for example OUT 4) to select the HDMI audio output that will be
routed to the input.
The flashing 7-segment display LED shows the selected input number and
after selecting the HDMI audio OUT the port number appears (4).
HDMI OUT 4 audio signal is routed to ARC input 2.
To set an HDMI input to ARC mode:
Inputs can be set either to the Step-in mode or the ARC mode.
1. Press and hold EDID and ALL simultaneously until both buttons illuminate and the
device enters ARC mode:
On the front panel button:
• A flashing input button means that it is set to ARC mode.
• An illuminated input button means that it is set to Step-in mode.
2. Press one or more input buttons:
▪ If the selected button flashes, that input to set to ARC mode.
▪ If the selected button stops flashing, ARC mode is disabled for that input.
The LOCK button flashes.
3. Press LOCK to save changes.
The LOCK button flashes until the changes are saved. The device exits the ARC mode
setup and returns to its previous status (either D-Audio mode or Video + D-Audio mode).
Press LOCK within 15 seconds to apply settings. Otherwise, action times out.
Storing and Recalling a Setup
VS-44UHD can store up to 8 setups. Each setup includes the video and audio current
switching state, the EDID, the ARC/audio mode, and the switch mode and speed.
In Store-Recall mode, OUT 1 corresponds to setup 1, IN 1 corresponds to setup 5, and so on.
Figure 10: VS-44UHD 4x4 UHD Matrix Switcher Front Panel
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
18
To store a setup:
1. Press STO .
The STO button illuminates.
2. Press an IN or an OUT button (from 1 to 4).
For example, when pressing IN 4, the current device state is stored to setup 8.
3. Press STO.
The current device state is stored to setup 8 and the STO button no longer illuminates.
Press STO within 15 seconds to apply settings. Otherwise, action times out.
To recall a setup:
1. Press RCL .
The RCL button illuminates.
2. Press an IN or OUT button to recall the setup stored in that IN/OUT.
The selected button flashes.
If a setup is stored in the selected setup button, the corresponding 7-segment display
LED flashes. If nothing is stored, the 7-segment LED is on.
3. Press RCL.
The recalled setup is applied and the RCL button no longer illuminates.
Press RCL within 15 seconds to apply settings. Otherwise, action times out.
Setting the Switching Mode
Set the following switching modes separately for each output:
• Manual mode (IN 1): inputs are switched to outputs via the front panel buttons.
• Priority mode (IN 2): the VS-44UHD switches the source with the highest priority to the
output.
• Last connected mode (IN 3): the last detected active source is switched to the output.
To select the switching mode:
1. Press RCL and MUTE/PATTERN simultaneously. Both buttons illuminate.
2. Press an output button (or press ALL).
The corresponding 7-segment display LEDs flash and LOCK button flashes.
3. Press IN 1, IN 2 or IN 3.
4. Press LOCK to save the settings to that output and exit Switching mode.
Press LOCK within 15 seconds to apply settings. Otherwise, action times out.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
19
Setting the Switching Speed
Set the following switching speed modes separately for each output:
• Ex-Fast switch speed (IN 1).
• Fast switch speed (IN 2).
• Normal switch speed (IN 3).
To select the switching speed:
1. Press STO and MUTE/PATTERN simultaneously. Both buttons illuminate.
The 7-segment display LEDs show the current switch speed for each port.
2. Press an output button (or press ALL).
The corresponding 7-segment display LEDs flash and LOCK button flashes.
3. Press IN 1, IN 2 or IN 3.
4. Press LOCK to save the settings and exit Speed mode.
Press LOCK within 15 seconds to apply settings. Otherwise, action times out.
Setting HDCP
You can enable or disable HDCP for each of the HDMI inputs.
To set HDCP on or off:
1. Press and hold EDID and RCL until both buttons illuminate.
The IN buttons indicate the HDCP status:
▪ HDCP enabled (on): IN button is illuminated.
▪ HDCP disabled (off): IN button is off.
2. Press one or more input buttons to change their status.
The LOCK button flashes.
3. Press LOCK to save changes and exit the HDCP mode.
Press LOCK within 15 seconds to apply settings. Otherwise, action times out.
Kramer Electronics Ltd.
VS-44UHD – Operating VS-44UHD via Front Panel Buttons
20
Copying the EDID
You can copy the EDID to an input from a connected output or use the default EDID.
To copy the EDID from a connected output:
1. Press and hold EDID and STO until both buttons illuminate.
VS-44UHD enters the EDID mode and the 7-segment display shows the current EDID
status:
On the front panel button:
• Both input and output buttons are dark.
On the 7-segment display:
• “d” under an output number indicates that the input port is set to the default
EDID.
• “L” under an output number indicates that the EDID was uploaded externally
from a file via web page.
• A digit under an output number indicates the output from which the EDID was
copied.
2. Press one or more input buttons (or ALL).
The 7-segment display LEDs of the selected inputs flash.
3. Press an output button (with a connected display) from which to copy the EDID.
4. Press EDID.
Wait for about 5 seconds for the device to copy the EDID from the connected display.
To copy the default EDID:
1. Press and hold EDID and STO until both buttons illuminate.
VS-44UHD enters the EDID mode and the 7-segment display shows the current EDID
status.
2. Press one or more input buttons (or ALL).
The 7-segment display LEDs of the selected inputs flash.
3. Press a disconnected output button.
4. Press EDID.
Wait for about 5 seconds for the device to copy the default EDID to the selected inputs.
Press EDID within 15 seconds to apply settings. Otherwise, action times out.
Kramer Electronics Ltd.
VS-44UHD – Firmware Upgrade
21
Firmware Upgrade
You can upgrade the VS-44UHD via:
• The Ethernet, using embedded web pages.
• By USB or RS-232 using Kramer K-UPLOAD tool.
The latest firmware version and the latest version of K-UPLOAD and installation
instructions can be downloaded from the Kramer Web site at
www.kramerav.com/downloads/VS-44UHD.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
22
Using the Embedded Web Pages
The web pages let you control the VS-44UHD via the Ethernet. The web pages include all the
OSD items and more, and are accessed using a Web browser and an Ethernet connection.
Before attempting to connect:
• Perform the procedures described in Connecting VS-44UHD via the ETHERNET Port
on page 8.
• Ensure that your browser is supported.
The following operating systems and Web browsers are supported:
OS
Version
Browser
Windows
7
IE
Firefox
Chrome
Safari
10
IE
Edge
Firefox
Chrome
Mac
10.11
Safari
iOS
10.3.2
Safari
Android
N/A
N/A
The VS-44UHD web pages enable performing the following:
• Switching and Setting the Ports on page 24.
• Changing Device Settings and Upgrading the Firmware on page 32.
• Managing Web Page Security on page 33.
• Setting the Timeout on page 36.
• Setting Switching Modes on page 38.
• Setting Step-In Devices on page 39.
• Managing the EDID on page 41.
• Viewing the About Us Page on page 45.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
23
To browse the VS-44UHD web pages:
1. Open your Internet browser.
2. Type the IP address of the device in the address bar of your browser. For example, the
default IP address:
The Authentication window appears (if set, security is enabled):

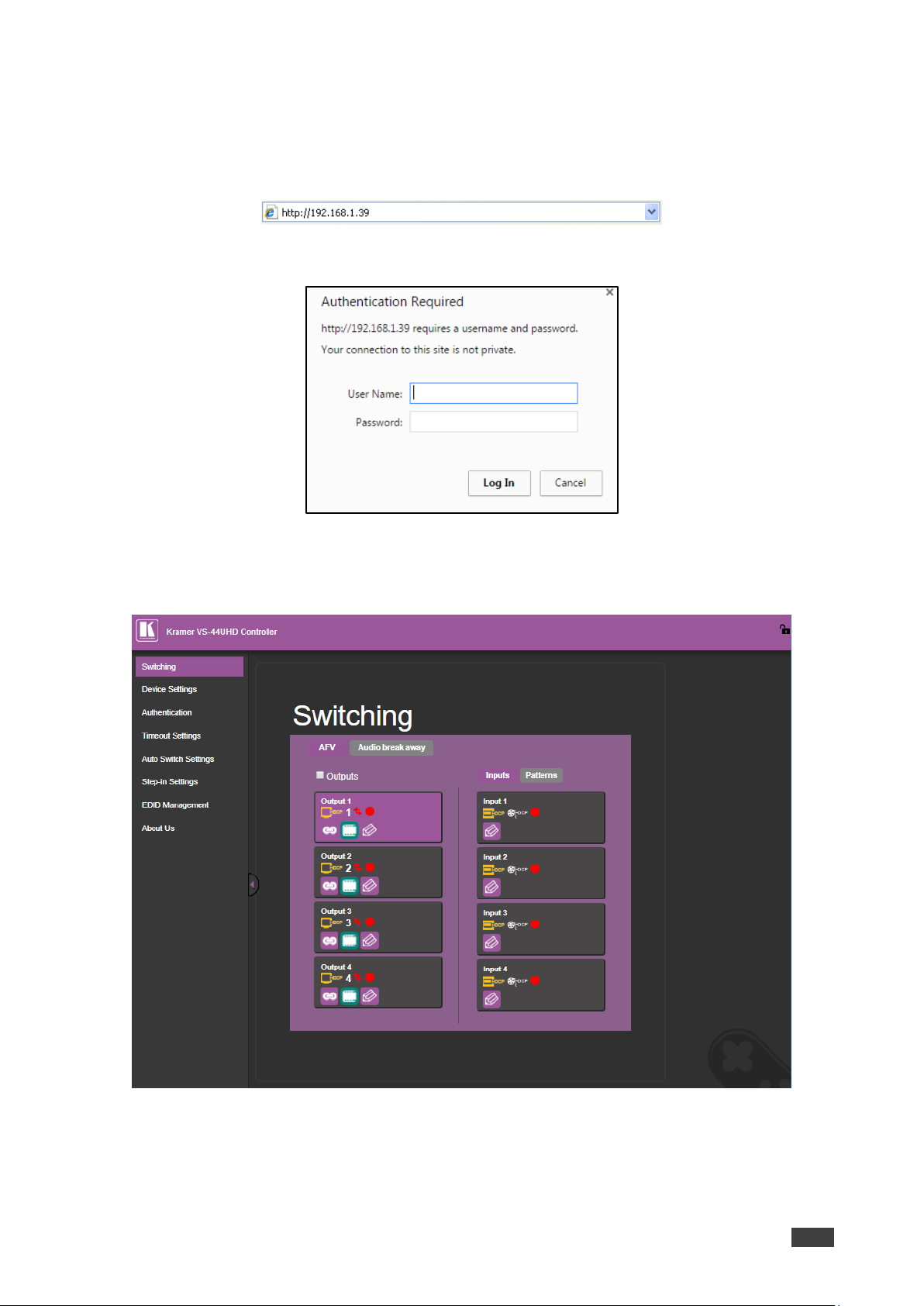

Figure 11: Using the Embedded Web Pages – Authentication
3. Enter the User Name and Password (Admin, empty string, by-default) and click OK.
The Switching page appears:
Figure 12: Switching Page with Navigation List on Left
4. Click the desired web page or click the arrow to hide the navigation list.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
24
Switching and Setting the Ports
The Switching web page enables performing the following functions:
• Viewing and Adjusting the Output Settings on page 24.
• Viewing and Adjusting the Input Settings on page 26.
• Switching an Input to an Output on page 27.
• Switching a Pattern to an Output on page 28.
• Switching Audio in Breakaway Mode on page 29.
Viewing and Adjusting the Output Settings
You can view the status of the outputs and adjust their settings via the output buttons.

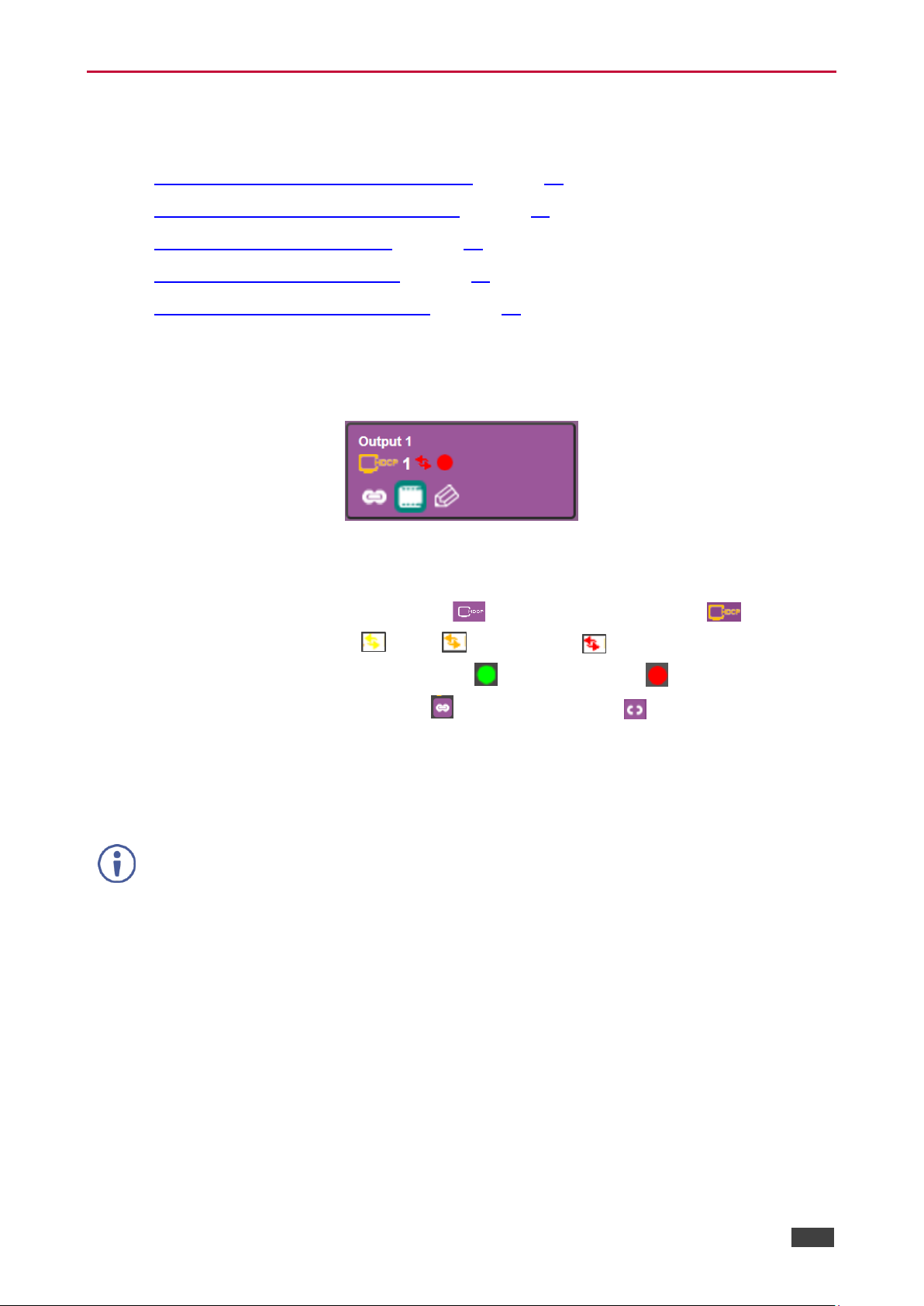

Figure 13: Switching Page – Output Button
Each output button displays the:
• HDCP status – output supports HDCP ( ) or does not support HDCP ( ).
• Switching speed – normal ( ), fast ( ) or extra-fast ( ).
• Output status – an acceptor is connected ( ) or not connected ( ) to the output.
• AFV current operation mode – AFV ( ) or audio breakaway ( ).
To adjust the output settings:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Click the AFV tab.
The adjustment sequence presented here is only an example. You can adjust the output
settings in any other order.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
25
3. Click . The output settings window appears:
Figure 14: Switching Page – Editing the Output Button Settings
4. If required, type the label name in the Label text box and click .
Figure 15: Switching Page – Changing the Output Label
5. Click switch speed dropdown box to set the switching speed (normal, fast or extra-fast).
6. Click to mute or to unmute the video signal.
7. To set the output to:
▪ AFV mode, click .
▪ Breakaway mode, click .
indicates that the device is in the auto-switch mode and AFV status cannot be altered.
Setting the AFV mode icons to AFV or Breakaway modes reflects the next switching step
and not the current status.
Output settings are adjusted.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
26
Viewing and Adjusting the Input Settings
You can view the status of the inputs and adjust their settings via the input buttons.
Figure 16: Switching Page – Input Button
Each input button displays the:
• Input signal HDCP status – supports HDCP ( ) or does not support HDCP ( ).
• HDCP status – HDCP is enabled ( ) or disabled ( ).
• Input status – a source is connected ( ) or not connected ( ) to the input.
Setting Input Parameters
To change input settings:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Click the AFV tab. Verify that Inputs (and not Patterns) is selected.
3. Click . The input settings window appears:
Figure 17: Switching Page – Input 1 Settings Window
4. If required, type the label name in the Label text box and click .
5. Set HDCP ON or OFF.
6. Click ARC to set input to ARC mode or click Step-in to set input to Step-in mode
(default) when switching ARC to an input (see page 30).
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
27
7. In ARC mode click the settings button ( ). The input ARC Settings window appears:
Figure 18: Switching Page – Input ARC Settings Window
8. Select an ARC source for input 1 from HDMI outputs 1 to 4. The selected port routes its
audio signal to HDMI input 1.
Input settings are adjusted.
Switching an Input to an Output
To switch an input to an output:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Click the AFV tab.
Figure 19: Switching Page – AFV Tab
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
28
3. Click an output button or check the Outputs box. The button turns purple.
4. Click an input button. The button turns purple.
The selected input is switched to the output.
Switching a Pattern to an Output
To switch a pattern to an output:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Click the AFV tab.
3. Click Patterns. The list of patterns appears.
Figure 20: Switching Page – Switching a Pattern to an Output
4. Select an output button or check the Outputs box.
5. Select a pattern.
The selected pattern is switched to the selected output.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
29
Switching Audio in Breakaway Mode
In breakaway mode, the HDMI embedded audio is switched separately from the video signal.
The audio breakaway mode is enabled only when Auto Switch Setting is set to Manual
mode.
You can switch a digital audio input to a digital audio output independently. If HDMI input port
and HDMI output port ARC mode are enabled, you can switch a selected HDMI output port
ARC to any HDMI input port ARC.
To switch an audio input to an audio output in the Breakaway mode:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Select Audio break away tab.

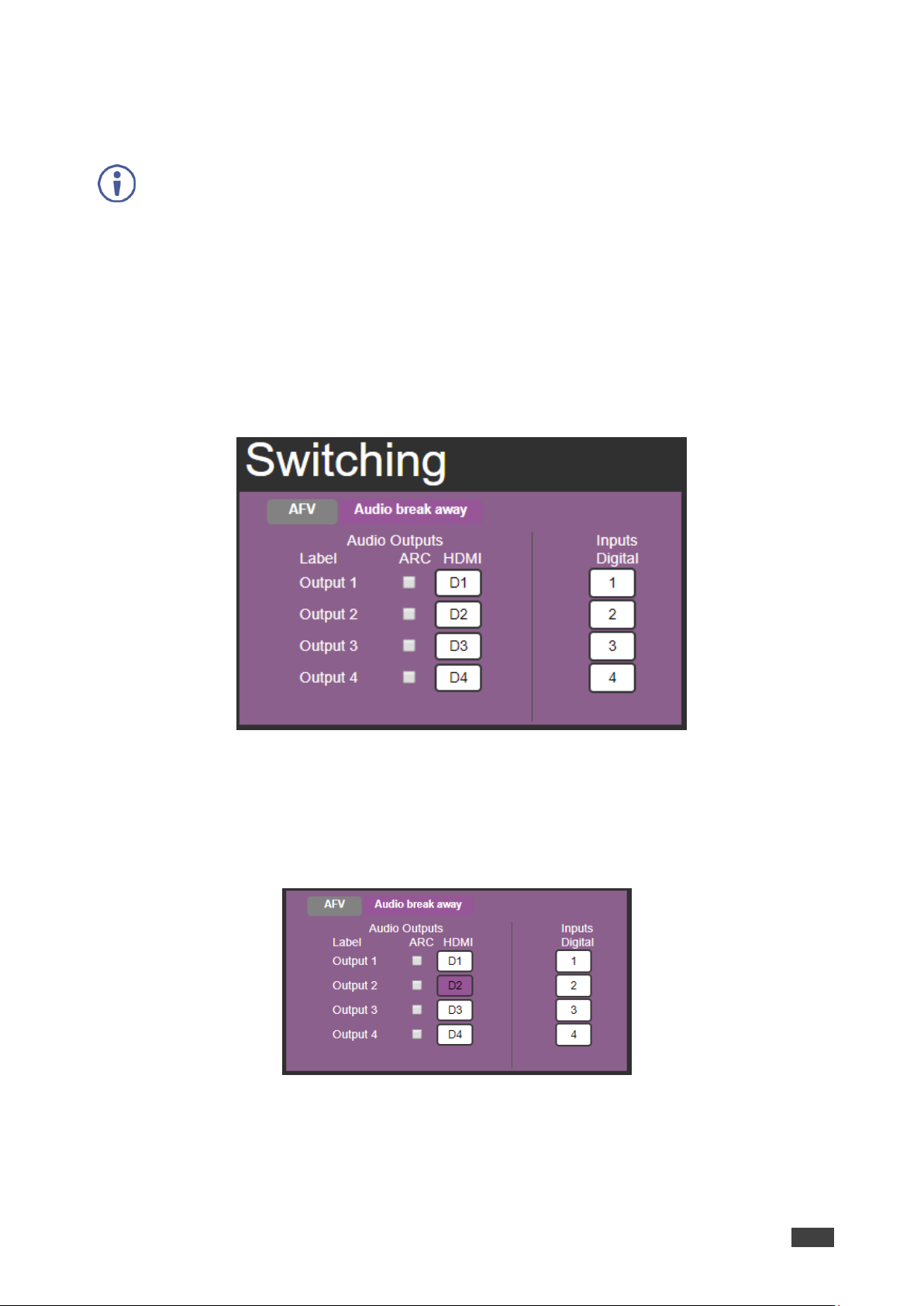

Figure 21: Switching Page – Switching Audio in the Breakaway Mode
3. Switch an input to a selected output. For example, switch digital input 4 to
output 2:
▪ Click HDMI button D2 (under the Audio Outputs column, which shows the current
input switched to that output). The selected button turns purple.
Figure 22: Switching Page – Switching Audio Signals, Selecting an Output
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
30
▪ Click button 4 under Inputs Digital. The selected button turns purple.

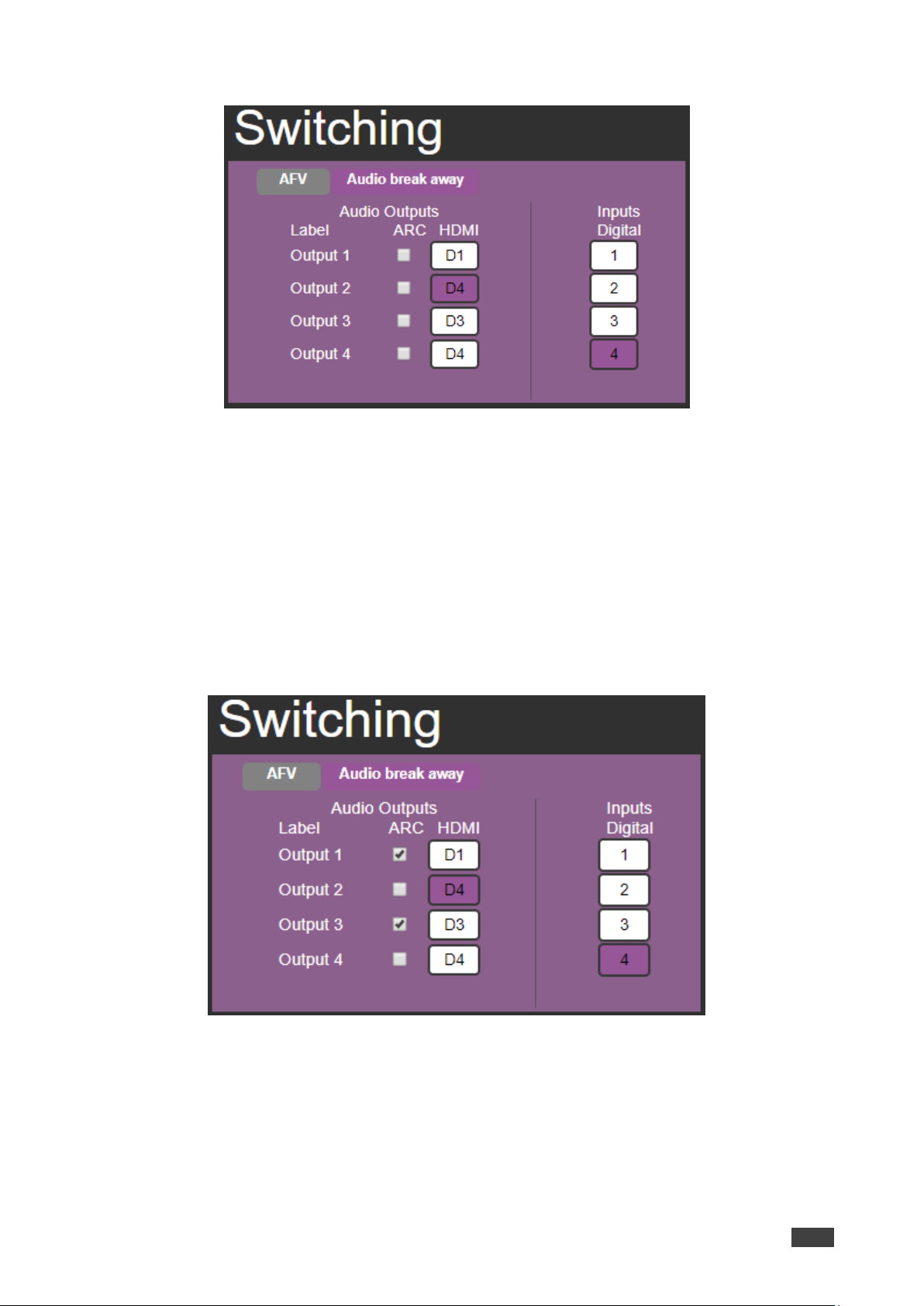

Figure 23: Switching Page – Switching Audio Signals, Selecting an Input
The selected input is switched to the output (digital input 4 is switched to output 2).
To switch ARC to an input:
1. In the Navigation pane, click Switching. The Switching page appears.
2. Select Audio break away tab.
3. Check the ARC check boxes to ARC-enable selected outputs (under the Audio Outputs
column). For example, Output 1 and 3 are checked, therefore ARC-enabled so they can
be switched as ARC signals.
Figure 24: Switching Page – Outputs 1 and 3 ARC-Enabled
4. Select AFV tab.
5. Select an input button, for example, Input 1.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
31
6. Click on the input 1 button and set to ARC mode. This input is now ARC-enabled.
Figure 25: Switching Page – Output 1 Set to ARC Mode
7. Click and set either output 1 or output 3 to set them as an ARC to input 1.
Figure 26: Switching Page – Routing Output 3 ARC to Input 1
8. Click Back.
Output 3 ARC is routed to input 1.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
32
Changing Device Settings and Upgrading the Firmware
The Device Settings web page shows the device details, such as name, MAC address and
firmware version and also enables performing the following functions:
• Changing the Ethernet Settings on page 32.
• Performing a Factory Reset on page 33.
• Performing Firmware Upgrade on page 33.
Changing the Ethernet Settings
To change the Ethernet settings:
1. In the Navigation pane, click Device Settings. The Device Settings page appears:
Figure 27: Device Settings Page
2. Uncheck/check the DHCP check box.
3. If DHCP is not checked, change any of the parameters (IP Address, Netmask and/or
Gateway).
4 . Click Save Changes.
Note that:
• After changing the IP address, you need to reload the web page with the new IP
address.
• After changing the subnet mask you need to turn the VS-44UHD power off and
then on again.
• If DHCP is checked, you need to reload the web page with the new IP address.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
33
Performing a Factory Reset
To reset the device to its factory default values:
1. In the Navigation pane, click Device Settings. The Device Settings page appears
(Figure 27).
2. Click Reset. The following window appears:
Figure 28: Device Settings Page – Factory Reset
3. Click OK to start factory reset and follow the instructions on-screen.
The device resets to its default parameters.
Performing Firmware Upgrade
To perform firmware upgrade:
1. In the Navigation pane, click Device Settings. The Device Settings page appears
(Figure 27).
2. Click BROWSE and select the new firmware file.
3. Click START UPGRADE and follow the instructions on-screen.
The new firmware reloads.
Managing Web Page Security
Use the Authentication page to set web access permission:
Setting Web Page Access Permission
To define access to the web pages In the Navigation pane, click Authentication. The
Authentication page appears displaying the current status (password protected or free
access).
Figure 29: Authentication Page – Security ON (by-default)
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
34
To access web pages without using the password:
1. Check the current security settings.
Figure 30: Authentication Page – Password Protected
2. Set Activate Security to OFF. The following message appears:
Figure 31: Authentication Page – Deactivating the Security
3. Enter the current password and click confirm. A confirmation message appears:
4. Click OK.
The web page reloads.
The web pages are no longer password protected.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
35
To access web pages using a password:
1. Check the current security status.
Figure 32: Authentication Page – Security OFF
2. Set Activate Security to ON for web page password protection. The following message
appears:
Figure 33: Authentication Page – Entering Password
By default, Admin password is an empty string. When activating security for the first time, you
can change the password.
3. Click confirm. A confirmation message appears.
4. Click OK.
The page refreshes.
5. If required, change the password.
Figure 34: Authentication Page – Changing the Password
6. Click .
A confirmation message appears.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
36
7. Click OK.
The connection is interrupted and authentication is required to access web pages.
Figure 35: Authentication Page – Security Sign In
8. Type the User Name (Admin, by default) and Password (left empty by default).
9. Click Sign in.
The web pages are password protected.
Setting the Timeout
Use the Timeout Settings web page to set the time delay before shutdown if no input signal
is detected for each output and also to set the auto switching time.
Always set the timeout period (5V cut-off) delay to be longer than the Video signal loss
timer delay.
To set the timeout:
1. In the Navigation pane, click Timeout Settings. The Timeout Settings page appears.
Figure 36: Timeout Settings Page
2. Set the delay time for each output.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
37
If you do not want a specific output to shut down when an input signal is not detected, check the
Never box next to that output.
3. Set audio support ON if you want shutdown to occur only if an audio signal is lost.
Support audio only can be used if the video and audio signals routed to an output, come from
separate sources.
If Support audio only is set to:
• ON – The audio signal routed to the output remains active when the video source (coming
from a different input) is deactivated.
• OFF – The audio signal routed to the output is deactivated together with the deactivation of
the video source (coming from a different input).
Timeout settings are complete.
To set the video lost timer (when in auto-switching mode):
1. In the Navigation pane, click Timeout Settings. The Timeout Settings page appears.
2. Set the video lost timer.
Video lost timer settings are complete.
The adjustment sequence presented here is only an example. You can adjust the output
settings in any other order.
If the video is lost when in the auto switching mode (Priority or Last connected) you can set
the time the device waits before it switches to the next source.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
38
Setting Switching Modes
Use the Auto Switch Settings page to set the switching mode per output.
Setting to priority or last connected mode forces VS-44UHD to operate in AFV mode.
To set the switching mode:
1. In the Navigation pane, click Auto Switch Settings. The Auto Switch Settings page
appears.
Figure 37: Auto Switch Settings Page
2. Select an output and set the switching mode to Manual, Priority or Last connected:
▪ In the Manual mode (see Figure 37), the outputs are switched manually to the
selected output.
▪ In the Priority mode, drag and drop the inputs from the highest to the lowest priority.
The inputs are then switched to the selected output according to the set priority:
Figure 38: Auto Switch Settings Page – Setting the Switching Priority
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
39
▪ In the Last connected mode, select the inputs that are included in the last connected
scan that will be switched to the selected output:
Figure 39: Auto Switch Settings Page – Last Connected Mode
Auto-switch settings are complete.
Setting Step-In Devices
Use the Step-In Settings page to manage Step-in devices (for example, Kramer DIP-30).
If a Step-in device is not connected to VS-44UHD, the following page appears:
Figure 40: Step-In Settings Page (Step-in Device is not Connected)
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
40
To manage a Step-in device:
1. Connect the HDMI output of a Step-in device (for example, DIP-30) to an HDMI input on
the VS-44UHD.
2. In the Navigation pane, click Step-In Settings. The Step-In Settings page appears and
the input button/s to which the Step-in device/s is connected appear/s purple. The
DIP-30 Inputs list and the VS-44UHD outputs to which the DIP-30 input is routed are
displayed:
Figure 41: Step-In Settings Page – Displaying Step-In Inputs
3. Select a DIP-30 input (HDMI IN 1, HDMI IN 2 or VGA). The respective button on DIP-30
illuminates.
You can also press an input button on the DIP-30. The selected input will be displayed on
the web page.
4. Check the outputs to which the inputs will be routed.
5. Press the STEP-IN button on DIP-30. The selected Step-in button is routed to all the
checked outputs.
Any time the output Step-in configuration changes, press the STEP-IN button on the Step-in
device to update the configuration.
Selecting Echo sends an instruction via the VS-44UHD RS-232 port.
The selected Step-in input on the DIP-30 is routed to the selected outputs on the VS-44UHD.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
41
Managing the EDID
The EDID Management page lets you read the EDID from:
• Any of the outputs.
• The default EDID.
• Any of the inputs.
• A file in your PC (File BROWSE).
The selected EDID can be copied to the selected input/s.
To copy an EDID from an output to an input:
1. In the Navigation pane, click EDID Management. The EDID Management page
appears.
Figure 42: EDID Management Page – Selecting an EDID Source
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
42
2. Select the EDID source: a connected output.
When reading from an output, make sure that that output is connected to an acceptor.

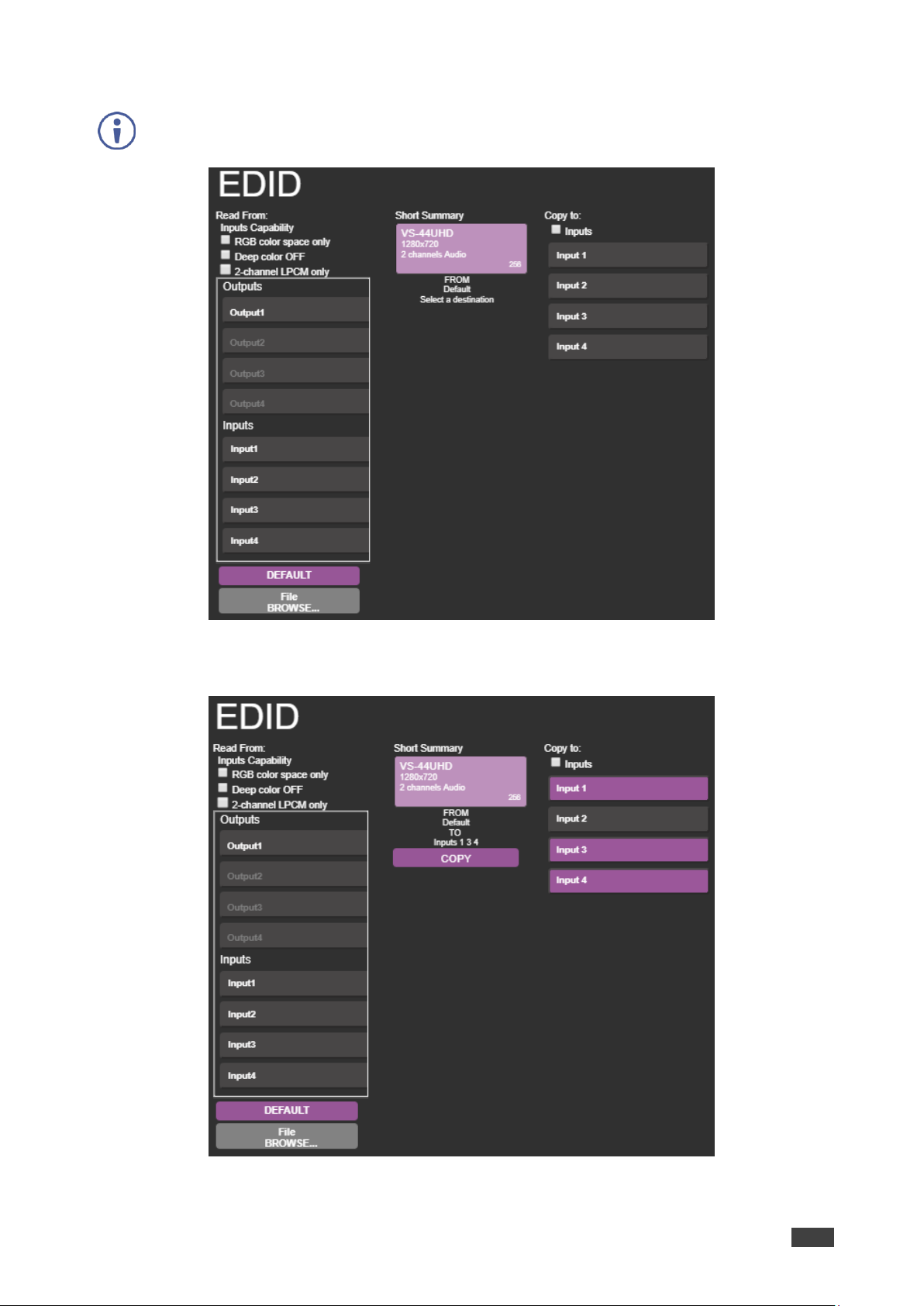

Figure 43: EDID Management Page – Selecting an EDID Output
3. Select an input (or all the inputs) to which the EDID is copied.
Figure 44: EDID Management Page – Selecting an Input
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
43
4. Click COPY. A message appears.

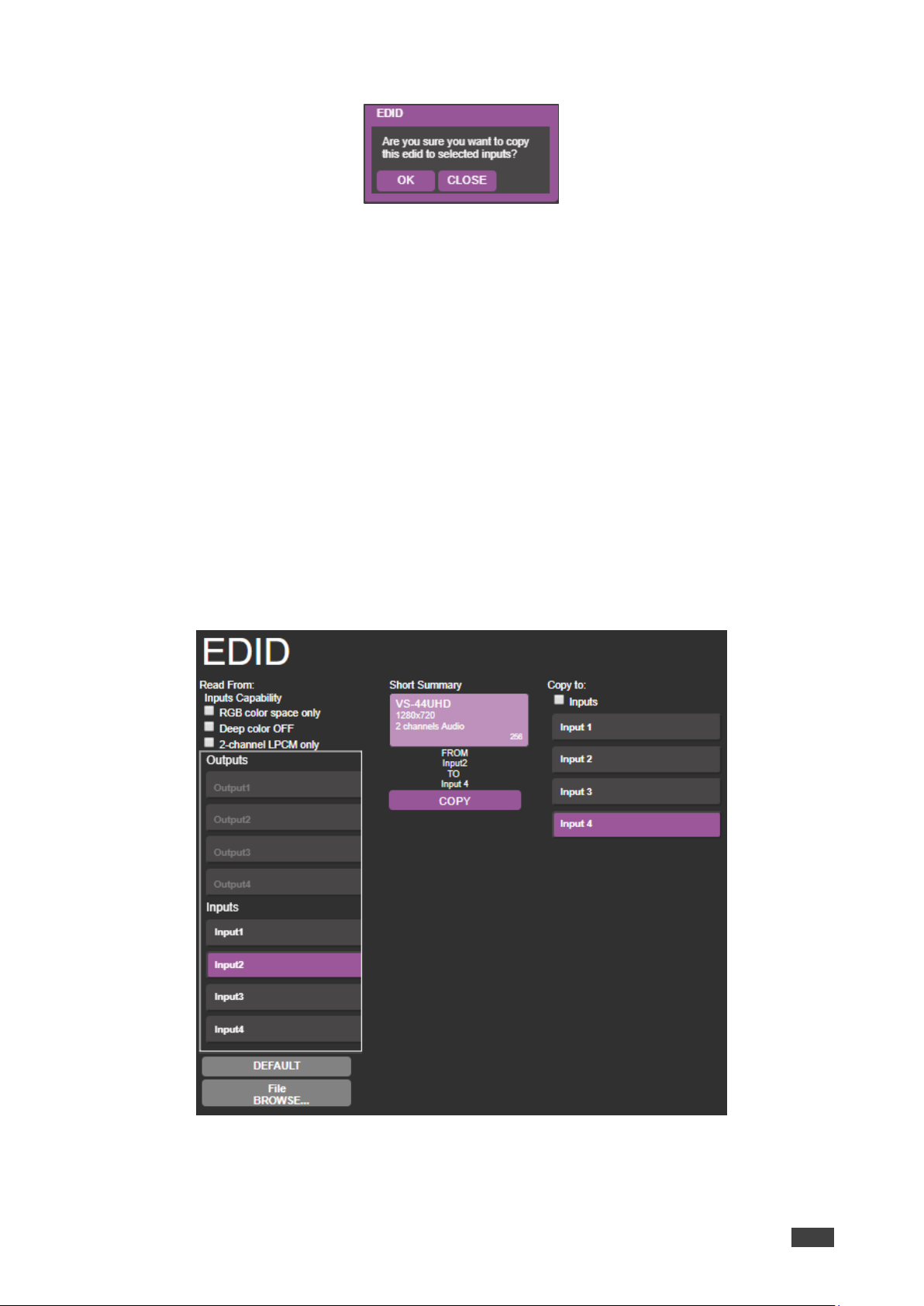

Figure 45: EDID Page –EDID Copy Message
5. Click OK. A confirmation message appears.
6. Click OK.
To read the EDID from the default EDID:
1. In the Navigation pane, click EDID Management. The EDID Management page
appears.
2. Click DEFAULT.
3. Click OK and follow the instructions on-screen.
To read the EDID from an input to another input/s:
1. In the Navigation pane, click EDID Management. The EDID Management page
appears.
2. Select an input from the list (on the left).
3. If required, check the options under Inputs Capability.
Figure 46: EDID Management Page – Copying EDID from Input to Input
4. Click COPY and follow the instructions on-screen.
The EDID is loaded to the selected inputs.
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
44
To read the EDID from a file:
1. In the Navigation pane, click EDID Management. The EDID Management page
appears.
2. Click File BROWSE and open the EDID file.
Figure 47: EDID Management Page – Selecting EDID from a File
3. Select one or more inputs.
Figure 48: EDID Management Page – Uploading EDID from a File to the Input
Kramer Electronics Ltd.
VS-44UHD – Using the Embedded Web Pages
45
4. Click UPLOAD. The following message appears:
Figure 49: EDID Management Page – EDID Message
5. If required, Check adding stereo audio to the selected EDID.
6. Click OK.
7. Follow the instructions on-screen.
When viewing the 7-segment display in the EDID mode, the input with EDID read from a
file displays “L”.
Viewing the About Us Page
The VS-44UHD About Us page lets you view the web page version and Kramer Electronics
Ltd details.
Figure 50: About Page
Kramer Electronics Ltd.
VS-44UHD – Technical Specifications
46
Technical Specifications
Inputs
4 HDMI
On female HDMI connectors
Outputs
4 HDMI
On female HDMI connectors
Ports
1 USB
On a mini USB connector
1 RS-232
On a 3-pin terminal block
1 Ethernet
On an RJ-45 female connector
1 USB
On a female USB-A connector for
powering another device
Video
Max. Resolution
4K@60Hz (4:2:0) and 4K@30Hz
(4:4:4)
Compliance
Supports HDMI 1.4 and HDCP 1.4
Control
Front Panel
Front panel buttons
7-segment display
Power
Consumption
42VA
Source
100-240V AC, 50/60Hz
Regulatory
Compliance
Safety
CE, FCC
Environmental
RoHs, WEEE
Enclosure
Type
Aluminum
Cooling
Fan
Environmental
Conditions
Operating Temperature
0° to +40°C (32° to 104°F)
Storage Temperature
-40° to +70°C (-40° to 158°F)
Humidity
10% to 90%, RH non-condensing
General
Net Dimensions (W, D, H)
19", 7.2", 1U, rack mountable
Shipping Dimensions (W, D, H)
52.5cm x 33cm x 10.7cm
(20.7” x 13” x 4.2”)
Net Weight
1.9kg (4.2lbs) approx.
Shipping Weight
2.9kg (6.39lbs) approx.
Accessories
Included
Rack ears, power cord
Specifications are subject to change without notice at www.kramerav.com
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Default Communication Parameters
RS-232/Ethernet
Baud Rate:
115,200
Parity:
None
Data Bits:
8
Command Format:
ASCII Protocol 3000
Stop Bits:
1
Example (route video HDMI IN 2 to video HDMI OUT 4):
“#ROUTE 1,4,2”,0x0D
Ethernet Parameters
IP Address:
192.168.1.39
Default TCP Port #:
5000
Subnet Mask:
255.255.0.0
Default UDP Port #:
50000
Default Gateway:
192.168.0.1
Number of TCP ports:
8
Number of web clients:
5
Kramer Electronics Ltd.
VS-44UHD – Technical Specifications
47
Full Factory Reset
Front Panel Buttons:
Power off the device, press and hold the LOCK, EDID and STO buttons
simultaneously for about 3 seconds while powering the device, and then release.
Until all front panel buttons illuminate
Protocol 3000:
“#factory” command.
Web Pages:
In the Device Settings page, click Reset.
Default Parameters
Parameter
Value
Protocol:
K3000
K3000 Model Name:
V', 'S', '-', '4', '4', 'U', 'H', 'D'''
K3000 Serial Number:
00000000000001
Model name and serial number will not change back to the default status after a
factory reset.
DHCP enable:
Disable(OFF)
EDID status:
Default, all input ports use the default EDID data.
Input port HDCP:
All ON, support HDCP.
Step-in button setting:
Default, all the output checked for an input.
Video status:
Output 1 to 4 route to input 1 to 4 separately.
Audio status:
Output 1 to 4 route to digital input 1 to 4
separately.
All setups:
All empty. No preset status.
EDID data:
All input ports use the default EDID data.
V-mute:
Open the video.
Mute:
Open the audio.
Switch mode:
Manual.
Switch speed:
Ex-fast switch.
ARC or de-embedded:
De-embedded.
Video Priority settings
Lower input index has higher priority.
Auto Switching mode
Priority order is highest for 1 and lowest for 4
Auto Switching settings
All video inputs are routed to each of the video
outputs
Default EDID
Kramer default EDID with "monitor name"=
"VS-44UHD"
Lock EDID state
Not locked
HDCP mode
ENABLED
Video Signal loss timeout (no 5V)
0
Video Signal loss timeout (5V is on)
10 sec
New video signal gain timeout
0
Output inactivity timeout
15 min
Apply switch mode configuration on
startup
10
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
48
Protocol 3000
The VS-44UHD 4x4 UHD Matrix Switcher can be operated using the Kramer Protocol 3000
serial commands. The command framing varies according to how you interface with the
VS-44UHD.
Generally, a basic video input switching command that routes a layer 1 video signal to HDMI
out 1 from HDMI input 2 (ROUTE 1,1,2), is entered as follows:

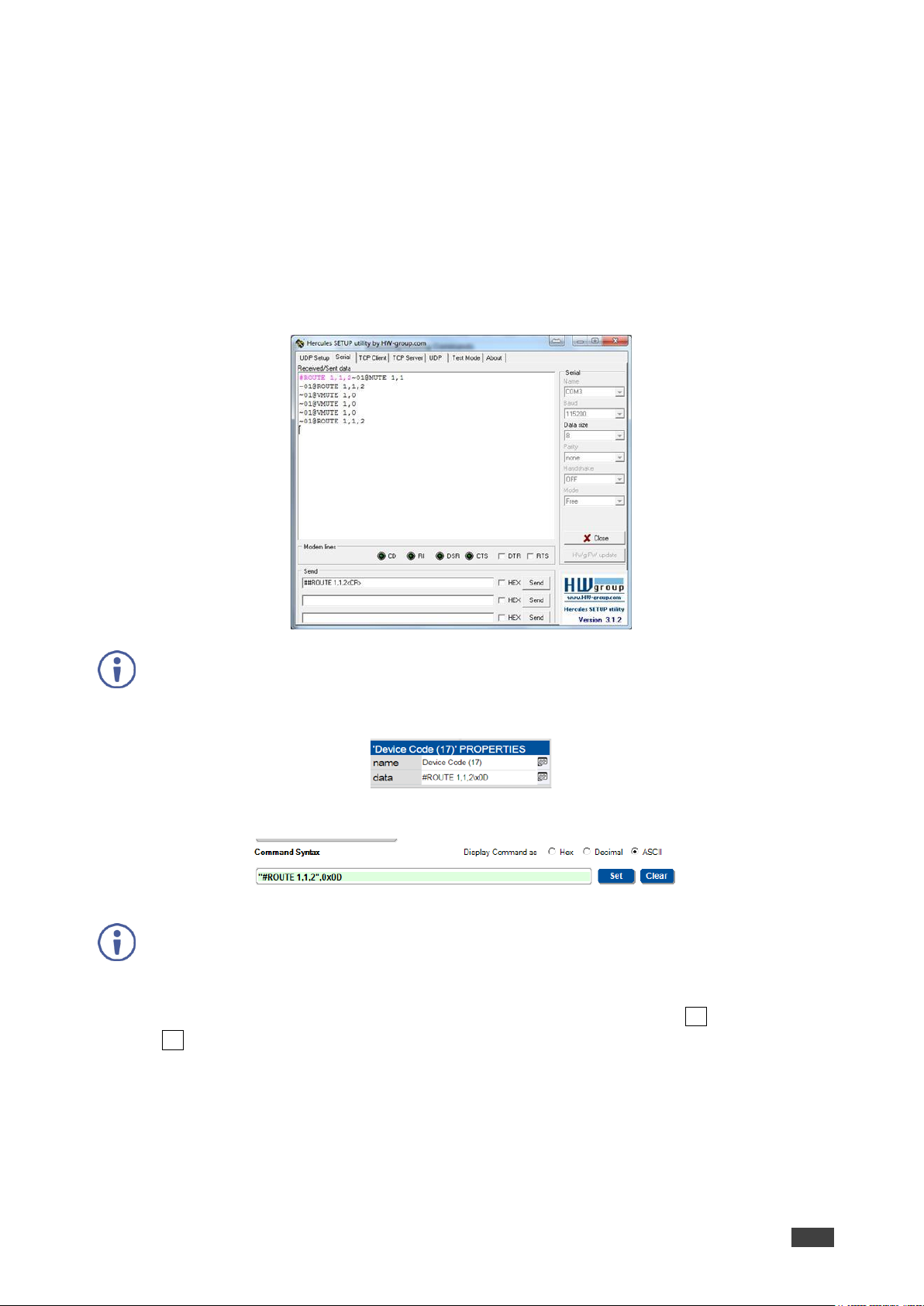

• Terminal communication software, such as Hercules:
The framing of the command varies according to the terminal communication software.
.
• K-Touch Builder (Kramer software):
• K-Config (Kramer configuration software):
All the examples provided in this section are based on using the K-Config software.
You can enter commands directly using terminal communication software (e.g., Hercules) by
connecting a PC to the serial or Ethernet port on the VS-44UHD. To enter CR press the Enter
key (LF is also sent but is ignored by the command parser).
Commands sent from various non-Kramer controllers (e.g., Crestron) may require special
coding for some characters (such as, /X##). For more information, refer to your controller’s
documentation.
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
49
For more information about Protocol 3000 commands, see:
• Understanding Protocol 3000 on page 49.
• Kramer Protocol 3000 Syntax on page 50.
• Protocol 3000 Commands on page 51.
Understanding Protocol 3000
Protocol 3000 commands are structured according to the following:
• Command – A sequence of ASCII letters (A-Z, a-z and -). A command and its parameters
must be separated by at least one space.
• Parameters – A sequence of alphanumeric ASCII characters (0-9, A-Z, a-z and some
special characters for specific commands). Parameters are separated by commas.
• Message string – Every command entered as part of a message string begins with a
message starting character and ends with a message closing character.
A string can contain more than one command. Commands are separated by a pipe (|)
character.
• Message starting character:
▪ # – For host command/query
▪ ~ – For device response
• Device address – K-NET Device ID followed by @ (optional, K-NET only)
• Query sign – ? follows some commands to define a query request
• Message closing character:
▪ CR – Carriage return for host messages (ASCII 13)
▪ CR LF – Carriage return for device messages (ASCII 13) and line-feed (ASCII 10)
• Command chain separator character – Multiple commands can be chained in the same
string. Each command is delimited by a pipe character (|). When chaining commands,
enter the message starting character and the message closing character only at the
beginning and end of the string.
Spaces between parameters or command terms are ignored. Commands in the string do not
execute until the closing character is entered. A separate response is sent for every
command in the chain.
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
50
Kramer Protocol 3000 Syntax
The Kramer Protocol 3000 syntax uses the following delimiters:
• CR = Carriage return (ASCII 13 = 0x0D)
• LF = Line feed (ASCII 10 = 0x0A)
• SP = Space (ASCII 32 = 0x20)
Some commands have short name syntax in addition to long name syntax to enable faster
typing. The response is always in long syntax.
The Protocol 3000 syntax is in the following format:
• Host Message Format:
Start
Address (optional)
Body
Delimiter
#
Device_id@
Message
CR
• Simple Command – Command string with only one command without addressing:
Start
Body
Delimiter
#
Command SP
Parameter_1,Parameter_2,…
CR
• Command String – Formal syntax with command concatenation and addressing:
Start
Address
Body
Delimiter
#
Device_id@
Command_1
Parameter1_1,Parameter1_2,…|
Command_2
Parameter2_1,Parameter2_2,…|
Command_3
Parameter3_1,Parameter3_2,…|…
CR
• Device Message Format:
Start
Address (optional)
Body
Delimiter
~
Device_id@
Message
CR LF
• Device Long Response – Echoing command:
Start
Address
(optional)
Body
Delimiter
~
Device_id@
Command SP [Param1 ,Param2 …]
result
CR LF
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
51
Protocol 3000 Commands
This section includes the following commands:
• Common Commands on page 51.
• System Commands on page 58.
• Authentication Commands on page 65.
• EDID Handling Commands on page 67.
• Switch Commands on page 68.
• Switching Commands on page 71.
• Communication Commands on page 72.
Common Commands
Command
Description
#
Protocol handshaking (system mandatory)
BUILD-DATE
Get device build date (system mandatory)
FACTORY
Reset to factory default configuration
HELP
Get command list (system mandatory)
MODEL?
Get device model (system mandatory)
PROT-VER?
Get device protocol version (system mandatory)
RESET
Reset device (system mandatory)
SN?
Get device serial number (system mandatory)
VERSION?
Read device firmware version
IDV
Set visual indication from device
LOCK-FP
Lock/get front panel
NAME
Set/get machine (DNS) name
NAME-RST
Reset machine name to factory default (DNS)
#
Functions
Permission
Transparency
Set:
#
End User
Public
Get:
- - -
Description
Syntax
Set:
Protocol handshaking
#CR
Get:
-
-
Response
~nn@SPOKCR LF
Notes
Validates the Protocol 3000 connection and gets the machine number.
Step-in master products use this command to identify the availability of a device.
K-Config Example
“#”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
52
BUILD-DATE
Functions
Permission
Transparency
Set:
- - -
Get:
BUILD-DATE?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get device build date
#BUILD-DATE?CR
Response
~nn@BUILD-DATESPdateSPtimeCR LF
Parameters
date – Format: YYYY/MM/DD where YYYY (Year), MM (Month), DD (Day)
time – Format: hh:mm:ss where hh (Hours), mm (Minutes), ss (Seconds)
K-Config Example
“#BUILD-DATE?”,0x0D
FACTORY
Functions
Permission
Transparency
Set:
FACTORY
End User
Public
Get:
- - -
Description
Syntax
Set:
Reset device to factory default
configuration
#FACTORYCR
Get:
-
-
Response
~nn@FACTORYSPOKCR LF
Notes
This command deletes all user data from the device. The deletion can take some time.
Your device may require powering off and powering on for the changes to take effect.
K-Config Example
“#FACTORY”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
53
HELP
Functions
Permission
Transparency
Set:
- - -
Get:
HELP
End User
Public
Description
Syntax
Set:
-
-
Get:
Get command list or help for specific
command
#HELPCR
Response
Multi-line: ~nn@Device available protocol 3000 commands:CRLFcommand,SP
command...CR LF
Parameters
COMMAND_NAME – name of a specific command
Notes
To get help for a specific command use: HELPSPCOMMAND_NAMECR LF
K-Config Example
“#HELP”,0x0D
MODEL
Functions
Permission
Transparency
Set:
- - -
Get:
MODEL?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get device model
#MODEL?CR
Response
~nn@MODELSPmodel_nameCR LF
Parameters
model_name – String of up to 19 printable ASCII chars
Notes
This command identifies equipment connected to Step-in master products and notifies of identity
changes to the connected equipment. The Matrix saves this data in memory to answer REMOTEINFO requests.
K-Config Example
“#MODEL?”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
54
PROT-VER
Functions
Permission
Transparency
Set:
- - -
Get:
PROT-VER?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get device protocol version
#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
version - XX.XX where X is a decimal digit
K-Config Example
“#PROT-VER?”,0x0D
RESET
Functions
Permission
Transparency
Set:
RESET
Administrator
Public
Get:
- - -
Description
Syntax
Set:
Reset device
#RESETCR
Get:
-
-
Response
~nn@RESETSPOKCR LF
Notes
To reset the device, first send the #FACTORY command and then send #RESET.
To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately
after running this command. If the port was locked, disconnect and reconnect the cable to reopen
the port.
K-Config Example
“#RESET”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
55
SN
Functions
Permission
Transparency
Set:
- - -
Get:
SN?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get device serial number
#SN?CR
Response
~nn@SNSPserial_numberCR LF
Parameters
serial_number – 11 decimal digits, factory assigned
Notes
This device has a 14-digit serial number, only the last 11 digits are displayed.
K-Config Example
“#SN?”,0x0D
VERSION
Functions
Permission
Transparency
Set:
- - -
Get:
VERSION?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get firmware version number
#VERSION?CR
Response
~nn@VERSIONSPfirmware_versionCR LF
Parameters
firmware_version – XX.XX.XXXX where the digit groups are: major.minor.build version
K-Config Example
“#VERSION?”,0x0D
IDV
Functions
Permission
Transparency
Set:
IDV
End User
Public
Get:
-
Description
Syntax
Set:
Set visual indication from device
#IDVCR
Get:
-
Response
~nn@IDVSPOKCR LF
Notes
Using this command, some devices can light a sequence of buttons or LEDs to allow identification
of a specific device from similar devices.
K-Config Example
“#IDV”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
56
LOCK-FP
Functions
Permission
Transparency
Set:
LOCK-FP
End User
Public
Get
LOCK-FP?
End User
Public
Description
Syntax
Set:
Lock front panel
#LOCK-FPSPlock_modeCR
Get:
Get front panel lock state
#LOCK-FP?
Response
~nn@LOCK-FPSPlock_modeSPOKCR LF
Parameters
lock_mode – 0 (Off, unlock the front panel buttons), 1 (On, lock the front panel buttons)
K-Config Example
Unlock front panel:
“#LOCK-FP 0”,0x0D
NAME
Functions
Permission
Transparency
Set:
NAME
Administrator
Public
Get:
NAME?
End User
Public
Description
Syntax
Set:
Set machine (DNS) name
#NAMESPmachine_nameCR
Get:
Get machine (DNS) name
#NAME?CR
Response
Set: ~nn@NAMESPmachine_nameCR LF
Get: ~nn@NAMESPmachine_nameCR LF
Parameters
machine_name – String of up to 14 alpha-numeric characters (can include hyphens but not at the
beginning or end)
Notes
The machine name is not the same as the model name. The machine name is used to identify a
specific machine or a network in use (with DNS feature on).
K-Config Example
Set the DNS name of the device to “room-442”:
“#NAME room-442”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
57
NAME-RST
Functions
Permission
Transparency
Set:
NAME-RST
Administrator
Public
Get:
- - -
Description
Syntax
Set:
Reset machine (DNS) name to factory default
#NAME-RSTCR
Get:
-
-
Response
~nn@NAME-RSTSPOKCR LF
Notes
Factory default of machine (DNS) name is “KRAMER_” + 4 last digits of device serial number
K-Config Example
Reset the machine name (S/N last digits are 0102):
“#NAME-RST KRAMER_0102”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
58
System Commands
Command
Description
SIGNAL
Get input signal lock status
PRST-VID?
Get video connections from saved preset
PRST-STO
Store current connections to preset
PRST-RCL
Recall saved preset list
PRST-LST?
Get saved preset list
BAUD
Set/get protocol serial port baud rate
HDCP-STAT?
Get HDCP signal status
HDCP-MOD
Set/get HDCP mode
FPGA-VER?
Get current FPGA version
LABEL?
Get input/output label
SIGNAL
Functions
Permission
Transparency
Set:
- - -
Get
SIGNAL?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get input signal lock status
#SIGNAL?SPinp_idCR
Response
~nn@SIGNALSPinp_id,statusCR LF
Parameters
inp_id – input number: 1 (Input)
status – signal status according to signal validation: 0 (Off), 1 (On)
Response Triggers
After execution, a response is sent to the com port from which the Get was received
A response is sent after every change in input signal status from On to Off or from Off to On
K-Config Example
Get the input signal lock status of IN 1:
“#SIGNAL? 1”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
59
PRST-VID?
Functions
Permission
Transparency
Set:
- - -
Get
PRST-VID?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get video connections from
saved preset
#PRST-VID?SPpreset,outCR
#PRST-VID?SPpreset,*CR
Response
~nn@PRST-VIDSPpreset,in>outCR LF
~nn@PRST-VIDSPpreset,in>1,in>2,in>3...CR LF
Parameters
preset – preset number
in – input number or 0 if disconnected
> – connection character between in and out parameters
out – output number or * for all outputs
Notes
In most units, video and audio presets are stored and recalled together by commands #PRSTSTO and #PRST-RCL.
Examples
Store current video connections and
modes to preset 5
#PRST-STO 5CR
~PRST-STO 5CR LF
Recall video connections from preset 3
#PRCL 3CR
~PRST-RCL 3CR LF
Show source of video output 2 from
preset 3
#PRST-VID? 3,2CR
~PRST-VID 3, 4>2CR LF
K-Config Example
Get video connections from preset 3 for all outputs:
“#PRST-VID? 3,*”,0x0D
PRST-STO
Functions
Permission
Transparency
Set:
PRST-STO
End User
Public
Get
-
- - Description
Syntax
Set:
Store current connections, volumes
and modes in preset
#PRST-STOSPpresetCR
Get:
-
-
Response
~nn@PRST-STOSPpresetCR LF
Parameters
preset – preset number: 1(OUT 1)… 4(OUT 4); 5(IN 1)…8(IN 4)
K-Config Example
Store preset 1:
“#PRST-STO 1”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
60
PRST-RCL
Functions
Permission
Transparency
Set:
PRST-RCL
End User
Public
Get
-
-
-
Description
Syntax
Set:
Recall saved preset list
#PRST-RCLSPpresetCR
Get:
-
-
Response
~nn@PRST-RCLSPpresetCR LF
Parameters
preset – preset number: 1(OUT 1)… 4(OUT 4); 5(IN 1)…8(IN 4)
K-Config Example
Recall preset 1:
“#PRST-RCL 1”,0x0D
PRST-LST?
Command Name
Permission
Transparency
Set:
- - -
Get:
PRST-LST?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get saved preset list
#PRST-LST?CR
Response
~nn@PRST-LSTSPpreset,preset,…CR LF
Parameters
preset – 1 to 8 (preset number)
Notes
In most units, video and audio presets with the same number are stored and recalled together
by commands #PRST-STO and #PRST-RCL
K-Config Example
Get saved preset list:
“#PRST-LST?”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
61
BAUD
Functions
Permission
Transparency
Set:
BAUD
Administrator
Public
Get:
BAUD?
Administrator
Public
Description
Syntax
Set:
Set protocol serial port baud rate
#BAUDSPbaud_rateCR
Get:
Get protocol serial port baud rate
(for current baud rate)
#BAUD?CR
Response
~nn@BAUDSPbaud_rateCR LF
~nn@BAUDSPcurrent_baud_rateCR LF
Parameters
baud_rate – 9600, 115200, else (new baud rate to set)
current_baud_rate – 9600, 115200, else (current protocol serial port baud rate)
Notes
The new defined baud rate is stored in the EEPROM and used when powering up
Default baud rate is 115200 (on factory reset).
Only works with devices supporting this command (if ERR 002 is returned, the default baud rate
is used).
K-Config Example
Set the baud rate to 9600:
“#BAUD 9600”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
62
HDCP-STAT
Functions
Permission
Transparency
Set:
- - -
Get
HDCP-STAT?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get HDCP signal status
#HDCP-STAT?SPstage,stage_idCR
Response
~nn@HDCP-STATSPstage,stage_id,statusCR LF
Parameters
stage – 0 (input), 1 (output)
stage_id – for input stage: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 0 (Output disconnected);
for output stage 1 (OUT 1), 2 (OUT 2), 3 (OUT 3), 4 (OUT 4)
status – signal encryption On/Off status: 0 (HDCP Off), 1 (HDCP On), 2 (Follow input), 3 (Mirror
output (Mac mode))
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was
received
Response is sent to all com ports after execution if HDCP-STAT was set by any other external
control device (button press, device menu and similar) or HDCP mode changed.
Notes
On output – sink status.
On input – signal status.
K-Config Example
Get the output HDCP-STATUS of IN 1:
“#HDCP-STAT? 0,1”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
63
HDCP-MOD
Functions
Permission
Transparency
Set:
HDCP-MOD
Administrator
Public
Get
HDCP-MOD?
End User
Public
Description
Syntax
Set:
Set HDCP mode
#HDCP-MODSPinp_id,modeCR
Get:
Get HDCP mode
#HDCP-MOD?SPinp_idCR
Response
Set/get: ~nn@HDCP-MODSPinp_id,modeCR LF
Parameters
inp_id – input number: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4)
mode – HDCP mode: 0 (HDCP Off), 1 (HDCP On)
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was
received
Response is sent to all com ports after execution if HDCP-MOD was set by any other external
control device (button press, device menu and similar) or HDCP mode changed.
Notes
Set HDCP working mode on the device input:
HDCP supported – HDCP_ON (default)
HDCP not supported – HDCP OFF
HDCP supports changes following a detected sink - MIRROR OUTPUT
K-Config Example
Set the input HDCP-MODE of IN 1 to Off:
“#HDCP-MOD 1,0”,0x0D
FPGA-VER
Functions
Permission
Transparency
Set:
- - -
Get
FGA-VER?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get current FPGA version
# FGA-VER?SPidCR
Response
~nn@ FGA-VERSPid,expected_ver,actual_verCR LF
Parameters
id – FPGA ID
expected_ver – expected FPGA version for current firmware
actual_ver – actual FPGA version
K-Config Example
Get current FPGA version:
“#FPGA-VER? 1”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
64
LABEL
Command Name
Permission
Transparency
Set:
LABEL
End User
Public
Get:
LABEL?
End User
Public
Description
Syntax
Set:
Set input/output label
#LABELSPstage,stage_id,switch,labelCR
Get:
Get input/output label
#LABEL?SPstage_idCR
Response
~nn@LABELSPstage,stage_id,switch,labelCR LF
Parameters
stage – 0 (Input), 1 (Output)
stage_id – 1 (Input/Output 1), 2 (Input/Output 2), 3 (Input/Output 3), 4 (Input/Output 4)
switch – on (Enable custom label), off (Disable custom label)
label – custom label string
K-Config Example
Set input 1 label to “player” and enable:
“#LABEL 1,1,on,player”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
65
Authentication Commands
Command
Description
LOGIN
Set/get protocol permission
LOGOUT
Cancel current permission level
PASS
Set/get password for login level
SECUR
Set/get current security state
LOGIN
Functions
Permission
Transparency
Set:
LOGIN
Not Secure
Public
Get:
LOGIN?
Not Secure
Public
Description
Syntax
Set:
Set protocol permission
#LOGINSPlogin_level,passwordCR
Get:
Get current protocol permission
level
#LOGIN?CR
Response
Set: ~nn@LOGINSPlogin_level,passwordSPOKCR LF
or
~nn@LOGINSPERRSP004CR LF (if bad password entered)
Get: ~nn@LOGINSPlogin_levelCR LF
Parameters
login_level – level of permissions required: User, Admin
password – predefined password (by PASS command). Default password is an empty string
Notes
When the permission system is enabled, LOGIN enables running commands with the User or
Administrator permission level.
When set, login must be performed upon each connection.
The permission system works only if security is enabled with the SECUR command. It is not
mandatory to enable the permission system in order to use the device.
K-Config Example
Set the protocol permission level to Admin (when the password defined in the PASS command is
33333):
“#LOGIN Admin,33333”,0x0D
LOGOUT
Functions
Permission
Transparency
Set:
LOGOUT
Not Secure
Public
Get:
- - -
Description
Syntax
Set:
Cancel current permission level
#LOGOUTCR
Get:
-
-
Response
~nn@LOGOUTSPOKCR LF
Notes
Logs out from User or Administrator permission levels.
K-Config Example
“#LOGOUT”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
66
PASS
Functions
Permission
Transparency
Set:
PASS
Administrator
Public
Get:
PASS?
Administrator
Public
Description
Syntax
Set:
Set password for login level
#PASSSPlogin_level,passwordCR
Get:
Get password for login level
#PASS?SPlogin_levelCR
Response
~nn@PASSSPlogin_level,passwordCR LF
Parameters
login_level – level of login to set: User, Admin
password – password for the login_level. Up to 15 printable ASCII chars.
Notes
The default password is an empty string.
K-Config Example
Set the password for the Admin protocol permission level to 33333:
“#PASS Admin,33333”,0x0D
SECUR
Functions
Permission
Transparency
Set:
SECUR
Administrator
Public
Get:
SECUR?
Not Secure
Public
Description
Syntax
Set:
Start/stop security
#SECURSPsecurity_modeCR
Get:
Get current security state
#SECUR?CR
Response
~nn@SECURSPsecurity_modeCR LF
Parameters
security_mode – 1 (On / enable security), 0 (Off / disable security)
Notes
The permission system works only if security is enabled with the SECUR command.
K-Config Example
Enable the permission system:
“#SECUR 0”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
67
EDID Handling Commands
Additional EDID data functions can be performed via a compatible EDID management
application, such as Kramer EDID Designer (see
www.kramerav.com/product/EDID%20Designer).
Command
Description
CPEDID
Copy EDID data from the output to the input EEPROM
CPEDID
Functions
Permission
Transparency
Set:
CPEDID
End User
Public
Get:
- - -
Description
Syntax
Set:
Copy EDID data from the
output to the input EEPROM
#CPEDID
SPsrc_type,src_id,dst_type,dest_bitmapCR
Get:
-
-
Response
~nn@CPEDIDSPsrc_type,src_id,dst_type,dest_bitmapCR LF
Parameters
src_type – EDID source type (usually output): 0 (Input), 1 (Output), 2 (Default EDID)
src_id – for input source: 1 (Input), for output source: 0 (Default EDID source), 1 (Output 1),
2 (Output 2)
dst_type – EDID destination type (usually input): 0 (Input)
dest_bitmap – bitmap representing destination IDs. Format: XXXX…X, where X is hex digit. The
binary form of every hex digit represents corresponding destinations. Setting ‘1’ indicates that
EDID data is copied to this destination. Setting ‘0’ indicates that EDID data is not copied to this
destination.
Response Triggers
Response is sent to the com port from which the Set was received (before execution)
Notes
Destination bitmap size depends on device properties (for 64 inputs it is a 64-bit word)
Example: bitmap 0x0013 means inputs 1, 2 and 5 are loaded with the new EDID.
In this device, if the destination type is input (0), the bitmap size is 8 bit, for example bitmap 0x81
means the inputs 1 and 8 are loaded with the new EDID.
K-Config Example
Copy the EDID data from the Output 1 (EDID source) to the Input:
“#CPEDID 1,1,0,0x1”,0x0D
Copy the EDID data from the default EDID source to the Input:
“#CPEDID 2,0,0,0x1”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
68
Switch Commands
Command
Description
AV
Switch audio and video
VID
Set video switch state
VID-PATTERN
Select output pattern
AUD
Switch audio only
INFO-IO?
Get number of inputs/outputs in the unit
INFO-PRST
Get maximum number of video/audio presets in the unit
PRST-AUD?
Get audio connections from saved preset
AV
Functions
Permission
Transparency
Set:
AV
End User
Public
Get:
- - -
Description
Syntax
Set:
Switch audio and video
#AVSPin>out, in>out,…CR
Get:
-
-
Response
~nn@AVSPin>out,in>out,…CR LF
Parameters
in – input number: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 0 (output disconnected)
> – connection character between in and out parameters
out – output number: 1 (OUT 1), 2 (OUT 2), 3 (OUT 3), 4 (OUT 4), * (all outputs)
K-Config Example
Switch IN 1 to OUT 4:
“#AV 1>4”,0x0D
VID
Functions
Permission
Transparency
Set:
VID
End User
Public
Get
VID?
End User
Public
Description
Syntax
Set:
Set video switch state
#VIDSPin>outCR
Get:
Get video switch state
#VID?SPoutCR
Response
Set:~nn@VIDSPin>outCR LF
Get:~nn@VIDSPin>outCR LF
Parameters
in – input number: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (pattern selection),
0 (output disconnected)
> – connection character between IN and OUT parameters
out – output number: 1 (OUT 1), 2 (OUT 2), 3 (OUT 3), 4 (OUT 4), * (all outputs)
K-Config Example
Switch IN 1 to OUT 3:
“#VID 1>3”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
69
VID-PATTERN
Functions
Permission
Transparency
Set:
VID-PATTERN
End User
Public
Get
VID-PATTERN?
End User
Public
Description
Syntax
Set:
Select output pattern
#VID-PATTERNSPout,pattern_idCR
Get:
Get current pattern selected
#VID-PATTERN?SPoutCR
Response
Set:~nn@VID-PATTERNSPout,pattern_idCR LF
Get:~nn@VID-PATTERNSPout,pattern_idCR LF
Parameters
out – output number: 1 (OUT 1), 2 (OUT 2), 3 (OUT 3), 4 (OUT 4)
> – connection character between IN and OUT parameters
pattern_id – select pattern: 1 (Pattern 1), 2 (Pattern 2), 3 (Pattern 3), 4 (Pattern 4),
5 (Pattern 5), 6 (Pattern 6), 7 (Pattern 7), 8 (Pattern 8)
K-Config Example
Switch PATTERN 1 to OUT 3:
“#VID-PATTERN 3,1”,0x0D
AUD
Functions
Permission
Transparency
Set:
AUD
End User
Public
Get:
AUD?
End User
Public
Description
Syntax
Set:
Set audio switch state
#AUDSPin>out,in>out,…CR
Get:
Get audio switch state
#AUD?SPoutCR
#AUD?SP*CR
Response
Set: ~nn@AUDSPin>outCR LF
~nn@AUDSPin>outCR LF
Get: ~nn@AUDSPin>outCR LF
~nn@AUDSPin>1,in>2,…CR LF
Parameters
In – input number: 1 (HDMI IN 1), 2 (HDMI IN 2), 3 (HDMI IN 3), 4 (HDMI IN 4), 0 (output disconnected)
> – connection character between in and out parameters
out – output number: 1 (HDMI OUT 1), 2 (HDMI OUT 2), 3 (HDMI OUT 3), 4 (HDMI OUT 4),
* (all outputs)
Notes
When AFV switching mode is active, this command also switches video and unit replies with command
~AV.
K-Config Examples
Switch embedded audio HDMI IN 1 to HDMI OUT 3:
“#AUD 1>3”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
70
INFO-IO
Functions
Permission
Transparency
Set:
- - -
Get:
INFO-IO?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get in/out count
#INFO-IO?CR
Response
~nn@INFO-IOSPINSPinputs_count,OUTSPoutputs_countCR LF
Parameters
inputs_count – 4 (number of inputs in the unit)
outputs_count – 4 (number of outputs in the unit)
K-Config Example
Get inputs count:
“#INFO-IO?”,0x0D
INFO-PRST
Functions
Permission
Transparency
Set:
- - -
Get:
INFO-PRST?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get maximum preset count
#INFO-PRST?CR
Response
~nn@INFO-PRSTSPVIDSPpreset_video_count,AUDSPpreset_audio_countCR LF
Parameters
preset_video_count – maximum number of video presets in the unit
preset_audio_count – maximum number of audio presets in the unit
Notes
In most units, video and audio presets with the same number are stored and recalled together by
commands #PRST-STO and #PRST-RCL.
K-Config Example
Get number of video and audio presets:
“#INFO-PRST?”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
71
PRST-AUD
Functions
Permission
Transparency
Set:
- - -
Get:
PRST-AUD?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get audio connections from saved
preset
#PRST-AUD?SPpreset,outCR
#PRST-AUD?SPpreset,*CR
Response
~nn@PRST-AUDSPpreset, in>outCR LF
~nn@PRST-AUDSPpreset, in>1, in>2, in>3,…CR LF
Parameters
preset – preset number
n – input number: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 0 (Output disconnected)
> – Connection character between in and out parameters
out – Output number: 1 (OUT 1), 2 (OUT 2), 3 (OUT 3), 4 (OUT 4), * (All outputs)
Notes
In most units, video and audio presets with the same number are stored and recalled together by
commands #PRST-STO and #PRST-RCL.
K-Config Example
Get audio connection IN 1 to OUT 3 from saved preset 1:
“#PRST-AUD? 1”,0x0D
Switching Commands
Command
Description
MTX-MODE
Set/get to auto-switch mode
VMUTE
Set/get video on output status
MTX-MODE
Functions
Permission
Transparency
Set:
MTX-MODE
End User
Public
Get:
MTX-MODE?
End User
Public
Description
Syntax
Set:
Set auto-switch mode
#MTX-MODESPoutput_id,modeCR
Get :
Get auto-switch mode
#MTX-MODE?SPoutput_idCR
Response
~nn@MTX-MODESPoutput_id,modeCR
Parameters
output_id – 1 (OUT 1), 2 (OUT 2), 3 (OUT 3), 4 (OUT 4)
mode – 0 (manual), 1 (auto priority) 2 (auto last connected)
Response Triggers
After execution, a response is sent to the com port from which the Set/Get was received
After execution, a response is sent to all com ports if MTX-MODE was set by any other external
control device (button press, WEB, device menu and similar)
Notes
Not recommended for new devices.
K-Config Example
Set output to last connected:
“#MTX-MODE 1,2”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
72
VMUTE
Functions
Permission
Transparency
Set:
VMUTE
End User
Public
Get:
VMUTE?
End User
Public
Description
Syntax
Set:
Set enable/disable
video on output
#VMUTESPoutput_id,flagCR
Get:
Get video on output
status
#VMUTE?SPoutput_idSP CR
Response
Set / Get: ~nn@VMUTESPoutput_id,flagCR LF
Parameters
output_id – 1 (OUT 1), 2 (OUT 2), 3 (OUT 3), 4 (OUT 4)
flag – 0 (disable video on output), 1 (enable video on output), 2 (blank video)
K-Config Example
Disable the video output on OUT 2:
“#VMUTE 2,0”,0x0D
Communication Commands
Command
Description
ETH-PORT
Set/get Ethernet port protocol
NET-DHCP
Set/get DHCP mode
NET-GATE
Set/get gateway IP
NET-IP
Set/get IP address
NET-MAC
Get MAC address
NET-MASK
Set/get subnet mask
UART
Set/get port tunneling UART configuration
ETH-PORT
Functions
Permission
Transparency
Set:
ETH-PORT
Administrator
Public
Get:
ETH-PORT?
End User
Public
Description
Syntax
Set:
Set Ethernet port protocol
#ETH-PORTSPportType,ETHPortCR
Get:
Get Ethernet port protocol
#ETH-PORT?SPportTypeCR
Response
~nn@ETH-PORTSPportType,ETHPortCR LF
Parameters
portType – string of 3 letters indicating the port type: TCP, UDP
ETHPort – TCP / UDP port number: 0-65565
Notes
If the port number you enter is already in use, an error is returned.
The port number must be within the following range: 0-(2^16-1).
K-Config Example
Set the Ethernet port protocol for TCP to port 12457:
“#ETH-PORT TCP,12457”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
73
NET-DHCP
Functions
Permission
Transparency
Set:
NET-DHCP
Administrator
Public
Get:
NET-DHCP?
End User
Public
Description
Syntax
Set:
Set DHCP mode
#NET-DHCPSPmodeCR
Get:
Get DHCP mode
#NET-DHCP?CR
Response
~nn@NET-DHCPSPmodeCR LF
Parameters
mode – 0 (Do not use DHCP. Use the IP address set by the factory or the NET-IP command), 1
(Try to use DHCP. If unavailable, use the IP address set by the factory or the NET-IP command)
Notes
Connecting Ethernet to devices with DHCP may take more time in some networks.
To connect with a randomly assigned IP by DHCP, specify the device DNS name (if available)
using the NAME command. You can also get an assigned IP by direct connection to RS-232
protocol port, if available.
Consult your network administrator for correct settings.
K-Config Example
Enable DHCP mode, if available:
“#NET-DHCP 1”,0x0D
NET-GATE
Functions
Permission
Transparency
Set:
NET-GATE
Administrator
Public
Get:
NET-GATE?
End User
Public
Description
Syntax
Set:
Set gateway IP
#NET-GATESPip_addressCR
Get:
Get gateway IP
#NET-GATE?CR
Response
~nn@NET-GATESPip_addressCR LF
Parameters
ip_address – gateway IP address, in the following format: xxx.xxx.xxx.xxx
Notes
A network gateway connects the device via another network, possibly over the Internet. Be careful
of security problems. Consult your network administrator for correct settings.
K-Config Example
Set the gateway IP address to 192.168.0.1:
“#NET-GATE 192.168.000.001”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
74
NET-IP
Functions
Permission
Transparency
Set:
NET-IP
Administrator
Public
Get:
NET-IP?
End User
Public
Description
Syntax
Set:
Set IP address
#NET-IPSPip_addressCR
Get:
Get IP address
#NET-IP?CR
Response
~nn@NET-IPSPip_addressCR LF
Parameters
ip_address – IP address, in the following format: xxx.xxx.xxx.xxx
Notes
Consult your network administrator for correct settings.
K-Config Example
Set the IP address to 192.168.1.39:
“#NET-IP 192.168.001.039”,0x0D
NET-MAC
Functions
Permission
Transparency
Set:
- - -
Get:
NET-MAC?
End User
Public
Description
Syntax
Set:
-
-
Get:
Get MAC address
#NET-MAC?CR
Response
~nn@NET-MACSPmac_addressCR LF
Parameters
mac_address – unique MAC address. Format: XX-XX-XX-XX-XX-XX where X is hex digit
K-Config Example
“#NET-MAC?”,0x0D
NET-MASK
Functions
Permission
Transparency
Set:
NET-MASK
Administrator
Public
Get:
NET-MASK?
End User
Public
Description
Syntax
Set:
Set subnet mask
#NET-MASKSPnet_maskCR
Get:
Get subnet mask
#NET-MASK?CR
Response
~nn@NET-MASKSPnet_maskCR LF
Parameters
net_mask – format: xxx.xxx.xxx.xxx
Response Triggers
The subnet mask limits the Ethernet connection within the local network
Consult your network administrator for correct settings
K-Config Example
Set the subnet mask to 255.255.0.0:
“#NET-MASK 255.255.000.000”,0x0D
Kramer Electronics Ltd.
VS-44UHD – Protocol 3000
75
UART
Functions
Permission
Transparency
Set:
UART
Administrator
Public
Get:
UART?
End User
Public
Description
Syntax
Set:
Set port tunneling UART
configuration
#UARTSPcom_num,baud_rate,data_bits,parity,stop
_bitsCR
Get:
Get port tunneling UART
configuration
#UART?SPcom_numCR
Response
~nn@UARTSPbaud_rate,data_bits,parity,stop_bitsSPOKCR LF
Parameters
com_num – 1
baude_rate – 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
data_bits – 5 to 8
parity – none, odd, even, mark, space, n, o, e, m, s
stop_bits – 1, 2
K-Config Example
Set baud rate to 9600, 8 data bits, parity to none and stop bit to 1:
“#UART 1,9600,8,node,1”,0x0D
The warranty obligations of Kramer Electronics Inc. (“Kramer Electronics”) for this product are limited to the terms set forth below:
What is Covered
This limited warranty covers defects in materials and workmanship in this product.
What is Not Covered
This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use
or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to
the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting
from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone
unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship
of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the
technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other
product or technology with which the product may be used.
How Long this Coverage Lasts
The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:
1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year
warranty for firmware and software updates.
2. All Kramer fiber optic cables, adapter-size fiber optic extenders, active cables, cable retractors, all Kramer speakers and Kramer touch panels
are covered by a standard one (1) year warranty.
3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all
streaming, and all wireless products are covered by a standard three (3) year warranty.
4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.
5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for
three (3) years).
6. K-Touch software is covered by a standard one (1) year warranty for software updates.
7. All Kramer passive cables are covered by a ten (10) year warranty.
Who is Covered
Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or
owners of this product.
What Kramer Electronics Will Do
Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper
claim under this limited warranty:
1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and
labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs
necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same
function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought
under this limited warranty.
What Kramer Electronics Will Not Do Under This Limited Warranty
If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer
Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned
uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or reinstallation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any
adjustment of user controls or any programming required for a specific installation of this product.
How to Obtain a Remedy Under This Limited Warranty
To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this
product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service
providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer
Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be
required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.
If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original
carton, for shipping. Cartons not bearing a return authorization number will be refused.
Limitation of Liability
THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID
FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL
THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or
the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT
PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR
EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.
IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A “CONSUMER PRODUCT” UNDER THE MAGNUSON -MOSS WARRANTY ACT (15
U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND
ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE,
SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.
Other Conditions
This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by
Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an
authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this
document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the
online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of
satisfaction.
www.KramerAV.com
info@KramerAV.com
P/N:
2900-300889
Rev:
1
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where
updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Loading...
