Kramer VS-401YC User Manual
Kramer Electronics, Ltd.
USER MANUAL
Model:
VS-401YC
4x1 s-Video / Audio Switcher - DA
Contents
i
Contents
1
Introduction 1
2
Getting Started 1
2.1
Quick Start 1
3
Overview 3
4
Your VS-401YC
4x1 s-Video /
Audio Switcher - DA 4
5
Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA 6
5.1
Connecting a PC 8
6
Flash Memory Upgrade 9
6.1
Downloading from the Internet 9
6.2
Connecting the PC to the RS-232 Port 9
6.3
Upgrading Firmware 9
7
Technical Specifications 15
8
VS-401YC Communication Protocol 16
Figures
Figure 1: VS-401YC 4x1 s-Video / Audio Switcher - DA 4
Figure 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside view 5
Figure 3: Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA 7

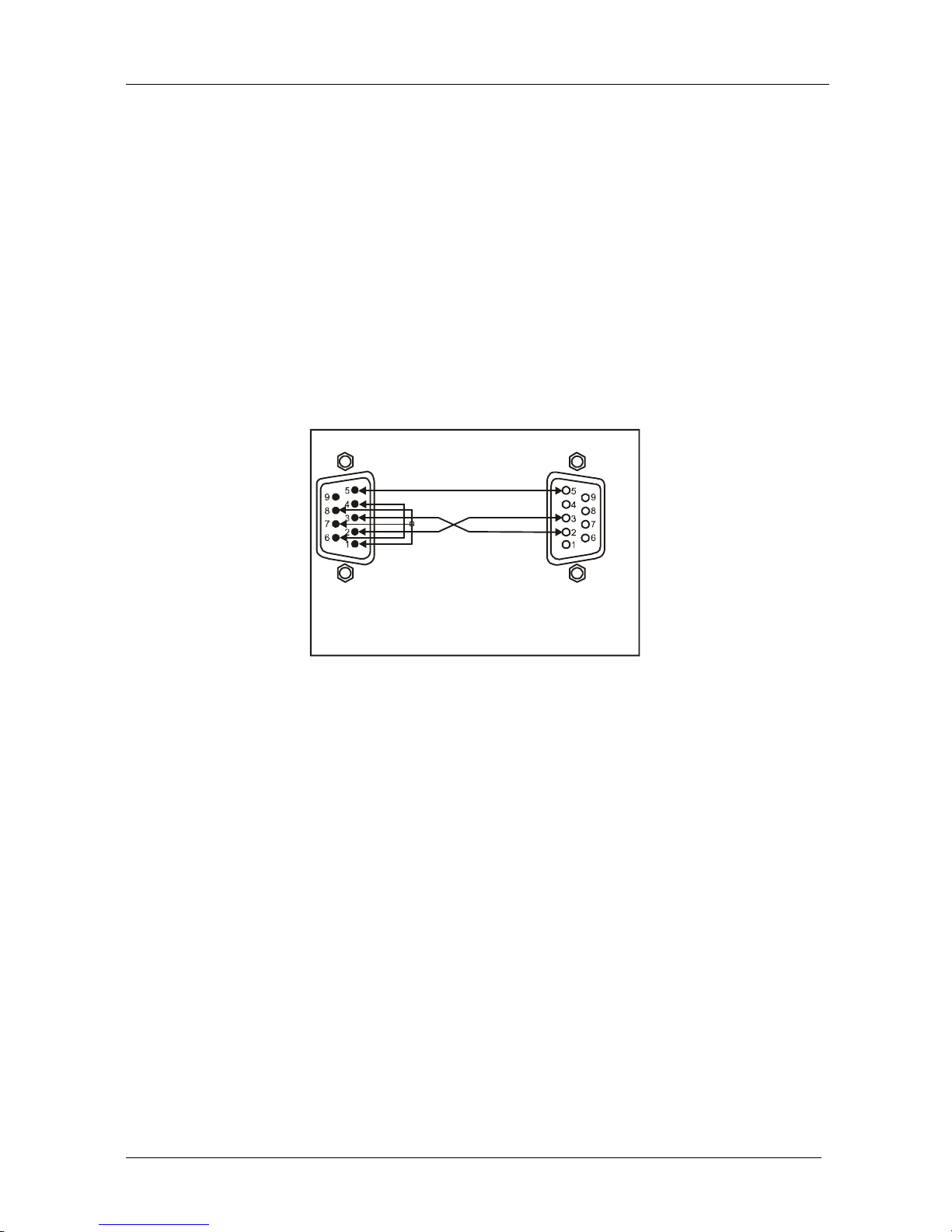

Figure 4: Connecting a PC without using a Null-modem Adapter 8

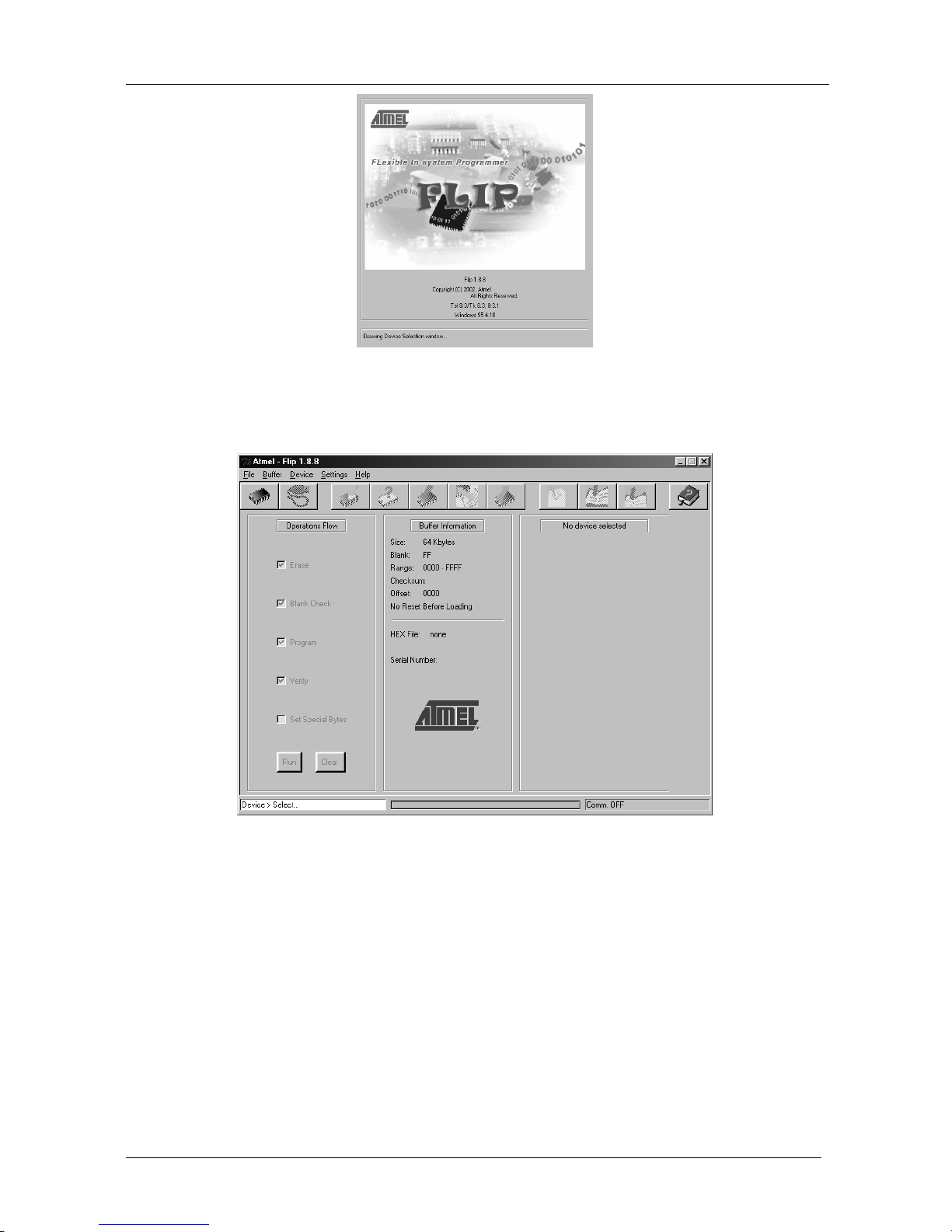

Figure 5: Splash Screen 10
Figure 6: Atmel – Flip Window 10
Figure 7: Device Selection Window 11
Figure 8: Selecting the Device from the Selection Window 11

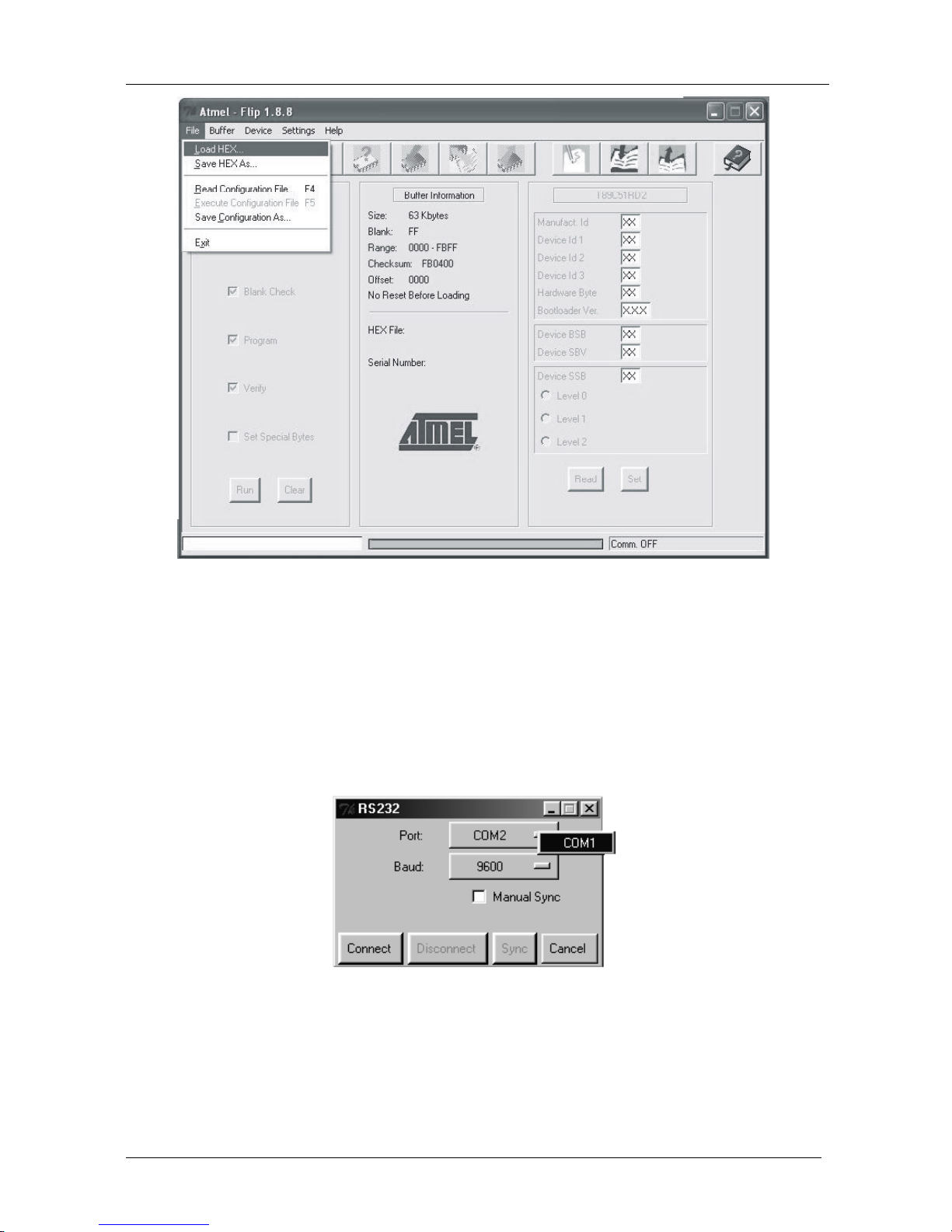

Figure 9: Loading the Hex 12
Figure 10: RS-232 Window 12

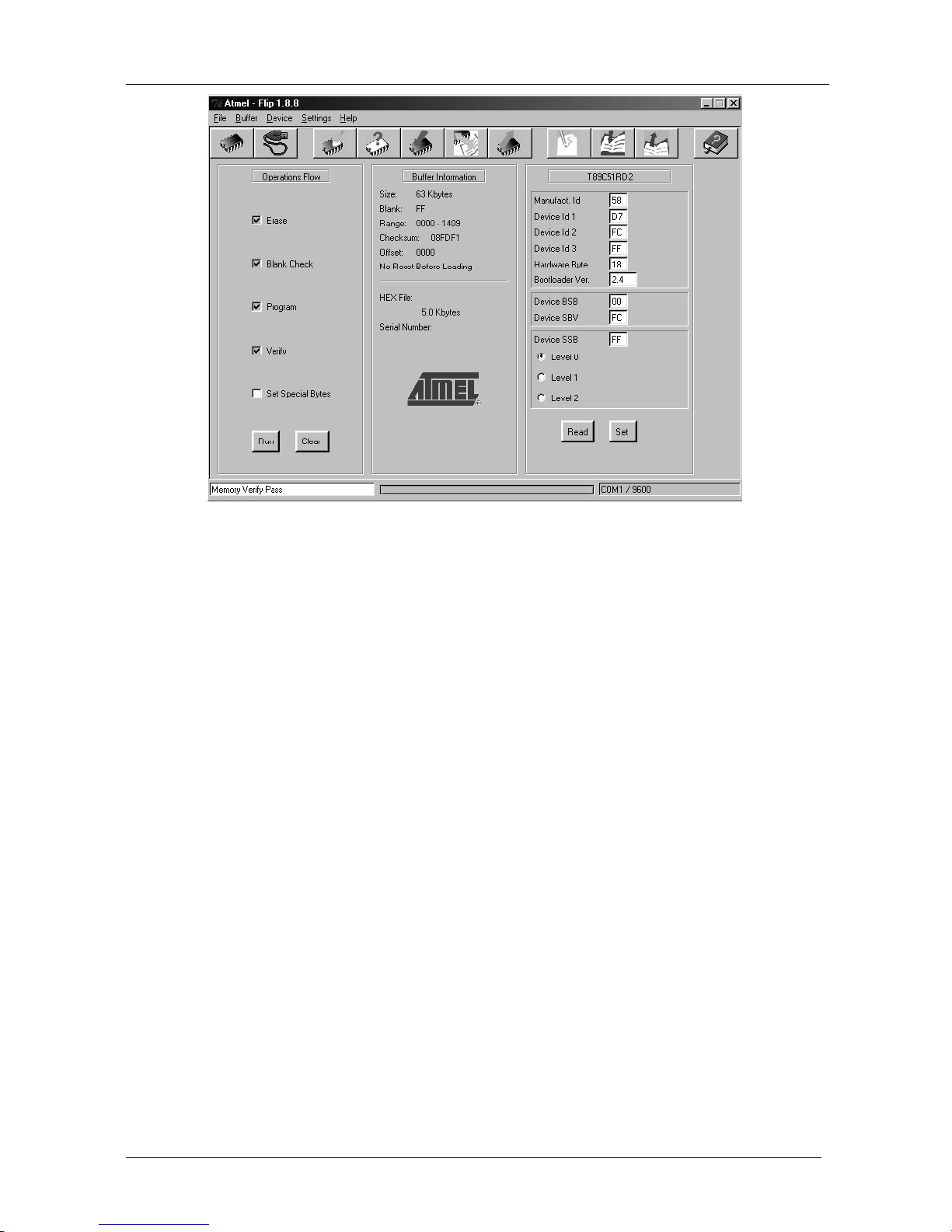

Figure 11: Atmel – Flip Window (Connected) 13
Figure 12: Atmel – Flip Window (Operation Completed) 14
Tables
Table 1: Features and Functions of the VS-401YC 4x1 s-Video / Audio Switcher - DA 4
Table 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside Features 5
Table 3: VS-401YC 4x1 s-Video / Audio Switcher - DA Technical Specifications 15
Table 4: Protocol Definitions 16
Table 5: Instruction Codes for Protocol 2000 17
Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups1, which are clearly defined
by function.
Congratulations on purchasing your Kramer VS-401YC 4x1 s-Video / Audio
Switcher - DA, which is ideal for the following applications:
Video duplication studios
Broadcasting, production, or presentation systems requiring high quality
signal distribution
Schools, retail outlets, sports bars, or other point-of-sale and CCTV
The package includes the following items:
VS-401YC 4x1 s-Video / Audio Switcher - DA
Power adapter (12V DC Input)
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
s-Video
Display
s-Video
Recorder
s-Video
Camera
Set Top Box
Source
DVD Player
s-Video Player
Overview
3
3 Overview
The VS-401YC is a 4x1 switcher and distribution amplifier for s-Video and
stereo audio signals, that lets you switch and distribute any of the four inputs
to two identical outputs.
In particular, the VS-401YC:
Features video input and output signals on 4p connectors and audio input
and output signals on RCA connectors
Has four selector buttons for selecting the input to switch to the two
identical outputs
Lets you disconnect the input1 from the outputs by pressing a selected
button a second time
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VS-401YC
away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit2.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 Except for the sync signal on input 1, resulting in a black screen display
2 For example: model number AD2512C, part number 2535-000251
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-401YC 4x1 s-Video / Audio Switcher - DA
4
4 Your VS-401YC
4x1 s-Video /
Audio Switcher - DA
Figure 1 and Table 1 define the VS-401YC:
Figure 1: VS-401YC 4x1 s-Video / Audio Switcher - DA
Table 1: Features and Functions of the VS-401YC 4x1 s-Video / Audio Switcher - DA
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 INPUT SELECT Buttons Press to select the input to switch to the output
3 s-VIDEO IN 4p Connectors Connect to the s-Video sources (from 1 to 4)
4 s-VIDEO OUT 4p Connectors Connect to the s-Video acceptors (OUT 1 and OUT 2)
5 R RCA connector Connect to the right audio sources (from 1 to 4)
6
AUDIO IN
L RCA Connector Connect to the left audio source (from 1 to 4)
7 R RCA Connectors Connect to the right audio acceptor (OUT 1 and OUT 2)
8
AUDIO
OUT
L RCA Connectors Connect to the left audio acceptor (OUT 1 and OUT 2)
9 RS-232 DB 9F Port Connects to the PC or the Remote Controller1
10 12VDC +12V DC connector for powering the unit
1 Via a null-modem connection
Your VS-401YC 4x1 s-Video / Audio Switcher - DA
5
Figure 2 and Table 2 define the underside of the VS-401YC:
Figure 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside view
Table 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside Features
# Feature Function
1 PROGRAM ON / OFF Switch Select OFF for normal operation (the factory default), and ON to
upgrade to the latest Kramer firmware (see section 6)
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA
6

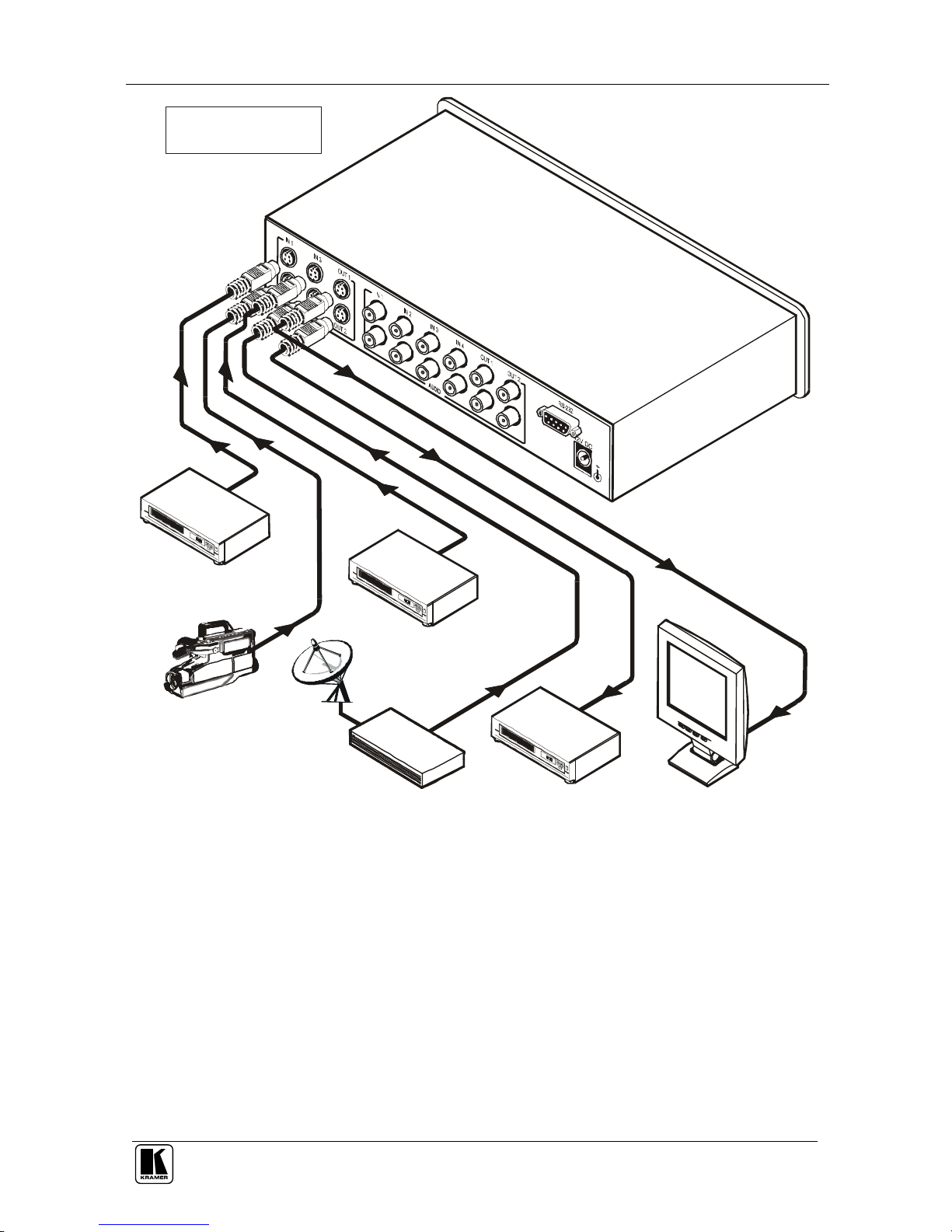

5 Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA
To connect1 the VS-401YC 4x1 s-Video / Audio Switcher - DA, as the
example in Figure 3 illustrates, do the following:
1. Connect up to2 four s-Video sources to the s-VIDEO IN 4p connectors:
An s-Video player to IN 1
An s-Video camera to IN 2
A DVD player to IN 3
A set top box source to IN 4
2. Connect3 the respective2 audio sources to the L (left) and R (right) AUDIO IN
RCA connectors (from IN 1 to IN 4).
3. Connect the s-VIDEO OUT 4p connectors4:
OUT 1 to an s-Video display
OUT 2 to an s-Video recorder
4. Connect the respective L (left) and R (right) AUDIO OUT RCA connectors to
the appropriate audio inputs on the s-Video acceptors3.
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
1 Switch OFF the power on each device before connecting it to your VS-401YC. After connecting your VS-401YC, switch on
its power and then switch on the power on each device
2 You do not have to connect all the inputs
3 Not shown in Figure 3
4 You do not have to connect all the outputs
